Services built with 20th century programming languages are reaching their scalability limits. The global interpreter lock and the lack of an asynchronous programming model are becoming barriers to accommodating the numbers of users typical of today's mobile as well as web worlds. In this talk I cover the transition of a back-end service to Scala and the changes associated with it. The improved performance and cost savings of the Scala implementation free up resources that could be better leveraged elsewhere.

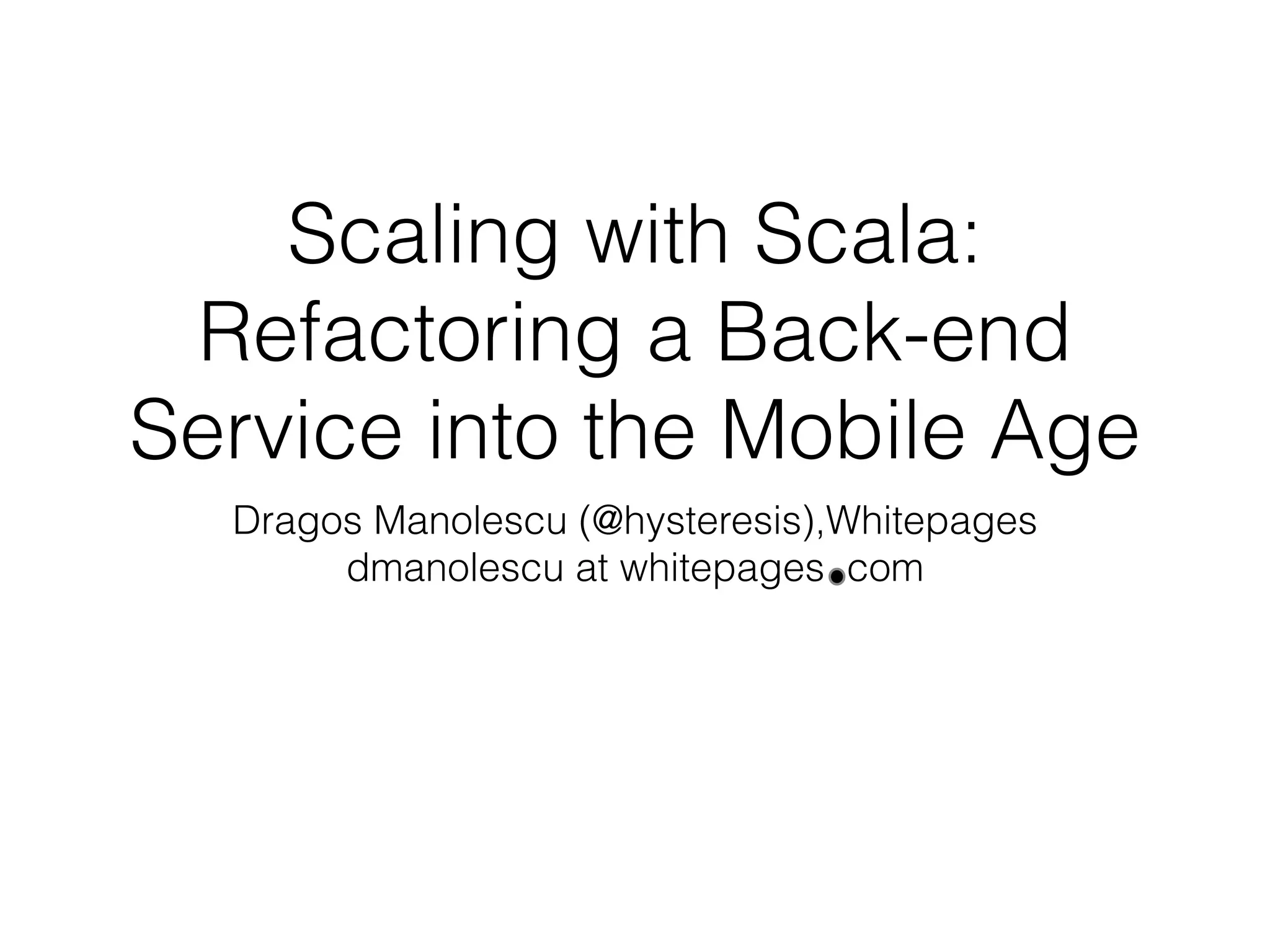

1. Scaling with Scala:
Refactoring a Back-end
Service into the Mobile Age
Dragos Manolescu (@hysteresis),Whitepages
dmanolescu at whitepages com

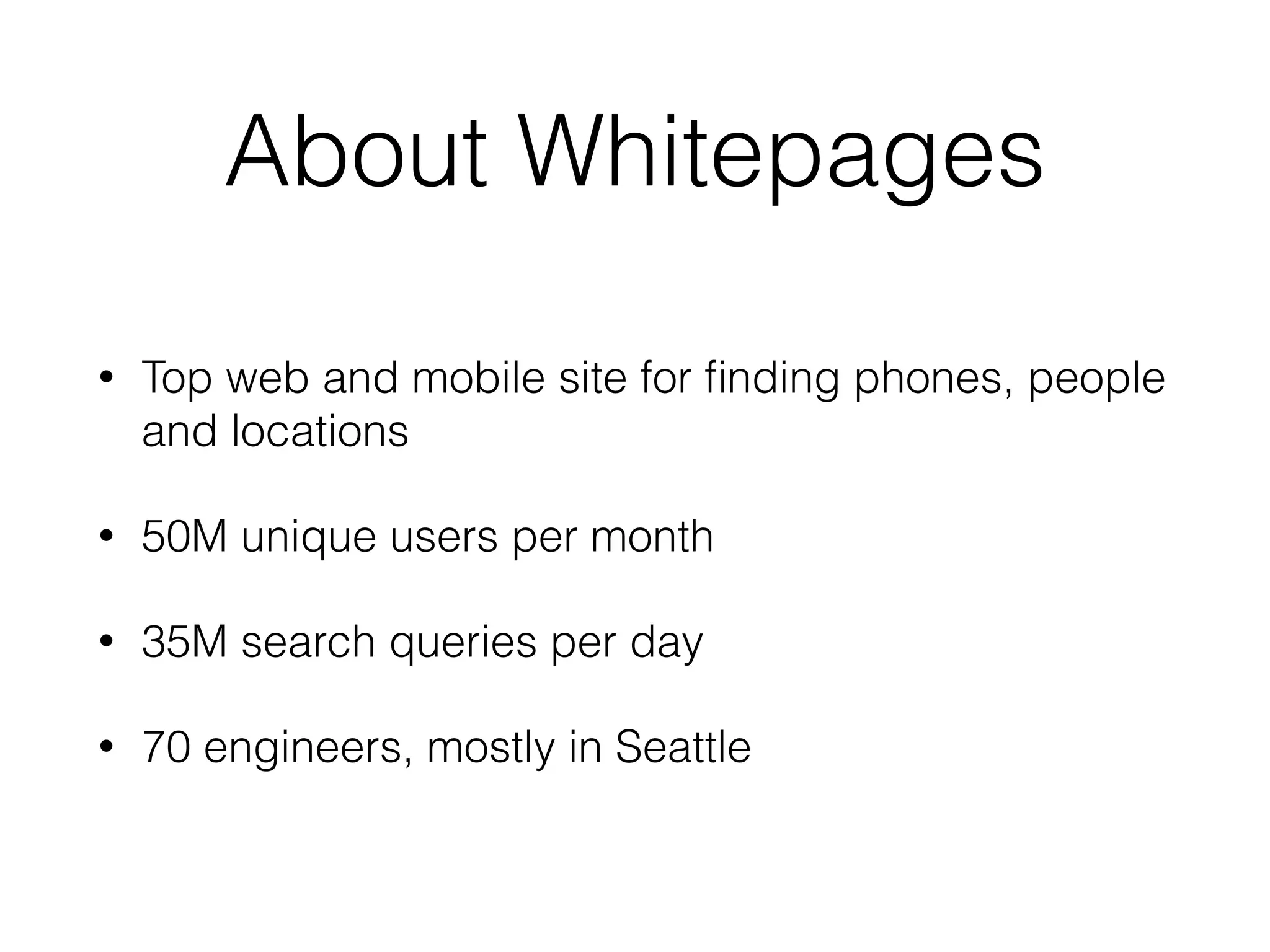

2. About Whitepages
• Top web and mobile site for finding phones, people
and locations
• 50M unique users per month
• 35M search queries per day
• 70 engineers, mostly in Seattle

3. Background
• Ruby backend services
• Shifting to Scala to accommodate growth
• Technologies:
• spray.io (client, server)
• Thrift and Scrooge
• Coda Hale metrics
• Typesafe Webinar: http://j.mp/Y6gH05

4. Worker Backend Service
AMQ Worker AMQ
N1
N3
N2
AMQ
AMQ
Riak Cluster
JSON
JSON
JSON
JSON
Compressed binary Thrift

5. Sidebar: Scala Async
Programming Model
• Future-based
• Future[T] monad
• Composition w/ the collection-like API (map, etc.)
• Actor-based
• Eliminates locks and thread management
• Resiliency through supervision (Erlang/OTP)

6. Future Composition
def retrieveDataAndMaterialize(req: MaterializationRequest, resolutions:
ResolutionList, jobStatus: JobStatus): Future[CreateMaterializationResult] = {
/* snip */
!
val dasFactsF = getContactListFor(dasBucketPrefix)
val deviceFactsF = getContactListFor(deviceBucketPrefix)
val fbFactsF = getContactListFor(facebookBucketPrefix)
val twFactsF = getContactListFor(twitterBucketPrefix)
val lnFactsF = getContactListFor(linkedinBucketPrefix)
!
val materializationResultF =
for {
mlHolderOpt <- mlHolderOptF
rflHolderOpt <- rflHolderOptF
dasFacts <- dasFactsF
deviceFacts <- deviceFactsF
fbFacts <- fbFactsF
twFacts <- twFactsF
lnFacts <- lnFactsF
} yield
materialize(req, resolutions, jobStatus, mlHolderOpt, rflHolderOpt,
dasFacts, deviceFacts, fbFacts, twFacts, lnFacts)
materializationResultF.flatMap(f => f )
}

7. Sidebar: Akka Actor Model
Actor
Parent
Mailbox Behavior
Child
Child
M M M
Actor
Mailbox Behavior
Messages

8. Messaging to Actors
private def connectedBehavior(consumer: MessageConsumer): Receive = {
case PullNextMessage =>
Option(consumer.receiveNoWait()) match {
case Some(m) =>
monitor ! SignalMaterializationRequestReceived(m.getJMSRedelivered)
self ! ProcessMessage(m)
case None if incomingRequests.isEmpty =>
context.system.scheduler.scheduleOnce(wakeupInterval, self, PullNextMessage)
case None if incomingRequests.size <= prefetch =>
acknowledgeSessionMessages()
case _ => /* nop */
}

9. Sidebar: Monitoring w/
CodaHale metrics and Graphite

10. Sidebar: ActiveMQ, Camel
and Akka
• Apache ActiveMQ: message broker
• JMS, AMQP, MQTT, …
• Durable messaging, transactions
• “The main use case for ActiveMQ is migrating off ActiveMQ”
• Apache Camel: messaging w/ glue and routing
• Wide range of endpoints (file, JMS, JDBC, XMPP)
• Enterprise Integration patterns
• Akka-Camel: actors w/ Camel endpoints

11. Sidebar: ActiveMQ, Camel
and Akka (cont.)
• Conflicting assumptions?
• Guaranteed delivery
• Delivery semantics
• JMS prefetch and CLIENT_ACKNOWLEDGE
• Pragmatic architectural decisions (Lucy Berlin,
When Objects Collide, OOPSLA 1990)

12. Futures and Actors
/* inside actor code */
def acknowledgeSessionMessages(): Unit = {
Future.sequence(resultsF)
.map { results => AcknowledgeSession}
.recover { case t: Throwable =>
RecoverSession(t)}
.pipeTo(self)
}
!
override def receive: Receive {
case AcknowledgeSession => //
case RecoverSession(t) => //
//
}

13. Supervision:Error Kernel
AmqClient
start
stop
registerQueueListener
unregisterQueueListener
createQueueSender
deleteQueueSender
AmqSupervisor
consumers
closingConsumers
senders
closingSenders
child [become]
AmqActor
Actor
connection [become]
ConsumerActor
session
processMessage
Actor
AmqSender
ProducerActor
session
Actor
JMS.MessageProducer
sendTextMessage()
disconnectConsumers
disconnectSenders
Actor
<<parent-of>>
<<parent-of>>
<<parent-of>>

14. Results

15. 2 Scala instances
290 Ruby instances

16. Not so fast (no pun
intended)

17. Performance Tuning

18. Riak Client
object ConverterBase extends ClassSupport {
!
def bytesToRiakObject(key: String, bucket: String, vclock: VClock, bytes: Array[Byte]): IRiakObject = {
val blob = Snappy.compress(bytes)
monitor ! BashoValueSize(blob.length, BashoPutOperation)
RiakObjectBuilder.newBuilder(bucket, key)
.withValue(blob).withVClock(vclock)
.withContentType(BashoMobileClient.contentType)
.withUsermeta(BashoMobileClient.userMeta)
.build()
}
!
def riakObjectToBytes(riakObject: IRiakObject) = {
val thriftBytes = Snappy.uncompress(riakObject.getValue)
Thrift.deserializeThrift(thriftBytes, ThriftCompactProtocol)
}
}
!
abstract class ConverterBase[T <: ThriftStruct](key: String, bucket: String) extends Converter[StoredObjectHolder[T]] {
!
override def fromDomain(valueHolder: StoredObjectHolder[T], vclock: VClock): IRiakObject =
ConverterBase.bytesToRiakObject(valueHolder.key, bucket, vclock,
Thrift.serializeThrift(valueHolder.value.get, ThriftCompactProtocol))
!
override def toDomain(riakObject: IRiakObject): StoredObjectHolder[T] = {
if (riakObject == null) new StoredObjectHolder[T](key)
else StoredObjectHolder[T](riakObject.getKey, Some(riakObject.getVClock),
Some(makeNew(ConverterBase.riakObjectToBytes(riakObject))))
}
!
def makeNew(protocol: TProtocol): T
}

19. JVM Serialization

20. Snappy or LZ4? Micro-benchmarking
with JMH

21. Throughput Measurements

22. Compression Measurements

23. Summary
• Shifting from Ruby to Scala
• Scala async programing model
• JVM optimizations
• Results:
• Increased throughput
• Better hardware utilization
• Lower operating cost
• Seamless integration with Java ecosystem

24. Thank you!
(we are hiring)

25. Resources
• Typesafe Webinar w/ Whitepages: http://j.mp/Y6gH05
• JVM Serializer Benchmarks: http://j.mp/1BBYdky
• YourKit Java profiler: http://j.mp/10mFu17
• JMH: http://j.mp/1BC5Bwv
• When Objects Collide: http://j.mp/1vBiPsz
• Coda Hale metrics: http://j.mp/1vyl9j1
