1. The document presents a technique called SATT (Software Architecture-based Threshold Tailoring) that tailors code metric thresholds to different software architectures. 2. SATT works by ordering classes by their metric values, weighting them based on their size, aggregating the weights to extract thresholds at certain points, and defining thresholds specific to architectural roles whose metrics differ significantly from other classes. 3. The study applies SATT to projects using common architectures like MVC and finds that architectural roles do have significantly different metric value distributions compared to other classes, which can be explained by their specialized responsibilities. SATT improves over benchmark-based techniques by setting role-specific thresholds.

1. SATT: Tailoring Code Metric
Thresholds for Different
Software Architectures
1
Maurício Aniche, Christoph Treude, Andy Zaidman, Arie van Deursen, Marco Gerosa
@mauricioaniche, @ctreude, @azaidman, @avandeursen, @gerosa_marco

2. Medical Exams
SCAM 2016 2

3. SCAM 2016 3
Sugar level 150 [70,120]

4. SCAM 2016 4
Coupling 10 < 15
How to find
this number?

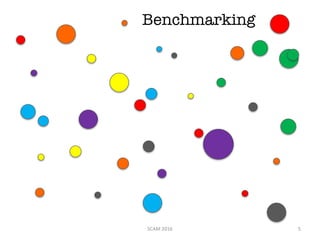

5. SCAM 2016 5
Benchmarking

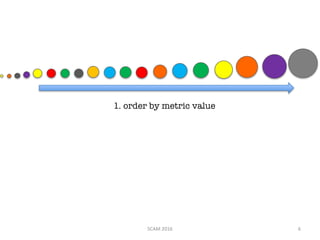

6. 1. order by metric value
SCAM 2016 6

7. 1. order by metric value
2. weight
SCAM 2016 7

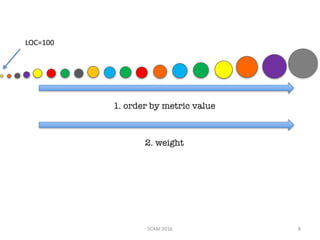

8. 1. order by metric value
2. weight
SCAM 2016 8
LOC=100

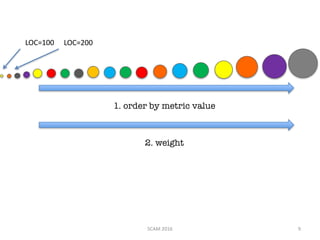

9. 1. order by metric value
2. weight
SCAM 2016 9
LOC=100 LOC=200

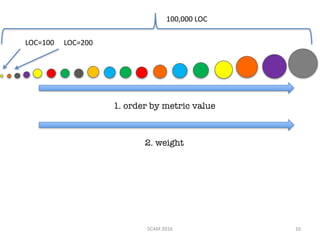

10. 1. order by metric value
2. weight
SCAM 2016 10
100,000 LOC
LOC=100 LOC=200

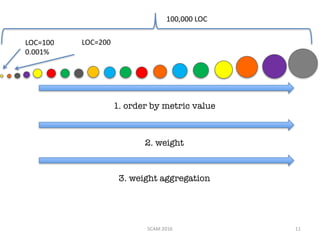

11. 1. order by metric value
2. weight
SCAM 2016 11
100,000 LOC
LOC=100
0.001%
LOC=200
3. weight aggregation

12. 1. order by metric value
2. weight
SCAM 2016 12
100,000 LOC
LOC=100
0.001%
LOC=200
0.002%
3. weight aggregation

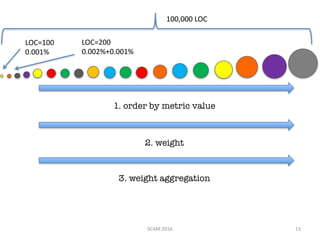

13. 1. order by metric value
2. weight
SCAM 2016 13
100,000 LOC
LOC=100
0.001%
LOC=200
0.002%+0.001%
3. weight aggregation

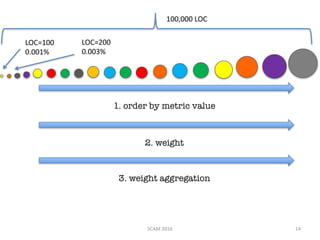

14. 1. order by metric value
2. weight
SCAM 2016 14
100,000 LOC
LOC=100
0.001%
LOC=200
0.003%
3. weight aggregation

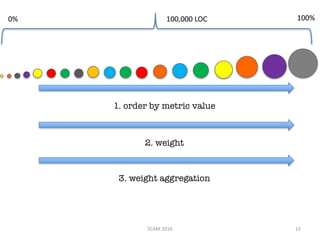

15. 1. order by metric value
2. weight
SCAM 2016 15
100,000 LOC
3. weight aggregation
0% 100%

16. 0% 10% 30% 70% 80% 90% 100%
SCAM 2016 16
1. order by metric value
2. weight
3. weight aggregation

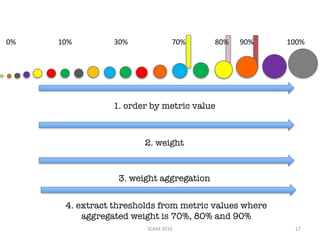

17. 4. extract thresholds from metric values where
aggregated weight is 70%, 80% and 90%
0% 10% 30% 70% 80% 90% 100%
SCAM 2016 17
1. order by metric value
2. weight
3. weight aggregation

18. SCAM 2016 18

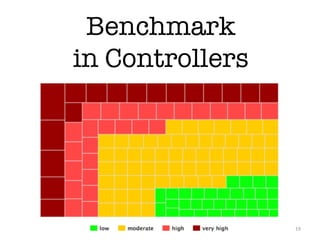

19. Benchmark
in Controllers
19

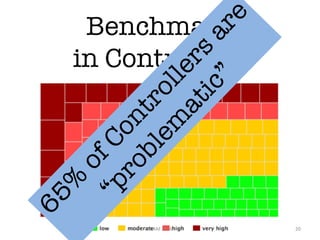

20. Benchmark
in Controllers
SCAM 2016 20

21. That’s not what
we want
SCAM 2016 21

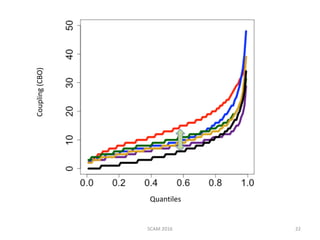

22. SCAM 2016 22
Quantiles
Coupling (CBO)

23. SATT for the rescue
SCAM 2016 23

24. SCAM 2016 24

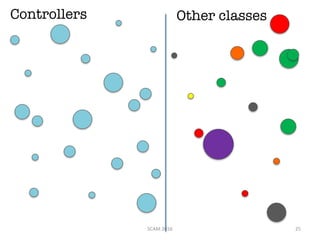

25. Controllers Other classes
SCAM 2016 25

26. 1. order by metric value
SCAM 2016 26

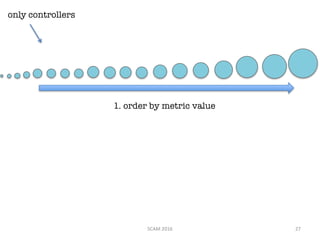

27. 1. order by metric value
only controllers
SCAM 2016 27

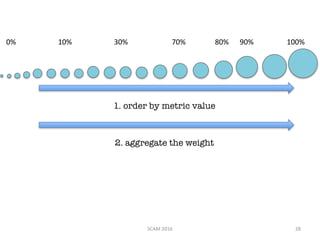

28. 1. order by metric value
2. aggregate the weight
0% 10% 30% 70% 80% 90% 100%
SCAM 2016 28

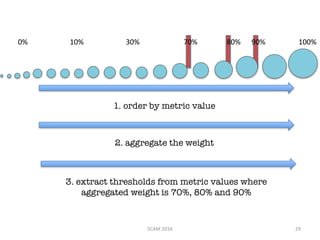

29. 1. order by metric value
2. aggregate the weight
3. extract thresholds from metric values where
aggregated weight is 70%, 80% and 90%
0% 10% 30% 70% 80% 90% 100%
SCAM 2016 29

30. Our studySCAM 2016 30

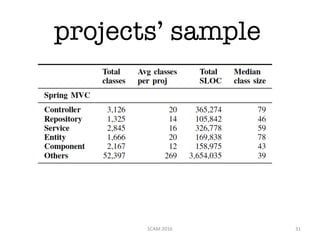

31. projects’ sample
SCAM 2016 31

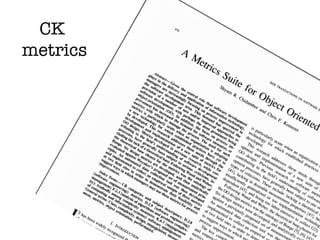

32. CK
metrics
SCAM 2016 32

33. RQ1. What differences in metric values
distributions does SATT find for common
architectural styles such as MVC?
SCAM 2016 33

34. RQ2. Can the differences in distributions
thus found be explained from the
architectural constraints imposed on
classes fulfilling dedicated architectural
roles?
SCAM 2016 34

35. RQ3. What impact do these differences
have on the use of thresholds for quality
assessments?
SCAM 2016 35

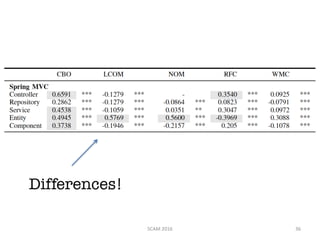

36. Differences!
SCAM 2016 36

37. RQ1. The approach indeed finds architectural roles
that present significantly higher (or lower) values
for certain metrics when compared to other classes.
SCAM 2016 37

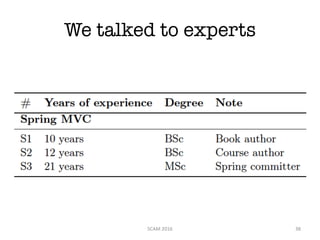

38. We talked to experts
SCAM 2016 38

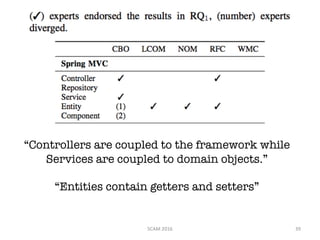

39. SCAM 2016 39
“Controllers are coupled to the framework while
Services are coupled to domain objects.”
“Entities contain getters and setters”

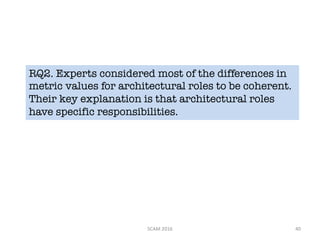

40. RQ2. Experts considered most of the differences in
metric values for architectural roles to be coherent.
Their key explanation is that architectural roles
have specific responsibilities.
SCAM 2016 40

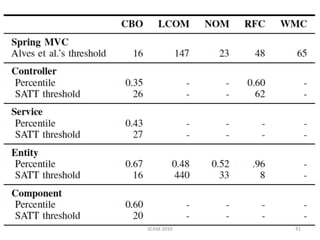

41. SCAM 2016 41

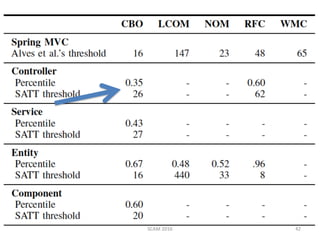

42. SCAM 2016 42

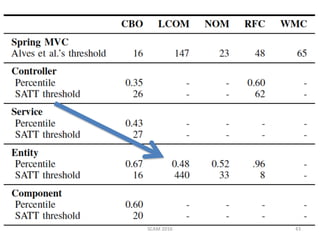

43. SCAM 2016 43

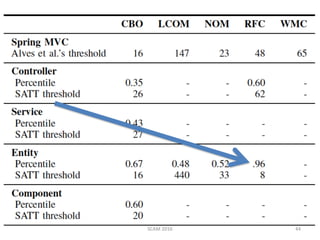

44. SCAM 2016 44

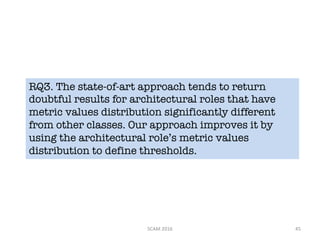

45. RQ3. The state-of-art approach tends to return
doubtful results for architectural roles that have
metric values distribution significantly different
from other classes. Our approach improves it by
using the architectural role’s metric values
distribution to define thresholds.
SCAM 2016 45

46. Same for Android!
SCAM 2016 46

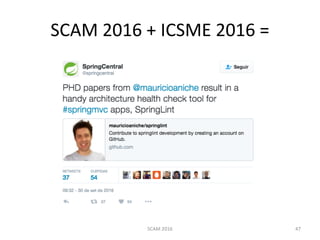

47. SCAM 2016 + ICSME 2016 =
SCAM 2016 47

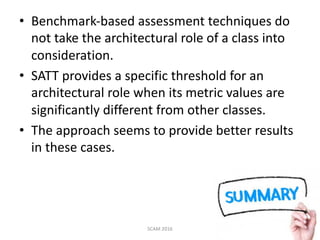

48. • Benchmark-based assessment techniques do
not take the architectural role of a class into
consideration.
• SATT provides a specific threshold for an
architectural role when its metric values are
significantly different from other classes.
• The approach seems to provide better results
in these cases.
SCAM 2016 48

49. SATT: Tailoring Code Metric
Thresholds for Different
Software Architectures
49
Maurício Aniche, Christoph Treude, Andy Zaidman, Arie van Deursen, Marco Gerosa
@mauricioaniche, @ctreude, @azaidman, @avandeursen, @gerosa_marco
