The document discusses the Sardar Sarovar Dam located in Kevadia, Gujarat. Some key details include: - It is a 138.68 meter tall gravity dam on the Narmada River that provides irrigation, power generation, and flood control. - Construction began in 1987 and it was inaugurated in 2017 at its full height of 163 meters. - It has a total storage capacity of 9.5 cubic km and irrigates over 1 million hectares of land across Gujarat and Rajasthan. - Benefits include providing water for drinking and irrigation, hydroelectric power, flood protection, and employment. However, it also displaced over 200,000

1. NARMADA COLLEGE OF
SCIENCE & COMMERCE
HEMANTKUMAR NARENDRABHAI MALPURE - FYBCOM - SEM 1 – ENVIRONMENTAL STUDIES – ASSIGNMENT 1 – SARDAR SAROVAR DAM

2. Name : Hemantkumar Narendrabhai Malpure
Roll No. : 48
Subject : Environmental Studies
Stream : F.Y. B.Com. (G.I.A.)
HEMANTKUMAR NARENDRABHAI MALPURE - FYBCOM - SEM 1 – ENVIRONMENTAL STUDIES – ASSIGNMENT 1 – SARDAR SAROVAR DAM

3. ASSIGNMENT – 1
SARDAR SAROVAR DAM
HEMANTKUMAR NARENDRABHAI MALPURE - FYBCOM - SEM 1 – ENVIRONMENTAL STUDIES – ASSIGNMENT 1 – SARDAR SAROVAR DAM

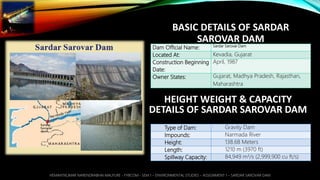

4. BASIC DETAILS OF SARDAR
SAROVAR DAM
Dam Official Name: Sardar Sarovar Dam
Located At: Kevadia, Gujarat
Construction Beginning
Date:
April, 1987
Owner States: Gujarat, Madhya Pradesh, Rajasthan,
Maharashtra
HEIGHT WEIGHT & CAPACITY
DETAILS OF SARDAR SAROVAR DAM
Type of Dam: Gravity Dam
Impounds: Narmada River
Height: 138.68 Meters
Length: 1210 m (3970 ft)
Spillway Capacity: 84,949 m3/s (2,999,900 cu ft/s)
HEMANTKUMAR NARENDRABHAI MALPURE - FYBCOM - SEM 1 – ENVIRONMENTAL STUDIES – ASSIGNMENT 1 – SARDAR SAROVAR DAM

5. RESERVOIR OF SARDAR
SAROVAR DAM
GEOGRAPHICAL LOCATION OF
SARDAR SAROVAR DAM
Total capacity 9.5 km3 (7,700,000 acre ft)
Active capacity 5.8 km3 (4,700,000 acre ft)
Catchment area 88,000 km2 (34,000 sq mi)
Surface area 375.33 km2 (144.92 sq mi)
Maximum length 214 km (133 mi)
Maximum width 77.km (1.10 mi)
 To the south west Malwa plateau, the dissected hill
tracts culminate in the Mathwar hills, located
in Alirajpur district of Madhya Pradesh.
 Below these hills Narmada river flows through a
long, terrific gorge.
 This gorge extends into Gujarat where the river is
tapped by the Sardar Sarovar dam.
HEMANTKUMAR NARENDRABHAI MALPURE - FYBCOM - SEM 1 – ENVIRONMENTAL STUDIES – ASSIGNMENT 1 – SARDAR SAROVAR DAM

6. HISTORY OF SARDAR SAROVAR DAM
The plan for harnessing the river for irrigation and power generation in the Narmada basin was initiated in 1946.
Seven projects including the Bharuch project were identified during the initial Survey and 4 projects Bharuch
(Gujarat), Bargi, Tawa and Punasa in Madhya Pradesh were given top priority for investigation. After the
completion of investigation, the proposed dam at Gora in Gujarat with the full reservoir level (FRL) 161 ft (49.08m)
was selected and the foundation stone was laid by late Prime Minister, Pandit Jawaharlal Nehru on 5th April, 1961.
However as more detailed, modernized contour sheets from the Survey of India were available thereafter,
possibility of raising the height of the dam for optimum utilization of water was considered.
In 1964, to resolve the dispute about sharing of the Narmada Waters between the Governments of Gujarat and
Madhya Pradesh, the Government of India appointed an expert committee under the Chairmanship of late Dr.
Khosla which recommended a higher dam with FRL 500 ft (152.44m) in 1965. However, Govt. of M.P. was not
agreeable to development of Narmada water as per Khosia Committee report and hence the Narmada Water
Dispute Tribunal (NWDT) was constituted by the Government of India in October 1969, under the Inter State River
Water Disputes Act, 1956. NWDT gave its final award in December 1979.
HEMANTKUMAR NARENDRABHAI MALPURE - FYBCOM - SEM 1 – ENVIRONMENTAL STUDIES – ASSIGNMENT 1 – SARDAR SAROVAR DAM

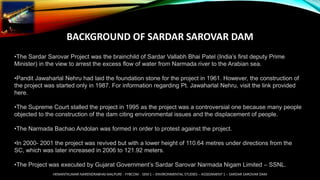

7. BACKGROUND OF SARDAR SAROVAR DAM
•The Sardar Sarovar Project was the brainchild of Sardar Vallabh Bhai Patel (India’s first deputy Prime
Minister) in the view to arrest the excess flow of water from Narmada river to the Arabian sea.
•Pandit Jawaharlal Nehru had laid the foundation stone for the project in 1961. However, the construction of
the project was started only in 1987. For information regarding Pt. Jawaharlal Nehru, visit the link provided
here.
•The Supreme Court stalled the project in 1995 as the project was a controversial one because many people
objected to the construction of the dam citing environmental issues and the displacement of people.
•The Narmada Bachao Andolan was formed in order to protest against the project.
•In 2000- 2001 the project was revived but with a lower height of 110.64 metres under directions from the
SC, which was later increased in 2006 to 121.92 meters.
•The Project was executed by Gujarat Government’s Sardar Sarovar Narmada Nigam Limited – SSNL.
HEMANTKUMAR NARENDRABHAI MALPURE - FYBCOM - SEM 1 – ENVIRONMENTAL STUDIES – ASSIGNMENT 1 – SARDAR SAROVAR DAM

8. ABOUT SARDAR SAROVAR DAM
•Sardar Sarovar Project is a concrete gravity dam on the Narmada river in
Kevadiya near Navagam, Gujarat.
•It is the second-largest concrete dam in the world in terms of the volume of
concrete used to construct the dam (after the Grand Coulee Dam in the
United States).
•It involves a series of large irrigation and hydroelectric multi-purpose
dams.
•The irrigation benefits accrue to the states of Rajasthan and Gujarat while
the hydroelectric power of the SSP is to be shared by the states of Gujarat,
Madhya Pradesh and Maharashtra. Maharashtra is to get around 57
percent of the electricity produced; Madhya Pradesh will get around 27
percent and Gujarat around 16 percent.
•It was funded by the World Bank through its International Bank for
Reconstruction and Development (IBRD), although it withdrew in 1994.
HEMANTKUMAR NARENDRABHAI MALPURE - FYBCOM - SEM 1 – ENVIRONMENTAL STUDIES – ASSIGNMENT 1 – SARDAR SAROVAR DAM

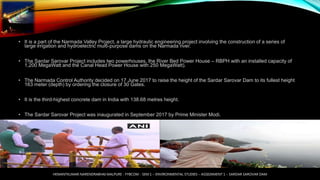

9. • It is a part of the Narmada Valley Project, a large hydraulic engineering project involving the construction of a series of
large irrigation and hydroelectric multi-purpose dams on the Narmada river.
• The Sardar Sarovar Project includes two powerhouses, the River Bed Power House – RBPH with an installed capacity of
1,200 MegaWatt and the Canal Head Power House with 250 MegaWatt).
• The Narmada Control Authority decided on 17 June 2017 to raise the height of the Sardar Sarovar Dam to its fullest height
163 meter (depth) by ordering the closure of 30 Gates.
• It is the third-highest concrete dam in India with 138.68 metres height.
• The Sardar Sarovar Project was inaugurated in September 2017 by Prime Minister Modi.
HEMANTKUMAR NARENDRABHAI MALPURE - FYBCOM - SEM 1 – ENVIRONMENTAL STUDIES – ASSIGNMENT 1 – SARDAR SAROVAR DAM

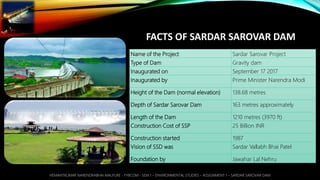

10. FACTS OF SARDAR SAROVAR DAM
Name of the Project Sardar Sarovar Project
Type of Dam Gravity dam
Inaugurated on September 17 2017
Inaugurated by Prime Minister Narendra Modi
Height of the Dam (normal elevation) 138.68 metres
Depth of Sardar Sarovar Dam 163 metres approximately
Length of the Dam 1210 metres (3970 ft)
Construction Cost of SSP 25 Billion INR
Construction started 1987
Vision of SSD was Sardar Vallabh Bhai Patel
Foundation by Jawahar Lal Nehru
HEMANTKUMAR NARENDRABHAI MALPURE - FYBCOM - SEM 1 – ENVIRONMENTAL STUDIES – ASSIGNMENT 1 – SARDAR SAROVAR DAM

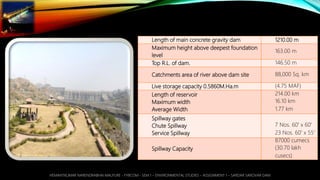

11. Length of main concrete gravity dam 1210.00 m
Maximum height above deepest foundation
level
163.00 m
Top R.L. of dam. 146.50 m
Catchments area of river above dam site 88,000 Sq. km
Live storage capacity 0.5860M.Ha.m (4.75 MAF)
Length of reservoir
Maximum width
Average Width
214.00 km
16.10 km
1.77 km
Spillway gates
Chute Spillway
Service Spillway
7 Nos. 60' x 60'
23 Nos. 60' x 55'
Spillway Capacity
87000 cumecs
(30.70 lakh
cusecs)
HEMANTKUMAR NARENDRABHAI MALPURE - FYBCOM - SEM 1 – ENVIRONMENTAL STUDIES – ASSIGNMENT 1 – SARDAR SAROVAR DAM

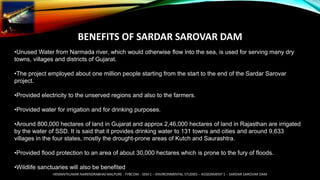

12. BENEFITS OF SARDAR SAROVAR DAM
•Unused Water from Narmada river, which would otherwise flow into the sea, is used for serving many dry
towns, villages and districts of Gujarat.
•The project employed about one million people starting from the start to the end of the Sardar Sarovar
project.
•Provided electricity to the unserved regions and also to the farmers.
•Provided water for irrigation and for drinking purposes.
•Around 800,000 hectares of land in Gujarat and approx 2,46,000 hectares of land in Rajasthan are irrigated
by the water of SSD. It is said that it provides drinking water to 131 towns and cities and around 9,633
villages in the four states, mostly the drought-prone areas of Kutch and Saurashtra.
•Provided flood protection to an area of about 30,000 hectares which is prone to the fury of floods.
•Wildlife sanctuaries will also be benefited
HEMANTKUMAR NARENDRABHAI MALPURE - FYBCOM - SEM 1 – ENVIRONMENTAL STUDIES – ASSIGNMENT 1 – SARDAR SAROVAR DAM

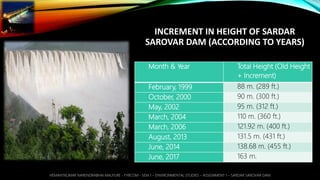

13. INCREMENT IN HEIGHT OF SARDAR
SAROVAR DAM (ACCORDING TO YEARS)
Month & Year Total Height (Old Height
+ Increment)
February, 1999 88 m. (289 ft.)
October, 2000 90 m. (300 ft.)
May, 2002 95 m. (312 ft.)
March, 2004 110 m. (360 ft.)
March, 2006 121.92 m. (400 ft.)
August, 2013 131.5 m. (431 ft.)
June, 2014 138.68 m. (455 ft.)
June, 2017 163 m.
HEMANTKUMAR NARENDRABHAI MALPURE - FYBCOM - SEM 1 – ENVIRONMENTAL STUDIES – ASSIGNMENT 1 – SARDAR SAROVAR DAM

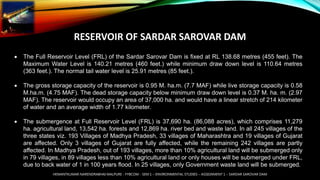

14. RESERVOIR OF SARDAR SAROVAR DAM
 The Full Reservoir Level (FRL) of the Sardar Sarovar Dam is fixed at RL 138.68 metres (455 feet). The
Maximum Water Level is 140.21 metres (460 feet.) while minimum draw down level is 110.64 metres
(363 feet.). The normal tail water level is 25.91 metres (85 feet.).
 The gross storage capacity of the reservoir is 0.95 M. ha.m. (7.7 MAF) while live storage capacity is 0.58
M.ha.m. (4.75 MAF). The dead storage capacity below minimum draw down level is 0.37 M. ha. m. (2.97
MAF). The reservoir would occupy an area of 37,000 ha. and would have a linear stretch of 214 kilometer
of water and an average width of 1.77 kilometer.
 The submergence at Full Reservoir Level (FRL) is 37,690 ha. (86,088 acres), which comprises 11,279
ha. agricultural land, 13,542 ha. forests and 12,869 ha. river bed and waste land. In all 245 villages of the
three states viz. 193 Villages of Madhya Pradesh, 33 villages of Maharashtra and 19 villages of Gujarat
are affected. Only 3 villages of Gujarat are fully affected, while the remaining 242 villages are partly
affected. In Madhya Pradesh, out of 193 villages, more than 10% agricultural land will be submerged only
in 79 villages, in 89 villages less than 10% agricultural land or only houses will be submerged under FRL,
due to back water of 1 in 100 years flood. In 25 villages, only Government waste land will be submerged.
HEMANTKUMAR NARENDRABHAI MALPURE - FYBCOM - SEM 1 – ENVIRONMENTAL STUDIES – ASSIGNMENT 1 – SARDAR SAROVAR DAM
