SAP WM OVERVIEW DOCUMENT FOR BEIGINERS

SAP Warehouse Management – organization structure

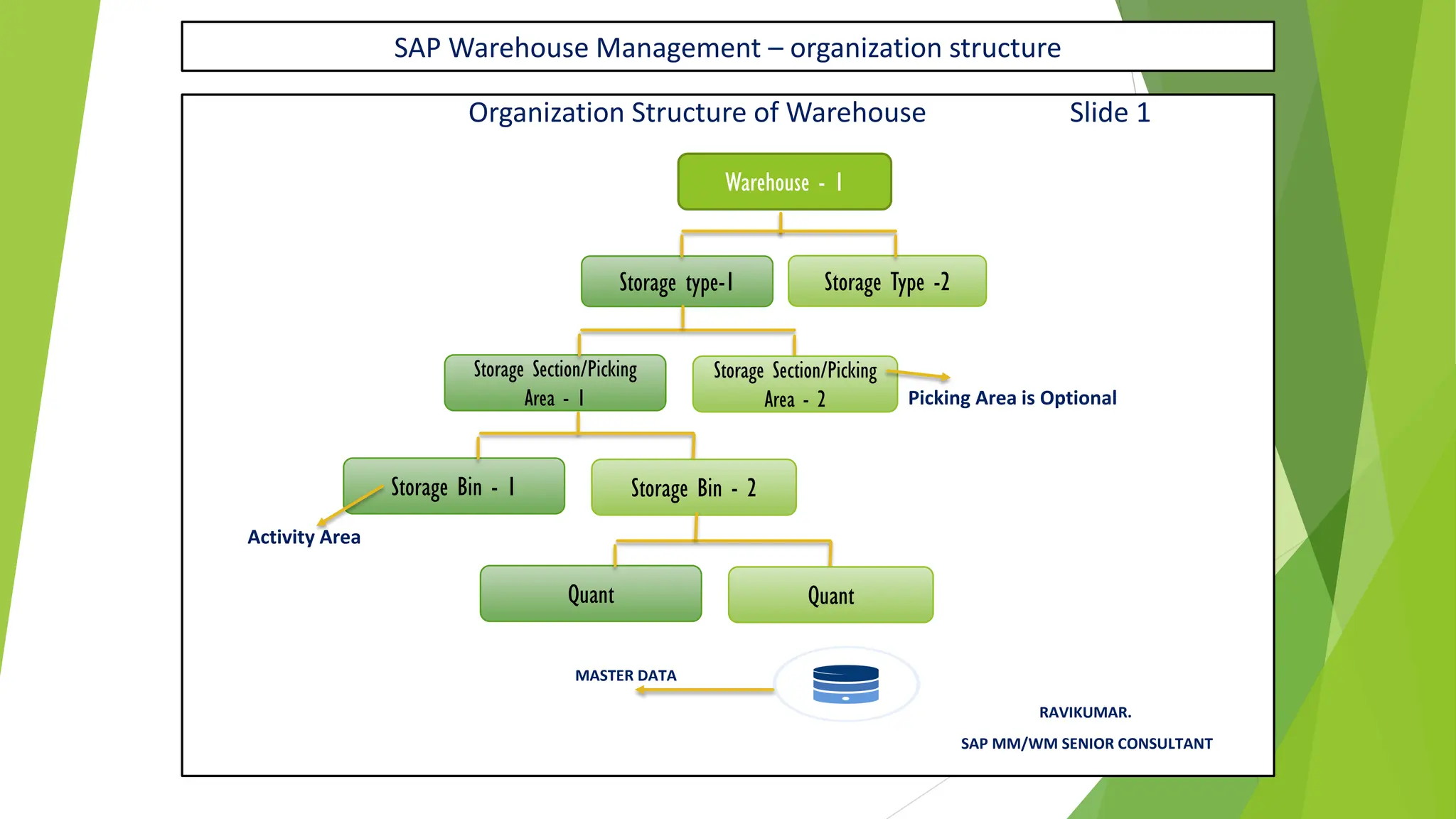

Organization Structure of Warehouse Slide 1
Picking Area is Optional
Activity Area
MASTER DATA
RAVIKUMAR.
SAP MM/WM SENIOR CONSULTANT
Warehouse - 1
Storage type-1 Storage Type -2
Storage Section/Picking
Area - 1
Area - 2
Storage Bin - 1 Storage Bin - 2
Quant Quant

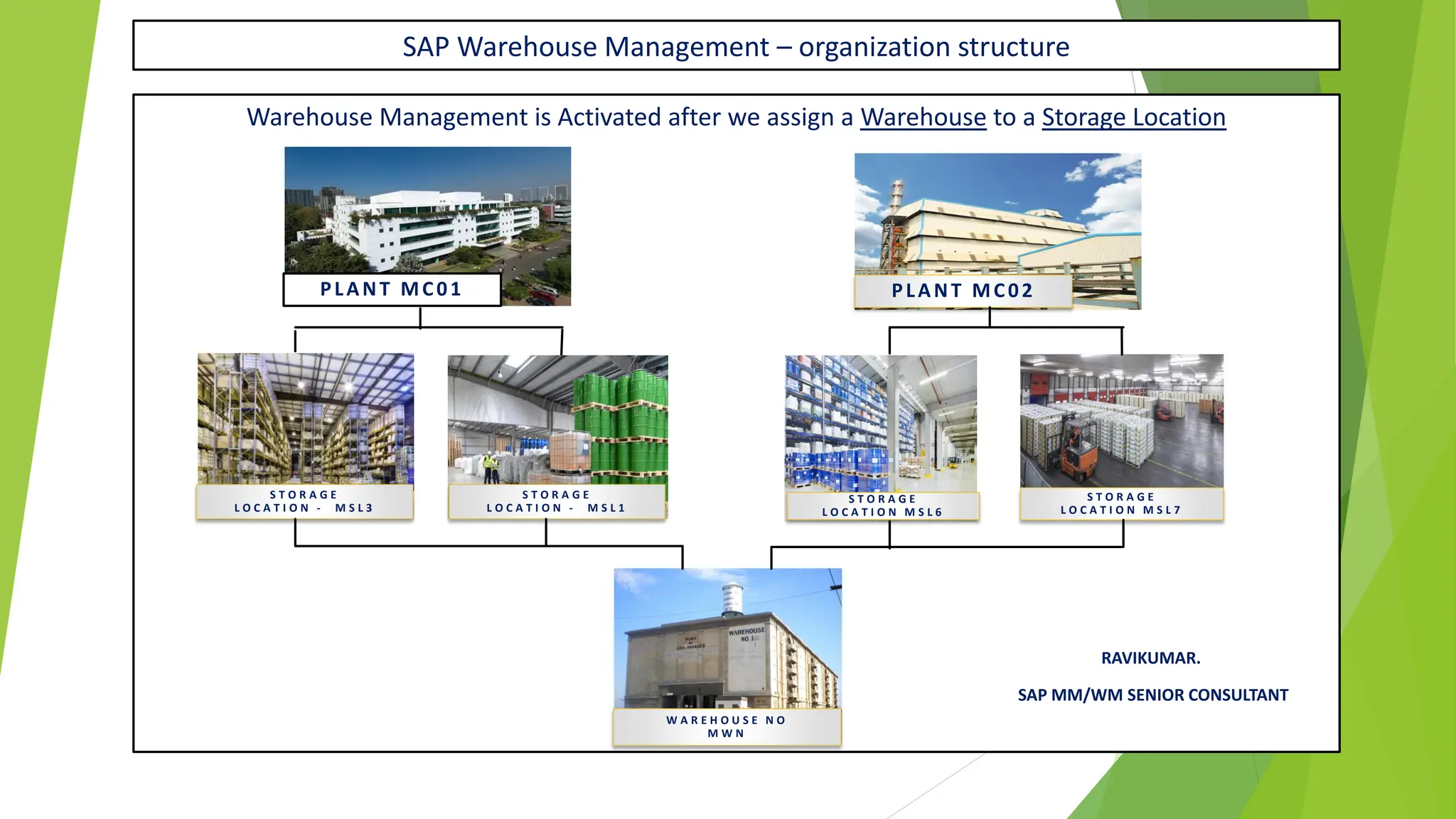

Warehouse Management is Activated after we assign a Warehouse to a Storage Location
RAVIKUMAR.
PLANT MC01 PLANT MC02
S T O R A G E
L O C A T I O N - M S L 3
S T O R A G E
L O C A T I O N M S L 6
S T O R A G E
L O C A T I O N M S L 7
S T O R A G E
L O C A T I O N - M S L 1
W A R E H O U S E N O
M W N

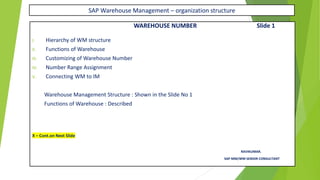

WAREHOUSE NUMBER Slide 1
I. Hierarchy of WM structure
II. Functions of Warehouse
III. Customizing of Warehouse Number
IV. Number Range Assignment
V. Connecting WM to IM
Warehouse Management Structure : Shown in the Slide No 1
Functions of Warehouse : Described
X – Cont.on Next Slide
RAVIKUMAR.

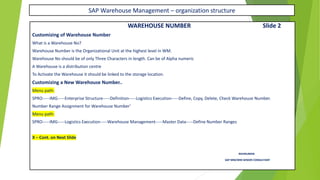

Customizing of Warehouse Number
What is a Warehouse No?
Warehouse Number is the Organizational Unit at the highest level in WM.
Warehouse No should be of only Three Characters in length. Can be of Alpha numeric
A Warehouse is a distribution centre
To Activate the Warehouse it should be linked to the storage location.
Customizing a New Warehouse Number..
Menu path:
SPRO-----IMG-----Enterprise Structure-----Definition-----Logistics Execution-----Define, Copy, Delete, Check Warehouse Number.
Number Range Assignment for Warehouse Number’
Menu path:
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Master Data-----Define Number Ranges
X – Cont. on Next Slide
RAVIKUMAR.

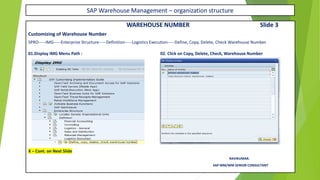

01.Display IMG Menu Path : 02. Click on Copy, Delete, Check, Warehouse Number
RAVIKUMAR.

03. Next Click on New Entries 04. Prompt for customizing Report 05. you will see the new warehouse no is saved
and enter the new Warehouse will open click continue or enter and you will get the message as data was saved.
Number and description & Save
RAVIKUMAR.

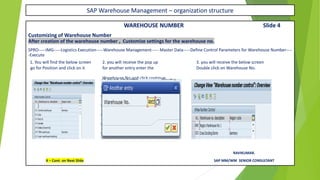

After creation of the warehouse number , Customize settings for the warehouse no.
SPRO-----IMG-----Logistics Execution-----Warehouse Management----- Master Data-----Define Control Parameters for Warehouse Number----
-Execute
1. You will find the below screen 2. you will receive the pop up 3. you will receive the below screen
go for Position and click on it for another entry enter the Double click on Warehouse No.
Warehouse No and click continue
RAVIKUMAR.
X – Cont. on Next Slide SAP MM/WM SENIOR CONSULTANT

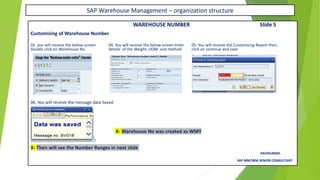

03. you will receive the below screen 04. You will receive the below screen enter 05. You will receive the Customizing Report then,
Double click on Warehouse No. details of the Weight, UOM and method click on continue and save
06. You will receive the message data Saved
X- Warehouse No was created as WMY
X--
X- Then will see the Number Ranges in next slide
RAVIKUMAR.

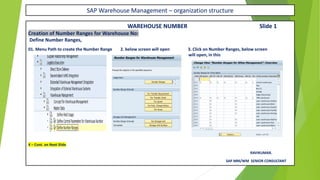

Creation of Number Ranges for Warehouse No:
Define Number Ranges,
01. Menu Path to create the Number Range 2. below screen will open 3. Click on Number Ranges, below screen
will open, in this
RAVIKUMAR.

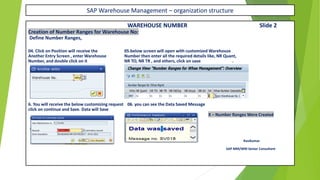

Creation of Number Ranges for Warehouse No:
Define Number Ranges,
04. Click on Position will receive the 05.below screen will open with customized Warehouse
Another Entry Screen , enter Warehouse Number then enter all the required details like, NR Quant,
Number, and double click on it NR TO, NR TR , and others, click on save .
6. You will receive the below customizing request 06. you can see the Data Saved Message
click on continue and Save. Data will Save
X – Number Ranges Were Created
Ravikumar
SAP MM/WM Senior Consultant

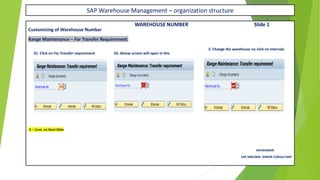

Range Maintenance – For Transfer Requirement:
3. Change the warehouse no click on intervals
01. Click on For Transfer requirement 02. Below screen will open in this
RAVIKUMAR.

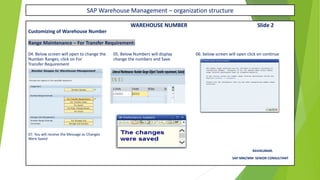

Range Maintenance – For Transfer Requirement:
04. Below screen will open to change the 05. Below Numbers will display 06. below screen will open click on continue
Number Ranges, click on For change the numbers and Save
Transfer Requirement
07. You will receive the Message as Changes
Were Saved
RAVIKUMAR.

Range Maintenance – For Transfer Order
01. Click on For Transfer Order 02. Below screen will open in this 03. Change the warehouse no click on intervals
RAVIKUMAR.

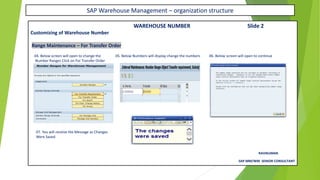

Range Maintenance – For Transfer Order
04. Below screen will open to change the 05. Below Numbers will display change the numbers 06. Below screen will open to continue
Number Ranges Click on For Transfer Order
Were Saved
RAVIKUMAR.

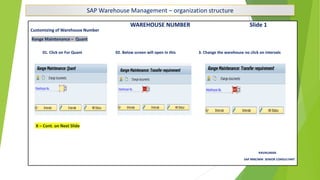

Range Maintenance – Quant
01. Click on For Quant 02. Below screen will open in this 3. Change the warehouse no click on intervals
RAVIKUMAR.

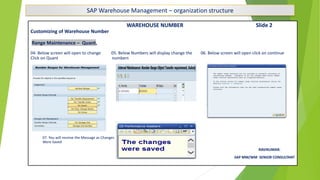

Range Maintenance – Quant,
04. Below screen will open to change 05. Below Numbers will display change the 06. Below screen will open click on continue
Click on Quant numbers
Were Saved
RAVIKUMAR.

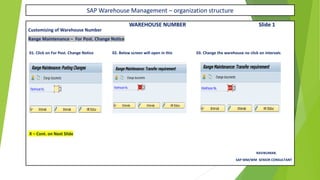

Range Maintenance – For Post. Change Notice
01. Click on For Post. Change Notice 02. Below screen will open in this 03. Change the warehouse no click on intervals
RAVIKUMAR.

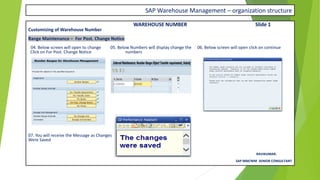

Range Maintenance – For Post. Change Notice
Click on For Post. Change Notice numbers
Were Saved
RAVIKUMAR.

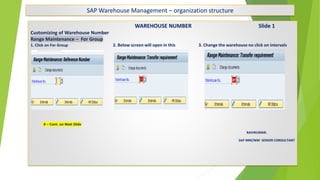

Range Maintenance – For Group
1. Click on For Group 2. Below screen will open in this 3. Change the warehouse no click on intervals
RAVIKUMAR.

Range Maintenance – For Group
Click on For Group numbers
Were Saved
RAVIKUMAR.

Link Warehouse Management to Inventory Management :
SPRO-----IMG-----ENTERPRISE STRUCTURE-----ASSIGNMENT-----LOGISTICS EXECUTION-----Assign Warehouse number to Plant/Storage Location-----Execute
1.Menu path to Assign warehouse number to 2. Below screen will open with the details of plant , 3. Enter the customized details of Plant , Sloc
Plant Storage Location Storage Loc & Warehouse No Click on New Entries Loc & Warehouse No. and Save
4. You will get the Customizing Prompt to continue 5. The Data will be saved.
RAVIKUMAR.

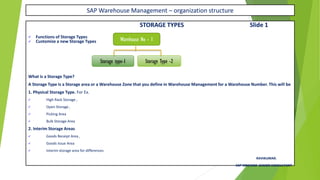

STORAGE TYPES Slide 1
✓ Functions of Storage Types
✓ Customize a new Storage Types
What is a Storage Type?
A Storage Type is a Storage area or a Warehouse Zone that you define in Warehouse Management for a Warehouse Number. This will be
1. Physical Storage Type. For Ex.
✓ High Rack Storage ,
✓ Open Storage ,
✓ Picking Area
✓ Bulk Storage Area
2. Interim Storage Areas
✓ Goods Receipt Area ,
✓ Goods Issue Area
✓ Interim storage area for differences
RAVIKUMAR.
Warehouse No - 1

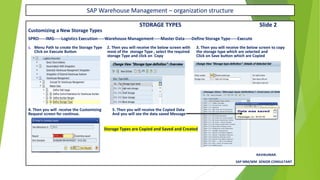

Customizing a New Storage Types
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Master Data-----Define Storage Type-----Execute
1. Menu Path to create the Storage Type 2. Then you will receive the below screen with 3. Then you will receive the below screen to copy
Click on Execute Button most of the storage Type , select the required the storage type which are selected and
storage Type and click on Copy Click on Save button which are Copied
4. Then you will receive the Customizing 5. Then you will receive the Copied Data
Request screen for continue. And you will see the data saved Message
Storage Types are Copied and Saved and Created
RAVIKUMAR.

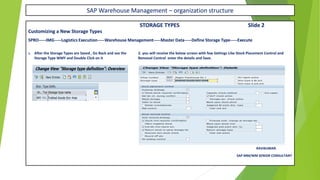

SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Master Data-----Define Storage Type-----Execute
1. After the Storage Types are Saved , Go Back and see the 2. you will receive the below screen with few Settings Like Stock Placement Control and
Storage Type WMY and Double Click on it Removal Control enter the details and Save.
RAVIKUMAR.

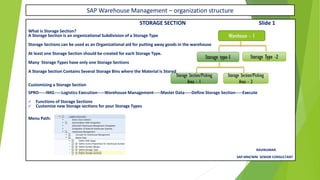

STORAGE SECTION Slide 1
What is Storage Section?
A Storage Section is an organizational Subdivision of a Storage Type
Storage Sections can be used as an Organizational aid for putting away goods in the warehouse
At least one Storage Section should be created for each Storage Type.
Many Storage Types have only one Storage Sections
A Storage Section Contains Several Storage Bins where the Material is Stored
Customizing a Storage Section
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Master Data-----Define Storage Section-----Execute
✓ Functions of Storage Sections
✓ Customize new Storage sections for your Storage Types
Menu Path:
RAVIKUMAR.
Warehouse - 1
Area - 1
Area - 2

STORAGE SECTIONS Slide 2
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Master Data-----Define Storage Section-----Execute
1. Menu Path to create the Storage Section 2. You will receive the below screen with 3. You will receive the below screen to Copy Click on
Execute Button the storage Type and Section ,Select storage Section, which are selected and Change the
the required Storage Section and Click Copy Warehouse No and Click on Save button
4. Then you will receive the Customizing 5. Then you will receive the Copied Data
Request screen for continue. And you will see the data saved Message
Storage Sections are Copied , Saved and Created
RAVIKUMAR.

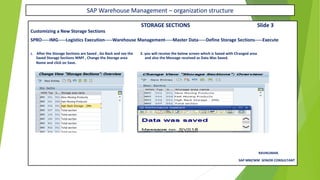

STORAGE SECTIONS Slide 3
Customizing a New Storage Sections
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Master Data-----Define Storage Sections-----Execute
1. After the Storage Sections are Saved , Go Back and see the 2. you will receive the below screen which is Saved with Changed area
Saved Storage Sections WMY , Change the Storage area and also the Message received as Data Was Saved.
Name and click on Save.
RAVIKUMAR.

DEFINE PICKING AREAS Slide 1
Customizing a Background settings of Picking Area
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Master Data-----Define Picking Area-----Execute
01. Menu path to create the Picking 02. Execute--- will receive the below screen with 03. and change the Warehouse No and Stype
Area details of Warehouse No and S type and Picking and click enter will receive message as
area Select the Warehouse No and click on Copy number of entries copied
X – Cont. in next slide
RAVIKUMAR.

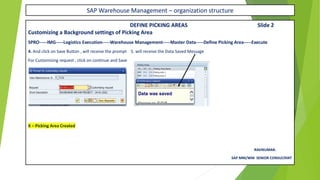

SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Master Data-----Define Picking Area-----Execute
4. And click on Save Button , will receive the prompt 5. will receive the Data Saved Message
For Customizing request , click on continue and Save
X – Picking Area Created
RAVIKUMAR.

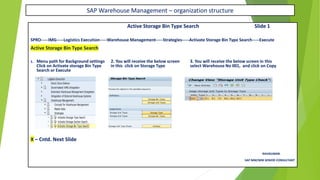

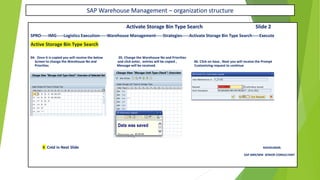

SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Strategies-----Activate Storage Type Search-----Execute
01. Menu path for Background settings 02.Storage Type Search screen will open 03. Select Determine Search Sequence and click on it
Click on Activate Storage Type Search
04. Below screen will open to edit , before that it asks for X
X – Asks for the Storage type Indicators
RAVIKUMAR.

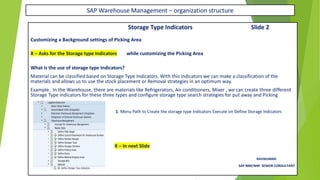

Storage Type Indicators Slide 2
X – Asks for the Storage type Indicators while customizing the Picking Area
What is the use of storage type Indicators?
Material can be classified based on Storage Type Indicators. With this indicators we can make a classification of the
materials and allows us to use the stock placement or Removal strategies in an optimum way.
Example.. In the Warehouse, there are materials like Refrigerators, Air conditioners, Mixer , we can create three different
Storage Type indicators for these three types and configure storage type search strategies for put away and Picking
1. Menu Path to Create the storage type Indicators Execute on Define Storage Indicators
X – In next Slide
RAVIKUMAR.

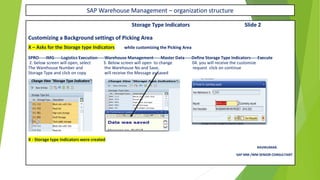

Storage Type Indicators Slide 2
X – Asks for the Storage type Indicators while customizing the Picking Area
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Master Data-----Define Storage Type Indicators-----Execute
2. below screen will open, select 3. Below screen will open to change 04. you will receive the customize
The Warehouse Number and the Warehouse No and Save, request click on continue
Storage Type and click on copy will receive the Message as Saved
X - Storage type Indicators were created
RAVIKUMAR.
SAP MM /WM SENIOR CONSULTANT

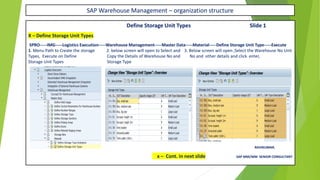

Define Storage Unit Types Slide 1
X – Define Storage Unit Types
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Master Data-----Material-----Define Storage Unit Type-----Execute
1. Menu Path to Create the storage 2. below screen will open to Select and 3. Below screen will open ,Select the Warehouse No Unit
Types, Execute on Define Copy the Details of Warehouse No and No and other details and click enter,
Storage Unit Types Storage Type
RAVIKUMAR.
x – Cont. in next slide SAP MM/WM SENIOR CONSULTANT

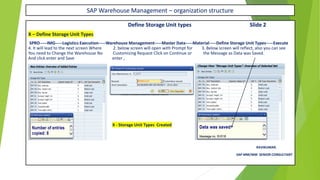

Define Storage Unit types Slide 2
X – Define Storage Unit Types
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Master Data-----Material-----Define Storage Unit Types-----Execute
4. It will lead to the next screen Where 2. below screen will open with Prompt for 3. Below screen will reflect, also you can see
You need to Change the Warehouse No Customizing Request Click on Continue or the Message as Data was Saved.
And click enter and Save enter ,
X - Storage Unit Types Created
RAVIKUMAR.

Define Storage Section Indicators Slide 1
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Master Data-----Material-----Define Storage Section
Indicators ----Execute
X – Storage Section Indicators
1. Menu Path to Create the storage 2. below screen will open select 3. Below screen will open ,change the Warehouse No
Section Indicators Execute on Define Details of Warehouse No and and other details and click enter you will receive the
Storage Indicators Storage Type and click on copy Message as Number of entries copied
RAVIKUMAR.
x – Cont. in next slide SAP MM/WM SENIOR CONSULTANT

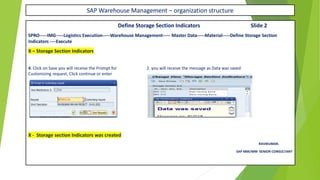

Define Storage Section Indicators Slide 2
SPRO-----IMG-----Logistics Execution-----Warehouse Management----- Master Data-----Material-----Define Storage Section
Indicators ----Execute
X – Storage Section Indicators
4. Click on Save you will receive the Prompt for 2. you will receive the message as Data was saved
Customizing request, Click continue or enter
X - Storage section Indicators was created
RAVIKUMAR.

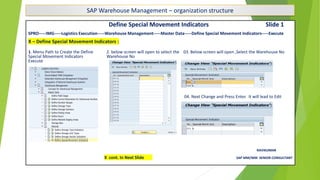

Define Special Movement Indicators Slide 1
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Master Data-----Define Special Movement Indicators-----Execute
X – Define Special Movement Indicators :
1. Menu Path to Create the Define 2. below screen will open to select the 03. Below screen will open ,Select the Warehouse No
Special Movement Indicators Warehouse No
Execute
4. 04. Next Change and Press Enter. It will lead to Edit
the Data
RAVIKUMAR
X cont. In Next Slide SAP MM/WM SENIOR CONSULTANT

Define Special Movement Indicators Slide 2
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Master Data-----Define Special Movement Indicators-----Execute
X – Define Special Movement Indicators :
04. Click enter you will receive the 05. you will receive the Prompt for 06 . you will receive the message as
Message as below And Click on Save Customizing request, Click Data was saved
continue or enter
X - Special Movement Indicators were created
RAVIKUMAR.

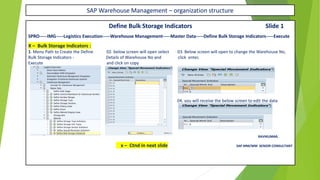

Define Bulk Storage Indicators Slide 1
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Master Data-----Define Bulk Storage Indicators-----Execute
X – Bulk Storage Indicators :
1. Menu Path to Create the Define 02. below screen will open select 03. Below screen will open to change the Warehouse No,
Bulk Storage Indicators - Details of Warehouse No and click enter,
Execute and click on copy
04. you will receive the below screen to edit the data
RAVIKUMAR.
x – Ctnd in next slide SAP MM/WM SENIOR CONSULTANT

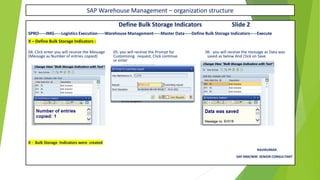

Define Bulk Storage Indicators Slide 2
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Master Data-----Define Bulk Storage Indicators-----Execute
X – Define Bulk Storage Indicators :
04. Click enter you will receive the Message 05. you will receive the Prompt for 06 . you will receive the message as Data was
(Message as Number of entries copied) Customizing request, Click continue saved as below And Click on Save
or enter
X - Bulk Storage Indicators were created
RAVIKUMAR.

Activate Storage Type Search Slide 1
Activate Storage Type Search
1. Menu path for Background settings 2. You will receive the below screen 3. You will receive the below screen select
Activate Storage type Search click on Determine search Warehouse No 001 , Process E and click on copy
Execute sequence
X – Cont. in next slide
RAVIKUMAR.

Activate Storage Type Search Slice 2
Active Storage Type Search
04. Once it is copied you will receive the below 05. Change the Warehouse No and Priorities, and click enter, entries will
Screen to change the Warehouse No and be copied and you will receive the message
Priorities
X Cont. in Next Slide RAVIKUMAR.

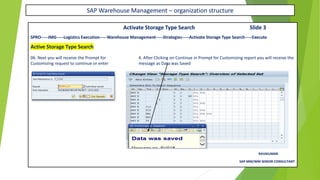

Activate Storage Type Search Slide 3
Active Storage Type Search
06. Next you will receive the Prompt for 4. After Clicking on Continue in Prompt for Customizing report you will receive the
Customizing request to continue or enter message as Data was Saved
RAVIKUMAR.

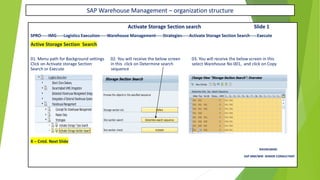

Activate Storage Section search Slide 1
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Strategies-----Activate Storage Section Search-----Execute
Active Storage Section Search
01. Menu path for Background settings 02. You will receive the below screen 03. You will receive the below screen in this
Click on Activate storage Section in this click on Determine search select Warehouse No 001, and click on Copy
Search or Execute sequence
X – Cntd. Next Slide
RAVIKUMAR.

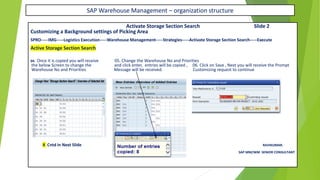

Activate Storage Section Search Slide 2
04. Once it is copied you will receive 05. Change the Warehouse No and Priorities
the below Screen to change the and click enter, entries will be copied , 06. Click on Save , Next you will receive the Prompt
Warehouse No and Priorities Message will be received. Customizing request to continue
X Cntd in Next Slide RAVIKUMAR.

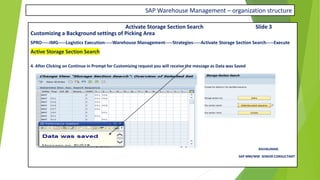

Activate Storage Section Search Slide 3
4. After Clicking on Continue in Prompt for Customizing request you will receive the message as Data was Saved
RAVIKUMAR.

Active Storage Bin Type Search Slide 1
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Strategies-----Activate Storage Bin Type Search-----Execute
Active Storage Bin Type Search
1. Menu path for Background settings 2. You will receive the below screen 3. You will receive the below screen in this
Click on Activate storage Bin Type in this click on Storage Type select Warehouse No 001, and click on Copy
Search or Execute
X – Cntd. Next Slide
RAVIKUMAR.

Activate Storage Bin Type Search Slide 2
04. Once it is copied you will receive the below 05. Change the Warehouse No and Priorities
Screen to change the Warehouse No and and click enter, entries will be copied , 06. Click on Save , Next you will receive the Prompt
Priorities Message will be received. Customizing request to continue
X Cntd in Next Slide RAVIKUMAR.

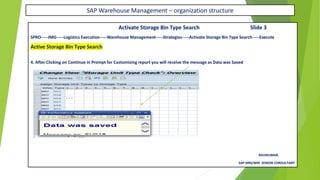

Activate Storage Bin Type Search Slide 3
4. After Clicking on Continue in Prompt for Customizing report you will receive the message as Data was Saved
RAVIKUMAR.

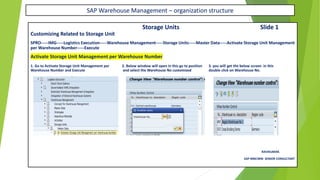

Storage Units Slide 1
Customizing Related to Storage Unit
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Storage Units-----Master Data-----Activate Storage Unit Management
per Warehouse Number-----Execute
Activate Storage Unit Management per Warehouse Number
1. Go to Activate Storage Unit Management per 2. Below window will open in this go to position 3. you will get the below screen in this
Warehouse Number and Execute and select the Warehouse No customized double click on Warehouse No.
RAVIKUMAR.

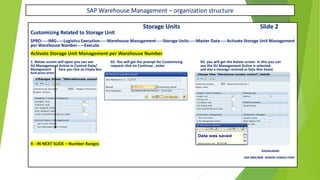

Storage Units Slide 2
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Storage Units-----Master Data-----Activate Storage Unit Management
per Warehouse Number-----Execute
Activate Storage Unit Management per Warehouse Number
1. Below screen will open you can see 02. You will get the prompt for Customizing 03. you will get the below screen in this you can
SU Management Active in Control Data/ request click on Continue , enter see the SU Management Active is selected.
Management here you click on Empty Box and also a message received as Data Was Saved.
And press enter
X - IN NEXT SLIDE – Number Ranges
RAVIKUMAR.

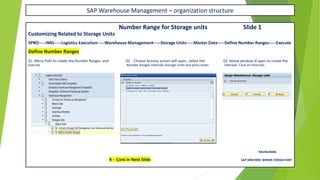

Number Range for Storage units Slide 1
Customizing Related to Storage Units
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Storage Units-----Master Data-----Define Number Ranges-----Execute
Define Number Ranges
01. Menu Path to create the Number Ranges and 02. Choose Activity screen will open , select the 03. below window ill open to create the
Execute Number Ranges Intervals Storage Units and press enter. Intervals. Click on Intervals.
RAVIKUMAR.
X - Cont in Next Slide SAP MM/WM SENIOR CONSULTANT

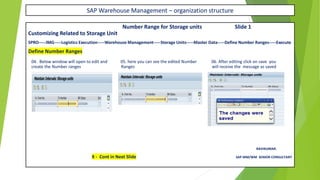

Number Range for Storage units Slide 1
Define Number Ranges
04. Below window will open to edit and 05. here you can see the edited Number 06. After editing click on save you
create the Number ranges Ranges will receive the message as saved
RAVIKUMAR.
X - Cont in Next Slide SAP MM/WM SENIOR CONSULTANT

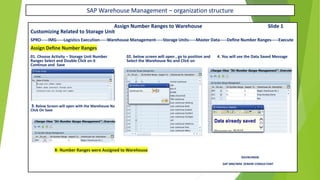

Assign Number Ranges to Warehouse Slide 1
Assign Define Number Ranges
01. Choose Activity – Storage Unit Number 02. below screen will open , go to position and 4. You will see the Data Saved Message
Ranges Select and Double Click on it Select the Warehouse No and Click on
Continue and Save
3. Below Screen will open with the Warehouse No Assign the Number Ranges to Warehouse and
Click On Save
X- Number Ranges were Assigned to Warehouse
RAVIKUMAR.

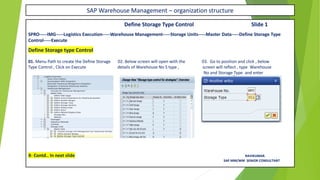

Define Storage Type Control Slide 1
SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Storage Units-----Master Data-----Define Storage Type
Control-----Execute
Define Storage type Control
01. Menu Path to create the Define Storage 02. Below screen will open with the 03. Go to position and click , below
Type Control , Click on Execute details of Warehouse No S type , screen will reflect , type Warehouse
No and Storage Type and enter
X- Contd.. In next slide RAVIKUMAR.

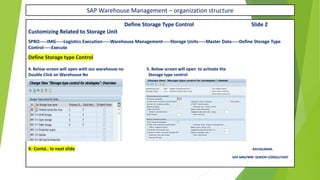

Define Storage Type Control Slide 2
Control-----Execute
4. Below screen will open with our warehouse no 5. Below screen will open to activate the
Double Click on Warehouse No Storage type control
X- Contd.. In next slide RAVIKUMAR.

Define Storage type Control Slide 3
Control-----Execute
04. Select the SU Mgmt active box and enter. 05. You will get the Prompt for Customize 06. you will get the data was saved
request , click continue and save message.
X- Created Storage Type Control RAVIKUMAR.

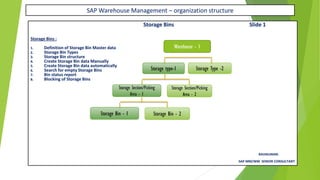

Storage Bins Slide 1
Storage Bins :
1. Definition of Storage Bin Master data
2. Storage Bin Types
3. Storage Bin structure
4. Create Storage Bin data Manually
5. Create Storage Bin data automatically
6. Search for empty Storage Bins
7. Bin status report
8. Blocking of Storage Bins
RAVIKUMAR.
Warehouse - 1
Area - 1
Area - 2

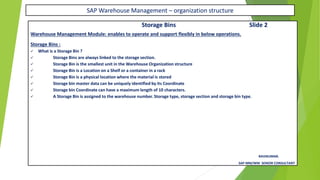

Warehouse Management Module: enables to operate and support flexibly in below operations.
Storage Bins :
✓ What is a Storage Bin ?
✓ Storage Bins are always linked to the storage section.
✓ Storage Bin is the smallest unit in the Warehouse Organization structure
✓ Storage Bin is a Location on a Shelf or a container in a rack
✓ Storage Bin is a physical location where the material is stored
✓ Storage bin master data can be uniquely identified by its Coordinate
✓ Storage bin Coordinate can have a maximum length of 10 characters.
✓ A Storage Bin is assigned to the warehouse number. Storage type, storage section and storage bin type.
RAVIKUMAR.

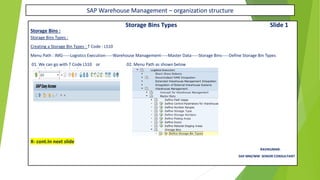

Storage Bins Types Slide 1
Storage Bins :
Storage Bins Types :
Creating a Storage Bin Types : T Code : LS10
Menu Path : IMG-----Logistics Execution-----Warehouse Management-----Master Data-----Storage Bins-----Define Storage Bin Types
01. We can go with T Code LS10 or 02. Menu Path as shown below
X- cont.In next slide
RAVIKUMAR.

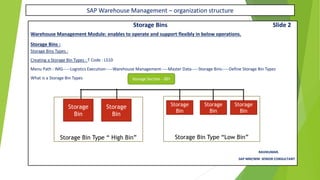

Storage Bins :
What is a Storage Bin Types
RAVIKUMAR.
Storage Section - 001
Storage Bin Type “Low Bin”
Storage Bin Type “ High Bin”
Storage
Bin
Storage
Bin
Storage
Bin
Storage
Bin
Storage
Bin

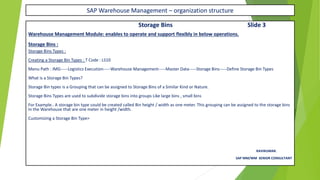

Storage Bins :
What is a Storage Bin Types?
Storage Bin types is a Grouping that can be assigned to Storage Bins of a Similar Kind or Nature.
Storage Bins Types are used to subdivide storage bins into groups Like large bins , small bins
For Example.. A storage bin type could be created called Bin height / width as one meter. This grouping can be assigned to the storage bins
In the Warehouse that are one meter in height /width.
Customizing a Storage Bin Type>
RAVIKUMAR.

Storage Bins Types Slide 4
Storage Bins :
Storage Bins Types : 5. Customized Warehouse No will be saved
and receive the message as Data was saved.
Customizing a Storage Bin Type :
03. After Executing Below Screen will 4. below screen will reflect here change
open In that select Warehouse No the Warehouse No and other details as per
and Click Copy our Customization and Click on Save
RAVIKUMAR.

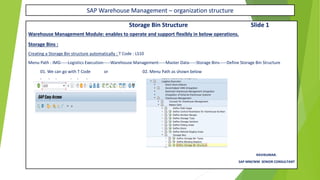

Storage Bin Structure Slide 1
Storage Bins :
Creating a Storage Bin structure automatically : T Code : LS10
Menu Path : IMG-----Logistics Execution-----Warehouse Management-----Master Data-----Storage Bins-----Define Storage Bin Structure
01. We can go with T Code or 02. Menu Path as shown below
RAVIKUMAR.

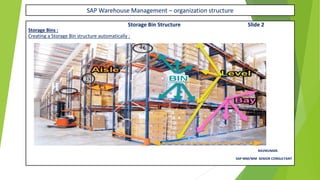

Storage Bin Structure Slide 2
Storage Bins :
Creating a Storage Bin structure automatically :
RAVIKUMAR.

Storage Bins Structure Slide 3
Storage Bins :
Storage Bin structure :
RAVIKUMAR.

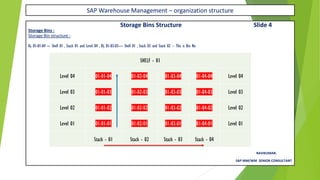

Storage Bins :
Storage Bin structure :
A). 01-01-04 --- Shelf 01 , Stack 01 and Level 04 , B). 01-03-03---- Shelf 01 , Stack 03 and Stack 02 – This is Bin No
RAVIKUMAR.
SHELF - 01
Level 04 01-01-04 01-02-04 01-03-04 01-04-04 Level 04
Level 03 01-01-03 01-02-03 01-03-03 01-04-03 Level 03
Level 02 01-01-02 01-02-02 01-03-02 01-04-02 Level 02
Level 01 01-01-01 01-02-01 01-03-01 01-04-01 Level 01
Stack - 01 Stack - 02 Stack - 03 Stack - 04

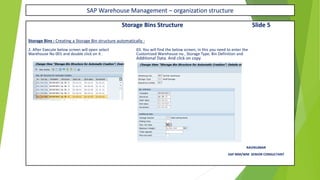

Storage Bins : Creating a Storage Bin structure automatically :
2. After Execute below screen will open select 03. You will find the below screen; in this you need to enter the
Warehouse No 001 and double click on it . Customized Warehouse no , Storage Type, Bin Definition and
Additional Data. And click on copy
RAVIKUMAR

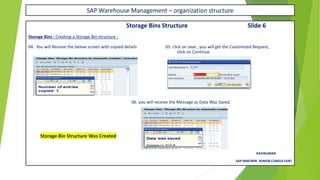

Storage Bins : Creating a Storage Bin structure :
04. You will Receive the below screen with copied details 05. click on save , you will get the Customized Request,
click on Continue.
06. you will receive the Message as Data Was Saved.
Storage Bin Structure Was Created
RAVIKUMAR.

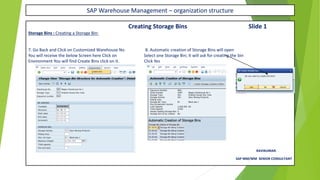

Creating Storage Bins Slide 1
Storage Bins : Creating a Storage Bin:
7. Go Back and Click on Customized Warehouse No 8. Automatic creation of Storage Bins will open
You will receive the below Screen here Click on Select one Storage Bin; It will ask for creating the bin
Environment You will find Create Bins click on it. Click Yes
RAVIKUMAR.

Creating Storage Bins Slide 2
Storage Bins : Creating a Storage Bin:
9. Click on Yes
10. You will get the below screen with the message
that 80 storage bins created
Storage Bins Created automatically
X - To check for the Storage Bins Created, go to T Code LS02N, In next slide
RAVIKUMAR.

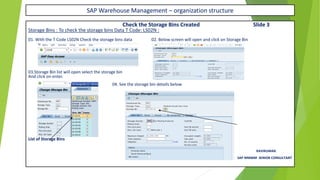

Check the Storage Bins Created Slide 3
Storage Bins : To check the storage bins Data T Code: LS02N :
01. With the T Code LS02N Check the storage bins data 02. Below screen will open and click on Storage Bin
03.Storage Bin list will open select the storage bin
And click on enter.
04. See the storage bin details below
You can See the Storage Bin Created
List of Storage Bins
RAVIKUMAR.
SAP MMWM SENIOR CONSULTANT

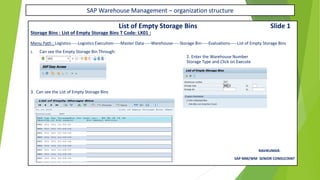

List of Empty Storage Bins Slide 1
Storage Bins : List of Empty Storage Bins T Code: LX01 :
Menu Path : Logistics-----Logistics Execution-----Master Data-----Warehouse-----Storage Bin-----Evaluations-----List of Empty Storage Bins
1. Can see the Empty Storage Bin Through:
2. Enter the Warehouse Number
Storage Type and Click on Execute
3. Can see the List of Empty Storage Bins
RAVIKUMAR.

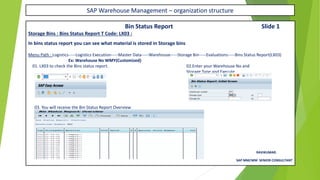

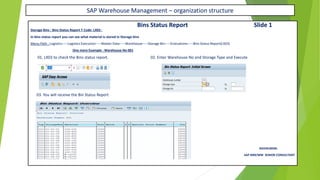

Bin Status Report Slide 1
Storage Bins : Bins Status Report T Code: LX03 :
In bins status report you can see what material is stored in Storage bins
Menu Path : Logistics-----Logistics Execution-----Master Data-----Warehouse-----Storage Bin-----Evaluations-----Bins Status Report(LX03)
Ex: Warehouse No WMY(Customized)
01. LX03 to check the Bins status report. 02.Enter your Warehouse No and
Storage Type and Execute
03. You will receive the Bin Status Report Overview
RAVIKUMAR.

Bins Status Report Slide 1
Storage Bins : Bins Status Report T Code: LX03 :
In bins status report you can see what material is stored in Storage bins
Menu Path : Logistics-----Logistics Execution-----Master Data-----Warehouse-----Storage Bin-----Evaluations-----Bins Status Report(LX03)
One more Example : Warehouse No 001
01. LX03 to check the Bins status report. 02. Enter Warehouse No and Storage Type and Execute
03. You will receive the Bin Status Report
RAVIKUMAR.

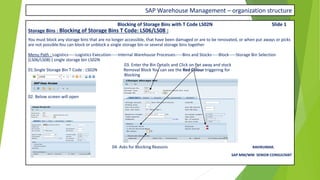

Blocking of Storage Bins with T Code LS02N Slide 1
Storage Bins : Blocking of Storage Bins T Code: LS06/LS08 :
You must block any storage bins that are no longer accessible, that have been damaged or are to be renovated, or when put aways or picks
are not possible.You can block or unblock a single storage bin or several storage bins together
Menu Path : Logistics-----Logistics Execution-----Internal Warehouse Processes-----Bins and Stocks-----Block-----Storage Bin Selection
(LS06/LS08) ( single storage bin LS02N
03. Enter the Bin Details and Click on Put away and stock
01.Single Storage Bin T Code : LS02N Removal Block You can see the Red Colour triggering for
Blocking
02. Below screen will open
Set up the Blocking reason with the
T code : In next slide
04. Asks for Blocking Reasons RAVIKUMAR.

You must block any storage bins that are no longer accessible, that have been damaged or are to be renovated, or when put away or picks
are not possible.
You can block or unblock a single storage bin or several storage bins together
02. Menu Path – Execute Define 03. Below screen will open select the
Reason For Blocking Blocking Reason Warehouse No and Copy
1. Select the Put away and Stock Removal
RAVIKUMAR.

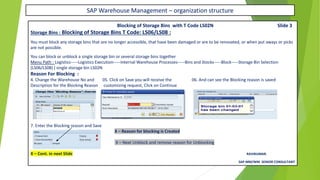

Set up the Blocking reason with

You must block any storage bins that are no longer accessible, that have been damaged or are to be renovated, or when put aways or picks
are not possible.
Reason For Blocking :
4. Change the Warehouse No and 05. Click on Save you will receive the 06. And can see the Blocking reason is saved
Description for the Blocking Reason customizing request, Click on Continue
7. Enter the Blocking reason and Save
X – Reason for blocking is Created
X – Next Unblock and remove reason for Unblocking
X – Cont. in next Slide RAVIKUMAR.

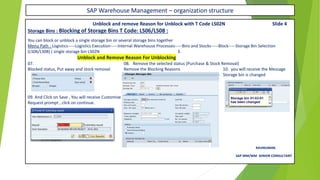

Unblock and remove Reason for Unblock with T Code LS02N Slide 4
(LS06/LS08) ( single storage bin LS02N 3.
Unblock and Remove Reason For Unblocking
07. 08. Remove the selected status (Purchase & Stock Removal)
Blocked status, Put away and stock removal Remove the Blocking Reasons 10. you will receive the Message
Storage bin is changed
09. And Click on Save , You will receive Customize
Request prompt , click on continue.
RAVIKUMAR.

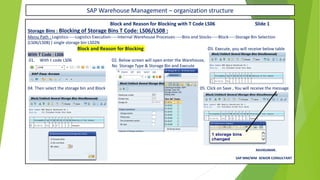

Block and Reason for Blocking with T Code LS06 Slide 1
Block and Reason for Blocking 03. Execute, you will receive below table
With T Code : LS06
01. With t code LS06 02. Below screen will open enter the Warehouse,
No Storage Type & Storage Bin and Execute
04. Then select the storage bin and Block 05. Click on Save , You will receive the message
RAVIKUMAR.

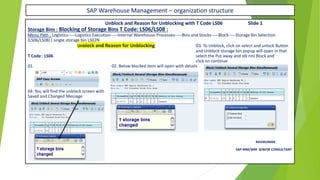

Unblock and Reason for Unblocking with T Code LS06 Slide 1
Unblock and Reason for Unblocking 03. To Unblock, click on select and unlock Button
and Unblock storage bin popup will open in that
T Code : LS06 select the Put away and stk rml Block and
click on continue
01. 02. Below blocked item will open with details
04. You will find the unblock screen with
Saved and Changed Message
RAVIKUMAR.

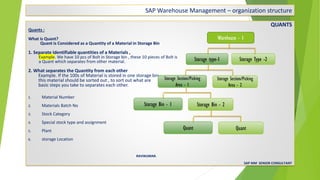

QUANTS
Quants :
What is Quant?
Quant is Considered as a Quantity of a Material in Storage Bin
1. Separate Identifiable quantities of a Materials ,
Example. We have 10 pcs of Bolt in Storage bin , these 10 pieces of Bolt is
a Quant which separates from other material.
2. What separates the Quantity from each other
Example. If the 100s of Material is stored in one storage bin
this material should be sorted out , to sort out what are
basic steps you take to separates each other.
1. Material Number
2. Materials Batch No
3. Stock Category
4. Special stock type and assignment
5. Plant
6. storage Location
RAVIKUMAR.
SAP MM SENIOR CONSULTANT
Warehouse - 1
Area - 1
Area - 2
Quant Quant

QUANTS

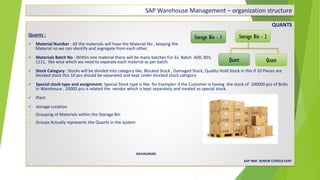

Quants :
✓ Material Number : All the materials will have the Material No , keeping the
Material no we can identify and segregate from each other.
✓ Materials Batch No : Within one material there will be many batches For Ex. Batch. A00, B01,
1111, like wise which we need to separate each material as per batch.
✓ Stock Category : Stocks will be divided into category like, Blocked Stock , Damaged Stock, Quality Hold Stock in this if 10 Pieces are
blocked stock this 10 pcs should be separated and kept under blocked stock category
✓ Special stock type and assignment: Special Stock type is like for Example> if the Customer is having the stock of 100000 pcs of Bolts
in Warehouse , 20000 pcs is related the vendor which is kept separately and treated as special stock.
✓ Plant
✓ storage Location
✓ Grouping of Materials within the Storage Bin
✓ Groups Actually represents the Quants in the system
RAVIKUMAR.
Quant Quant

QUANTS
Quants is not a Quantity or Quants are not equal to Quan
Quant4
25Pcs
Quant3 Quant5
30Pcs 20Pcs
RAVIKUMAR.
Quant Quant
20 pcs 30 pcs
20 pcs 70 pcs
Material 7033e
Batch MFGL
Material 7044
Batch Mglf
Mat kkzh
Batch B121
30Pcs
Mat kkzy
Batch B123
25Pcs
Mat 6596
20 Pcs

QUANTS

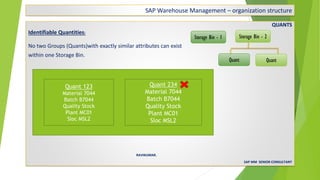

Identifiable Quantities:
No two Groups (Quants)with exactly similar attributes can exist
within one Storage Bin.
RAVIKUMAR.
Quant Quant
Quant 123
Material 7044
Batch B7044
Quality Stock
Plant MC01
Sloc MSL2
Quant 234
Material 7044
Batch B7044
Quality Stock
Plant MC01
Sloc MSL2

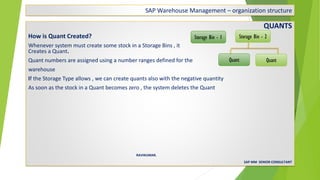

QUANTS
How is Quant Created?
Whenever system must create some stock in a Storage Bins , it
Creates a Quant.
Quant numbers are assigned using a number ranges defined for the
warehouse
If the Storage Type allows , we can create quants also with the negative quantity
As soon as the stock in a Quant becomes zero , the system deletes the Quant
RAVIKUMAR.
Quant Quant

QUANTS
How is Quant Created?
1. 2.
3.
RAVIKUMAR.

MATERIAL MASTER Slide 1
Create a Material Master with T Code MM01 – (Create: MM01, Edit : MM02, Display: MM03)
01. Execute or double click 02. Initial Screen Will display in this enter the details of
or Material, Industry sector, Material Type (Select)
Menupath
or
X – CONT IN NEXT SLIDE
RAVIKUMAR.

04. Fill the New Material Number, Select the Industry 05. Click on Select Views and select the views such as , Basic Data1 & 2,
Sector, Material Type as per the requirement Purchasing, General Plant Data / Storage 1 and 2 , Warehouse
Management 1 and 2, Accounting 1 & 2 and enter. Next click on Org Levels
RAVIKUMAR.

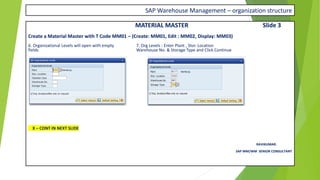

6. Organizational Levels will open with empty 7. Org Levels : Enter Plant , Stor. Location
fields Warehouse No. & Storage Type and Click Continue
RAVIKUMAR.

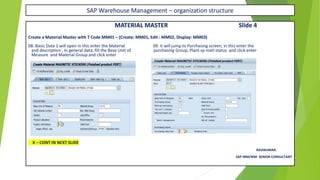

08. Basic Data 1 will open in this enter the Material 09. it will jump to Purchasing screen, in this enter the
and description , In general data, fill the Base Unit of purchasing Group, Plant sp matl status and click enter
Measure and Material Group and click enter
RAVIKUMAR.

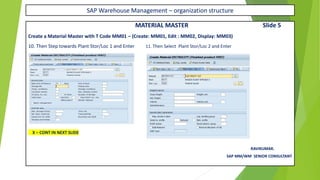

10. Then Step towards Plant Stor/Loc 1 and Enter 11. Then Select Plant Stor/Loc 2 and Enter
RAVIKUMAR.

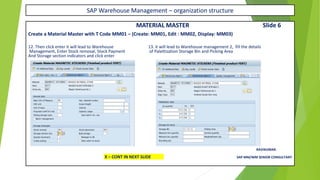

12. Then click enter it will lead to Warehouse 13. it will lead to Warehouse management 2, fill the details
Management, Enter Stock removal, Stock Payment of Palettization Storage Bin and Picking Area
And Storage section indicators and click enter
RAVIKUMAR.
X – CONT IN NEXT SLIDE SAP MM/WM SENIOR CONSULTANT

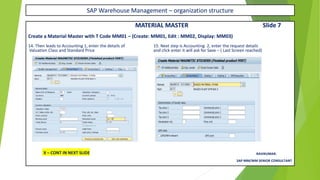

14. Then leads to Accounting 1, enter the details of 15. Next step is Accounting 2, enter the request details
Valuation Class and Standard Price and click enter it will ask for Save – ( Last Screen reached)
RAVIKUMAR.

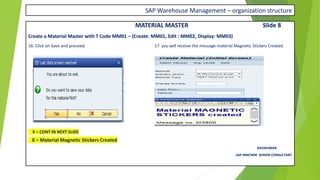

16. Click on Save and proceed. 17. you will receive the message material Magnetic Stickers Created.
X – Material Magnetic Stickers Created
RAVIKUMAR.

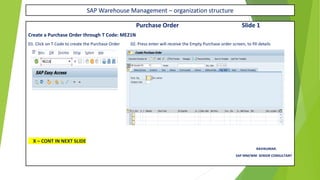

Purchase Order Slide 1
Create a Purchase Order through T Code: ME21N
01. Click on T Code to create the Purchase Order 02. Press enter will receive the Empty Purchase order screen, to fill details
RAVIKUMAR.

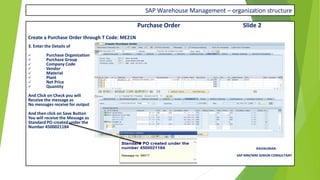

Purchase Order Slide 2
Create a Purchase Order through T Code: ME21N
3. Enter the Details of
✓ Purchase Organization
✓ Purchase Group
✓ Company Code
✓ Vendor
✓ Material
✓ Plant
✓ Net Price
✓ Quantity
And Click on Check you will
Receive the message as
No messages receive for output
And then click on Save Button
You will receive the Message as
Standard PO created under the
Number 4500021184
RAVIKUMAR.

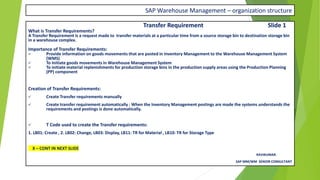

Transfer Requirement Slide 1
What is Transfer Requirements?
A Transfer Requirement is a request made to transfer materials at a particular time from a source storage bin to destination storage bin
in a warehouse complex.
Importance of Transfer Requirements:
✓ Provide information on goods movements that are posted in Inventory Management to the Warehouse Management System
(WMS)
✓ To Initiate goods movements in Warehouse Management System
✓ To initiate material replenishments for production storage bins in the production supply areas using the Production Planning
(PP) component
Creation of Transfer Requirements:
✓ Create Transfer requirements manually
✓ Create transfer requirement automatically : When the Inventory Management postings are made the systems understands the
requirements and postings is done automatically.
✓ T Code used to create the Transfer requirements:
1. LB01: Create , 2. LB02: Change, LB03: Display, LB11: TR for Material , LB10: TR for Storage Type
RAVIKUMAR.

Customization and settings to Create Transfer Requirement with the T Code LB01: Manually
DEFINE REQUIREMENT TYPES:
Menu Path: SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Activities-----Transfers-----Define Requirement Types
01.Menu path to create define
Requirements types - Execute 02. Requirement Categories will open.
RAVIKUMAR.

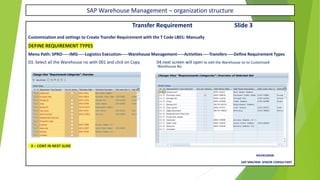

DEFINE REQUIREMENT TYPES
03. Select all the Warehouse no with 001 and click on Copy 04.next screen will open to edit the Warehouse no to Customized
Warehouse No.
RAVIKUMAR.

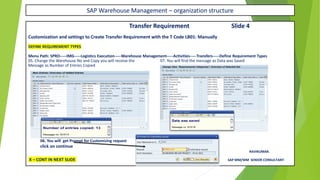

DEFINE REQUIREMENT TYPES
05. Change the Warehouse No and Copy you will receive the 07. You will find the message as Data was Saved
Message as Number of Entries Copied
06. You will get Prompt for Customizing request
click on continue
RAVIKUMAR.

DEFINE SHIPMENT TYPES
Menu Path: SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Activities-----Transfers-----Define Shipment Types
01.Menu path to create the 02. You will receive the Warehouse No. 03. Select the Warehouse No
Define Shipment Types & Shipment types and enter you will lead to next screen
RAVIKUMAR.

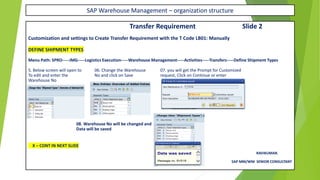

DEFINE SHIPMENT TYPES
Menu Path: SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Activities-----Transfers-----Define Shipment Types
5. Below screen will open to 06. Change the Warehouse 07. you will get the Prompt for Customized
To edit and enter the No and click on Save request, Click on Continue or enter
Warehouse No
08. Warehouse No will be changed and
Data will be saved
RAVIKUMAR.

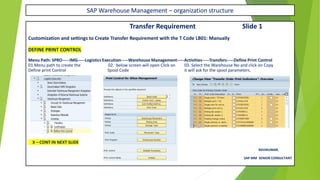

DEFINE PRINT CONTROL
Menu Path: SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Activities-----Transfers-----Define Print Control
01.Menu path to create the 02. below screen will open Click on 03. Select the Warehouse No and click on Copy
Define print Control Spool Code it will ask for the spool parameters.
RAVIKUMAR.

DEFINE SPOOL DATA IN PRINT CONTROL
01.Menu path to create the 02. below screen will open Click on 03. Select the Warehouse No and click on Copy
Define print Control Spool Code
04. Will lead to edit the Warehouse No and others
RAVIKUMAR.

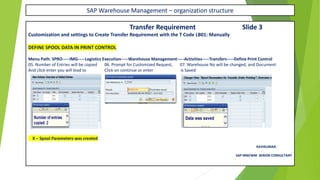

DEFINE SPOOL DATA IN PRINT CONTROL
05. Number of Entries will be copied 06. Prompt for Customized Request, 07. Warehouse No will be changed, and Document
And click enter you will lead to Click on continue or enter is Saved
X – Spool Parameters was created
RAVIKUMAR.

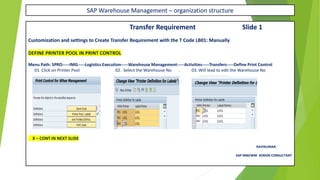

DEFINE PRINTER POOL IN PRINT CONTROL
01. Click on Printer Pool 02. Select the Warehouse No . 03. Will lead to edit the Warehouse No
RAVIKUMAR.

DEFINE PRINTER POOL IN PRINT CONTROL
04. Number of entries will be 05. prompt for customizing request 06. Warehouse No will be changed and
Copied , then go for Save pop up will receive click on continue message received as Data was saved
RAVIKUMAR.

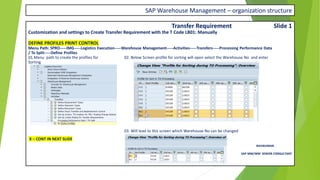

DEFINE PROFILES PRINT CONTROL
Menu Path: SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Activities-----Transfers-----Processing Performance Data
/ To Split-----Define Profiles
01.Menu path to create the profiles for 02. Below Screen profile for sorting will open select the Warehouse No and enter
Sorting
03. Will lead to this screen which Warehouse No can be changed
RAVIKUMAR.

DEFINE PROFILES PRINT CONTROL
Menu Path: SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Activities-----Transfers-----Processing Performance Data
/ To Split-----Define Profiles
04. Change the Warehouse No and Save the Details 05. Prompt for Customizing request will open
Click on continue or enter.
06. Warehouse Number will be changed, and data will be saved
3.
RAVIKUMAR.

DEFINE PRINT CODE IN PRINT CONTROL
1. 2. 3.
RAVIKUMAR.

DEFINE PRINT CODE IN PRINT CONTROL
4. 5. 6.
RAVIKUMAR.

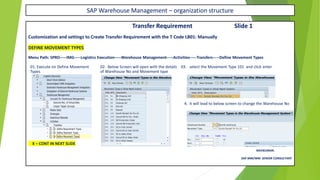

DEFINE MOVEMENT TYPES
Menu Path: SPRO-----IMG-----Logistics Execution-----Warehouse Management-----Activities-----Transfers-----Define Movement Types
01. Execute on Define Movement 02. Below Screen will open with the details 03. select the Movement Type 101 and click enter
Types of Warehouse No and Movement type
4. it will lead to below screen to change the Warehouse No
RAVIKUMAR.

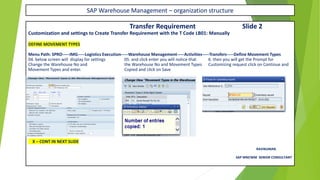

DEFINE MOVEMENT TYPES
04. below screen will display for settings 05. and click enter you will notice that 6. then you will get the Prompt for
Change the Warehouse No and the Warehouse No and Movement Types Customizing request click on Continue and
Movement Types and enter. Copied and click on Save
RAVIKUMAR.

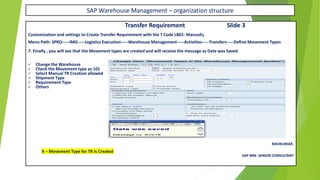

7. Finally , you will see that the Movement types are created and will receive the message as Data was Saved.
✓ Change the Warehouse
✓ Check the Movement type as 101
✓ Select Manual TR Creation allowed
✓ Shipment Type
✓ Requirement Type
✓ Others
RAVIKUMAR.
X – Movement Type for TR is Created

Create Number Ranges for Transfer Requirement with the T Code LN01:
Number Ranges for Transfer Requirements
01. Menu path to create number ranges 02. Opens Range Maintenance : TR 03. Enter the Details Warehouse No WMY
and click on Intervals and Click Enter
04. Below Number Ranges Screen will open
Change the Number and Save
X – CONT IN NEXT SLIDE RAVIKUMAR.

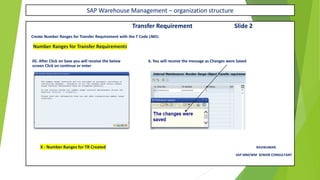

Create Number Ranges for Transfer Requirement with the T Code LN01:
Number Ranges for Transfer Requirements
05. After Click on Save you will receive the below 6. You will receive the message as Changes were Saved
screen Click on continue or enter
X - Number Ranges for TR Created RAVIKUMAR.

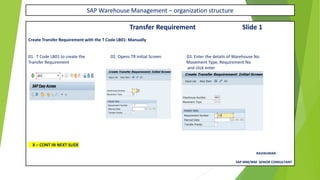

Create Transfer Requirement with the T Code LB01: Manually
01. T Code LB01 to create the 02. Opens TR Initial Screen 03. Enter the details of Warehouse No
Transfer Requirement Movement Type, Requirement No
and click enter
RAVIKUMAR.

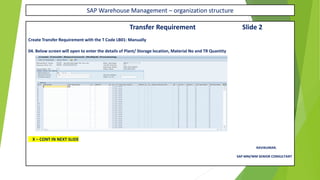

04. Below screen will open to enter the details of Plant/ Storage location, Material No and TR Quantity
RAVIKUMAR.

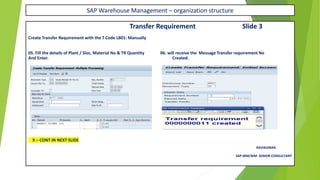

05. Fill the details of Plant / Sloc, Material No & TR Quantity 06. will receive the Message Transfer requirement No
And Enter. Created.
RAVIKUMAR.

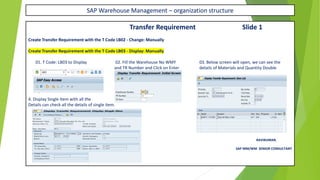

Create Transfer Requirement with the T Code LB02 - Change: Manually
Create Transfer Requirement with the T Code LB03 - Display: Manually
01. T Code: LB03 to Display 02. Fill the Warehouse No WMY 03. Below screen will open, we can see the
and TR Number and Click on Enter details of Materials and Quantity Double
Click on Material
4. Display Single Item with all the
Details can check all the details of single item.
RAVIKUMAR.

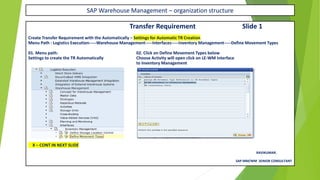

Create Transfer Requirement with the Automatically – Settings for Automatic TR Creation
Menu Path : Logistics Execution-----Warehouse Management-----Interfaces-----Inventory Management-----Define Movement Types
01. Menu path: 02. Click on Define Movement Types below
Settings to create the TR Automatically Choose Activity will open click on LE-WM Interface
to Inventory Management
RAVIKUMAR.

Create Transfer Requirement with the Automatically – Settings for Automatic TR Creation
03. Below Screen Will open 04. Select the Warehouse No 001 05. will lead to edit the Details, In that change
and Click on Copy the Warehouse No and Click enter.
RAVIKUMAR.

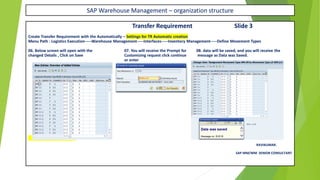

Create Transfer Requirement with the Automatically – Settings for TR Automatic creation
06. Below screen will open with the 07. You will receive the Prompt for 08. data will be saved, and you will receive the
changed Details , Click on Save Customizing request click continue message as Data was Saved.
or enter
RAVIKUMAR.

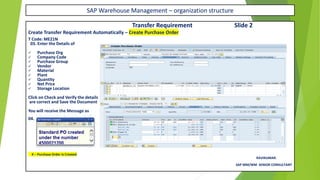

Create Transfer Requirement Automatically – Create Purchase Order
01. T Code: ME21N 02. Empty PO Screen will open
RAVIKUMAR.

T Code: ME21N
03. Enter the Details of
✓ Purchase Org
✓ Company Code
✓ Purchase Group
✓ Vendor
✓ Material
✓ Plant
✓ Quantity
✓ Net Price
✓ Storage Location
Click on Check and Verify the details
are correct and Save the Document
You will receive the Message as
04.
X – Purchase Order Is Created
RAVIKUMAR.

Create Transfer Requirement Automatically – Create Goods Receipt
T Code: MIGO
01. Enter the T Code MIGO and 02. Goods Receipt screen will open in that choose A01 Goods Receipt & R01 Purchase Order
Click enter
RAVIKUMAR.

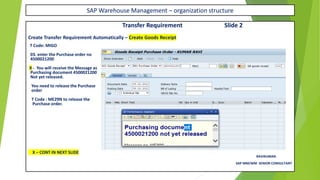

T Code: MIGO
03. enter the Purchase order no
4500021200
X - You will receive the Message as
Purchasing document 4500021200
Not yet released.
You need to release the Purchase
order
T Code : ME29N to release the
Purchase order.
RAVIKUMAR.

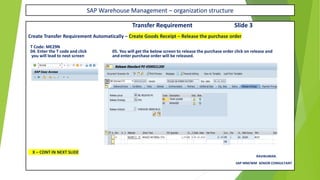

Create Transfer Requirement Automatically – Create Goods Receipt – Release the purchase order
T Code: ME29N
04. Enter the T code and click 05. You will get the below screen to release the purchase order click on release and
you will lead to next screen and enter purchase order will be released.
RAVIKUMAR.

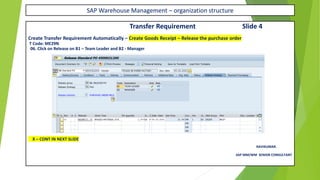

T Code: ME29N
06. Click on Release on B1 – Team Leader and B2 - Manager
RAVIKUMAR.

T Code: ME29N

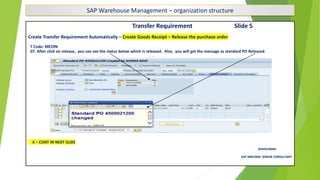

07. After click on release, you can see the status below which is released. Also, you will get the message as standard PO Released.
RAVIKUMAR.

01. Again, go to Goods Receipt MIGO and enter the details
RAVIKUMAR.

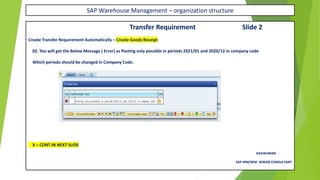

02. You will get the Below Message ( Error) as Posting only possible in periods 2021/01 and 2020/12 in company code
Which periods should be changed in Company Code.
RAVIKUMAR.

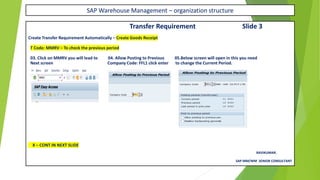

T Code: MMRV – To check the previous period
03. Click on MMRV you will lead to 04. Allow Posting to Previous 05.Below screen will open in this you need
Next screen Company Code: FFL1 click enter to change the Current Period.
RAVIKUMAR.

T Code: MMPV
06. Enter the Details and click enter 07. Empty screen will open to enter 08. Copy the Company Code and enter
the details, the current period and Fiscal Year and press enter
RAVIKUMAR.

T Code: MMPV

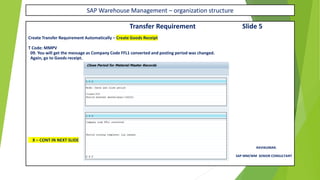

09. You will get the message as Company Code FFL1 converted and posting period was changed.
Again, go to Goods receipt.
RAVIKUMAR.

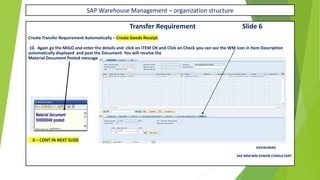

10. Again go the MIGO and enter the details and click on ITEM OK and Click on Check you can see the WM icon in Item Description
automatically displayed and post the Document. You will receive the .
Material Document Posted message
RAVIKUMAR.

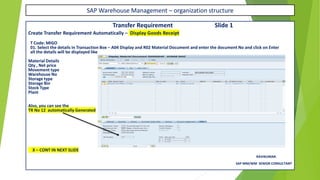

Create Transfer Requirement Automatically – Display Goods Receipt
T Code: MIGO
01. Select the details in Transaction Box – A04 Display and R02 Material Document and enter the document No and click on Enter
all the details will be displayed like
Material Details
Qty , Net price
Movement type
Warehouse No
Storage type
Storage Bin
Stock Type
Plant
Also, you can see the
TR No 12 automatically Generated
RAVIKUMAR.

T Code: MIGO
02. You can see the TR Number Automatically Generated.
RAVIKUMAR.

Posting Change Notice Slide 1
What is Posting Change Notice?
Posting Change Notice is a process which is carried out when there are changes related to stock data of a material in Book keeping , but no
physical change in material.
For Example.: When the materials are required to allocate for Quality. Only the stock data will be changed , in spite physical stock or
material is not moved from storage bin
Or , When the consignment stocks are planned to move to the own stock, only the book keeping postings will be changed.
Typical Posting Change:
The most typical posting change involves in Goods receipt in the warehouse which are posted for inspection
Typically when the Goods are received in the warehouse, those goods are held for inspection before they are released as stock available for
issue. Normally user use the IM component to assign the stock category Q ( Quality Inspection) to inspection stock The stock category is
not removed until the goods have been inspected and released from Quality inspection. Once the release of material from inspection is
authorized, user can release all or part of the material for use.
Process:
Release the stock from inspection in WM or IM. QM – Managed stock can only be released in QM
Process the Posting change notice in WM by creating a transfer order.
When a transfer order is created and confirmed for a posting change notice in WM, the system removes the stock category of Q.
X –Cont. IN NEXT SLIDE
Ravikumar

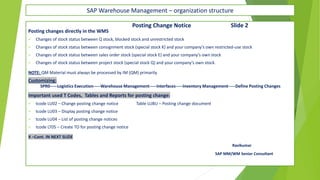

Posting Change Notice Slide 2
Posting changes directly in the WMS
✓ Changes of stock status between Q stock, blocked stock and unrestricted stock
✓ Changes of stock status between consignment stock (special stock K) and your company’s own restricted-use stock
✓ Changes of stock status between sales order stock (special stock E) and your company’s own stock
✓ Changes of stock status between project stock (special stock Q) and your company’s own stock.
NOTE: QM Material must always be processed by IM (QM) primarily.
Customizing:
SPR0-----Logistics Execution-----Warehouse Management-----Interfaces-----Inventory Management-----Define Posting Changes
Important used T Codes, Tables and Reports for posting change:
✓ tcode LU02 – Change posting change notice Table LUBU – Posting change document
✓ tcode LU03 – Display posting change notice
✓ tcode LU04 – List of posting change notices
✓ tcode LT05 – Create TO for posting change notice
Ravikumar

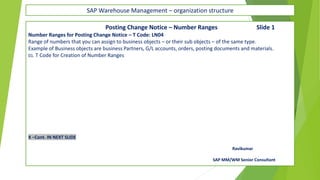

Posting Change Notice – Number Ranges Slide 1
Number Ranges for Posting Change Notice – T Code: LN04
Range of numbers that you can assign to business objects – or their sub objects – of the same type.
Example of Business objects are business Partners, G/L accounts, orders, posting documents and materials.
01. T Code for Creation of Number Ranges
Ravikumar

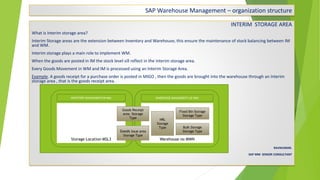

INTERIM STORAGE AREA
What is Interim storage area?
Interim Storage areas are the extension between Inventory and Warehouse, this ensure the maintenance of stock balancing between IM
and WM.
Interim storage plays a main role to implement WM.
When the goods are posted in IM the stock level sill reflect in the interim storage area.
Every Goods Movement in WM and IM is processed using an Interim Storage Area.
Example. A goods receipt for a purchase order is posted in MIGO , then the goods are brought into the warehouse through an Interim
storage area , that is the goods receipt area.
RAVIKUMAR.
INVENTORY MANAGEMENT(IM-MM) WAREHOUSE MANAGEMENT (LE-WM)
Storage Location MSL3 Warehouse no MWN
Goods Receipt
area Storage
Type
Goods Issue area
Storage Type
HRL
Storage
Type
Fixed Bin Storage
Storage Type
Bulk Storage
Storage Type

Org Structure in MM - WM
MM
DISTRIBUTION
CENTRE FACTORY
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
WM
RAVIKUMAR.
Client
Company Code
Purchasing Organization
Plant
Storage Location
Warehouse Number
Storage Type
Storage Bin (Physical Stock)
MAGC SOLUTION LIMITED
MAGI MAG2
MP0A MP0C MP0B
MC01 MC02 MC01 MC02 MC01
MSL1 MSL3 MSL6 MSL7
MWN

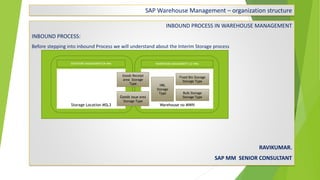

INBOUND PROCESS IN WAREHOUSE MANAGEMENT
INBOUND PROCESS:
Before stepping into inbound Process we will understand about the Interim Storage process
RAVIKUMAR.
INVENTORY MANAGEMENT(IM-MM) WAREHOUSE MANAGEMENT (LE-WM)
Storage Location MSL3 Warehouse no MWN
Goods Receipt
area Storage
Type
Goods Issue area
Storage Type
HRL
Storage
Type
Fixed Bin Storage
Storage Type
Bulk Storage
Storage Type

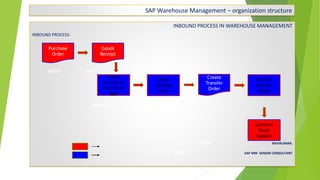

INBOUND PROCESS:
ME21N MIGO
MMBE/LS26 LB10 LT12
MM RAVIKUMAR.
WM SAP MM SENIOR CONSULTANT
Purchase
Order
Goods
Receipt
Stock
Arrived in
Interim St
Type
Check
Existing
Stock
Create
Transfer
Order
Confirm
Transfer
Order
Conform
Stock
Update

INBOUND PROCESS:
1. Purchase Order : Create Purchase Order with the T Code : ME21N
RAVIKUMAR.

INBOUND PROCESS:
After Creating the Purchase Order

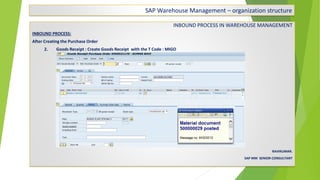

2. Goods Receipt : Create Goods Receipt with the T Code : MIGO
RAVIKUMAR.

INBOUND PROCESS:

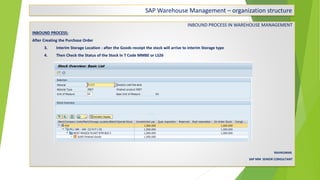

3. Interim Storage Location : after the Goods receipt the stock will arrive to interim Storage type
4. Then Check the Status of the Stock In T Code MMBE or LS26
RAVIKUMAR.

INBOUND PROCESS:
5. Transfer order : Create Transfer Order by using T Code LB10
6. Then Confirm Transfer Order using T Code LT12
RAVIKUMAR.

SAP WM OVERVIEW DOCUMENT FOR BEIGINERS

More Related Content

What's hot

Similar to SAP WM OVERVIEW DOCUMENT FOR BEIGINERS

Recently uploaded

SAP WM OVERVIEW DOCUMENT FOR BEIGINERS
