SAP Hana Overview

SAP HANA
Overview
Tomislav Milinović
https://hr.linkedin.com/in/tmilinovic
https://tmilinovic.wordpress.com

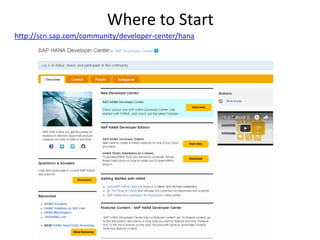

Where to Start
http://scn.sap.com/community/developer-center/hana

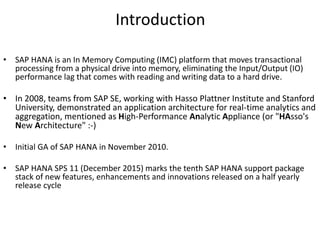

Introduction
• SAP HANA is an In Memory Computing (IMC) platform that moves transactional
processing from a physical drive into memory, eliminating the Input/Output (IO)
performance lag that comes with reading and writing data to a hard drive.
• In 2008, teams from SAP SE, working with Hasso Plattner Institute and Stanford
University, demonstrated an application architecture for real-time analytics and
aggregation, mentioned as High-Performance Analytic Appliance (or "HAsso's
New Architecture" :-)
• Initial GA of SAP HANA in November 2010.
• SAP HANA SPS 11 (December 2015) marks the tenth SAP HANA support package
stack of new features, enhancements and innovations released on a half yearly
release cycle

Columnar In-Memory Store
• Column-oriented contiguous memory table store with highly efficient
compression methods, such as run-length encoding, cluster coding and
dictionary coding.
• With dictionary encoding, columns are stored as sequences of bit-coded
integers. That means that a check for equality can be executed on the
integers; for example, during scans or join operations. This is much
faster than comparing, for example, string values.
• Columnar storage, in many cases, eliminates the need for additional
index structures. Storing data in columns is functionally similar to having
a built-in index for each column

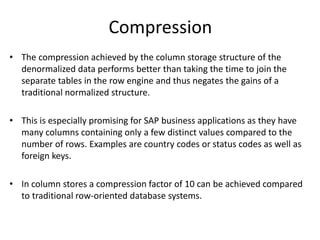

Compression
• The compression achieved by the column storage structure of the
denormalized data performs better than taking the time to join the
separate tables in the row engine and thus negates the gains of a
traditional normalized structure.
• This is especially promising for SAP business applications as they have
many columns containing only a few distinct values compared to the
number of rows. Examples are country codes or status codes as well as
foreign keys.
• In column stores a compression factor of 10 can be achieved compared
to traditional row-oriented database systems.

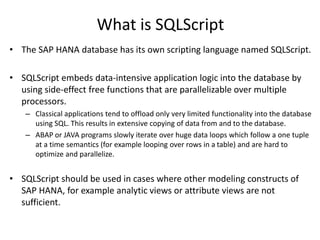

What is SQLScript
• The SAP HANA database has its own scripting language named SQLScript.
• SQLScript embeds data-intensive application logic into the database by
using side-effect free functions that are parallelizable over multiple
processors.
– Classical applications tend to offload only very limited functionality into the database
using SQL. This results in extensive copying of data from and to the database.
– ABAP or JAVA programs slowly iterate over huge data loops which follow a one tuple
at a time semantics (for example looping over rows in a table) and are hard to
optimize and parallelize.
• SQLScript should be used in cases where other modeling constructs of
SAP HANA, for example analytic views or attribute views are not
sufficient.

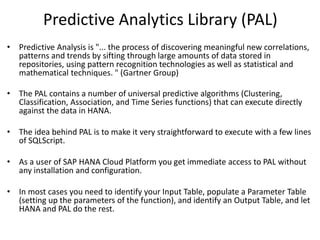

Predictive Analytics Library (PAL)
• Predictive Analysis is "... the process of discovering meaningful new correlations,
patterns and trends by sifting through large amounts of data stored in
repositories, using pattern recognition technologies as well as statistical and
mathematical techniques. " (Gartner Group)
• The PAL contains a number of universal predictive algorithms (Clustering,
Classification, Association, and Time Series functions) that can execute directly
against the data in HANA.
• The idea behind PAL is to make it very straightforward to execute with a few lines
of SQLScript.
• As a user of SAP HANA Cloud Platform you get immediate access to PAL without
any installation and configuration.
• In most cases you need to identify your Input Table, populate a Parameter Table
(setting up the parameters of the function), and identify an Output Table, and let
HANA and PAL do the rest.

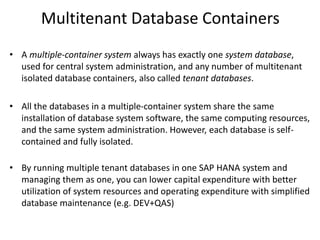

Multitenant Database Containers
• A multiple-container system always has exactly one system database,
used for central system administration, and any number of multitenant
isolated database containers, also called tenant databases.
• All the databases in a multiple-container system share the same
installation of database system software, the same computing resources,
and the same system administration. However, each database is self-
contained and fully isolated.
• By running multiple tenant databases in one SAP HANA system and
managing them as one, you can lower capital expenditure with better
utilization of system resources and operating expenditure with simplified
database maintenance (e.g. DEV+QAS)

Hot Standby
• Hot Standby functionality helps you regain faster access to data after a
data center failure, by enabling applications to fail-over to a fully up-to-
date standby database.
• A hot standby system consists of a master database and one or more
standby databases that are updated at regular intervals.
The primary and the standby databases as kept synchronized by
continuously replaying logs.
• Master and standby databases together form a cluster that, outwardly,
behaves like a single database. If the master database fails, one of the
standby databases automatically becomes the new master database.
• The main advantage of a hot standby system is the short downtime
when errors occur (much shorter than the time it would take to restart
the master database, for example).

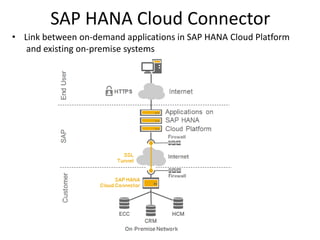

SAP HANA Cloud Connector
• Link between on-demand applications in SAP HANA Cloud Platform
and existing on-premise systems

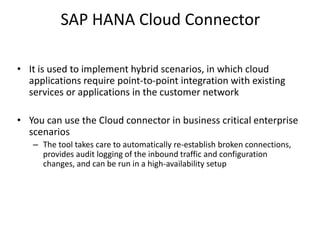

SAP HANA Cloud Connector
• It is used to implement hybrid scenarios, in which cloud
applications require point-to-point integration with existing
services or applications in the customer network
• You can use the Cloud connector in business critical enterprise
scenarios
– The tool takes care to automatically re-establish broken connections,
provides audit logging of the inbound traffic and configuration
changes, and can be run in a high-availability setup

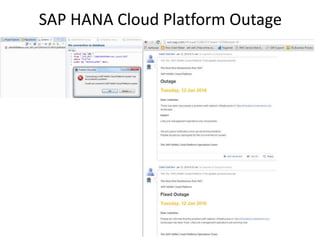

SAP HANA Cloud Platform Outage

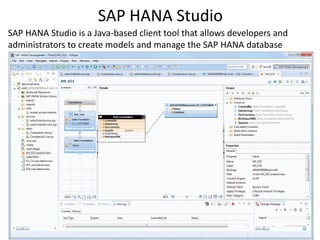

SAP HANA Studio
SAP HANA Studio is a Java-based client tool that allows developers and
administrators to create models and manage the SAP HANA database

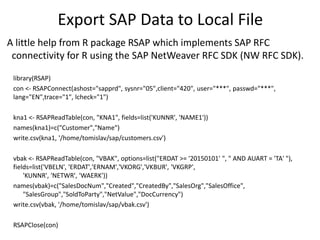

Export SAP Data to Local File
library(RSAP)
con <- RSAPConnect(ashost="sapprd", sysnr="05",client="420", user="***", passwd="***",
lang="EN",trace="1", lcheck="1")
kna1 <- RSAPReadTable(con, "KNA1", fields=list('KUNNR', 'NAME1'))
names(kna1)=c("Customer","Name")
write.csv(kna1, '/home/tomislav/sap/customers.csv')
vbak <- RSAPReadTable(con, "VBAK", options=list("ERDAT >= '20150101' ", " AND AUART = 'TA' "),
fields=list('VBELN', 'ERDAT','ERNAM','VKORG','VKBUR', 'VKGRP',
'KUNNR', 'NETWR', 'WAERK'))
names(vbak)=c("SalesDocNum","Created","CreatedBy","SalesOrg","SalesOffice",
"SalesGroup","SoldToParty","NetValue","DocCurrency")
write.csv(vbak, '/home/tomislav/sap/vbak.csv')
RSAPClose(con)
A little help from R package RSAP which implements SAP RFC
connectivity for R using the SAP NetWeaver RFC SDK (NW RFC SDK).

Import SAP HANA Content Data from Local File
File Import

Manage Table Definition and Data Mappings

Modifying Tables
ALTER TABLE "VBAK" ALTER („SalesOrg" VARCHAR(10));
ALTER TABLE "VBAK" ADD ("DateCreated" DATE);
UPDATE "VBAK" SET "DateCreated" = TO_DATE ("Created", 'YYYYMMDD');
ALTER TABLE "VBAK" ADD ("Quarter" CHAR(7));
UPDATE "VBAK " SET "Quarter" = QUARTER ("DateCreated");
SELECT SCHEMA_NAME FROM "HCP"."HCP_DEV_METADATA"
SET SCHEMA "<your NEO_xxx schema>";

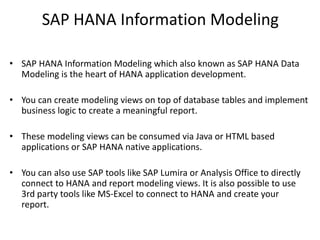

SAP HANA Information Modeling
• SAP HANA Information Modeling which also known as SAP HANA Data
Modeling is the heart of HANA application development.
• You can create modeling views on top of database tables and implement
business logic to create a meaningful report.
• These modeling views can be consumed via Java or HTML based
applications or SAP HANA native applications.
• You can also use SAP tools like SAP Lumira or Analysis Office to directly
connect to HANA and report modeling views. It is also possible to use
3rd party tools like MS-Excel to connect to HANA and create your
report.

SAP HANA Information Views
• Modeling SAP HANA Information Views are important for successfully
exploiting the power of SAP HANA.
These views are classified as
– Attribute Views
– Analytic Views
– Calculation Views

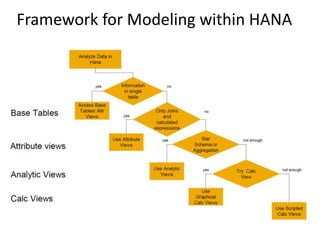

Framework for Modeling within HANA

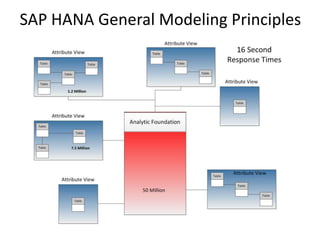

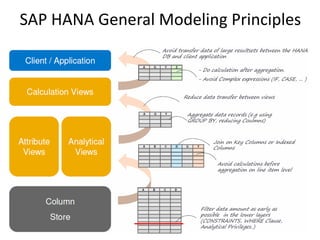

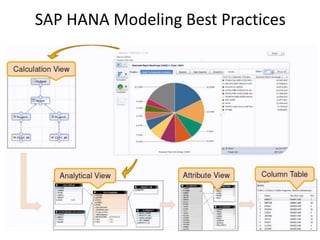

SAP HANA Modeling Best Practices

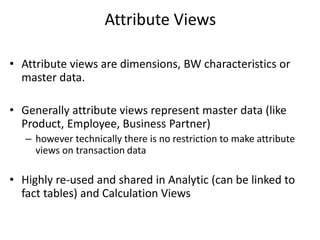

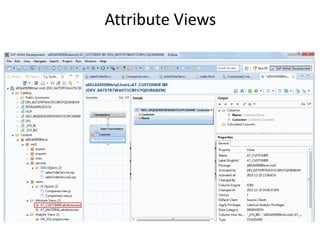

Attribute Views
• Attribute views are dimensions, BW characteristics or
master data.
• Generally attribute views represent master data (like
Product, Employee, Business Partner)
– however technically there is no restriction to make attribute
views on transaction data
• Highly re-used and shared in Analytic (can be linked to
fact tables) and Calculation Views

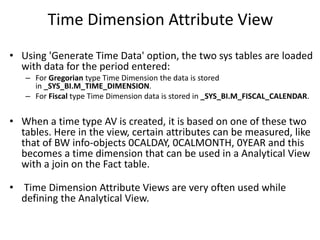

Time Dimension Attribute View
• Using 'Generate Time Data' option, the two sys tables are loaded
with data for the period entered:
– For Gregorian type Time Dimension the data is stored
in _SYS_BI.M_TIME_DIMENSION.
– For Fiscal type Time Dimension data is stored in _SYS_BI.M_FISCAL_CALENDAR.
• When a time type AV is created, it is based on one of these two
tables. Here in the view, certain attributes can be measured, like
that of BW info-objects 0CALDAY, 0CALMONTH, 0YEAR and this
becomes a time dimension that can be used in a Analytical View
with a join on the Fact table.
• Time Dimension Attribute Views are very often used while
defining the Analytical View.

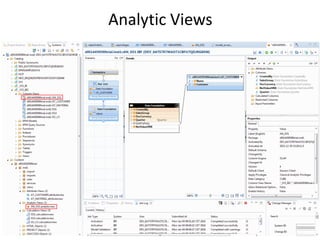

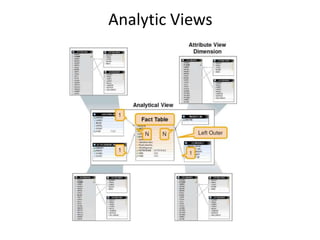

Analytic Views
• Analytic views are star schemas or fact tables surrounded by dimensions,
calculations or restricted measures.
• In the language on SAP BW analytical views can be roughly compared with Info
Cubes or Info Sets.
• Analytic views are typically defined on at least one fact table that contains
transactional data along with number of tables or attribute views.
• Analytic views leverage the computing power of SAP HANA to calculate
aggregate data, e. g., the number of bikes sold per country, or the maximum
power consumed per month.
• It is specifically designed to execute star schema queries

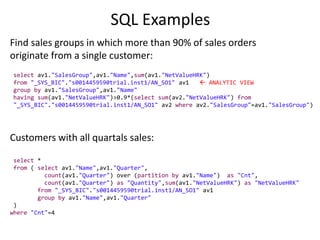

SQL Examples
Find sales groups in which more than 90% of sales orders
originate from a single customer:
select av1."SalesGroup",av1."Name",sum(av1."NetValueHRK")
from "_SYS_BIC"."s0014459590trial.inst1/AN_SO1" av1  ANALYTIC VIEW
group by av1."SalesGroup",av1."Name"
having sum(av1."NetValueHRK")>0.9*(select sum(av2."NetValueHRK") from
"_SYS_BIC"."s0014459590trial.inst1/AN_SO1" av2 where av2."SalesGroup"=av1."SalesGroup")
Customers with all quartals sales:
select *
from ( select av1."Name",av1."Quarter",
count(av1."Quarter") over (partition by av1."Name") as "Cnt",
count(av1."Quarter") as "Quantity",sum(av1."NetValueHRK") as "NetValueHRK"
from "_SYS_BIC"."s0014459590trial.inst1/AN_SO1" av1
group by av1."Name",av1."Quarter"
)
where "Cnt"=4

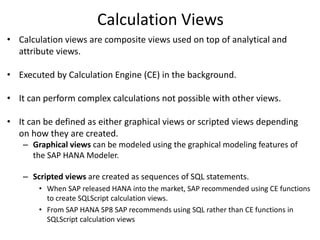

Calculation Views
• Calculation views are composite views used on top of analytical and
attribute views.
• Executed by Calculation Engine (CE) in the background.
• It can perform complex calculations not possible with other views.
• It can be defined as either graphical views or scripted views depending
on how they are created.
– Graphical views can be modeled using the graphical modeling features of
the SAP HANA Modeler.
– Scripted views are created as sequences of SQL statements.
• When SAP released HANA into the market, SAP recommended using CE functions
to create SQLScript calculation views.
• From SAP HANA SP8 SAP recommends using SQL rather than CE functions in
SQLScript calculation views

Calculation Engine(CE) Functions
Directly implemented in the Sap HANA CALC engine can significantly accelerate the
execution of your SQL query.

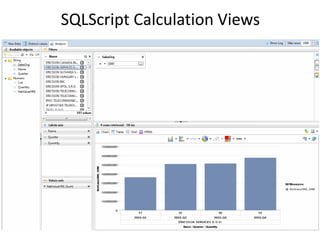

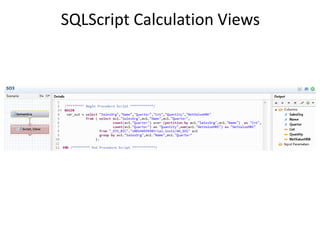

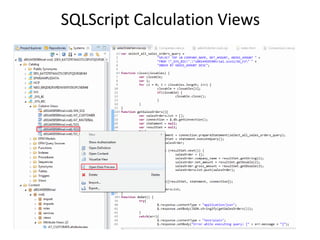

SQLScript Calculation Views
• When SAP released HANA into the market, SAP recommended
using CE functions to create SQL script calculation views as they
performed better than SQL.
• This is no longer the case. From SAP HANA SP8 SAP recommends
using SQL rather than CE functions
– The execution of CE functions currently is bound to processing within the calculation
engine and does not allow a possibility to use alternative execution engines, such as
L native execution.
– As most Calculation Engine Functions are converted internally and treated as SQL
operations, the conversion requires multiple layers of optimizations. This can be
avoided by direct SQL use.

SQL Select from Calculation View

SQL from Calculated View Example
Customers with all quartals sales:
select "SalesOrg","Name","Quarter","Cnt","Quantity","NetValueHRK"
from "_SYS_BIC"."s0014459590trial.inst1/SO3"  CALCULATED VIEW
where "Cnt"=4;
By creating calculated view we simplified end usage SQL statement.
Compare with analytic view SQL:
select *
from ( select av1."Name",av1."Quarter",
count(av1."Quarter") over (partition by av1."Name") as "Cnt",
count(av1."Quarter") as "Quantity",sum(av1."NetValueHRK") as "NetValueHRK"
from "_SYS_BIC"."s0014459590trial.inst1/AN_SO1" av1  ANALYTIC VIEW
group by av1."Name",av1."Quarter"
)
where "Cnt"=4

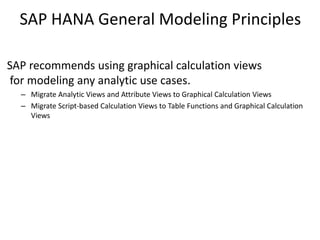

SAP HANA General Modeling Principles

SAP HANA General Modeling Principles
SAP recommends using graphical calculation views
for modeling any analytic use cases.
– Migrate Analytic Views and Attribute Views to Graphical Calculation Views
– Migrate Script-based Calculation Views to Table Functions and Graphical Calculation
Views

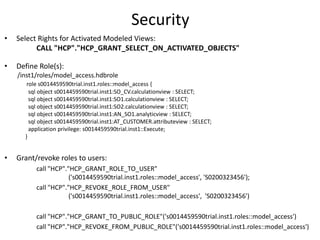

Security
• Select Rights for Activated Modeled Views:
CALL "HCP"."HCP_GRANT_SELECT_ON_ACTIVATED_OBJECTS"
• Define Role(s):
/inst1/roles/model_access.hdbrole
role s0014459590trial.inst1.roles::model_access {
sql object s0014459590trial.inst1:SO_CV.calculationview : SELECT;
sql object s0014459590trial.inst1:SO1.calculationview : SELECT;
sql object s0014459590trial.inst1:SO2.calculationview : SELECT;
sql object s0014459590trial.inst1:AN_SO1.analyticview : SELECT;
sql object s0014459590trial.inst1:AT_CUSTOMER.attributeview : SELECT;
application privilege: s0014459590trial.inst1::Execute;
}
• Grant/revoke roles to users:
call "HCP"."HCP_GRANT_ROLE_TO_USER"
('s0014459590trial.inst1.roles::model_access', 'S0200323456');
call "HCP"."HCP_REVOKE_ROLE_FROM_USER"
('s0014459590trial.inst1.roles::model_access', 'S0200323456')
call "HCP"."HCP_GRANT_TO_PUBLIC_ROLE"('s0014459590trial.inst1.roles::model_access')
call "HCP"."HCP_REVOKE_FROM_PUBLIC_ROLE"('s0014459590trial.inst1.roles::model_access')

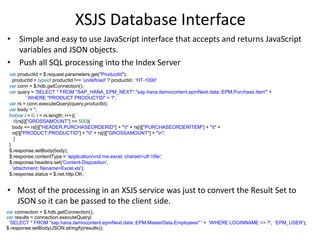

XSJS Database Interface
• Simple and easy to use JavaScript interface that accepts and returns JavaScript
variables and JSON objects.
• Push all SQL processing into the Index Server
var productId = $.request.parameters.get("ProductId");
productId = typeof productId !== 'undefined' ? productId : 'HT-1000'
var conn = $.hdb.getConnection();
var query = 'SELECT * FROM "SAP_HANA_EPM_NEXT"."sap.hana.democontent.epmNext.data::EPM.Purchase.Item"' +
' WHERE "PRODUCT.PRODUCTID" = ?';
var rs = conn.executeQuery(query,productId);
var body = '';
for(var i = 0; i < rs.length; i++){
if(rs[i]["GROSSAMOUNT"] >= 500){
body += rs[i]["HEADER.PURCHASEORDERID"] + "t" + rs[i]["PURCHASEORDERITEM"] + "t" +
rs[i]["PRODUCT.PRODUCTID"] + "t" + rs[i]["GROSSAMOUNT"] + "n";
}
}
$.response.setBody(body);
$.response.contentType = 'application/vnd.ms-excel; charset=utf-16le';
$.response.headers.set('Content-Disposition',
'attachment; filename=Excel.xls');
$.response.status = $.net.http.OK;
• Most of the processing in an XSJS service was just to convert the Result Set to
JSON so it can be passed to the client side.
var connection = $.hdb.getConnection();
var results = connection.executeQuery(
'SELECT * FROM "sap.hana.democontent.epmNext.data::EPM.MasterData.Employees" ' + 'WHERE LOGINNAME <> ?', 'EPM_USER');
$.response.setBody(JSON.stringify(results));

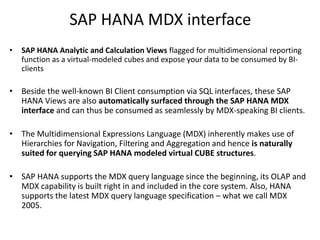

SAP HANA MDX interface
• SAP HANA Analytic and Calculation Views flagged for multidimensional reporting
function as a virtual-modeled cubes and expose your data to be consumed by BI-
clients
• Beside the well-known BI Client consumption via SQL interfaces, these SAP
HANA Views are also automatically surfaced through the SAP HANA MDX
interface and can thus be consumed as seamlessly by MDX-speaking BI clients.
• The Multidimensional Expressions Language (MDX) inherently makes use of
Hierarchies for Navigation, Filtering and Aggregation and hence is naturally
suited for querying SAP HANA modeled virtual CUBE structures.
• SAP HANA supports the MDX query language since the beginning, its OLAP and
MDX capability is built right in and included in the core system. Also, HANA
supports the latest MDX query language specification – what we call MDX
2005.

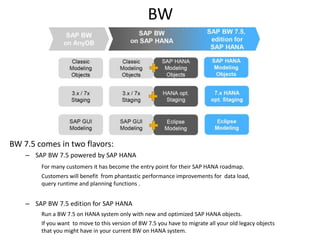

BW
BW 7.5 comes in two flavors:
– SAP BW 7.5 powered by SAP HANA
For many customers it has become the entry point for their SAP HANA roadmap.
Customers will benefit from phantastic performance improvements for data load,
query runtime and planning functions .
– SAP BW 7.5 edition for SAP HANA
Run a BW 7.5 on HANA system only with new and optimized SAP HANA objects.
If you want to move to this version of BW 7.5 you have to migrate all your old legacy objects
that you might have in your current BW on HANA system.

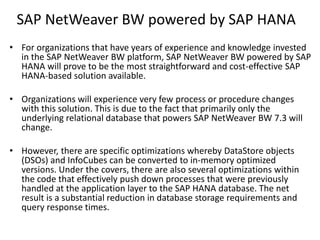

SAP NetWeaver BW powered by SAP HANA
• For organizations that have years of experience and knowledge invested
in the SAP NetWeaver BW platform, SAP NetWeaver BW powered by SAP
HANA will prove to be the most straightforward and cost-effective SAP
HANA-based solution available.
• Organizations will experience very few process or procedure changes
with this solution. This is due to the fact that primarily only the
underlying relational database that powers SAP NetWeaver BW 7.3 will
change.
• However, there are specific optimizations whereby DataStore objects
(DSOs) and InfoCubes can be converted to in-memory optimized
versions. Under the covers, there are also several optimizations within
the code that effectively push down processes that were previously
handled at the application layer to the SAP HANA database. The net
result is a substantial reduction in database storage requirements and
query response times.

SAP HANA as Data Mart
• A data mart is an industry term for a repository of data gathered from
operational data originating in transactional systems, designed to serve
as a basis for analytics and reporting.
• As new data is added into the relevant tables in the transactional
system’s database, copies of those records are automatically transferred
immediately into SAP HANA using replication technology. These
replicated tables become the basis for specialized views that are created
for analytics purposes.
• The SAP Landscape Transformation Replication Server (SLT) is an SAP
NetWeaver ABAP-based tool that provides real-time data replication. In
addition, a log-based SAP Replication Server (SRS) can also be used to
provide real-time data replication for an SAP Business Suite system.

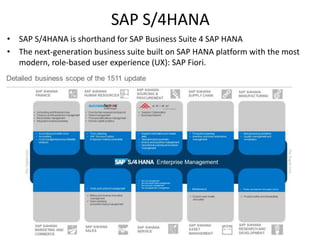

SAP S/4HANA
• SAP S/4HANA is shorthand for SAP Business Suite 4 SAP HANA
• The next-generation business suite built on SAP HANA platform with the most
modern, role-based user experience (UX): SAP Fiori.

SAP HANA Live
• Previously known as SHAF – SAP HANA Analytic Foundation
• Provides SAP-delivered content (similar in concept like SAP BW content),
in form of SAP HANA calculation views for real-time operational
reporting.
• The calculation views spans across majority of ECC modules (FI, CO, MM,
PP, SD, PS, CRM, GTS, AM and GRC).
• Currently more than 2000 views are delivered in HANA Live Package.
• With SAP HANA Live all customers have to do is edit existing Virtual
models/Views provided by SAP or create new HANA Models or Views to
support new development in less time and no need to know ABAP.

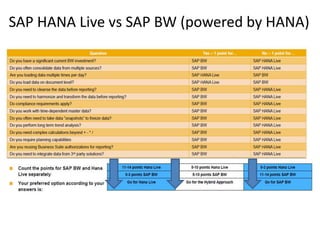

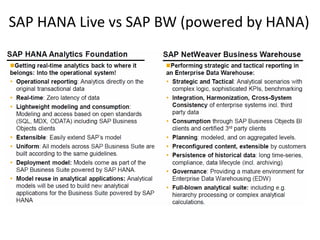

SAP HANA Live vs SAP BW (powered by HANA)

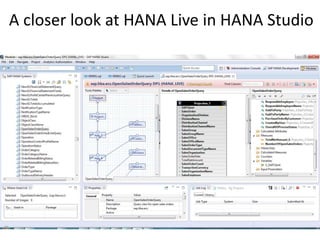

A closer look at HANA Live in HANA Studio

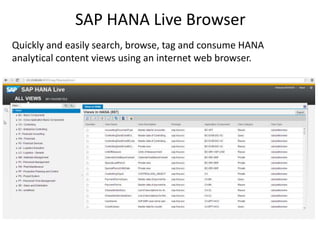

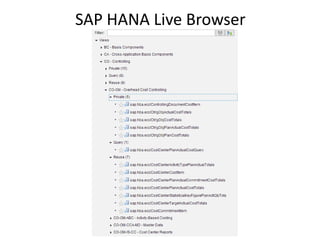

SAP HANA Live Browser
Quickly and easily search, browse, tag and consume HANA
analytical content views using an internet web browser.

BI
• HANA modeling does not create persistent cubes, but rather allows developers to define metadata
that produces CUBE like features. HANA will use this metadata and its calculation engines to
retrieve data from the base in-memory columnar tables at lightning fast speeds.
• It is no more needed to replicate data or to compute an OLAP cube, so it helps delivering real-time
BI (being able to take decisions a few minutes / seconds after a transaction has been done) directly
on the lowest level of granularity, i.e. the transactional line items.
• Single source of truth: Analytical and transactional reporting based on the same source. Reports
are now updated in real time because they read the transactional data directly – instead of a copy
in a data warehouse.
• SAP HANA has a 6x smaller footprint on disk and 1.5x-2x smaller footprint in-memory and the
traditional pre aggregation of transactional data can be completely avoided. As a byproduct
backup/restore runs 5 times faster and systems for development and testing are much smaller.
• Even if HANA is not yet fully ready for this function, it is clear in 2012 SAP will propose business
functions (like planning, treasure management, inventory management …) that will use HANA to
deliver new and high business value.

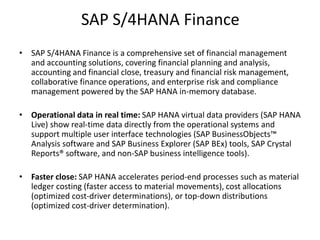

SAP S/4HANA Finance
• SAP S/4HANA Finance is a comprehensive set of financial management
and accounting solutions, covering financial planning and analysis,
accounting and financial close, treasury and financial risk management,
collaborative finance operations, and enterprise risk and compliance
management powered by the SAP HANA in-memory database.
• Operational data in real time: SAP HANA virtual data providers (SAP HANA
Live) show real-time data directly from the operational systems and
support multiple user interface technologies (SAP BusinessObjects™
Analysis software and SAP Business Explorer (SAP BEx) tools, SAP Crystal
Reports® software, and non-SAP business intelligence tools).
• Faster close: SAP HANA accelerates period-end processes such as material
ledger costing (faster access to material movements), cost allocations
(optimized cost-driver determinations), or top-down distributions
(optimized cost-driver determination).

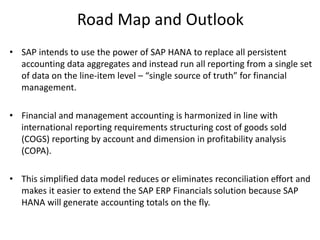

Road Map and Outlook
• SAP intends to use the power of SAP HANA to replace all persistent
accounting data aggregates and instead run all reporting from a single set
of data on the line-item level – “single source of truth” for financial
management.
• Financial and management accounting is harmonized in line with
international reporting requirements structuring cost of goods sold
(COGS) reporting by account and dimension in profitability analysis
(COPA).
• This simplified data model reduces or eliminates reconciliation effort and
makes it easier to extend the SAP ERP Financials solution because SAP
HANA will generate accounting totals on the fly.

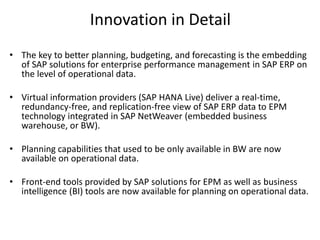

Innovation in Detail
• The key to better planning, budgeting, and forecasting is the embedding
of SAP solutions for enterprise performance management in SAP ERP on
the level of operational data.
• Virtual information providers (SAP HANA Live) deliver a real-time,
redundancy-free, and replication-free view of SAP ERP data to EPM
technology integrated in SAP NetWeaver (embedded business
warehouse, or BW).
• Planning capabilities that used to be only available in BW are now
available on operational data.
• Front-end tools provided by SAP solutions for EPM as well as business
intelligence (BI) tools are now available for planning on operational data.

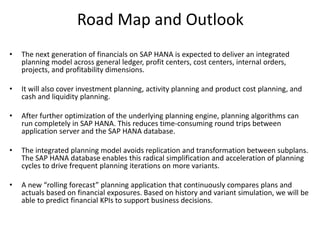

Road Map and Outlook
• The next generation of financials on SAP HANA is expected to deliver an integrated
planning model across general ledger, profit centers, cost centers, internal orders,
projects, and profitability dimensions.
• It will also cover investment planning, activity planning and product cost planning, and
cash and liquidity planning.
• After further optimization of the underlying planning engine, planning algorithms can
run completely in SAP HANA. This reduces time-consuming round trips between
application server and the SAP HANA database.
• The integrated planning model avoids replication and transformation between subplans.
The SAP HANA database enables this radical simplification and acceleration of planning
cycles to drive frequent planning iterations on more variants.
• A new “rolling forecast” planning application that continuously compares plans and
actuals based on financial exposures. Based on history and variant simulation, we will be
able to predict financial KPIs to support business decisions.

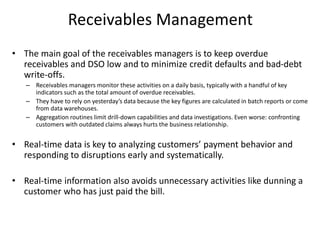

Receivables Management
• The main goal of the receivables managers is to keep overdue
receivables and DSO low and to minimize credit defaults and bad-debt
write-offs.
– Receivables managers monitor these activities on a daily basis, typically with a handful of key
indicators such as the total amount of overdue receivables.
– They have to rely on yesterday’s data because the key figures are calculated in batch reports or come
from data warehouses.
– Aggregation routines limit drill-down capabilities and data investigations. Even worse: confronting
customers with outdated claims always hurts the business relationship.
• Real-time data is key to analyzing customers’ payment behavior and
responding to disruptions early and systematically.
• Real-time information also avoids unnecessary activities like dunning a
customer who has just paid the bill.

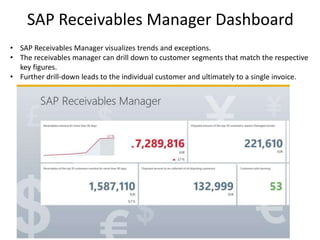

SAP Receivables Manager Dashboard
• SAP Receivables Manager visualizes trends and exceptions.
• The receivables manager can drill down to customer segments that match the respective
key figures.
• Further drill-down leads to the individual customer and ultimately to a single invoice.

SAP Hana Overview

More Related Content

What's hot

Viewers also liked

Similar to SAP Hana Overview

Recently uploaded

SAP Hana Overview
