This document provides a comprehensive overview of SAP HANA, including its architecture, installation, administration, and monitoring best practices. It details the history, deployment options, sizing guidelines, and the various replication methods for data integration. Additionally, it outlines the roles and responsibilities involved in the installation and operation of SAP HANA systems.

1. Produced by Wellesley Information Services,
LLC, publisher of SAPinsider. © 2015 Wellesley
Information Services. All rights reserved.

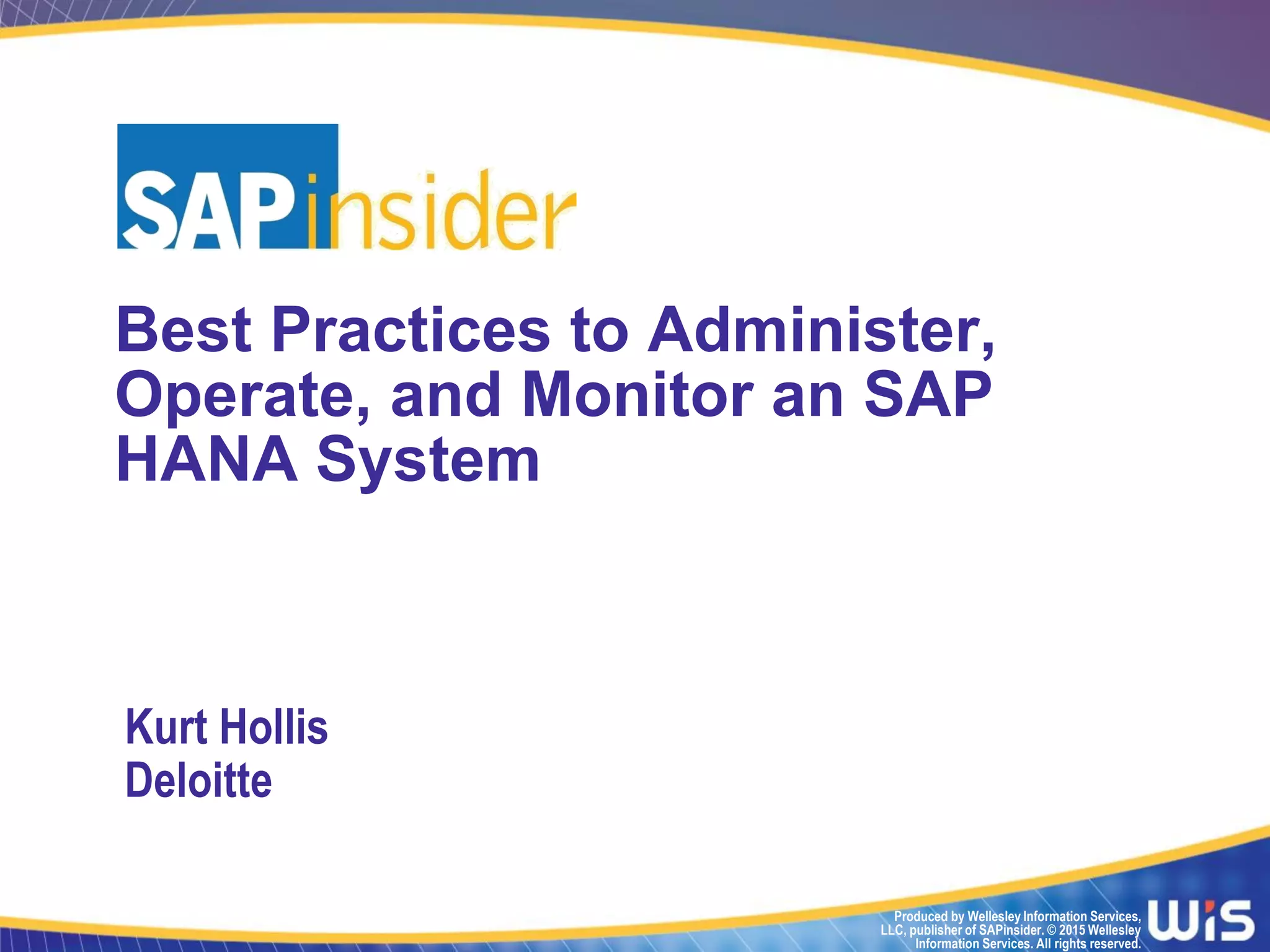

Best Practices to Administer,
Operate, and Monitor an SAP
HANA System
Kurt Hollis
Deloitte

2. 1

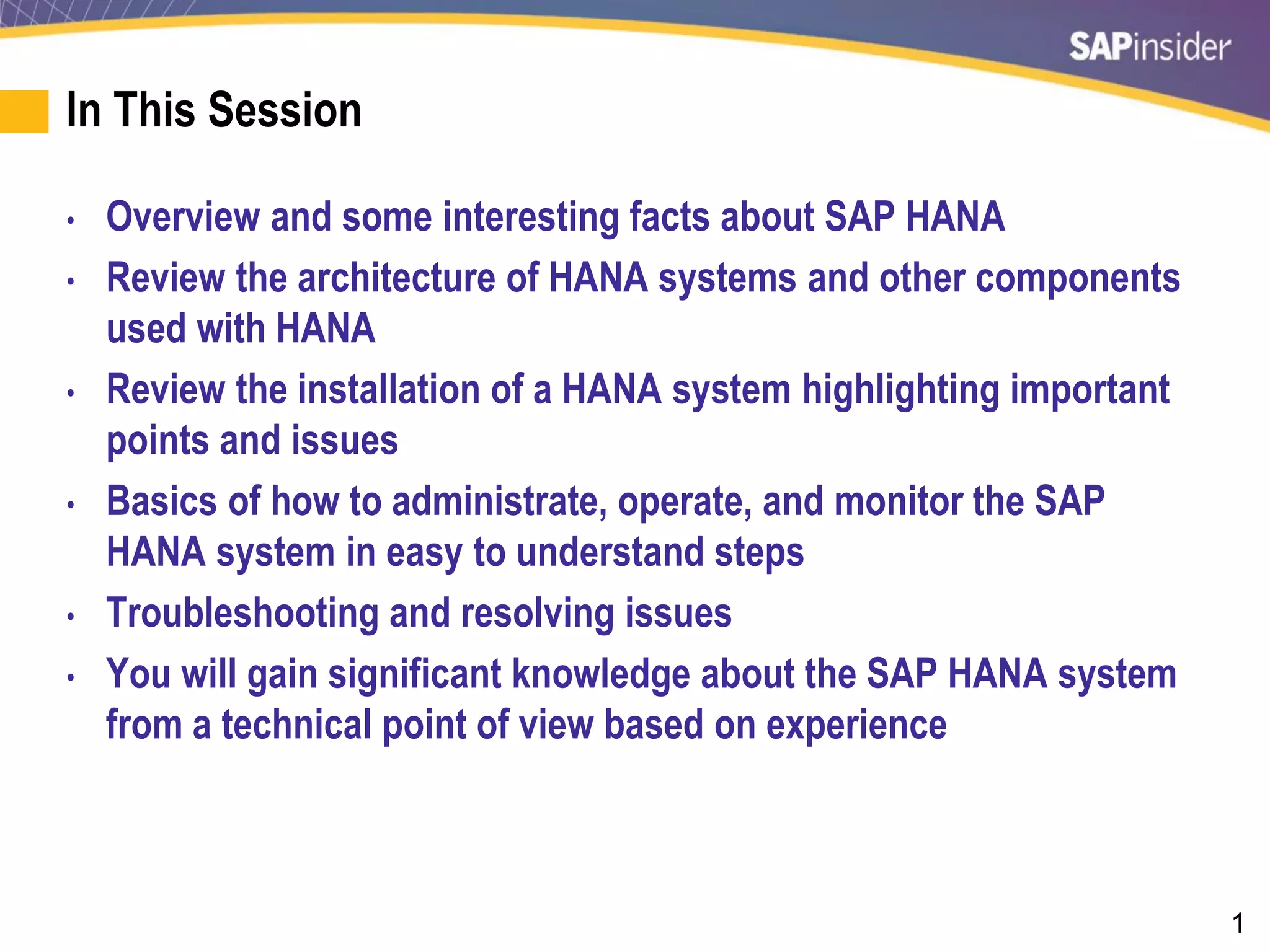

In This Session
• Overview and some interesting facts about SAP HANA
• Review the architecture of HANA systems and other components
used with HANA
• Review the installation of a HANA system highlighting important
points and issues
• Basics of how to administrate, operate, and monitor the SAP
HANA system in easy to understand steps
• Troubleshooting and resolving issues
• You will gain significant knowledge about the SAP HANA system
from a technical point of view based on experience

3. 2
What We’ll Cover
• Overview of HANA
• Architecture
• Installation
• Administration
• Operations
• Monitoring
• Wrap-up

4. 3

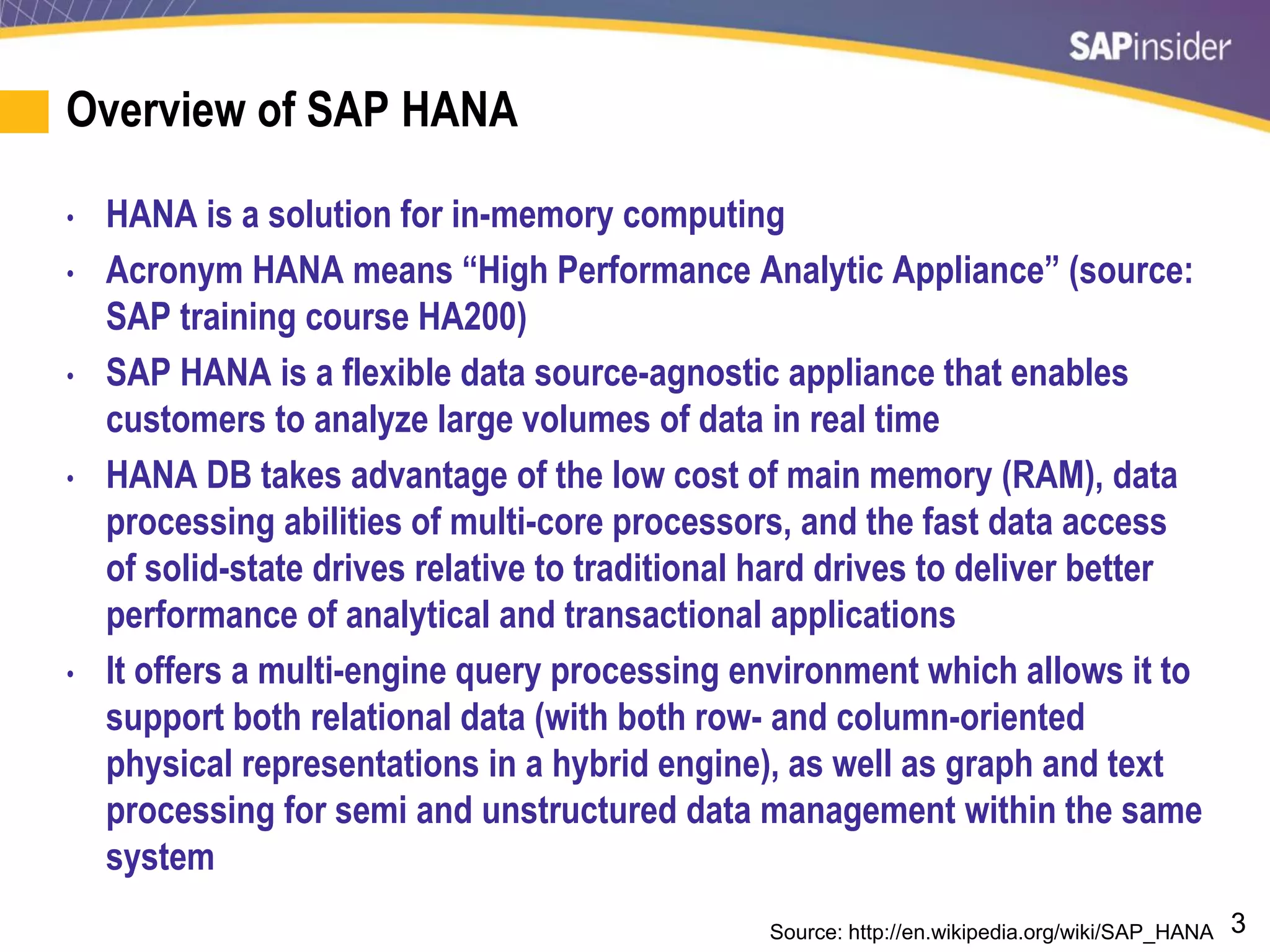

Overview of SAP HANA
• HANA is a solution for in-memory computing
• Acronym HANA means “High Performance Analytic Appliance” (source:
SAP training course HA200)
• SAP HANA is a flexible data source-agnostic appliance that enables
customers to analyze large volumes of data in real time
• HANA DB takes advantage of the low cost of main memory (RAM), data
processing abilities of multi-core processors, and the fast data access
of solid-state drives relative to traditional hard drives to deliver better
performance of analytical and transactional applications
• It offers a multi-engine query processing environment which allows it to
support both relational data (with both row- and column-oriented
physical representations in a hybrid engine), as well as graph and text
processing for semi and unstructured data management within the same
system
Source: http://en.wikipedia.org/wiki/SAP_HANA

5. 4

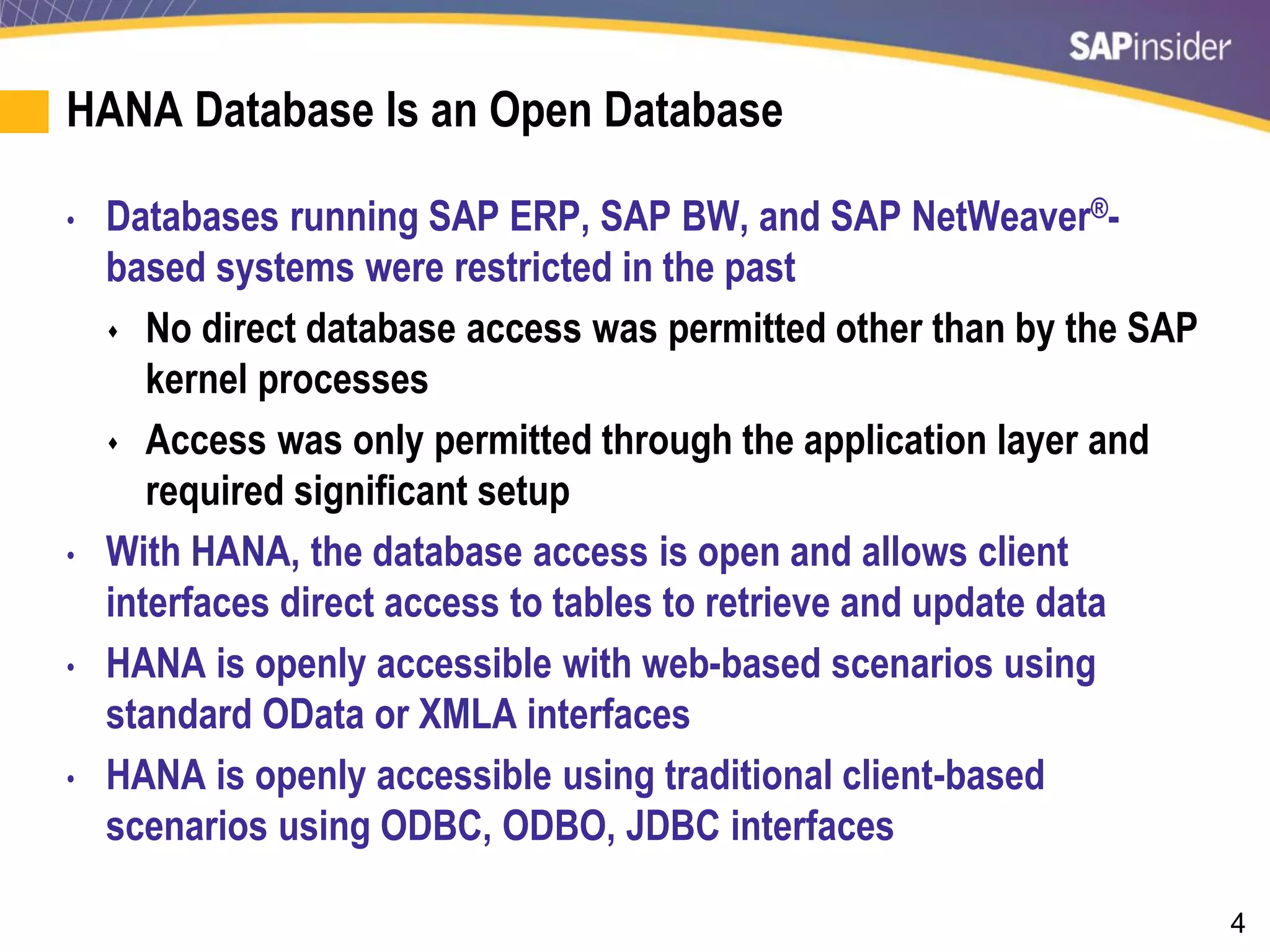

HANA Database Is an Open Database
• Databases running SAP ERP, SAP BW, and SAP NetWeaver®-
based systems were restricted in the past
 No direct database access was permitted other than by the SAP
kernel processes
 Access was only permitted through the application layer and
required significant setup
• With HANA, the database access is open and allows client
interfaces direct access to tables to retrieve and update data
• HANA is openly accessible with web-based scenarios using
standard OData or XMLA interfaces
• HANA is openly accessible using traditional client-based
scenarios using ODBC, ODBO, JDBC interfaces

6. 5

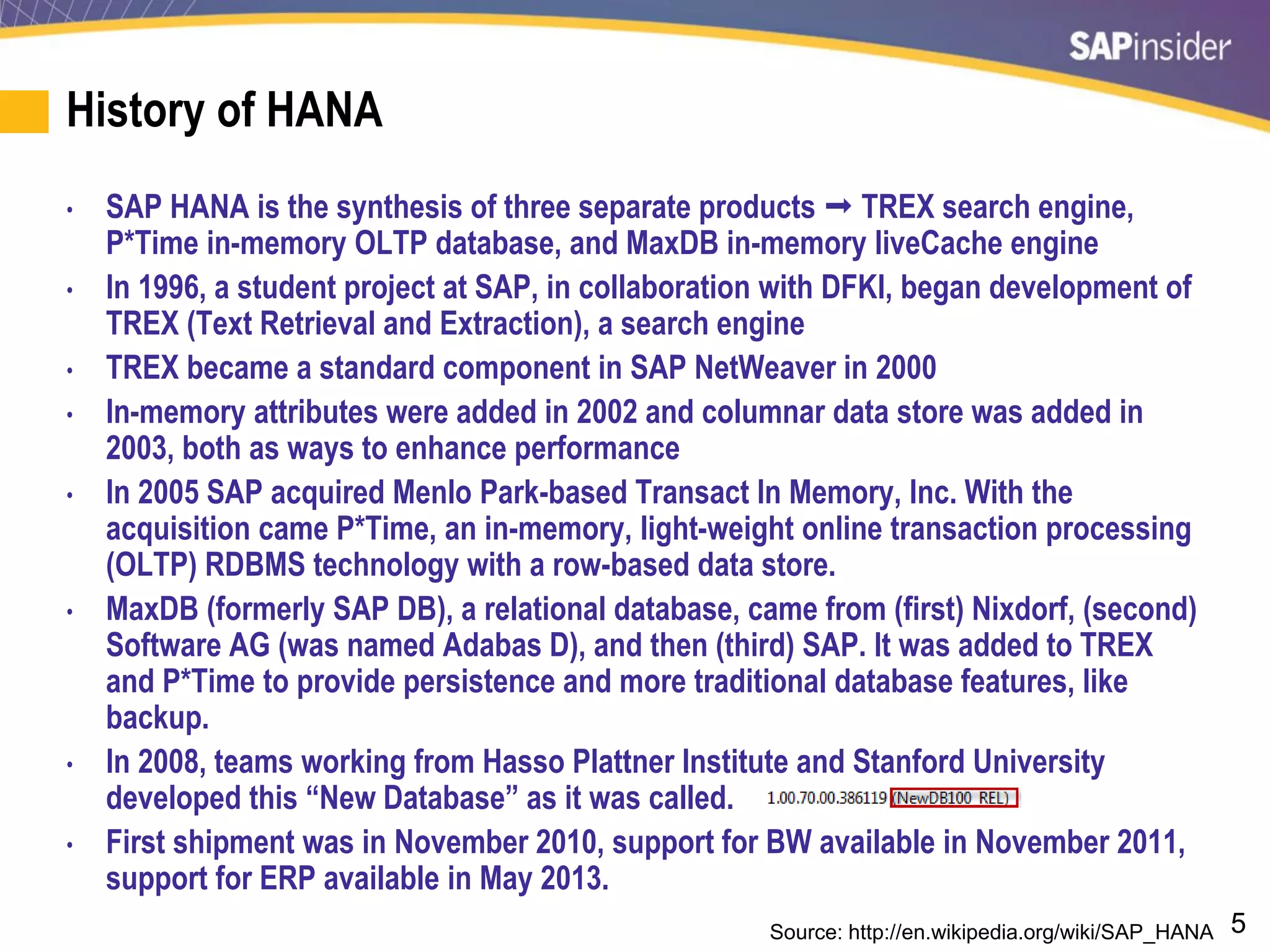

History of HANA
• SAP HANA is the synthesis of three separate products  TREX search engine,
P*Time in-memory OLTP database, and MaxDB in-memory liveCache engine
• In 1996, a student project at SAP, in collaboration with DFKI, began development of
TREX (Text Retrieval and Extraction), a search engine
• TREX became a standard component in SAP NetWeaver in 2000
• In-memory attributes were added in 2002 and columnar data store was added in
2003, both as ways to enhance performance
• In 2005 SAP acquired Menlo Park-based Transact In Memory, Inc. With the
acquisition came P*Time, an in-memory, light-weight online transaction processing
(OLTP) RDBMS technology with a row-based data store.
• MaxDB (formerly SAP DB), a relational database, came from (first) Nixdorf, (second)
Software AG (was named Adabas D), and then (third) SAP. It was added to TREX
and P*Time to provide persistence and more traditional database features, like
backup.
• In 2008, teams working from Hasso Plattner Institute and Stanford University
developed this “New Database” as it was called.
• First shipment was in November 2010, support for BW available in November 2011,
support for ERP available in May 2013.
Source: http://en.wikipedia.org/wiki/SAP_HANA

7. 6

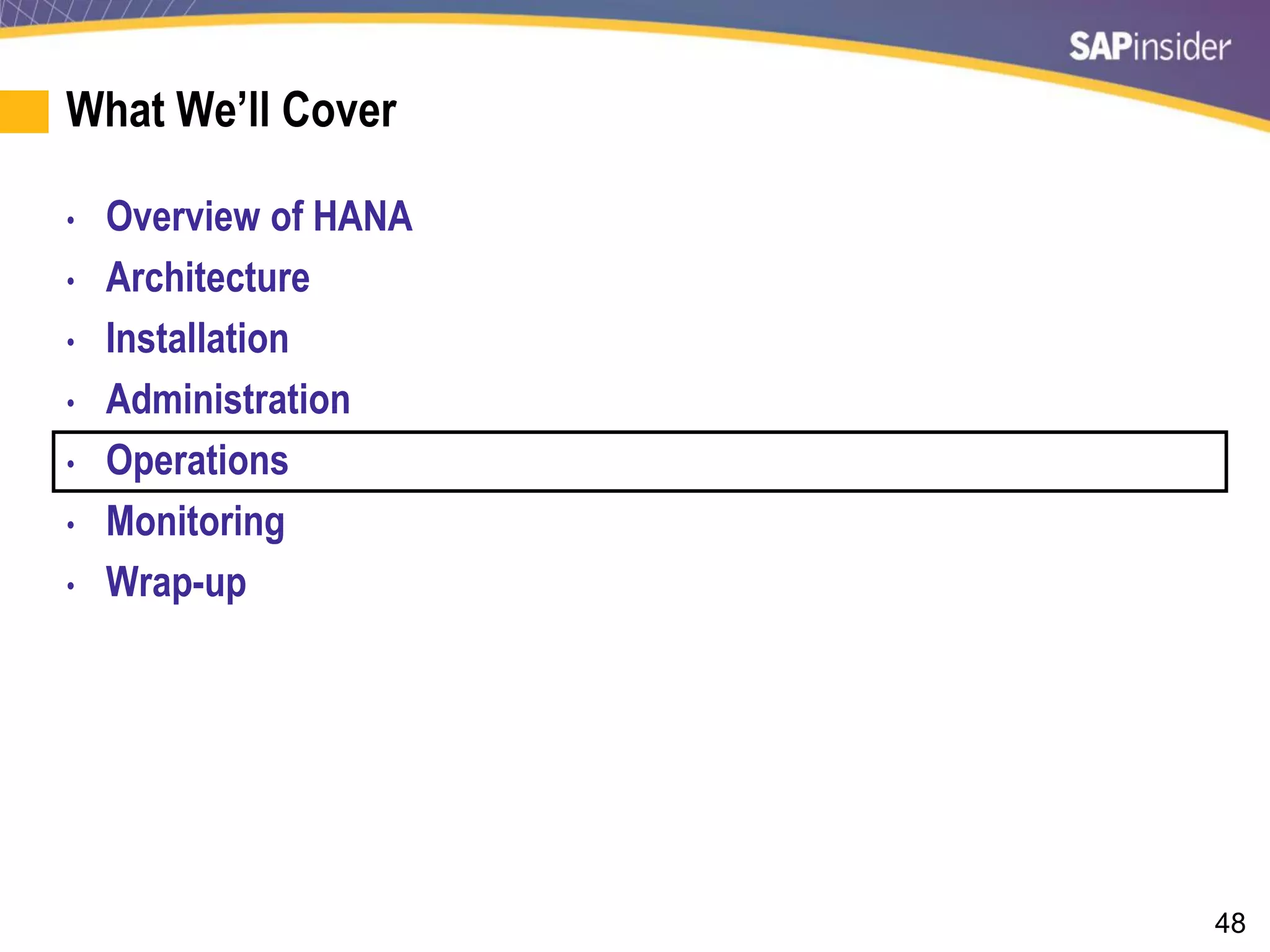

What We’ll Cover
• Overview of HANA
• Architecture
• Installation
• Administration
• Operations
• Monitoring
• Wrap-up

8. 7

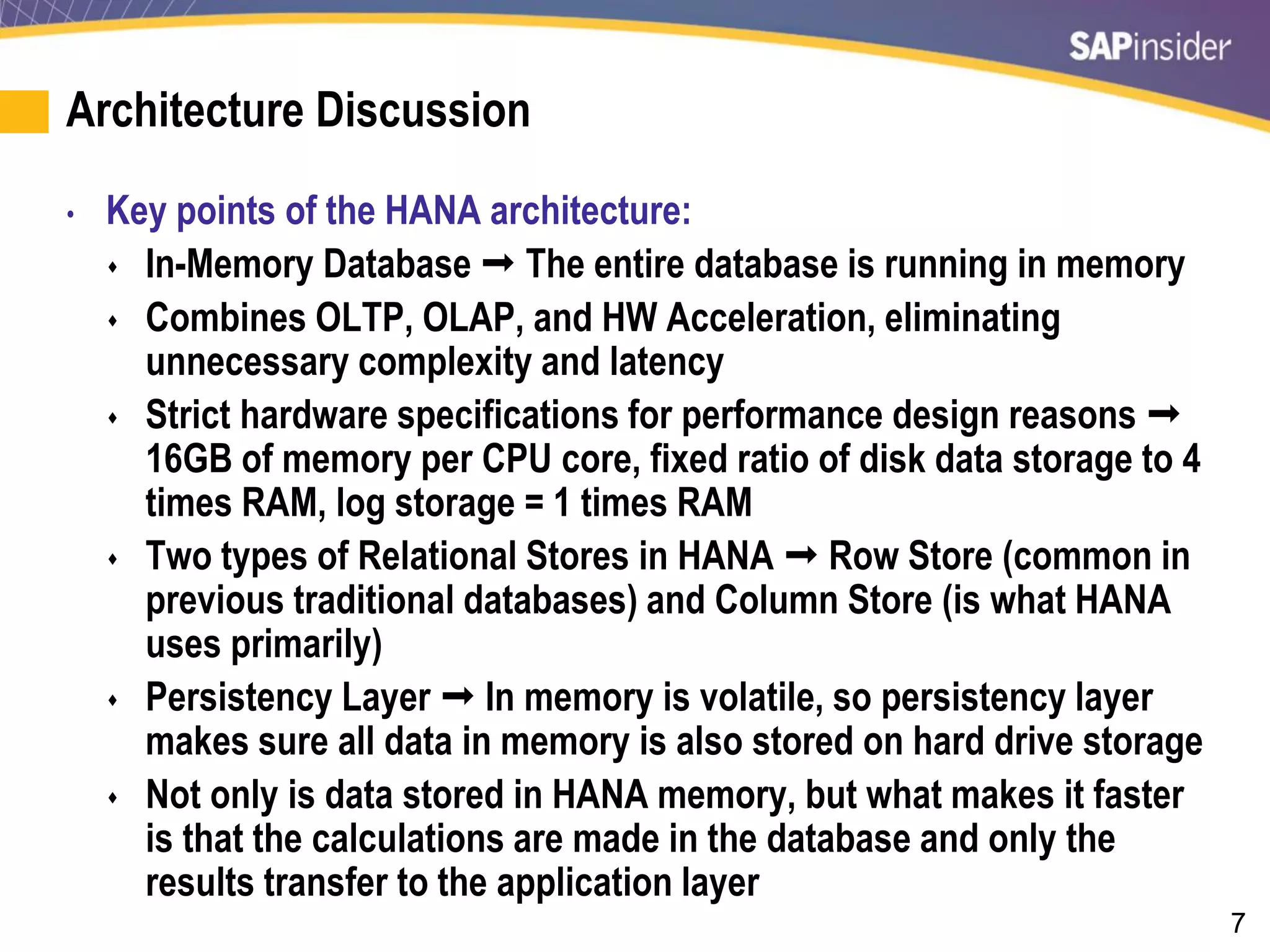

Architecture Discussion
• Key points of the HANA architecture:
 In-Memory Database  The entire database is running in memory
 Combines OLTP, OLAP, and HW Acceleration, eliminating
unnecessary complexity and latency
 Strict hardware specifications for performance design reasons 
16GB of memory per CPU core, fixed ratio of disk data storage to 4
times RAM, log storage = 1 times RAM
 Two types of Relational Stores in HANA  Row Store (common in
previous traditional databases) and Column Store (is what HANA
uses primarily)
 Persistency Layer  In memory is volatile, so persistency layer
makes sure all data in memory is also stored on hard drive storage
 Not only is data stored in HANA memory, but what makes it faster
is that the calculations are made in the database and only the
results transfer to the application layer

9. 8

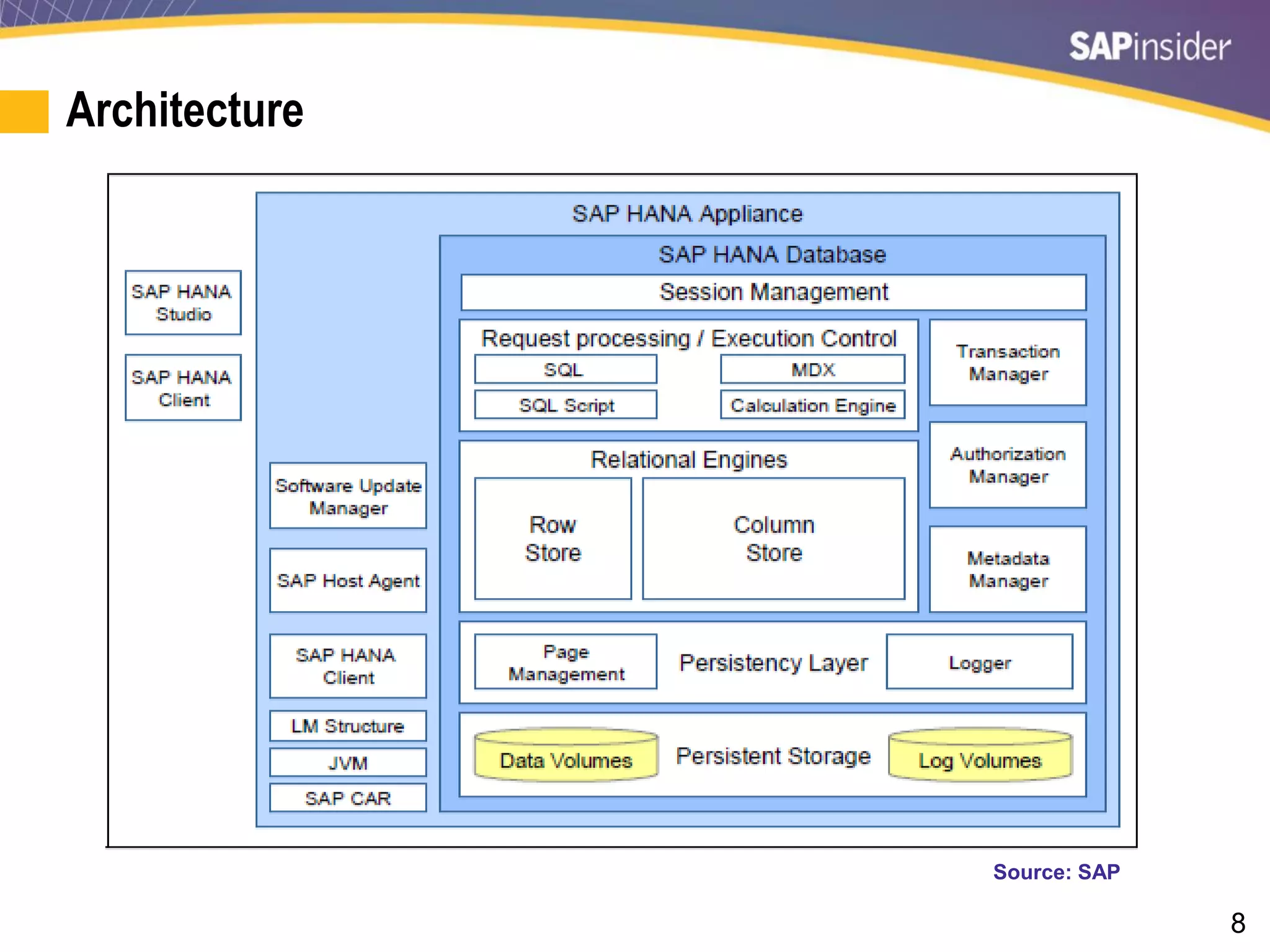

Architecture
Source: SAP

10. 9

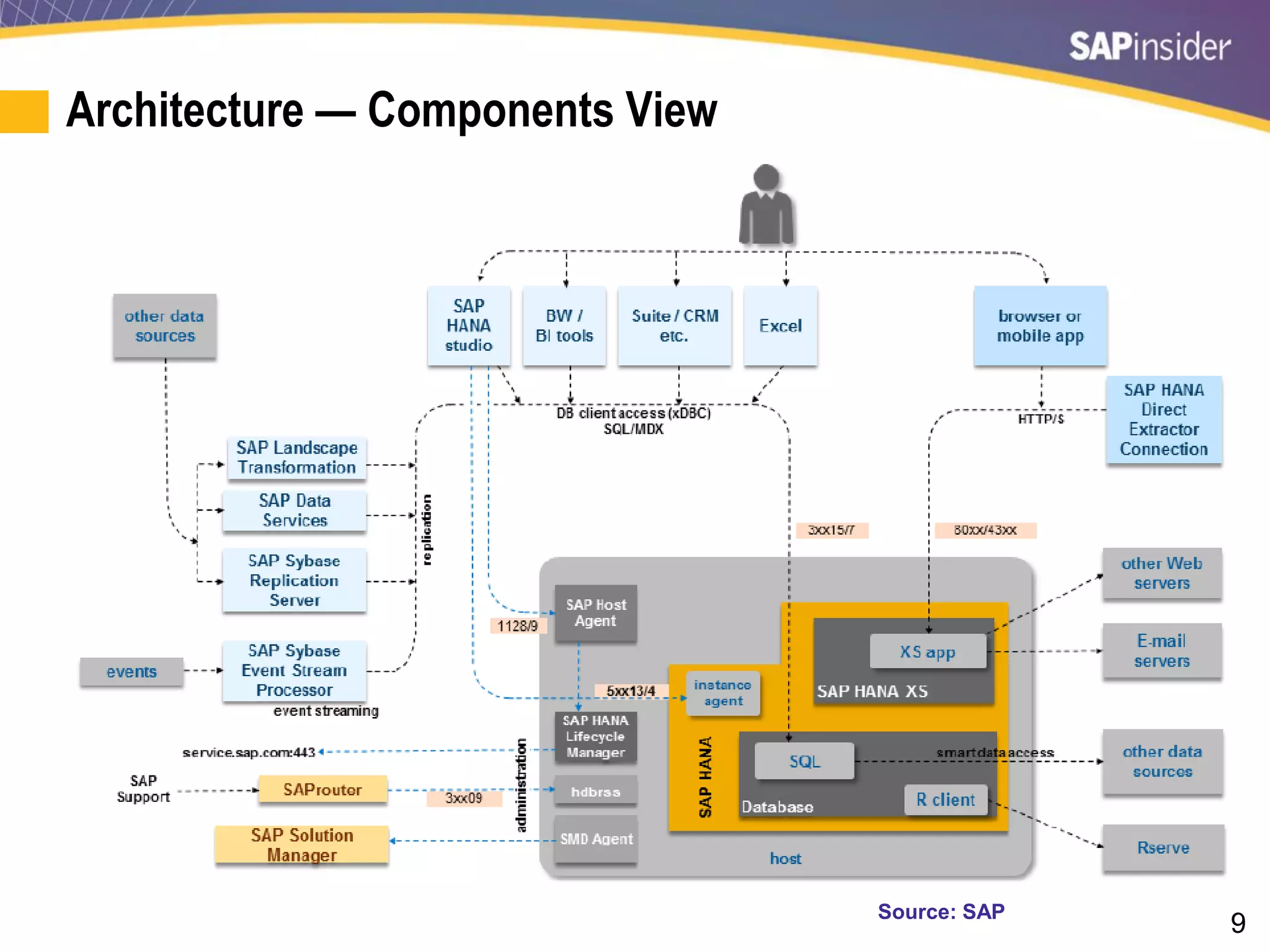

Architecture — Components View
Source: SAP

11. 10

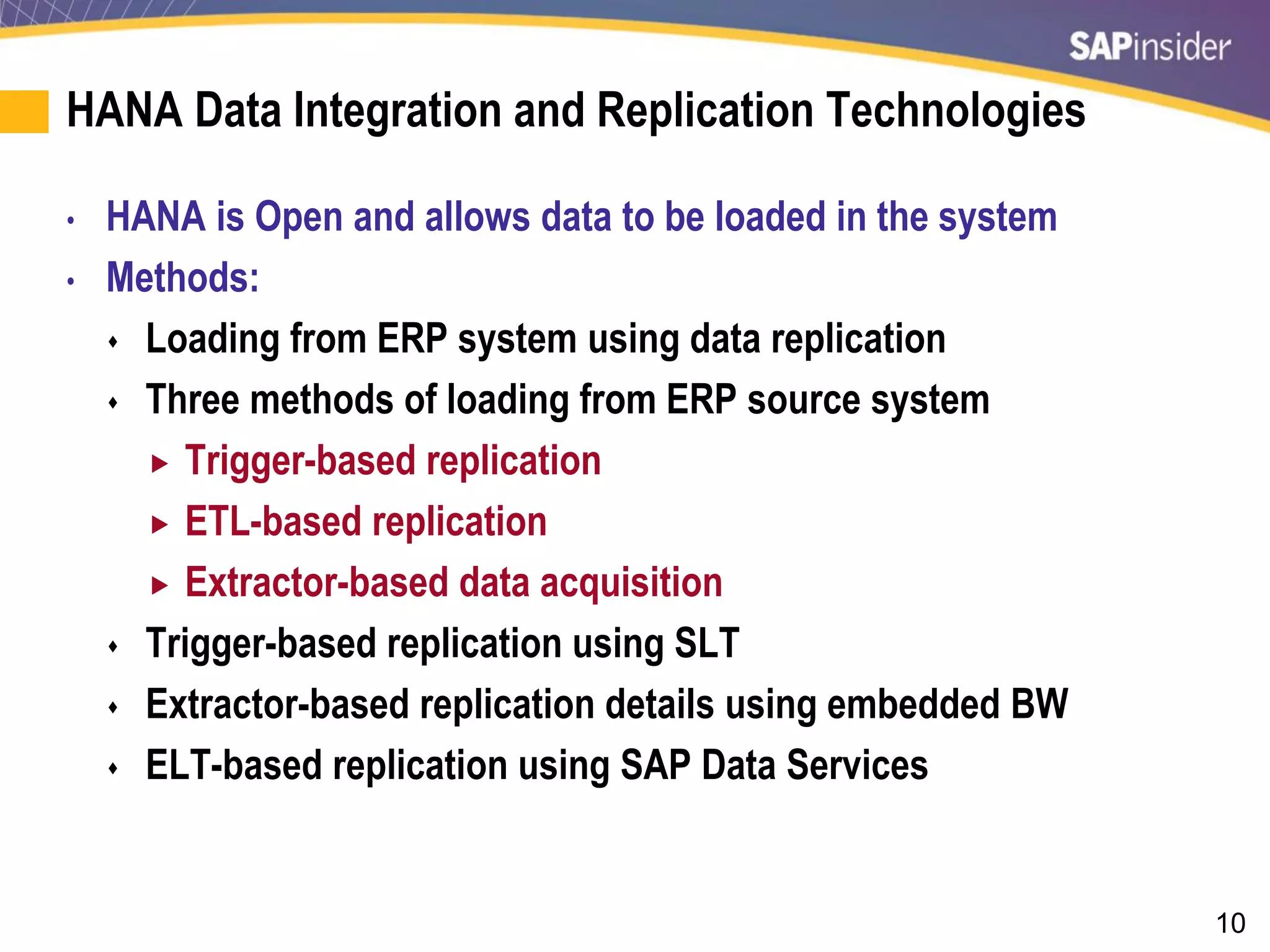

HANA Data Integration and Replication Technologies
• HANA is Open and allows data to be loaded in the system
• Methods:
 Loading from ERP system using data replication
 Three methods of loading from ERP source system
 Trigger-based replication
 ETL-based replication
 Extractor-based data acquisition
 Trigger-based replication using SLT
 Extractor-based replication details using embedded BW
 ELT-based replication using SAP Data Services

12. 11

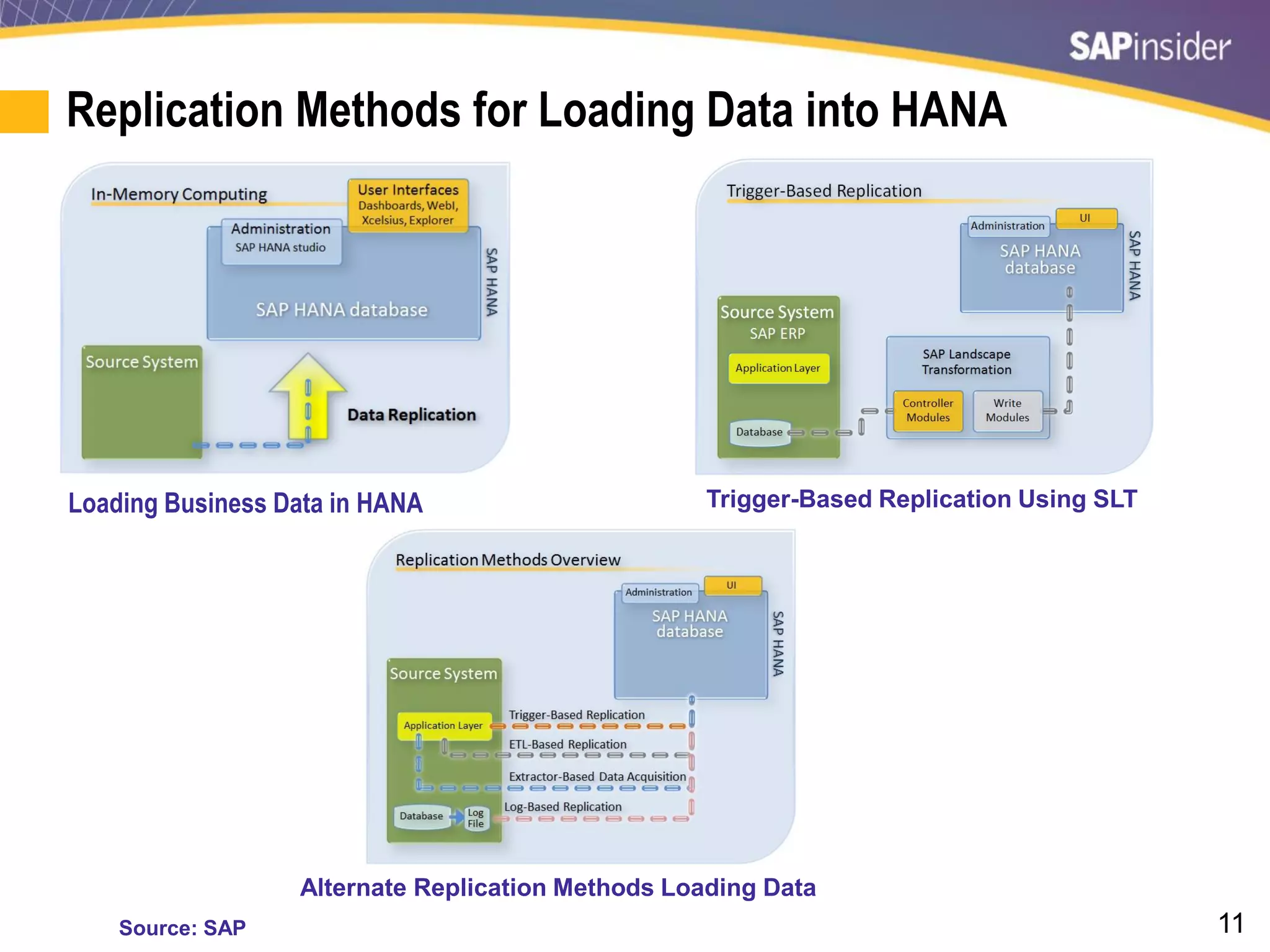

Replication Methods for Loading Data into HANA
Loading Business Data in HANA
Alternate Replication Methods Loading Data
Trigger-Based Replication Using SLT
Source: SAP

13. 12

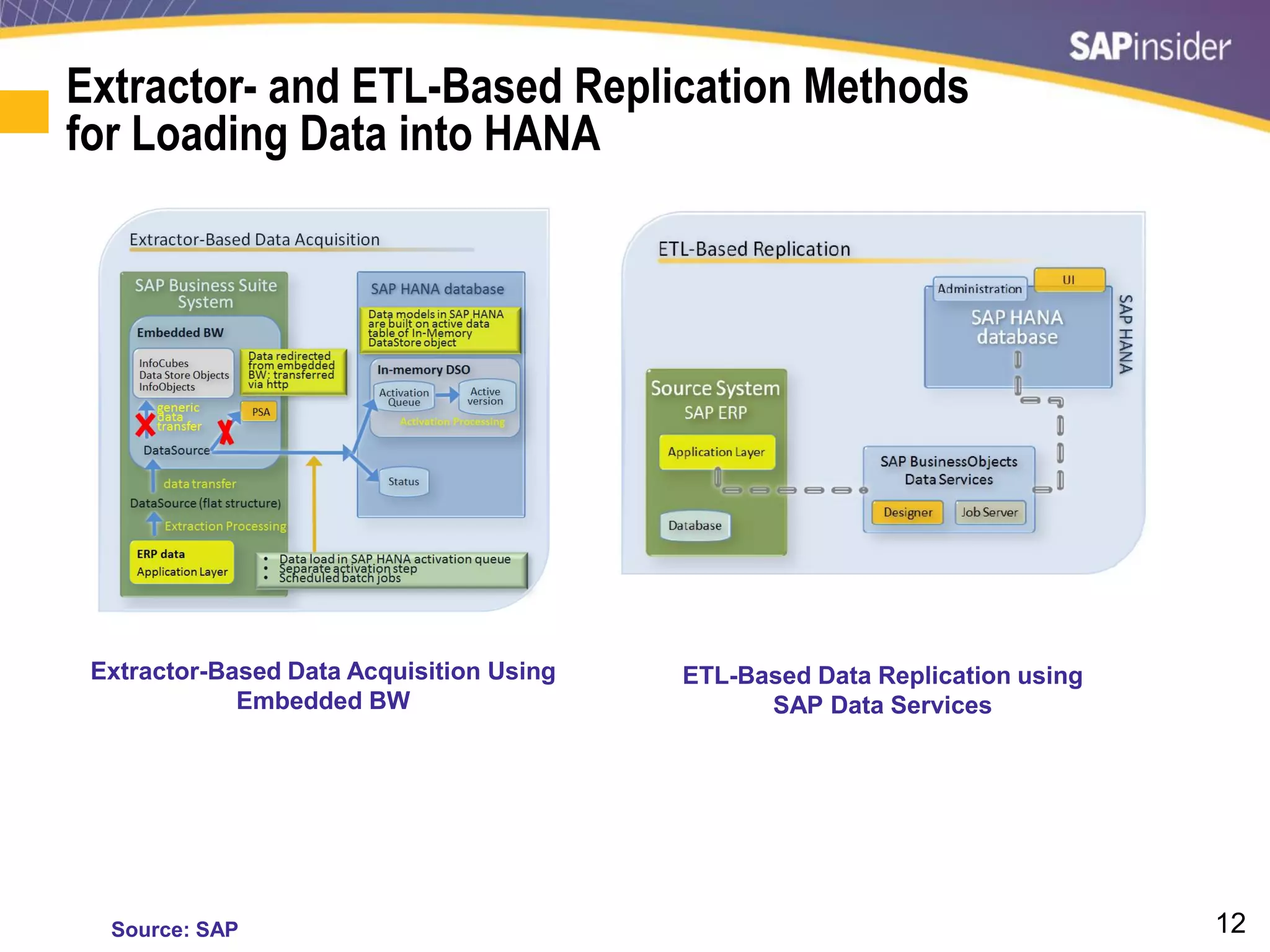

Extractor- and ETL-Based Replication Methods
for Loading Data into HANA
Source: SAP
Extractor-Based Data Acquisition Using
Embedded BW
ETL-Based Data Replication using
SAP Data Services

14. 13

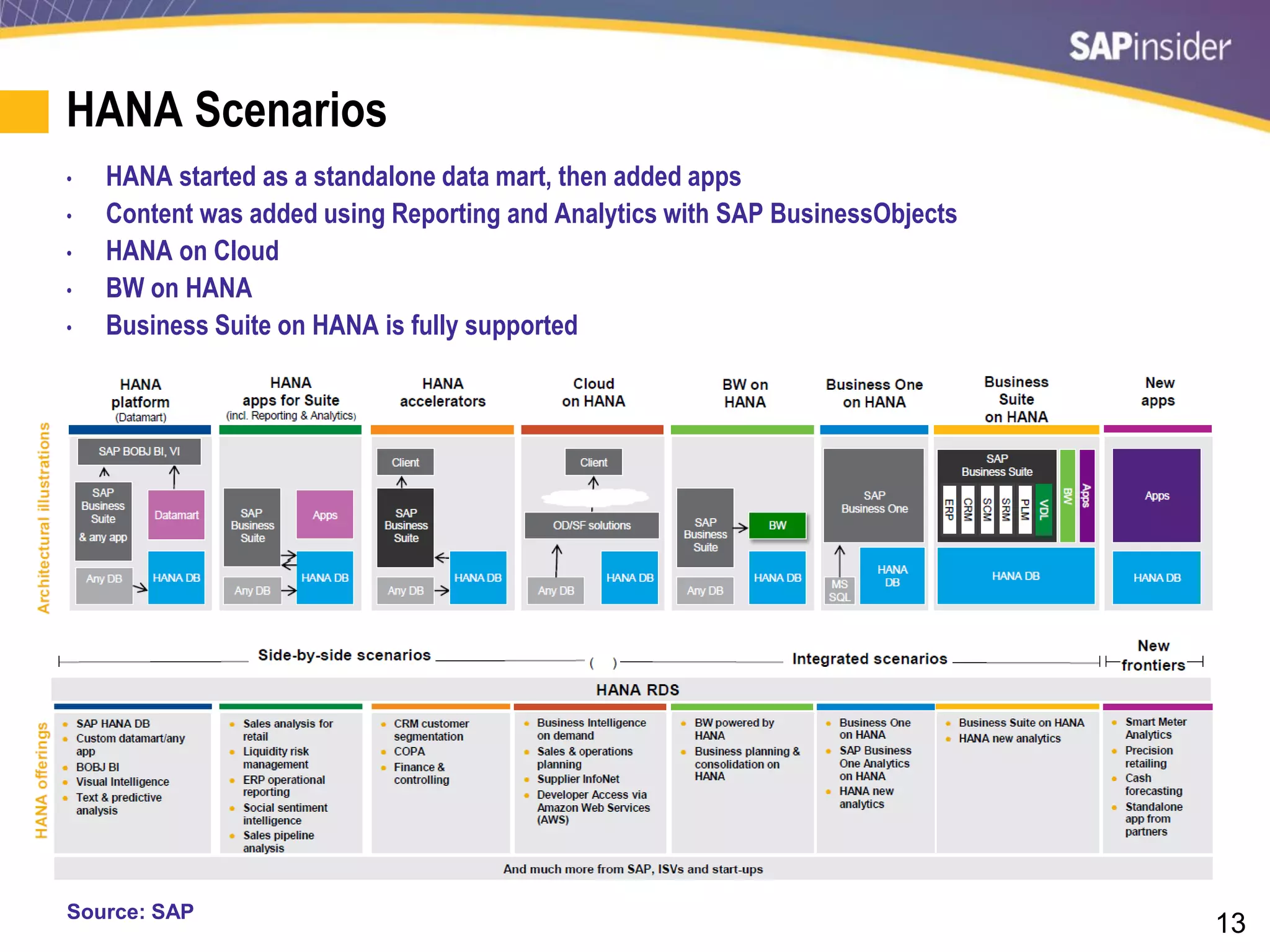

HANA Scenarios
• HANA started as a standalone data mart, then added apps
• Content was added using Reporting and Analytics with SAP BusinessObjects
• HANA on Cloud
• BW on HANA
• Business Suite on HANA is fully supported
Source: SAP

15. 14

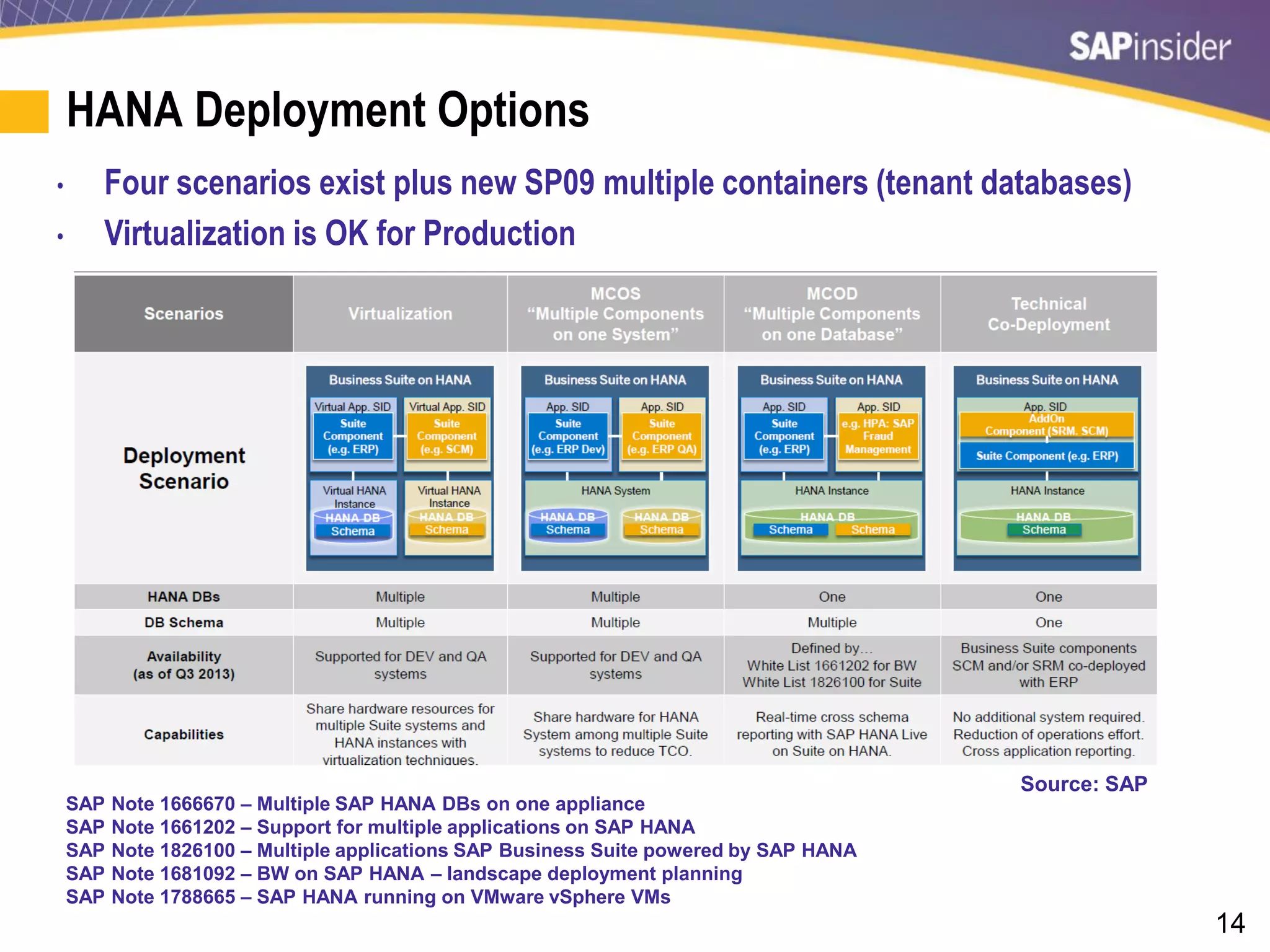

HANA Deployment Options
Source: SAP
• Four scenarios exist plus new SP09 multiple containers (tenant databases)
• Virtualization is OK for Production
SAP Note 1666670 – Multiple SAP HANA DBs on one appliance
SAP Note 1661202 – Support for multiple applications on SAP HANA
SAP Note 1826100 – Multiple applications SAP Business Suite powered by SAP HANA
SAP Note 1681092 – BW on SAP HANA – landscape deployment planning
SAP Note 1788665 – SAP HANA running on VMware vSphere VMs

16. 15

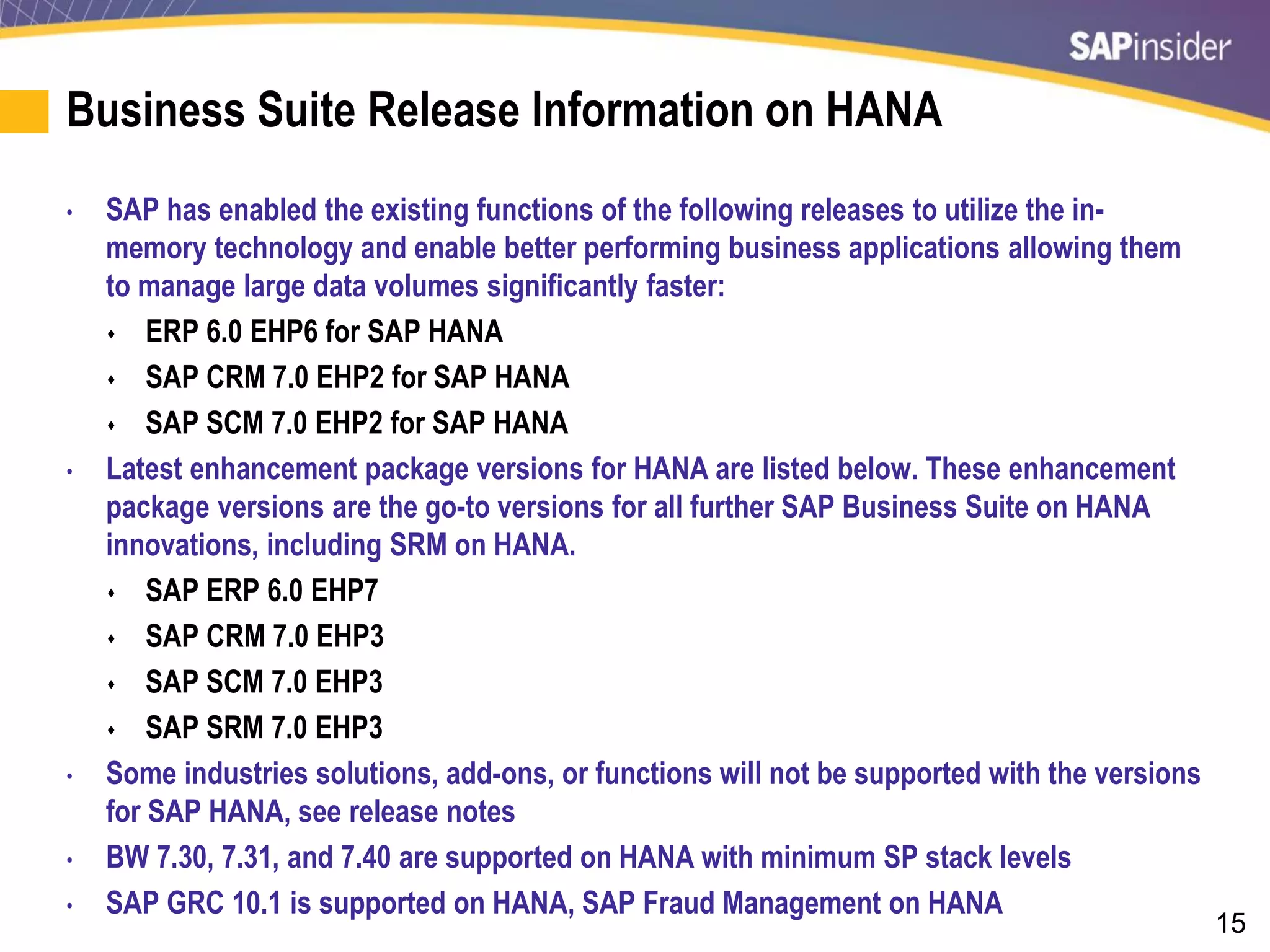

Business Suite Release Information on HANA
• SAP has enabled the existing functions of the following releases to utilize the in-
memory technology and enable better performing business applications allowing them
to manage large data volumes significantly faster:
 ERP 6.0 EHP6 for SAP HANA
 SAP CRM 7.0 EHP2 for SAP HANA
 SAP SCM 7.0 EHP2 for SAP HANA
• Latest enhancement package versions for HANA are listed below. These enhancement
package versions are the go-to versions for all further SAP Business Suite on HANA
innovations, including SRM on HANA.
 SAP ERP 6.0 EHP7
 SAP CRM 7.0 EHP3
 SAP SCM 7.0 EHP3
 SAP SRM 7.0 EHP3
• Some industries solutions, add-ons, or functions will not be supported with the versions
for SAP HANA, see release notes
• BW 7.30, 7.31, and 7.40 are supported on HANA with minimum SP stack levels
• SAP GRC 10.1 is supported on HANA, SAP Fraud Management on HANA

17. 16

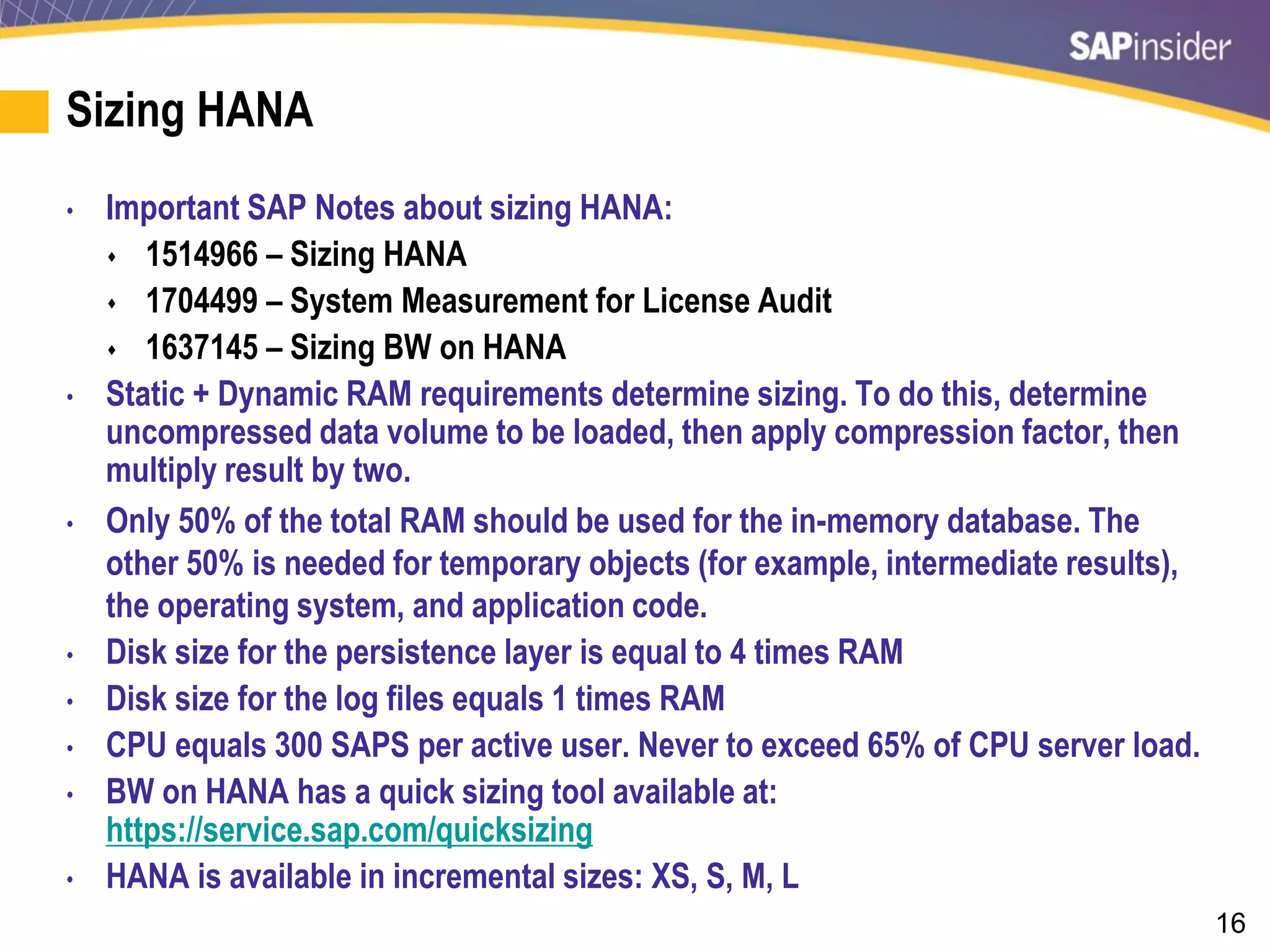

Sizing HANA
• Important SAP Notes about sizing HANA:
 1514966 – Sizing HANA
 1704499 – System Measurement for License Audit
 1637145 – Sizing BW on HANA
• Static + Dynamic RAM requirements determine sizing. To do this, determine
uncompressed data volume to be loaded, then apply compression factor, then
multiply result by two.
• Only 50% of the total RAM should be used for the in-memory database. The
other 50% is needed for temporary objects (for example, intermediate results),
the operating system, and application code.
• Disk size for the persistence layer is equal to 4 times RAM
• Disk size for the log files equals 1 times RAM
• CPU equals 300 SAPS per active user. Never to exceed 65% of CPU server load.
• BW on HANA has a quick sizing tool available at:
https://service.sap.com/quicksizing
• HANA is available in incremental sizes: XS, S, M, L

18. 17

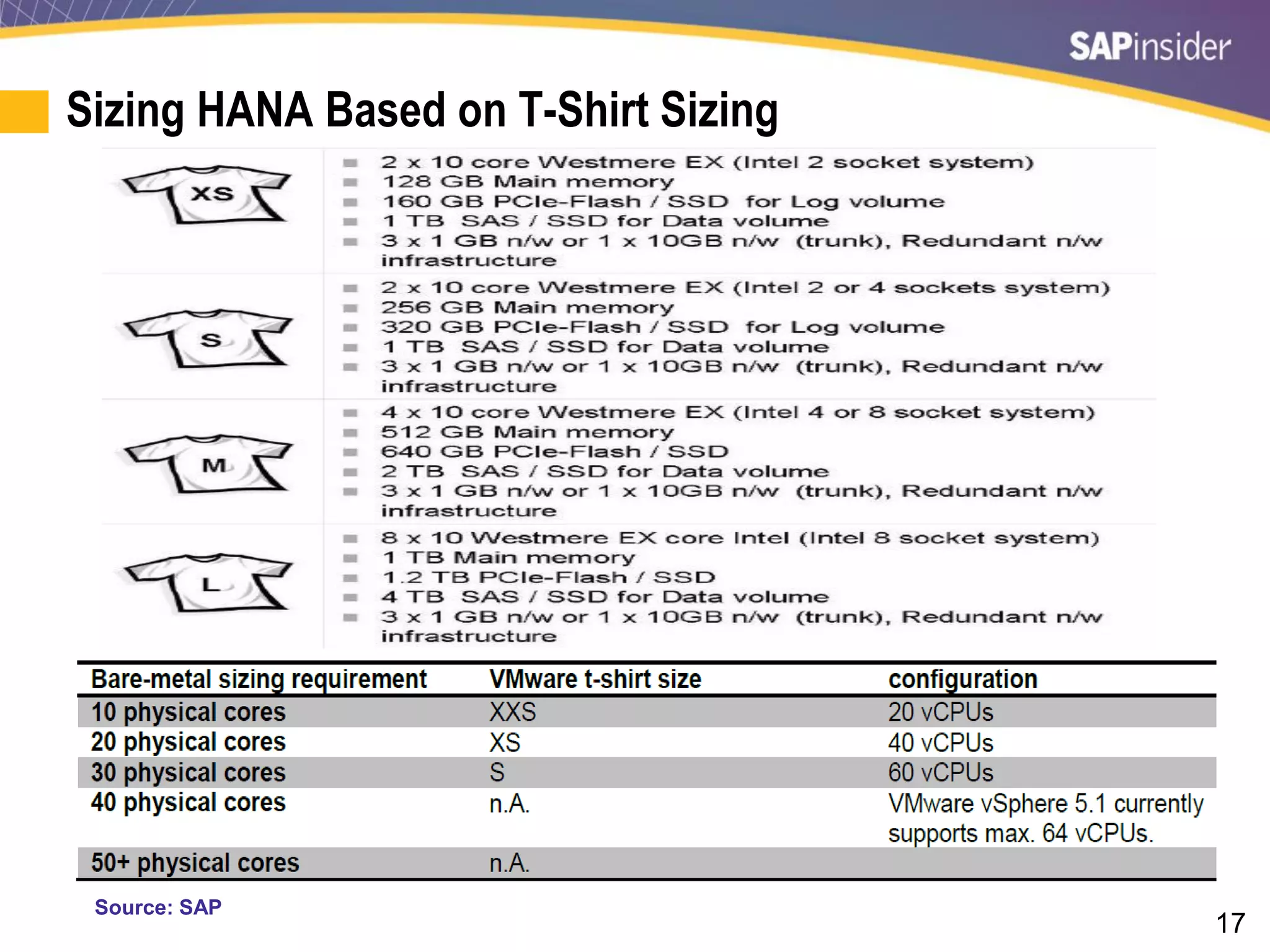

Sizing HANA Based on T-Shirt Sizing
Source: SAP

19. 18

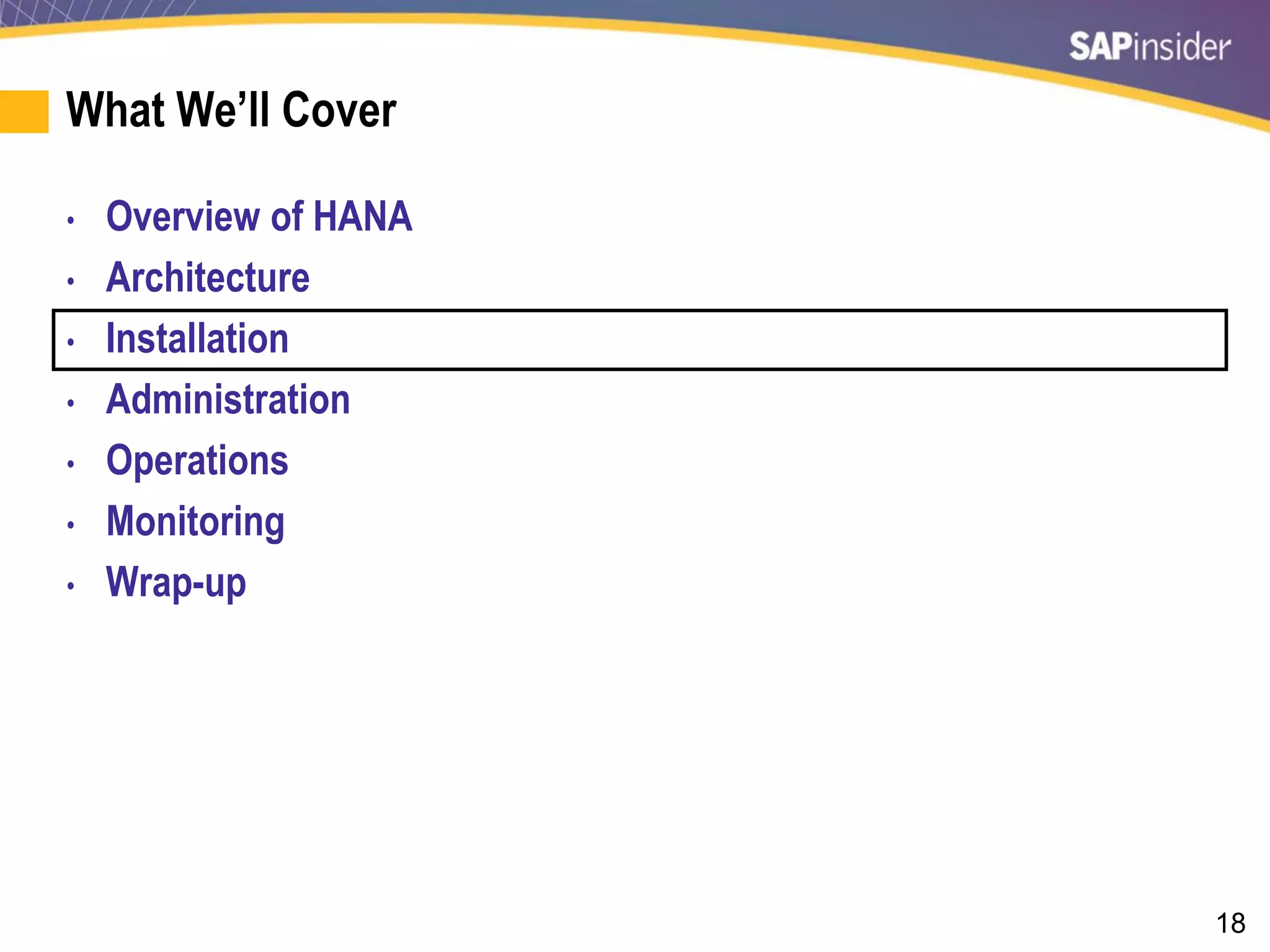

What We’ll Cover
• Overview of HANA
• Architecture
• Installation
• Administration
• Operations
• Monitoring
• Wrap-up

20. 19

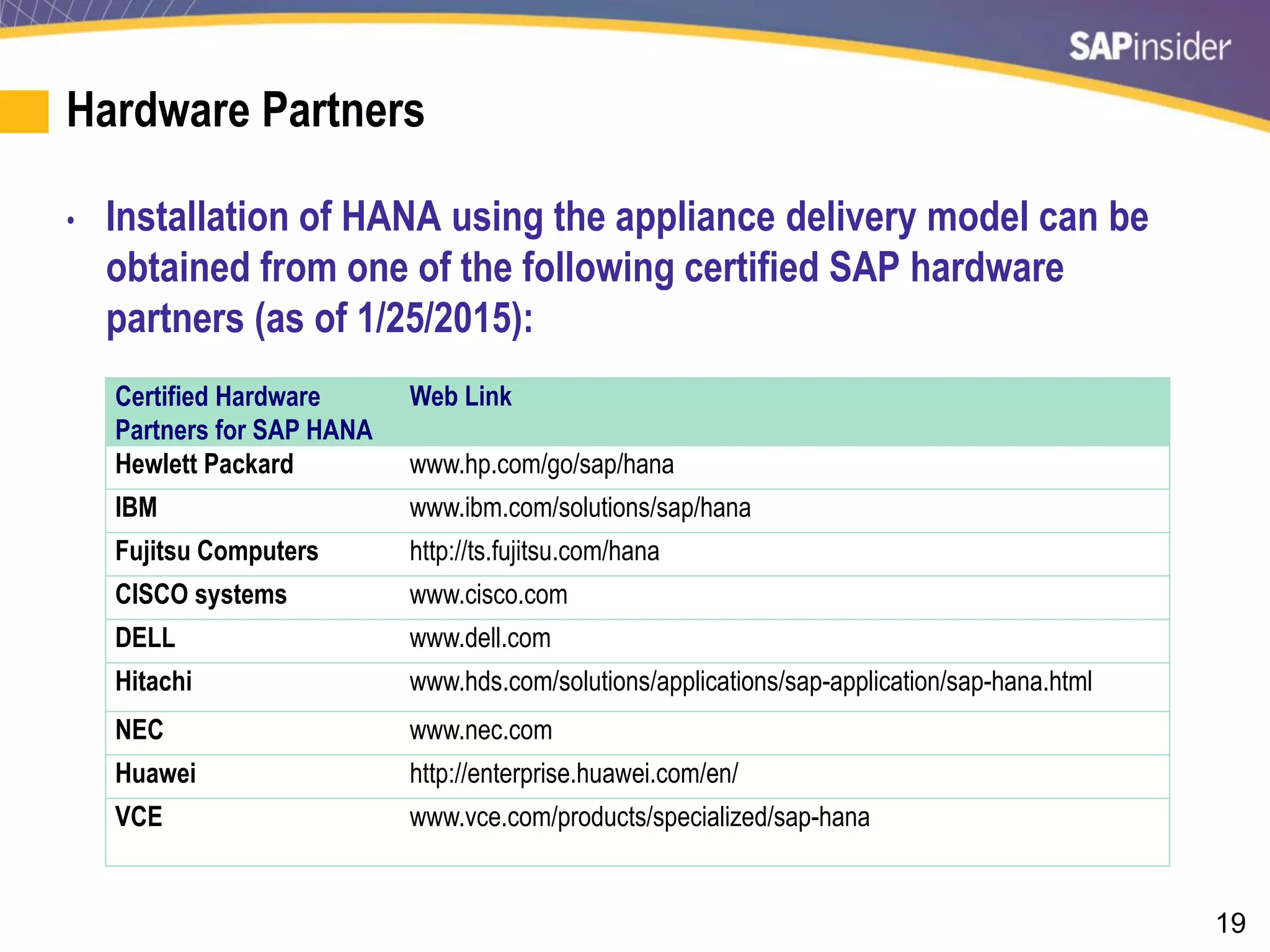

Hardware Partners
• Installation of HANA using the appliance delivery model can be
obtained from one of the following certified SAP hardware
partners (as of 1/25/2015):
Certified Hardware
Partners for SAP HANA
Web Link
Hewlett Packard www.hp.com/go/sap/hana
IBM www.ibm.com/solutions/sap/hana
Fujitsu Computers http://ts.fujitsu.com/hana
CISCO systems www.cisco.com
DELL www.dell.com
Hitachi www.hds.com/solutions/applications/sap-application/sap-hana.html
NEC www.nec.com
Huawei http://enterprise.huawei.com/en/
VCE www.vce.com/products/specialized/sap-hana

21. 20

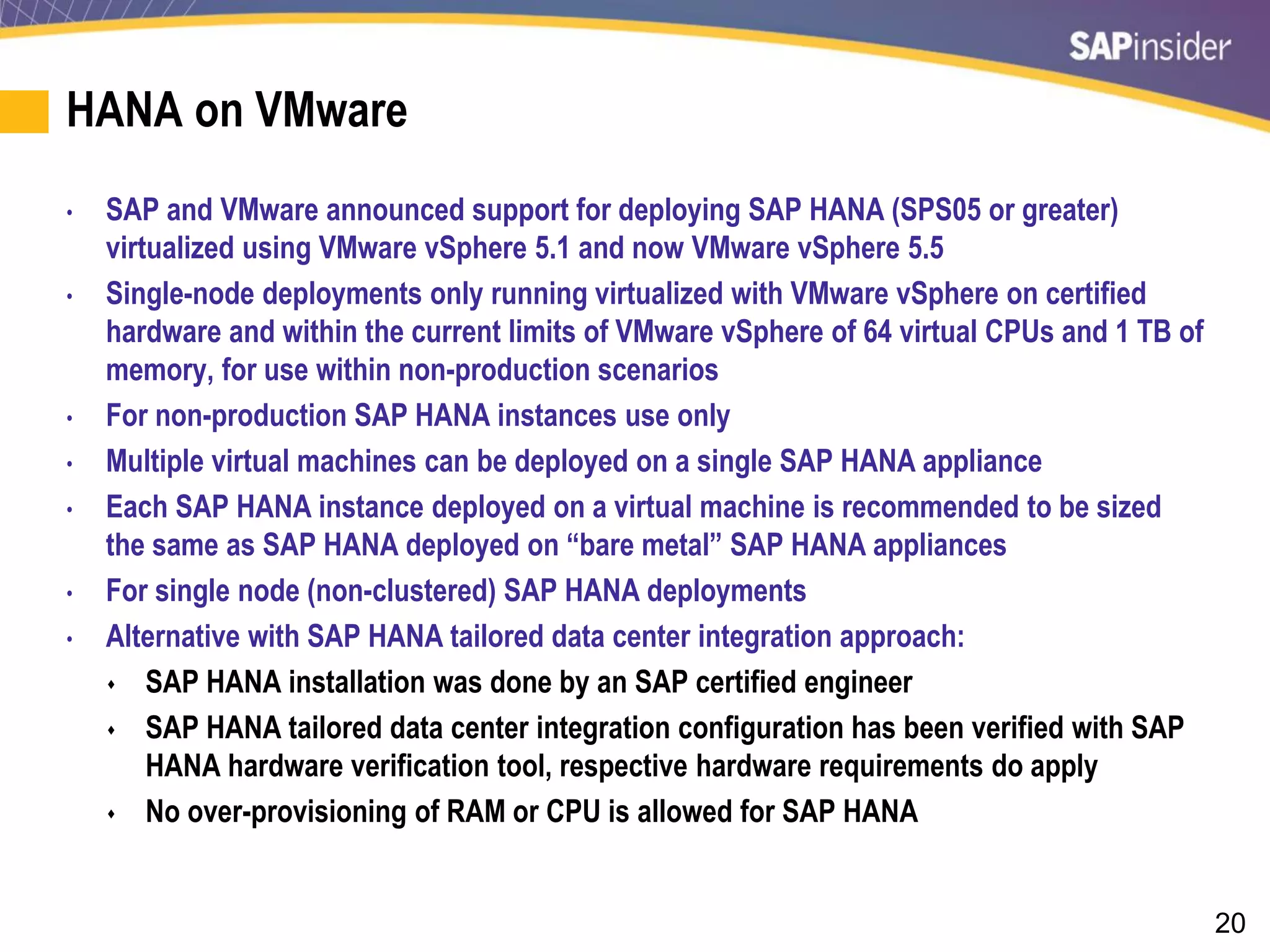

HANA on VMware
• SAP and VMware announced support for deploying SAP HANA (SPS05 or greater)
virtualized using VMware vSphere 5.1 and now VMware vSphere 5.5
• Single-node deployments only running virtualized with VMware vSphere on certified
hardware and within the current limits of VMware vSphere of 64 virtual CPUs and 1 TB of
memory, for use within non-production scenarios
• For non-production SAP HANA instances use only
• Multiple virtual machines can be deployed on a single SAP HANA appliance
• Each SAP HANA instance deployed on a virtual machine is recommended to be sized
the same as SAP HANA deployed on “bare metal” SAP HANA appliances
• For single node (non-clustered) SAP HANA deployments
• Alternative with SAP HANA tailored data center integration approach:
 SAP HANA installation was done by an SAP certified engineer
 SAP HANA tailored data center integration configuration has been verified with SAP
HANA hardware verification tool, respective hardware requirements do apply
 No over-provisioning of RAM or CPU is allowed for SAP HANA

22. 21
Review of the Installation of SAP HANA

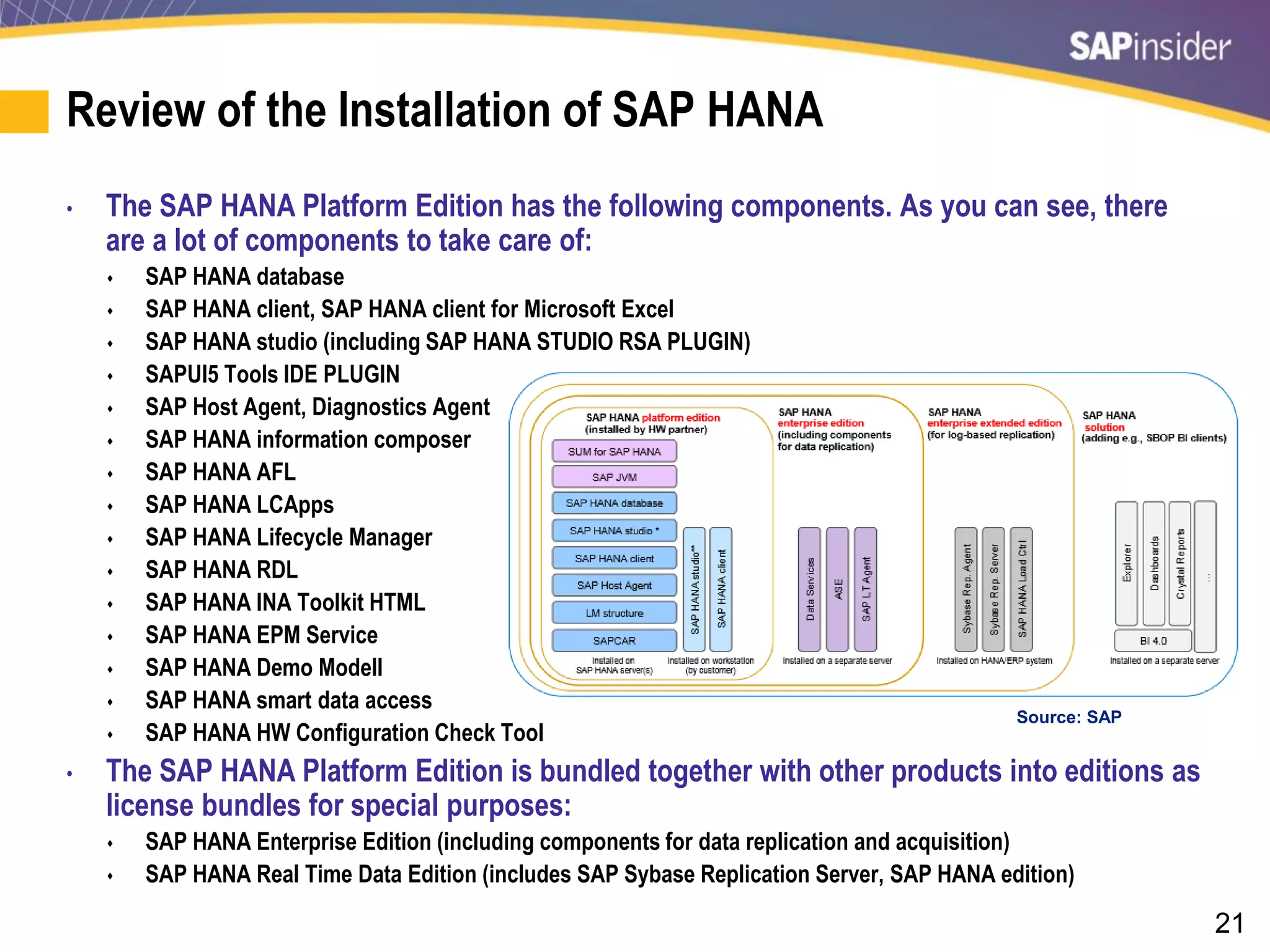

• The SAP HANA Platform Edition has the following components. As you can see, there
are a lot of components to take care of:
 SAP HANA database
 SAP HANA client, SAP HANA client for Microsoft Excel
 SAP HANA studio (including SAP HANA STUDIO RSA PLUGIN)
 SAPUI5 Tools IDE PLUGIN
 SAP Host Agent, Diagnostics Agent
 SAP HANA information composer
 SAP HANA AFL
 SAP HANA LCApps
 SAP HANA Lifecycle Manager
 SAP HANA RDL
 SAP HANA INA Toolkit HTML
 SAP HANA EPM Service
 SAP HANA Demo Modell
 SAP HANA smart data access
 SAP HANA HW Configuration Check Tool
• The SAP HANA Platform Edition is bundled together with other products into editions as
license bundles for special purposes:
 SAP HANA Enterprise Edition (including components for data replication and acquisition)
 SAP HANA Real Time Data Edition (includes SAP Sybase Replication Server, SAP HANA edition)
Source: SAP

23. 22

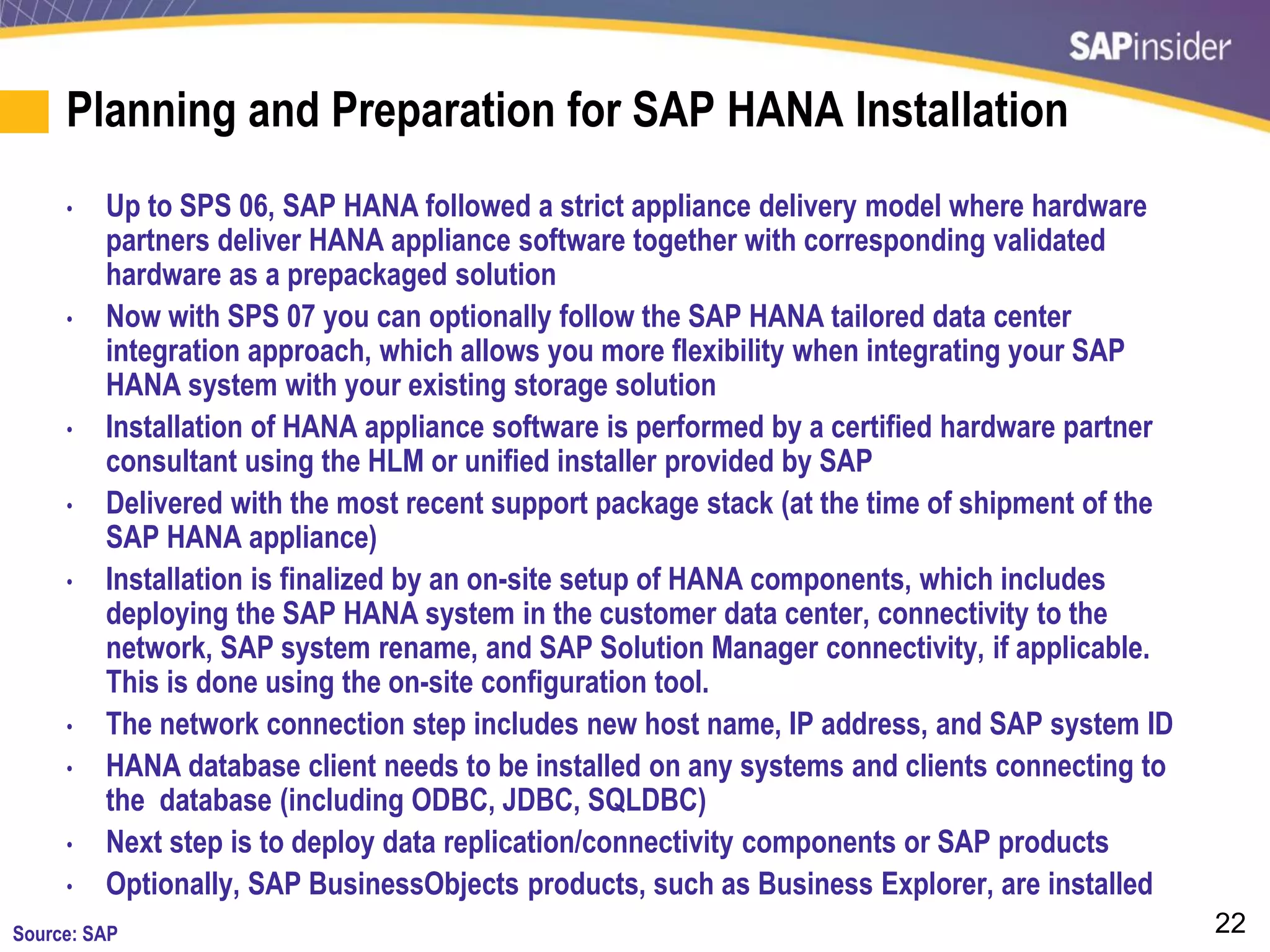

Planning and Preparation for SAP HANA Installation
• Up to SPS 06, SAP HANA followed a strict appliance delivery model where hardware
partners deliver HANA appliance software together with corresponding validated
hardware as a prepackaged solution
• Now with SPS 07 you can optionally follow the SAP HANA tailored data center
integration approach, which allows you more flexibility when integrating your SAP
HANA system with your existing storage solution
• Installation of HANA appliance software is performed by a certified hardware partner
consultant using the HLM or unified installer provided by SAP
• Delivered with the most recent support package stack (at the time of shipment of the
SAP HANA appliance)
• Installation is finalized by an on-site setup of HANA components, which includes
deploying the SAP HANA system in the customer data center, connectivity to the
network, SAP system rename, and SAP Solution Manager connectivity, if applicable.
This is done using the on-site configuration tool.
• The network connection step includes new host name, IP address, and SAP system ID
• HANA database client needs to be installed on any systems and clients connecting to
the database (including ODBC, JDBC, SQLDBC)
• Next step is to deploy data replication/connectivity components or SAP products
• Optionally, SAP BusinessObjects products, such as Business Explorer, are installed
Source: SAP

24. 23

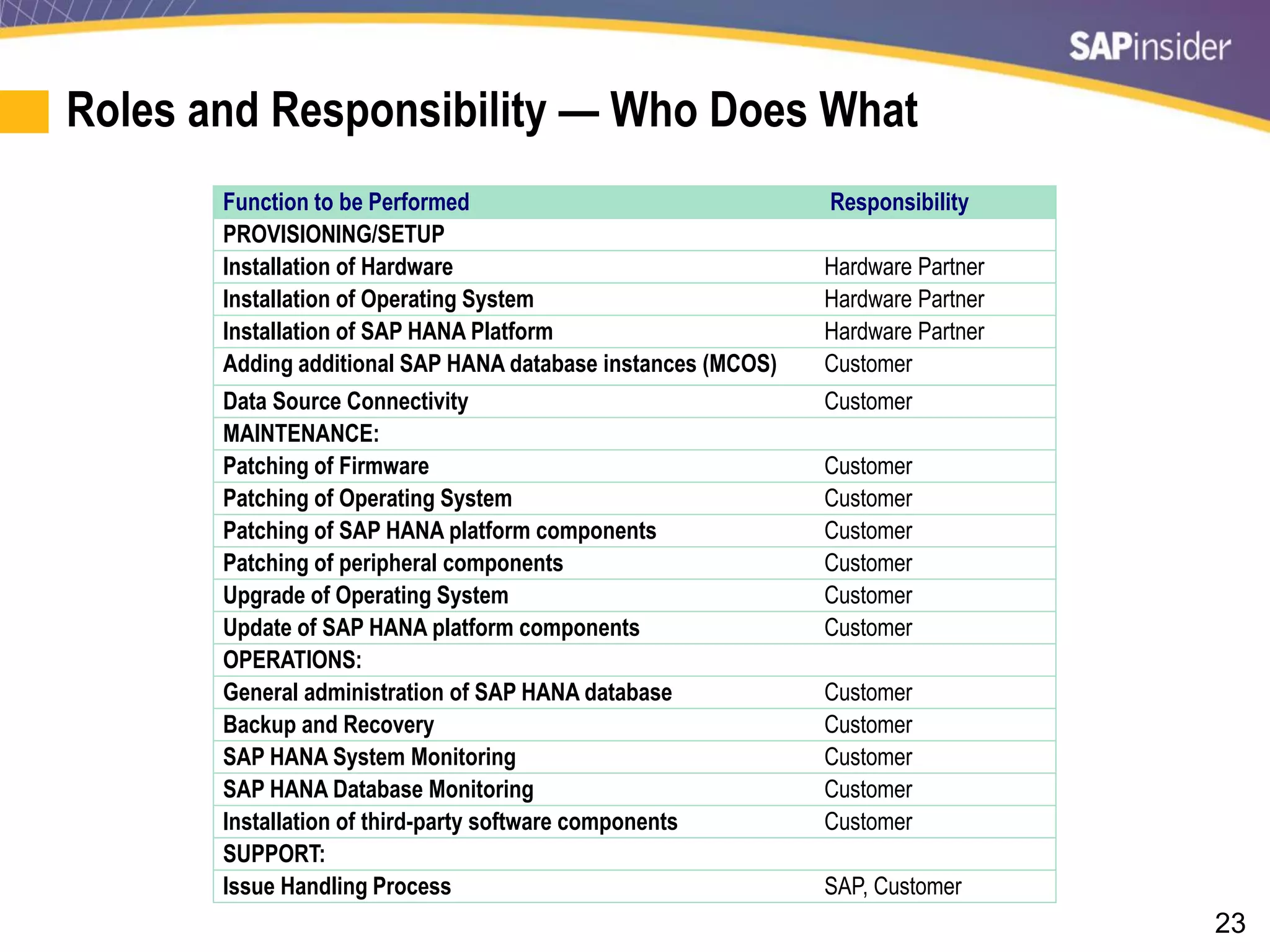

Roles and Responsibility — Who Does What
Function to be Performed Responsibility
PROVISIONING/SETUP
Installation of Hardware Hardware Partner
Installation of Operating System Hardware Partner
Installation of SAP HANA Platform Hardware Partner
Adding additional SAP HANA database instances (MCOS) Customer
Data Source Connectivity Customer
MAINTENANCE:
Patching of Firmware Customer
Patching of Operating System Customer
Patching of SAP HANA platform components Customer
Patching of peripheral components Customer
Upgrade of Operating System Customer
Update of SAP HANA platform components Customer
OPERATIONS:
General administration of SAP HANA database Customer
Backup and Recovery Customer
SAP HANA System Monitoring Customer
SAP HANA Database Monitoring Customer
Installation of third-party software components Customer
SUPPORT:
Issue Handling Process SAP, Customer

25. 24

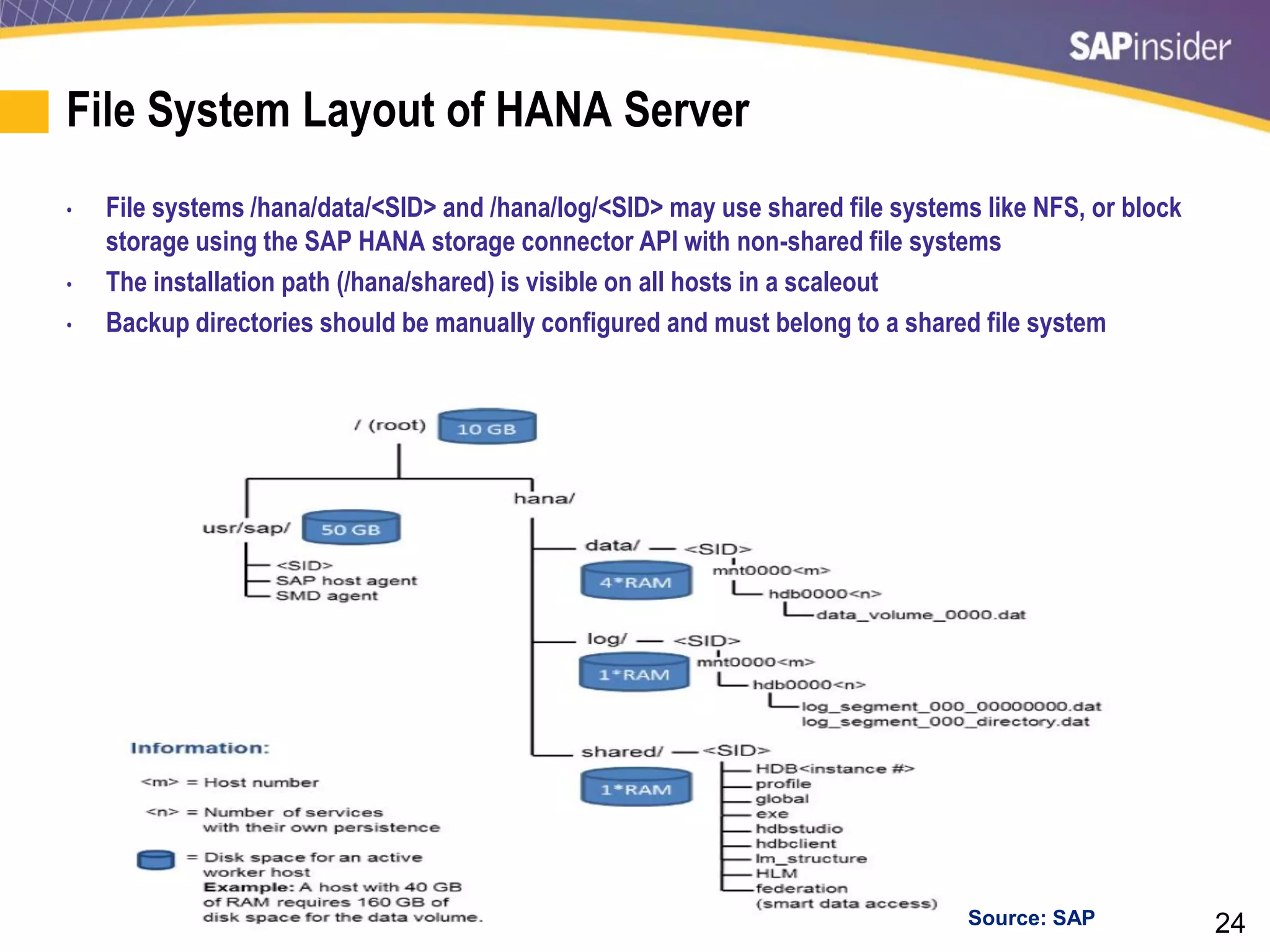

File System Layout of HANA Server
• File systems /hana/data/<SID> and /hana/log/<SID> may use shared file systems like NFS, or block
storage using the SAP HANA storage connector API with non-shared file systems
• The installation path (/hana/shared) is visible on all hosts in a scaleout
• Backup directories should be manually configured and must belong to a shared file system
Source: SAP

26. 25

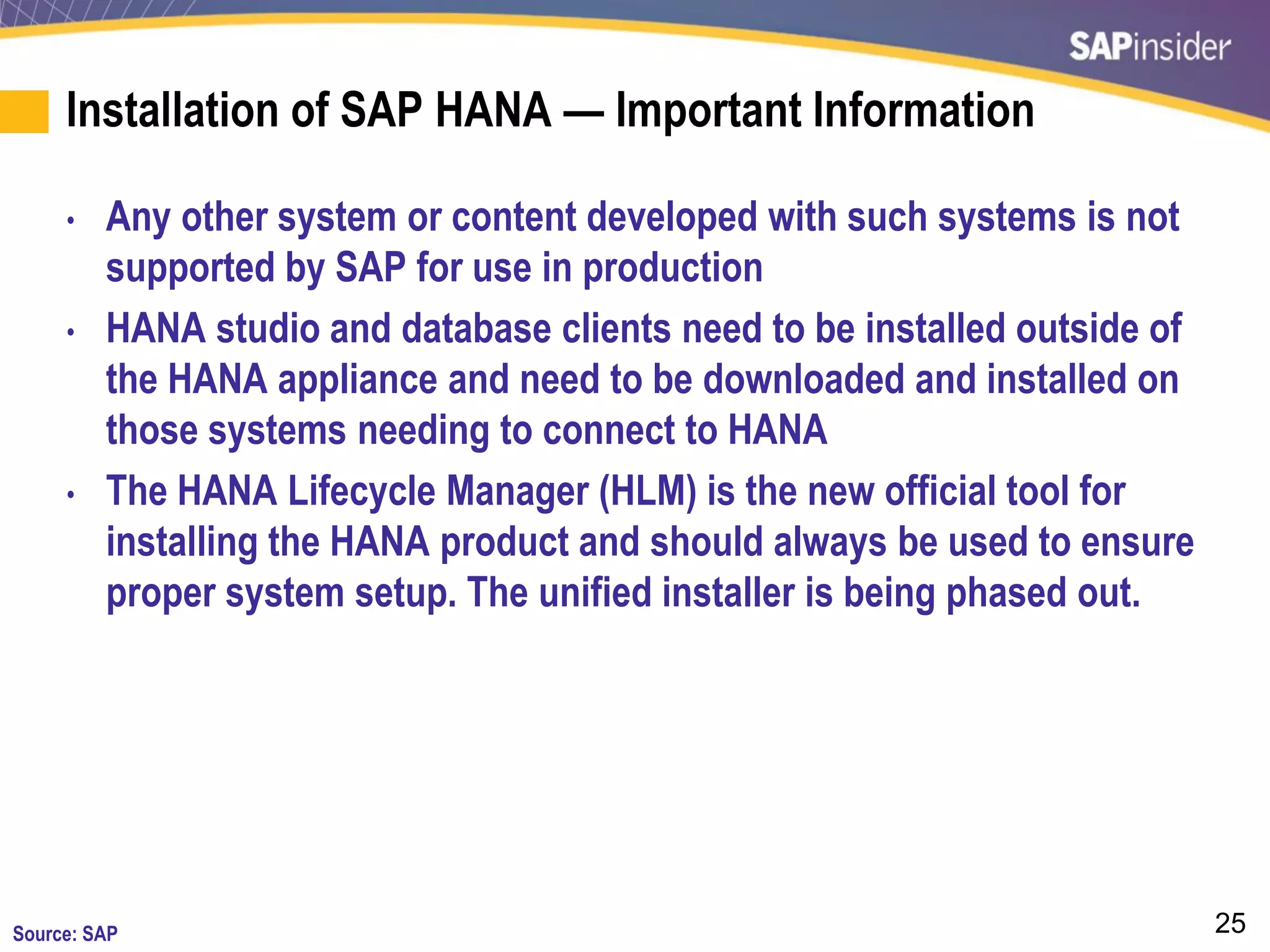

Installation of SAP HANA — Important Information
• Any other system or content developed with such systems is not
supported by SAP for use in production
• HANA studio and database clients need to be installed outside of
the HANA appliance and need to be downloaded and installed on
those systems needing to connect to HANA
• The HANA Lifecycle Manager (HLM) is the new official tool for
installing the HANA product and should always be used to ensure
proper system setup. The unified installer is being phased out.
Source: SAP

27. 26
Installation Tech Hints

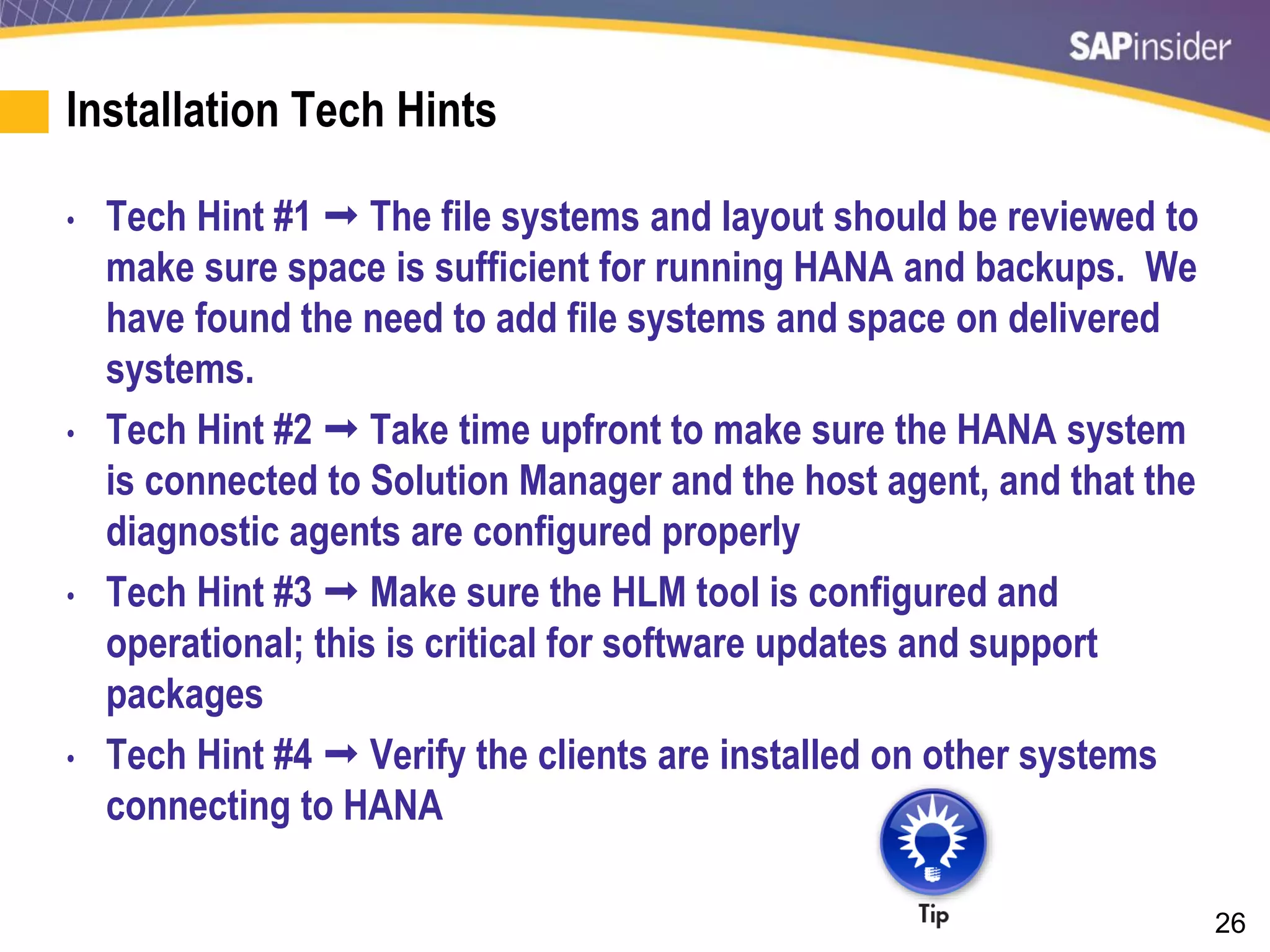

• Tech Hint #1  The file systems and layout should be reviewed to
make sure space is sufficient for running HANA and backups. We
have found the need to add file systems and space on delivered
systems.
• Tech Hint #2  Take time upfront to make sure the HANA system
is connected to Solution Manager and the host agent, and that the
diagnostic agents are configured properly
• Tech Hint #3  Make sure the HLM tool is configured and
operational; this is critical for software updates and support
packages
• Tech Hint #4  Verify the clients are installed on other systems
connecting to HANA

28. 27

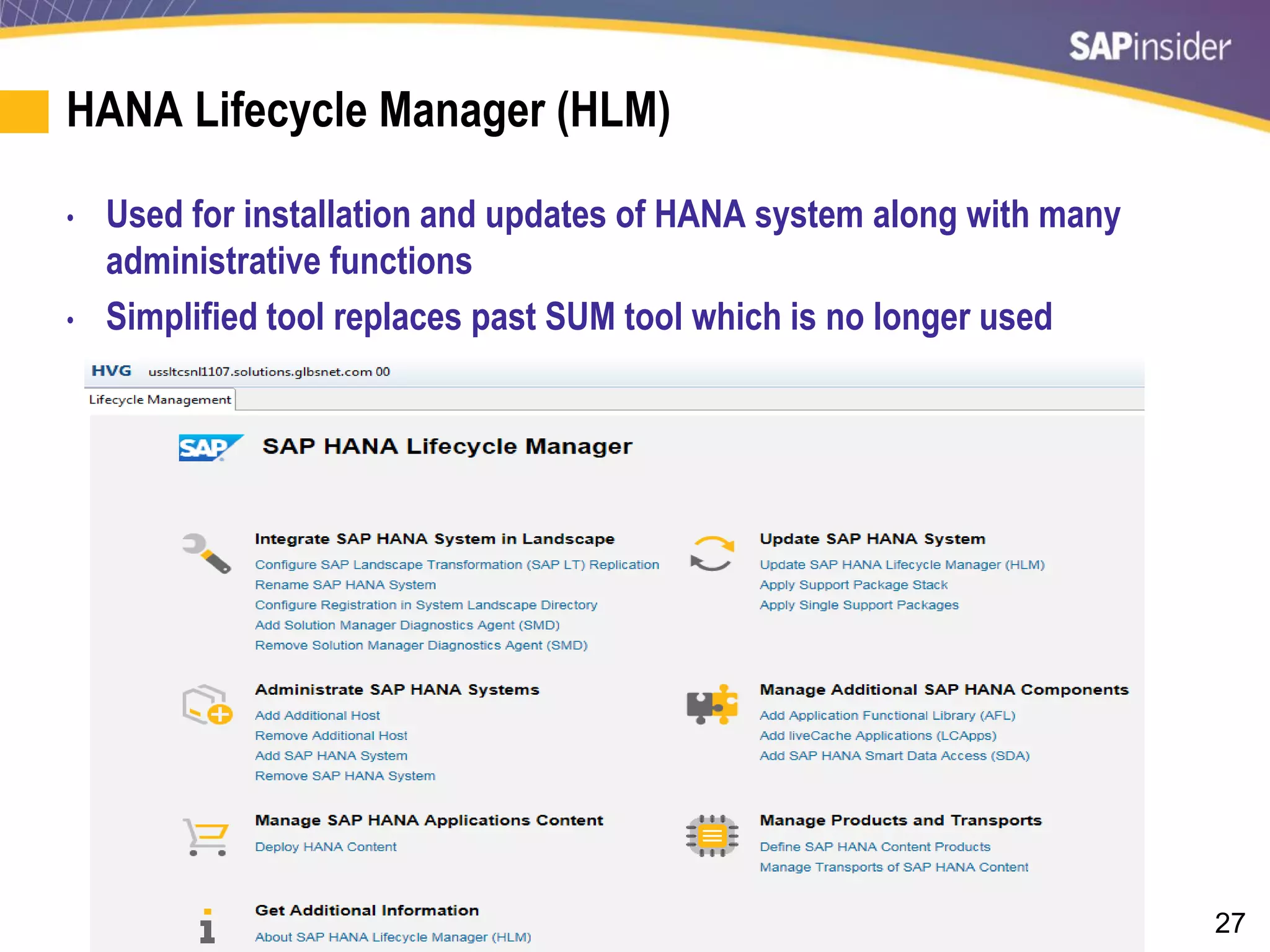

HANA Lifecycle Manager (HLM)
• Used for installation and updates of HANA system along with many
administrative functions
• Simplified tool replaces past SUM tool which is no longer used

29. 28

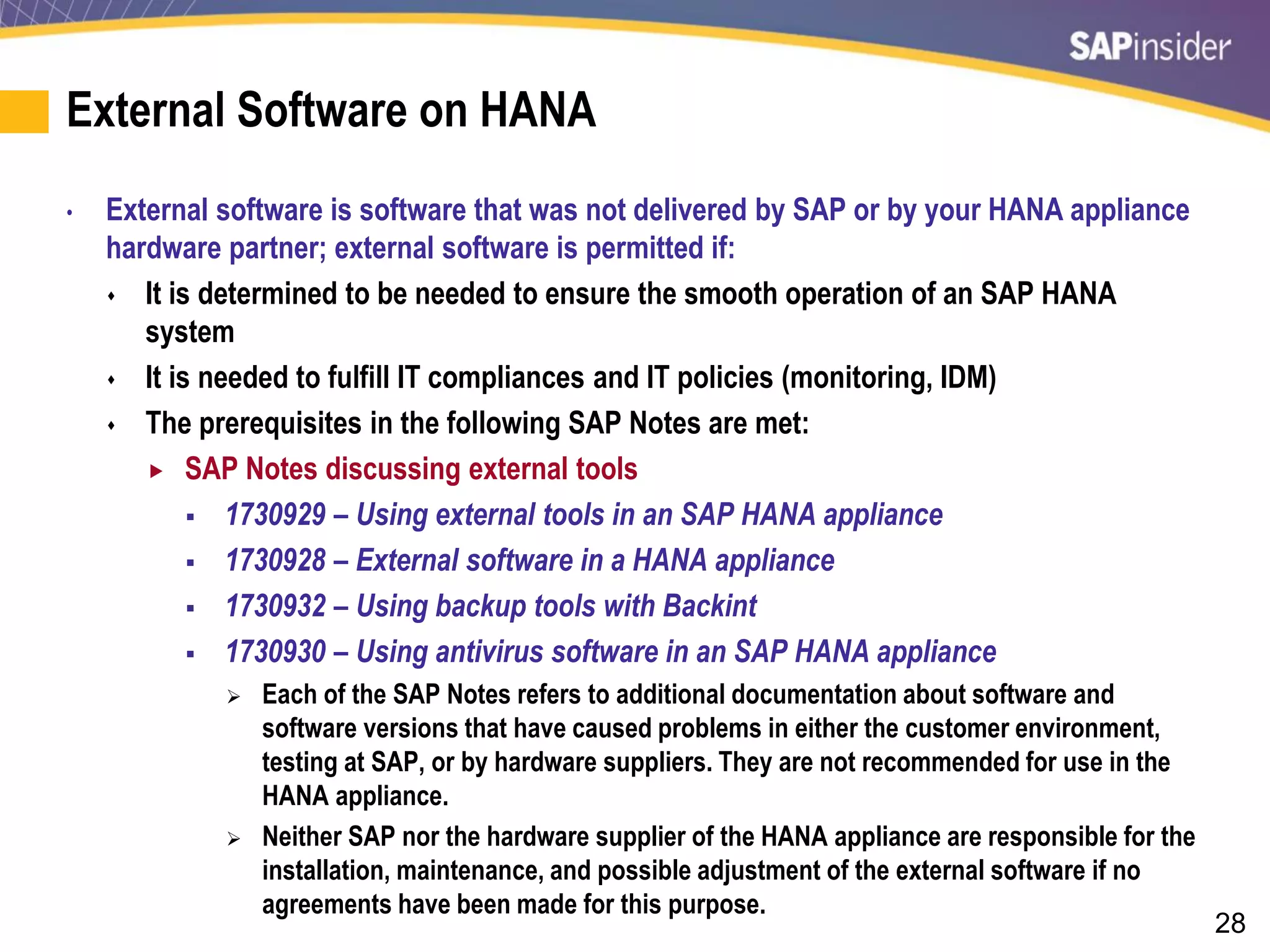

External Software on HANA
• External software is software that was not delivered by SAP or by your HANA appliance
hardware partner; external software is permitted if:
 It is determined to be needed to ensure the smooth operation of an SAP HANA
system
 It is needed to fulfill IT compliances and IT policies (monitoring, IDM)
 The prerequisites in the following SAP Notes are met:
 SAP Notes discussing external tools
 1730929 – Using external tools in an SAP HANA appliance
 1730928 – External software in a HANA appliance
 1730932 – Using backup tools with Backint
 1730930 – Using antivirus software in an SAP HANA appliance
 Each of the SAP Notes refers to additional documentation about software and
software versions that have caused problems in either the customer environment,
testing at SAP, or by hardware suppliers. They are not recommended for use in the
HANA appliance.
 Neither SAP nor the hardware supplier of the HANA appliance are responsible for the
installation, maintenance, and possible adjustment of the external software if no
agreements have been made for this purpose.

30. 29

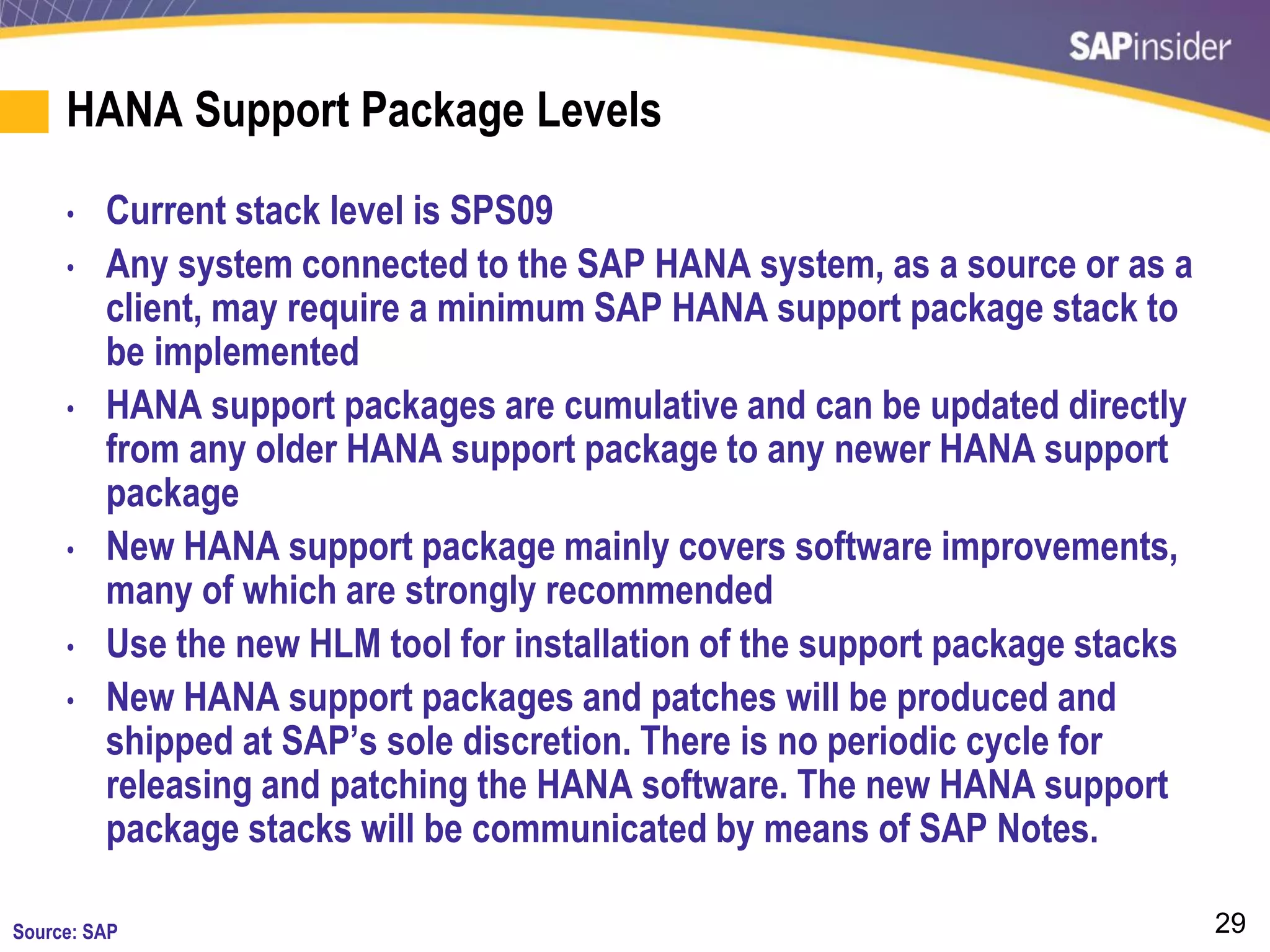

HANA Support Package Levels
• Current stack level is SPS09
• Any system connected to the SAP HANA system, as a source or as a
client, may require a minimum SAP HANA support package stack to
be implemented
• HANA support packages are cumulative and can be updated directly
from any older HANA support package to any newer HANA support
package
• New HANA support package mainly covers software improvements,
many of which are strongly recommended
• Use the new HLM tool for installation of the support package stacks
• New HANA support packages and patches will be produced and
shipped at SAP’s sole discretion. There is no periodic cycle for
releasing and patching the HANA software. The new HANA support
package stacks will be communicated by means of SAP Notes.
Source: SAP

31. 30

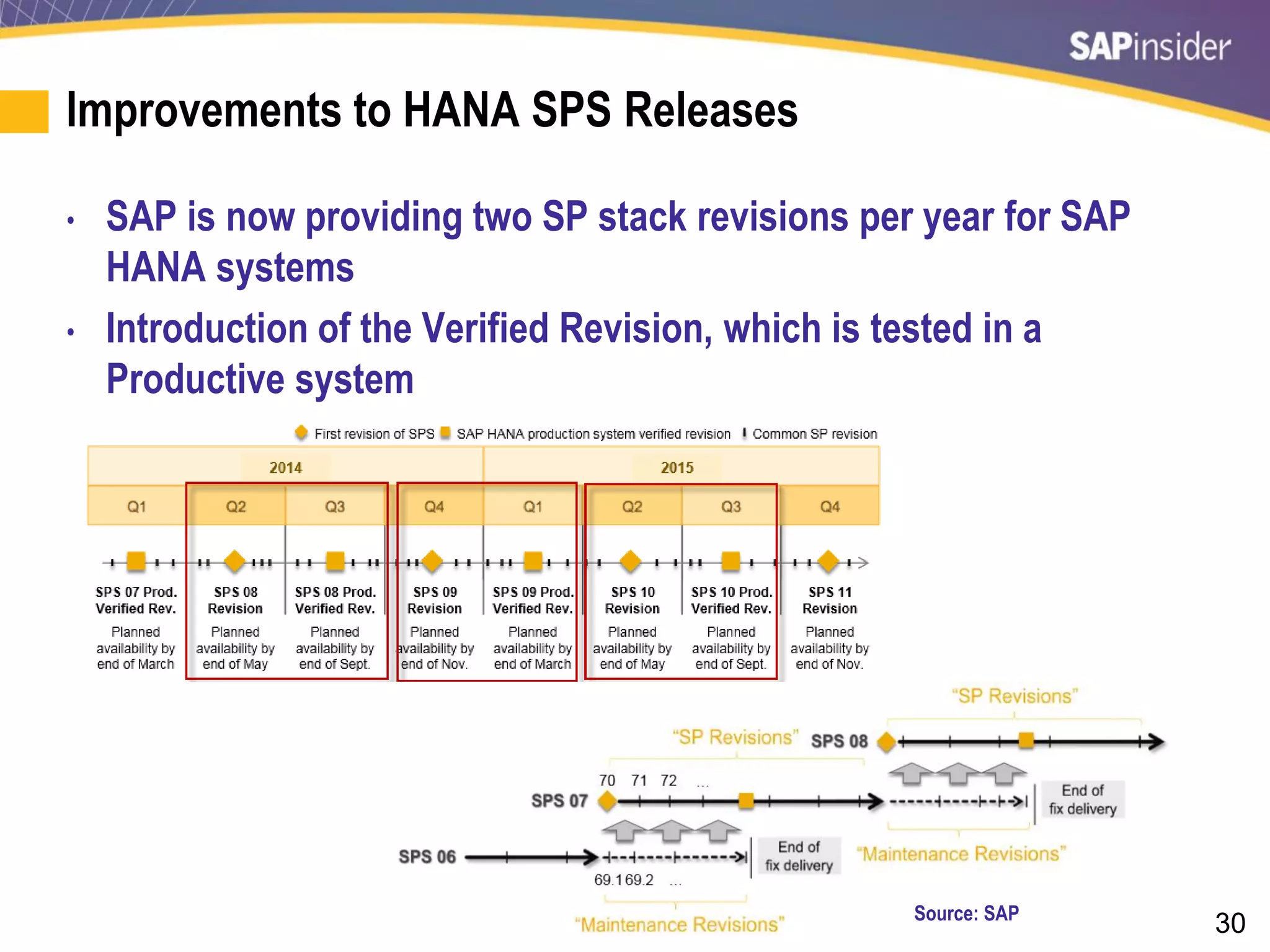

Improvements to HANA SPS Releases
• SAP is now providing two SP stack revisions per year for SAP
HANA systems
• Introduction of the Verified Revision, which is tested in a
Productive system
Source: SAP

32. 31
What We’ll Cover
• Overview of HANA
• Architecture
• Installation
• Administration
• Operations
• Monitoring
• Wrap-up

33. 32

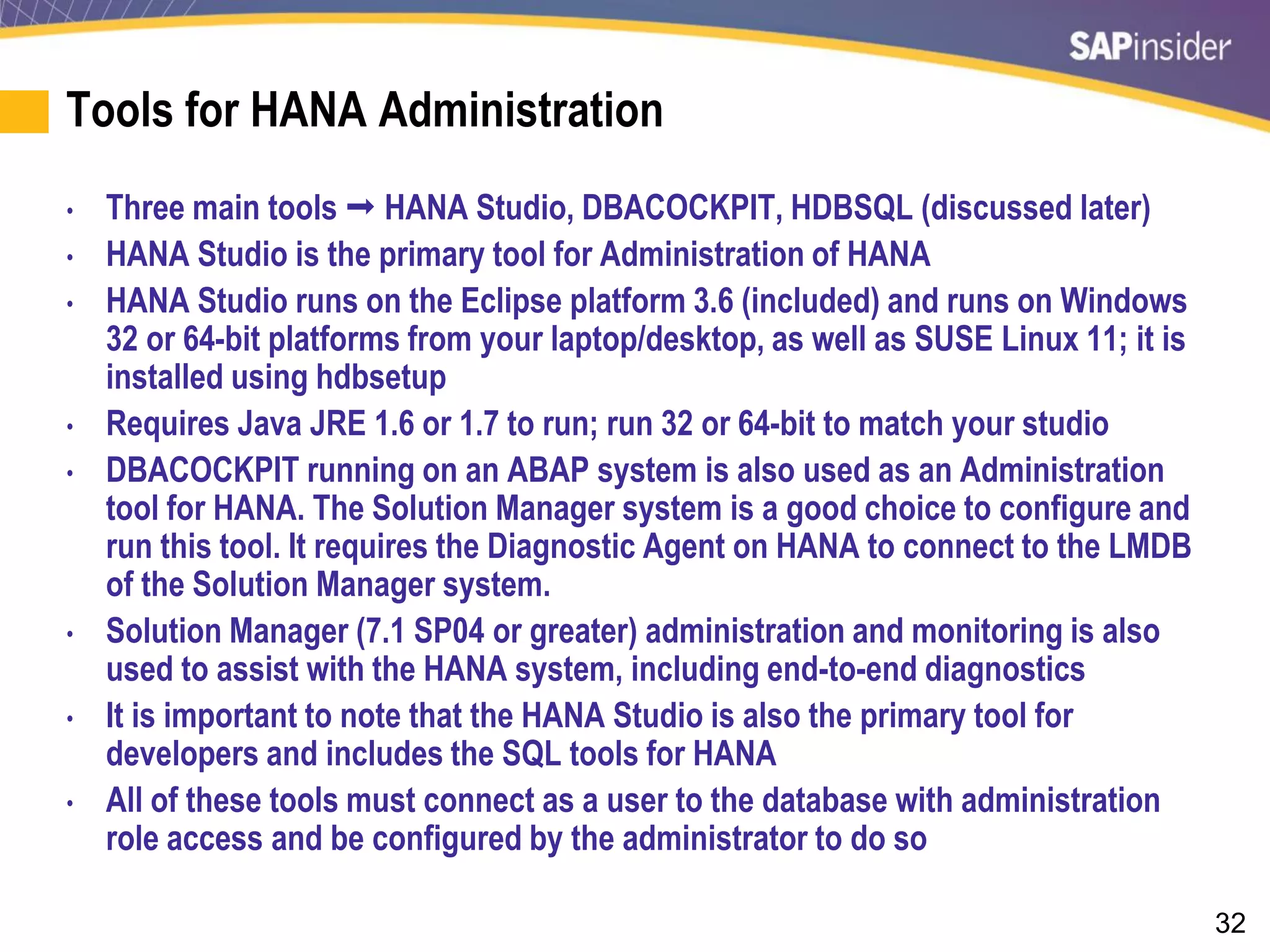

Tools for HANA Administration
• Three main tools  HANA Studio, DBACOCKPIT, HDBSQL (discussed later)
• HANA Studio is the primary tool for Administration of HANA
• HANA Studio runs on the Eclipse platform 3.6 (included) and runs on Windows
32 or 64-bit platforms from your laptop/desktop, as well as SUSE Linux 11; it is
installed using hdbsetup
• Requires Java JRE 1.6 or 1.7 to run; run 32 or 64-bit to match your studio
• DBACOCKPIT running on an ABAP system is also used as an Administration
tool for HANA. The Solution Manager system is a good choice to configure and
run this tool. It requires the Diagnostic Agent on HANA to connect to the LMDB
of the Solution Manager system.
• Solution Manager (7.1 SP04 or greater) administration and monitoring is also
used to assist with the HANA system, including end-to-end diagnostics
• It is important to note that the HANA Studio is also the primary tool for
developers and includes the SQL tools for HANA
• All of these tools must connect as a user to the database with administration
role access and be configured by the administrator to do so

34. 33

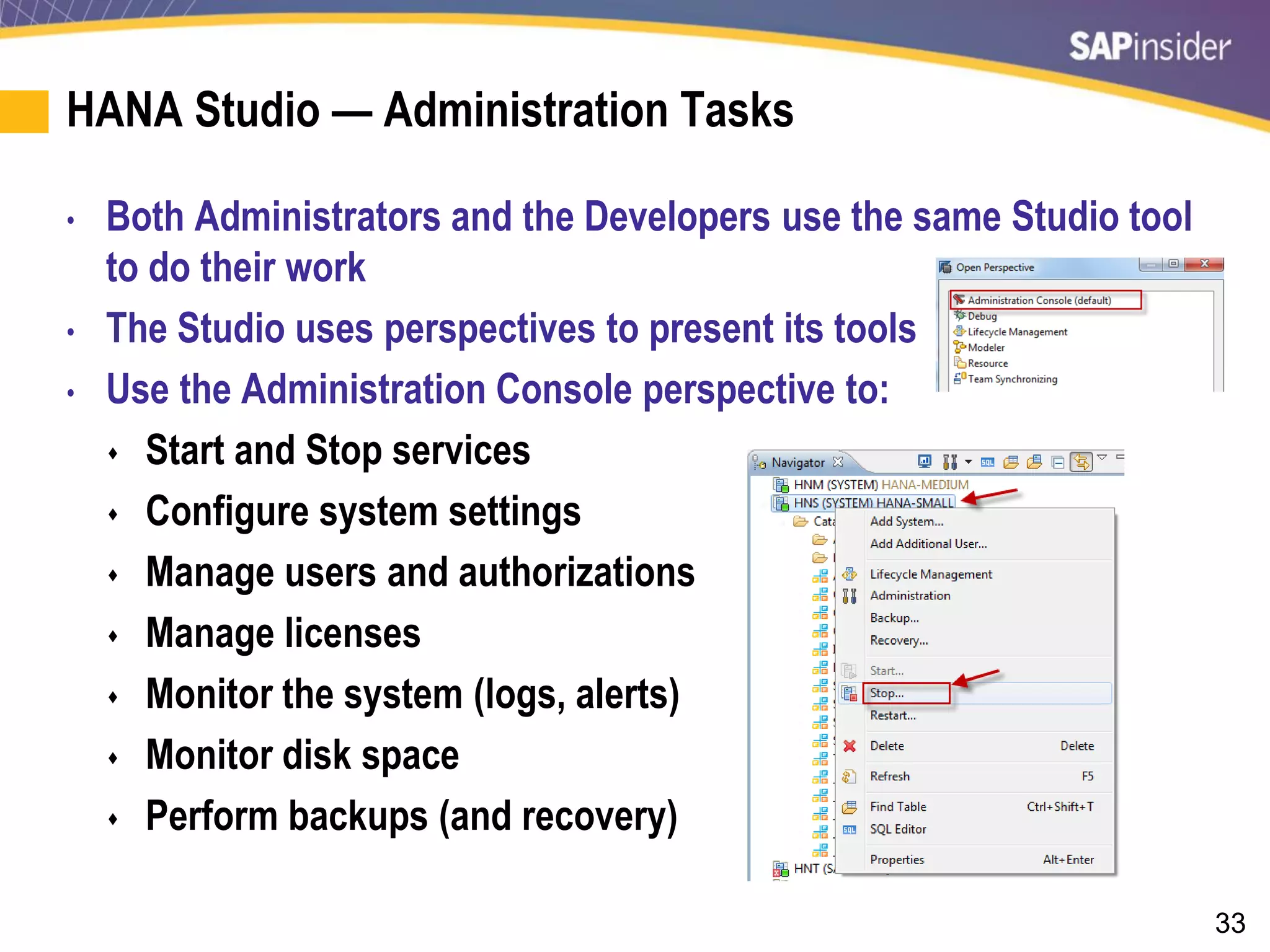

HANA Studio — Administration Tasks
• Both Administrators and the Developers use the same Studio tool
to do their work
• The Studio uses perspectives to present its tools
• Use the Administration Console perspective to:
 Start and Stop services
 Configure system settings
 Manage users and authorizations
 Manage licenses
 Monitor the system (logs, alerts)
 Monitor disk space
 Perform backups (and recovery)

35. 34

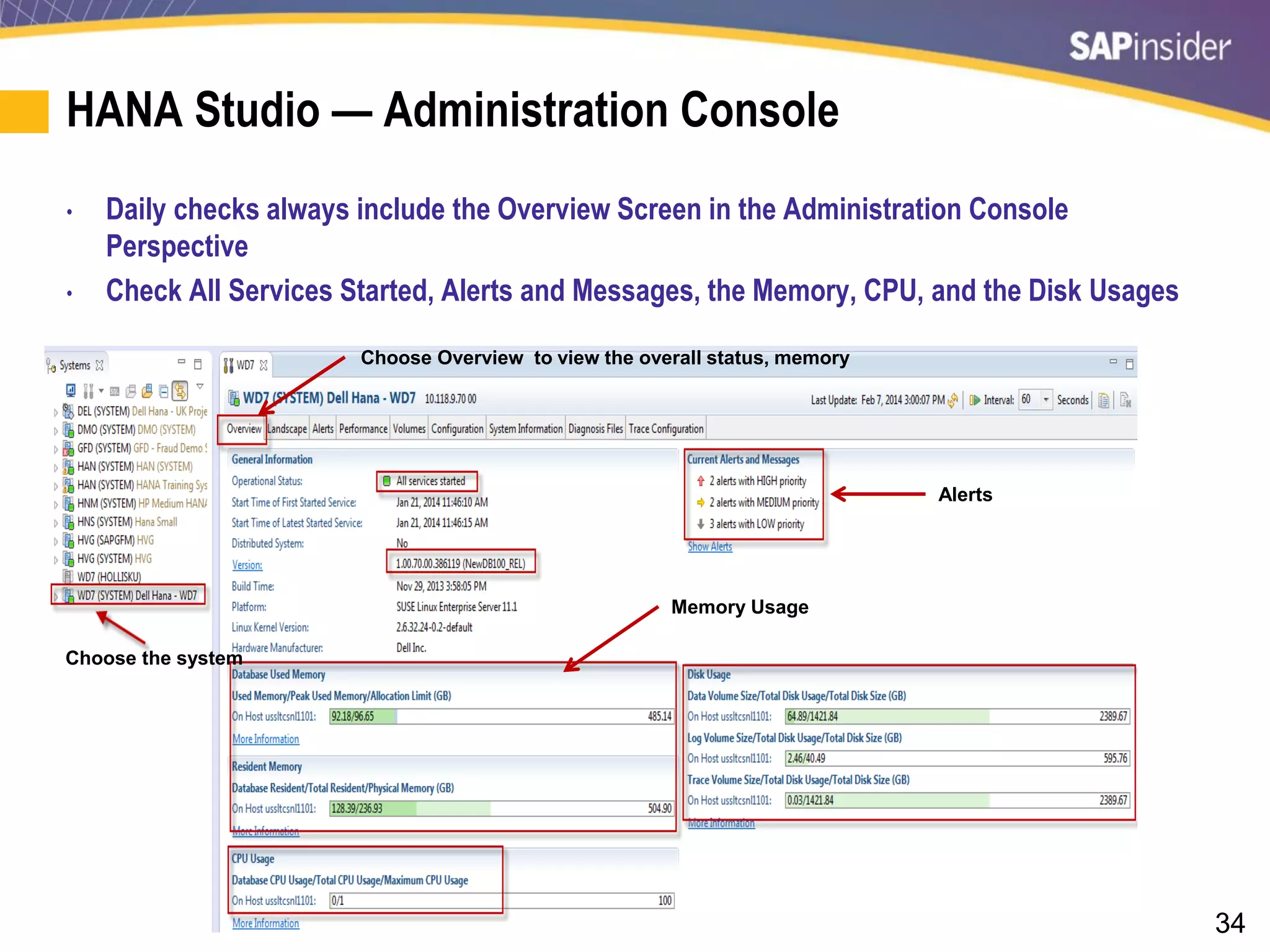

HANA Studio — Administration Console
• Daily checks always include the Overview Screen in the Administration Console
Perspective
• Check All Services Started, Alerts and Messages, the Memory, CPU, and the Disk Usages
Choose the system
Choose Overview to view the overall status, memory
Alerts
Memory Usage

36. 35

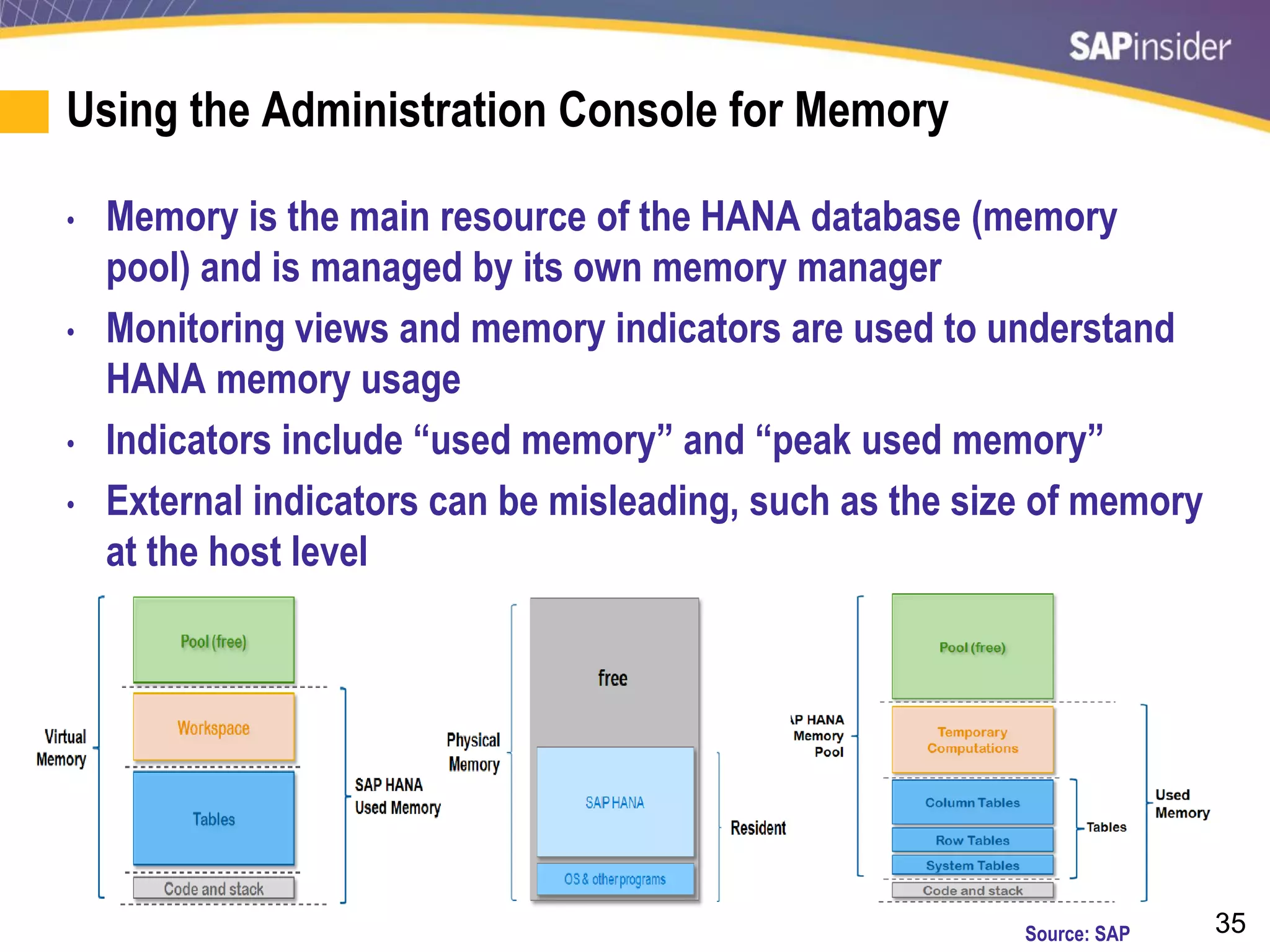

Using the Administration Console for Memory
• Memory is the main resource of the HANA database (memory
pool) and is managed by its own memory manager
• Monitoring views and memory indicators are used to understand
HANA memory usage
• Indicators include “used memory” and “peak used memory”
• External indicators can be misleading, such as the size of memory
at the host level
Source: SAP

37. 36
Using the Administration Console for Memory (cont.)

38. 37
HANA Studio — Administration Console

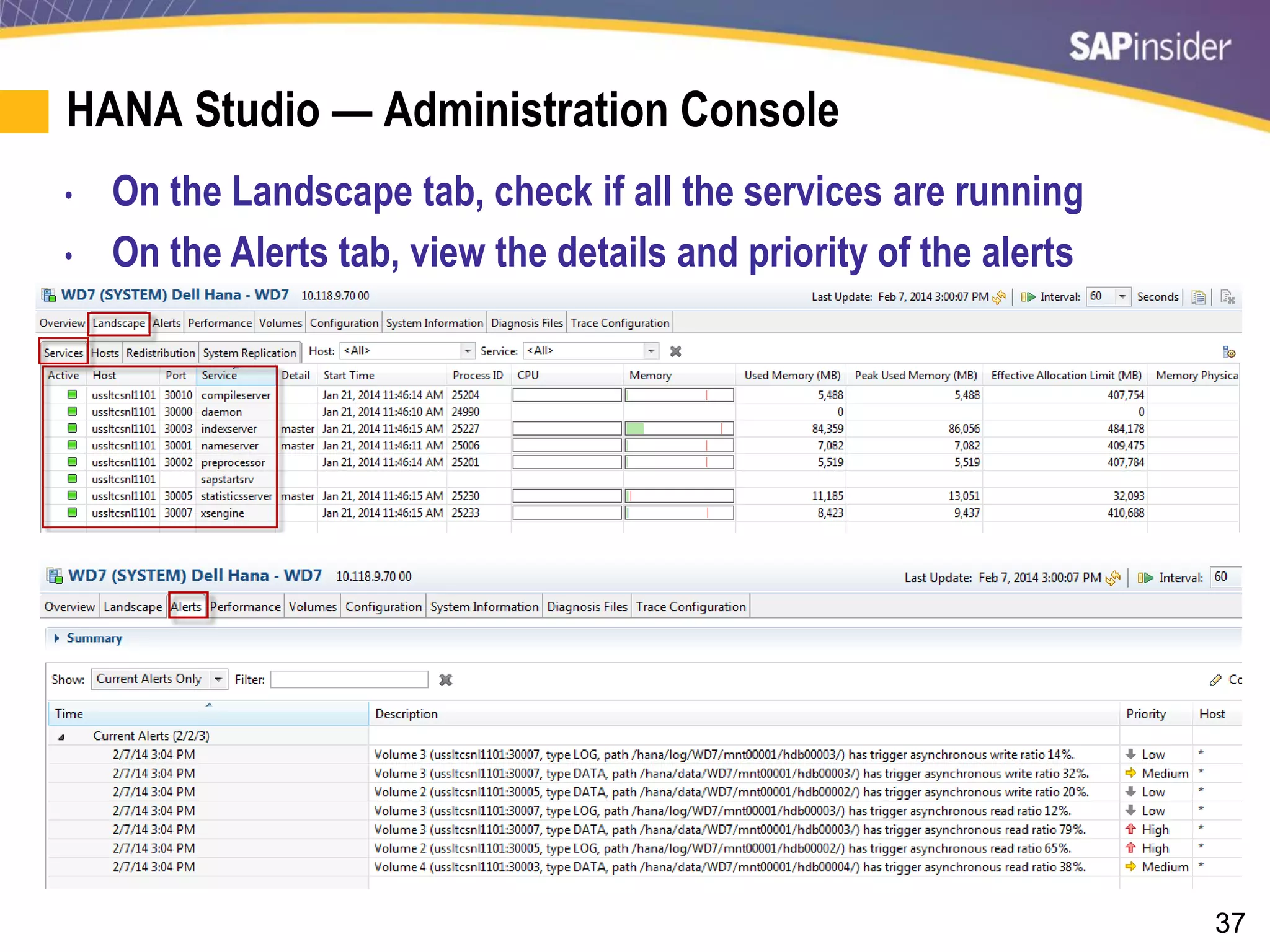

• On the Landscape tab, check if all the services are running
• On the Alerts tab, view the details and priority of the alerts

39. 38

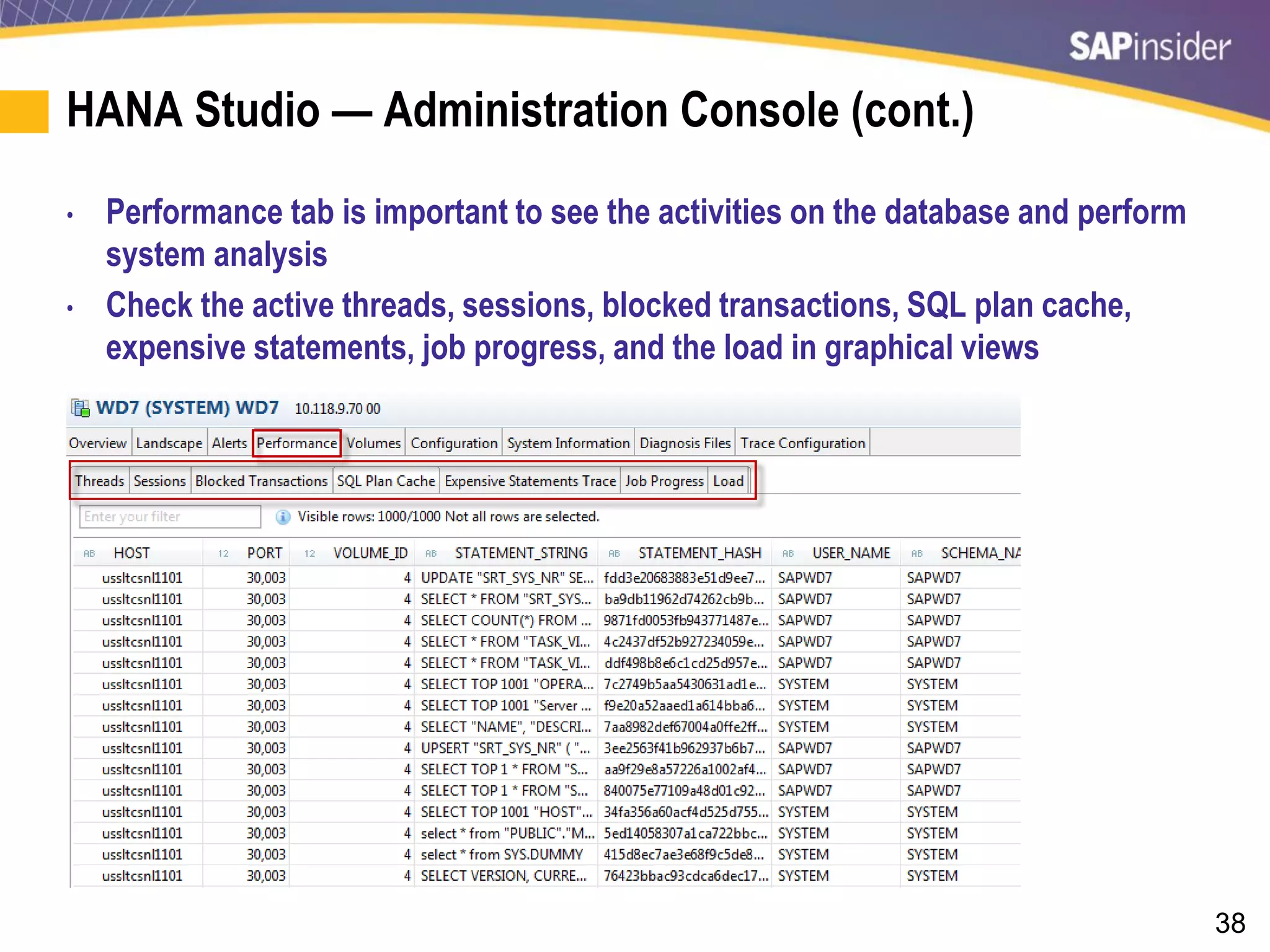

HANA Studio — Administration Console (cont.)
• Performance tab is important to see the activities on the database and perform
system analysis
• Check the active threads, sessions, blocked transactions, SQL plan cache,
expensive statements, job progress, and the load in graphical views

40. 39

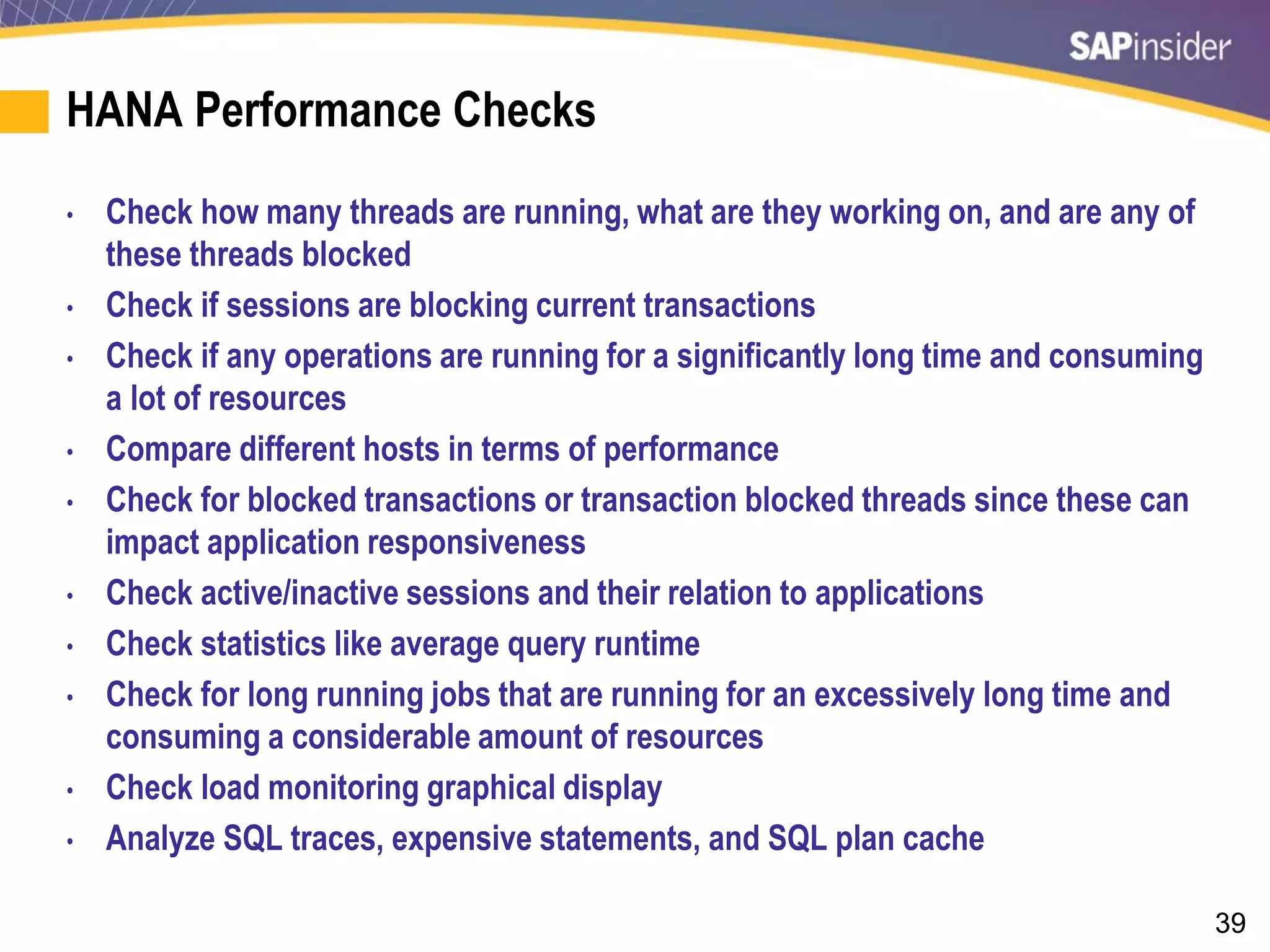

HANA Performance Checks
• Check how many threads are running, what are they working on, and are any of
these threads blocked
• Check if sessions are blocking current transactions
• Check if any operations are running for a significantly long time and consuming
a lot of resources
• Compare different hosts in terms of performance
• Check for blocked transactions or transaction blocked threads since these can
impact application responsiveness
• Check active/inactive sessions and their relation to applications
• Check statistics like average query runtime
• Check for long running jobs that are running for an excessively long time and
consuming a considerable amount of resources
• Check load monitoring graphical display
• Analyze SQL traces, expensive statements, and SQL plan cache

41. 40

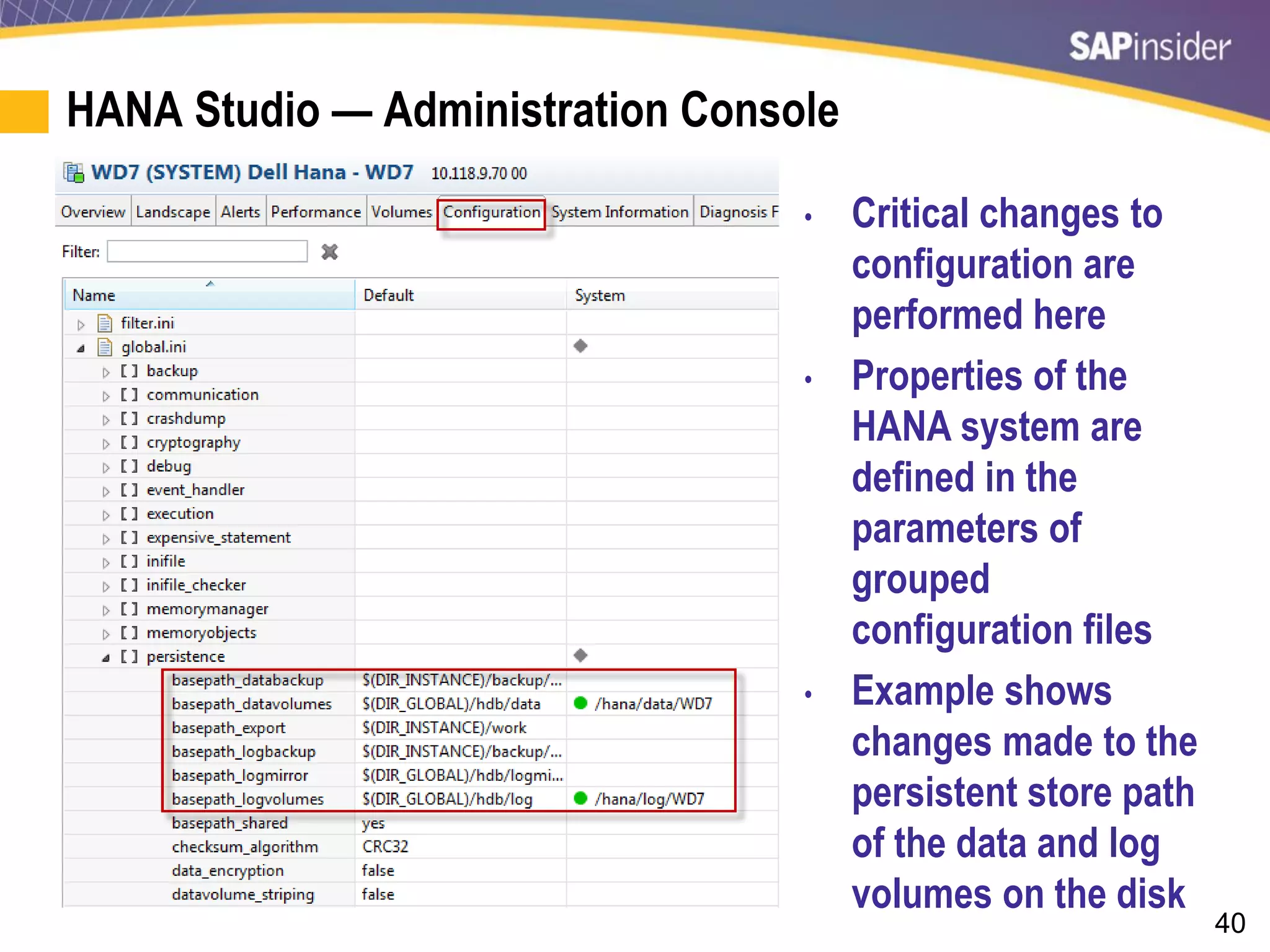

HANA Studio — Administration Console
• Critical changes to
configuration are
performed here
• Properties of the
HANA system are
defined in the
parameters of
grouped
configuration files
• Example shows
changes made to the
persistent store path
of the data and log
volumes on the disk

42. 41

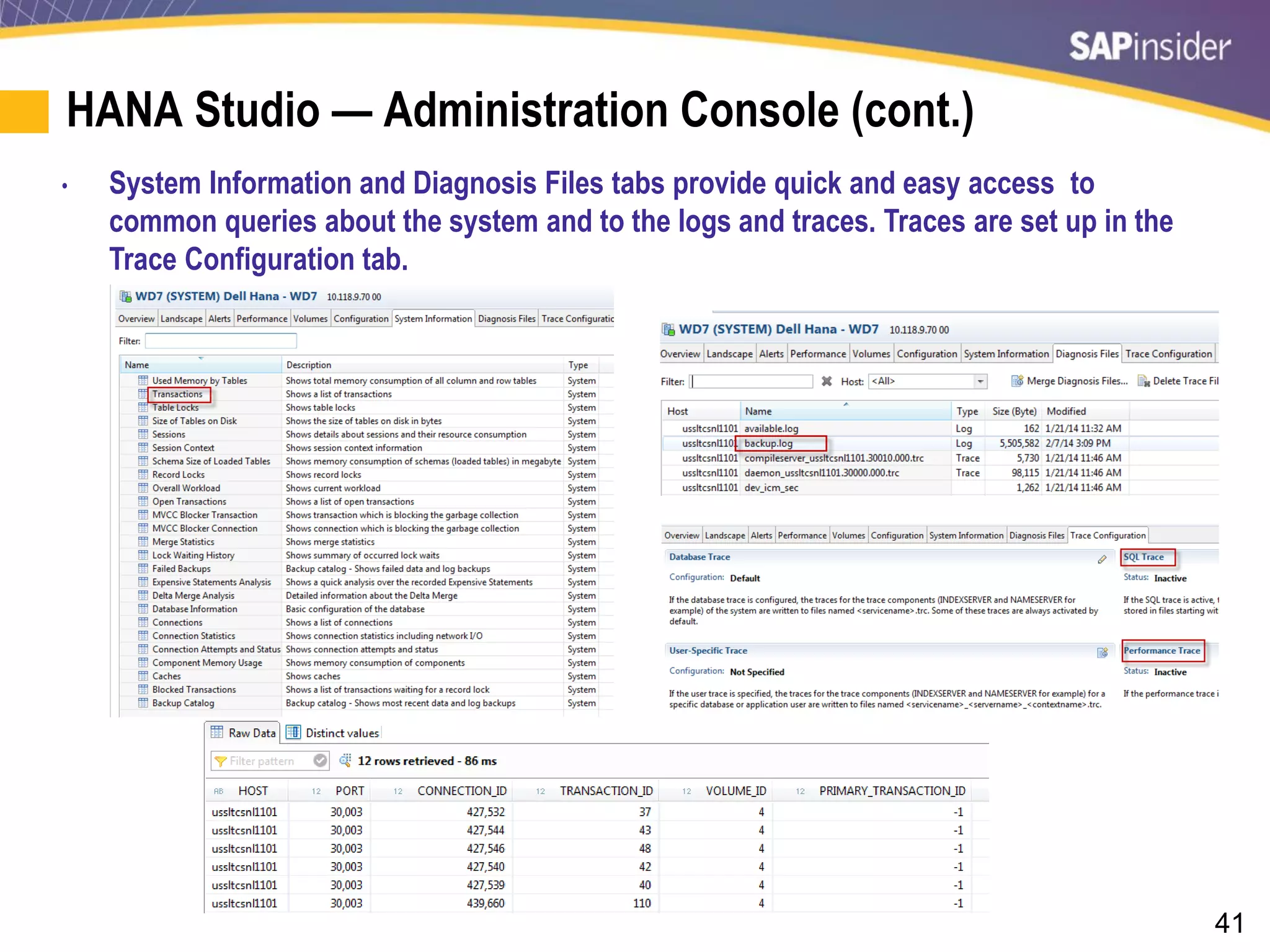

HANA Studio — Administration Console (cont.)
• System Information and Diagnosis Files tabs provide quick and easy access to
common queries about the system and to the logs and traces. Traces are set up in the
Trace Configuration tab.

43. 42

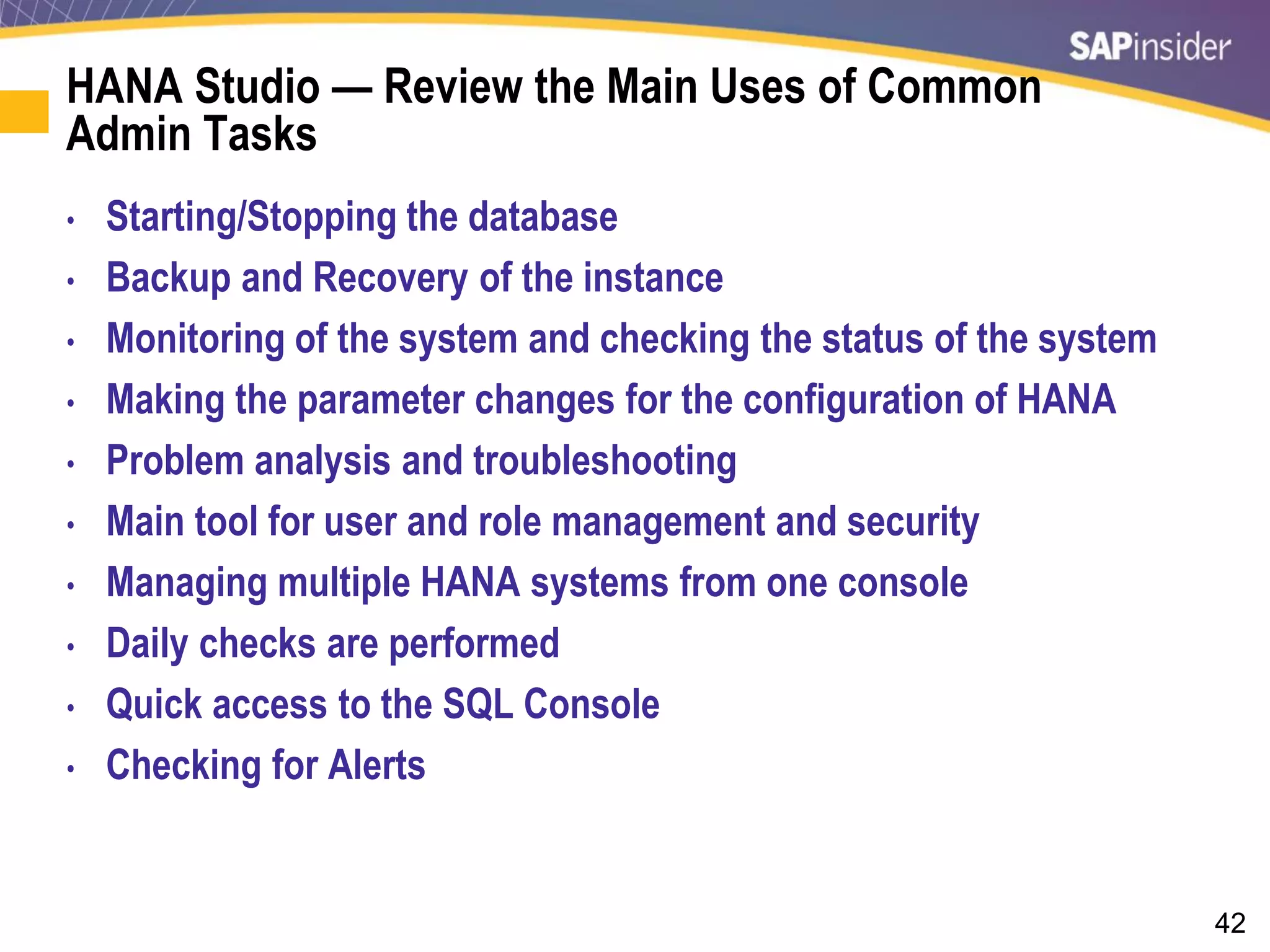

HANA Studio — Review the Main Uses of Common
Admin Tasks
• Starting/Stopping the database
• Backup and Recovery of the instance
• Monitoring of the system and checking the status of the system
• Making the parameter changes for the configuration of HANA
• Problem analysis and troubleshooting
• Main tool for user and role management and security
• Managing multiple HANA systems from one console
• Daily checks are performed
• Quick access to the SQL Console
• Checking for Alerts

44. 43

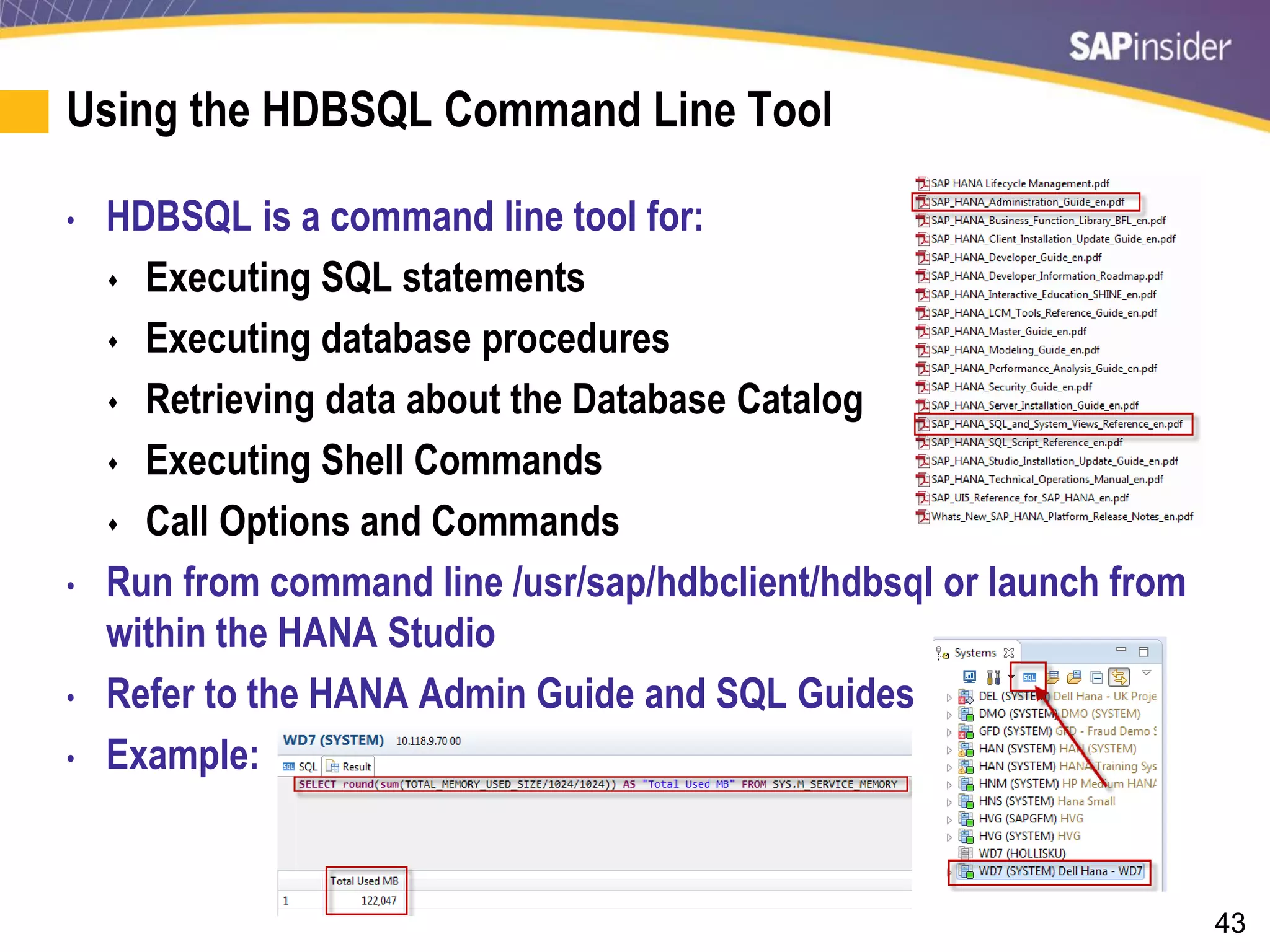

Using the HDBSQL Command Line Tool
• HDBSQL is a command line tool for:
 Executing SQL statements
 Executing database procedures
 Retrieving data about the Database Catalog
 Executing Shell Commands
 Call Options and Commands
• Run from command line /usr/sap/hdbclient/hdbsql or launch from
within the HANA Studio
• Refer to the HANA Admin Guide and SQL Guides
• Example:

45. 44

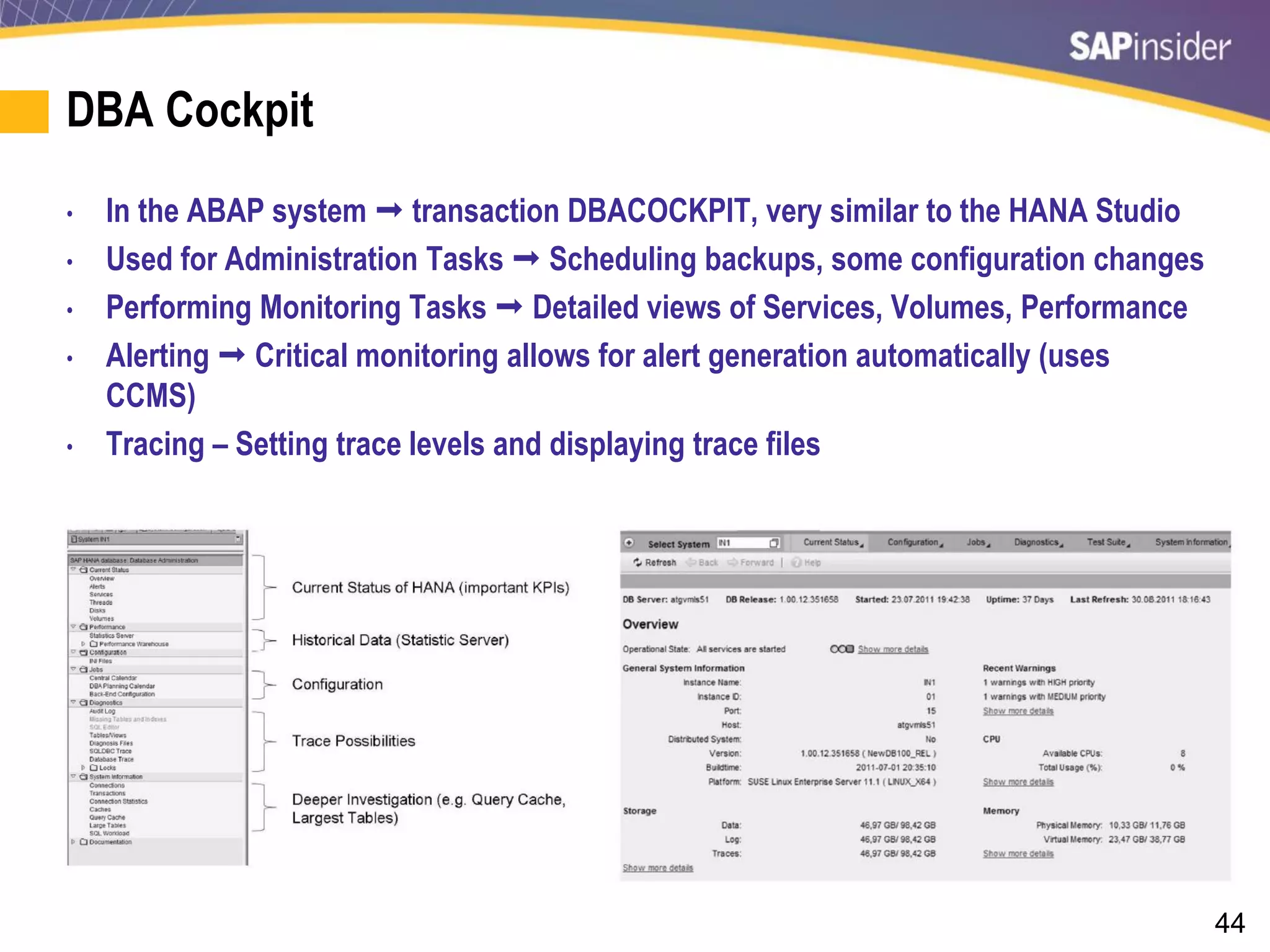

DBA Cockpit
• In the ABAP system  transaction DBACOCKPIT, very similar to the HANA Studio
• Used for Administration Tasks  Scheduling backups, some configuration changes
• Performing Monitoring Tasks  Detailed views of Services, Volumes, Performance
• Alerting  Critical monitoring allows for alert generation automatically (uses
CCMS)
• Tracing – Setting trace levels and displaying trace files

46. 45

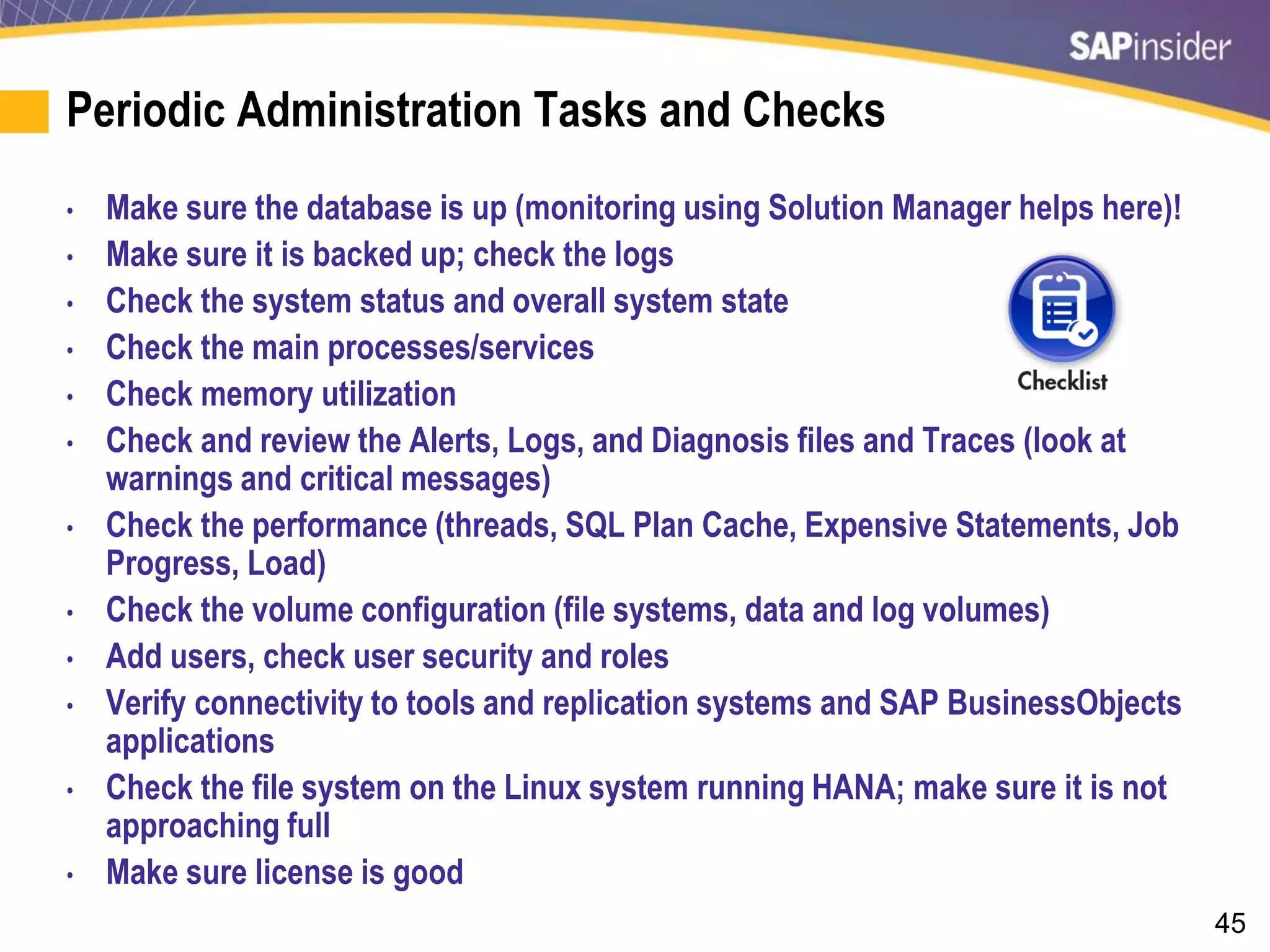

Periodic Administration Tasks and Checks
• Make sure the database is up (monitoring using Solution Manager helps here)!
• Make sure it is backed up; check the logs
• Check the system status and overall system state
• Check the main processes/services
• Check memory utilization
• Check and review the Alerts, Logs, and Diagnosis files and Traces (look at
warnings and critical messages)
• Check the performance (threads, SQL Plan Cache, Expensive Statements, Job
Progress, Load)
• Check the volume configuration (file systems, data and log volumes)
• Add users, check user security and roles
• Verify connectivity to tools and replication systems and SAP BusinessObjects
applications
• Check the file system on the Linux system running HANA; make sure it is not
approaching full
• Make sure license is good

47. 46

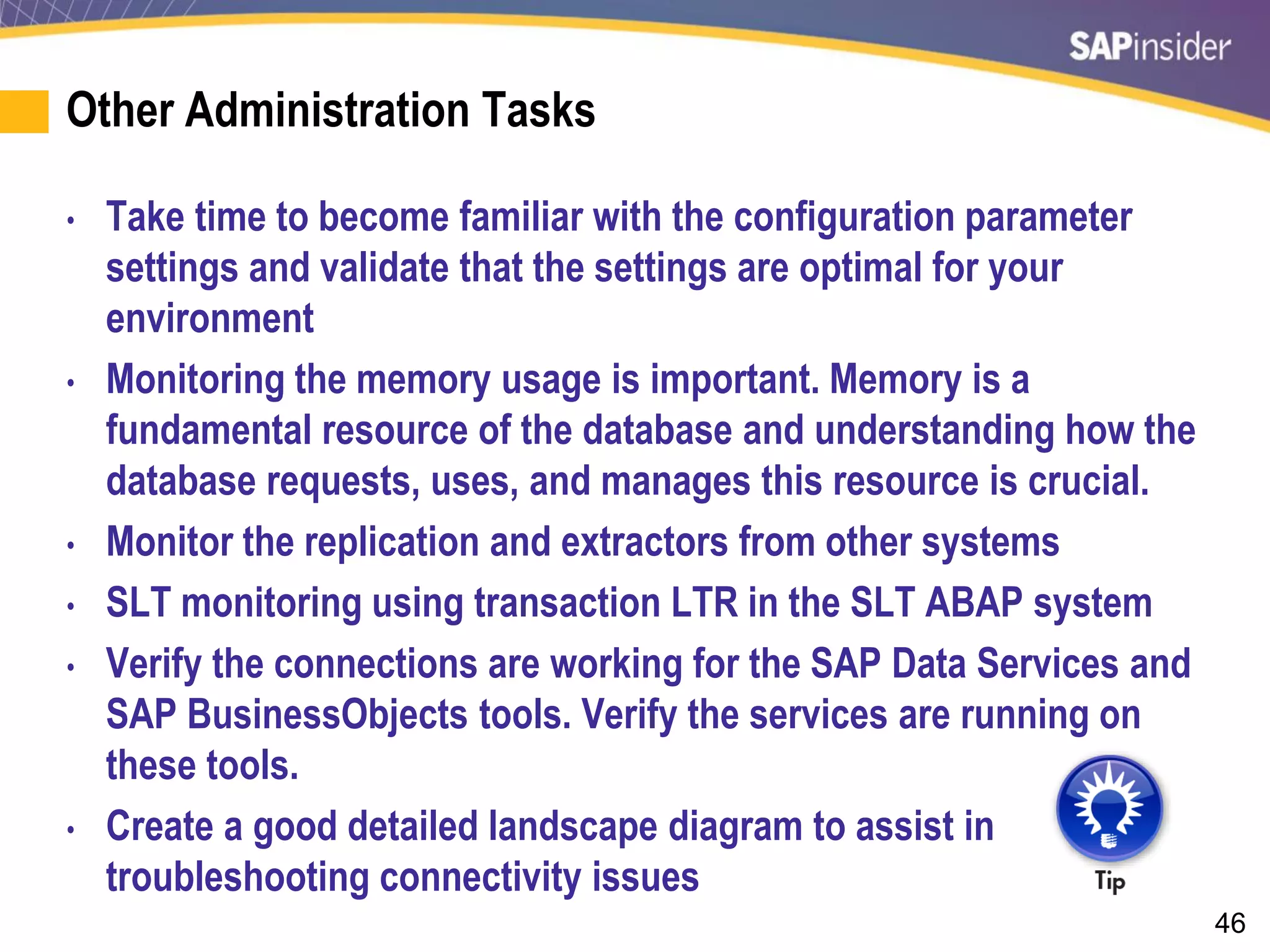

Other Administration Tasks
• Take time to become familiar with the configuration parameter
settings and validate that the settings are optimal for your
environment
• Monitoring the memory usage is important. Memory is a
fundamental resource of the database and understanding how the
database requests, uses, and manages this resource is crucial.
• Monitor the replication and extractors from other systems
• SLT monitoring using transaction LTR in the SLT ABAP system
• Verify the connections are working for the SAP Data Services and
SAP BusinessObjects tools. Verify the services are running on
these tools.
• Create a good detailed landscape diagram to assist in
troubleshooting connectivity issues

48. 47

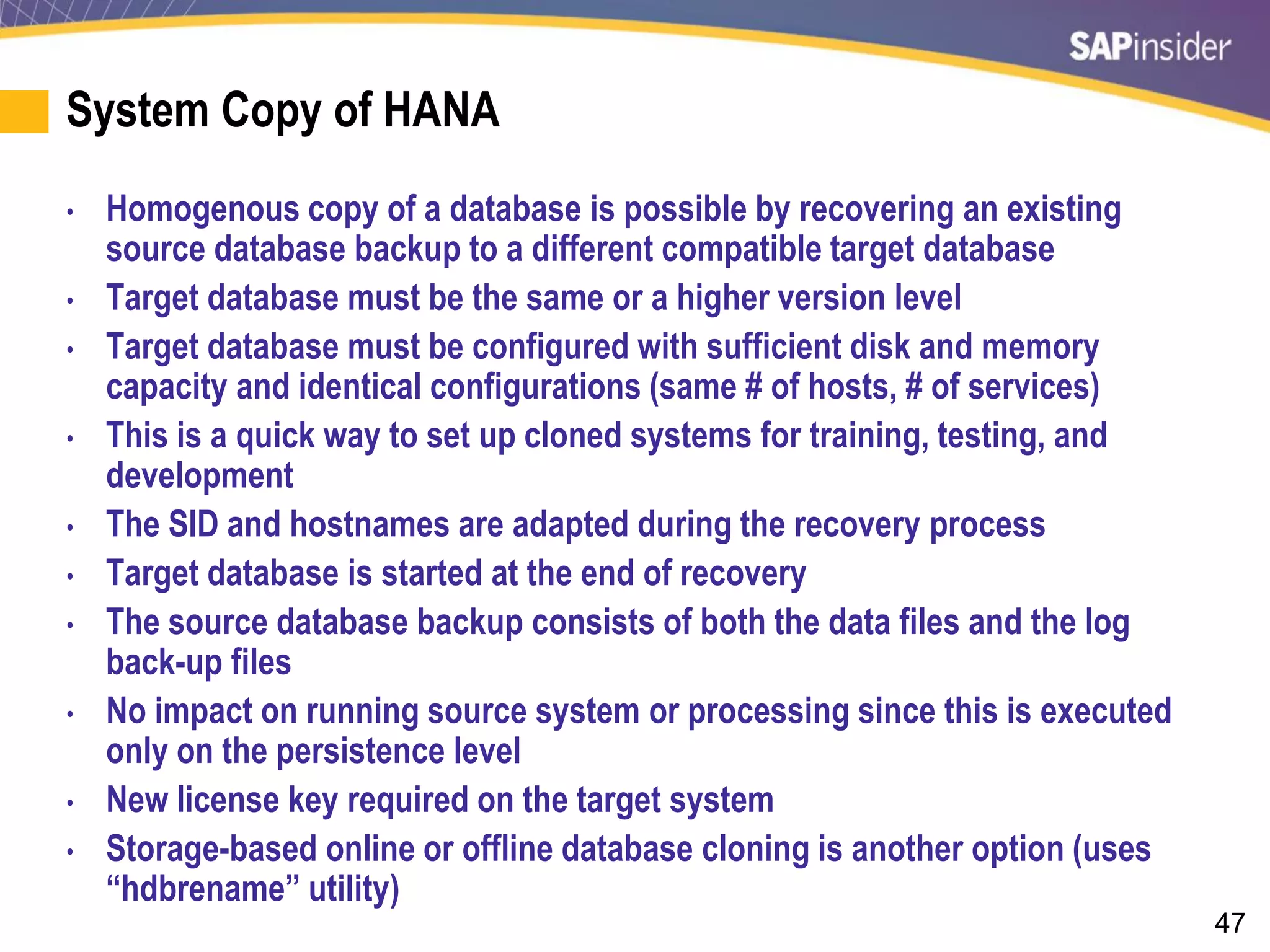

System Copy of HANA
• Homogenous copy of a database is possible by recovering an existing
source database backup to a different compatible target database
• Target database must be the same or a higher version level
• Target database must be configured with sufficient disk and memory
capacity and identical configurations (same # of hosts, # of services)
• This is a quick way to set up cloned systems for training, testing, and
development
• The SID and hostnames are adapted during the recovery process
• Target database is started at the end of recovery
• The source database backup consists of both the data files and the log
back-up files
• No impact on running source system or processing since this is executed
only on the persistence level
• New license key required on the target system
• Storage-based online or offline database cloning is another option (uses
“hdbrename” utility)

49. 48
What We’ll Cover
• Overview of HANA
• Architecture
• Installation
• Administration
• Operations
• Monitoring
• Wrap-up

50. 49

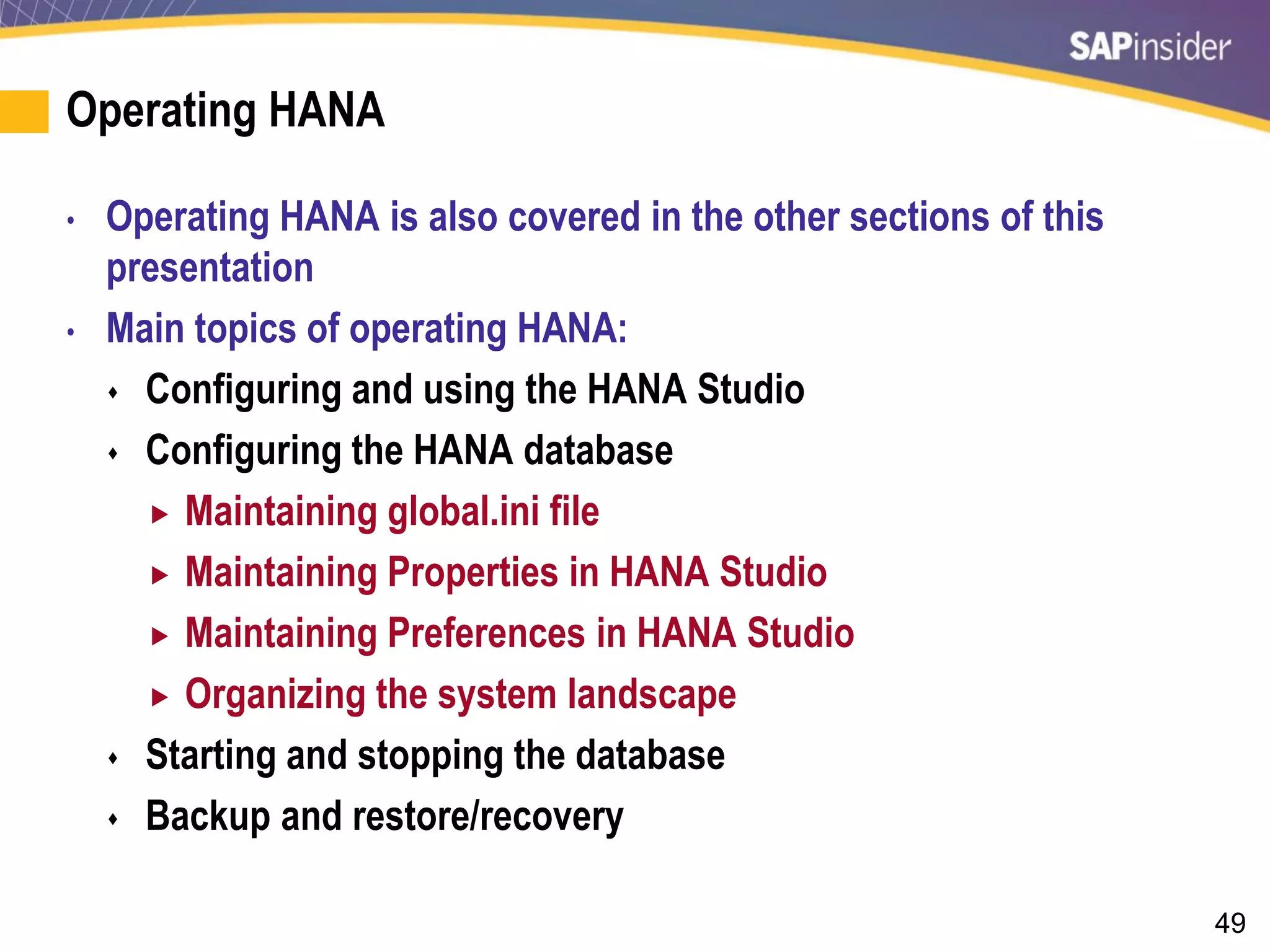

Operating HANA
• Operating HANA is also covered in the other sections of this
presentation
• Main topics of operating HANA:
 Configuring and using the HANA Studio
 Configuring the HANA database
 Maintaining global.ini file
 Maintaining Properties in HANA Studio
 Maintaining Preferences in HANA Studio
 Organizing the system landscape
 Starting and stopping the database
 Backup and restore/recovery

51. 50

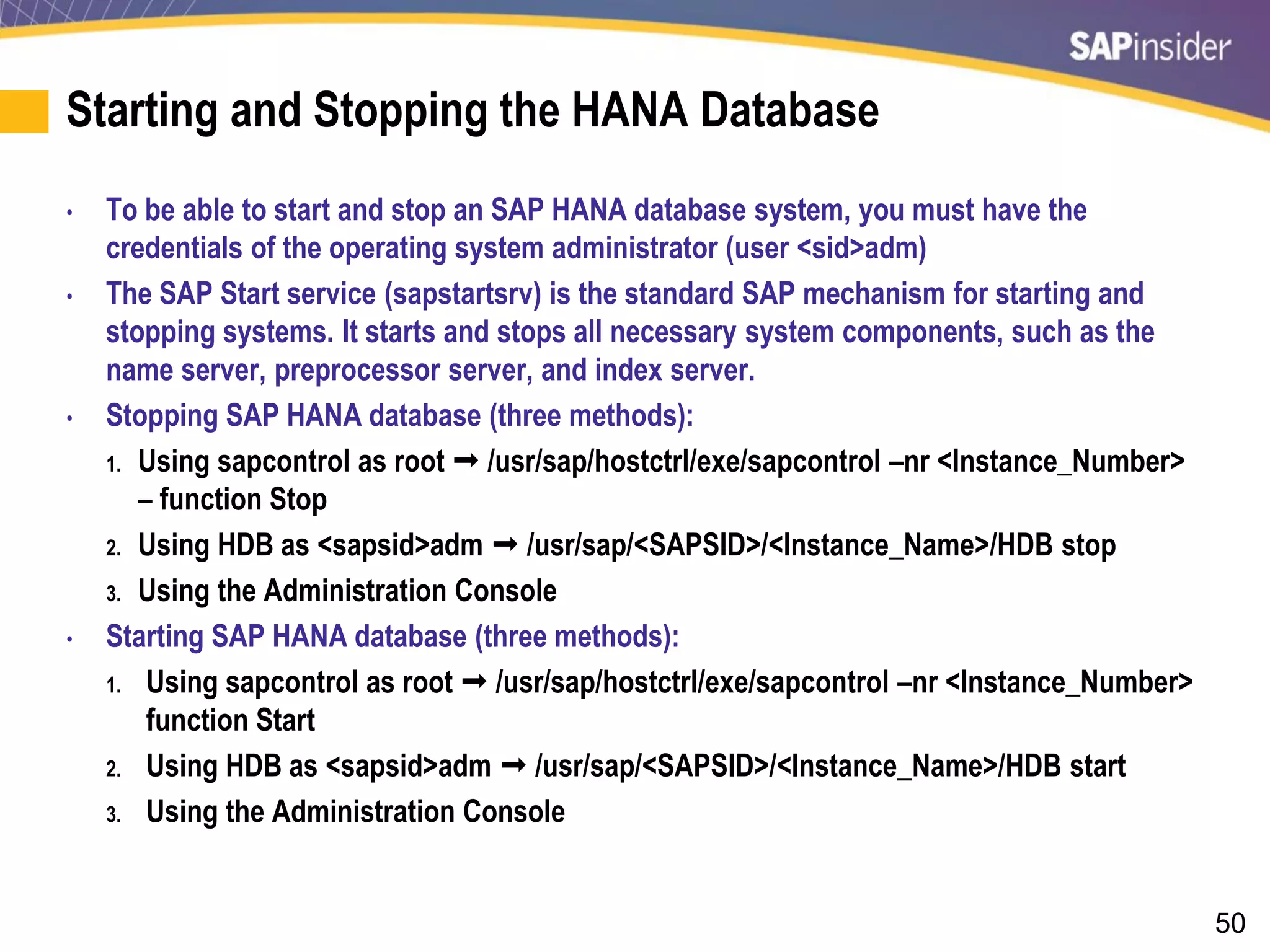

Starting and Stopping the HANA Database
• To be able to start and stop an SAP HANA database system, you must have the
credentials of the operating system administrator (user <sid>adm)
• The SAP Start service (sapstartsrv) is the standard SAP mechanism for starting and
stopping systems. It starts and stops all necessary system components, such as the
name server, preprocessor server, and index server.
• Stopping SAP HANA database (three methods):
1. Using sapcontrol as root  /usr/sap/hostctrl/exe/sapcontrol –nr <Instance_Number>
– function Stop
2. Using HDB as <sapsid>adm  /usr/sap/<SAPSID>/<Instance_Name>/HDB stop
3. Using the Administration Console
• Starting SAP HANA database (three methods):
1. Using sapcontrol as root  /usr/sap/hostctrl/exe/sapcontrol –nr <Instance_Number>
function Start
2. Using HDB as <sapsid>adm  /usr/sap/<SAPSID>/<Instance_Name>/HDB start
3. Using the Administration Console

52. 51

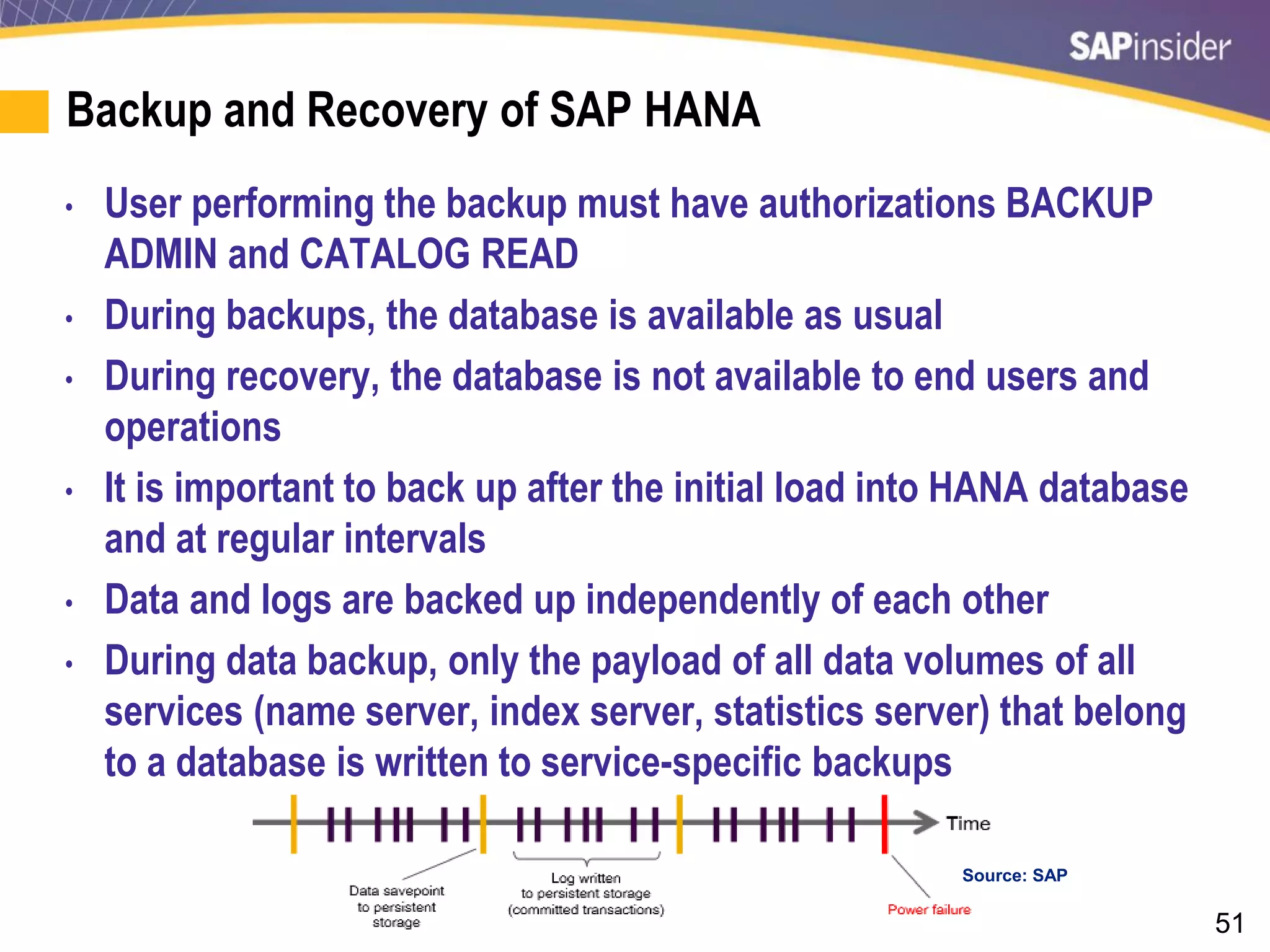

Backup and Recovery of SAP HANA
• User performing the backup must have authorizations BACKUP
ADMIN and CATALOG READ
• During backups, the database is available as usual
• During recovery, the database is not available to end users and
operations
• It is important to back up after the initial load into HANA database
and at regular intervals
• Data and logs are backed up independently of each other
• During data backup, only the payload of all data volumes of all
services (name server, index server, statistics server) that belong
to a database is written to service-specific backups
Source: SAP

53. 52

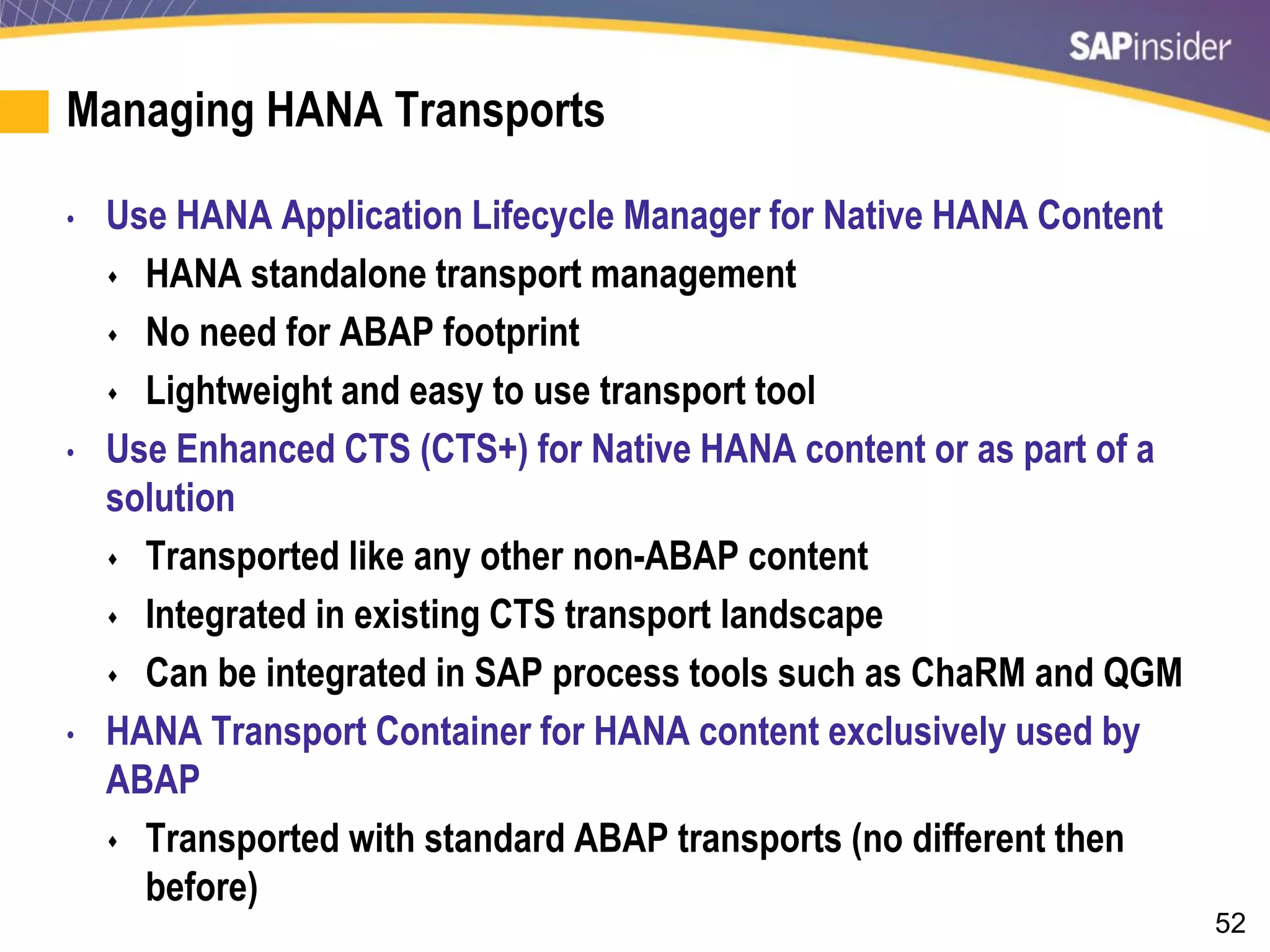

Managing HANA Transports
• Use HANA Application Lifecycle Manager for Native HANA Content
 HANA standalone transport management
 No need for ABAP footprint
 Lightweight and easy to use transport tool
• Use Enhanced CTS (CTS+) for Native HANA content or as part of a
solution
 Transported like any other non-ABAP content
 Integrated in existing CTS transport landscape
 Can be integrated in SAP process tools such as ChaRM and QGM
• HANA Transport Container for HANA content exclusively used by
ABAP
 Transported with standard ABAP transports (no different then
before)

54. 53

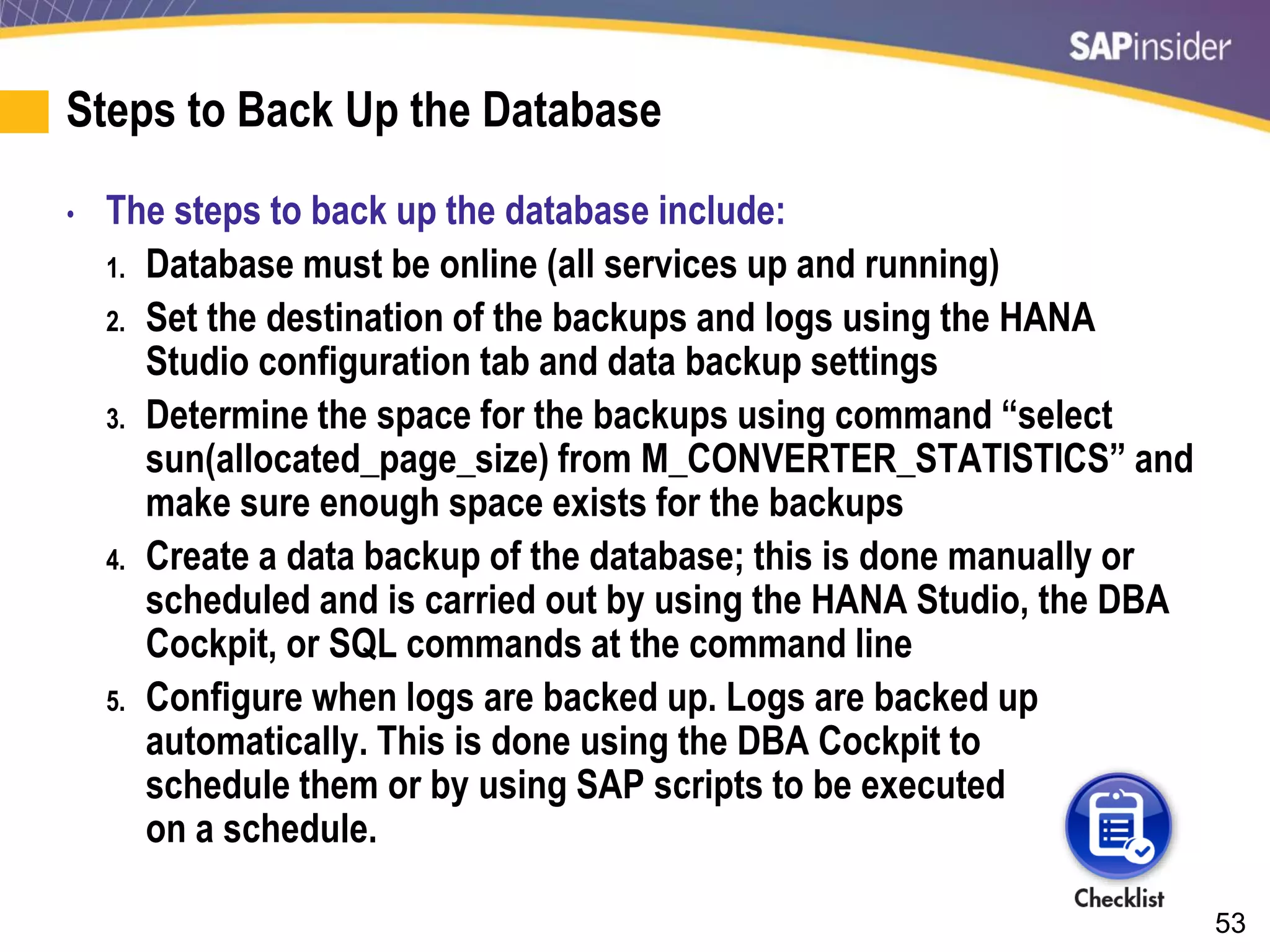

Steps to Back Up the Database
• The steps to back up the database include:
1. Database must be online (all services up and running)
2. Set the destination of the backups and logs using the HANA
Studio configuration tab and data backup settings
3. Determine the space for the backups using command “select
sun(allocated_page_size) from M_CONVERTER_STATISTICS” and
make sure enough space exists for the backups
4. Create a data backup of the database; this is done manually or
scheduled and is carried out by using the HANA Studio, the DBA
Cockpit, or SQL commands at the command line
5. Configure when logs are backed up. Logs are backed up
automatically. This is done using the DBA Cockpit to
schedule them or by using SAP scripts to be executed
on a schedule.

55. 54

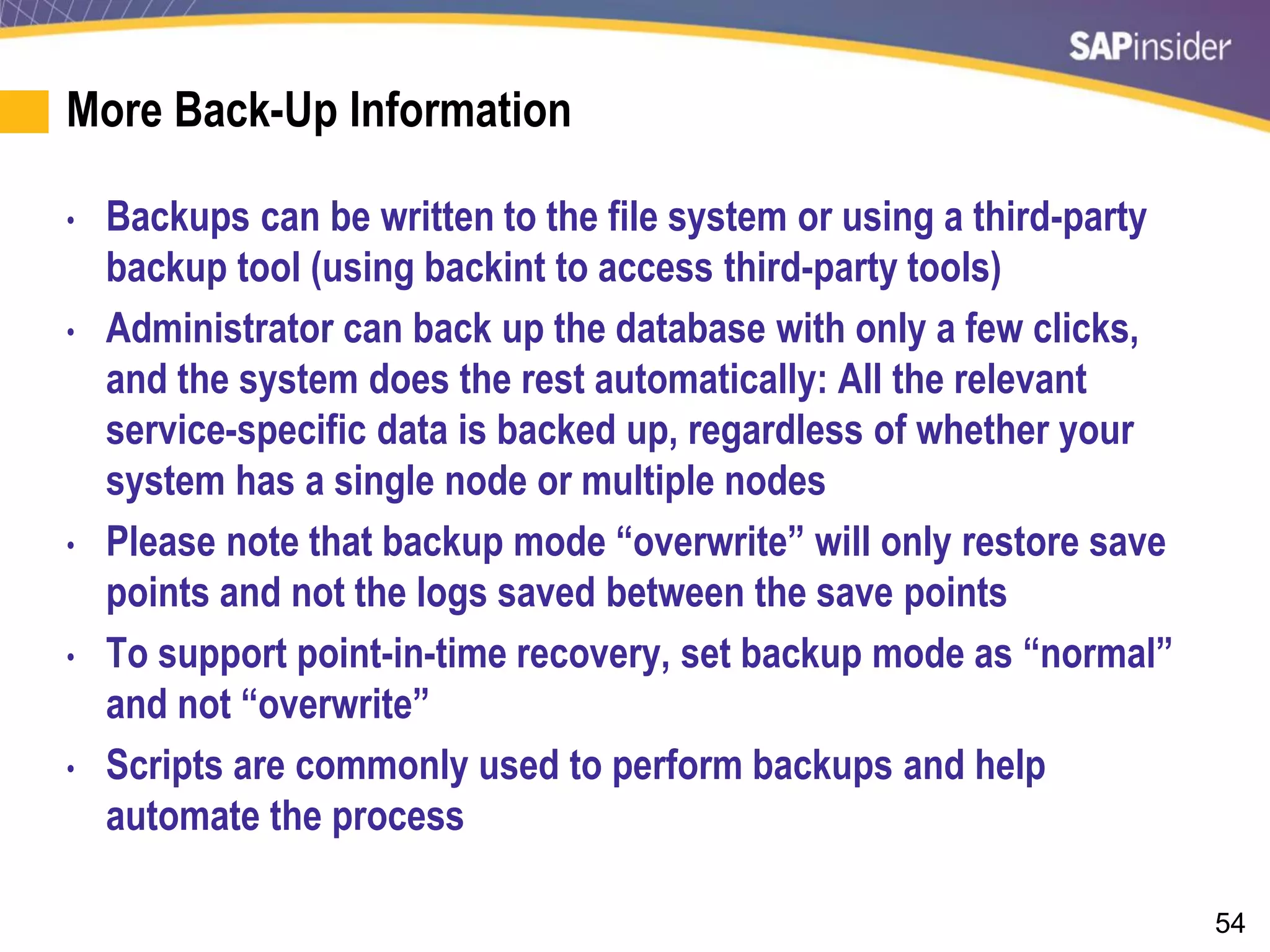

More Back-Up Information
• Backups can be written to the file system or using a third-party
backup tool (using backint to access third-party tools)
• Administrator can back up the database with only a few clicks,
and the system does the rest automatically: All the relevant
service-specific data is backed up, regardless of whether your
system has a single node or multiple nodes
• Please note that backup mode “overwrite” will only restore save
points and not the logs saved between the save points
• To support point-in-time recovery, set backup mode as “normal”
and not “overwrite”
• Scripts are commonly used to perform backups and help
automate the process

56. 55
HANA Database Recovery
• Using data and log backups (and if available, log entries from the
log volumes), the SAP HANA database can be recovered
• Recovery may be necessary in one of the following situations:
 Data area is unusable
 Log area is unusable
 Logical error
• Note: The recovery process of the SAP HANA database causes
the database to be shut down. Therefore, during recovery, the
system is not accessible for end users or applications.

57. 56

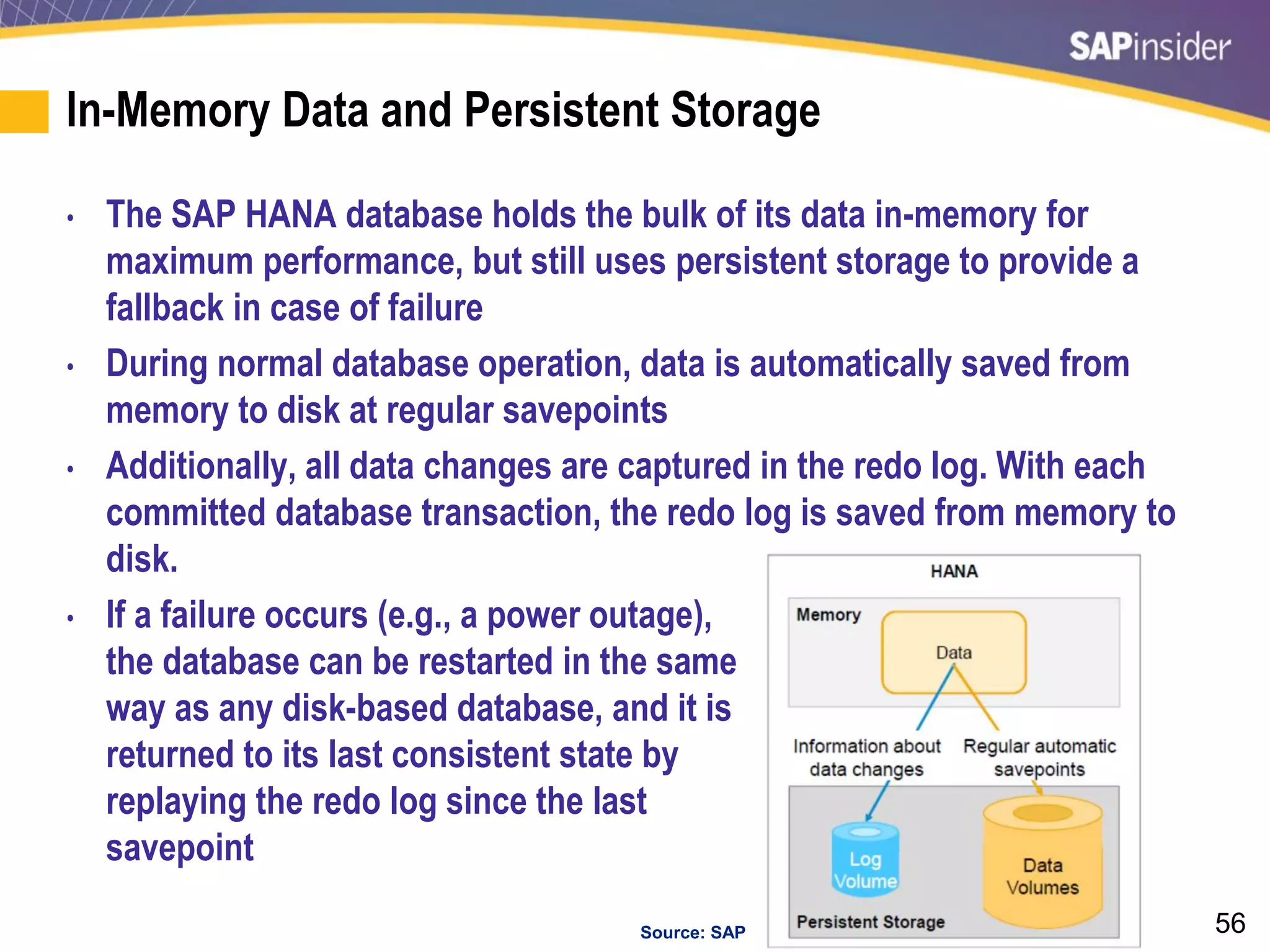

In-Memory Data and Persistent Storage
• The SAP HANA database holds the bulk of its data in-memory for
maximum performance, but still uses persistent storage to provide a
fallback in case of failure
• During normal database operation, data is automatically saved from
memory to disk at regular savepoints
• Additionally, all data changes are captured in the redo log. With each
committed database transaction, the redo log is saved from memory to
disk.
• If a failure occurs (e.g., a power outage),
the database can be restarted in the same
way as any disk-based database, and it is
returned to its last consistent state by
replaying the redo log since the last
savepoint
Source: SAP

58. 57

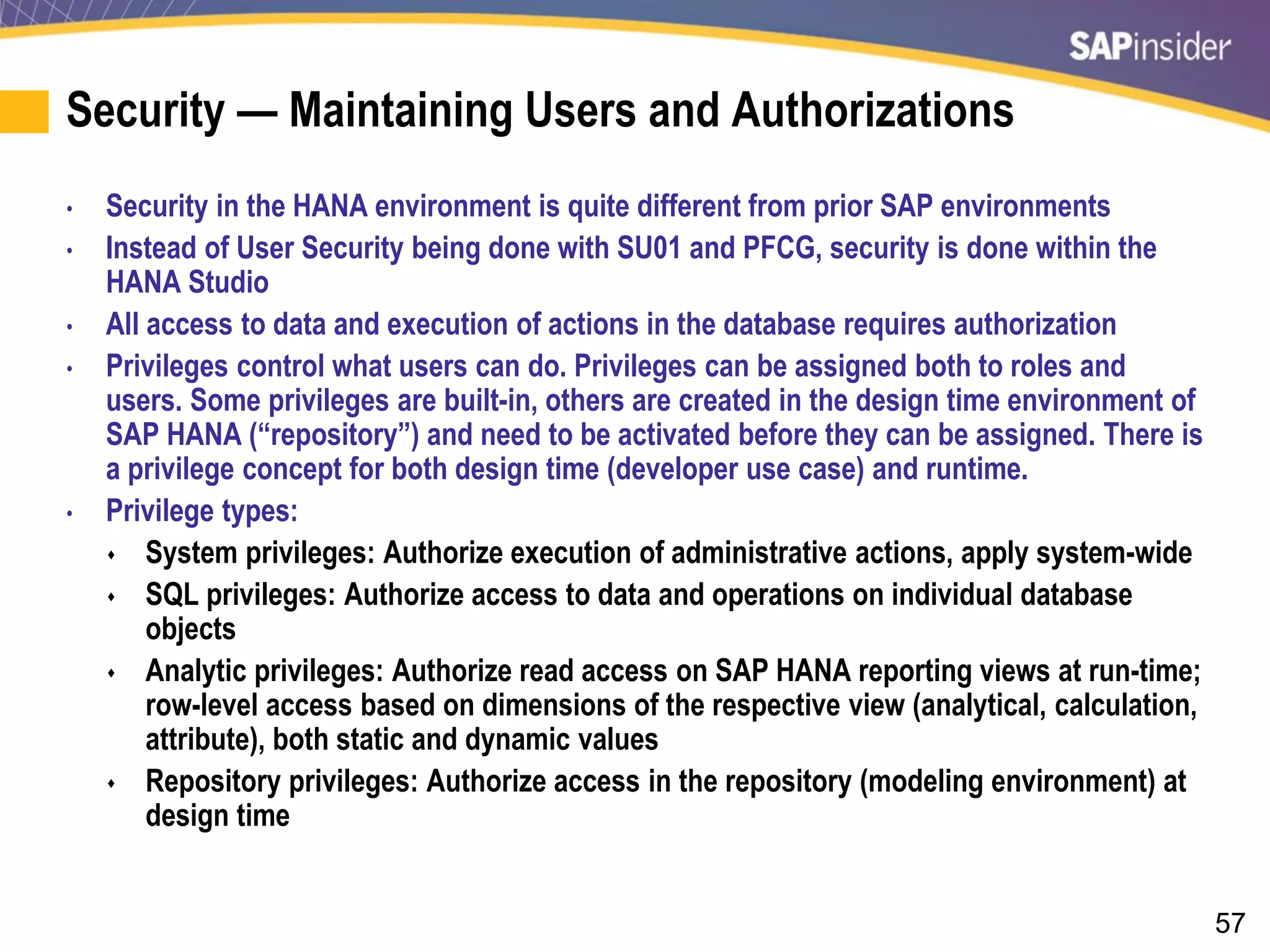

Security — Maintaining Users and Authorizations
• Security in the HANA environment is quite different from prior SAP environments
• Instead of User Security being done with SU01 and PFCG, security is done within the
HANA Studio
• All access to data and execution of actions in the database requires authorization
• Privileges control what users can do. Privileges can be assigned both to roles and
users. Some privileges are built-in, others are created in the design time environment of
SAP HANA (“repository”) and need to be activated before they can be assigned. There is
a privilege concept for both design time (developer use case) and runtime.
• Privilege types:
 System privileges: Authorize execution of administrative actions, apply system-wide
 SQL privileges: Authorize access to data and operations on individual database
objects
 Analytic privileges: Authorize read access on SAP HANA reporting views at run-time;
row-level access based on dimensions of the respective view (analytical, calculation,
attribute), both static and dynamic values
 Repository privileges: Authorize access in the repository (modeling environment) at
design time

59. 58
What We’ll Cover
• Overview of HANA
• Architecture
• Installation
• Administration
• Operations
• Monitoring
• Wrap-up

60. 59

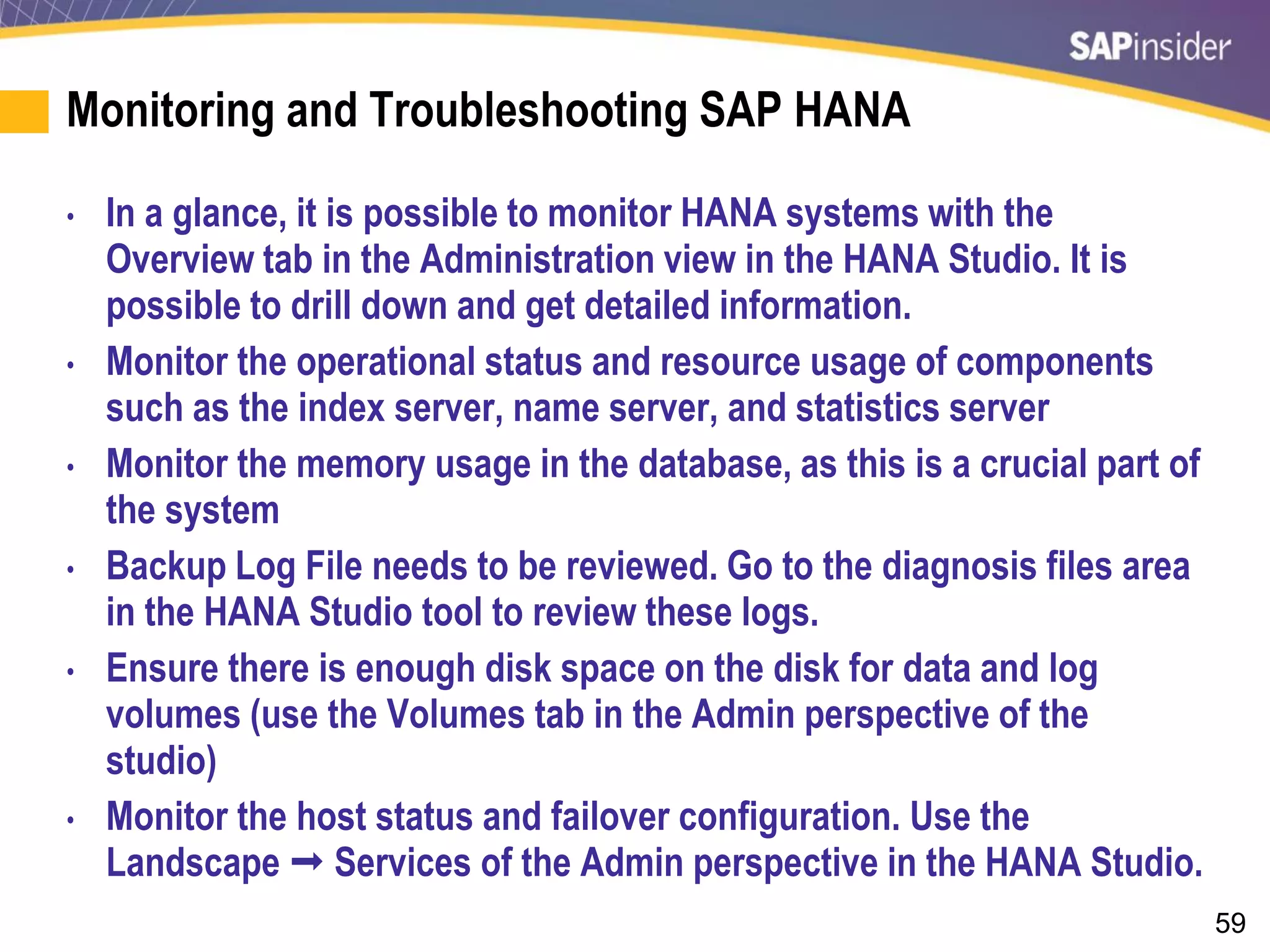

Monitoring and Troubleshooting SAP HANA
• In a glance, it is possible to monitor HANA systems with the
Overview tab in the Administration view in the HANA Studio. It is
possible to drill down and get detailed information.
• Monitor the operational status and resource usage of components
such as the index server, name server, and statistics server
• Monitor the memory usage in the database, as this is a crucial part of
the system
• Backup Log File needs to be reviewed. Go to the diagnosis files area
in the HANA Studio tool to review these logs.
• Ensure there is enough disk space on the disk for data and log
volumes (use the Volumes tab in the Admin perspective of the
studio)
• Monitor the host status and failover configuration. Use the
Landscape  Services of the Admin perspective in the HANA Studio.

61. 60

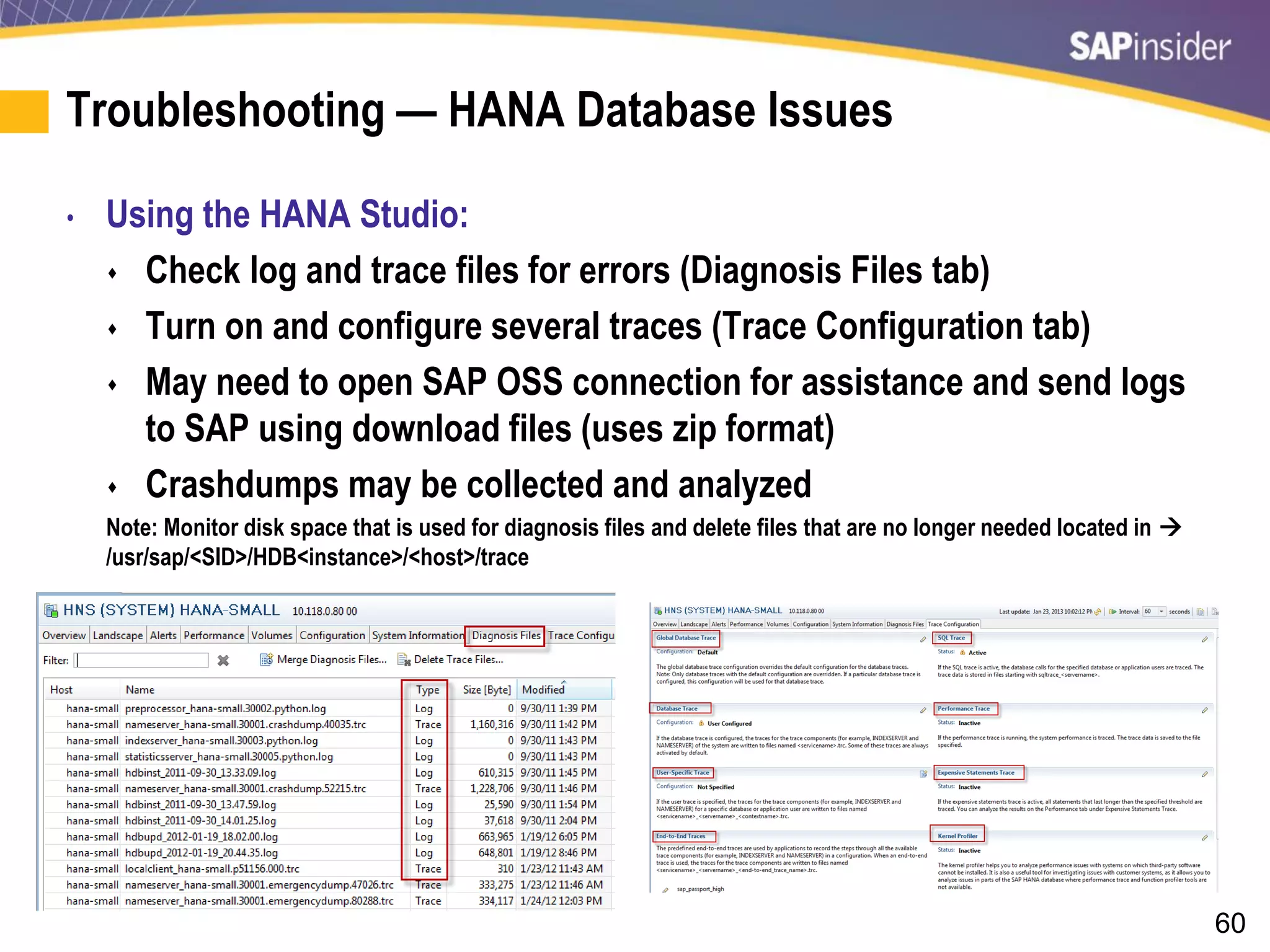

Troubleshooting — HANA Database Issues
• Using the HANA Studio:
 Check log and trace files for errors (Diagnosis Files tab)
 Turn on and configure several traces (Trace Configuration tab)
 May need to open SAP OSS connection for assistance and send logs
to SAP using download files (uses zip format)
 Crashdumps may be collected and analyzed
Note: Monitor disk space that is used for diagnosis files and delete files that are no longer needed located in 
/usr/sap/<SID>/HDB<instance>/<host>/trace

62. 61

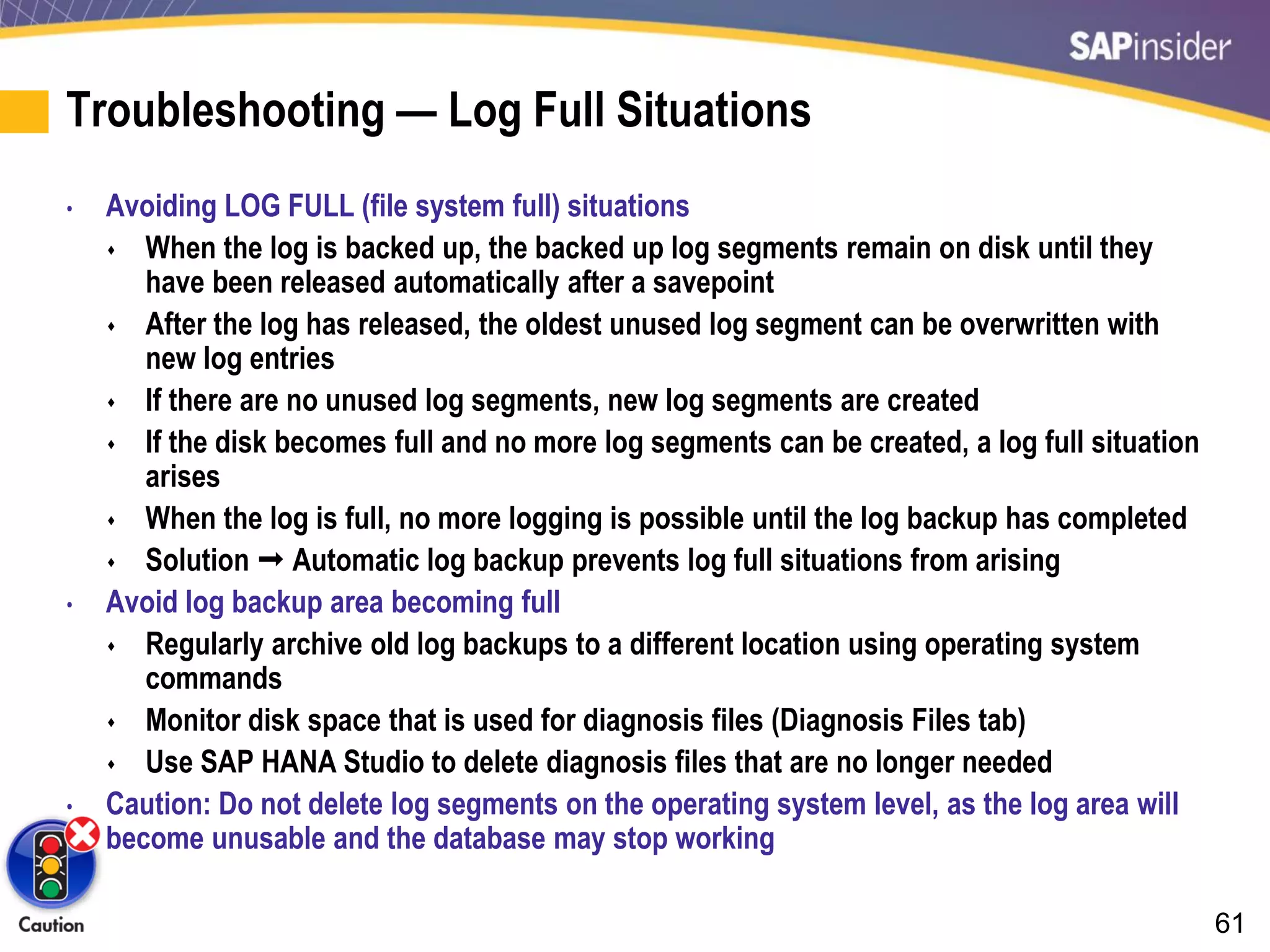

Troubleshooting — Log Full Situations
• Avoiding LOG FULL (file system full) situations
 When the log is backed up, the backed up log segments remain on disk until they
have been released automatically after a savepoint
 After the log has released, the oldest unused log segment can be overwritten with
new log entries
 If there are no unused log segments, new log segments are created
 If the disk becomes full and no more log segments can be created, a log full situation
arises
 When the log is full, no more logging is possible until the log backup has completed
 Solution  Automatic log backup prevents log full situations from arising
• Avoid log backup area becoming full
 Regularly archive old log backups to a different location using operating system
commands
 Monitor disk space that is used for diagnosis files (Diagnosis Files tab)
 Use SAP HANA Studio to delete diagnosis files that are no longer needed
• Caution: Do not delete log segments on the operating system level, as the log area will
become unusable and the database may stop working

63. 62

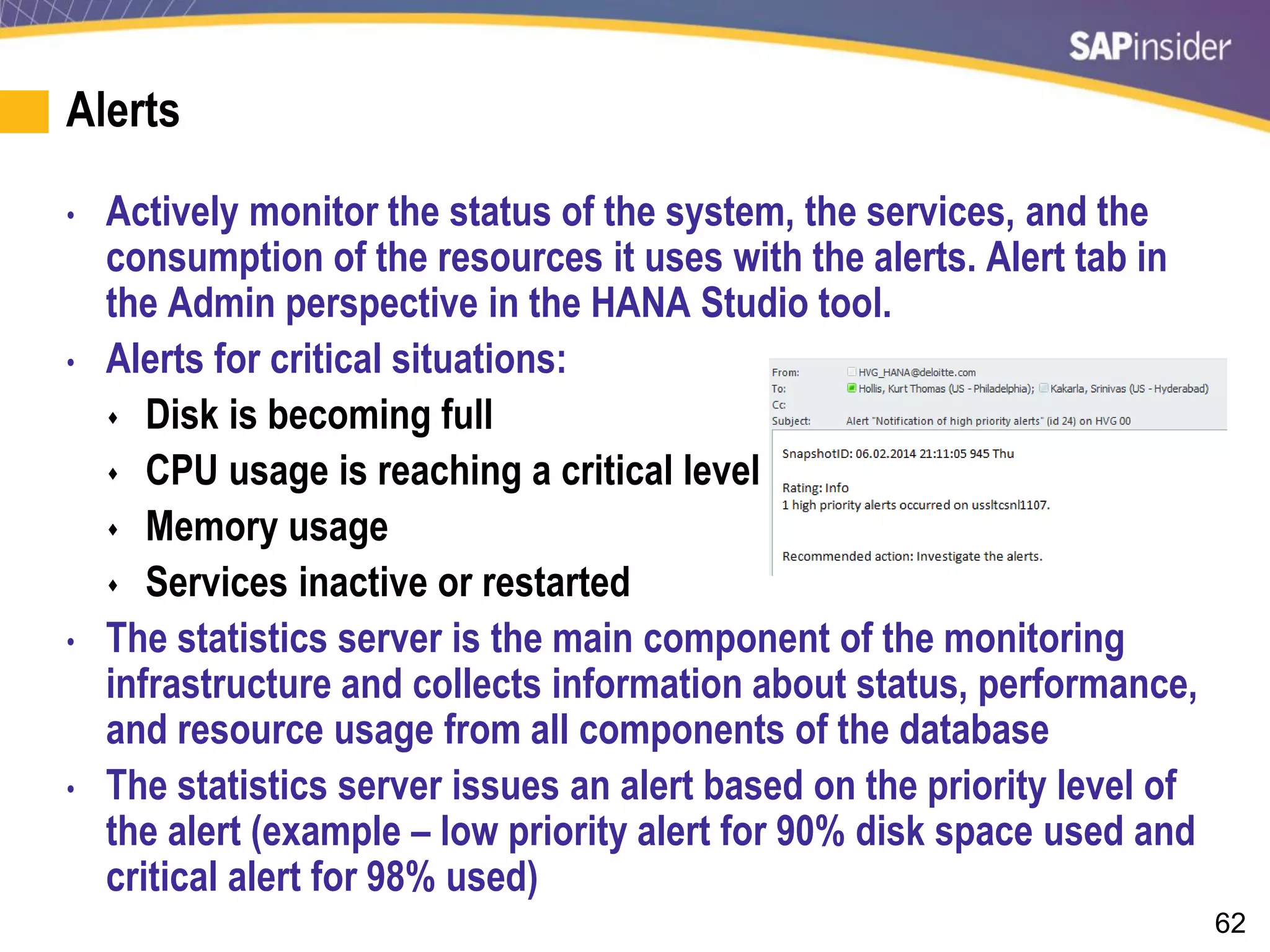

Alerts
• Actively monitor the status of the system, the services, and the
consumption of the resources it uses with the alerts. Alert tab in
the Admin perspective in the HANA Studio tool.
• Alerts for critical situations:
 Disk is becoming full
 CPU usage is reaching a critical level
 Memory usage
 Services inactive or restarted
• The statistics server is the main component of the monitoring
infrastructure and collects information about status, performance,
and resource usage from all components of the database
• The statistics server issues an alert based on the priority level of
the alert (example – low priority alert for 90% disk space used and
critical alert for 98% used)

64. 63

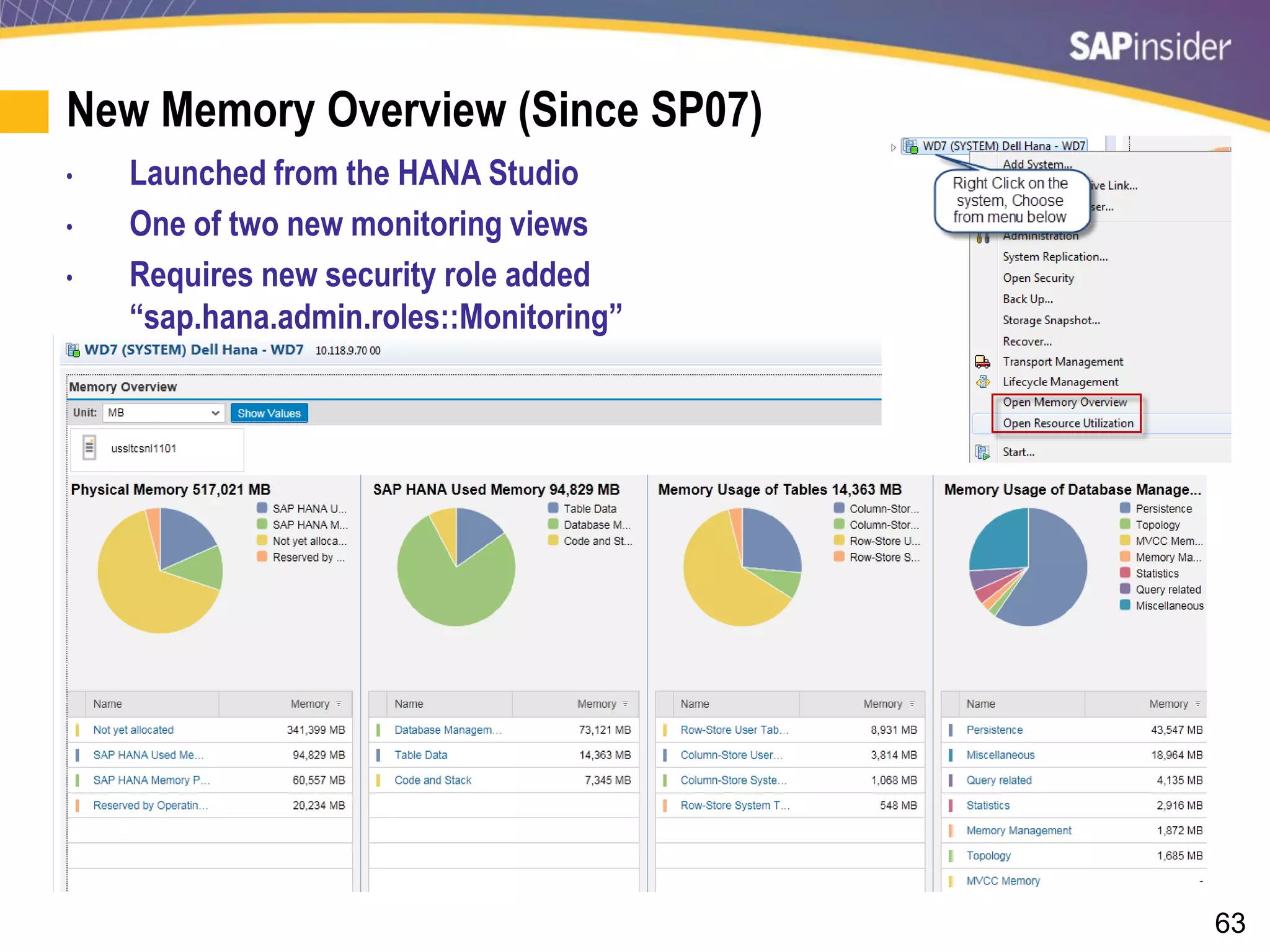

New Memory Overview (Since SP07)
• Launched from the HANA Studio
• One of two new monitoring views
• Requires new security role added
“sap.hana.admin.roles::Monitoring”

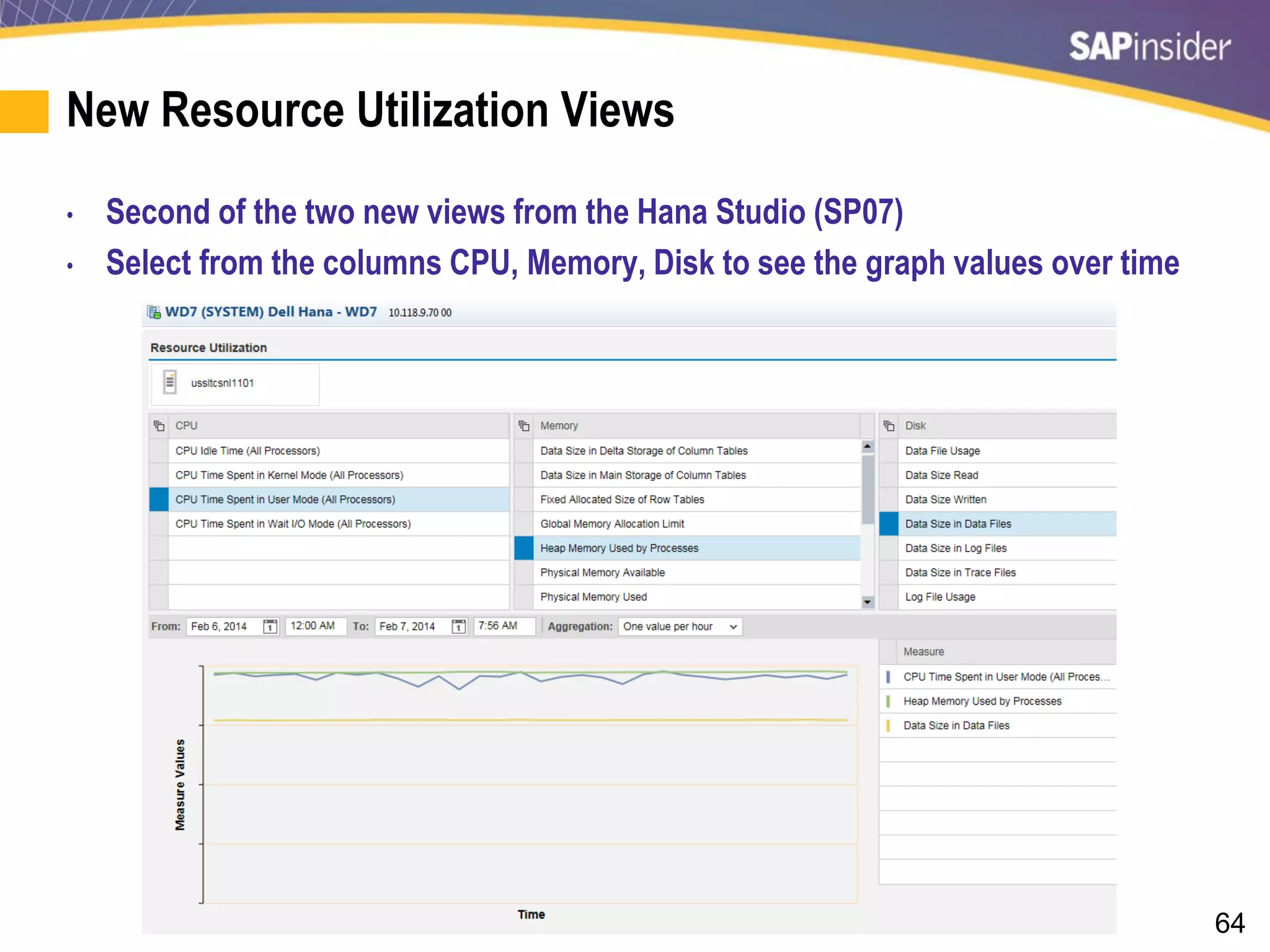

65. 64
New Resource Utilization Views
• Second of the two new views from the Hana Studio (SP07)
• Select from the columns CPU, Memory, Disk to see the graph values over time

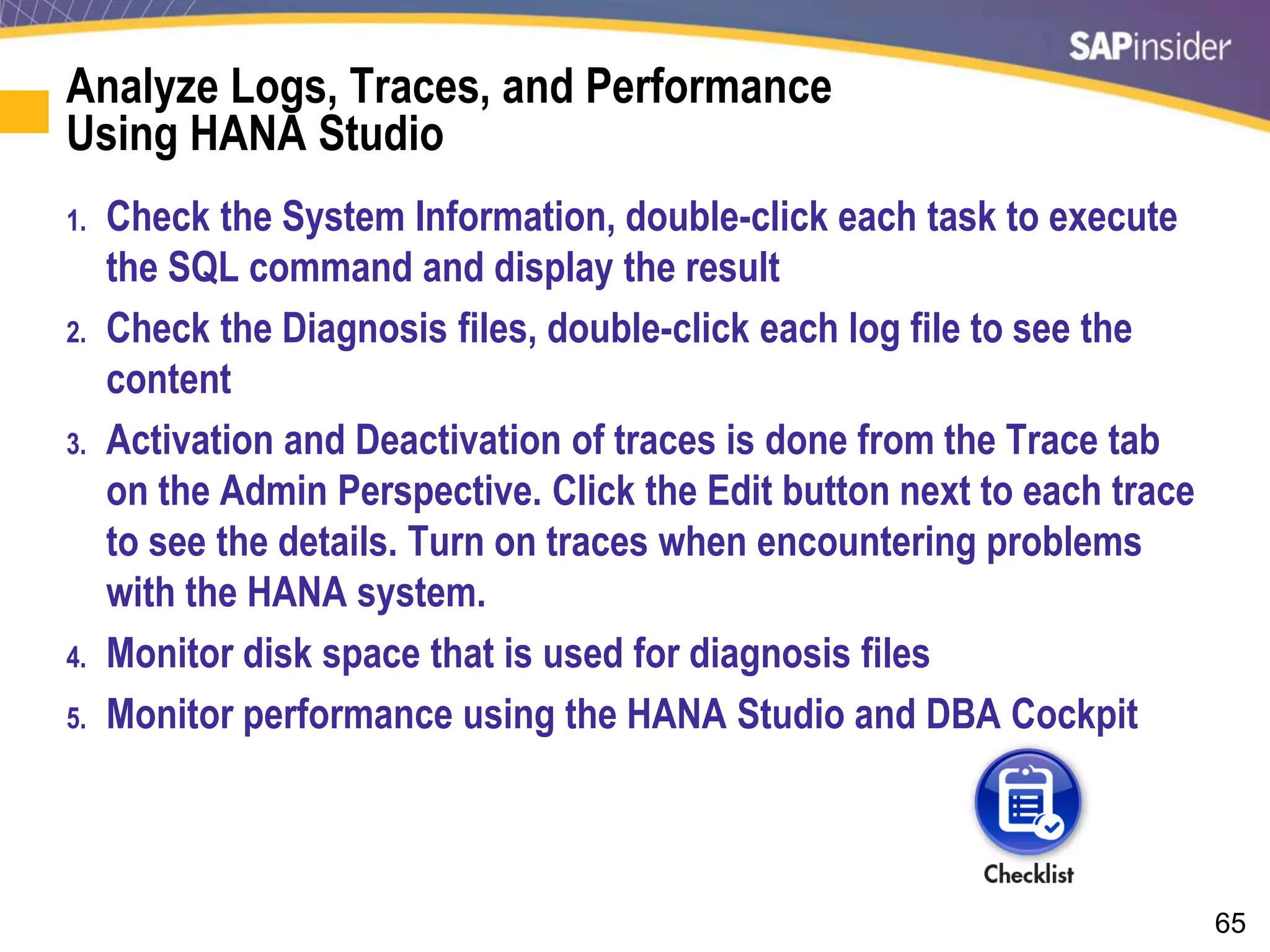

66. 65
Analyze Logs, Traces, and Performance
Using HANA Studio
1. Check the System Information, double-click each task to execute
the SQL command and display the result
2. Check the Diagnosis files, double-click each log file to see the
content
3. Activation and Deactivation of traces is done from the Trace tab
on the Admin Perspective. Click the Edit button next to each trace
to see the details. Turn on traces when encountering problems
with the HANA system.
4. Monitor disk space that is used for diagnosis files
5. Monitor performance using the HANA Studio and DBA Cockpit

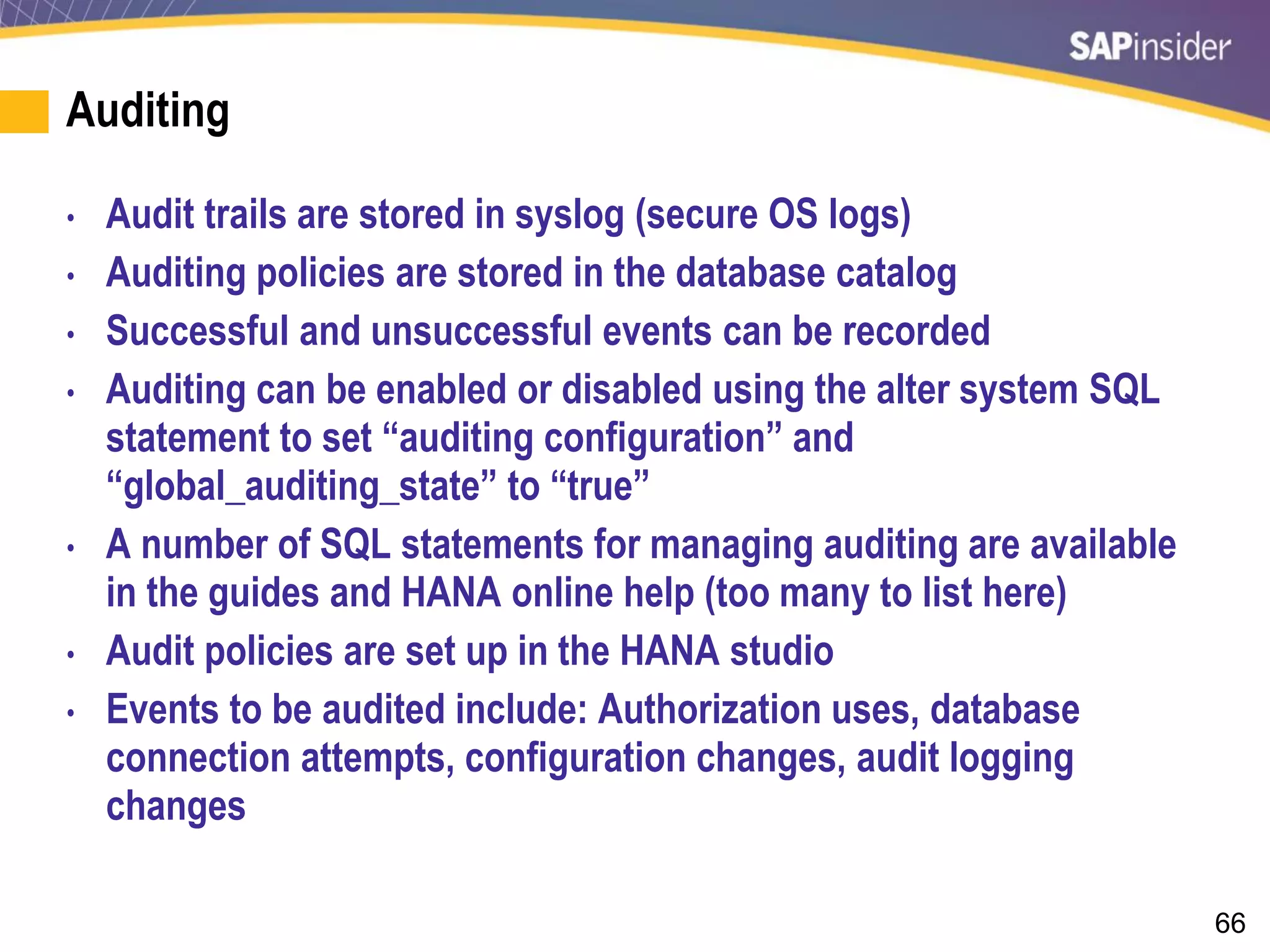

67. 66
Auditing
• Audit trails are stored in syslog (secure OS logs)
• Auditing policies are stored in the database catalog
• Successful and unsuccessful events can be recorded
• Auditing can be enabled or disabled using the alter system SQL
statement to set “auditing configuration” and
“global_auditing_state” to “true”
• A number of SQL statements for managing auditing are available
in the guides and HANA online help (too many to list here)
• Audit policies are set up in the HANA studio
• Events to be audited include: Authorization uses, database
connection attempts, configuration changes, audit logging
changes

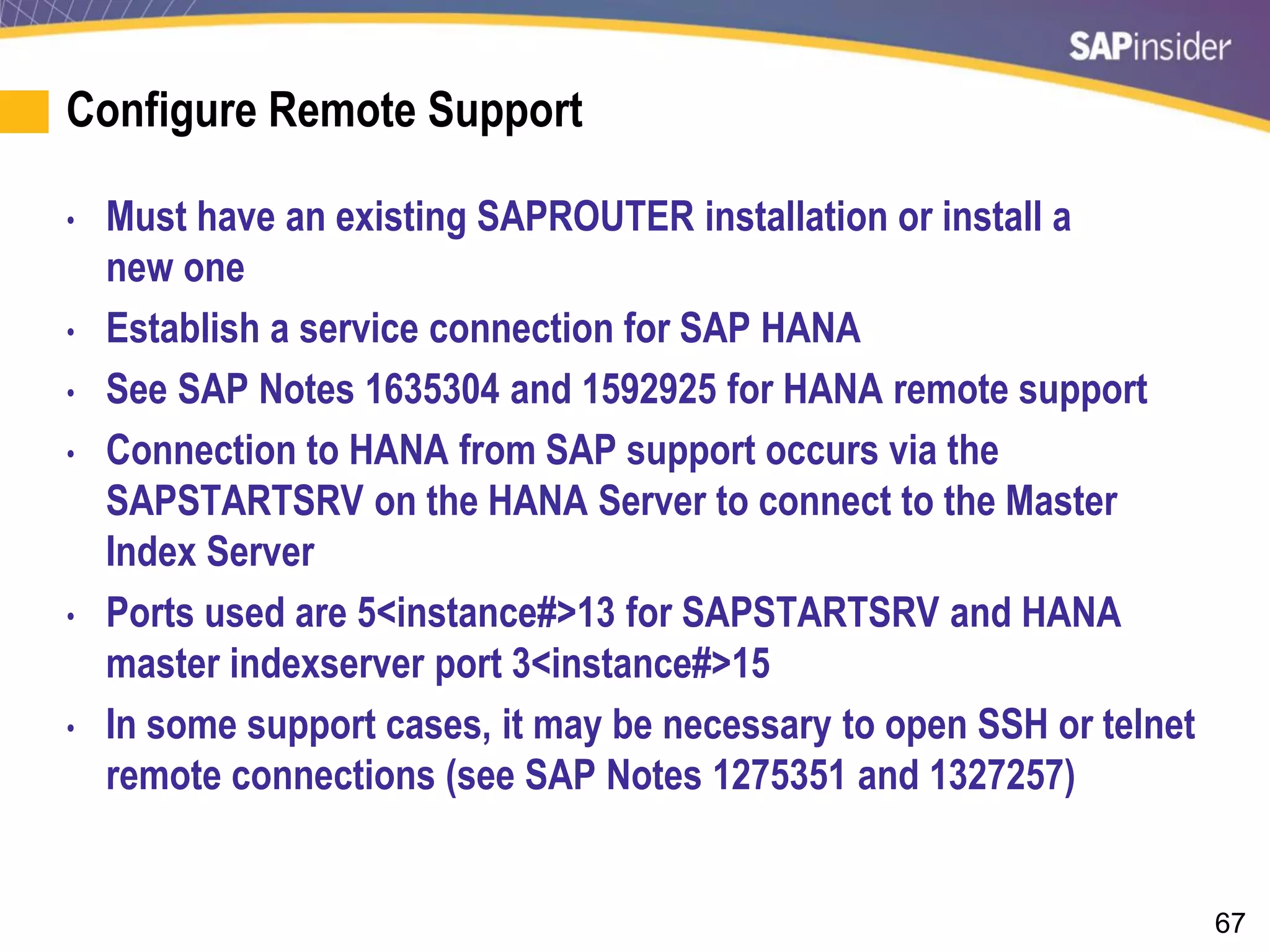

68. 67
Configure Remote Support
• Must have an existing SAPROUTER installation or install a
new one
• Establish a service connection for SAP HANA
• See SAP Notes 1635304 and 1592925 for HANA remote support
• Connection to HANA from SAP support occurs via the
SAPSTARTSRV on the HANA Server to connect to the Master
Index Server
• Ports used are 5<instance#>13 for SAPSTARTSRV and HANA
master indexserver port 3<instance#>15
• In some support cases, it may be necessary to open SSH or telnet
remote connections (see SAP Notes 1275351 and 1327257)

69. 68
What We’ll Cover
• Overview of HANA
• Architecture
• Installation
• Administration
• Operations
• Monitoring
• Wrap-up

70. 69

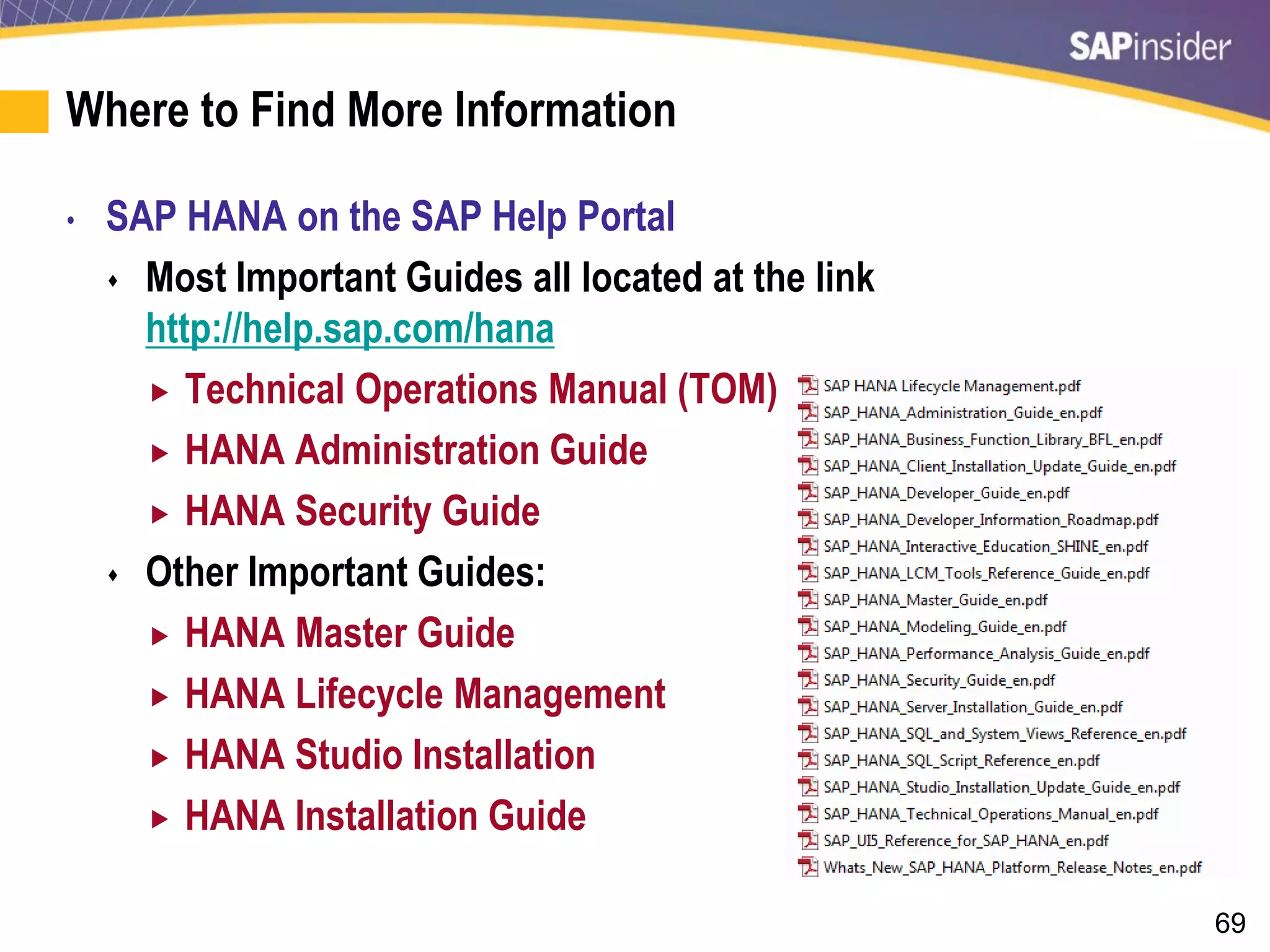

Where to Find More Information
• SAP HANA on the SAP Help Portal
 Most Important Guides all located at the link
http://help.sap.com/hana
 Technical Operations Manual (TOM)
 HANA Administration Guide
 HANA Security Guide
 Other Important Guides:
 HANA Master Guide
 HANA Lifecycle Management
 HANA Studio Installation
 HANA Installation Guide

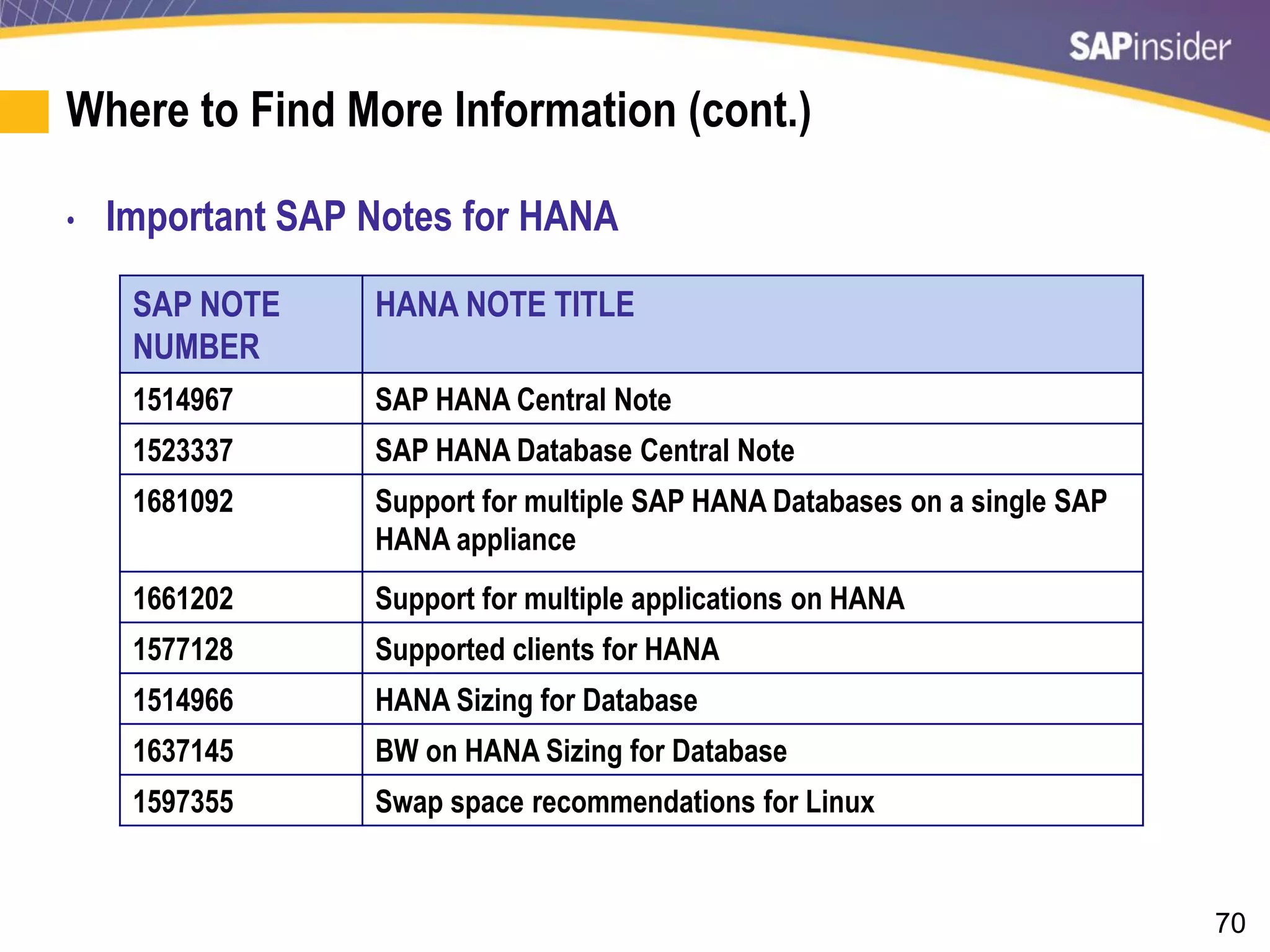

71. 70
Where to Find More Information (cont.)
• Important SAP Notes for HANA
SAP NOTE
NUMBER
HANA NOTE TITLE
1514967 SAP HANA Central Note
1523337 SAP HANA Database Central Note
1681092 Support for multiple SAP HANA Databases on a single SAP
HANA appliance
1661202 Support for multiple applications on HANA
1577128 Supported clients for HANA
1514966 HANA Sizing for Database
1637145 BW on HANA Sizing for Database
1597355 Swap space recommendations for Linux

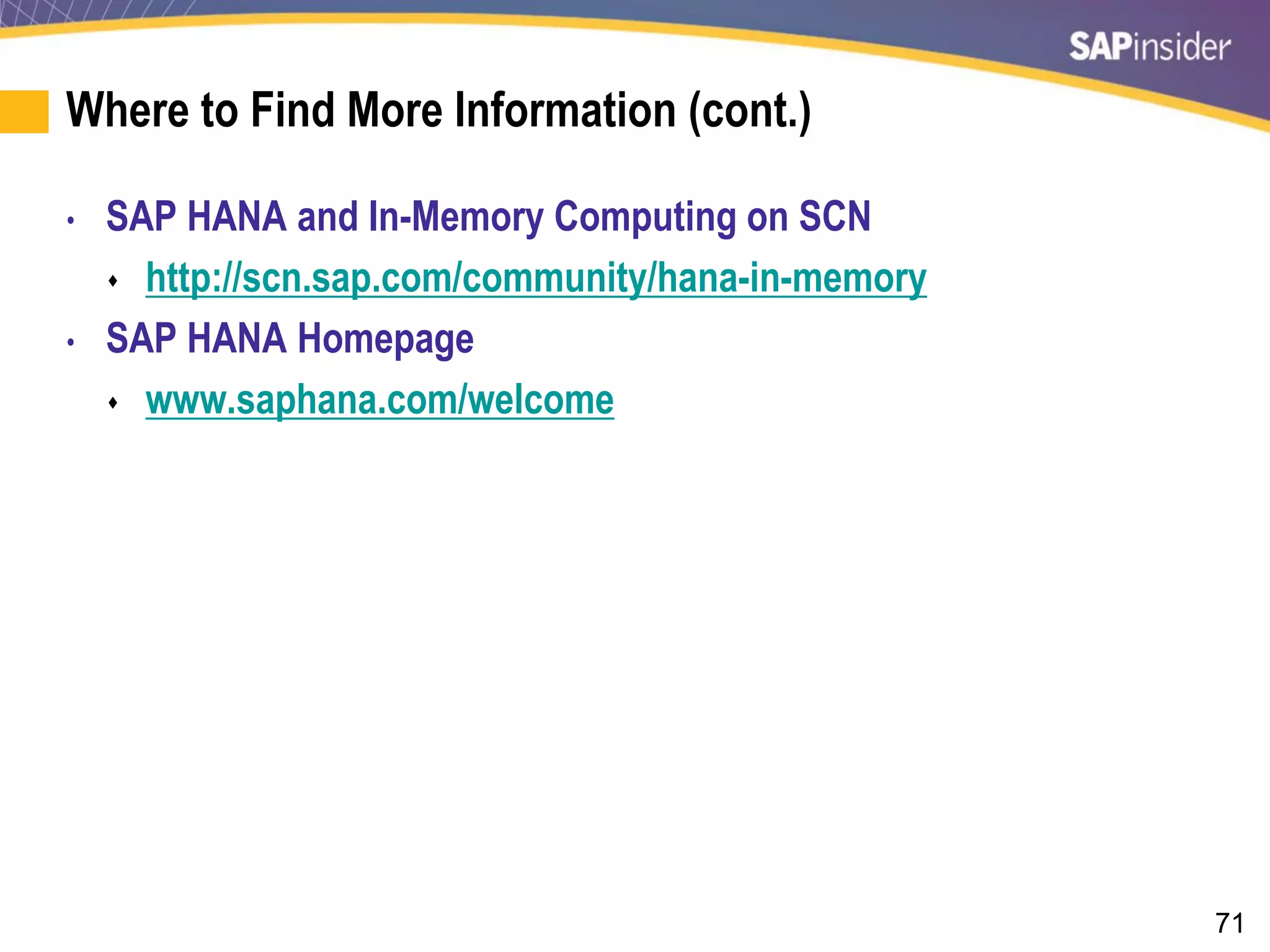

72. 71
Where to Find More Information (cont.)
• SAP HANA and In-Memory Computing on SCN
 http://scn.sap.com/community/hana-in-memory
• SAP HANA Homepage
 www.saphana.com/welcome

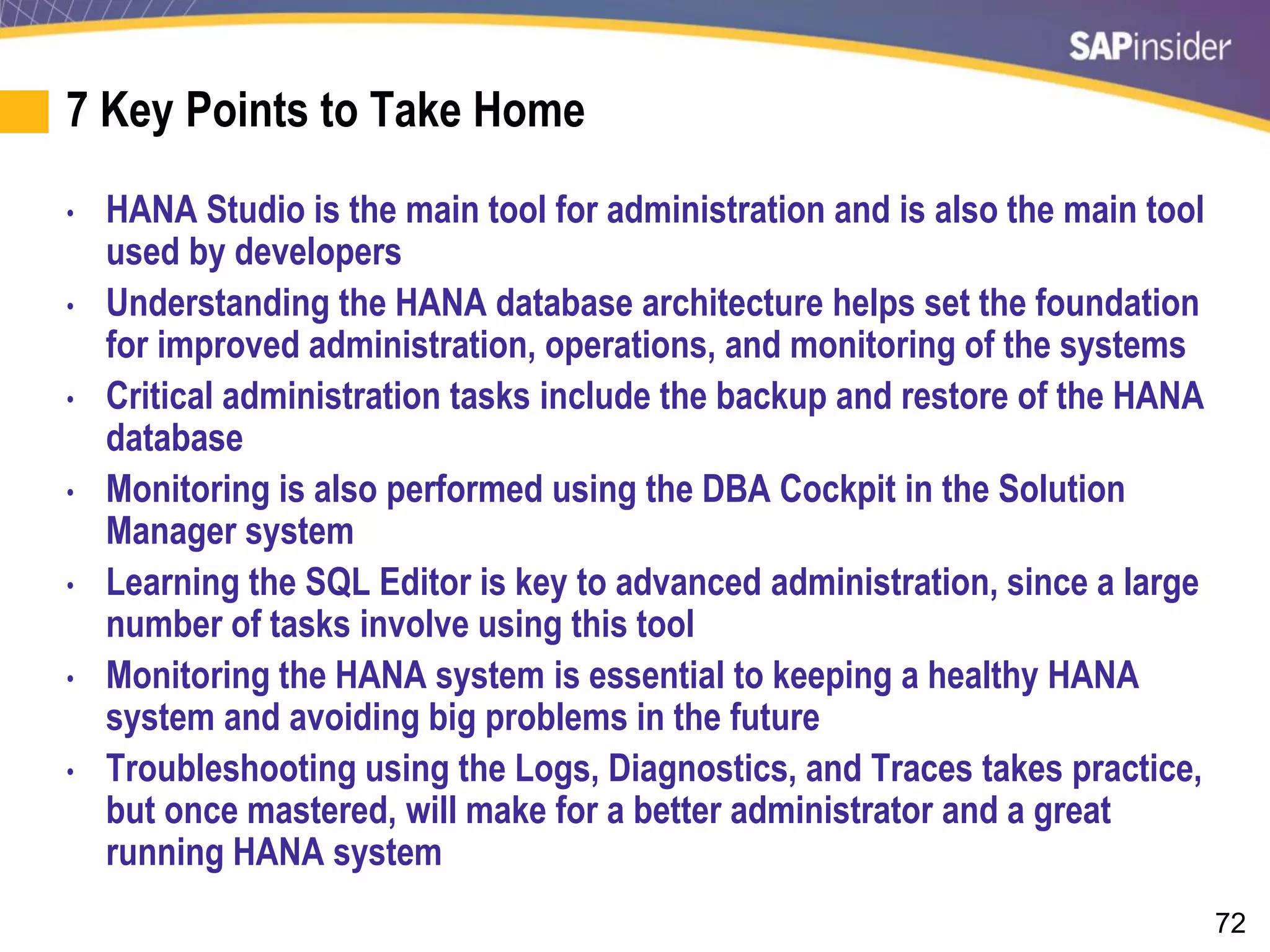

73. 72
7 Key Points to Take Home
• HANA Studio is the main tool for administration and is also the main tool
used by developers
• Understanding the HANA database architecture helps set the foundation
for improved administration, operations, and monitoring of the systems
• Critical administration tasks include the backup and restore of the HANA
database
• Monitoring is also performed using the DBA Cockpit in the Solution
Manager system
• Learning the SQL Editor is key to advanced administration, since a large
number of tasks involve using this tool
• Monitoring the HANA system is essential to keeping a healthy HANA
system and avoiding big problems in the future
• Troubleshooting using the Logs, Diagnostics, and Traces takes practice,
but once mastered, will make for a better administrator and a great
running HANA system

74. 73
Your Turn!
How to contact me:
Kurt Hollis
kuhollis@deloitte.com
Please remember to complete your session evaluation

75. 74

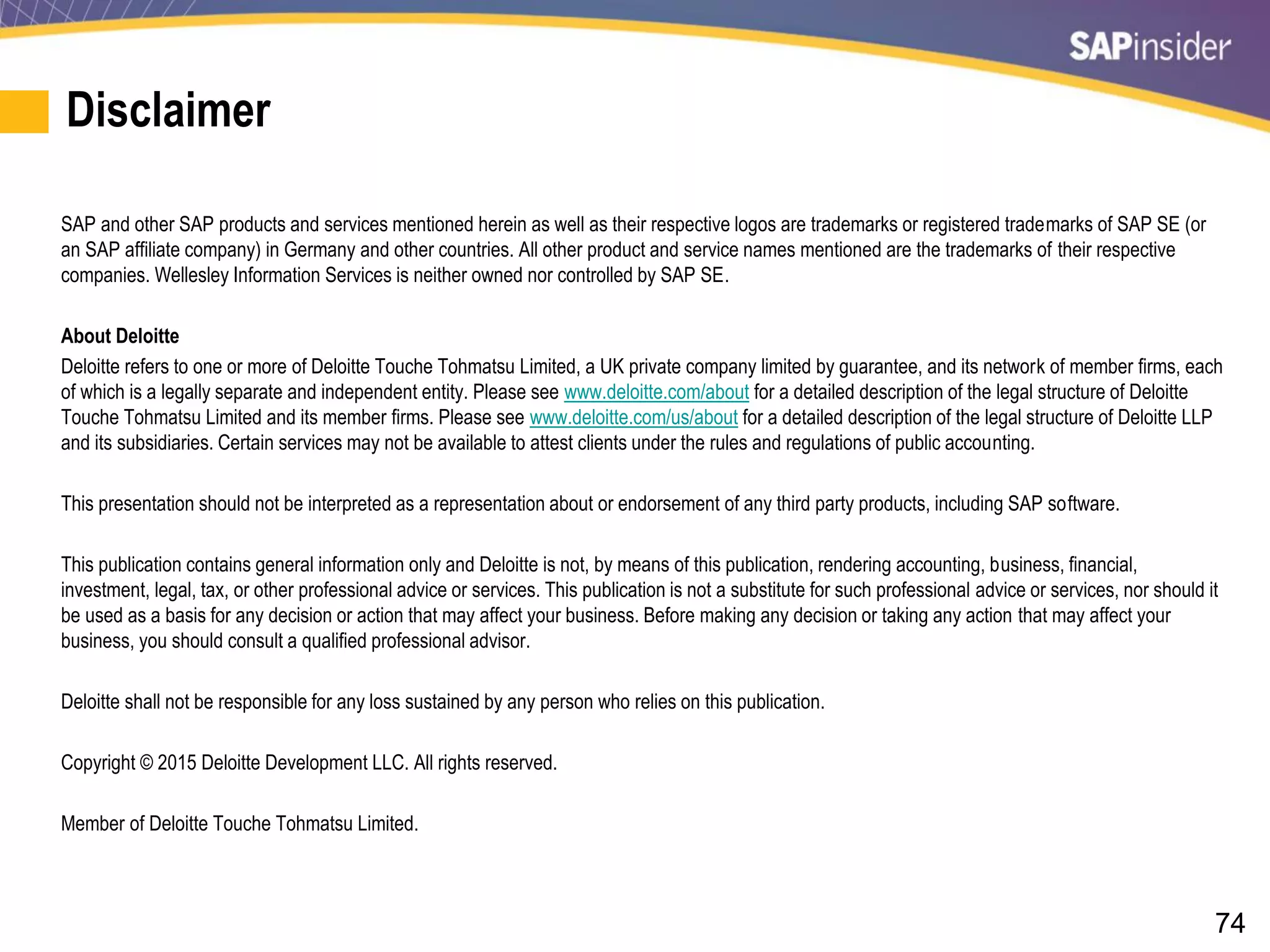

Disclaimer
SAP and other SAP products and services mentioned herein as well as their respective logos are trademarks or registered trademarks of SAP SE (or
an SAP affiliate company) in Germany and other countries. All other product and service names mentioned are the trademarks of their respective
companies. Wellesley Information Services is neither owned nor controlled by SAP SE.
About Deloitte
Deloitte refers to one or more of Deloitte Touche Tohmatsu Limited, a UK private company limited by guarantee, and its network of member firms, each
of which is a legally separate and independent entity. Please see www.deloitte.com/about for a detailed description of the legal structure of Deloitte
Touche Tohmatsu Limited and its member firms. Please see www.deloitte.com/us/about for a detailed description of the legal structure of Deloitte LLP
and its subsidiaries. Certain services may not be available to attest clients under the rules and regulations of public accounting.
This presentation should not be interpreted as a representation about or endorsement of any third party products, including SAP software.
This publication contains general information only and Deloitte is not, by means of this publication, rendering accounting, business, financial,
investment, legal, tax, or other professional advice or services. This publication is not a substitute for such professional advice or services, nor should it
be used as a basis for any decision or action that may affect your business. Before making any decision or taking any action that may affect your
business, you should consult a qualified professional advisor.
Deloitte shall not be responsible for any loss sustained by any person who relies on this publication.
Copyright © 2015 Deloitte Development LLC. All rights reserved.
Member of Deloitte Touche Tohmatsu Limited.

76. Wellesley Information Services, 20 Carematrix Drive, Dedham, MA 02026
Copyright © 2015 Wellesley Information Services. All rights reserved.
