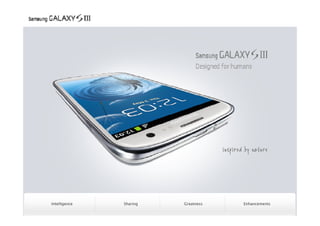

Intelligence   Sharing   Greatness   Enhancements
FEATURE      GALLERY

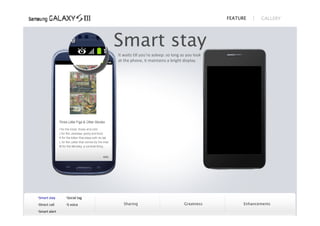

                             Smart stay
                             It waits till you’re asleep: so long as you look
                             at the phone, it maintains a bright display.




Smart stay    Social tag
Direct call   S voice         Sharing                            Greatness           Enhancements
Smart alert
FEATURE      GALLERY




Direct call
It knows when you want to talk: if you’re messaging
and want to call instead, simply lift your phone to your ear
and it will dial your friend automatically.




 Smart stay     Social tag
 Direct call    S voice                        Sharing        Greatness         Enhancements
 Smart alert
FEATURE           GALLERY




                                       Smart alert
                                       It knows when you’ve been away from your phone ‐ vibratin
                                       nudge lets you know missed calls or messages.




Smart stay    Social tag
Direct call   S voice      Sharing   Greatness                    Enhancements
Smart alert
FEATURE      GALLERY




Social tag
It keeps track of your loved ones: a glance at your
friends’ photos will show you their current SNS status.




 Smart stay     Social tag
 Direct call    S voice                       Sharing   Greatness         Enhancements
 Smart alert
FEATURE            GALLERY

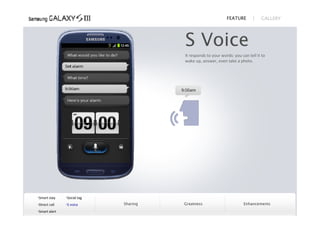

                                       S Voice
                                       It responds to your words: you can tell it to
                                       wake up, answer, even take a photo.




Smart stay    Social tag
Direct call   S voice      Sharing   Greatness                       Enhancements
Smart alert
FEATURE           GALLERY

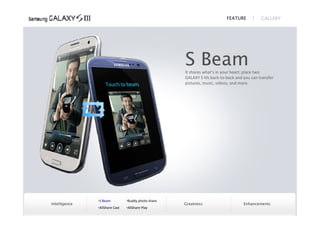

                                                     S Beam
                                                     It shares what’s in your heart: place two
                                                     GALAXY S IIIs back‐to‐back and you can transfer
                                                     pictures, music, videos, and more.




               S Beam          Buddy photo share
Intelligence                                         Greatness                      Enhancements
               AllShare Cast   AllShare Play
FEATURE      GALLERY

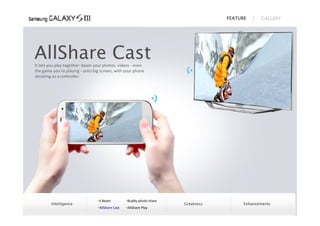

AllShare Cast
It lets you play together: beam your photos, videos ‐ even
the game you’re playing ‐ onto big screen, with your phone
doubling as a controller.




                                 S Beam          Buddy photo share
        Intelligence                                                   Greatness         Enhancements
                                 AllShare Cast   AllShare Play
FEATURE      GALLERY

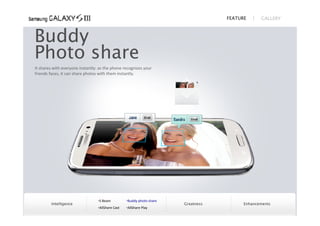

Buddy
Photo share
It shares with everyone instantly: as the phone recognizes your
friends faces, it can share photos with them instantly.




                                  S Beam          Buddy photo share
        Intelligence                                                    Greatness         Enhancements
                                  AllShare Cast   AllShare Play
FEATURE      GALLERY




                  AllShare Play
                    It lets you share with everyone: access to documents and
                    multimedia files when you work somewhere else.




               S Beam          Buddy photo share
Intelligence                                                Greatness                Enhancements
               AllShare Cast   AllShare Play
FEATURE      GALLERY




Design
inspired by nature: the GALAXY S III’s minimal and organic design is
reflected in its smooth and non‐linear lines of the device. Its human‐centric nature
provides an ergonomic and comfortable experience with enhanced usability.




                                                                    Design            4.8 HD Super AMOLED
         Intelligence                            Sharing            Pop up play       LTE                         Enhancements
                                                                    Best photo
FEATURE      GALLERY

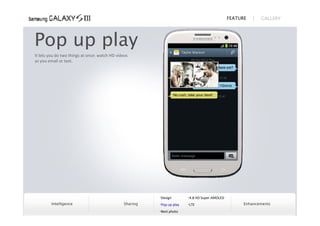

Pop up play
It lets you do two things at once: watch HD videos
as you email or text.




                                                          Design        4.8 HD Super AMOLED
        Intelligence                            Sharing   Pop up play   LTE                         Enhancements
                                                          Best photo
FEATURE            GALLERY

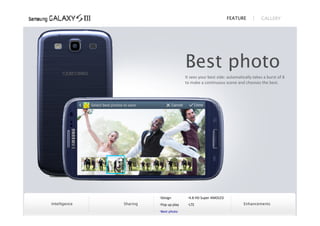

                                        Best photo
                                        It sees your best side: automatically takes a burst of 8
                                        to make a continuous scene and chooses the best.




                         Design         4.8 HD Super AMOLED
Intelligence   Sharing   Pop up play    LTE                            Enhancements
                         Best photo
FEATURE           GALLERY

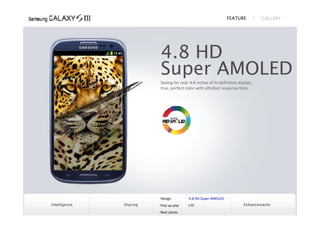

                         4.8 HD
                         Super AMOLED
                         Seeing for real: 4.8 inches of hi‐definition display,
                         true, perfect color with ultrafast response time.




                         Design        4.8 HD Super AMOLED
Intelligence   Sharing   Pop up play   LTE                             Enhancements
                         Best photo
FEATURE       GALLERY




                                        LTE             (depends on country)
                                        Faster download time than current 3G networks.
                                        And it’s only going to get faster and faster.




                         Design         4.8 HD Super AMOLED
Intelligence   Sharing   Pop up play    LTE                         Enhancements
                         Best photo
FEATURE            GALLERY

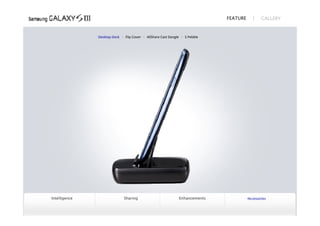

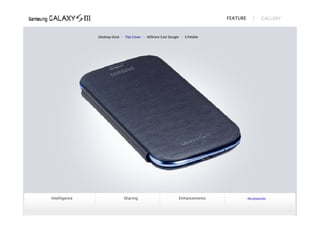

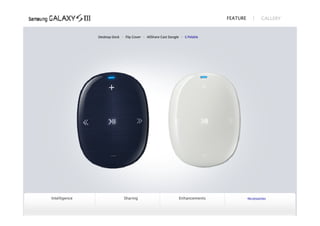

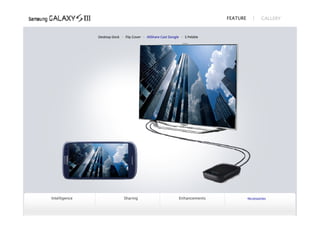

               Desktop Dock   ∙ Flip Cover   ∙ AllShare Cast Dongle   ∙ S Pebble




Intelligence            Sharing                            Enhancements                      Accessories
FEATURE            GALLERY



               Desktop Dock   ∙ Flip Cover   ∙ AllShare Cast Dongle   ∙ S Pebble




Intelligence            Sharing                            Enhancements                      Accessories
FEATURE            GALLERY



               Desktop Dock   ∙ Flip Cover   ∙ AllShare Cast Dongle ∙ S Pebble




Intelligence           Sharing                            Enhancements                     Accessories
FEATURE            GALLERY



               Desktop Dock   ∙ Flip Cover   ∙ AllShare Cast Dongle   ∙ S Pebble




Intelligence            Sharing                            Enhancements                      Accessories
FEATURE   GALLERY

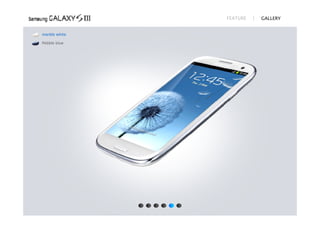

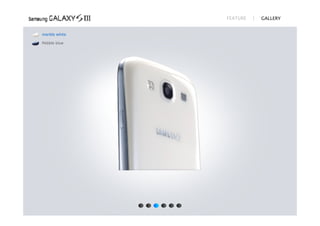

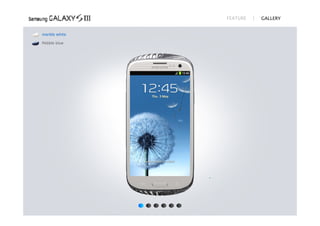

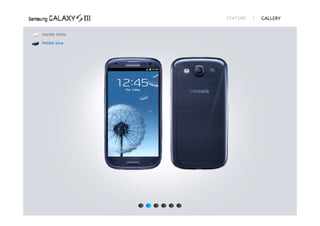

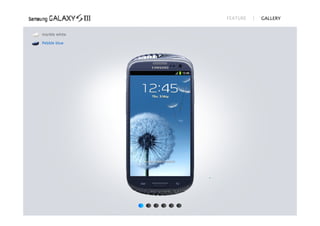

marble white

Pebble blue
FEATURE   GALLERY


marble white

Pebble blue
FEATURE   GALLERY


marble white

Pebble blue
FEATURE   GALLERY


marble white

Pebble blue
FEATURE   GALLERY


marble white

Pebble blue
FEATURE   GALLERY
FEATURE   GALLERY


marble white

Pebble blue
FEATURE   GALLERY


marble white

Pebble blue
FEATURE   GALLERY


marble white

Pebble blue
FEATURE   GALLERY


marble white

Pebble blue
FEATURE   GALLERY


marble white

Pebble blue
FEATURE   GALLERY


marble white

Pebble blue

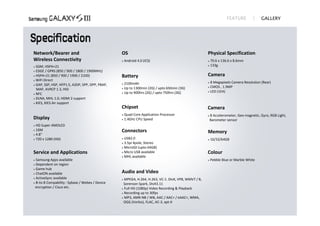

Network/Bearer and                                OS                                                  Physical Specification
Wireless Connectivity                                Android 4.0 (ICS)                                  70.6 x 136.6 x 8.6mm
 GSM, HSPA+21                                                                                           133g
 EDGE / GPRS (850 / 900 / 1800 / 1900MHz)
 HSPA+21 (850 / 900 / 1900 / 2100)               Battery                                             Camera
 WiFi Direct
                                                    2100mAh                                            8 Megapixels Camera Resolution (Rear)
 GAP, SSP, HSP, HFP1.5, A2DP, SPP, OPP, PBAP,
                                                  

                                                   Up to 1300min (2G) / upto 650min (3G)
                                                                                                       CMOS , 1.9MP
  MAP, AVRCP 1.3, HID
                                                                                                       LED (1EA)
                                                   Up to 900hrs (2G) / upto 750hrs (3G)
 NFC

 DLNA, MHL 1.0, HDMI 2 support

 KIES, KIES Air support

                                                  Chipset                                             Camera
                                                     Quad Core Application Processor                    8 Accelerometer, Geo‐magnetic, Gyro, RGB Light,
Display                                              1.4GHz CPU Speed                                    Barometer sensor
 HD Super AMOLED
  16M                                             Connectors


 4.8"
                                                                                                      Memory
 720 x 1280 (HD)                                  USB2.0                                               16/32/64GB
                                                   3.5pi 4pole, Stereo
                                                   MicroSD (upto 64GB)

Service and Applications                           Micro USB available                               Colour
                                                   MHL available
 Samsung Apps available                                                                                 Pebble Blue or Marble White
 Dependent on region
 Game hub

 ChatON available
                                                  Audio and Video
 ActiveSync available
                                                   MPEG4, H.264, H.263, VC‐1. DivX, VP8, WMV7 / 8,
 B‐to‐B Compability : Sybase / Webex / Device
                                                   Sorenson Spark, DivX3.11
 encryption / Cisco etc.                           Full HD (1080p) Video Recording & Playback

                                                   Recording up to 30fps

                                                   MP3, AMR‐NB / WB, AAC / AAC+ / eAAC+, WMA,

                                                   OGG (Vorbis), FLAC, AC‐3, apt‐X

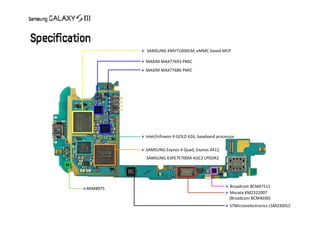

 SAMSUNG KMVTU000LM, eMMC based MCP

            MAXIM MAX77693 PMIC
            MAXIM MAX77686 PMIC




            Intel/Infineon X‐GOLD 626, baseband processor

            SAMSUNG Exynos 4 Quad, Exynos 4412
             SAMSUNG K3PE7E700M‐XGC2 LPDDR2




AKM8975                                              Broadcom BCM47511
                                                      Murata KM2322007
                                                       (Broadcom BCM4334)
                                                      STMicronelectronics LSM330DLC
 Wolfson WM1811




 Silicon Image Sil9244 MHL transmitter
 Audience eS305 audio processor
 NXP PN544

 Skyworks SKY77604

 Intel/Infineon PMB5712
FEATURE              GALLERY

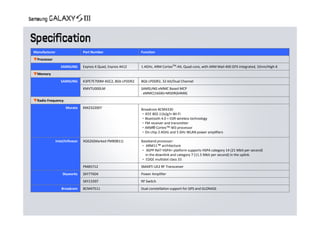

Manufacturer                    Part Number                   Function
▼Processor
                  SAMSUNG       Exynos 4 Quad, Exynos 4412    1.4GHz, ARM CortexTM‐A9, Quad‐core, with ARM Mail‐400 GFX integrated, 32nm/High‐K
▼Memory
                  SAMSUNG       K3PE7E700M‐XGC2, 8Gb LPDDR2   8Gb LPDDR2, 32‐bit/Dual Channel, LPDDR2‐1066
                                KMVTU000LM                    SAMSUNG eMMC Based MCP
                                                              . eMMC(16GB)+MDDR(64MB)
▼Radio Frequency
                     Murata     KM2322007                     Broadcom BCM4334
                                                              ‧ Dual-band 2.4 GHz and 5 GHz IEEE 802.11 a/b/g/n Wi-Fi connectivity
                                                              ‧ Single-stream IEEE 802.11n support for 20 MHz and 40 MHz channels provides
                                                                 PHY layer rates up to 150 Mbps for typical upper-layer throughput in excess of 90
                                                                 Mbps
                                                              ‧ Supports the IEEE 802.11n STBC (space-time block coding) and LDPC (low-
                                                                 density parity check) options for improved range and power efficiency
                                                              ‧ Complies with Bluetooth Core Specification Version 4.0 + HS with provisions for
                                                                 supporting future specifications
                                                              ‧ Bluetooth Class 1 transmitter operation
               Intel/Infineon   XG626(Marked PMB9811)         Baseband processor:
                                                              ‧ ARM11™ architecture
                                                              ‧ 3GPP Rel7 HSPA+ platform supports HSPA category 14 (21 Mbit per second)
                                                                in the downlink and category 7 (11.5 Mbit per second) in the uplink.
                                                              ‧ EDGE multislot class 33
                                PMB5712                       SMARTi UE2 RF Transceiver
                   Skyworks     SKY77604                      Power Amplifier
                                SKY13397                      RF Switch
                  Broadcom      BCM47511                      Dual constellation support for GPS and GLONASS
FEATURE      GALLERY

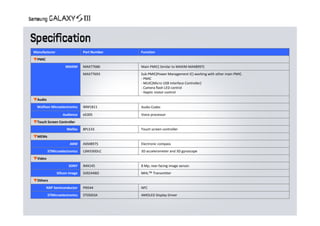

Manufacturer                   Part Number   Function
▼PMIC
                    MAXIM      MAX77686      Main PMIC( Similar to MAXIM MAX8997)
                               MAX77693      Sub PMIC(Power Management IC) working with other main PMIC.
                                             ‐ PMIC
                                             ‐ MUIC(Micro USB Interface Controller)
                                             ‐ Camera flash LED control
                                             ‐ Haptic motor control
▼Audio
  Wolfson Microelectronics     WM1811        Audio Codec
                  Audience     eS305         Voice processor
▼Touch Screen Controller
                     Melfas    8PL533        Touch screen controller
▼MEMs
                       AKM     AKM8975       Electronic compass
         STMicroelectronics    LSM330DLC     3D accelerometer and 3D gyroscope
▼Video
                      SONY     IMX145        8 Mp, rear‐facing image sensor.
               Silicon Image   SiI9244BO     MHL™ Transmitter
▼Others
        NXP Semiconductor      PN544         NFC
         STMicroelectronics    STOD03A       AMOLED Display Driver

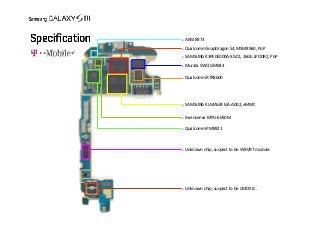

AKM 8973

Qualcomm SnapDragon S4, MSM8960, PoP

SAMSUNG K3PE0E000A‐XGC2, 16Gb LPDDR2, PoP

Murata SWQ GMB44


Qualcomm RTR8600




SAMSUNG KLMAG4FEJA‐A002, eMMC


Invensense   MPU‐6050M

Qualcomm PM8921




Unknown chip, suspect to be WiFi/BT module.




Unknown chip, suspect to be CMOS IC.

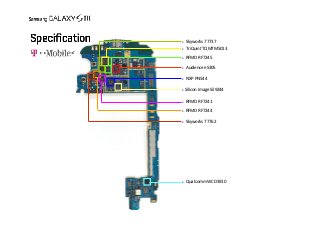

 Skyworks 77737
   TriQuint TQM7M5013
 RFMD RF7245


   Audience eS305

 NXP PN544


Silicon Image Sil9244


 RFMD RF7241

 RFMD RF7244


 Skyworks 77762




 Qualcomm WCD3910
FEATURE              GALLERY

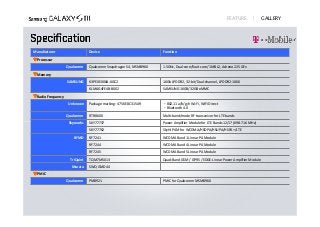

Manufacturer                   Device                            Function
▼Processor
                   Qualcomm    Qualcomm Snapdragon S4, MSM8960   1.5GHz, Dual‐core/Krait core/1MB L2, Adreno 225 GFx
▼Memory
                   SAMSUNG     K3PE0E000A‐XGC2                   16Gb LPDDR2, 32‐bit/Dual‐channel, LPDDR2‐1066
                               KLMAG4FE4B‐B002                   SAMSUNG 16GB/32GB eMMC
▼Radio Frequency
                   Unknown     Package marking: 4756E8 C315A9    ‧802.11 a/b/g/n Wi‐Fi, WiFi Direct
                                                                 ‧Bluetooth 4.0
                   Qualcomm    RTR8600                           Multi‐band/mode RF transceiver for LTE bands
                    Skyworks   SKY77737                          Power Amplifier Module for LTE Bands 12/17 (698‐716 MHz)
                               SKY77762                          SkyHi PAM for WCDMA/HSDPA/HSUPA/HSPA+/LTE
                      RFMD     RF7241                            WCDMA Band 1 Linear PA Module
                               RF7244                            WCDMA Band 4 Linear PA Module
                               RF7245                            WCDMA Band 5 Linear PA Module
                    TriQuint   TQM7M5013                         Quad‐Band GSM / GPRS / EDGE‐Linear Power Amplifier Module
                     Murata    SWQ GMD44
▼PMIC
                   Qualcomm    PM8921                            PMIC for Qualcomm MSM8960
FEATURE              GALLERY

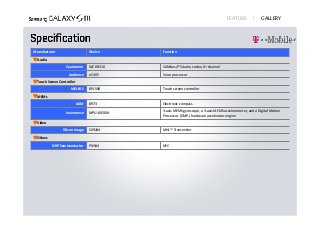

Manufacturer                     Device      Function
▼Audio
                  Qualcomm       WCD9310     SLIMbus/I2S Audio codec; 6+ channel
                    Audience     eS305       Voice processor
▼Touch Screen Controller
                     MELFAS      8PL590      Touch screen controller
▼MEMs
                           AKM   8973        Electronic compass
                                             3‐axis MEMS gyroscope, a 3‐axis MEMS accelerometer, and a Digital Motion
                  Invensense     MPU‐6050M
                                             Processor. (DMP.) hardware accelerator engine
▼Video
                Silicon Image    Sil9244     MHL™ Transmitter
▼Others

          NXP Semiconductor      PN544       NFC

SAMSUNG Galaxy S III - Worldwide & T-Mobile

  • 2.
    Intelligence Sharing Greatness Enhancements
  • 3.
    FEATURE GALLERY Smart stay It waits till you’re asleep: so long as you look  at the phone, it maintains a bright display. Smart stay Social tag Direct call S voice Sharing Greatness Enhancements Smart alert
  • 4.
    FEATURE GALLERY Direct call It knows when you want to talk: if you’re messaging  and want to call instead, simply lift your phone to your ear  and it will dial your friend automatically. Smart stay Social tag Direct call S voice Sharing Greatness Enhancements Smart alert
  • 5.
    FEATURE GALLERY Smart alert It knows when you’ve been away from your phone ‐ vibratin nudge lets you know missed calls or messages. Smart stay Social tag Direct call S voice Sharing Greatness Enhancements Smart alert
  • 6.
    FEATURE GALLERY Social tag It keeps track of your loved ones: a glance at your friends’ photos will show you their current SNS status. Smart stay Social tag Direct call S voice Sharing Greatness Enhancements Smart alert
  • 7.
    FEATURE GALLERY S Voice It responds to your words: you can tell it to wake up, answer, even take a photo. Smart stay Social tag Direct call S voice Sharing Greatness Enhancements Smart alert
  • 8.
    FEATURE GALLERY S Beam It shares what’s in your heart: place two GALAXY S IIIs back‐to‐back and you can transfer pictures, music, videos, and more. S Beam Buddy photo share Intelligence Greatness Enhancements AllShare Cast AllShare Play
  • 9.
    FEATURE GALLERY AllShare Cast It lets you play together: beam your photos, videos ‐ even the game you’re playing ‐ onto big screen, with your phone doubling as a controller. S Beam Buddy photo share Intelligence Greatness Enhancements AllShare Cast AllShare Play
  • 10.
    FEATURE GALLERY Buddy Photo share It shares with everyone instantly: as the phone recognizes your friends faces, it can share photos with them instantly. S Beam Buddy photo share Intelligence Greatness Enhancements AllShare Cast AllShare Play
  • 11.
    FEATURE GALLERY AllShare Play It lets you share with everyone: access to documents and multimedia files when you work somewhere else. S Beam Buddy photo share Intelligence Greatness Enhancements AllShare Cast AllShare Play
  • 12.
    FEATURE GALLERY Design inspired by nature: the GALAXY S III’s minimal and organic design is reflected in its smooth and non‐linear lines of the device. Its human‐centric nature provides an ergonomic and comfortable experience with enhanced usability. Design 4.8 HD Super AMOLED Intelligence Sharing Pop up play LTE Enhancements Best photo
  • 13.
    FEATURE GALLERY Pop up play It lets you do two things at once: watch HD videos  as you email or text.  Design 4.8 HD Super AMOLED Intelligence Sharing Pop up play LTE Enhancements Best photo
  • 14.
    FEATURE GALLERY Best photo It sees your best side: automatically takes a burst of 8  to make a continuous scene and chooses the best. Design 4.8 HD Super AMOLED Intelligence Sharing Pop up play LTE Enhancements Best photo
  • 15.
    FEATURE GALLERY 4.8 HD Super AMOLED Seeing for real: 4.8 inches of hi‐definition display, true, perfect color with ultrafast response time. Design 4.8 HD Super AMOLED Intelligence Sharing Pop up play LTE Enhancements Best photo
  • 16.
    FEATURE GALLERY LTE (depends on country) Faster download time than current 3G networks. And it’s only going to get faster and faster. Design 4.8 HD Super AMOLED Intelligence Sharing Pop up play LTE Enhancements Best photo
  • 17.
    FEATURE GALLERY Desktop Dock   ∙ Flip Cover   ∙ AllShare Cast Dongle   ∙ S Pebble Intelligence Sharing Enhancements Accessories
  • 18.
    FEATURE GALLERY Desktop Dock   ∙ Flip Cover   ∙ AllShare Cast Dongle   ∙ S Pebble Intelligence Sharing Enhancements Accessories
  • 19.
    FEATURE GALLERY Desktop Dock   ∙ Flip Cover   ∙ AllShare Cast Dongle ∙ S Pebble Intelligence Sharing Enhancements Accessories
  • 20.
    FEATURE GALLERY Desktop Dock   ∙ Flip Cover   ∙ AllShare Cast Dongle   ∙ S Pebble Intelligence Sharing Enhancements Accessories
  • 21.
    FEATURE GALLERY marble white Pebble blue
  • 22.

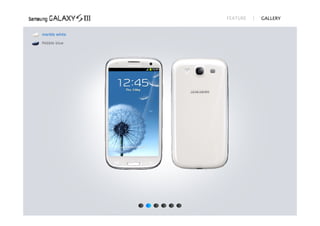

    FEATURE GALLERY marble white Pebble blue
  • 23.
    FEATURE GALLERY marble white Pebble blue
  • 24.
    FEATURE GALLERY marble white Pebble blue
  • 25.
    FEATURE GALLERY marble white Pebble blue
  • 26.

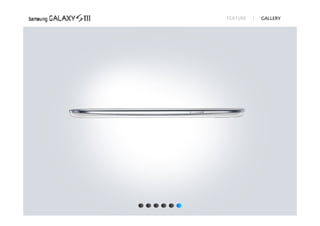

    FEATURE GALLERY
  • 27.
    FEATURE GALLERY marble white Pebble blue
  • 28.
    FEATURE GALLERY marble white Pebble blue
  • 29.
    FEATURE GALLERY marble white Pebble blue
  • 30.
    FEATURE GALLERY marble white Pebble blue
  • 31.

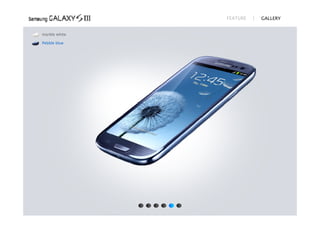

    FEATURE GALLERY marble white Pebble blue
  • 32.

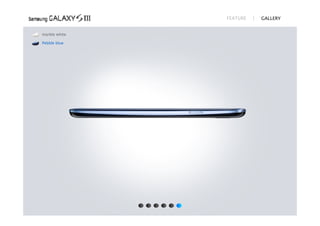

    FEATURE GALLERY marble white Pebble blue
  • 33.
    Network/Bearer and  OS Physical Specification Wireless Connectivity  Android 4.0 (ICS)  70.6 x 136.6 x 8.6mm   GSM, HSPA+21  133g   EDGE / GPRS (850 / 900 / 1800 / 1900MHz)  HSPA+21 (850 / 900 / 1900 / 2100) Battery Camera  WiFi Direct  2100mAh  8 Megapixels Camera Resolution (Rear)  GAP, SSP, HSP, HFP1.5, A2DP, SPP, OPP, PBAP,    Up to 1300min (2G) / upto 650min (3G)  CMOS , 1.9MP MAP, AVRCP 1.3, HID  LED (1EA)   Up to 900hrs (2G) / upto 750hrs (3G)   NFC  DLNA, MHL 1.0, HDMI 2 support  KIES, KIES Air support  Chipset Camera  Quad Core Application Processor  8 Accelerometer, Geo‐magnetic, Gyro, RGB Light, Display  1.4GHz CPU Speed  Barometer sensor  HD Super AMOLED  16M Connectors   4.8"  Memory  720 x 1280 (HD)   USB2.0  16/32/64GB  3.5pi 4pole, Stereo  MicroSD (upto 64GB) Service and Applications  Micro USB available Colour  MHL available   Samsung Apps available  Pebble Blue or Marble White  Dependent on region  Game hub  ChatON available Audio and Video  ActiveSync available  MPEG4, H.264, H.263, VC‐1. DivX, VP8, WMV7 / 8,  B‐to‐B Compability : Sybase / Webex / Device Sorenson Spark, DivX3.11 encryption / Cisco etc.   Full HD (1080p) Video Recording & Playback  Recording up to 30fps  MP3, AMR‐NB / WB, AAC / AAC+ / eAAC+, WMA, OGG (Vorbis), FLAC, AC‐3, apt‐X
  • 34.
     SAMSUNG KMVTU000LM, eMMC based MCP  MAXIM MAX77693 PMIC  MAXIM MAX77686 PMIC  Intel/Infineon X‐GOLD 626, baseband processor  SAMSUNG Exynos 4 Quad, Exynos 4412 SAMSUNG K3PE7E700M‐XGC2 LPDDR2 AKM8975  Broadcom BCM47511  Murata KM2322007 (Broadcom BCM4334)  STMicronelectronics LSM330DLC
  • 35.
     Wolfson WM1811 Silicon Image Sil9244 MHL transmitter  Audience eS305 audio processor  NXP PN544  Skyworks SKY77604  Intel/Infineon PMB5712
  • 37.
    FEATURE GALLERY Manufacturer Part Number Function ▼Processor SAMSUNG Exynos 4 Quad, Exynos 4412 1.4GHz, ARM CortexTM‐A9, Quad‐core, with ARM Mail‐400 GFX integrated, 32nm/High‐K ▼Memory SAMSUNG K3PE7E700M‐XGC2, 8Gb LPDDR2 8Gb LPDDR2, 32‐bit/Dual Channel, LPDDR2‐1066 KMVTU000LM SAMSUNG eMMC Based MCP  . eMMC(16GB)+MDDR(64MB) ▼Radio Frequency Murata KM2322007 Broadcom BCM4334 ‧ Dual-band 2.4 GHz and 5 GHz IEEE 802.11 a/b/g/n Wi-Fi connectivity ‧ Single-stream IEEE 802.11n support for 20 MHz and 40 MHz channels provides PHY layer rates up to 150 Mbps for typical upper-layer throughput in excess of 90 Mbps ‧ Supports the IEEE 802.11n STBC (space-time block coding) and LDPC (low- density parity check) options for improved range and power efficiency ‧ Complies with Bluetooth Core Specification Version 4.0 + HS with provisions for supporting future specifications ‧ Bluetooth Class 1 transmitter operation Intel/Infineon XG626(Marked PMB9811) Baseband processor: ‧ ARM11™ architecture ‧ 3GPP Rel7 HSPA+ platform supports HSPA category 14 (21 Mbit per second)  in the downlink and category 7 (11.5 Mbit per second) in the uplink. ‧ EDGE multislot class 33 PMB5712 SMARTi UE2 RF Transceiver  Skyworks SKY77604 Power Amplifier SKY13397 RF Switch Broadcom BCM47511 Dual constellation support for GPS and GLONASS
  • 38.
    FEATURE GALLERY Manufacturer Part Number Function ▼PMIC MAXIM MAX77686 Main PMIC( Similar to MAXIM MAX8997) MAX77693 Sub PMIC(Power Management IC) working with other main PMIC. ‐ PMIC ‐ MUIC(Micro USB Interface Controller) ‐ Camera flash LED control ‐ Haptic motor control ▼Audio Wolfson Microelectronics WM1811 Audio Codec Audience eS305 Voice processor ▼Touch Screen Controller Melfas 8PL533 Touch screen controller ▼MEMs AKM AKM8975 Electronic compass STMicroelectronics LSM330DLC 3D accelerometer and 3D gyroscope ▼Video SONY IMX145 8 Mp, rear‐facing image sensor. Silicon Image SiI9244BO MHL™ Transmitter  ▼Others NXP Semiconductor PN544 NFC STMicroelectronics STOD03A AMOLED Display Driver
  • 39.
  • 40.
     Skyworks 77737   TriQuint TQM7M5013   RFMD RF7245  Audience eS305   NXP PN544 Silicon Image Sil9244  RFMD RF7241  RFMD RF7244  Skyworks 77762   Qualcomm WCD3910
  • 42.
    FEATURE GALLERY Manufacturer Device Function ▼Processor Qualcomm Qualcomm Snapdragon S4, MSM8960 1.5GHz, Dual‐core/Krait core/1MB L2, Adreno 225 GFx ▼Memory SAMSUNG K3PE0E000A‐XGC2 16Gb LPDDR2, 32‐bit/Dual‐channel, LPDDR2‐1066 KLMAG4FE4B‐B002 SAMSUNG 16GB/32GB eMMC ▼Radio Frequency Unknown Package marking: 4756E8 C315A9 ‧802.11 a/b/g/n Wi‐Fi, WiFi Direct ‧Bluetooth 4.0 Qualcomm RTR8600 Multi‐band/mode RF transceiver for LTE bands Skyworks SKY77737 Power Amplifier Module for LTE Bands 12/17 (698‐716 MHz) SKY77762 SkyHi PAM for WCDMA/HSDPA/HSUPA/HSPA+/LTE RFMD RF7241 WCDMA Band 1 Linear PA Module RF7244 WCDMA Band 4 Linear PA Module RF7245 WCDMA Band 5 Linear PA Module TriQuint TQM7M5013  Quad‐Band GSM / GPRS / EDGE‐Linear Power Amplifier Module Murata SWQ GMD44 ▼PMIC Qualcomm PM8921 PMIC for Qualcomm MSM8960
  • 43.
    FEATURE GALLERY Manufacturer Device Function ▼Audio Qualcomm WCD9310 SLIMbus/I2S Audio codec; 6+ channel Audience eS305 Voice processor ▼Touch Screen Controller MELFAS 8PL590 Touch screen controller ▼MEMs AKM 8973 Electronic compass 3‐axis MEMS gyroscope, a 3‐axis MEMS accelerometer, and a Digital Motion  Invensense MPU‐6050M Processor. (DMP.) hardware accelerator engine ▼Video Silicon Image Sil9244 MHL™ Transmitter ▼Others NXP Semiconductor PN544 NFC
