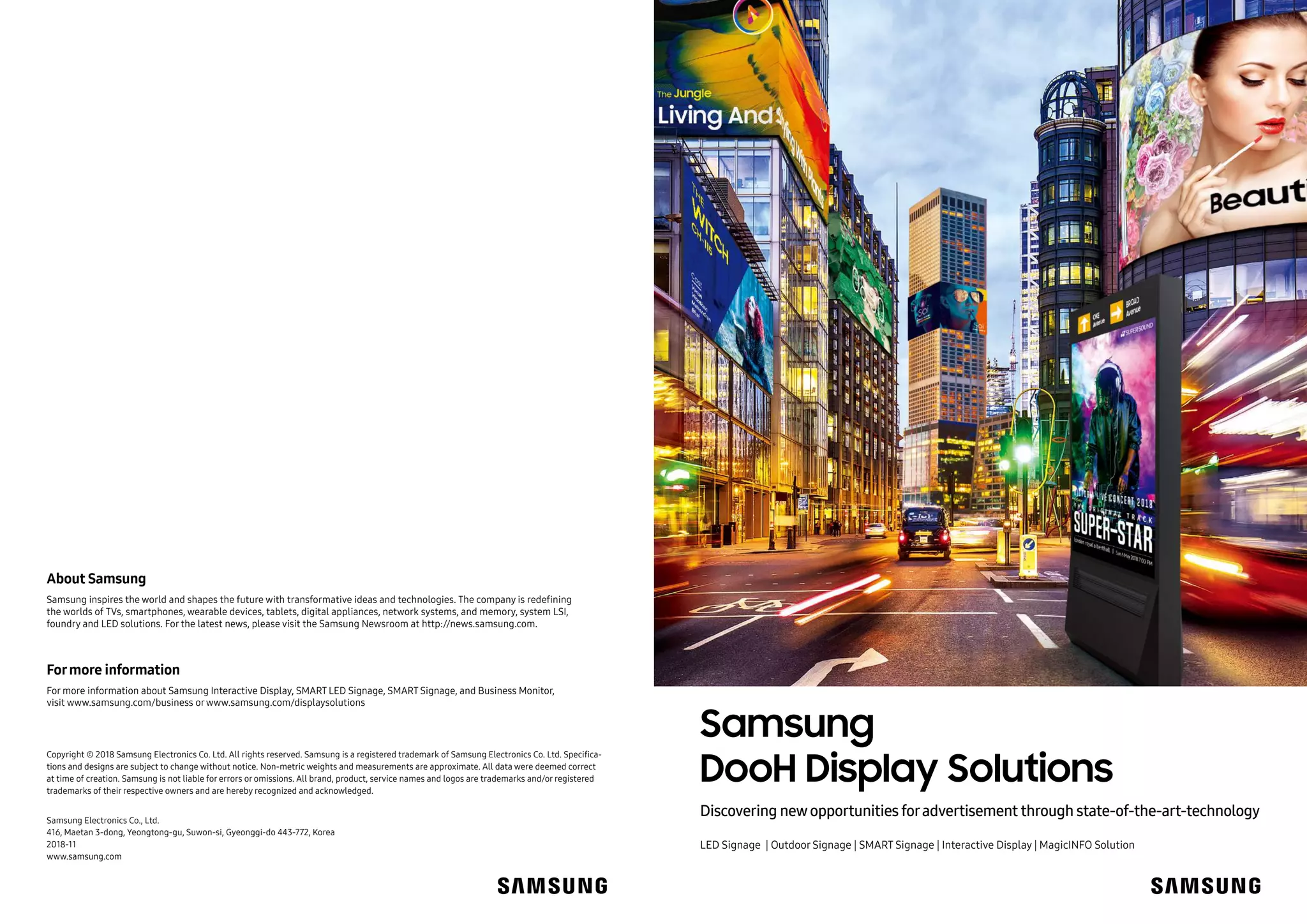

Samsung provides digital signage and display solutions for various applications including merchandising, advertising, and information distribution. Their solutions include outdoor LED signage, indoor LED displays, video walls, interactive displays, and a content management system. Samsung aims to enhance customer experiences and drive engagement through rich digital content on their state-of-the-art displays.

1. Samsung
DooH Display Solutions
Discovering newopportunities foradvertisement through state-of-the-art-technology
LED Signage | Outdoor Signage | SMART Signage | Interactive Display | MagicINFO Solution
About Samsung
Samsung inspires the world and shapes the future with transformative ideas and technologies. The company is redefining
the worlds of TVs, smartphones, wearable devices, tablets, digital appliances, network systems, and memory, system LSI,
foundry and LED solutions. For the latest news, please visit the Samsung Newsroom at http://news.samsung.com.
Copyright © 2018 Samsung Electronics Co. Ltd. All rights reserved. Samsung is a registered trademark of Samsung Electronics Co. Ltd. Specifica-
tions and designs are subject to change without notice. Non-metric weights and measurements are approximate. All data were deemed correct
at time of creation. Samsung is not liable for errors or omissions. All brand, product, service names and logos are trademarks and/or registered
trademarks of their respective owners and are hereby recognized and acknowledged.
Samsung Electronics Co., Ltd.
416, Maetan 3-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do 443-772, Korea
2018-11
www.samsung.com
Formore information
For more information about Samsung Interactive Display, SMART LED Signage, SMART Signage, and Business Monitor,
visit www.samsung.com/business orwww.samsung.com/displaysolutions

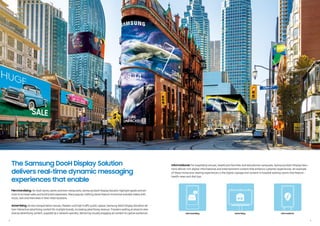

2. 2 3
Merchandising: At retail stores, banks and even restaurants, Samsung DooH Display Solution highlight goods and ser-
vices to increase sales and build brand awareness. Many popularclothing stores feature immersive branded videos with
music, text and interviews in theirretail locations.
Advertising: Across transportation venues, theaters and high-traffic public spaces, Samsung DooH Display Solutions de-
liverinteractive advertising content formultiple brands, increasing advertising revenue. Travelers waiting at airports view
diverse advertising content, supplied by a network operator, delivering visually engaging ad content to captive audiences.
Informational: For hospitality venues, healthcare facilities and educational campuses, Samsung DooH Display Solu-
tions deliver rich digital informational and entertainment content that enhance customer experiences. An example
of these immersive viewing experiences is the digital signage and content in hospital waiting rooms that feature
health news and diet tips.
The Samsung DooH Display Solution
delivers real-time dynamic messaging
experiences that enable
Merchandising Advertising Informational

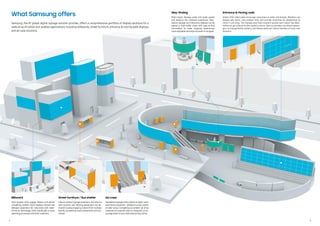

3. 54
Entrance & Moving walk
Indoor LEDs video walls encourage consumers to enter and browse. Retailers can
display sale items, new product lines and provide incentives for pedestrians to
come in and shop. The displays also help travelers quickly learn about top desti-
nations or get a flavor for the region’s culture. Service providers can direct passen-
gers to transportation options, and theme parks can inform families of must-visit
locations.
Way-finding
High-impact displays assist and guide guests
and enhance the customer experience. Stan-
dalone signage and interactive displays can be
placed in high-traffic areas with easy-to-find
information to make shopping experiences
more enjoyable and airports easierto navigate.
Samsung, the #1 global digital signage solution provider, offers a comprehensive portfolio of display solutions for a
wide array of indoor and outdoor applications including billboards, street furniture, entrance & moving walk displays
and ad-case solutions.
What Samsung offers
Billboard
Vivid outdoor LEDs engage viewers and deliver
compelling content. DooH displays reinvent the
billboard experience for consumers with state-
of-the-art technology, while brands gain a more
absorbing connectionwith theircustomers.
Street furniture / Bus shelter
Vibrant outdoorsignage entertains and informs
with dynamic ads. Waiting passengers are de-
liveredvisuallyengaging content from multiple
brands, compelling brand interactions and pur-
chases.
Ad-case
Standalone signage enticevisitors towatch, learn
andinteractanywhere–whetherinamall,airport
or other venue. Compelling ad content can drive
customers to a specific store orrestaurant, oren-
couragevisitorto scan a QR code and buyonline.

4. Billboard
Vivid outdoorLEDs engage viewers and delivercompelling content. DooH displays reinvent the billboard experience for
consumers with state-of-the-art technology, while brands gain a more absorbing connection with theircustomers.
Delivering highly engaging advertising content
Street furniture / Bus shelter
Vibrant outdoorsignage entertains and informswith dynamic ads.Waiting passengers are deliveredvisuallyengaging
content from multiple brands, compelling brand interactions and purchases.
Capturing viewers and increasing advertising revenue
6 7
Outdoor LED signage: XPE series Outdoor signage: OHF series
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
SuperiorContrast
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Power
box
Cooling System
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Deformation Proof
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
SuperiorDurability
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Two-step Calibration
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Power
box
24/7 Operation
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
End-to-end Project
Management
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Magic Protection Glass
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
High Brightness
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Power
box
Powerbox embedded
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Corrosion Proof
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Auto Brightness Sensor
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
High Refresh Rate
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by P
Power
box
All in One Design
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
IP65
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by P
High Brightness
Captivating visibility & superior durability
The OHF displays feature innovative IK10-certified* Magic Protection Glass,
TUV-certified image quality and an Auto Brightness sensorto improve picture
quality and optimize message delivery for any viewer. When combined, these
features produce high brightness and a 5,000:1 contrast ratio that amplifyany
type of content.
* The IK European strength test rating uses a 0-10 scale (where10 indicates the highest possible protection) to measure the
degreeofresistanceagainstexternalimpact.
Superior image quality regardless of conditions
Samsung’s XPE series LED signage delivers excellent image qualitythat cap-
tures audience eyes even in challenging environments. Through two-step in-
depth calibration, enhanced image processing and an industry-best contrast
ratio, the displays deliveraccurate and consistent colorqualitycontentwith a
high refresh rate. The XPE series also is equipped to deterlight interference,
and produce bright images regardless of conditions.
All-in-one outdoor solution
Samsung’s OHF series outdoorsignage delivers an all-inclusive engagement
solution that is completely equipped for virtually any outdoor environment.
Along with the added convenience of an embedded power box, the OHF
series displays ensure durability, flexibility and 24/7 performance even in
extreme temperatures. Additionally, the OHF displays leverage a filter-less
self-cooling system foreasymaintenance and reduced TCO.
High reliability with proactive expert support
Each XPE series signage undergoes rigorous environmental testing to ensure
uninterrupted performance. C3 Contamination and Ionograph testing deters
circuit contamination and extends shelf-life. Complementary Climate and
Humidity and Salt Fog Chamber exposure additionally ensures performance
in variable weather conditions and wet and corrosive elements. In addition to
enhanced durability, from inception to installation, Samsung makes the easy
outdoorsignage experience easy, providing round-the-clock service.

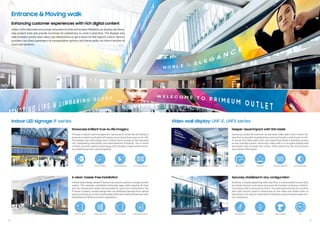

5. Securely stabilized in any configuration
Building a visually appealing video wall that is customizable to any malls,
terminals, airports and stores and gives the freedom to design a distinc-
tive display that is exclusive to them. The video wall attaches to a surface
with wall mounts sized to dimensions of the video and hidden with no
distractions. An easy to understand installation guide elevates steps dur-
ing installation.
8 9
Video wall display: UHF-E, UHF5 series
A clean, hassle-free installation
Ahook-based design allows IF Series to be mount screens in a single, smooth
motion. This seamless installation eliminates gaps while keeping all front
and rear components visible and accessible for quick-turn maintenance. The
IF Series’ compact, durable design also can withstand damage from natural
events as strong as a Level 4 earthquake,while also meeting Americanswith
Disabilities Act (ADA) protrusion regulations.
Showcase brilliant true-to-life imagery
Through in-depth colormanagement, Samsung’s IF series has the abilityto
preserve constant graduation of images, ensuring pictures are true-to-life.
The display uses technology that is nearly twice as high as the standard
LED, showcasing information and advertisement brilliantly. The IF series
contains dynamic peaking technology that elevates images while remov-
ing interference from natural lighting.
Deeper visual impact with thin bezel
Samsung created the extreme narrow bezel video wall to be a robust dis-
playthat is impactful to pedestrians moving through a mall, airport oroth-
er venue. The video wall’s ultra slim bezel that yields a seamless picture
across multiple screens. Samsung’s video wall is a non-glare display that
distributes light through the screen, while preserving the vivid pictures
and original information.
Indoor LED signage: IF series
Entrance & Moving walk
IndoorLEDsvideowalls encourage consumers to enterand browse. Retailers can displaysale items,
new product lines and provide incentives for pedestrians to come in and shop. The displays also
help travelers quickly learn about top destinations or get a flavor for the region’s culture. Service
providers can direct passengers to transportation options, and theme parks can inform families of
must-visit locations.
Enhancing customer experiences with rich digital content
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
ColorManagement
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
1.7mm
Enhanced Uniformity
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
EasyInstallation
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Advanced Design
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Fine-tune Uniformity
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
1.7mm
High Contrast Ratio
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
24/7
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Earthquake Durability
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Dynamic Peaking
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
1.7mm
Non Glare
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Slim depth
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Catwalk Space free
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
LED HDR
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by P
1.7mm
NarrowBezel
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by P
Fine adjustment
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Direct Mount Kit

6. UHD standalone signage : QMN, QBN series
FHD standalone signage : PHF, PMH series
Powerful performance and simple usability
Samsung’s PHF and PMH series are IP5x certified, signifying their dust-re-
sistant design and ability to withstand a range of environmental conditions.
Equipped with a non-glare frontal panel, the PHF and PMH series discover
heightened imagevisibilityand information readabilityunderlight.Addition-
ally, the standalone displays’ integrated centralized infrared receiver(IR) en-
sures easierand more flexible usercontrol.
10 11
*The number of available touch points varies depending on configuration. Connected external pcs provide the PMF-BC
displaywith10 touch points,while the integrated operating system supports two additional touch points.
Intelligent picture quality
Samsung’s UHD standalone displays leverage Intelligent Picture Quality
technology to elevate content delivery in any setting. This refined pres-
entation transforms content from anysource to UHD-level quality, and op-
timizes on-screen text and imagery with fine details. With non-glare pan-
els, the QMN and QMH series deliver information with optimized images
and crisp edges and fine detail.
Ad-case
Standalone signage enticevisitors towatch, learn and interact anywhere –whetherin a mall, airport orothervenue. Compel-
ling ad content can drive customers to a specific store orrestaurant, orencouragevisitorto scan a QR code and buyonline.
Driving customer engagement and purchases
Way-finding
High-impact displays assist and guide guests and enhance the customerexperience. Standalone signage and interactive dis-
plays can be placed in high-traffic areas with easy-to-find information to make shopping experiences more enjoyable and
airports easierto navigate.
Informing and entertaining customers with interactive content
High reliability & convenient management
Samsung’s PMF-BC displays are resilient and require little maintenance, yet are
dependable and deliver content effortlessly. This display withstood extensive test-
ing to validate its durability against dust, dirt, vandalism and other factors as these
displays are typically used at transportation stations. Users are able to control the
display, no mattertheirlocation, using infrared receivers, forcontinuous content.
9
Interactive display: PMF-BC series
Comfortable, multi-point capacitive
touch communication
Through capacitive touch technology and a user-friendly design, samsung’s PMF-
BC displays foster a comfortable, easy-to-navigate digital writing experience. The
interactive displays can accommodate 10 Unique touch points* while maintaining
the smooth, familiarfeel of analog board orpen-and-paperwriting.
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Intelligent Picture Mode
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Fast Response time
CENTER
IR
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
High Reliability
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
CentralizedManagement
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Anti Glare
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Intuitive UI
CENTER
IR
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Central IR
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Central IR
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Intelligent HDR+
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Multi Touch
CENTER
IR
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Sunlight Resistant
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Anti Glare
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Intelligent UHD
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by P
Seamless Touch
CENTER
IR
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by P
Dust Resistant
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
IP5X

7. Hardware
Contents
Standalone LED Interactive
Display
VideoWall Outdoor
ContentCreation
Monitoring
Scheduling Publication
Management solution: MagicINFO, SSSP solution
MagicINFO solution
Super
de screen Easy Setting Box Picture in Picture Picture by Picture
Device
Group Code
Easy Setting Box Picture in Picture Picture by Picture
Advanced
Back-up Play
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Variable Tag
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Real-time Data
Super
de screen Easy Setting Box Picture in Picture Picture by Picture
Device Monitoring
Easy Setting Box Picture in Picture Picture by Picture
ErrorDetection
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Remote Control
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
SecurityControl
Samsung’s comprehensive MagicINFO platform can re-
motely manage both hardware and software through
one single-point management system. With this solution,
users can conveniently create, schedule and deploy con-
tent across its entire digital signage network. MagicINFO
enables content teams to update informational or adver-
tising contents from any location at any time that creates
greater user control from one central location. The plat-
form also is compatible with a host of display types, en-
suring the delivery of compelling content regardless of
the operational framework.
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Diverse
Product Line-up
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Integrated
All-in-One Solution
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
SD.K/
API Fuctionality
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Versatile
Open Platform
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
TCO Saving
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Reliabiltiy
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Space Saving
32:9 Super
Ultra-wide screen Easy Setting Box Picture in Picture Picture by Picture
Powerful
Performance
For a Samsung Smart Signage Platform(SSSP) partner
that has its own CMS solution, Samsung MagicINFO Re-
mote Management Solution is a perfect fit for advanced
needs. Samsung Remote Management Solution allows
in-depth remote monitoring of the digital devices and
eliminates the need for site visits or service calls. The Re-
mote Management Solution platform synchronizes with
users‘ CRM and provides a complete review of hardware
and display content. Though its install package is the
same with MagicINFO Server, there is a separate license
key for Samsung’s Remote Management Solution.
Thanks to Samsung MagicINFO Remote Management Solu-
tion, a SSSP Partner that has its own CMS solution can per-
form in-depth remote monitoring of the digital devices and
eliminate the need forsitevisits orservice calls.
Ongoing content design
Content management system
Data integration
Programming
Network design & Integration
Network monitoring
SoC
(Tizen)
I Player
(Windows)
SoC
(Tizen)
I Player
(Windows)
12 13
Samsung’s solutions and services
Alongwithpartners,Samsungprovidesintuitivemanagementsolutionsthatallowtheuserstohaveagreat
abilityto manage and control all of the devices, creating and updating information easilyand as needed.
Manage your display devices and contents comprehensively
Remote management solutionSSSP solution
Content distribution Device control
Samsung remote
management solution
API
Partner’s
CMS server

8. 14 15
MagicINFO solution
Outdoor signage
Project Screen Size Resolution Brightness
Contrast
Ratio
Operation
Hour
Certification Connectivity S/W
Outdoor OHF
46” 1920 x1080 3000nit 5,000:1 24/7 IP56 Certified
2 HDMI, HDBaseT(LAN Common), HDCP 2.2, USB 2.0,
Stereo Mini Jack(out), RS232C (In/Out),
RJ45 (In/Out), HDBaseT
Built-in MagicInfo
PlayerS4, SSSP 4.0
55” 1920 x1080 2500nit 4,000:1 24/7 IP56 Certified
2 HDMI, HDBaseT(LAN Common), HDCP 2.2, USB 2.0,
Stereo Mini Jack(out), RS232C (In/Out),
RJ45 (In/Out), HDBaseT
Built-in MagicInfo
PlayerS4, SSSP 4.0
75” 1920 x1080 2500nit 5,000:1 24/7 IP56 Certified
2 HDMI, HDBaseT(LAN Common), HDCP 2.2, USB 2.0,
Stereo Mini Jack(out), RS232C (In),
RJ45 (In), HDBaseT
Built-in MagicInfo
PlayerS4, SSSP 4.0
85” 3840x2160 2500nit 3,000:1 24/7 IP56 Certified
2 DP1.2 @UHD 60Hz, 2 HDMI1.4 @UHD 30Hz,
HDBaseT, HDCP1.4, USB 2.0, Stereo Mini Jack(out),
RS232C (In), RJ45 (In), HDBaseT
-
Semi
Outdoor
OMH 32” 1920 x1080 1000nit 3,000:1 16/7 -
1 DP, 2 HDMI, HDCP1.4, USB 2.0, Stereo Mini
Jack(out), RS232C (In/Out), RJ45 (In/Out), HDBaseT
Built-in MagicInfo
PlayerS4, SSSP 4.0
OMD-W 46”, 55”, 75” 1920 x1080 2500nit 5,000:1 24/7 -
Analog D-SUB, DVI-D, Display Port1.2, 2 HDMI,
Component(CVBS Common), HDCP1.4, USB 2.0,
Stereo Mini Jack, RS232C (In/Out), RJ45
Built-in MagicInfo
PlayerS2, SSSP 2.0
Video wall display
Project Screen Size B-to-B(mm) BezelWidth Resolution Brightness Haze
Operation
Hour
Connectivity
UHF-E
UMF-E
55" 1.7mm
1.15 mm(U/L)
0.55 mm(R/B)
1920 x1080
700 nit(UHF-E)
500 nit(UMF-E)
25% 24/7
Analog D-SUB, DVI-D, Display Port1.2, 2 HDMI,
Stereo mini Jack(in/out), DP1.2(Loop-out), RS232C(in/out), RJ45,
Detachable type external sensor(IR, Ambient)
UDE-A
UDE-B
46", 55" 3.5mm
2.3mm(U/L)
1.2mm(R/B)
1920 x1080
700 nit(UDE-A)
500 nit(UDE-B)
25% 24/7
Analog D-SUB, DVI-D, Display Port1.2, 2 HDMI,
Stereo mini Jack(in/out), DP1.2(Loop-out), RS232C(in/out), RJ45,
Detachable type external sensor (IR, Ambient)
UHF5 46” 5.5mm
3.4 mm(U/L)
2.0 mm(R/B)
1920 x1080 700nit 11% 24/7
DVI-D, Display Port1.2, 2 HDMI, Stereo mini Jack(in/out),
DP1.2(Loop-out), RS232C(in/out), RJ45, Detachable type external
sensor(IR)
Interactive display
Project Screen Size Resolution Brightness Touch Type Touch Connectivity
Operating
System
S/W Remark
PMF-BC 32” 43” 55” 1920 x1080
300 nit (32”)
350 nit (43”)
400 nit (55”)
Capacitive
touch
10 touch
In : DVI-I(1), DP1.2(1), HDMI 2.0(2),
USB 2.0(2), RS232C, RJ45
Out : DP1.2(1), RS232C
Tizen 3.0
Built-in
MagicInfo S4,
SSSP 4.0
CenterIR, Glare-Free
Visual Quality, IP5x
certification
Numberof displays connecting to MagicINFO Server
<200 <2000 <5000 >5000
OS Windows Server® 2008 / 2012 / 2016
CPU Intel Xeon E3-1200 orbetter Intel Xeon E5-2400 orbetter Intel Xeon E5-2600 orbetter Intel Xeon E5-4600 orbetter
RAM 4 GB ormore 8 GB ormore 16 GB ormore 32 GB ormore
HDD
At least100 GB forbasic setup (operating system and serverapplication)
*Heavily dependent on the amount of content data to be stored on the server
Network
Bandwidth
64 kbps orbetter
Numberof Servers 1 2 3 3 ormore; dependent on scenario
Specification
Standalone signage
Project Screen Size Resolution Brightness Haze Operation Hour Connectivity
Operating
System
S/W
IP5x
Certification
UHD
QMN
43”, 49”, 55”, 65”,
75”, 85”, 98”
3840 x 2160 500 nit Non-Glare 24/7
In : DVI-D(1), DP1.2(1), HDMI 2.0(2),
USB 2.0(2), RS232C, RJ45
Out : HDMI 2.0(1), RS232C
Tizen 4.0
Built-in
MagicInfo S6,
SSSP 6.0
O
QBN
43”, 49”, 55”,
65”, 75”
3840 x 2160 350 nit Glare 16/7
In : DVI-D(1), HDMI 2.0(2), USB 2.0(2),
RS232C, RJ45
Out : RS232C
Tizen 4.0
Built-in
MagicInfo S6,
SSSP 6.0
O
QBH 65”, 75” 3840 x 2160 300 nit Glare 16/7
In : DVI-D(1), DP1.2(1), HDMI 2.0(2),
USB 2.0(2), RS232C, RJ45
Out : RS232C
Tizen 3.0
Built-in
MagicInfo S5,
SSSP 5.0
X
FHD
PHF 43”, 49”, 55” 1920 x1080 700 nit Non-Glare 24/7
In : DVI-I(1), DP1.2(1), HDMI 2.0(2),
USB 2.0(2), RS232C, RJ45
Out : DP1.2(1), RS232C
Tizen 2.4
Built-in
MagicInfo S4,
SSSP 4.0
O
PMF 32” 1920 x1080 400 nit Glare 16/7
In : DVI-I(1), DP1.2(1), HDMI 2.0(2),
USB 2.0(2), RS232C, RJ45
Out : DP1.2(1), RS232C
Tizen 2.4
Built-in
MagicInfo S4,
SSSP 4.0
X
PMH 43”, 49”, 55” 1920 x1080 500 nit Non-Glare 24/7
In : DVI-I(1), DP1.2(1), HDMI 2.0(2),
USB 2.0(2), RS232C, RJ45
Out : DP1.2(1), RS232C
Tizen 2.4
Built-in
MagicInfo S4,
SSSP 4.0
O
DBE 32”, 55” 1920 x1080 350 nit Glare 16/7
In : DVI-D(1), HDMI1.4(1), D-Sub(1),
CVBS(1), USB 2.0(1), RS232C, RJ45
Out : HDMI 2.0(1), RS232C
Orsay
Built-in
MagicInfo S3,
SSSP 3.0
X
DBJ 43”, 49” 1920 x1080 300 nit Glare 16/7
In : DVI-D(1), HDMI1.4(2), USB 2.0(1),
RS232C, RJ45
Out : HDMI 2.0(1), RS232C
Tizen 3.0
Built-in
MagicInfo S5,
SSSP 5.0
X
DCE 32”, 55” 1920 x1080 350 nit Glare 16/7
In : DVI-I(1), HDMI1.4(1), CVBS(1), USB
2.0(1), RS232C, RJ45 Out :
Simple SoC
Built-in Magi-
cInfo Lite
X
DCJ 43”, 49” 1920 x1080 300 nit Glare 16/7
In : DVI-I(1), HDMI1.4(1), CVBS(1), USB
2.0(1), RS232C, RJ45 Out :
Simple SoC
Built-in Magi-
cInfo Lite
X
LED signage
Project Pixel Pitch Diode Type
Brightness
(※ Dynamic Peaking
applied)
Contrast
Ratio
Certification Cabinet Size Weight Service IPRating
Indoor
IFJ P1.2
Surface Mount
Device
1200 nit 4,000:1
EMC Class B,
Safety 60950-1
806.4x453.6x76.7mm
(LxHxD, percabinet)
11.8kg/cabinet
Full front and
Part Rear
Service
IP20
IFH P1.5, 2.0, 2.5
Surface Mount
Device
1600 nit (P1.5)
2400 nit (P2.0,
2.5)
5,000:1
EMC Class A,
Safety 60950-1
480x540x65mm
(LxHxD, percabinet)
5.8kg/cabinet
Full front and
Part Rear
Service
IP20
IFH-E P1.5, 2.5
Surface Mount
Device
1200 nit (P1.5)
2000 nit (P2.5)
5,000:1
EMC Class A,
Safety 60950-1
480x540x65mm
(LxHxD, percabinet)
5.8kg/cabinet
Full front and
Part Rear
Service
IP20
IFH-D P2.5, 4.0, 6.0
Surface Mount
Device
2400 nit (P2.5)
1700 nit (P4.0)
1800 nit (P6.0)
5,000:1
EMC Class A,
Safety 60950-1
480x720x65mm
(LxHxD, percabinet)
7.4kg/cabinet
Full front and
Part Rear
Service
IP20
IFH-DL P4.0, 6.0, 8.5
Surface Mount
Device
3200 nit (P4.0)
3400 nit (P6.0)
3400 nit (P8.5)
5,000:1
EMC Class A,
Safety 60950-1
480x720x65mm
(LxHxD, percabinet)
7.4kg/cabinet
Full front and
Part Rear
Service
IP20
Outdoor
XAF
P6, P8, P10,
P16
Surface Mount
Device (P6, P8, P10)
DIP type (P16)
6300 nit (P6, P8)
6750 nit (P10)
7700 nit (P16)
3,000:1
EMC Class A,
Safety 60950-1
960x960x142mm
(LxHxD, percabinet) (P6, P8, P10)
960x960x154mm
(LxHxD, percabinet) (P16)
56kg/cabinet (P6, P8)
56kg/cabinet (P10)
55kg/cabinet (P16)
RearService IP65/45
XPE P6, P8, P10
Surface Mount
Device (P6, P8, P10)
7500 nit
8500:1 (P6)
10000:1
(P8, P10)
EMC Class A,
Safety 60950-1
203x203mm(LxH,permodule)(P6)
264x297mm(LxH,permodule)(P8)
330x165mm(LxH,permodule)(P10)
0.54kg/module (P6)
1kg/module (P8)
0.69kg/module (P10)
Front Service
and/orRear
Service
Silicone sealed (Module IP67,
CabinetIP65) (P6, P8)
Silicone sealed (IP65) (P10)
