SALES GUIDE|SAMSUNG ELECTRONICS CO. LTD.
22

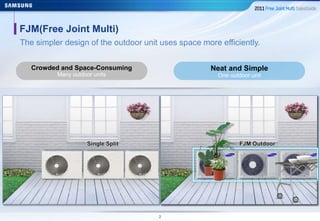

The simpler design of the outdoor unit uses space more efficiently.
Crowded and Space-Consuming
Many outdoor units
Neat and Simple
One outdoor unit
FJM(Free Joint Multi)
33

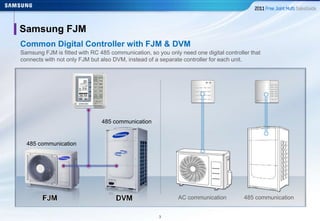

Samsung FJM is fitted with RC 485 communication, so you only need one digital controller that
connects with not only FJM but also DVM, instead of a separate controller for each unit.
Samsung FJM
Common Digital Controller with FJM & DVM
485 communication
485 communication
AC communication 485 communication
44
2011 Free JointMulti added Universal indoor units, which can be universally
connected to other Samsung outdoor units, to this year’s lineup.

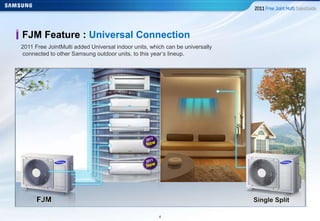

FJM Feature : Universal Connection
55
FJM Feature : One Button Solution for Auto Addressing
Improved Installation Procedure

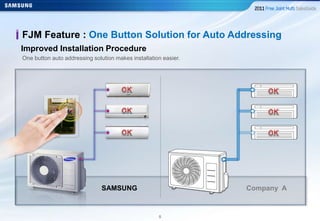

One button auto addressing solution makes installation easier.
SAMSUNG Company A
66
FJM Feature : TBR Compressor
TBR (Twin BLDC Compressor)
Highly stable moving parts reduced torque variation by 80% compared to the conventional
single BLDC compressor.
Single Twin
0
20
40
60
80
100
vibration
vibration
• Application to low capacity model
• Competitive material cost
• Vibration reduction : 80%
• Material cost increase
77

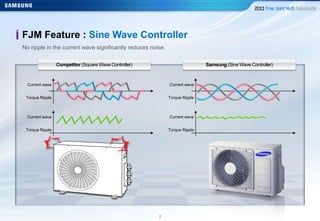

No ripple in the current wave significantly reduces noise.
FJM Feature : Sine Wave Controller
Competitor (Square Wave Controller) Samsung (Sine Wave Controller)
Current wave
Torque Ripple
Current wave
Torque Ripple
Current wave
Torque Ripple
Current wave
Torque Ripple
88
Available Outdoor Units

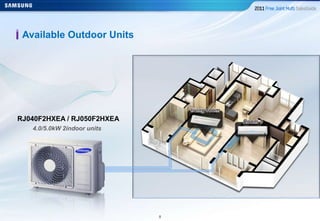

RJ040F2HXEA / RJ050F2HXEA
4.0/5.0kW 2indoor units
99

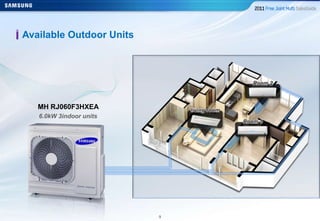

Available Outdoor Units
MH RJ060F3HXEA
6.0kW 3indoor units
1010
Available Outdoor Units
RJ070F4HXEA / RJ080F4HXEA
7.0/8.0kW 4indoor units
1111
Available Outdoor Units

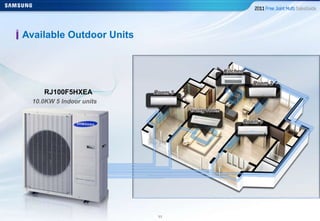

RJ100F5HXEA
10.0KW 5 Indoor units
1212

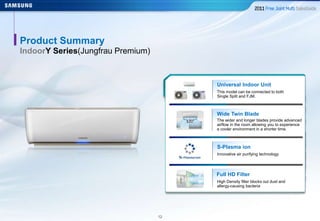

IndoorY Series(Jungfrau Premium)
Product Summary
Wide Twin Blade
The wider and longer blades provide advanced
airflow in the room allowing you to experience
a cooler environment in a shorter time.
S-Plasma ion
Innovative air purifying technology
Full HD Filter
High Density filter blocks out dust and
allergy-causing bacteria
Universal Indoor Unit
This model can be connected to both
Single Split and FJM.
1313

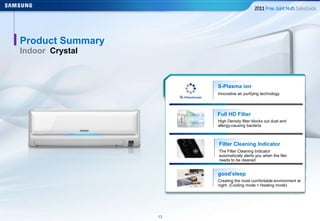

Indoor Crystal
Product Summary
Full HD Filter
High Density filter blocks out dust and
allergy-causing bacteria
S-Plasma ion
Innovative air purifying technology
Filter Cleaning Indicator
The Filter Cleaning Indicator
automatically alerts you when the filer
needs to be cleaned
good’sleep
Creating the most comfortable environment at
night. (Cooling mode + Heating mode)
1414

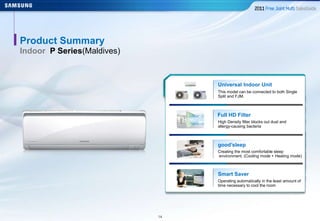

Indoor P Series(Maldives)
Product Summary
Full HD Filter
High Density filter blocks out dust and
allergy-causing bacteria
Universal Indoor Unit
This model can be connected to both Single
Split and FJM.
good’sleep
Creating the most comfortable sleep
environment. (Cooling mode + Heating mode)
Smart Saver
Operating automatically in the least amount of
time necessary to cool the room
1515

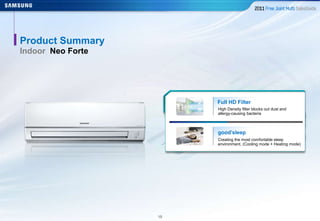

Product Summary
Indoor Neo Forte
good’sleep
Creating the most comfortable sleep
environment. (Cooling mode + Heating mode)
Full HD Filter
High Density filter blocks out dust and
allergy-causing bacteria
1616

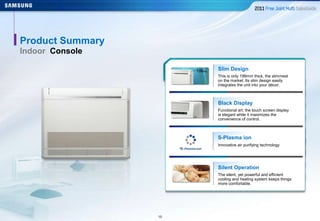

Product Summary
Indoor Console
Slim Design
This is only 199mm thick, the slimmest
on the market. Its slim design easily
integrates the unit into your décor.
Black Display
Functional art, the touch screen display
is elegant while it maximizes the
convenience of control.
Silent Operation
The silent, yet powerful and efficient
cooling and heating system keeps things
more comfortable.
S-Plasma ion
Innovative air purifying technology
1717

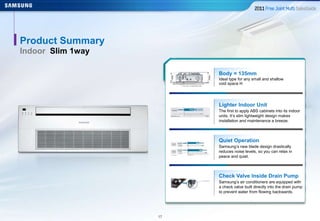

Product Summary
Indoor Slim 1way
Body = 135mm
Ideal type for any small and shallow
void space H
Lighter Indoor Unit
The first to apply ABS cabinets into its indoor
units. It’s slim lightweight design makes
installation and maintenance a breeze.
Quiet Operation
Samsung’s new blade design drastically
reduces noise levels, so you can relax in
peace and quiet.
Check Valve Inside Drain Pump
Samsung’s air conditioners are equipped with
a check valve built directly into the drain pump
to prevent water from flowing backwards.
1818
Product Summary
Indoor Mini 4way

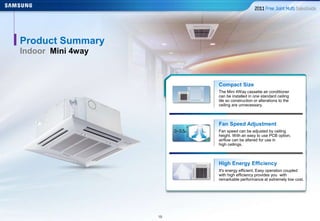

Compact Size
The Mini 4Way cassette air conditioner
can be installed in one standard ceiling
tile so construction or alterations to the
ceiling are unnecessary.
Fan Speed Adjustment
Fan speed can be adjusted by ceiling
height. With an easy to use PCB option,
airflow can be altered for use in
high ceilings.
High Energy Efficiency
It's energy efficient. Easy operation coupled
with high efficiency provides you with
remarkable performance at extremely low cost.
1919
Indoor Duct
Product Summary

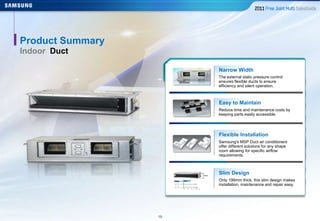

Narrow Width
The external static pressure control
ensures flexible ducts to ensure
efficiency and silent operation.
Easy to Maintain
Reduce time and maintenance costs by
keeping parts easily accessible.
Flexible Installation
Samsung's MSP Duct air conditioners
offer different solutions for any shape
room allowing for specific airflow
requirements.
Slim Design
Only 199mm thick, this slim design makes
installation, maintenance and repair easy.
2020

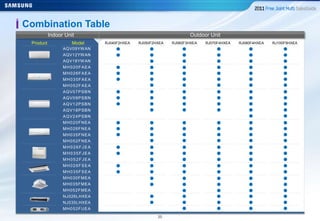

Combination Table
AQV09YWAN
AQV12YWAN
AQV18YWAN
MH020FAEA
MH026FAEA
MH035FAEA
MH052FAEA
AQV07PSBN
AQV09PSBN
AQV12PSBN
AQV18PSBN
AQV24PSBN
MH020FNEA
MH026FNEA
MH035FNEA
MH052FNEA
MH026FJEA
MH035FJEA
MH052FJEA
MH026FSEA
MH035FSEA
MH030FMEA
MH035FMEA
MH052FMEA
NJ026LHXEA
NJ035LHXEA
MH052FUEA
Model
Indoor Unit Outdoor Unit
Product RJ040F2HXEA RJ050F2HXEA RJ060F3HXEA RJ070F4HXEA RJ080F4HXEA RJ100F5HXEA
2121
