1. “The Quality Goes In Before The
Name Goes On”
SYNTEC AIRFLOW
SYSTEM
Khasra No:- 4099/312/02,Gali No:- 03, Surat Nagar, Phase :-I, Near,Daultabad Fly Over Gurgaon(HR)
Contact No.- +91- 8287198198, 9350032836, 9717398198,
E-mail:- sales.service@syntecair.com
Web site: - www.syntecairflowsystem.com

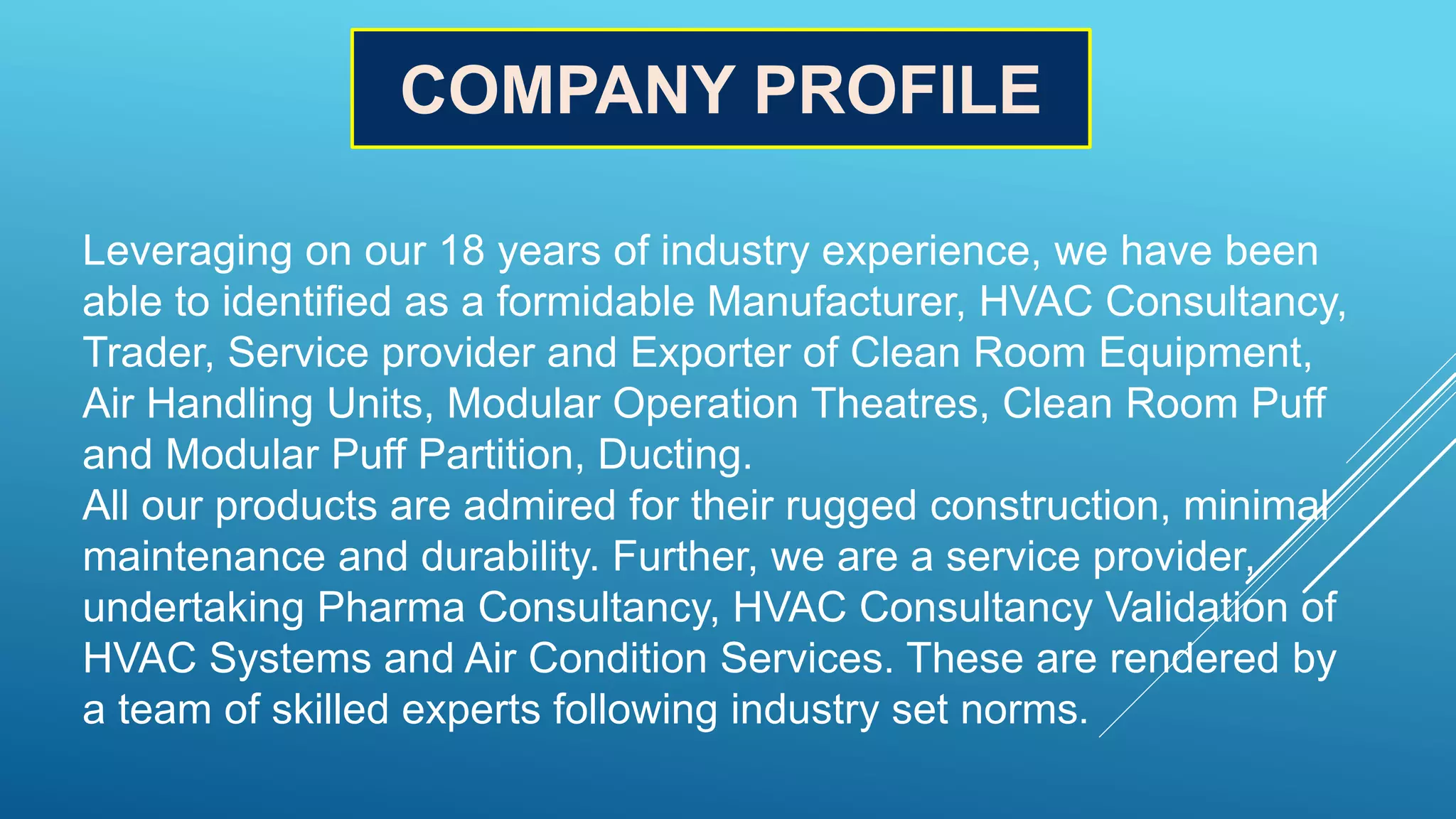

2. COMPANY PROFILE
Leveraging on our 18 years of industry experience, we have been
able to identified as a formidable Manufacturer, HVAC Consultancy,
Trader, Service provider and Exporter of Clean Room Equipment,
Air Handling Units, Modular Operation Theatres, Clean Room Puff
and Modular Puff Partition, Ducting.
All our products are admired for their rugged construction, minimal
maintenance and durability. Further, we are a service provider,
undertaking Pharma Consultancy, HVAC Consultancy Validation of
HVAC Systems and Air Condition Services. These are rendered by
a team of skilled experts following industry set norms.

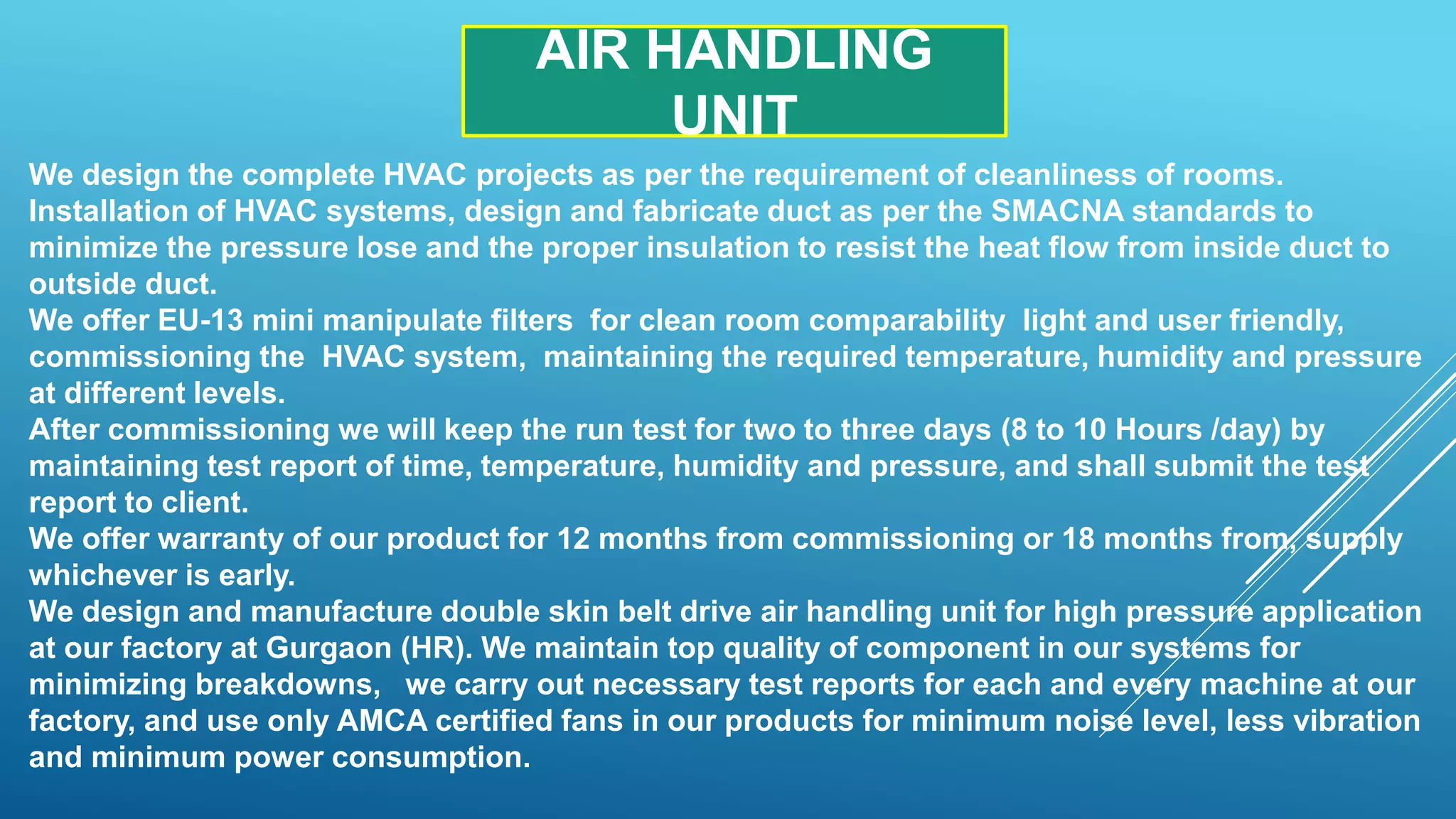

8. We design the complete HVAC projects as per the requirement of cleanliness of rooms.
Installation of HVAC systems, design and fabricate duct as per the SMACNA standards to
minimize the pressure lose and the proper insulation to resist the heat flow from inside duct to
outside duct.
We offer EU-13 mini manipulate filters for clean room comparability light and user friendly,
commissioning the HVAC system, maintaining the required temperature, humidity and pressure
at different levels.
After commissioning we will keep the run test for two to three days (8 to 10 Hours /day) by
maintaining test report of time, temperature, humidity and pressure, and shall submit the test
report to client.
We offer warranty of our product for 12 months from commissioning or 18 months from, supply
whichever is early.

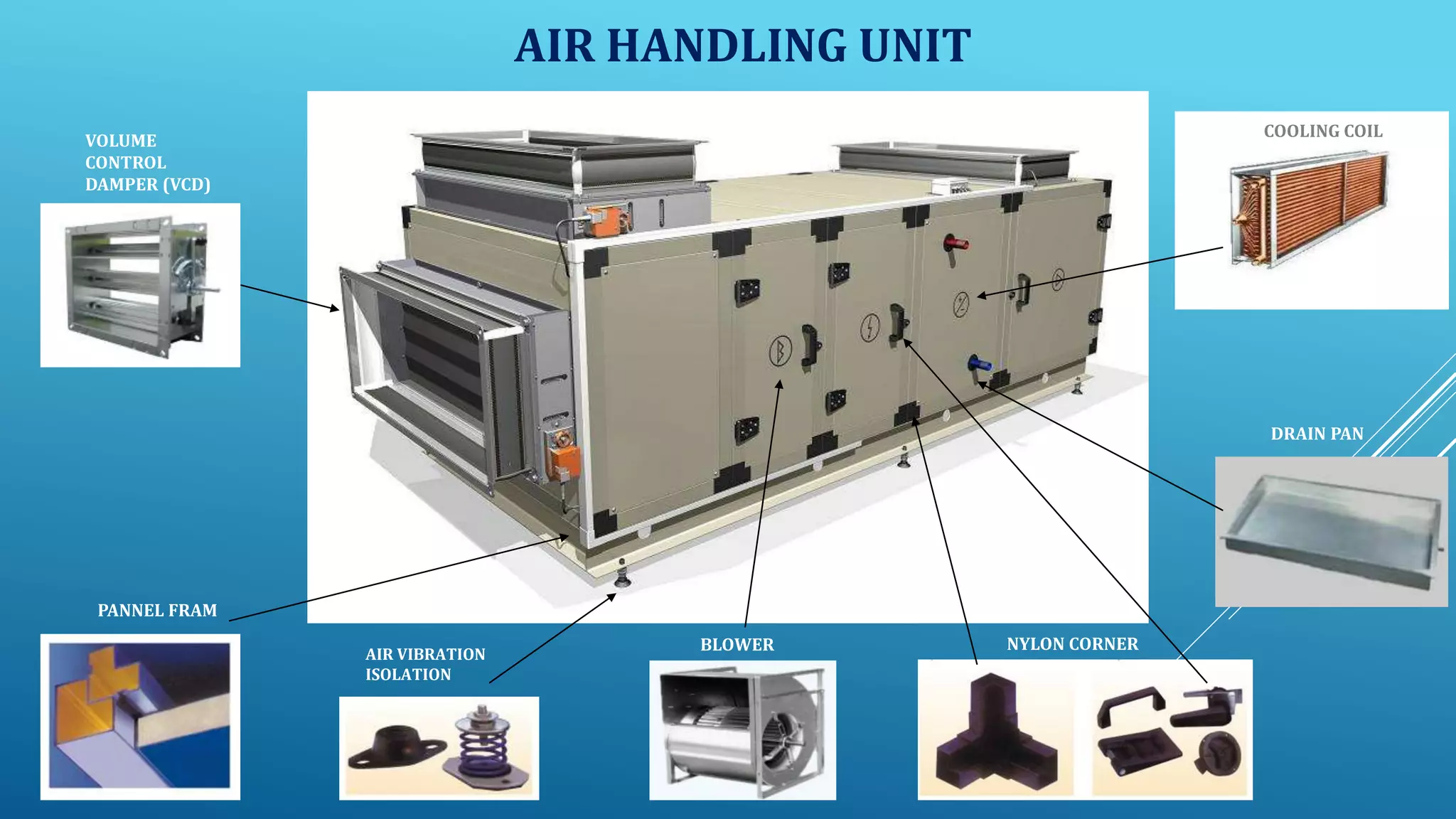

We design and manufacture double skin belt drive air handling unit for high pressure application
at our factory at Gurgaon (HR). We maintain top quality of component in our systems for
minimizing breakdowns, we carry out necessary test reports for each and every machine at our
factory, and use only AMCA certified fans in our products for minimum noise level, less vibration
and minimum power consumption.
AIR HANDLING
UNIT

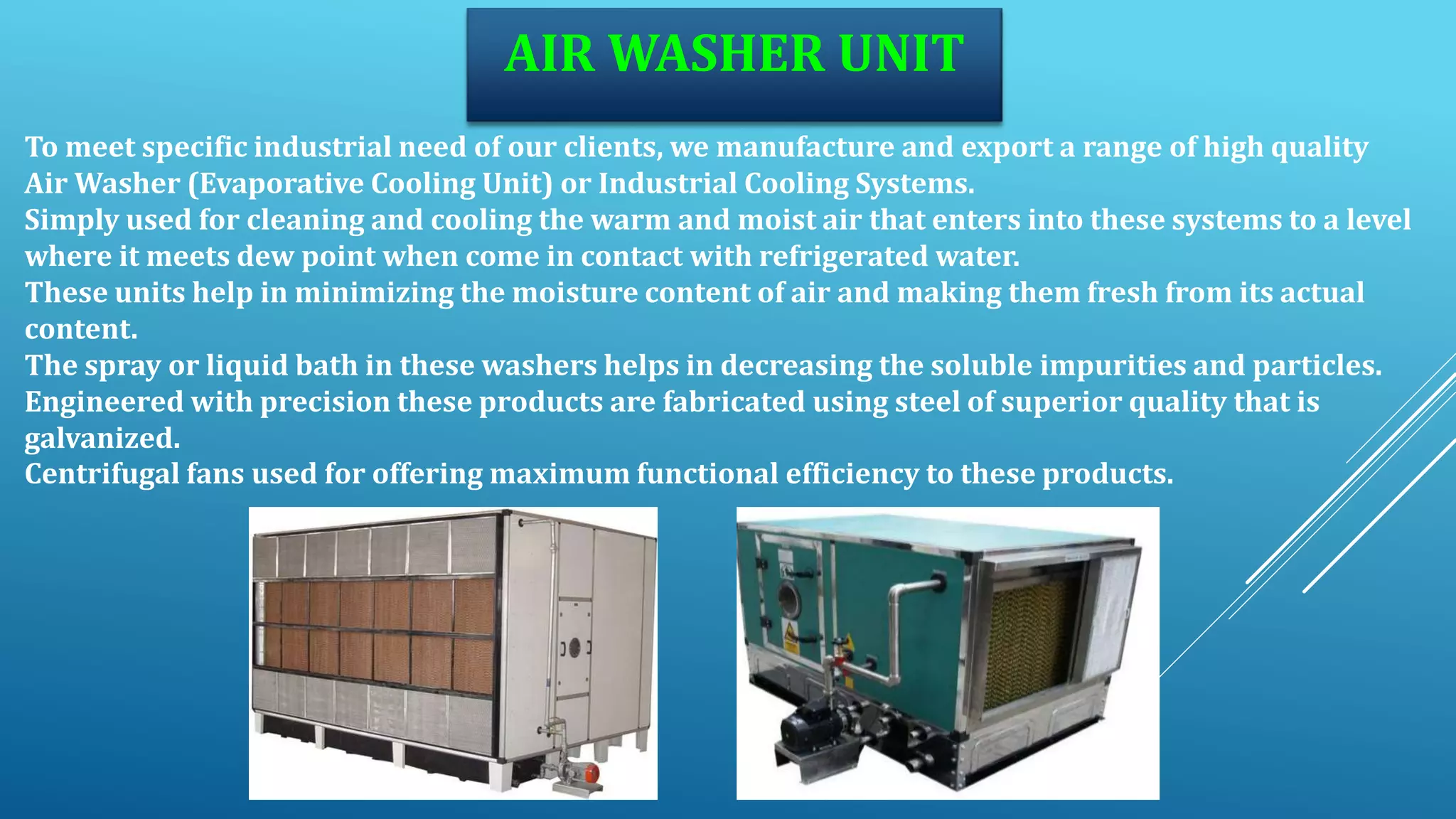

10. AIR WASHER UNIT
To meet specific industrial need of our clients, we manufacture and export a range of high quality
Air Washer (Evaporative Cooling Unit) or Industrial Cooling Systems.
Simply used for cleaning and cooling the warm and moist air that enters into these systems to a level
where it meets dew point when come in contact with refrigerated water.
These units help in minimizing the moisture content of air and making them fresh from its actual
content.
The spray or liquid bath in these washers helps in decreasing the soluble impurities and particles.
Engineered with precision these products are fabricated using steel of superior quality that is
galvanized.
Centrifugal fans used for offering maximum functional efficiency to these products.

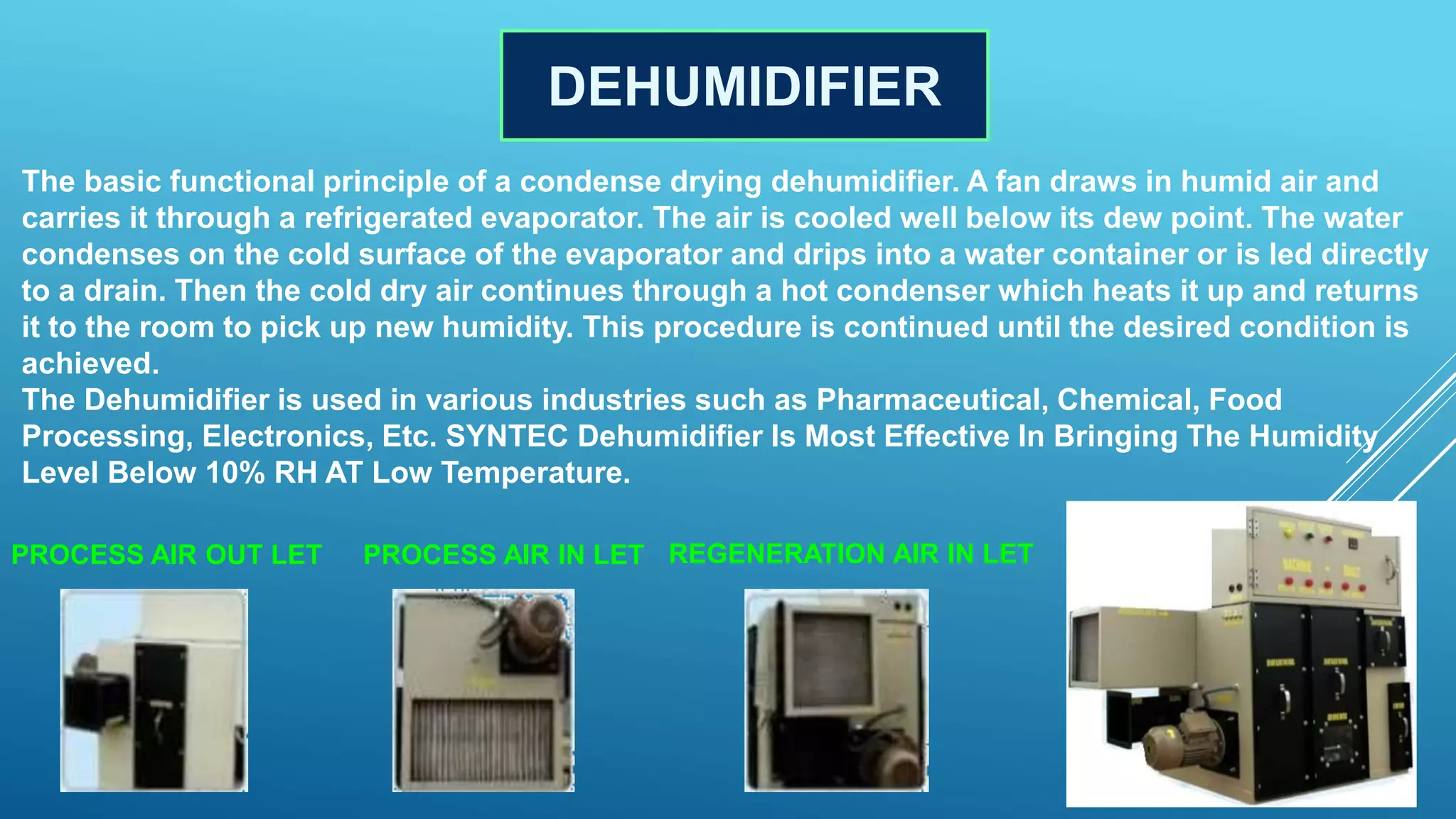

11. DEHUMIDIFIER
The basic functional principle of a condense drying dehumidifier. A fan draws in humid air and
carries it through a refrigerated evaporator. The air is cooled well below its dew point. The water
condenses on the cold surface of the evaporator and drips into a water container or is led directly
to a drain. Then the cold dry air continues through a hot condenser which heats it up and returns
it to the room to pick up new humidity. This procedure is continued until the desired condition is
achieved.
The Dehumidifier is used in various industries such as Pharmaceutical, Chemical, Food
Processing, Electronics, Etc. SYNTEC Dehumidifier Is Most Effective In Bringing The Humidity
Level Below 10% RH AT Low Temperature.
PROCESS AIR IN LET REGENERATION AIR IN LETPROCESS AIR OUT LET

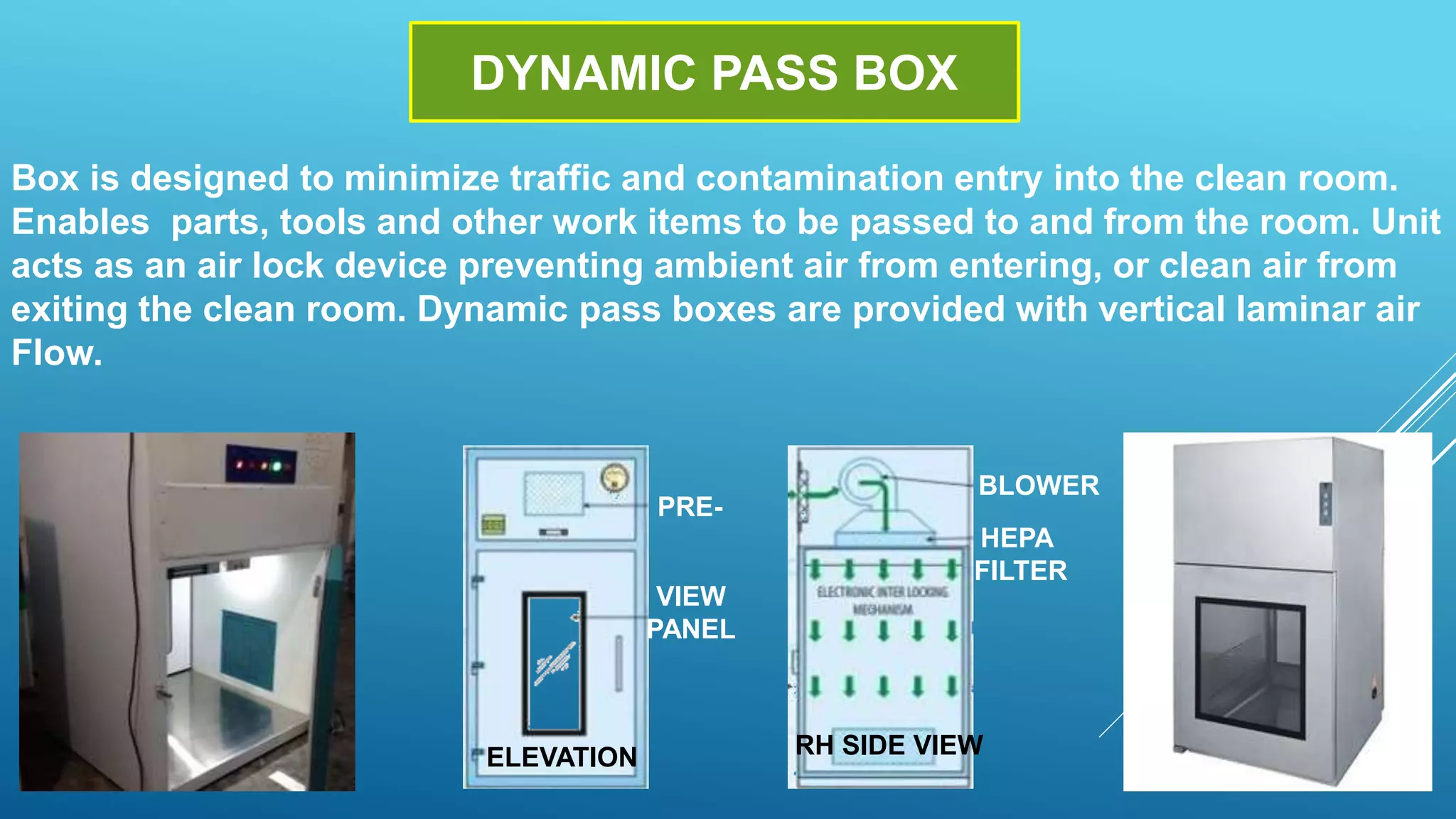

12. DYNAMIC PASS BOX
Box is designed to minimize traffic and contamination entry into the clean room.
Enables parts, tools and other work items to be passed to and from the room. Unit
acts as an air lock device preventing ambient air from entering, or clean air from
exiting the clean room. Dynamic pass boxes are provided with vertical laminar air
Flow.
PRE-
VIEW
PANEL
ELEVATION
HEPA
FILTER
BLOWER
RH SIDE VIEW

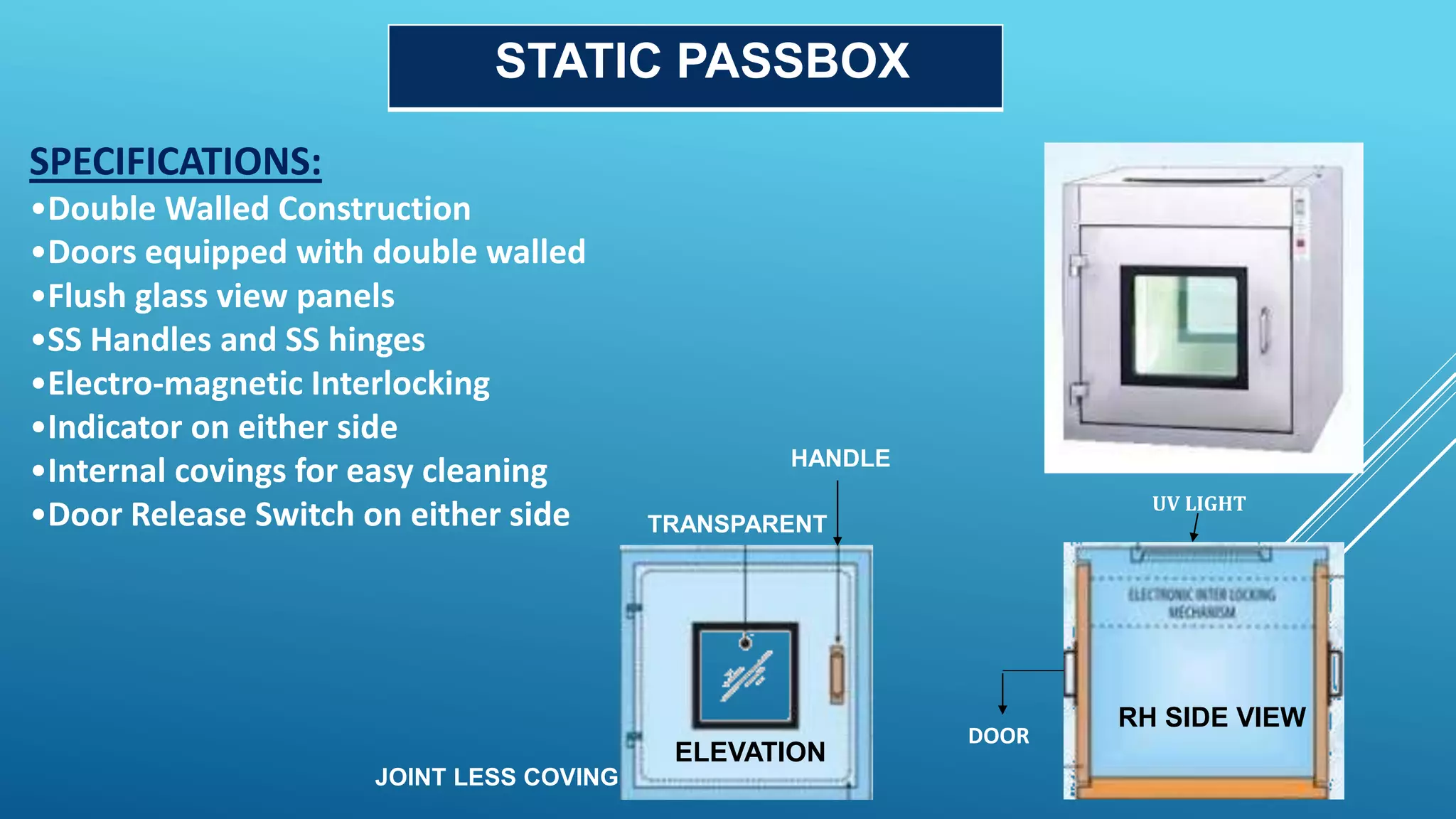

13. SPECIFICATIONS:
•Double Walled Construction
•Doors equipped with double walled
•Flush glass view panels
•SS Handles and SS hinges
•Electro-magnetic Interlocking
•Indicator on either side
•Internal covings for easy cleaning
•Door Release Switch on either side
STATIC PASSBOX
RH SIDE VIEW
DOOR
UV LIGHT
JOINT LESS COVING
ELEVATION
HANDLE
TRANSPARENT

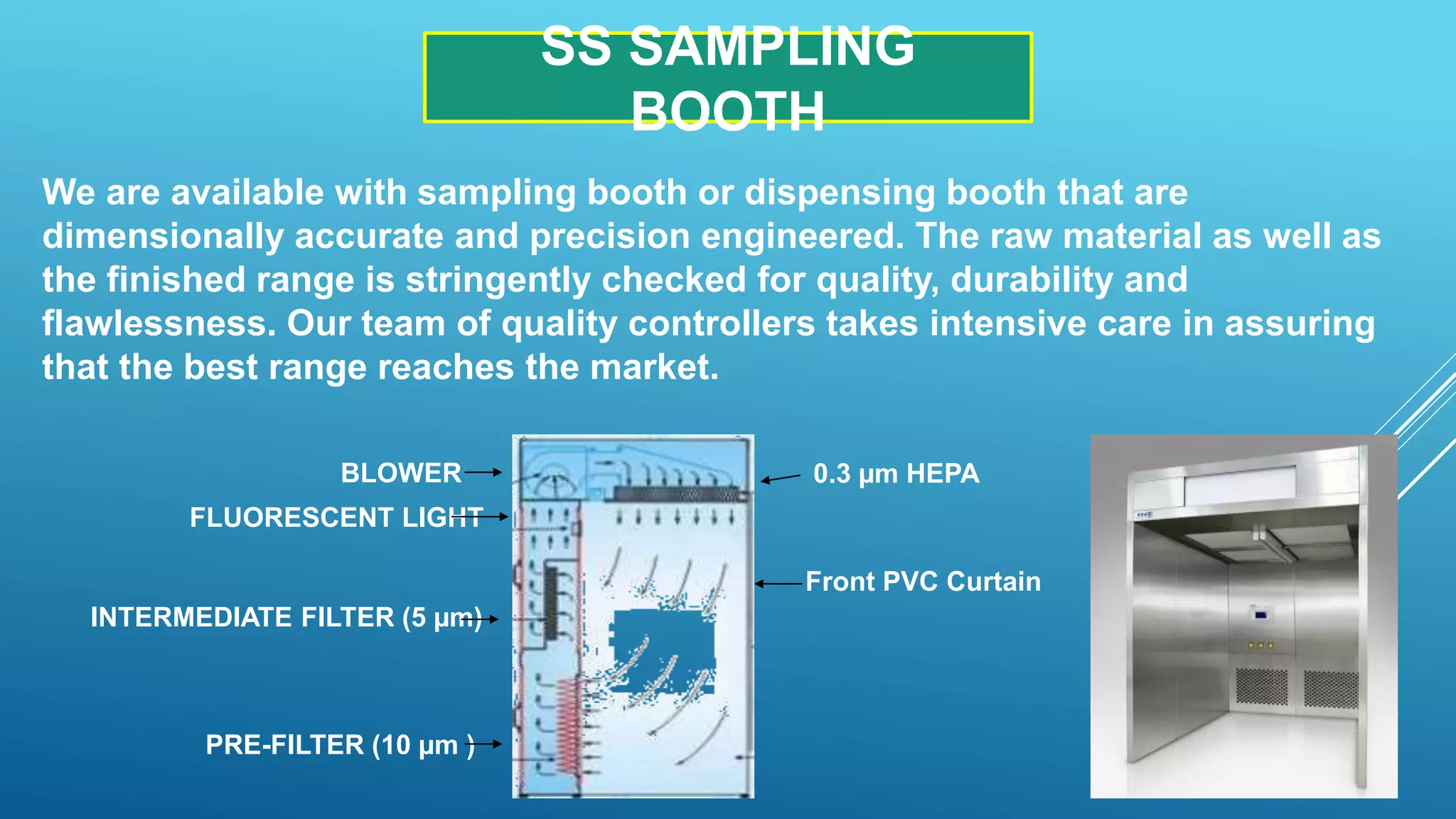

14. SS SAMPLING
BOOTH
We are available with sampling booth or dispensing booth that are
dimensionally accurate and precision engineered. The raw material as well as
the finished range is stringently checked for quality, durability and
flawlessness. Our team of quality controllers takes intensive care in assuring
that the best range reaches the market.
Front PVC Curtain
0.3 µm HEPABLOWER
FLUORESCENT LIGHT
INTERMEDIATE FILTER (5 µm)
PRE-FILTER (10 µm )

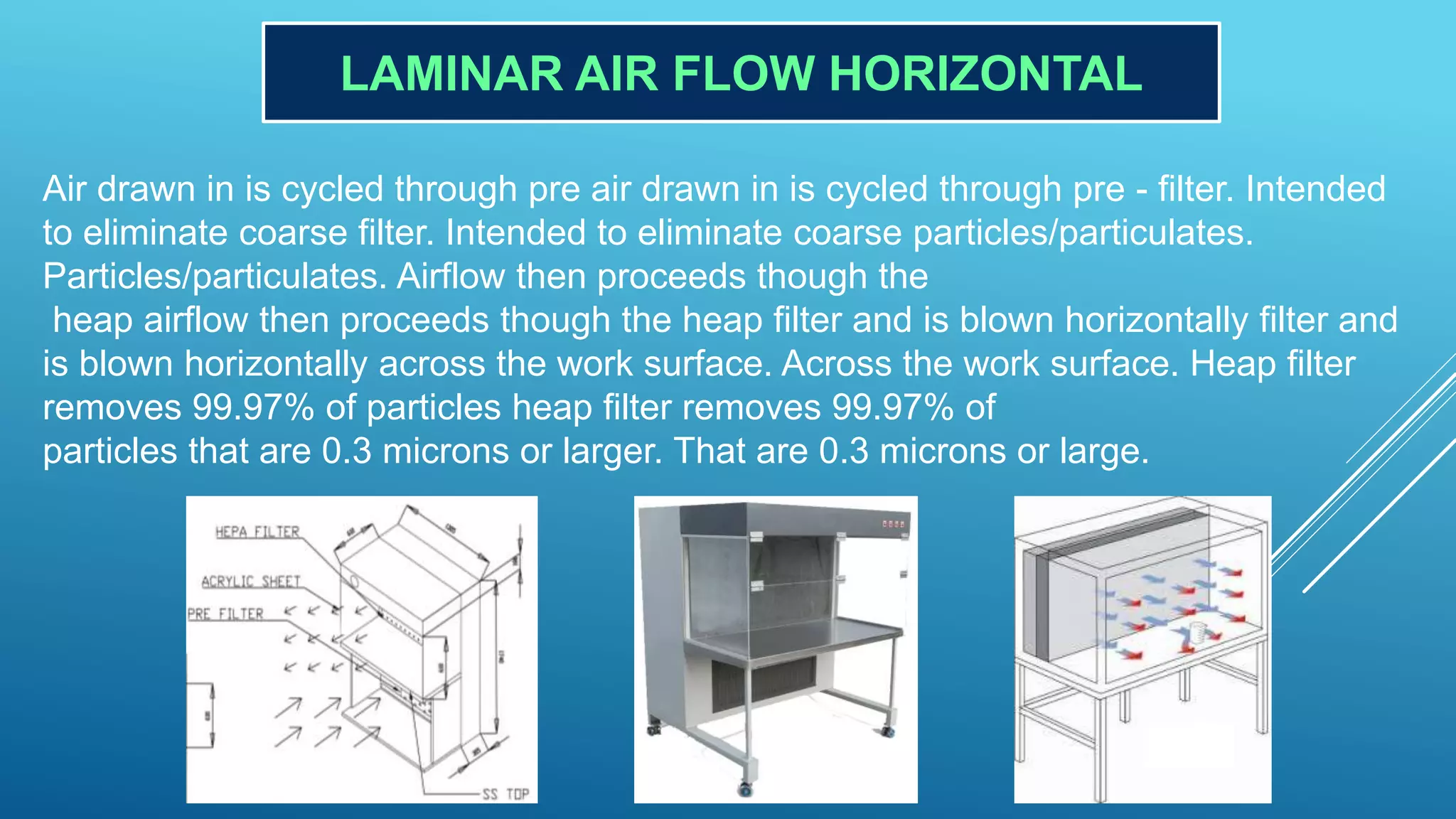

15. LAMINAR AIR FLOW HORIZONTAL
Air drawn in is cycled through pre air drawn in is cycled through pre - filter. Intended
to eliminate coarse filter. Intended to eliminate coarse particles/particulates.
Particles/particulates. Airflow then proceeds though the
heap airflow then proceeds though the heap filter and is blown horizontally filter and
is blown horizontally across the work surface. Across the work surface. Heap filter
removes 99.97% of particles heap filter removes 99.97% of
particles that are 0.3 microns or larger. That are 0.3 microns or large.

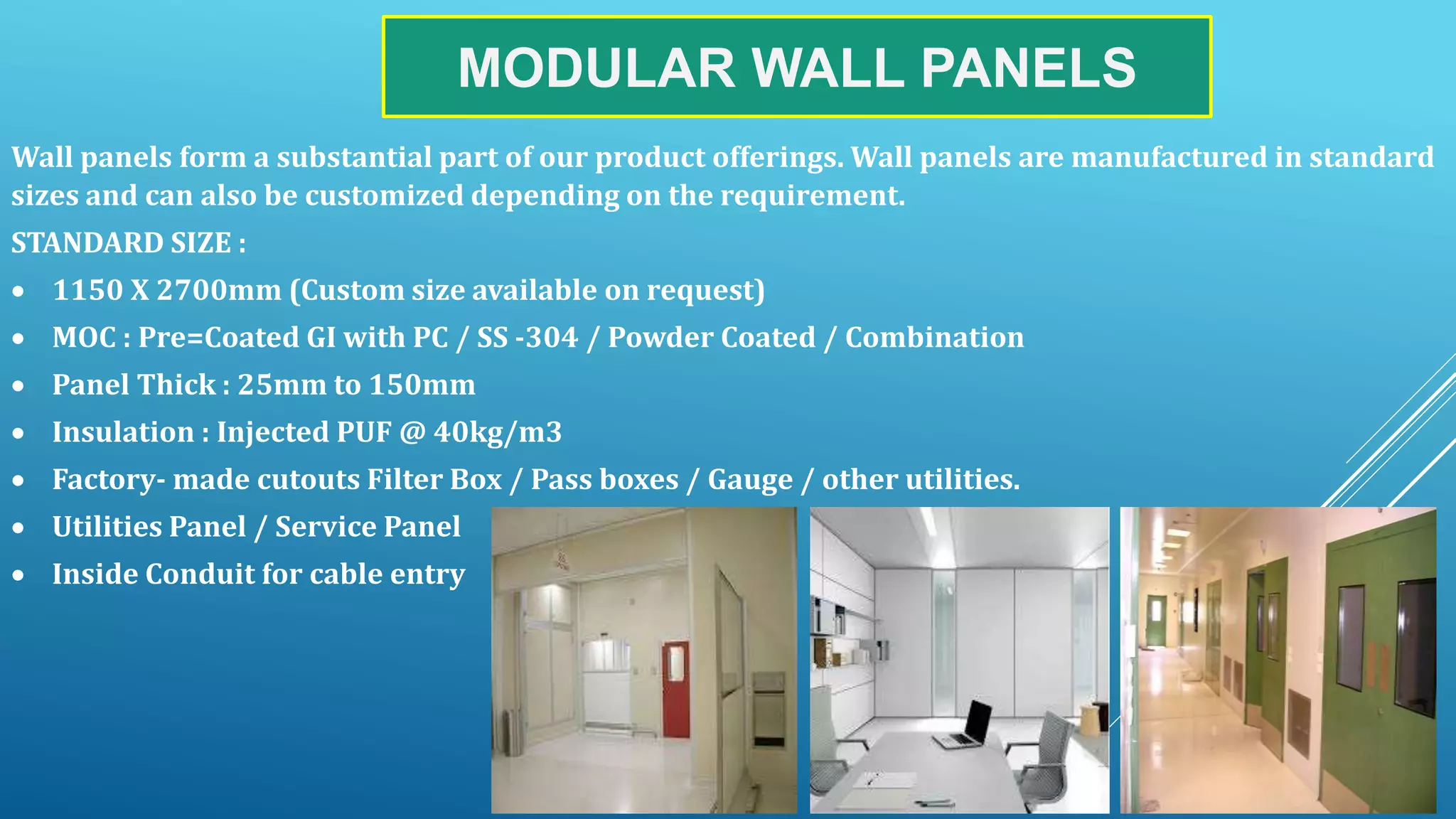

16. MODULAR WALL PANELS
Wall panels form a substantial part of our product offerings. Wall panels are manufactured in standard
sizes and can also be customized depending on the requirement.
STANDARD SIZE :
1150 X 2700mm (Custom size available on request)
MOC : Pre=Coated GI with PC / SS -304 / Powder Coated / Combination
Panel Thick : 25mm to 150mm
Insulation : Injected PUF @ 40kg/m3
Factory- made cutouts Filter Box / Pass boxes / Gauge / other utilities.
Utilities Panel / Service Panel
Inside Conduit for cable entry

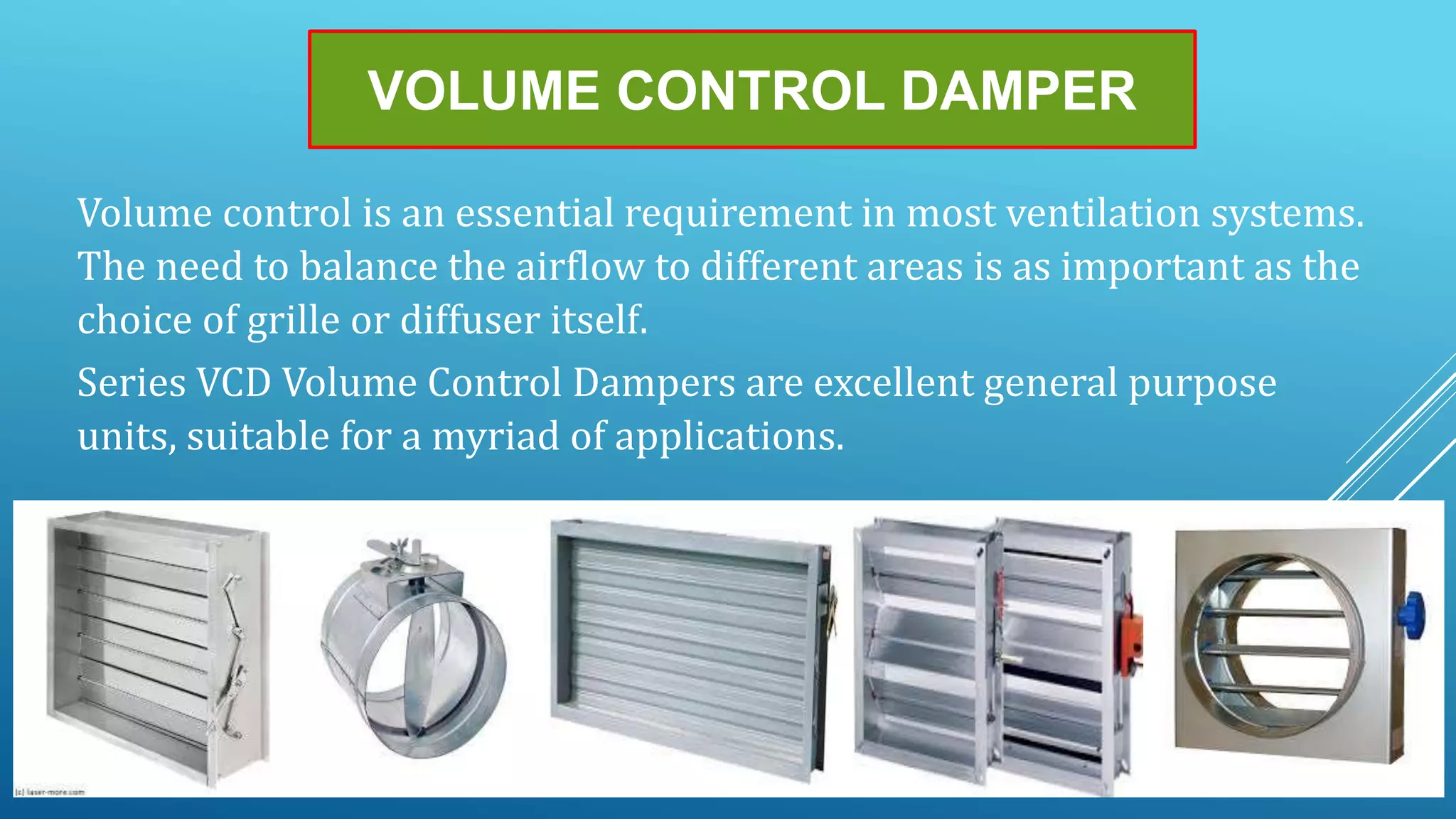

17. VOLUME CONTROL DAMPER
Volume control is an essential requirement in most ventilation systems.
The need to balance the airflow to different areas is as important as the
choice of grille or diffuser itself.
Series VCD Volume Control Dampers are excellent general purpose
units, suitable for a myriad of applications.

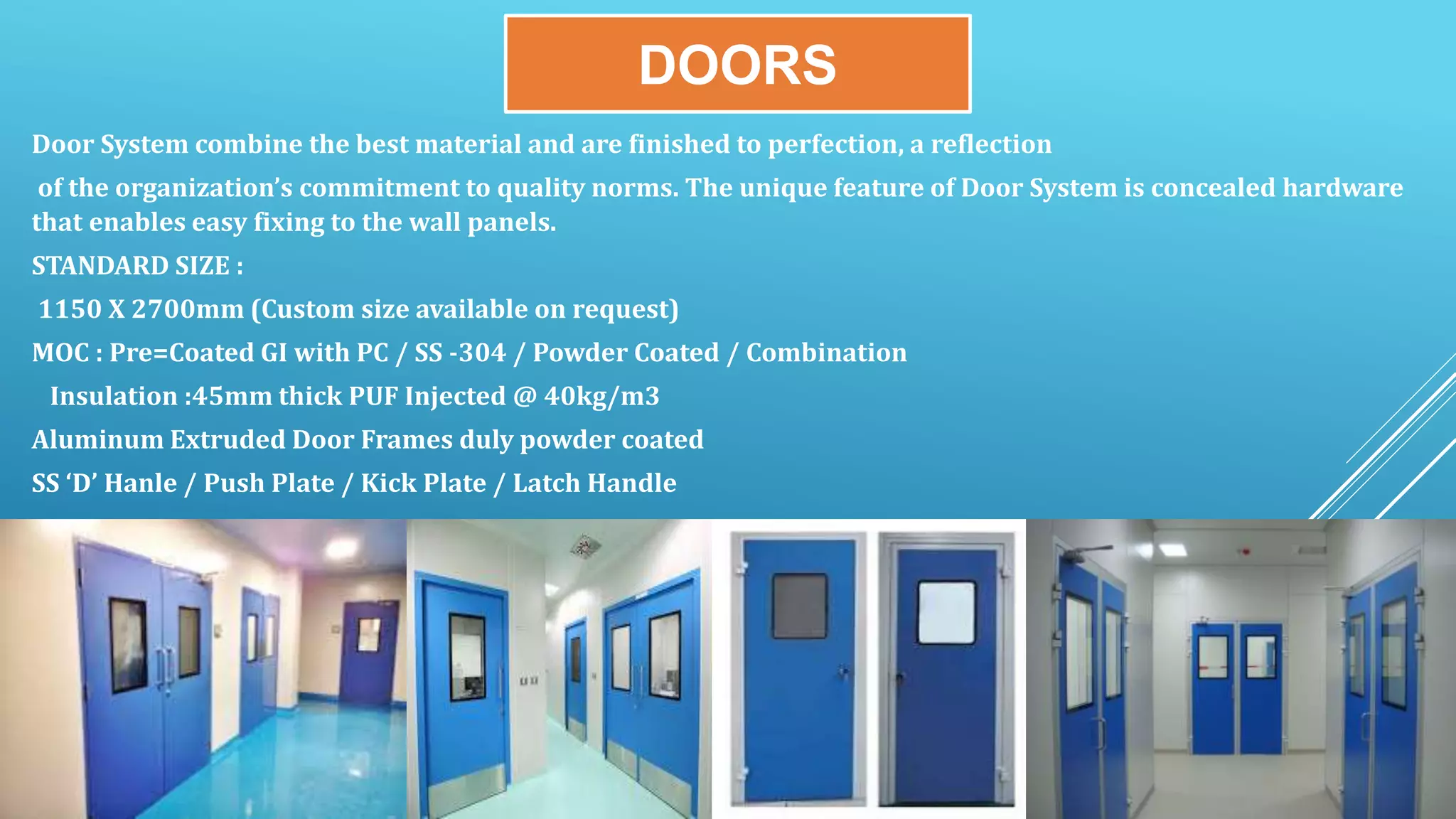

18. DOORS
Door System combine the best material and are finished to perfection, a reflection
of the organization’s commitment to quality norms. The unique feature of Door System is concealed hardware
that enables easy fixing to the wall panels.
STANDARD SIZE :
1150 X 2700mm (Custom size available on request)
MOC : Pre=Coated GI with PC / SS -304 / Powder Coated / Combination
Insulation :45mm thick PUF Injected @ 40kg/m3
Aluminum Extruded Door Frames duly powder coated
SS ‘D’ Hanle / Push Plate / Kick Plate / Latch Handle

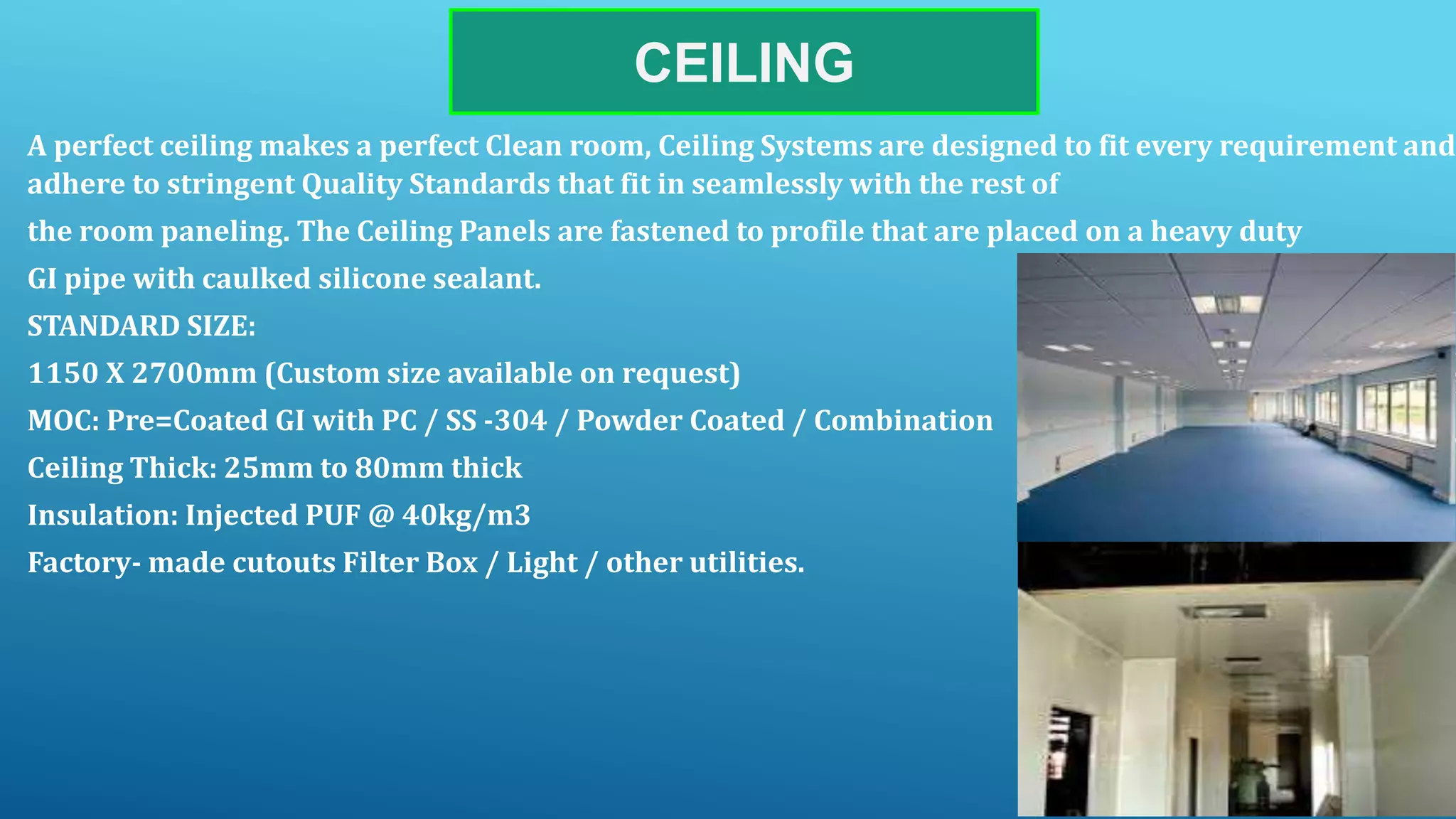

19. CEILING
A perfect ceiling makes a perfect Clean room, Ceiling Systems are designed to fit every requirement and
adhere to stringent Quality Standards that fit in seamlessly with the rest of
the room paneling. The Ceiling Panels are fastened to profile that are placed on a heavy duty
GI pipe with caulked silicone sealant.
STANDARD SIZE:
1150 X 2700mm (Custom size available on request)
MOC: Pre=Coated GI with PC / SS -304 / Powder Coated / Combination
Ceiling Thick: 25mm to 80mm thick
Insulation: Injected PUF @ 40kg/m3
Factory- made cutouts Filter Box / Light / other utilities.

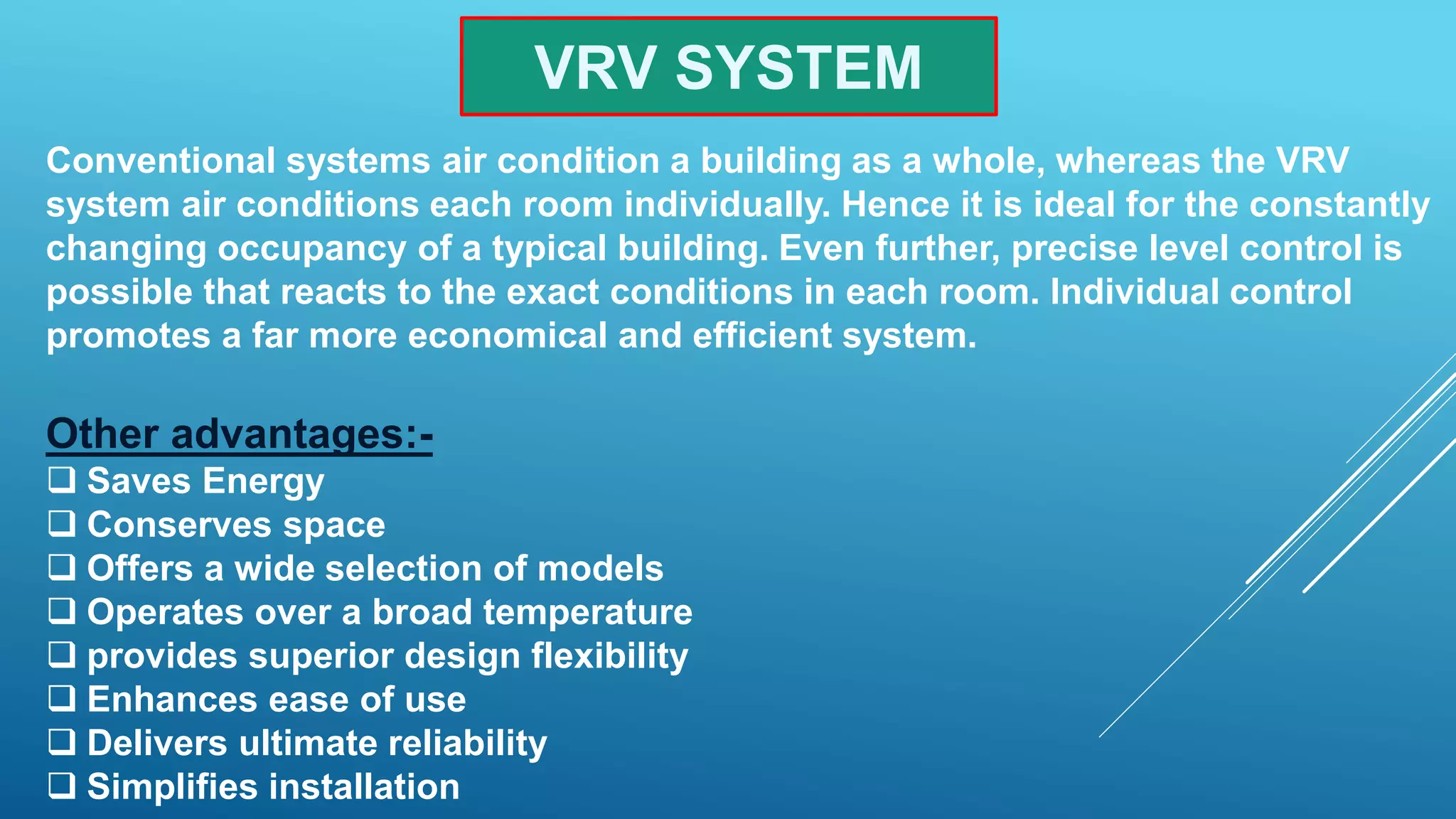

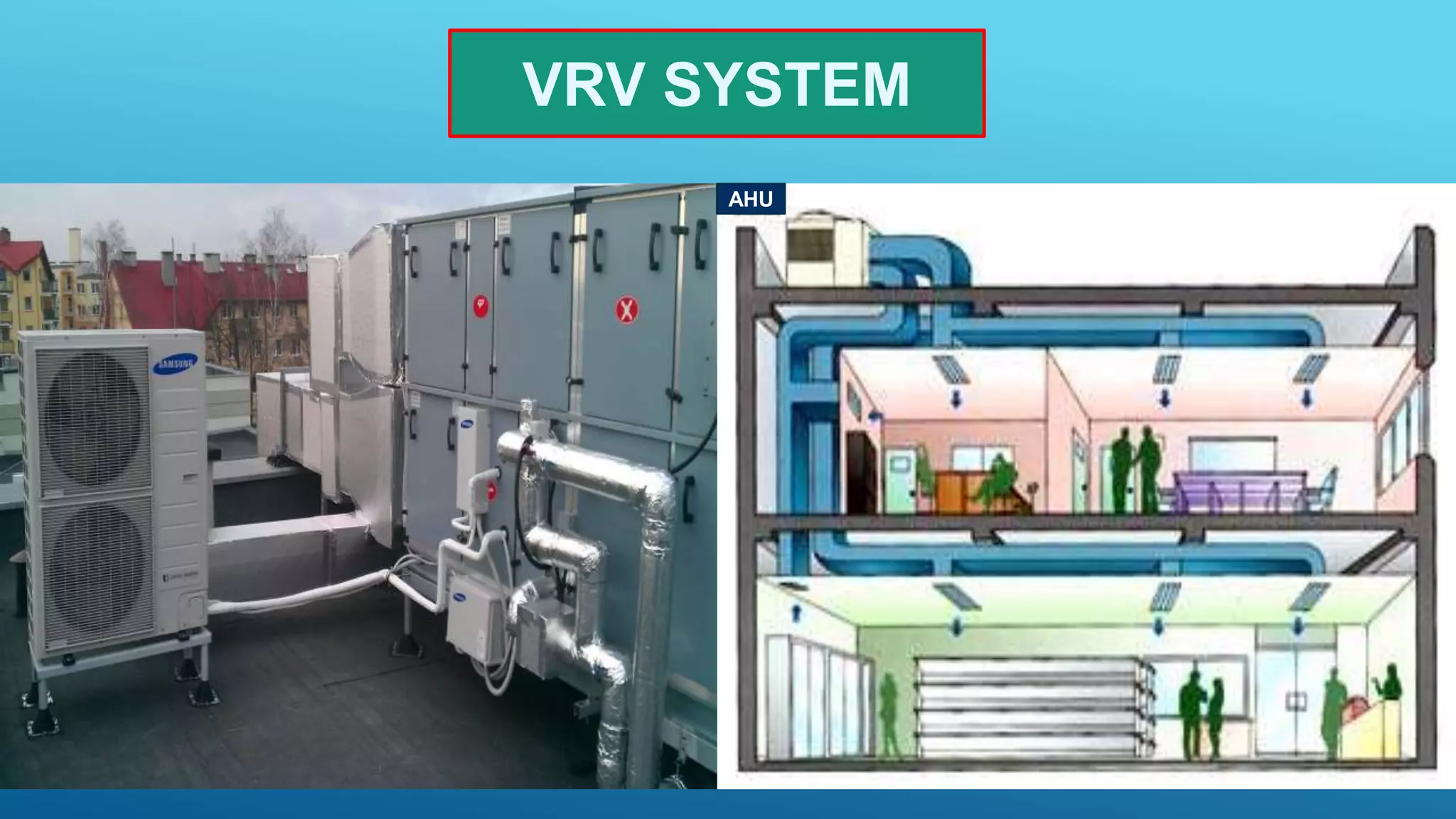

20. VRV SYSTEM
Conventional systems air condition a building as a whole, whereas the VRV
system air conditions each room individually. Hence it is ideal for the constantly
changing occupancy of a typical building. Even further, precise level control is
possible that reacts to the exact conditions in each room. Individual control
promotes a far more economical and efficient system.
Other advantages:-
Saves Energy
Conserves space
Offers a wide selection of models
Operates over a broad temperature
provides superior design flexibility
Enhances ease of use
Delivers ultimate reliability
Simplifies installation

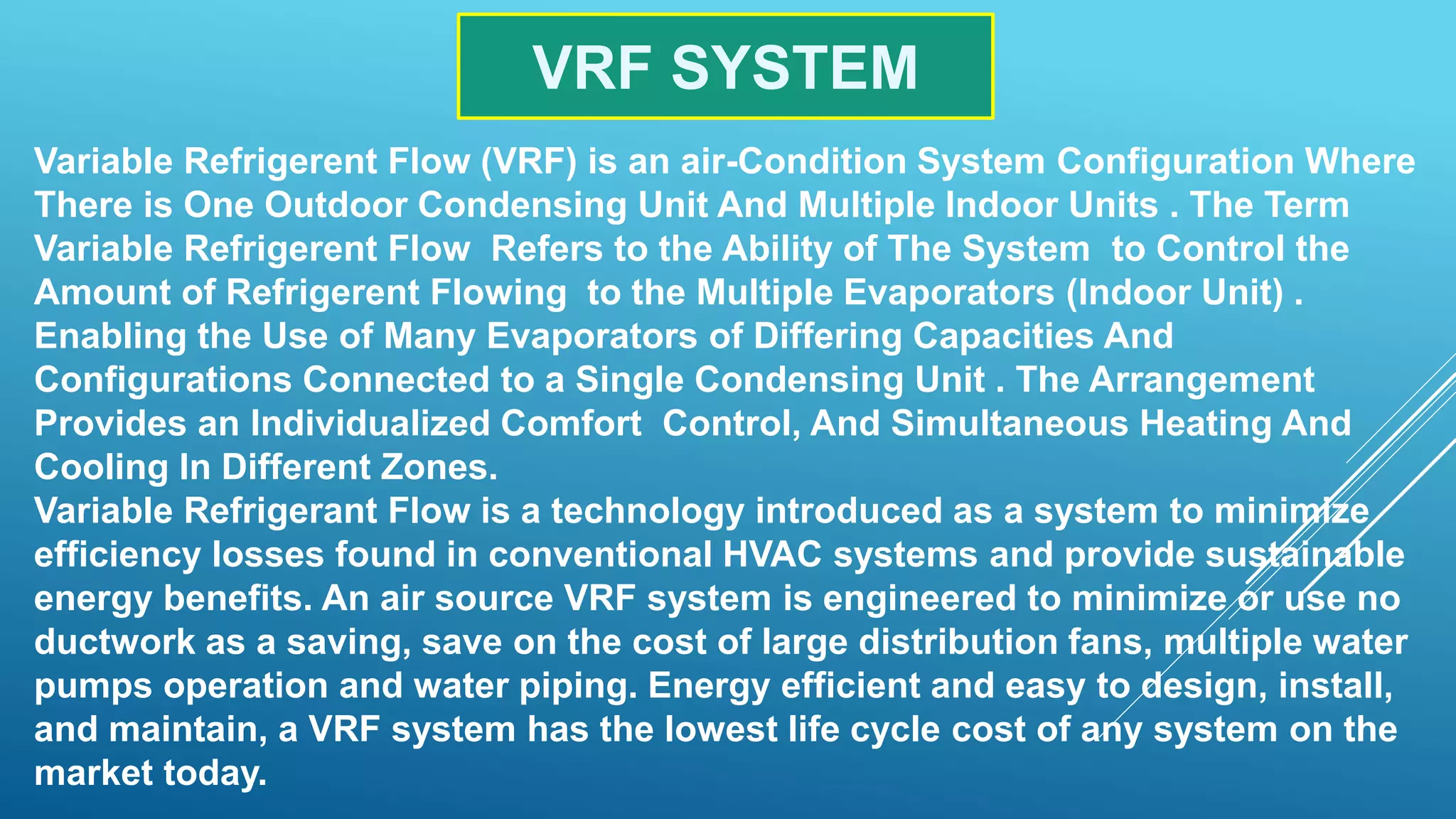

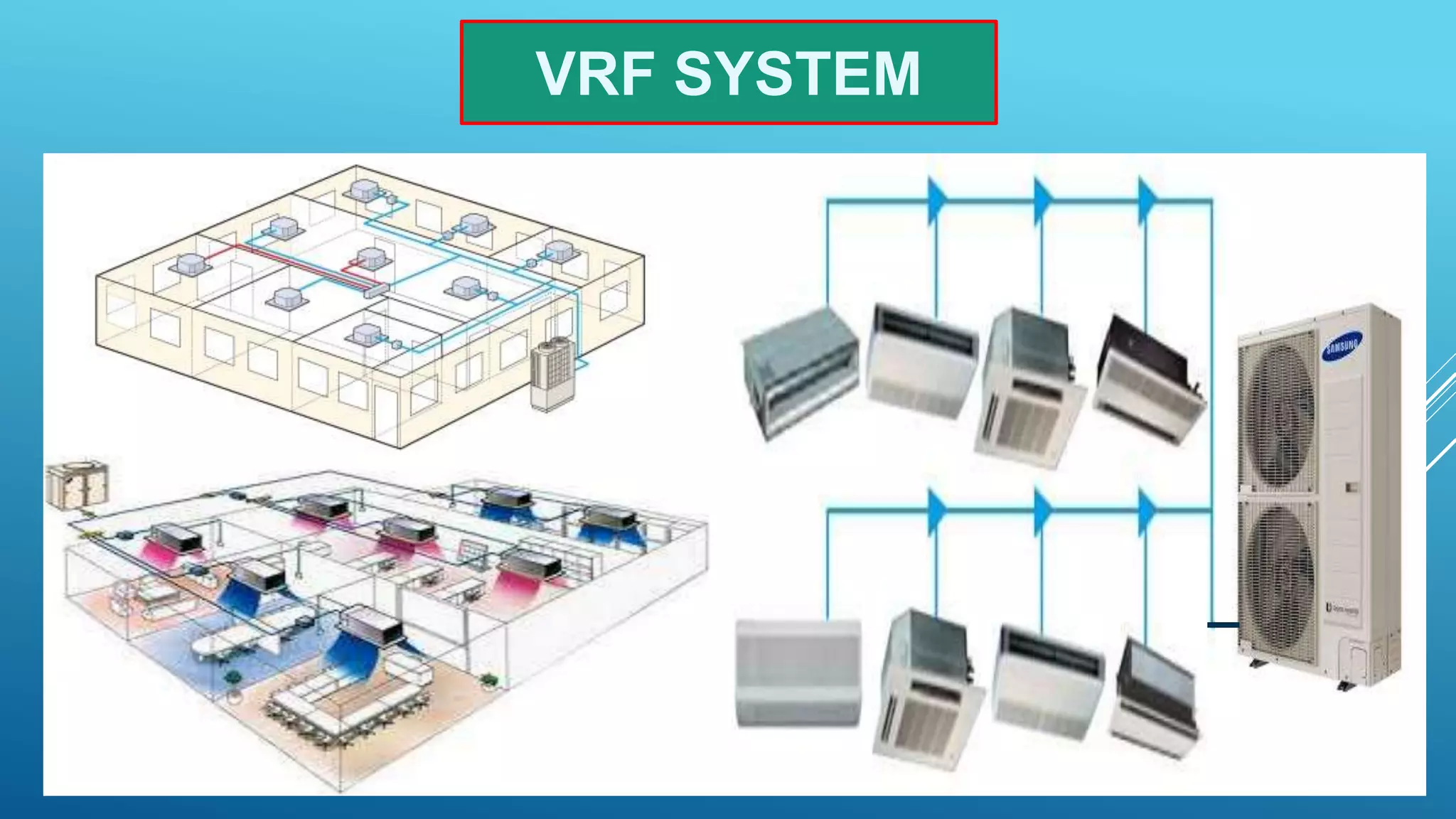

22. VRF SYSTEM
Variable Refrigerent Flow (VRF) is an air-Condition System Configuration Where
There is One Outdoor Condensing Unit And Multiple Indoor Units . The Term
Variable Refrigerent Flow Refers to the Ability of The System to Control the
Amount of Refrigerent Flowing to the Multiple Evaporators (Indoor Unit) .
Enabling the Use of Many Evaporators of Differing Capacities And
Configurations Connected to a Single Condensing Unit . The Arrangement
Provides an Individualized Comfort Control, And Simultaneous Heating And
Cooling In Different Zones.
Variable Refrigerant Flow is a technology introduced as a system to minimize
efficiency losses found in conventional HVAC systems and provide sustainable
energy benefits. An air source VRF system is engineered to minimize or use no
ductwork as a saving, save on the cost of large distribution fans, multiple water
pumps operation and water piping. Energy efficient and easy to design, install,
and maintain, a VRF system has the lowest life cycle cost of any system on the
market today.

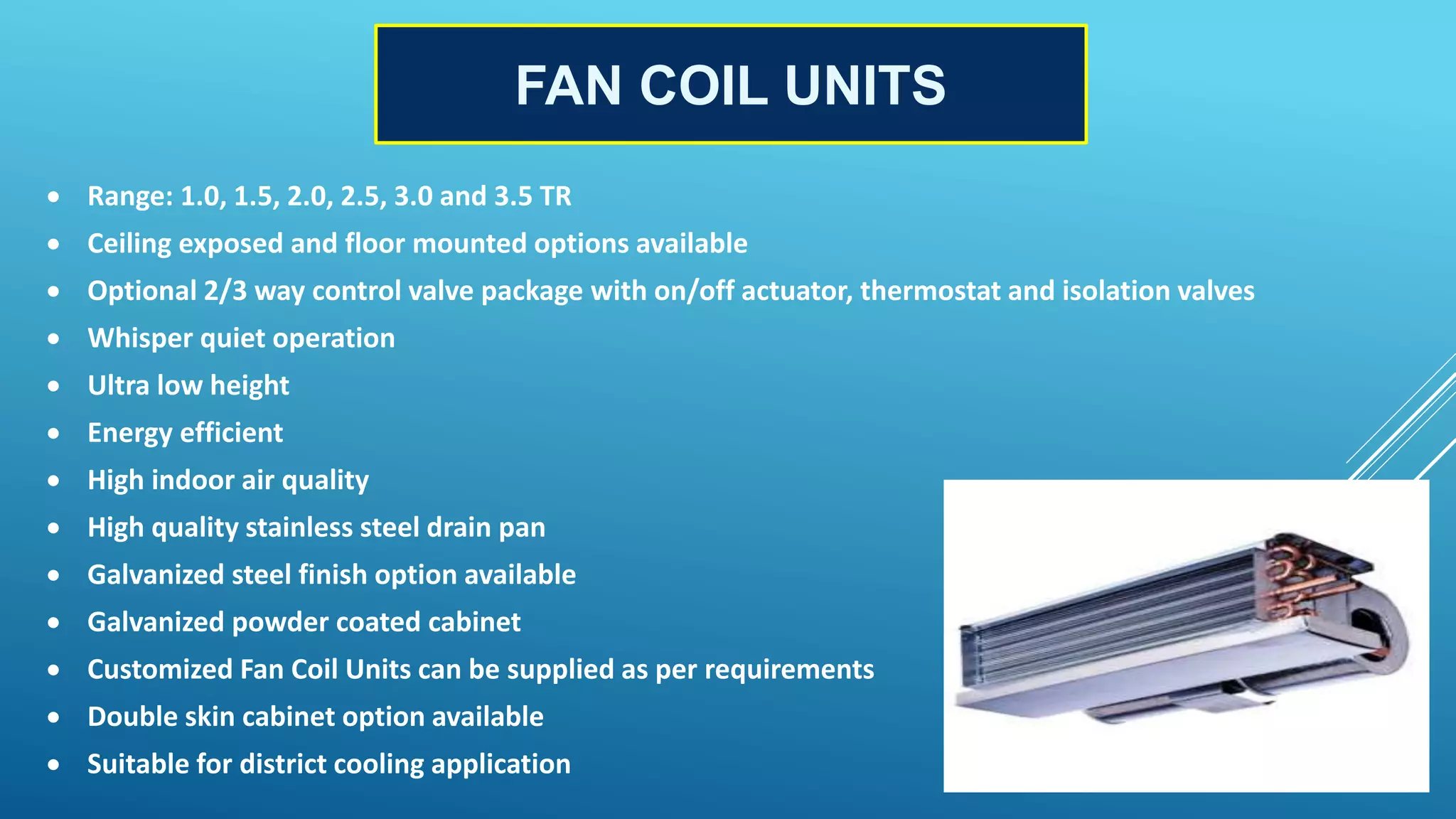

24. FAN COIL UNITS
Range: 1.0, 1.5, 2.0, 2.5, 3.0 and 3.5 TR
Ceiling exposed and floor mounted options available
Optional 2/3 way control valve package with on/off actuator, thermostat and isolation valves
Whisper quiet operation
Ultra low height
Energy efficient
High indoor air quality
High quality stainless steel drain pan
Galvanized steel finish option available
Galvanized powder coated cabinet
Customized Fan Coil Units can be supplied as per requirements
Double skin cabinet option available
Suitable for district cooling application

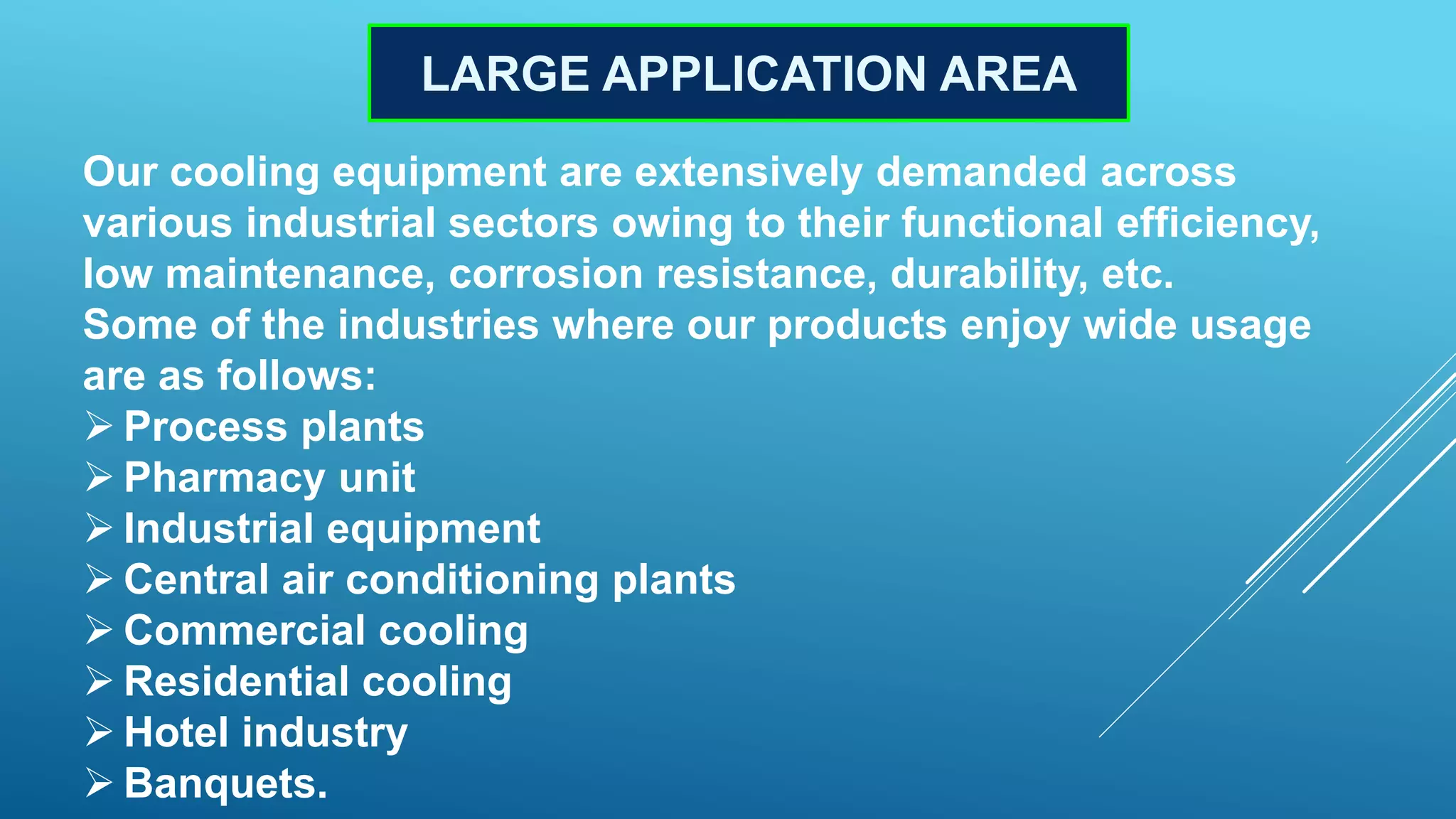

30. LARGE APPLICATION AREA
Our cooling equipment are extensively demanded across
various industrial sectors owing to their functional efficiency,
low maintenance, corrosion resistance, durability, etc.
Some of the industries where our products enjoy wide usage
are as follows:
Process plants
Pharmacy unit
Industrial equipment
Central air conditioning plants
Commercial cooling
Residential cooling
Hotel industry
Banquets.
