MapReduce and Hadoop
MapReduce and Hadoop provide a framework for processing vast amounts of data across clusters of computers. It allows distributed processing of large datasets in a parallel and fault-tolerant manner. The key components are HDFS for storage, and MapReduce for distributed processing. HDFS stores data reliably across commodity hardware, while MapReduce breaks jobs into map and reduce tasks that can run in parallel across a cluster.
More Related Content
Similar to MapReduce and Hadoop
MapReduce and Hadoop
- 1. Map Reduce and Hadoop -S A L IL NAVG IR E
- 2. Big Data Explosion •90% of today's data was created in the last 2 years • Moore's law: Data volume doubles every 18 months • YouTube: 13 million hours and 700 billion views in 2010 • Facebook: 20TB/day (compressed) • CERN/LHC: 40TB/day (15PB/year) • Many more examples
- 3.
- 4. Challenges! • How toassign units of work to the workers? • What if there are more units of work than workers? • What if the workers need to share intermediate incomplete data? • How do we aggregate such intermediate data? • How do we know when all workers have completed their assignments? • What if some workers failed?
- 5. History • 2000: ApacheLucene: batch index updates and sort/merge with on disk index • 2002: Apache Nutch: distributed, scalable open source web crawler • 2004: Google publishes GFS and MapReduce papers • 2006: Apache Hadoop: open source Java implementation of GFS and MapReduce to solve Nutch’ problem; later becomes standalone project
- 6. What is MapReduce? • A programming model to distribute a task on multiple nodes • Used to develop solutions that will process large amounts of data in a parallelized fashion in clusters of computing nodes • Original MapReduce paper by Google • Features of MapReduce: • Fault-tolerance • Status and monitoring tools • A clean abstraction for programmers
- 7. MapReduce Execution Overview User Program fork assign map InputData Split 0 read Split 1 Split 2 fork Master fork assign reduce Worker Worker Worker local write Worker Worker remote read, sort write Output File 0 Output File 1
- 8.
- 9.

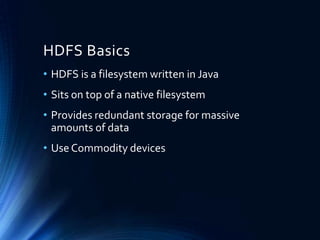

- 10. HDFS Basics • HDFSis a filesystem written in Java • Sits on top of a native filesystem • Provides redundant storage for massive amounts of data • Use Commodity devices

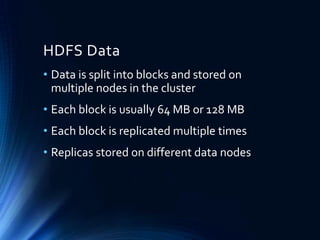

- 11. HDFS Data • Datais split into blocks and stored on multiple nodes in the cluster • Each block is usually 64 MB or 128 MB • Each block is replicated multiple times • Replicas stored on different data nodes
- 12. 2 Types ofNodes Slave Nodes Master Nodes
- 13. Master Node • NameNode •only 1 per cluster • metadata server and database • SecondaryNameNode helps with some housekeeping • JobTracker • only 1 per cluster • job scheduler

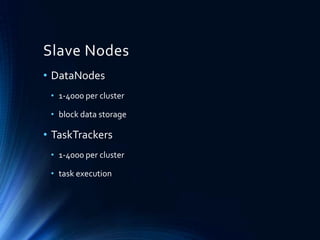

- 14. Slave Nodes • DataNodes •1-4000 per cluster • block data storage • TaskTrackers • 1-4000 per cluster • task execution
- 15. NameNode • A singleNameNode stores all metadata, replication of blocks and read/write access to files • Filenames, locations on DataNodes of each block, owner, group, etc. • All information maintained in RAM for fast lookup

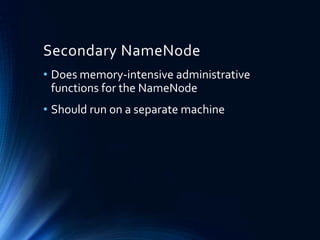

- 16. Secondary NameNode • Doesmemory-intensive administrative functions for the NameNode • Should run on a separate machine
- 17. Data Node • DataNodesstore file contents • Different blocks of the same file will be stored on different DataNodes • Same block is stored on three (or more) DataNodes for redundancy

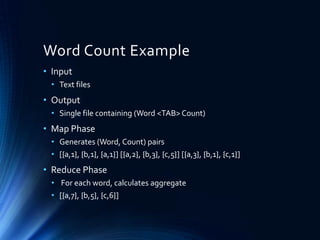

- 18. Word Count Example •Input • Text files • Output • Single file containing (Word <TAB> Count) • Map Phase • Generates (Word, Count) pairs • [{a,1}, {b,1}, {a,1}] [{a,2}, {b,3}, {c,5}] [{a,3}, {b,1}, {c,1}] • Reduce Phase • For each word, calculates aggregate • [{a,7}, {b,5}, {c,6}]
- 19. Typical Cluster • 3-4000commodity servers • Each server • 2x quad-core • 16-24 GB ram • 4-12 TB disk space • 20-30 servers per rack

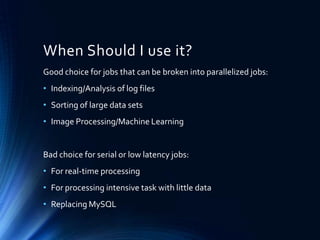

- 20. When Should Iuse it? Good choice for jobs that can be broken into parallelized jobs: • Indexing/Analysis of log files • Sorting of large data sets • Image Processing/Machine Learning Bad choice for serial or low latency jobs: • For real-time processing • For processing intensive task with little data • Replacing MySQL

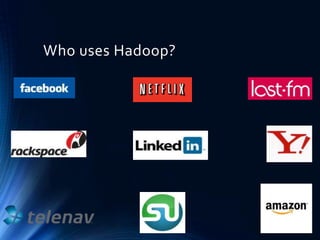

- 21.
