- This document describes an automatic SMT machine for high precision surface mount of LED and electronic components. - It can mount components from 0603 to 7474 size and has a maximum speed of 38,000 components per hour. - The machine uses a marble platform, precision ball screws and guide rails to achieve stable, smooth operation and high mount precision.

1. www.smthelp.com
-- Low cost
-- High value
-- Easy to operate
-- High precision,more stable
-- Welcome to send us samples free
of charge proofing,
welcome to visit the factory.

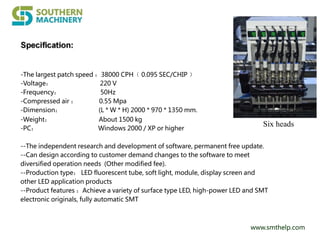

2. -The largest patch speed ：38000 CPH（ 0.095 SEC/CHIP ）
-Voltage： 220 V
-Frequency： 50Hz
-Compressed air ： 0.55 Mpa
-Dimension： (L * W * H) 2000 * 970 * 1350 mm.
-Weight： About 1500 kg
-PC： Windows 2000 / XP or higher
--The independent research and development of software, permanent free update.
--Can design according to customer demand changes to the software to meet
diversified operation needs (Other modified fee).
--Production type： LED fluorescent tube, soft light, module, display screen and
other LED application products
--Product features ：Achieve a variety of surface type LED, high-power LED and SMT
electronic originals, fully automatic SMT
www.smthelp.com
Six heads

3. www.smthelp.com

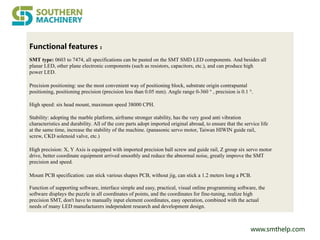

Functional features ：
SMT type: 0603 to 7474, all specifications can be pasted on the SMT SMD LED components. And besides all
planar LED, other plane electronic components (such as resistors, capacitors, etc.), and can produce high
power LED.
Precision positioning: use the most convenient way of positioning block, substrate origin contrapuntal
positioning, positioning precision (precision less than 0.05 mm). Angle range 0-360 ° , precision is 0.1 °.
High speed: six head mount, maximum speed 38000 CPH.
Stability: adopting the marble platform, airframe stronger stability, has the very good anti vibration
characteristics and durability. All of the core parts adopt imported original abroad, to ensure that the service life
at the same time, increase the stability of the machine. (panasonic servo motor, Taiwan HIWIN guide rail,
screw, CKD solenoid valve, etc.)
High precision: X, Y Axis is equipped with imported precision ball screw and guide rail, Z group six servo motor
drive, better coordinate equipment arrived smoothly and reduce the abnormal noise, greatly improve the SMT
precision and speed.
Mount PCB specification: can stick various shapes PCB, without jig, can stick a 1.2 meters long a PCB.
Function of supporting software, interface simple and easy, practical, visual online programming software, the
software displays the puzzle in all coordinates of points, and the coordinates for fine-tuning, realize high
precision SMT, don't have to manually input element coordinates, easy operation, combined with the actual
needs of many LED manufacturers independent research and development design.

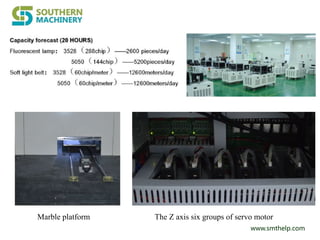

4. Marble platform The Z axis six groups of servo motor
www.smthelp.com
