ADVANCE OF PROJECT IN THE CITY OF MUMBAI
JIJIMATA NAGAR

TALLER AVANZADO DE DISEÑO ARQUITECTÓNICO SOSTENIBLE

RUOCHEN YANG JAN. 2013

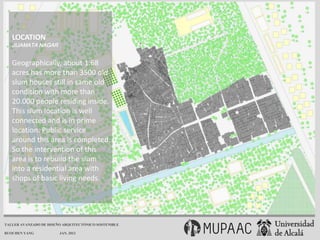

LOCATION
JIJAMATA NAGAR

Geographically, about 1.68
acres has more than 3500 old
slum houses still in same old
condition with more than
20.000 people residing inside.
This slum location is well
connected and is in prime
location. Public service
around this area is completed.
So the intervention of this
area is to rebuild the slum
into a residential area with
shops of basic living needs.



AREA INFORMATION

Surface: 68.400m²
Houses: 3.500
Density: 5,5 Hab/House
Habitants: 20.000Hab

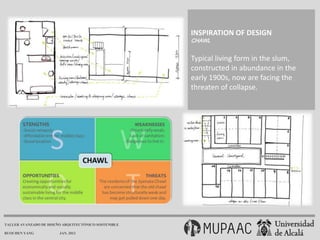

INSPIRATION OF DESIGN
CHAWL

Typical living form in the slum,
constructed in abundance in the
early 1900s, now are facing the
threaten of collapse.

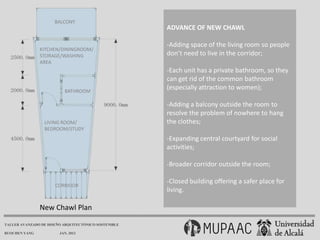

BALCONY
ADVANCE OF NEW CHAWL

-Adding space of the living room so people
KITCHEN/DININGROOM/
STORAGE/WASHING don’t need to live in the corridor;
AREA
-Each unit has a private bathroom, so they
can get rid of the common bathroom
BATHROOM
(especially attraction to women);

-Adding a balcony outside the room to
resolve the problem of nowhere to hang
LIVING ROOM/ the clothes;
BEDROOM/STUDY
-Expanding central courtyard for social
activities;

-Broader corridor outside the room;

-Closed building offering a safer place for
CORRIDOR
living.

New Chawl Plan

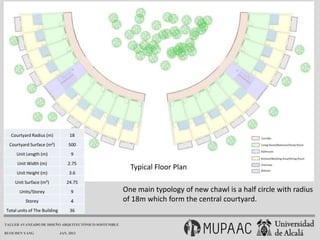

Courtyard Radius (m) 18
Courtyard Surface (m²) 500
Unit Length (m) 9
Unit Width (m) 2.75
Typical Floor Plan
Unit Height (m) 3.6
Unit Surface (m²) 24.75
Units/Storey 9 One main typology of new chawl is a half circle with radius
Storey 4 of 18m which form the central courtyard.
Total units of The Building 36

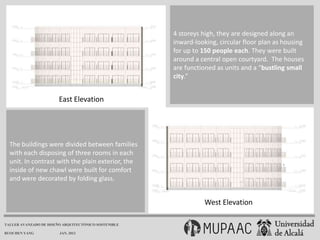

4 storeys high, they are designed along an
inward-looking, circular floor plan as housing
for up to 150 people each. They were built
around a central open courtyard. The houses
are functioned as units and a “bustling small
city.”

East Elevation

The buildings were divided between families
with each disposing of three rooms in each
unit. In contrast with the plain exterior, the
inside of new chawl were built for comfort
and were decorated by folding glass.

West Elevation

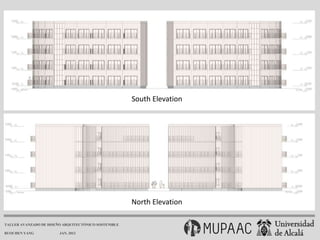

South Elevation

North Elevation

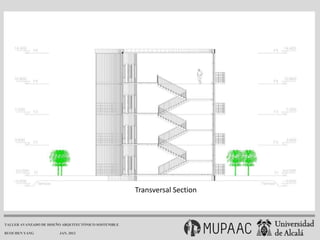

Transversal Section

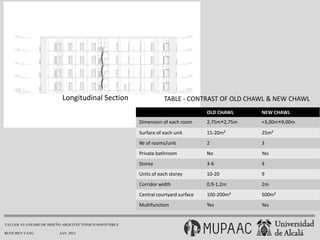

Longitudinal Section TABLE - CONTRAST OF OLD CHAWL & NEW CHAWL
OLD CHAWL NEW CHAWL
Dimension of each room 2,75m×2,75m ≈3,00m×9,00m

Surface of each unit 15-20m² 25m²
№ of rooms/unit 2 3
Private bathroom No Yes
Storey 3-6 4
Units of each storey 10-20 9
Corridor width 0,9-1,2m 2m
Central courtyard surface 100-200m² 500m²
Multifunction Yes Yes



01. Parameter Of Slum Housing
The urban area, which is short of communication to outside, with
an unorderly and littery outline becomes a useful and flexible
transformation to promote innovation,
hybridization of house forms.

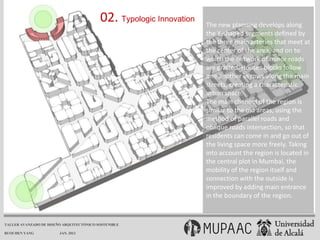

02. Typologic Innovation The new planning develops along
the Y-shaped segments defined by
the three main arteries that meet at
the center of the area, and on to
which the network of minor roads
are grafted. Houses blocks follow
one another in rows along the main
streets, creating a characteristic
urban space.
The main channel of the region is
similar to the old areas, using the
method of parallel roads and
oblique roads intersection, so that
residents can come in and go out of
the living space more freely. Taking
into account the region is located in
the central plot in Mumbai, the
mobility of the region itself and
connection with the outside is
improved by adding main entrance
in the boundary of the region.

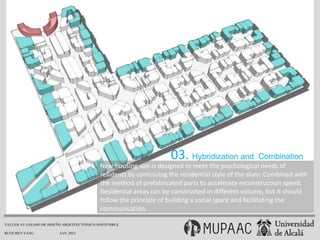

03. Hybridization and Combination
New housing size is designed to meet the psychological needs of
residents by continuing the residential style of the slum. Combined with
the method of prefabricated parts to accelerate reconstruction speed.
Residential areas can be constructed in different volume, but it should
follow the principle of building a social space and facilitating the
communication.

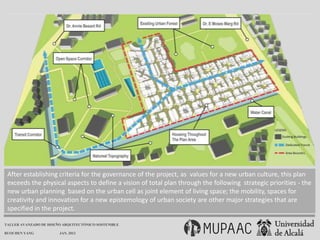

After establishing criteria for the governance of the project, as values for a new urban culture, this plan
exceeds the physical aspects to define a vision of total plan through the following strategic priorities - the
new urban planning based on the urban cell as joint element of living space; the mobility, spaces for
creativity and innovation for a new epistemology of urban society are other major strategies that are
specified in the project.
