This document provides specifications for rockwool/glasswool/PU sandwich panel walls and roofs. The panels have a thickness ranging from 50-250mm, widths up to 1200mm for walls and 950-1000mm for roofs, and lengths up to 11.8m. They provide heat, fire, water, and sound insulation for 15-20 years for applications like buildings, warehouses, and exhibition halls. Panels are made of rockwool insulation between galvanized steel sheets and can be ordered with various coatings, surfaces, and colors with a minimum order quantity of 300m2 and delivery within 7-45 days.

1. Rockwool/ Glasswool /PU Sandwich Panel
Wall
1
2
3
4
5

2. Roof
1
Over -lap joint
2
Non-visual joint
3
Steel line joint
Specification
Steel thickness 0.16-0.8mm
Panel thickness 50/60/80/100/120/150/180/200/250mm
Effective width
(1)950mm/1000mm—for roof
(2)600-1200mm—for wall
Length According to your requests, normally not mare than 11.8m
Rockwool density 80-150kg/m3, 120kg/m3 for standard
Materials Inner is rockwool, two sides is color galvanized steel sheet
Color white, silver ,blue, grey, red and RAL color
Coating PE /PVDF/SMP/HDP

3. Surface treatment galvanized, coated, printed, embossed
Surfaces type flat, ripple, embossed and corrugated
Lifetime 15-20 years
Features heat insulation, fireproof &waterproof, sound insulation,
Packaging Steel pallet or steel frame
Application buildings, storages, exhibition halls, gymnasiums, etc.
MOQ 300m2
Port Tianjin
Delivery time within 7~45 days after deposit received
Shipping by container (20GP/ 40GP/ 40HQ)
Payment
T/T 30% deposit, the banlance shall be clear BEFORE
shippment
Technique

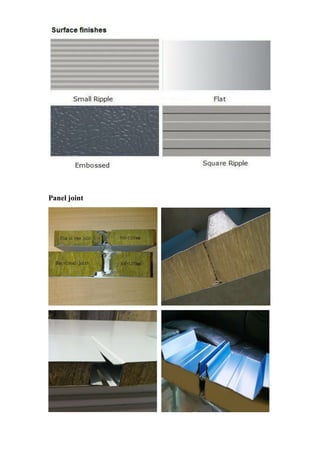

4. Panel joint

5. Packaging
