A robot is a complex machine, comprising mechanism, actuators, sensors, and electrical system. It is, therefore, hard to guarantee that all the components can always function normally. If one component fails, the robot might harm humans. In order to develop the active-passive variable serial elastic actuator (APVSEA) [1] that can detect the occurrence of any component fault, this paper uses bond graph to design a robust fault detection and isolation (RFDI) system. When the robot components malfunction, the RFDI system will execute suitable isolation strategies to guarantee human safety and use zero-gravity control (ZGC) to simultaneously compensate for the torque caused by gravity. Thus, the user can consistently interact with the robot easily and safely. From the experimental results, the RFDI system can filter out uncertain parameters and identify the failed component. In addition, the zero-gravity control can lessen potentially physical damage to humans.
This document discusses algorithms for avoiding kinematic singularities in 6-DOF robotic manipulators controlled in real time using a teaching pendant. It proposes two algorithms: (1) non-redundancy avoidance using damped least squares to modify the inverse kinematic solution near singularities, and (2) redundancy avoidance using a potential function based on manipulability to incorporate singularity avoidance for redundant manipulators. The algorithms are experimentally tested on a DENSO VP-6242G robot to evaluate performance near shoulder and wrist singularities during teaching pendant controlled motion.
Evolutionary Design of Mathematical tunable FPGA Based MIMO Fuzzy Estimator S...Waqas Tariq
In this research, a Multi Input Multi Output (MIMO) position Field Programmable Gate Array (FPGA)-based fuzzy estimator sliding mode control (SMC) design with the estimation laws derived in Lyapunov sense and application to robotic manipulator has proposed in order to design high performance nonlinear controller in the presence of uncertainties. Regarding to the positive points in sliding mode controller, fuzzy inference methodology and Lyapunov based method, the controllers output has improved. The main target in this research is analyses and design of the position MIMO artificial Lyapunov FPGA-based controller for robot manipulator in order to solve uncertainty, external disturbance, nonlinear equivalent part, chattering phenomenon, time to market and controller size using FPGA. Robot manipulators are nonlinear, time variant and a number of parameters are uncertain therefore design robust and stable controller based on Lyapunov based is discussed in this research. Studies about classical sliding mode controller (SMC) show that: although this controller has acceptable performance with known dynamic parameters such as stability and robustness but there are two important disadvantages as below: chattering phenomenon and mathematical nonlinear dynamic equivalent controller part. The first challenge; nonlinear dynamic part; is applied by inference estimator method in sliding mode controller in order to solve the nonlinear problems in classical sliding mode controller. And the second challenge; chattering phenomenon; is removed by linear method. Asymptotic stability of the closed loop system is also proved in the sense of Lyapunov. In the last part it can find the implementation of MIMO fuzzy estimator sliding mode controller on FPGA; FPGA-based fuzzy estimator sliding mode controller has many advantages such as high speed, low cost, short time to market and small device size. One of the most important drawbacks is limited capacity of available cells which this research focuses to solve this challenge. FPGA can be used to design a controller in a single chip Integrated Circuit (IC). In this research the SMC is designed using Very High Description Language (VHDL) for implementation on FPGA device (XA3S1600E-Spartan-3E), with minimum chattering.
Novel Artificial Control of Nonlinear Uncertain System: Design a Novel Modifi...Waqas Tariq
This document presents a novel particle swarm optimization sliding mode control algorithm using fuzzy logic to estimate uncertainties for nonlinear systems like robotic manipulators. The algorithm combines PSO, sliding mode control, and fuzzy logic to address issues like chattering and not requiring an accurate dynamic model. It estimates the equivalent dynamic term using fuzzy logic to compensate for uncertainties. PSO is used to tune parameters offline for improved performance. Stability of the closed-loop system is proved using the Lyapunov method. The algorithm aims to provide robust control of robotic manipulators without an accurate dynamic model.
This document describes a line-following robotic car created by a team of students for a course project. The robotic car uses an Arduino microcontroller along with sensors, motors, and other components to follow a black line on the ground. It uses articulated steering controlled by a servo motor. The team designed and 3D printed a chassis for the components. They implemented proportional-integral-derivative (PID) control using the Arduino to process sensor readings and steer the car along the line. The car successfully navigated intermediate test tracks but struggled with tighter turns on an advanced course due to mechanical limitations of its design.
This document introduces VAL II programming language for programming the PUMA-560 robot arm. It discusses defining robot locations using transformations which allows representing positions and orientations relative to other objects. This is important for defining composite objects. It also covers various motion instructions in VAL II like MOVE, MOVES, APPROACH, and DEPART, which can generate either joint interpolated motions or straight-line paths. Structured programming constructs like the CASE statement are also described for selecting actions based on conditions.
Detection of Broken Bars in Three Phase Squirrel Cage Induction Motor using F...Dr.NAGARAJAN. S
Finite element method is more precise than the winding function approach, as it is based on the actual geometry of the machine and the machine model can easily be modified in order to study the effect of faults on the machine’s performance. Accurate models of the machine under healthy and faulty conditions are developed. This paper presents simulations of broken bars detection in a three phase squirrel cage induction motor under no load, half load and full load conditions for two and eight broken bars. The analysis is done using MagNet.
This document discusses algorithms for avoiding kinematic singularities in 6-DOF robotic manipulators controlled in real time using a teaching pendant. It proposes two algorithms: (1) non-redundancy avoidance using damped least squares to modify the inverse kinematic solution near singularities, and (2) redundancy avoidance using a potential function based on manipulability to incorporate singularity avoidance for redundant manipulators. The algorithms are experimentally tested on a DENSO VP-6242G robot to evaluate performance near shoulder and wrist singularities during teaching pendant controlled motion.
Evolutionary Design of Mathematical tunable FPGA Based MIMO Fuzzy Estimator S...Waqas Tariq
In this research, a Multi Input Multi Output (MIMO) position Field Programmable Gate Array (FPGA)-based fuzzy estimator sliding mode control (SMC) design with the estimation laws derived in Lyapunov sense and application to robotic manipulator has proposed in order to design high performance nonlinear controller in the presence of uncertainties. Regarding to the positive points in sliding mode controller, fuzzy inference methodology and Lyapunov based method, the controllers output has improved. The main target in this research is analyses and design of the position MIMO artificial Lyapunov FPGA-based controller for robot manipulator in order to solve uncertainty, external disturbance, nonlinear equivalent part, chattering phenomenon, time to market and controller size using FPGA. Robot manipulators are nonlinear, time variant and a number of parameters are uncertain therefore design robust and stable controller based on Lyapunov based is discussed in this research. Studies about classical sliding mode controller (SMC) show that: although this controller has acceptable performance with known dynamic parameters such as stability and robustness but there are two important disadvantages as below: chattering phenomenon and mathematical nonlinear dynamic equivalent controller part. The first challenge; nonlinear dynamic part; is applied by inference estimator method in sliding mode controller in order to solve the nonlinear problems in classical sliding mode controller. And the second challenge; chattering phenomenon; is removed by linear method. Asymptotic stability of the closed loop system is also proved in the sense of Lyapunov. In the last part it can find the implementation of MIMO fuzzy estimator sliding mode controller on FPGA; FPGA-based fuzzy estimator sliding mode controller has many advantages such as high speed, low cost, short time to market and small device size. One of the most important drawbacks is limited capacity of available cells which this research focuses to solve this challenge. FPGA can be used to design a controller in a single chip Integrated Circuit (IC). In this research the SMC is designed using Very High Description Language (VHDL) for implementation on FPGA device (XA3S1600E-Spartan-3E), with minimum chattering.
Novel Artificial Control of Nonlinear Uncertain System: Design a Novel Modifi...Waqas Tariq
This document presents a novel particle swarm optimization sliding mode control algorithm using fuzzy logic to estimate uncertainties for nonlinear systems like robotic manipulators. The algorithm combines PSO, sliding mode control, and fuzzy logic to address issues like chattering and not requiring an accurate dynamic model. It estimates the equivalent dynamic term using fuzzy logic to compensate for uncertainties. PSO is used to tune parameters offline for improved performance. Stability of the closed-loop system is proved using the Lyapunov method. The algorithm aims to provide robust control of robotic manipulators without an accurate dynamic model.
This document describes a line-following robotic car created by a team of students for a course project. The robotic car uses an Arduino microcontroller along with sensors, motors, and other components to follow a black line on the ground. It uses articulated steering controlled by a servo motor. The team designed and 3D printed a chassis for the components. They implemented proportional-integral-derivative (PID) control using the Arduino to process sensor readings and steer the car along the line. The car successfully navigated intermediate test tracks but struggled with tighter turns on an advanced course due to mechanical limitations of its design.
This document introduces VAL II programming language for programming the PUMA-560 robot arm. It discusses defining robot locations using transformations which allows representing positions and orientations relative to other objects. This is important for defining composite objects. It also covers various motion instructions in VAL II like MOVE, MOVES, APPROACH, and DEPART, which can generate either joint interpolated motions or straight-line paths. Structured programming constructs like the CASE statement are also described for selecting actions based on conditions.
Detection of Broken Bars in Three Phase Squirrel Cage Induction Motor using F...Dr.NAGARAJAN. S
Finite element method is more precise than the winding function approach, as it is based on the actual geometry of the machine and the machine model can easily be modified in order to study the effect of faults on the machine’s performance. Accurate models of the machine under healthy and faulty conditions are developed. This paper presents simulations of broken bars detection in a three phase squirrel cage induction motor under no load, half load and full load conditions for two and eight broken bars. The analysis is done using MagNet.
IRJET-Design and Fabrication of Self-Propelled Rail Crack Inspection RobotIRJET Journal
This document describes the design and fabrication of a self-propelled rail crack inspection robot. The robot is intended to automatically inspect railway tracks for cracks using ultrasonic waves, while not disrupting train passage. It uses a vibration sensor to detect approaching trains and employs a mechanical arrangement to fold itself between the tracks using electromagnets. The robot was designed using Solid Edge modeling software and fabricated using various machining operations. Materials like nylon and sheet metal were selected for their properties. The robot is intended to improve upon current railway inspection methods by being fully automatic, faster, and requiring less human effort.
Three phase induction motors are complex electro-mechanical devices widely used in most industrial applications. Induction motors are susceptible to many types of fault in industrial application such as rotor bar broken fault, stator inter turn fault, eccentricity fault. Out of these faults eccentricity is very specific in squirrel cage induction motor. If the initial stage of motor failure is not identified will cause the severe damage and production shutdowns. This paper presents the simulations of eccentricity fault detection in three phase squirrel cage induction motor under various load conditions for healthy and faulty conditions. In this paper, dynamic model of induction motor is developed using CAD package called MagNet for static and transient 2D analysis. The various machine parameters like stator current, magnetic flux density, and magnetic torque are calculated and their values are compared under healthy and faulty conditions.
Current mode controlled fuzzy logic based inter leaved cuk converter SVM inve...Dr.NAGARAJAN. S
Recent developments in intelligent control methods and power electronics have amended PhotoVoltaic (PV) based DC to AC converters related to AC drives. Interleaved cuk converter and inverter find their way in interconnecting PV and Induction Motor Drive (IMD). Simulation studies were done for closed loop InterLeaved Cuk Converter and Inverter fed Induction Motor Drive (ILCCIIMD) systems with conventional and intelligent controllers.
These studies were carried out using MATLAB simulink based models for ILCCIIMD. For production of DC- voltage in the input of the inverter, PV fed InterLeaved Cuk-regulator is recommended. Cuk-regulator is utilized for enhancing the output of the PV system. Closed loop Proportional-Integral (PI), Proportional- Resonant(PR) and Fuzzy-Logic(FL) controlled ILCCIIMD systems are simulated and their outcome like dy- namic responses and torque ripple are related for an Electric Vehicle(EV) application. The proposed IL- CCIIMD system with FLC is found to have better dynamic characteristics and lesser torque ripple when compared to the system with conventional controller.
The document discusses designing a proper robot safety work cell for robots in a university robotics laboratory. It identifies that the current safety measures are insufficient, lacking things like emergency stop buttons and adequate barriers between robot workspaces. The objectives are to familiarize students with robot safety and workcells. It outlines various safety factors to implement, including barriers, alarms, safety sensors, maintenance procedures, and operator training. It also describes the functions of different safety devices and keeps costs low by utilizing resources efficiently. Recommendations include floor covering, grounding cables, decreasing arm speeds, and a two-position part manipulator.
Welcome to International Journal of Engineering Research and Development (IJERD)IJERD Editor
call for paper 2012, hard copy of journal, research paper publishing, where to publish research paper,
journal publishing, how to publish research paper, Call For research paper, international journal, publishing a paper, IJERD, journal of science and technology, how to get a research paper published, publishing a paper, publishing of journal, publishing of research paper, reserach and review articles, IJERD Journal, How to publish your research paper, publish research paper, open access engineering journal, Engineering journal, Mathemetics journal, Physics journal, Chemistry journal, Computer Engineering, Computer Science journal, how to submit your paper, peer reviw journal, indexed journal, reserach and review articles, engineering journal, www.ijerd.com, research journals,
yahoo journals, bing journals, International Journal of Engineering Research and Development, google journals, hard copy of journal
This paper expands a sliding mode fuzzy controller which sliding surface gain is on-line tuned by minimum fuzzy inference algorithm. The main goal is to guarantee acceptable trajectories tracking between the second order nonlinear system (robot manipulator) actual and the desired trajectory. The fuzzy controller in proposed sliding mode fuzzy controller is based on Mamdani’s fuzzy inference system (FIS) and it has one input and one output. The input represents the function between sliding function, error and the rate of error. The outputs represent torque, respectively. The fuzzy inference system methodology is on-line tune the sliding surface gain based on error-based fuzzy tuning methodology. Pure sliding mode fuzzy controller has difficulty in handling unstructured model uncertainties. To solve this problem applied fuzzy-based tuning method to sliding mode fuzzy controller for adjusting the sliding surface gain (ë ). Since the sliding surface gain (ë) is adjusted by fuzzy-based tuning method, it is nonlinear and continuous. Fuzzy-based tuning sliding mode fuzzy controller is stable model-free controller which eliminates the chattering phenomenon without to use the boundary layer saturation function. Lyapunov stability is proved in fuzzy-based tuning sliding mode fuzzy controller based on switching (sign) function. This controller has acceptable performance in presence of uncertainty (e.g., overshoot=0%, rise time=0.8 second, steady state error = 1e-9 and RMS error=1.8e-12).
The main aim of our project is to automate railway track pedestrian crossing without using staircase. This Mobile Bridge Platform is used for automatically opening or closing of platform in between the train tracks.
Thanks to my ARTS TEAM(ANOOJ,RONALD AND SHAROON)
Design and Analysis of Articulated Inspection Arm of RobotIJTET Journal
Nowadays Robot play a vital role in all the activities in human life including industrial needs. There is a definite trend in the manufacture of robotic arms toward more dexterous devices, more degrees of-Freedom, and capabilities beyond the human arm. The ultimate objective is to save human lives in addition to increasing productivity and quality of high technology work environments. The objective of this project is to design, analysis of a Generic articulated robot Arm. This project deals with the modeling of a special class of single-link articulated inspection arms of robot. These arms consist of flexible massless structures having some masses concentrated at certain points of hollow sections at the beam. Some aspects of the articulated Robot that are anticipated as useful are its small cross section and its projected ability to change elevation and maneuver over obstacle require large joint torque to weight ratios for joint actuation. A knuckle joint actions actuation scheme is described and its implementation is detailed in this project. The parts of the (AIA) arm are analyzed for deflection and stress concentration under loading conditions in different angles.
Speed estimation error of sensorless induction motor drives using soft comput...IAEME Publication
This document summarizes a research paper on speed estimation error of sensorless induction motor drives using soft computing techniques. It presents parallel speed and stator resistance identification schemes to overcome resistance variation problems. A sliding mode current observer is combined with Popov's hyperstability theory to obtain estimation algorithms. Activation of an online stator resistance adaptation mechanism compensates initial resistance estimation errors and eliminates initial speed errors. Simulation results show that speed estimation error decreases with decreasing reference speed and when using fuzzy logic control compared to PI control. The paper concludes soft computing techniques can decrease speed estimation error in sensorless induction motor drives.
In this research, a model free sliding mode fuzzy adaptive inverse dynamic fuzzy controller (SMFIDFC) is designed for a robot manipulator to rich the best performance. Inverse dynamic controller is considered because of its high performance in certain system. Fuzzy methodology has been included in inverse dynamic to keep away from design nonlinear controller based on dynamic model. Sliding mode fuzzy adaptive methodology is applied to model free controller to have better result in presence of structure and unstructured uncertainties. Besides, this control method can be applied to non-linear systems easily. Today, strong mathematical tools are used in new control methodologies to design adaptive nonlinear controller with satisfactory output results (e.g., minimum error, good trajectory, disturbance rejection).
Impact analysis of actuator torque degradation on the IRB 120 robot performan...IJECEIAES
Actuators in a robot system may become faulty during their life cycle. Locked joints, free-moving joints, and the loss of actuator torque are common faulty types of robot joints where the actuators fail. Locked and free-moving joint issues are addressed by many published articles, whereas the actuator torque loss still opens attractive investigation challenges. The objectives of this study are to classify the loss of robot actuator torque, named actuator torque degradation, into three different cases: Boundary degradation of torque, boundary degradation of torque rate, and proportional degradation of torque, and to analyze their impact on the performance of a typical 6-DOF robot (i.e., the IRB 120 robot). Typically, controllers of robots are not pre-designed specifically for anticipating these faults. To isolate and focus on the impact of only actuator torque degradation faults, all robot parameters are assumed to be known precisely, and a popular closed-loop controller is used to investigate the robot’s responses under these faults. By exploiting MATLAB-the reliable simulation environment, a simscape-based quasi-physical model of the robot is built and utilized instead of an actual expensive prototype. The simulation results indicate that the robot responses cannot follow the desired path properly in most fault cases.
This paper presents state observer designs for quarter-car passive suspension. Proposed designs
correspond to two theories, full-order state observer and observer on closed-loop system. Those observers
are used for states and estimation errors observation. Simulation is done using MATLAB and SIMULINK.
MATLAB is used to calculate both feedback gain matrix and observer gain matrix whereas SIMULINK is
applied to build state space block. Results show that those observers work effectively and fit observer
theories. This work may motivate to continue to other steps of observer designs, observer designs for halfcar and full car passive suspension.
International Journal of Chaos, Control, Modelling and Simulation (IJCCMS) ijccmsjournal
This paper presents state observer designs for quarter-car passive suspension. Proposed designs
correspond to two theories, full-order state observer and observer on closed-loop system. Those observers
are used for states and estimation errors observation. Simulation is done using MATLAB and SIMULINK.
MATLAB is used to calculate both feedback gain matrix and observer gain matrix whereas SIMULINK is
applied to build state space block. Results show that those observers work effectively and fit observer
theories. This work may motivate to continue to other steps of observer designs, observer designs for halfcar and full car passive suspension.
STATE OBSERVER DESIGNS FOR QUARTER-CAR PASSIVE SUSPENSIONijccmsjournal
This paper presents state observer designs for quarter-car passive suspension. Proposed designs correspond to two theories, full-order state observer and observer on closed-loop system. Those observers are used for states and estimation errors observation. Simulation is done using MATLAB and SIMULINK. MATLAB is used to calculate both feedback gain matrix and observer gain matrix whereas SIMULINK is applied to build state space block. Results show that those observers work effectively and fit observer theories. This work may motivate to continue to other steps of observer designs, observer designs for halfcar and full car passive suspension.
This paper presents state observer designs for quarter-car passive suspension. Proposed designs
correspond to two theories, full-order state observer and observer on closed-loop system. Those observers
are used for states and estimation errors observation. Simulation is done using MATLAB and SIMULINK.
MATLAB is used to calculate both feedback gain matrix and observer gain matrix whereas SIMULINK is
applied to build state space block. Results show that those observers work effectively and fit observer
theories. This work may motivate to continue to other steps of observer designs, observer designs for halfcar and full car passive suspension.
This paper presents state observer designs for quarter-car passive suspension. Proposed designs
correspond to two theories, full-order state observer and observer on closed-loop system. Those observers
are used for states and estimation errors observation. Simulation is done using MATLAB and SIMULINK.
MATLAB is used to calculate both feedback gain matrix and observer gain matrix whereas SIMULINK is
applied to build state space block. Results show that those observers work effectively and fit observer
theories. This work may motivate to continue to other steps of observer designs, observer designs for halfcar and full car passive suspension.
STATE OBSERVER DESIGNS FOR QUARTER-CAR PASSIVE SUSPENSIONijccmsjournal
This paper presents state observer designs for quarter-car passive suspension. Proposed designs
correspond to two theories, full-order state observer and observer on closed-loop system. Those observers
are used for states and estimation errors observation. Simulation is done using MATLAB and SIMULINK.
MATLAB is used to calculate both feedback gain matrix and observer gain matrix whereas SIMULINK is
applied to build state space block. Results show that those observers work effectively and fit observer
theories. This work may motivate to continue to other steps of observer designs, observer designs for halfcar and full car passive suspension.
STATE OBSERVER DESIGNS FOR QUARTER-CAR PASSIVE SUSPENSIONijccmsjournal
This paper presents state observer designs for quarter-car passive suspension. Proposed designs
correspond to two theories, full-order state observer and observer on closed-loop system. Those observers
are used for states and estimation errors observation. Simulation is done using MATLAB and SIMULINK.
MATLAB is used to calculate both feedback gain matrix and observer gain matrix whereas SIMULINK is
applied to build state space block. Results show that those observers work effectively and fit observer
theories. This work may motivate to continue to other steps of observer designs, observer designs for halfcar and full car passive suspension.
STATE OBSERVER DESIGNS FOR QUARTER-CAR PASSIVE SUSPENSIONijccmsjournal
This paper presents state observer designs for quarter-car passive suspension. Proposed designs
correspond to two theories, full-order state observer and observer on closed-loop system. Those observers
are used for states and estimation errors observation. Simulation is done using MATLAB and SIMULINK.
MATLAB is used to calculate both feedback gain matrix and observer gain matrix whereas SIMULINK is
applied to build state space block. Results show that those observers work effectively and fit observer
theories. This work may motivate to continue to other steps of observer designs, observer designs for halfcar and full car passive suspension.
This document summarizes two state observer designs for a quarter-car passive suspension system: a full-order state observer and an observer on a closed-loop system. Simulation results show that both observer designs effectively estimate the states of the quarter-car system, with the estimated states converging to the actual states over time and the estimation errors tending to zero, consistent with state observer theory. The designs provide a basis for further developing observer designs for more complex half-car and full-car passive suspension systems.
STATE OBSERVER DESIGNS FOR QUARTER-CAR PASSIVE SUSPENSIONijccmsjournal
This paper presents state observer designs for quarter-car passive suspension. Proposed designs
correspond to two theories, full-order state observer and observer on closed-loop system. Those observers
are used for states and estimation errors observation. Simulation is done using MATLAB and SIMULINK.
MATLAB is used to calculate both feedback gain matrix and observer gain matrix whereas SIMULINK is
applied to build state space block. Results show that those observers work effectively and fit observer
theories. This work may motivate to continue to other steps of observer designs, observer designs for halfcar and full car passive suspension.
IRJET-Design and Fabrication of Self-Propelled Rail Crack Inspection RobotIRJET Journal
This document describes the design and fabrication of a self-propelled rail crack inspection robot. The robot is intended to automatically inspect railway tracks for cracks using ultrasonic waves, while not disrupting train passage. It uses a vibration sensor to detect approaching trains and employs a mechanical arrangement to fold itself between the tracks using electromagnets. The robot was designed using Solid Edge modeling software and fabricated using various machining operations. Materials like nylon and sheet metal were selected for their properties. The robot is intended to improve upon current railway inspection methods by being fully automatic, faster, and requiring less human effort.
Three phase induction motors are complex electro-mechanical devices widely used in most industrial applications. Induction motors are susceptible to many types of fault in industrial application such as rotor bar broken fault, stator inter turn fault, eccentricity fault. Out of these faults eccentricity is very specific in squirrel cage induction motor. If the initial stage of motor failure is not identified will cause the severe damage and production shutdowns. This paper presents the simulations of eccentricity fault detection in three phase squirrel cage induction motor under various load conditions for healthy and faulty conditions. In this paper, dynamic model of induction motor is developed using CAD package called MagNet for static and transient 2D analysis. The various machine parameters like stator current, magnetic flux density, and magnetic torque are calculated and their values are compared under healthy and faulty conditions.
Current mode controlled fuzzy logic based inter leaved cuk converter SVM inve...Dr.NAGARAJAN. S
Recent developments in intelligent control methods and power electronics have amended PhotoVoltaic (PV) based DC to AC converters related to AC drives. Interleaved cuk converter and inverter find their way in interconnecting PV and Induction Motor Drive (IMD). Simulation studies were done for closed loop InterLeaved Cuk Converter and Inverter fed Induction Motor Drive (ILCCIIMD) systems with conventional and intelligent controllers.
These studies were carried out using MATLAB simulink based models for ILCCIIMD. For production of DC- voltage in the input of the inverter, PV fed InterLeaved Cuk-regulator is recommended. Cuk-regulator is utilized for enhancing the output of the PV system. Closed loop Proportional-Integral (PI), Proportional- Resonant(PR) and Fuzzy-Logic(FL) controlled ILCCIIMD systems are simulated and their outcome like dy- namic responses and torque ripple are related for an Electric Vehicle(EV) application. The proposed IL- CCIIMD system with FLC is found to have better dynamic characteristics and lesser torque ripple when compared to the system with conventional controller.
The document discusses designing a proper robot safety work cell for robots in a university robotics laboratory. It identifies that the current safety measures are insufficient, lacking things like emergency stop buttons and adequate barriers between robot workspaces. The objectives are to familiarize students with robot safety and workcells. It outlines various safety factors to implement, including barriers, alarms, safety sensors, maintenance procedures, and operator training. It also describes the functions of different safety devices and keeps costs low by utilizing resources efficiently. Recommendations include floor covering, grounding cables, decreasing arm speeds, and a two-position part manipulator.
Welcome to International Journal of Engineering Research and Development (IJERD)IJERD Editor
call for paper 2012, hard copy of journal, research paper publishing, where to publish research paper,
journal publishing, how to publish research paper, Call For research paper, international journal, publishing a paper, IJERD, journal of science and technology, how to get a research paper published, publishing a paper, publishing of journal, publishing of research paper, reserach and review articles, IJERD Journal, How to publish your research paper, publish research paper, open access engineering journal, Engineering journal, Mathemetics journal, Physics journal, Chemistry journal, Computer Engineering, Computer Science journal, how to submit your paper, peer reviw journal, indexed journal, reserach and review articles, engineering journal, www.ijerd.com, research journals,
yahoo journals, bing journals, International Journal of Engineering Research and Development, google journals, hard copy of journal
This paper expands a sliding mode fuzzy controller which sliding surface gain is on-line tuned by minimum fuzzy inference algorithm. The main goal is to guarantee acceptable trajectories tracking between the second order nonlinear system (robot manipulator) actual and the desired trajectory. The fuzzy controller in proposed sliding mode fuzzy controller is based on Mamdani’s fuzzy inference system (FIS) and it has one input and one output. The input represents the function between sliding function, error and the rate of error. The outputs represent torque, respectively. The fuzzy inference system methodology is on-line tune the sliding surface gain based on error-based fuzzy tuning methodology. Pure sliding mode fuzzy controller has difficulty in handling unstructured model uncertainties. To solve this problem applied fuzzy-based tuning method to sliding mode fuzzy controller for adjusting the sliding surface gain (ë ). Since the sliding surface gain (ë) is adjusted by fuzzy-based tuning method, it is nonlinear and continuous. Fuzzy-based tuning sliding mode fuzzy controller is stable model-free controller which eliminates the chattering phenomenon without to use the boundary layer saturation function. Lyapunov stability is proved in fuzzy-based tuning sliding mode fuzzy controller based on switching (sign) function. This controller has acceptable performance in presence of uncertainty (e.g., overshoot=0%, rise time=0.8 second, steady state error = 1e-9 and RMS error=1.8e-12).
The main aim of our project is to automate railway track pedestrian crossing without using staircase. This Mobile Bridge Platform is used for automatically opening or closing of platform in between the train tracks.
Thanks to my ARTS TEAM(ANOOJ,RONALD AND SHAROON)
Design and Analysis of Articulated Inspection Arm of RobotIJTET Journal
Nowadays Robot play a vital role in all the activities in human life including industrial needs. There is a definite trend in the manufacture of robotic arms toward more dexterous devices, more degrees of-Freedom, and capabilities beyond the human arm. The ultimate objective is to save human lives in addition to increasing productivity and quality of high technology work environments. The objective of this project is to design, analysis of a Generic articulated robot Arm. This project deals with the modeling of a special class of single-link articulated inspection arms of robot. These arms consist of flexible massless structures having some masses concentrated at certain points of hollow sections at the beam. Some aspects of the articulated Robot that are anticipated as useful are its small cross section and its projected ability to change elevation and maneuver over obstacle require large joint torque to weight ratios for joint actuation. A knuckle joint actions actuation scheme is described and its implementation is detailed in this project. The parts of the (AIA) arm are analyzed for deflection and stress concentration under loading conditions in different angles.
Speed estimation error of sensorless induction motor drives using soft comput...IAEME Publication
This document summarizes a research paper on speed estimation error of sensorless induction motor drives using soft computing techniques. It presents parallel speed and stator resistance identification schemes to overcome resistance variation problems. A sliding mode current observer is combined with Popov's hyperstability theory to obtain estimation algorithms. Activation of an online stator resistance adaptation mechanism compensates initial resistance estimation errors and eliminates initial speed errors. Simulation results show that speed estimation error decreases with decreasing reference speed and when using fuzzy logic control compared to PI control. The paper concludes soft computing techniques can decrease speed estimation error in sensorless induction motor drives.
In this research, a model free sliding mode fuzzy adaptive inverse dynamic fuzzy controller (SMFIDFC) is designed for a robot manipulator to rich the best performance. Inverse dynamic controller is considered because of its high performance in certain system. Fuzzy methodology has been included in inverse dynamic to keep away from design nonlinear controller based on dynamic model. Sliding mode fuzzy adaptive methodology is applied to model free controller to have better result in presence of structure and unstructured uncertainties. Besides, this control method can be applied to non-linear systems easily. Today, strong mathematical tools are used in new control methodologies to design adaptive nonlinear controller with satisfactory output results (e.g., minimum error, good trajectory, disturbance rejection).
Impact analysis of actuator torque degradation on the IRB 120 robot performan...IJECEIAES
Actuators in a robot system may become faulty during their life cycle. Locked joints, free-moving joints, and the loss of actuator torque are common faulty types of robot joints where the actuators fail. Locked and free-moving joint issues are addressed by many published articles, whereas the actuator torque loss still opens attractive investigation challenges. The objectives of this study are to classify the loss of robot actuator torque, named actuator torque degradation, into three different cases: Boundary degradation of torque, boundary degradation of torque rate, and proportional degradation of torque, and to analyze their impact on the performance of a typical 6-DOF robot (i.e., the IRB 120 robot). Typically, controllers of robots are not pre-designed specifically for anticipating these faults. To isolate and focus on the impact of only actuator torque degradation faults, all robot parameters are assumed to be known precisely, and a popular closed-loop controller is used to investigate the robot’s responses under these faults. By exploiting MATLAB-the reliable simulation environment, a simscape-based quasi-physical model of the robot is built and utilized instead of an actual expensive prototype. The simulation results indicate that the robot responses cannot follow the desired path properly in most fault cases.
This paper presents state observer designs for quarter-car passive suspension. Proposed designs
correspond to two theories, full-order state observer and observer on closed-loop system. Those observers
are used for states and estimation errors observation. Simulation is done using MATLAB and SIMULINK.
MATLAB is used to calculate both feedback gain matrix and observer gain matrix whereas SIMULINK is
applied to build state space block. Results show that those observers work effectively and fit observer
theories. This work may motivate to continue to other steps of observer designs, observer designs for halfcar and full car passive suspension.
International Journal of Chaos, Control, Modelling and Simulation (IJCCMS) ijccmsjournal
This paper presents state observer designs for quarter-car passive suspension. Proposed designs
correspond to two theories, full-order state observer and observer on closed-loop system. Those observers
are used for states and estimation errors observation. Simulation is done using MATLAB and SIMULINK.
MATLAB is used to calculate both feedback gain matrix and observer gain matrix whereas SIMULINK is
applied to build state space block. Results show that those observers work effectively and fit observer
theories. This work may motivate to continue to other steps of observer designs, observer designs for halfcar and full car passive suspension.
STATE OBSERVER DESIGNS FOR QUARTER-CAR PASSIVE SUSPENSIONijccmsjournal
This paper presents state observer designs for quarter-car passive suspension. Proposed designs correspond to two theories, full-order state observer and observer on closed-loop system. Those observers are used for states and estimation errors observation. Simulation is done using MATLAB and SIMULINK. MATLAB is used to calculate both feedback gain matrix and observer gain matrix whereas SIMULINK is applied to build state space block. Results show that those observers work effectively and fit observer theories. This work may motivate to continue to other steps of observer designs, observer designs for halfcar and full car passive suspension.
This paper presents state observer designs for quarter-car passive suspension. Proposed designs
correspond to two theories, full-order state observer and observer on closed-loop system. Those observers
are used for states and estimation errors observation. Simulation is done using MATLAB and SIMULINK.
MATLAB is used to calculate both feedback gain matrix and observer gain matrix whereas SIMULINK is
applied to build state space block. Results show that those observers work effectively and fit observer
theories. This work may motivate to continue to other steps of observer designs, observer designs for halfcar and full car passive suspension.
This paper presents state observer designs for quarter-car passive suspension. Proposed designs
correspond to two theories, full-order state observer and observer on closed-loop system. Those observers
are used for states and estimation errors observation. Simulation is done using MATLAB and SIMULINK.
MATLAB is used to calculate both feedback gain matrix and observer gain matrix whereas SIMULINK is
applied to build state space block. Results show that those observers work effectively and fit observer
theories. This work may motivate to continue to other steps of observer designs, observer designs for halfcar and full car passive suspension.
STATE OBSERVER DESIGNS FOR QUARTER-CAR PASSIVE SUSPENSIONijccmsjournal
This paper presents state observer designs for quarter-car passive suspension. Proposed designs
correspond to two theories, full-order state observer and observer on closed-loop system. Those observers
are used for states and estimation errors observation. Simulation is done using MATLAB and SIMULINK.
MATLAB is used to calculate both feedback gain matrix and observer gain matrix whereas SIMULINK is
applied to build state space block. Results show that those observers work effectively and fit observer
theories. This work may motivate to continue to other steps of observer designs, observer designs for halfcar and full car passive suspension.
STATE OBSERVER DESIGNS FOR QUARTER-CAR PASSIVE SUSPENSIONijccmsjournal
This paper presents state observer designs for quarter-car passive suspension. Proposed designs
correspond to two theories, full-order state observer and observer on closed-loop system. Those observers
are used for states and estimation errors observation. Simulation is done using MATLAB and SIMULINK.
MATLAB is used to calculate both feedback gain matrix and observer gain matrix whereas SIMULINK is
applied to build state space block. Results show that those observers work effectively and fit observer
theories. This work may motivate to continue to other steps of observer designs, observer designs for halfcar and full car passive suspension.
STATE OBSERVER DESIGNS FOR QUARTER-CAR PASSIVE SUSPENSIONijccmsjournal
This paper presents state observer designs for quarter-car passive suspension. Proposed designs
correspond to two theories, full-order state observer and observer on closed-loop system. Those observers
are used for states and estimation errors observation. Simulation is done using MATLAB and SIMULINK.
MATLAB is used to calculate both feedback gain matrix and observer gain matrix whereas SIMULINK is
applied to build state space block. Results show that those observers work effectively and fit observer
theories. This work may motivate to continue to other steps of observer designs, observer designs for halfcar and full car passive suspension.
This document summarizes two state observer designs for a quarter-car passive suspension system: a full-order state observer and an observer on a closed-loop system. Simulation results show that both observer designs effectively estimate the states of the quarter-car system, with the estimated states converging to the actual states over time and the estimation errors tending to zero, consistent with state observer theory. The designs provide a basis for further developing observer designs for more complex half-car and full-car passive suspension systems.
STATE OBSERVER DESIGNS FOR QUARTER-CAR PASSIVE SUSPENSIONijccmsjournal
This paper presents state observer designs for quarter-car passive suspension. Proposed designs
correspond to two theories, full-order state observer and observer on closed-loop system. Those observers
are used for states and estimation errors observation. Simulation is done using MATLAB and SIMULINK.
MATLAB is used to calculate both feedback gain matrix and observer gain matrix whereas SIMULINK is
applied to build state space block. Results show that those observers work effectively and fit observer
theories. This work may motivate to continue to other steps of observer designs, observer designs for halfcar and full car passive suspension.
Design a nonlinear controller for second order nonlinear uncertain dynamical systems (e.g., Internal Combustion Engine) is one of the most important challenging works. This paper focuses on the design of a robust backstepping adaptive feedback linearization controller (FLC) for internal combustion (IC) engine in presence of uncertainties. In order to provide high performance nonlinear methodology, feedback linearization controller is selected. Pure feedback linearization controller can be used to control of partly unknown nonlinear dynamic parameters of IC engine. In order to solve the uncertain nonlinear dynamic parameters, implement easily and avoid mathematical model base controller, Mamdani’s performance/error-based fuzzy logic methodology with two inputs and one output and 49 rules is applied to pure feedback linearization controller. The results demonstrate that the error-based fuzzy feedback linearization controller is a model-free controllers which works well in certain and partly uncertain system. Pure feedback linearization controller and error-based feedback linearization like controller with have difficulty in handling unstructured model uncertainties. To solve this problem applied backstepping-based tuning method to error-based fuzzy feedback linearization controller for adjusting the feedback linearization controller gain (K_p,K_v ). This controller has acceptable performance in presence of uncertainty (e.g., overshoot=1%, rise time=0.48 second, steady state error = 1.3e-9 and RMS error=1.8e-11).
Model Matching Control for an Active-Passive Variable Stiffness ActuatorCSCJournals
In order to increase the safety performance between human and the robot, the variable stiffness mechanism is commonly adopted due to its flexibility in various tasks. However, it makes the actuator more complex and increases the weight of the system. To deal with this problem, the active-passive variable stiffness elastic actuator (APVSEA) [1] and the variable stiffness control that uses a model matching control (MMC) with bond graph are proposed in this article. The APVSEA is modeled as a non-back drivable bond graph model. Combining the MMC with the non-back drivable bond graph model, the overall system can achieve active stiffness control. The simulations and the experiments show good control performance. They prove that the proposed method can achieve active stiffness control well. In the future, the proposed method can also be applied to the robot arm and exoskeletons for balancing safety and the control performance.
Refer to the research, design a novel SISO adaptive fuzzy sliding algorithm inverse dynamic like method (NAIDLC) and application to robot manipulator has proposed in order to design high performance nonlinear controller in the presence of uncertainties. Regarding to the positive points in inverse dynamic controller, fuzzy logic controller and self tuning fuzzy sliding method, the output has improved. The main objective in this research is analyses and design of the adaptive robust controller based on artificial intelligence and nonlinear control. Robot manipulator is nonlinear, time variant and a number of parameters are uncertain, so design the best controller for this plant is the main target. Although inverse dynamic controller have acceptable performance with known dynamic parameters but regarding to uncertainty, this controller\'s output has fairly fluctuations. In order to solve this problem this research is focoused on two methodology the first one is design a fuzzy inference system as a estimate nonlinear part of main controller but this method caused to high computation load in fuzzy rule base and the second method is focused on design novel adaptive method to reduce the computation in fuzzy algorithm.
PUMA-560 Robot Manipulator Position Sliding Mode Control Methods Using MATLAB...Waqas Tariq
This paper describes the MATLAB/SIMULINK realization, modeling and implementation of the PUMA 560 robot manipulator. This paper focuses on robot manipulator analysis and implementation and analyzed. This simulation models are developed as a part of a software laboratory to support and enhance graduate robotics courses, and MATLAB/SIMULINK courses at research and development company (SSP Co.) research center, Shiraz, Iran.
PUMA-560 Robot Manipulator Position Computed Torque Control Methods Using MAT...Waqas Tariq
This document describes the implementation of a computed torque controller for controlling the position of a PUMA 560 robot manipulator using MATLAB/Simulink. It first presents the dynamic equations of motion for the PUMA 560 robot. It then provides details on computed torque control, including its mathematical formulation and how it was modeled in Simulink. Simulation results are presented to validate the controller's performance in tracking desired joint positions for the robot.
Slantlet transform used for faults diagnosis in robot armIJEECSIAES
The robot arm systems are the most target systems in the fields of faults detection and diagnosis which are electrical and the mechanical systems in many fields. Fault detection and diagnosis study is presented for two robot arms. The disturbance due to the faults at robot's joints causes oscillations at the tip of the robot arm. The acceleration in multi-direction is analysed to extract the features of the faults. Simulations for planar and space robots are presented. Two types of feature (faults) detection methods are used in this paper. The first one is the discrete wavelet transform, which is applied in many research's works before. The second type, is the Slantlet transform, which represents an improved model of the discrete wavelet transform. The multi-layer perceptron artificial neural network is used for the purpose of faults allocation and classification. According to the obtained results, the Slantlet transform with the multi-layer perceptron artificial neural network appear to possess best performance (4.7088e-05), lower consuming time (71.017308 sec) and higher accuracy (100%) than the results obtained when applying discrete wavelet transform and artificial neural network for the same purpose.
Slantlet transform used for faults diagnosis in robot armnooriasukmaningtyas
The robot arm systems are the most target systems in the fields of faults detection and diagnosis which are electrical and the mechanical systems in many fields. Fault detection and diagnosis study is presented for two robot arms. The disturbance due to the faults at robot's joints causes oscillations at the tip of the robot arm. The acceleration in multi-direction is analysed to extract the features of the faults. Simulations for planar and space robots are presented. Two types of feature (faults) detection methods are used in this paper. The first one is the discrete wavelet transform, which is applied in many research's works before. The second type, is the Slantlet transform, which represents an improved model of the discrete wavelet transform. The multi-layer perceptron artificial neural network is used for the purpose of faults allocation and classification. According to the obtained results, the Slantlet transform with the multi-layer perceptron artificial neural network appear to possess best performance (4.7088e-05), lower consuming time
(71.017308 sec) and higher accuracy (100%) than the results obtained when applying discrete wavelet transform and artificial neural network for the same purpose.
Two wheeled self balancing robot for autonomous navigationIAEME Publication
This document summarizes a research paper on the design and testing of a two-wheeled self-balancing robot capable of autonomous navigation. The robot balances using a PID control loop applied to data from an inertial measurement unit. A complementary filter fuses gyroscope and accelerometer readings to estimate the robot's tilt angle in real-time. Autonomous navigation is achieved using an ultrasonic distance sensor and image processing system to detect obstacles and determine the robot's path. The stability of the balancing system is analyzed using real-time data plotting in MATLAB, allowing tuning of the PID controller constants.
Similar to Robust Fault Detection and Isolation using Bond Graph for an Active-Passive Variable Serial Elastic Actuator (20)
Leveraging Generative AI to Drive Nonprofit InnovationTechSoup
In this webinar, participants learned how to utilize Generative AI to streamline operations and elevate member engagement. Amazon Web Service experts provided a customer specific use cases and dived into low/no-code tools that are quick and easy to deploy through Amazon Web Service (AWS.)
Main Java[All of the Base Concepts}.docxadhitya5119
This is part 1 of my Java Learning Journey. This Contains Custom methods, classes, constructors, packages, multithreading , try- catch block, finally block and more.
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...PECB
Denis is a dynamic and results-driven Chief Information Officer (CIO) with a distinguished career spanning information systems analysis and technical project management. With a proven track record of spearheading the design and delivery of cutting-edge Information Management solutions, he has consistently elevated business operations, streamlined reporting functions, and maximized process efficiency.
Certified as an ISO/IEC 27001: Information Security Management Systems (ISMS) Lead Implementer, Data Protection Officer, and Cyber Risks Analyst, Denis brings a heightened focus on data security, privacy, and cyber resilience to every endeavor.
His expertise extends across a diverse spectrum of reporting, database, and web development applications, underpinned by an exceptional grasp of data storage and virtualization technologies. His proficiency in application testing, database administration, and data cleansing ensures seamless execution of complex projects.
What sets Denis apart is his comprehensive understanding of Business and Systems Analysis technologies, honed through involvement in all phases of the Software Development Lifecycle (SDLC). From meticulous requirements gathering to precise analysis, innovative design, rigorous development, thorough testing, and successful implementation, he has consistently delivered exceptional results.
Throughout his career, he has taken on multifaceted roles, from leading technical project management teams to owning solutions that drive operational excellence. His conscientious and proactive approach is unwavering, whether he is working independently or collaboratively within a team. His ability to connect with colleagues on a personal level underscores his commitment to fostering a harmonious and productive workplace environment.
Date: May 29, 2024
Tags: Information Security, ISO/IEC 27001, ISO/IEC 42001, Artificial Intelligence, GDPR
-------------------------------------------------------------------------------
Find out more about ISO training and certification services
Training: ISO/IEC 27001 Information Security Management System - EN | PECB
ISO/IEC 42001 Artificial Intelligence Management System - EN | PECB
General Data Protection Regulation (GDPR) - Training Courses - EN | PECB
Webinars: https://pecb.com/webinars
Article: https://pecb.com/article
-------------------------------------------------------------------------------
For more information about PECB:
Website: https://pecb.com/
LinkedIn: https://www.linkedin.com/company/pecb/
Facebook: https://www.facebook.com/PECBInternational/
Slideshare: http://www.slideshare.net/PECBCERTIFICATION
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptxEduSkills OECD
Iván Bornacelly, Policy Analyst at the OECD Centre for Skills, OECD, presents at the webinar 'Tackling job market gaps with a skills-first approach' on 12 June 2024
Strategies for Effective Upskilling is a presentation by Chinwendu Peace in a Your Skill Boost Masterclass organisation by the Excellence Foundation for South Sudan on 08th and 09th June 2024 from 1 PM to 3 PM on each day.
Walmart Business+ and Spark Good for Nonprofits.pdfTechSoup
"Learn about all the ways Walmart supports nonprofit organizations.
You will hear from Liz Willett, the Head of Nonprofits, and hear about what Walmart is doing to help nonprofits, including Walmart Business and Spark Good. Walmart Business+ is a new offer for nonprofits that offers discounts and also streamlines nonprofits order and expense tracking, saving time and money.
The webinar may also give some examples on how nonprofits can best leverage Walmart Business+.
The event will cover the following::
Walmart Business + (https://business.walmart.com/plus) is a new shopping experience for nonprofits, schools, and local business customers that connects an exclusive online shopping experience to stores. Benefits include free delivery and shipping, a 'Spend Analytics” feature, special discounts, deals and tax-exempt shopping.
Special TechSoup offer for a free 180 days membership, and up to $150 in discounts on eligible orders.
Spark Good (walmart.com/sparkgood) is a charitable platform that enables nonprofits to receive donations directly from customers and associates.
Answers about how you can do more with Walmart!"
A workshop hosted by the South African Journal of Science aimed at postgraduate students and early career researchers with little or no experience in writing and publishing journal articles.
This document provides an overview of wound healing, its functions, stages, mechanisms, factors affecting it, and complications.
A wound is a break in the integrity of the skin or tissues, which may be associated with disruption of the structure and function.
Healing is the body’s response to injury in an attempt to restore normal structure and functions.
Healing can occur in two ways: Regeneration and Repair
There are 4 phases of wound healing: hemostasis, inflammation, proliferation, and remodeling. This document also describes the mechanism of wound healing. Factors that affect healing include infection, uncontrolled diabetes, poor nutrition, age, anemia, the presence of foreign bodies, etc.
Complications of wound healing like infection, hyperpigmentation of scar, contractures, and keloid formation.
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
Robust Fault Detection and Isolation using Bond Graph for an Active-Passive Variable Serial Elastic Actuator
1. Po-Jen Cheng & Han-Pang Huang
International Journal of Robotics and Automation (IJRA), Volume (6) : Issue (2) : 2015 29
Robust Fault Detection and Isolation using Bond Graph for an
Active-Passive Variable Serial Elastic Actuator
P.J. Cheng u9014028@gmail.com
Department of Mechanical Engineering
National Taiwan University
Taipei, 10617, Taiwan
H.P. Huang hanpang@ntu.edu.tw
Department of Mechanical Engineering
National Taiwan University
Taipei, 10617, Taiwan
Abstract
A robot is a complex machine, comprising mechanism, actuators, sensors, and electrical system.
It is, therefore, hard to guarantee that all the components can always function normally. If one
component fails, the robot might harm humans. In order to develop the active-passive variable
serial elastic actuator (APVSEA) [1] that can detect the occurrence of any component fault, this
paper uses bond graph to design a robust fault detection and isolation (RFDI) system. When the
robot components malfunction, the RFDI system will execute suitable isolation strategies to
guarantee human safety and use zero-gravity control (ZGC) to simultaneously compensate for
the torque caused by gravity. Thus, the user can consistently interact with the robot easily and
safely. From the experimental results, the RFDI system can filter out uncertain parameters and
identify the failed component. In addition, the zero-gravity control can lessen potentially physical
damage to humans.
Keywords: Serial Elastic Actuator, Bond Graph, Fault Detection and Isolation, Zero Gravity
Control.
1. INTRODUCTION
A robot system has various sensors and mechanism to detect the states and transmit energy. If
any component malfunctions, it may crash the control system or the transmission mechanism,
which is dangerous for humans. Robot technology has already been applied to factories.
However, applications, such as home care, office security, or simply the cooperation with
humans, are yet the next stage of robot development. In all these applications with robots working
around humans, guaranteeing human safety is the most important issue. Actuator is a key
element of the robot system. It can comprise robot arm, robot leg, robot wheel or exoskeleton.
Therefore, it is important for making sure each actuator is working normally.
Fault detection and isolation (FDI) procedures are the combination of the actual system and its
theoretical behavior [2-3]. Based on knowing the actual system sufficiently, a quantitative FDI
approach derives the system’s dynamic behavior and uses it as the reference model in terms of
analytical redundancy relationships (ARRs). There are two main steps in FDI processing: the first
is substituting the system’s signals into the ARR equations; the second is the decision-making
procedure, which detects faults and isolates fail components. After the substitution, the value of
an ARR equation is called a residual. In perfect ARR equations, the residuals are zeros, which
means the following
1. The model describes the system completely.
2. No uncertainty is in the model.
3. The system’s signals are noiseless.

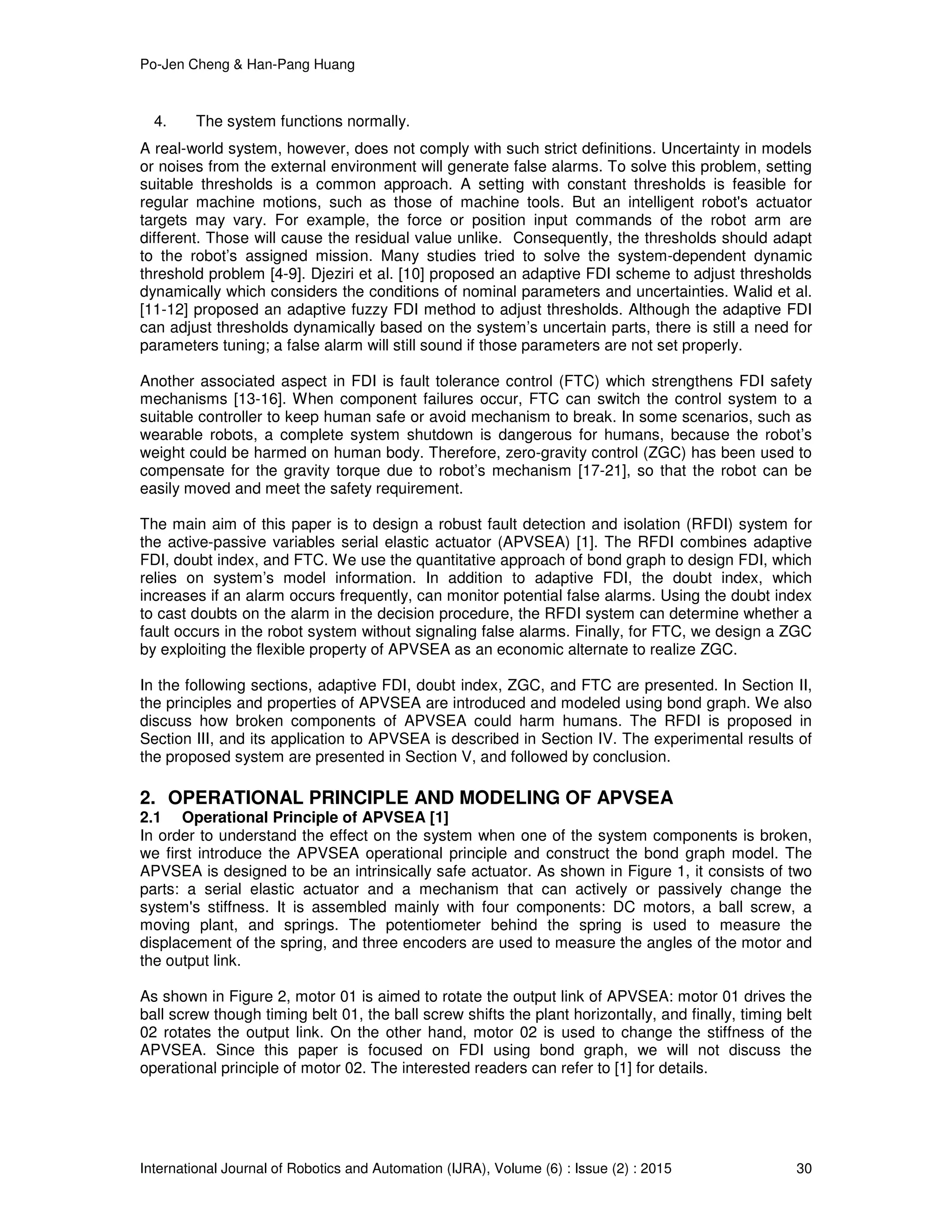

2. Po-Jen Cheng & Han-Pang Huang
International Journal of Robotics and Automation (IJRA), Volume (6) : Issue (2) : 2015 30
4. The system functions normally.
A real-world system, however, does not comply with such strict definitions. Uncertainty in models
or noises from the external environment will generate false alarms. To solve this problem, setting
suitable thresholds is a common approach. A setting with constant thresholds is feasible for
regular machine motions, such as those of machine tools. But an intelligent robot's actuator
targets may vary. For example, the force or position input commands of the robot arm are
different. Those will cause the residual value unlike. Consequently, the thresholds should adapt
to the robot’s assigned mission. Many studies tried to solve the system-dependent dynamic
threshold problem [4-9]. Djeziri et al. [10] proposed an adaptive FDI scheme to adjust thresholds
dynamically which considers the conditions of nominal parameters and uncertainties. Walid et al.
[11-12] proposed an adaptive fuzzy FDI method to adjust thresholds. Although the adaptive FDI
can adjust thresholds dynamically based on the system’s uncertain parts, there is still a need for
parameters tuning; a false alarm will still sound if those parameters are not set properly.
Another associated aspect in FDI is fault tolerance control (FTC) which strengthens FDI safety
mechanisms [13-16]. When component failures occur, FTC can switch the control system to a
suitable controller to keep human safe or avoid mechanism to break. In some scenarios, such as
wearable robots, a complete system shutdown is dangerous for humans, because the robot’s
weight could be harmed on human body. Therefore, zero-gravity control (ZGC) has been used to
compensate for the gravity torque due to robot’s mechanism [17-21], so that the robot can be
easily moved and meet the safety requirement.
The main aim of this paper is to design a robust fault detection and isolation (RFDI) system for
the active-passive variables serial elastic actuator (APVSEA) [1]. The RFDI combines adaptive
FDI, doubt index, and FTC. We use the quantitative approach of bond graph to design FDI, which
relies on system’s model information. In addition to adaptive FDI, the doubt index, which
increases if an alarm occurs frequently, can monitor potential false alarms. Using the doubt index
to cast doubts on the alarm in the decision procedure, the RFDI system can determine whether a
fault occurs in the robot system without signaling false alarms. Finally, for FTC, we design a ZGC
by exploiting the flexible property of APVSEA as an economic alternate to realize ZGC.
In the following sections, adaptive FDI, doubt index, ZGC, and FTC are presented. In Section II,
the principles and properties of APVSEA are introduced and modeled using bond graph. We also
discuss how broken components of APVSEA could harm humans. The RFDI is proposed in
Section III, and its application to APVSEA is described in Section IV. The experimental results of
the proposed system are presented in Section V, and followed by conclusion.
2. OPERATIONAL PRINCIPLE AND MODELING OF APVSEA
2.1 Operational Principle of APVSEA [1]
In order to understand the effect on the system when one of the system components is broken,
we first introduce the APVSEA operational principle and construct the bond graph model. The
APVSEA is designed to be an intrinsically safe actuator. As shown in Figure 1, it consists of two
parts: a serial elastic actuator and a mechanism that can actively or passively change the
system's stiffness. It is assembled mainly with four components: DC motors, a ball screw, a
moving plant, and springs. The potentiometer behind the spring is used to measure the
displacement of the spring, and three encoders are used to measure the angles of the motor and
the output link.
As shown in Figure 2, motor 01 is aimed to rotate the output link of APVSEA: motor 01 drives the
ball screw though timing belt 01, the ball screw shifts the plant horizontally, and finally, timing belt
02 rotates the output link. On the other hand, motor 02 is used to change the stiffness of the
APVSEA. Since this paper is focused on FDI using bond graph, we will not discuss the
operational principle of motor 02. The interested readers can refer to [1] for details.
3. Po-Jen Cheng & Han-Pang Huang
International Journal of Robotics and Automation (IJRA), Volume (6) : Issue (2) : 2015 31
FIGURE 1: APVSEA 3D Diagram.
FIGURE 2: Moving Plant is Moved by Motor 01.
As an intrinsically safe mechanism, APVSEA can absorb external forces. If external forces are
applied to the output link, the moving plant is driven by the external forces via timing belt 02, but
the ball screw is not directly driven back by the moving plant. Instead, the moving plant slips on
the input shaft, because external forces generate an axial force. Therefore, when the translation
of the moving plant occurs, the springs of the APVSEA can absorb external forces by the
connector, as shown in Figure 3 and Figure 4.
FIGURE 3: External Force Generates Axial Slipping Motion.
FIGURE 4: The Spring Absorb Forces from External Environment.
2.2 Modeling of APVSEA by Bond Graph Method
In order to simplify modeling of the APVSEA system, we treat the model as a human pushing a
spring-mass-damper system in a car without ground contact friction, as shown in Figure 5.
Because the human force is internal to the car, it cannot move the car forward. In other words,
4. Po-Jen Cheng & Han-Pang Huang
International Journal of Robotics and Automation (IJRA), Volume (6) : Issue (2) : 2015 32
the human's absolute position can be changed by car moving, but the human cannot drive the car
forward.
FIGURE 5: The APVSEA system can be briefly represented
as human pushing a mass-damper-spring system in a car.
FIGURE 6: The Simplified APVSEA Model.
Figure 6 shows a simplified APVSEA model, where u is the control input from motor 01 and uୌ is
the external force applied by the user. The inertia, spring stiffness and damping ratio are denoted
by Io, k, and r.
Based on the APVSEA model, the system model is converted into bond graph, as shown in
Figure 7. The source-sensor element is represented as SS. Se and Sf are defined as the sensor,
the effort and the flow sources, respectively. Bond graph elements I, C, R mean inertia, spring
and damper in mechanical domain, respectively. The bond graph junction elements are denoted
as 1 and 0 (black number). The bond numbers are also defined as red words in Figure 7. There
are two TF elements. α and β represent the output link’s rotational velocity θሶ୭ and the motor
rotational velocity θሶ୫ converting into a horizontal movement, respectively. uො represents the torque
summation which is caused by gravity and human applied force on the output link. The velocity of
spring is denoted as xሶ
.
FIGURE 7: The APVSEA Bond Graph Model.
3. ROBUST FAULT DETECTION AND ISOLATION STRATEGY
In practice, the system can be separated into two parts: the nominal part and the uncertain part.
Although the nominal part of the system is easy to model, the uncertain part, which includes
5. Po-Jen Cheng & Han-Pang Huang
International Journal of Robotics and Automation (IJRA), Volume (6) : Issue (2) : 2015 33
noises, error nominal value and so on, is hard to profile accurately and affects the performance of
FDI. Djeziri et al. An adaptive FDI approach [10] was proposed to obtain a dynamic threshold, but
this approach still needs to manually set some parameters for modeling uncertainties, which
requires the designer to adjust by trial and error. Although adaptive FDI can filter out most of the
uncertainties and make dynamical changes to determine the upper and lower thresholds, noises
still exist and cause errors in the FDI system.
This paper adopts the approach in [10] to filter out the uncertain parts, and also proposes a doubt
index approach to strengthen the robustness of fault detection. In addition, we adopt bond graph
to generate ARRs to detect faults in the system. Therefore, if failures occur, the RFDI system can
select a suitable isolation strategy based on the fault component. The proposed RFDI structure is
shown in Figure 8.
FIGURE 8: The RFDI Flow Chart.
3.1 Doubt Index
Doubt index is like an agent who can judge whether the system has faults based on his
experience, like the "process manager,” who knows each product's quality and determines
whether the online process of the machine tool is operating normally. The process manager
knows there are inevitably some defective products, but he also knows occasional defective
products can be allowed in a long-term production process. But the manager will start to doubt
the production line’s functionality, if defective products appear more regularly, the doubt index will
increase in his mind until the maximal tolerance is reached. Then he will announce an error
alarm.
Let the i-th residual value r୧ be the value of the i-th ARR equation, which is the nominal model
obtained from physical laws. But in practice, a system does not perfectly follow the nominal model
because of unknown parameters, such as noises, input variations, and transient periods. Suppose
there are n residual equations in the system. Define
[ ]1 2, , nr r r r=% L (1)
Then, the adaptive decision θ(r) used to dynamically adjust the threshold δ୧ can be defined as
[ ] [ ]1 2 3( ) , , nC r c c c cθ= =% L (2)
1, if
0, otherwise
i i
i
r
c
δ >
=
(3)
6. Po-Jen Cheng & Han-Pang Huang
International Journal of Robotics and Automation (IJRA), Volume (6) : Issue (2) : 2015 34
where δ୧ is the threshold of c୧. When c୧ equals to 1, an error is occurring in the corresponding
ARR equation. The corresponding ARR equation is normal when c୧ equals to 0.
In the past, some machine tools set δ୧ as a constant, because the product processes are known
and stationary. The designer can tune constant threshold values based on each machine tool's
working situation. Unfortunately, this does not work for the robot system, because a robot's inputs
are often dynamic, and therefore each input to actuator will require a different threshold. In other
words, setting a constant threshold is not practical for robot systems.
In this paper, we consider uncertainties in each ARR equation for dynamically tuning thresholds
δ୧ [10]. Figure 8 shows the flow chart of the combination of adaptive FDI and doubt index. As
mentioned above, it is not easy to adaptively tune all parameters, so sometimes a false alarm
would sound due to bad tuning. Observing R(T) the output of adaptive FDI, for example, we can
regard that a fault occurs if R(T) equals to 1 constantly for more than the setting time (the time
setting which is tuned in terms of each case by the designer) is. On the other hand, when R(T)
behaviors like an impulse and are discontinuous, that is the error alarm fires for no more than the
setting time, those should be filtered out by doubt index. Therefore, a doubt index D(T) can be
designed to determine whether a fault actually occurs as :
[ ]( ) ( )A T D R T= (4)
where A(T) is an alarm index, which equals to 1 if the system has fault, and 0 otherwise. D(∙) is
the doubt index, and R(T) is the output of adaptive FDI. T denotes the integer time index of each
input data.
The designer can develop the doubt index as the way a human doubts something. For example, if
an adaptive FDI determines the system has fault error in the system, R(T) will be 1. In the past,
the system alarm is sounded due to R(T) equaling to 1. But if the system adopts the doubt index
method, it can judge whether the adaptive FDI has a false alarm. If R(T + 1) is 0, the doubt index
can treat R(T) as a false alarm and decrease the value of doubt index. However, if R(T + 1)
equals to 1, the doubt index will be increased until it reaches a set limit. Then, A(T) will announce
the alarm signal.
FIGURE 9: Human applies a small torque to the output link and causes slight rotation.
3.2 Zero Gravity Control
ZGC is an isolation strategy, different from an abrupt emergency stop. In this paper, we adopt
ZGC because it can compensate for the mechanism's weight so that the user can apply a smaller
force to drive the output link. Such system is especially useful for motor-impaired people;
7. Po-Jen Cheng & Han-Pang Huang
International Journal of Robotics and Automation (IJRA), Volume (6) : Issue (2) : 2015 35
otherwise, if the isolation strategy is only an emergency break, the entire weight of the robot
would collapse on the user.
APVSEA has an intrinsic measure for torque sensing, as shown in Figure 9. The elastic property
that the output link is rotated by ∆θ when small forces are applied to the output link can be given
as
sin oW k xθ∆ = ⋅∆l (5)
Equation (5) can be used to compensate for the gravity torque, where ܹ are the total weight of
the object and output link. ℓ is the centroid length, and ∆θ୭ is a rotation caused by τୌ୳୫ୟ୬. Since
APVSEA is an elastic mechanism, k denotes the spring stiffness, and ∆x corresponds to the
rotational displacement of the equivalent spring. Equation (5) can be explained as human
applying torque to APVSEA to generate the rotational displacement ∆θ୭ . Therefore, we can
translate the APVSEA's spring displacement reference input ∆x from (5) to equation (6)
sin oW
x
k
θ∆
∆ =
l
(6)
Because the potentiometer behind the linear spring in APVSEA can measure the displacement of
spring x, a proportional-integral-derivative (PID) controller is employed to track the reference input
∆x . The ZGC control structure is shown in Figure 10.
FIGURE 10: ZGC Controller Structure.
ROBUST FDI DESIGN FOR APVSEA
4.1 The Effect of APVSEA Element Broken
Before we develop the RFDI mechanism, it is necessary to understand what happens when an
element of APVSEA is broken. Some machine tools have a fault detection function. If the
machine tool fails, an emergency stop is traditionally considered as the best approach. But in the
case of HRI (human robot interaction), human injury is possible due to the emergency stop.
Therefore, in order to propose suitable isolation strategies, it is necessary to understand the injury
effect of each broken component on the user.
The encoder is an important feedback signal for the control loop. If the encoder is broken, it will
make the whole system out of control. In this paper, we are concerned with the encoders of motor
01 and the output link. If either of them fails, the control systems would diverge, dangerous if the
actuator is used in exoskeletons or HRI robots. The potentiometer, used to measure the
displacement of the spring to estimate force, is an important force information for the force
control. Together with the encoder, the potentiometer affects the control system when it is
damaged.
The cable and the timing belts are used to transmit energy in APVSEA. In other words, APVSEA
loses its motor power when either of them is broken. In the case of exoskeletons or serial robots,
because all actuators cascade, human or other actuators of the robot arm have to offer extra
power to support the broken actuator and may injure the user.
8. Po-Jen Cheng & Han-Pang Huang
International Journal of Robotics and Automation (IJRA), Volume (6) : Issue (2) : 2015 36
Also, unexpected external force applying to the output link might be generated. For example, an
exoskeleton robot is attached to the human body, so the human rejects the robot when he or she
feels uncomfortable. Another case is when an unexpected obstacle collides with the output link of
the APVSEA. These two scenarios may be dangerous for humans.
In summary, the APVSEA has six components of concern: motor 01 encoder, output link encoder,
potentiometer, cable, timing belt, and external unexpected force. This paper develops fault
detection for these components and proposes strategies to avoid damage in HRI applications.
4.2 Inverse Model with Uncertainty Part
In order to obtain the inverse APVSEA system from the bond graph model shown in Figure 11,
the definition of power lines is needed, which is represented as blue lines in Figure11. Changing
each storage bond graph element passed through by the blue line becomes a bi-causal notation.
FIGURE 11: The Extend APVSEA Bond Graph.
To derive the inverse system, first, we define the uncertain elements of APVSEA. The uncertainty
is caused by unknown parameters or external noises. The unknown parameters behind each
bond graph element will be defined. Therefore, the inverse system of APVSEA associated with
uncertain parts is given in Figure 12.
FIGURE 12: The extend APVSEA bond graph includes uncertain parts.
The red and green bonds represent the uncertainties, which had been defined in [10]. These
equations are listed as:
b b
r
w z
r
∆
= − (7)
1 1
k k
k
w z
k k
∆
=
+ ∆
(8)
9. Po-Jen Cheng & Han-Pang Huang
International Journal of Robotics and Automation (IJRA), Volume (6) : Issue (2) : 2015 37
o
I I
I
w z
I
∆
= − (9)
where zୠ = bxሶ, zଵ ୩⁄ = kx, and z୍ = I୭θሷ୭. ∆r, ∆k and ∆I୭ are uncertain parameters. De and MSe
mean detect effort and module effort source.
4.3 ARR Equations and Fault Signature Matrix
First, we need to know how many ARR equations are behind the system. From Figure 11, there
are 11 structural equations, three bond graph elements, three sensors, two actuators, and 16
unknown variables. Thus, the number of ARR equation is
( )Number of ARR = 11 3 3 2 16 3+ + + − = (10)
These two equations can be obtained by the inverse bond graph shown in Figure 12 as:
1 1
ˆARR1: o or u I bx kx Uθ α α= − − − +&& & (11)
( ) ( )2 2ARR2 : m o m or b x k x Uβθ αθ βθ θ= − + + − + +& & & (12)
where U1 and U2 are uncertain parts. The total torque uො that applies to the output link is very
hard to accurately measure. Fortunately, the APVSEA is a serial elastic actuator, and therefore uො
can be measured by the potentiometer. The corresponding equations are
( )1 1/b k k IU w w e wα= + − + (13)
2 1/b k kU w w e= + − (14)
ˆu kxα= (15)
In equation (14), there is an initial condition e୩. We set e୩ as zero in this case. But the two ARR
equations above cannot completely detect each concerned component. Because all concerned
components cannot be isolated by equations (11) and (12). A new ARR equation for the APVSEA
needs to be added.
The output link is driven by a motor through the timing belt and ball-screw. In other words, there is
a constant transmission ratio between the motor and the output link. This relationship can be
used to obtain the third ARR equation.
3ARR3: m or θ γ θ= − (16)
where γ is the transmission ratio between the actuator rotation angle θ୫ and the output link
rotation angle θ୭. Although no uncertain parameter exists in ARR3, an error might be generated
due to elastic vibration. Therefore, setting a suitable threshold is still needed as
3
3
, no fault
, fault
r s
r s
<
≥
(17)
where s is the ARR3 threshold value.
10. Po-Jen Cheng & Han-Pang Huang
International Journal of Robotics and Automation (IJRA), Volume (6) : Issue (2) : 2015 38
Fault signature matrix (FSM) is a fault index that can be used to isolate a fault component. Each
ARR equation has the corresponding effect components, and identifying the effect components
from each ARR equation is important for constructing the FSM. The FSM of the APVSEA is
shown in Table I. If the residual equation is related to component faults, the matrix index is 1,
otherwise, it is 0. ܯ denotes the monitor ability of the component fault in the corresponding row.
We set the index to 1 when the corresponding component is detected; otherwise it is 0. This
means that if the fault signature of the element is not null, then ܯ = 1. Similarly, ܫ means there
is an isolation ability in the component fault. If no residual row depends on each other, the ܫ
index is 1; otherwise it is 0. This means the FSM can isolate fault components.
Component Name A1 A2 A3 Mb Ib
External Unexpected Force 1 0 0 1 1
Output Link Encoder 1 1 1 1 1
Potentiometer 1 1 0 1 1
Cable/Timing belt 0 1 0 1 1
Motor01 Encoder 0 1 1 1 1
TABLE 1: FSM of APVSEA.
Table I shows five sensitive components using three residuals equations. A୧ represents the i-th
ARR equation which has been processed by doubt index. Note that all the elements in columns
ܯ, and ܫ are 1. This means that the FSM in Table I can monitor and isolate all the concerned
components.
4.4 Doubt Index Design
The adaptive FDI can filter out most of false alarms, but some of them still inevitably pass.
Filtering out misdetection is the goal at this stage. The false alarm time is set not to exceed 0.1
seconds. The false alarm time depends on each different case. The output of the adaptive ARRs
is doubt index input, and a false alarm looks like a sudden impulse with duration no longer than
0.1 seconds. This means if the alarm time is longer than 0.1 seconds continuously, the FDI
system can judge whether there is a component fault. Hence, the doubt index is designed as
[ ]( 1) ( ) 1 (T)D T R T D+ = × + (18)
Equation (18) can be used to eliminate false alarms. This equation is recursive. When the
adaptive FDI announces a fault, equation (18) will increase doubt index value. In this paper, if the
doubt index is over 100 (i.e. the fault announcement duration is more than 0.1 seconds), the
system will judge that there is a component fault occurring.
4.5 Fault Tolerance Control
In the above sections, we discuss why a pure emergency stop could be dangerous for human,
but such danger can be avoided with FTC, which switches the system's controller to keep
humans safe. In this paper, there are two isolation strategies: emergency stop and ZGC. The
FTC system in APVSEA is shown in Figure 13, in which y୰ୣ and y୰ୣ
ᇱ
are the control inputs for
nominal controller and ZGC, respectively.
11. Po-Jen Cheng & Han-Pang Huang
International Journal of Robotics and Automation (IJRA), Volume (6) : Issue (2) : 2015 39
FIGURE 13: Fault Tolerance Controller Structure.
The supervision system, which is used to decide which controller to activate based on a list of
faults from the RFDI, is the key for the switching between controllers. Before constructing a
supervision system, it is necessary to know how a fault component affects the system, as
mentioned earlier. Based on these effects, the switching strategies of the supervision system are
designed as in Table II. In general, ZGC is preferred. An emergency stop will only be used, when
either the belt or the cable breaks. Because the timing belt and the cable are power transmission
units, when they fail, the system cannot be driven by any actuator or power source. Therefore,
stopping the system is the only choice in this case.
Fault Component Supervision System
Motor 01 encoder
Zero Gravity Control
Output link encoder
Potentiometer
External unexpected force
Timing belt
Emergency Stop
Cable
TABLE 2: Isolation Strategies.
4.6 Zero Gravity Controller Design
Equation (6) above is the key formula for ZGC, which requires the measurements of the output
link’s rotation angle ∆θ୭ and the spring’s elongation x. But, equation (6) does not hold if the output
link’s encoder or potentiometer is broken. In order to realize the ZGC isolation strategies, which
are shown in Table II, the ZGC equation (6) has to be modified to consider the fault of encoder or
potentiometer.
The first situation is when motor 01 encoder fails or when unexpected external force occurs.
These two faults do not influence equation (6) operation, so ZGC can be realized using equation
(6) when motor 01 encoder fails.
The second case is when the output link’s encoder fails. In order to estimate the rotation of the
output link θ୭, it should be calculated by another sensor. If motor 01’s encoder and potentiometer
12. Po-Jen Cheng & Han-Pang Huang
International Journal of Robotics and Automation (IJRA), Volume (6) : Issue (2) : 2015 40
are working normally, those can be used to estimate the rotation angle of the output link. The
relationship among motor 01’s encoder, potentiometer, and the output link’s encoder can be
shown by Figure 12. The displacement of the spring, which relates to the rotation angles of the
output link and motor 01, is
9 5 6f f f= − (19)
where f୧ means the i-th flow bond from Figure12. In other words,
( ) ( )H o M Mx x xθ θ= −% (20)
where xୌ(θ୭) and x(θ) mean the horizontal displacement relationships between the output link
angle and motor rotation angle. Therefore, equation (20) can be used to estimate the output link’s
rotation angle when the output link’s encoder is broken. This leads to an alternate ZGC equation
(6)
( )( )sin M MW x x
x
k
θ+
∆ =
%l
(21)
The third case is when the potentiometer fails. In the ZGC control structure shown in Figure10,
the potentiometer is used to generate a feedback signal of the displacement of the moving plant.
Therefore, equation (20) can also be used to replace the original feedback potentiometer signal x.
4. EXPERIMENTS
In this section, three experiment results are presented. Part 5.1 is the experimental result of
RFDI. The comparison among constant threshold, adaptive threshold and adaptive threshold
combined with doubt index will be presented. The realization of ZGC approach in the APVSEA is
demonstrated in Part 5.2. The effect of RFDI will be shown in Part 5.3 and Appendix. RFDI not
only detects component fault but also isolates it. Switching the system’s controller to ZGC or
emergency stop based on each component fault situation is demonstrated.
5.1 Combination of Adaptive FDI and Doubt Index
In order to illustrate the differences between constant thresholds, adaptive thresholds, and the
adaptive thresholds combined with doubt index, Figure 14 shows the ARR1 signal and each
approach’s alarm index. If the index value is equal to zero, this means there is no faults occurring.
On the contrary, if the FDI system determines that there is a fault occurring in the APVSEA, the
alarm index value displays 1. This experiment was executed in the situation where the APVSEA
suffered unexpected external force interact with the user. Figure 14(a) shows the ARR1 signal
that is affected by an unexpected external force in the fault area. The top two diagrams in Figure
14(b) displays constant and adaptive thresholds. The third diagram of Figure 14(b) represents the
experimental result of the adaptive threshold combined with doubt index.
According to the first diagram of Figure 14(b), the constant threshold demonstrates that it is not
easy to determine whether a fault occurring in the system is due to noises or uncertain
parameters. Therefore, there are some false alarms in no fault areas. An adaptive threshold
approach can adjust its thresholds depending on noises or uncertain parameters. Thus, its fault
detection performance is better than the approach using constant thresholds. But, there are still
some false alarms, which are similar to impulses.
13. Po-Jen Cheng & Han-Pang Huang
International Journal of Robotics and Automation (IJRA), Volume (6) : Issue (2) : 2015 41
FIGURE14(a): The ARR of External Unexpected Force Fault.
FIGURE 14(b): The Alarm Index of Each Approach.
The adaptive threshold approach combined with doubt index can eliminate those impulses and
show only the true fault area, as shown in the third diagram of Figure 14(b). But, this approach
still has the problem of delayed fault determination, which depends on the design of doubt index
parameter. In this experiment, we designed the doubt index parameter that generates a 0.1
seconds delay in determination.
5.2 The Experiment of Zero Gravity Control
The ZGC’s experimental results are shown in Figure 15. The results can be separated into two
stages. Stage 1 shows when the motor of the APVSEA was off while the user swung the output
link back and forth, causing a reaction torque on the APVSEA. Stage 2 shows the ZGC’s
experimental results. There are angle difference between the motor angle and the output link’s
angle. If the output link’s angle is bigger, the angle difference is larger. Therefore, the APVSEA
generates torque to compensate for gravity torque due to the different angle between the output
link’s angle and motor01. In Figure 15, the horizontal lines of the output link’s angle represents
that the user released operating force, and the link was held at the same position by ZGC. It is
clear that holding output link needs larger gravity torque compensation if the output link angle is
bigger.
Since ZGC compensated for the gravity torque of the output link, it could make sure that the user
operated safely. In addition, because the user did not apply extra forces to hold the robot's
weight, the user can move the robot easily.
14. Po-Jen Cheng & Han-Pang Huang
International Journal of Robotics and Automation (IJRA), Volume (6) : Issue (2) : 2015 42
FIGURE 15: Zero Gravity Control in APVSEA.
5.3 Robust Fault Detection and Isolation
RFDI not only detects fault components but also selects the suitable controller for human safety
when the system has any component fault. This paper proposes FTC switching strategies in
Table II and the rule for fault detection in Table I. This part of experimental result presents RFDI’s
fault detection and isolation ability. The abilities of supervision and controller switching are also
shown at this part. There are five fault situations and isolation strategies which had been listed in
Table II.
FIGURE 16: Motor 01 Encoder Fault at 2.3 Seconds.
FIGURE 17: Switch Controller to ZGC when Motor 01 Encoder is Fault.
15. Po-Jen Cheng & Han-Pang Huang
International Journal of Robotics and Automation (IJRA), Volume (6) : Issue (2) : 2015 43
The settings of the following experiments were the same. The input of the output link of APVSEA
followed a sine wave. Then, various fault situations were created by the operator. For example,
we unplugged the sensor (encoder, potentiometer), cut off the timing belt or generated
unexpected force deliberately by human randomly, in order to verify whether the RFDI can detect
the fault and switch the controller to keep human safe.
The scenario of motor encoder fault is presented in Figure 16 and Figure 17, other experiment
results will be shown in Appendix. In Figure 16, the motor encoder was unplugged at 2.3
seconds. The green and red curves of Figure 16 are dynamic threshold which were generated by
adaptive FDI. The blue curve which presents at the upper plot of Figure 14 represents residual
value of each ARR equation. ARR alarm index is shown in the lower plot of Figure 16. It is worth
mentioning that the alarm index was processed using doubt index. Therefore, even there are
some residual values over dynamic threshold which is generated by adaptive FDI, they were
filtered out.
RFDI can determine which component is suffering from fault situation based on Table I. The
lower plot of Figure 16 indicates there is a component fail at 2.3 seconds. At 2.3 seconds, the
ARR alarm indexes are
( ) ( )1 2 3, , 0,1,1A A A = (22)
Mapping equation (22) to Table I can judge which component fails.
The system’s controller is switched by FTC for ensuring human safety. Table II is FTC’s decision
criteria. There are two situations in Figure 17. Normal operation means the system has no fault
and works normally. In this case, the component fails at 2.3 seconds. Therefore, FTC system
switched the system’s controller to ZGC at 2.3 seconds.
However, there are still some false alarms which occur after 2.3 seconds in ARR2 and ARR3.
Those do not affect RFDI determination, because the system has been changed to ZGC. In other
words, if the system’s controller has been modified to the other control situation (ZGC or
emergency stop), the fault detection function is disabled so that further alarm indexes will not
affect the FTC.
In Appendix, Figure A.4 represents cable broken situation at 3.3 seconds. As mentioned earlier, if
the cable or timing belt breaks, emergency stop will be the best approach for human safety.
Therefore, the lower plot of A.4 is voltage signal, and the system’s voltage is stopped at 3.3
seconds.
5. CONCLUSION
While robot interacts with humans, safely is the most important issue. However, because a robot
is a complex machine, it is hard to guarantee that no key component of the robot will malfunction
or suffer from unexpected external forces. This paper proposed a RFDI approach that includes
the adaptive FDI, doubt index, and isolation strategies. The adaptive FDI can consider uncertain
parts and adjust the detection thresholds to avoid false alarms, but this approach still generate
false alarms because uncertain parameters setting. The doubt index approach is used to further
eliminate those false alarms that escape from the adaptive FDI. Finally, with low cost, a ZGC
without using expensive force sensor was implemented as an one of isolation strategies in the
RFDI of APVSEA to make sure that the working environment is safe when the robot breaks. From
the experimental results, the RFDI approach is useful for determining component faults in a
system without raising false alarms, and isolation strategies, including an emergency stop and
ZGC, can ensure the user’s safety.
16. Po-Jen Cheng & Han-Pang Huang
International Journal of Robotics and Automation (IJRA), Volume (6) : Issue (2) : 2015 44
6. FUTURE WORK
In this paper, doubt index is designed using very simple method. It accumulates fault alarms
when it’s happening time is over than 0.1 seconds. The doubt index design in this paper will
cause the RFDI decision time delay. Therefore, doubt index design can be smart using intelligent
algorithm, so that can decrease the decision time.
7. REFERENCES
[1] R.J. Wang, H.P. Huang, “An Active-Passive Variable Stiffness Elastic Actuator for Safety
Robot Systems,” IEEE/RSJ International Conference on Intelligent Robots and Systems
(IROS), Taipei, pp. 3664-3669, Oct. 18-22, 2010.
[2] K. Medjaher, “ A bond graph model-based fault detection and isolation,” Maintenance
Modelling and Applications, Chapter 6: Fault Diagnostics, pp. 503-512, 2011.
[3] K.A. Samantaray, O.B. Belkacem, “Bond Graph Model-based Quantitative FDI,” Model-
based Process Supervision: A Bond Graph Approach, pp. 177-228, 2008.
[4] I. Hwang, S. Kim, C.E. Seah, “A Survey of Fault Detection, Isolation, and Reconfiguration
Methods,” IEEE Transactions on Control Systems Technology, Vol. 18, No. 3, pp.636-653,
2010.
[5] K. Emami, B. Nener. V. Sreeram, H. Trink, T. Fernando, “A Fault Detection Technique for
Dynamical Systems,” IEEE Conference on Industrial and Information Systems (ICIIS), Sri
Lanka, pp. 201-206, Aug. 18-20, 2013.
[6] B. Pourbabaee, N. Meskin, K. Khorasani, “Sensor Fault Detection and Isolation using
Multiple Robust Filters for Linear Systems with Time-Varying Parameter Uncertainty and
Error Variance Constraints,” IEEE Conference on Control Applications (CCA), Juan Les
Antibes, pp. 382-389, Oct. 8-10, 2014.
[7] V. Venkatasubramanian , R. Rengaswamy , K. Yin and S. N. Kavuri "A review of process
fault detection and diagnosis part I: Quantitative model-based methods,” Computer and
Chemical Engineering, Vol. 27, pp.293 -311, 2003.
[8] V. Venkatasubramanian , R. Rengaswamy , K. Yin and S. N. Kavuri "A review of process
fault detection and diagnosis part II: Qualitative models and search strategies,” Computer
and Chemical Engineering, Vol. 27, pp.313 -326, 2003.
[9] V. Venkatasubramanian , R. Rengaswamy , K. Yin and S. N. Kavuri "A review of process
fault detection and diagnosis part III: Process history based methods,” Computer and
Chemical Engineering, Vol. 27, pp.327 -346, 2003.
[10] M.A. Djeziri, R. Merzouki B.O. Bunamama, D.T. Genevieve, “Robust Fault Diagnosis by
Using Bond Graph Approach,” IEEE Transactions on Mechatronics, Vol.12, No. 6, pp.599-
611, 2007.
[11] W. Bouallegue, S.B. Bouabdallah, M. Tagina, “A new adaptive fuzzy FDI method for bond
graph uncertain parameters systems,” IEEE International Conference on Electronics,
Circuits and Systems (ICECS), Beirut, pp.643-648, Dec. 11-14, 2011.
[12] W. Bouallegue, S.B. Bouabdallah, M. Tagina, “Causal approaches and fuzzy logic in FDI of
bond graph uncertain parameters systems,” International Conference on Communications,
Computing and Control Applications (CCCA), Hammamet, pp.1-6, Mar. 3-5, 2011.
[13] R. Loureiro, R. Merzouki, B.O. Bouamama, “Bond Graph Model Based on Structural
17. Po-Jen Cheng & Han-Pang Huang
International Journal of Robotics and Automation (IJRA), Volume (6) : Issue (2) : 2015 45
Diagnosability and Recoverability Analysis: Application to Intelligent Autonomous Vehicles,”
IEEE Transactions on Vehicular Technology, Vol. 61, No. 3, pp. 986-997, 2012.
[14] R. Loureiro, S. Benmoussa, Y. Touati, R. Merzouki, B.O. Bouamama, “ Integration of Fault
Diagnosis and Fault-Tolerant Control for Health Monitoring of a Class of MIMO Intelligent
Autonomous Vehicles,” IEEE Transactions on Vehicular Technology, Vol. 63, No. 1, pp.30-
39, 2014.
[15] Y. Touati, R. Merzouki, B.O. Bouamama, “Robust Diagnosis to Measurement Uncertainties
using Bond Graph Approach: Application to Intelligent Autonomous Vehicle,” Mechatronics,
Vol.22, No.8, pp. 1148-1160, 2012.
[16] S. Benmoussa, B.O. Bouamama, R. Merzouki, “Bond Graph Approach for Plant Fault
Detection and Isolation: Application to Intelligent Autonomous Vehicle,” IEEE Transactions
on Automation Science and Engineering, Vol.11, No.2, pp.585-593, 2014.
[17] M. Talebpur, M. Namvar, “Zero-Gravity Emulation of Satellites in present of Uncalibrated
Sensors and Model Uncertainties,” IEEE Conference on Control Applications & Intelligent
Control, Saint Petersburg, pp.1063-1068, July 8-10, 2009.
[18] M. Geravand, F. Flacco, A.D. Luca, “Human-Robot Physical Interaction and Collaboration
using an Industrial Robot with a Closed Control Architecture,” IEEE International
Conference on Robotics and Automation, Karlsruhe, Germany, pp. 4000-4007, May 6-10,
2013.
[19] A. Vick, D. Surdilovic, J. Kruger, “Safe Physical Human-Robot Interaction with Industrial
Dual-Arm Robots,” Workshop on Robot Motion and Control (RoMoCo), Kuslin, pp. 264-269,
July 3-5, 2013.
[20] G. Hirzinger, A. Albu-Schaffer, M. Hahnle, I. Schaefer, N. Sporer, “On a New Generation of
Torque Controlled Light-Weight Robots,” IEEE International Conference on Robotics and
Automation (ICRA), Seoul, Korea, Vol.4, pp. 3356-3363, 2001.
[21] G. Golo, van der Schaft, Arjan, P.C. Breedveld, B.M. Maschke., “Hamiltonian Formulation of
Bond Graphs,” Nonlinear and Hybrid Systems in Automotive Control, London, pp. 351-372,
2003.
18. Po-Jen Cheng & Han-Pang Huang
International Journal of Robotics and Automation (IJRA), Volume (6) : Issue (2) : 2015 46
APPENDIX
In this paper, five key components (external unexpected force, output link encoder,
potentiometer, cable/timing belt and motor 01 encoder) need to be monitored. The experiment
results when motor 01 encoder is broken has been shown in Figure 16 and Figure 17. This
appendix will be demonstrated other fault situations. According to experiment results, each fault
situation can be detected by RFDI and isolated to suitable controller by FTC for ensuring human
safety.
A.1: Output link encoder had fault at 3.2 seconds. The APVSEA had
been turned to zero gravity control when the fault occurs.
A.2: Potentiometer suffered from fault at 2.2 seconds. Even the
potentiometer broke, zero gravity control can be implemented using
motor and output link encoders.
19. Po-Jen Cheng & Han-Pang Huang
International Journal of Robotics and Automation (IJRA), Volume (6) : Issue (2) : 2015 47
A.3: An unexpected force was applied at 4.1 seconds. Human can move
the output link easily under zero gravity control to protect human safety.
A.4: Cable is broken at 3.2 seconds, and the voltage is turned off due to
emergency stop.
