Refer to the research, design a novel SISO adaptive fuzzy sliding algorithm inverse dynamic like method (NAIDLC) and application to robot manipulator has proposed in order to design high performance nonlinear controller in the presence of uncertainties. Regarding to the positive points in inverse dynamic controller, fuzzy logic controller and self tuning fuzzy sliding method, the output has improved. The main objective in this research is analyses and design of the adaptive robust controller based on artificial intelligence and nonlinear control. Robot manipulator is nonlinear, time variant and a number of parameters are uncertain, so design the best controller for this plant is the main target. Although inverse dynamic controller have acceptable performance with known dynamic parameters but regarding to uncertainty, this controller\'s output has fairly fluctuations. In order to solve this problem this research is focoused on two methodology the first one is design a fuzzy inference system as a estimate nonlinear part of main controller but this method caused to high computation load in fuzzy rule base and the second method is focused on design novel adaptive method to reduce the computation in fuzzy algorithm.
Adaptive MIMO Fuzzy Compensate Fuzzy Sliding Mode Algorithm: Applied to Secon...CSCJournals
This research is focused on proposed adaptive fuzzy sliding mode algorithms with the adaptation laws derived in the Lyapunov sense. The stability of the closed-loop system is proved mathematically based on the Lyapunov method. Adaptive MIMO fuzzy compensate fuzzy sliding mode method design a MIMO fuzzy system to compensate for the model uncertainties of the system, and chattering also solved by linear saturation method. Since there is no tuning method to adjust the premise part of fuzzy rules so we presented a scheme to online tune consequence part of fuzzy rules. Classical sliding mode control is robust to control model uncertainties and external disturbances. A sliding mode method with a switching control low guarantees the stability of the certain and/or uncertain system, but the addition of the switching control low introduces chattering into the system. One way to reduce or eliminate chattering is to insert a boundary layer method inside of a boundary layer around the sliding surface. Classical sliding mode control method has difficulty in handling unstructured model uncertainties. One can overcome this problem by combining a sliding mode controller and artificial intelligence (e.g. fuzzy logic). To approximate a time-varying nonlinear dynamic system, a fuzzy system requires a large amount of fuzzy rule base. This large number of fuzzy rules will cause a high computation load. The addition of an adaptive law to a fuzzy sliding mode controller to online tune the parameters of the fuzzy rules in use will ensure a moderate computational load. The adaptive laws in this algorithm are designed based on the Lyapunov stability theorem. Asymptotic stability of the closed loop system is also proved in the sense of Lyapunov.
In this research, a model free sliding mode fuzzy adaptive inverse dynamic fuzzy controller (SMFIDFC) is designed for a robot manipulator to rich the best performance. Inverse dynamic controller is considered because of its high performance in certain system. Fuzzy methodology has been included in inverse dynamic to keep away from design nonlinear controller based on dynamic model. Sliding mode fuzzy adaptive methodology is applied to model free controller to have better result in presence of structure and unstructured uncertainties. Besides, this control method can be applied to non-linear systems easily. Today, strong mathematical tools are used in new control methodologies to design adaptive nonlinear controller with satisfactory output results (e.g., minimum error, good trajectory, disturbance rejection).
Design Auto Adjust Sliding Surface Slope: Applied to Robot ManipulatorWaqas Tariq
The main target in this paper is to present the nonlinear methods in order to control the robot manipulators and also the related results. Also the important role of sliding surface slope in sliding mode fuzzy control of robot manipulator should be considered. Sliding mode controller (SMC) is a significant nonlinear controller in certain and uncertain dynamic parameters systems. To solve the chattering phenomenon, this paper complicated two methods to each other; boundary layer method and applied fuzzy logic in sliding mode methodology. To remove the chattering sliding surface slope also played important role so this paper focused on the auto tuning this important coefficient to have the best results by applied mathematical model free methodology. Auto tuning methodology has acceptable performance in presence of uncertainty (e.g., overshoot=0%, rise time=0.8 s, steady state error = 1e-9 and RMS error=0.0001632).
A New Estimate Sliding Mode Fuzzy Controller for Robotic ManipulatorWaqas Tariq
One of the most active research areas in field of robotics is control of robot manipulator because this system has highly nonlinear dynamic parameters and most of dynamic parameters are unknown so design an acceptable controller is the main goal in this work. To solve this challenge position new estimation sliding mode fuzzy controller is introduced and applied to robot manipulator. This controller can solve to most important challenge in classical sliding mode controller in presence of highly uncertainty, namely; chattering phenomenon based on fuzzy estimator and online tuning and equivalent nonlinear dynamic based on estimation. Proposed method has acceptable performance in presence of uncertainty (e.g., overshoot=0%, rise time=0.8 s, steady state error = 1e-9 and RMS error=0.0001632).
Design Novel Lookup Table Changed Auto Tuning FSMC: Applied to Robot ManipulatorCSCJournals
Refer to this paper, design lookup table changed adaptive fuzzy sliding mode controller with minimum rule base and good response in presence of structure and unstructured uncertainty is presented. However sliding mode controller is one of the robust nonlinear controllers but when this controller is applied to robot manipulator with highly nonlinear and uncertain dynamic function; caused to be challenged in control. Sliding mode controller in presence of uncertainty has two most important drawbacks; chattering and nonlinear equivalent part which proposed method is solved these challenges with look up table change methodology. This method is based on self tuning methodology therefore artificial intelligence (e.g., fuzzy logic method) is played important role to design proposed method. This controller has acceptable performance in presence of uncertainty (e.g., overshoot=0%, rise time=0.8 s, steady state error = 1e-9 and RMS error=0.00017).
Methodology of Mathematical error-Based Tuning Sliding Mode ControllerCSCJournals
Design a nonlinear controller for second order nonlinear uncertain dynamical systems is one of the most important challenging works. This paper focuses on the design of a chattering free mathematical error-based tuning sliding mode controller (MTSMC) for highly nonlinear dynamic robot manipulator, in presence of uncertainties. In order to provide high performance nonlinear methodology, sliding mode controller is selected. Pure sliding mode controller can be used to control of partly known nonlinear dynamic parameters of robot manipulator. Conversely, pure sliding mode controller is used in many applications; it has an important drawback namely; chattering phenomenon which it can causes some problems such as saturation and heat the mechanical parts of robot manipulators or drivers. In order to reduce the chattering this research is used the switching function in presence of mathematical error-based method instead of switching function method in pure sliding mode controller. The results demonstrate that the sliding mode controller with switching function is a model-based controllers which works well in certain and partly uncertain system. Pure sliding mode controller has difficulty in handling unstructured model uncertainties. To solve this problem applied mathematical model-free tuning method to sliding mode controller for adjusting the sliding surface gain (ë ). Since the sliding surface gain (ë) is adjusted by mathematical model free-based tuning method, it is nonlinear and continuous. In this research new ë is obtained by the previous ë multiple sliding surface slopes updating factor (á). Chattering free mathematical error-based tuning sliding mode controller is stable controller which eliminates the chattering phenomenon without to use the boundary layer saturation function. Lyapunov stability is proved in mathematical error-based tuning sliding mode controller with switching (sign) function. This controller has acceptable performance in presence of uncertainty (e.g., overshoot=0%, rise time=0.8 second, steady state error = 1e-9 and RMS error=1.8e-12).
Evolutionary Design of Mathematical tunable FPGA Based MIMO Fuzzy Estimator S...Waqas Tariq
In this research, a Multi Input Multi Output (MIMO) position Field Programmable Gate Array (FPGA)-based fuzzy estimator sliding mode control (SMC) design with the estimation laws derived in Lyapunov sense and application to robotic manipulator has proposed in order to design high performance nonlinear controller in the presence of uncertainties. Regarding to the positive points in sliding mode controller, fuzzy inference methodology and Lyapunov based method, the controllers output has improved. The main target in this research is analyses and design of the position MIMO artificial Lyapunov FPGA-based controller for robot manipulator in order to solve uncertainty, external disturbance, nonlinear equivalent part, chattering phenomenon, time to market and controller size using FPGA. Robot manipulators are nonlinear, time variant and a number of parameters are uncertain therefore design robust and stable controller based on Lyapunov based is discussed in this research. Studies about classical sliding mode controller (SMC) show that: although this controller has acceptable performance with known dynamic parameters such as stability and robustness but there are two important disadvantages as below: chattering phenomenon and mathematical nonlinear dynamic equivalent controller part. The first challenge; nonlinear dynamic part; is applied by inference estimator method in sliding mode controller in order to solve the nonlinear problems in classical sliding mode controller. And the second challenge; chattering phenomenon; is removed by linear method. Asymptotic stability of the closed loop system is also proved in the sense of Lyapunov. In the last part it can find the implementation of MIMO fuzzy estimator sliding mode controller on FPGA; FPGA-based fuzzy estimator sliding mode controller has many advantages such as high speed, low cost, short time to market and small device size. One of the most important drawbacks is limited capacity of available cells which this research focuses to solve this challenge. FPGA can be used to design a controller in a single chip Integrated Circuit (IC). In this research the SMC is designed using Very High Description Language (VHDL) for implementation on FPGA device (XA3S1600E-Spartan-3E), with minimum chattering.
Design Novel Nonlinear Controller Applied to Robot Manipulator: Design New Fe...Waqas Tariq
In this paper, fuzzy adaptive base tuning feedback linearization fuzzy methodology to adaption gain is introduced. The system performance in feedback linearization controller and feedback linearization fuzzy controller are sensitive to the main controller coefficient. Therefore, compute the optimum value of main controller coefficient for a system is the main important challenge work. This problem has solved by adjusting main fuzzy controller continuously in real-time. In this way, the overall system performance has improved with respect to the classical feedback linearization controller and feedback linearization fuzzy controller. Adaptive feedback linearization fuzzy controller solved external disturbance as well as mathematical nonlinear equivalent part by applied fuzzy supervisory method in feedback linearization fuzzy controller. The addition of an adaptive law to a feedback linearization fuzzy controller to online tune the parameters of the fuzzy rules in use will ensure a moderate computational load. Refer to this research; tuning methodology can online adjust coefficient parts of the fuzzy rules. Since this algorithm for is specifically applied to a robot manipulator.
Adaptive MIMO Fuzzy Compensate Fuzzy Sliding Mode Algorithm: Applied to Secon...CSCJournals
This research is focused on proposed adaptive fuzzy sliding mode algorithms with the adaptation laws derived in the Lyapunov sense. The stability of the closed-loop system is proved mathematically based on the Lyapunov method. Adaptive MIMO fuzzy compensate fuzzy sliding mode method design a MIMO fuzzy system to compensate for the model uncertainties of the system, and chattering also solved by linear saturation method. Since there is no tuning method to adjust the premise part of fuzzy rules so we presented a scheme to online tune consequence part of fuzzy rules. Classical sliding mode control is robust to control model uncertainties and external disturbances. A sliding mode method with a switching control low guarantees the stability of the certain and/or uncertain system, but the addition of the switching control low introduces chattering into the system. One way to reduce or eliminate chattering is to insert a boundary layer method inside of a boundary layer around the sliding surface. Classical sliding mode control method has difficulty in handling unstructured model uncertainties. One can overcome this problem by combining a sliding mode controller and artificial intelligence (e.g. fuzzy logic). To approximate a time-varying nonlinear dynamic system, a fuzzy system requires a large amount of fuzzy rule base. This large number of fuzzy rules will cause a high computation load. The addition of an adaptive law to a fuzzy sliding mode controller to online tune the parameters of the fuzzy rules in use will ensure a moderate computational load. The adaptive laws in this algorithm are designed based on the Lyapunov stability theorem. Asymptotic stability of the closed loop system is also proved in the sense of Lyapunov.
In this research, a model free sliding mode fuzzy adaptive inverse dynamic fuzzy controller (SMFIDFC) is designed for a robot manipulator to rich the best performance. Inverse dynamic controller is considered because of its high performance in certain system. Fuzzy methodology has been included in inverse dynamic to keep away from design nonlinear controller based on dynamic model. Sliding mode fuzzy adaptive methodology is applied to model free controller to have better result in presence of structure and unstructured uncertainties. Besides, this control method can be applied to non-linear systems easily. Today, strong mathematical tools are used in new control methodologies to design adaptive nonlinear controller with satisfactory output results (e.g., minimum error, good trajectory, disturbance rejection).
Design Auto Adjust Sliding Surface Slope: Applied to Robot ManipulatorWaqas Tariq
The main target in this paper is to present the nonlinear methods in order to control the robot manipulators and also the related results. Also the important role of sliding surface slope in sliding mode fuzzy control of robot manipulator should be considered. Sliding mode controller (SMC) is a significant nonlinear controller in certain and uncertain dynamic parameters systems. To solve the chattering phenomenon, this paper complicated two methods to each other; boundary layer method and applied fuzzy logic in sliding mode methodology. To remove the chattering sliding surface slope also played important role so this paper focused on the auto tuning this important coefficient to have the best results by applied mathematical model free methodology. Auto tuning methodology has acceptable performance in presence of uncertainty (e.g., overshoot=0%, rise time=0.8 s, steady state error = 1e-9 and RMS error=0.0001632).
A New Estimate Sliding Mode Fuzzy Controller for Robotic ManipulatorWaqas Tariq
One of the most active research areas in field of robotics is control of robot manipulator because this system has highly nonlinear dynamic parameters and most of dynamic parameters are unknown so design an acceptable controller is the main goal in this work. To solve this challenge position new estimation sliding mode fuzzy controller is introduced and applied to robot manipulator. This controller can solve to most important challenge in classical sliding mode controller in presence of highly uncertainty, namely; chattering phenomenon based on fuzzy estimator and online tuning and equivalent nonlinear dynamic based on estimation. Proposed method has acceptable performance in presence of uncertainty (e.g., overshoot=0%, rise time=0.8 s, steady state error = 1e-9 and RMS error=0.0001632).
Design Novel Lookup Table Changed Auto Tuning FSMC: Applied to Robot ManipulatorCSCJournals
Refer to this paper, design lookup table changed adaptive fuzzy sliding mode controller with minimum rule base and good response in presence of structure and unstructured uncertainty is presented. However sliding mode controller is one of the robust nonlinear controllers but when this controller is applied to robot manipulator with highly nonlinear and uncertain dynamic function; caused to be challenged in control. Sliding mode controller in presence of uncertainty has two most important drawbacks; chattering and nonlinear equivalent part which proposed method is solved these challenges with look up table change methodology. This method is based on self tuning methodology therefore artificial intelligence (e.g., fuzzy logic method) is played important role to design proposed method. This controller has acceptable performance in presence of uncertainty (e.g., overshoot=0%, rise time=0.8 s, steady state error = 1e-9 and RMS error=0.00017).
Methodology of Mathematical error-Based Tuning Sliding Mode ControllerCSCJournals
Design a nonlinear controller for second order nonlinear uncertain dynamical systems is one of the most important challenging works. This paper focuses on the design of a chattering free mathematical error-based tuning sliding mode controller (MTSMC) for highly nonlinear dynamic robot manipulator, in presence of uncertainties. In order to provide high performance nonlinear methodology, sliding mode controller is selected. Pure sliding mode controller can be used to control of partly known nonlinear dynamic parameters of robot manipulator. Conversely, pure sliding mode controller is used in many applications; it has an important drawback namely; chattering phenomenon which it can causes some problems such as saturation and heat the mechanical parts of robot manipulators or drivers. In order to reduce the chattering this research is used the switching function in presence of mathematical error-based method instead of switching function method in pure sliding mode controller. The results demonstrate that the sliding mode controller with switching function is a model-based controllers which works well in certain and partly uncertain system. Pure sliding mode controller has difficulty in handling unstructured model uncertainties. To solve this problem applied mathematical model-free tuning method to sliding mode controller for adjusting the sliding surface gain (ë ). Since the sliding surface gain (ë) is adjusted by mathematical model free-based tuning method, it is nonlinear and continuous. In this research new ë is obtained by the previous ë multiple sliding surface slopes updating factor (á). Chattering free mathematical error-based tuning sliding mode controller is stable controller which eliminates the chattering phenomenon without to use the boundary layer saturation function. Lyapunov stability is proved in mathematical error-based tuning sliding mode controller with switching (sign) function. This controller has acceptable performance in presence of uncertainty (e.g., overshoot=0%, rise time=0.8 second, steady state error = 1e-9 and RMS error=1.8e-12).
Evolutionary Design of Mathematical tunable FPGA Based MIMO Fuzzy Estimator S...Waqas Tariq
In this research, a Multi Input Multi Output (MIMO) position Field Programmable Gate Array (FPGA)-based fuzzy estimator sliding mode control (SMC) design with the estimation laws derived in Lyapunov sense and application to robotic manipulator has proposed in order to design high performance nonlinear controller in the presence of uncertainties. Regarding to the positive points in sliding mode controller, fuzzy inference methodology and Lyapunov based method, the controllers output has improved. The main target in this research is analyses and design of the position MIMO artificial Lyapunov FPGA-based controller for robot manipulator in order to solve uncertainty, external disturbance, nonlinear equivalent part, chattering phenomenon, time to market and controller size using FPGA. Robot manipulators are nonlinear, time variant and a number of parameters are uncertain therefore design robust and stable controller based on Lyapunov based is discussed in this research. Studies about classical sliding mode controller (SMC) show that: although this controller has acceptable performance with known dynamic parameters such as stability and robustness but there are two important disadvantages as below: chattering phenomenon and mathematical nonlinear dynamic equivalent controller part. The first challenge; nonlinear dynamic part; is applied by inference estimator method in sliding mode controller in order to solve the nonlinear problems in classical sliding mode controller. And the second challenge; chattering phenomenon; is removed by linear method. Asymptotic stability of the closed loop system is also proved in the sense of Lyapunov. In the last part it can find the implementation of MIMO fuzzy estimator sliding mode controller on FPGA; FPGA-based fuzzy estimator sliding mode controller has many advantages such as high speed, low cost, short time to market and small device size. One of the most important drawbacks is limited capacity of available cells which this research focuses to solve this challenge. FPGA can be used to design a controller in a single chip Integrated Circuit (IC). In this research the SMC is designed using Very High Description Language (VHDL) for implementation on FPGA device (XA3S1600E-Spartan-3E), with minimum chattering.
Design Novel Nonlinear Controller Applied to Robot Manipulator: Design New Fe...Waqas Tariq
In this paper, fuzzy adaptive base tuning feedback linearization fuzzy methodology to adaption gain is introduced. The system performance in feedback linearization controller and feedback linearization fuzzy controller are sensitive to the main controller coefficient. Therefore, compute the optimum value of main controller coefficient for a system is the main important challenge work. This problem has solved by adjusting main fuzzy controller continuously in real-time. In this way, the overall system performance has improved with respect to the classical feedback linearization controller and feedback linearization fuzzy controller. Adaptive feedback linearization fuzzy controller solved external disturbance as well as mathematical nonlinear equivalent part by applied fuzzy supervisory method in feedback linearization fuzzy controller. The addition of an adaptive law to a feedback linearization fuzzy controller to online tune the parameters of the fuzzy rules in use will ensure a moderate computational load. Refer to this research; tuning methodology can online adjust coefficient parts of the fuzzy rules. Since this algorithm for is specifically applied to a robot manipulator.
Evolutionary Design of Backstepping Artificial Sliding Mode Based Position Al...CSCJournals
This paper expands a fuzzy sliding mode based position controller whose sliding function is on-line tuned by backstepping methodology. The main goal is to guarantee acceptable position trajectories tracking between the robot manipulator end-effector and the input desired position. The fuzzy controller in proposed fuzzy sliding mode controller is based on Mamdani’s fuzzy inference system (FIS) and it has one input and one output. The input represents the function between sliding function, error and the rate of error. The second input is the angle formed by the straight line defined with the orientation of the robot, and the straight line that connects the robot with the reference cart. The outputs represent angular position, velocity and acceleration commands, respectively. The backstepping methodology is on-line tune the sliding function based on self tuning methodology. The performance of the backstepping on-line tune fuzzy sliding mode controller (TBsFSMC) is validated through comparison with previously developed robot manipulator position controller based on adaptive fuzzy sliding mode control theory (AFSMC). Simulation results signify good performance of position tracking in presence of uncertainty and external disturbance.
Control of IC Engine: Design a Novel MIMO Fuzzy Backstepping Adaptive Based F...Waqas Tariq
This paper expands a Multi Input Multi Output (MIMO) fuzzy estimator variable structure control (VSC) which controller coefficient is on-line tuned by fuzzy backstepping algorithm. The main goal is to guarantee acceptable trajectories tracking between the internal combustion engine (IC engine) air to fuel ratio and the desired input. The fuzzy controller in proposed fuzzy estimator variable structure controller is based on Lyapunov fuzzy inference system (FIS) with minimum model based rule base. The input represents the function between variable structure function, error and the rate of error. The outputs represent fuel ratio, respectively. The fuzzy backstepping methodology is on-line tune the variable structure function based on adaptive methodology. The performance of the MIMO fuzzy estimator VSC which controller coefficient is on-line tuned by fuzzy backstepping algorithm (FBAFVSC) is validated through comparison with VSC and proposed method. Simulation results signify good performance of fuel ratio in presence of uncertainty and external disturbance.
Artificial Chattering Free on-line Fuzzy Sliding Mode Algorithm for Uncertain...CSCJournals
In this research, an artificial chattering free adaptive fuzzy sliding mode control design and application to uncertain robotic manipulator has proposed in order to design high performance nonlinear controller in the presence of uncertainties. Regarding to the positive points in sliding mode controller, fuzzy logic controller and adaptive method, the output has improved. Each method by adding to the previous controller has covered negative points. The main target in this research is design of model free estimator on-line sliding mode fuzzy algorithm for robot manipulator to reach an acceptable performance. Robot manipulators are highly nonlinear, and a number of parameters are uncertain, therefore design model free controller using both analytical and empirical paradigms are the main goal. Although classical sliding mode methodology has acceptable performance with known dynamic parameters such as stability and robustness but there are two important disadvantages as below: chattering phenomenon and mathematical nonlinear dynamic equivalent controller part. To solve the chattering fuzzy logic inference applied instead of dead zone function. To solve the equivalent problems in classical sliding mode controller this paper focuses on applied fuzzy logic method in classical controller. This algorithm works very well in certain environment but in uncertain or various dynamic parameters, it has slight chattering phenomenon. The system performance in sliding mode controller and fuzzy sliding mode controller are sensitive to the sliding function. Therefore, compute the optimum value of sliding function for a system is the next challenge. This problem has solved by adjusting sliding function of the adaptive method continuously in real-time. In this way, the overall system performance has improved with respect to the classical sliding mode controller. This controller solved chattering phenomenon as well as mathematical nonlinear equivalent part by applied fuzzy supervisory method in sliding mode fuzzy controller and tuning the sliding function.
International Journal of Engineering Research and Applications (IJERA) is an open access online peer reviewed international journal that publishes research and review articles in the fields of Computer Science, Neural Networks, Electrical Engineering, Software Engineering, Information Technology, Mechanical Engineering, Chemical Engineering, Plastic Engineering, Food Technology, Textile Engineering, Nano Technology & science, Power Electronics, Electronics & Communication Engineering, Computational mathematics, Image processing, Civil Engineering, Structural Engineering, Environmental Engineering, VLSI Testing & Low Power VLSI Design etc.
Design of Model Free Adaptive Fuzzy Computed Torque Controller for a Nonlinea...Waqas Tariq
In this study, a model free adaptive fuzzy computed torque controller (AFCTC) is designed for a two-degree-of freedom robot manipulator to rich the best performance. Computed torque controller is studied because of its high performance. AFCTC has been also included in this study because of its robust character and high performance. Besides, this control method can be applied to non-linear systems easily. Today, robot manipulators are used in unknown and unstructured environment and caused to provide sophisticated systems, therefore strong mathematical tools are used in new control methodologies to design adaptive nonlinear robust controller with acceptable performance (e.g., minimum error, good trajectory, disturbance rejection). The strategies of control robot manipulator are classified into two main groups: classical and non-classical methods, however both classical and non-classical theories have been applied successfully in many applications, but they also have some limitation. One of the most important nonlinear robust controller that can used in uncertainty nonlinear systems, are computed torque controller. This paper is focuses on applied non-classical method in robust classical method to reduce the limitations. Therefore adaptive fuzzy computed torque controller will be presented in this paper.
If you are interested in industrial robot controllers, this site is the right place for you. You can find out the every aspect of robot controllers and figure out how to design and implement robot controllers. http://open-robotics.com/
Design a nonlinear controller for second order nonlinear uncertain dynamical systems (e.g., Internal Combustion Engine) is one of the most important challenging works. This paper focuses on the design of a robust backstepping adaptive feedback linearization controller (FLC) for internal combustion (IC) engine in presence of uncertainties. In order to provide high performance nonlinear methodology, feedback linearization controller is selected. Pure feedback linearization controller can be used to control of partly unknown nonlinear dynamic parameters of IC engine. In order to solve the uncertain nonlinear dynamic parameters, implement easily and avoid mathematical model base controller, Mamdani’s performance/error-based fuzzy logic methodology with two inputs and one output and 49 rules is applied to pure feedback linearization controller. The results demonstrate that the error-based fuzzy feedback linearization controller is a model-free controllers which works well in certain and partly uncertain system. Pure feedback linearization controller and error-based feedback linearization like controller with have difficulty in handling unstructured model uncertainties. To solve this problem applied backstepping-based tuning method to error-based fuzzy feedback linearization controller for adjusting the feedback linearization controller gain (K_p,K_v ). This controller has acceptable performance in presence of uncertainty (e.g., overshoot=1%, rise time=0.48 second, steady state error = 1.3e-9 and RMS error=1.8e-11).
The developed control methodology can be used to build more efficient intelligent and precision mechatronic systems. Three degrees of freedom robot arm is controlled by adaptive sliding mode fuzzy algorithm fuzzy sliding mode controller (SMFAFSMC). This plant has 3 revolute joints allowing the corresponding links to move horizontally. Control of robotic manipulator is very important in field of robotic, because robotic manipulators are Multi-Input Multi-Output (MIMO), nonlinear and most of dynamic parameters are uncertainty. Design strong mathematical tools used in new control methodologies to design adaptive nonlinear robust controller with acceptable performance in this controller is the main challenge. Sliding mode methodology is a nonlinear robust controller which can be used in uncertainty nonlinear systems, but pure sliding mode controller has chattering phenomenon and nonlinear equivalent part in uncertain system therefore the first step is focused on eliminate the chattering and in second step controller is improved with regard to uncertainties. Sliding function is one of the most important challenging in artificial sliding mode algorithm which this problem in order to solved by on-line tuning method. This paper focuses on adjusting the sliding surface slope in fuzzy sliding mode controller by sliding mode fuzzy algorithm.
Evaluation Performance of 2nd Order Nonlinear System: Baseline Control Tunabl...Waqas Tariq
Design a nonlinear controller for second order nonlinear uncertain dynamical systems (e.g., internal combustion engine) is one of the most important challenging works. This paper focuses on the comparative study between two important nonlinear controllers namely; computed torque controller (CTC) and sliding mode controller (SMC) and applied to internal combustion (IC) engine in presence of uncertainties. In order to provide high performance nonlinear methodology, sliding mode controller and computed torque controller are selected. Pure SMC and CTC can be used to control of partly known nonlinear dynamic parameters of IC engine. Pure sliding mode controller and computed torque controller have difficulty in handling unstructured model uncertainties. To solve this problem applied linear error-based tuning method to sliding mode controller and computed torque controller for adjusting the sliding surface gain (ë ) and linear inner loop gain (K). Since the sliding surface gain (ë) and linear inner loop gain (K) are adjusted by linear error-based tuning method. In this research new ë and new K are obtained by the previous ë and K multiple gains updating factor(á). The results demonstrate that the error-based linear SMC and CTC are model-based controllers which works well in certain and uncertain system. These controllers have acceptable performance in presence of uncertainty.
Design Artificial Nonlinear Robust Controller Based on CTLC and FSMC with Tun...Waqas Tariq
One of the most active research areas in the field of robotics is robot manipulators control, because these systems are multi-input multi-output (MIMO), nonlinear, time variant and uncertainty. An artificial non linear robust controller design is major subject in this work. At present, robot manipulators are used in unknown and unstructured situation and caused to provide complicated systems, consequently nonlinear classical controllers are used in artificial intelligence control methodologies to design nonlinear robust controller with satisfactory performance (e.g., minimum error, good trajectory, disturbance rejection). Sliding mode controller (SMC) and computed torque controller (CTC) are the best nonlinear robust controllers which can be used in uncertainty nonlinear. Sliding mode controller has two most important challenges in uncertain systems: chattering phenomenon and nonlinear dynamic equivalent part. Computed torque controller works very well when all nonlinear dynamic parameters are known. This research is focused on the applied non-classical method (e.g., Fuzzy Logic) in robust classical method (e.g., Sliding Mode Controller and computed torque controller) in the presence of uncertainties and external disturbance to reduce the limitations. Applying the Mamdani’s error based fuzzy logic controller with minimum rules is the first goal that causes the elimination of the mathematical nonlinear dynamic in SMC and CTC. Second target focuses on the elimination of chattering phenomenon with regard to the variety of uncertainty and external disturbance in fuzzy sliding mode controller and computed torque like controller by optimization the tunable gain. Therefore fuzzy sliding mode controller with tunable gain (GTFSMC) and computed torque like controller with tunable gain (GTCTLC) will be presented in this paper.
TORQUE CONTROL OF AC MOTOR WITH FOPID CONTROLLER BASED ON FUZZY NEURAL ALGORITHMijics
Nowadays in the complicated systems, design of proper and implementable controller has a most importance. With respect to ability of fractional order systems in complicated systems identification as a first order fractional system with time delay, usage of fractional order PID has a proper result. From one side flexibility of fractional calculus than integer order has been topics of interest to the researchers. From another side, PMSM motors which are one the AC motor types, has been allocated largely accounted position in industry and used in variety applications. Therefore in this paper torque direct control of PMSM motors with FOPID based on model is proposed. Also fuzzy neural controllers are widely considered. Reason of this is success of fuzzy neural controller in control and identification of uncertain and complicated systems. The proposed method in this paper is combination of FOPID controller with fuzzy neural supervision system which with coefficients setting of this controller, control operation of PMSM will improve. Results of proposed method show the ability of proposed technique in reference signal tracking, elimination of disturbances effects and functional robustness in presence of noise and uncertainty. The results show the error averagely in three condition, nominal form, step disturbance and noise and uncertainly will decrease 11.66% in proposed method (FNFOPID) with Integral Square Error criterion and 7.69% with Integral Absolute Error criterion in comparison to FOPID.
Joint control of a robotic arm using particle swarm optimization based H2/H∞ ...TELKOMNIKA JOURNAL
This paper proposes a small structure of robust controller to control robotic arm’s joints where exist some uncertainties and unmodelled dynamics. Robotic arm is widely used now in the era of Industry 4.0. Nevertheless, the cost for an industry to migrate from a conventional automatic machine to industrial robot still very high. This become a significant challenge to middle or small size industry. Development of a low cost industrial robotic arm can be one of good solutions for them. However, a low-cost manipulator can bring more uncertainties. There might be exist more unmodelled dynamic in a low-cost system. A good controller to overcome such uncertainties and unmodelled dynamics is robust controller. A low-cost robotic arm might use small or medium size embedded controller such as Arduino. Therefore, the control algorithm should be a small order of controller. The synthesized controller was tested using MATLAB and then implemented on the real hardware to control a robotic manipulator. Both the simulation and the experiment showed that the proposed controller performed satisfactory results. It can control the joint position to the desired position even in the presence of uncertainties such as unmodelled dynamics and variation of loads or manipulator poses.
An Improved Accurate Trajectory Control System for Industrial Hydraulic Robo...IJMER
A PC based control system was developed in this work to control a hydraulic pick and place robotic arm with a high tracking accuracy. The hydraulic arm was designed, constructed and controlled through an electronic driver circuit designed by the author. The tracking control system is driven by computer software, the commands of which are connected to the arm by means of a data acquisition card to read the rotational angles of its parts and to actuate the driver circuit of its hydraulic system. The present hydraulic robot arm is controlled to carry out desired pick and place tasks. A smart control software program was designed and constructed by the author using C# programming language. The present software program is designed as a Graphical User Interface application, GUI, and therefore it can be easily operated by non-expert users. Inverse kinematics formulas, derived by the author, are processed by the software to convert the coordinates of the initial and object tracking points from Cartesian to Polar systems as needed. Experimental runs were carried out to verify the effectiveness and the accuracy of the present tracking arm. Experiments showed that nine of ten trials were successful to attain a predesigned accurate pick and place task, which is a good percentage, confirmed the high accuracy of the present tracking system.
Novel Artificial Control of Nonlinear Uncertain System: Design a Novel Modifi...Waqas Tariq
This research is focused on novel particle swarm optimization (PSO) SISO Lyapunov based fuzzy estimator sliding mode algorithms derived in the Lyapunov sense. The stability of the closed-loop system is proved mathematically based on the Lyapunov method. PSO SISO fuzzy compensate sliding mode method design a SISO fuzzy system to compensate for the dynamic model uncertainties of the nonlinear dynamic system and chattering also solved by nonlinear fuzzy saturation like method. Adjust the sliding function is played important role to reduce the chattering phenomenon and also design acceptable estimator applied to nonlinear classical controller so PSO method is used to off-line tuning. Classical sliding mode control is robust to control model uncertainties and external disturbances. A sliding mode method with a switching control low guarantees the stability of the certain and/or uncertain system, but the addition of the switching control low introduces chattering into the system. One way to reduce or eliminate chattering is to insert a nonlinear (fuzzy) boundary like layer method inside of a boundary layer around the sliding surface. Classical sliding mode control method has difficulty in handling unstructured model uncertainties. One can overcome this problem by applied fuzzy inference system into sliding mode algorithm to design and estimate model-free nonlinear dynamic equivalent part. To approximate a time-varying nonlinear dynamic system, a fuzzy system requires a large amount of fuzzy rule base. This large number of fuzzy rules will cause a high computation load. The addition of PSO method to a fuzzy sliding mode controller to tune the parameters of the fuzzy rules in use will ensure a moderate computational load. The PSO method in this algorithm is designed based on the PSO stability theorem. Asymptotic stability of the closed loop system is also proved in the sense of Lyapunov.
Intelligent swarm algorithms for optimizing nonlinear sliding mode controller...IJECEIAES
This work introduces an accurate and fast approach for optimizing the parameters of robot manipulator controller. The approach of sliding mode control (SMC) was proposed as it documented an effective tool for designing robust controllers for complex high-order linear and nonlinear dynamic systems operating under uncertain conditions. In this work Intelligent particle swarm optimization (PSO) and social spider optimization (SSO) were used for obtaining the best values for the parameters of sliding mode control (SMC) to achieve consistency, stability and robustness. Additional design of integral sliding mode control (ISMC) was implemented to the dynamic system to achieve the high control theory of sliding mode controller. For designing particle swarm optimizer (PSO) and social spider optimization (SSO) processes, mean square error performances index was considered. The effectiveness of the proposed system was tested with six degrees of freedom robot manipulator by using (PUMA) robot. The iteration of SSO and PSO algorithms with mean square error and objective function were obtained, with best fitness for (SSO =4.4876 푒 −6 and (PSO)=3.4948 푒 −4 .
FRACTIONAL-ORDER PROPORTIONALINTEGRAL (FOPI) CONTROLLER FOR MECANUM-WHEELED R...IAEME Publication
This study presents experimental implementation of fractional-order proportionalintegral
(FOPI) controller on a Mecanum-wheeled robot (MWR), which is a system with
nonlinearities and uncertainties, in performing tracking of a complex path i.e. ∞-shaped
path. The FOPI controller is almost as simpler as proportional-integral (PI) controller
and has supplementary advantage over PI controller due to its fractional integral. The
tracking performances of both the controllers are compared and evaluated in terms of
integral of absolute error (IAE), integral of squared error (ISE) and root-mean-square of
error (RMSE). Experimental result shows that the FOPI controller exhibits iso-damping
properties and successfully attains tracking with reduced error. Also, in this paper,
discretization of FOPI controller by using zero-order hold (ZOH) is discussed and
presented for the purpose of programming implementation on microcontroller board.
Besides that, graphical visualization of FOPI controller is presented to provide an insight
and intuitive understanding on the characteristic of the controller
Speed Sensorless Vector Control of Unbalanced Three-Phase Induction Motor wit...IAES-IJPEDS
This paper presents a technique for speed sensorless Rotor Flux Oriented Control (RFOC) of 3-phase Induction Motor (IM) under open-phase fault (unbalanced or faulty IM). The presented RFOC strategy is based on rotational transformation. An adaptive sliding mode control system with an adaptive switching gain is proposed instead of the speed PI controller. Using an adaptive sliding mode control causes the proposed speed sensorless RFOC drive system to become insensitive to uncertainties such as load disturbances and parameter variations. Moreover, with adaptation of the sliding switching gain, calculation of the system uncertainties upper bound is not needed. Finally, simulation results have been presented to confirm the good performance of the proposed method.
PUMA-560 Robot Manipulator Position Sliding Mode Control Methods Using MATLAB...Waqas Tariq
This paper describes the MATLAB/SIMULINK realization, modeling and implementation of the PUMA 560 robot manipulator. This paper focuses on robot manipulator analysis and implementation and analyzed. This simulation models are developed as a part of a software laboratory to support and enhance graduate robotics courses, and MATLAB/SIMULINK courses at research and development company (SSP Co.) research center, Shiraz, Iran.
Design and Implementation of Sliding Mode Algorithm: Applied to Robot Manipul...Waqas Tariq
Refer to the research, review of sliding mode controller is introduced and application to robot manipulator has proposed in order to design high performance nonlinear controller in the presence of uncertainties. Regarding to the positive points in sliding mode controller, fuzzy logic controller and adaptive method, the output in most of research have improved. Each method by adding to the previous algorithm has covered negative points. Obviously robot manipulator is nonlinear, and a number of parameters are uncertain, this research focuses on comparison between sliding mode algorithm which analyzed by many researcher. Sliding mode controller (SMC) is one of the nonlinear robust controllers which it can be used in uncertainty nonlinear dynamic systems. This nonlinear controller has two challenges namely nonlinear dynamic equivalent part and chattering phenomenon. A review of sliding mode controller for robot manipulator will be investigated in this research.
Evolutionary Design of Backstepping Artificial Sliding Mode Based Position Al...CSCJournals
This paper expands a fuzzy sliding mode based position controller whose sliding function is on-line tuned by backstepping methodology. The main goal is to guarantee acceptable position trajectories tracking between the robot manipulator end-effector and the input desired position. The fuzzy controller in proposed fuzzy sliding mode controller is based on Mamdani’s fuzzy inference system (FIS) and it has one input and one output. The input represents the function between sliding function, error and the rate of error. The second input is the angle formed by the straight line defined with the orientation of the robot, and the straight line that connects the robot with the reference cart. The outputs represent angular position, velocity and acceleration commands, respectively. The backstepping methodology is on-line tune the sliding function based on self tuning methodology. The performance of the backstepping on-line tune fuzzy sliding mode controller (TBsFSMC) is validated through comparison with previously developed robot manipulator position controller based on adaptive fuzzy sliding mode control theory (AFSMC). Simulation results signify good performance of position tracking in presence of uncertainty and external disturbance.
Control of IC Engine: Design a Novel MIMO Fuzzy Backstepping Adaptive Based F...Waqas Tariq
This paper expands a Multi Input Multi Output (MIMO) fuzzy estimator variable structure control (VSC) which controller coefficient is on-line tuned by fuzzy backstepping algorithm. The main goal is to guarantee acceptable trajectories tracking between the internal combustion engine (IC engine) air to fuel ratio and the desired input. The fuzzy controller in proposed fuzzy estimator variable structure controller is based on Lyapunov fuzzy inference system (FIS) with minimum model based rule base. The input represents the function between variable structure function, error and the rate of error. The outputs represent fuel ratio, respectively. The fuzzy backstepping methodology is on-line tune the variable structure function based on adaptive methodology. The performance of the MIMO fuzzy estimator VSC which controller coefficient is on-line tuned by fuzzy backstepping algorithm (FBAFVSC) is validated through comparison with VSC and proposed method. Simulation results signify good performance of fuel ratio in presence of uncertainty and external disturbance.
Artificial Chattering Free on-line Fuzzy Sliding Mode Algorithm for Uncertain...CSCJournals
In this research, an artificial chattering free adaptive fuzzy sliding mode control design and application to uncertain robotic manipulator has proposed in order to design high performance nonlinear controller in the presence of uncertainties. Regarding to the positive points in sliding mode controller, fuzzy logic controller and adaptive method, the output has improved. Each method by adding to the previous controller has covered negative points. The main target in this research is design of model free estimator on-line sliding mode fuzzy algorithm for robot manipulator to reach an acceptable performance. Robot manipulators are highly nonlinear, and a number of parameters are uncertain, therefore design model free controller using both analytical and empirical paradigms are the main goal. Although classical sliding mode methodology has acceptable performance with known dynamic parameters such as stability and robustness but there are two important disadvantages as below: chattering phenomenon and mathematical nonlinear dynamic equivalent controller part. To solve the chattering fuzzy logic inference applied instead of dead zone function. To solve the equivalent problems in classical sliding mode controller this paper focuses on applied fuzzy logic method in classical controller. This algorithm works very well in certain environment but in uncertain or various dynamic parameters, it has slight chattering phenomenon. The system performance in sliding mode controller and fuzzy sliding mode controller are sensitive to the sliding function. Therefore, compute the optimum value of sliding function for a system is the next challenge. This problem has solved by adjusting sliding function of the adaptive method continuously in real-time. In this way, the overall system performance has improved with respect to the classical sliding mode controller. This controller solved chattering phenomenon as well as mathematical nonlinear equivalent part by applied fuzzy supervisory method in sliding mode fuzzy controller and tuning the sliding function.
International Journal of Engineering Research and Applications (IJERA) is an open access online peer reviewed international journal that publishes research and review articles in the fields of Computer Science, Neural Networks, Electrical Engineering, Software Engineering, Information Technology, Mechanical Engineering, Chemical Engineering, Plastic Engineering, Food Technology, Textile Engineering, Nano Technology & science, Power Electronics, Electronics & Communication Engineering, Computational mathematics, Image processing, Civil Engineering, Structural Engineering, Environmental Engineering, VLSI Testing & Low Power VLSI Design etc.
Design of Model Free Adaptive Fuzzy Computed Torque Controller for a Nonlinea...Waqas Tariq
In this study, a model free adaptive fuzzy computed torque controller (AFCTC) is designed for a two-degree-of freedom robot manipulator to rich the best performance. Computed torque controller is studied because of its high performance. AFCTC has been also included in this study because of its robust character and high performance. Besides, this control method can be applied to non-linear systems easily. Today, robot manipulators are used in unknown and unstructured environment and caused to provide sophisticated systems, therefore strong mathematical tools are used in new control methodologies to design adaptive nonlinear robust controller with acceptable performance (e.g., minimum error, good trajectory, disturbance rejection). The strategies of control robot manipulator are classified into two main groups: classical and non-classical methods, however both classical and non-classical theories have been applied successfully in many applications, but they also have some limitation. One of the most important nonlinear robust controller that can used in uncertainty nonlinear systems, are computed torque controller. This paper is focuses on applied non-classical method in robust classical method to reduce the limitations. Therefore adaptive fuzzy computed torque controller will be presented in this paper.
If you are interested in industrial robot controllers, this site is the right place for you. You can find out the every aspect of robot controllers and figure out how to design and implement robot controllers. http://open-robotics.com/
Design a nonlinear controller for second order nonlinear uncertain dynamical systems (e.g., Internal Combustion Engine) is one of the most important challenging works. This paper focuses on the design of a robust backstepping adaptive feedback linearization controller (FLC) for internal combustion (IC) engine in presence of uncertainties. In order to provide high performance nonlinear methodology, feedback linearization controller is selected. Pure feedback linearization controller can be used to control of partly unknown nonlinear dynamic parameters of IC engine. In order to solve the uncertain nonlinear dynamic parameters, implement easily and avoid mathematical model base controller, Mamdani’s performance/error-based fuzzy logic methodology with two inputs and one output and 49 rules is applied to pure feedback linearization controller. The results demonstrate that the error-based fuzzy feedback linearization controller is a model-free controllers which works well in certain and partly uncertain system. Pure feedback linearization controller and error-based feedback linearization like controller with have difficulty in handling unstructured model uncertainties. To solve this problem applied backstepping-based tuning method to error-based fuzzy feedback linearization controller for adjusting the feedback linearization controller gain (K_p,K_v ). This controller has acceptable performance in presence of uncertainty (e.g., overshoot=1%, rise time=0.48 second, steady state error = 1.3e-9 and RMS error=1.8e-11).
The developed control methodology can be used to build more efficient intelligent and precision mechatronic systems. Three degrees of freedom robot arm is controlled by adaptive sliding mode fuzzy algorithm fuzzy sliding mode controller (SMFAFSMC). This plant has 3 revolute joints allowing the corresponding links to move horizontally. Control of robotic manipulator is very important in field of robotic, because robotic manipulators are Multi-Input Multi-Output (MIMO), nonlinear and most of dynamic parameters are uncertainty. Design strong mathematical tools used in new control methodologies to design adaptive nonlinear robust controller with acceptable performance in this controller is the main challenge. Sliding mode methodology is a nonlinear robust controller which can be used in uncertainty nonlinear systems, but pure sliding mode controller has chattering phenomenon and nonlinear equivalent part in uncertain system therefore the first step is focused on eliminate the chattering and in second step controller is improved with regard to uncertainties. Sliding function is one of the most important challenging in artificial sliding mode algorithm which this problem in order to solved by on-line tuning method. This paper focuses on adjusting the sliding surface slope in fuzzy sliding mode controller by sliding mode fuzzy algorithm.
Evaluation Performance of 2nd Order Nonlinear System: Baseline Control Tunabl...Waqas Tariq
Design a nonlinear controller for second order nonlinear uncertain dynamical systems (e.g., internal combustion engine) is one of the most important challenging works. This paper focuses on the comparative study between two important nonlinear controllers namely; computed torque controller (CTC) and sliding mode controller (SMC) and applied to internal combustion (IC) engine in presence of uncertainties. In order to provide high performance nonlinear methodology, sliding mode controller and computed torque controller are selected. Pure SMC and CTC can be used to control of partly known nonlinear dynamic parameters of IC engine. Pure sliding mode controller and computed torque controller have difficulty in handling unstructured model uncertainties. To solve this problem applied linear error-based tuning method to sliding mode controller and computed torque controller for adjusting the sliding surface gain (ë ) and linear inner loop gain (K). Since the sliding surface gain (ë) and linear inner loop gain (K) are adjusted by linear error-based tuning method. In this research new ë and new K are obtained by the previous ë and K multiple gains updating factor(á). The results demonstrate that the error-based linear SMC and CTC are model-based controllers which works well in certain and uncertain system. These controllers have acceptable performance in presence of uncertainty.
Design Artificial Nonlinear Robust Controller Based on CTLC and FSMC with Tun...Waqas Tariq
One of the most active research areas in the field of robotics is robot manipulators control, because these systems are multi-input multi-output (MIMO), nonlinear, time variant and uncertainty. An artificial non linear robust controller design is major subject in this work. At present, robot manipulators are used in unknown and unstructured situation and caused to provide complicated systems, consequently nonlinear classical controllers are used in artificial intelligence control methodologies to design nonlinear robust controller with satisfactory performance (e.g., minimum error, good trajectory, disturbance rejection). Sliding mode controller (SMC) and computed torque controller (CTC) are the best nonlinear robust controllers which can be used in uncertainty nonlinear. Sliding mode controller has two most important challenges in uncertain systems: chattering phenomenon and nonlinear dynamic equivalent part. Computed torque controller works very well when all nonlinear dynamic parameters are known. This research is focused on the applied non-classical method (e.g., Fuzzy Logic) in robust classical method (e.g., Sliding Mode Controller and computed torque controller) in the presence of uncertainties and external disturbance to reduce the limitations. Applying the Mamdani’s error based fuzzy logic controller with minimum rules is the first goal that causes the elimination of the mathematical nonlinear dynamic in SMC and CTC. Second target focuses on the elimination of chattering phenomenon with regard to the variety of uncertainty and external disturbance in fuzzy sliding mode controller and computed torque like controller by optimization the tunable gain. Therefore fuzzy sliding mode controller with tunable gain (GTFSMC) and computed torque like controller with tunable gain (GTCTLC) will be presented in this paper.
TORQUE CONTROL OF AC MOTOR WITH FOPID CONTROLLER BASED ON FUZZY NEURAL ALGORITHMijics
Nowadays in the complicated systems, design of proper and implementable controller has a most importance. With respect to ability of fractional order systems in complicated systems identification as a first order fractional system with time delay, usage of fractional order PID has a proper result. From one side flexibility of fractional calculus than integer order has been topics of interest to the researchers. From another side, PMSM motors which are one the AC motor types, has been allocated largely accounted position in industry and used in variety applications. Therefore in this paper torque direct control of PMSM motors with FOPID based on model is proposed. Also fuzzy neural controllers are widely considered. Reason of this is success of fuzzy neural controller in control and identification of uncertain and complicated systems. The proposed method in this paper is combination of FOPID controller with fuzzy neural supervision system which with coefficients setting of this controller, control operation of PMSM will improve. Results of proposed method show the ability of proposed technique in reference signal tracking, elimination of disturbances effects and functional robustness in presence of noise and uncertainty. The results show the error averagely in three condition, nominal form, step disturbance and noise and uncertainly will decrease 11.66% in proposed method (FNFOPID) with Integral Square Error criterion and 7.69% with Integral Absolute Error criterion in comparison to FOPID.
Joint control of a robotic arm using particle swarm optimization based H2/H∞ ...TELKOMNIKA JOURNAL
This paper proposes a small structure of robust controller to control robotic arm’s joints where exist some uncertainties and unmodelled dynamics. Robotic arm is widely used now in the era of Industry 4.0. Nevertheless, the cost for an industry to migrate from a conventional automatic machine to industrial robot still very high. This become a significant challenge to middle or small size industry. Development of a low cost industrial robotic arm can be one of good solutions for them. However, a low-cost manipulator can bring more uncertainties. There might be exist more unmodelled dynamic in a low-cost system. A good controller to overcome such uncertainties and unmodelled dynamics is robust controller. A low-cost robotic arm might use small or medium size embedded controller such as Arduino. Therefore, the control algorithm should be a small order of controller. The synthesized controller was tested using MATLAB and then implemented on the real hardware to control a robotic manipulator. Both the simulation and the experiment showed that the proposed controller performed satisfactory results. It can control the joint position to the desired position even in the presence of uncertainties such as unmodelled dynamics and variation of loads or manipulator poses.
An Improved Accurate Trajectory Control System for Industrial Hydraulic Robo...IJMER
A PC based control system was developed in this work to control a hydraulic pick and place robotic arm with a high tracking accuracy. The hydraulic arm was designed, constructed and controlled through an electronic driver circuit designed by the author. The tracking control system is driven by computer software, the commands of which are connected to the arm by means of a data acquisition card to read the rotational angles of its parts and to actuate the driver circuit of its hydraulic system. The present hydraulic robot arm is controlled to carry out desired pick and place tasks. A smart control software program was designed and constructed by the author using C# programming language. The present software program is designed as a Graphical User Interface application, GUI, and therefore it can be easily operated by non-expert users. Inverse kinematics formulas, derived by the author, are processed by the software to convert the coordinates of the initial and object tracking points from Cartesian to Polar systems as needed. Experimental runs were carried out to verify the effectiveness and the accuracy of the present tracking arm. Experiments showed that nine of ten trials were successful to attain a predesigned accurate pick and place task, which is a good percentage, confirmed the high accuracy of the present tracking system.
Novel Artificial Control of Nonlinear Uncertain System: Design a Novel Modifi...Waqas Tariq
This research is focused on novel particle swarm optimization (PSO) SISO Lyapunov based fuzzy estimator sliding mode algorithms derived in the Lyapunov sense. The stability of the closed-loop system is proved mathematically based on the Lyapunov method. PSO SISO fuzzy compensate sliding mode method design a SISO fuzzy system to compensate for the dynamic model uncertainties of the nonlinear dynamic system and chattering also solved by nonlinear fuzzy saturation like method. Adjust the sliding function is played important role to reduce the chattering phenomenon and also design acceptable estimator applied to nonlinear classical controller so PSO method is used to off-line tuning. Classical sliding mode control is robust to control model uncertainties and external disturbances. A sliding mode method with a switching control low guarantees the stability of the certain and/or uncertain system, but the addition of the switching control low introduces chattering into the system. One way to reduce or eliminate chattering is to insert a nonlinear (fuzzy) boundary like layer method inside of a boundary layer around the sliding surface. Classical sliding mode control method has difficulty in handling unstructured model uncertainties. One can overcome this problem by applied fuzzy inference system into sliding mode algorithm to design and estimate model-free nonlinear dynamic equivalent part. To approximate a time-varying nonlinear dynamic system, a fuzzy system requires a large amount of fuzzy rule base. This large number of fuzzy rules will cause a high computation load. The addition of PSO method to a fuzzy sliding mode controller to tune the parameters of the fuzzy rules in use will ensure a moderate computational load. The PSO method in this algorithm is designed based on the PSO stability theorem. Asymptotic stability of the closed loop system is also proved in the sense of Lyapunov.
Intelligent swarm algorithms for optimizing nonlinear sliding mode controller...IJECEIAES
This work introduces an accurate and fast approach for optimizing the parameters of robot manipulator controller. The approach of sliding mode control (SMC) was proposed as it documented an effective tool for designing robust controllers for complex high-order linear and nonlinear dynamic systems operating under uncertain conditions. In this work Intelligent particle swarm optimization (PSO) and social spider optimization (SSO) were used for obtaining the best values for the parameters of sliding mode control (SMC) to achieve consistency, stability and robustness. Additional design of integral sliding mode control (ISMC) was implemented to the dynamic system to achieve the high control theory of sliding mode controller. For designing particle swarm optimizer (PSO) and social spider optimization (SSO) processes, mean square error performances index was considered. The effectiveness of the proposed system was tested with six degrees of freedom robot manipulator by using (PUMA) robot. The iteration of SSO and PSO algorithms with mean square error and objective function were obtained, with best fitness for (SSO =4.4876 푒 −6 and (PSO)=3.4948 푒 −4 .
FRACTIONAL-ORDER PROPORTIONALINTEGRAL (FOPI) CONTROLLER FOR MECANUM-WHEELED R...IAEME Publication
This study presents experimental implementation of fractional-order proportionalintegral
(FOPI) controller on a Mecanum-wheeled robot (MWR), which is a system with
nonlinearities and uncertainties, in performing tracking of a complex path i.e. ∞-shaped
path. The FOPI controller is almost as simpler as proportional-integral (PI) controller
and has supplementary advantage over PI controller due to its fractional integral. The
tracking performances of both the controllers are compared and evaluated in terms of
integral of absolute error (IAE), integral of squared error (ISE) and root-mean-square of
error (RMSE). Experimental result shows that the FOPI controller exhibits iso-damping
properties and successfully attains tracking with reduced error. Also, in this paper,
discretization of FOPI controller by using zero-order hold (ZOH) is discussed and
presented for the purpose of programming implementation on microcontroller board.
Besides that, graphical visualization of FOPI controller is presented to provide an insight
and intuitive understanding on the characteristic of the controller
Speed Sensorless Vector Control of Unbalanced Three-Phase Induction Motor wit...IAES-IJPEDS
This paper presents a technique for speed sensorless Rotor Flux Oriented Control (RFOC) of 3-phase Induction Motor (IM) under open-phase fault (unbalanced or faulty IM). The presented RFOC strategy is based on rotational transformation. An adaptive sliding mode control system with an adaptive switching gain is proposed instead of the speed PI controller. Using an adaptive sliding mode control causes the proposed speed sensorless RFOC drive system to become insensitive to uncertainties such as load disturbances and parameter variations. Moreover, with adaptation of the sliding switching gain, calculation of the system uncertainties upper bound is not needed. Finally, simulation results have been presented to confirm the good performance of the proposed method.
PUMA-560 Robot Manipulator Position Sliding Mode Control Methods Using MATLAB...Waqas Tariq
This paper describes the MATLAB/SIMULINK realization, modeling and implementation of the PUMA 560 robot manipulator. This paper focuses on robot manipulator analysis and implementation and analyzed. This simulation models are developed as a part of a software laboratory to support and enhance graduate robotics courses, and MATLAB/SIMULINK courses at research and development company (SSP Co.) research center, Shiraz, Iran.
Design and Implementation of Sliding Mode Algorithm: Applied to Robot Manipul...Waqas Tariq
Refer to the research, review of sliding mode controller is introduced and application to robot manipulator has proposed in order to design high performance nonlinear controller in the presence of uncertainties. Regarding to the positive points in sliding mode controller, fuzzy logic controller and adaptive method, the output in most of research have improved. Each method by adding to the previous algorithm has covered negative points. Obviously robot manipulator is nonlinear, and a number of parameters are uncertain, this research focuses on comparison between sliding mode algorithm which analyzed by many researcher. Sliding mode controller (SMC) is one of the nonlinear robust controllers which it can be used in uncertainty nonlinear dynamic systems. This nonlinear controller has two challenges namely nonlinear dynamic equivalent part and chattering phenomenon. A review of sliding mode controller for robot manipulator will be investigated in this research.
Artificial Control of PUMA Robot Manipulator: A-Review of Fuzzy Inference Eng...Waqas Tariq
One of the most important challenges in the field of robotics is robot manipulators control with acceptable performance, because these systems are multi-input multi-output (MIMO), nonlinear and uncertainty. Presently, robot manipulators are used in different (unknown and/or unstructured) situation consequently caused to provide complicated systems, as a result strong mathematical theory are used in new control methodologies to design nonlinear robust controller with acceptable performance (e.g., minimum error, good trajectory, disturbance rejection). Classical and non-classical methods are two main categories of robot manipulators control, where the conventional (classical) control theory uses the classical method and the non-classical control theory (e.g., fuzzy logic, neural network, and neuro fuzzy) uses the artificial intelligence methods. However both of conventional and artificial intelligence theories have applied effectively in many areas, but these methods also have some limitations. This paper is focused on review of fuzzy logic controller and applied to PUMA robot manipulator.
The International Journal of Engineering and Science (The IJES)theijes
The International Journal of Engineering & Science is aimed at providing a platform for researchers, engineers, scientists, or educators to publish their original research results, to exchange new ideas, to disseminate information in innovative designs, engineering experiences and technological skills. It is also the Journal's objective to promote engineering and technology education. All papers submitted to the Journal will be blind peer-reviewed. Only original articles will be published.
Sliding Mode Methodology Vs. Computed Torque Methodology Using MATLAB/SIMULIN...CSCJournals
Design a nonlinear controller for second order nonlinear uncertain dynamical systems is one of the most important challenging works. This paper focuses on the design, implementation and analysis of a chattering free sliding mode controller for highly nonlinear dynamic PUMA robot manipulator and compare to computed torque controller, in presence of uncertainties. In order to provide high performance nonlinear methodology, sliding mode controller and computed torque controller are selected. Pure sliding mode controller and computed torque controller can be used to control of partly known nonlinear dynamic parameters of robot manipulator. Conversely, pure sliding mode controller is used in many applications; it has an important drawback namely; chattering phenomenon which it can causes some problems such as saturation and heat the mechanical parts of robot manipulators or drivers. In order to reduce the chattering this research is used the linear saturation function boundary layer method instead of switching function method in pure sliding mode controller. These simulation models are developed as a part of a software laboratory to support and enhance graduate/undergraduate robotics courses, nonlinear control courses and MATLAB/SIMULINK courses at research and development company (SSP Co.) research center, Shiraz, Iran.
PUMA-560 Robot Manipulator Position Computed Torque Control Methods Using MAT...Waqas Tariq
This paper describes the MATLAB/SIMULINK realization of the PUMA 560 robot manipulator position control methodology. This paper focuses on design, analyzed and implements nonlinear computed torque control (CTC) methods. These simulation models are developed as a part of a software laboratory to support and enhance graduate/undergraduate robotics courses, nonlinear control courses and MATLAB/SIMULINK courses at research and development company (SSP Co.) research center, Shiraz, Iran.
Digital Implementation of Fuzzy Logic Controller for Real Time Position Contr...IOSR Journals
Abstract: Fuzzy Logic Controller (FLC) systems have emerged as one of the most promising areas for Industrial Applications. The highly growth of fuzzy logic applications led to the need of finding efficient way to hardware implementation. Field Programmable Gate Array (FPGA) is the most important tool for hardware implementation due to low consumption of energy, high speed of operation and large capacity of data storage. In this paper, instead of an introduction to fuzzy logic control methodology, we have demonstrated the implementation of a FLC through the use of the Very high speed integrated circuits Hardware Description Language (VHDL) code. FLC is designed for position control of BLDC Motor. VHDL has been used to develop FLC on FPGA. A Mamdani type FLC structure has been used to obtain the controller output. The controller algorithm developed synthesized, simulated and implemented on FPGA Spartan 3E board. Keywords – BLDC Motor, FLC, Hardware Implementation, Spartan3 FPGA, VHDL
Digital Implementation of Fuzzy Logic Controller for Real Time Position Contr...IOSR Journals
Fuzzy Logic Controller (FLC) systems have emerged as one of the most promising areas for
Industrial Applications. The highly growth of fuzzy logic applications led to the need of finding efficient way to
hardware implementation. Field Programmable Gate Array (FPGA) is the most important tool for hardware
implementation due to low consumption of energy, high speed of operation and large capacity of data storage.
In this paper, instead of an introduction to fuzzy logic control methodology, we have demonstrated the
implementation of a FLC through the use of the Very high speed integrated circuits Hardware Description
Language (VHDL) code. FLC is designed for position control of BLDC Motor. VHDL has been used to develop
FLC on FPGA. A Mamdani type FLC structure has been used to obtain the controller output. The controller
algorithm developed synthesized, simulated and implemented on FPGA Spartan 3E board.
Position Control of Robot Manipulator: Design a Novel SISO Adaptive Sliding M...Waqas Tariq
This research focuses on design Single Input Single Output (SISO) adaptive sliding mode fuzzy PD fuzzy sliding mode algorithm with estimates the equivalent part derived in the Lyapunov sense. The stability of the closed-loop system is proved mathematically based on the Lyapunov method. Proposed method introduces a SISO fuzzy system to compensate for the model uncertainties of the system and eliminate the chattering by linear boundary layer method. This algorithm is used a SISO fuzzy system to alleviate chattering and to estimate the control gain in the control law and presented a scheme to online tune of sliding function. To attenuate the chattering phenomenon this method developed a linear boundary layer and the parameter of the sliding function is online tuned by adaptation laws. This algorithm will be analyzed and evaluated on robotic manipulators and design adaption laws of adaptive algorithms after that writing Lyapunov function candidates and prove the asymptotic convergence of the closed-loop system using Lyapunov stability theorem mathematically. Compare and evaluate proposed method and sliding mode algorithms under disturbance. In regards to the former, we will be looking at the availability of online tuning methodology and the number of fuzzy if-then rules inherent to the fuzzy system being used and the corresponding computational load. Our analysis of the results will be limited to tracking accuracy and chattering.
On line Tuning Premise and Consequence FIS: Design Fuzzy Adaptive Fuzzy Slidi...Waqas Tariq
One of the most active research areas in the field of robotics is robot manipulators control, because these systems are multi-input multi-output (MIMO), nonlinear, and uncertainty. At present, robot manipulators is used in unknown and unstructured situation and caused to provide complicated systems, consequently strong mathematical tools are used in new control methodologies to design nonlinear robust controller with satisfactory performance (e.g., minimum error, good trajectory, disturbance rejection). Robotic systems controlling is vital due to the wide range of application. Obviously stability and robustness are the most minimum requirements in control systems; even though the proof of stability and robustness is more important especially in the case of nonlinear systems. One of the best nonlinear robust controllers which can be used in uncertainty nonlinear systems is sliding mode controller (SMC). Chattering phenomenon is the most important challenge in this controller. Most of nonlinear controllers need real time mobility operation; one of the most important devices which can be used to solve this challenge is Field Programmable Gate Array (FPGA). FPGA can be used to design a controller in a single chip Integrated Circuit (IC). In this research the SMC is designed using VHDL language for implementation on FPGA device (XA3S1600E-Spartan-3E), with minimum chattering and high processing speed (63.29 MHz).
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology.
Ziegler nichols pid controller for effective pay-load torque responses and ti...eSAT Journals
Abstract Robotic Technology is an imitation for human being’s. It is an electro mechanical modelling objects are important aspect of manipulator. A Manipulator is a machine able to drive the robot. This paper describes and investigates on effective pay-load torque responses, tip-vibrations. This paper presents modelling and simulation of the double link manipulator using the proposed PID Controller. Here the proposed Ziegler-Nichols proportional–integral–derivative controller (PID controller) initiates more advantageous in the view of better performance and flexible operation of manipulator. First, the electro mechanical object was modeled and simulated using State space technique. Here the torque responses and end tip vibrations are assigned by state space variables. The entire two link manipulator topology was investigated and modeled, simulated. The proposed control strategy carries a back –back feed forward controller can be used for flexible operation of manipulator. Here, the simulation was done by using M-File Technique in Control tool box of MATLAB. Keywords: Double Link Manipulator, Ziegler-Nichols PID Controller, Pay-Load Torque Responses, Tip-Vibrations, State space technique, back –back feed forward controller
As the robot manipulators are highly nonlinear, time varying and Multiple Input Multiple Output (MIMO)
systems, one of the most important challenges in the field of robotics is robot manipulators control with
acceptable performance. In this research paper, a simple and computationally efficient Fuzzy Logic
Controller is designed based on the Fuzzy Lyapunov Synthesis (FLS) for the position control of PUMA-560
robot manipulator. The proposed methodology enables the designer to systematically derive the rule base
thereby guarantees the stability of the controller. The methodology is model free and does not require any
information about the system nonlinearities, uncertainties, time varying parameters, etc. The performance
of any fuzzy logic controller (FLC) is greatly dependent on its inference rules. The closed-loop control
performance and stability are enhanced if more rules are added to the rule base of the FLC. However, a
large set of rules requires more on-line computational time and more parameters need to be adjusted.
Here, a Fuzzy Logic Controller is first designed and then the controller based on FLS is designed and
simulated with a minimum rule base. Finally the simulation results of the proposed controller are
compared with that of the normal Fuzzy Logic Controller and PD controlled Computed Torque Controller
(PD-CTC). Results show that the proposed controller outperformed the other controllers.
Robust Fault Detection and Isolation using Bond Graph for an Active-Passive V...CSCJournals
A robot is a complex machine, comprising mechanism, actuators, sensors, and electrical system. It is, therefore, hard to guarantee that all the components can always function normally. If one component fails, the robot might harm humans. In order to develop the active-passive variable serial elastic actuator (APVSEA) [1] that can detect the occurrence of any component fault, this paper uses bond graph to design a robust fault detection and isolation (RFDI) system. When the robot components malfunction, the RFDI system will execute suitable isolation strategies to guarantee human safety and use zero-gravity control (ZGC) to simultaneously compensate for the torque caused by gravity. Thus, the user can consistently interact with the robot easily and safely. From the experimental results, the RFDI system can filter out uncertain parameters and identify the failed component. In addition, the zero-gravity control can lessen potentially physical damage to humans.
Students, digital devices and success - Andreas Schleicher - 27 May 2024..pptxEduSkills OECD
Andreas Schleicher presents at the OECD webinar ‘Digital devices in schools: detrimental distraction or secret to success?’ on 27 May 2024. The presentation was based on findings from PISA 2022 results and the webinar helped launch the PISA in Focus ‘Managing screen time: How to protect and equip students against distraction’ https://www.oecd-ilibrary.org/education/managing-screen-time_7c225af4-en and the OECD Education Policy Perspective ‘Students, digital devices and success’ can be found here - https://oe.cd/il/5yV
Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdfTechSoup
In this webinar you will learn how your organization can access TechSoup's wide variety of product discount and donation programs. From hardware to software, we'll give you a tour of the tools available to help your nonprofit with productivity, collaboration, financial management, donor tracking, security, and more.
Model Attribute Check Company Auto PropertyCeline George
In Odoo, the multi-company feature allows you to manage multiple companies within a single Odoo database instance. Each company can have its own configurations while still sharing common resources such as products, customers, and suppliers.
How to Create Map Views in the Odoo 17 ERPCeline George
The map views are useful for providing a geographical representation of data. They allow users to visualize and analyze the data in a more intuitive manner.
We all have good and bad thoughts from time to time and situation to situation. We are bombarded daily with spiraling thoughts(both negative and positive) creating all-consuming feel , making us difficult to manage with associated suffering. Good thoughts are like our Mob Signal (Positive thought) amidst noise(negative thought) in the atmosphere. Negative thoughts like noise outweigh positive thoughts. These thoughts often create unwanted confusion, trouble, stress and frustration in our mind as well as chaos in our physical world. Negative thoughts are also known as “distorted thinking”.
Instructions for Submissions thorugh G- Classroom.pptxJheel Barad
This presentation provides a briefing on how to upload submissions and documents in Google Classroom. It was prepared as part of an orientation for new Sainik School in-service teacher trainees. As a training officer, my goal is to ensure that you are comfortable and proficient with this essential tool for managing assignments and fostering student engagement.
How to Split Bills in the Odoo 17 POS ModuleCeline George
Bills have a main role in point of sale procedure. It will help to track sales, handling payments and giving receipts to customers. Bill splitting also has an important role in POS. For example, If some friends come together for dinner and if they want to divide the bill then it is possible by POS bill splitting. This slide will show how to split bills in odoo 17 POS.
How to Make a Field invisible in Odoo 17Celine George
It is possible to hide or invisible some fields in odoo. Commonly using “invisible” attribute in the field definition to invisible the fields. This slide will show how to make a field invisible in odoo 17.
The French Revolution, which began in 1789, was a period of radical social and political upheaval in France. It marked the decline of absolute monarchies, the rise of secular and democratic republics, and the eventual rise of Napoleon Bonaparte. This revolutionary period is crucial in understanding the transition from feudalism to modernity in Europe.
For more information, visit-www.vavaclasses.com
2024.06.01 Introducing a competency framework for languag learning materials ...Sandy Millin
http://sandymillin.wordpress.com/iateflwebinar2024
Published classroom materials form the basis of syllabuses, drive teacher professional development, and have a potentially huge influence on learners, teachers and education systems. All teachers also create their own materials, whether a few sentences on a blackboard, a highly-structured fully-realised online course, or anything in between. Despite this, the knowledge and skills needed to create effective language learning materials are rarely part of teacher training, and are mostly learnt by trial and error.
Knowledge and skills frameworks, generally called competency frameworks, for ELT teachers, trainers and managers have existed for a few years now. However, until I created one for my MA dissertation, there wasn’t one drawing together what we need to know and do to be able to effectively produce language learning materials.
This webinar will introduce you to my framework, highlighting the key competencies I identified from my research. It will also show how anybody involved in language teaching (any language, not just English!), teacher training, managing schools or developing language learning materials can benefit from using the framework.
Operation “Blue Star” is the only event in the history of Independent India where the state went into war with its own people. Even after about 40 years it is not clear if it was culmination of states anger over people of the region, a political game of power or start of dictatorial chapter in the democratic setup.
The people of Punjab felt alienated from main stream due to denial of their just demands during a long democratic struggle since independence. As it happen all over the word, it led to militant struggle with great loss of lives of military, police and civilian personnel. Killing of Indira Gandhi and massacre of innocent Sikhs in Delhi and other India cities was also associated with this movement.
CLASS 11 CBSE B.St Project AIDS TO TRADE - INSURANCE
Novel Robot Manipulator Adaptive Artificial Control: Design a Novel SISO Adaptive Fuzzy Sliding Algorithm Inverse Dynamic Like Method

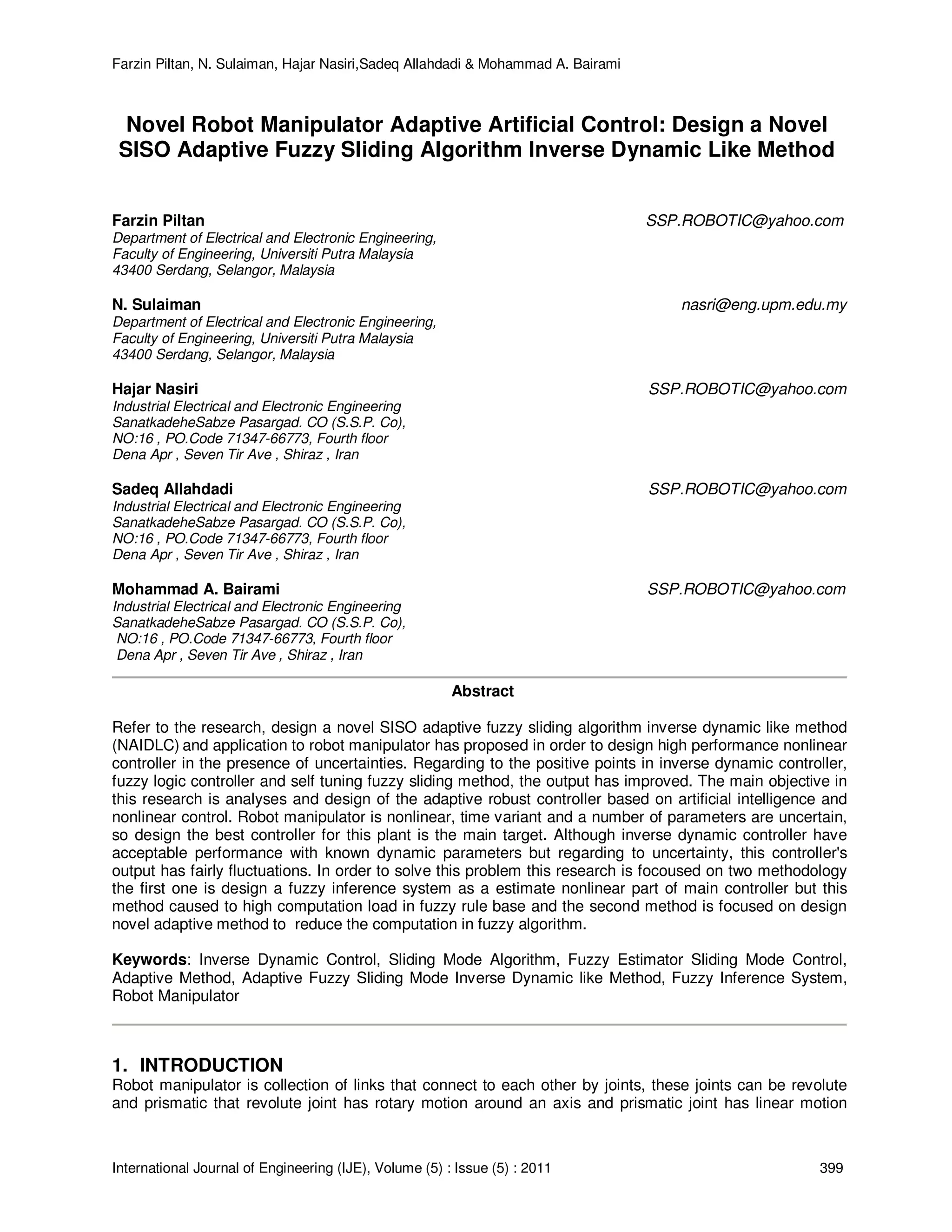

1. Farzin Piltan, N. Sulaiman, Hajar Nasiri,Sadeq Allahdadi & Mohammad A. Bairami
International Journal of Engineering (IJE), Volume (5) : Issue (5) : 2011 399
Novel Robot Manipulator Adaptive Artificial Control: Design a Novel
SISO Adaptive Fuzzy Sliding Algorithm Inverse Dynamic Like Method
Farzin Piltan SSP.ROBOTIC@yahoo.com
Department of Electrical and Electronic Engineering,
Faculty of Engineering, Universiti Putra Malaysia
43400 Serdang, Selangor, Malaysia
N. Sulaiman nasri@eng.upm.edu.my
Department of Electrical and Electronic Engineering,
Faculty of Engineering, Universiti Putra Malaysia
43400 Serdang, Selangor, Malaysia
Hajar Nasiri SSP.ROBOTIC@yahoo.com
Industrial Electrical and Electronic Engineering
SanatkadeheSabze Pasargad. CO (S.S.P. Co),
NO:16 , PO.Code 71347-66773, Fourth floor
Dena Apr , Seven Tir Ave , Shiraz , Iran
Sadeq Allahdadi SSP.ROBOTIC@yahoo.com
Industrial Electrical and Electronic Engineering
SanatkadeheSabze Pasargad. CO (S.S.P. Co),
NO:16 , PO.Code 71347-66773, Fourth floor
Dena Apr , Seven Tir Ave , Shiraz , Iran
Mohammad A. Bairami SSP.ROBOTIC@yahoo.com
Industrial Electrical and Electronic Engineering
SanatkadeheSabze Pasargad. CO (S.S.P. Co),
NO:16 , PO.Code 71347-66773, Fourth floor
Dena Apr , Seven Tir Ave , Shiraz , Iran
Abstract
Refer to the research, design a novel SISO adaptive fuzzy sliding algorithm inverse dynamic like method
(NAIDLC) and application to robot manipulator has proposed in order to design high performance nonlinear
controller in the presence of uncertainties. Regarding to the positive points in inverse dynamic controller,
fuzzy logic controller and self tuning fuzzy sliding method, the output has improved. The main objective in
this research is analyses and design of the adaptive robust controller based on artificial intelligence and
nonlinear control. Robot manipulator is nonlinear, time variant and a number of parameters are uncertain,
so design the best controller for this plant is the main target. Although inverse dynamic controller have
acceptable performance with known dynamic parameters but regarding to uncertainty, this controller's
output has fairly fluctuations. In order to solve this problem this research is focoused on two methodology
the first one is design a fuzzy inference system as a estimate nonlinear part of main controller but this
method caused to high computation load in fuzzy rule base and the second method is focused on design
novel adaptive method to reduce the computation in fuzzy algorithm.
Keywords: Inverse Dynamic Control, Sliding Mode Algorithm, Fuzzy Estimator Sliding Mode Control,
Adaptive Method, Adaptive Fuzzy Sliding Mode Inverse Dynamic like Method, Fuzzy Inference System,
Robot Manipulator
1. INTRODUCTION
Robot manipulator is collection of links that connect to each other by joints, these joints can be revolute
and prismatic that revolute joint has rotary motion around an axis and prismatic joint has linear motion

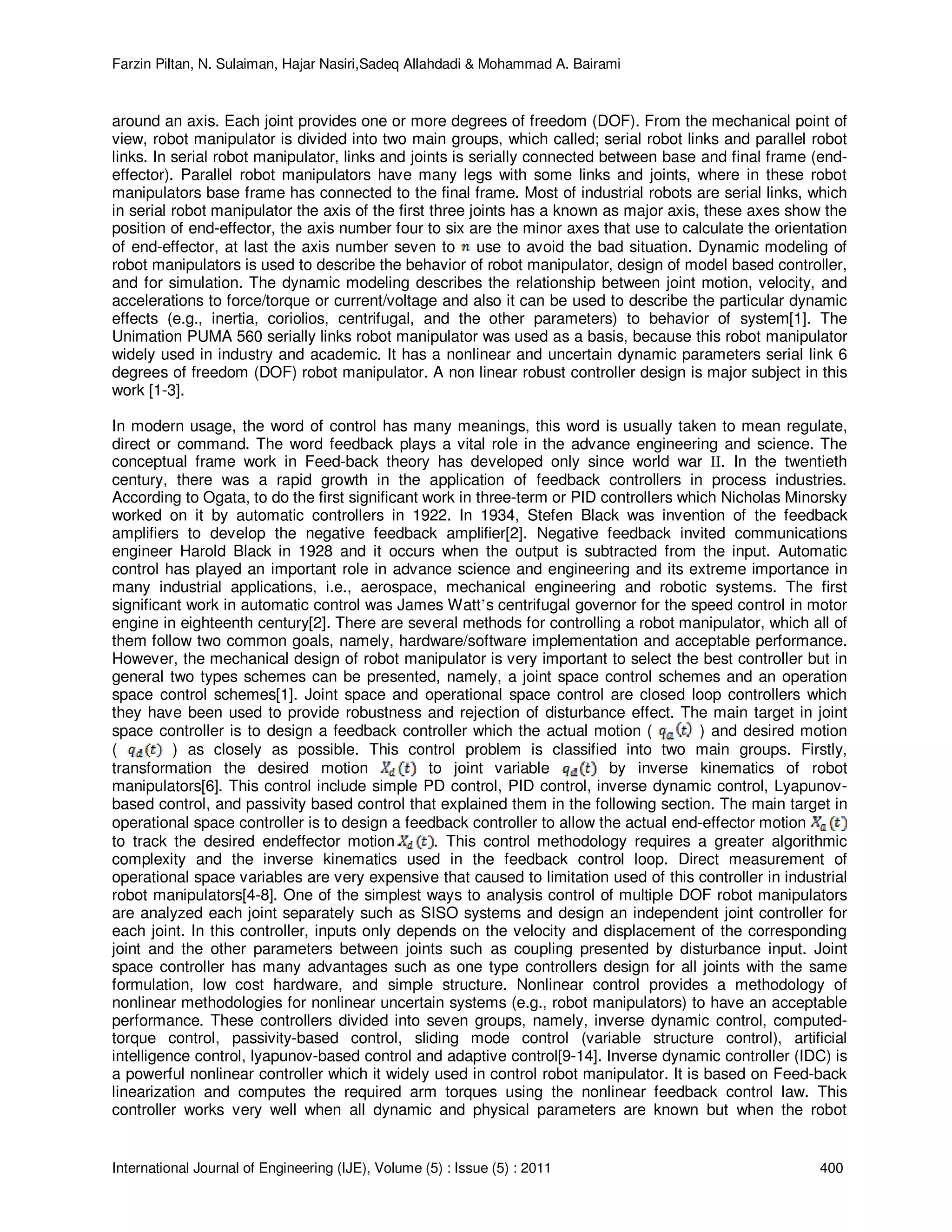

2. Farzin Piltan, N. Sulaiman, Hajar Nasiri,Sadeq Allahdadi & Mohammad A. Bairami
International Journal of Engineering (IJE), Volume (5) : Issue (5) : 2011 400
around an axis. Each joint provides one or more degrees of freedom (DOF). From the mechanical point of
view, robot manipulator is divided into two main groups, which called; serial robot links and parallel robot
links. In serial robot manipulator, links and joints is serially connected between base and final frame (end-
effector). Parallel robot manipulators have many legs with some links and joints, where in these robot
manipulators base frame has connected to the final frame. Most of industrial robots are serial links, which
in serial robot manipulator the axis of the first three joints has a known as major axis, these axes show the
position of end-effector, the axis number four to six are the minor axes that use to calculate the orientation
of end-effector, at last the axis number seven to use to avoid the bad situation. Dynamic modeling of
robot manipulators is used to describe the behavior of robot manipulator, design of model based controller,
and for simulation. The dynamic modeling describes the relationship between joint motion, velocity, and
accelerations to force/torque or current/voltage and also it can be used to describe the particular dynamic
effects (e.g., inertia, coriolios, centrifugal, and the other parameters) to behavior of system[1]. The
Unimation PUMA 560 serially links robot manipulator was used as a basis, because this robot manipulator
widely used in industry and academic. It has a nonlinear and uncertain dynamic parameters serial link 6
degrees of freedom (DOF) robot manipulator. A non linear robust controller design is major subject in this
work [1-3].
In modern usage, the word of control has many meanings, this word is usually taken to mean regulate,
direct or command. The word feedback plays a vital role in the advance engineering and science. The
conceptual frame work in Feed-back theory has developed only since world war ІІ. In the twentieth
century, there was a rapid growth in the application of feedback controllers in process industries.
According to Ogata, to do the first significant work in three-term or PID controllers which Nicholas Minorsky
worked on it by automatic controllers in 1922. In 1934, Stefen Black was invention of the feedback
amplifiers to develop the negative feedback amplifier[2]. Negative feedback invited communications
engineer Harold Black in 1928 and it occurs when the output is subtracted from the input. Automatic
control has played an important role in advance science and engineering and its extreme importance in
many industrial applications, i.e., aerospace, mechanical engineering and robotic systems. The first
significant work in automatic control was James Watt’s centrifugal governor for the speed control in motor
engine in eighteenth century[2]. There are several methods for controlling a robot manipulator, which all of
them follow two common goals, namely, hardware/software implementation and acceptable performance.
However, the mechanical design of robot manipulator is very important to select the best controller but in
general two types schemes can be presented, namely, a joint space control schemes and an operation
space control schemes[1]. Joint space and operational space control are closed loop controllers which
they have been used to provide robustness and rejection of disturbance effect. The main target in joint
space controller is to design a feedback controller which the actual motion ( ) and desired motion
( ) as closely as possible. This control problem is classified into two main groups. Firstly,
transformation the desired motion to joint variable by inverse kinematics of robot
manipulators[6]. This control include simple PD control, PID control, inverse dynamic control, Lyapunov-
based control, and passivity based control that explained them in the following section. The main target in
operational space controller is to design a feedback controller to allow the actual end-effector motion
to track the desired endeffector motion . This control methodology requires a greater algorithmic
complexity and the inverse kinematics used in the feedback control loop. Direct measurement of
operational space variables are very expensive that caused to limitation used of this controller in industrial
robot manipulators[4-8]. One of the simplest ways to analysis control of multiple DOF robot manipulators
are analyzed each joint separately such as SISO systems and design an independent joint controller for
each joint. In this controller, inputs only depends on the velocity and displacement of the corresponding
joint and the other parameters between joints such as coupling presented by disturbance input. Joint
space controller has many advantages such as one type controllers design for all joints with the same
formulation, low cost hardware, and simple structure. Nonlinear control provides a methodology of
nonlinear methodologies for nonlinear uncertain systems (e.g., robot manipulators) to have an acceptable
performance. These controllers divided into seven groups, namely, inverse dynamic control, computed-
torque control, passivity-based control, sliding mode control (variable structure control), artificial
intelligence control, lyapunov-based control and adaptive control[9-14]. Inverse dynamic controller (IDC) is
a powerful nonlinear controller which it widely used in control robot manipulator. It is based on Feed-back
linearization and computes the required arm torques using the nonlinear feedback control law. This
controller works very well when all dynamic and physical parameters are known but when the robot
3. Farzin Piltan, N. Sulaiman, Hajar Nasiri,Sadeq Allahdadi & Mohammad A. Bairami
International Journal of Engineering (IJE), Volume (5) : Issue (5) : 2011 401
manipulator has variation in dynamic parameters, the controller has no acceptable performance[14]. In
practice, most of physical systems (e.g., robot manipulators) parameters are unknown or time variant,
therefore, inverse dynamic like controller used to compensate dynamic equation of robot manipulator[1, 6].
Research on inverse dynamic controller is significantly growing on robot manipulator application which has
been reported in [1, 6, 9, 11, 63-65]. Vivas and Mosquera [63]have proposed a predictive functional
controller and compare to inverse dynamic controller for tracking response in uncertain environment.
However both controllers have been used in Feed-back linearization, but predictive strategy gives better
result as a performance. An inverse dynamic control with non parametric regression models have been
presented for a robot arm[64]. This controller also has been problem in uncertain dynamic models. Based
on [1, 6]and [63-65] inverse dynamic controller is a significant nonlinear controller to certain systems which
it is based on feedback linearization and computes the required arm torques using the nonlinear feedback
control law. When all dynamic and physical parameters are known the controller works fantastically;
practically a large amount of systems have uncertainties and complicated by artificial intelligence or
applied on line tuning in this controller decrease this kind of challenge.
Zadeh [31] introduced fuzzy sets in 1965. After 40 years, fuzzy systems have been widely used in different
fields, especially on control problems. Fuzzy systems transfer expert knowledge to mathematical models.
Fuzzy systems used fuzzy logic to estimate dynamics of proposed systems. Fuzzy controllers including
fuzzy if-then rules are used to control proposed systems. Conventional control methods use mathematical
models to controls systems [31-40]. Fuzzy control methods replace the mathematical models with fuzzy if
then-rules and fuzzy membership function to controls systems. Both fuzzy and conventional control
methods are designed to meet system requirements of stability and convergence. When mathematical
models are unknown or partially unknown, fuzzy control models can used fuzzy systems to estimate the
unknown models. This is called the model-free approach [31-40]. Conventional control models can use
adaptive control methods to achieve the model-free approach. When system dynamics become more
complex, nonlinear systems are difficult to handle by conventional control methods. From the universal
approximation theorem, fuzzy systems can approximate arbitrary nonlinear systems. In practical problems,
systems can be controlled perfectly by expert. Experts provide linguistic description about systems.
Conventional control methods cannot design controllers combined with linguistic information. When
linguistic information is important for designing controllers, we need to design fuzzy controllers for our
systems. Fuzzy control methods are easy to understand for designers. The design process of fuzzy
controllers can be simplified with simple mathematical models. Research on applied fuzzy logic
methodology in inverse dynamic controller (FIDLC) to compensate the unknown system dynamics
considerably improves the robot manipulator control process [15-30, 41-47].
Adaptive control uses a learning method to self-learn the parameters of systems. For system whose
dynamics are varying, adaptive control can learn the parameters of system dynamics. In traditional
adaptive control, we need some information about our system such as the structure of system or the order
of the system. In adaptive fuzzy control we can deal with uncertain systems. Due to the linguistic
characteristic, adaptive fuzzy controllers behave like operators: adaptively controlling the system under
various conditions. Adaptive fuzzy control provides a good tool for making use of expert knowledge to
adjust systems. This is important for a complex unknown system with changing dynamics. We divide
adaptive fuzzy control into two categories: direct adaptive fuzzy control and indirect adaptive fuzzy control.
A direct adaptive fuzzy controller adjusts the parameters of the control input. An indirect adaptive fuzzy
controller adjusts the parameters of the control system based on the estimated dynamics of the plant. This
research is used fuzzy indirect method to estimate the nonlinear equivalent part in order to used sliding
mode fuzzy algorithm to tune and adjust the sliding function (direct adaptive). Research on applied fuzzy
logic methodology in sliding mode controller (FSMC) to reduce or eliminate the high frequency oscillation
(chattering), to compensate the unknown system dynamics and also to adjust the linear sliding surface
slope in pure sliding mode controller considerably improves the robot manipulator control process [41-62].
H.Temeltas [46] has proposed fuzzy adaption techniques for SMC to achieve robust tracking of nonlinear
systems and solves the chattering problem. Conversely system’s performance is better than sliding mode
controller; it is depended on nonlinear dynamic equqation. C. L. Hwang et al. [47]have proposed a Tagaki-
Sugeno (TS) fuzzy model based sliding mode control based on N fuzzy based linear state-space to
estimate the uncertainties. A multi-input multi-output FSMC reduces the chattering phenomenon and
reconstructs the approximate the unknown system has been presented for a robot manipulator [42].
4. Farzin Piltan, N. Sulaiman, Hajar Nasiri,Sadeq Allahdadi & Mohammad A. Bairami
International Journal of Engineering (IJE), Volume (5) : Issue (5) : 2011 402
In this research we will highlight the SISO adaptive fuzzy sliding algorithm to on line tuning inverse
dynamic like controller with estimates the nonlinear dynamic part derived in the Lyapunov sense. This
algorithm will be analyzed and evaluated on robotic manipulators. Section 2, serves as an introduction to
the classical inverse dynamic control algorithm and its application to a 3 degree of-freedom robot
manipulator, introduced sliding mode controller to design adaptive part, describe the objectives and
problem statements. Part 3, introduces and describes the methodology algorithms and proves Lyapunov
stability. Section 4 presents the simulation results of this algorithm applied to a 2 degree-of-freedom robot
manipulator and the final section is describe the conclusion.
2. OBJECTIVES, PROBLEM STATEMENTS, INVERSE DYNAMIC METHODOLOGY
AND SLIDING MODE ALGORITM
When system works with various parameters and hard nonlinearities design linear controller technique is
very useful in order to be implemented easily but it has some limitations such as working near the system
operating point[2-20]. Inverse dynamic controller is used in wide range areas such as in robotics, in control
process, in aerospace applications and in power converters because it has an acceptable control
performance and solve some main challenging topics in control such as resistivity to the external
disturbance. Even though, this controller is used in wide range areas but, classical inverse dynamic
controller has nonlinear part disadvantage which this challenge must be estimated by fuzzy method [20].
Conversely pure FLC works in many areas, it cannot guarantee the basic requirement of stability and
acceptable performance[31-40]. Although both inverse dynamic controller and FLC have been applied
successfully in many applications but they also have some limitations. Fuzzy estimator is used instead of
dynamic uncertaint equation to implement easily and avoid mathematical model base controller. To reduce
the effect of uncertainty in proposed method, adaptive fuzzy sliding mode method is applied in inverse
dynamic like controller in robot manipulator in order to solve above limitation.
Robot Manipulator Formulation
The equation of a multi degrees of freedom (DOF) robot manipulator is calculated by the following
equation[6]:
(1)
Where τ is vector of actuation torque, M (q) is symmetric and positive define inertia matrix,
is the vector of nonlinearity term, and q is position vector. In equation 1 if vector of
nonlinearity term derive as Centrifugal, Coriolis and Gravity terms, as a result robot manipulator dynamic
equation can also be written as [9-14]:
(2)
(3)
(4)
Where,
is matrix of coriolis torques, is matrix of centrifugal torque, is vector of joint velocity that it
can give by: , and is vector, that it can given by: .
In robot manipulator dynamic part the inputs are torques and the outputs are actual displacements, as a
result in (4) it can be written as [1, 6, 80-81];
(5)
To implementation (5) the first step is implement the kinetic energy matrix (M) parameters by used of
Lagrange’s formulation. The second step is implementing the Coriolis and Centrifugal matrix which they
5. Farzin Piltan, N. Sulaiman, Hajar Nasiri,Sadeq Allahdadi & Mohammad A. Bairami
International Journal of Engineering (IJE), Volume (5) : Issue (5) : 2011 403
can calculate by partial derivatives of kinetic energy. The last step to implement the dynamic equation of
robot manipulator is to find the gravity vector by performing the summation of Lagrange’s formulation.
The kinetic energy equation (M) is a symmetric matrix that can be calculated by the following
equation;
(6)
As mentioned above the kinetic energy matrix in DOF is a matrix that can be calculated by the
following matrix [1, 6]
(7)
The Coriolis matrix (B) is a matrix which calculated as follows;
(8)
and the Centrifugal matrix (C) is a matrix;
(9)
And last the Gravity vector (G) is a vector;
(10)
Inverse Dynamic Control Formulation
Inverse dynamics control is based on cancelling decoupling and nonlinear terms of dynamics of each link.
Inverse dynamics control has the form:
(11)
where typical choices for V are:
(12)
or with an integral term
(13)
where , the resulting error dynamics is [9, 11, 63-65]
(14)
where , and are the controller gains. The result schemes is shown in Figure 1, in which
two feedback loops, namely, inner loop and outer loop, which an inner loop is a compensate loop and an
6. Farzin Piltan, N. Sulaiman, Hajar Nasiri,Sadeq Allahdadi & Mohammad A. Bairami
International Journal of Engineering (IJE), Volume (5) : Issue (5) : 2011 404
outer loop is a tracking error loop. However, mostly parameter is all unknown. So the control
cannot be implementation because non linear parameters cannot be determined. In the following section
computed torque like controller will be introduced to overcome the problems.
FIGURE 1: Classical inverse dynamic controller: applied to three-link robotic manipulator
The application of proportional-plus-derivative (PD) inverse dynamic controller to control of PUMA robot
manipulator introduced in this part.
Suppose that in (13) the nonlinearity term defined by the following term
(15)
Therefore the equation of PD-inverse dynamic controller for control of PUMA robot manipulator is written
as the equation of (16);
(16)
The controller based on a formulation (16) is related to robot dynamics therefore it has problems in
uncertain conditions.
Sliding Mode Control Formulation
We define the tracking error as
(17)
7. Farzin Piltan, N. Sulaiman, Hajar Nasiri,Sadeq Allahdadi & Mohammad A. Bairami
International Journal of Engineering (IJE), Volume (5) : Issue (5) : 2011 405
Where , . The sliding surface is expressed as
e (18)
Where , and are chosen as the bandwidth of the robot controller.
We need to choose to satisfy the sufficient condition (9). We define the reference state as
(19)
e (20)
Now we pick the control input as
(21)
Where and are the estimations of and ; and are
diagonal positive definite matrices. From (17) and (21), we can get
(22)
Where , and . We assume that the bound
is known. We choose as
(23)
We pick the Lyapunov function candidate to be
(24)
Which is a skew-systemmetric matrix satisfying
(25)
Then becomes
(26)
For , we always get . We can describe as
(27)
To attenuate chattering problem, we introduce a saturation function in the control law instead of the sign
function in (22). The control law becomes
) (28)
In this classical sliding mode control method, the model of the robotic manipulator is partly unknown. To
attenuate chattering, we use the saturation function described in (20). Our control law changes to
(29)
The main goal is to design a position controller for robot manipulator with acceptable performances
(e.g., trajectory performance, torque performance, disturbance rejection, steady state error and RMS
8. Farzin Piltan, N. Sulaiman, Hajar Nasiri,Sadeq Allahdadi & Mohammad A. Bairami
International Journal of Engineering (IJE), Volume (5) : Issue (5) : 2011 406
error). Robot manipulator has nonlinear dynamic and uncertain parameters consequently; following
objectives have been pursuit in this research:
• To develop an inverse dynamic control and applied to robot manipulator.
• To design and implement a position fuzzy estimator inverse dynamic like controller in order to
solve the uncertain nonlinear problems in the pure inverse dynamic control.
• To develop a position adaptive fuzzy sliding mode fuzzy estimator inverse dynamic like controller
in order to solve the disturbance rejection and reduce the fuzzy load computation.
Figure 2 is shown the classical sliding mode methodology with linear saturation function to eliminate the
chattering.
FIGURE 2: Classical sliding mode controller: applied to two-link robotic manipulator
3. METHODOLOGY: DESIGN A NOVEL SISO ADAPTIVE FUZZY SLIDING
ALGORITHM INVERSE DYNAMIC LIKE METHOD
First parts are focused on design inverse dynamic like method using fuzzy inference system and estimate
or compensate the nonlinear uncertain part. Inverse dynamics control has the form:
(30)
If nonlinear part is introduced by (31)
(31)
However the application area for fuzzy control is really wide, the basic form for all command types of
controllers consists of;
• Input fuzzification (binary-to-fuzzy[B/F]conversion)
• Fuzzy rule base (knowledge base)
• Inference engine
• Output defuzzification (fuzzy-to-binary[F/B]conversion) [30-40].
The basic structure of a fuzzy controller is shown in Figure 3.
9. Farzin Piltan, N. Sulaiman, Hajar Nasiri,Sadeq Allahdadi & Mohammad A. Bairami
International Journal of Engineering (IJE), Volume (5) : Issue (5) : 2011 407
FIGURE 3: Block diagram of a fuzzy controller with details.
The fuzzy system can be defined as below [38-40]
(32)
where
(33)
where is adjustable parameter in (8) and is membership function.
error base fuzzy controller can be defined as
(34)
Proposed method is used to a SISO fuzzy system which can approximate the residual coupling effect and
alleviate the nonlinear part. The robotic manipulator used in this algorithm is defined as below: the tracking
error is defined as:
(35)
The control input is given by
The fuzzy if-then rules for the th joint of the robotic manipulator are defined as
(36)
Where and .
We define by
(37)
Where
, (38)
(39)
The membership function is a Gaussian membership function defined in bellows:
10. Farzin Piltan, N. Sulaiman, Hajar Nasiri,Sadeq Allahdadi & Mohammad A. Bairami
International Journal of Engineering (IJE), Volume (5) : Issue (5) : 2011 408
(40)
The fuzzy estimator can be written as follow;
(41
)
Since and in (41) and (40), we get
(42)
Where then
becomes
Based on (3) the formulation of proposed fuzzy sliding mode controller can be written as;
(43)
Where
Figure 4 is shown the proposed fuzzy inverse dynamic controller.
FIGURE 4: Proposed fuzzy estimator inverse dynamic algorithm: applied to robot manipulator
Second part is focuses on design fuzzy sliding mode fuzzy adaptive algorithm, fuzzy algorithm is
compensator to estimate nonlinear equivalent part. Adaptive control uses a learning method to self-learn
11. Farzin Piltan, N. Sulaiman, Hajar Nasiri,Sadeq Allahdadi & Mohammad A. Bairami
International Journal of Engineering (IJE), Volume (5) : Issue (5) : 2011 409
the parameters of systems. For system whose dynamics are varying, adaptive control can learn the
parameters of system dynamics. In traditional adaptive control, we need some information about our
system such as the structure of system or the order of the system. In adaptive fuzzy control we can deal
with uncertain systems. Due to the linguistic characteristic, adaptive fuzzy controllers behave like
operators: adaptively controlling the system under various conditions. Adaptive fuzzy control provides a
good tool for making use of expert knowledge to adjust systems. This is important for a complex unknown
system with changing dynamics. The adaptive fuzzy systems is defined by
(44)
Where define in
the previous part. are adjustable parameters in (40) . are given membership
functions whose parameters will not change over time.
The second type of fuzzy systems is given by
(45)
Where are all adjustable parameters.
From the universal approximation theorem, we know that we can find a fuzzy system to estimate any
continuous function. For the first type of fuzzy systems, we can only adjust in
(42). We define as the approximator of the real function .
(46)
We define as the values for the minimum error:
(47)
Where is a constraint set for . For specific is the minimum approximation
error we can get.
The fuzzy system can be defined as below
(48)
where
(49)
where is adjustable parameter in (44) and is membership function.
error base fuzzy controller can be defined as
(50)
According to the formulation sliding function
(51)
the fuzzy division can be reached the best state when and the error is minimum by the following
formulation
(52)
12. Farzin Piltan, N. Sulaiman, Hajar Nasiri,Sadeq Allahdadi & Mohammad A. Bairami
International Journal of Engineering (IJE), Volume (5) : Issue (5) : 2011 410
Where is the minimum error, is the minimum approximation error. The
adaptive controller is used to find the minimum errors of .
suppose is defined as follows
(53)
Where
(54)
the adaption low is defined as
(55)
where the is the positive constant.
According to the formulation (53) and (54) in addition from (50) and (48)
(56)
The dynamic equation of robot manipulator can be written based on the sliding
surface as;
(57)
It is supposed that
(58)
it can be shown that
(59)
where
as a result is became
where is adaption law, ,
consequently can be considered by
(60)
the minimum error can be defined by
13. Farzin Piltan, N. Sulaiman, Hajar Nasiri,Sadeq Allahdadi & Mohammad A. Bairami
International Journal of Engineering (IJE), Volume (5) : Issue (5) : 2011 411
(61)
is intended as follows
(62)
For continuous function , and suppose it is defined the fuzzy logic
system in form of (46) such that
(63)
the minimum approximation error is very small.
Figure 5 is shown the proposed method which it has an acceptable performance.
Figure 5: Proposed adaptive fuzzy sliding mode algorithm applied to inverse dynamic like controller:
applied to robot manipulator
4. SIMULATION RESULTS
Inverse dynamic controller and SISO proposed adaptive inverse dynamic like controller were tested to
ramp response trajectory. This simulation applied to three degrees of freedom robot arm therefore the first,
second and third joints are moved from home to final position without and with external disturbance. The
simulation was implemented in Matlab/Simulink environment. Trajectory performance, torque performance,
disturbance rejection, steady state error and RMS error are compared in these controllers. It is noted that,
(64)
14. Farzin Piltan, N. Sulaiman, Hajar Nasiri,Sadeq Allahdadi & Mohammad A. Bairami
International Journal of Engineering (IJE), Volume (5) : Issue (5) : 2011 412
these systems are tested by band limited white noise with a predefined 40% of relative to the input signal
amplitude. This type of noise is used to external disturbance in continuous and hybrid systems.
Tracking Performances
Figure 6 is shown tracking performance for first, second and third link in inverse dynamic control and
adaptive inverse dynamic like control without disturbance for ramp trajectories. By comparing ramp
response trajectory without disturbance in inverse dynamic controller and adaptive inverse dynamic like
controller it is found that the inverse dynamic controller’s overshoot (1%) is higher than adaptive inverse
dynamic like controller (0%), although almost both of them have about the same rise time.
FIGURE 6: Inverse dynamic control Vs. adaptive inverse dynamic like controller trajectory: applied to
robot manipulator.
Disturbance Rejection
Figure 7 has shown the power disturbance elimination in inverse dynamic control and adaptive inverse
dynamic like control. The main target in these controllers is disturbance rejection as well as reduces the
oscillation. A band limited white noise with predefined of 40% the power of input signal is applied to above
controllers. It found fairly fluctuations in inverse dynamic control trajectory responses.
15. Farzin Piltan, N. Sulaiman, Hajar Nasiri,Sadeq Allahdadi & Mohammad A. Bairami
International Journal of Engineering (IJE), Volume (5) : Issue (5) : 2011 413
FIGURE 7: Inverse dynamic controller Vs inverse dynamic like controller trajectory with external
disturbance: applied to robot manipulator
Among above graph relating to trajectory following with external disturbance, inverse dynamic controller
has fairly fluctuations. By comparing some control parameters such as overshoot and rise time it found that
the inverse dynamic control’s overshoot (10%) is higher than adaptive inverse dynamic like controller
(0%).
Error Calculation
Figure 8 and Table 1 are shown error performance in inverse dynamic controller and adaptive inverse
dynamic like controller in presence of external disturbance. Inverse dynamic controller has oscillation in
tracking which causes instability. As it is obvious in Table 2 the integral of absolute error is calculated to
compare between classical method and proposed adaptive classic combined by artificial intelligence
method. Figure 8 is shown steady state and RMS error in inverse dynamic control and adaptive inverse
dynamic like control in presence of external disturbance.
TABLE 1: RMS Error Rate of Presented controllers
RMS Error Rate
Inverse
dynamic
controller
Adaptive
inverse
dynamic
like
controller
Without Noise 1.8e-3 1e-4
With Noise 0.012 1.3e-4
16. Farzin Piltan, N. Sulaiman, Hajar Nasiri,Sadeq Allahdadi & Mohammad A. Bairami
International Journal of Engineering (IJE), Volume (5) : Issue (5) : 2011 414
FIGURE 8: Adaptive inverse dynamic like controller Vs. inverse dynamic controller error performance
with external disturbance: applied to robot manipulator
In these methods if integration absolute error (IAE) is defined by (75), table 2 is shown comparison
between these two methods.
(65)
TABLE 2: Calculate IAE
AIDLCFuzzy Estimator IDCTraditional IDCMethod
202411490.1IAE
5. CONCLUSIONS
In this research, a novel SISO adaptive fuzzy sliding algorithm inverse dynamic like method design and
application to robotic manipulator has proposed in order to design high performance nonlinear controller in
the presence of uncertainties. Each method by adding to the previous controller has covered negative
17. Farzin Piltan, N. Sulaiman, Hajar Nasiri,Sadeq Allahdadi & Mohammad A. Bairami
International Journal of Engineering (IJE), Volume (5) : Issue (5) : 2011 415
points. The main target in this research is analyses and design of adaptive inverse dynamic like controller
for robot manipulator to reach an acceptable performance. Robot manipulators are nonlinear and a
number of parameters are uncertain, this research focuses on implement these controllers as accurate as
possible using both analytical and empirical paradigms and the advantages and disadvantages of each
one is presented through a comparative study, inverse dynamic controller and adaptive inverse dynamic
like controller is used to selected the best controller for the industrial manipulator. In the first part studies
about inverse dynamic controller show that: although this controller has acceptable performance with
known dynamic parameters such as stability and robustness but there are two important disadvantages as
below: oscillation and mathematical nonlinear dynamic in controller part. Second step focuses on applied
fuzzy inference method as estimate in inverse dynamic controller to solve the dynamic nonlinear part
problems in classical inverse dynamic controller. This controller works very well in certain and sometimes
in uncertain environment but it has high computation in uncertain area. The system performance in inverse
dynamic control and inverse dynamic like controller are sensitive to the controller gain, area and external
disturbance. Therefore, compute the optimum value of controller gain for a system is the third important
challenge work. This problem has solved by adjusting controller gain of the adaptive method continuously
in real-time. In this way, the overall system performance has improved with respect to the classical inverse
dynamic controller. This controller solved oscillation as well as mathematical nonlinear dynamic part by
applied fuzzy supervisory estimated method in fuzzy inverse dynamic like controller and tuning the
controller gain. By comparing between adaptive inverse dynamic like controller and inverse dynamic like
controller, found that adaptive fuzzy inverse dynamic like controller has steadily stabilised in output
response (e.g., disturbance rejection) but inverse dynamic controller has slight oscillation in the presence
of uncertainties.
REFERENCES
[1] T. R. Kurfess, Robotics and automation handbook: CRC, 2005.
[2] J. J. E. Slotine and W. Li, Applied nonlinear control vol. 461: Prentice hall Englewood Cliffs, NJ,
1991.
[3] Piltan, F., et al., “Design sliding mode controller for robot manipulator with artificial tunable gain,”
Canaidian Journal of pure and applied science, 5 (2): 1573-1579, 2011.
[4] L. Cheng, et al., "Multi-agent based adaptive consensus control for multiple manipulators with
kinematic uncertainties," 2008, pp. 189-194.
[5] J. J. D'Azzo, et al., Linear control system analysis and design with MATLAB: CRC, 2003.
[6] B. Siciliano and O. Khatib, Springer handbook of robotics: Springer-Verlag New York Inc, 2008.
[7] I. Boiko, et al., "Analysis of chattering in systems with second-order sliding modes," IEEE
Transactions on Automatic Control, vol. 52, pp. 2085-2102, 2007.
[8] J. Wang, et al., "Indirect adaptive fuzzy sliding mode control: Part I: fuzzy switching," Fuzzy Sets
and Systems, vol. 122, pp. 21-30, 2001.
[9] Farzin Piltan, A. R. Salehi and Nasri B Sulaiman.,” Design artificial robust control of second order
system based on adaptive fuzzy gain scheduling,” International Journal of Robotics and
Automation (IJRA), 2 (4), 2011
[10] F. Piltan, et al., "Artificial Control of Nonlinear Second Order Systems Based on AFGSMC,"
Australian Journal of Basic and Applied Sciences, 5(6), pp. 509-522, 2011.
[11] Piltan, F., et al., “Design Artificial Nonlinear Robust Controller Based on CTLC and FSMC with
Tunable Gain,” International Journal of Robotic and Automation, 2 (3): 205-220, 2011.
18. Farzin Piltan, N. Sulaiman, Hajar Nasiri,Sadeq Allahdadi & Mohammad A. Bairami
International Journal of Engineering (IJE), Volume (5) : Issue (5) : 2011 416
[12] Piltan, F., et al., “Design Mathematical Tunable Gain PID-Like Sliding Mode Fuzzy Controller with
Minimum Rule Base,” International Journal of Robotic and Automation, 2 (3): 146-156, 2011.
[13] Piltan, F., et al., “Design of FPGA based sliding mode controller for robot manipulator,”
International Journal of Robotic and Automation, 2 (3): 183-204, 2011.
[14] Piltan, F., et al., “A Model Free Robust Sliding Surface Slope Adjustment in Sliding Mode Control
for Robot Manipulator,” World Applied Science Journal, 12 (12): 2330-2336, 2011.
[15] Harashima F., Hashimoto H., and Maruyama K, 1986. Practical robust control of robot arm using
variable structure system, IEEE conference, P.P:532-539
[16] Piltan, F., et al., “Design Adaptive Fuzzy Robust Controllers for Robot Manipulator,” World
Applied Science Journal, 12 (12): 2317-2329, 2011.
[17] V. Utkin, "Variable structure systems with sliding modes," Automatic Control, IEEE Transactions
on, vol. 22, pp. 212-222, 2002.
[18] R. A. DeCarlo, et al., "Variable structure control of nonlinear multivariable systems: a tutorial,"
Proceedings of the IEEE, vol. 76, pp. 212-232, 2002.
[19] K. D. Young, et al., "A control engineer's guide to sliding mode control," 2002, pp. 1-14.
[20] O. Kaynak, "Guest editorial special section on computationally intelligent methodologies and
sliding-mode control," IEEE Transactions on Industrial Electronics, vol. 48, pp. 2-3, 2001.
[21] J. J. Slotine and S. Sastry, "Tracking control of non-linear systems using sliding surfaces, with
application to robot manipulators†," International Journal of Control, vol. 38, pp. 465-492, 1983.
[22] J. J. E. Slotine, "Sliding controller design for non-linear systems," International Journal of Control,
vol. 40, pp. 421-434, 1984.
[23] R. Palm, "Sliding mode fuzzy control," 2002, pp. 519-526.
[24] C. C. Weng and W. S. Yu, "Adaptive fuzzy sliding mode control for linear time-varying uncertain
systems," 2008, pp. 1483-1490.
[25] M. Ertugrul and O. Kaynak, "Neuro sliding mode control of robotic manipulators," Mechatronics,
vol. 10, pp. 239-263, 2000.
[26] P. Kachroo and M. Tomizuka, "Chattering reduction and error convergence in the sliding-mode
control of a class of nonlinear systems," Automatic Control, IEEE Transactions on, vol. 41, pp.
1063-1068, 2002.
[27] H. Elmali and N. Olgac, "Implementation of sliding mode control with perturbation estimation
(SMCPE)," Control Systems Technology, IEEE Transactions on, vol. 4, pp. 79-85, 2002.
[28] J. Moura and N. Olgac, "A comparative study on simulations vs. experiments of SMCPE," 2002,
pp. 996-1000.
[29] Y. Li and Q. Xu, "Adaptive Sliding Mode Control With Perturbation Estimation and PID Sliding
Surface for Motion Tracking of a Piezo-Driven Micromanipulator," Control Systems Technology,
IEEE Transactions on, vol. 18, pp. 798-810, 2010.
[30] B. Wu, et al., "An integral variable structure controller with fuzzy tuning design for electro-hydraulic
driving Stewart platform," 2006, pp. 5-945.
19. Farzin Piltan, N. Sulaiman, Hajar Nasiri,Sadeq Allahdadi & Mohammad A. Bairami
International Journal of Engineering (IJE), Volume (5) : Issue (5) : 2011 417
[31] L. A. Zadeh, "Toward a theory of fuzzy information granulation and its centrality in human
reasoning and fuzzy logic," Fuzzy Sets and Systems, vol. 90, pp. 111-127, 1997.
[32] L. Reznik, Fuzzy controllers: Butterworth-Heinemann, 1997.
[33] J. Zhou and P. Coiffet, "Fuzzy control of robots," 2002, pp. 1357-1364.
[34] S. Banerjee and P. Y. Woo, "Fuzzy logic control of robot manipulator," 2002, pp. 87-88.
[35] K. Kumbla, et al., "Soft computing for autonomous robotic systems," Computers and Electrical
Engineering, vol. 26, pp. 5-32, 2000.
[36] C. C. Lee, "Fuzzy logic in control systems: fuzzy logic controller. I," IEEE Transactions on
systems, man and cybernetics, vol. 20, pp. 404-418, 1990.
[37] R. J. Wai, et al., "Implementation of artificial intelligent control in single-link flexible robot arm,"
2003, pp. 1270-1275.
[38] R. J. Wai and M. C. Lee, "Intelligent optimal control of single-link flexible robot arm," Industrial
Electronics, IEEE Transactions on, vol. 51, pp. 201-220, 2004.
[39] M. B. Menhaj and M. Rouhani, "A novel neuro-based model reference adaptive control for a two
link robot arm," 2002, pp. 47-52.
[40] S. Mohan and S. Bhanot, "Comparative study of some adaptive fuzzy algorithms for manipulator
control," International Journal of Computational Intelligence, vol. 3, pp. 303–311, 2006.
[41] F. Barrero, et al., "Speed control of induction motors using a novel fuzzy sliding-mode structure,"
Fuzzy Systems, IEEE Transactions on, vol. 10, pp. 375-383, 2002.
[42] Y. C. Hsu and H. A. Malki, "Fuzzy variable structure control for MIMO systems," 2002, pp. 280-
285.
[43] Y. C. Hsueh, et al., "Self-tuning sliding mode controller design for a class of nonlinear control
systems," 2009, pp. 2337-2342.
[44] R. Shahnazi, et al., "Position control of induction and DC servomotors: a novel adaptive fuzzy PI
sliding mode control," Energy Conversion, IEEE Transactions on, vol. 23, pp. 138-147, 2008.
[45] C. C. Chiang and C. H. Wu, "Observer-Based Adaptive Fuzzy Sliding Mode Control of Uncertain
Multiple-Input Multiple-Output Nonlinear Systems," 2007, pp. 1-6.
[46] H. Temeltas, "A fuzzy adaptation technique for sliding mode controllers," 2002, pp. 110-115.
[47] C. L. Hwang and S. F. Chao, "A fuzzy-model-based variable structure control for robot arms:
theory and experiments," 2005, pp. 5252-5258.
[48] C. G. Lhee, et al., "Sliding mode-like fuzzy logic control with self-tuning the dead zone
parameters," Fuzzy Systems, IEEE Transactions on, vol. 9, pp. 343-348, 2002.
[49] Lhee. C. G., J. S. Park, H. S. Ahn, and D. H. Kim, "Sliding-Like Fuzzy Logic Control with Self-
tuning the Dead Zone Parameters," IEEE International fuzzy systems conference proceeding,
1999,pp.544-549.
[50] X. Zhang, et al., "Adaptive sliding mode-like fuzzy logic control for high order nonlinear systems,"
pp. 788-792.
