1. 31 st Jan to 1 st Feb 2008 TECHNOLOGY ROBOTICS SOCIETY Indian Institute of Technology, Kharagpur

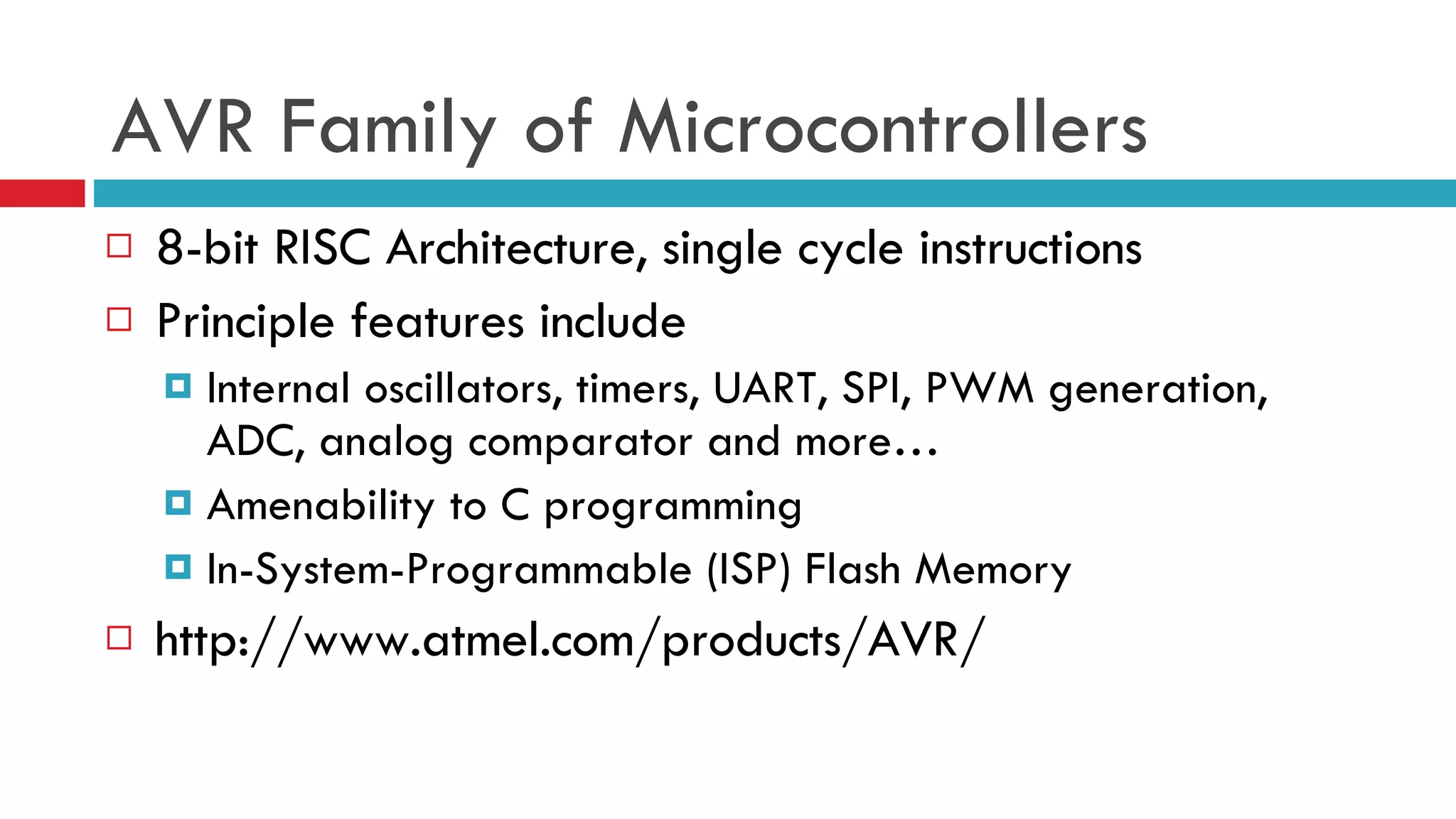

2. AVR Family of Microcontrollers 8-bit RISC Architecture, single cycle instructions Principle features include Internal oscillators, timers, UART, SPI, PWM generation, ADC, analog comparator and more… Amenability to C programming In-System-Programmable (ISP) Flash Memory http://www.atmel.com/products/AVR/

3. ATmega8 – AVR Family Member Up to 16 MIPS throughput 8KB ISP Flash Memory, 1KB SRAM, 512Byte EEPROM 8bit / 16bit timers / counters Three PWM channels 8 Channel 10 bit ADC, Analog Comparator Programmable UART, SPI, TWI

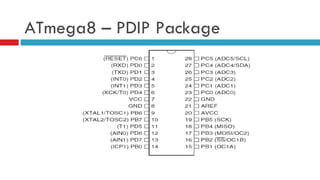

4. ATmega8 – PDIP Package

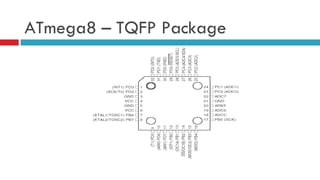

5. ATmega8 – TQFP Package

6. ISP Flash Memory ISP : In-System-Programmable Flash ROM No need of specialized programmer hardware No need to remove processor from circuit for reprogramming

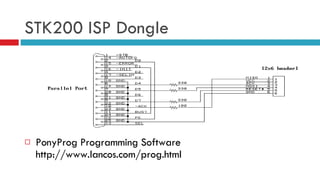

7. STK200 ISP Dongle PonyProg Programming Software http://www.lancos.com/prog.html

8. WinAVR WinAVR is a open source software development suite for Atmel AVR series of RISC microcontrollers GUI Integrated Development Environment Includes the GNU GCC compiler for C and C++. http://winavr.sourceforge.net/

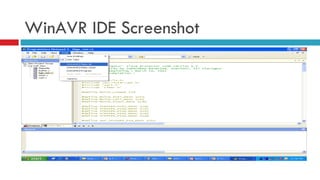

9. WinAVR IDE Screenshot

10. Procyon AVRlib AVRlib is a library of easy-to-use C functions for AVR controllers AVRlib aims to allow programmers to work quickly towards their end goal by reducing the time needed to write basic support functions and code http://www.procyonengineering.com/avr/avrlib/

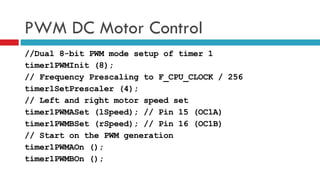

11. PWM DC Motor Control //Dual 8-bit PWM mode setup of timer 1 timer1PWMInit (8); // Frequency Prescaling to F_CPU_CLOCK / 256 timer1SetPrescaler (4); // Left and right motor speed set timer1PWMASet (lSpeed); // Pin 15 (OC1A) timer1PWMBSet (rSpeed); // Pin 16 (OC1B) // Start on the PWM generation timer1PWMAOn (); timer1PWMBOn ();

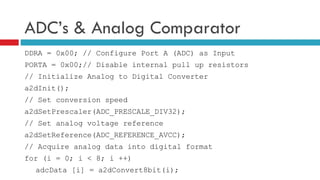

12. ADC’s & Analog Comparator DDRA = 0x00; // Configure Port A (ADC) as Input PORTA = 0x00;// Disable internal pull up resistors // Initialize Analog to Digital Converter a2dInit(); // Set conversion speed a2dSetPrescaler(ADC_PRESCALE_DIV32); // Set analog voltage reference a2dSetReference(ADC_REFERENCE_AVCC); // Acquire analog data into digital format for (i = 0; i < 8; i ++) adcData [i] = a2dConvert8bit(i);

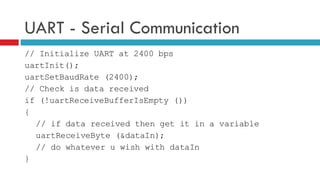

13. UART - Serial Communication // Initialize UART at 2400 bps uartInit(); uartSetBaudRate (2400); // Check is data received if (!uartReceiveBufferIsEmpty ()) { // if data received then get it in a variable uartReceiveByte (&dataIn); // do whatever u wish with dataIn }

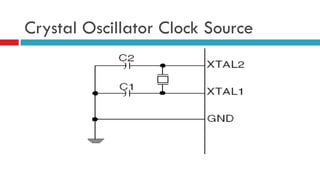

14. Crystal Oscillator Clock Source

15. AVR Fuse settings SUT 1:0 = 11 12 – 22 pf >= 1.0 1011, 1101, 1111 0 12 – 22 pf 3.0 – 8.0 1111 1 12 – 22 pf 0.9 – 3.0 1101 1 - 0.4 – 0.9 1010 1 C1 & C2 Frequency (MHz) CKSEL3:0 CKOPT
