The document discusses real-time image processing and different approaches for acquiring and processing images and video in real-time. It compares libraries and frameworks like OpenCV, DirectShow, and Vision SDK. OpenCV is highlighted as it provides both high-level and low-level functions for tasks like image acquisition, processing, and display and has become popular for real-time applications due its open source nature and support. Sample code in OpenCV is also provided to demonstrate a basic real-time video processing application.

1. February 1st – 4th ,2007

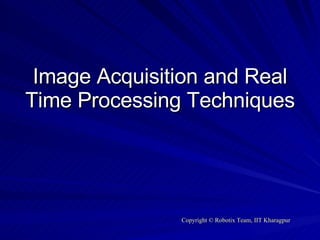

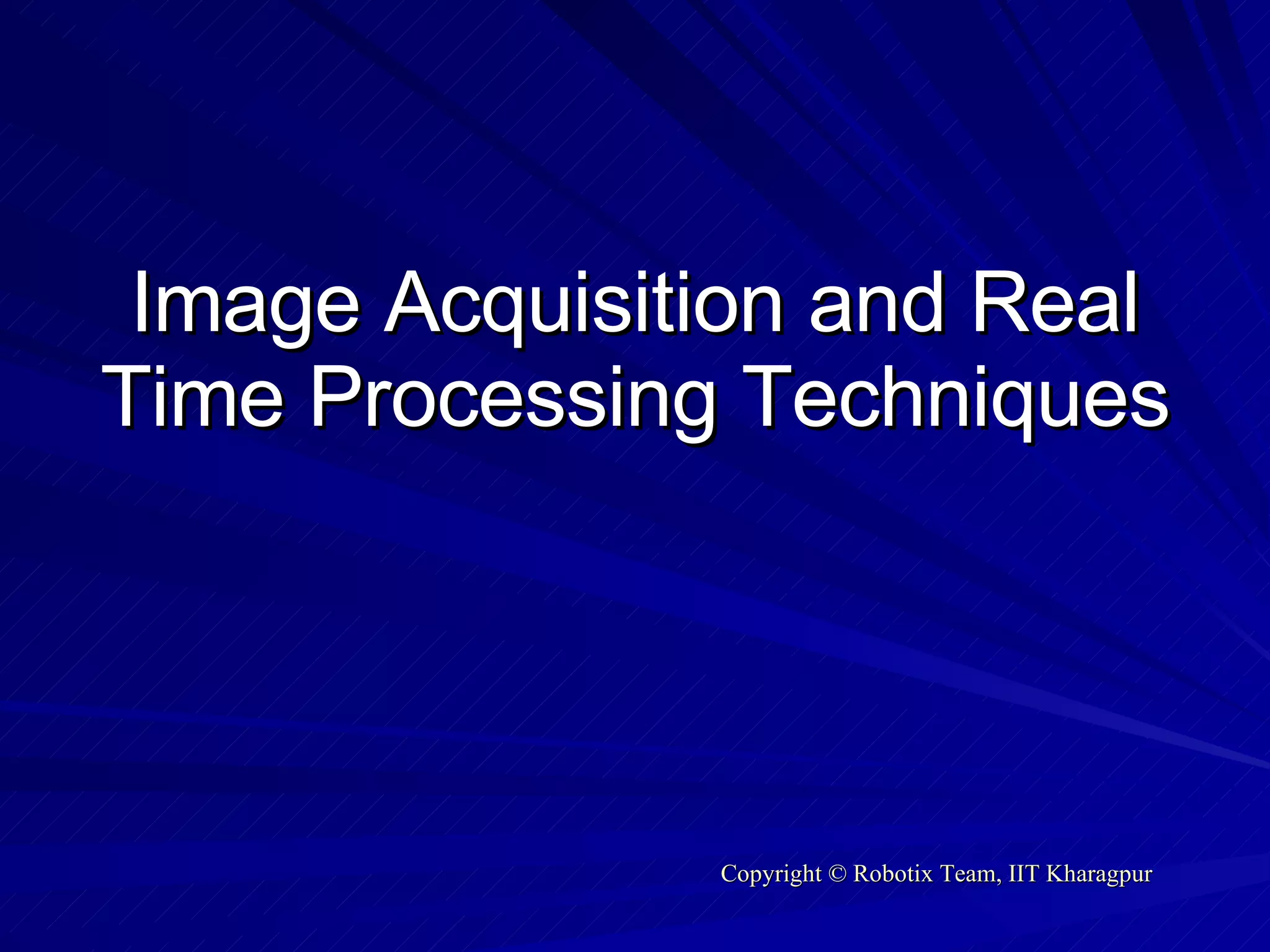

2. Image Acquisition and Real Time Processing Techniques

3. Why Real-time Image Processing? Image processing is an important tool in many applications. Problem is that one needs to acquire images and pre-process them before doing actual IP. Sometimes it may be required that offline image processing is not possible i.e. one needs to proceed with real-time IP or even more, processing of the video itself.

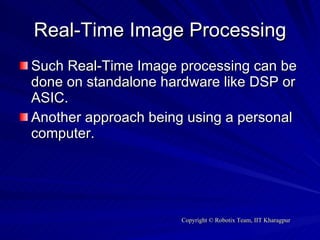

4. Real-Time Image Processing Such Real-Time Image processing can be done on standalone hardware like DSP or ASIC. Another approach being using a personal computer.

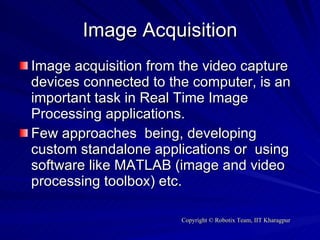

5. Image Acquisition Image acquisition from the video capture devices connected to the computer, is an important task in Real Time Image Processing applications. Few approaches being, developing custom standalone applications or using software like MATLAB (image and video processing toolbox) etc.

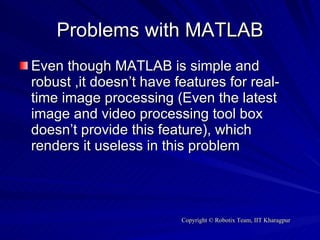

6. Problems with MATLAB Even though MATLAB is simple and robust ,it doesn’t have features for real-time image processing (Even the latest image and video processing tool box doesn’t provide this feature), which renders it useless in this problem

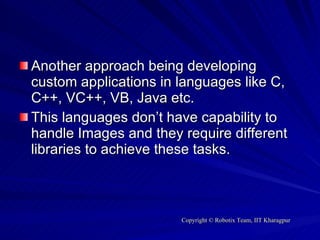

7. Another approach being developing custom applications in languages like C, C++, VC++, VB, Java etc. This languages don’t have capability to handle Images and they require different libraries to achieve these tasks.

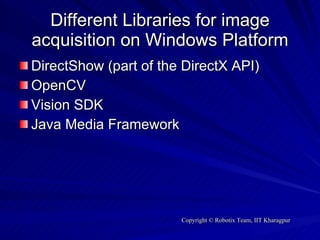

8. Different Libraries for image acquisition on Windows Platform DirectShow (part of the DirectX API) OpenCV Vision SDK Java Media Framework

9. Comparison of the Various approaches OpenCV and Vision SDK comprise of the High Level Functions. Where as the DirectX is a set of Low Level API, which directly interact with the hardware. OpenCV and Vision SDK encapsulate the DirectX API.

10. Computer Graphic System DAC Video RAM Hardware Buffer Graphic Controller CPU Main Memory Mother Board Video Adapter

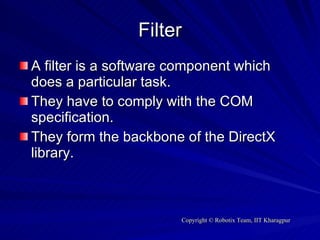

11. Filter A filter is a software component which does a particular task. They have to comply with the COM specification. They form the backbone of the DirectX library.

12. General Architecture Media Source Source Filter Transform Filter Renderer Filter Destination

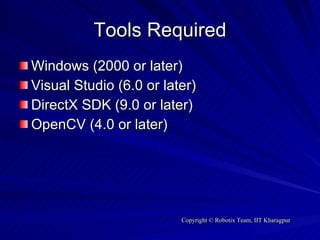

13. Tools Required Windows (2000 or later) Visual Studio (6.0 or later) DirectX SDK (9.0 or later) OpenCV (4.0 or later)

14. OpenCV OpenCV is an opensource project supported by Intel. It is a collection of C structures, functions and C++ classes that contain implementation of algorithms of image processing and computer vision

15. Some basic C Structures IplImage : Every Image in OpenCV is an instantiation of a structure called IplImage . This structure consists of Image data in a 1-D array format. Others fields of this structure consist of data like width, height, no of channels etc.

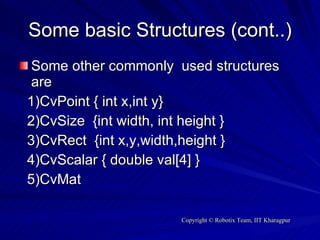

16. Some basic Structures (cont..) Some other commonly used structures are 1)CvPoint { int x,int y} 2)CvSize {int width, int height } 3)CvRect {int x,y,width,height } 4)CvScalar { double val[4] } 5)CvMat

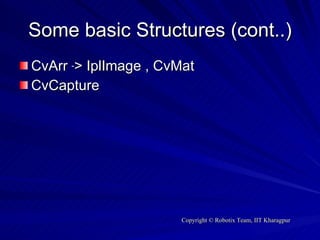

17. Some basic Structures (cont..) CvArr - > IplImage , CvMat CvCapture

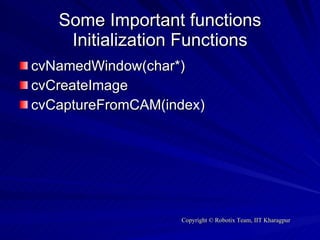

18. Some Important functions Initialization Functions cvNamedWindow(char*) cvCreateImage cvCaptureFromCAM(index)

19. Image Processing Functions cvCopy cvFlip cvCvtColor cvNot cvSmooth cvZero

20. Memory Release functions cvReleaseImage cvReleaseCapture cvDestroyWindow

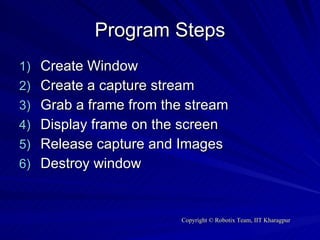

21. Program Steps Create Window Create a capture stream Grab a frame from the stream Display frame on the screen Release capture and Images Destroy window

22. Sample Code CvCapture* cap = cvCaptureFromCAM(0); cvNamedWindow(“Webcam”); for(;;) { IplImage* frame = cvQueryFrame(cap); cvShowImage(“Webcam”,frame); } cvReleaseCapture(&cap); cvDestroyWindow(“Webcam”);
