This document discusses the history of reverse engineering techniques for web applications from 1999 to 2013. It covers early work modeling web sites and migrating them to web applications. It then summarizes research on reverse engineering web applications to understand their architecture and generate documentation. The challenges of reverse engineering rich internet applications are also outlined. Finally, the document discusses how reverse engineering techniques originally developed for web applications are now being applied to mobile applications.

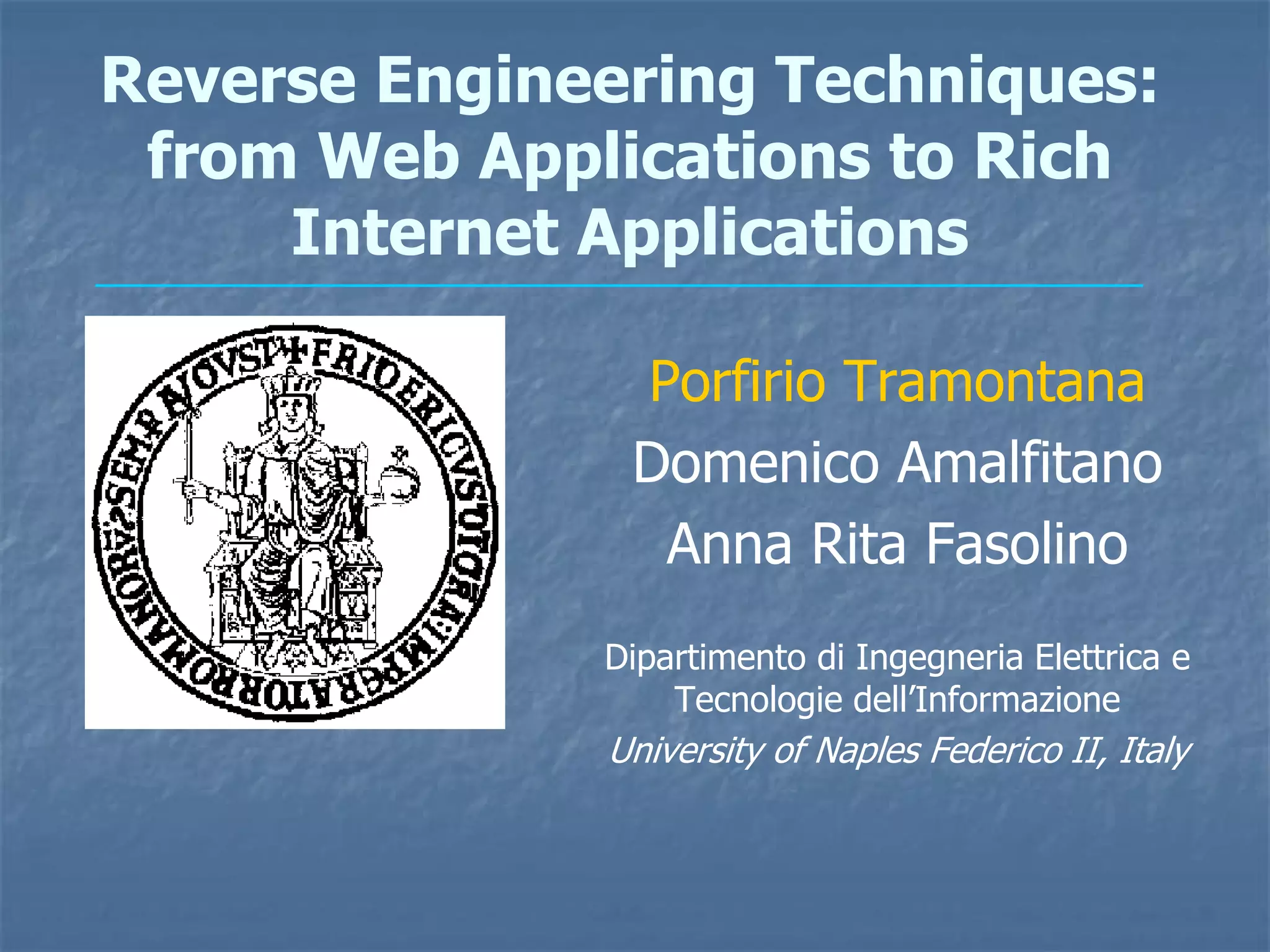

1. Reverse Engineering Techniques:
from Web Applications to Rich
Internet Applications
Porfirio Tramontana
Domenico Amalfitano
Anna Rita Fasolino
Dipartimento di Ingegneria Elettrica e
Tecnologie dell’Informazione
University of Naples Federico II, Italy

2. WSE & Reverse Engineering


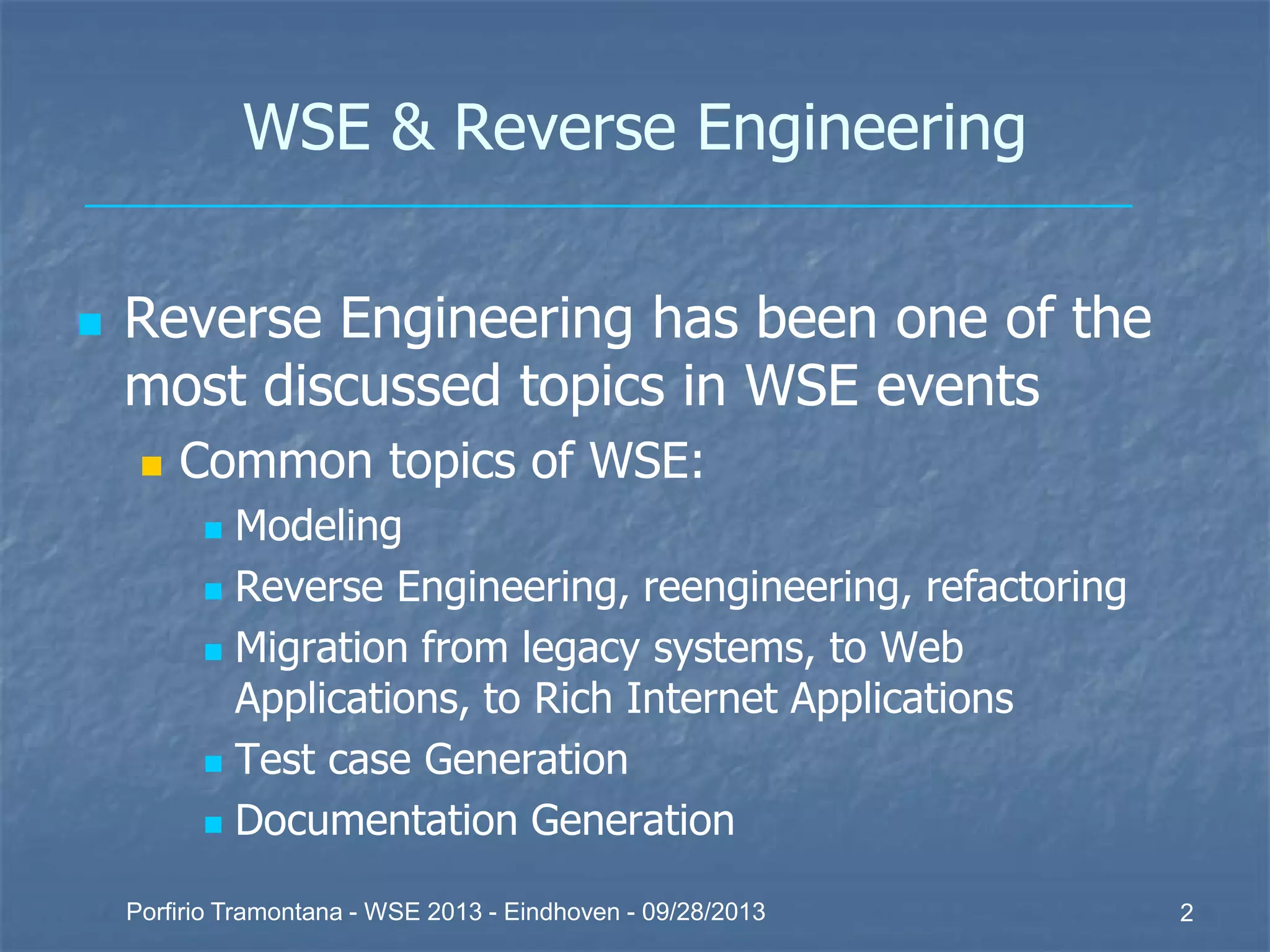

Reverse Engineering has been one of the
most discussed topics in WSE events

Common topics of WSE:
Modeling
 Reverse Engineering, reengineering, refactoring
 Migration from legacy systems, to Web
Applications, to Rich Internet Applications
 Test case Generation
 Documentation Generation

Porfirio Tramontana - WSE 2013 - Eindhoven - 09/28/2013
2

3. WSE & Reverse Engineering


Web Systems Modeling, 3 papers in 19992001 (and a paper in 2006)
Reverse Engineering, Comprehension,
Maintenance, Documentation of:



Web Sites, 7 papers in 2000-2008
Web Applications, 6 papers in 2000-2009
Rich Internet Applications, 3 papers in 20102011
Porfirio Tramontana - WSE 2013 - Eindhoven - 09/28/2013
3

4. WSE Timeline
1999 2000 2001 2002 2003
Web Site Nature
And Modeling
1
Web Sites
Reverse
Engineering,
Comprehension,
Maintenance,
Documentation
6
2
15
2006
22
2009
2010
2011
2013
13
7
17
9
24
18
16
Web
Applications
2008
12
20
25
27
23
36
Rich Internet
Applications
Porfirio Tramontana - WSE 2013 - Eindhoven - 09/28/2013
34
37
4

5. Timeline 1: Web Site Nature and Modeling

In the first WSE editions, there was discussions about the nature of the
Web Sites and the models needed for their design



The first models for Web Site design were adaptations of data models
(RMM, WebML)


1999: G. Antoniol, G. Canfora, A. Cimitile, and A. De Lucia, “WEB Sites: Files, Programs or
databases?,”
2001: H. M. Kienle and H. A. Muller, “Leveraging program analysis for Web site reverse
engineering
2000: G. Antoniol, G. Canfora, G. Casazza, and A. De Lucia, “Web Site Reengineering Using
RMM”
The evolution of Web Sites to Web Applications caused a corresponding
evolution of models towards UML based ones

2006: F. Ricca, M. Di Penta, M. Torchiano, P. Tonella, and M. Ceccato, “An empirical study
on the usefulness of Conallen’s stereotypes inWeb application comprehension,”
Porfirio Tramontana - WSE 2013 - Eindhoven - 09/28/2013
5

6. Timeline 1: Web Site Nature and Modeling

Reverse Engineering suitable models describe Web Applications at a higher
level of details



2002: P. Tonella and F. Ricca, “Dynamic model extraction and statistical analysis of Web
applications,”
2002: G. A. Di Lucca, A. R. Fasolino, and P. Tramontana, “Towards a better
comprehensibility of web applications: lessons learned from reverse engineering
experiments,”
Models supporting Web 2.0 applications extended the ones suitable for Web
applications

2006: R. Djemaa, I. Amous, and A. Hamadou, “WA-UML: Towards a UML extension for
modelling Adaptive Web Applications
Porfirio Tramontana - WSE 2013 - Eindhoven - 09/28/2013
6

7. 2000: RMM Model
G. Antoniol, G. Canfora, G. Casazza, and A. De Lucia, “Web Site
Reengineering Using RMM,”
Porfirio Tramontana - WSE 2013 - Eindhoven - 09/28/2013
7

8. 2002: Dynamic Model
P. Tonella and F. Ricca, “Dynamic model extraction and statistical analysis of
Web applications,”
Porfirio Tramontana - WSE 2013 - Eindhoven - 09/28/2013
8

9. 2002: Web Application Model
G. A. Di Lucca, A. R. Fasolino, F. Pace, P. Tramontana, and U. De Carlini, “WARE:
a tool for the reverse engineering of Web applications,”
Porfirio Tramontana - WSE 2013 - Eindhoven - 09/28/2013
9

10. 2010: RIA Dynamic Model
Dom
1 Object 1
Fired >
+XPath
0..*
1
Attribute
+Name
+Value
+Previous
0..*
User
Session
0..1
User
event
1..* +Type
0..*
+Next
0..1
Dom
Change
+Type
Exception
0..*
1
+Message
0..*
Call >
0..1
Raise>
1
1
0..*
1
1 JS Function
Executed
Execution
LOC
0..*
1..*
1
+Text
+Event Handler +Function name
+File name
1 +made by
+handled by 0..1
0..1
Server
Response 0..1
+Status
0..*
1
Server Call
+Asynchronous
+HTTP Request
D. Amalfitano, A. R. Fasolino, A. Polcaro, and P. Tramontana, “Comprehending
Ajax Web Applications by the DynaRIA Tool,”
Porfirio Tramontana - WSE 2013 - Eindhoven - 09/28/2013
10

11. Timeline 2:
Reverse Engineering of Web Sites

Reverse Engineering for migrating …

… from HTML to XML


… from Web Sites to Web Applications …


By abstracting a data model, Estievenart et al, 2003
Reverse Engineering for reuse …


Kirda et al., 2001;
… of clones, Aversano et al., 2001
Reverse Engineering for reengineering …


… based on dynamic analysis and statistic data, Tonella and
Ricca, 2002 and 2008
… to improve the navigability, Scanniello et al., 2008
Porfirio Tramontana - WSE 2013 - Eindhoven - 09/28/2013
11

12. Timeline 3: Reverse Engineering of
Web Applications

Part of the ‘source’ code is generated at run-time






Static analysis is not able to recover anything
Dynamic analysis is not able to cover anything
Business logic, GUI and data management are often interleaved
Di Lucca et al., 2001, 2002, 2003, statically analyzed the source
code, abstracted detail level diagrams, reconstructed modular
architecture and and abstracted business level UML diagrams
Hassan and Holt, 2001 extracted architectural diagrams from a
combination of static and dynamic analysis
Ricca et al., 2002, extracted Conallen’s diagram from dynamic
analysis information

Bernardi et al., 2008, et Alalfi et al. 2009, focused on more specific reverse
engineering tasks
Porfirio Tramontana - WSE 2013 - Eindhoven - 09/28/2013
13

13. Timeline 3: References







2001: A. E. Hassan and R. C. Holt, “Towards a better understanding of Web
applications,”
2002: G. A. Di Lucca, A. R. Fasolino, and P. Tramontana, “Towards a better
comprehensibility of web applications: lessons learned from reverse engineering
experiments,”
2003: G. A. Di Lucca, A. R. Fasolino, P. Tramontana, and U. De Carlini, “Abstracting
business level UML diagrams from Web applications,”
2003: P. Tonella, F. Ricca, E. Pianta, and C. Girardi, “Evaluation methods for Web
application clustering,”
2006: F. Ricca, M. Di Penta, M. Torchiano, P. Tonella, and M. Ceccato, “An empirical
study on the usefulness of Conallen’s stereotypes inWeb application comprehension,”
2008: M. L. Bernardi, G. A. Di Lucca, and D. Distante, “Reverse engineering of Web
Applications to abstract user-centered conceptual models,”
2009: M. H. Alalfi, J. R. Cordy, and T. R. Dean, “WAFA: Fine-grained dynamic
analysis of web applications,”
Porfirio Tramontana - WSE 2013 - Eindhoven - 09/28/2013
14

14. Timeline 4: Reverse Engineering of
Rich Internet Applications

RIAs introduced further levels of dynamicity into Web
Applications and increasing the difficulties of tasks such
as architecture reconstruction and crawling.



Asynchronous calls
Client side code run-time self-modification
Pure dynamic analysis approaches have been proposed
…



… for test case generation, by Amalfitano et al., 2010
… for redocumentation, Amalfitano et al., 2011
… for comprehension, McIntosh et al., 2011
Porfirio Tramontana - WSE 2013 - Eindhoven - 09/28/2013
15

15. Future Perspectives

Reverse Engineering of Web Applications loses interest because:
 Web Applications are not more realized from the scratch but
their coding is heavily supported by visual tools for code
generation and frameworks libraries


With Wordpress, CMS, ..., Web applications are essentially ‘configured’
instead of developed from scratch
Web applications are not more so different from other typologies
of applications

Development models, paradigms and patterns can be the same of traditional
applications

E.g. a Web Application can represent only a possible user interface for a remote user
Porfirio Tramontana - WSE 2013 - Eindhoven - 09/28/2013
17

16. Future Perspectives

But …
 Many of the static and dynamic analysis
techniques initially proposed for Web
applications have recently proven their
usefulness in the context of mobile
applications.

E.g.: Android applications are quite similar to RIAs:


They are both based on event-based GUIs
They are both based on client-server synchronous and asynchronous
interactions.
Porfirio Tramontana - WSE 2013 - Eindhoven - 09/28/2013
18
