The document describes the configuration of VLANs on a switch and the configuration of subinterfaces on a router to connect the VLANs. VLANs 2, 3, and 4 are created on the switch and ports are assigned accordingly. The switch port connected to the router is configured as a trunk. On the router, subinterfaces are configured with IP addresses for each VLAN and encapsulation is set to dot1q. The configurations are saved.

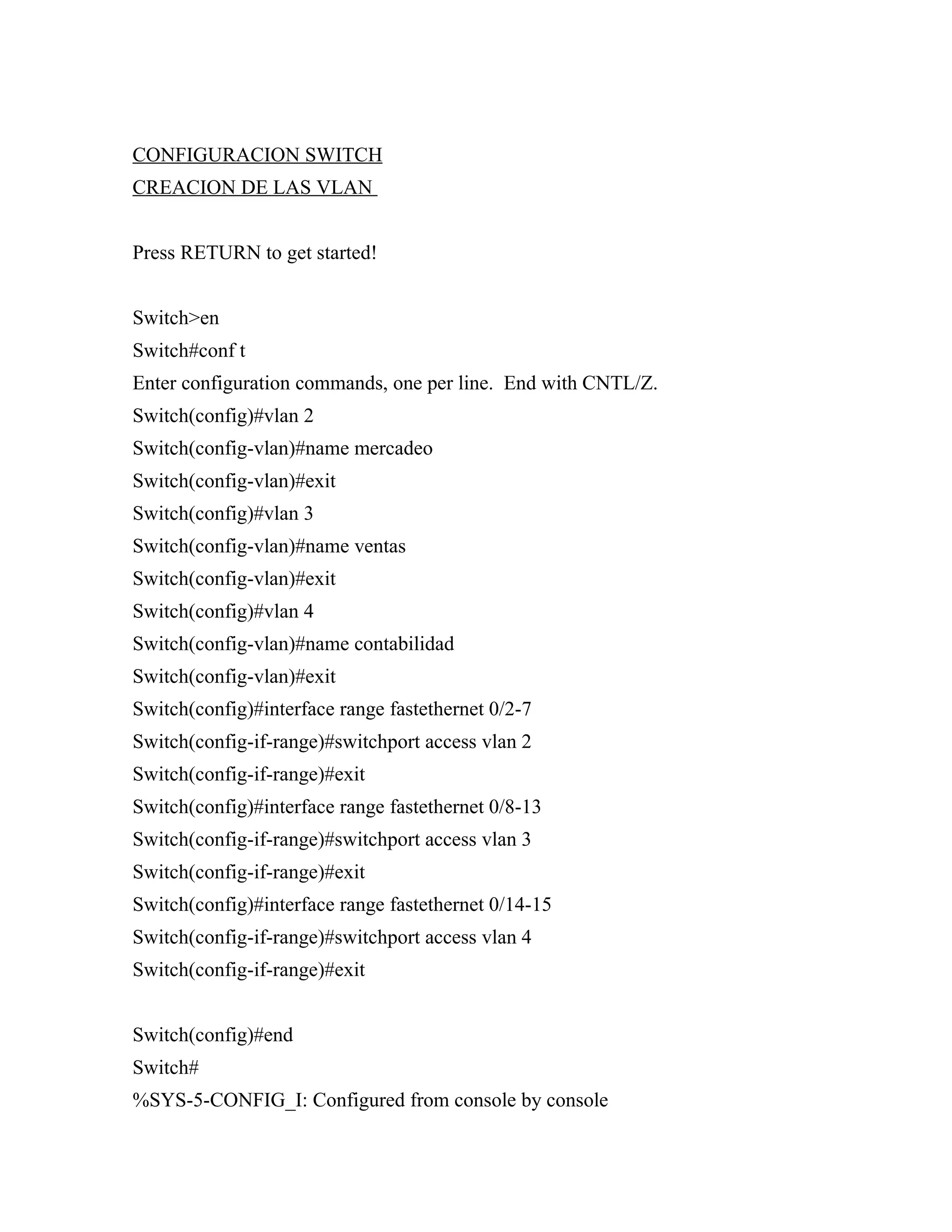

1. CONFIGURACION SWITCH
CREACION DE LAS VLAN
Press RETURN to get started!
Switch>en
Switch#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Switch(config)#vlan 2
Switch(config-vlan)#name mercadeo
Switch(config-vlan)#exit
Switch(config)#vlan 3
Switch(config-vlan)#name ventas
Switch(config-vlan)#exit
Switch(config)#vlan 4
Switch(config-vlan)#name contabilidad
Switch(config-vlan)#exit
Switch(config)#interface range fastethernet 0/2-7
Switch(config-if-range)#switchport access vlan 2
Switch(config-if-range)#exit
Switch(config)#interface range fastethernet 0/8-13
Switch(config-if-range)#switchport access vlan 3
Switch(config-if-range)#exit
Switch(config)#interface range fastethernet 0/14-15
Switch(config-if-range)#switchport access vlan 4
Switch(config-if-range)#exit
Switch(config)#end
Switch#
%SYS-5-CONFIG_I: Configured from console by console

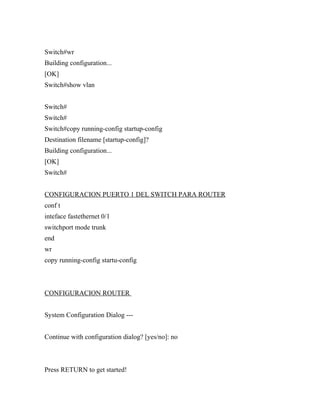

2. Switch#wr
Building configuration...
[OK]
Switch#show vlan
Switch#
Switch#
Switch#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Switch#
CONFIGURACION PUERTO 1 DEL SWITCH PARA ROUTER
conf t
inteface fastethernet 0/1
switchport mode trunk
end
wr
copy running-config startu-config
CONFIGURACION ROUTER
System Configuration Dialog ---
Continue with configuration dialog? [yes/no]: no
Press RETURN to get started!

3. Router>
Router>conf t
^
% Invalid input detected at '^' marker.
Router>en
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#interface fastethernet 0/0.1
Router(config-subif)#encapsulation dot1q 2
Router(config-subif)#ip address 192.168.1.1 255.255.255.0
Router(config-subif)#no shutdown
Router(config-subif)#exit
Router(config)#interface fastethernet 0/0.2
Router(config-subif)#encapsulation dot1q 3
Router(config-subif)#ip address 192.168.2.1 255.255.255.0
Router(config-subif)#exit
Router(config)#interface fastethernet 0/0.3
Router(config-subif)#encapsulation dot1q 4
Router(config-subif)#ip address 192.168.3.1 255.255.255.0
Router(config-subif)#end
Router#wr
Building configuration...
[OK]
Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]

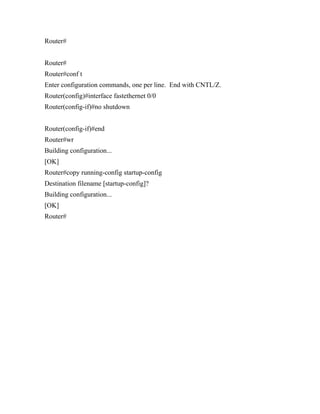

4. Router#
Router#
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#interface fastethernet 0/0
Router(config-if)#no shutdown
Router(config-if)#end
Router#wr
Building configuration...
[OK]
Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Router#
