Slides from our talk “REST in Peace” for DrupalCamp Baltics 2015: http://drupalcampbaltics.com/event/rest-peace Speakers: - Kate Marshalkina - Konstantin Komelin Speech transcript is available here: http://komelin.com/en/articles/rest-peace-api-development-drupal

1. REST in Peace
API DEVELOPMENT IN DRUPAL

2. Kate Marshalkina
Konstantin Komelin
Drupal Consultant from Moscow who fell in
love with Drupal in 2011.
Interested in i18n, distributions and Drupal 8.
Path Breadcrumbs co-maintainer.
@kalabro
Drupal Consultant from Saint Petersburg
Co-founder of local Drupal Community
Drupal Trainer at MorningCurve
@kkomelin

3. Let’s REST

4. Headless?!

5. What is API for?

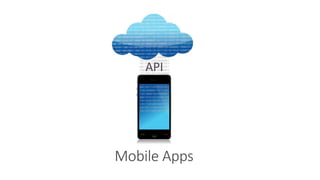

6. Mobile Apps
API

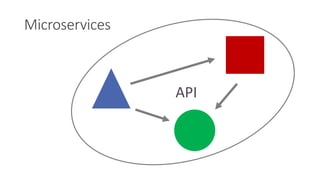

7. Microservices
API

8. Frontend Apps
API

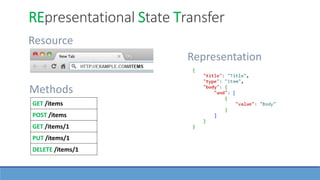

9. What is REST?

10. Resource
Representation
GET /items
POST /items
GET /items/1
PUT /items/1
DELETE /items/1
Methods
REpresentational State Transfer

11. RESTful or RESTless

12. REST in Drupal

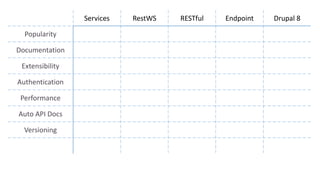

13. Services RestWS RESTful Endpoint Drupal 8
Popularity
Documentation
Extensibility
Authentication
Performance
Auto API Docs
Versioning

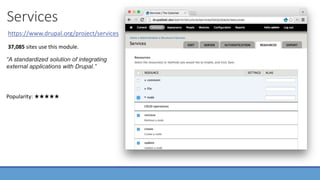

14. Services
https://www.drupal.org/project/services
“A standardized solution of integrating
external applications with Drupal.”
37,085 sites use this module.
Popularity: ★★★★★

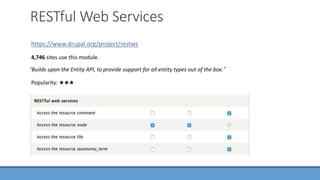

15. RESTful Web Services
https://www.drupal.org/project/restws
“Builds upon the Entity API, to provide support for all entity types out of the box.”
4,746 sites use this module.
Popularity: ★★★

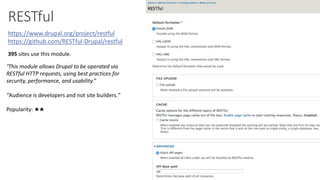

16. RESTful
https://www.drupal.org/project/restful
https://github.com/RESTful-Drupal/restful
“This module allows Drupal to be operated via
RESTful HTTP requests, using best practices for
security, performance, and usability.”
“Audience is developers and not site builders.”
395 sites use this module.
Popularity: ★★

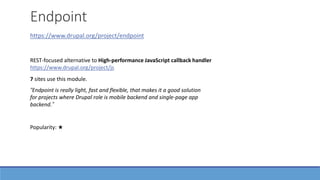

17. Endpoint
https://www.drupal.org/project/endpoint
“Endpoint is really light, fast and flexible, that makes it a good solution
for projects where Drupal role is mobile backend and single-page app
backend.”
7 sites use this module.
Popularity: ★
REST-focused alternative to High-performance JavaScript callback handler
https://www.drupal.org/project/js

18. Drupal 8 REST
Core + https://www.drupal.org/project/restui
“In Drupal 8 core, interactions with content
entities are supported via a REST interface.
The REST module is extensible, and
modules that wish to offer other services
can implement Resource Plugins.”
Popularity: ★★

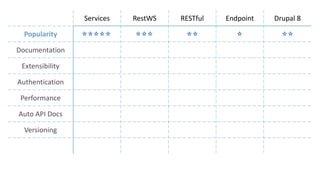

19. Services RestWS RESTful Endpoint Drupal 8
Popularity
Documentation
Extensibility
Authentication
Performance
Auto API Docs
Versioning

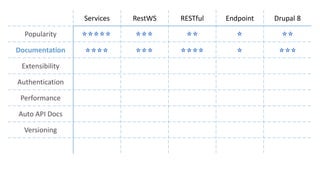

21. Services RestWS RESTful Endpoint Drupal 8
Popularity
Documentation
Extensibility
Authentication
Performance
Auto API Docs
Versioning

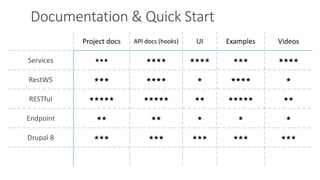

22. Project docs API docs (hooks) UI Examples Videos
Services ★★★ ★★★★ ★★★★ ★★★ ★★★★
RestWS ★★★ ★★★★ ★ ★★★★ ★
RESTful ★★★★★ ★★★★★ ★★ ★★★★★ ★★
Endpoint ★★ ★★ ★ ★ ★
Drupal 8 ★★★ ★★★ ★★★ ★★★ ★★★
Documentation & Quick Start

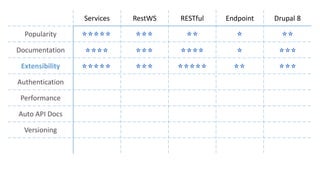

23. Services RestWS RESTful Endpoint Drupal 8
Popularity
Documentation
Extensibility
Authentication
Performance
Auto API Docs
Versioning

25. Extensibility & hooks

26. Services RestWS RESTful Endpoint Drupal 8
Popularity
Documentation
Extensibility
Authentication
Performance
Auto API Docs
Versioning

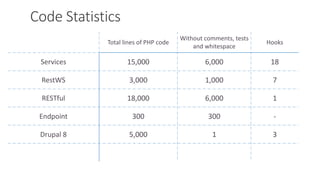

27. Total lines of PHP code
Without comments, tests
and whitespace
Hooks
Services 15,000 6,000 18
RestWS 3,000 1,000 7
RESTful 18,000 6,000 1
Endpoint 300 300 -
Drupal 8 5,000 1 3
Code Statistics

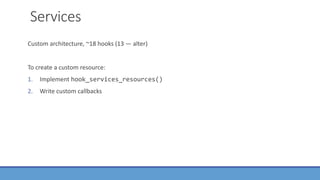

28. Services
Custom architecture, ~18 hooks (13 — alter)
To create a custom resource:
1. Implement hook_services_resources()
2. Write custom callbacks

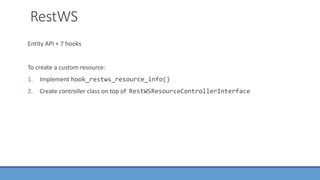

29. RestWS
Entity API + 7 hooks
To create a custom resource:
1. Implement hook_restws_resource_info()
2. Create controller class on top of RestWSResourceControllerInterface

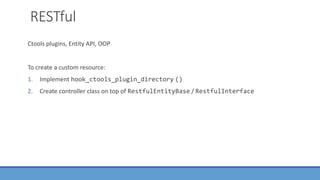

30. RESTful
Ctools plugins, Entity API, OOP
To create a custom resource:
1. Implement hook_ctools_plugin_directory ()
2. Create controller class on top of RestfulEntityBase / RestfulInterface

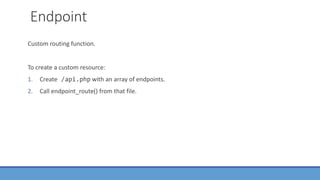

31. Endpoint
Custom routing function.
To create a custom resource:
1. Create /api.php with an array of endpoints.
2. Call endpoint_route() from that file.

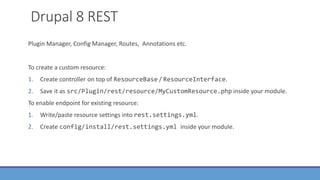

32. Drupal 8 REST
Plugin Manager, Config Manager, Routes, Annotations etc.
To create a custom resource:
1. Create controller on top of ResourceBase / ResourceInterface.
2. Save it as src/Plugin/rest/resource/MyCustomResource.php inside your module.
To enable endpoint for existing resource:
1. Write/paste resource settings into rest.settings.yml.
2. Create config/install/rest.settings.yml inside your module.

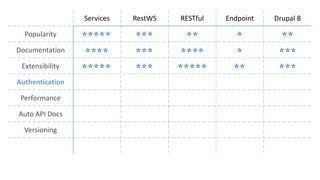

33. Services RestWS RESTful Endpoint Drupal 8
Popularity
Documentation
Extensibility
Authentication
Performance
Auto API Docs
Versioning

34. Security & Authentication

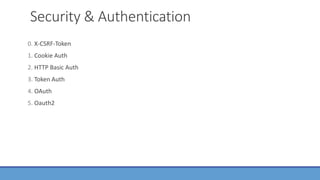

35. Security & Authentication
0. X-CSRF-Token
1. Cookie Auth
2. HTTP Basic Auth
3. Token Auth
4. OAuth
5. Oauth2

36. X-CSRF-Token
HTTP Header to prevent Cross-Site Request Forgery for session based authentication.
For writing methods: POST, PUT, PATCH, DELETE.
Services RestWS RESTful Endpoint Drupal 8
✔️ ✔️ ✔️ ✖️ ✔️
services/session/tok
en
restws/session/
token
api/session/
token
rest/session/
token

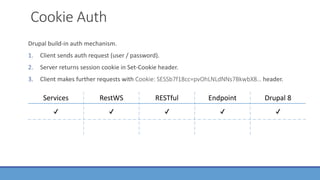

37. Cookie Auth
Drupal build-in auth mechanism.
1. Client sends auth request (user / password).
2. Server returns session cookie in Set-Cookie header.
3. Client makes further requests with Cookie: SESSb7f18cc=pvOhLNLdNNs7BkwbX8… header.
Services RestWS RESTful Endpoint Drupal 8
✔️ ✔️ ✔️ ✔️ ✔️

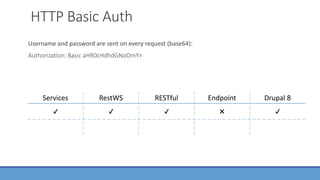

38. HTTP Basic Auth
Username and password are sent on every request (base64):
Authorization: Basic aHR0cHdhdGNoOmY=
Services RestWS RESTful Endpoint Drupal 8
✔️ ✔️ ✔️ ✖️ ✔️

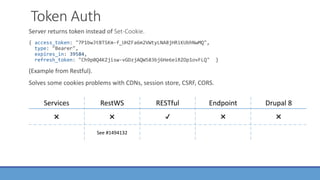

39. Token Auth
Server returns token instead of Set-Cookie.
{ access_token: "7P1bwJtBTSKm-f_UHZFa6m2VWtyLNA8jHRiKUbhNwMQ",
type: "Bearer",
expires_in: 39584,
refresh_token: "Ch9p0Q4KZjisw-vGDzjAQW583bj6He6eiRZOp1ovFLQ" }
(Example from Restful).
Solves some cookies problems with CDNs, session store, CSRF, CORS.
Services RestWS RESTful Endpoint Drupal 8
✖️ ✖️ ✔️ ✖️ ✖️
See #1494132

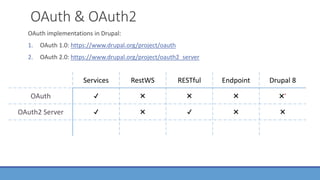

40. OAuth implementations in Drupal:
1. OAuth 1.0: https://www.drupal.org/project/oauth
2. OAuth 2.0: https://www.drupal.org/project/oauth2_server
OAuth & OAuth2
Services RestWS RESTful Endpoint Drupal 8
OAuth ✔️ ✖️ ✖️ ✖️ ✖️*
OAuth2 Server ✔️ ✖️ ✔️ ✖️ ✖️

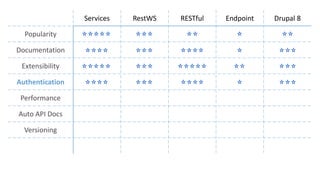

41. Services RestWS RESTful Endpoint Drupal 8
Popularity
Documentation
Extensibility
Authentication
Performance
Auto API Docs
Versioning

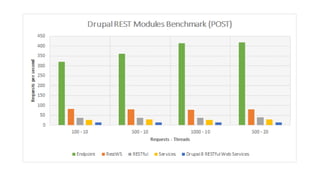

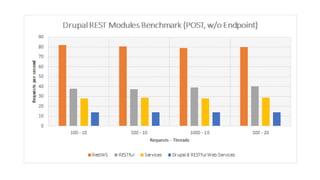

42. Performance
& Speed

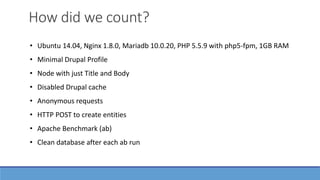

43. How did we count?
• Ubuntu 14.04, Nginx 1.8.0, Mariadb 10.0.20, PHP 5.5.9 with php5-fpm, 1GB RAM
• Minimal Drupal Profile
• Node with just Title and Body
• Disabled Drupal cache
• Anonymous requests
• HTTP POST to create entities
• Apache Benchmark (ab)
• Clean database after each ab run

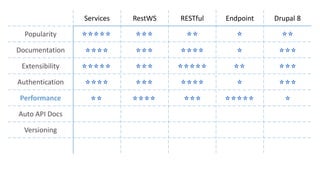

46. Services RestWS RESTful Endpoint Drupal 8
Popularity
Documentation
Extensibility
Authentication
Performance
Auto API Docs
Versioning

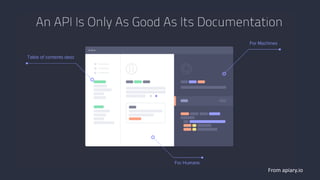

47. From apiary.io

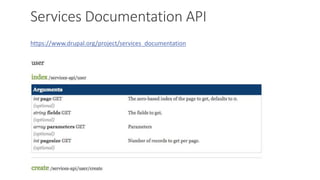

48. Services Documentation API
https://www.drupal.org/project/services_documentation

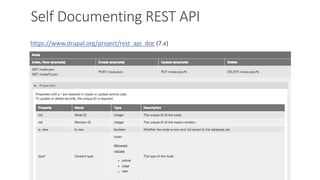

49. Self Documenting REST API
https://www.drupal.org/project/rest_api_doc (7.x)

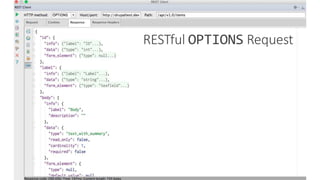

50. RESTful OPTIONS Request

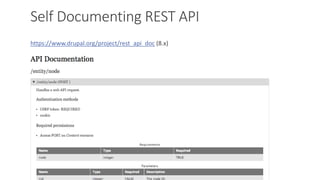

51. Self Documenting REST API
https://www.drupal.org/project/rest_api_doc (8.x)

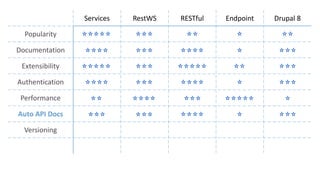

52. Services RestWS RESTful Endpoint Drupal 8
Popularity
Documentation
Extensibility
Authentication
Performance
Auto API Docs
Versioning

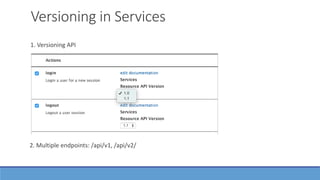

53. 1. Versioning API
2. Multiple endpoints: /api/v1, /api/v2/
Versioning in Services

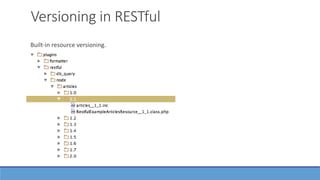

54. Built-in resource versioning.
Versioning in RESTful

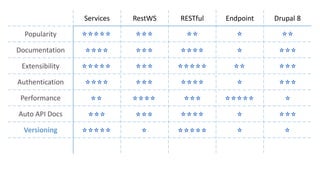

55. Services RestWS RESTful Endpoint Drupal 8
Popularity
Documentation
Extensibility
Authentication
Performance
Auto API Docs
Versioning

56. Better to make a difference
together than make it
different alone

57. Leave feedback
through Picback
http://promokids.github.io/picback
konstantin@komelin.com
@kkomelin
marshalkina@gmail.com
@kalabro

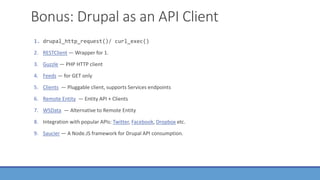

59. Bonus: Drupal as an API Client
1. drupal_http_request()/ curl_exec()
2. RESTClient — Wrapper for 1.
3. Guzzle — PHP HTTP client
4. Feeds — for GET only
5. Clients — Pluggable client, supports Services endpoints
6. Remote Entity — Entity API + Clients
7. WSData — Alternative to Remote Entity
8. Integration with popular APIs: Twitter, Facebook, Dropbox etc.
9. Saucier — A Node.JS framework for Drupal API consumption.
