1. APIs in minutes with Node.js
Shubhra Kar
Product Manager
Oct 2014

2. Some StrongLoop personalities
Bert Belder Ben Noordhuis Al Tsang Jimmy Guerrero
Issac Roth John Higgins
Raymond Feng Miroslav Bajtos Sam Roberts Ritchie Martori
Ryan Graham
Krishna Raman

3. 3
Jason Pressman Kiran Prasad
Neil Day
Nick Sturiale
Paul Ambrose
Marten Mickos
Fortune 10
retailer

4. The Frontend is changing (Mobile First !)

5. API Economy
5
Transaction
Volume
1 Billion 5 Billion 50 Billion
API Endpoints
Mashups
SaaS
Mobile
IoT

6. Why APIs
6
SaaS Mobile IoT
SOA
Web
App Server
Database Datacube
API Server
HTML JSON

7. What’s needed ? Legacy services need to fit too !
API centric Enterprise
Thousands to Millions of devices connecting to business APIs
creating the new user experience
APIs for each device, each app, each screen. Optimized for bandwidth & battery,
adjusting to each device’s capabilities

8. Why Node?
8
Node is FAST
…and highly concurrent!
Node is perfect for APIs
Node is JavaScript

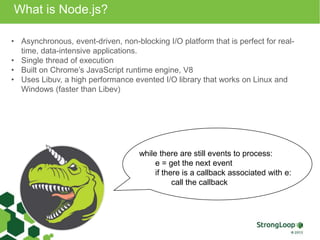

9. What is Node.js?
• Asynchronous, event-driven, non-blocking I/O platform that is perfect for real-time,
data-intensive applications.
• Single thread of execution
• Built on Chrome’s JavaScript runtime engine, V8
• Uses Libuv, a high performance evented I/O library that works on Linux and
Windows (faster than Libev)
while there are still events to process:
e = get the next event
if there is a callback associated with e:
call the callback

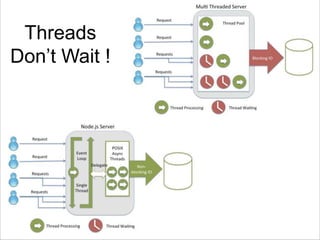

10. Threads
Don’t Wait !

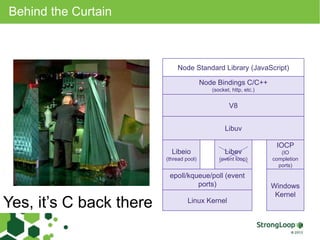

11. Behind the Curtain
Node Standard Library (JavaScript)
Node Bindings C/C++
(socket, http, etc.)
V8
Libuv
Libeio
(thread pool)
Libev
(event loop)
IOCP
(IO
completion
ports)
epoll/kqueue/poll (event
ports)
Linux Kernel
Windows
Kernel
Yes, it’s C back there

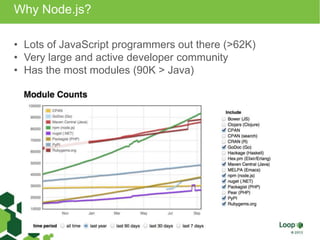

12. Why Node.js?
• Lots of JavaScript programmers out there (>62K)
• Very large and active developer community
• Has the most modules (90K > Java)

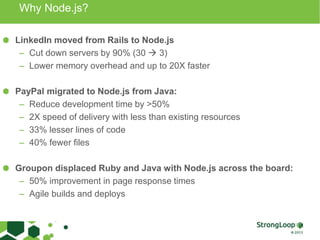

13. Why Node.js?
LinkedIn moved from Rails to Node.js
– Cut down servers by 90% (30  3)
– Lower memory overhead and up to 20X faster
PayPal migrated to Node.js from Java:
– Reduce development time by >50%
– 2X speed of delivery with less than existing resources
– 33% lesser lines of code
– 40% fewer files
Groupon displaced Ruby and Java with Node.js across the board:
– 50% improvement in page response times
– Agile builds and deploys

14. Nodies are not just silicon valley hipsters !
And most recently….
Fortune 10
Retailer

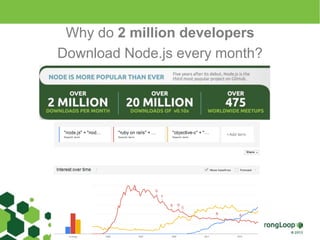

15. Why do 2 million developers
Download Node.js every month?

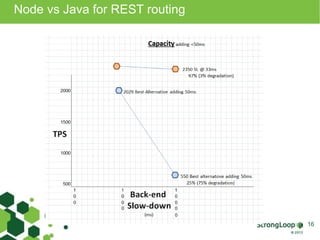

16. Node vs Java for REST routing
16

17. Node..
Roadmap past v0.12
Upgrade v8 and debugger interface
Flow Control
– Promises, Generators, Zones, etc
Error Reporting
– Zones
– Async-Tracker
Enterprise Ops Integration
– Logs, Monitoring, Build, Deploy, CI
Ecosystem
Reference deployments
Concurrency
17
Breaking C++ API Changes

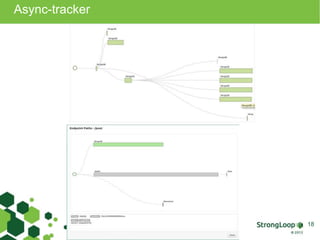

18. Async-tracker
18

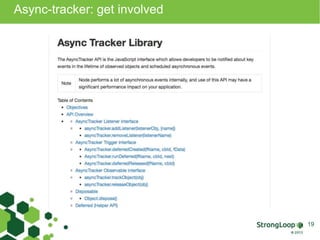

19. Async-tracker: get involved
19

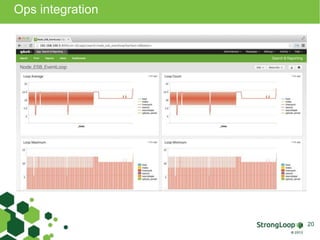

20. Ops integration
20

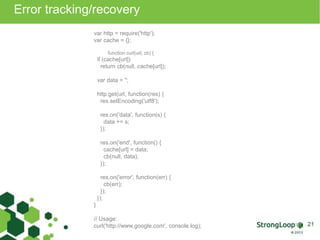

21. Error tracking/recovery
var http = require('http');
var cache = {};
function curl(url, cb) {
if (cache[url])
return cb(null, cache[url]);
var data = '';
http.get(url, function(res) {
res.setEncoding('utf8');
res.on('data', function(s) {
data += s;
});
res.on('end', function() {
cache[url] = data;
cb(null, data);
});
res.on('error', function(err) {
cb(err);
});
});
}
// Usage:
curl('http://www.google.com', console.log); 21

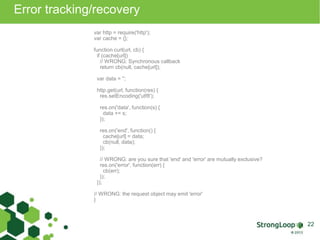

22. Error tracking/recovery
var http = require('http');
var cache = {};
function curl(url, cb) {
if (cache[url])
// WRONG: Synchronous callback
return cb(null, cache[url]);
var data = '';
http.get(url, function(res) {
res.setEncoding('utf8');
res.on('data', function(s) {
data += s;
});
res.on('end', function() {
cache[url] = data;
cb(null, data);
});
// WRONG: are you sure that 'end' and 'error' are mutually exclusive?
res.on('error', function(err) {
cb(err);
});
});
// WRONG: the request object may emit 'error'
}
22

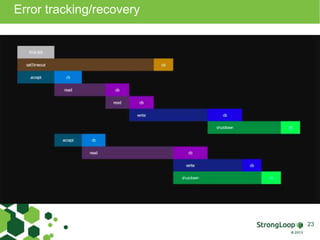

23. Error tracking/recovery
23

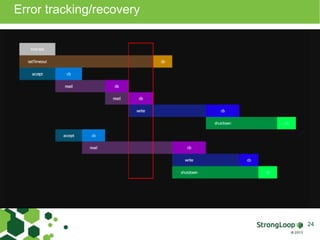

24. Error tracking/recovery
24

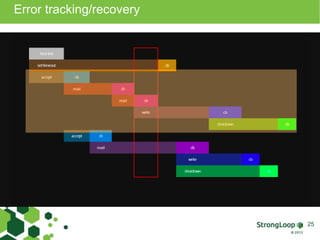

25. Error tracking/recovery
25

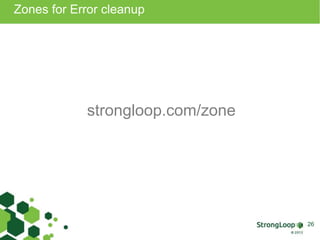

26. Zones for Error cleanup
strongloop.com/zone
26

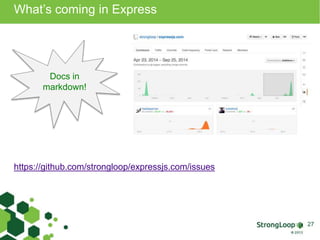

27. What’s coming in Express
27
Docs in
markdown!
https://github.com/strongloop/expressjs.com/issues

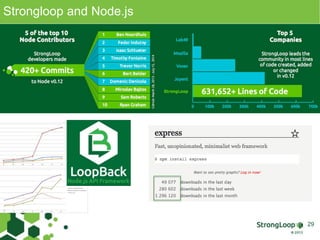

29. Strongloop and Node.js
29

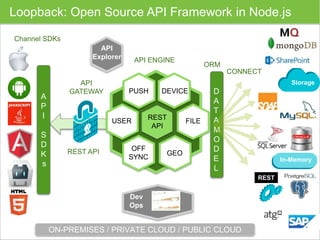

30. Loopback: Open Source API Framework in Node.js
PUSH
REST
API
GEO
OFF
SYNC
DEVICE
USER FILE
Storage
In-Memory
REST
API
GATEWAY
Channel SDKs
CONNECT
ORM
API ENGINE
D
A
T
A
M
O
D
E
L
A
P
I
S
D
K
s
REST API
API
Explorer
Dev
Ops
ON-PREMISES / PRIVATE CLOUD / PUBLIC CLOUD

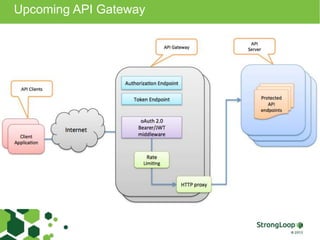

31. Upcoming API Gateway

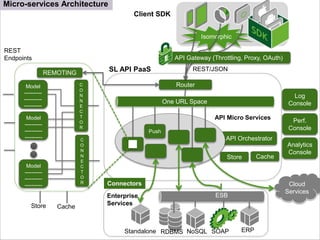

32. API Gateway (Throttling, Proxy, OAuth)
API Orchestrator
Router
Client SDK
Isomorphic
One URL Space
Push
API Micro Services
Store Cache
SL API PaaS
Log
Console
Perf.
Console
Analytics
Console
Cloud
Services
REST/JSON
ESB
Micro-services Architecture
Connectors
Enterprise
Services
Standalone RDBMS NoSQL SOAP ERP
Model
----------
----------
----------
Model
----------
----------
----------
Model
----------
----------
----------
REMOTING
C
O
N
N
E
C
T
O
R
C
O
N
N
E
C
T
O
R
REST
Endpoints
Store Cache

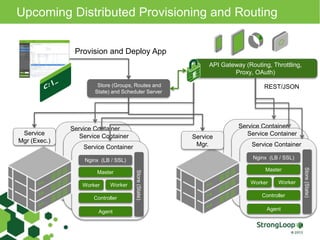

33. Upcoming Distributed Provisioning and Routing
Provision and Deploy App
Service Container
Service Container
Service Container
Nginx (LB / SSL)
Store (State)
Master
Worker Worker
Controller
Agent
API Gateway (Routing, Throttling,
Proxy, OAuth)
Service Container
Service Container
Service Container
Nginx (LB / SSL)
Store (State)
Master
Worker Worker
Controller
Agent
Store (Groups, Routes and
State) and Scheduler Server
REST/JSON
Service
Mgr (Exec.)
Service
Mgr.

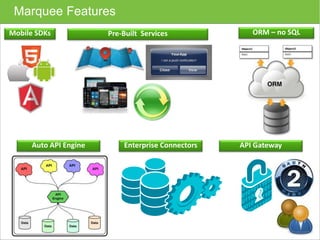

34. Marquee Features
Mobile SDKs Pre-Built Services ORM – no SQL
Auto API Engine Enterprise Connectors API Gateway

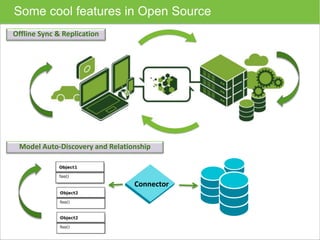

35. Some cool features in Open Source
Offline Sync & Replication
Model Auto-Discovery and Relationship
Connector

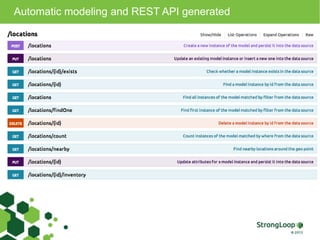

36. Automatic modeling and REST API generated

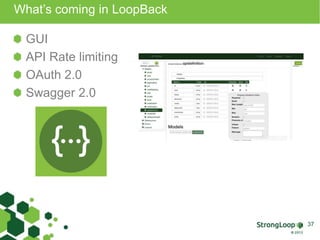

37. What’s coming in LoopBack
GUI
API Rate limiting
OAuth 2.0
Swagger 2.0
37

38. & helps realize a full-stack JavaScript solution
Develop
Create UI & styling Arch. & binding Access Native Integrate Existing Data and Services
Create Scaffolding
Define base CSS
Define components
Use JS widgets
Create Scaffolding
Define Models
Define Controllers
Define Views
Define Filters
User
Device
File
GeoLocation
Notification
Define Directives
Configure Routes
Connect to Data-sources (Oracle, SOAP, Mongo)
Model the Data
Generate REST API
Configure API Security
Setup Services
Mobile App Mgmt.
BLE

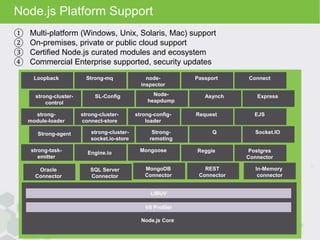

39. Node.js Platform Support
39
① Multi-platform (Windows, Unix, Solaris, Mac) support
② On-premises, private or public cloud support
③ Certified Node.js curated modules and ecosystem
④ Commercial Enterprise supported, security updates
node-inspector
Passport
Node-heapdump
Node.js Core
Loopback Strong-mq
strong-cluster-control
SL-Config
strong-module-
loader
strong-cluster-connect-
store
strong-task-emitter
Engine.io
Mongoose
Strong-agent strong-cluster-socket.
io-store
Asynch
strong-config-loader
Request
Strong-remoting
Q
Connect
Express
EJS
Socket.IO
Reggie Postgres
Connector
Oracle
Connector
SQL Server
Connector
MongoDB
Connector
REST
Connector
In-Memory
connector
LIBUV
V8 Profiler

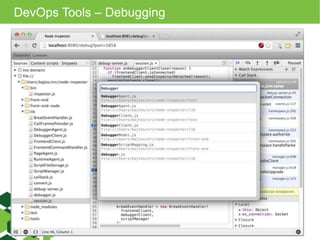

40. DevOps Tools – Debugging

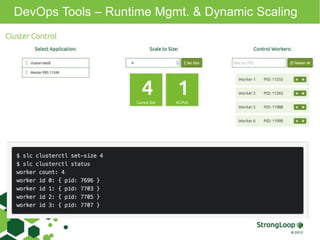

41. DevOps Tools – Runtime Mgmt. & Dynamic Scaling

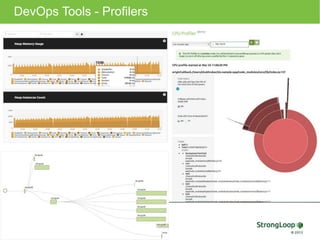

42. DevOps Tools - Profilers

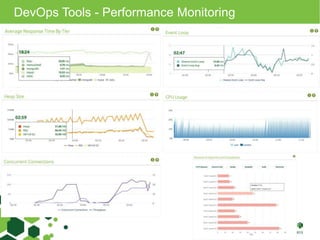

43. DevOps Tools - Performance Monitoring

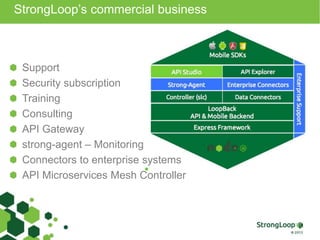

44. StrongLoop’s commercial business
Support
Security subscription
Training
Consulting
API Gateway
strong-agent – Monitoring
Connectors to enterprise systems
API Microservices Mesh Controller
