This document summarizes approaches for securing Java microservice applications at different levels: 1) The endpoint level using frameworks like Spring Security or interceptors to apply authentication and authorization. 2) The web container level by applying constraints to restrict access to resources based on roles. 3) An external API management layer that acts as a proxy, enforcing centralized policies before requests reach endpoints.

1. Security enforcement of
the Java Microservice
Applications
Charles Moulliard
(@cmoulliard)
9th February 2017

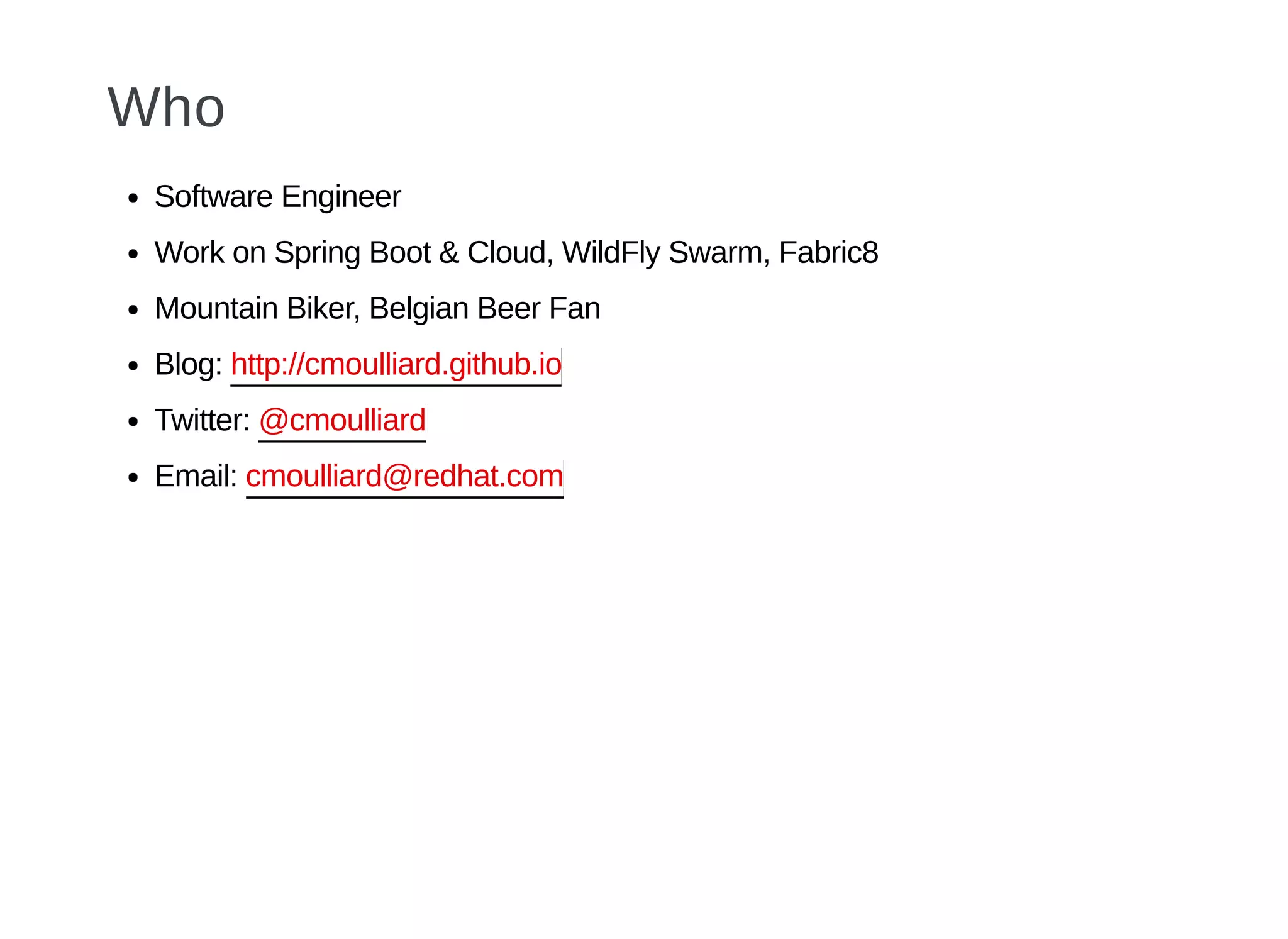

2. Who
Software Engineer
Work on Spring Boot & Cloud, WildFly Swarm, Fabric8
Mountain Biker, Belgian Beer Fan
Blog:
Twitter:
Email:
http://cmoulliard.github.io
@cmoulliard
cmoulliard@redhat.com

3. Agenda
RESTfull Use case
How to Secure the Endpoint
Policy
Web Container
Api Management
Demo

4. Use case description

5. Use case

6. REST Service
@GET
@Path("/customers/{id}/")
@Produces("application/xml")
@ApiOperation(value = "Find Customer by ID",
notes = "More notes about this method",
response = Customer.class)
@ApiResponses(value = {
@ApiResponse(code = 500, message = "Invalid ID supplied"),
@ApiResponse(code = 204, message = "Customer not found")
})
public Customer getCustomer(@ApiParam(value = "ID of Customer to fetch",
required = true) @PathParam("id") String id) {
LOG.info("Invoking getCustomer, Customer id is: {}", id);
long idNumber = Long.parseLong(id);
Customer c = customers.get(idNumber);
return c;
}

7. Api documented : Swagger

8. How to Secure ?

9. Level !
Endpoint Framework/Policy/Interceptor
HTTP Web Container Handler & Constraints
Externally Api Manager

10. Endpoint Level

11. Endpoint level

12. Intercept
Framework based : Apache Shiro, Spring Security
Interceptor/Policy : Apache Camel, Apache CXF
JAXRS : @Roles

13. Camel Design
import org.apache.camel.builder.RouterBuilder;
public class FilterRoute extends RouteBuilder {
public void configure() throws Exception {
from("netty4-http://http://localhost:7777/camel/client)
.setHeader("id").simple("$header.CamelHttpQuery")
.beanRef("customerServer","getCustomer";
}
}

14. Interceptor
To trace, log, secure

15. Camel Endpoint
Goal Extract from the HTTP request the info needed to authenticate a
user
How Use a Camel Policy to wrap the Route / Pipeline with a new
processor


Camel Example
public class ShiroSecurityPolicy implements AuthorizationPolicy {
public Processor wrap(RouteContext routeContext, final Processor processor) {
return new ShiroSecurityProcessor(processor, this);
}
...
@Override
public boolean process(Exchange exchange, AsyncCallback callback) {
try {
applySecurityPolicy(exchange);

16. CXF Endpoint
How Using the ContainerRequestFilter JAXRS Interface
Rely on CXF Intercept

CXF Example
@Provider
@PreMatching
public class SecurityRequestFilter implements ContainerRequestFilter {
@Override
public void filter(final ContainerRequestContext requestContext)
throws IOException {
...

17. Web HTTP Container

18. Web container level

19. HTTP Handler
How Apply Constraints on Web Resources path(s)
GET /rest/accountservice/account for User
POST /webservices/customerservices/customer for Admin
Designed using JAAS JDBC, LDAP, Properties
Could use Roles


20. Jetty Example
Goal restrict or allow access to resources
How URL requested matched with one the rule(s)


Example
Constraint constraint = new Constraint();
constraint.setRoles(new String[] { "user", "admin" });
ConstraintMapping mapping = new ConstraintMapping();
mapping.setPathSpec("/say/hello/*");
mapping.setMethod("GET");
mapping.setConstraint(constraint);

21. Login Auth Example
// Describe the Authentication Constraint to be applied (BASIC, DIGEST, NEGOTIATE, ...)
Constraint constraint = new Constraint(Constraint.__BASIC_AUTH, "user");
constraint.setAuthenticate(true);
// Map the Auth Constraint with a Path
ConstraintMapping cm = new ConstraintMapping();
cm.setPathSpec("/*");
cm.setConstraint(constraint);
HashLoginService loginService = new HashLoginService("MyRealm",
"myrealm.props");
ConstraintSecurityHandler sh = new ConstraintSecurityHandler();
sh.setAuthenticator(new BasicAuthenticator());
sh.setConstraintMappings(cm);
sh.setLoginService(loginService);

22. JAXRS @Roles
Goal Allow/Deny Access to resources
How using annotation @RolesAllowed


Example
@Path("projects")
@Produces("application/json")
public class ProjectsResource {
@POST
@RolesAllowed("manager")
public Project createProject(final Project project) { ... }
@GET
@Path("{id}")
public Project getProject(@PathParam("id") final Long id) { ... }

23. Web Secured & Policy Level

24. Pros / Cons

25. Conclusions
Pros
No product lock
Great flexibility
Spec managed
Cons
Intrusive
Low Management Capability
Lack of Governance

26. External Player

27. Api Manager

28. Api Man
Goal Externalize/Delegate security endpoint to Api
How Api acts as a Proxy/Gateway matching :
Incoming request against 1 Many policies
Delivering requests to target endpoint if validation succeeds



29. Manager

30. Api

32. Api

33. Api Man - Basic Auth
How : Associate a Policy using the Basic Auth Plugin to an endpoint
"contracts" : [
{
"apiOrgId" : "Policy_BasicAuthStatic",
"apiId" : "echo",
"apiVersion" : "1.0.0",
"policies" : [
{
"policyImpl" : "class:io.apiman.gateway.engine.policies.BasicAuthenticationPol
"policyJsonConfig" : "{ "realm" : "Test", "forwardIdentityHttpHeader" :
}
]
}
]

34. Api Man - OpenId connect
Goal Authenticate a user using an Identity provider to get a token used
for SSO purposes
Authentication between Client and Identity Provider: public, secret or PKI
JSon Web Token :
Compact token format,
Encode claims to be transmitted,
Base64url encoded and digitally signed and/or encrypted


35. OpenId connect - Example
{
"jti": "af68fac6-fd50-4b73-bd37-5c555a8e561e",
"exp": 1442847825,
"nbf": 0,
"iat": 1442847525,
"iss": "http://localhost:8080/auth/realms/fuse",
"aud": "fuse",
"sub": "3591e417-7c60-4464-8714-96190c7fad92",
"azp": "fuse",
"session_state": "f58d5dfc-6e4c-4ad2-bd2f-70713f6b942d",
"client_session": "f06b673f-ecbe-47f2-ba76-b6a5901d5afe",
"allowed-origins": [],
"realm_access": {
"roles": [
"write"
]
},
"name": "writer ",
"preferred_username": "writer",
"given_name": "writer"
}

36. Role Mapping
Goal Restrict/allow access to an application based on an Authorization
Rule
How Define a collection of Authorization rules as such & Combined with
Auth Plugin (Keycloak, Basic, …)


Path Verb Role required
.* PUT Writer
.* GET Reader

37. Pros / Cons

38. Conclusions
Pros
Centralized governance policy configuration
Loose coupling
Tracking of APIs and consumers of those APIs
Gathering statistics/metrics
Service Discovery
Simplify security audit
Cons
Performance
New Architecture Brick
Features = plugins available 

39. Demo

40. Questions
Twitter : @cmoulliard
Apiman :
Keycloak :
http://apiman.io
http://www.keycloak.org/
