REST API Design
The document outlines the principles and design of REST APIs, focusing on their resource-based structure and HTTP methods. It describes architectural constraints, representations of resources, and the interaction between clients and servers, emphasizing a stateless design. Additionally, it includes examples of REST API usage and tools for data binding with JavaScript libraries.
More Related Content
Similar to REST API Design
REST API Design
- 1. REST API By DeviKiran KickStartPros.com contact@kickstartpros.com

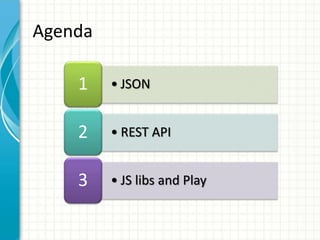

- 2. • JSON1 • RESTAPI2 • JS libs and Play3 Agenda

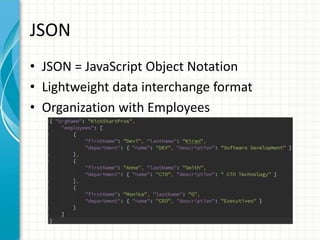

- 3. JSON • JSON =JavaScript Object Notation • Lightweight data interchange format • Organization with Employees
- 4. REST API &DESIGN
- 5. What is REST? •REST = REpresentational State Transfer • Architectural Constraints – Client-Server – Uniform Interface – Stateless – Cacheable – Layered System – Code on demand

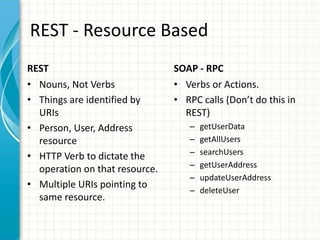

- 6. REST - ResourceBased REST • Nouns, Not Verbs • Things are identified by URIs • Person, User, Address resource • HTTP Verb to dictate the operation on that resource. • Multiple URIs pointing to same resource. SOAP - RPC • Verbs or Actions. • RPC calls (Don’t do this in REST) – getUserData – getAllUsers – searchUsers – getUserAddress – updateUserAddress – deleteUser
- 7. Representations • Represent partof the resource state. • JSON or XML • Example: Buy a car – Resource: Car (Audi A1) – Service: Buy (POST) – Representation: • Name, Model, Price • JSON or XML format.

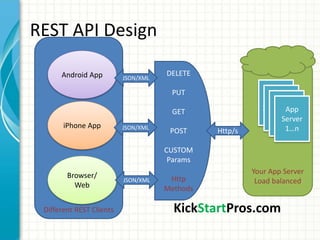

- 8. REST API Design DifferentREST Clients iPhone App Browser/ Web Android App DELETE PUT GET POST CUSTOM Params Http Methods Your App Server Load balanced App Server 1 App Server App Server App Server 1…n KickStartPros.com Http/s JSON/XML JSON/XML JSON/XML

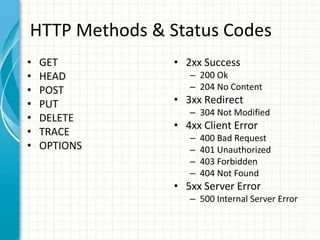

- 9. HTTP Methods &Status Codes • GET • HEAD • POST • PUT • DELETE • TRACE • OPTIONS • 2xx Success – 200 Ok – 204 No Content • 3xx Redirect – 304 Not Modified • 4xx Client Error – 400 Bad Request – 401 Unauthorized – 403 Forbidden – 404 Not Found • 5xx Server Error – 500 Internal Server Error

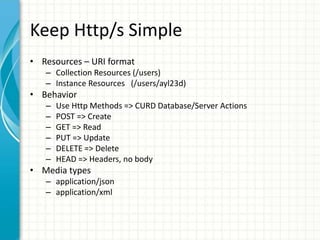

- 10. Keep Http/s Simple •Resources – URI format – Collection Resources (/users) – Instance Resources (/users/ayl23d) • Behavior – Use Http Methods => CURD Database/Server Actions – POST => Create – GET => Read – PUT => Update – DELETE => Delete – HEAD => Headers, no body • Media types – application/json – application/xml

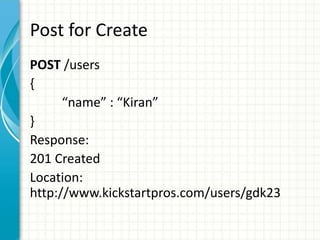

- 11. Post for Create POST/users { “name” : “Kiran” } Response: 201 Created Location: http://www.kickstartpros.com/users/gdk23

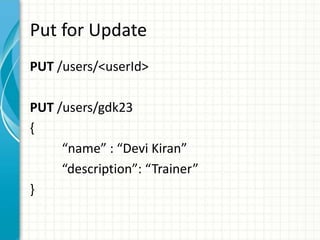

- 12. Put for Update PUT/users/<userId> PUT /users/gdk23 { “name” : “Devi Kiran” “description”: “Trainer” }

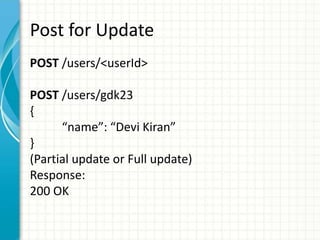

- 13. Post for Update POST/users/<userId> POST /users/gdk23 { “name”: “Devi Kiran” } (Partial update or Full update) Response: 200 OK
- 14.
- 15. Client and Server •Uniform Interface Decouples Client and Server • Design – http and URIs – HTTP verbs (GET, PUT, POST, DELETE) – URIs – HTTP response • Status • Body

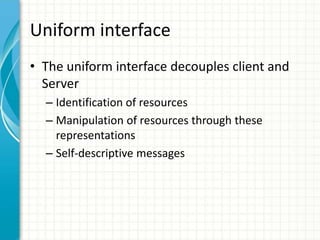

- 16. Uniform interface • Theuniform interface decouples client and Server – Identification of resources – Manipulation of resources through these representations – Self-descriptive messages
- 17. HATEOAS • Hypermedia asthe engine of application state • Client to Server – Body Content – URI and Query String parameters – Request Headers • Server – Body Content – Response Codes – Response Headers

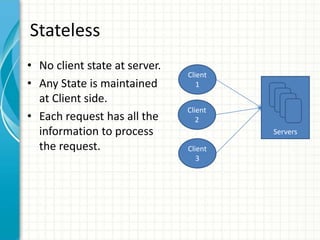

- 18. Stateless • No clientstate at server. • Any State is maintained at Client side. • Each request has all the information to process the request. Client 1 Client 2 Client 3 Servers

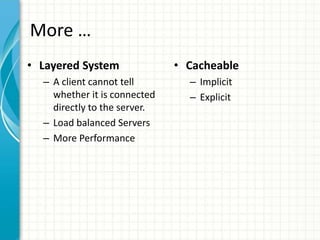

- 19. More … • LayeredSystem – A client cannot tell whether it is connected directly to the server. – Load balanced Servers – More Performance • Cacheable – Implicit – Explicit
- 20. REST APIS &PLAY

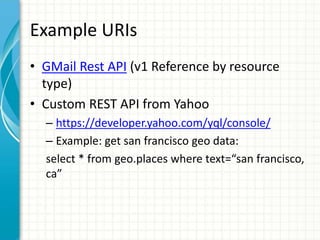

- 21. Example URIs • GMailRest API (v1 Reference by resource type) • Custom REST API from Yahoo – https://developer.yahoo.com/yql/console/ – Example: get san francisco geo data: select * from geo.places where text=“san francisco, ca”
- 22. UI Data bindingof REST API • JQuery – Ajax calls • Data Binding JS libs that help to bind with REST response – JQuery UI – Widgets – Knockout – Model-View-ViewModel (MVVM) – Angular JS – MVVM & MVC – Backbone.js – RESTful JSON interface – Ember.js – Template language, MVC and a router – Kendo UI – MVVM – Extjs – MVC (Model View Controller) & widgets

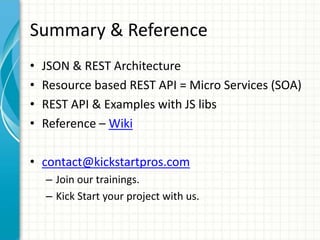

- 23. Summary & Reference •JSON & REST Architecture • Resource based REST API = Micro Services (SOA) • REST API & Examples with JS libs • Reference – Wiki • contact@kickstartpros.com – Join our trainings. – Kick Start your project with us.
