The aim of the presentation is to give readers the framework to think about building the rest APIs right. It starts with describing the need for APIs, what REST APIs are and how are they different from general web APIs. Furthermore, it explains how HTTP and REST play together to build the overall solution and HTTP best practices to be followed when designing REST APIs. It then outlines, some of the basic features / functionality to expect from properly designed REST API system.

1. RESTful APIs...
What, Why and How...

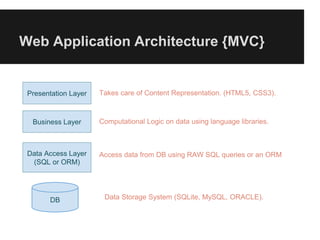

2. Web Application Architecture {MVC}
Presentation Layer
Business Layer
Data Access Layer
(SQL or ORM)
DB
Takes care of Content Representation. (HTML5, CSS3).
Computational Logic on data using language libraries.
Access data from DB using RAW SQL queries or an ORM
Data Storage System (SQLite, MySQL, ORACLE).

3. Presentation Layer
Business Layer
Web and Mobile App - Sharing the same DB.
Data Access Layer
(SQL or ORM)
DB
Presentation Layer
Business Layer
Data Access Layer
(SQL or ORM)
Web App Mobile App
MySQL
Web - HTML5 & CSS3
Mobile - Native GUI Libraries
Some part may repeat and
some may be unique.
Will be the same.
What's Different?
DRY - Do not Repeat Yourself
Lets combine the common logic
into a single layer that both apps can
leverage.

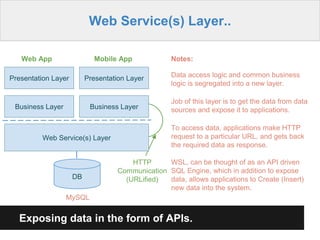

4. Web Service(s) Layer..
Presentation Layer
Business Layer
DB
MySQL
Presentation Layer
Web App Mobile App
Business Layer
HTTP
Communication
(URLified)
Exposing data in the form of APIs.
Notes:
Data access logic and common business
logic is segregated into a new layer.
Job of this layer is to get the data from data
sources and expose it to applications.
To access data, applications make HTTP
request to a particular URL, and gets back
the required data as response.
WSL, can be thought of as an API driven
SQL Engine, which in addition to expose
data, allows applications to Create (Insert)
new data into the system.
Web Service(s) Layer

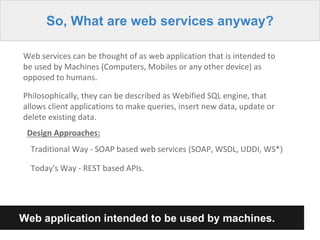

5. So, What are web services anyway?
Web services can be thought of as web application that is intended to
be used by Machines (Computers, Mobiles or any other device) as
opposed to humans.
Philosophically, they can be described as Webified SQL engine, that
allows client applications to make queries, insert new data, update or
delete existing data.
Design Approaches:
Traditional Way - SOAP based web services (SOAP, WSDL, UDDI, WS*)
Today's Way - REST based APIs.
Web application intended to be used by machines.

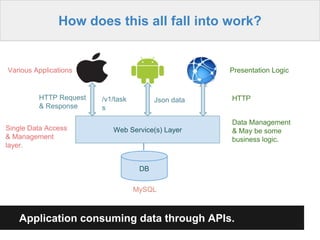

6. Application consuming data through APIs.
How does this all fall into work?
Web Service(s) Layer
DB
MySQL
HTTP Request
& Response
/v1/task
s
Json data
Presentation Logic
Data Management
& May be some
business logic.
HTTP
Various Applications
Single Data Access
& Management
layer.

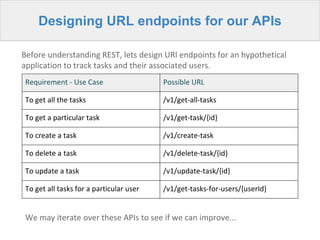

7. Designing URL endpoints for our APIs
Requirement - Use Case Possible URL
To get all the tasks /v1/get-all-tasks
To get a particular task /v1/get-task/{id}
To create a task /v1/create-task
To delete a task /v1/delete-task/{id}
To update a task /v1/update-task/{id}
To get all tasks for a particular user /v1/get-tasks-for-users/{userId}
We may iterate over these APIs to see if we can improve...
Before understanding REST, lets design URI endpoints for an hypothetical
application to track tasks and their associated users.

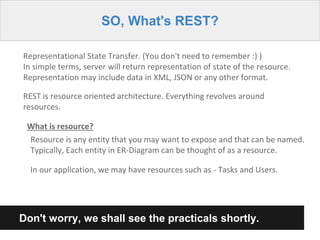

8. SO, What's REST?
Representational State Transfer. (You don't need to remember :) )
In simple terms, server will return representation of state of the resource.
Representation may include data in XML, JSON or any other format.
REST is resource oriented architecture. Everything revolves around
resources.
What is resource?
Resource is any entity that you may want to expose and that can be named.
Typically, Each entity in ER-Diagram can be thought of as a resource.
In our application, we may have resources such as - Tasks and Users.
Don't worry, we shall see the practicals shortly.

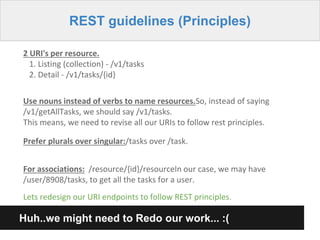

9. REST guidelines (Principles)
2 URI's per resource.
1. Listing (collection) - /v1/tasks
2. Detail - /v1/tasks/{id}
Use nouns instead of verbs to name resources.So, instead of saying
/v1/getAllTasks, we should say /v1/tasks.
This means, we need to revise all our URIs to follow rest principles.
Prefer plurals over singular:/tasks over /task.
Huh..we might need to Redo our work... :(
Lets redesign our URI endpoints to follow REST principles.
For associations: /resource/{id}/resourceIn our case, we may have
/user/8908/tasks, to get all the tasks for a user.

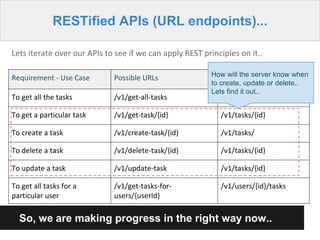

10. So, we are making progress in the right way now..
RESTified APIs (URL endpoints)...
Requirement - Use Case Possible URLs REST based URLs
To get all the tasks /v1/get-all-tasks /v1/tasks
To get a particular task /v1/get-task/{id} /v1/tasks/{id}
To create a task /v1/create-task/{id} /v1/tasks/
To delete a task /v1/delete-task/{id} /v1/tasks/{id}
To update a task /v1/update-task /v1/tasks/{id}
To get all tasks for a
particular user
/v1/get-tasks-for-
users/{userId}
/v1/users/{id}/tasks
Lets iterate over our APIs to see if we can apply REST principles on it..
How will the server know when
to create, update or delete..
Lets find it out..

11. CRUD operations on REST APIs.
Telling server what action to perform..
HTTP provides request methods, that tells server what action to perform on
a URI.
HTTP provides methods that can be directly mapped to RDBMS CRUD
Operation. These methods include - GET, POST, PUT, DELETE.
Hmm..Lets see
how our APIs
should respond
to these
methods.

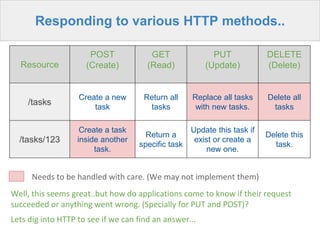

12. Resource
POST
(Create)
GET
(Read)
PUT
(Update)
DELETE
(Delete)
/tasks
Create a new
task
Return all
tasks
Replace all tasks
with new tasks.
Delete all
tasks
/tasks/123
Create a task
inside another
task.
Return a
specific task
Update this task if
exist or create a
new one.
Delete this
task.
Responding to various HTTP methods..
Needs to be handled with care. (We may not implement them)
Well, this seems great..but how do applications come to know if their request
succeeded or anything went wrong. (Specially for PUT and POST)?
Lets dig into HTTP to see if we can find an answer...

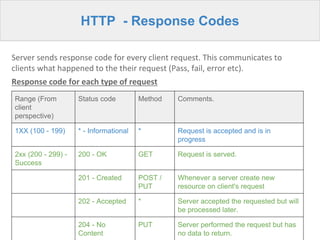

13. HTTP - Response Codes
Server sends response code for every client request. This communicates to
clients what happened to the their request (Pass, fail, error etc).
Response code for each type of request
Range (From
client
perspective)
Status code Method Comments.
1XX (100 - 199) * - Informational * Request is accepted and is in
progress
2xx (200 - 299) -
Success
200 - OK GET Request is served.
201 - Created POST /
PUT
Whenever a server create new
resource on client's request
202 - Accepted * Server accepted the requested but will
be processed later.
204 - No
Content
PUT Server performed the request but has
no data to return.

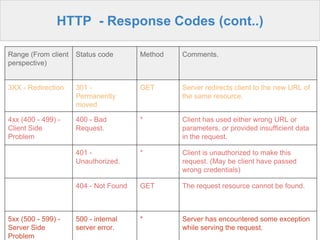

14. Range (From client
perspective)
Status code Method Comments.
3XX - Redirection 301 -
Permanently
moved
GET Server redirects client to the new URL of
the same resource.
4xx (400 - 499) -
Client Side
Problem
400 - Bad
Request.
* Client has used either wrong URL or
parameters, or provided insufficient data
in the request.
401 -
Unauthorized.
* Client is unauthorized to make this
request. (May be client have passed
wrong credentials)
404 - Not Found GET The request resource cannot be found.
5xx (500 - 599) -
Server Side
Problem
500 - internal
server error.
* Server has encountered some exception
while serving the request.
HTTP - Response Codes (cont..)

15. What else can we expect from proper REST APIs?
Pagination:
Return subset of all the data present in DB. User must be able to tell you get
me next 20 records after 60.
This can be achieved by adding offset and limit parameters to our GET APIs.
ex. /v1/tasks?offset=60&limit=20
Multiple Representation Formats:
Server must return the data in more than one format (XML, JSON etc).
For client to specify what format the server should reply, ACCEPT http
request header needs to be set. Ex. ACCEPT : Application/xml.
For server to specify what format is being used in the response format,
Content-Type http response header needs to be set.
Ex. Content-Type : Application/xml.

16. What else can we expect from proper REST APIs?
(Cont..)
Filtering based on parameters:
Filtering acts as a WHERE clause in SQL statement. To get all tasks whose
completion date is 1sy May 2013.
ex. /v1/tasks?completion-date=2013-05-01
Ordering:
This play a role of OrderBy clause in SQL statement. To get all the tasks
sorted by priority.
ex. /v1/tasks?order_by=priority - Sorts in ascending order of priority.
/v1/tasks?order_by=-priority - Sorts in descending order of priority.
Lets see a quick demo to understand how we can implement REST APIs in
django.

17. Thanks for listening :)
email - tanwanirahul@gmail.com
linkedin - in.linkedin.com/in/tanwanirahul
skype - tanwanirahul
