1. Resource Public Key
Infrastructure
A Step Towards a More Secure
Internet Routing Infrastructure
Andrew Gallo

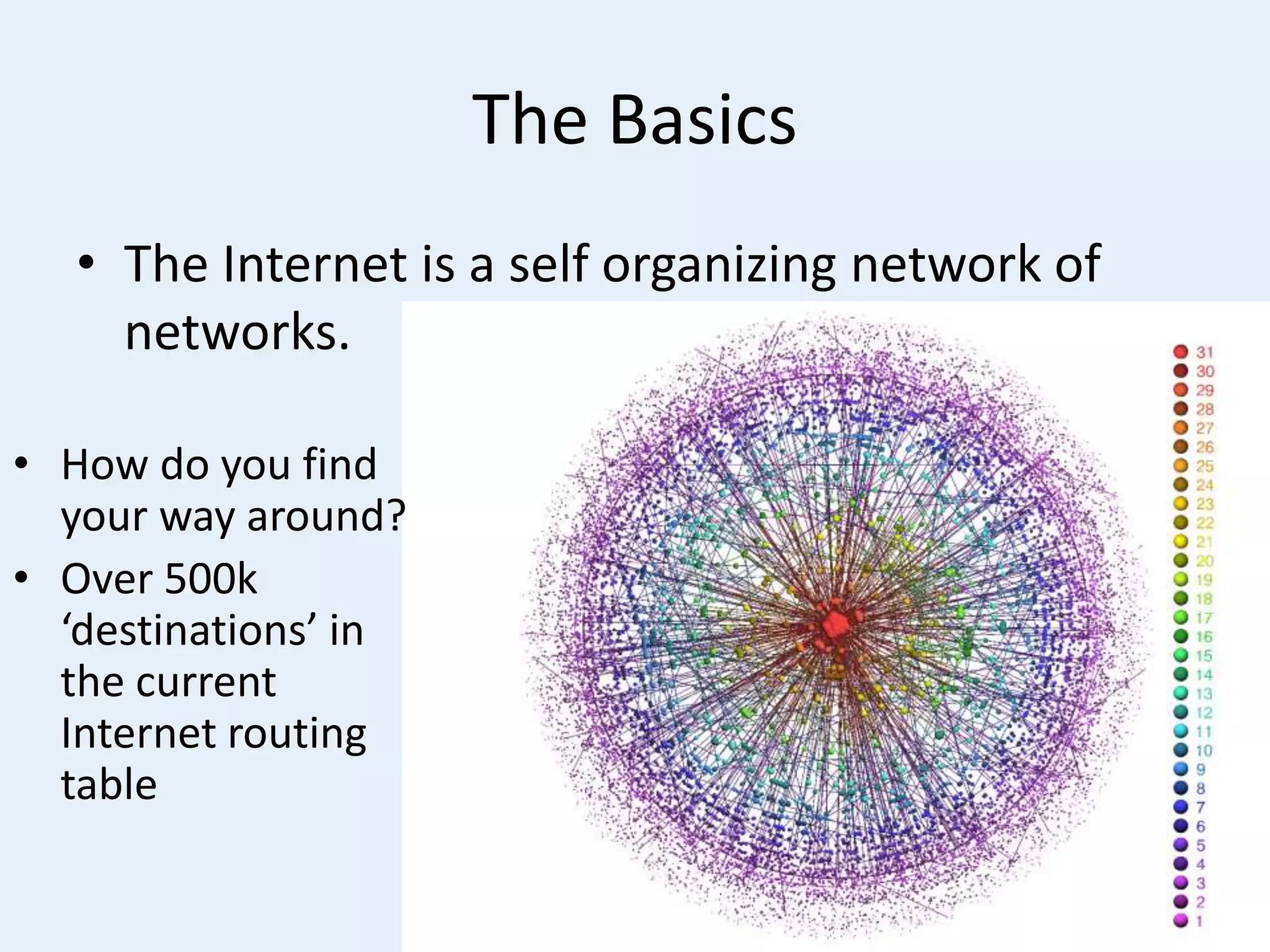

2. The Basics
• The Internet is a self organizing network of
networks.
• How do you find
your way around?
• Over 500k
‘destinations’ in
the current
Internet routing
table

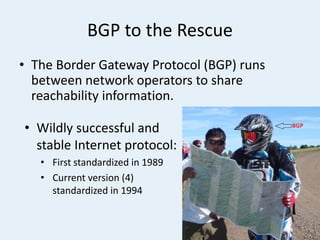

3. BGP to the Rescue
• The Border Gateway Protocol (BGP) runs
between network operators to share
reachability information.
• Wildly successful and
stable Internet protocol:
• First standardized in 1989
• Current version (4)
standardized in 1994

4. BGP – a protocol built on trust
• Very few mechanisms in BGP for security
– MD5 hash for session passwords
– TTL security
– ACLs
• These mechanisms protect the control plane
but say nothing about the payload.
• About the time of BGP standardization, table
size 20k routes and < 1500ASNs
(source:http://www.cisco.com/web/about/ac123/ac147/archived_issues/ipj_4-1/bgp_routing_table.html)

5. What about Identity – who is who
• No hierarchical addressing or routing on the
Internet backbone
• Any address can appear at any location
• Opposite of the predecessor mass
communications network – PSTN
• Solved the problem of decoupling location and
identity
• Created the problem table size (different talk) and
topology integrity – anyone can claim to be any
address

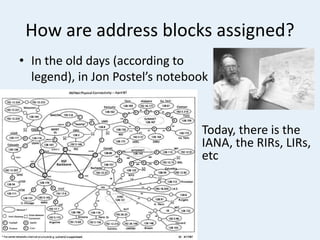

6. How are address blocks assigned?
• In the old days (according to
legend), in Jon Postel’s notebook
Today, there is the
IANA, the RIRs, LIRs,
etc

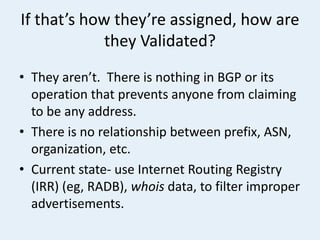

7. If that’s how they’re assigned, how are
they Validated?
• They aren’t. There is nothing in BGP or its
operation that prevents anyone from claiming
to be any address.
• There is no relationship between prefix, ASN,
organization, etc.
• Current state- use Internet Routing Registry
(IRR) (eg, RADB), whois data, to filter improper
advertisements.

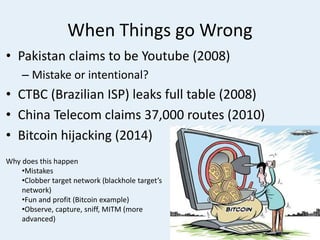

8. When Things go Wrong
• Pakistan claims to be Youtube (2008)
– Mistake or intentional?
• CTBC (Brazilian ISP) leaks full table (2008)
• China Telecom claims 37,000 routes (2010)
• Bitcoin hijacking (2014)
Why does this happen
•Mistakes
•Clobber target network (blackhole target’s
network)
•Fun and profit (Bitcoin example)
•Observe, capture, sniff, MITM (more
advanced)

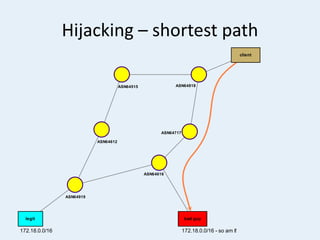

9. Hijacking – shortest path
ASN64515
ASN64612
ASN64616
ASN64717
ASN64818
ASN64919
legit
172.18.0.0/16
client
bad guy
172.18.0.0/16 - so am I!

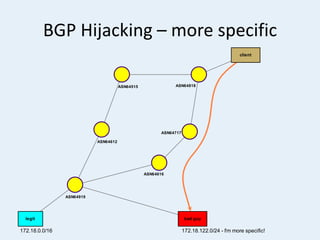

10. BGP Hijacking – more specific
ASN64515
ASN64612
ASN64616
ASN64717
ASN64818
ASN64919
legit
172.18.0.0/16
client
bad guy
172.18.122.0/24 - I'm more specific!

11. Current State of the Art
• Rely on filtering (whois data, LOAs)
– Semi-automated and error prone
• (poor input data)
• Detect
– BGP monitoring services
• BGPMon
• Cyclpos
• Thousand Eyes
• Mitigate
– Call your upstream
– Post to NANOG (haha)
– Advertise more specific networks (as done with YouTube)

12. RPKI is the Answer
(to some of the issues)
• Resource Public Key Infrastructure
– Relatively new technology
– Cryptographically assures an ASN is authorized to
announce prefixes
• Extension to X.509 to carry IP prefix
information
– Route Origin Attestation (ROA)

13. RPKI structure
• The IANA is the source of all addresses
• But rather than being the single root of the
trust chain, each of the 5 Regionals hold self-
signed certs for the resources they hold.
• Two modes of operation-
– Hosted (RIRs run the PKI infrastructure)
– Delegated (RIRs issue Resource Certificates to orgs
that further sub-delegate IP space)

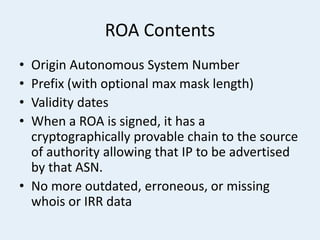

14. ROA Contents
• Origin Autonomous System Number
• Prefix (with optional max mask length)
• Validity dates
• When a ROA is signed, it has a
cryptographically provable chain to the source
of authority allowing that IP to be advertised
by that ASN.
• No more outdated, erroneous, or missing
whois or IRR data

15. I’ve signed my routes, now what?
• Go collect ROAs from the TALs, process them,
feed digested data to router for policy
processing.
– RPKI-to-rtr protocol (RFC 6180)
• No crypto processing in the routers
– Not with origin validation
– SIDR (path validation)

16. What it looks like- block diag
APNIC
Afrinic
ARIN*
LACNIC
RIPE
Tr us t Anchor
Loca t or s
router
router
router
validator
RIR hosted crypto engine
Delegated/customer CA

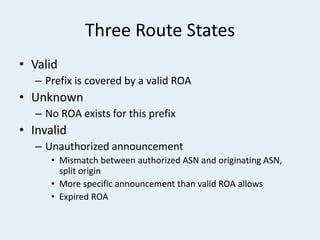

17. Three Route States
• Valid
– Prefix is covered by a valid ROA
• Unknown
– No ROA exists for this prefix
• Invalid
– Unauthorized announcement
• Mismatch between authorized ASN and originating ASN,
split origin
• More specific announcement than valid ROA allows
• Expired ROA

18. What to do with this data
• With 95% of the table in an unknown state,
probably nothing
• In a fully deployed RPKI environment, do you
– Reject unknown, invalid routes?
– Set LOCALPREF low??
– Set Community, put in a VRF?
• Still under operational development
• Study RFC 6483

19. Public resources
In this case, what is probably a valid /24 announcement has been
invalidated by the summary route signed by the ISP

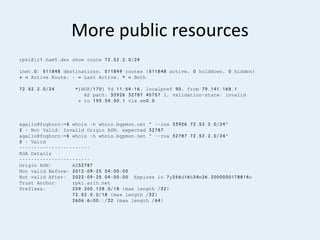

20. More public resources
rpki@lr1.ham1.de> show route 72.52.2.0/24
inet.0: 511848 destinations, 511849 routes (511848 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
72.52.2.0/24 *[BGP/170] 1d 11:54:16, localpref 90, from 79.141.168.1
AS path: 33926 32787 45757 I, validation-state: invalid
> to 193.34.50.1 via em0.0
agallo@foghorn:~$ whois -h whois.bgpmon.net " --roa 33926 72.52.2.0/24"
2 - Not Valid: Invalid Origin ASN, expected 32787
agallo@foghorn:~$ whois -h whois.bgpmon.net " --roa 32787 72.52.2.0/24"
0 - Valid
------------------------
ROA Details
------------------------
Origin ASN: AS32787
Not valid Before: 2012-09-25 04:00:00
Not valid After: 2022-09-25 04:00:00 Expires in 7y256d16h34m26.2000000178814s
Trust Anchor: rpki.arin.net
Prefixes: 209.200.128.0/18 (max length /32)
72.52.0.0/18 (max length /32)
2606:6c00::/32 (max length /64)

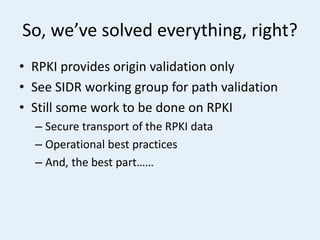

21. So, we’ve solved everything, right?
• RPKI provides origin validation only
• See SIDR working group for path validation
• Still some work to be done on RPKI
– Secure transport of the RPKI data
– Operational best practices
– And, the best part……

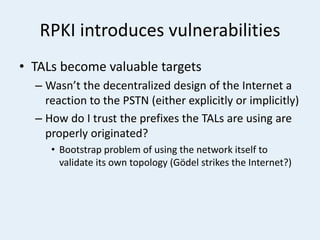

22. RPKI introduces vulnerabilities
• TALs become valuable targets
– Wasn’t the decentralized design of the Internet a
reaction to the PSTN (either explicitly or implicitly)
– How do I trust the prefixes the TALs are using are
properly originated?
• Bootstrap problem of using the network itself to
validate its own topology (Gödel strikes the Internet?)

23. Slow adoption
• About 10% of the table
•LACNIC has more ROAs than ARIN
•Chicken-and-egg problem (but not
like IPv6)
•Do we need to start a fight by
bringing up ARIN’s RPA??

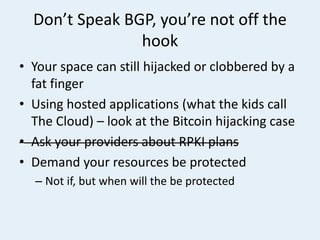

24. Don’t Speak BGP, you’re not off the
hook
• Your space can still hijacked or clobbered by a
fat finger
• Using hosted applications (what the kids call
The Cloud) – look at the Bitcoin hijacking case
• Ask your providers about RPKI plans
• Demand your resources be protected
– Not if, but when will the be protected

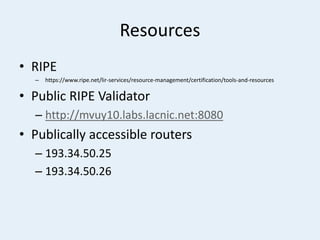

25. Resources
• RIPE
– https://www.ripe.net/lir-services/resource-management/certification/tools-and-resources
• Public RIPE Validator
– http://mvuy10.labs.lacnic.net:8080
• Publically accessible routers
– 193.34.50.25
– 193.34.50.26

26. THANK YOU
• Contact info
– Andrew Gallo
– @akg1330
– agallo@gmail.com
