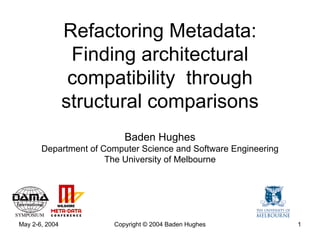

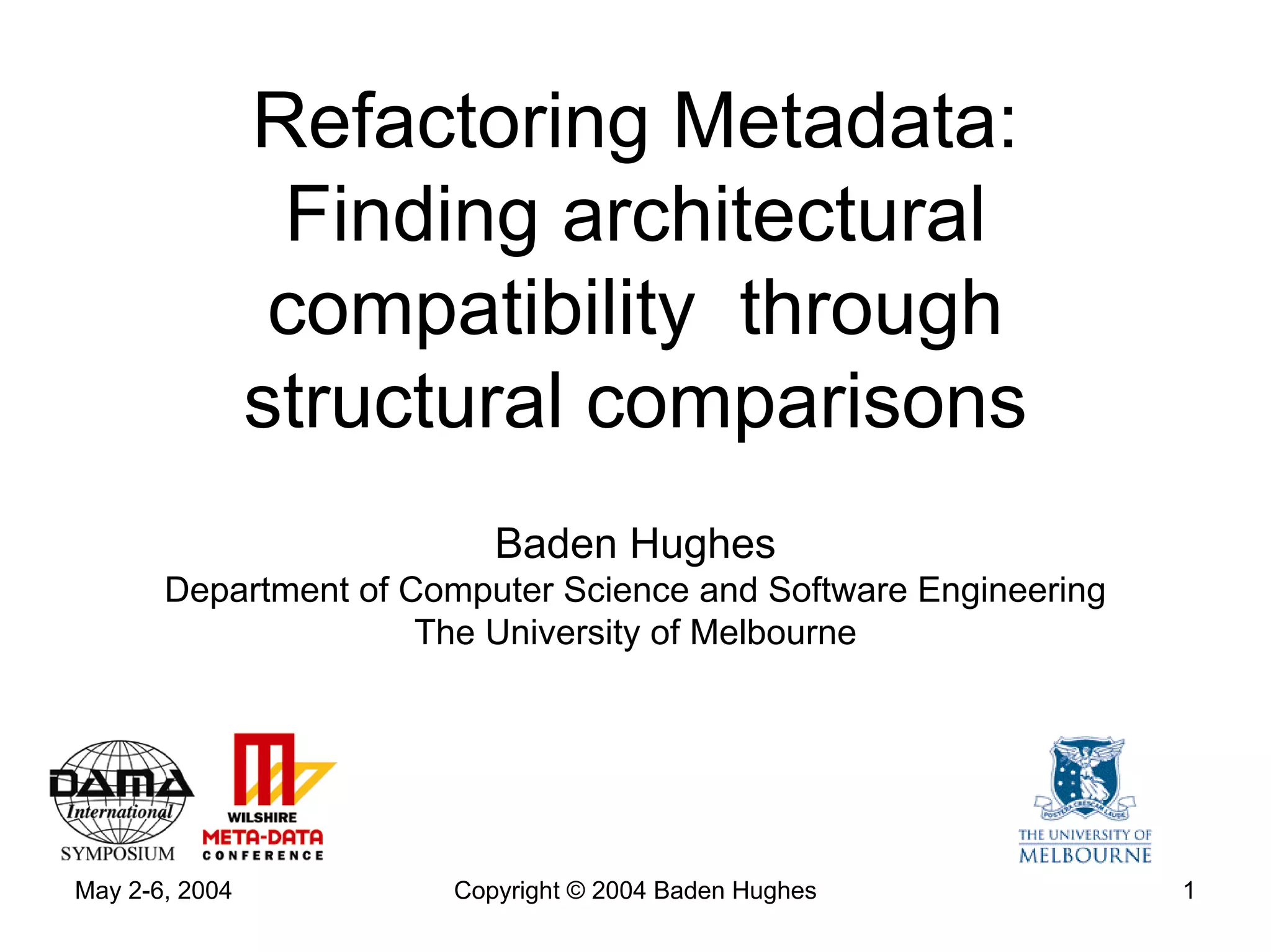

1. Refactoring Metadata:
Finding architectural
compatibility through
structural comparisons
Baden Hughes
Department of Computer Science and Software Engineering
The University of Melbourne
May 2-6, 2004 Copyright © 2004 Baden Hughes 1

2. Agenda
• Motivation for Refactoring Metadata
• Setting the Context
• Identifying Points of Comparison
• Goals for Structural Comparison
• Methods for Structural Comparison
• Refactoring in Practice
• Principles for Robust Instances
• Conclusion
May 2-6, 2004 Copyright © 2004 Baden Hughes 2

3. Motivations for Refactoring
Metadata
• The need to addressing the problem of metadata volatility is
conceptually juxtaposed with the motivation for metadata
creation
• XML technologies have become pervasive within the
metadata domain
• Different communities = different standards = different
degrees of maturity in metadata adoption resulting in
metadata being (highly?) variable even within an organization
• Systematically determining similarity and difference is the key
to effective refactoring of metadata
• Automatically determining similarity and difference is the key
to efficient refactoring of metadata
May 2-6, 2004 Copyright © 2004 Baden Hughes 3

4. Setting the Context
• XML-based metadata from natural language engineering
and digital libraries
• Wide variety of
– traditions of metadata development
– technologies for metadata implementation
– objects described by metadata
– granularity of metadata descriptions
• Motivated by interoperability analysis
• Seeking to leverage processes not dissimilar to
database schema comparisons
May 2-6, 2004 Copyright © 2004 Baden Hughes 4

5. Identifying Points of Comparison
• Robust instances require both syntactic and semantic
analysis
• Points of comparison
– XML Document Instance
– DTDs
– Schemata
– Namespaces
– RDF Instances
– Ontologies
• Likely that different methods are required for each
different input
May 2-6, 2004 Copyright © 2004 Baden Hughes 5

6. Goals of Structural Comparison
• While validation of XML based metadata does contribute
to the quality of metadata, it does not necessarily assist
in determining architectural compatibility
• Systematic, iterative evaluation of metadata
architectures can contribute to maturity of XML based
metadata
• Quantifying the degree of syntactic and semantic
similarity is an important first step in the refactoring
process – it may in fact demonstrate viability
May 2-6, 2004 Copyright © 2004 Baden Hughes 6

7. Methods for Structural Comparison
• Different methods for structural comparison
depending on the input
– XML documents: trees
– DTDs: regexps and feature structures
– XML Namespaces: feature structures
– XML Schemas: regexps and graph matching
– RDF Instances: graph matching
– Ontologies: feature structures and graph matching
May 2-6, 2004 Copyright © 2004 Baden Hughes 7

8. Tree Matching
• Common conception of an XML document as a tree
structure
• Tree matching is a widely used IE/IR technique for
structured data, and is applicable to XML based
metadata
• Tree matching is largely derivative from pattern
matching, and is largely independent of syntactic or
semantic constraints
• While tree matching can provide basic information about
the similarity of two documents, for architectural
compatibility a deeper analysis is required
May 2-6, 2004 Copyright © 2004 Baden Hughes 8

9. Regular Expression Matching
• DTD syntax is derived from regular expressions
• Well known evaluation methodologies for regexps are
applicable to DTDs
• In contrast to pure syntactic comparison, regexp
matching allows the discovery of the legal constituents of
syntactic structures
• Regexp evaluation is is a highly efficient exercise even
on large metadata collections, and widely implemented
in common programming languages
May 2-6, 2004 Copyright © 2004 Baden Hughes 9

10. Feature Structure Matching
• Typed feature structures are widely used for
deriving controlled vocabularies – XML attribute
instances are typically able to be reduced to
typed feature structures for comparison
• Evaluation of the semantic content of feature
structures is well grounded in formal logic
• Feature structure comparisons can also reveal
syntactic constraints expressed as
dimensionality of feature matrices
May 2-6, 2004 Copyright © 2004 Baden Hughes 10

11. Graph Matching
• Rich XML representations such as RDF can be
construed as a series of arcs and nodes, allowing the
adoption of graph theory techniques for the
determination of isomorphism
• Finding the minimum and maximum common subgraphs
is a technique which can be used to determine
architectural compatibility in the syntactic domain
• Graph matching is primarily syntactic, although it can
also be applied to semantic analysis on sources such as
ontologies
May 2-6, 2004 Copyright © 2004 Baden Hughes 11

12. Refactoring in Practice
• XML Documents
• DTDs
• Namespaces
• Schemata
• RDF instances
• Ontologies
• See http://www.cs.mu.oz.au/~badenh/projects/metadata-comparison
for demo materials
May 2-6, 2004 Copyright © 2004 Baden Hughes 12

13. Principles for Robust Instances
• Both syntactic and semantic analysis are required
• Initiate comparisons at the highest level, and proceed
downwards – higher level incompatibilities are more
complex to resolve
• Quantifying degree of similarity is extremely important as
it impacts directly on the complexity of refactoring
processes
• Accurately identified commonalities at both syntactic and
semantic levels can be leveraged efficiently
May 2-6, 2004 Copyright © 2004 Baden Hughes 13

14. Conclusion
• Adopting and permuting a range of techniques
for structural comparison from a variety of other
disciplines can lead to efficient methods for
metadata structural analysis and consequently
refactoring
• Large scale metadata management requires an
automated approach to both syntactic and
semantic evaluation in order to contribute to ROI
May 2-6, 2004 Copyright © 2004 Baden Hughes 14

15. Acknowledgements
• National Science Foundation Grant
Number 9910603 (International Standards
in Language Engineering)
• National Science Foundation Grant
Number 0317826 (Querying Linguistic
Databases)
May 2-6, 2004 Copyright © 2004 Baden Hughes 15
