Dr. Eric N. Hanson, Principal Software Development Engineer at Microsoft and Apache Hive committer presents the recent improvements in Hive

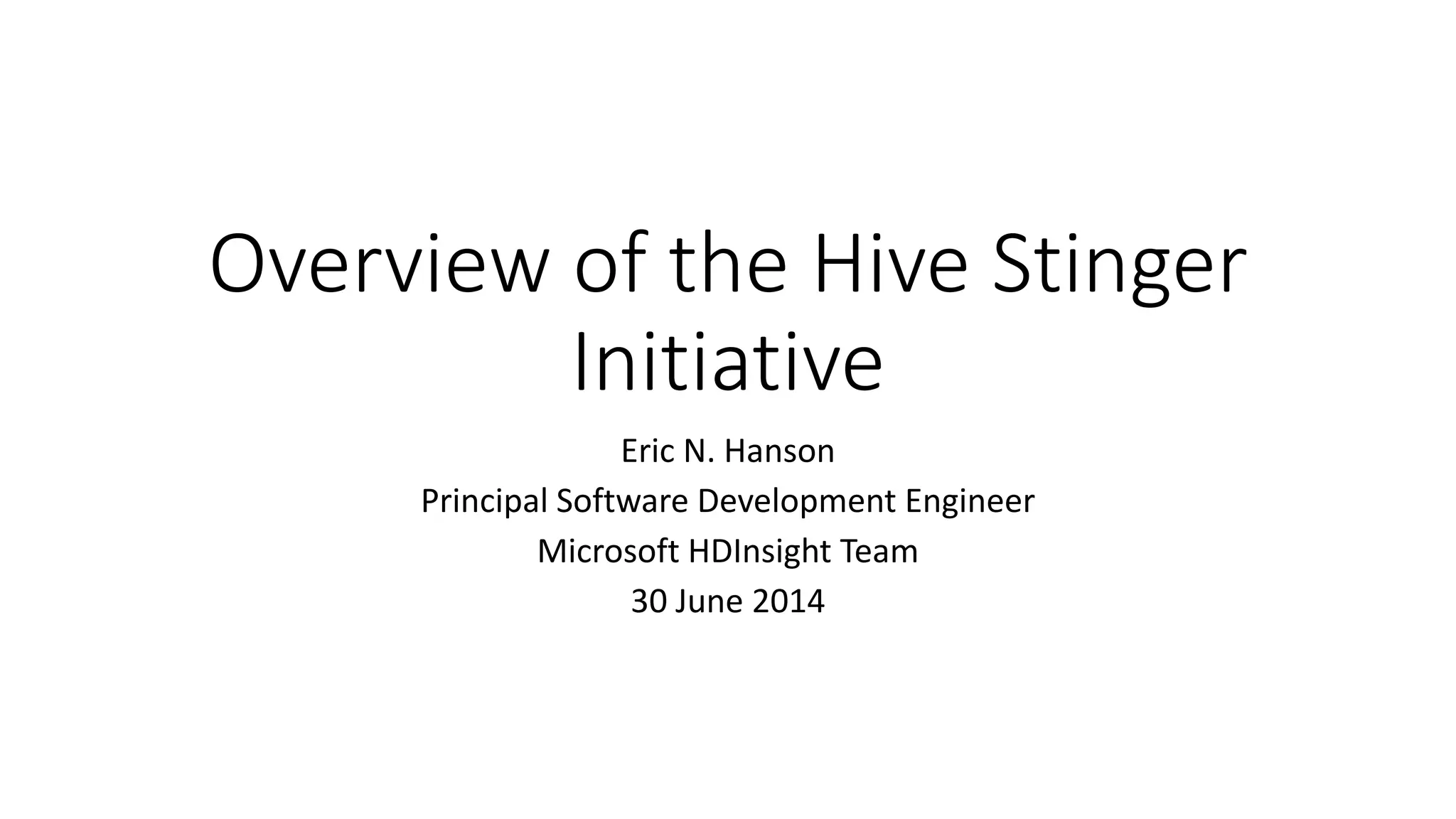

1. Overview of the Hive Stinger
Initiative
Eric N. Hanson
Principal Software Development Engineer
Microsoft HDInsight Team
30 June 2014

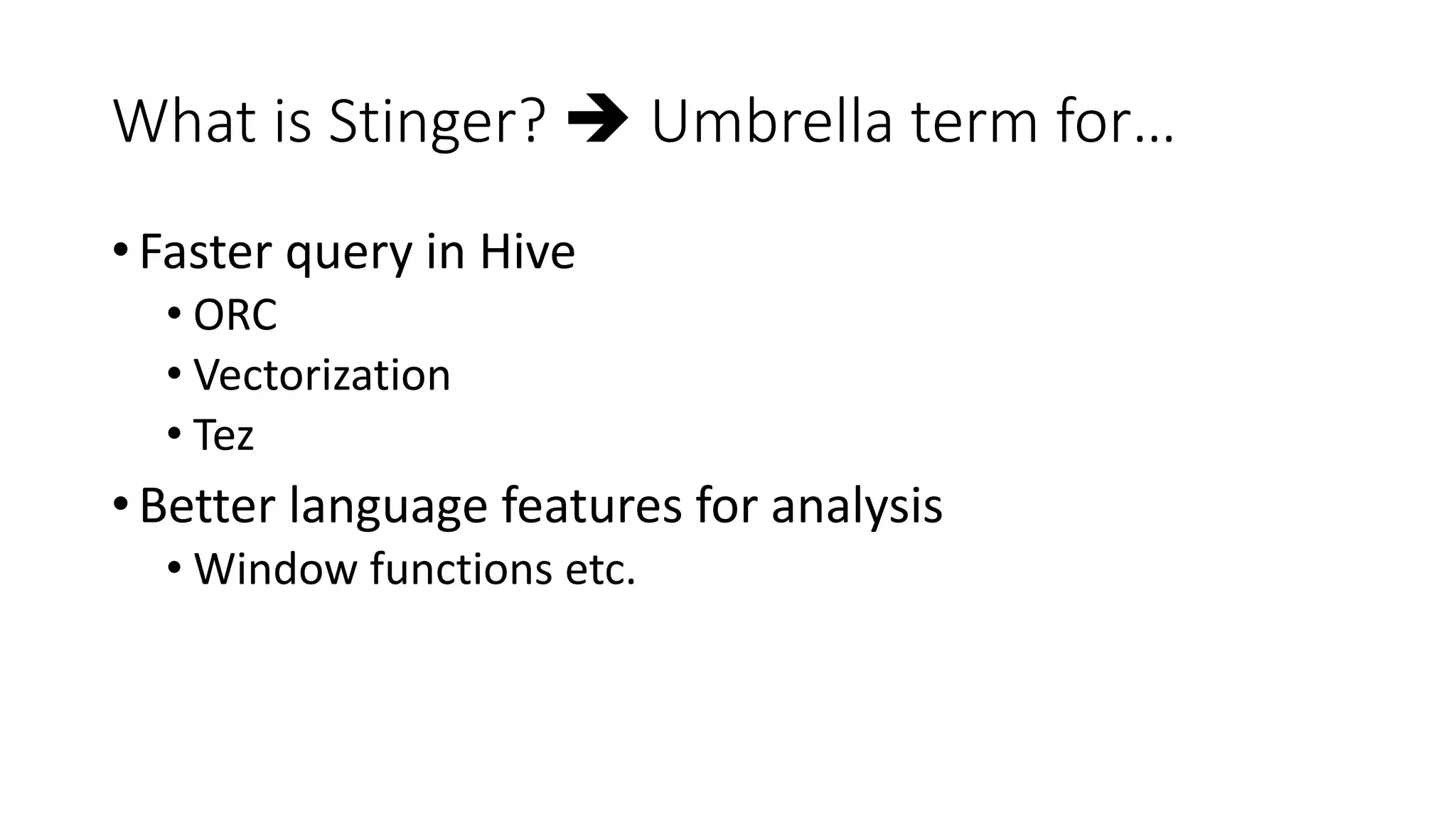

2. What is Stinger?  Umbrella term for…
• Faster query in Hive
• ORC
• Vectorization
• Tez
• Better language features for analysis
• Window functions etc.

3. Why Stinger?
• Hive has good functionality
• But it started out sloooowww
• Need to speed it up
• keep it competitive
• make it fun to use

4. ORC
• A good columnstore format
• Run length encoding, value encoding, dictionary encoding
• Layers stream compression over the top
• Written by Owen O’Malley
• http://docs.hortonworks.com/HDPDocuments/HDP2/HDP-
2.0.0.2/ds_Hive/orcfile.html

5. Using ORC
• create table Tbl (col int) stored as orc;
• orc.compress default ZLIB
• See http://www.slideshare.net/oom65/orc-
andvectorizationhadoopsummit

6. TPC-DS File Sizes
Page 6
*Courtesy of Hortonworks

7. Vectorization
Page 7

8. How the code works (simplified)
Page 8
class LongColumnAddLongScalarExpression {
int inputColumn;
int outputColumn;
long scalar;
void evaluate(VectorizedRowBatch batch) {
long [] inVector =
((LongColumnVector) batch.columns[inputColumn]).vector;
long [] outVector =
((LongColumnVector) batch.columns[outputColumn]).vector;
if (batch.selectedInUse) {
for (int j = 0; j < batch.size; j++) {
int i = batch.selected[j];
outVector[i] = inVector[i] + scalar;
}
} else {
for (int i = 0; i < batch.size; i++) {
outVector[i] = inVector[i] + scalar;
}
}
}
}
}
No method calls
Low instruction count
Cache locality to 1024 values
No pipeline stalls
SIMD in Java 8

9. Vectorization and Compilation
• Vectorization “instructions” generated from templates
• Example’s:
–Int add col-col
–Int add col-scalar
–Int add scalar-col
–Double add col-col
–Double add col-scalar
–Double add scalar-col
–And hundreds more!
• Pre-compilation of expressions
• Reduces # of function calls and instructions at runtime
• Expressions like (a + 2) / b are interpreted with these primitives

10. Example of vectorized template code
} else {
if (batch.selectedInUse) {
for(int j = 0; j != n; j++) {
int i = sel[j];
outputVector[i] = vector1[i] <OperatorSymbol> vector2[i];
}
} else {
for(int i = 0; i != n; i++) {
outputVector[i] = vector1[i] <OperatorSymbol> vector2[i];
}
}
}

11. Using vectorization in Hive
• set hive.vectorized.execution.enabled = true;
• Run query over ORC
• Only works for scalar types
• https://cwiki.apache.org/confluence/display/Hive/Vectorized+Query+
Execution
• ~5X CPU reduction

12. Apache Tez (“Speed”)
• Replaces MapReduce as primitive for Pig, Hive, Cascading etc.
– Smaller latency for interactive queries
– Higher throughput for batch queries
– 22 contributors: Hortonworks (13), Facebook, Twitter, Yahoo, Microsoft
YARN ApplicationMaster to run DAG of Tez Tasks
Task with pluggable Input, Processor and Output
Tez Task - <Input, Processor, Output>
Task
ProcessorInput Output
*Courtesy of Hortonworks

13. Tez: Building blocks for scalable data processing
Classical ‘Map’ Classical ‘Reduce’
Intermediate ‘Reduce’ for
Map-Reduce-Reduce
Map
Processor
HDFS
Input
Sorted
Output
Reduce
Processor
Shuffle
Input
HDFS
Output
Reduce
Processor
Shuffle
Input
Sorted
Output
*Courtesy of Hortonworks

14. Hive – MR Hive – Tez
Hive-on-MR vs. Hive-on-Tez
SELECT a.x, AVERAGE(b.y) AS avg
FROM a JOIN b ON (a.id = b.id) GROUP BY a
UNION SELECT x, AVERAGE(y) AS AVG
FROM c GROUP BY x
ORDER BY AVG;
SELECT a.state
JOIN (a, c)
SELECT c.price
SELECT b.id
JOIN(a, b)
GROUP BY a.state
COUNT(*)
AVERAGE(c.price)
M M M
R R
M M
R
M M
R
M M
R
HDFS
HDFS
HDFS
M M M
R R
R
M M
R
R
SELECT a.state,
c.itemId
JOIN (a, c)
JOIN(a, b)
GROUP BY a.state
COUNT(*)
AVERAGE(c.price)
SELECT b.id
Tez avoids unneeded
writes to HDFS
*Courtesy of Hortonworks

15. Tez Sessions
… because Map/Reduce query startup is expensive
• Tez Sessions
–Hot containers ready for immediate use
–Removes task and job launch overhead (~5s – 30s)
• Hive
–Session launch/shutdown in background (seamless, user not aware)
–Submits query plan directly to Tez Session
Native Hadoop service, not ad-hoc
*Courtesy of Hortonworks

16. Stinger Phase 3: Interactive Query In Hadoop
Page 16
Hive 10 Trunk (Phase 3)Hive 0.11 (Phase 1)
190x
Improvement
1400s
39s
7.2s
TPC-DS Query 27
3200s
65s
14.9s
TPC-DS Query 82
200x
Improvement
Query 27: Pricing Analytics using Star Schema Join
Query 82: Inventory Analytics Joining 2 Large Fact Tables
All Results at Scale Factor 200 (Approximately 200GB Data)
*Courtesy of Hortonworks

17. How you can use Stinger enhancements
• Use Hive 13
• Use ORC: create table … stored as ORC
• Enable vectorization:
set hive.vectorized.execution.enabled=true
• Enable Tez: set hive.execution.engine=tez
• See http://hortonworks.com/hadoop-tutorial/supercharging-
interactive-queries-hive-tez/

18. Reference(s)
• Stinger overview, Strata, fall 2013:
http://www.slideshare.net/alanfgates/strata-stingertalk-
oct2013?qid=09d16028-bd7e-47d8-8438-
34f3242c6f0e&v=qf1&b=&from_search=1
Slides marked “Courtesy of Hortonworks” are from Hortonworks talks
