1. Real-Time Analytics in
Transactional Applications
—
Brian Bulkowski, CTO and Founder

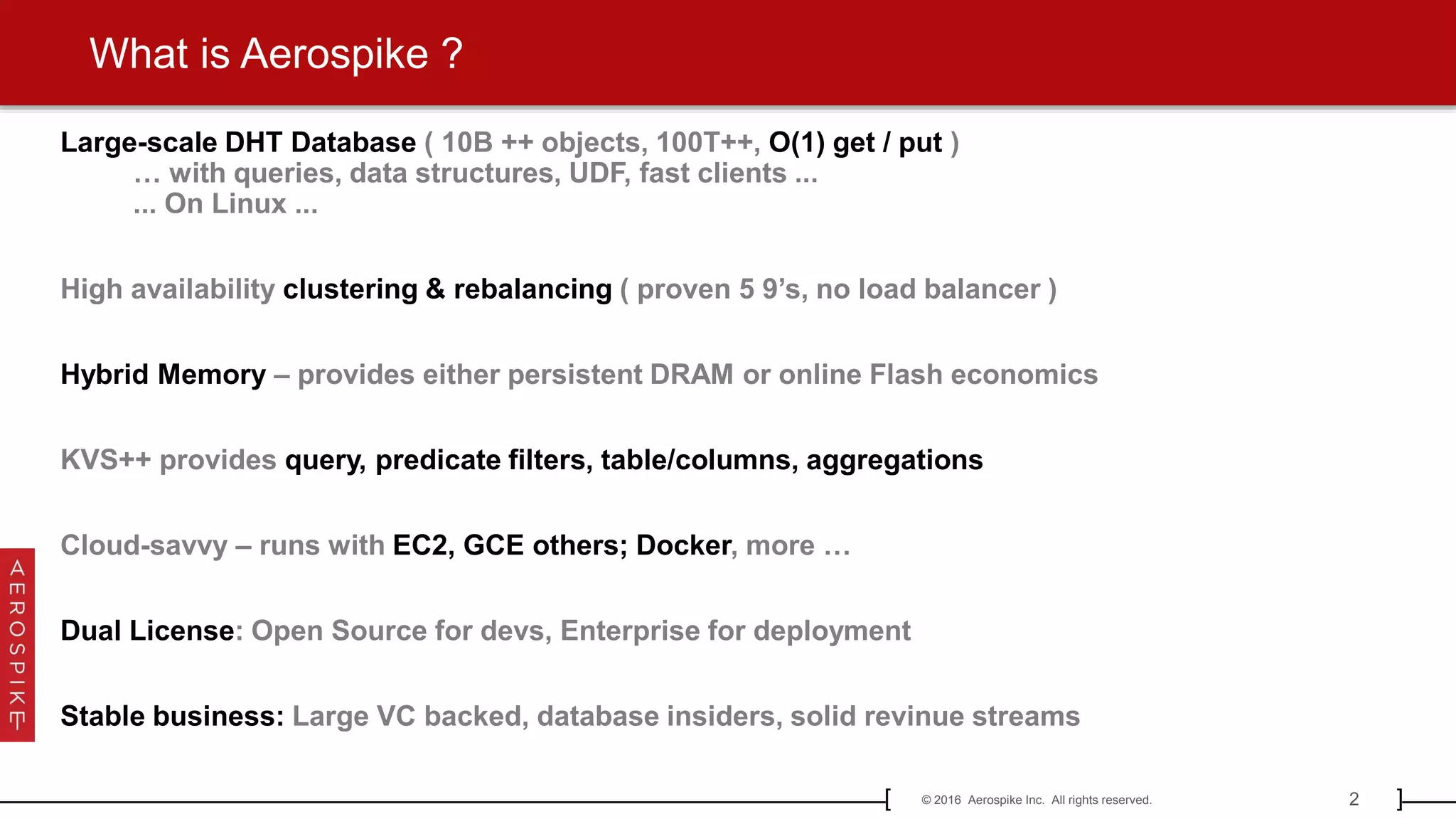

2. 2© 2016 Aerospike Inc. All rights reserved.[ ]
What is Aerospike ?
Large-scale DHT Database ( 10B ++ objects, 100T++, O(1) get / put )
… with queries, data structures, UDF, fast clients ...
... On Linux ...
High availability clustering & rebalancing ( proven 5 9’s, no load balancer )
Hybrid Memory – provides either persistent DRAM or online Flash economics
KVS++ provides query, predicate filters, table/columns, aggregations
Cloud-savvy – runs with EC2, GCE others; Docker, more …
Dual License: Open Source for devs, Enterprise for deployment
Stable business: Large VC backed, database insiders, solid revinue streams

3. Transactions and Analytics

4. 4© 2016 Aerospike Inc. All rights reserved.[ ]

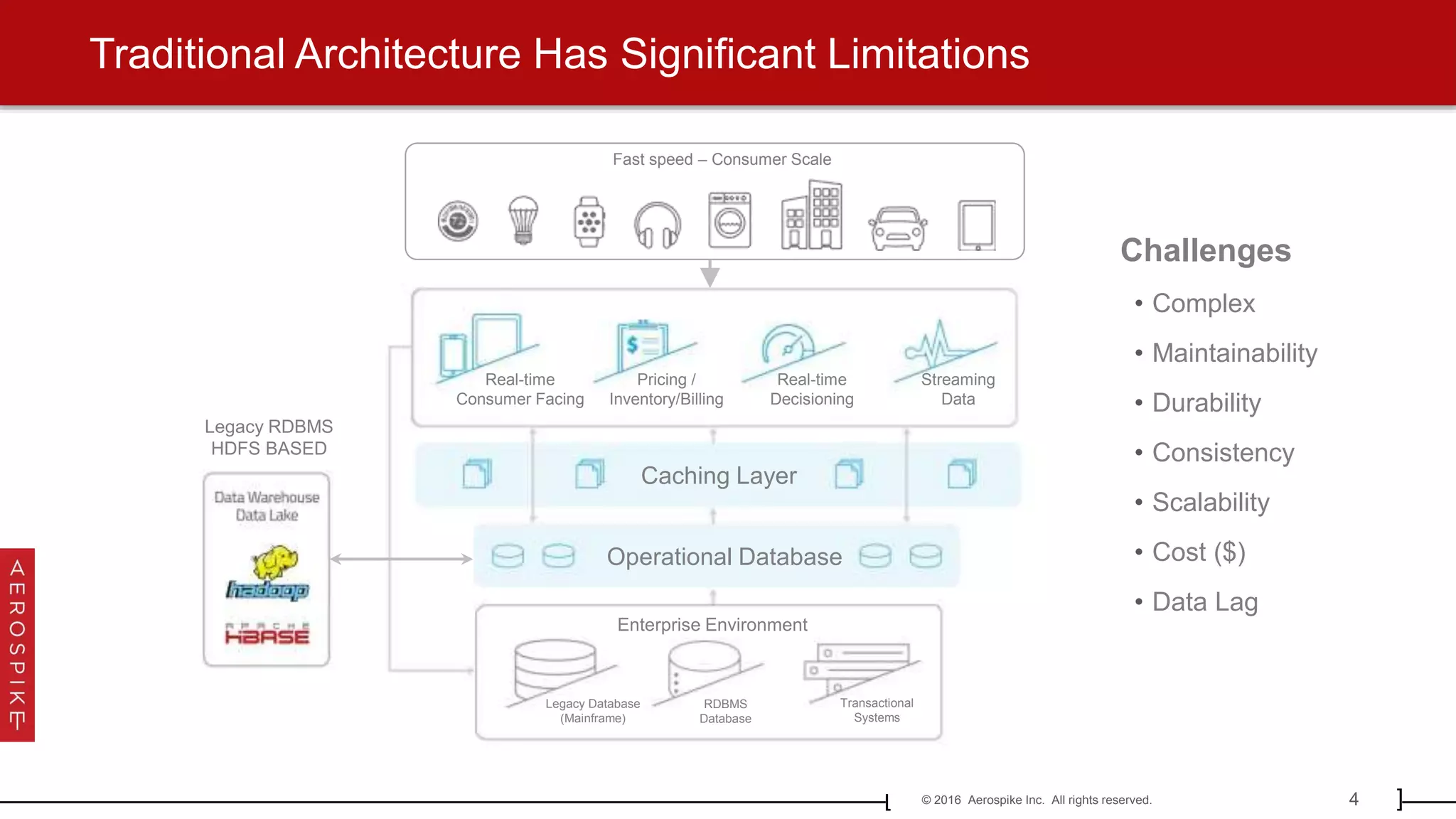

Traditional Architecture Has Significant Limitations
Challenges
• Complex
• Maintainability
• Durability
• Consistency
• Scalability
• Cost ($)
• Data Lag
Caching Layer
Operational Database
Real-time
Consumer Facing
Pricing /
Inventory/Billing
Real-time
Decisioning
Streaming
Data
Legacy Database
(Mainframe)
RDBMS
Database
Transactional
Systems
Enterprise Environment
Legacy RDBMS
HDFS BASED
Fast speed – Consumer Scale

5. 5© 2016 Aerospike Inc. All rights reserved.[ ]

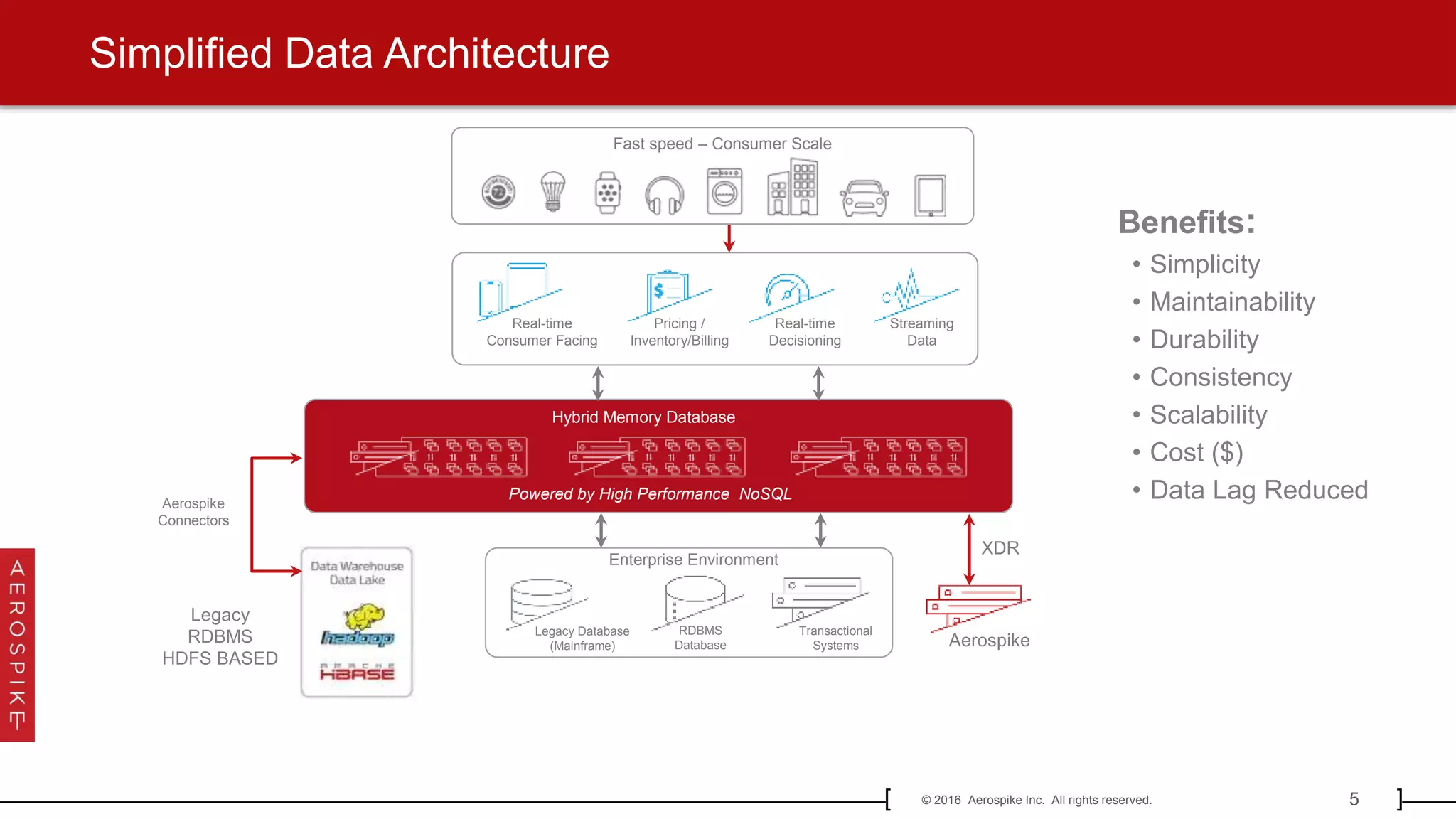

Simplified Data Architecture
Aerospike
Connectors
Legacy Database
(Mainframe)
RDBMS
Database
Transactional
Systems
Enterprise Environment
XDR
Aerospike
Legacy
RDBMS
HDFS BASED
Powered by High Performance NoSQL
Fast speed – Consumer Scale
Hybrid Memory Database
Benefits:
• Simplicity
• Maintainability
• Durability
• Consistency
• Scalability
• Cost ($)
• Data Lag Reduced
Real-time
Consumer Facing
Pricing /
Inventory/Billing
Real-time
Decisioning
Streaming
Data

6. 6© 2016 Aerospike Inc. All rights reserved.[ ]

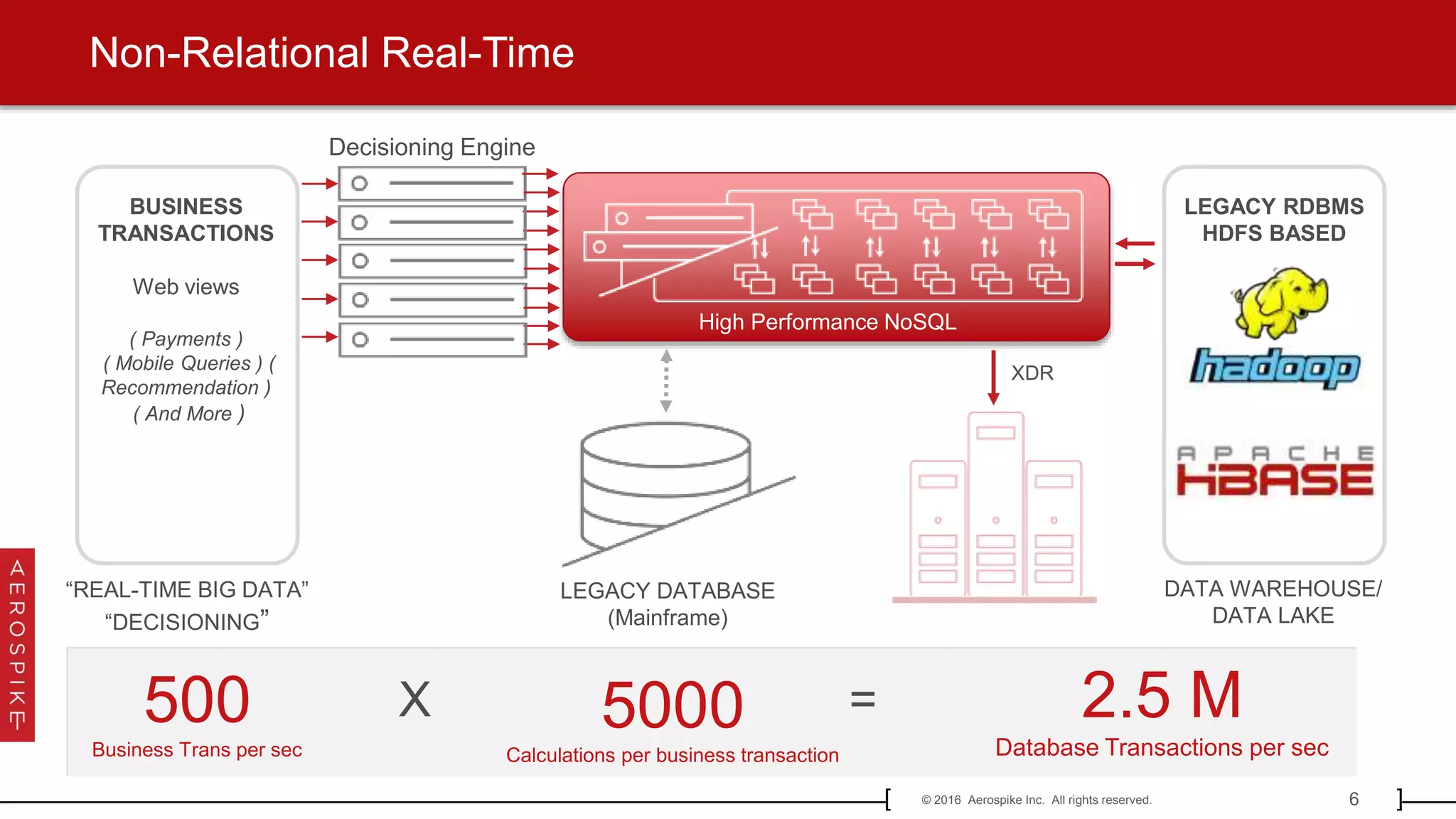

Non-Relational Real-Time
LEGACY DATABASE
(Mainframe)
XDR
Decisioning Engine
DATA WAREHOUSE/
DATA LAKE
LEGACY RDBMS
HDFS BASED
BUSINESS
TRANSACTIONS
Web views
( Payments )
( Mobile Queries ) (
Recommendation )
( And More )
High Performance NoSQL
“REAL-TIME BIG DATA”
“DECISIONING”
500
Business Trans per sec
5000
Calculations per business transaction
X = 2.5 M
Database Transactions per sec

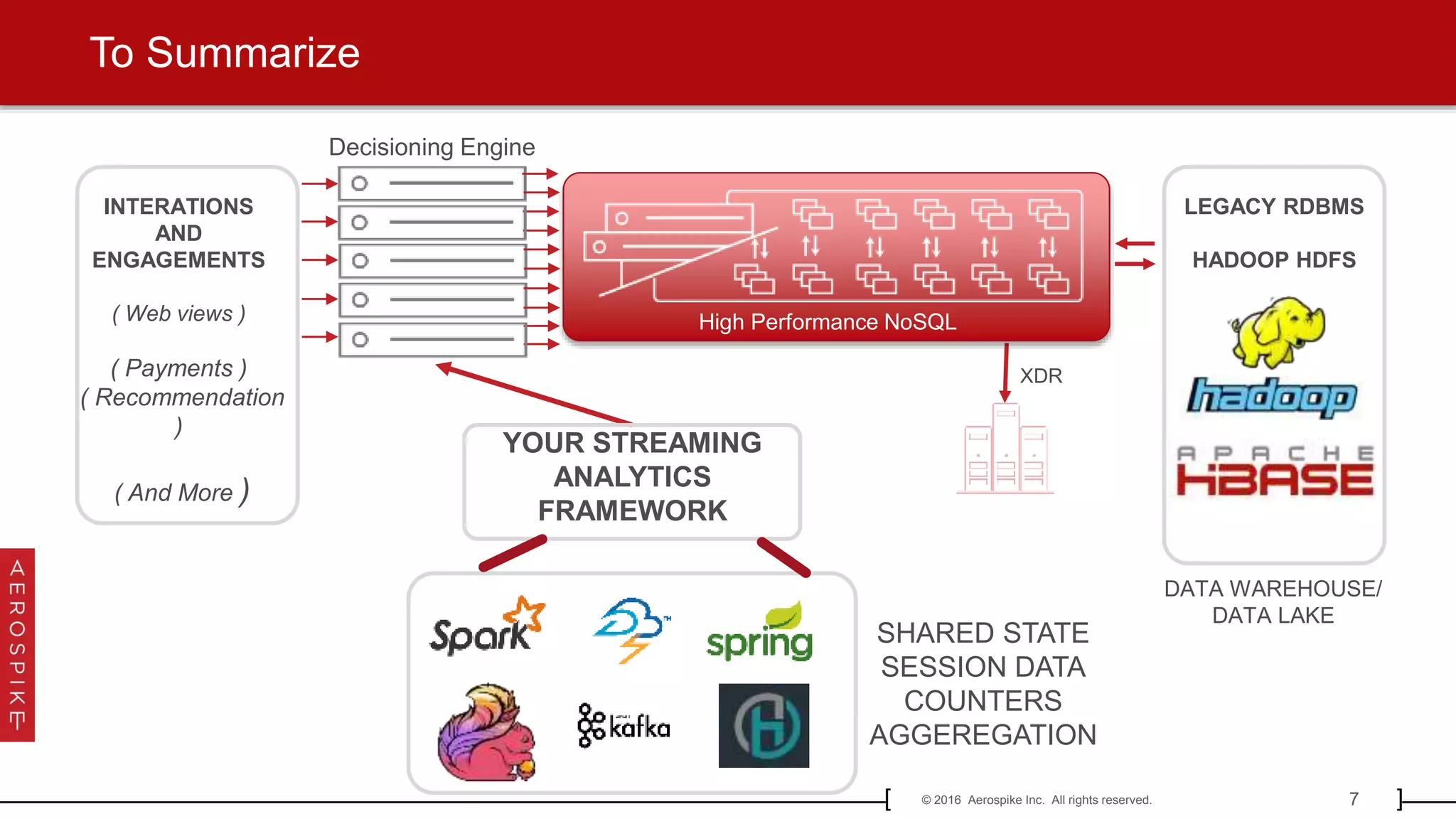

7. 7© 2016 Aerospike Inc. All rights reserved.[ ]
To Summarize
XDR
DATA WAREHOUSE/
DATA LAKE
LEGACY RDBMS
HADOOP HDFS
INTERATIONS
AND
ENGAGEMENTS
( Web views )
( Payments )
( Recommendation
)
( And More )
High Performance NoSQL
SHARED STATE
SESSION DATA
COUNTERS
AGGEREGATION
YY
YOUR STREAMING
ANALYTICS
FRAMEWORK
YY
Decisioning Engine

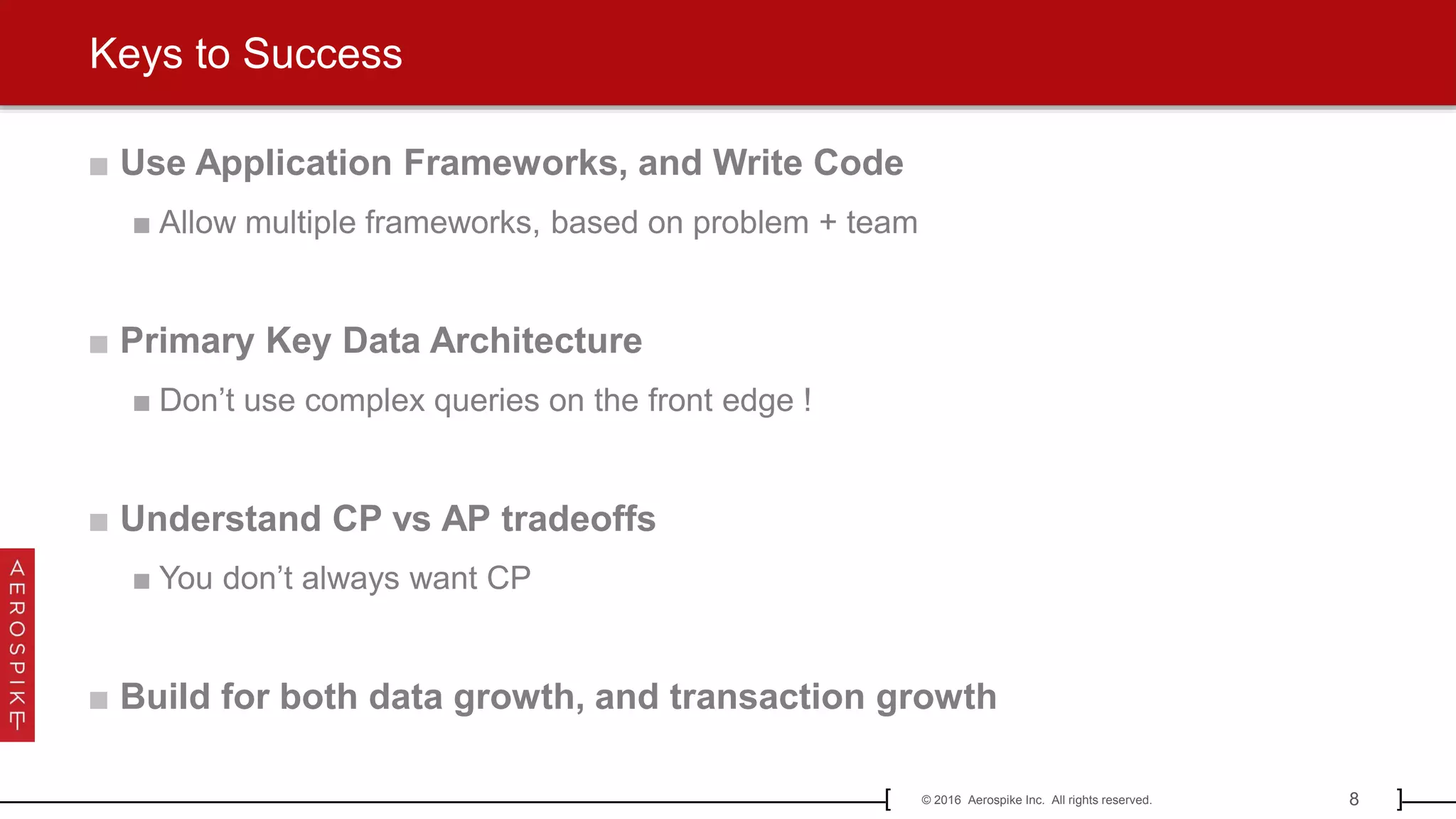

8. 8© 2016 Aerospike Inc. All rights reserved.[ ]
■ Use Application Frameworks, and Write Code
■ Allow multiple frameworks, based on problem + team
■ Primary Key Data Architecture
■ Don’t use complex queries on the front edge !
■ Understand CP vs AP tradeoffs
■ You don’t always want CP
■ Build for both data growth, and transaction growth
Keys to Success

9. Real-world examples

10. 10© 2016 Aerospike Inc. All rights reserved.[ ]

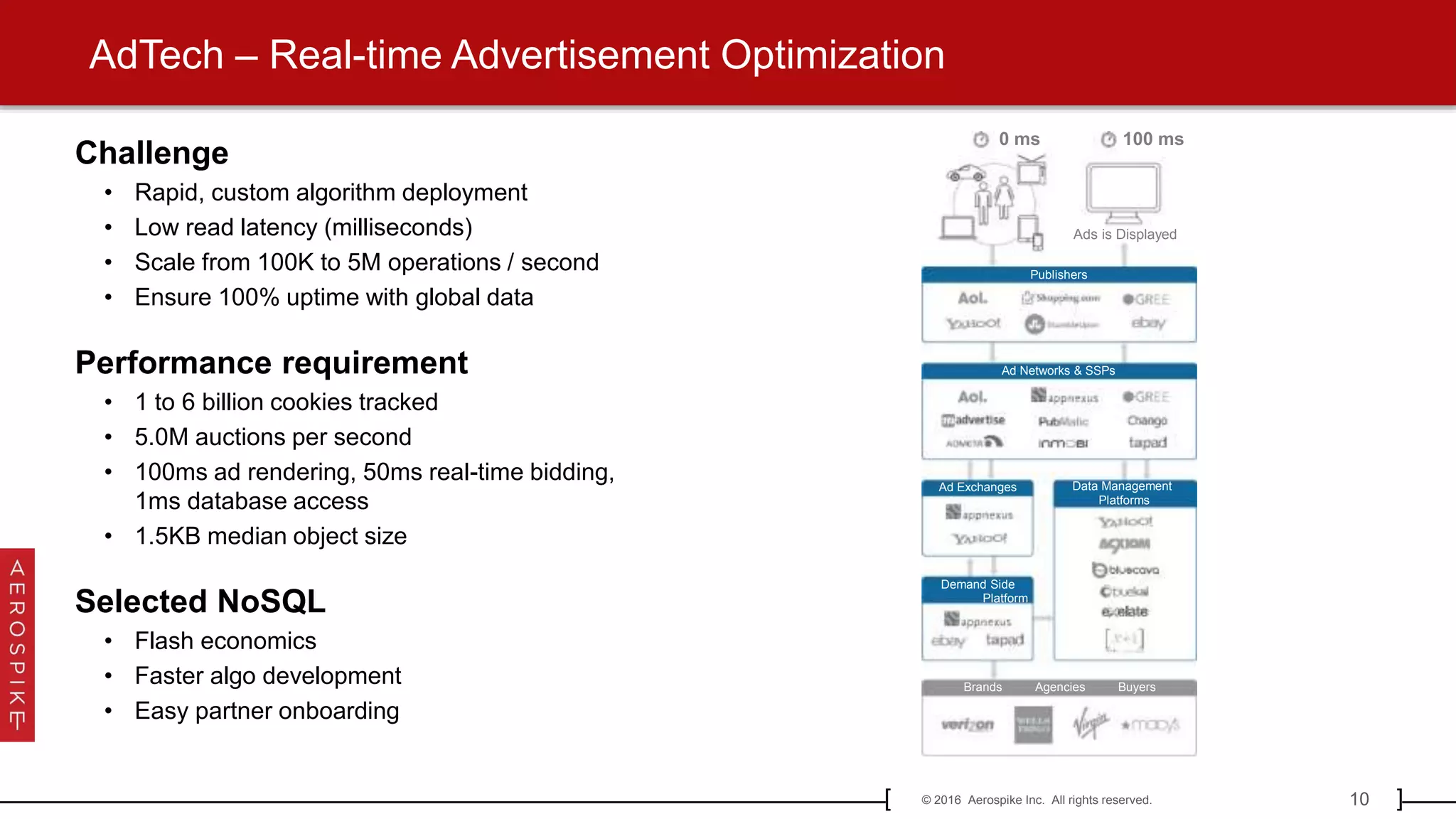

AdTech – Real-time Advertisement Optimization
Challenge
• Rapid, custom algorithm deployment
• Low read latency (milliseconds)
• Scale from 100K to 5M operations / second
• Ensure 100% uptime with global data
Performance requirement
• 1 to 6 billion cookies tracked
• 5.0M auctions per second
• 100ms ad rendering, 50ms real-time bidding,
1ms database access
• 1.5KB median object size
Selected NoSQL
• Flash economics
• Faster algo development
• Easy partner onboarding
Ads is Displayed
Publishers
Ad Networks & SSPs
Ad Exchanges
Demand Side
Platform
Data Management
Platforms
Brands Agencies Buyers
0 ms 100 ms

11. 11© 2016 Aerospike Inc. All rights reserved.[ ]

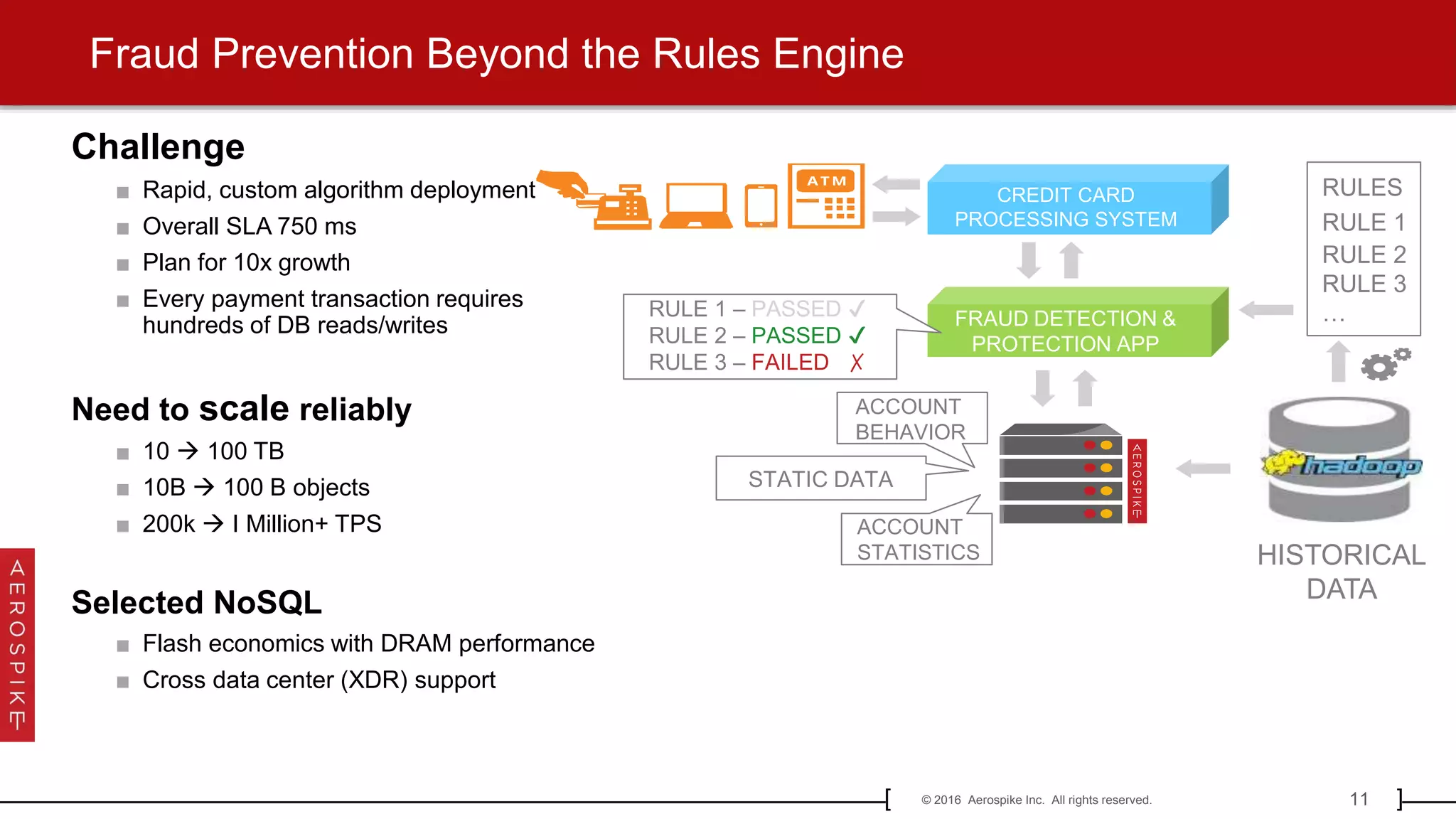

CREDIT CARD
PROCESSING SYSTEM
FRAUD DETECTION &
PROTECTION APP
ACCOUNT
BEHAVIOR
ACCOUNT
STATISTICS
STATIC DATA
RULE 1 – PASSED ✔
RULE 2 – PASSED ✔
RULE 3 – FAILED ✗
HISTORICAL
DATA
RULES
RULE 1
RULE 2
RULE 3
…
Challenge
■ Rapid, custom algorithm deployment
■ Overall SLA 750 ms
■ Plan for 10x growth
■ Every payment transaction requires
hundreds of DB reads/writes
Need to scale reliably
■ 10  100 TB
■ 10B  100 B objects
■ 200k  I Million+ TPS
Selected NoSQL
■ Flash economics with DRAM performance
■ Cross data center (XDR) support
Fraud Prevention Beyond the Rules Engine

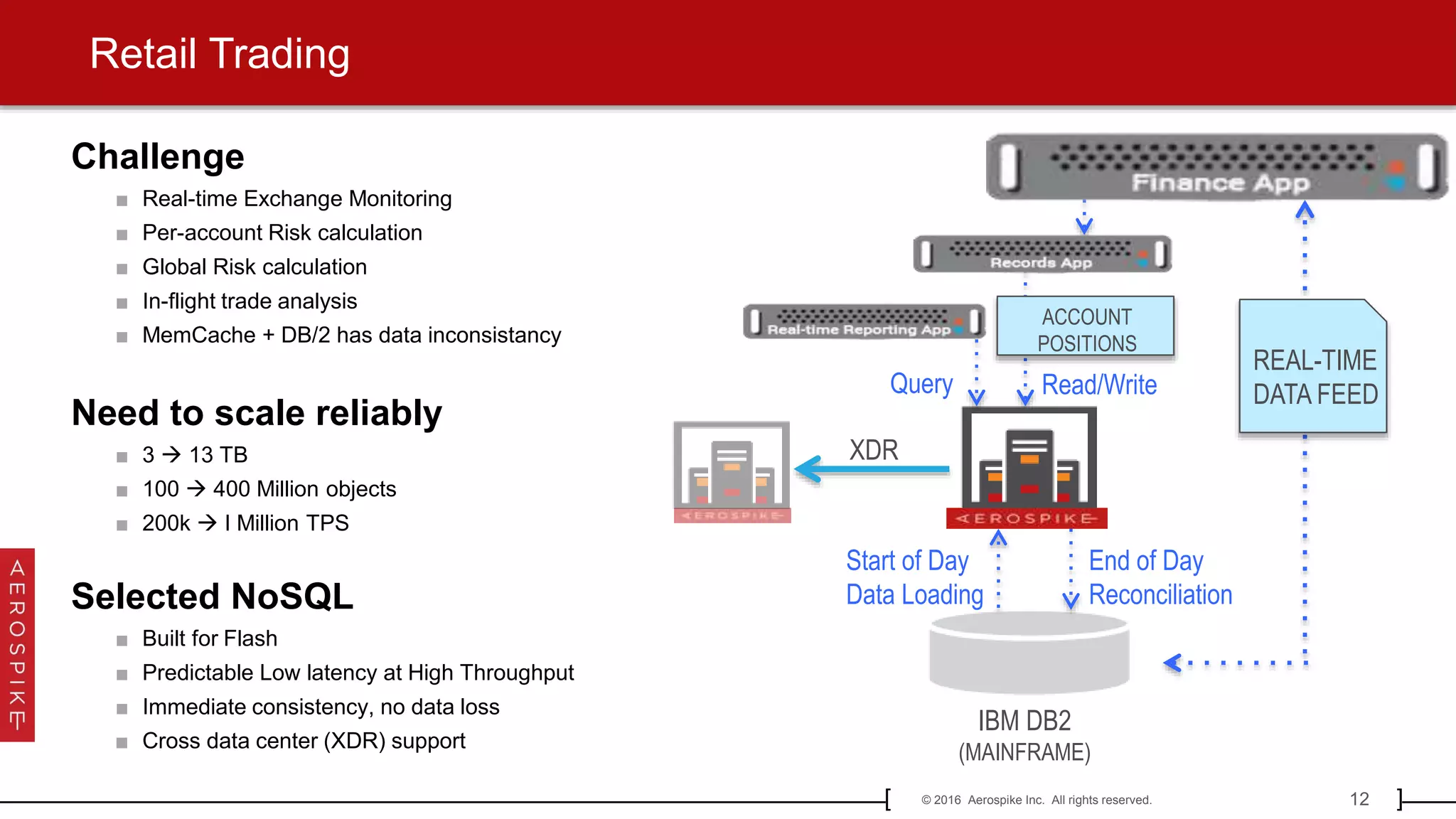

12. 12© 2016 Aerospike Inc. All rights reserved.[ ]
Challenge
■ Real-time Exchange Monitoring
■ Per-account Risk calculation
■ Global Risk calculation
■ In-flight trade analysis
■ MemCache + DB/2 has data inconsistancy
Need to scale reliably
■ 3  13 TB
■ 100  400 Million objects
■ 200k  I Million TPS
Selected NoSQL
■ Built for Flash
■ Predictable Low latency at High Throughput
■ Immediate consistency, no data loss
■ Cross data center (XDR) support
IBM DB2
(MAINFRAME)
Read/Write
Start of Day
Data Loading
End of Day
Reconciliation
Query
REAL-TIME
DATA FEED
ACCOUNT
POSITIONS
XDR
Retail Trading

13. 13© 2016 Aerospike Inc. All rights reserved.[ ]

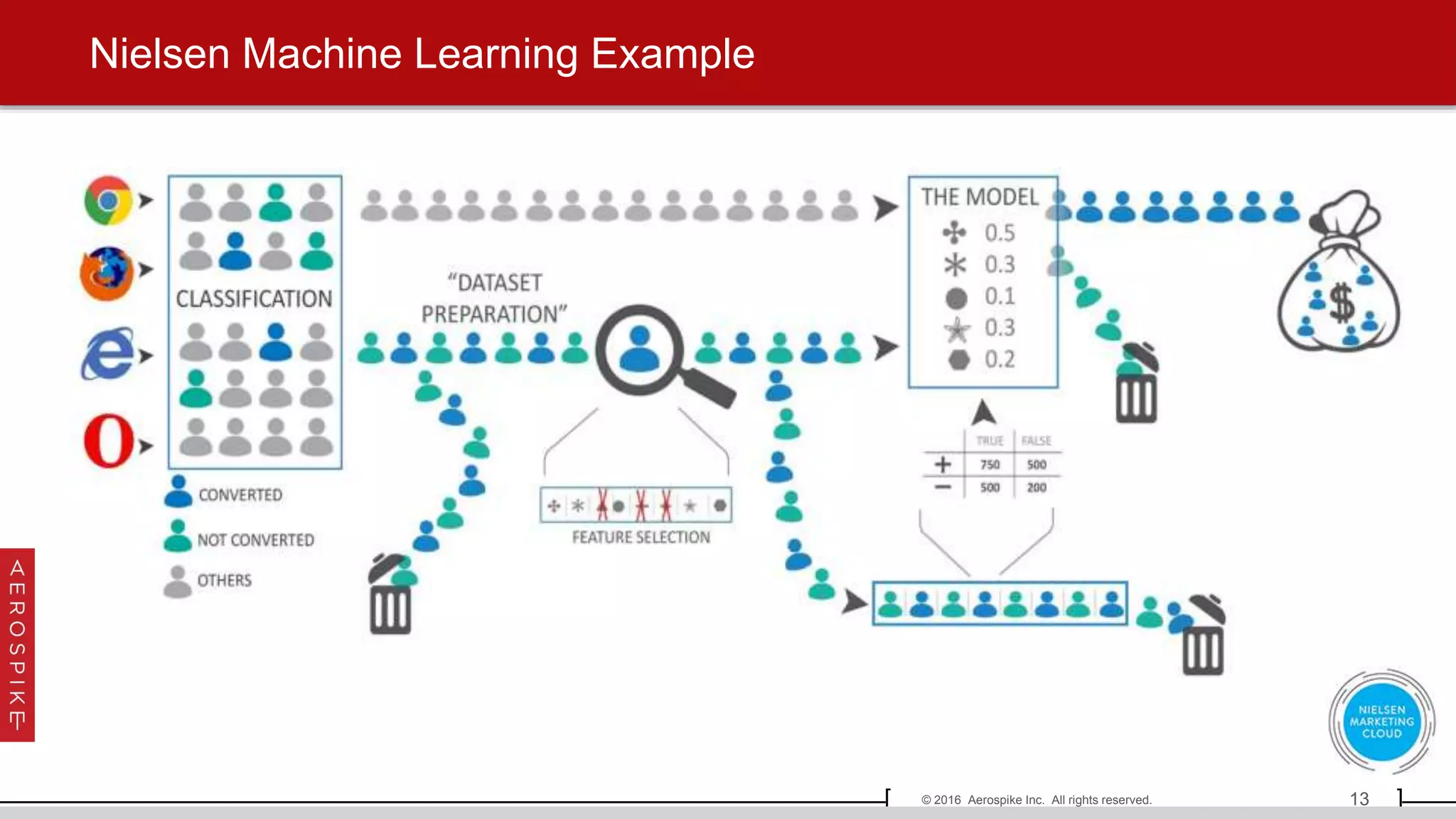

Nielsen Machine Learning Example

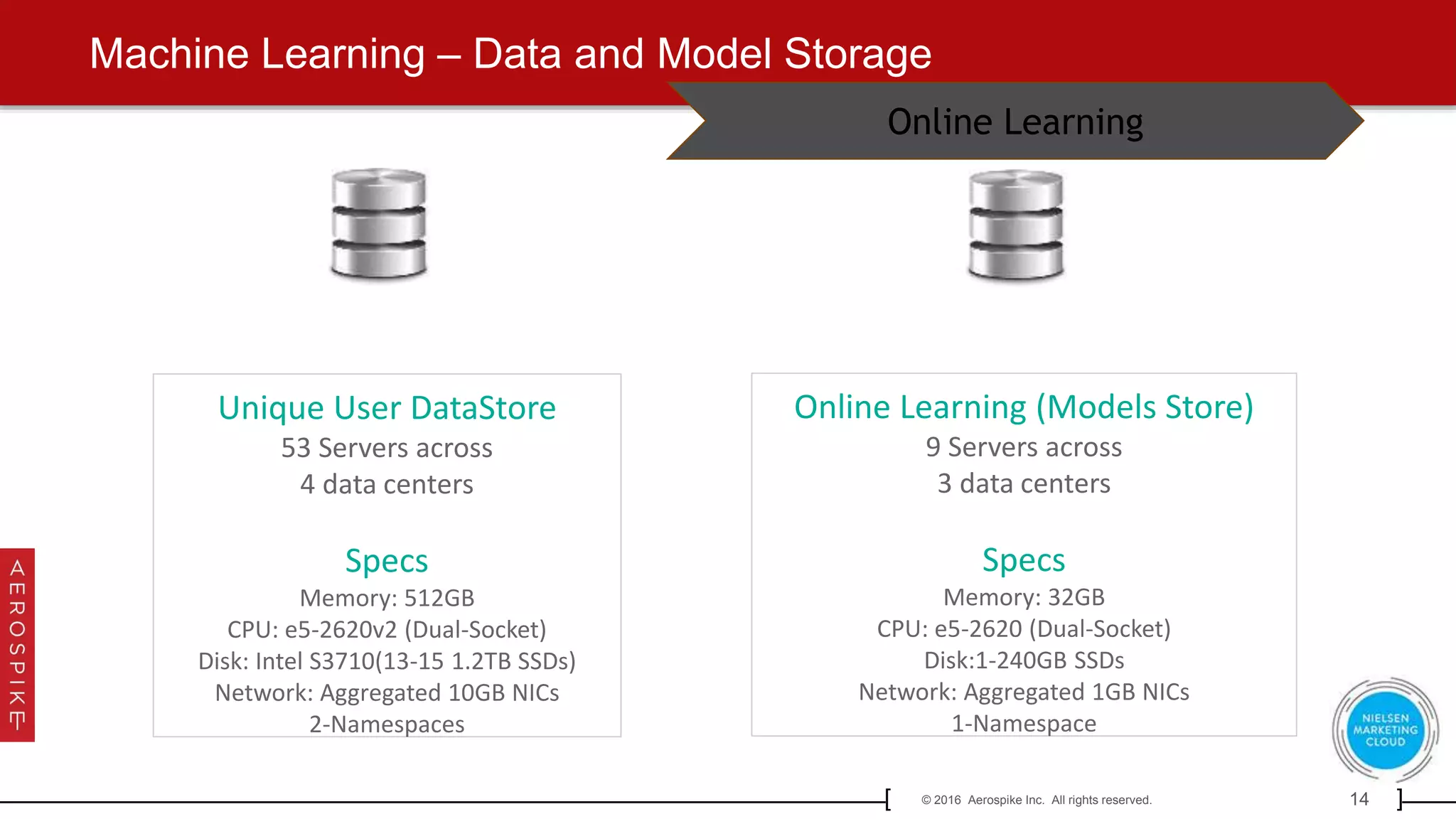

14. 14© 2016 Aerospike Inc. All rights reserved.[ ]
Unique User DataStore
53 Servers across
4 data centers
Specs
Memory: 512GB
CPU: e5-2620v2 (Dual-Socket)
Disk: Intel S3710(13-15 1.2TB SSDs)
Network: Aggregated 10GB NICs
2-Namespaces
Online Learning (Models Store)
9 Servers across
3 data centers
Specs
Memory: 32GB
CPU: e5-2620 (Dual-Socket)
Disk:1-240GB SSDs
Network: Aggregated 1GB NICs
1-Namespace
Online Learning
Machine Learning – Data and Model Storage

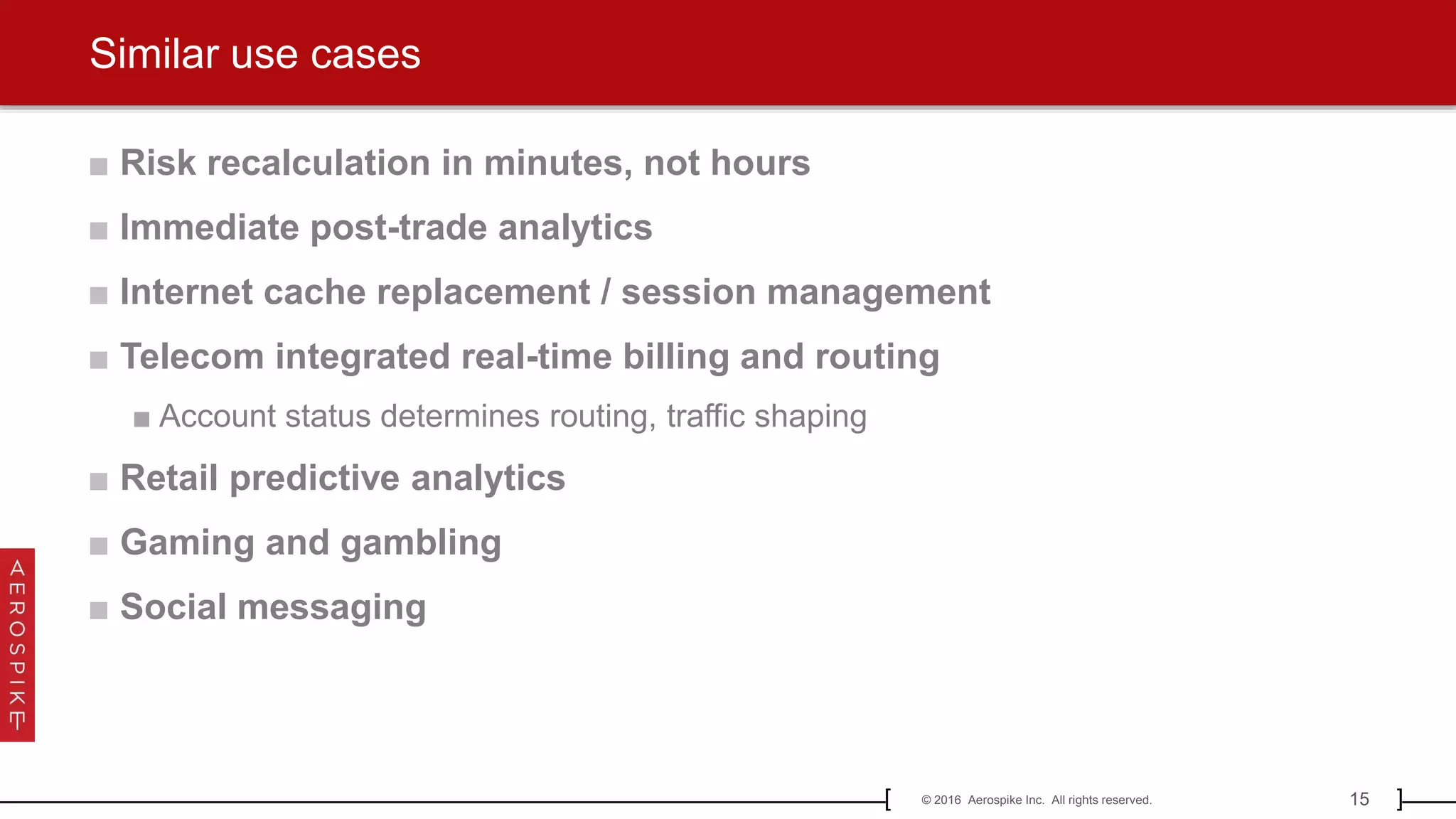

15. 15© 2016 Aerospike Inc. All rights reserved.[ ]
■ Risk recalculation in minutes, not hours
■ Immediate post-trade analytics
■ Internet cache replacement / session management
■ Telecom integrated real-time billing and routing
■ Account status determines routing, traffic shaping
■ Retail predictive analytics
■ Gaming and gambling
■ Social messaging
Similar use cases

16. To Summarize

17. 17© 2016 Aerospike Inc. All rights reserved.[ ]
To Summarize
XDR
DATA WAREHOUSE/
DATA LAKE
LEGACY RDBMS
HADOOP HDFS
INTERATIONS
AND
ENGAGEMENTS
( Web views )
( Payments )
( Recommendation
)
( And More )
High Performance NoSQL
SHARED STATE
SESSION DATA
COUNTERS
AGGEREGATION
YY
YOUR STREAMING
ANALYTICS
FRAMEWORK
YY
Decisioning Engine

18. 18© 2016 Aerospike Inc. All rights reserved.[ ]
Questions?
Aerospike open source at
https://github.com/aerospike/aerospike-server
