1. Developing reactive
Microservices with Quarkus
Niklas Heidloff
Developer Advocate, IBM
@nheidloff

2. Reactive Manifesto
Reactive Systems
Reactive Programming
Functional Programming
Asynchronous Programming
Reactive Streams
Reactive Operators
Buzzword Bingo
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

3. ?

4. Reactive REST EndpointsReactive Web Application
Let’s make it concrete
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

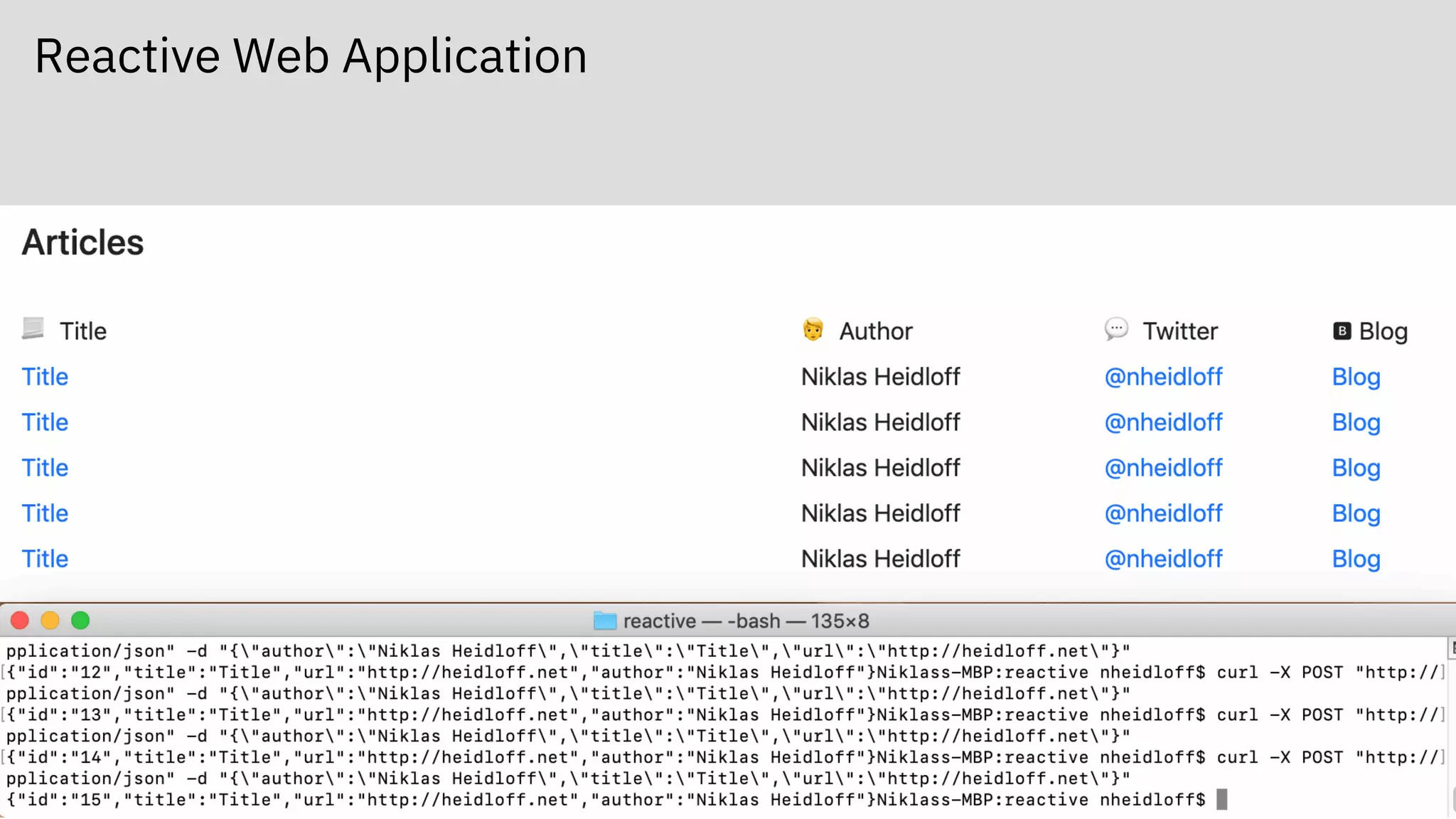

5. Reactive Web Application

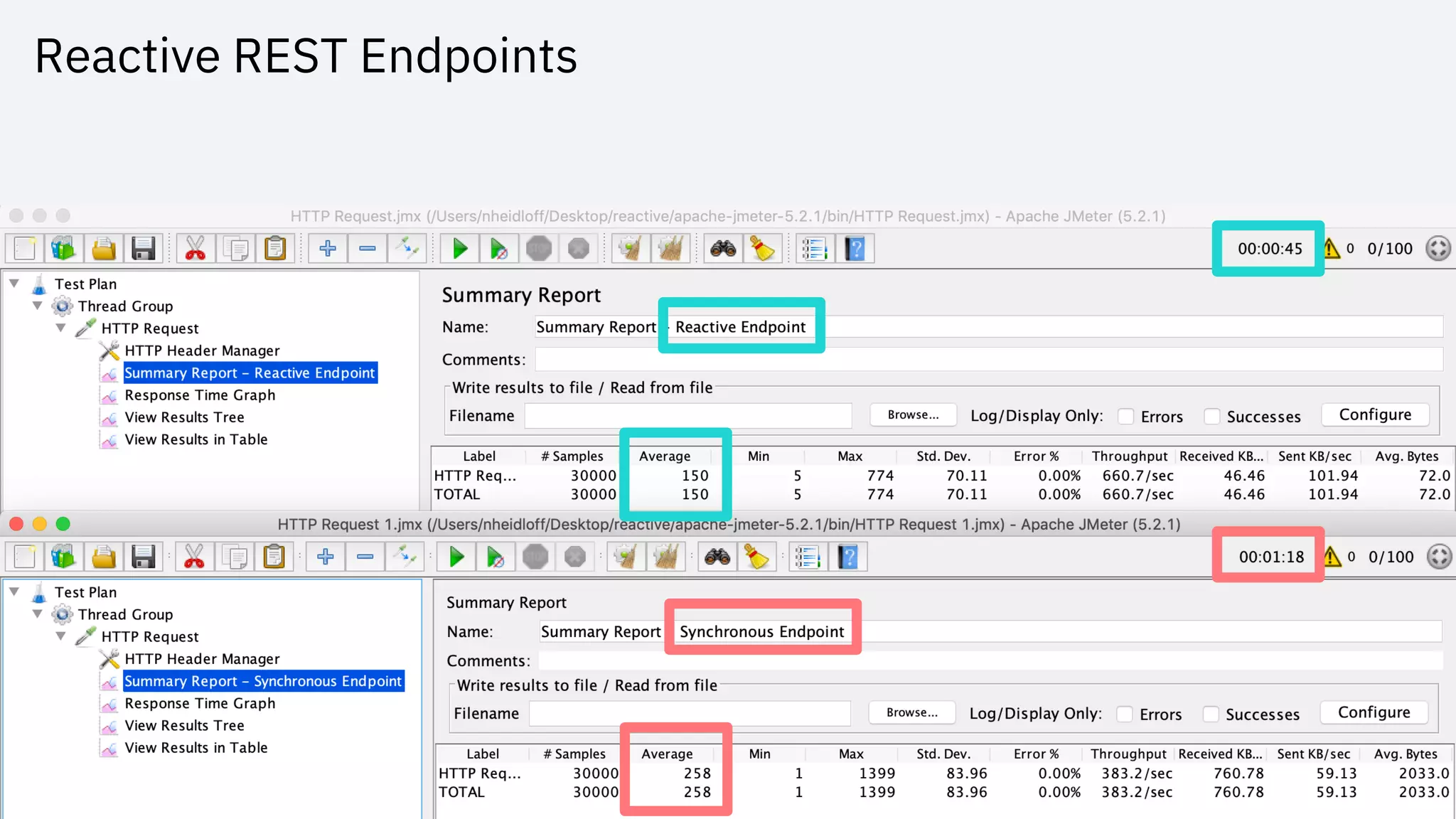

6. Reactive REST Endpoints

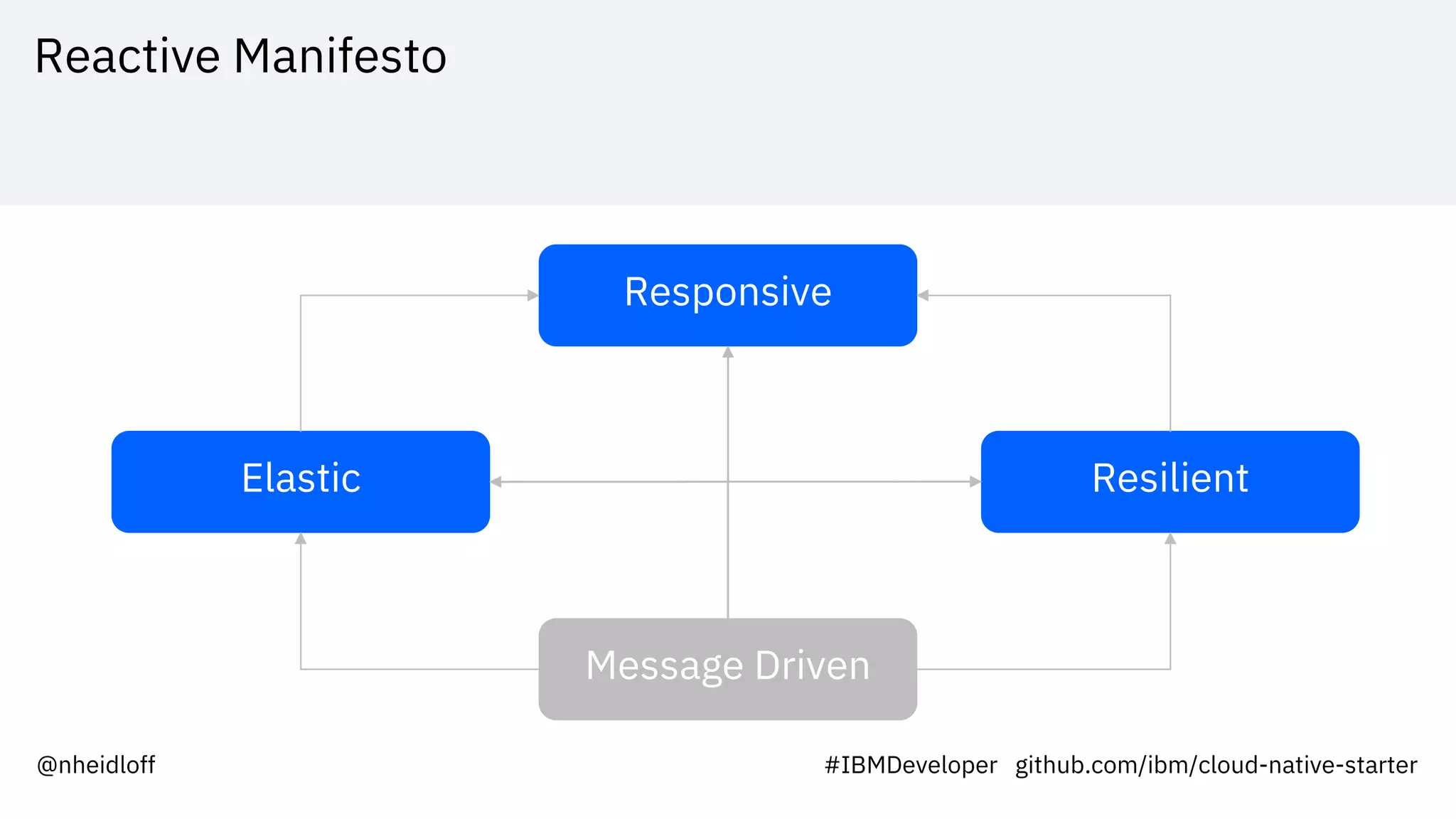

7. Reactive Manifesto
Responsive
Message Driven
Elastic Resilient
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

8. Reactive Systems
!=
Reactive Programming
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

9. Reactive Programming is …

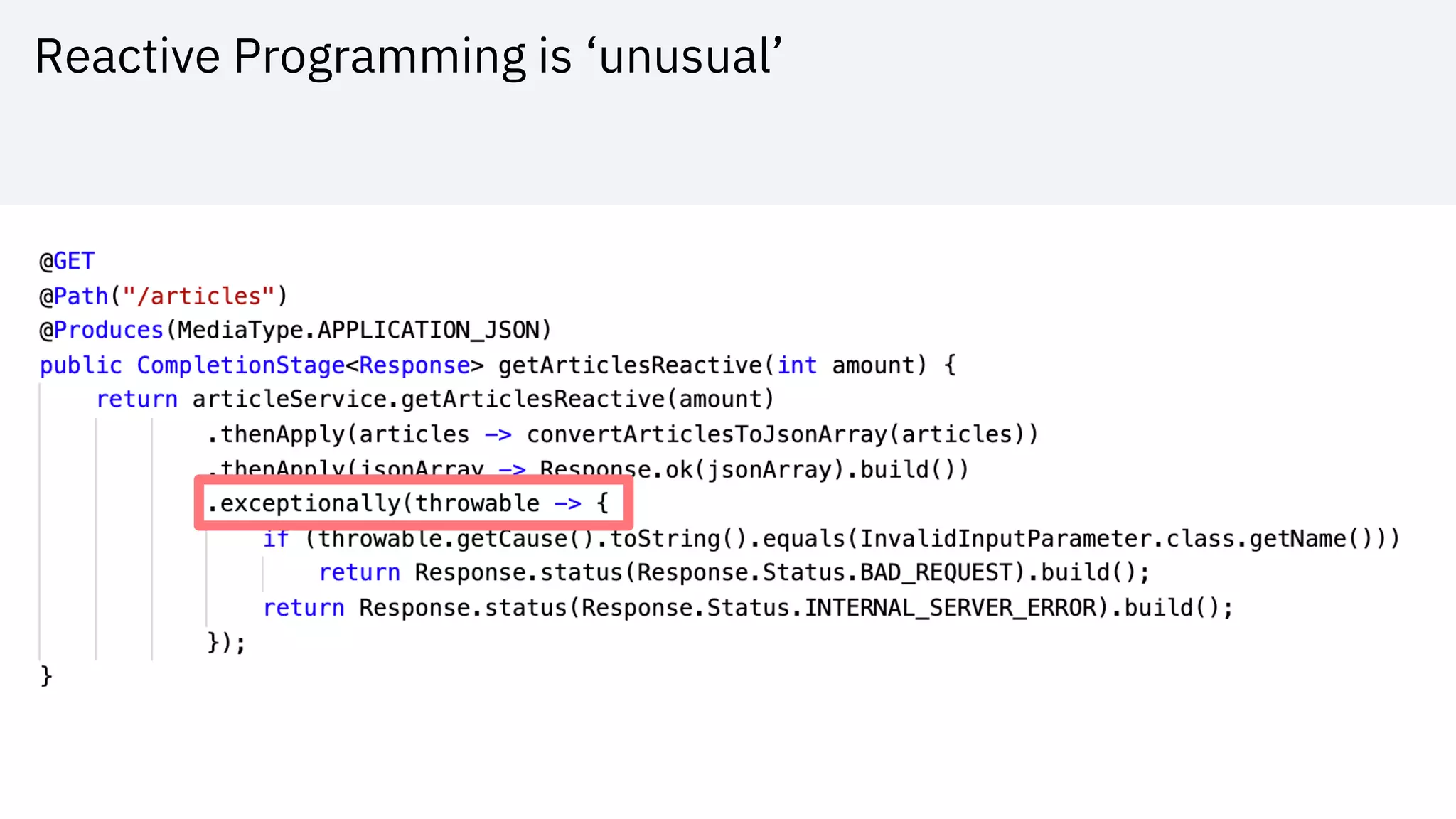

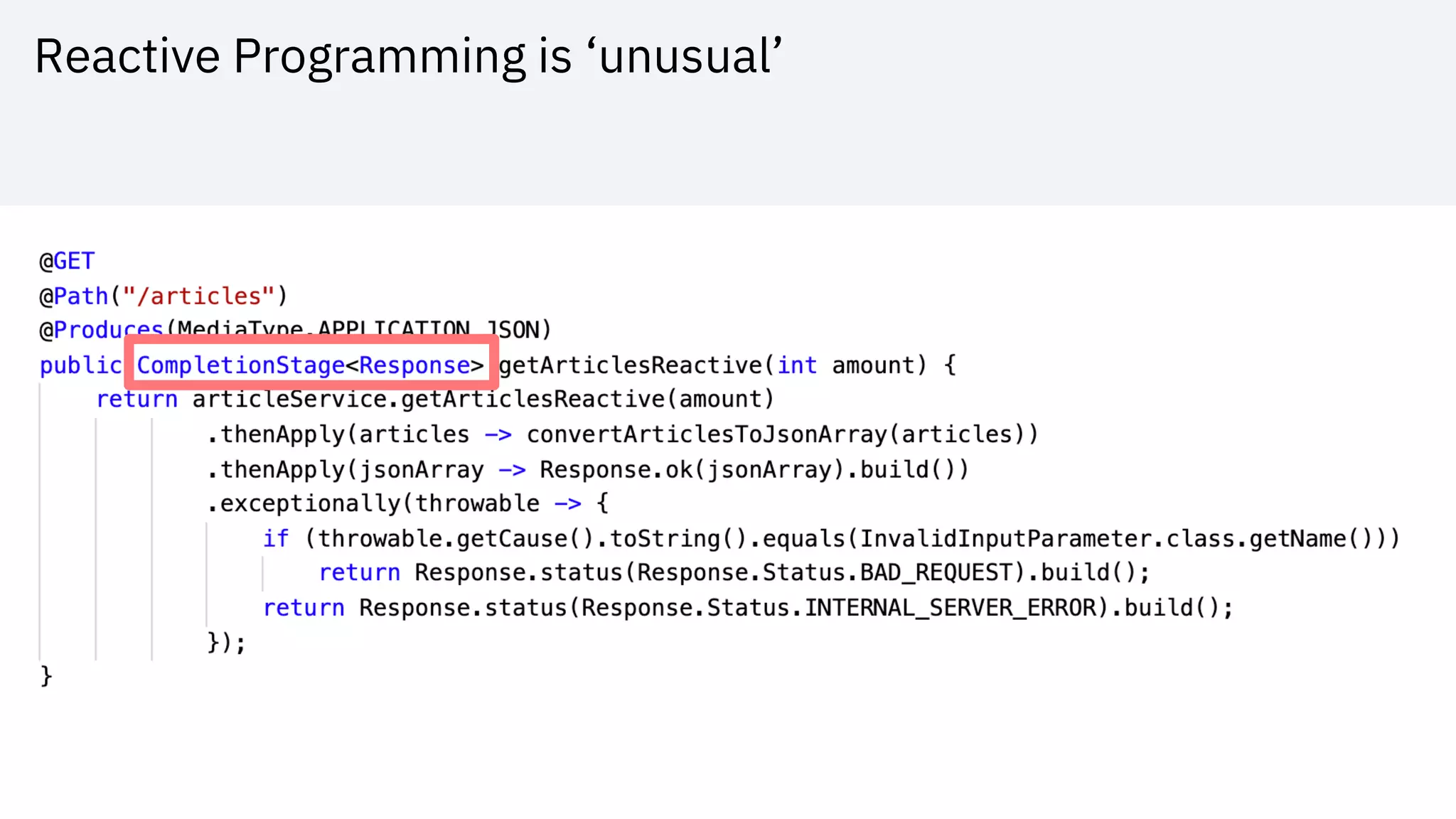

10. Reactive Programming is ‘unusual’

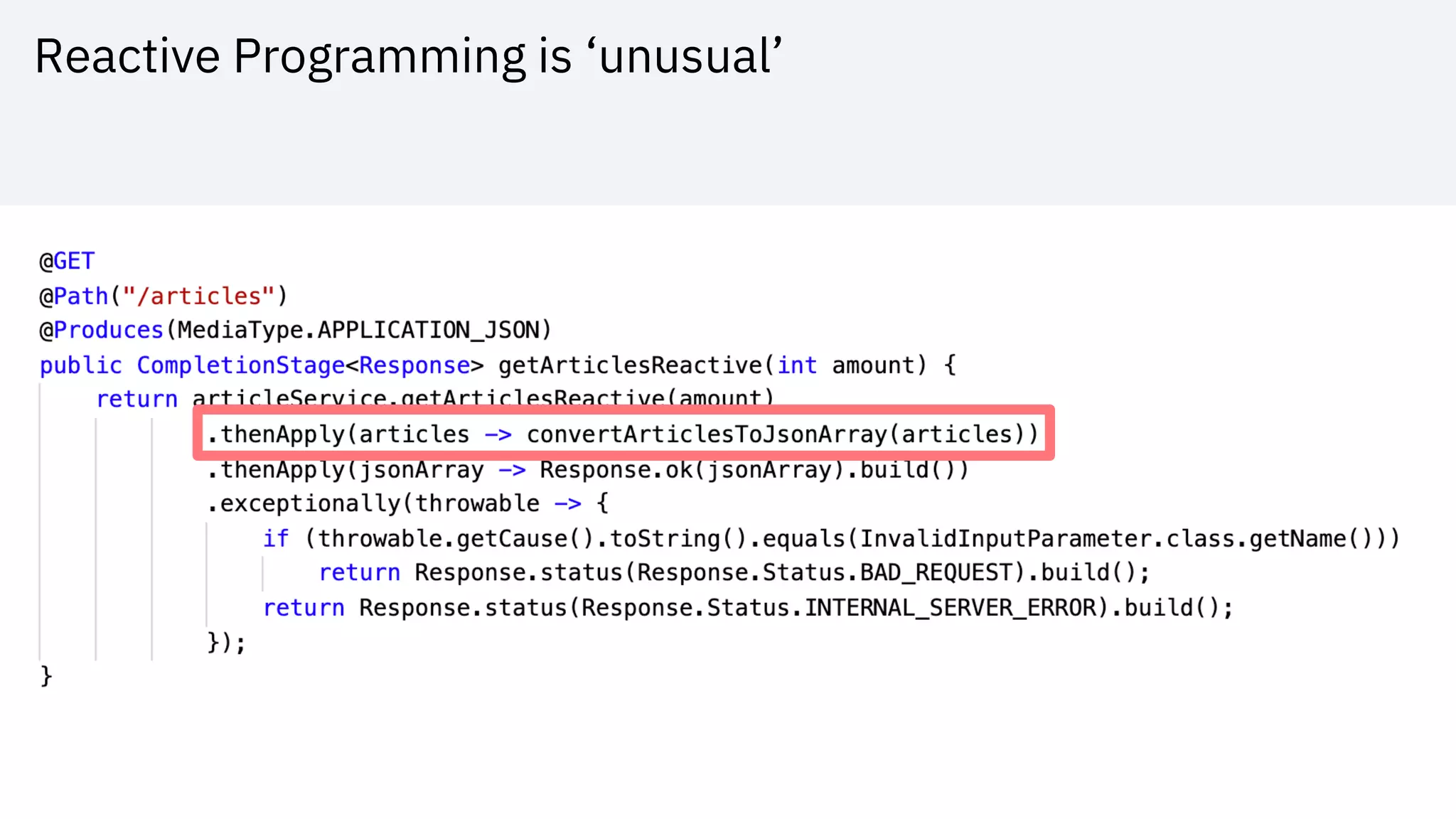

11. Reactive Programming is ‘unusual’

12. Reactive Programming is ‘unusual’

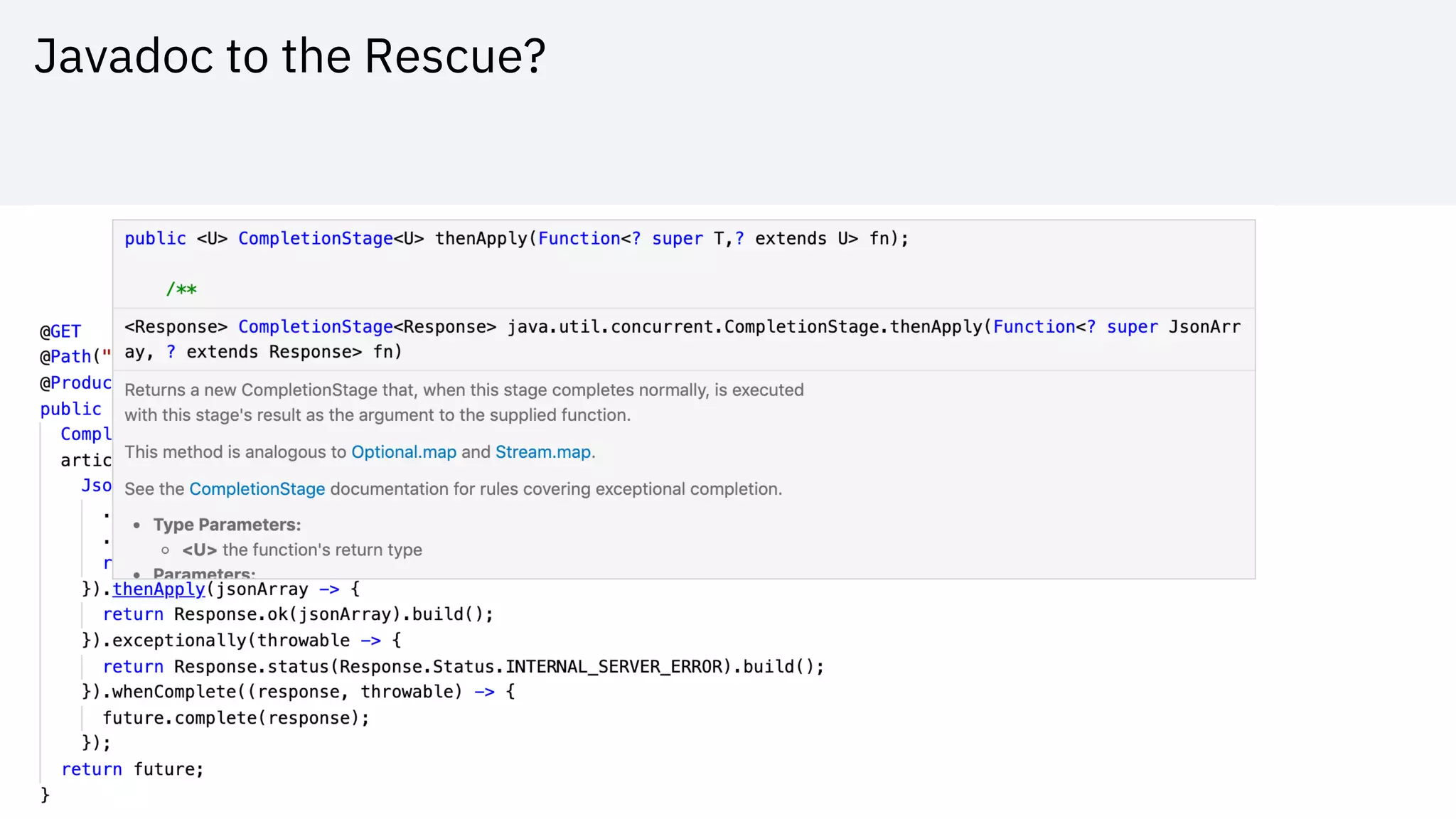

13. Javadoc to the Rescue?

14. Reactive programming is
extremely powerful, but
not the right tool for
all jobs!
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

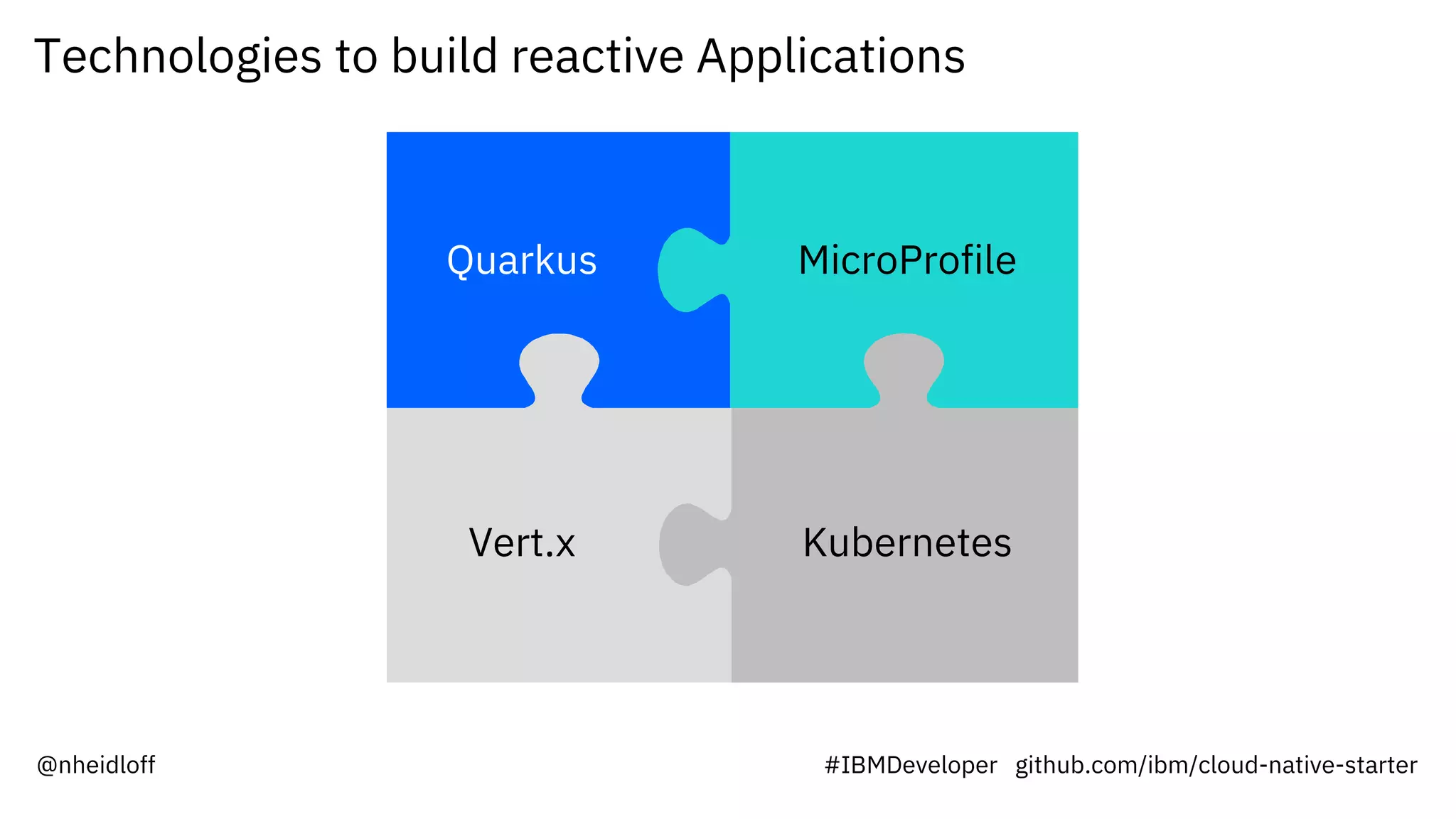

15. Technologies to build reactive Applications
Quarkus
Vert.x
MicroProfile
Kubernetes
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

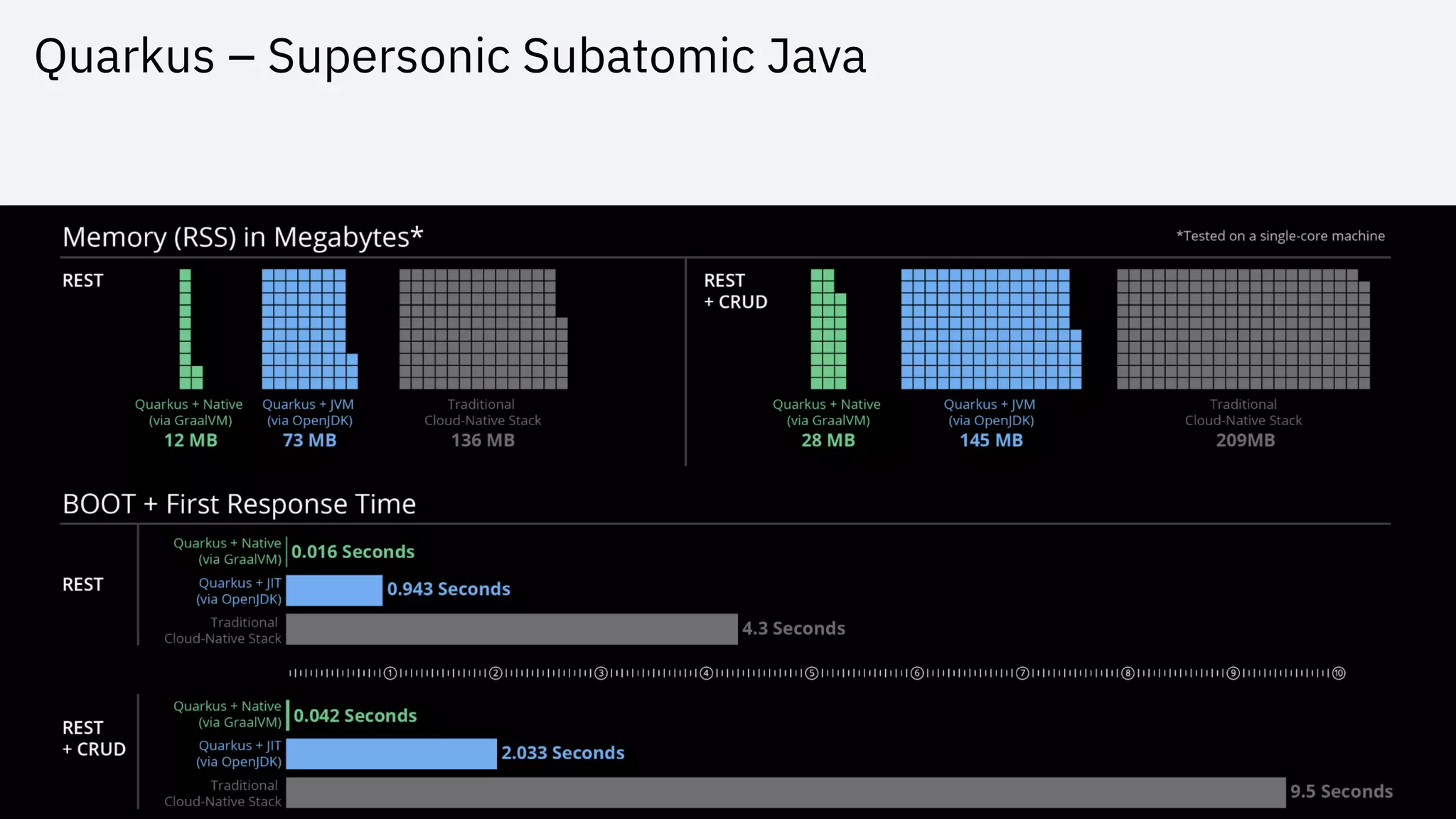

16. Quarkus – Supersonic Subatomic Java

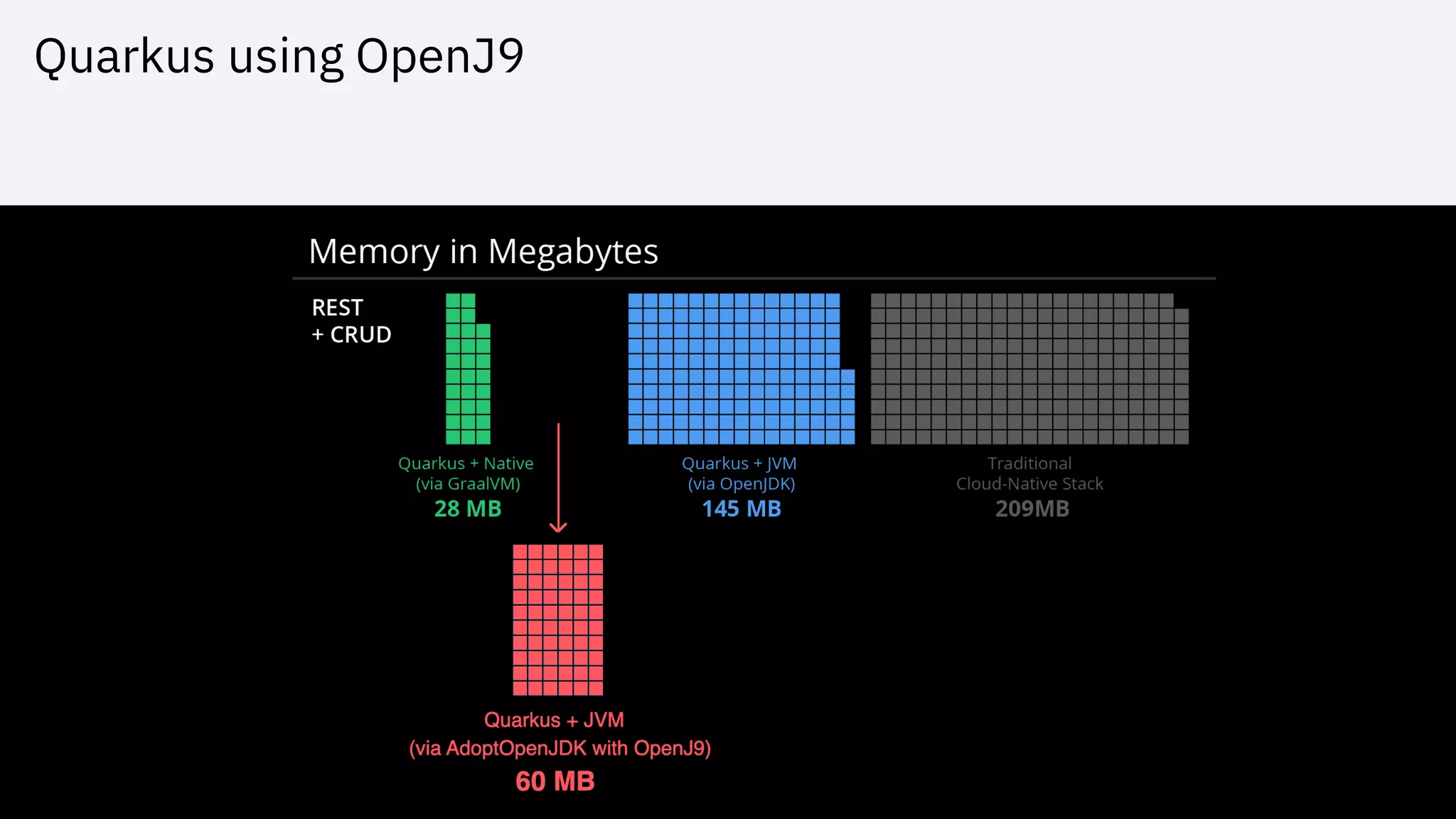

17. Quarkus using OpenJ9

18. “Optimizing Enterprise Java
for a Microservices
Architecture.“
“[...] by innovating [...] with a
goal of standardization.”
microprofile.io
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

19. “Eclipse Vert.x is a tool-kit for
building reactive applications
on the JVM.”
“Eclipse Vert.x is event
driven and non blocking [...]
and lets your app scale with
minimal hardware.”
vertx.io
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

20. “Kubernetes (K8s) is an open-
source system for automating
deployment, scaling, and
management of containerized
applications.”
kubernetes.io
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

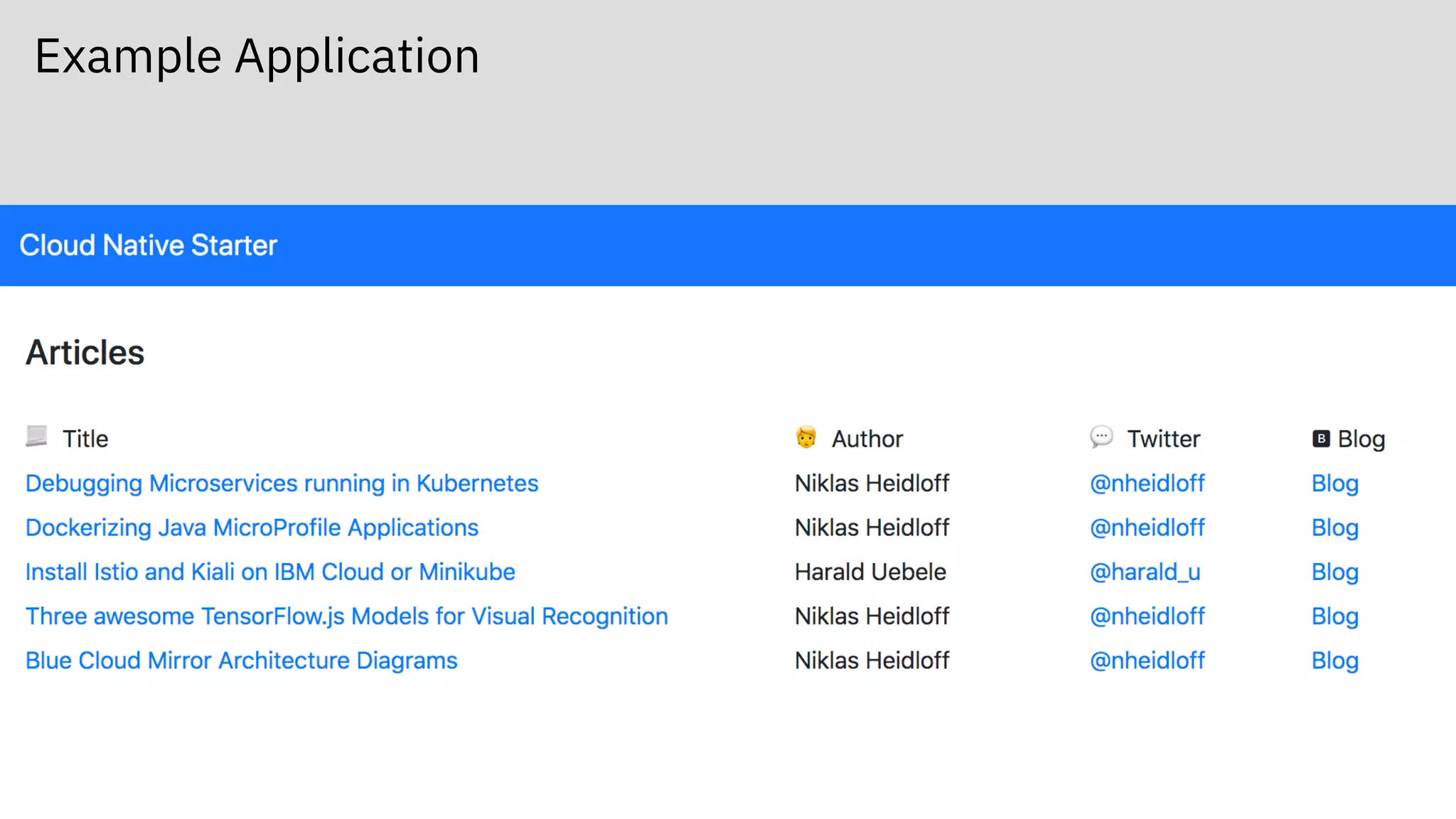

21. Example Application

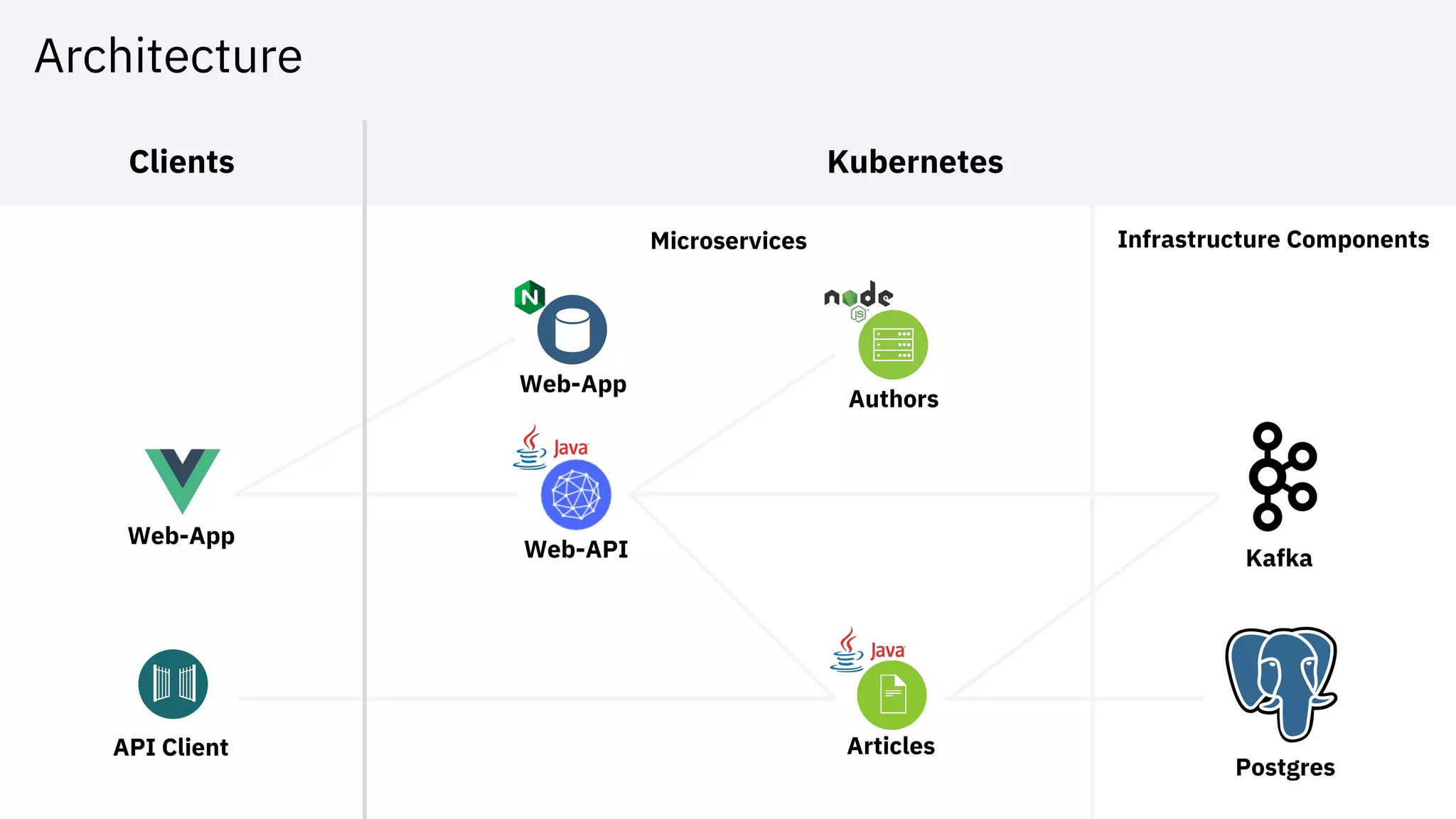

22. Architecture
Web-App
KafkaWeb-API
Articles
Authors
Web-App
Postgres
Clients
Microservices Infrastructure Components
Kubernetes
API Client

23. Reactive Web Application

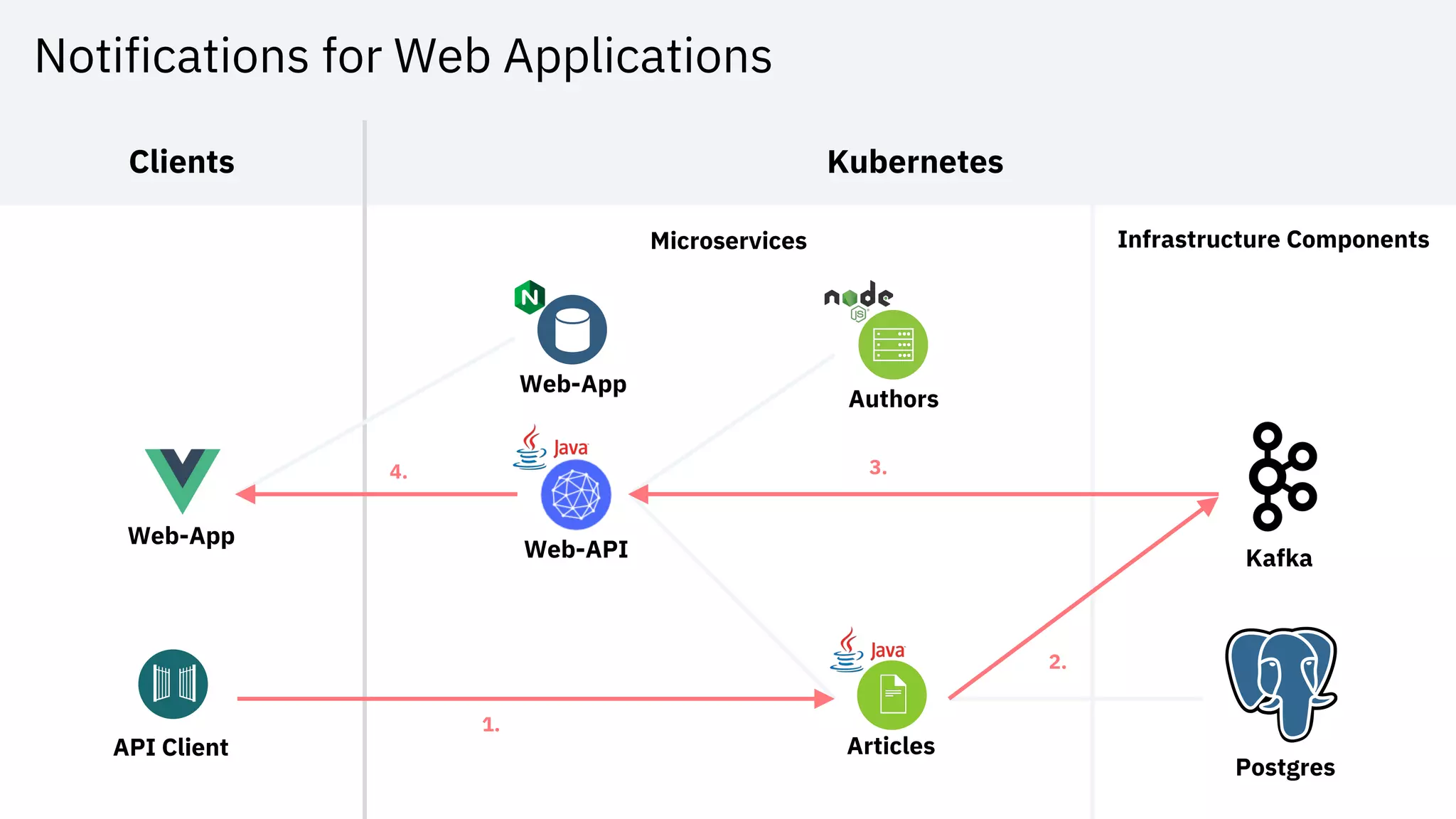

24. Notifications for Web Applications
Web-App
KafkaWeb-API
Articles
Clients
Microservices Infrastructure Components
Kubernetes
API Client
1.
4. 3.
2.
Web-App
Postgres
Authors

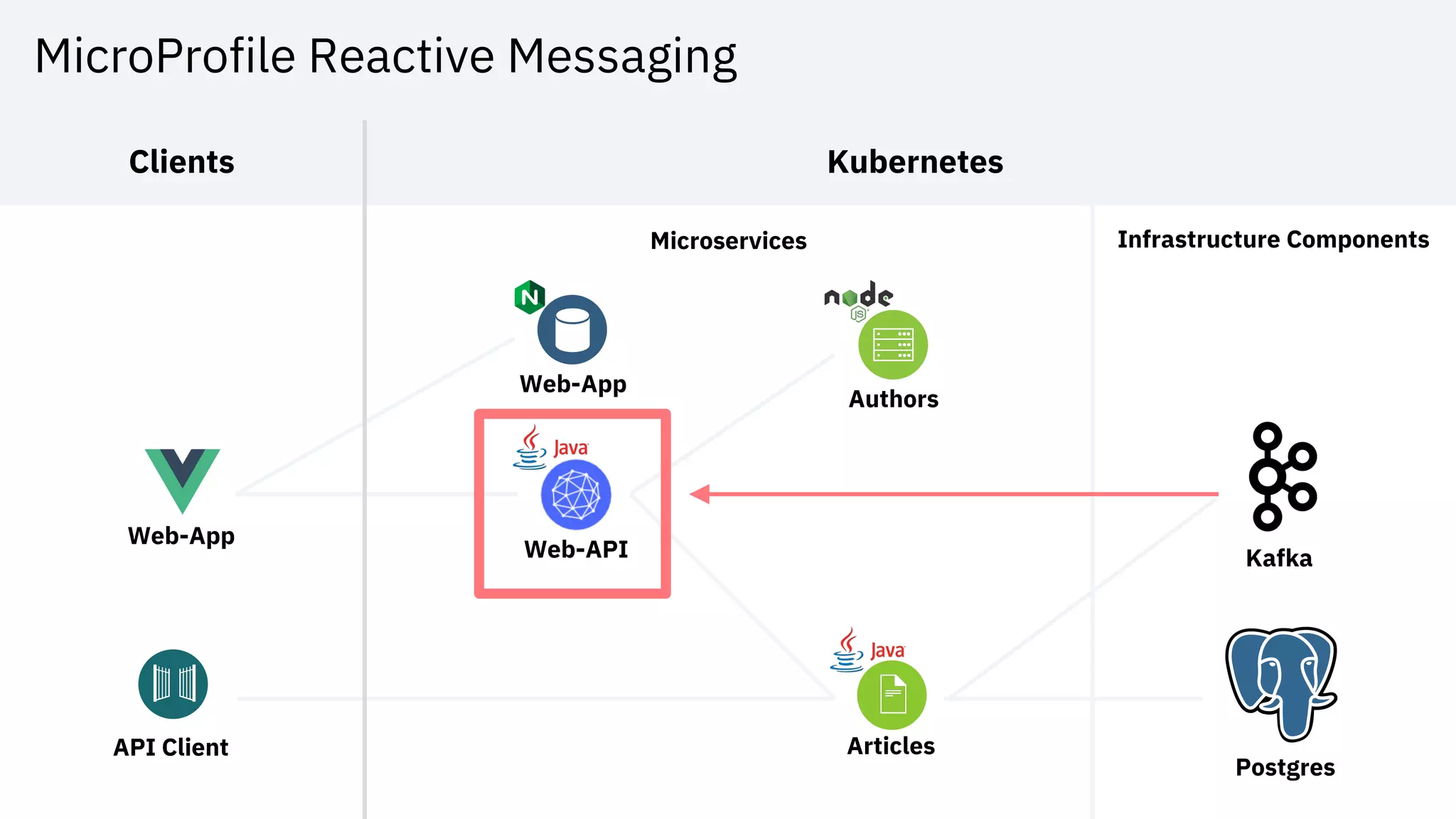

25. MicroProfile Reactive Messaging
Web-App
KafkaWeb-API
Articles
Authors
Web-App
Postgres
Clients
Microservices Infrastructure Components
Kubernetes
API Client

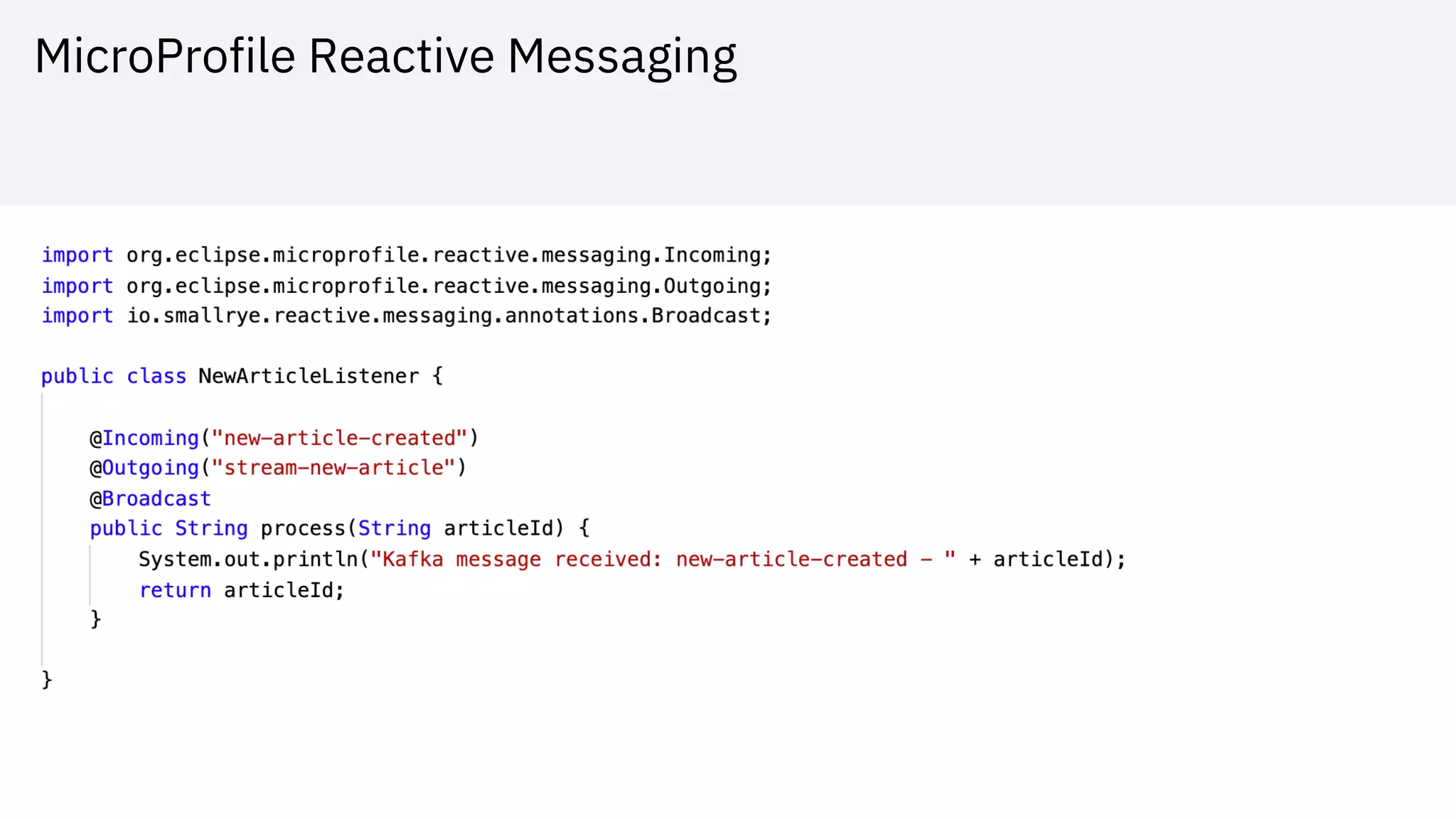

26. MicroProfile Reactive Messaging

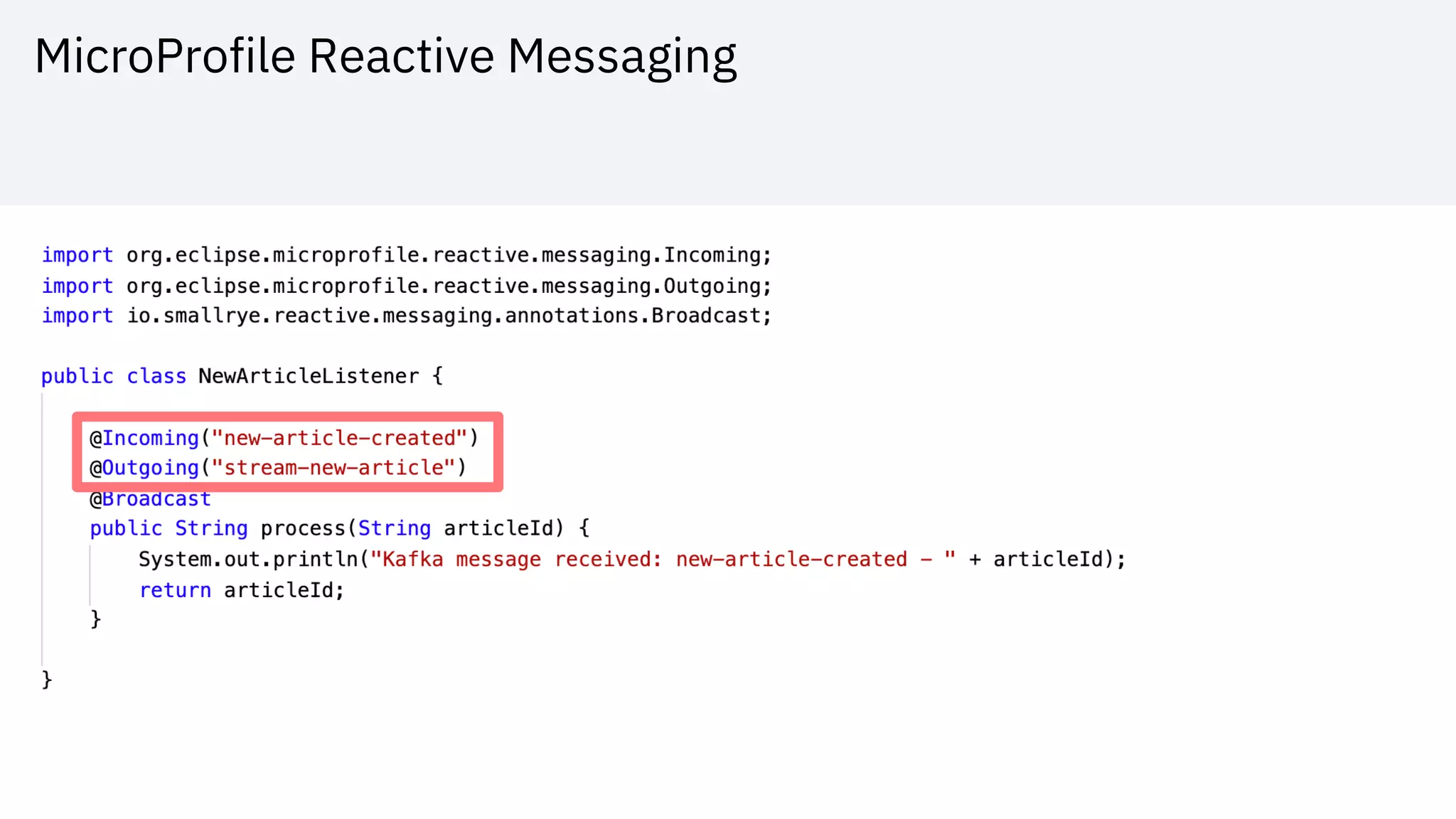

27. MicroProfile Reactive Messaging

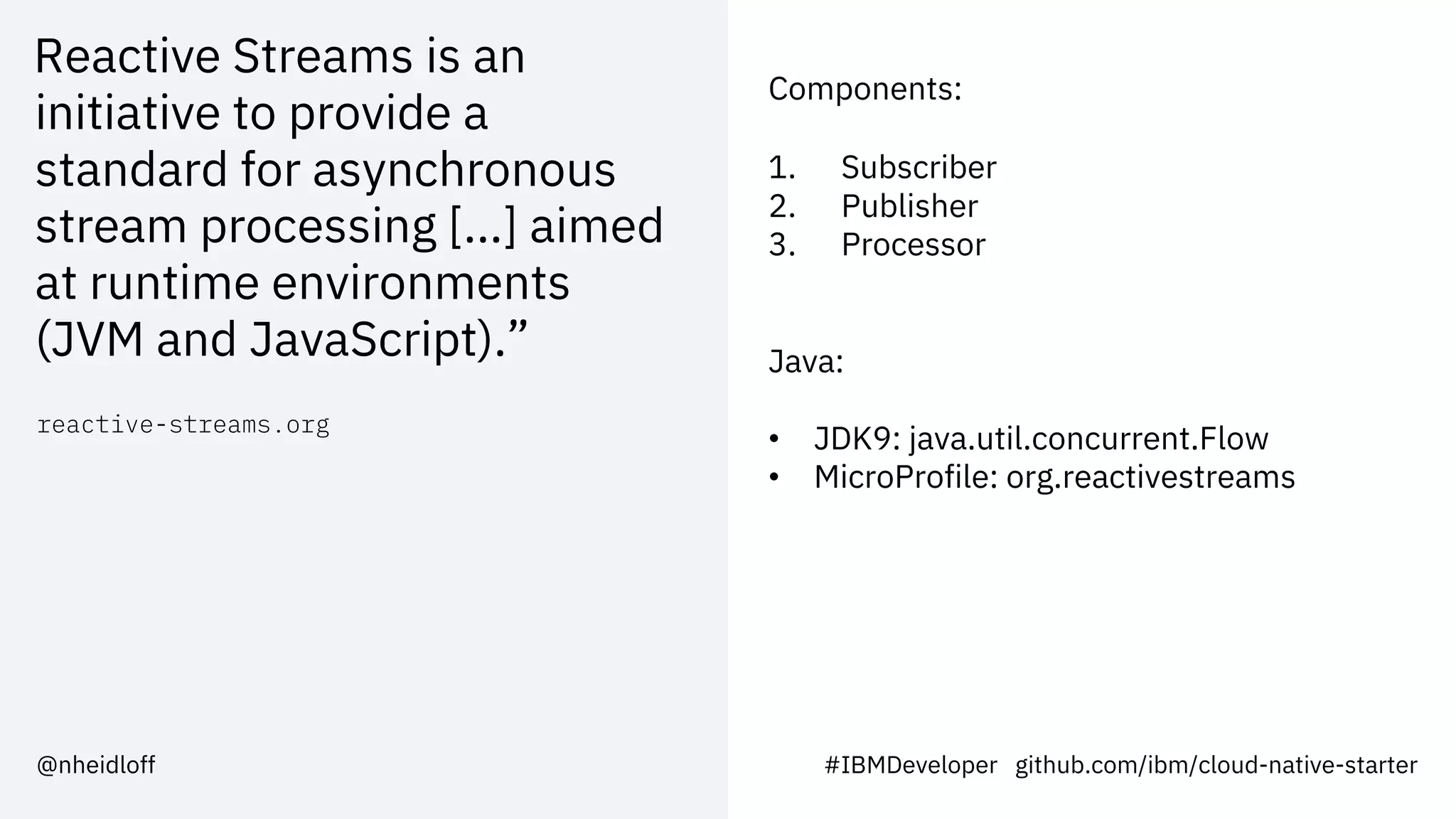

28. Reactive Streams is an
initiative to provide a
standard for asynchronous
stream processing [...] aimed
at runtime environments
(JVM and JavaScript).”
reactive-streams.org
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff
Components:
1. Subscriber
2. Publisher
3. Processor
Java:
• JDK9: java.util.concurrent.Flow
• MicroProfile: org.reactivestreams

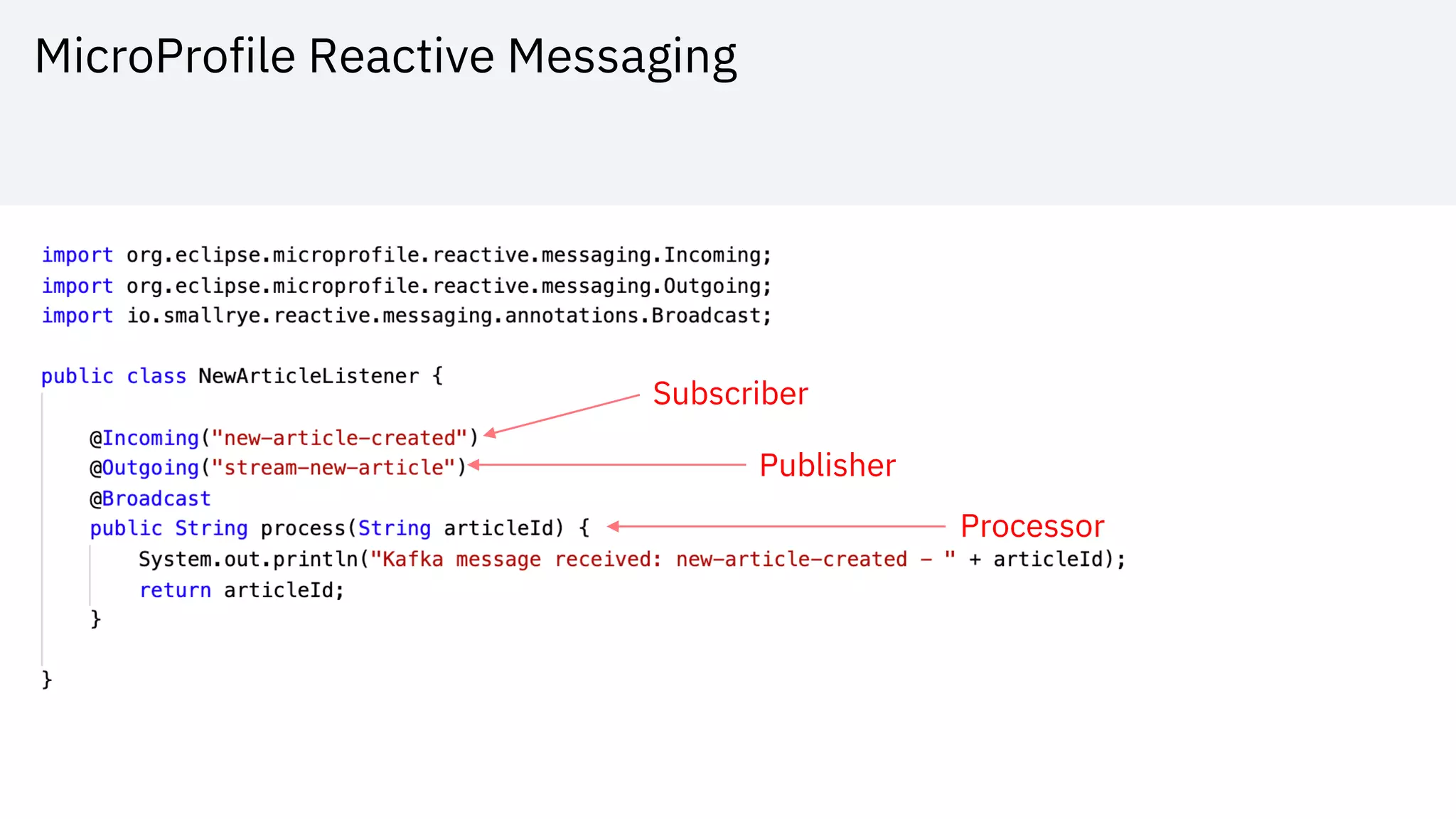

29. MicroProfile Reactive Messaging
Subscriber
Publisher
Processor

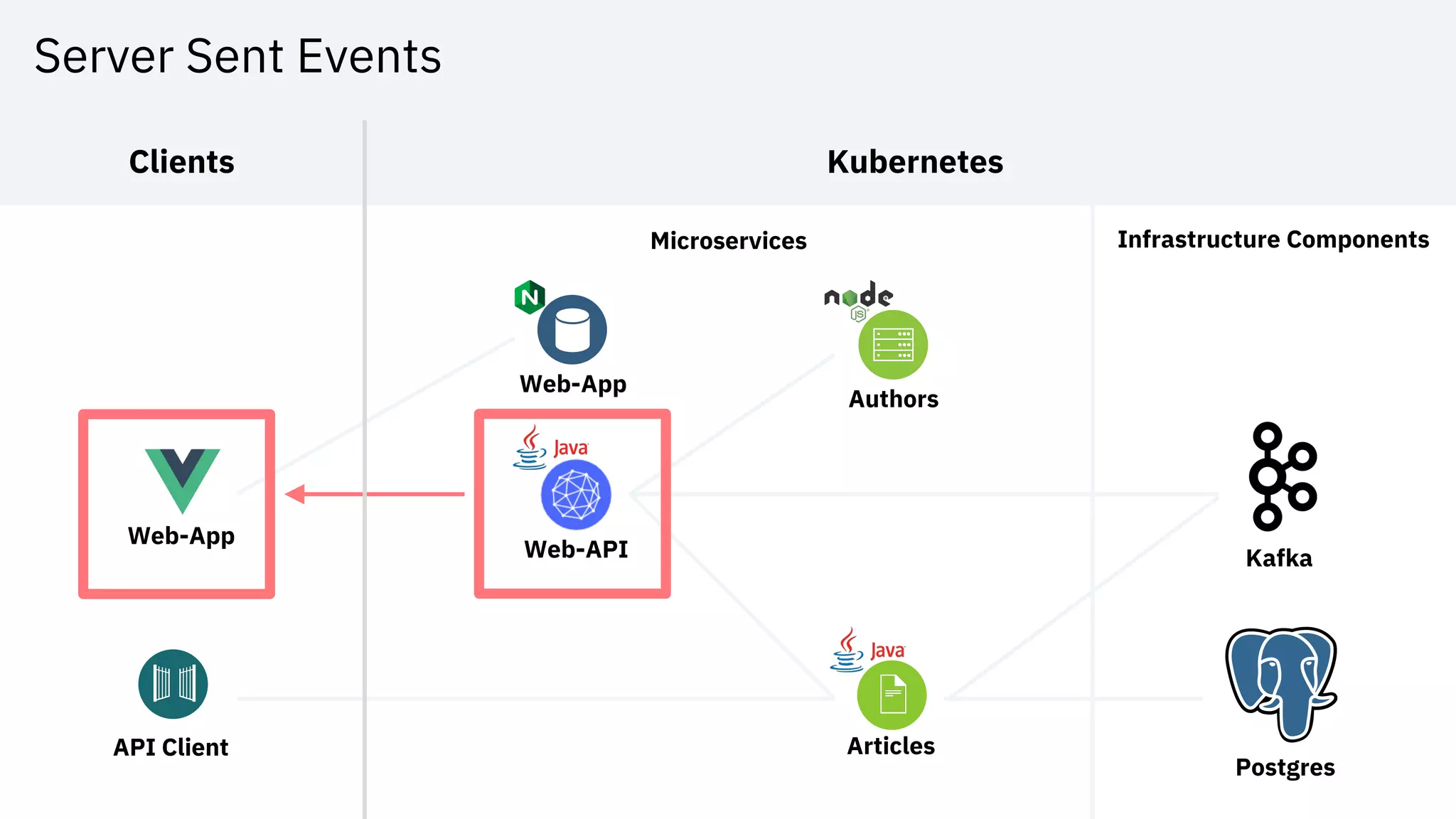

30. Server Sent Events
Web-App
KafkaWeb-API
Articles
Authors
Web-App
Postgres
Clients
Microservices Infrastructure Components
Kubernetes
API Client

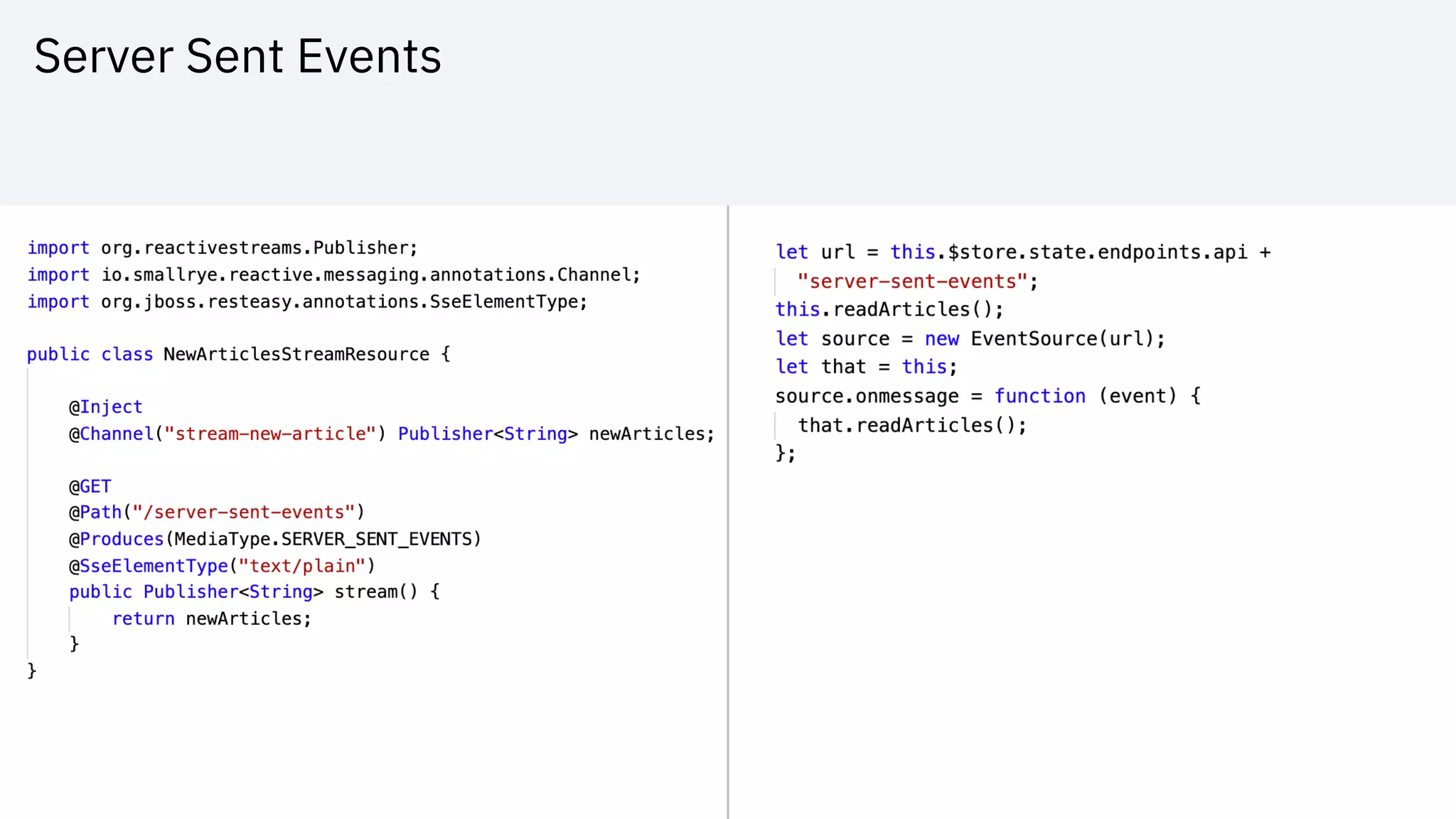

31. Server Sent Events

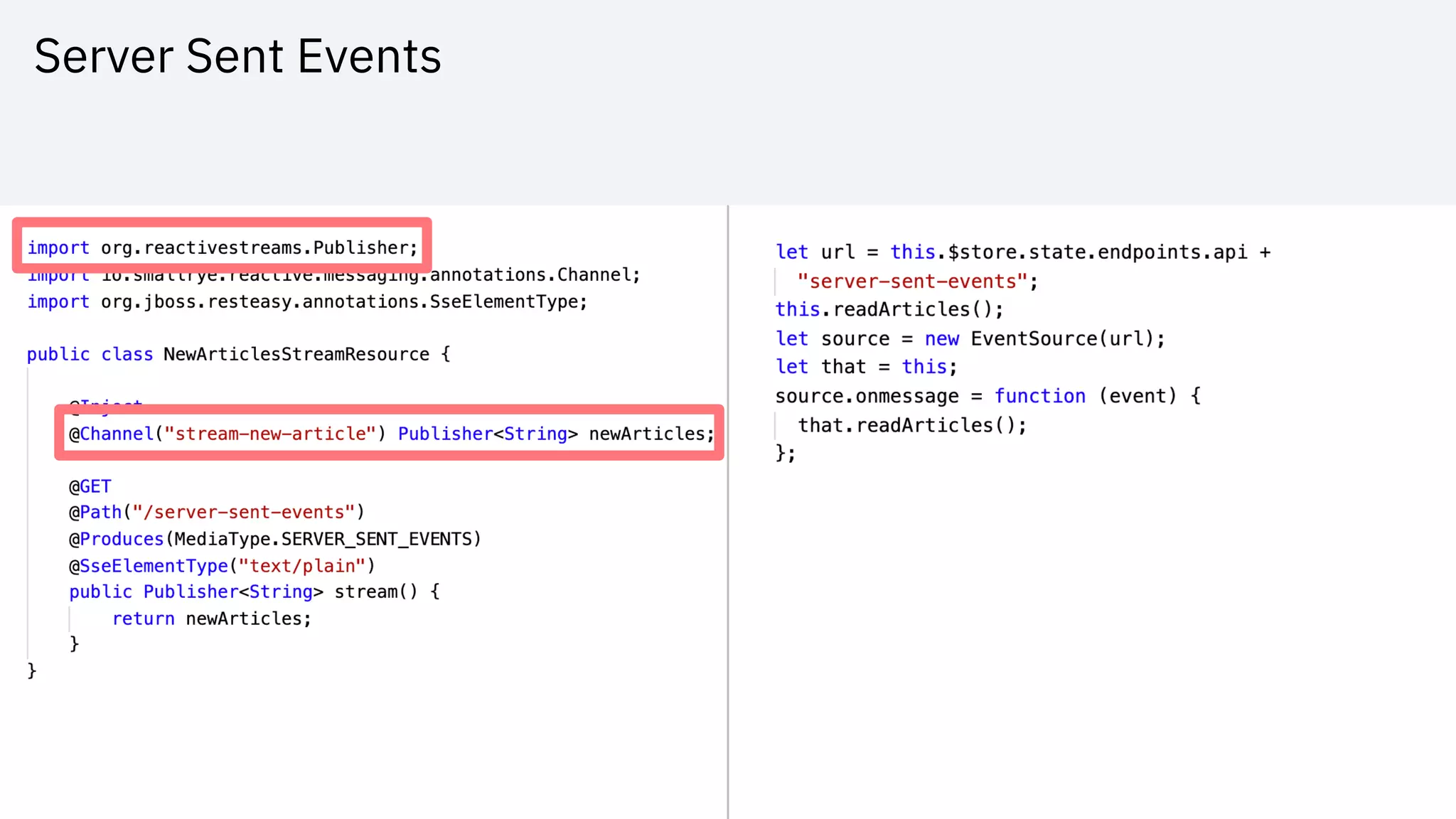

32. Server Sent Events

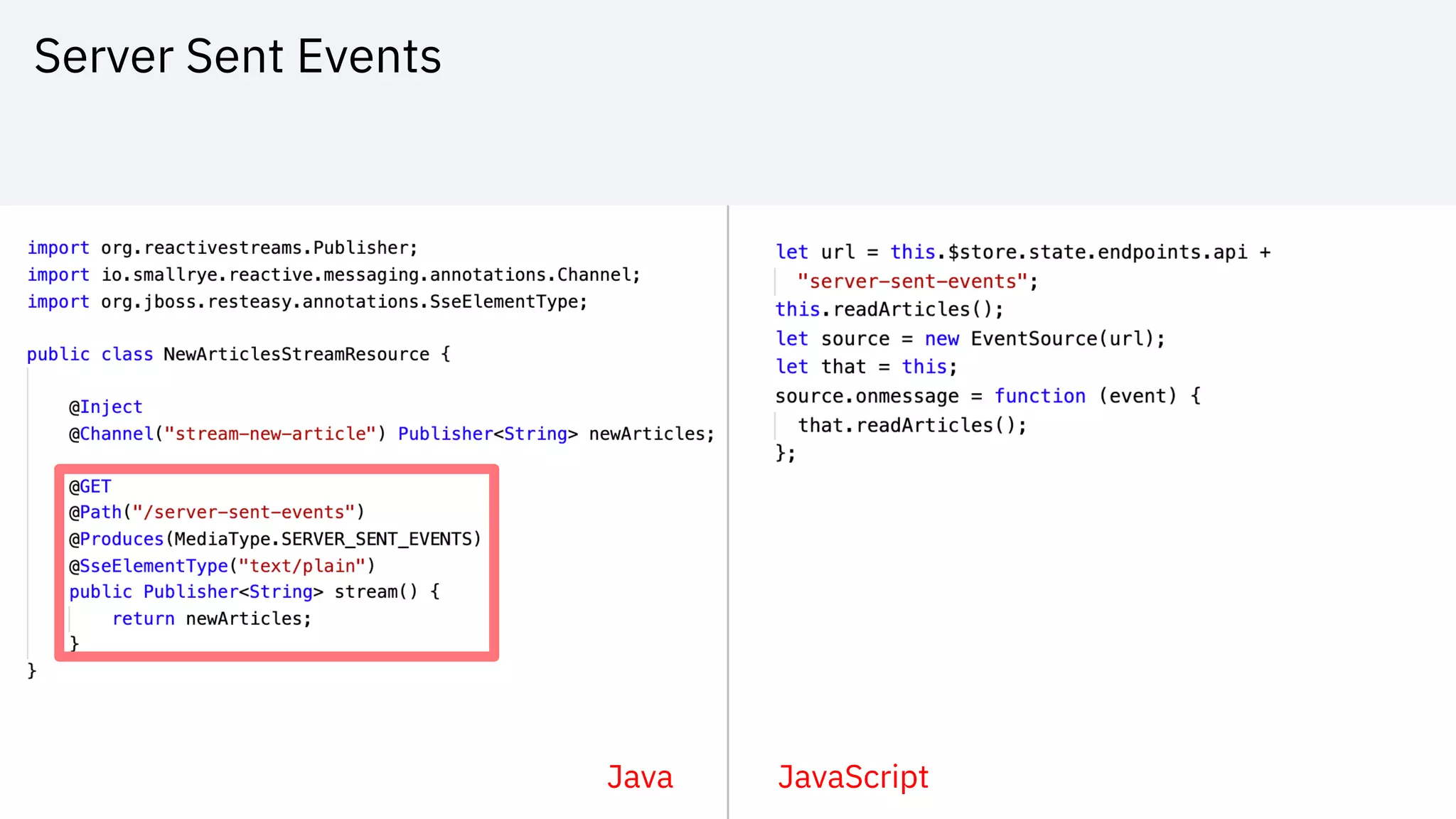

33. Server Sent Events
Java JavaScript

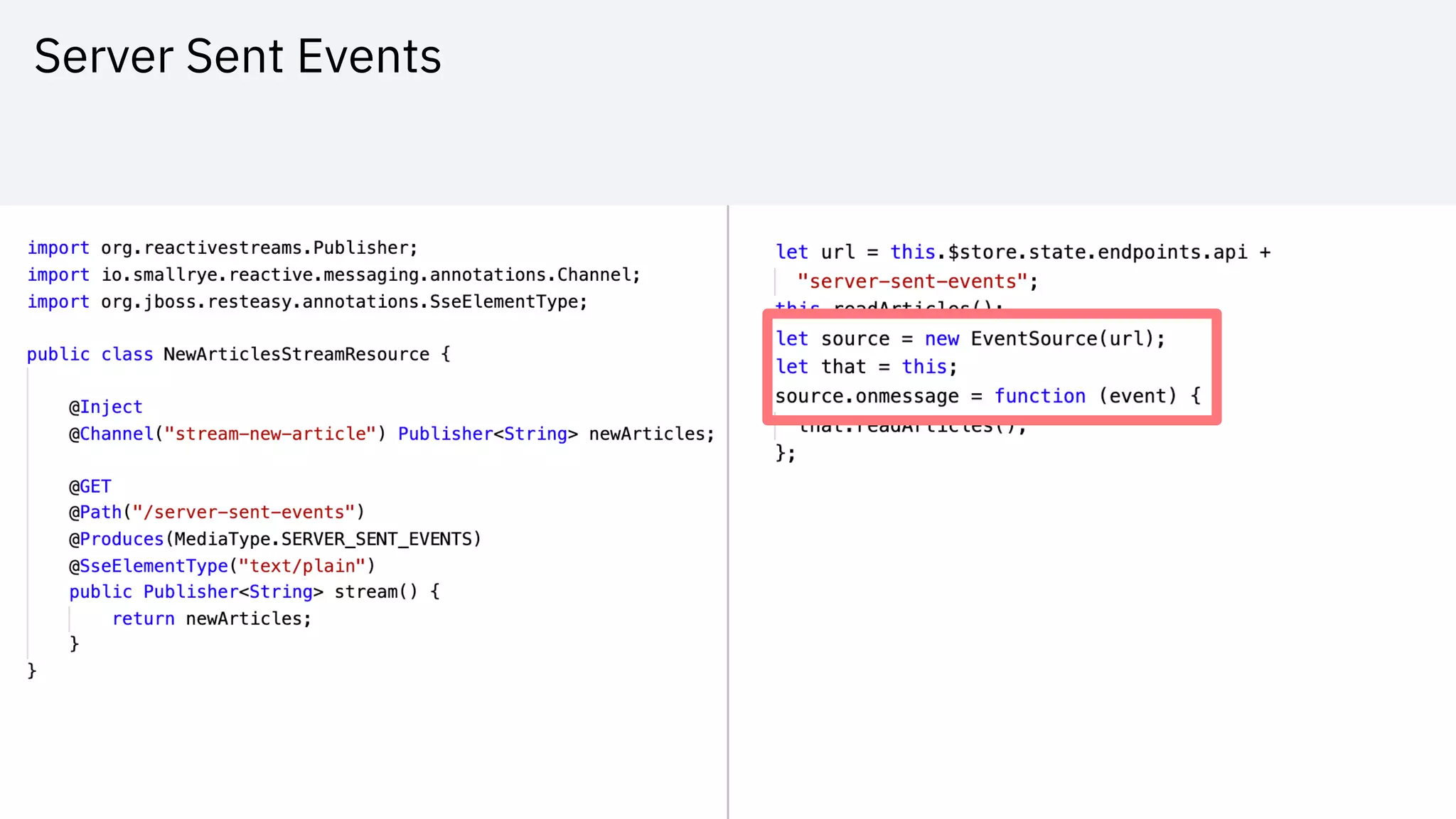

34. Server Sent Events

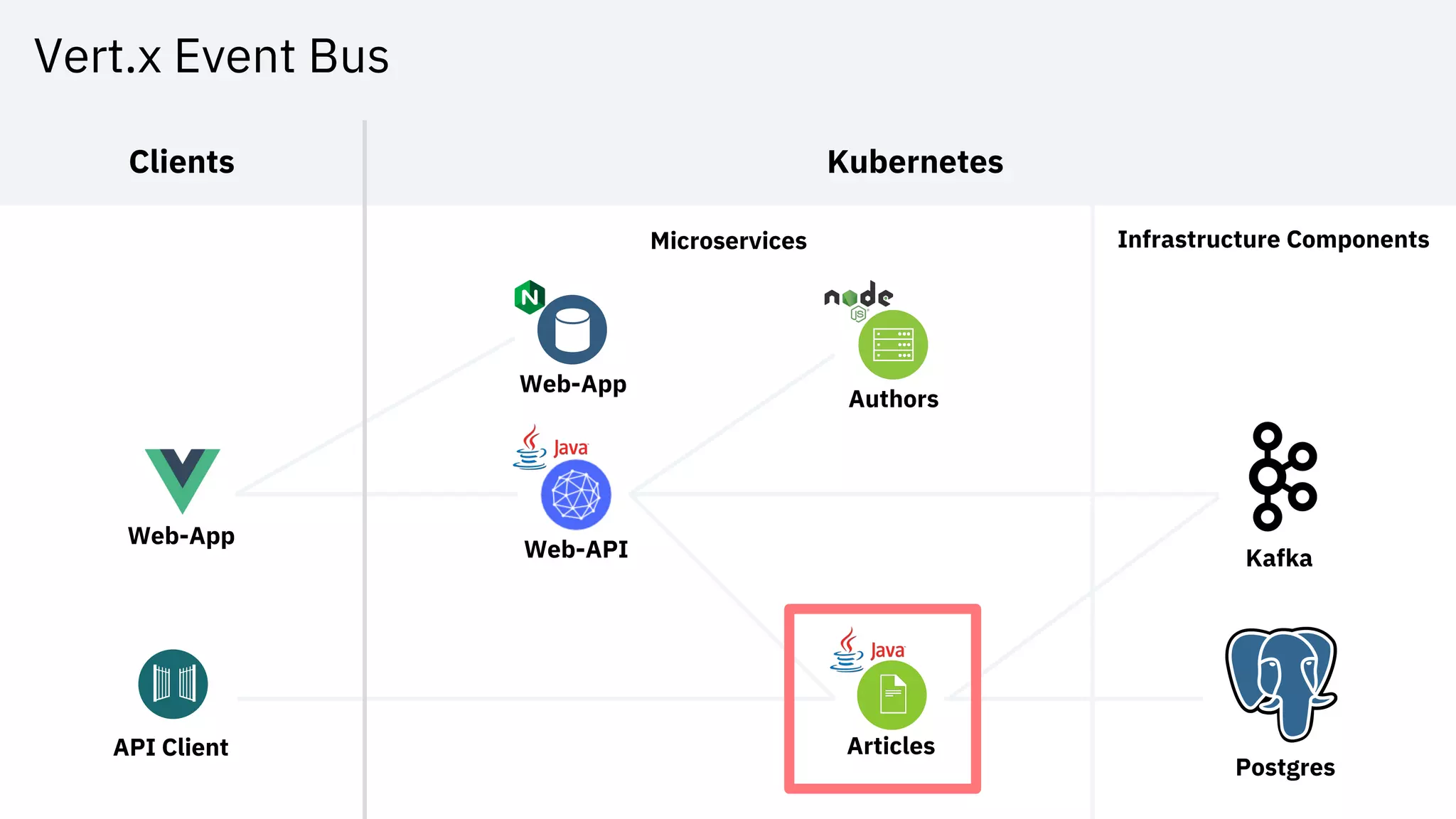

35. Vert.x Event Bus
Web-App
KafkaWeb-API
Articles
Authors
Web-App
Postgres
Clients
Microservices Infrastructure Components
Kubernetes
API Client

36. @nheidloff

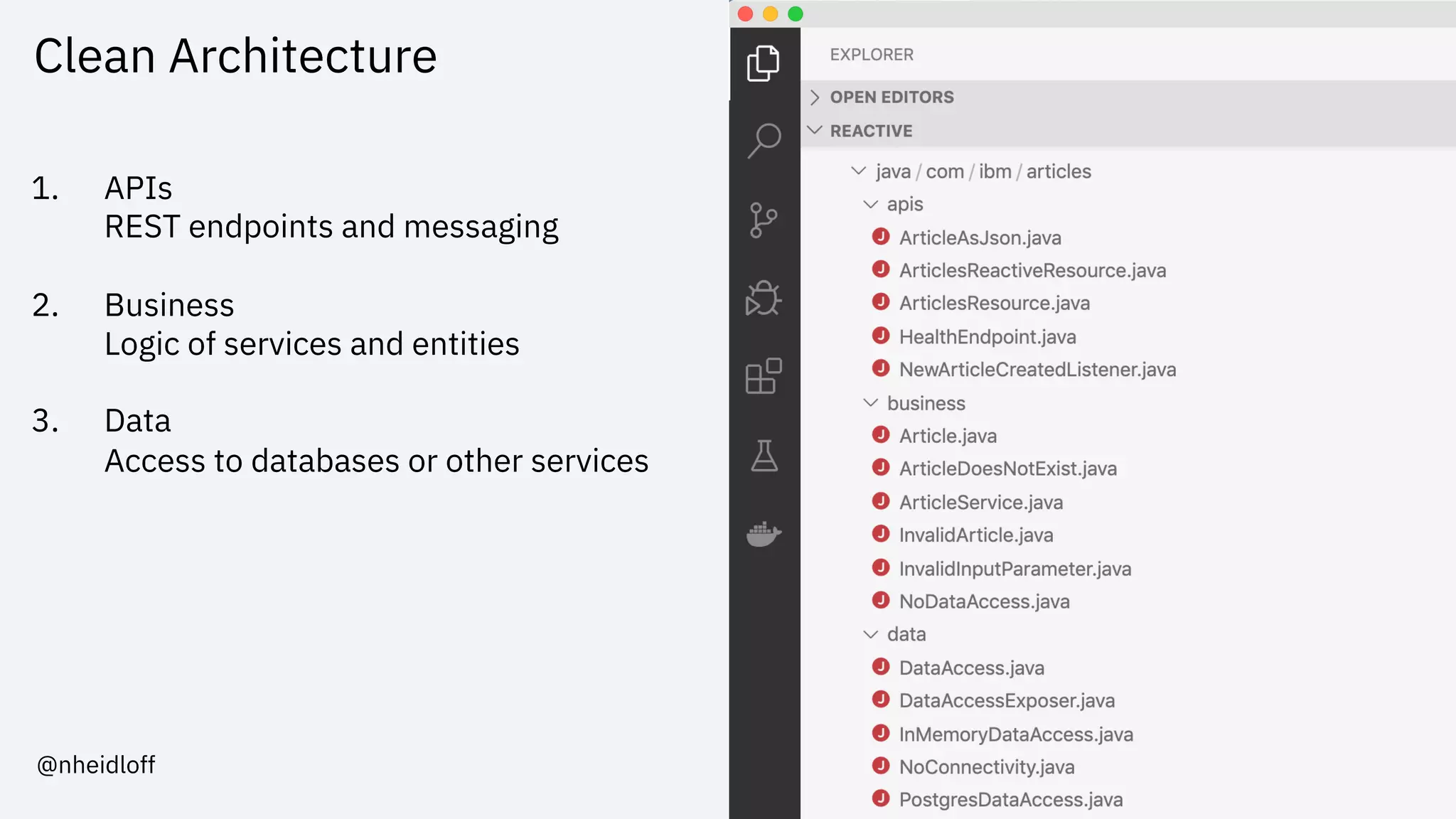

Clean Architecture
1. APIs
REST endpoints and messaging
2. Business
Logic of services and entities
3. Data
Access to databases or other services

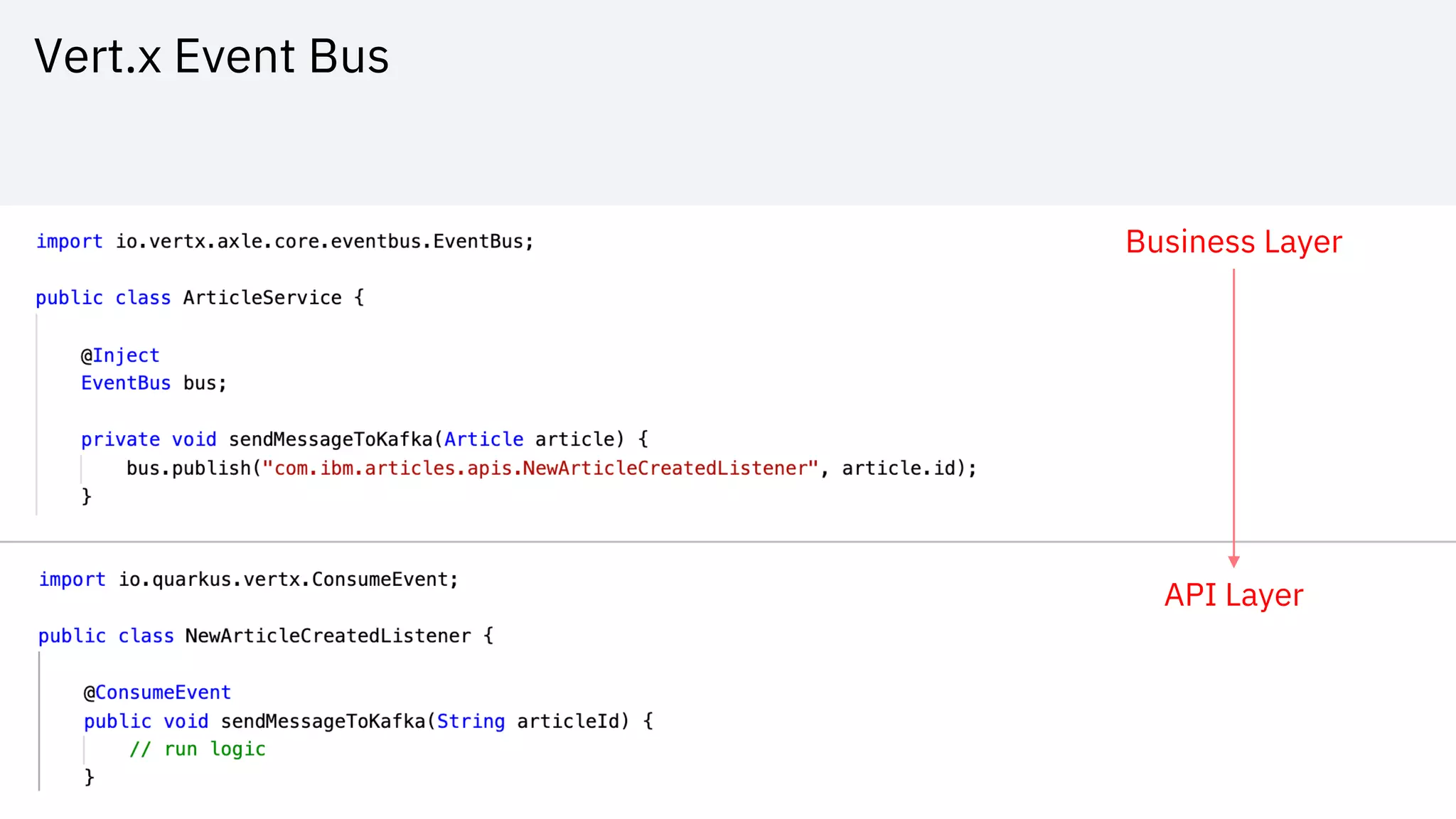

37. Vert.x Event Bus
Business Layer
API Layer

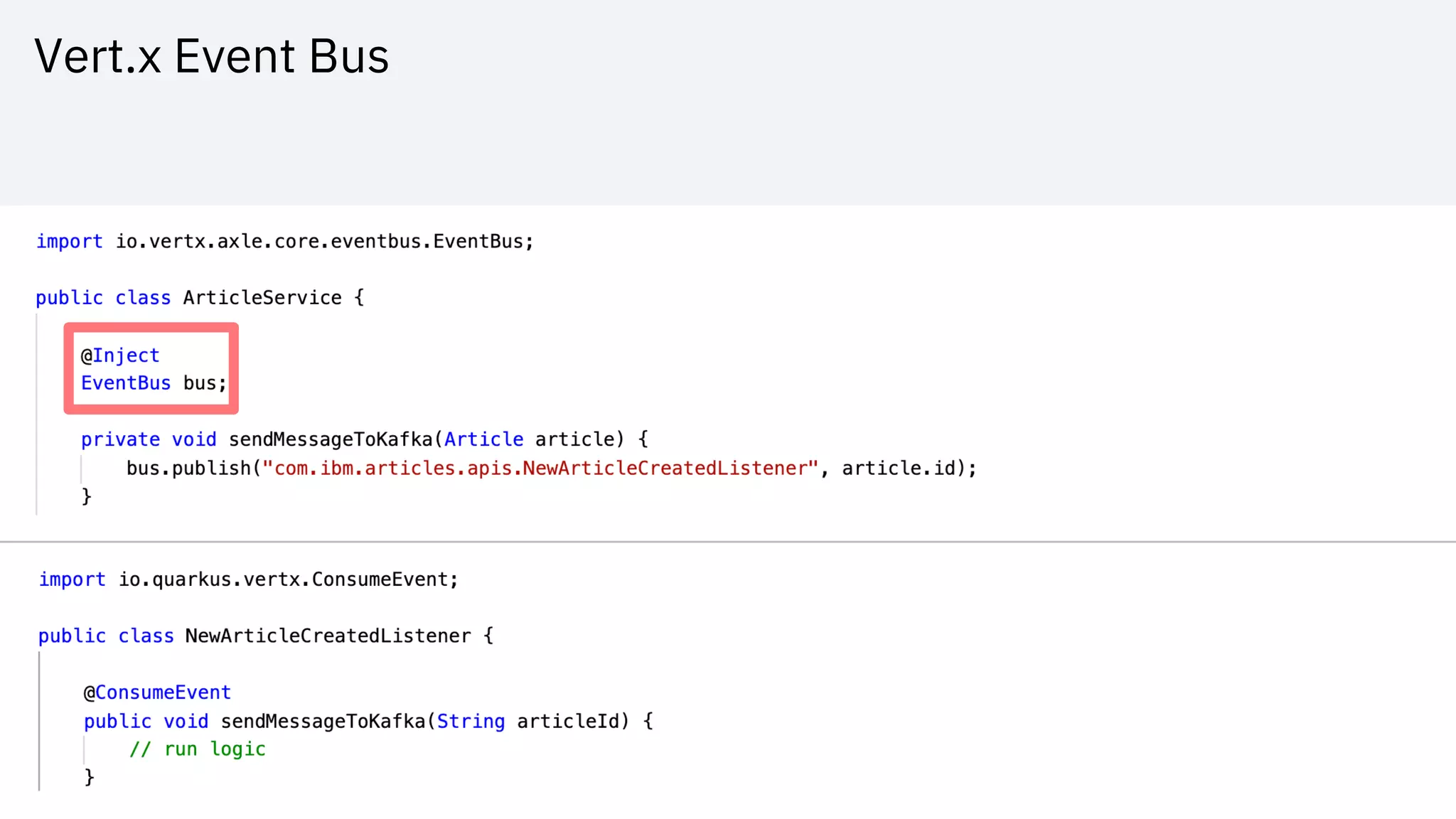

38. Vert.x Event Bus

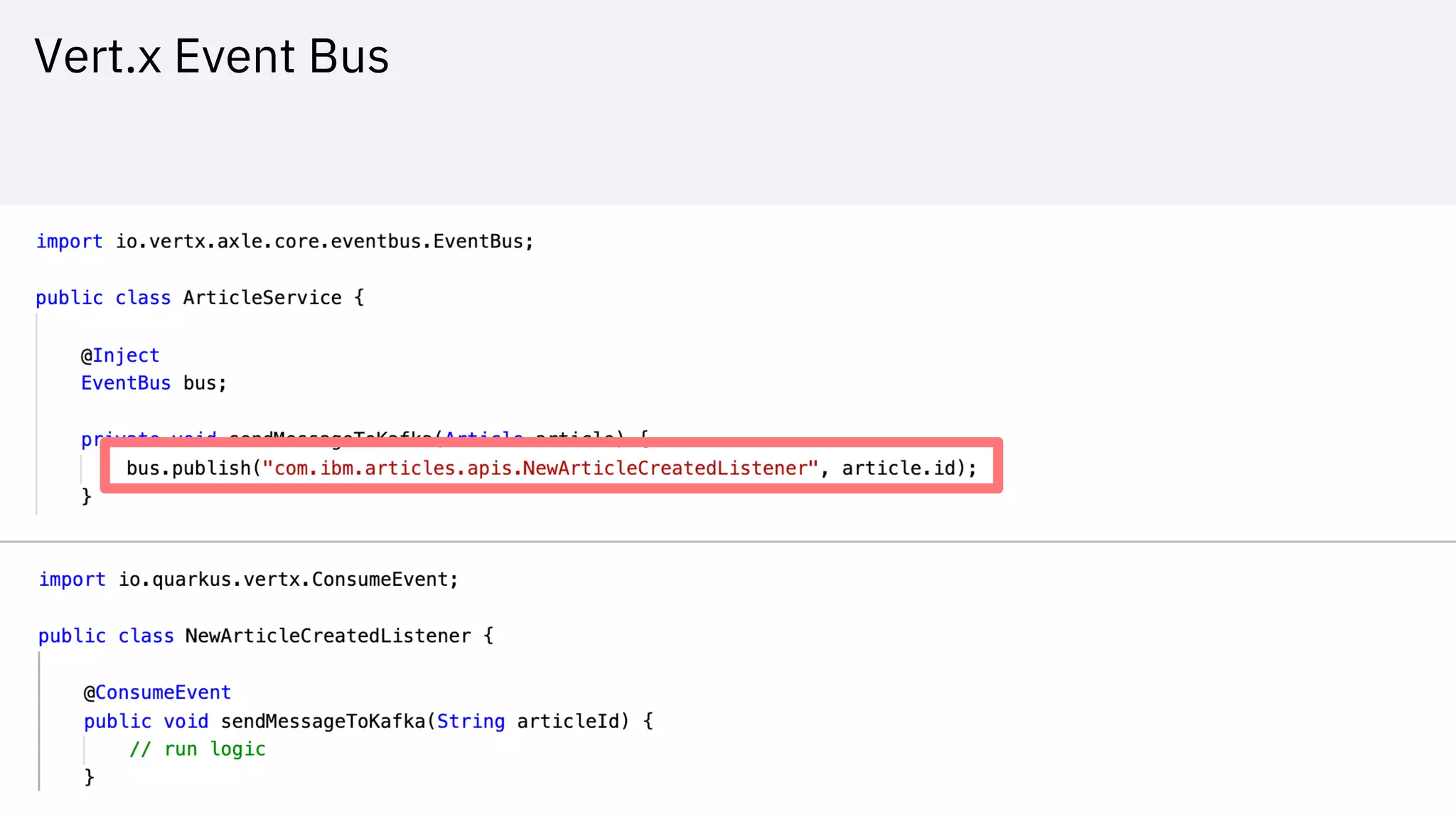

39. Vert.x Event Bus

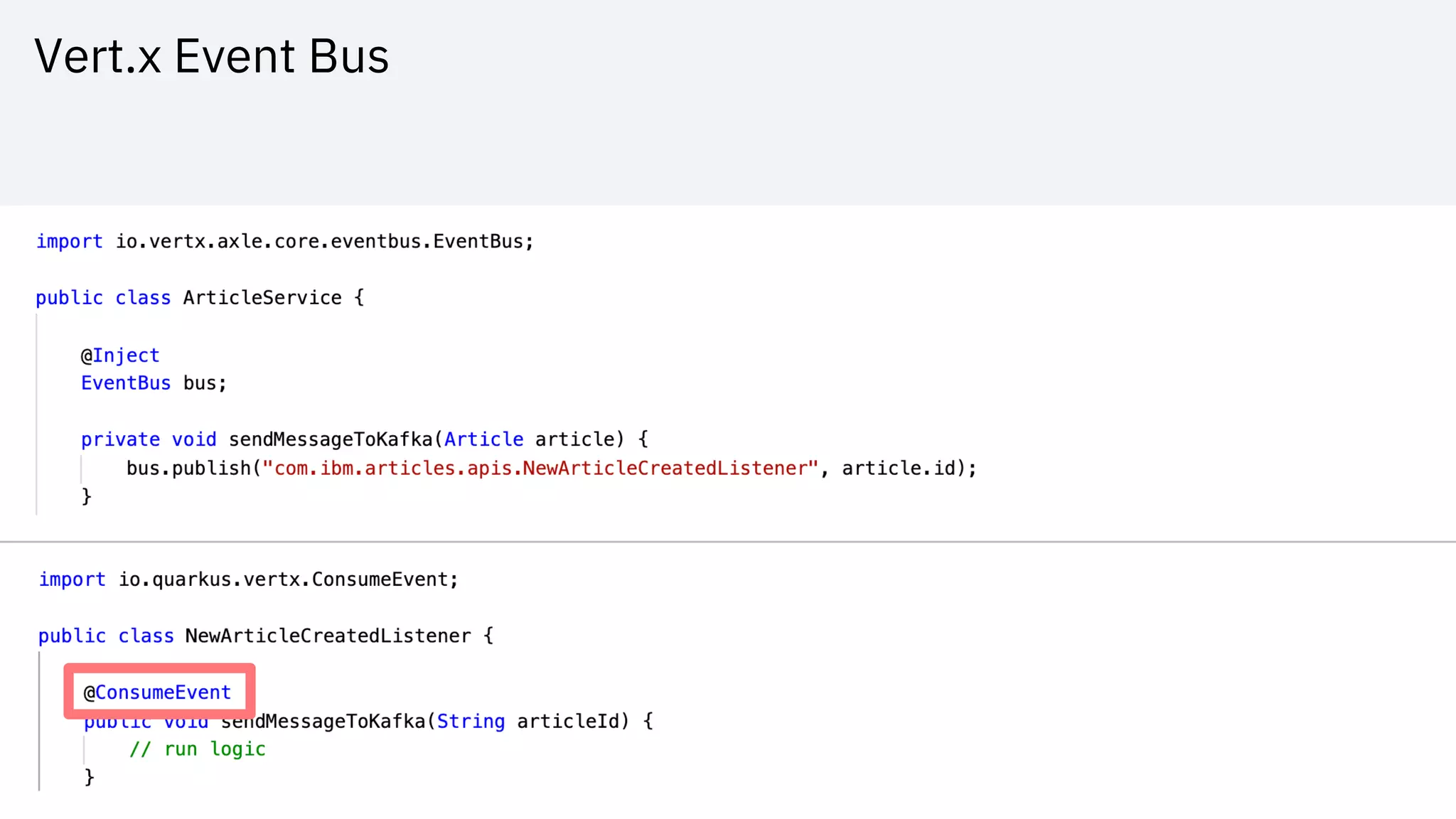

40. Vert.x Event Bus

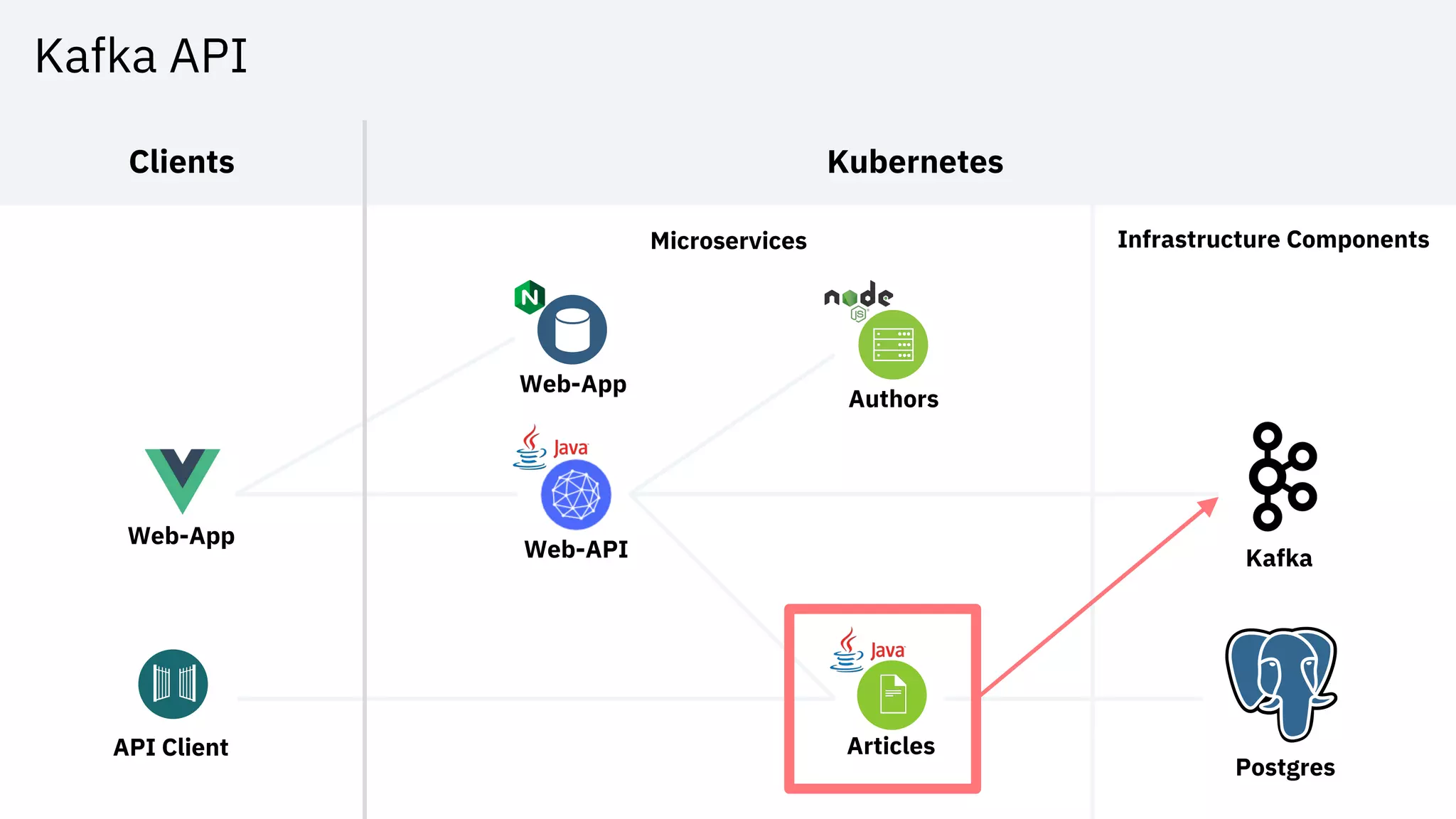

41. Kafka API
Web-App
KafkaWeb-API
Articles
Authors
Web-App
Postgres
Clients
Microservices Infrastructure Components
Kubernetes
API Client

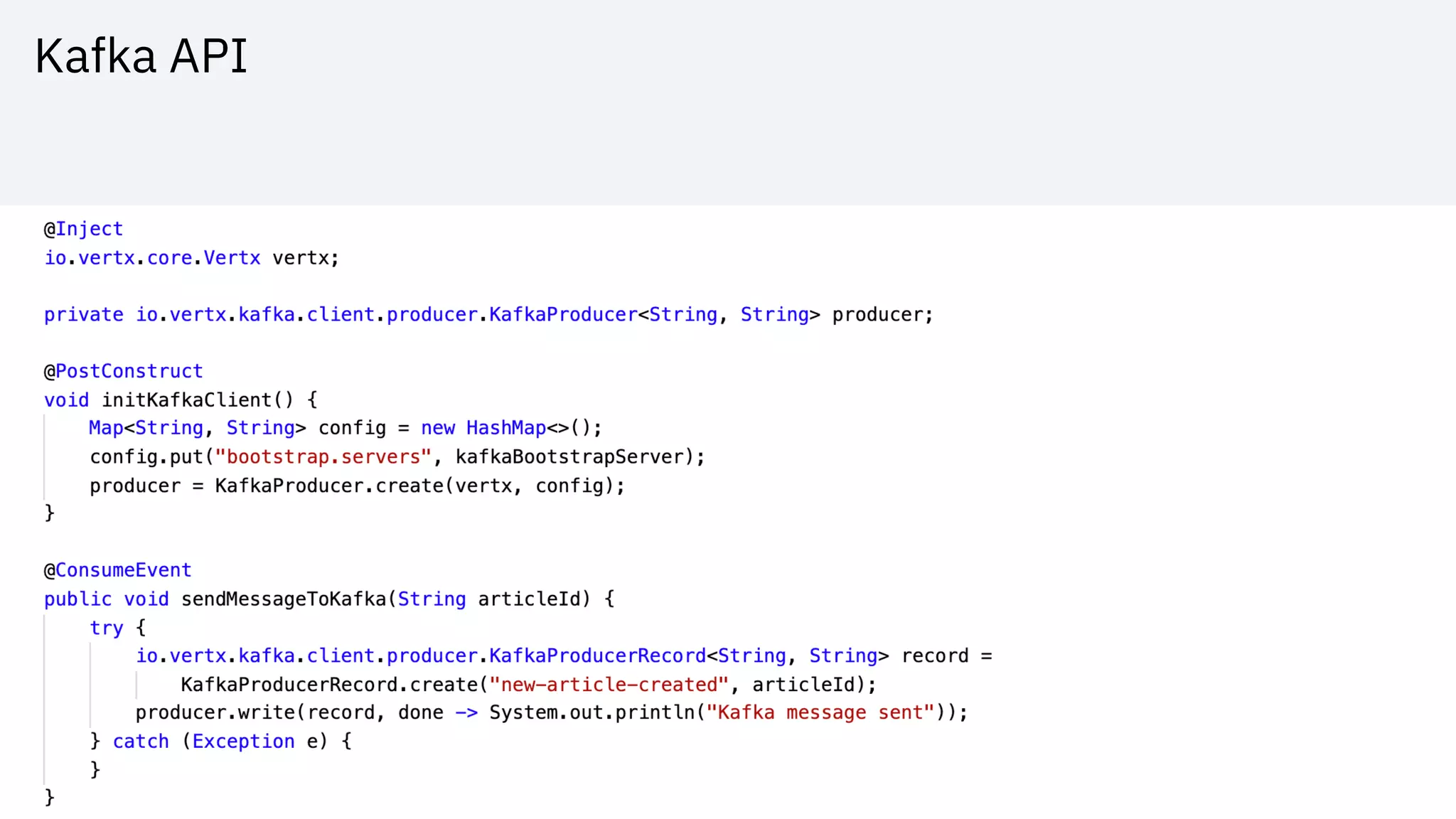

42. Kafka API

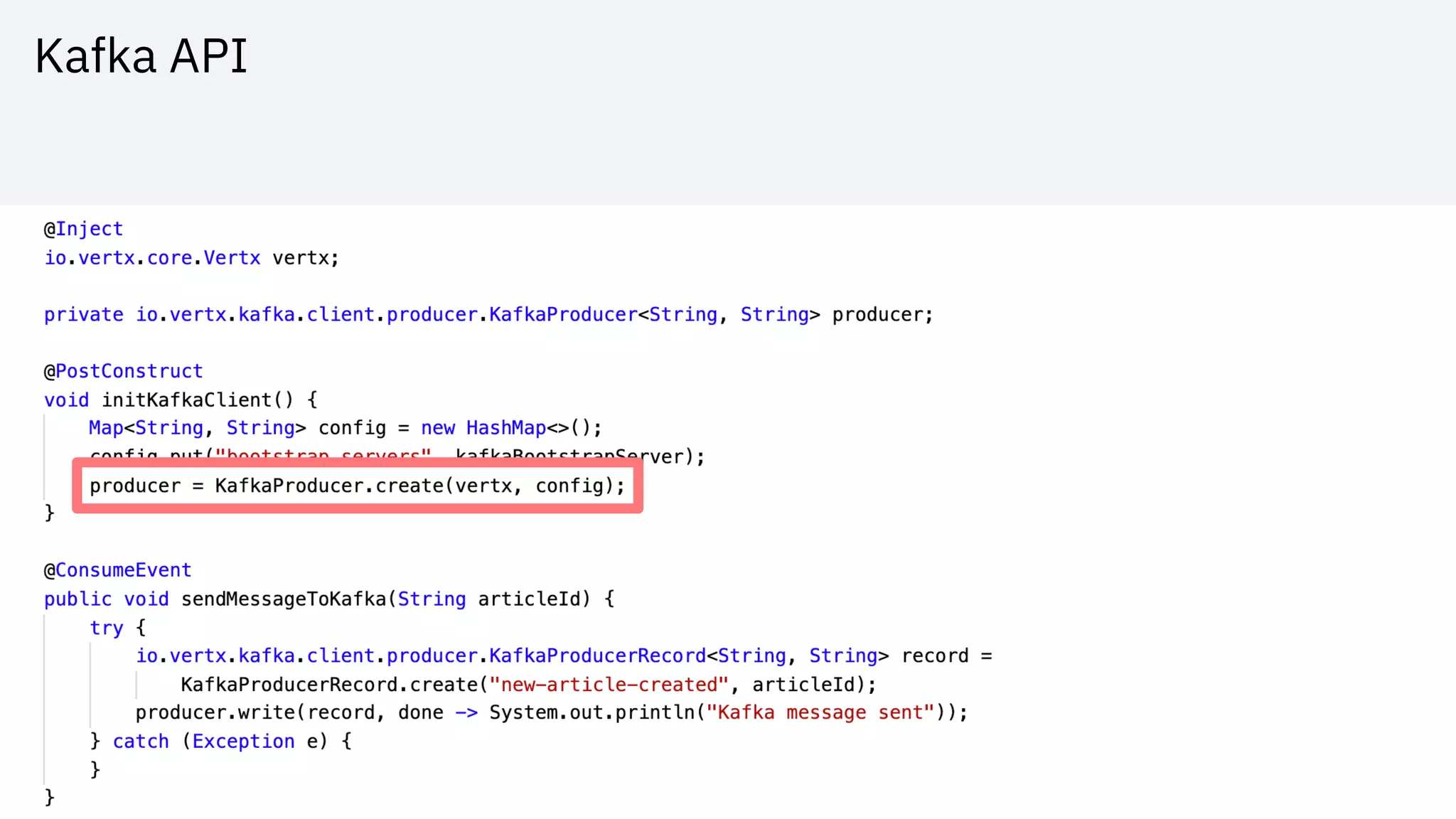

43. Kafka API

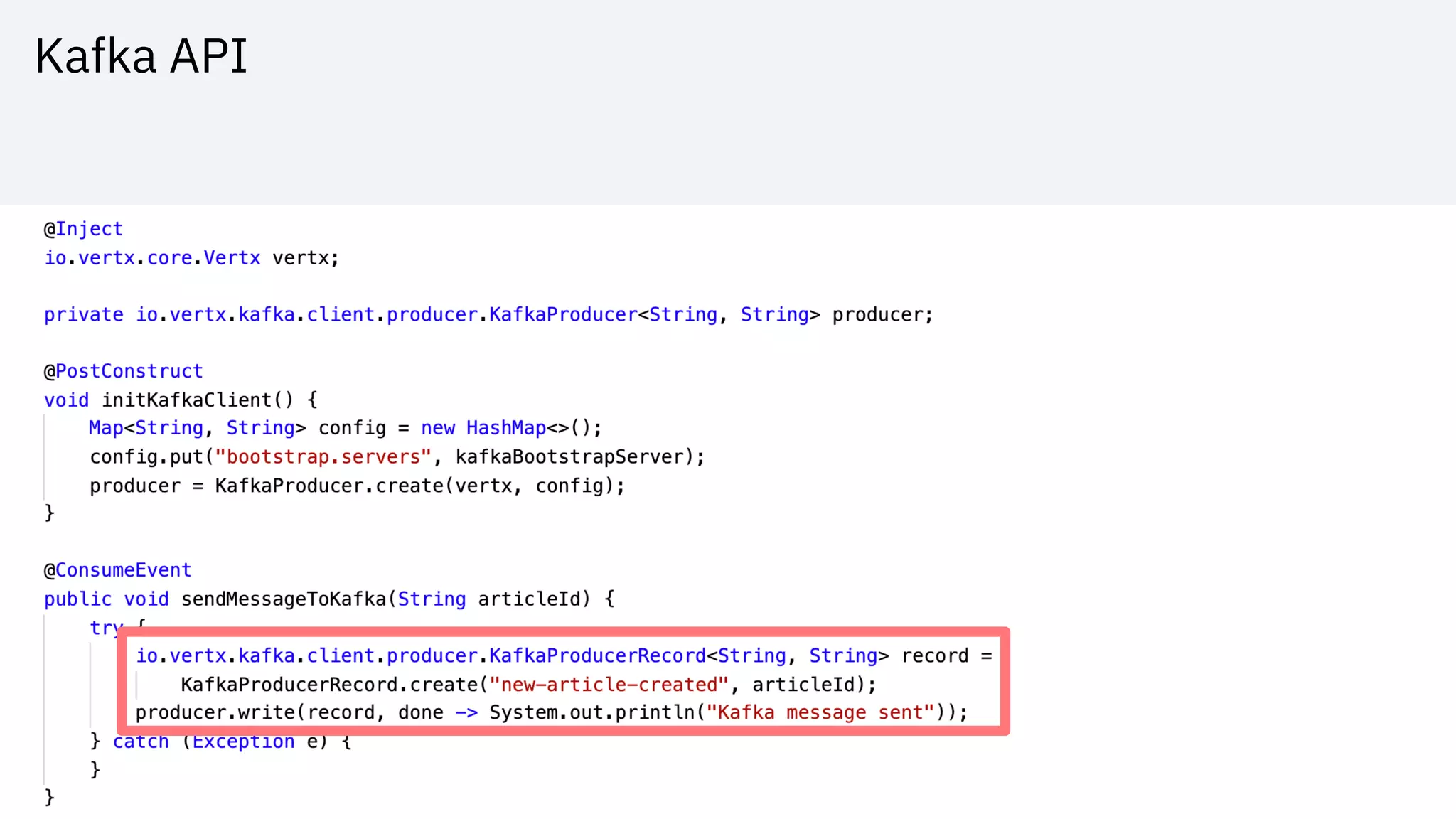

44. Kafka API

45. Reactive REST Endpoints

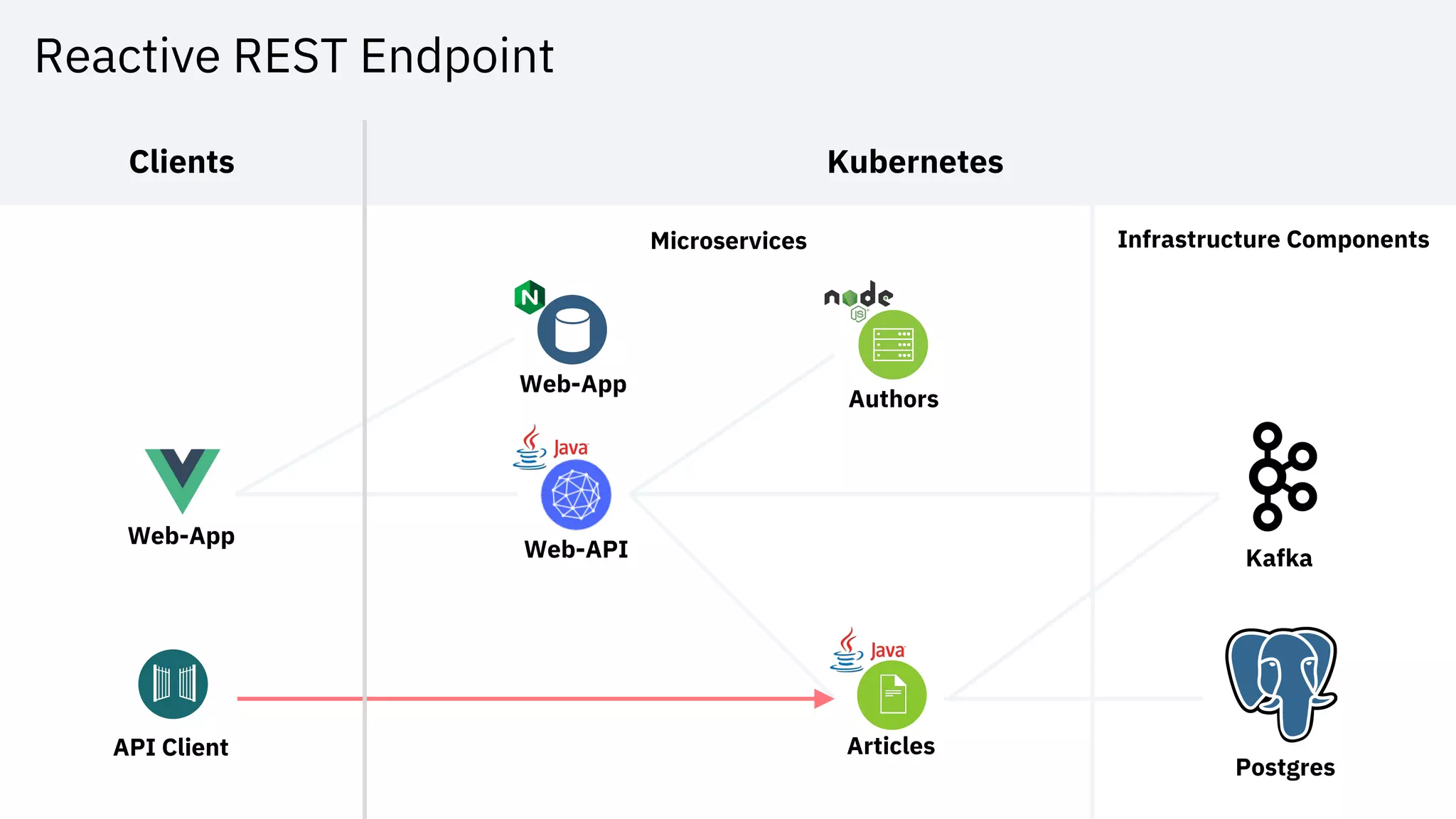

46. Reactive REST Endpoint
Web-App
KafkaWeb-API
Articles
Authors
Web-App
Postgres
Clients
Microservices Infrastructure Components
Kubernetes
API Client

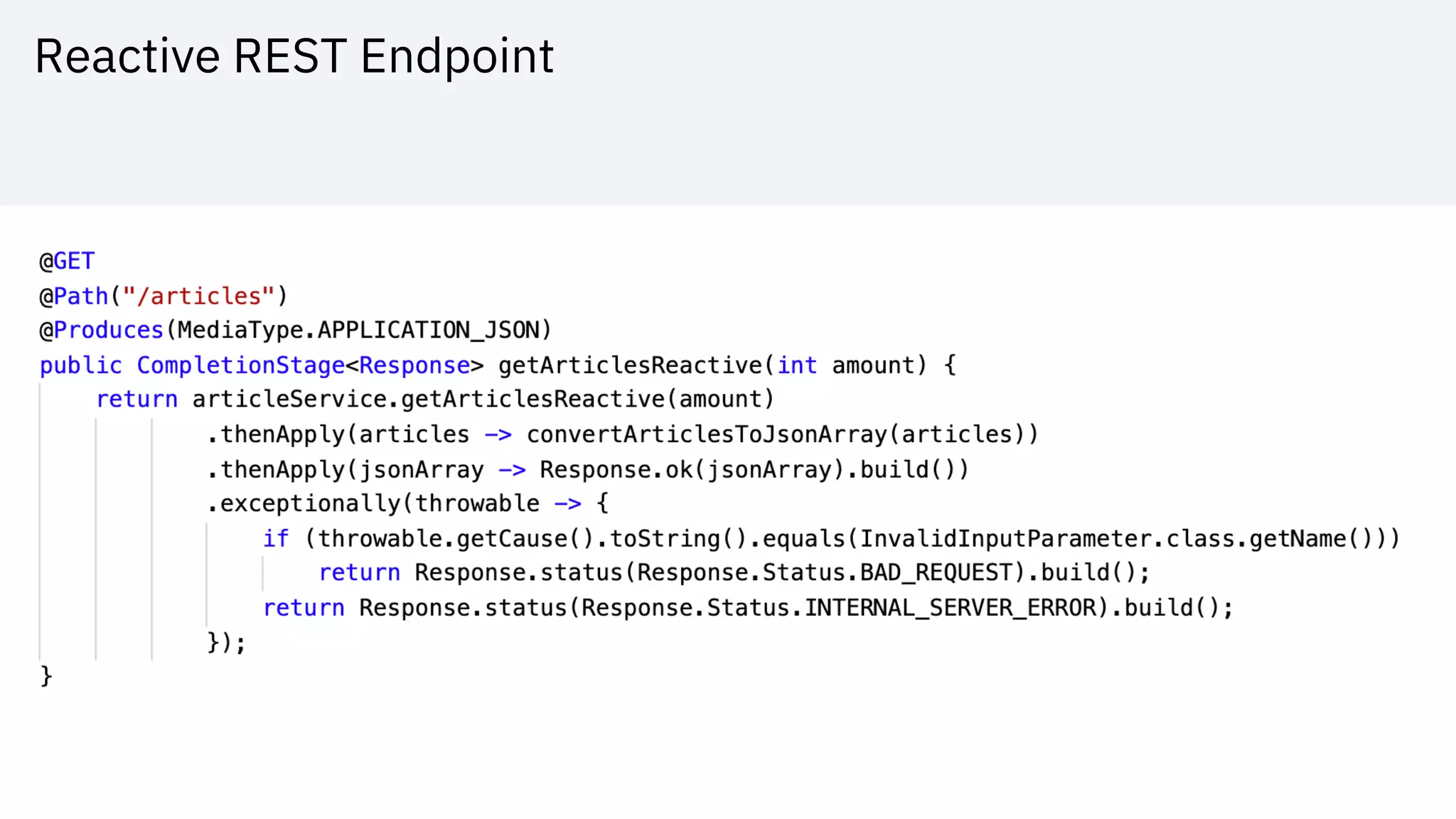

47. Reactive REST Endpoint

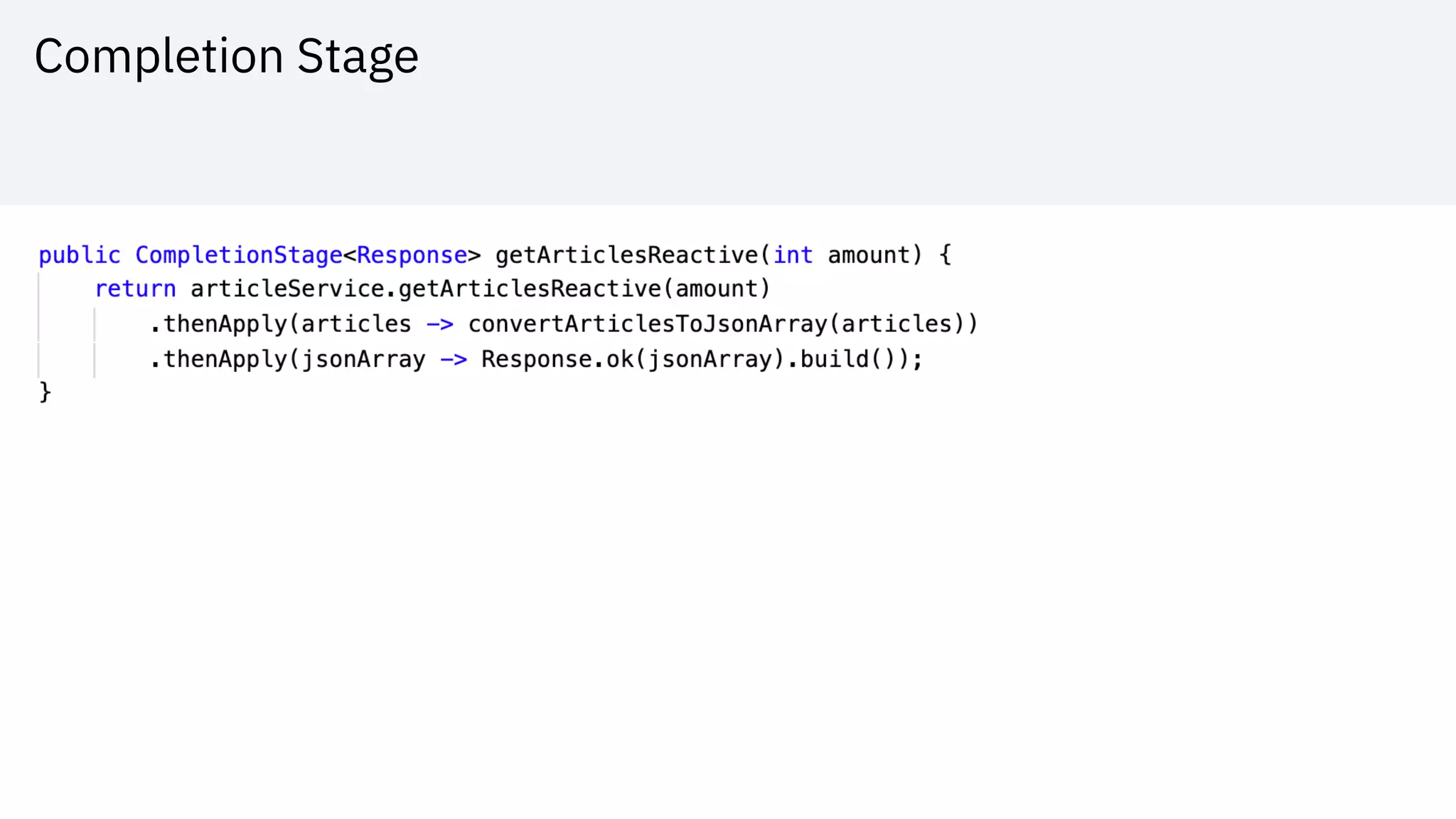

48. Completion Stage

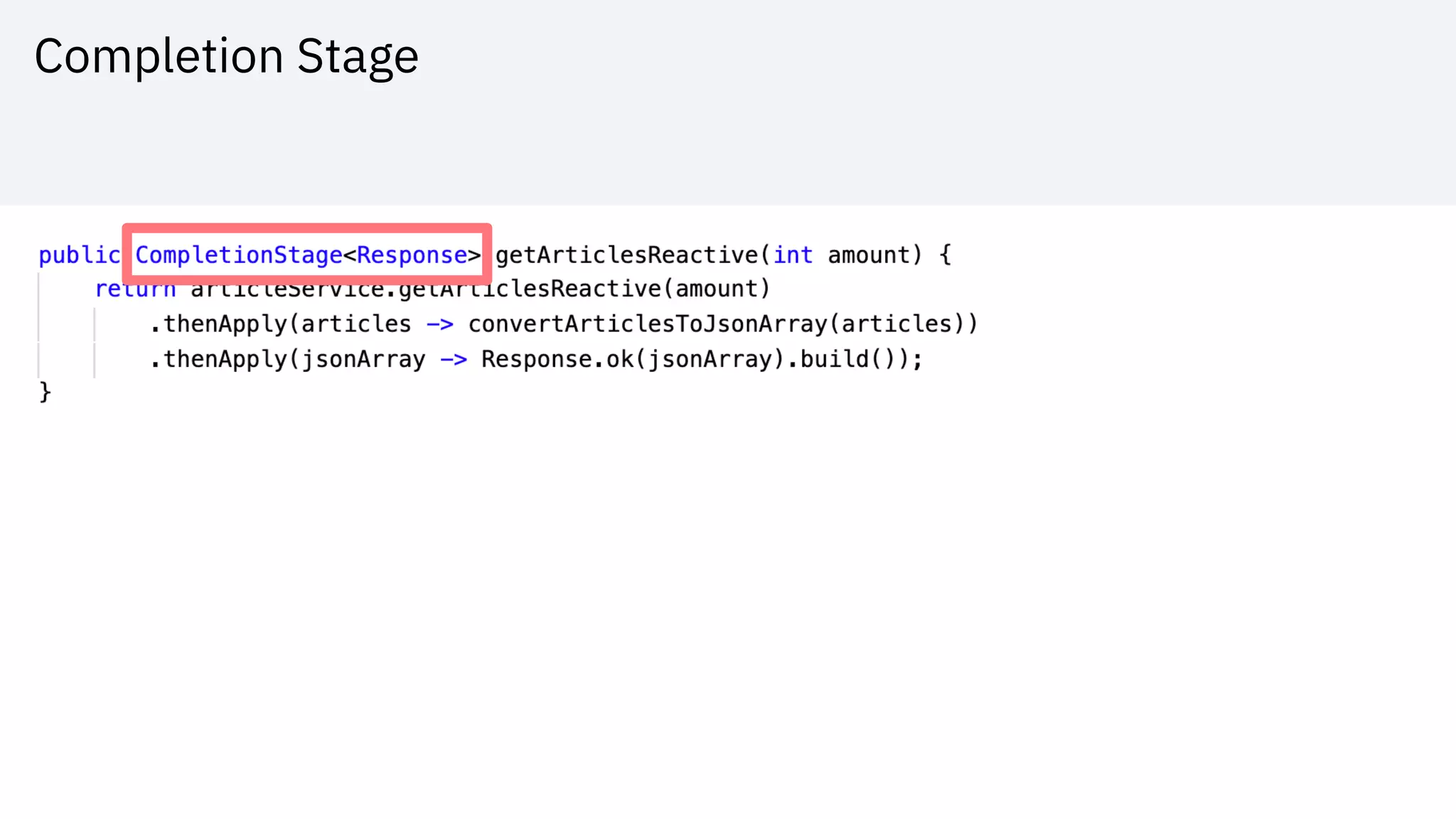

49. Completion Stage

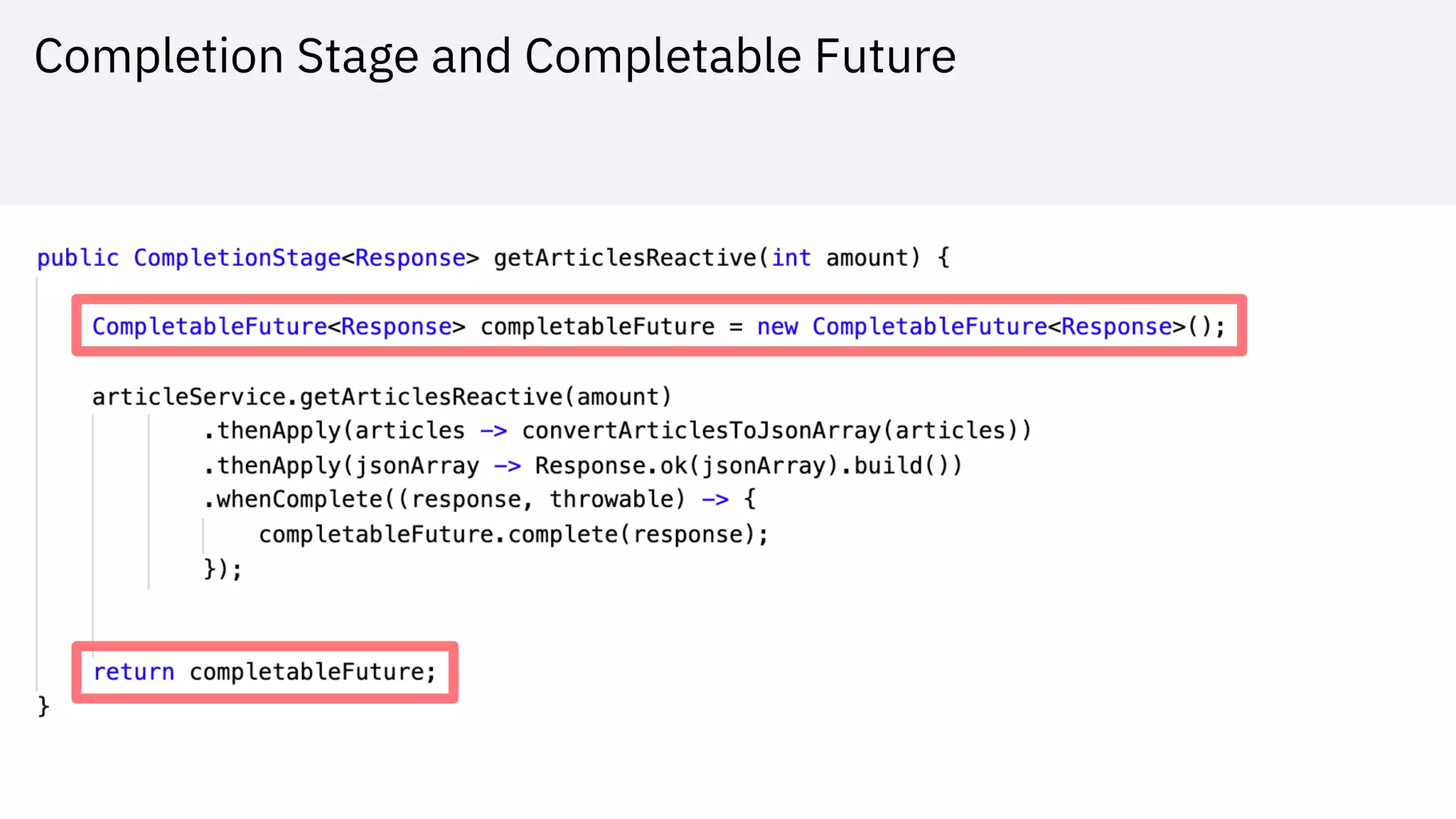

50. Completion Stage and Completable Future

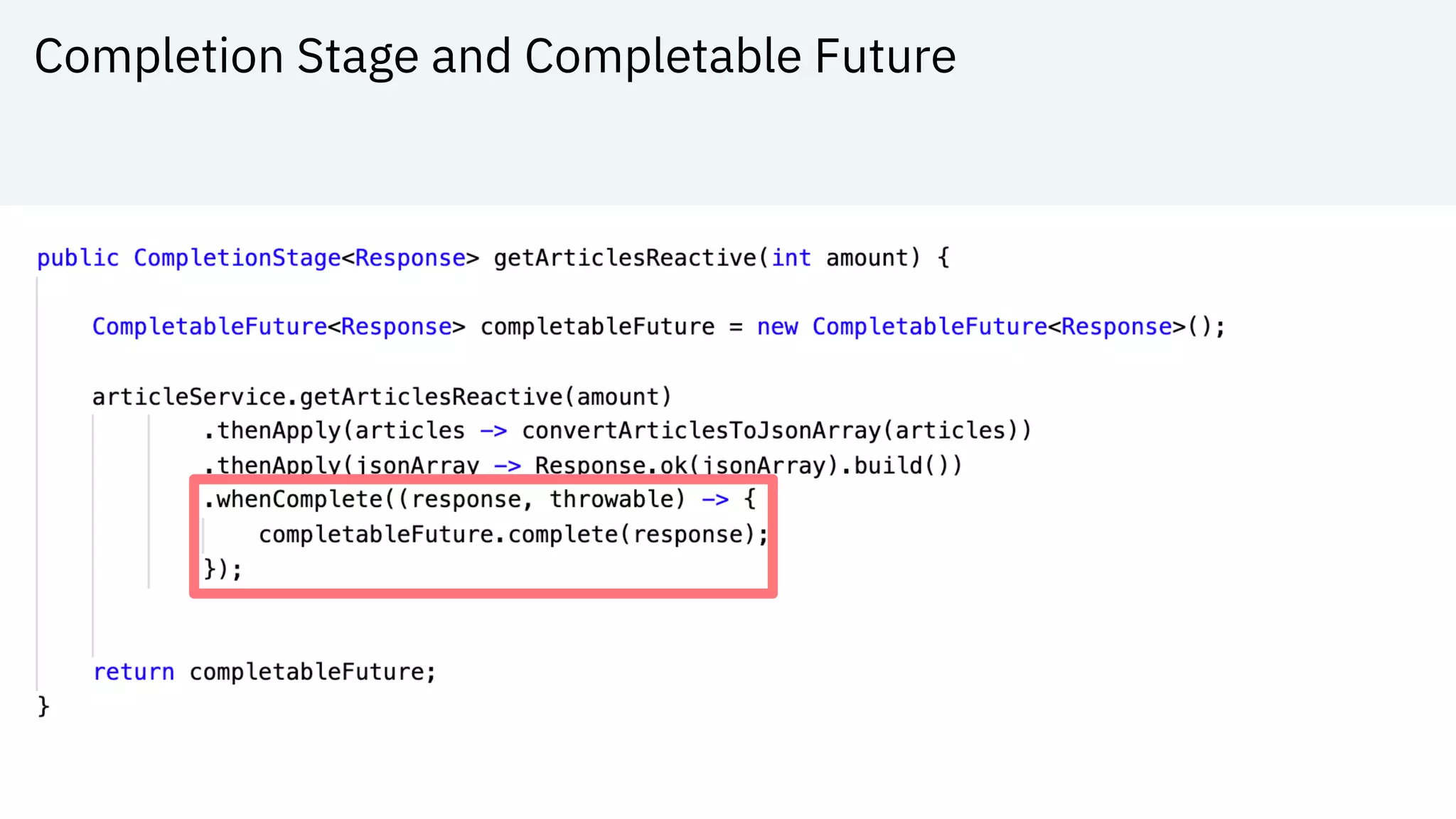

51. Completion Stage and Completable Future

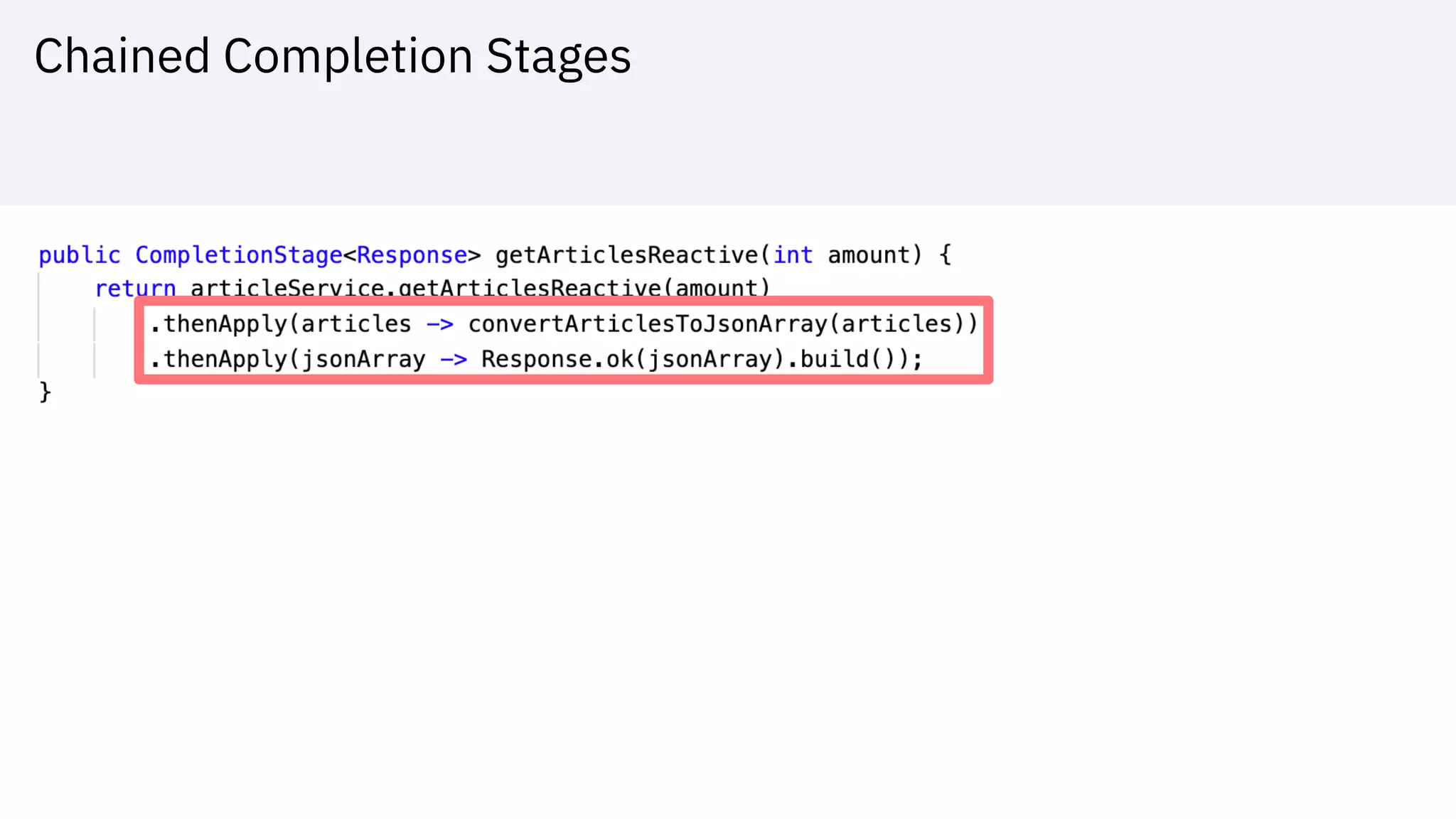

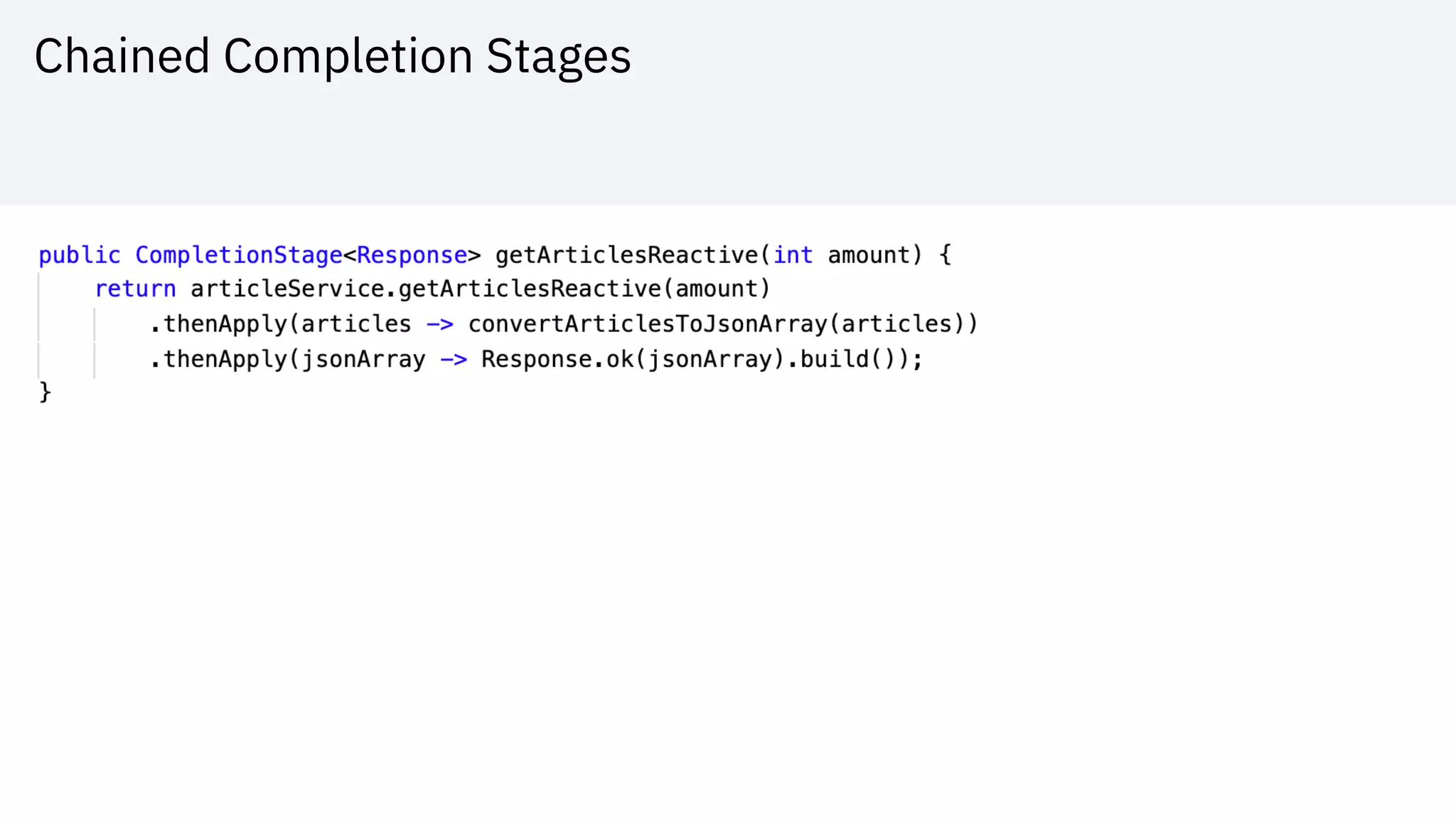

52. Chained Completion Stages

53. Chained Completion Stages

54. Chained Completion Stages

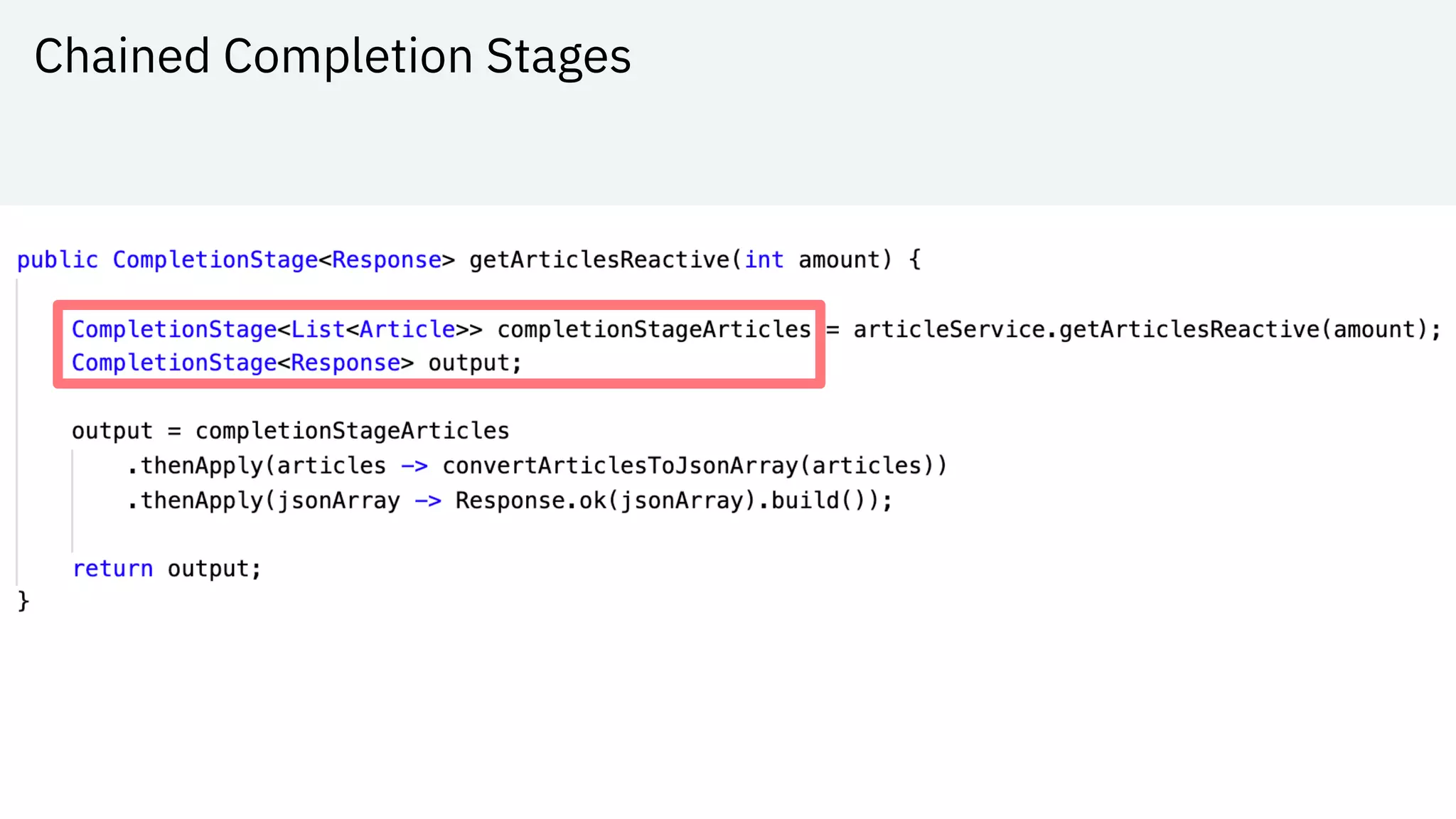

55. Chained Completion Stages

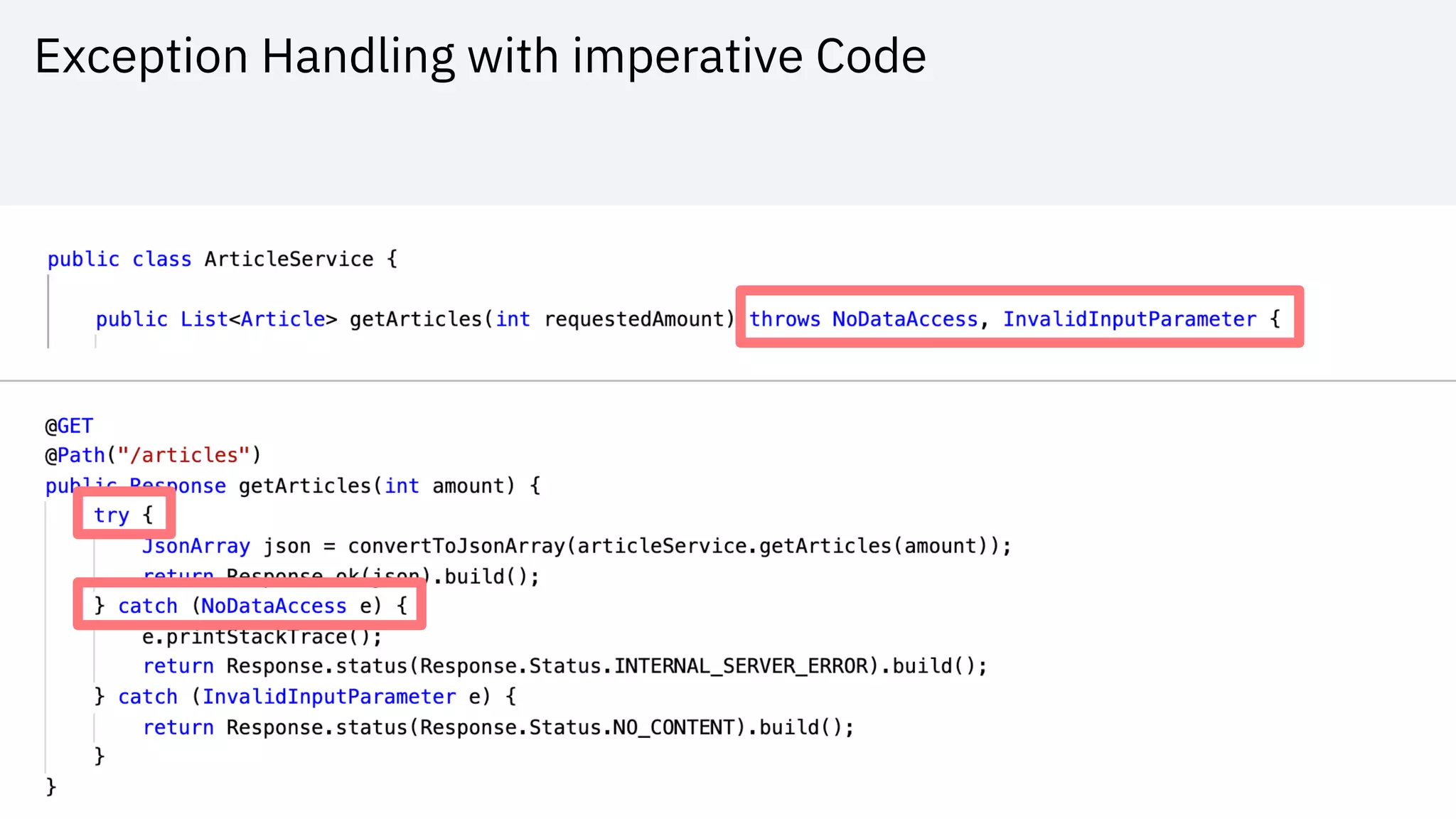

56. Exception Handling with imperative Code

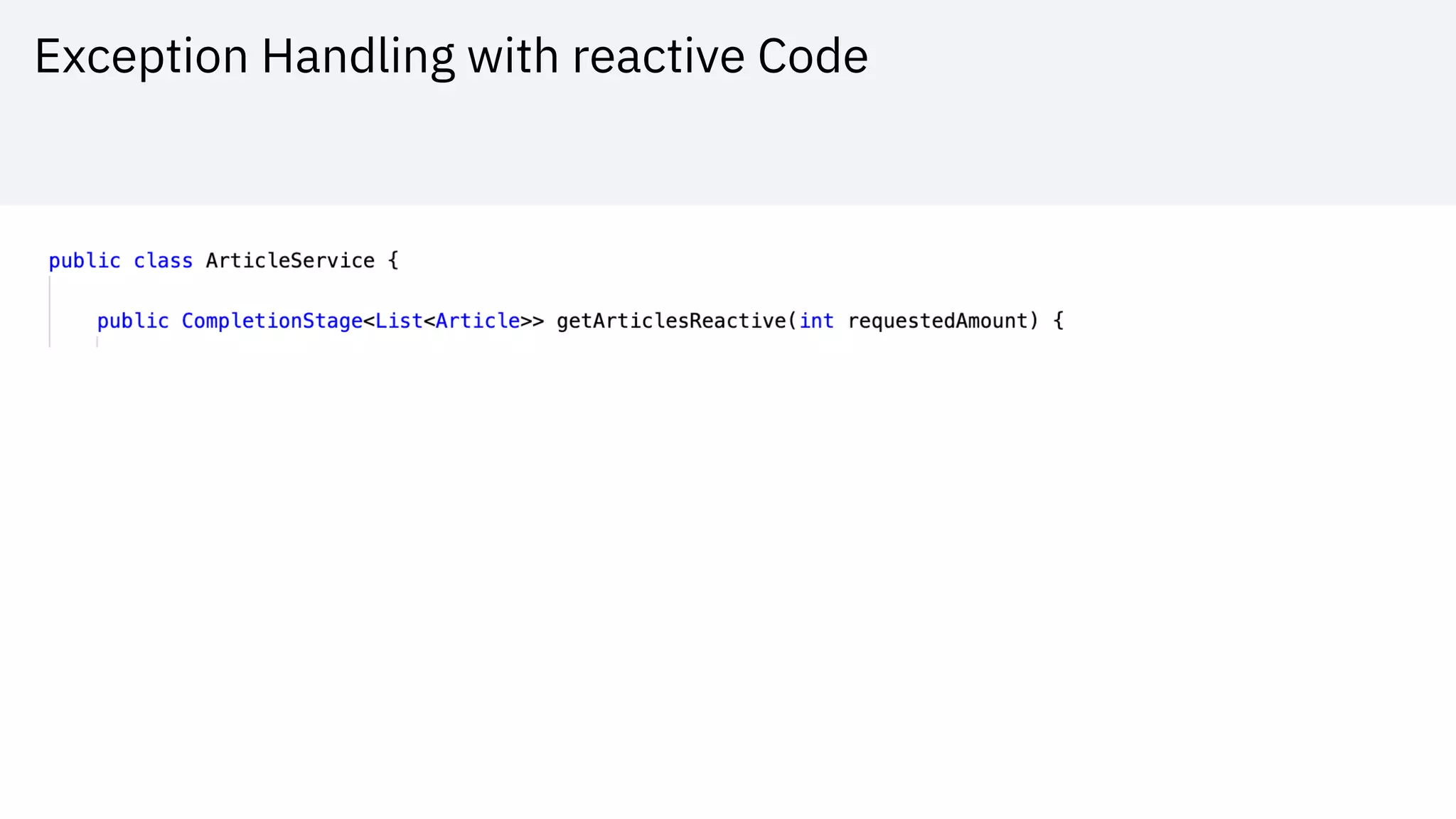

57. Exception Handling with reactive Code

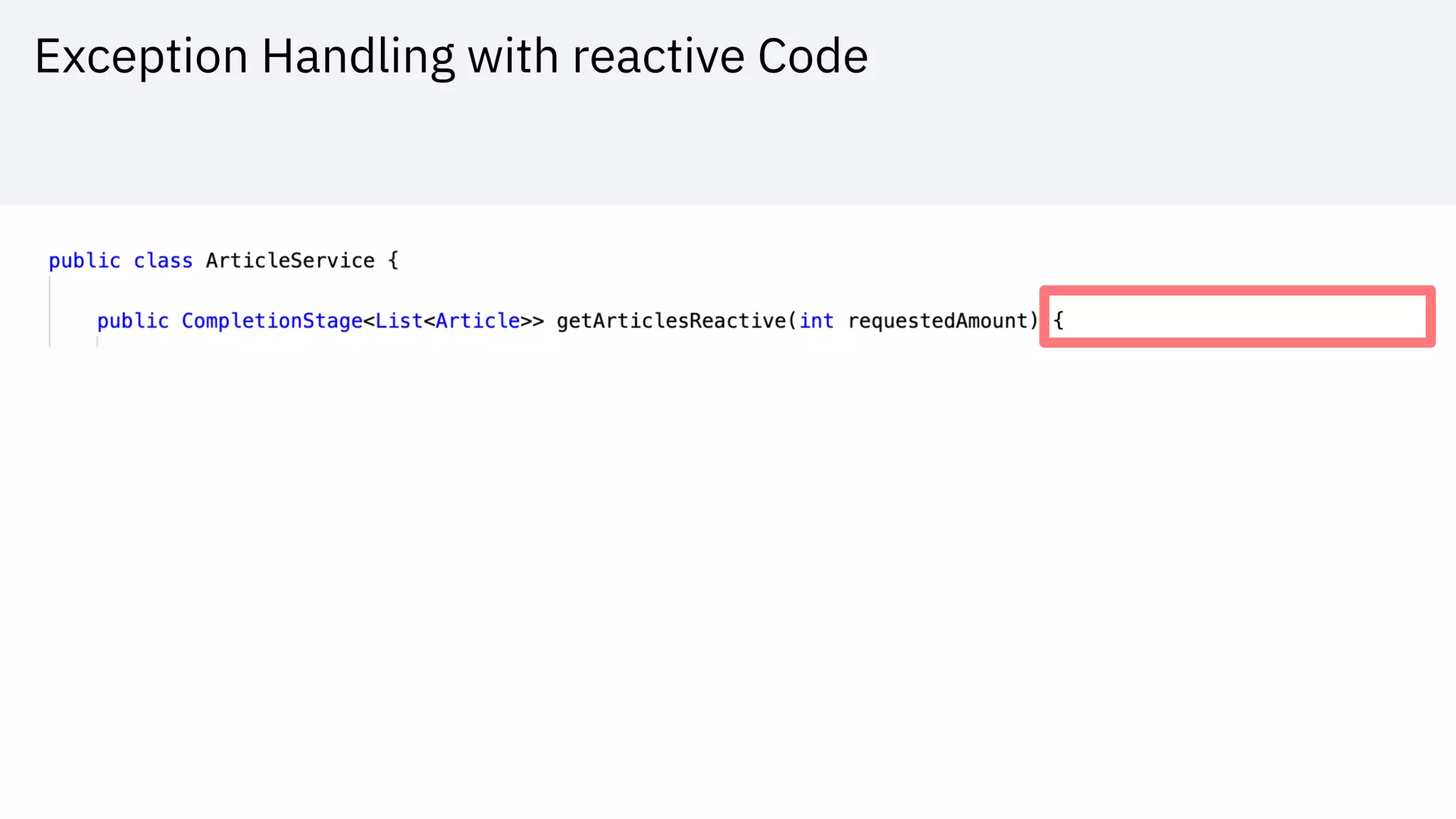

58. Exception Handling with reactive Code

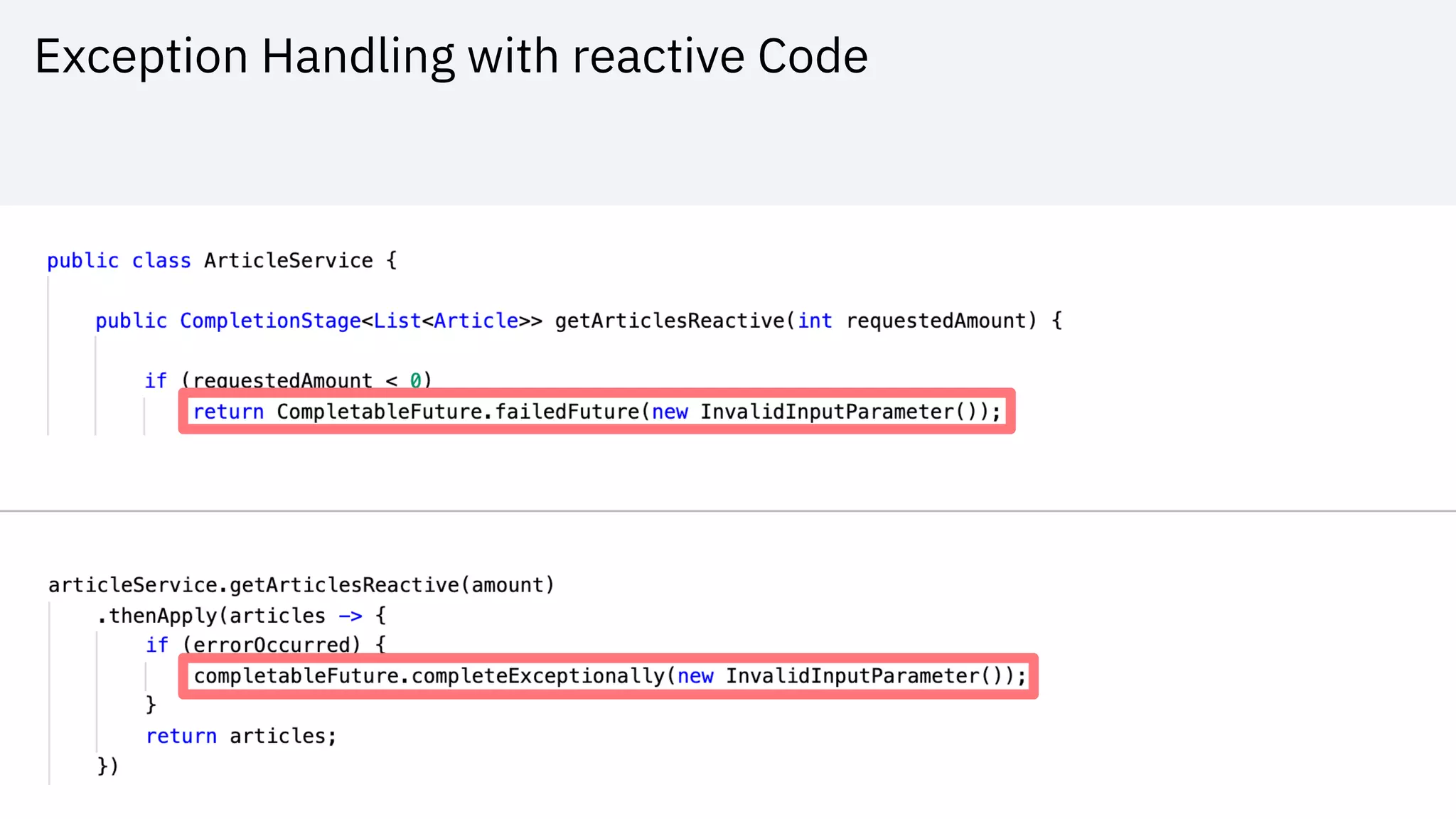

59. Exception Handling with reactive Code

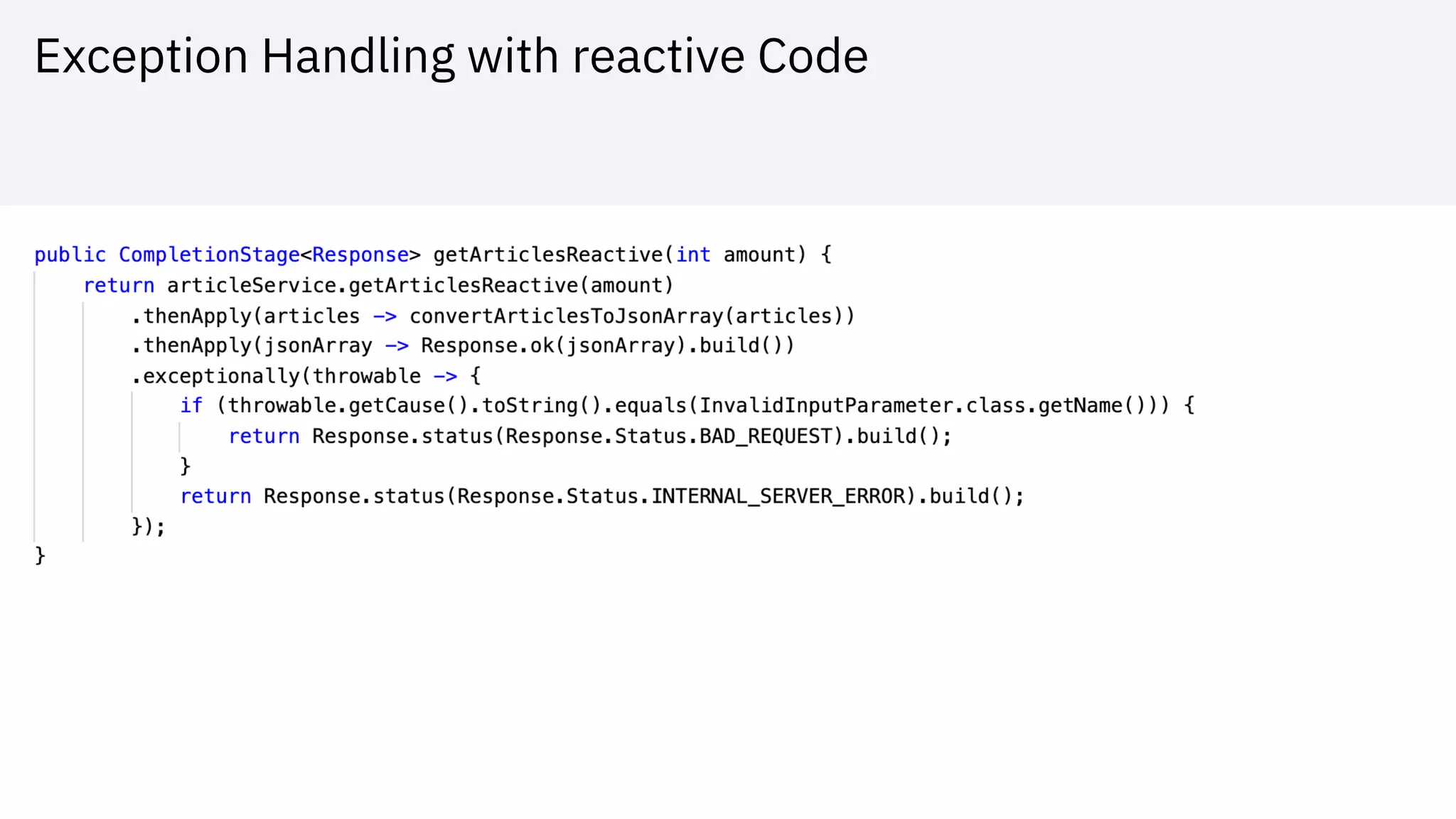

60. Exception Handling with reactive Code

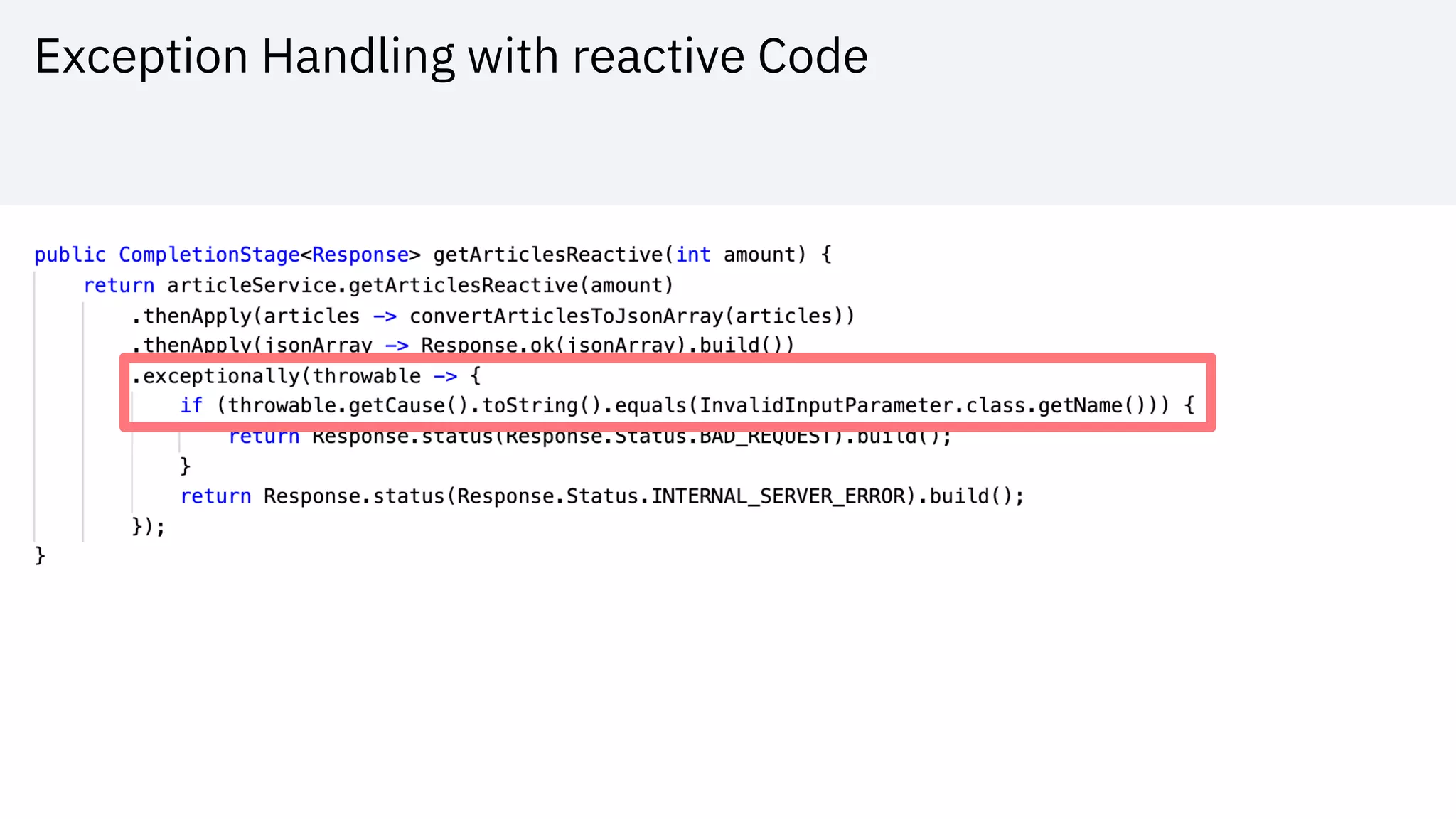

61. Exception Handling with reactive Code

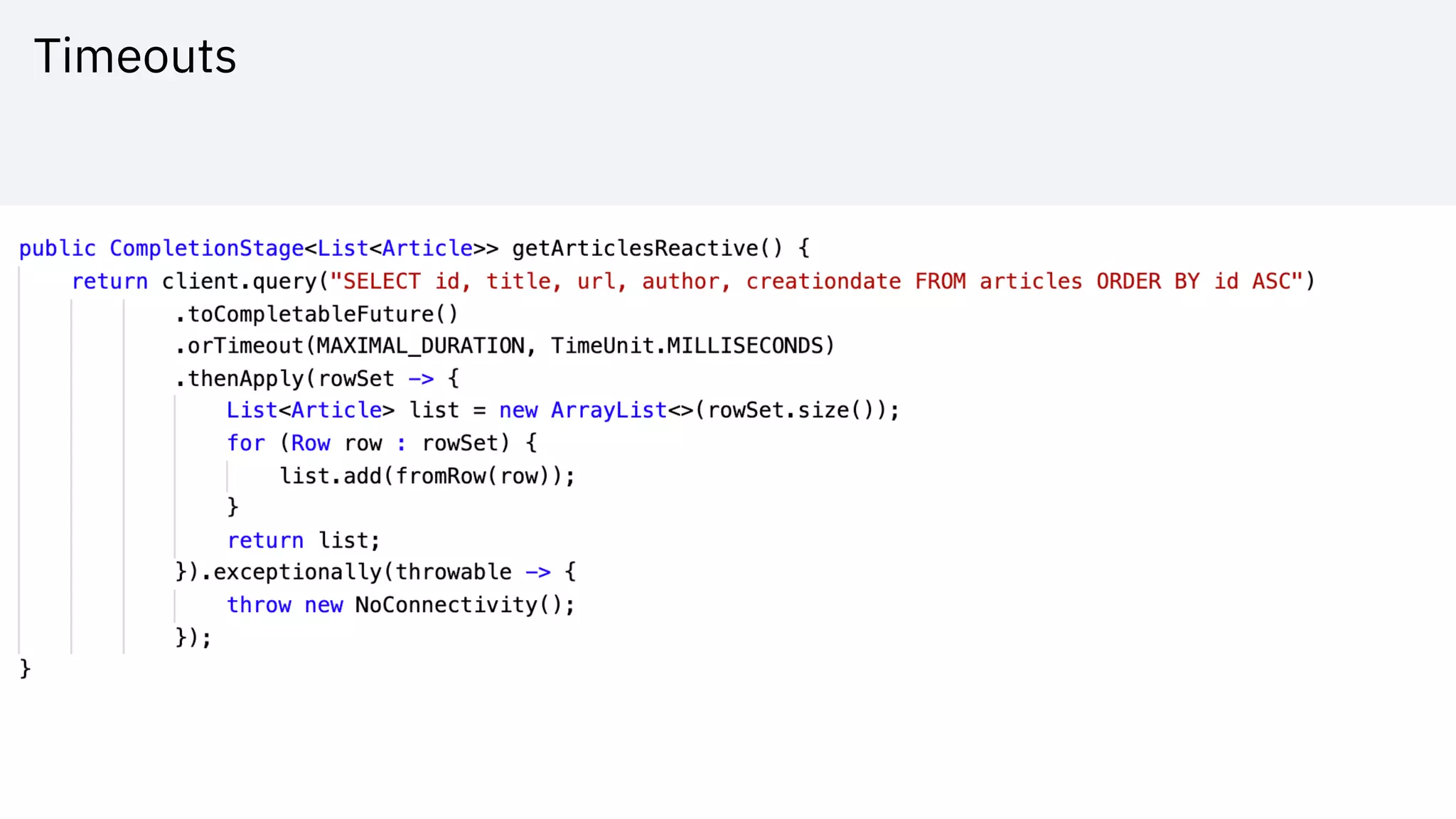

62. Timeouts

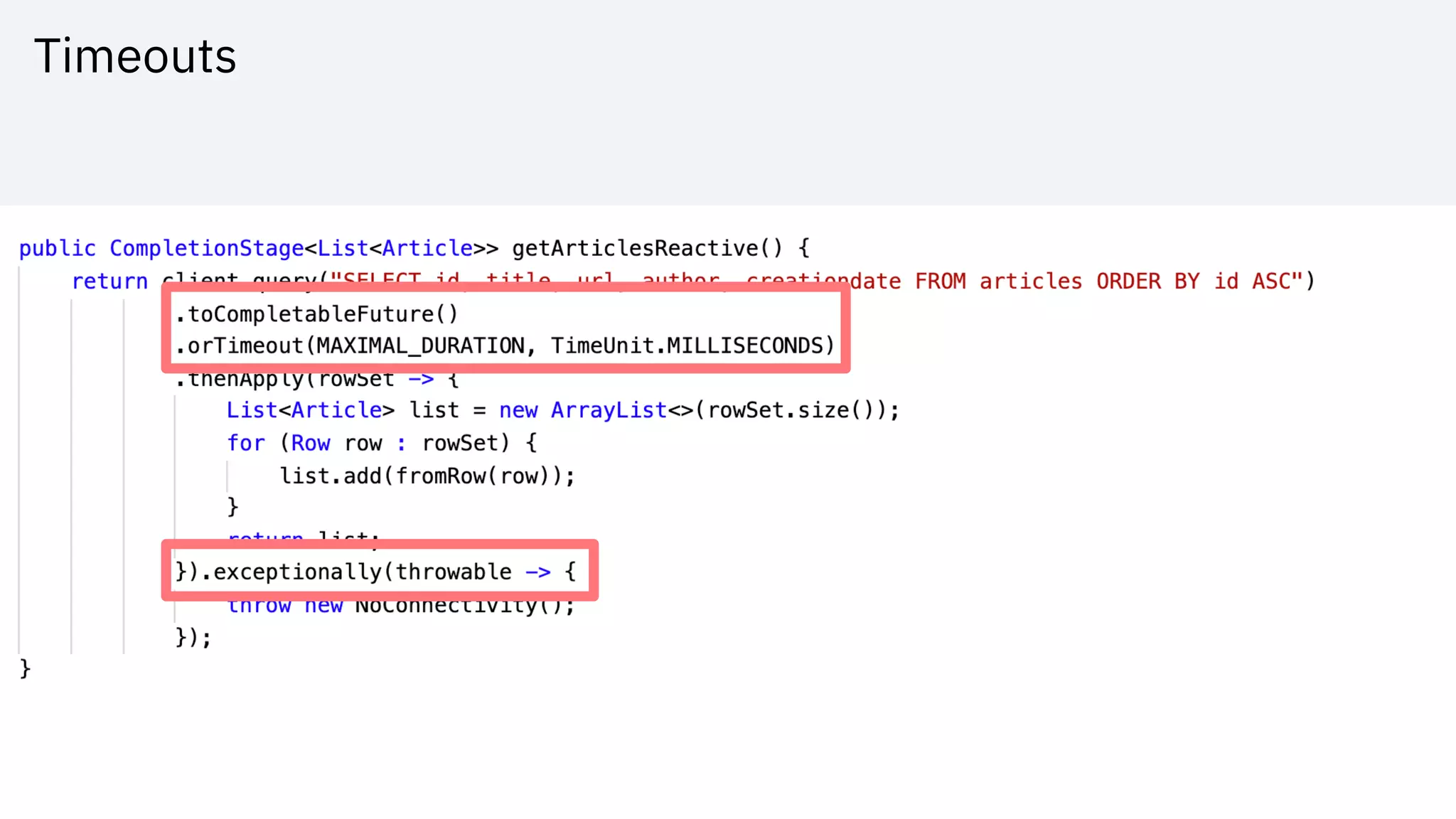

63. Timeouts

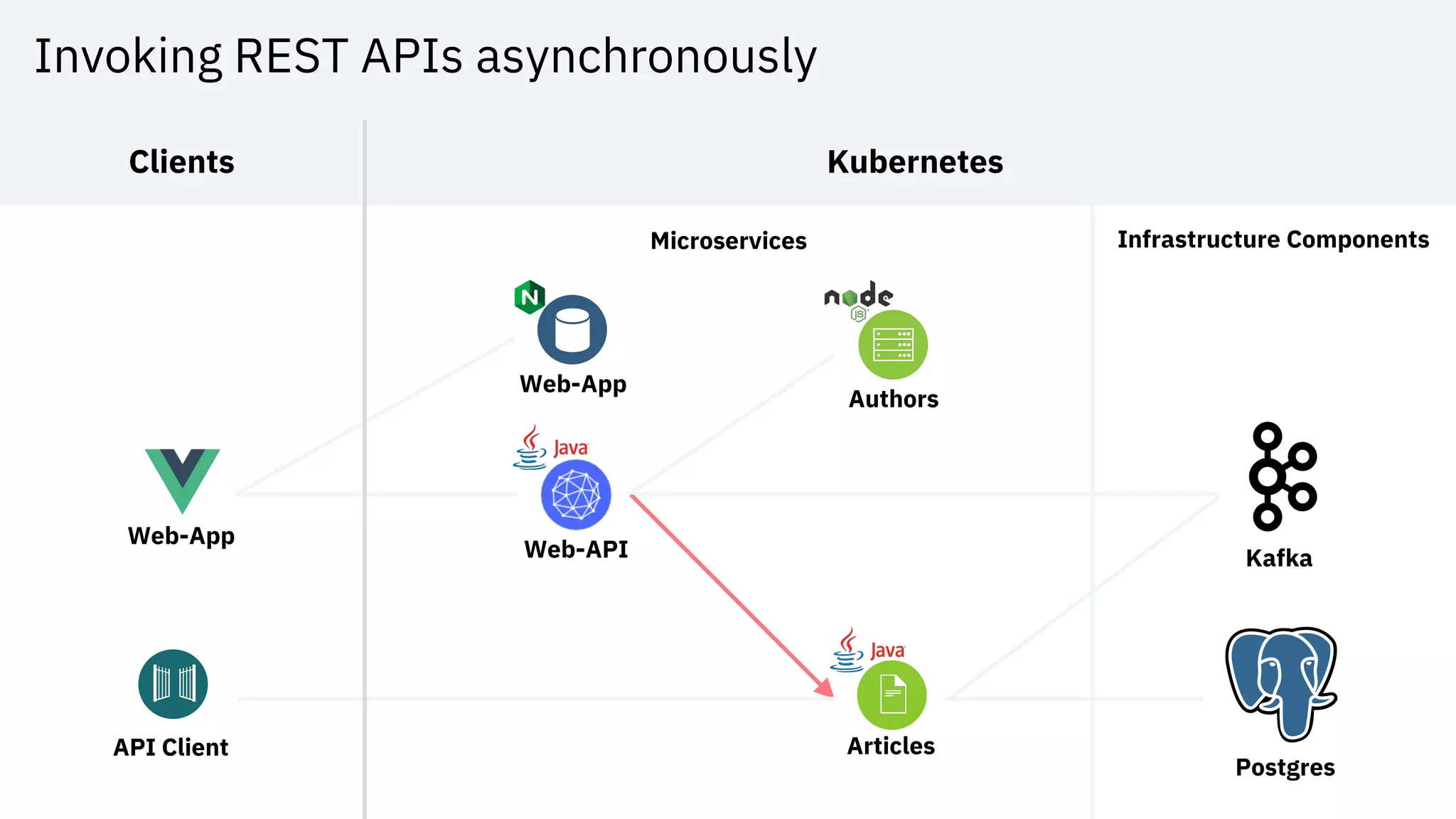

64. Invoking REST APIs asynchronously
Web-App
KafkaWeb-API
Articles
Authors
Web-App
Postgres
Clients
Microservices Infrastructure Components
Kubernetes
API Client

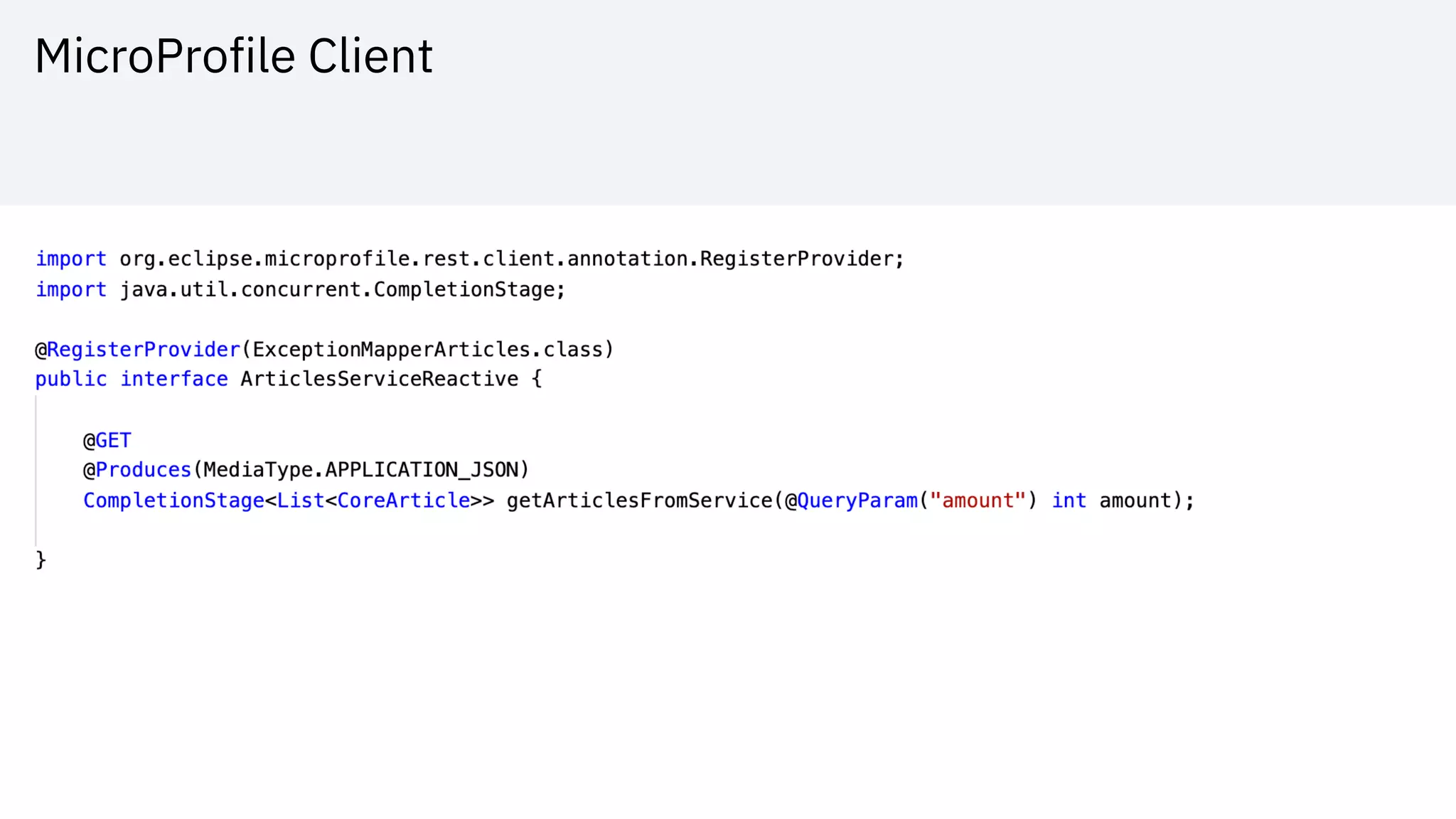

65. MicroProfile Client

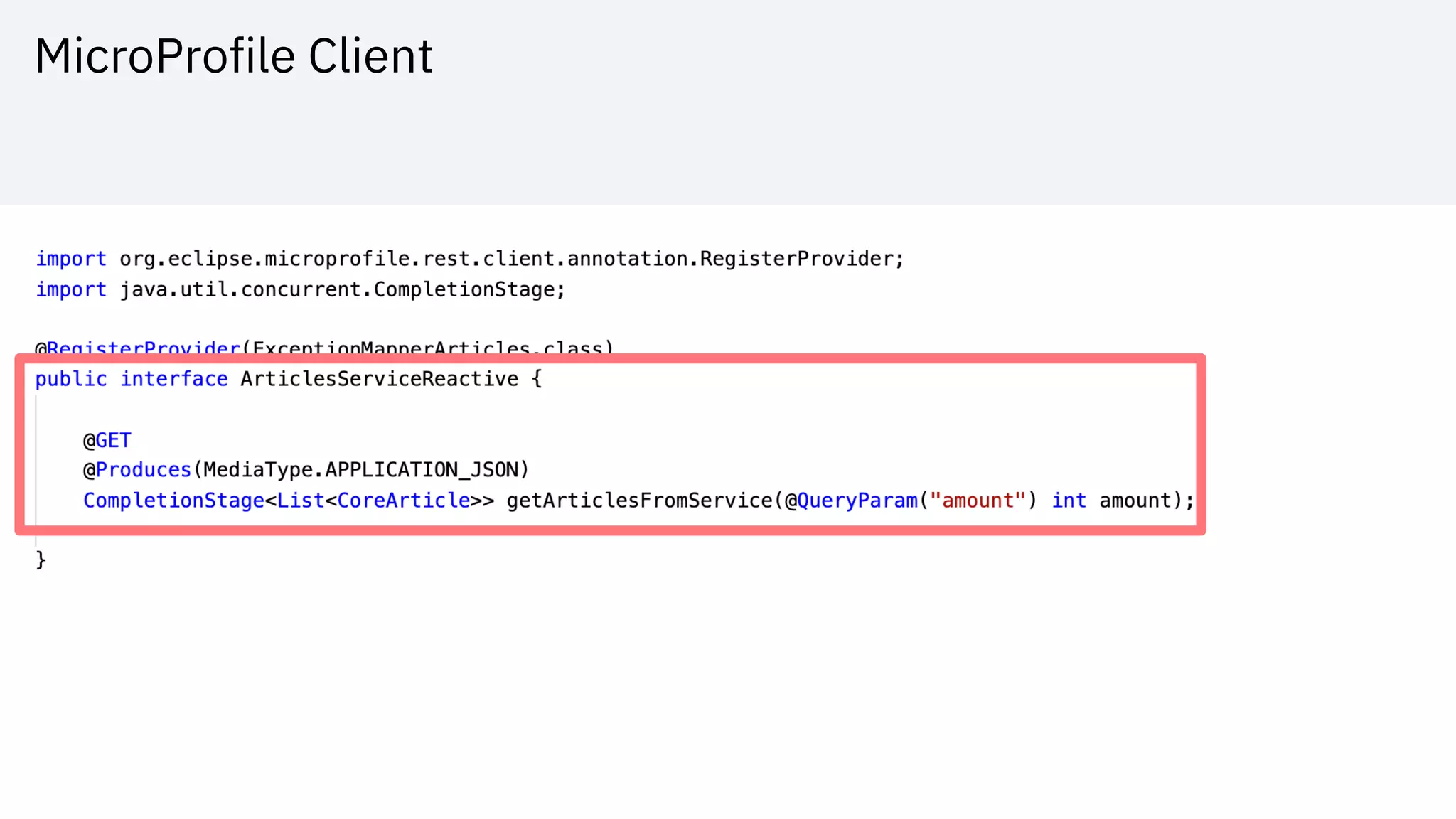

66. MicroProfile Client

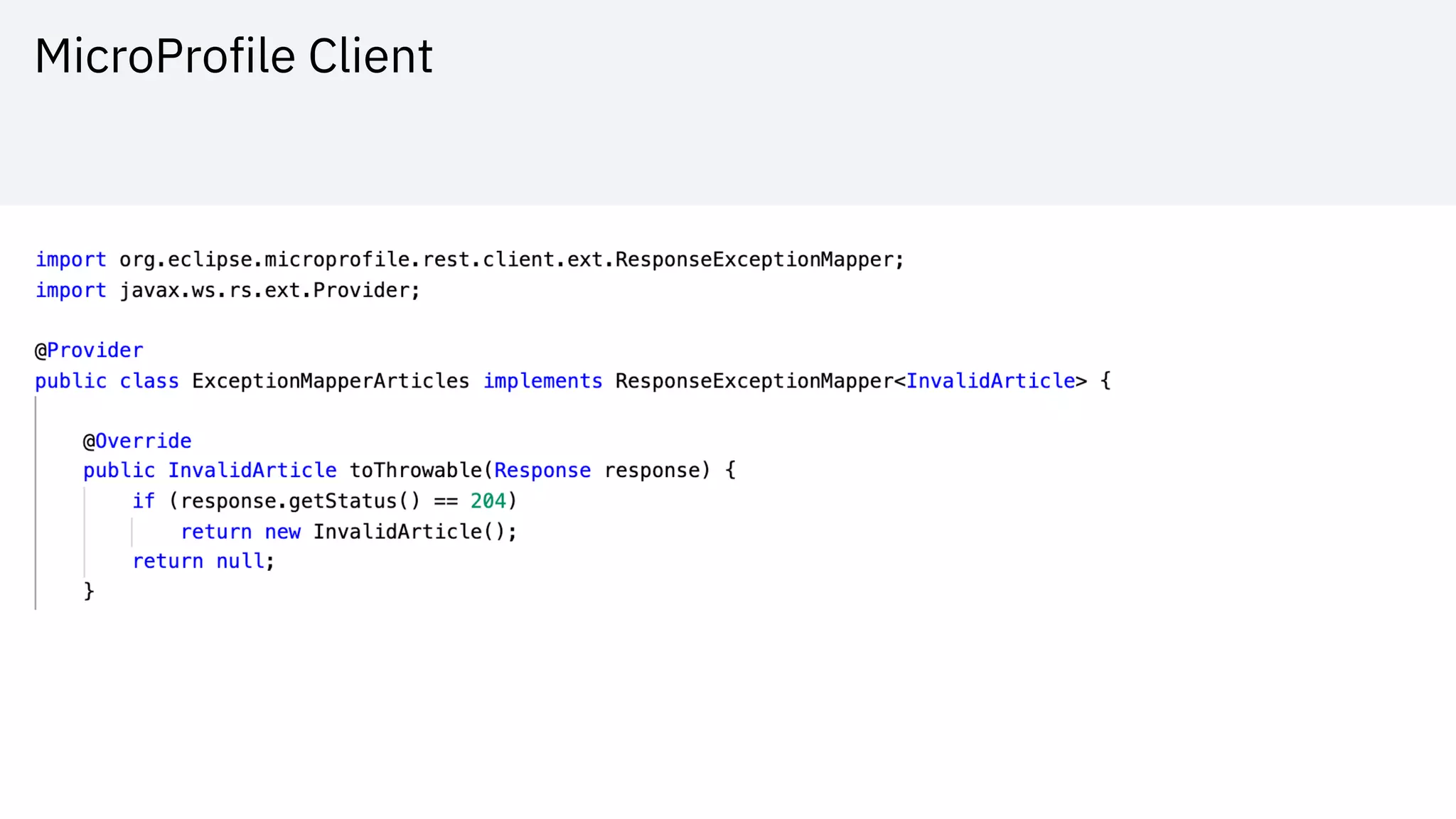

67. MicroProfile Client

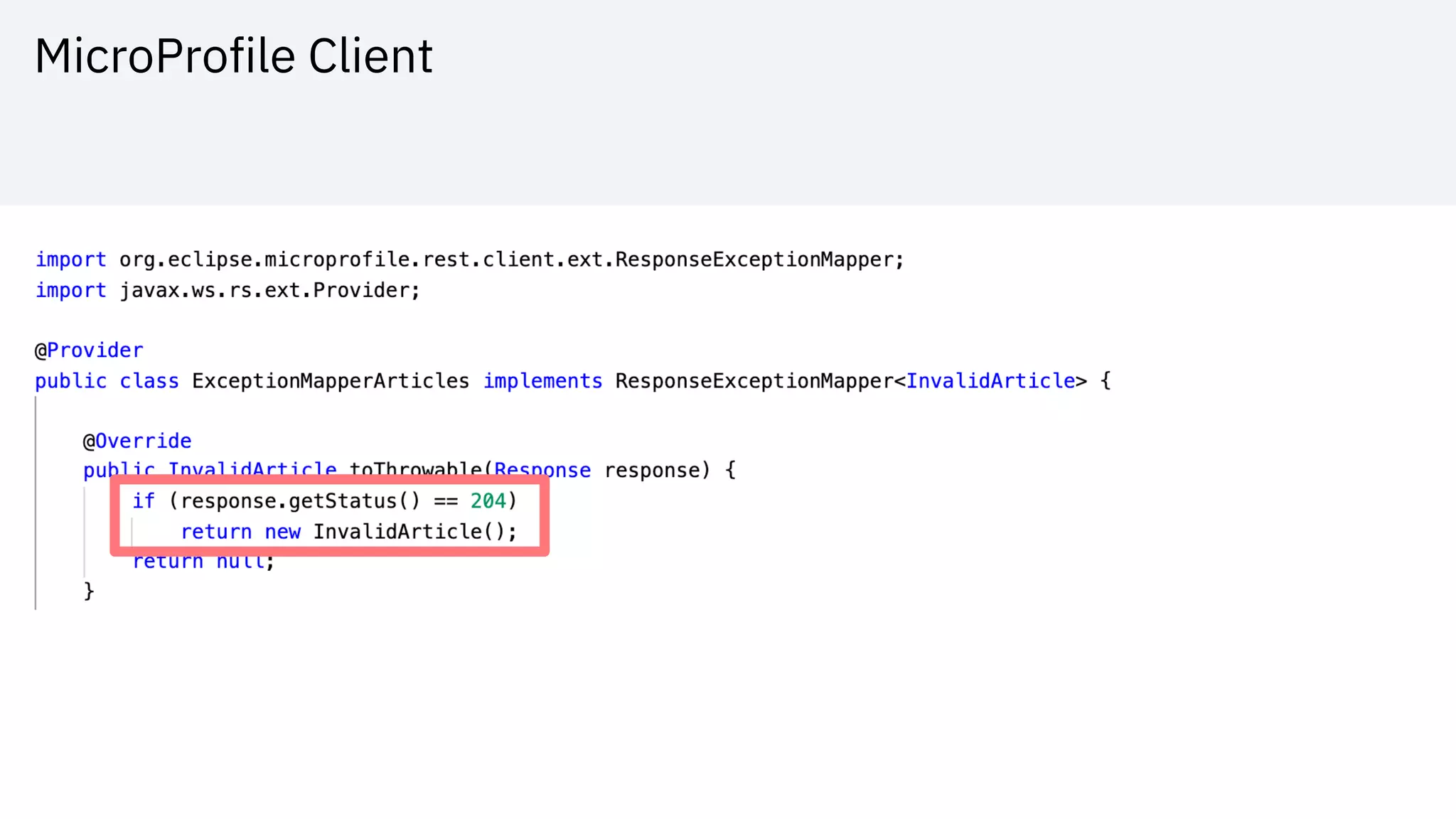

68. MicroProfile Client

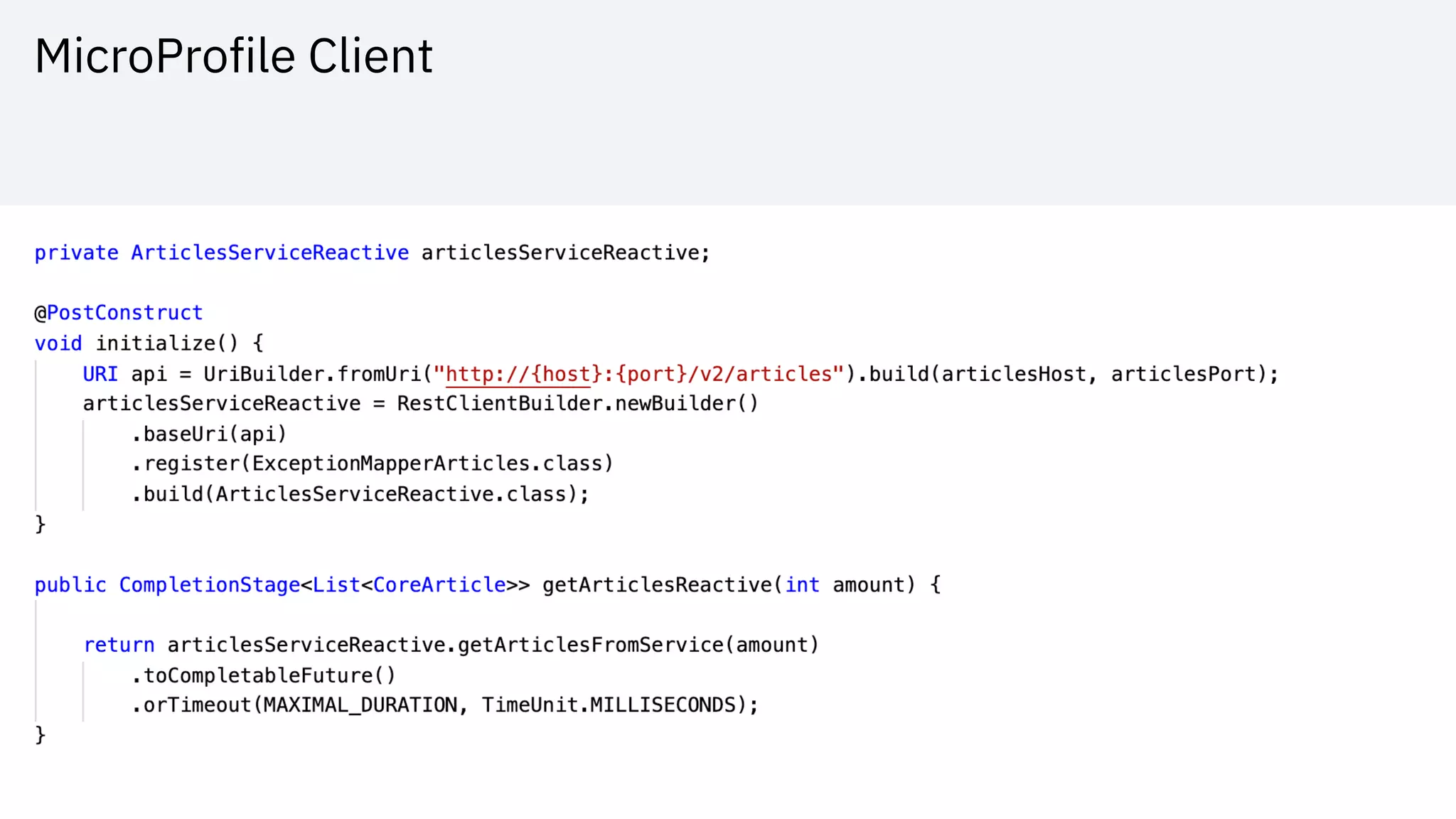

69. MicroProfile Client

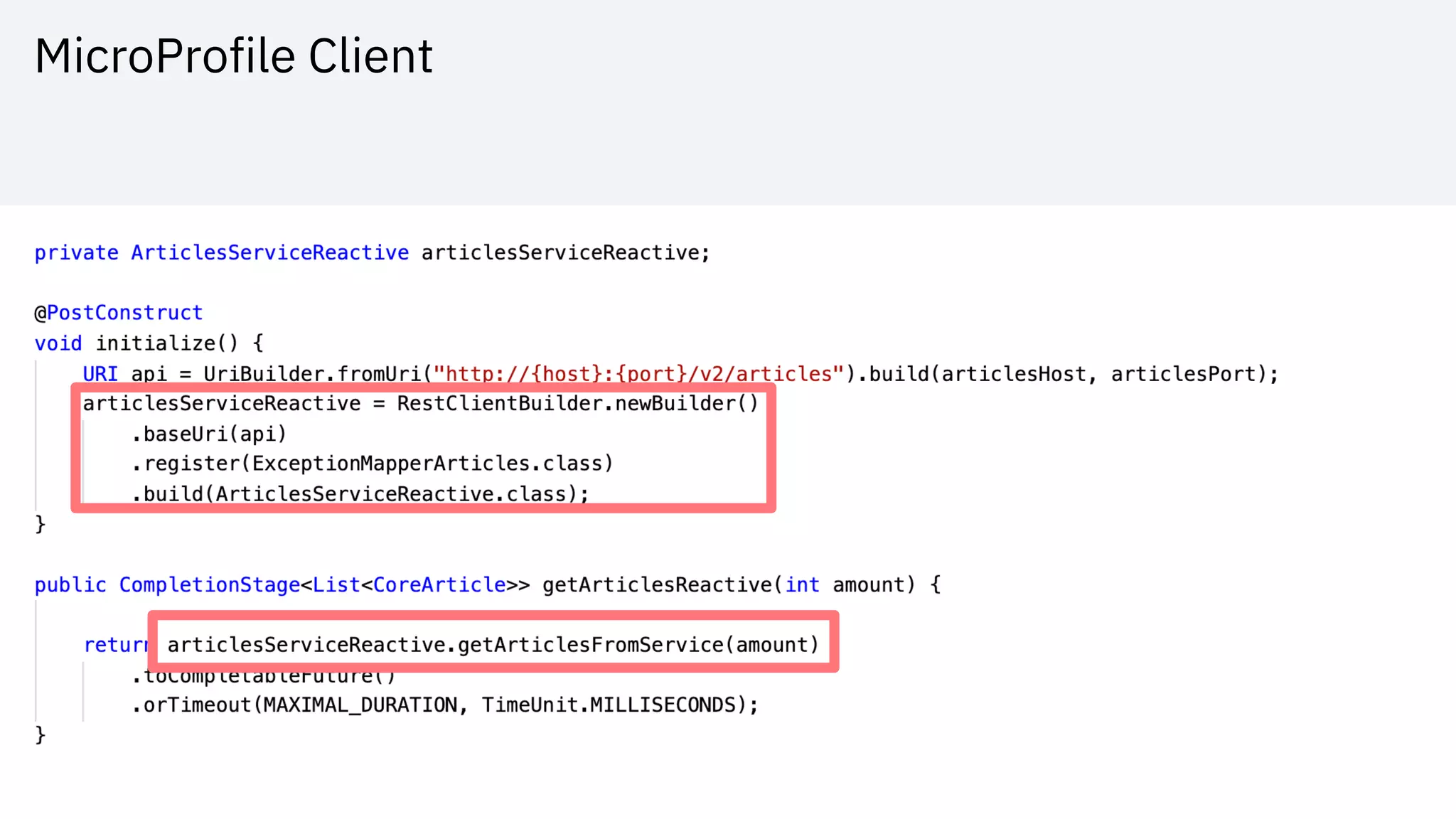

70. MicroProfile Client

71. Try out the end-to-end
microservices example
cloud-native-starter!
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

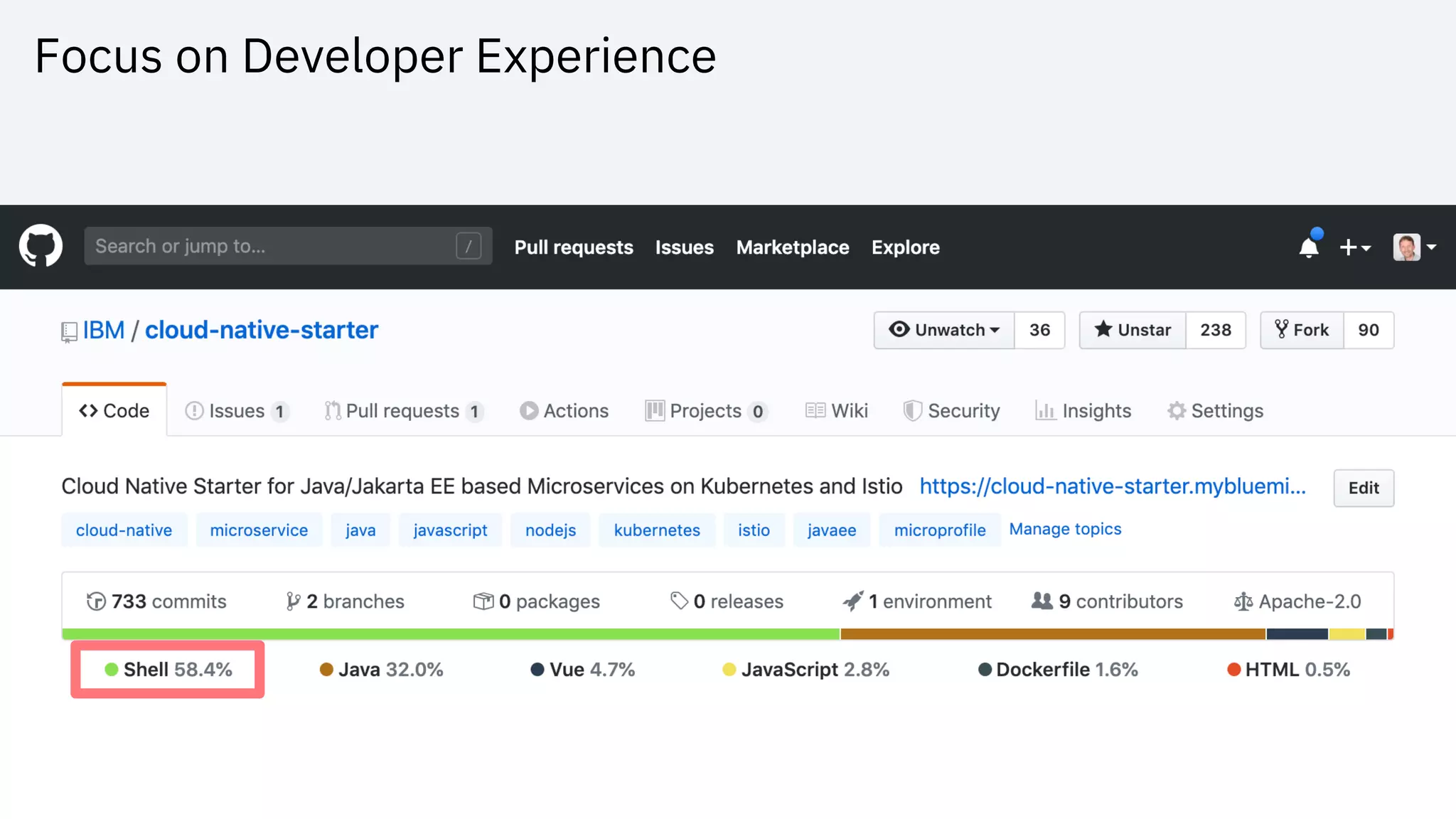

72. Focus on Developer Experience

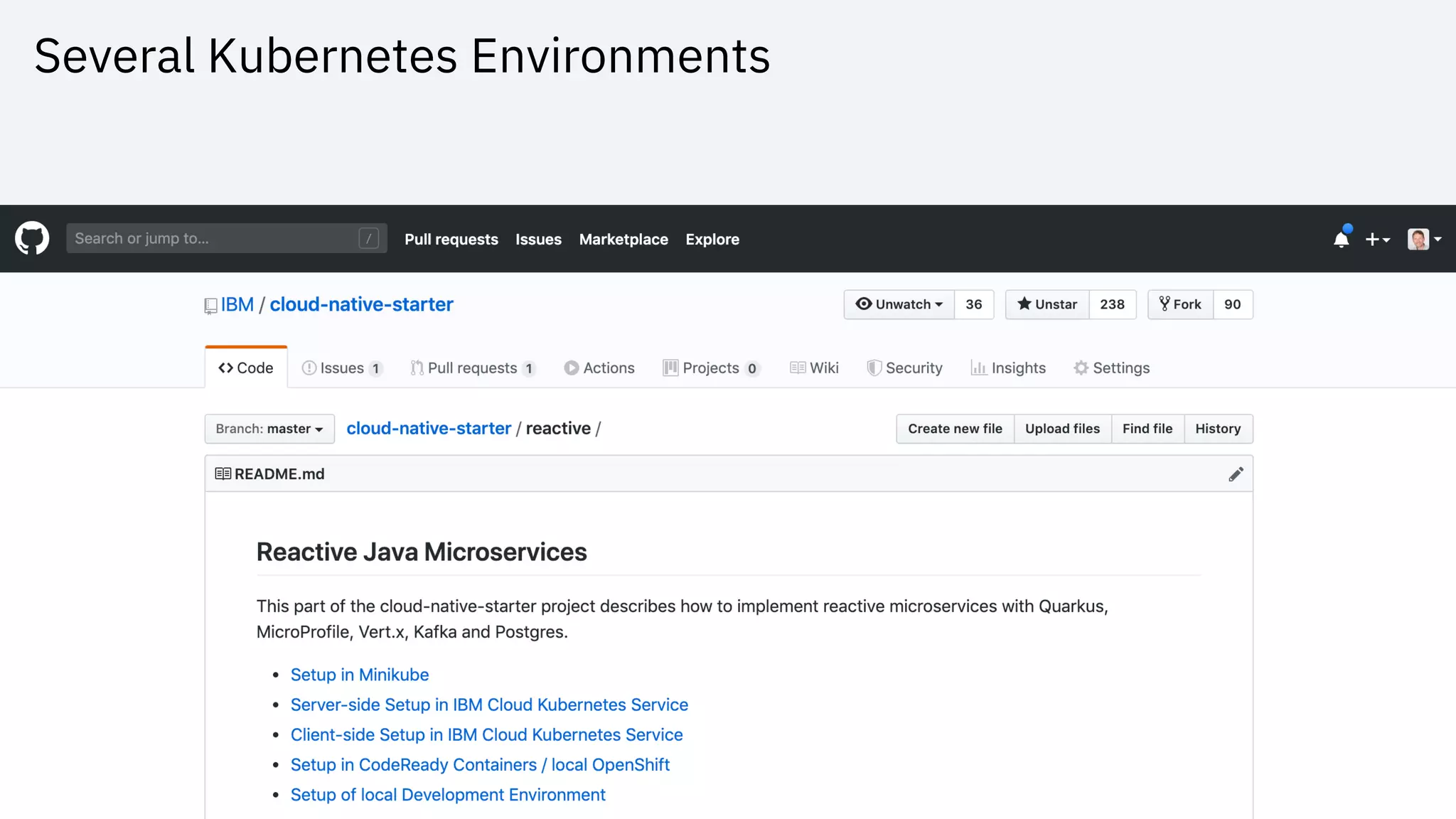

73. Several Kubernetes Environments

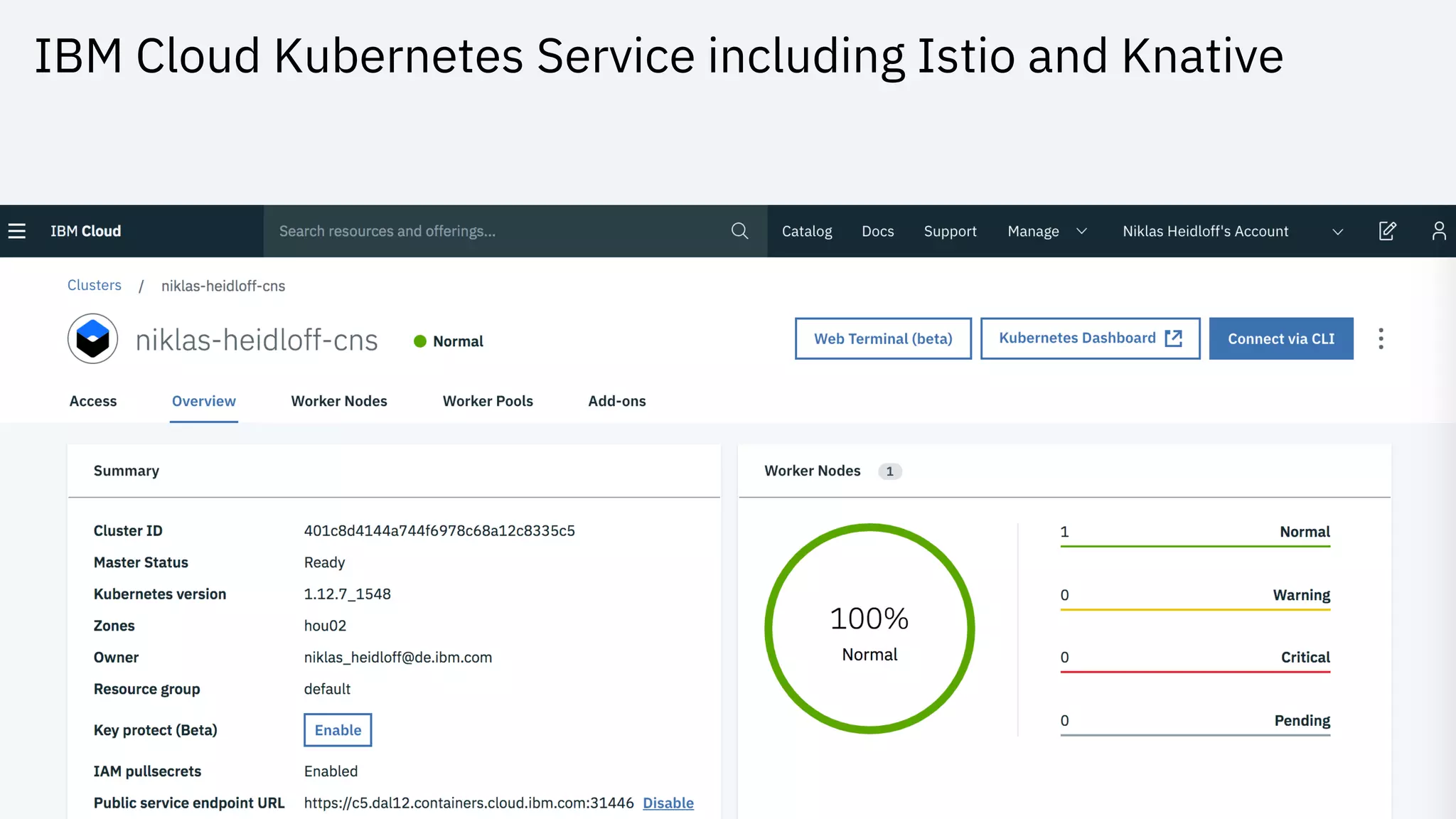

74. IBM Cloud Kubernetes Service including Istio and Knative

75. IBM Developer
developer.ibm.com
IBM Cloud Lite account
ibm.biz/nheidloff
IBM loves open source
Kubernetes
OpenJ9
MicroProfile
Quarkus
Reactive systems improve
user experiences and are
more efficient
Summary
Get the code à
@nheidloff #IBMDeveloper github.com/ibm/cloud-native-starter
