1. How to develop your first
cloud-native Applications
with Java—
Niklas Heidloff
Developer Advocate, IBM
@nheidloff

2. How to use all Pieces together?
Kubernetes
Java Enterprise Edition
Istio
Eclipse MicroProfile
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

3. “Microservices are a software
development technique [...]
that structures an application
as a collection of loosely
coupled services.”
Wikipedia
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

4. Continuous delivery
→ DevOps
Elasticity
→ App stays responsive
What are cloud-native Applications?
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

5. New Options → New Challenges

6. “Kubernetes (K8s) is an open-
source system for automating
deployment, scaling, and
management of containerized
applications.”
kubernetes.io
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

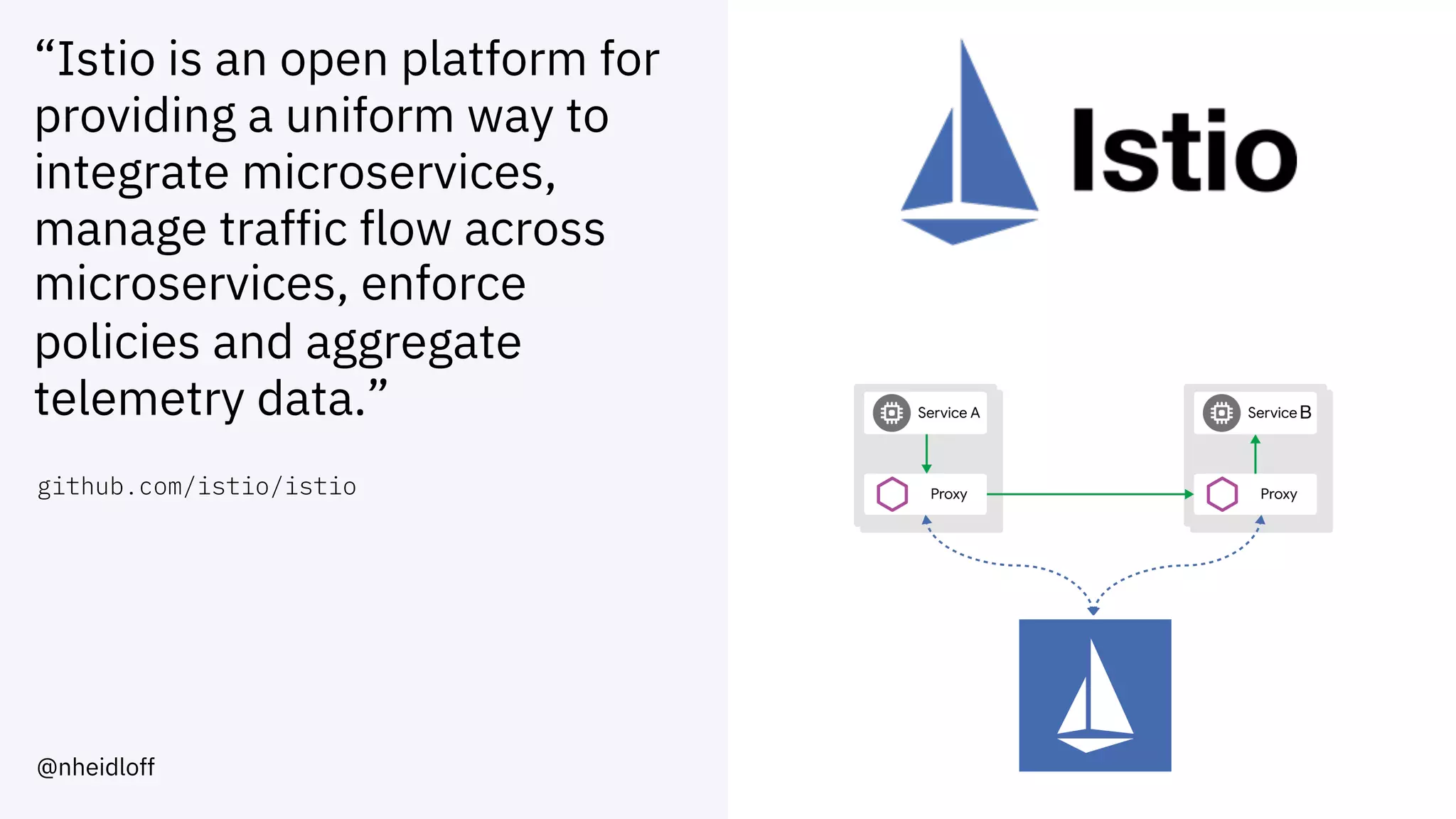

7. “Istio is an open platform for
providing a uniform way to
integrate microservices,
manage traffic flow across
microservices, enforce
policies and aggregate
telemetry data.”
github.com/istio/istio
@nheidloff

8. “Optimizing Enterprise Java
for a Microservices
Architecture.
[...] by innovating [...] with a
goal of standardization.”
microprofile.io
@nheidloff @Harald_U #IBMDeveloper github.com/ibm/cloud-native-starter

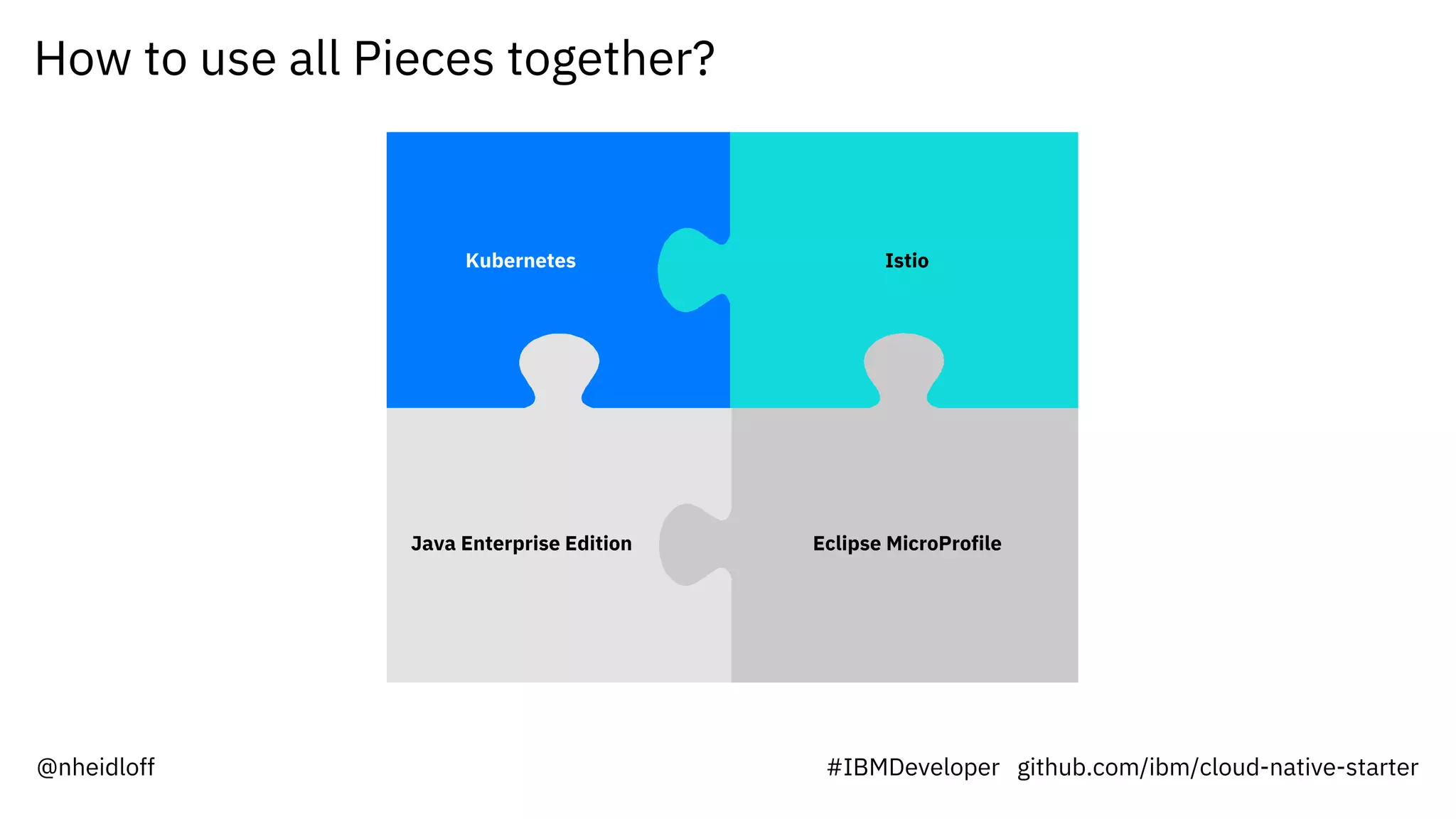

9. How to use all Pieces together?
Kubernetes
Java Enterprise Edition
Istio
Eclipse MicroProfile
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

10. Leverage platforms as
much as possible.
Use frameworks for app
specific logic.
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

11. Design principles
for the end-to-
end example
‘cloud-native-
starter’
Use only open-
source
components for
the core services
of the application
Make the first
time experience
as simple as
possible
Be able to run the
application in
different
environments
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

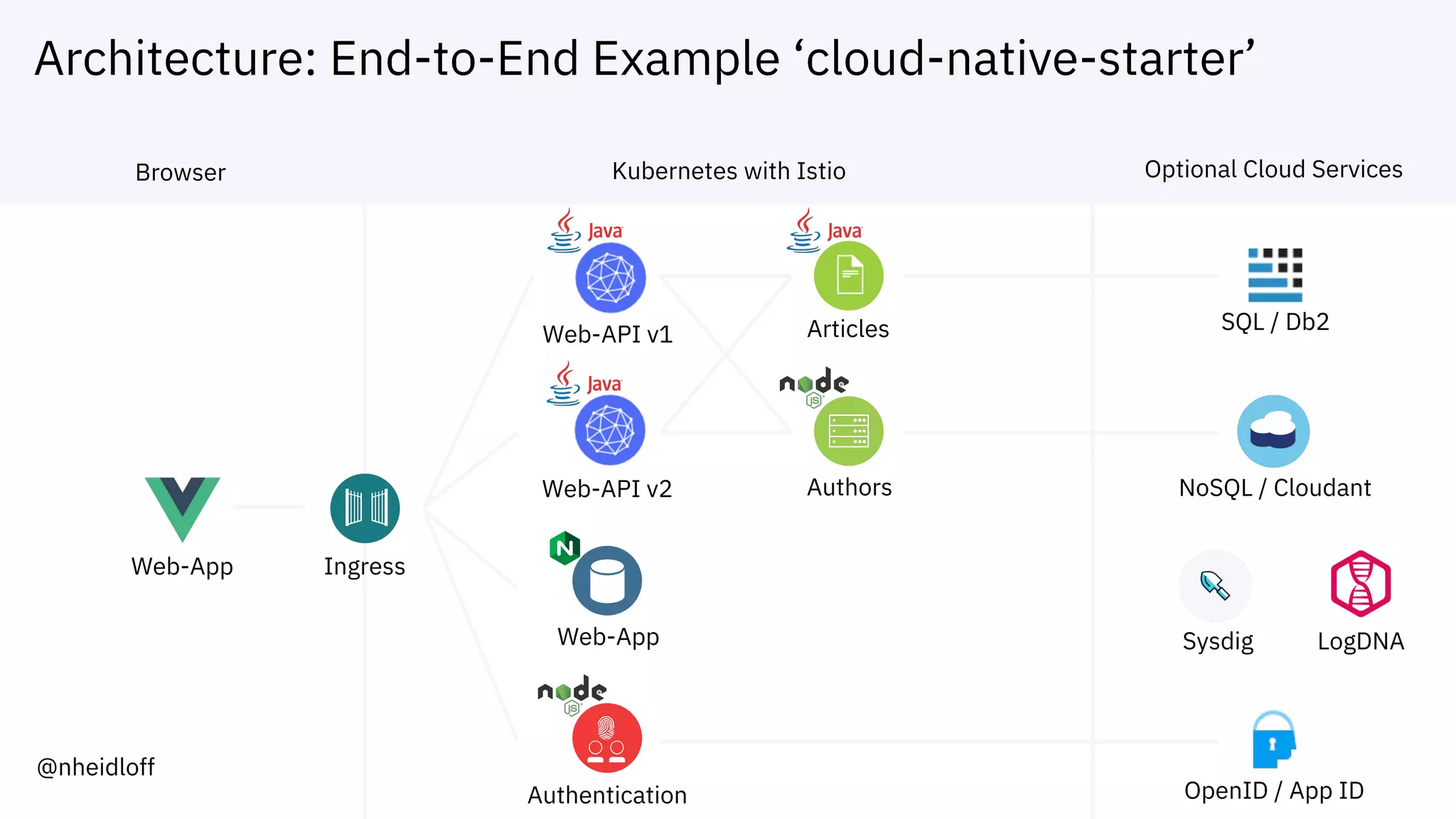

12. Architecture: End-to-End Example ‘cloud-native-starter’
Web-App
NoSQL / Cloudant
Web-API v1 Articles
Web-API v2 Authors
Web-App
SQL / Db2
OpenID / App ID
LogDNASysdig
Authentication
Browser Kubernetes with Istio Optional Cloud Services
Ingress
@nheidloff

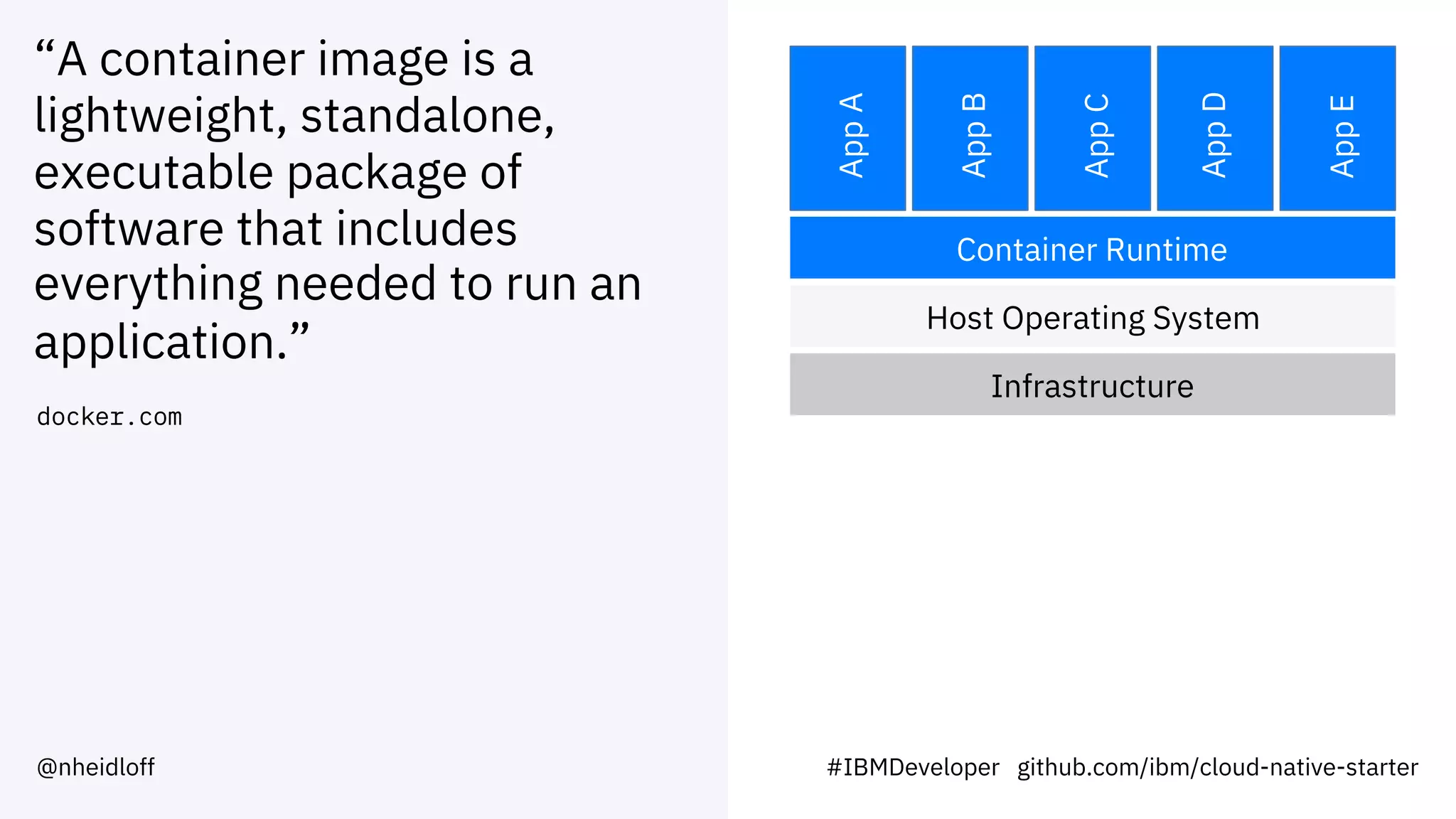

13. “A container image is a
lightweight, standalone,
executable package of
software that includes
everything needed to run an
application.”
docker.com
#IBMDeveloper github.com/ibm/cloud-native-starter
Infrastructure
Host Operating System
Container Runtime
AppA
AppB
AppC
AppD
AppE
@nheidloff

14. Portable Containers

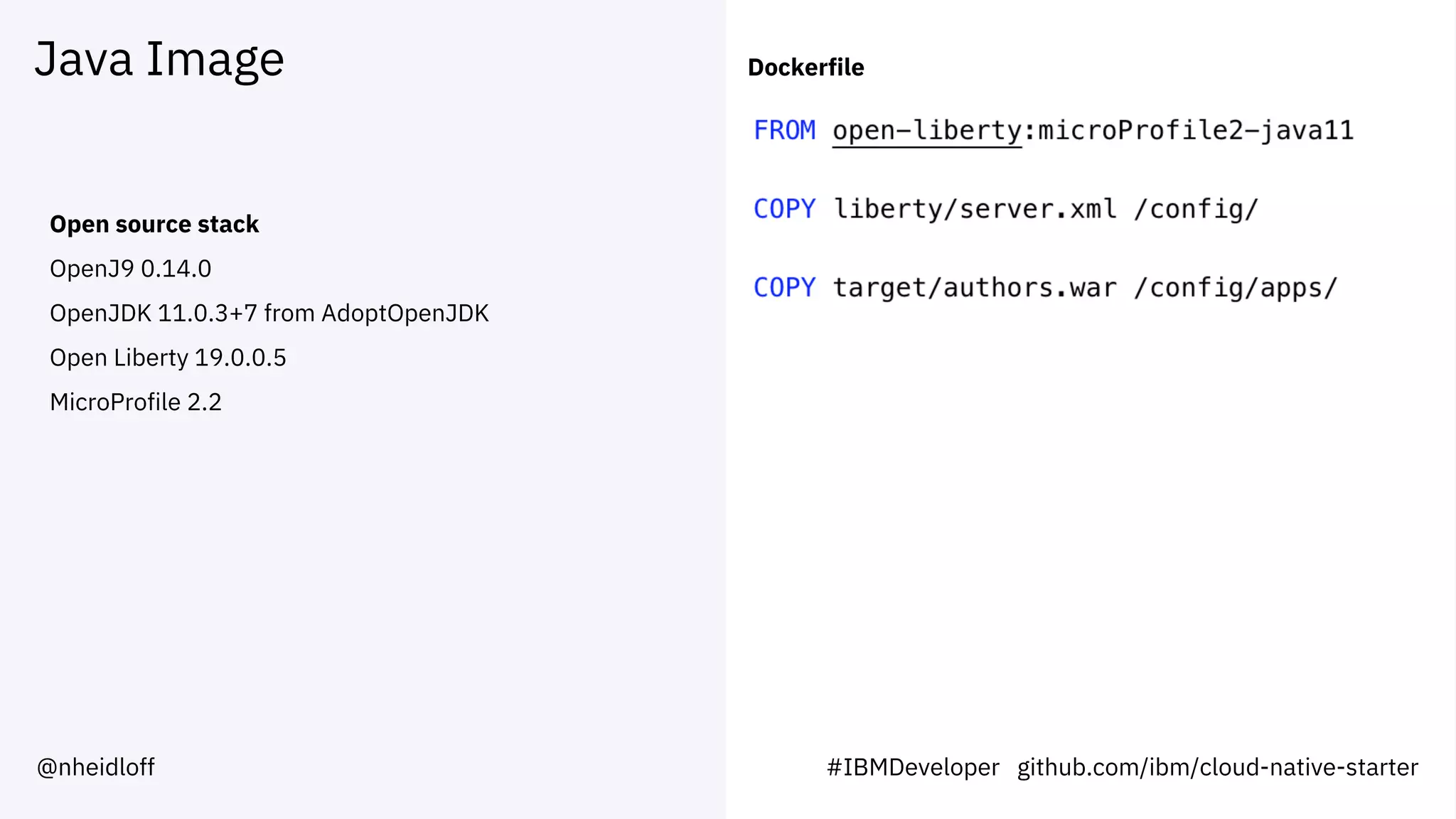

15. Java Image
Open source stack
OpenJ9 0.14.0
OpenJDK 11.0.3+7 from AdoptOpenJDK
Open Liberty 19.0.0.5
MicroProfile 2.2
Dockerfile
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

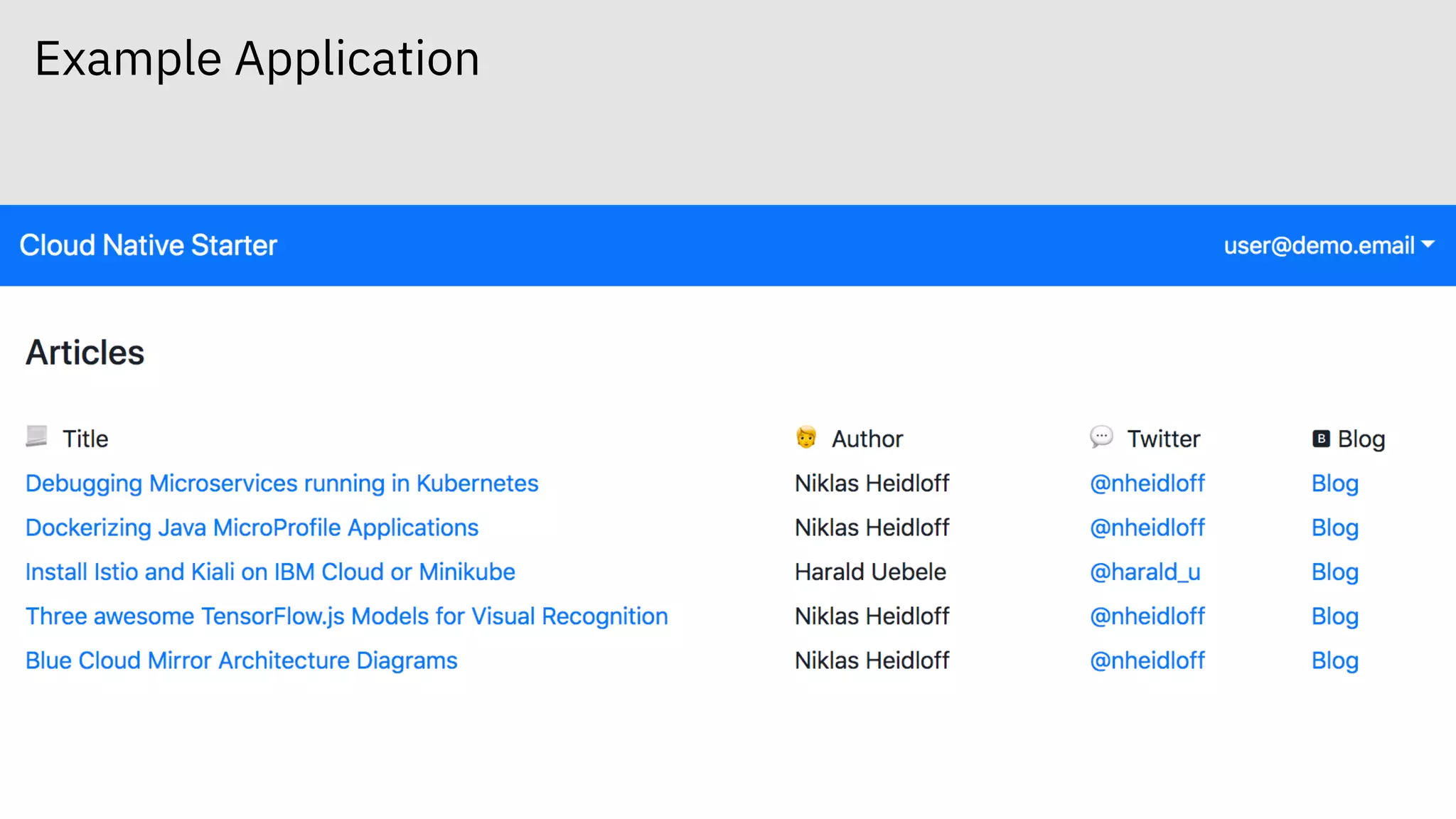

16. Example Application

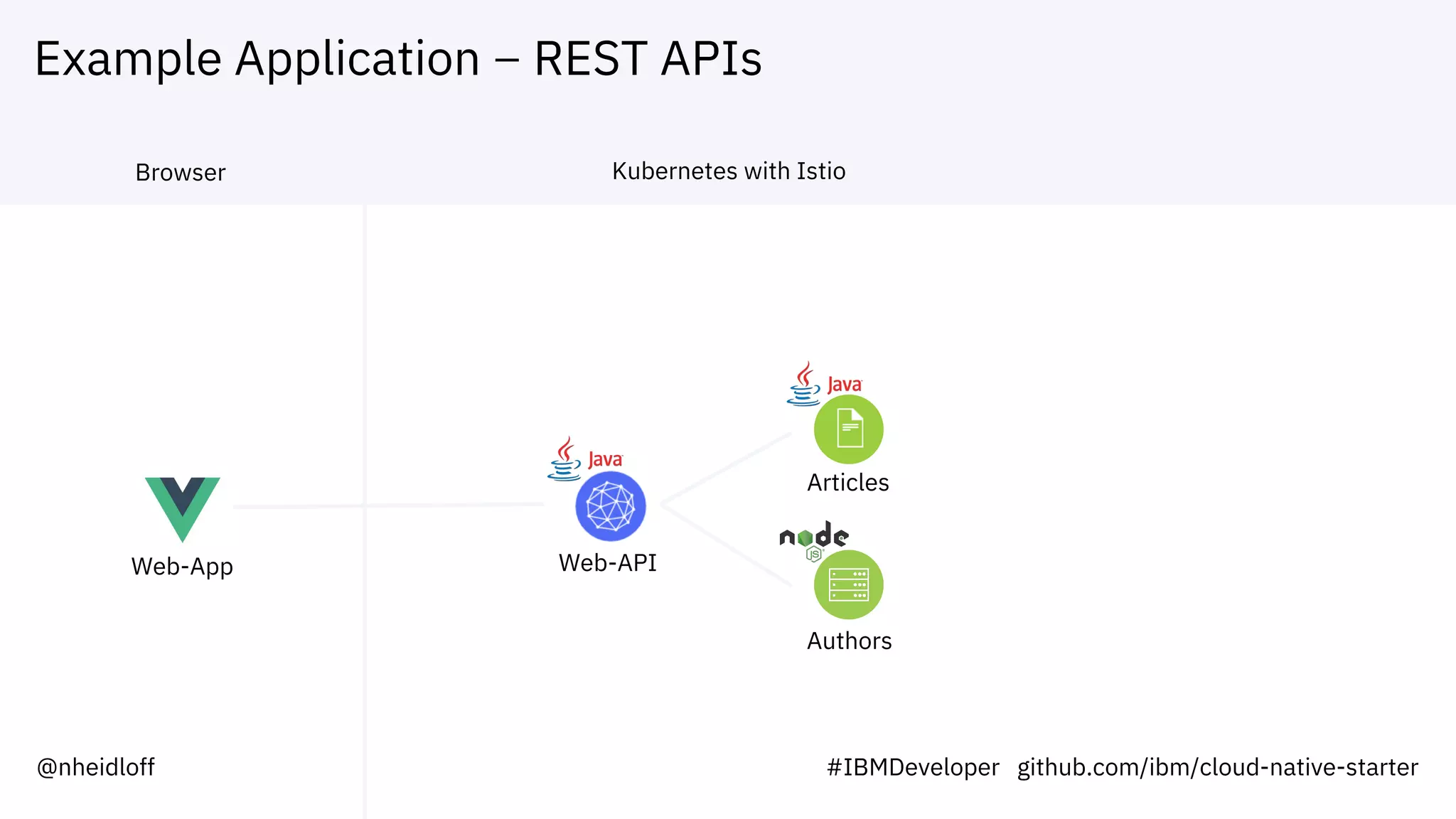

17. Example Application – REST APIs
Web-App Web-API
Articles
Authors
Browser Kubernetes with Istio
@nheidloff #IBMDeveloper github.com/ibm/cloud-native-starter

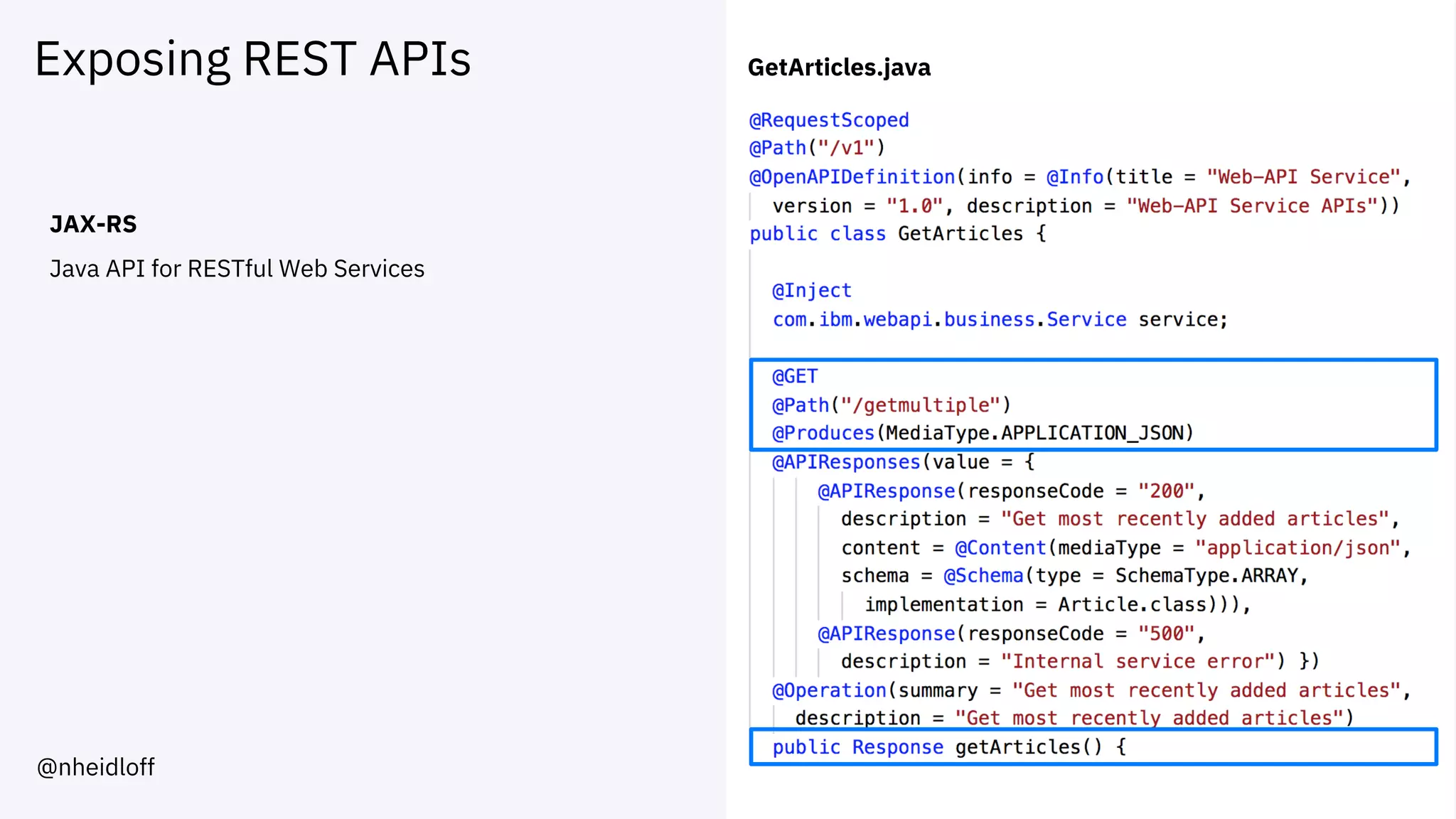

18. Exposing REST APIs
JAX-RS
Java API for RESTful Web Services
GetArticles.java
@nheidloff

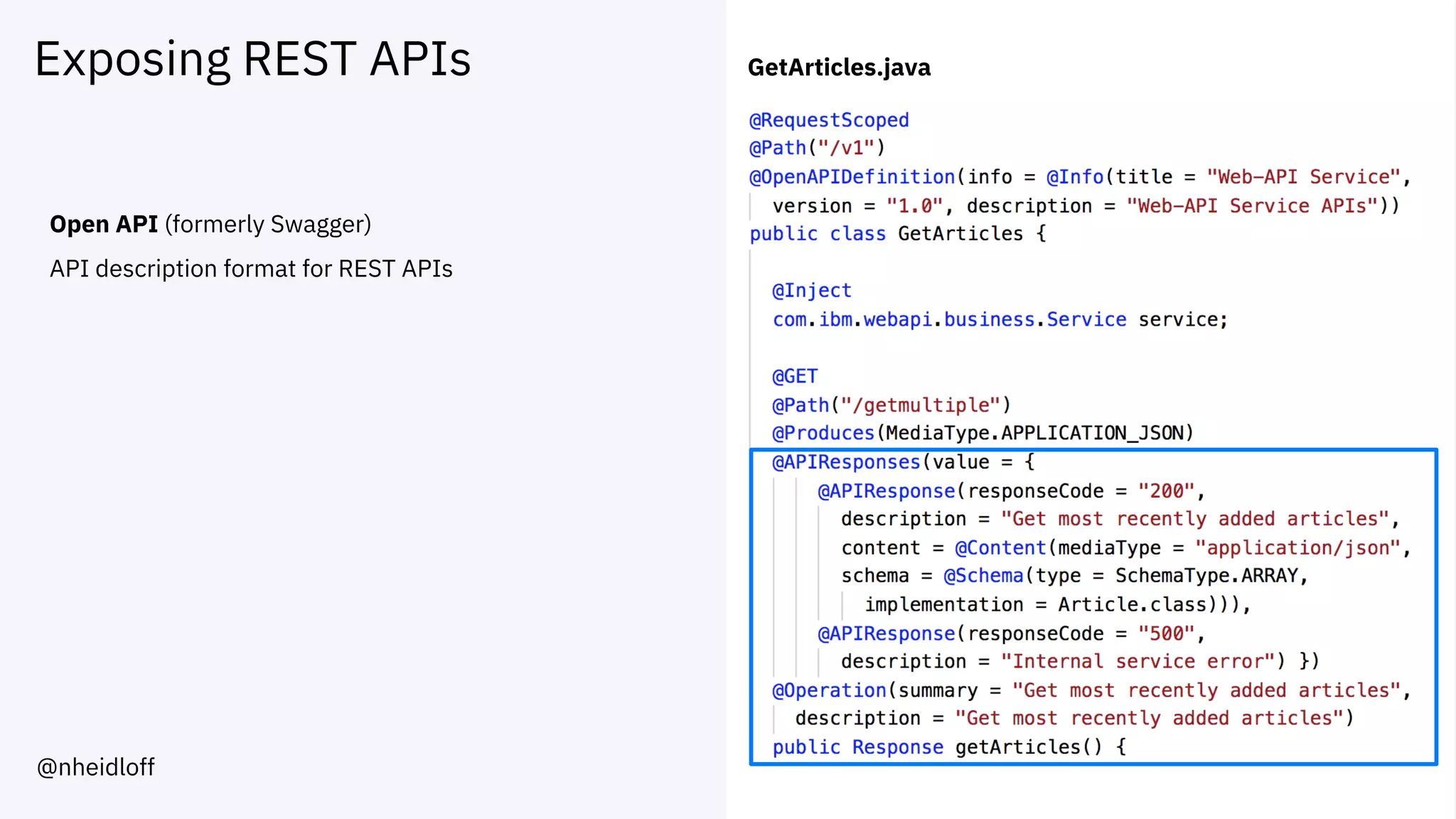

19. Exposing REST APIs
Open API (formerly Swagger)
API description format for REST APIs
GetArticles.java
@nheidloff

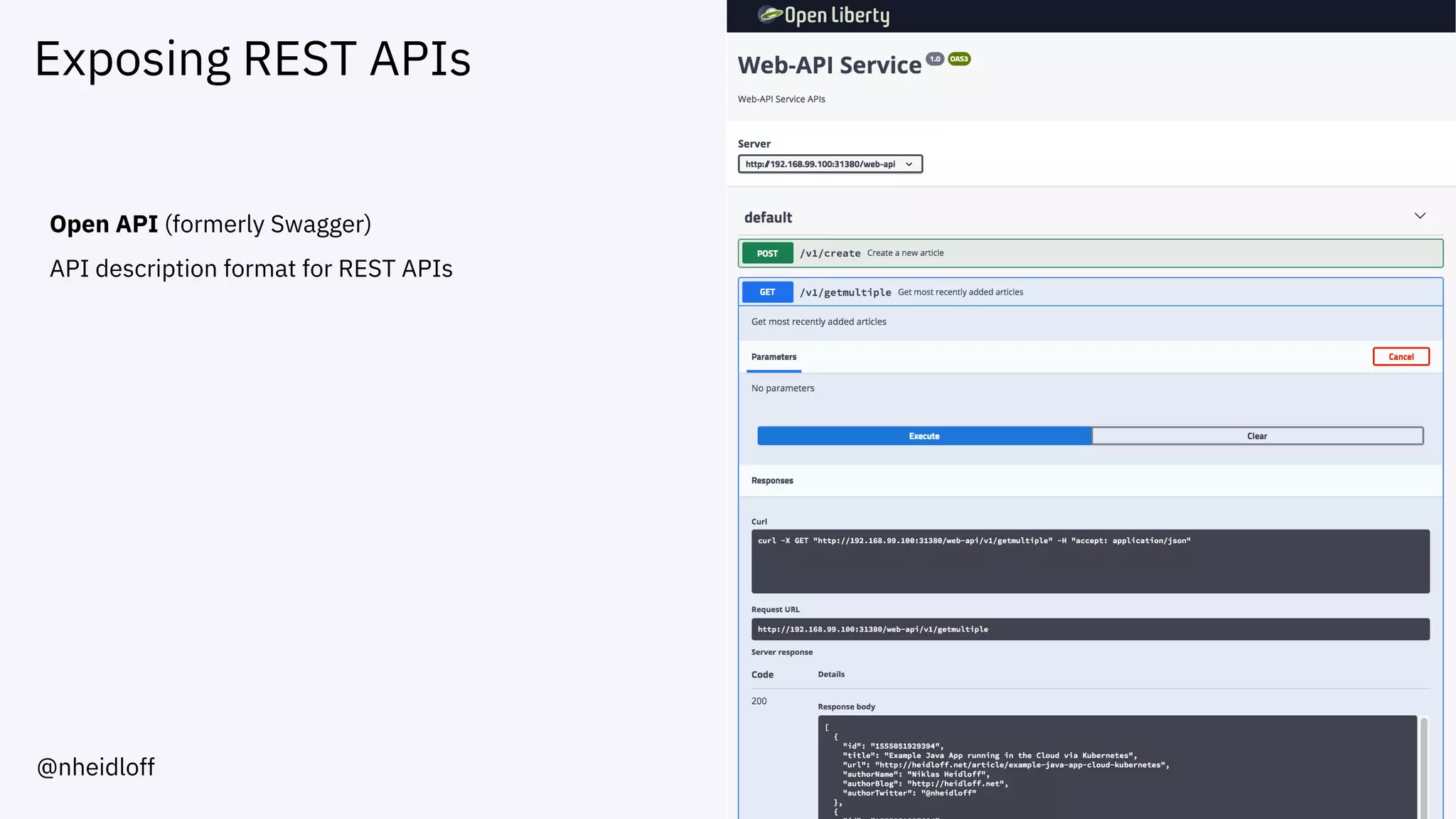

20. Exposing REST APIs
Open API (formerly Swagger)
API description format for REST APIs
@nheidloff

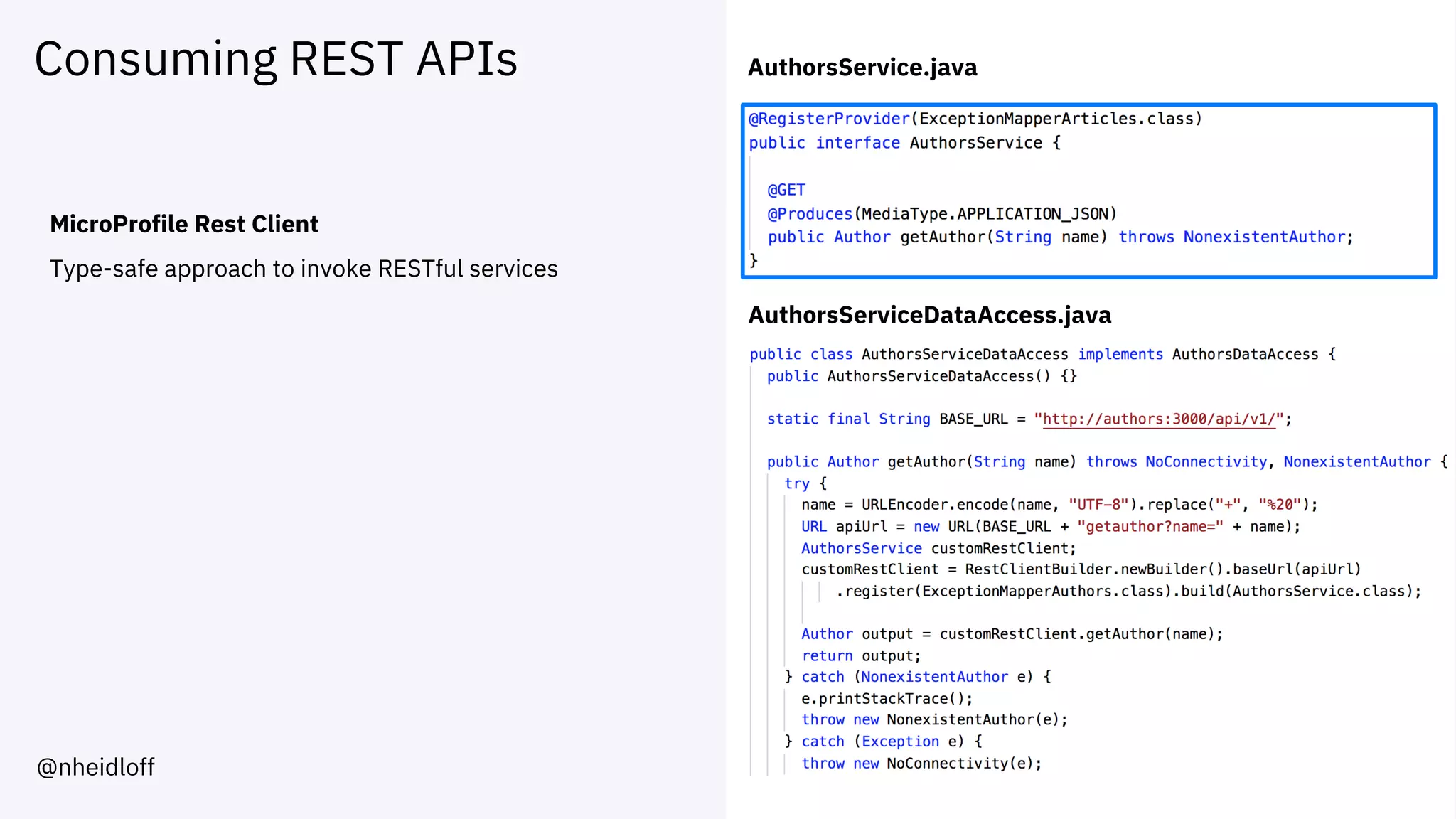

21. Consuming REST APIs
MicroProfile Rest Client
Type-safe approach to invoke RESTful services
AuthorsService.java
AuthorsServiceDataAccess.java
@nheidloff

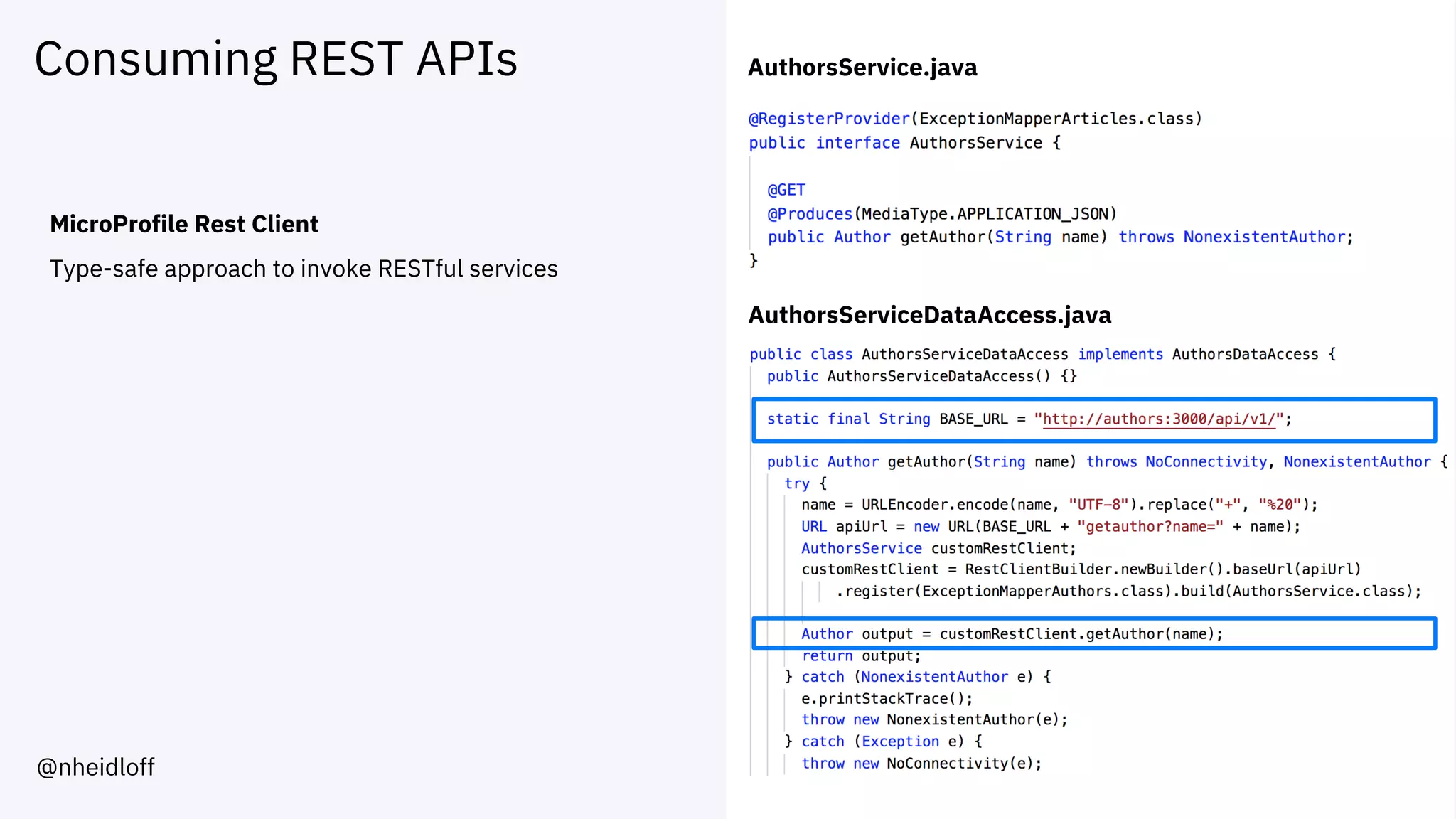

22. Consuming REST APIs
MicroProfile Rest Client
Type-safe approach to invoke RESTful services
AuthorsService.java
AuthorsServiceDataAccess.java
@nheidloff

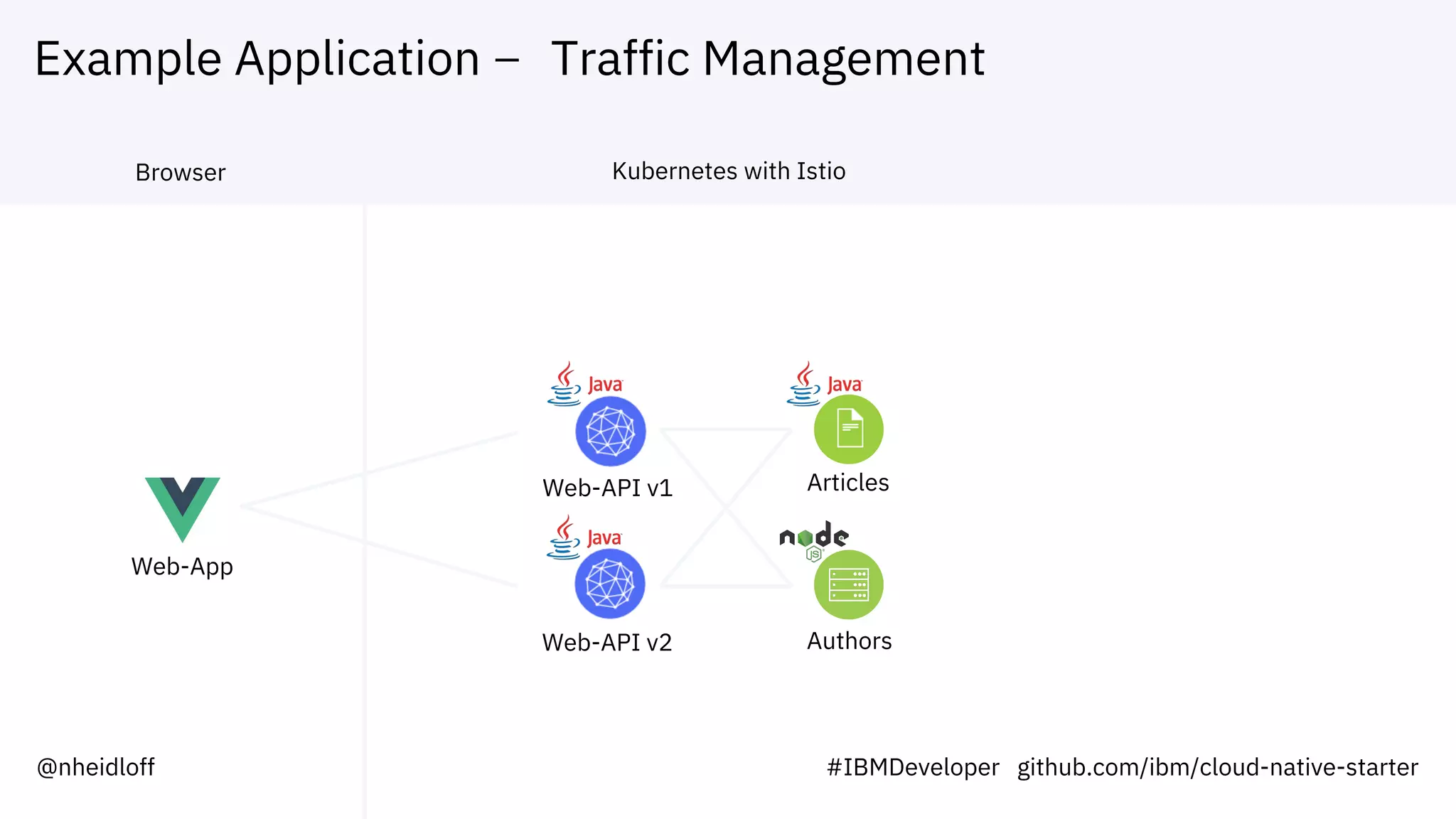

23. Example Application – Traffic Management
Web-App
Web-API v1 Articles
Web-API v2 Authors
Browser Kubernetes with Istio
@nheidloff #IBMDeveloper github.com/ibm/cloud-native-starter

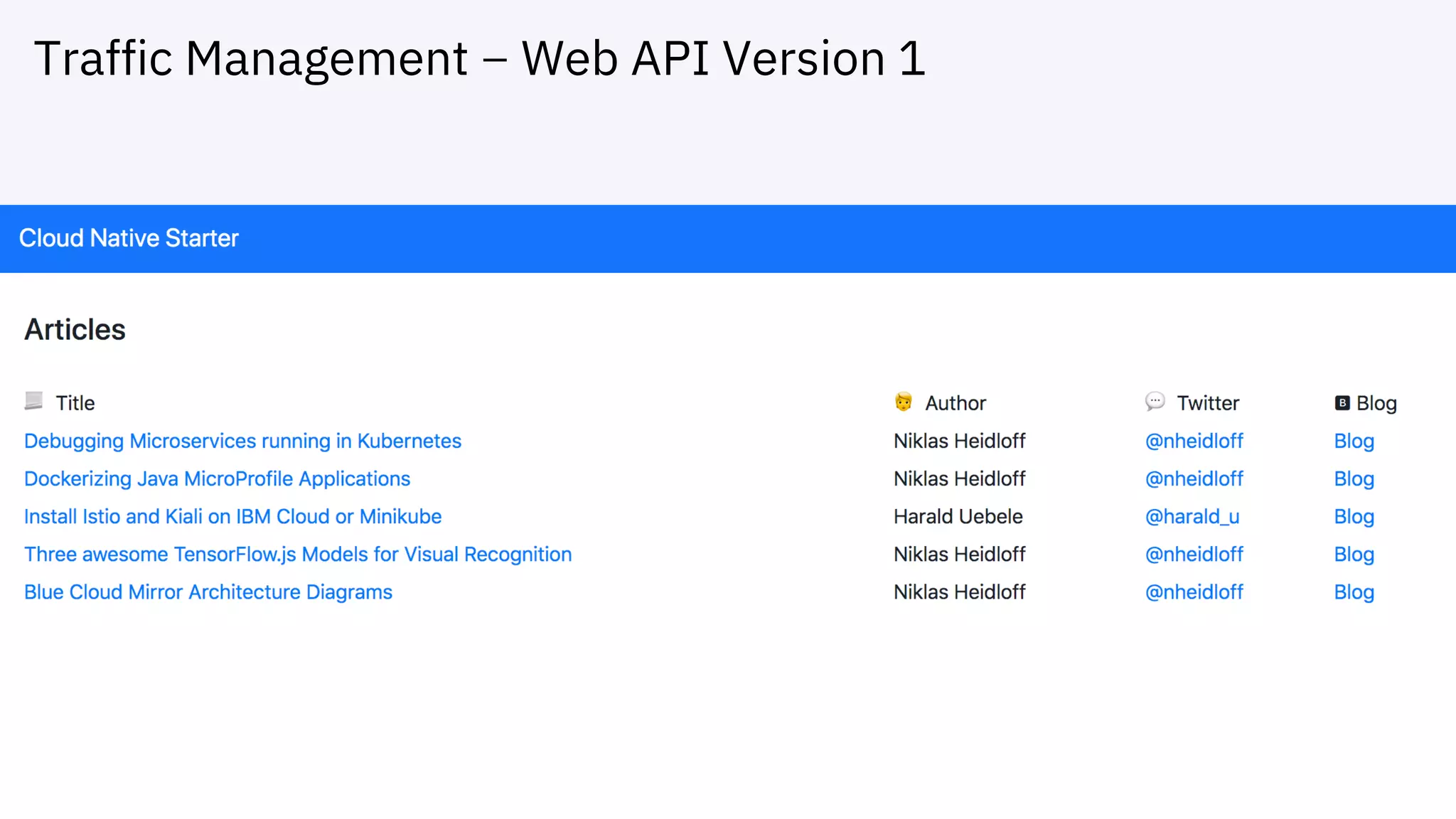

24. Traffic Management – Web API Version 1

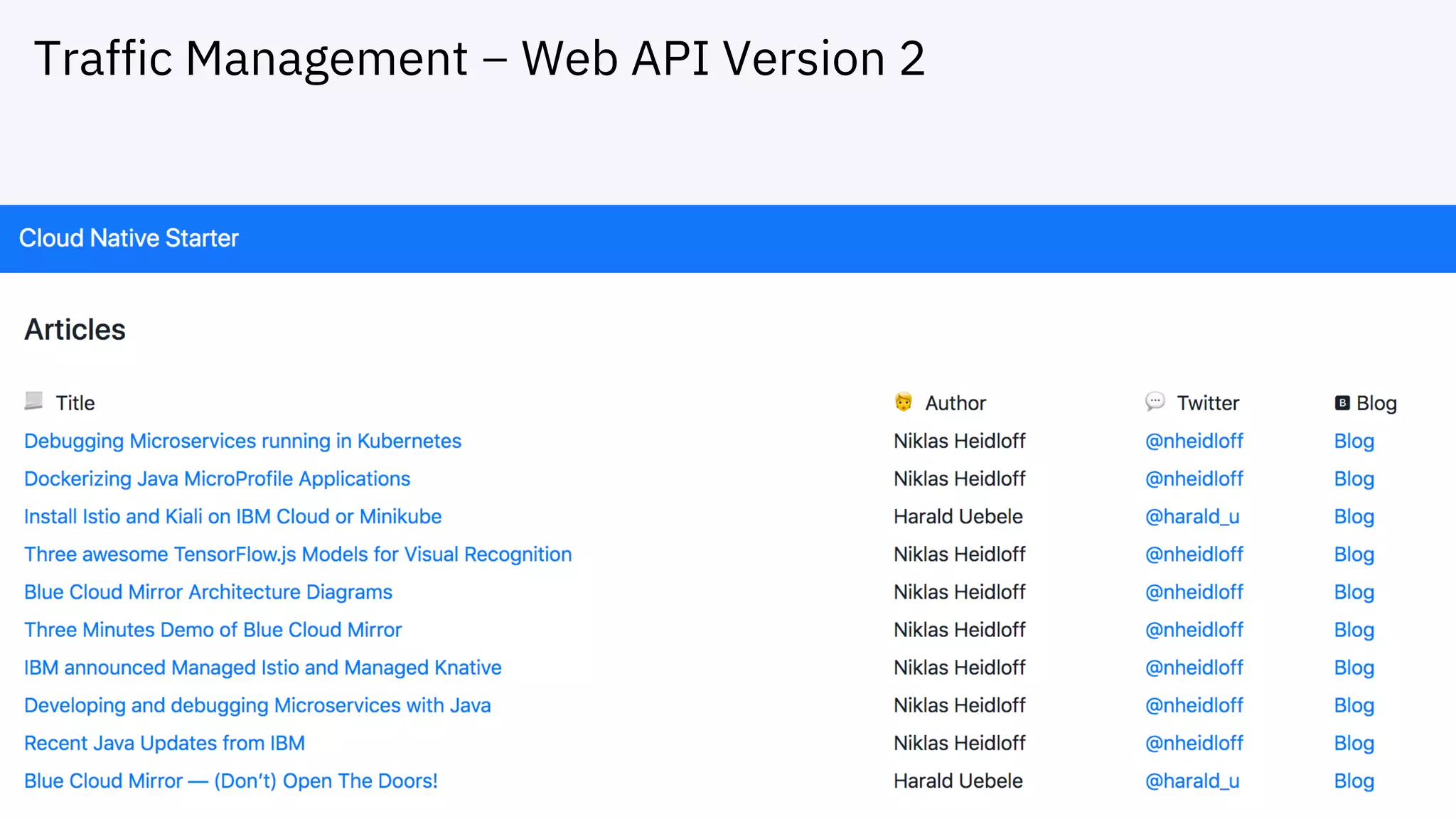

25. Traffic Management – Web API Version 2

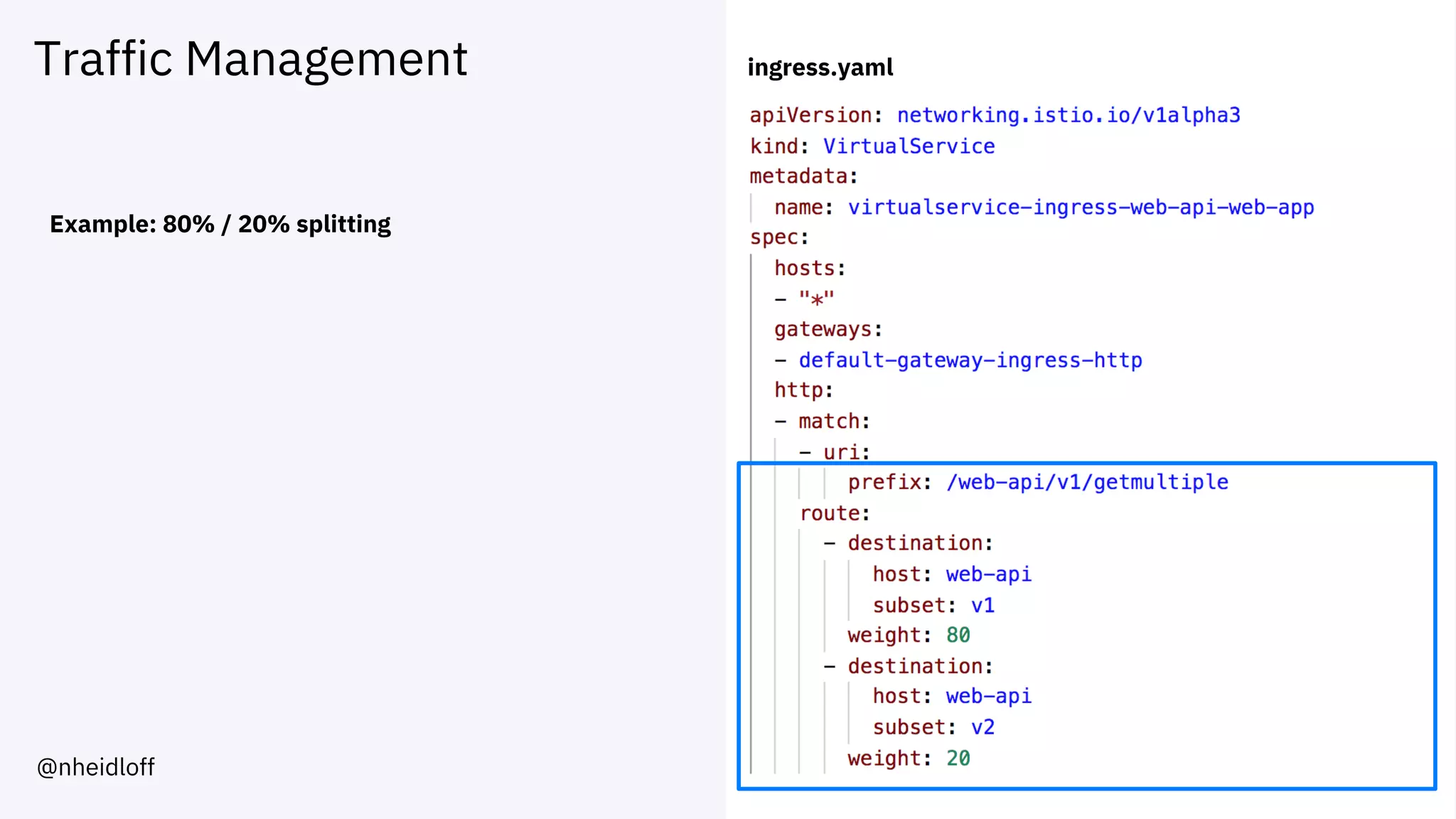

26. Traffic Management
Example: 80% / 20% splitting
ingress.yaml
@nheidloff

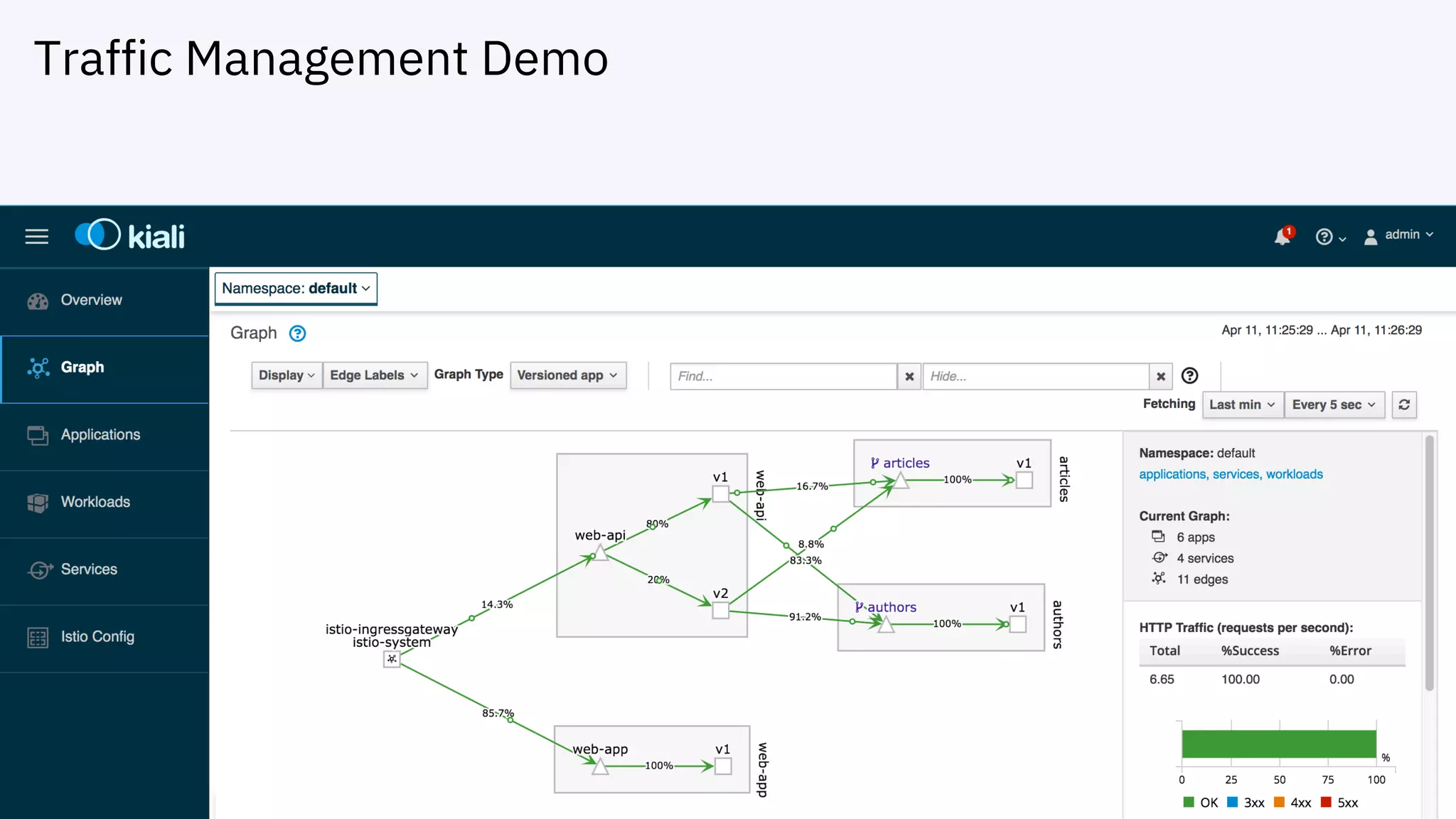

27. Traffic Management Demo

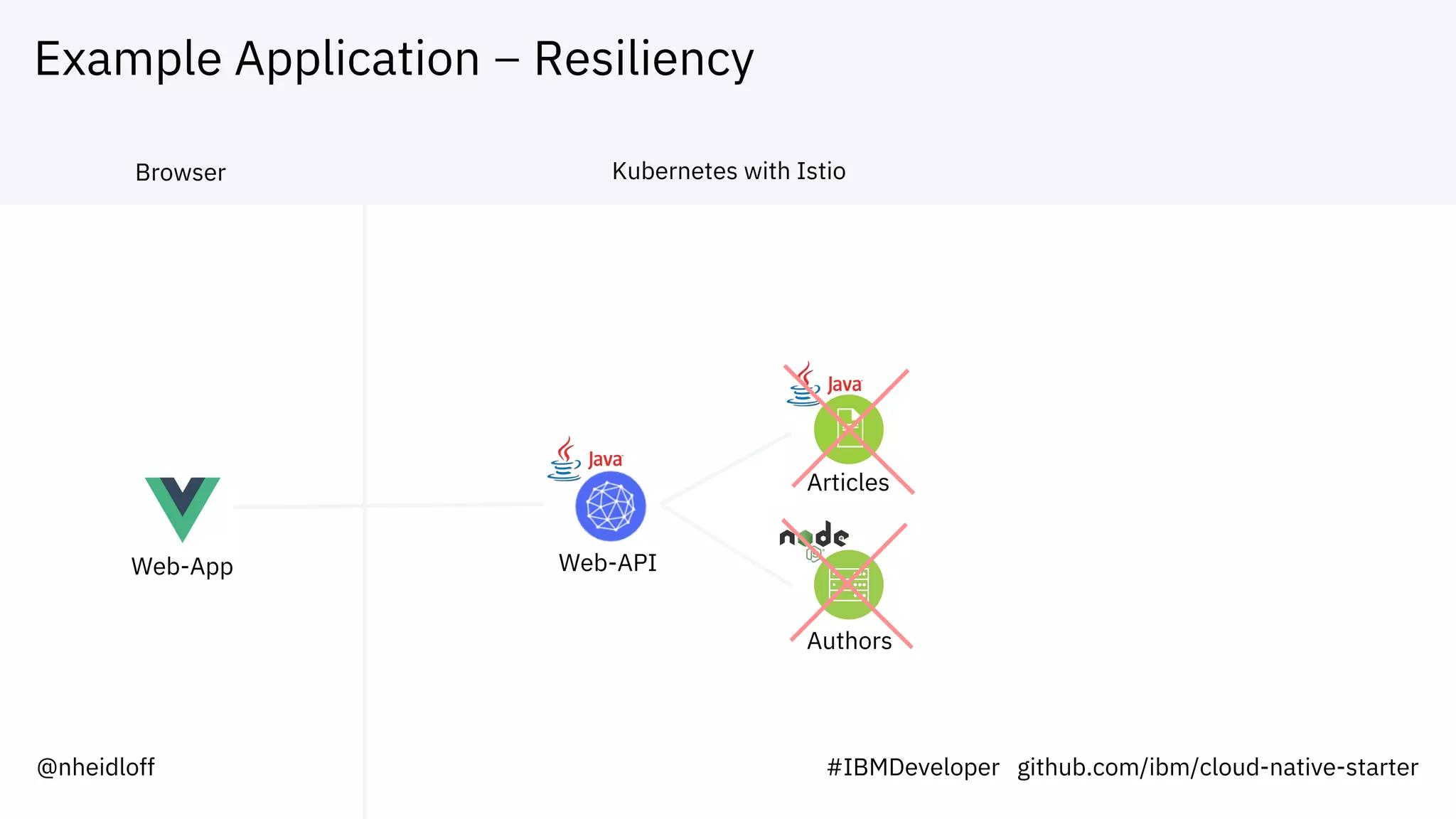

28. Example Application – Resiliency
Web-App Web-API
Articles
Authors
Browser Kubernetes with Istio
@nheidloff #IBMDeveloper github.com/ibm/cloud-native-starter

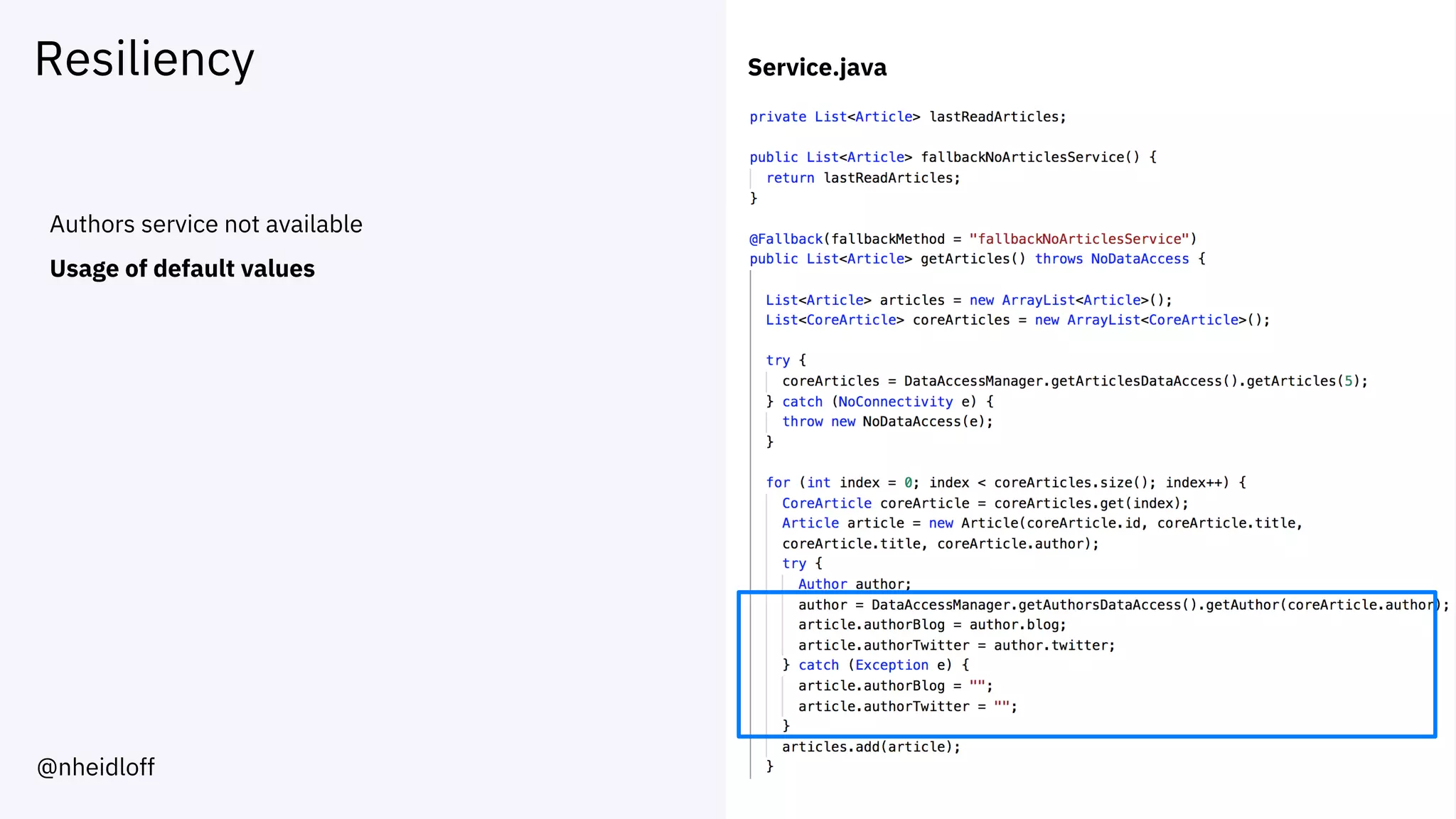

29. Resiliency
Authors service not available
Usage of default values
Service.java
@nheidloff

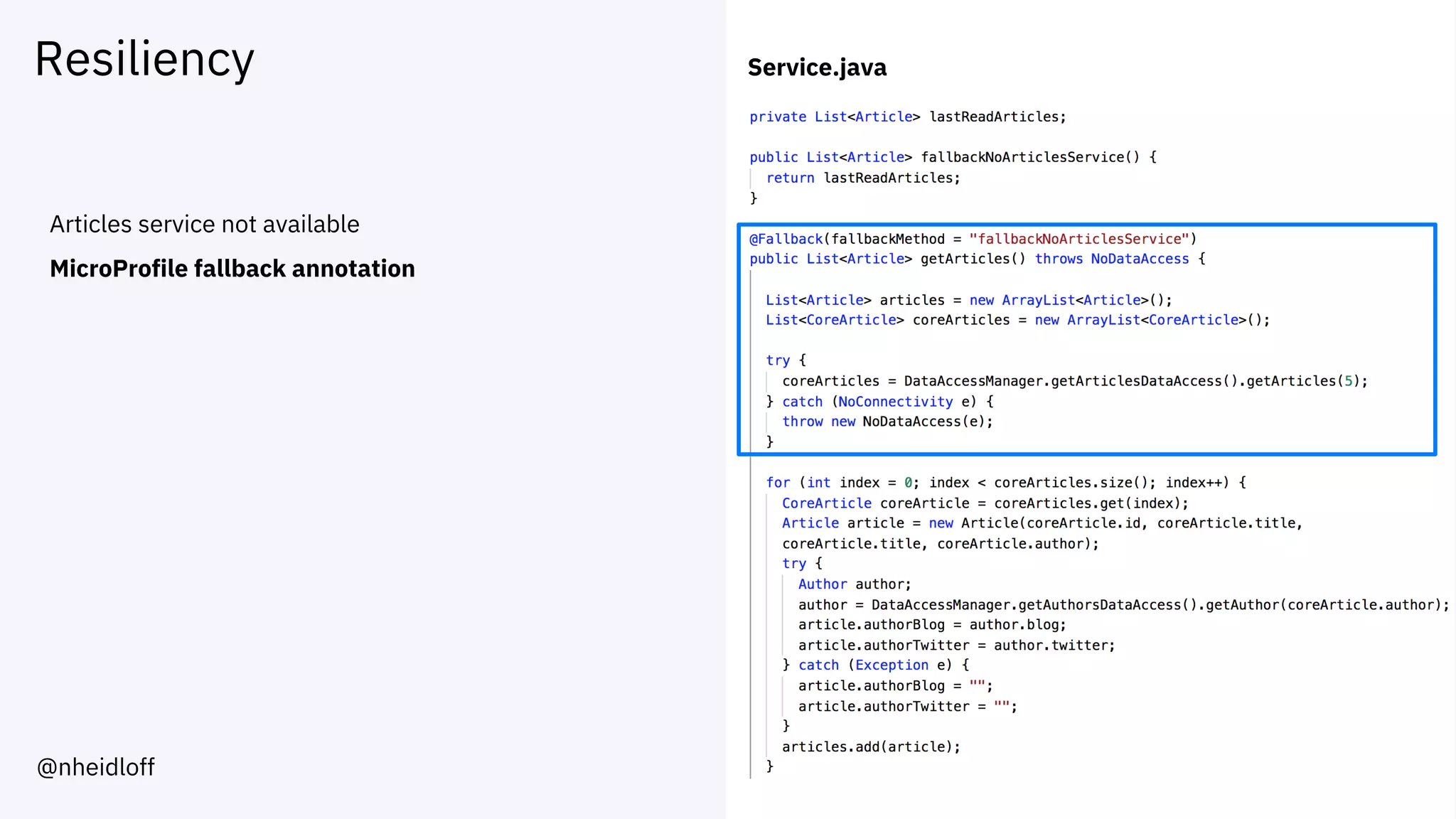

30. Resiliency
Articles service not available
MicroProfile fallback annotation
Service.java
@nheidloff

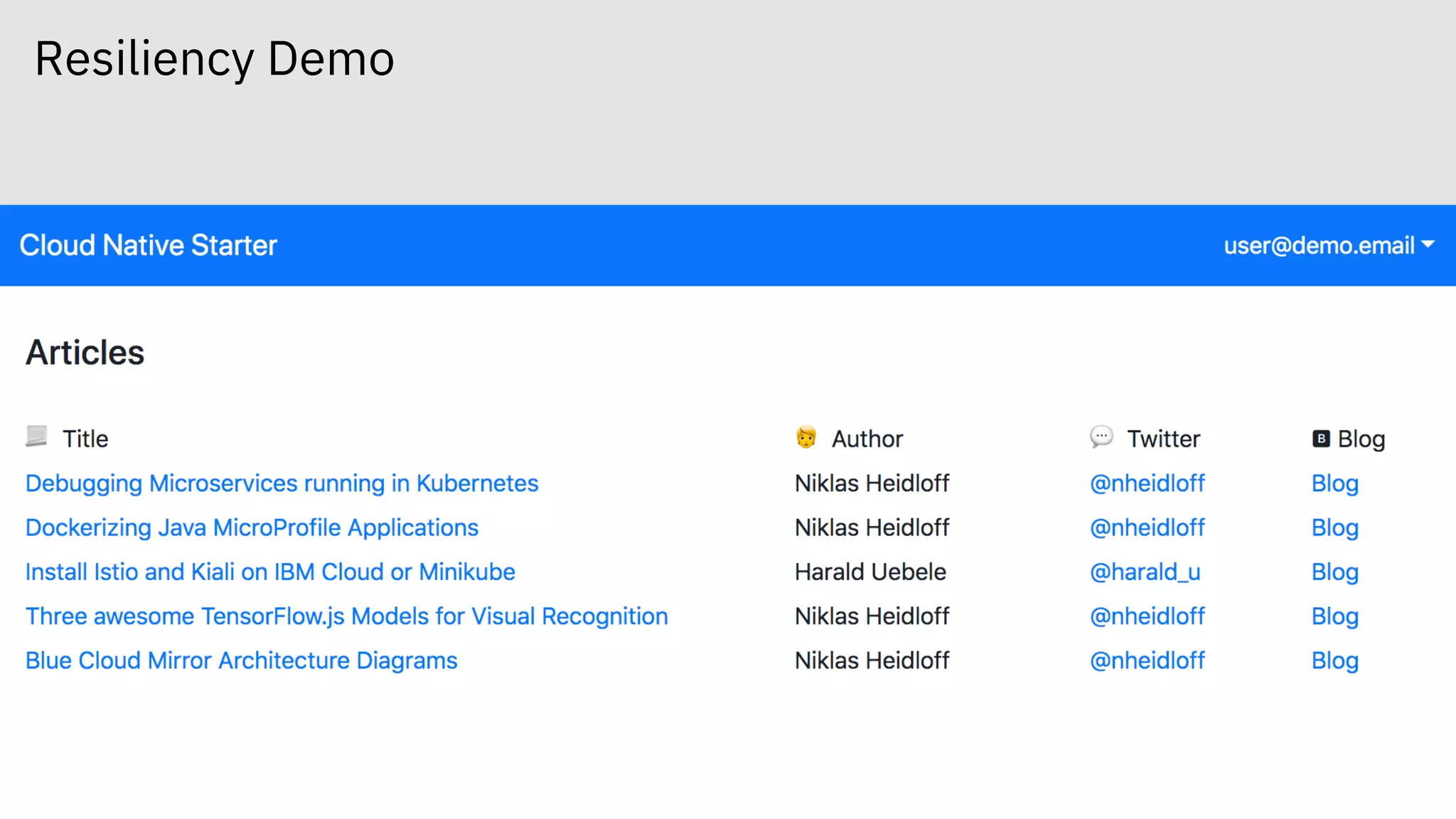

31. Resiliency Demo

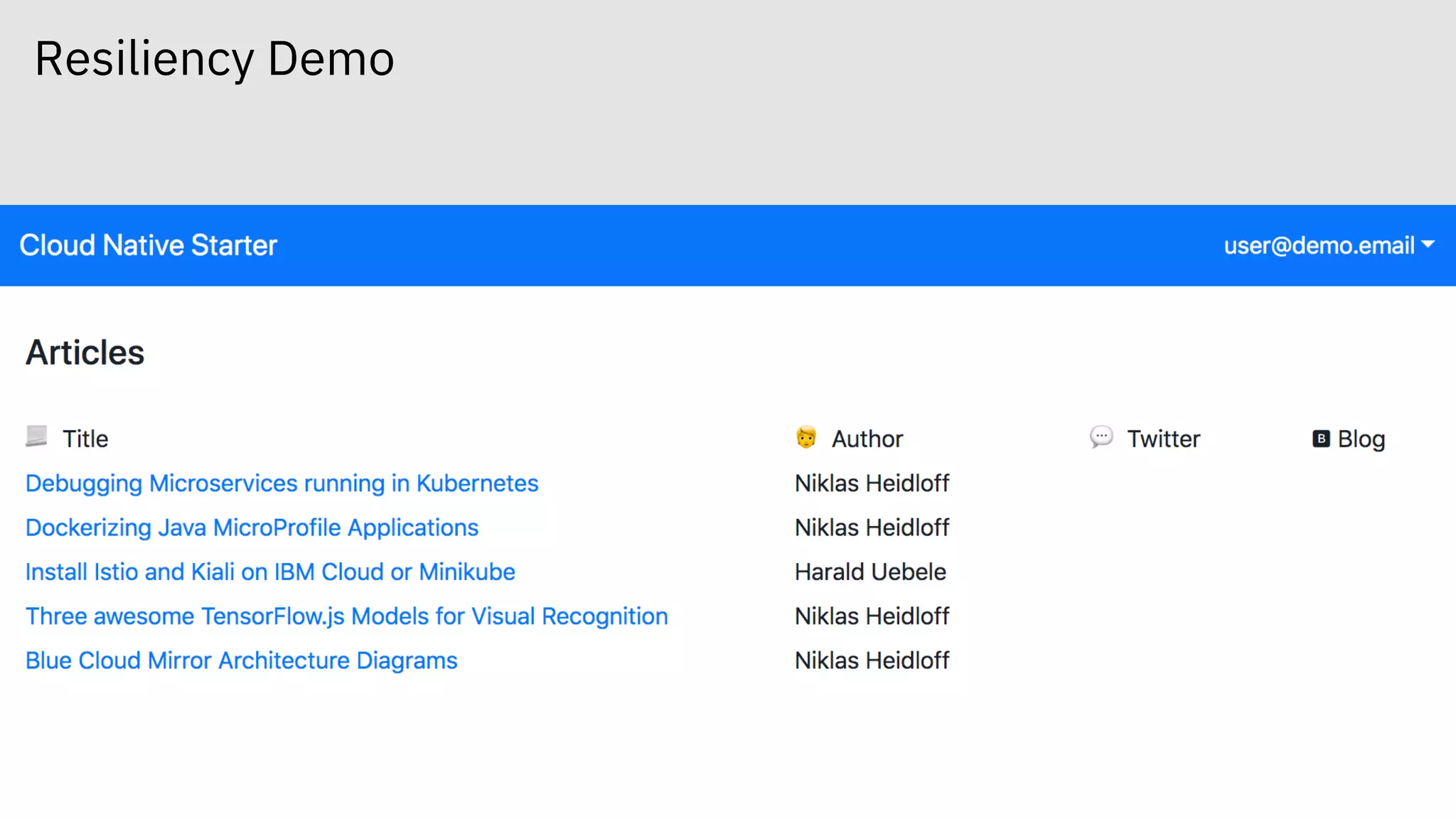

32. Resiliency Demo

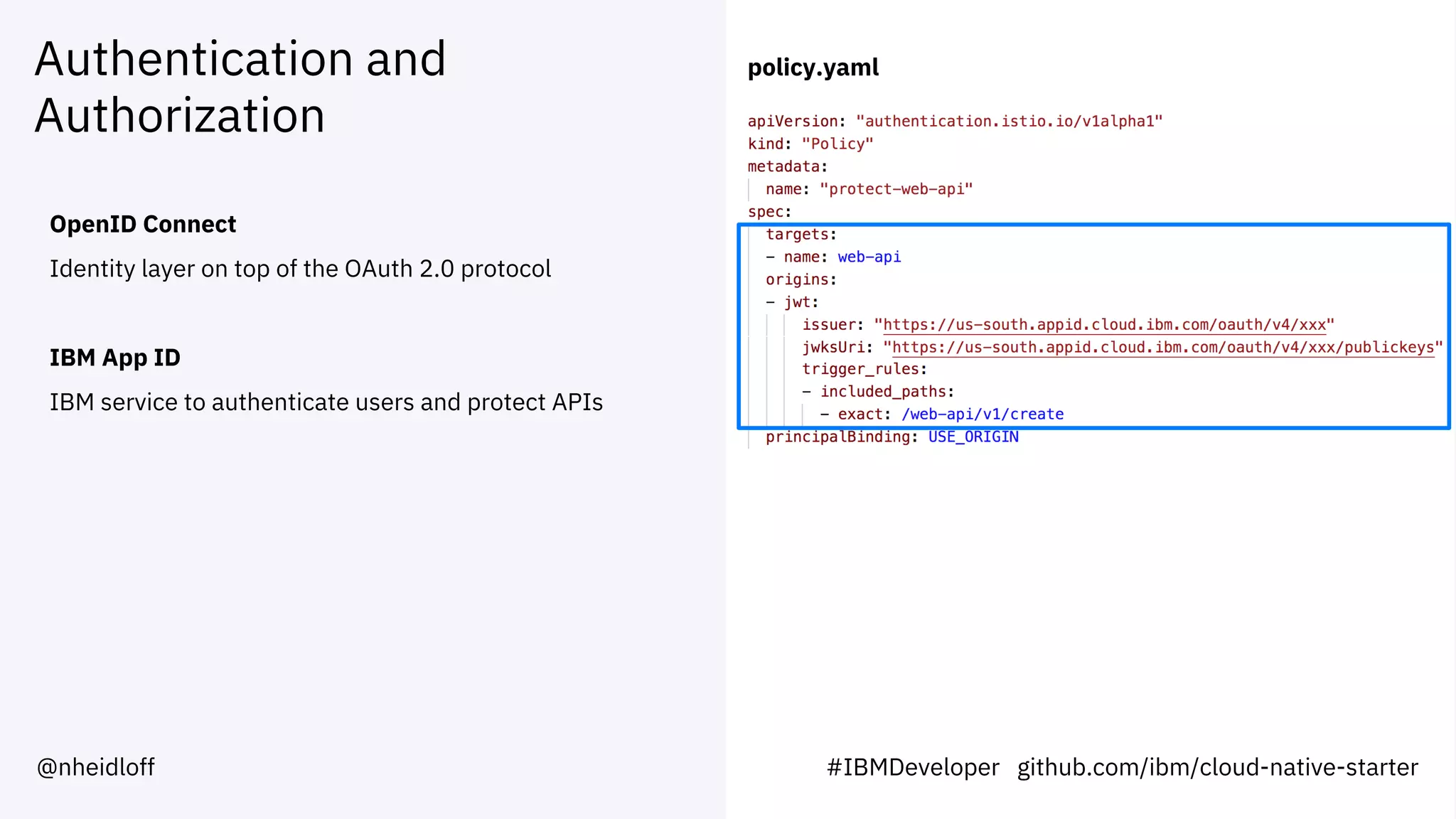

33. Authentication and
Authorization
OpenID Connect
Identity layer on top of the OAuth 2.0 protocol
IBM App ID
IBM service to authenticate users and protect APIs
policy.yaml
@nheidloff #IBMDeveloper github.com/ibm/cloud-native-starter

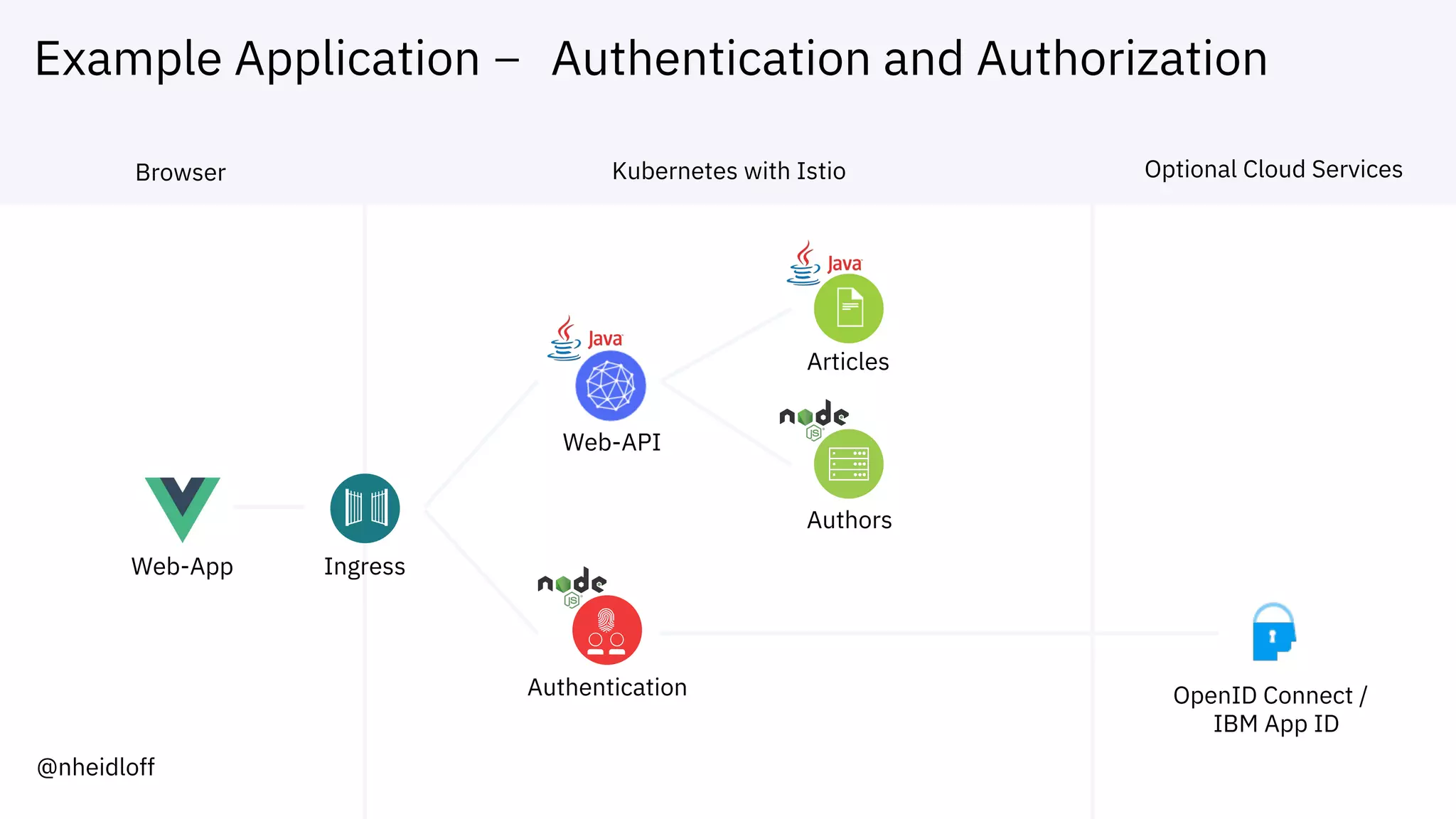

34. Example Application – Authentication and Authorization
Web-App
Web-API
Articles
Authors
OpenID Connect /
IBM App ID
Authentication
Browser Kubernetes with Istio Optional Cloud Services
Ingress
@nheidloff

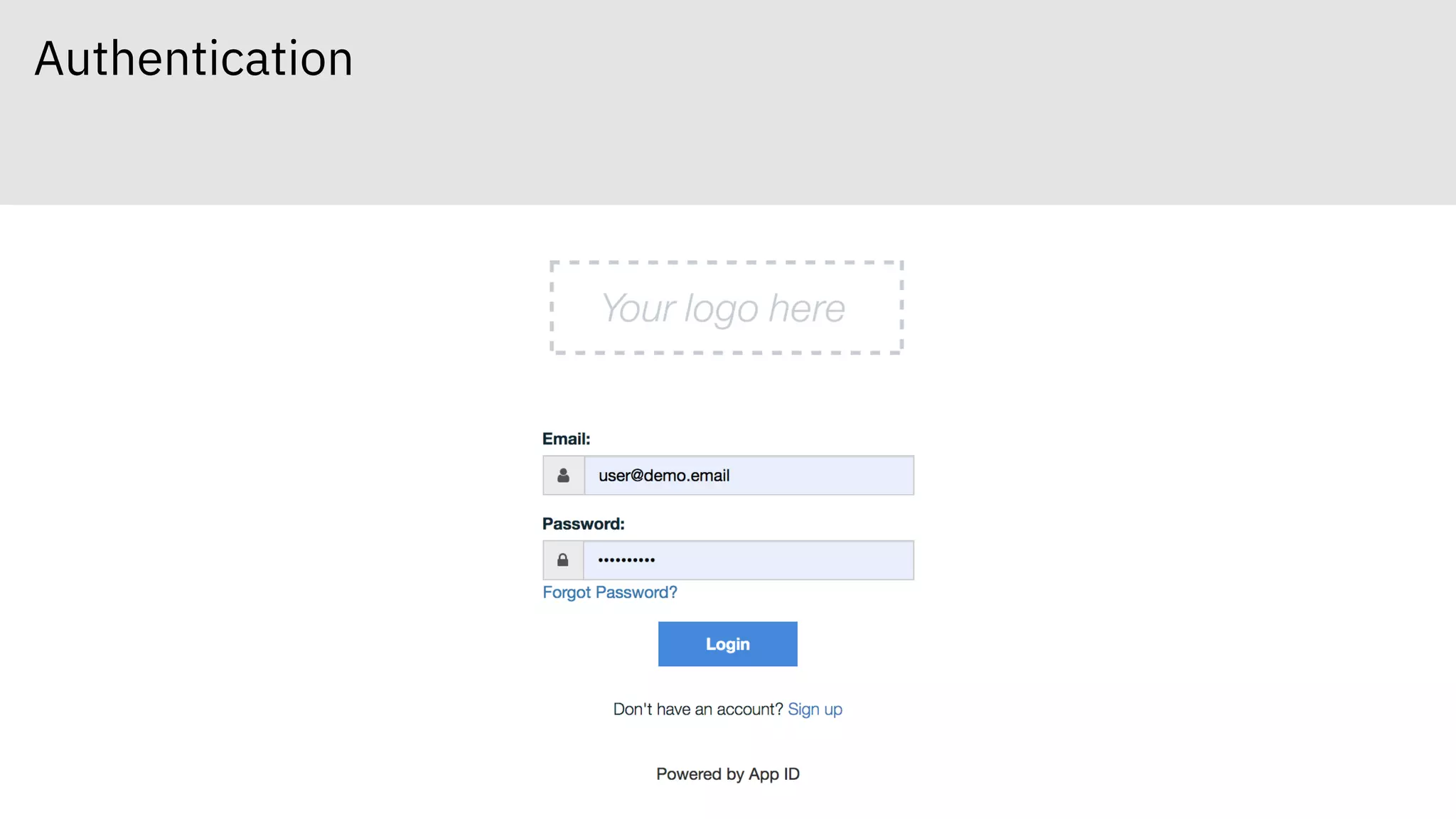

35. Authentication

36. Authorization

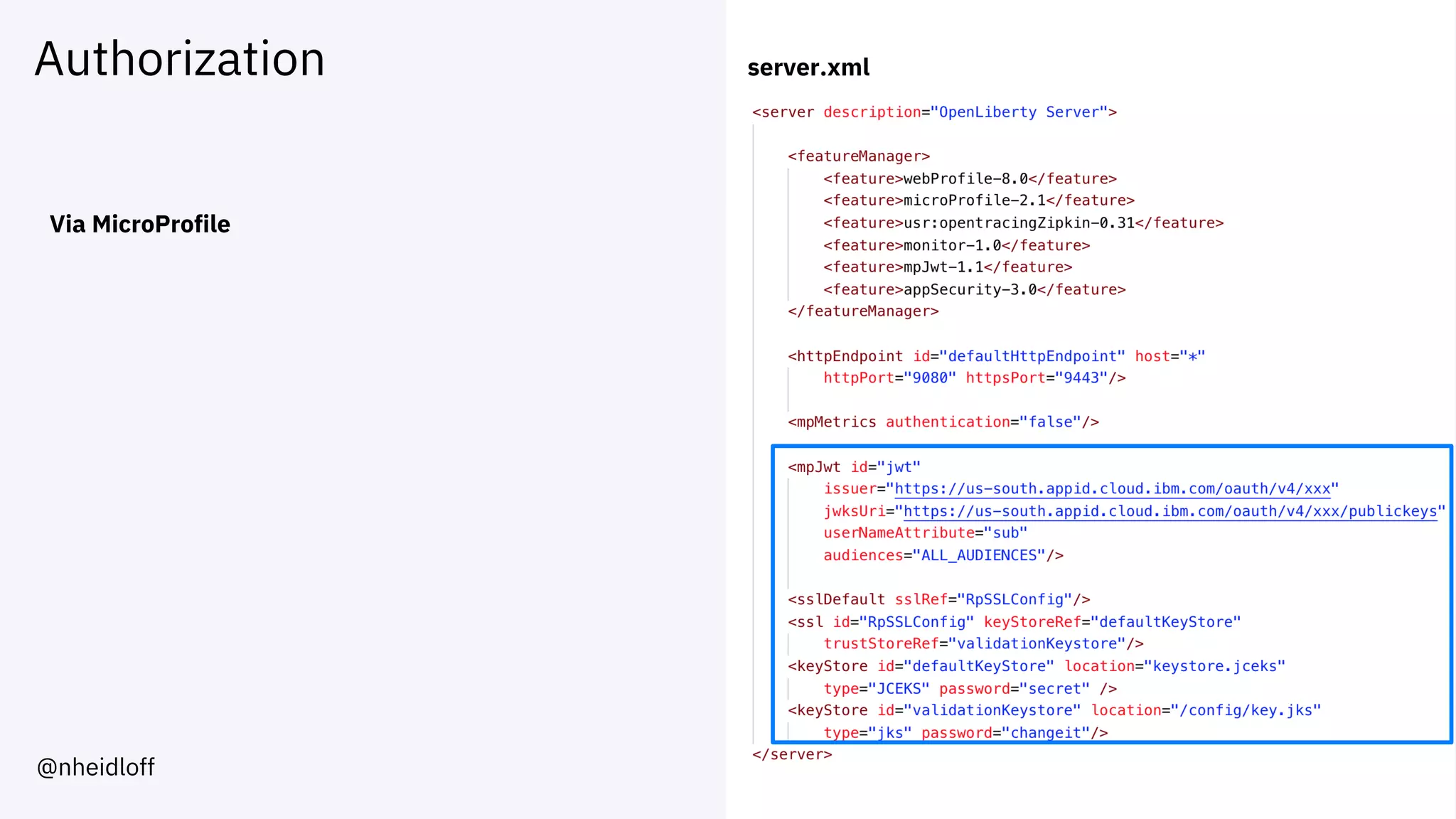

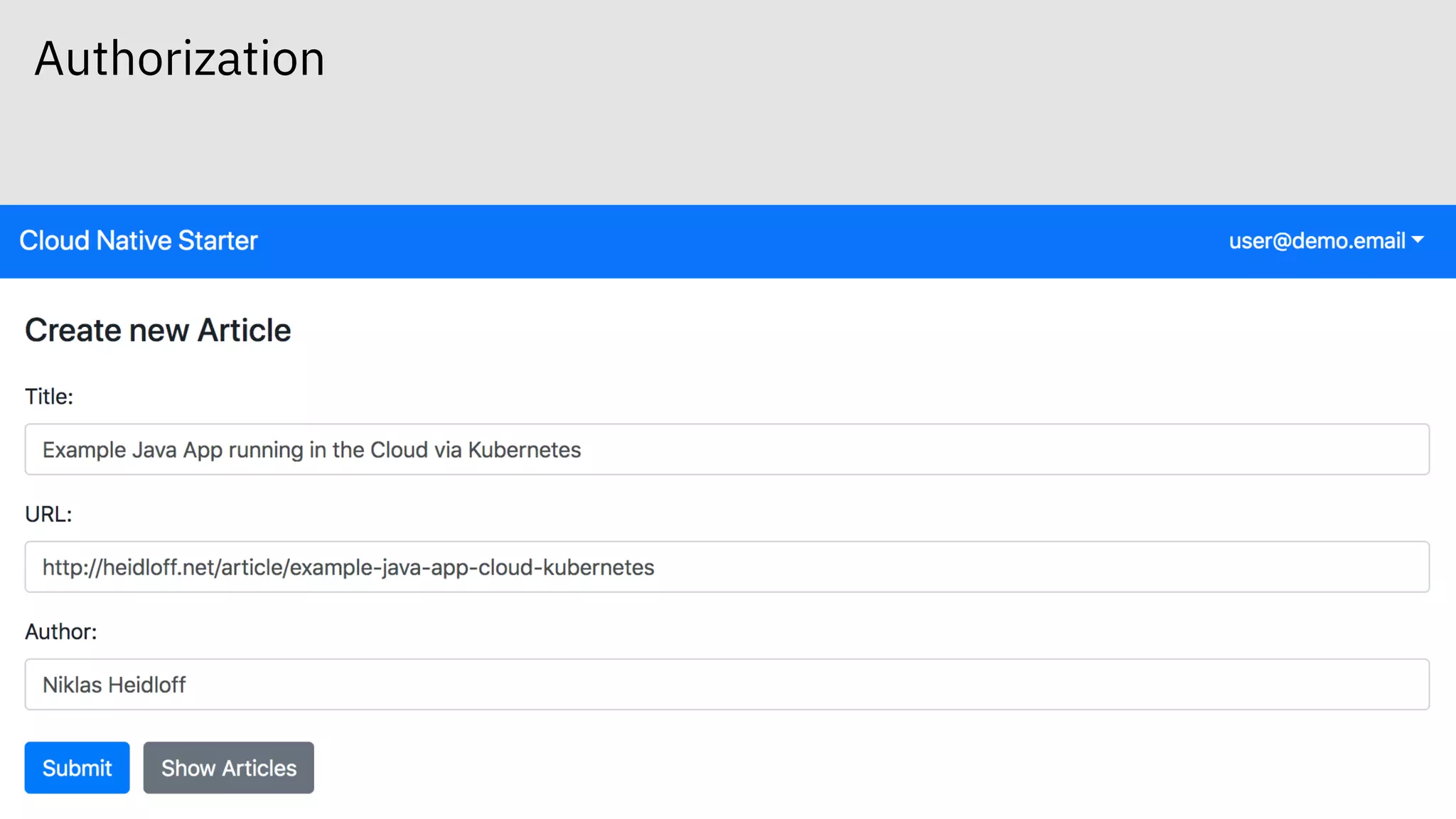

37. Authorization

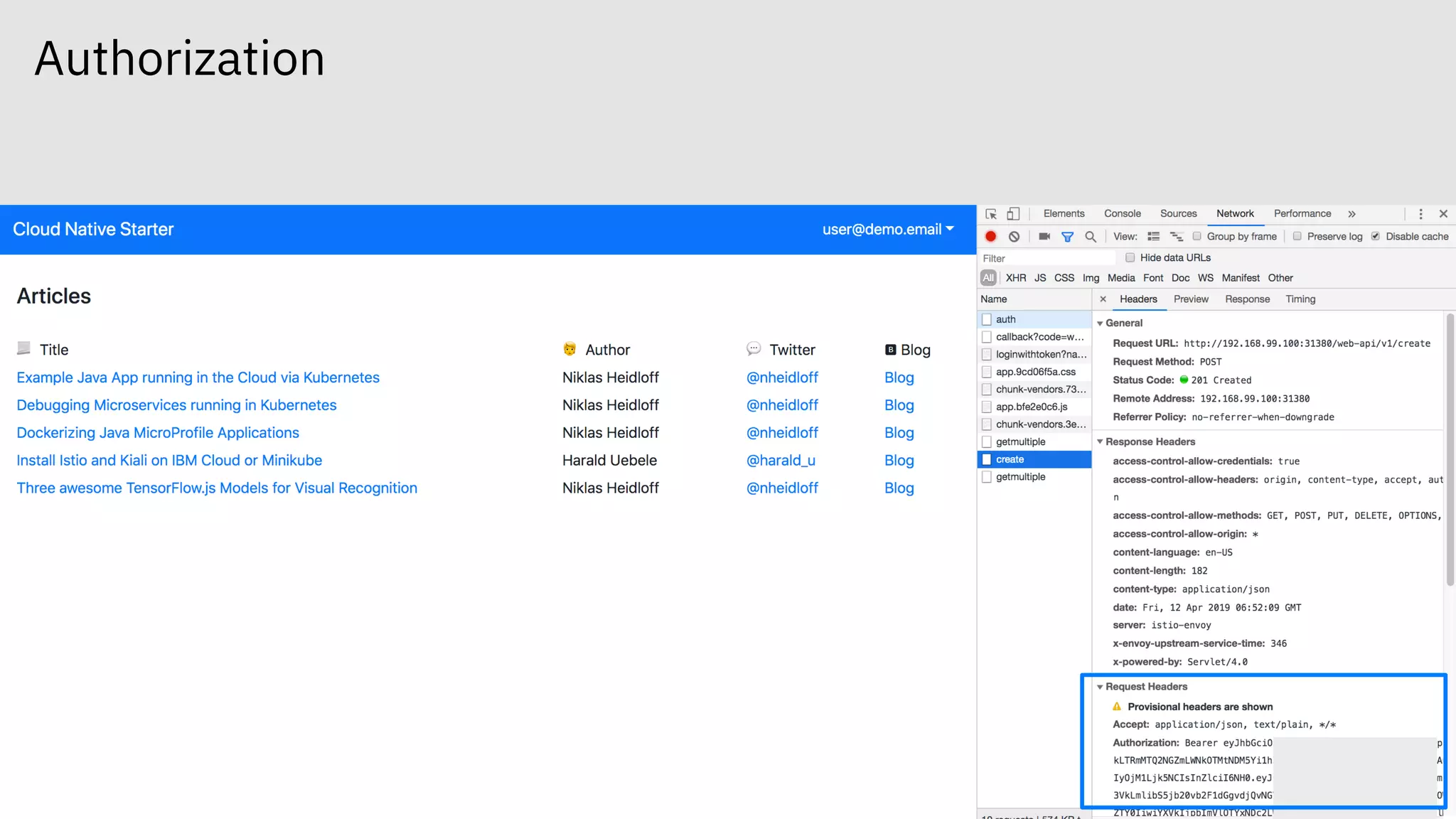

38. Authorization
Via MicroProfile
server.xml
@nheidloff

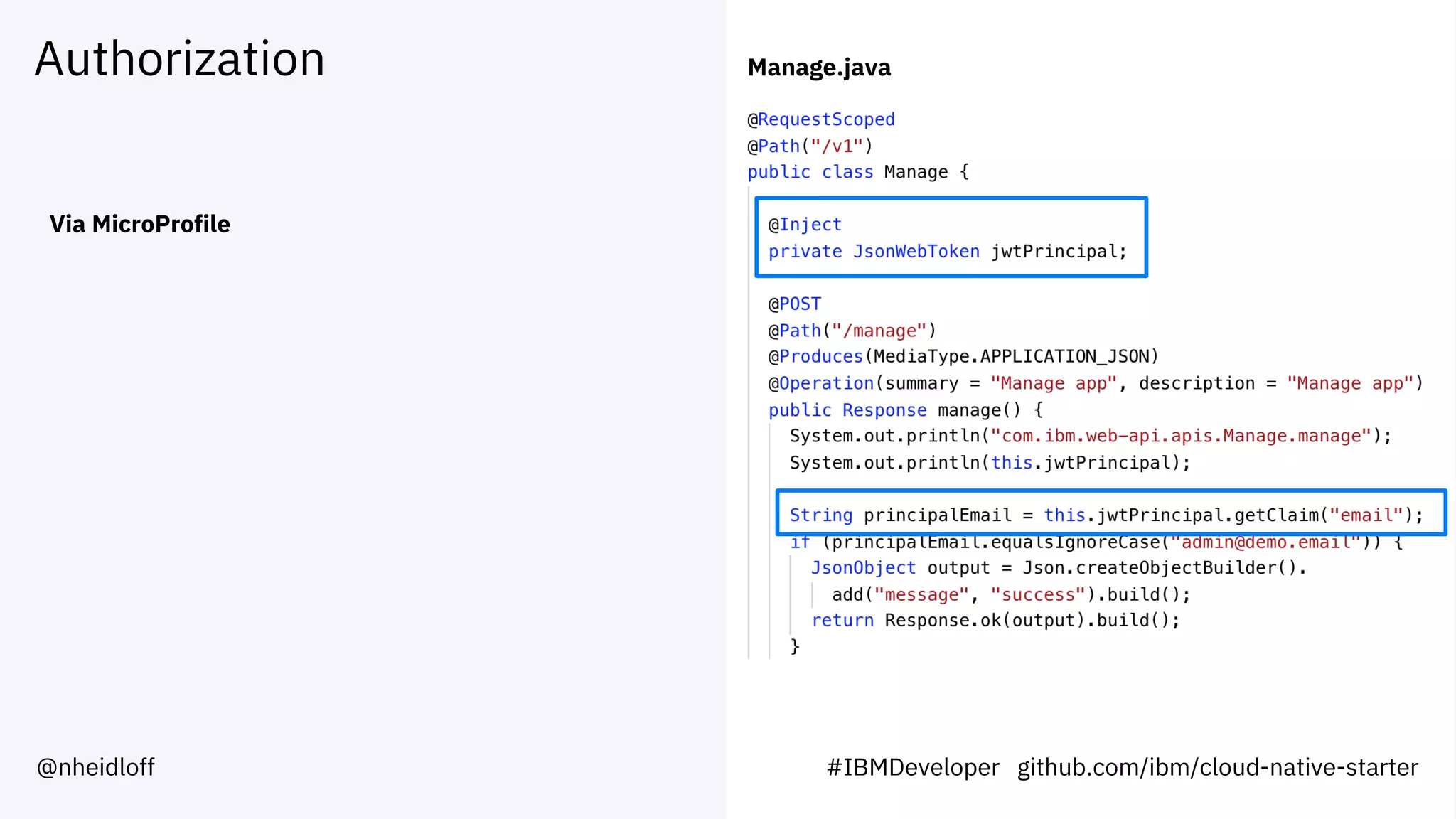

39. Authorization
Via MicroProfile
Manage.java
@nheidloff #IBMDeveloper github.com/ibm/cloud-native-starter

40. Chained invocations Kubernetes
→ 1 service = N pods
Microservices vs monolith
→ Higher complexity
→ Ephemeral
Tracing
Logging
Monitoring
Metrics
Healthchecks
Observability
@nheidloff #IBMDeveloper github.com/ibm/cloud-native-starter

41. Example Application – Distributed Logging
Web-App Web-API
Articles
Authors
Browser Kubernetes with Istio
@nheidloff #IBMDeveloper github.com/ibm/cloud-native-starter

42. Distributed Logging

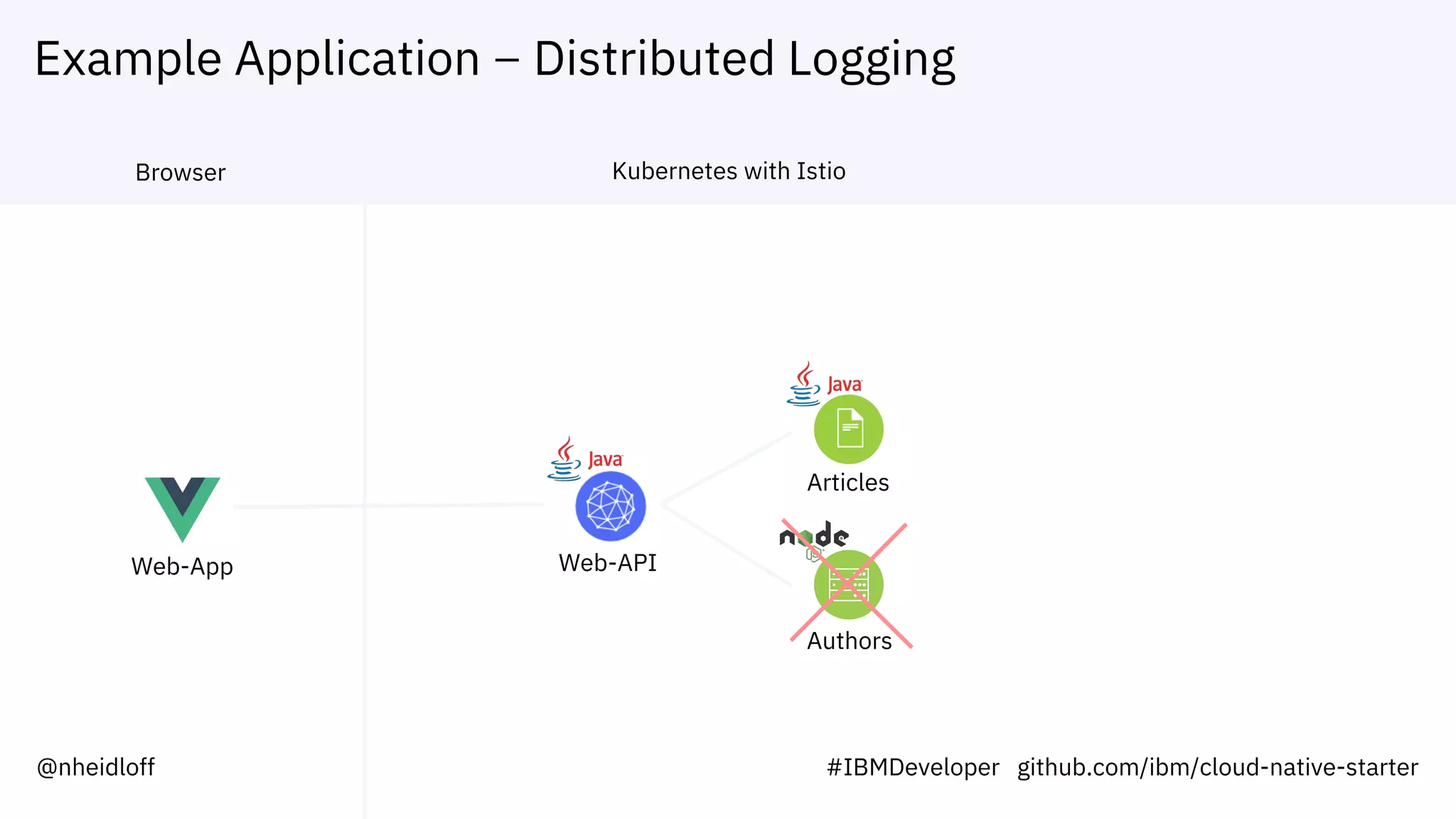

43. Example Application – Distributed Logging
Web-App Web-API
Articles
Authors
Browser Kubernetes with Istio
@nheidloff #IBMDeveloper github.com/ibm/cloud-native-starter

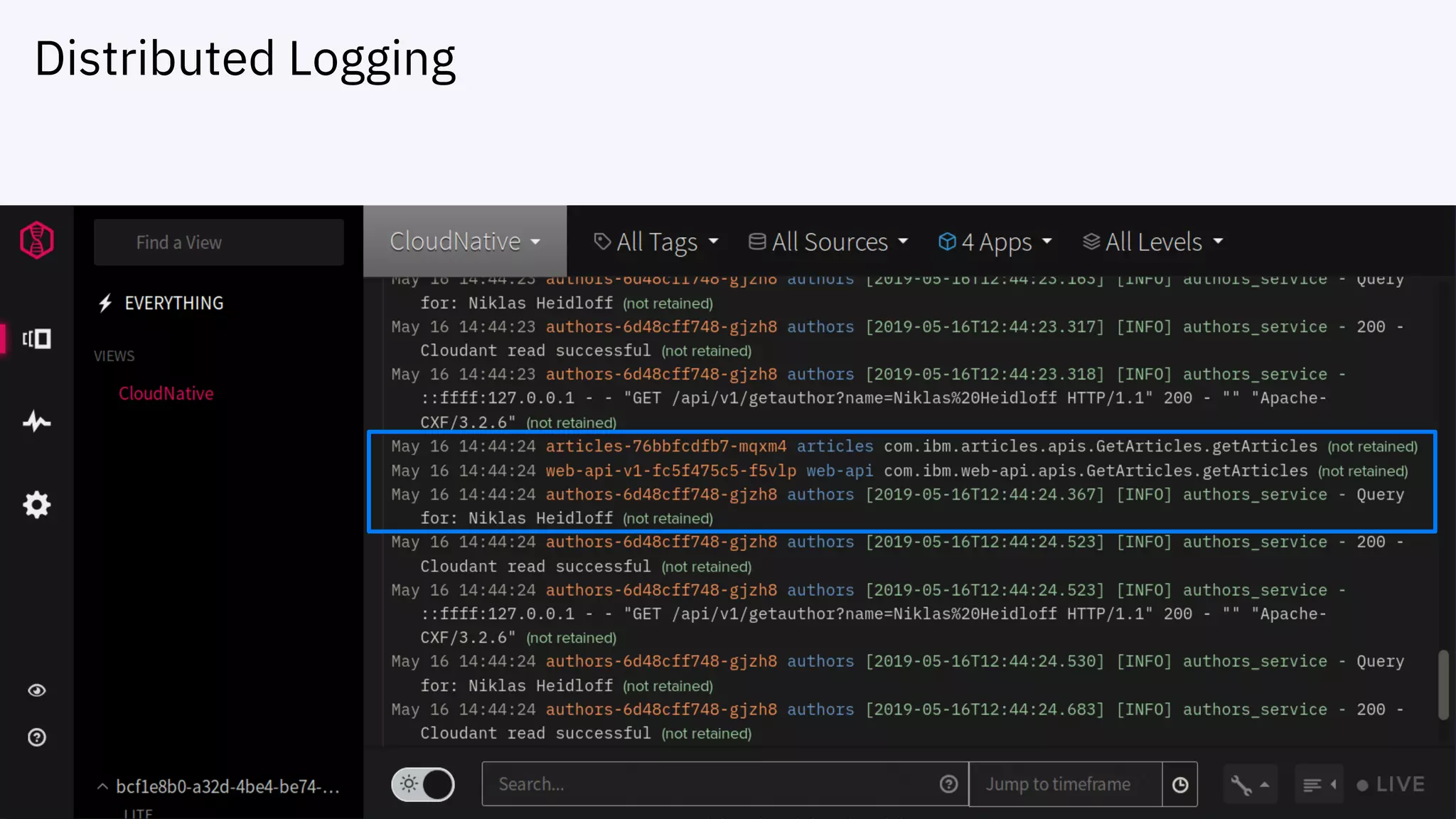

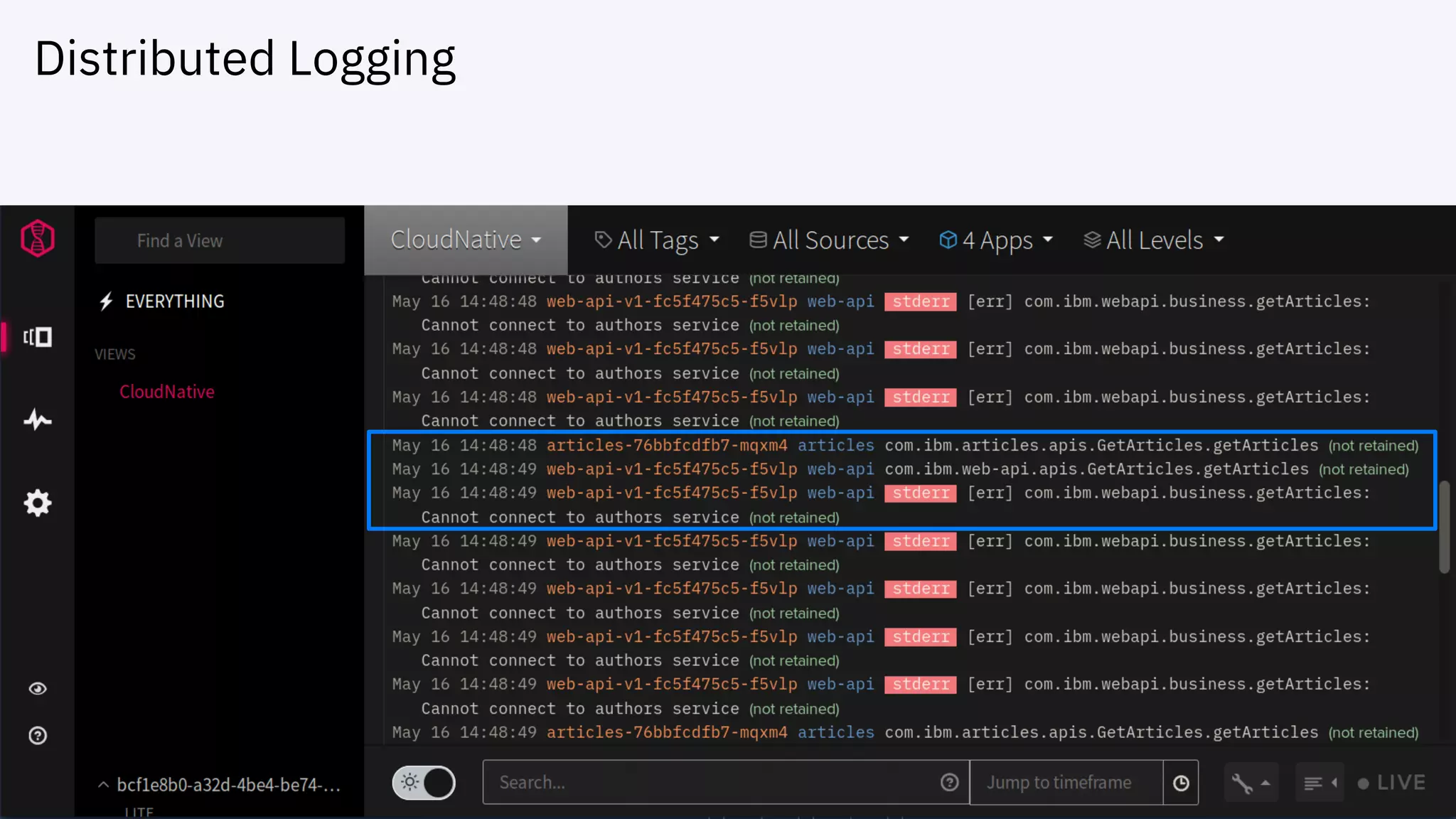

44. Distributed Logging

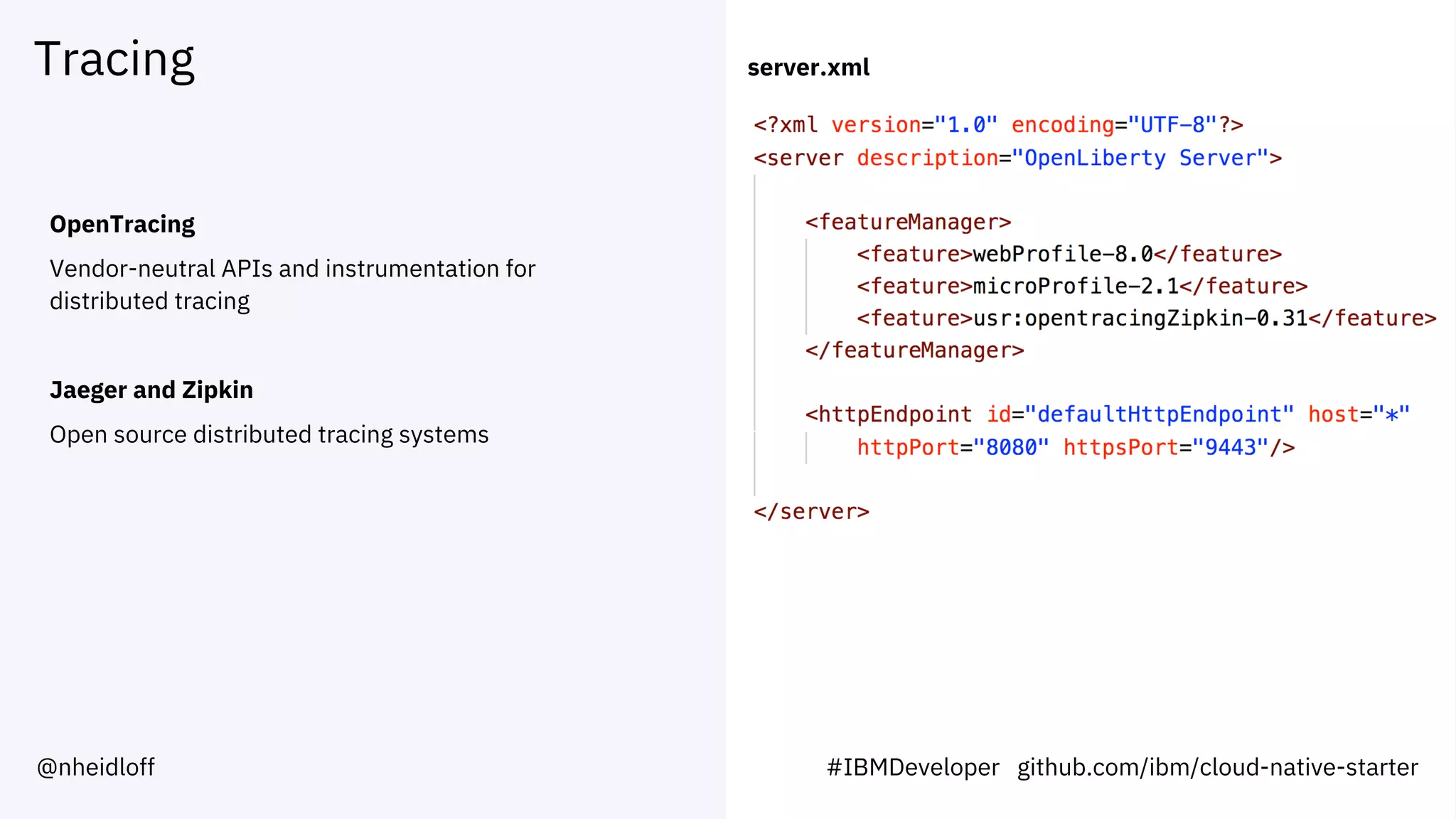

45. Tracing
OpenTracing
Vendor-neutral APIs and instrumentation for
distributed tracing
Jaeger and Zipkin
Open source distributed tracing systems
server.xml
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

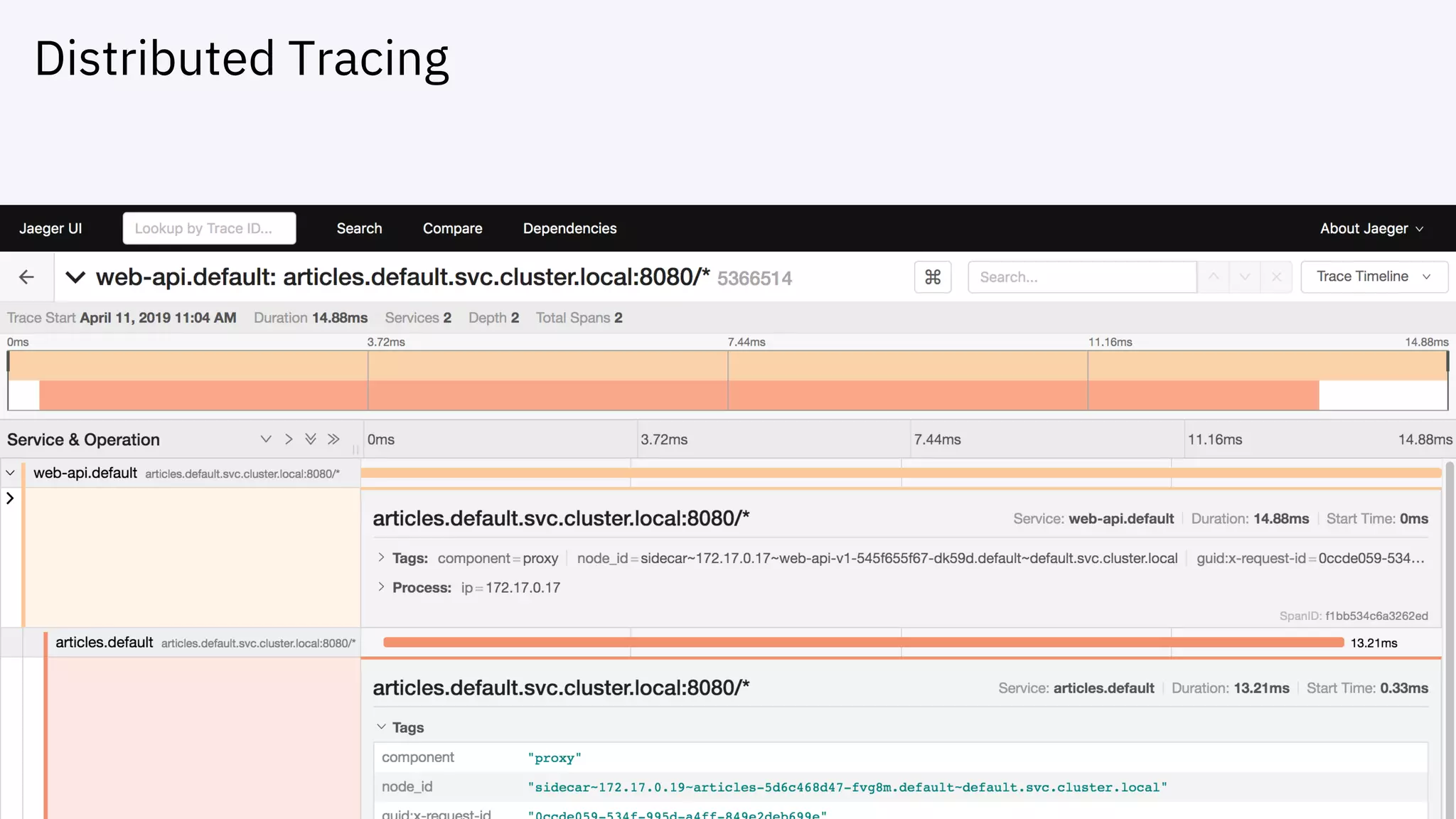

46. Distributed Tracing

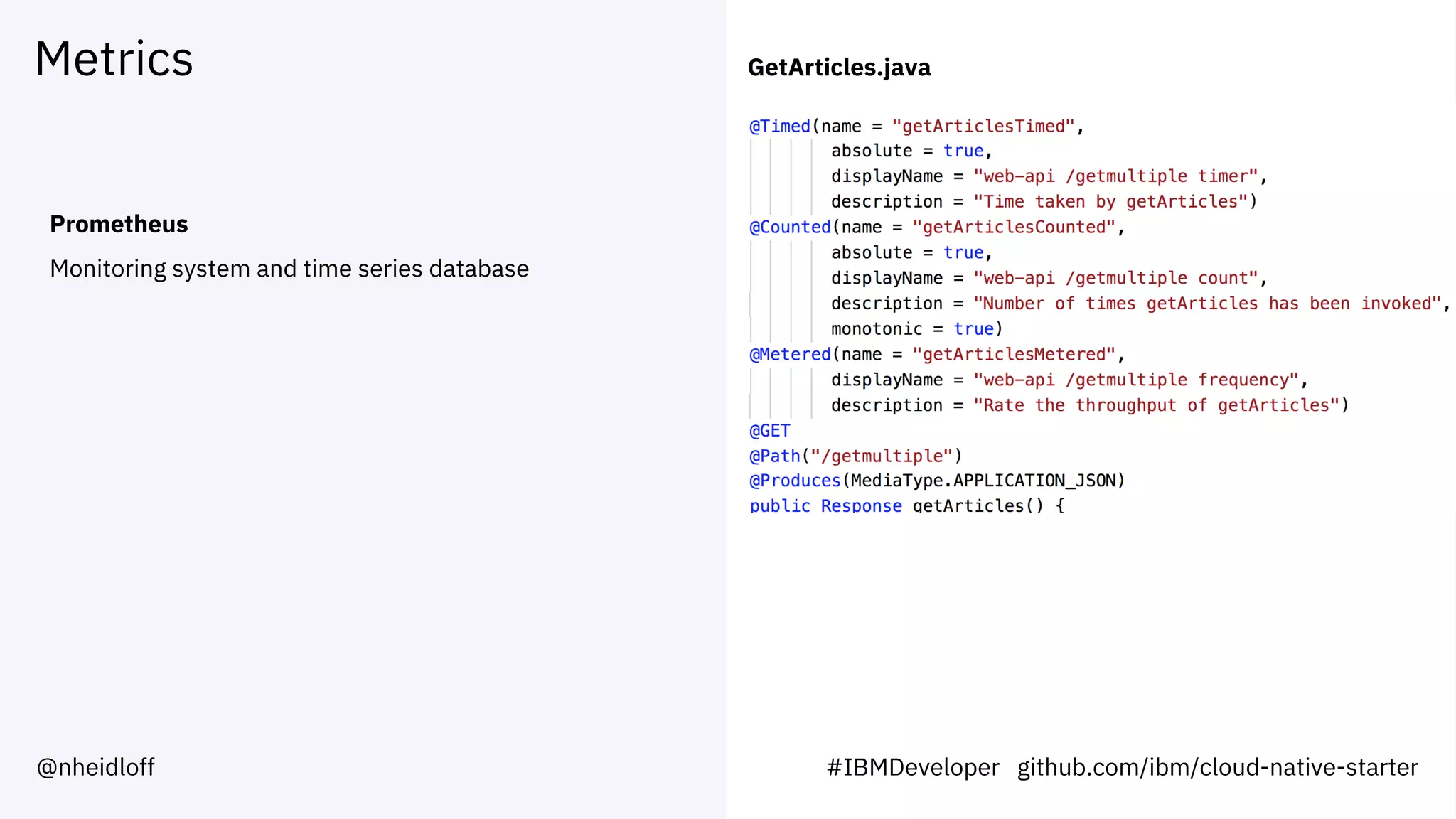

47. Metrics
Prometheus
Monitoring system and time series database
GetArticles.java
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

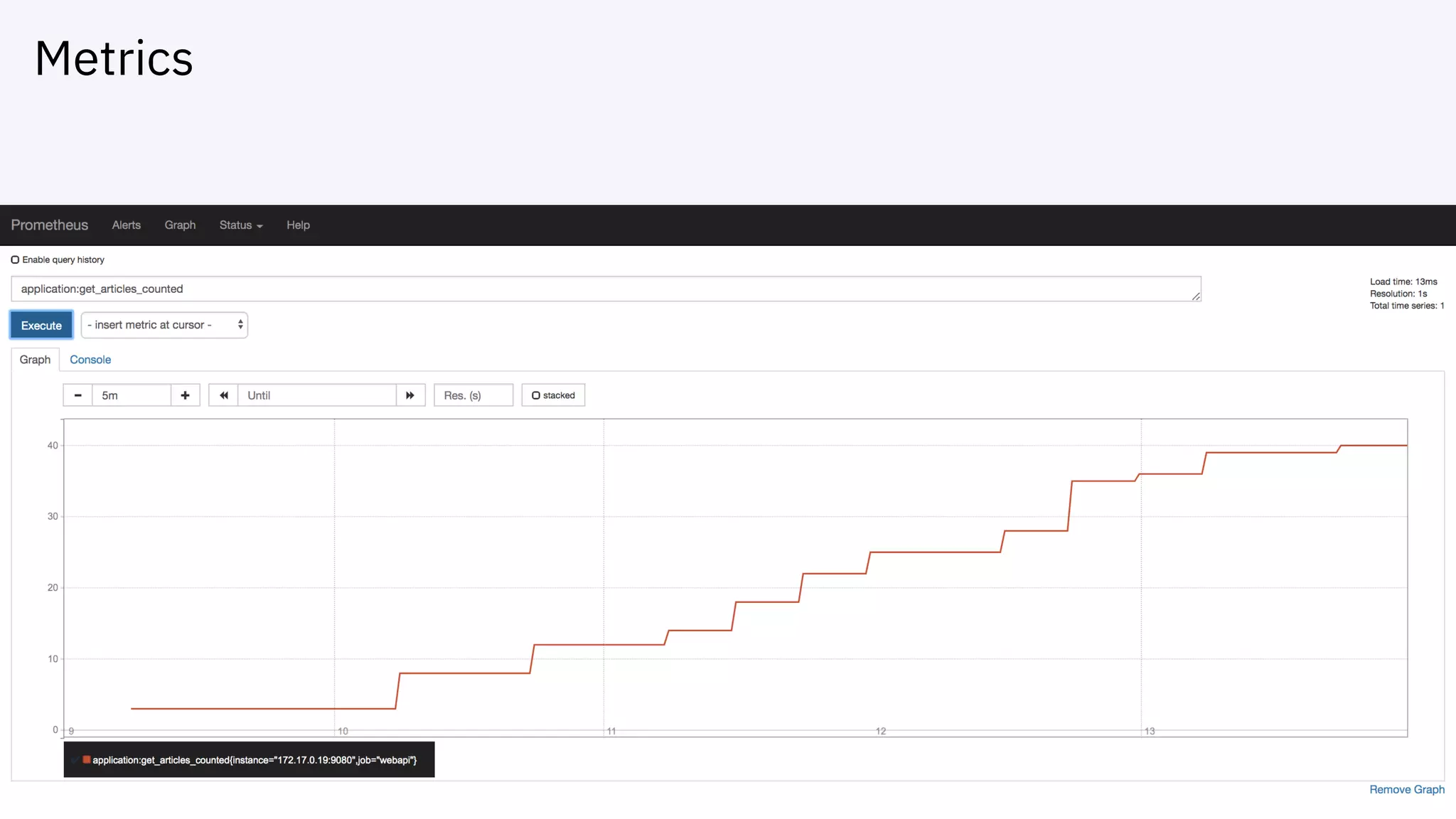

48. Metrics

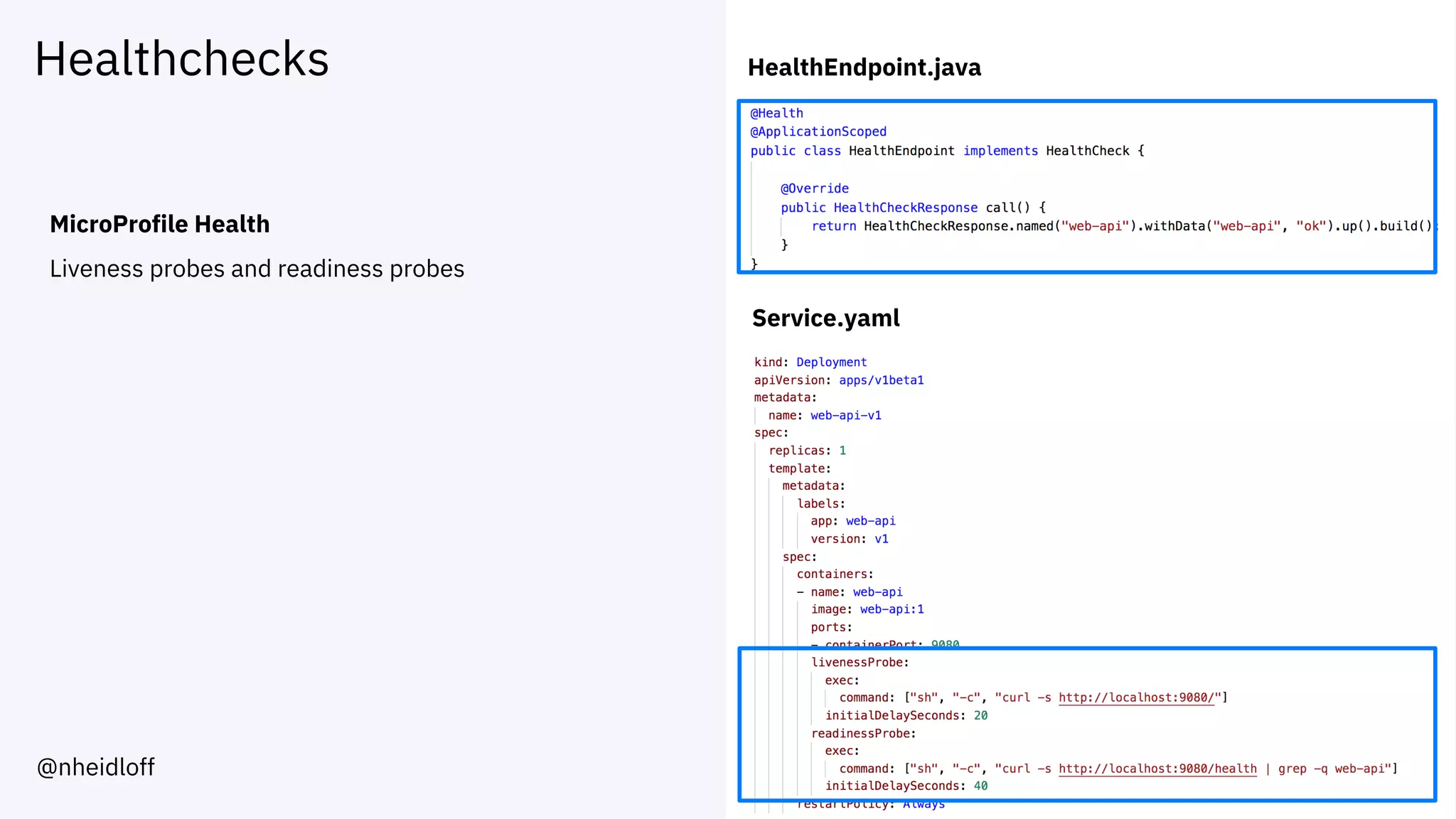

49. Healthchecks
MicroProfile Health
Liveness probes and readiness probes
HealthEndpoint.java
Service.yaml
@nheidloff

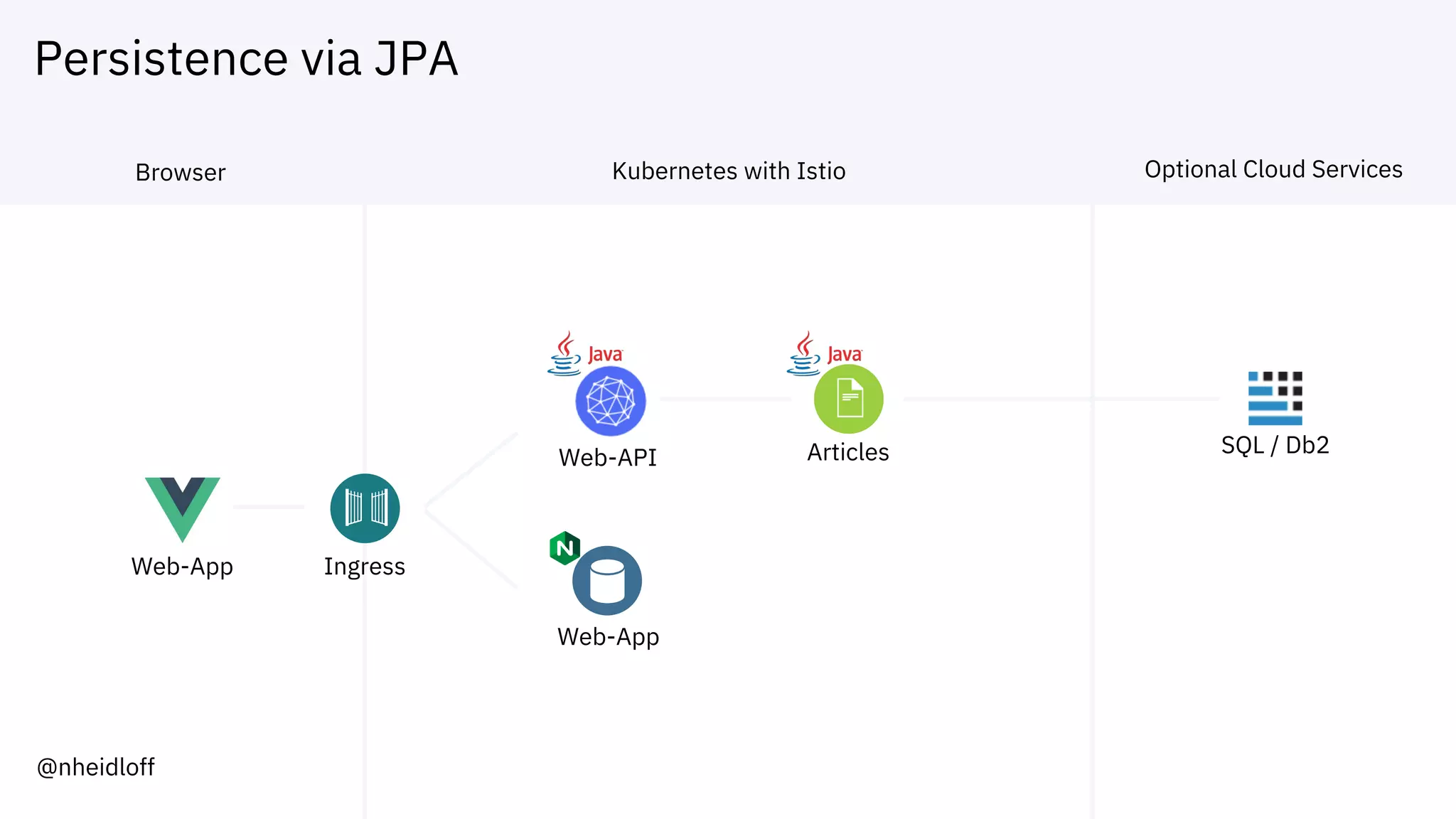

50. Persistence via JPA
Web-App
Web-API Articles
Web-App
SQL / Db2
Browser Kubernetes with Istio Optional Cloud Services
Ingress
@nheidloff

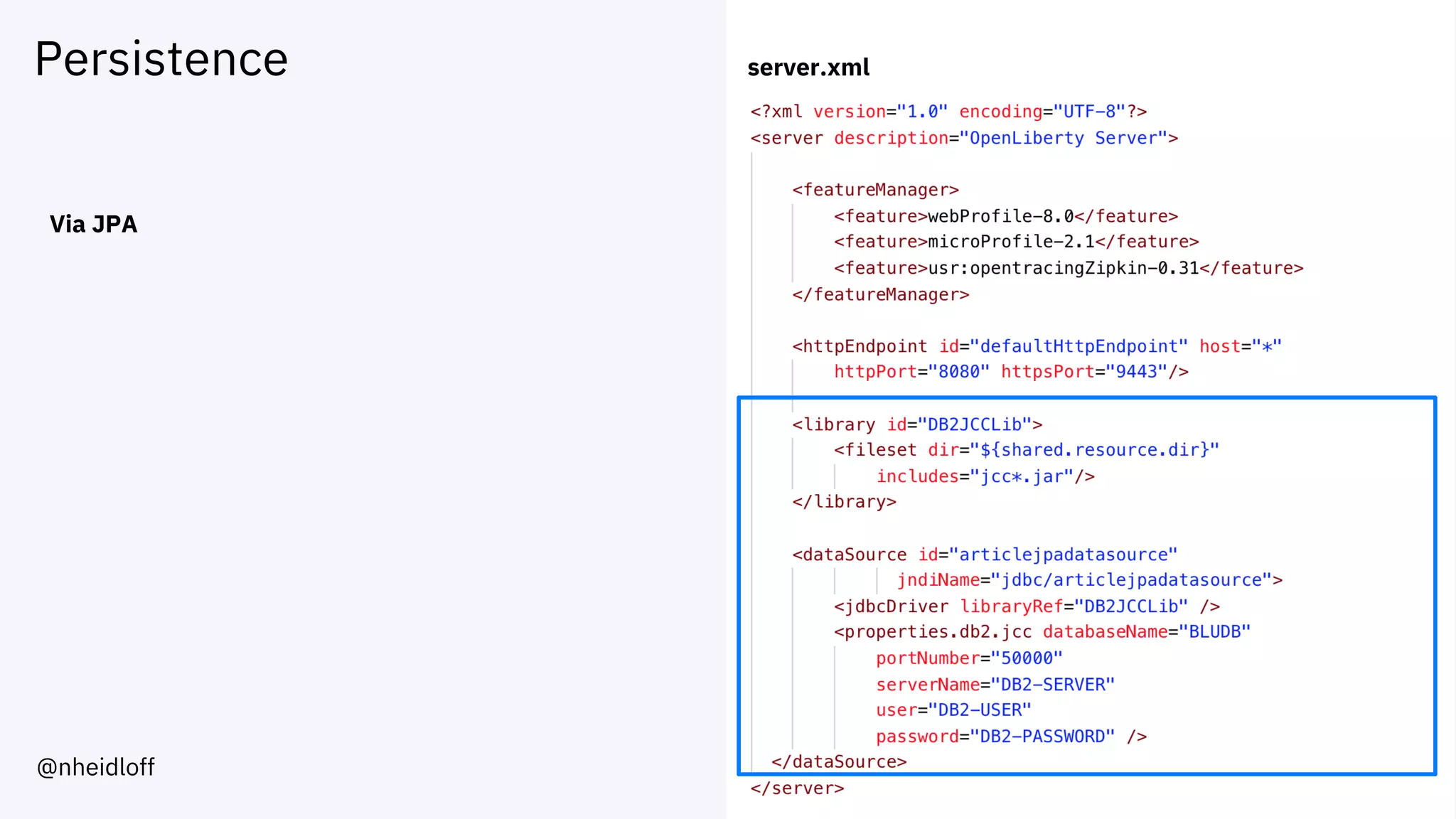

51. Persistence
Via JPA
server.xml
@nheidloff

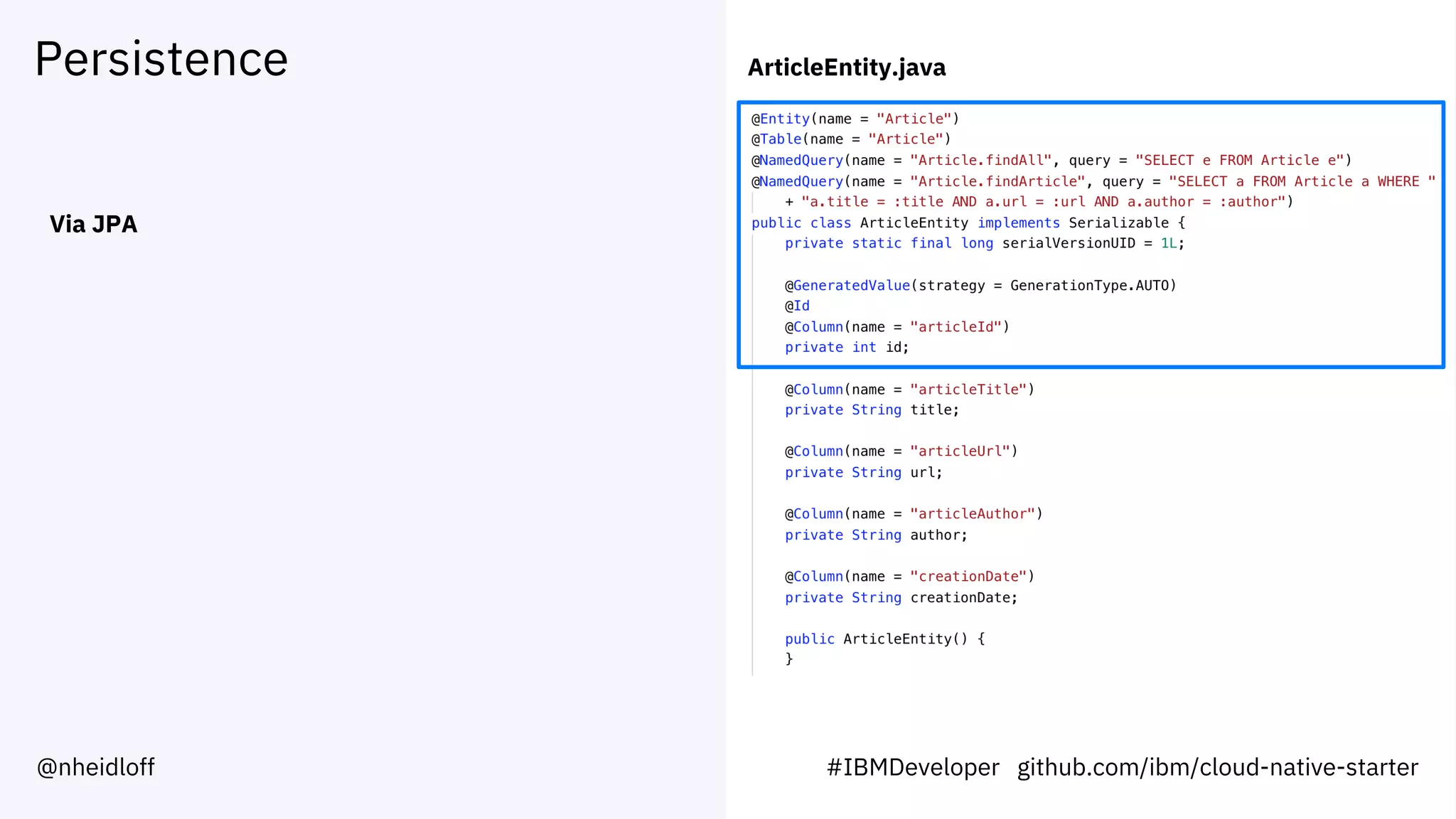

52. Persistence
Via JPA
ArticleEntity.java
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

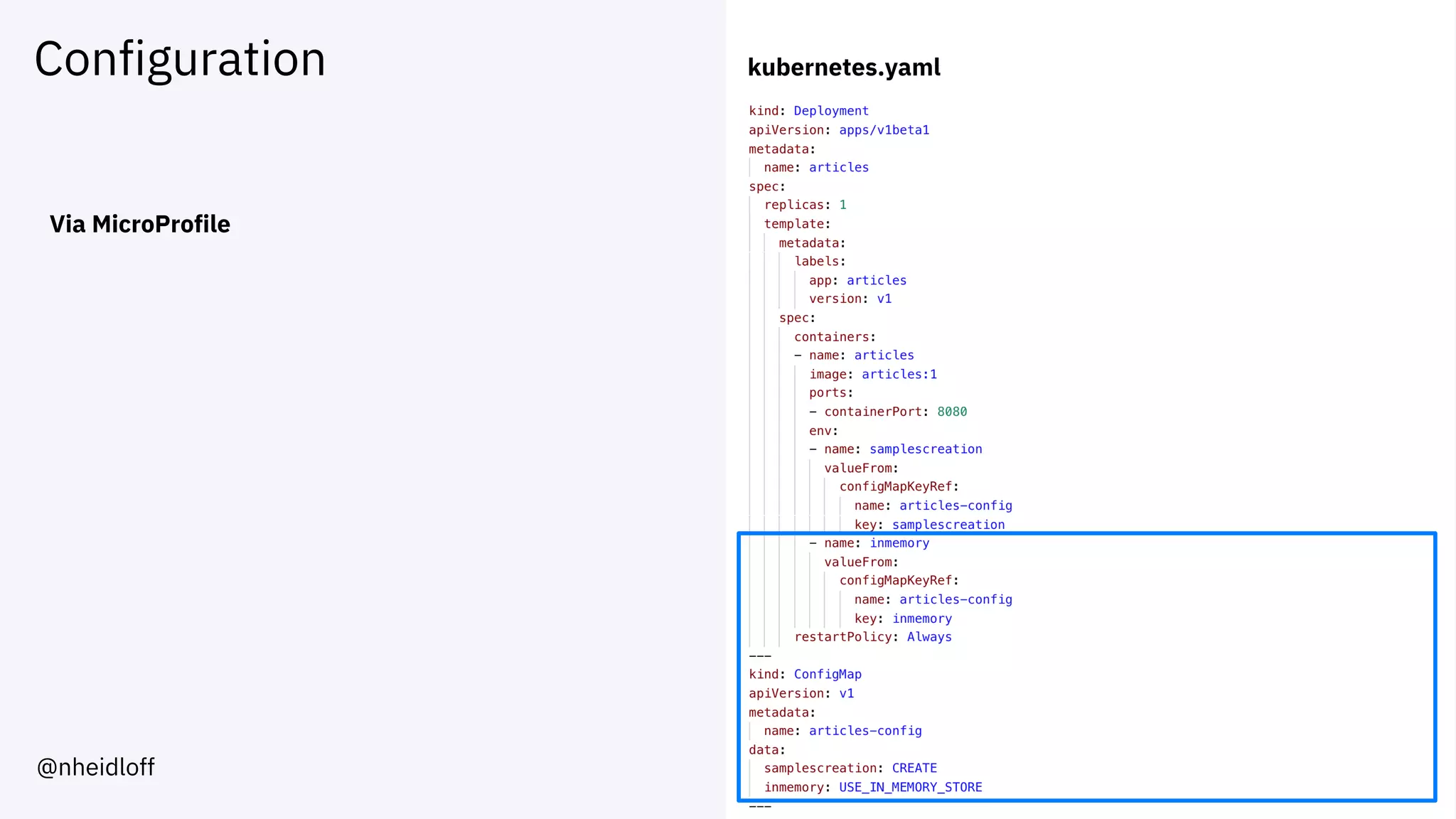

53. Configuration
Via MicroProfile
kubernetes.yaml
@nheidloff

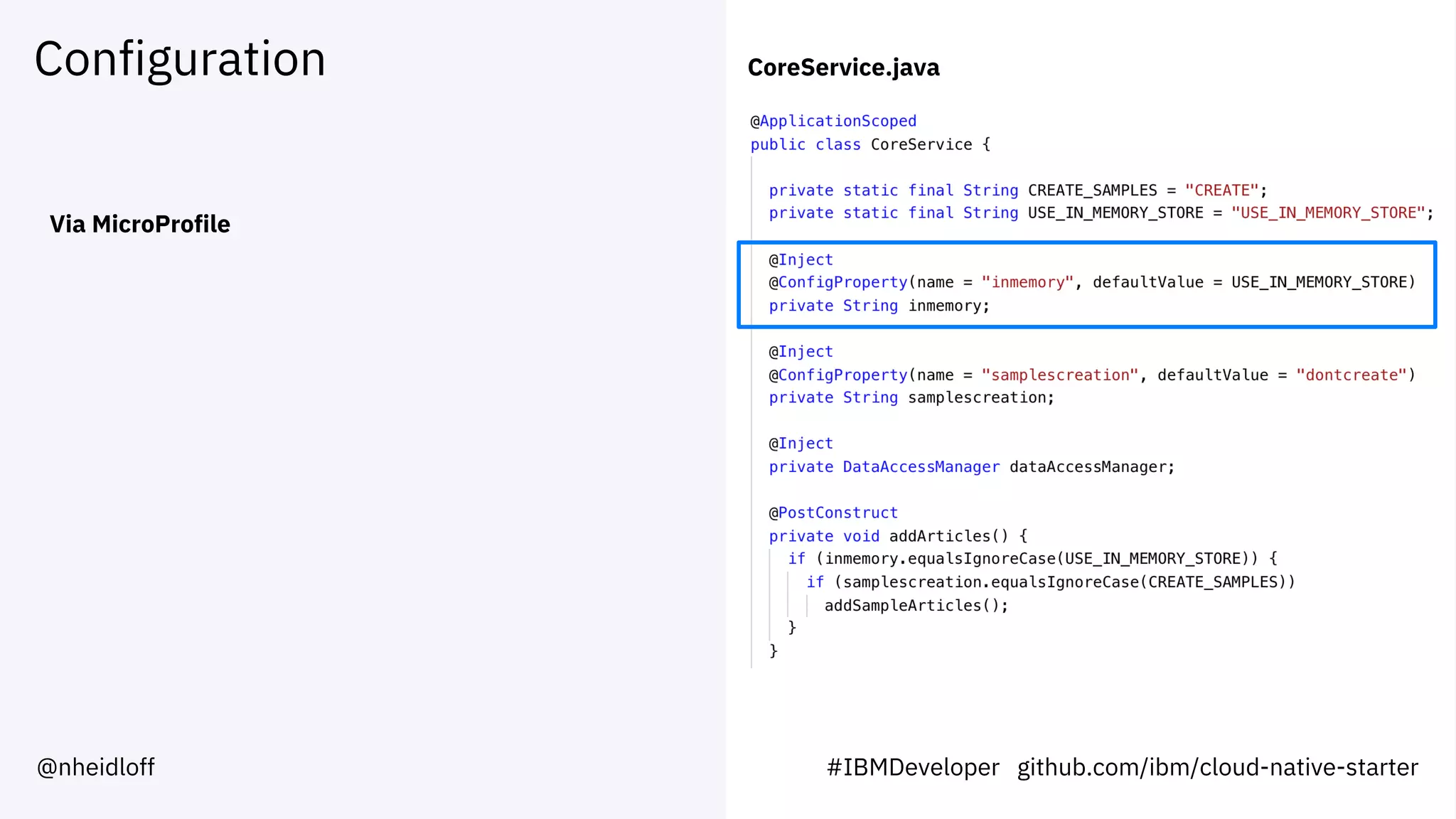

54. Configuration
Via MicroProfile
CoreService.java
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

55. Try out the end-to-end
microservices example
cloud-native-starter!
#IBMDeveloper github.com/ibm/cloud-native-starter@nheidloff

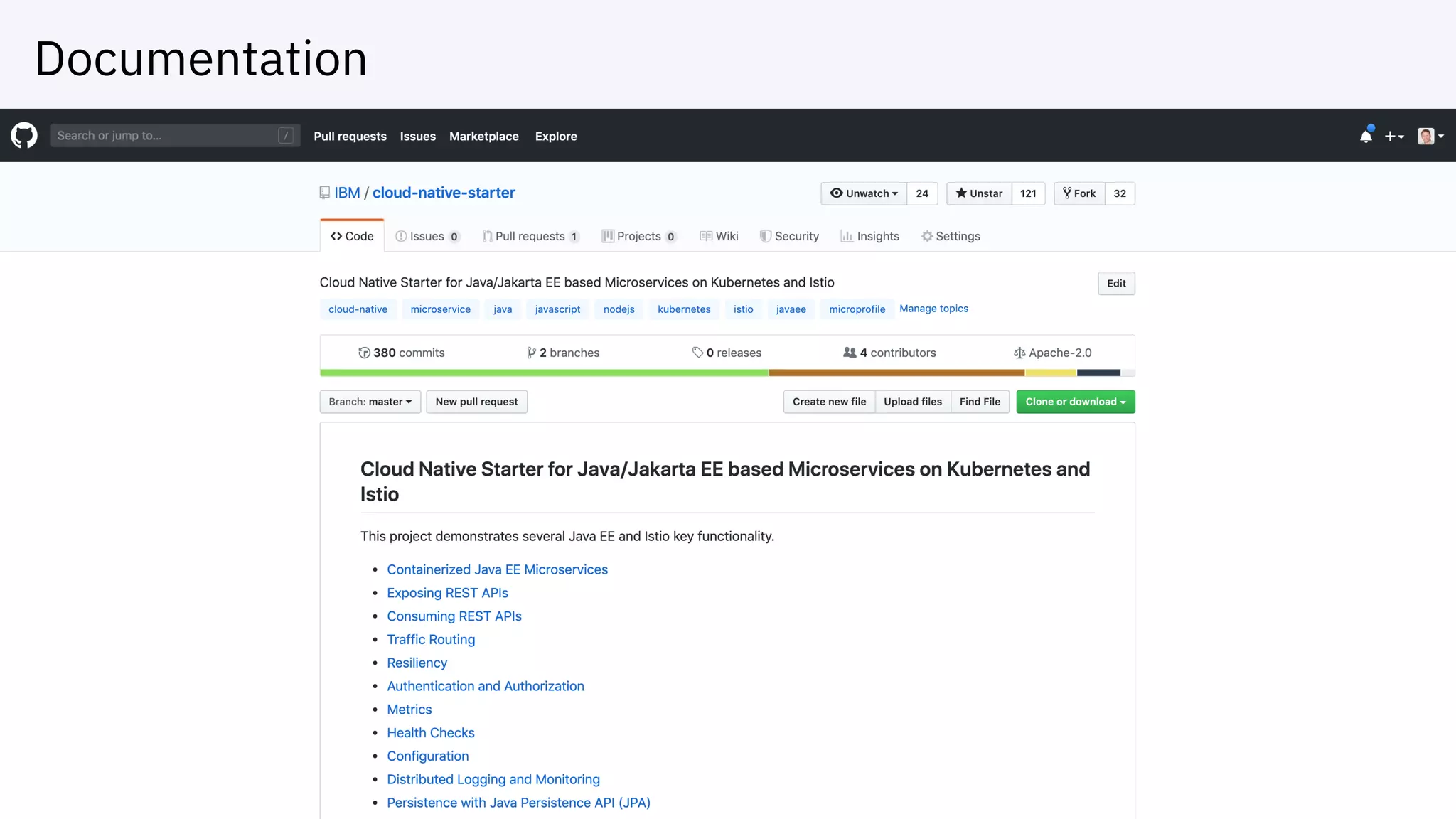

56. Documentation

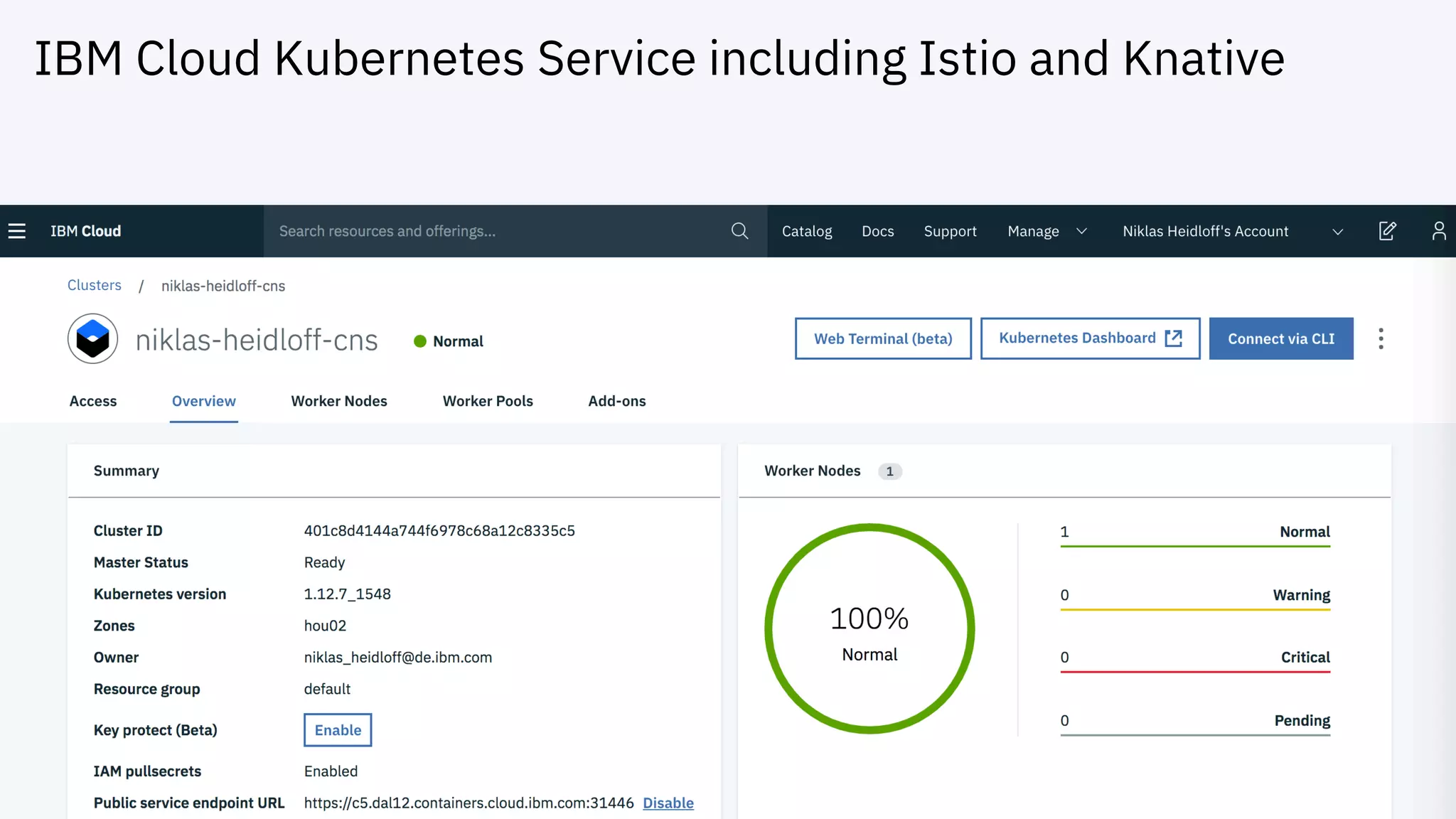

57. IBM Cloud Kubernetes Service including Istio and Knative

58. IBM Developer
developer.ibm.com
IBM Cloud Lite account
ibm.biz/nheidloff
IBM loves open source
Kubernetes and Istio
OpenJ9 & AdoptOpenJDK
MicroProfile
Open Liberty
Leverage platforms as
much as possible
Use frameworks for app
specific logic
Summary
Get the code à
@nheidloff #IBMDeveloper github.com/ibm/cloud-native-starter
