Mary Grygleski and myself, gave a very successful workshop to 51 attendees in NYC on April 15th - here is the updated presentation
https://www.linkedin.com/in/mary-grygleski/
https://www.linkedin.com/in/grant-steinfeld/
The Real-World Challenges of Medical Device Cybersecurity- Mitigating Vulnera...
Reactive java programming for the impatient
1. Reactive Java
Programming for the
Impatient
—
Mary Grygleski @mgrygles
IBM Developer Advocate
Java
mary.grygleski@ibm.com
Grant Steinfeld @gsteinfeld
IBM Developer Advocate Java &
Blockchain

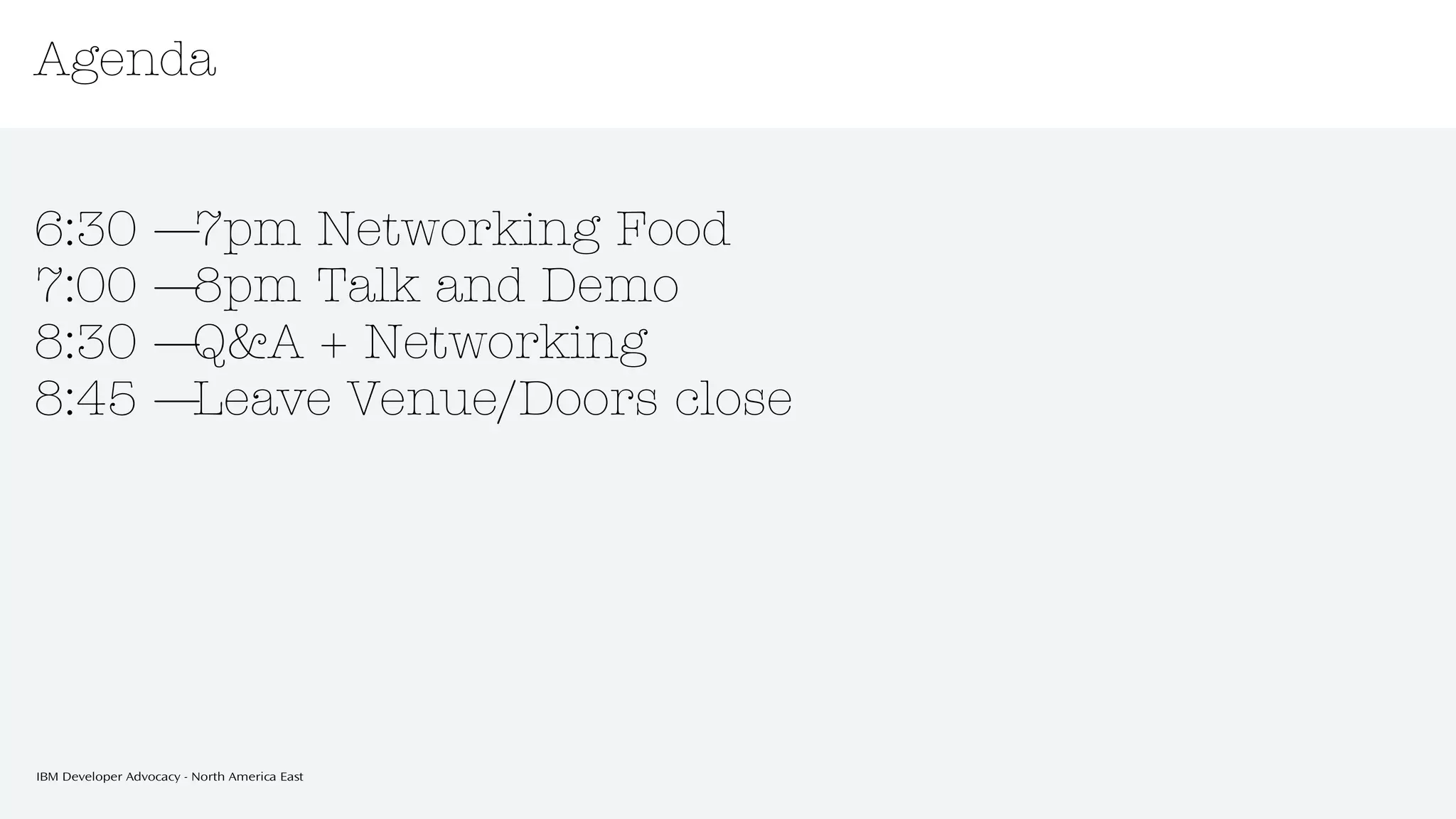

2. Agenda
6:30 – 7pm Networking Food
7:00 – 8pm Talk and Demo
8:30 – Q&A + Networking
8:45 – Leave Venue/Doors close
IBM Developer Advocacy - North America East

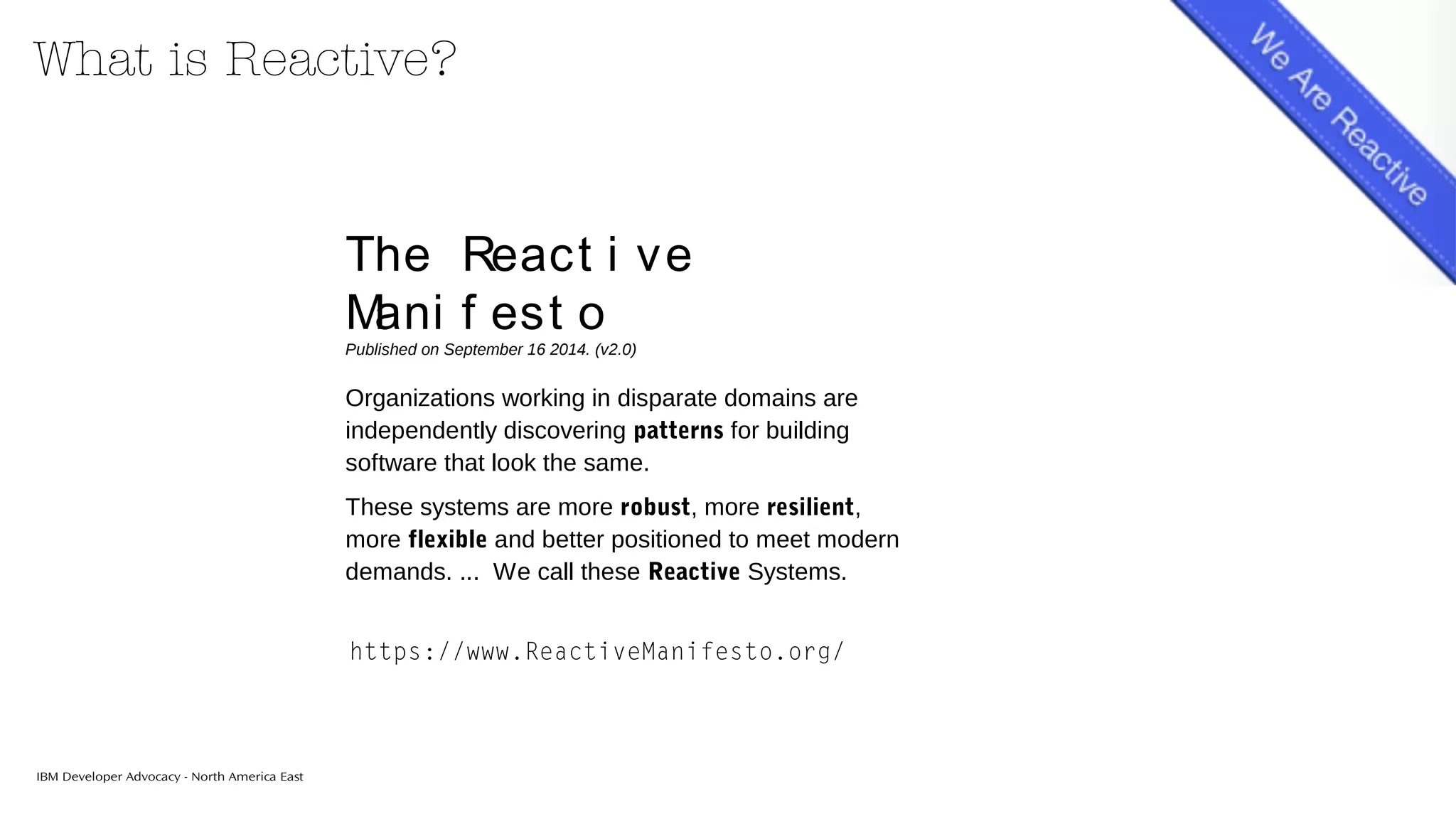

3. What is Reactive?
IBM Developer Advocacy - North America East
Organizations working in disparate domains are
independently discovering patterns for building
software that look the same.
These systems are more robust, more resilient,
more flexible and better positioned to meet modern
demands. ... We call these Reactive Systems.
The React i ve
Mani f est o
Published on September 16 2014. (v2.0)
https://www.ReactiveManifesto.org/
5. Fast is not fast enough!
IBM Developer Advocacy - North America East

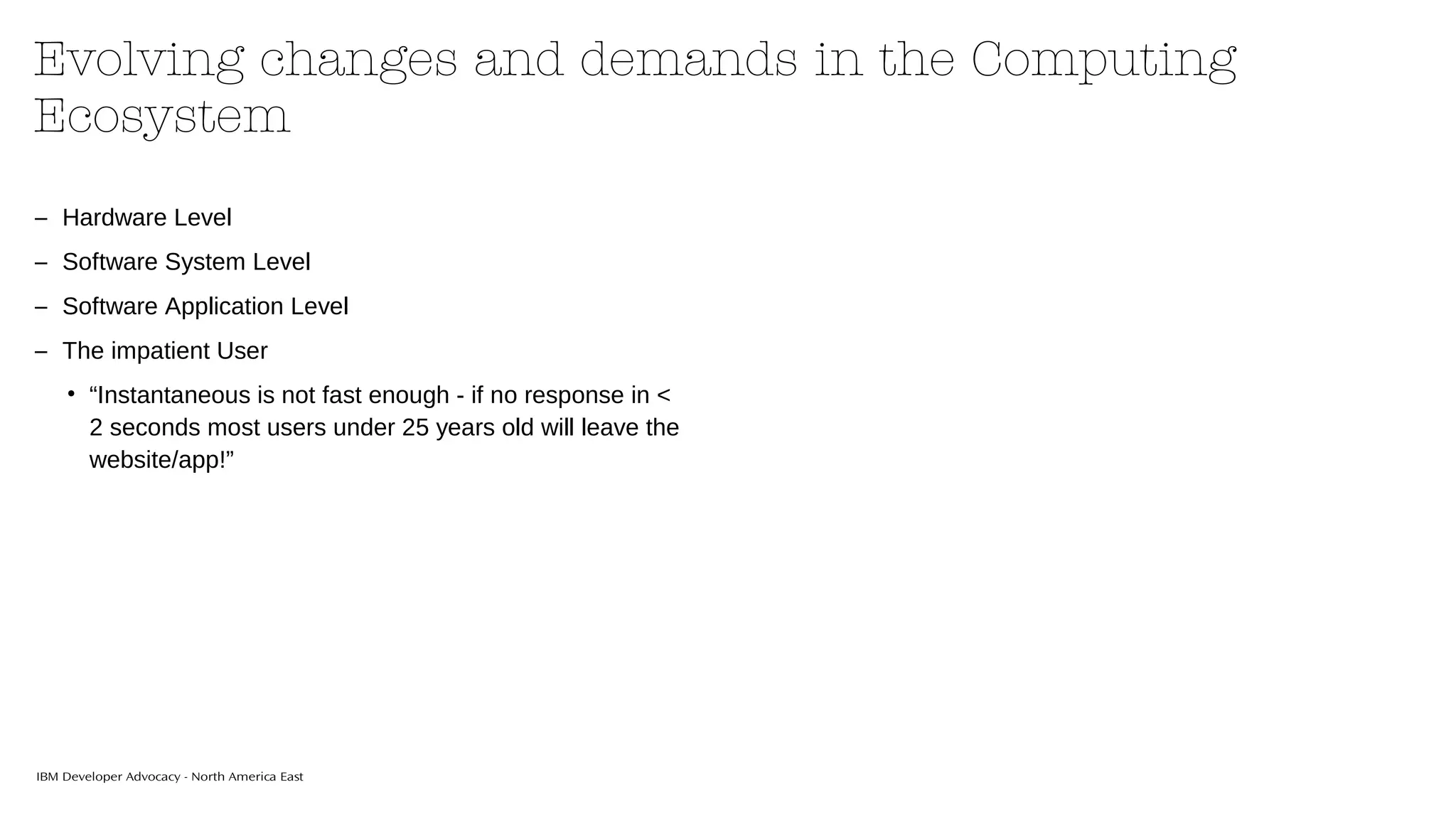

6. Evolving changes and demands in the Computing
Ecosystem
IBM Developer Advocacy - North America East
– Hardware Level
– Software System Level
– Software Application Level
– The impatient User
• “Instantaneous is not fast enough - if no response in <
2 seconds most users under 25 years old will leave the
website/app!”
13. Reactive Systems : Design Patterns
13
• State Management and Persistence
• Flow Control
• Message Flow
• Fault Tolerance and Recovery
• Replication
• Resource Management
14. Reactive Microservices vs Monoliths
Isolation of State, Space, Time, Failure
Circuit Breakers
Back –Pressure
High Availability
Eventual Consistency
Reactive Terminology
IBM Developer Advocacy - North America East

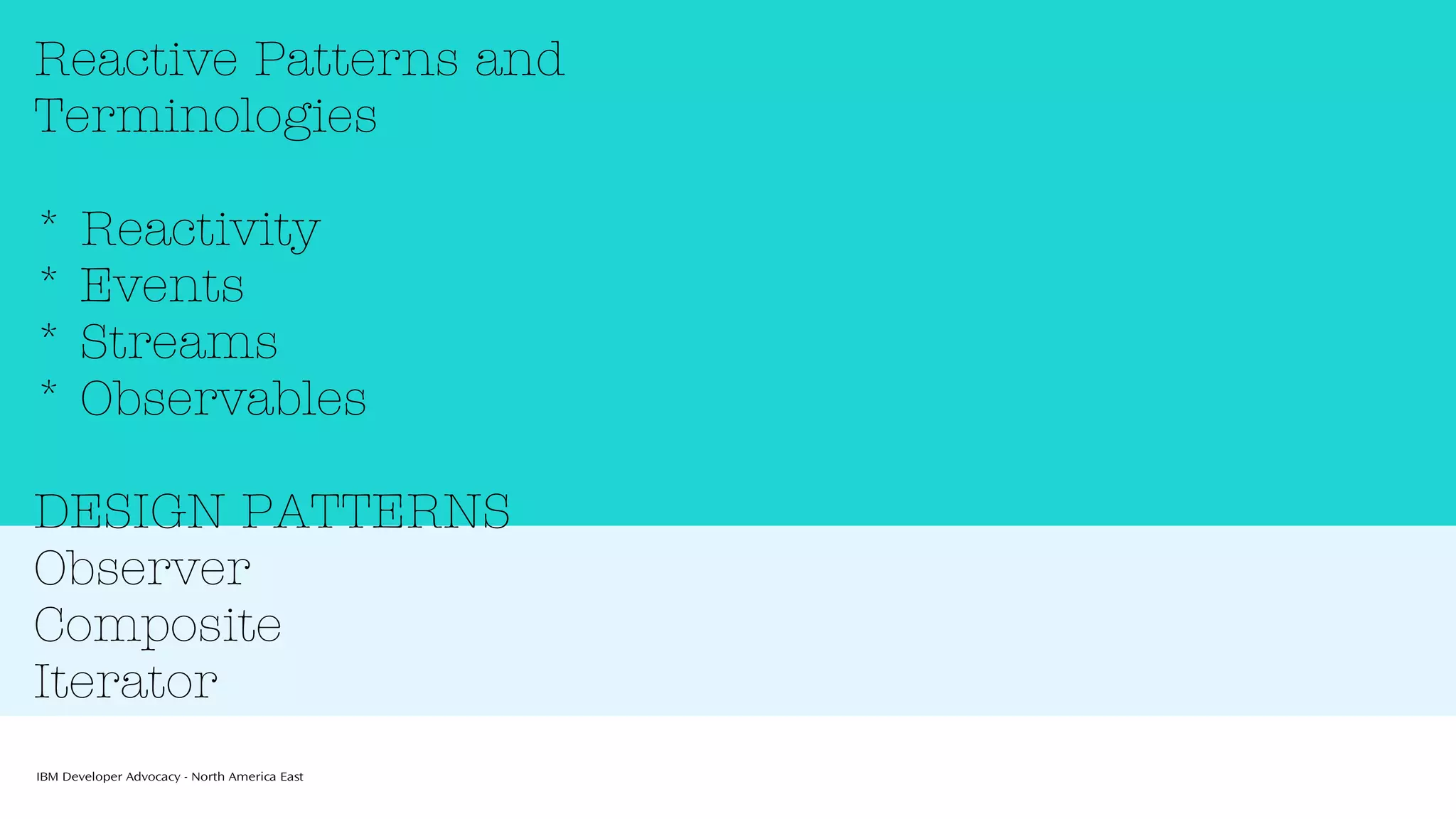

18. Reactive Patterns and
Terminologies
* Reactivity
* Events
* Streams
* Observables
DESIGN PATTERNS
Observer
Composite
Iterator
IBM Developer Advocacy - North America East

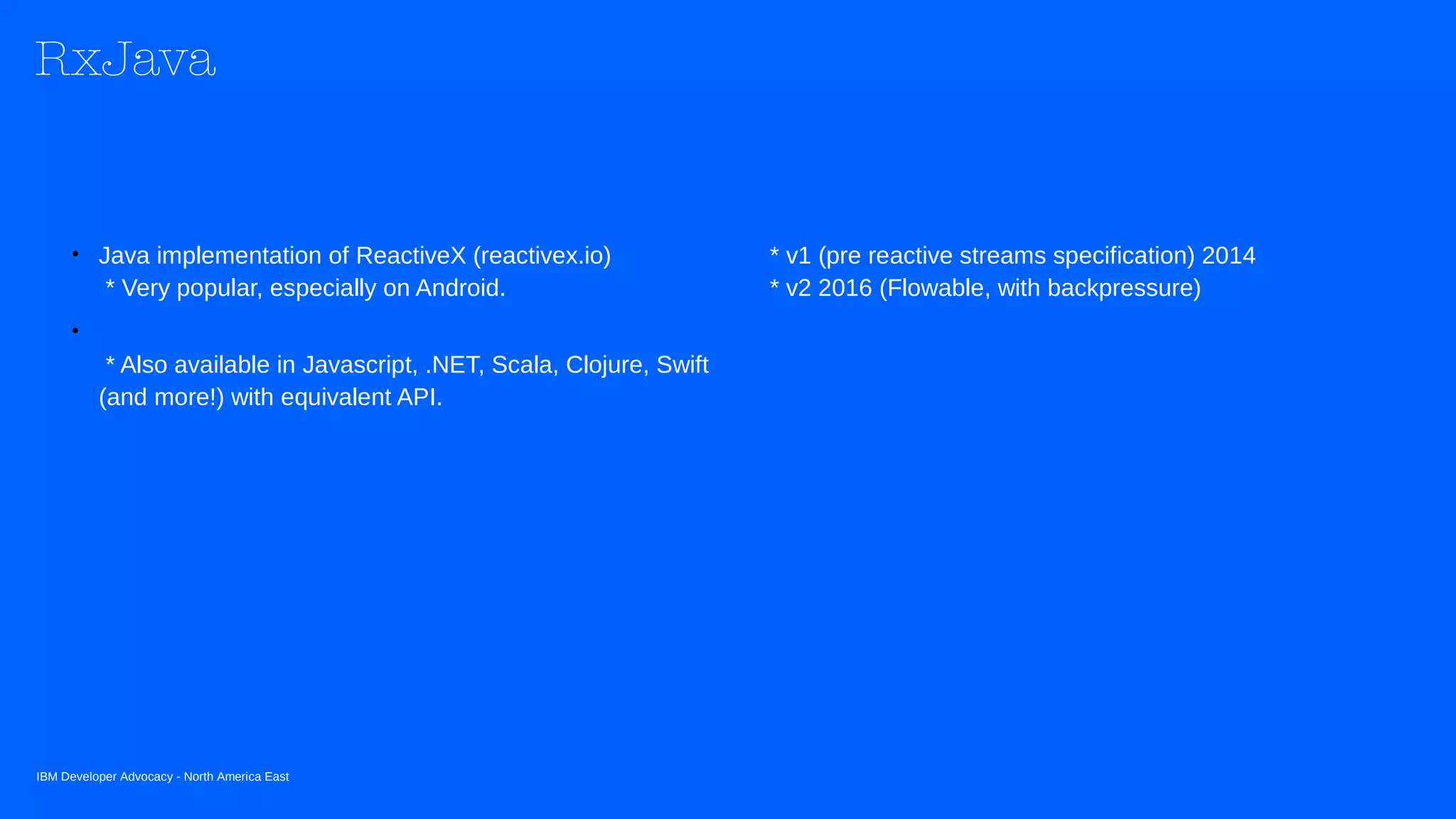

20. RxJava
* v1 (pre reactive streams specification) 2014
* v2 2016 (Flowable, with backpressure)
• Java implementation of ReactiveX (reactivex.io)
* Very popular, especially on Android.
•
* Also available in Javascript, .NET, Scala, Clojure, Swift
(and more!) with equivalent API.
IBM Developer Advocacy - North America East

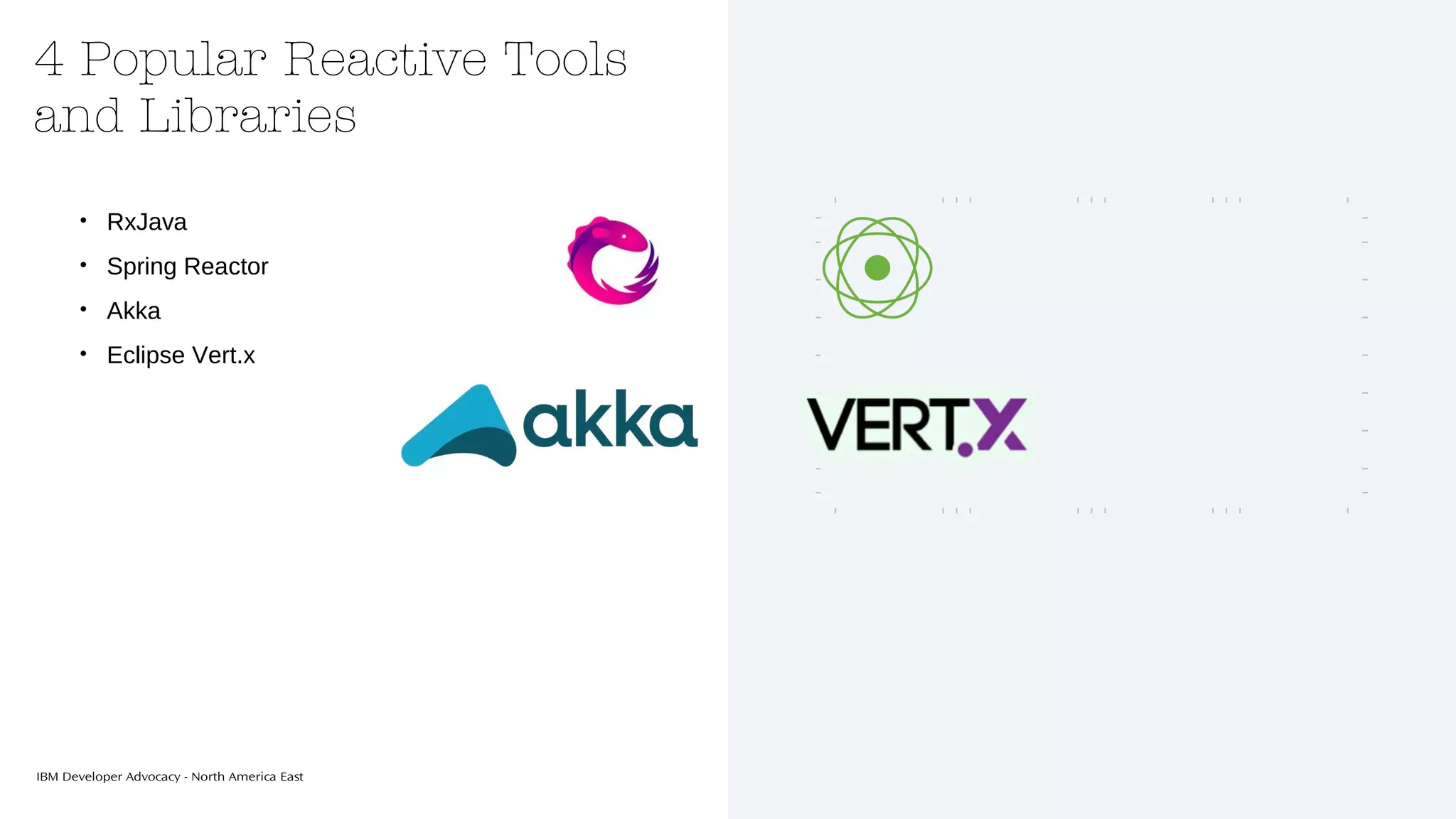

21. 4 Popular Reactive Tools
and Libraries
IBM Developer Advocacy - North America East
• RxJava
• Spring Reactor
• Akka
• Eclipse Vert.x
22. Fast is not fast
enough!
B
M
D
ev
el
o
p
er
A
dv
oc
ac
N
or
h
A
m
er
c
a
E
as

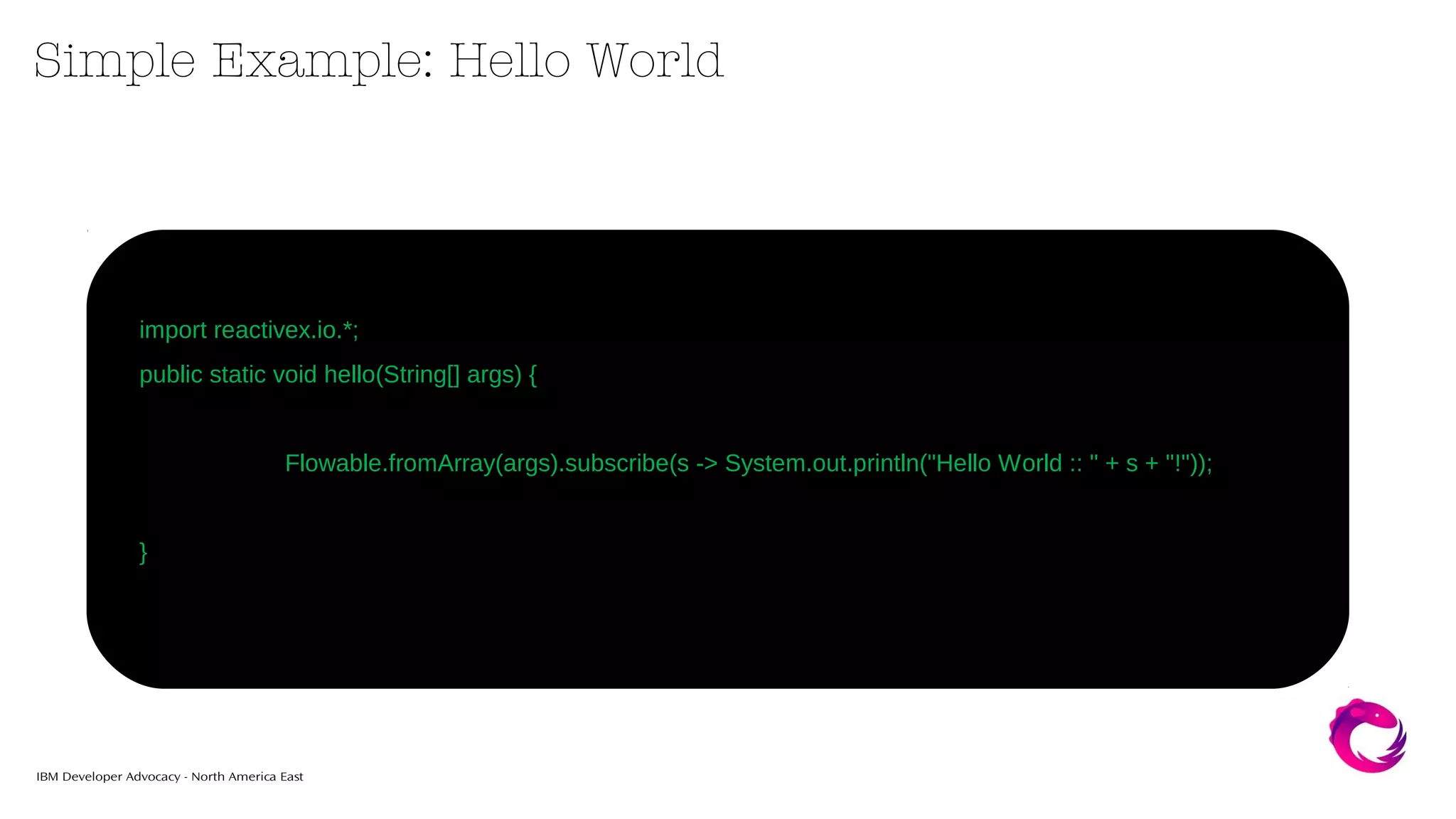

24. Simple Example: Hello World
IBM Developer Advocacy - North America East
import reactivex.io.*;
public static void hello(String[] args) {
Flowable.fromArray(args).subscribe(s -> System.out.println("Hello World :: " + s + "!"));
}

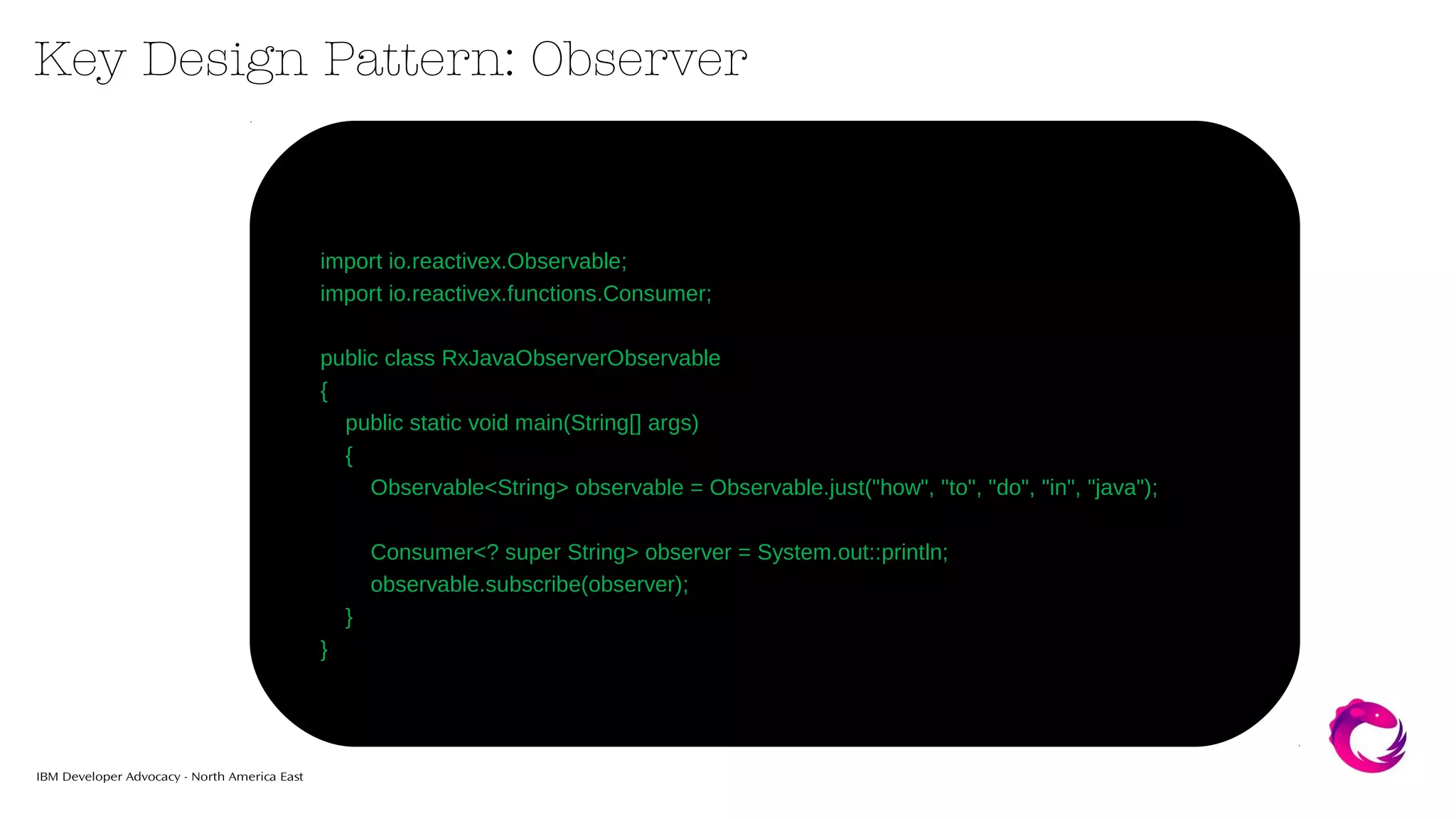

25. IBM Developer Advocacy - North America East
import io.reactivex.Observable;
import io.reactivex.functions.Consumer;
public class RxJavaObserverObservable
{
public static void main(String[] args)
{
Observable<String> observable = Observable.just("how", "to", "do", "in", "java");
Consumer<? super String> observer = System.out::println;
observable.subscribe(observer);
}
}
Key Design Pattern: Observer

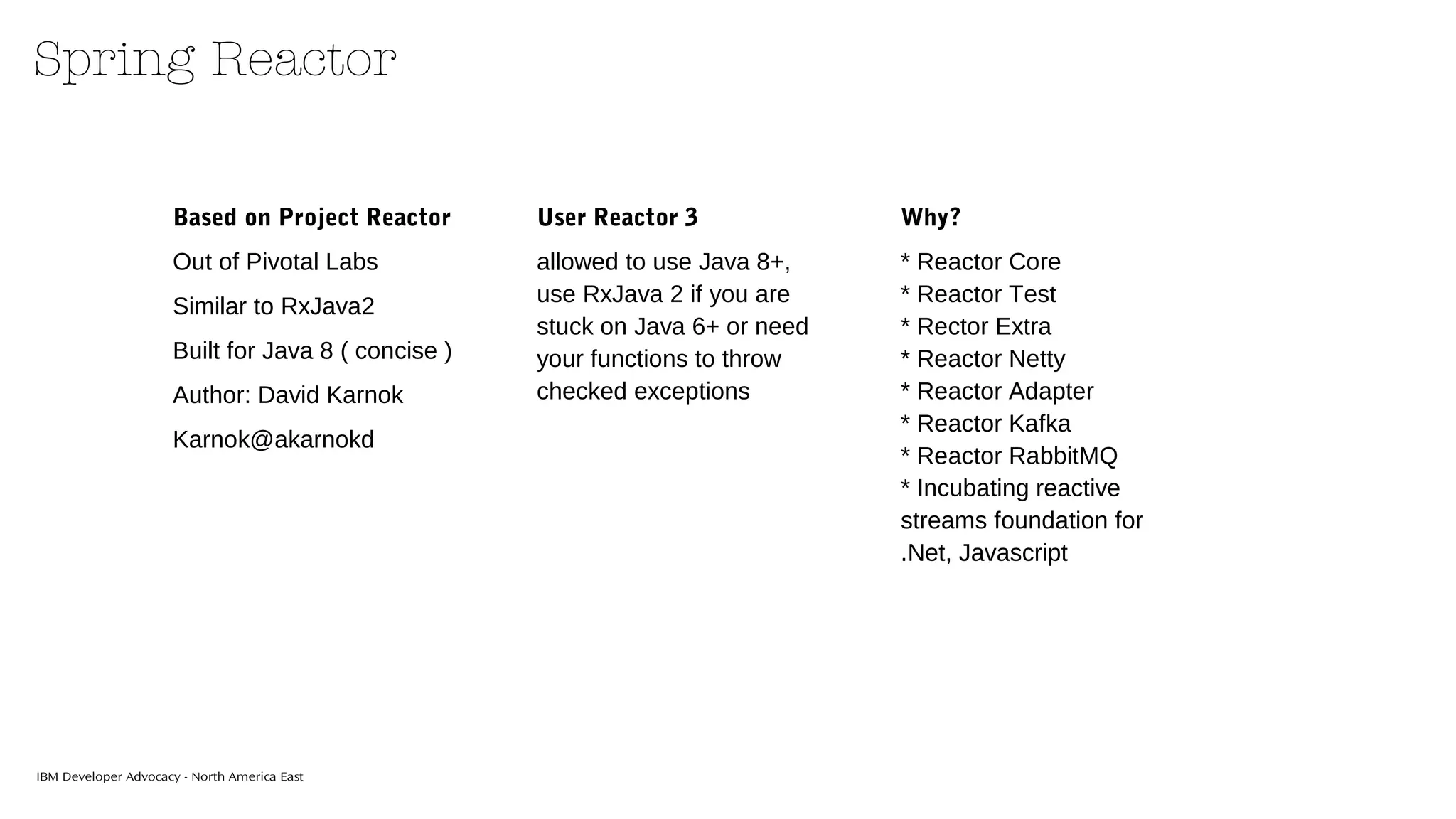

26. Spring Reactor
IBM Developer Advocacy - North America East
Based on Project Reactor
Out of Pivotal Labs
Similar to RxJava2
Built for Java 8 ( concise )
Author: David Karnok
Karnok@akarnokd
User Reactor 3
allowed to use Java 8+,
use RxJava 2 if you are
stuck on Java 6+ or need
your functions to throw
checked exceptions
Why?
* Reactor Core
* Reactor Test
* Rector Extra
* Reactor Netty
* Reactor Adapter
* Reactor Kafka
* Reactor RabbitMQ
* Incubating reactive
streams foundation for
.Net, Javascript

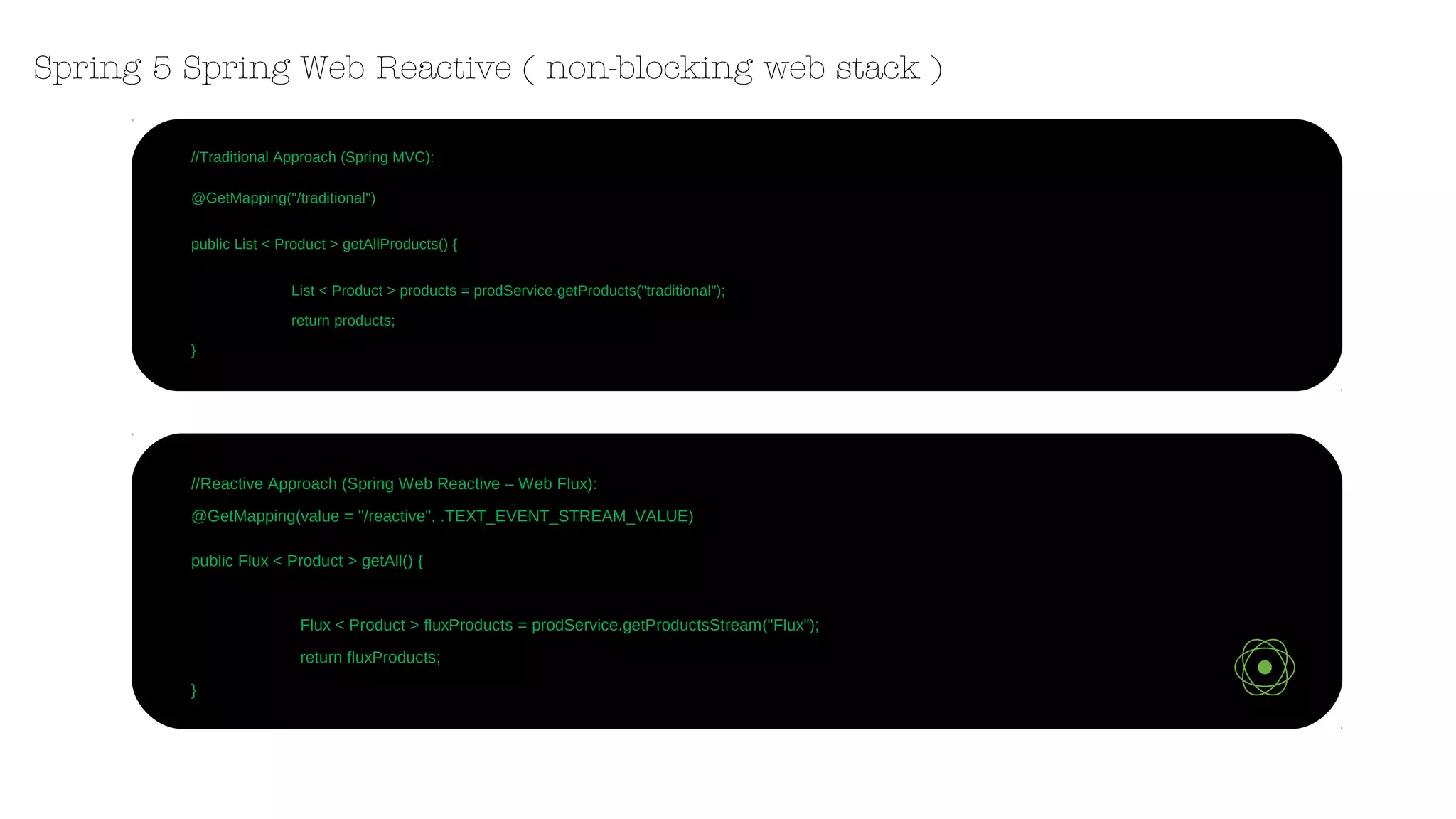

27. Spring 5 Spring Web Reactive ( non-blocking web stack )
//Traditional Approach (Spring MVC):
@GetMapping("/traditional")
public List < Product > getAllProducts() {
List < Product > products = prodService.getProducts("traditional");
return products;
}
//Reactive Approach (Spring Web Reactive – Web Flux):
@GetMapping(value = "/reactive", .TEXT_EVENT_STREAM_VALUE)
public Flux < Product > getAll() {
Flux < Product > fluxProducts = prodService.getProductsStream("Flux");
return fluxProducts;
}

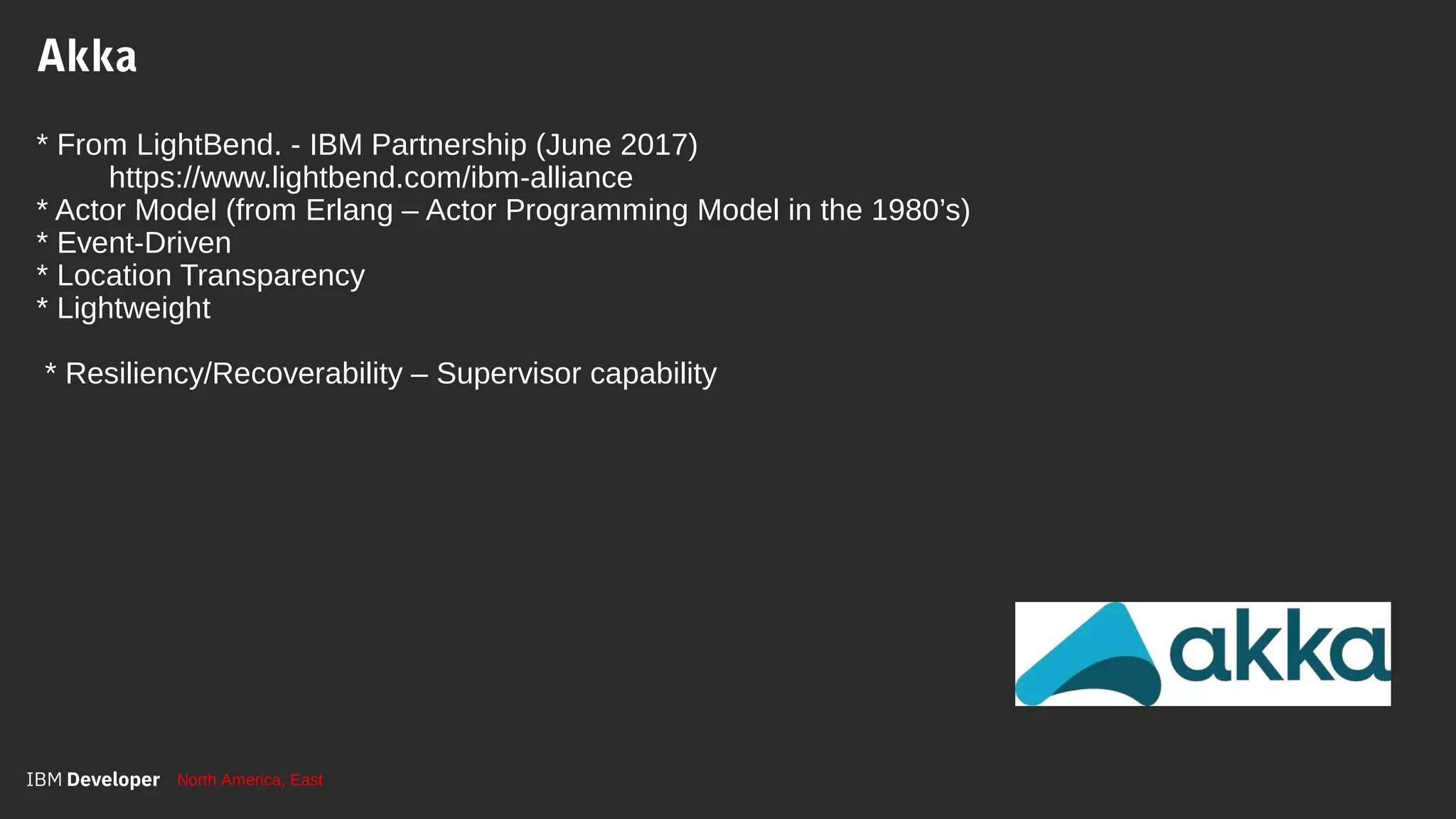

29. Akka
* From LightBend. - IBM Partnership (June 2017)
https://www.lightbend.com/ibm-alliance
* Actor Model (from Erlang – Actor Programming Model in the 1980’s)
* Event-Driven
* Location Transparency
* Lightweight
* Resiliency/Recoverability – Supervisor capability
North America, East

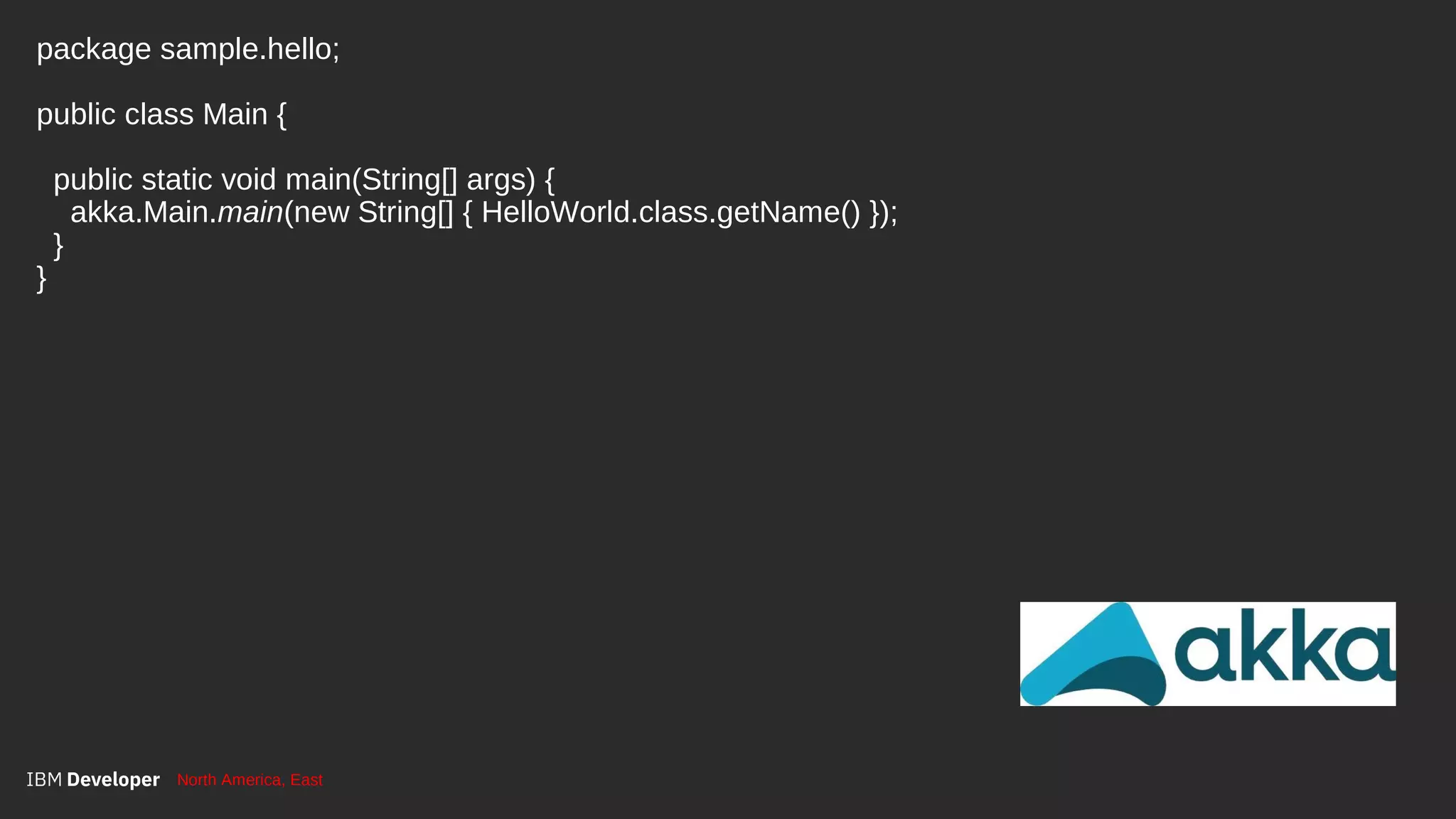

30. package sample.hello;
public class Main {
public static void main(String[] args) {
akka.Main.main(new String[] { HelloWorld.class.getName() });
}
}
North America, East

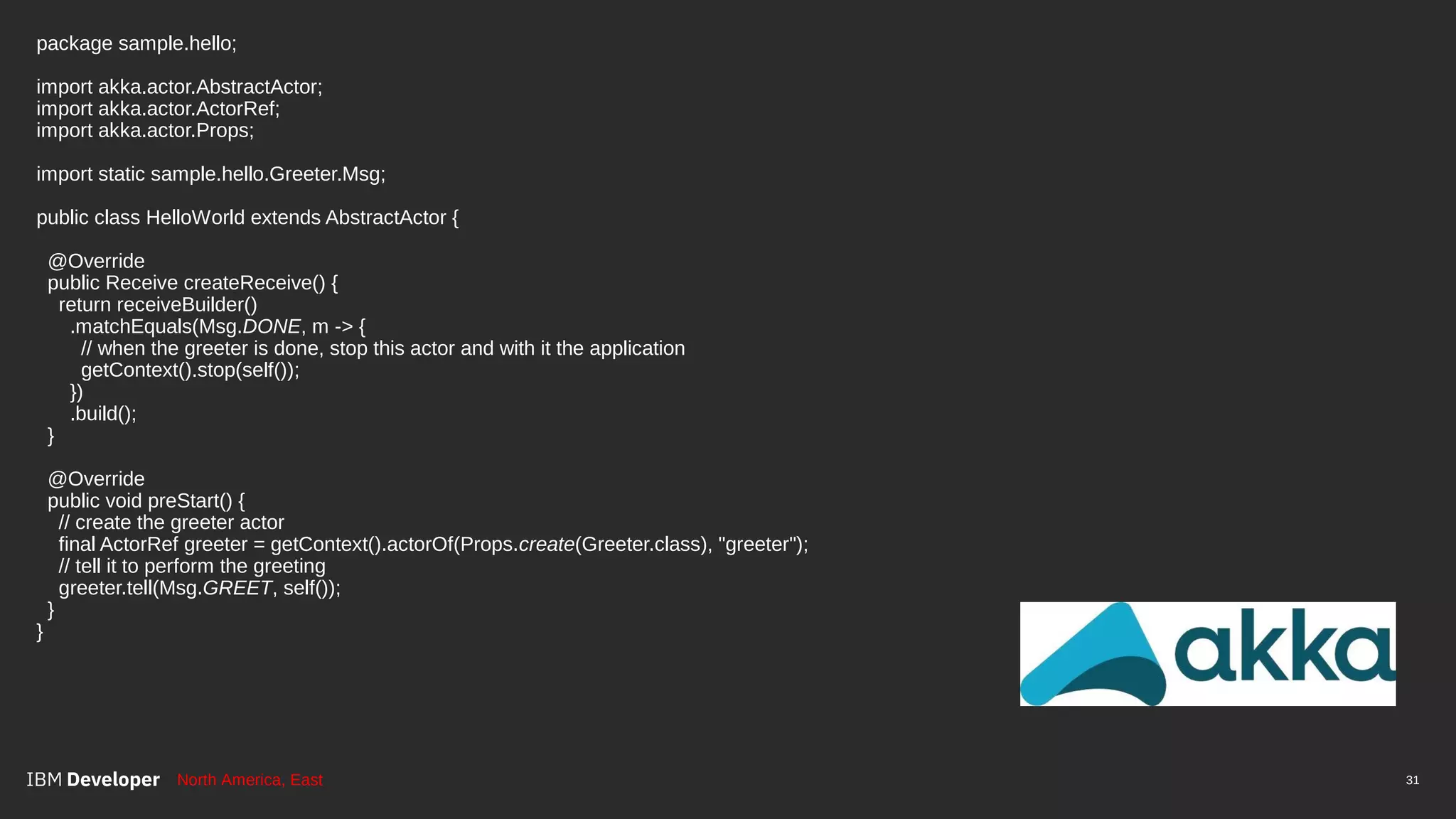

31. 31
package sample.hello;
import akka.actor.AbstractActor;
import akka.actor.ActorRef;
import akka.actor.Props;
import static sample.hello.Greeter.Msg;
public class HelloWorld extends AbstractActor {
@Override
public Receive createReceive() {
return receiveBuilder()
.matchEquals(Msg.DONE, m -> {
// when the greeter is done, stop this actor and with it the application
getContext().stop(self());
})
.build();
}
@Override
public void preStart() {
// create the greeter actor
final ActorRef greeter = getContext().actorOf(Props.create(Greeter.class), "greeter");
// tell it to perform the greeting
greeter.tell(Msg.GREET, self());
}
}
North America, East
32. 32

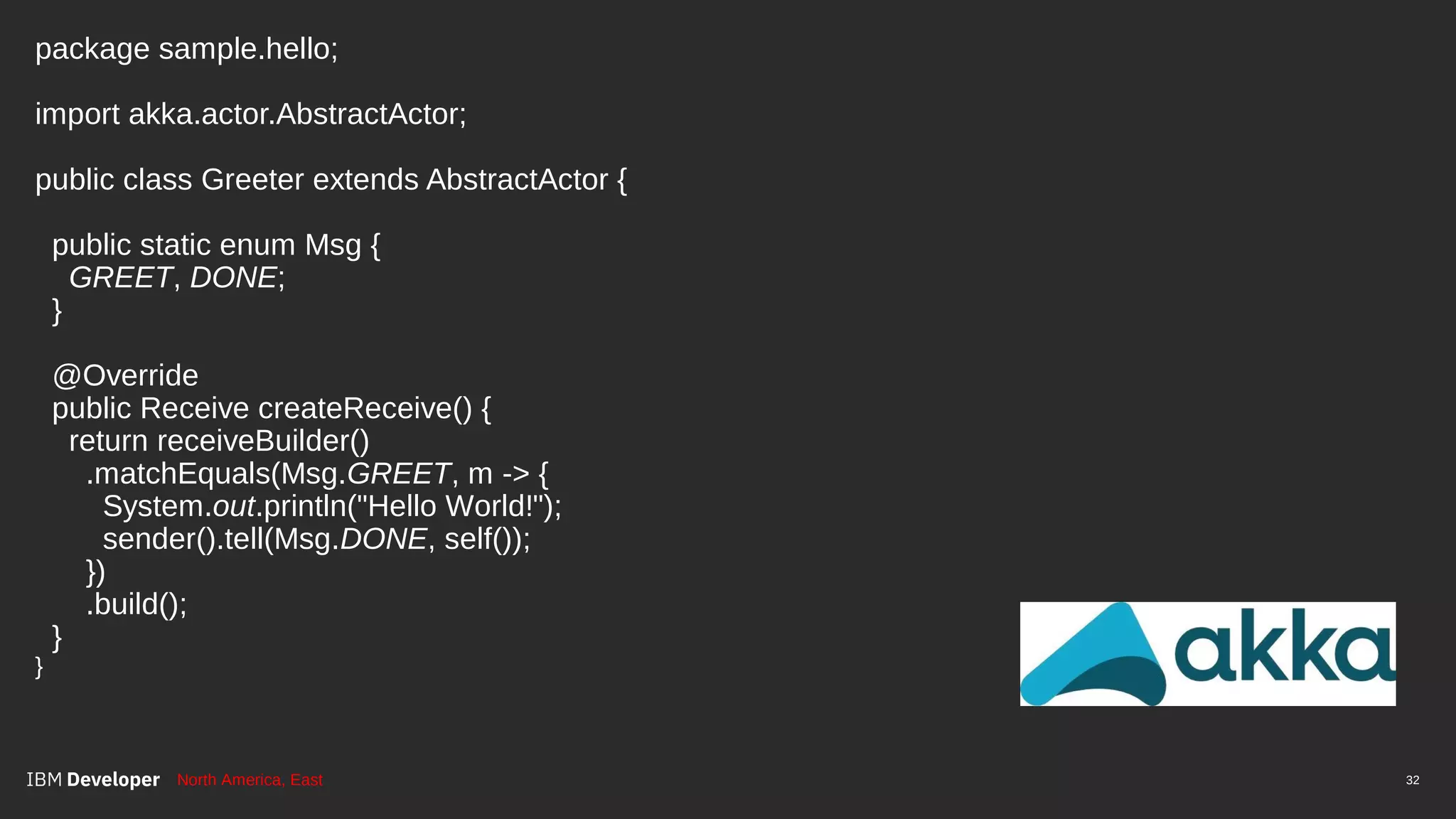

package sample.hello;
import akka.actor.AbstractActor;
public class Greeter extends AbstractActor {
public static enum Msg {
GREET, DONE;
}
@Override
public Receive createReceive() {
return receiveBuilder()
.matchEquals(Msg.GREET, m -> {
System.out.println("Hello World!");
sender().tell(Msg.DONE, self());
})
.build();
}
}
North America, East
33. 33

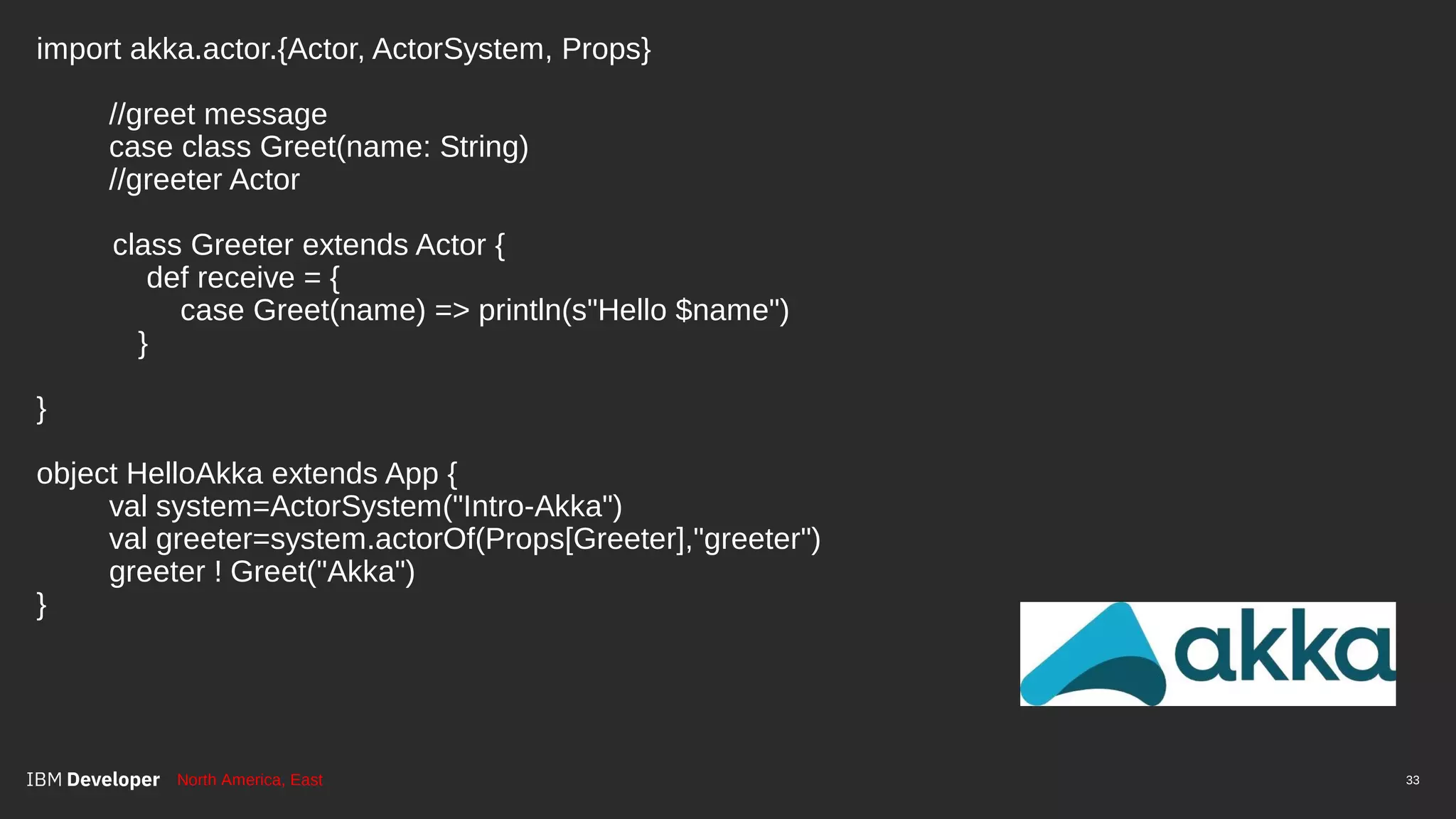

import akka.actor.{Actor, ActorSystem, Props}
//greet message
case class Greet(name: String)
//greeter Actor
class Greeter extends Actor {
def receive = {
case Greet(name) => println(s"Hello $name")
}
}
object HelloAkka extends App {
val system=ActorSystem("Intro-Akka")
val greeter=system.actorOf(Props[Greeter],"greeter")
greeter ! Greet("Akka")
}
North America, East

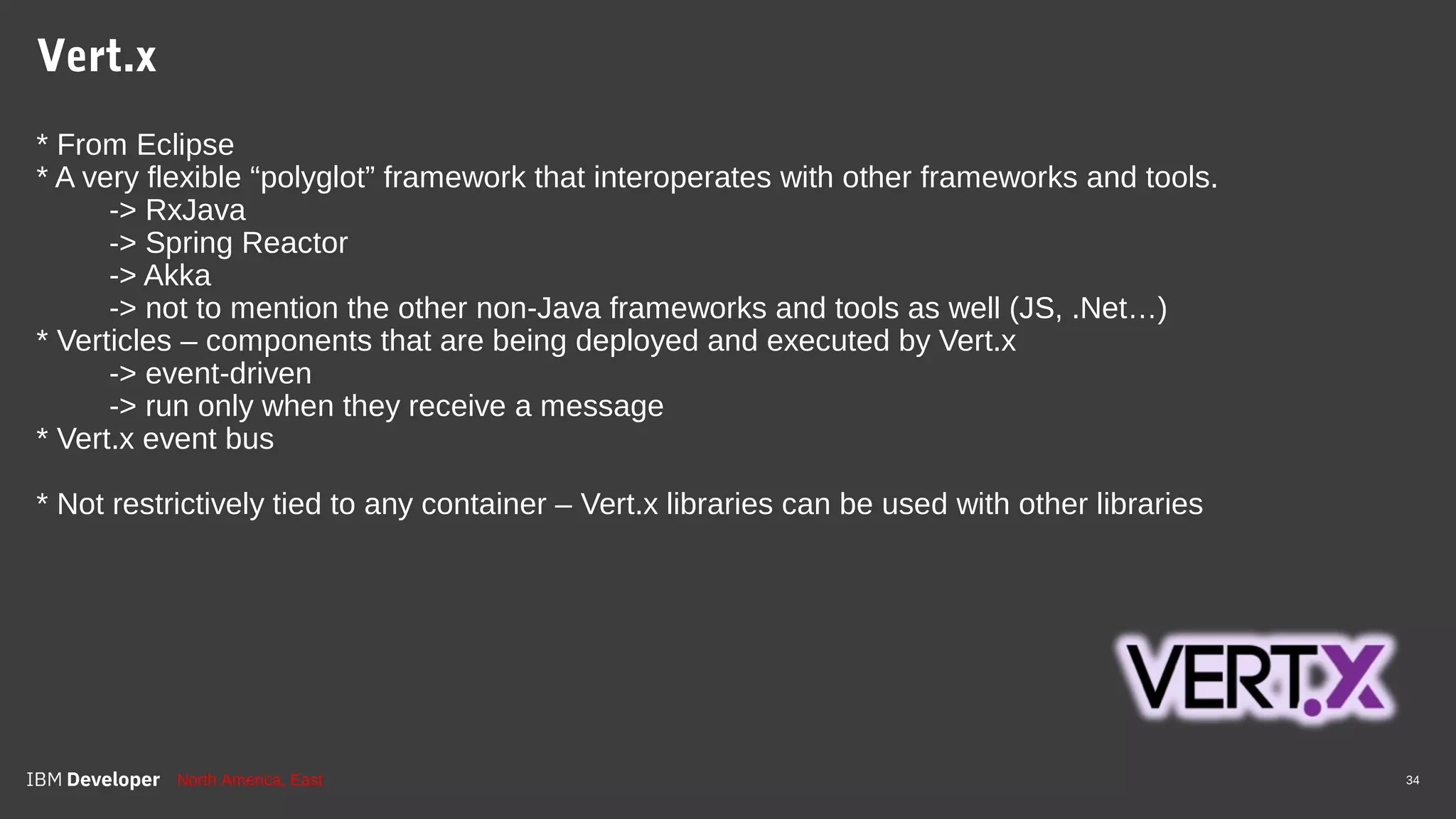

34. 34
Vert.x
* From Eclipse
* A very flexible “polyglot” framework that interoperates with other frameworks and tools.
-> RxJava
-> Spring Reactor
-> Akka
-> not to mention the other non-Java frameworks and tools as well (JS, .Net…)
* Verticles – components that are being deployed and executed by Vert.x
-> event-driven
-> run only when they receive a message
* Vert.x event bus
* Not restrictively tied to any container – Vert.x libraries can be used with other libraries
North America, East

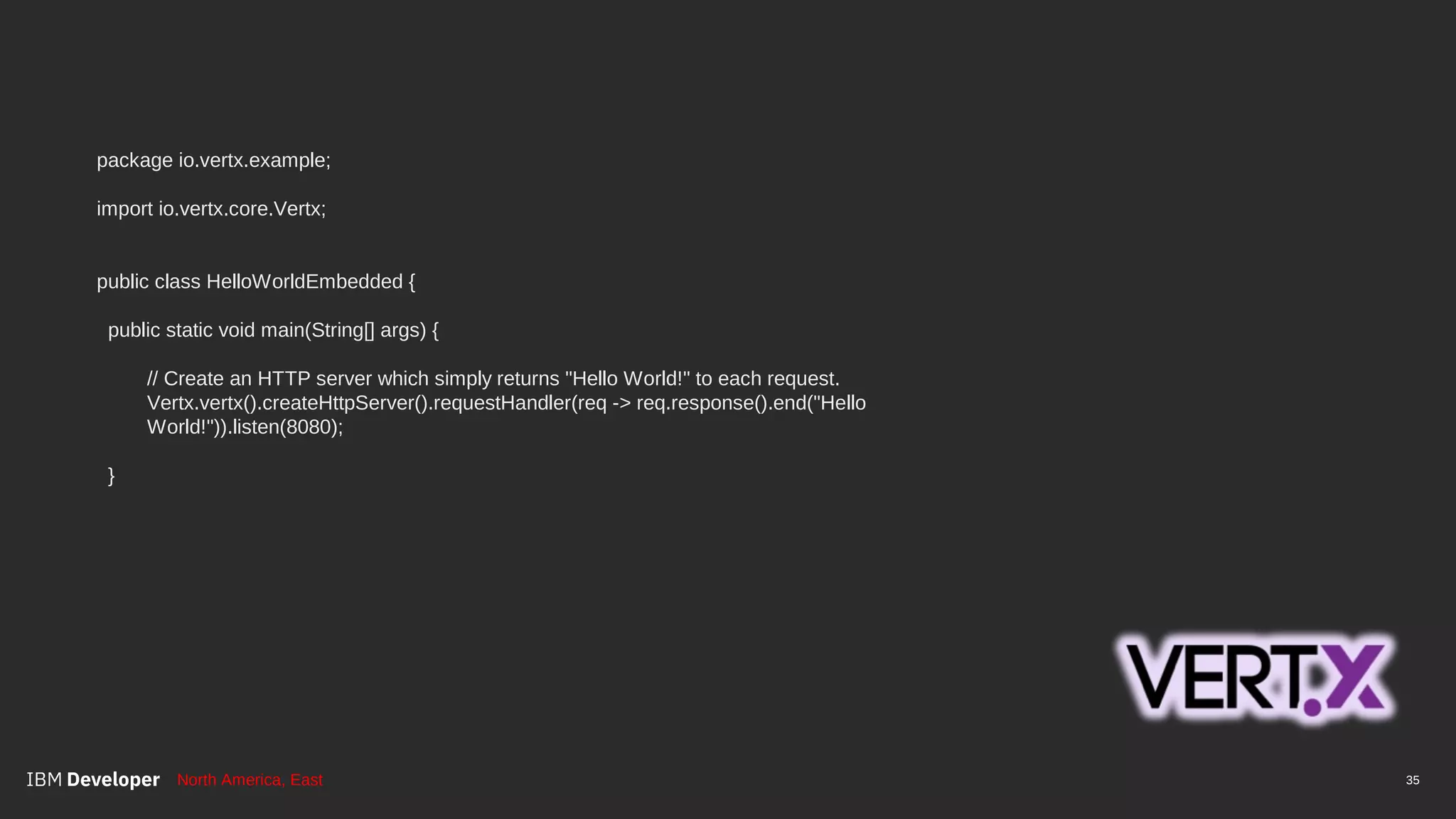

35. 35
package io.vertx.example;
import io.vertx.core.Vertx;
public class HelloWorldEmbedded {
public static void main(String[] args) {
// Create an HTTP server which simply returns "Hello World!" to each request.
Vertx.vertx().createHttpServer().requestHandler(req -> req.response().end("Hello
World!")).listen(8080);
}
North America, East
36. Recap and Takeaways
IBM Developer Advocacy - North America East
• Reactive is an overloaded word in today’s market
• Not for the ”faint of heart” but for the determined
• Reactive programming is not the same as Functional
• Reactive programming or Reactive systems
• Benefits of being “Reactive” on the programming level
• Reactive systems and architecture bring “reactivity” to
another level
• Reactivity to this day has not been fully ready on the
database level, despite some significant efforts on the
database connectivity level
37. Thank You
IBM Developer Advocacy - North America East
twitter.com/mgrygles
twitter.com/gsteinfeld
github.com/mgrygles
github.com/grant-steinfeld
39. Check in periodically at https://developer.ibm.com/events/
Join us for more exciting
adventures in async.
meetups, workshops, coffee
and code sessions.
IBM Developer Advocacy - North America East
Editor's Notes
Asynchronous Backends
State management and persistence patterns
Domain object
Sharding
Event sourcing
Event stream
Flow control patterns
Pull
Managed queue
Drop
Throttling
Message flow patterns
Request–response
Self-contained message
Ask pattern
Forward Flow
Aggregator
Saga
Business Handshake
Fault tolerance and recovery patterns
Simple Component
Error Kernel
Let-it-crash
Circuit Breaker
Replication patterns
Active–passive
Multiple-master
Consensus-based
Conflict detection and resolution
Conflict-free replicated data types
Active–active
Resource management patterns
Resource encapsulation
Resource loan
Complex command
Resource pool
Managed blocking
