Randomized algorithms all pairs shortest path

Randomized
Algorithms: All Pairs
Shortest Path
Instructor: Dr. S. N. Hashemi
Lecturer: Mohammad Akbarizadeh
m.akbarizadeh@aut.ac.ir

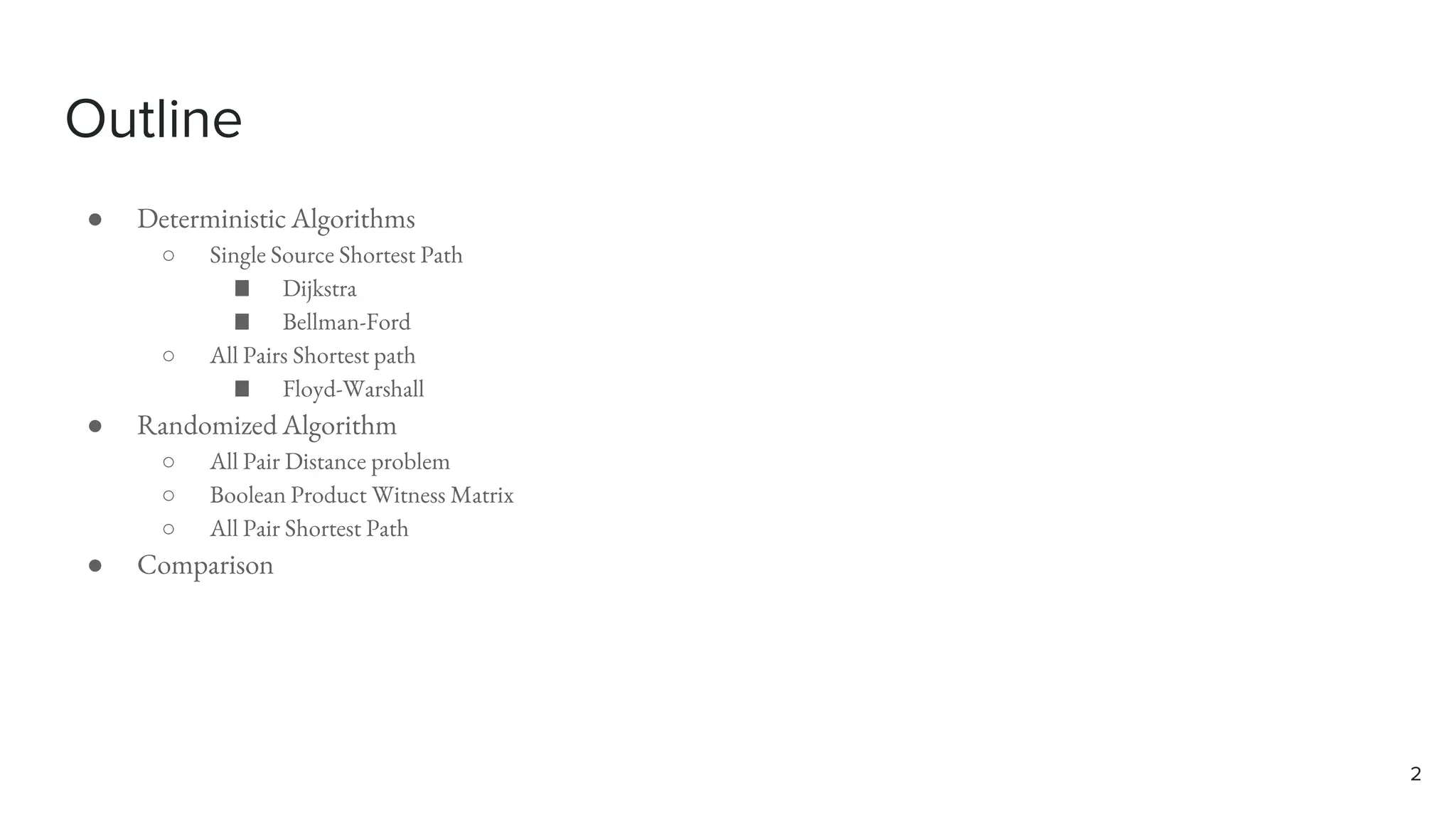

Outline
● Deterministic Algorithms
○ Single Source Shortest Path
■ Dijkstra
■ Bellman-Ford
○ All Pairs Shortest path
■ Floyd-Warshall
● Randomized Algorithm
○ All Pair Distance problem
○ Boolean Product Witness Matrix
○ All Pair Shortest Path
● Comparison
2

Deterministic Algorithms
Single Source Shortest Path

Question
Q: How to solve the single source shortest path problem if the given graph is unweighted?
What is the time complexity?
4

Question
Q: How to solve the single source shortest path problem if the given graph is unweighted?
What is the time complexity?
A: We can easily apply BFS to the graph and solve it in O(V+E)
5

Dijkstra Algorithm
● Given a graph and a source vertex, find shortest paths from source to all vertices in the
given graph
● Dijkstra is a greedy algorithm for finding the shortest path from a node which ends in
having a tree with the lowest total cost (similar algorithms: Prim, Kruskal)
● It can be applied to both directed and undirected graph
● Dijkstra doesn’t work for Graphs with negative weight edges
● Time complexity: O(V2)
6

Dijkstra (example)
Graph = {(0,1)=4, (0,7)=8, (1,2)=8, (1,7)=11,
(7,8)=7, (7,6)=1, (2,3)=7, (2,5)=4, (2,8)=2,
(8,6)=6, (6,5)=2, (3,4)=9, (3,5)=14, (5,4)=10}
Distance = {INF, INF, INF, INF, INF, INF,
INF, INF, INF}
Prev = {UND, UND, UND, UND, UND,
UND, UND, UND, UND}
Q = {0, 1, 2, 3, 4, 5, 6, 7, 8}
8

Dijkstra (example)
Graph = {(0,1)=4, (0,7)=8, (1,2)=8, (1,7)=11,
(7,8)=7, (7,6)=1, (2,3)=7, (2,5)=4, (2,8)=2,
(8,6)=6, (6,5)=2, (3,4)=9, (3,5)=14, (5,4)=10}
Distance = {0, 4, INF, INF, INF, INF, INF, 8,
INF}
Prev = {UND, 0, UND, UND, UND, UND,
UND, 0, UND}
Q = {1, 2, 3, 4, 5, 6, 7, 8}
9

Dijkstra (example)
Graph = {(0,1)=4, (0,7)=8, (1,2)=8, (1,7)=11,
(7,8)=7, (7,6)=1, (2,3)=7, (2,5)=4, (2,8)=2,
(8,6)=6, (6,5)=2, (3,4)=9, (3,5)=14, (5,4)=10}
Distance = {0, 4, 12, INF, INF, INF, INF, 8,
INF}
Prev = {UND, 0, 1, UND, UND, UND,
UND, 0, UND}
Q = {2, 3, 4, 5, 6, 7, 8}
10

Dijkstra (example)
Graph = {(0,1)=4, (0,7)=8, (1,2)=8, (1,7)=11,
(7,8)=7, (7,6)=1, (2,3)=7, (2,5)=4, (2,8)=2,
(8,6)=6, (6,5)=2, (3,4)=9, (3,5)=14, (5,4)=10}
Distance = {0, 4, 12, INF, INF, INF, 9, 8, 15}
Prev = {UND, 0, 1, UND, UND, UND, 7, 0,
7}
Q = {2, 3, 4, 5, 6, 8}
11

Dijkstra (example)
Graph = {(0,1)=4, (0,7)=8, (1,2)=8, (1,7)=11,
(7,8)=7, (7,6)=1, (2,3)=7, (2,5)=4, (2,8)=2,
(8,6)=6, (6,5)=2, (3,4)=9, (3,5)=14, (5,4)=10}
Distance = {0, 4, 12, INF, INF, 11, 9, 8, 15}
Prev = {UND, 0, 1, UND, UND, 6, 7, 0, 6}
Q = {2, 3, 4, 5, 8}
12

Dijkstra (example)
Graph = {(0,1)=4, (0,7)=8, (1,2)=8, (1,7)=11,
(7,8)=7, (7,6)=1, (2,3)=7, (2,5)=4, (2,8)=2,
(8,6)=6, (6,5)=2, (3,4)=9, (3,5)=14, (5,4)=10}
Distance = {0, 4, 12, 19, 21, 11, 9, 8, 14}
Prev = {UND, 0, 1, 2, 5, 6, 7, 0, 2}
Q = {}
13

Dijkstra (Question)
Q: What if one of the weights was zero?
14

Dijkstra (Question)
A: No problem for Dijkstra algorithm. The
answer will be correct if we run dijkstra on the
graph but we can merge two nodes can be
merged
15

Dijkstra (Question)
merged
Q: What if the graph is not connected? What
happens to the weights?
16

Dijkstra (Question)
merged
Q: What if the graph is not connected? What
happens to the weights?
A: Nodes that are not reachable from the
source will have INF value and the algorithm
will not proceed 17

Bellman-Ford Algorithm
● Given a graph and a source vertex src in graph, find shortest paths from src to all
vertices in the given graph.
● This algorithm works with graphs having negative weight edges
● Greedy algorithm but simpler than Dijkstra and uses relaxation like Dijkstra
● It relaxes all the edges at most |V|-1 times until it finds the answer (no change happens
after update)
● Time complexity: O(VE)
18

Bellman-Ford Algorithm (pseudocode)
19

Bellman-Ford Algorithm (example)
20
G = { (A,B)=-1, (A,C)=4, (B,C)=3, (D,C)=5, (B,D)=2,
(D,B)=1, (B,E)=2, (E,D)=-3 }
S = A
Process order: (B, E), (D, B), (B, D), (A, B), (A, C), (D,
C), (B, C), (E, D)

21
G = { (A,B)=-1, (A,C)=4, (B,C)=3, (D,C)=5, (B,D)=2,
(D,B)=1, (B,E)=2, (E,D)=-3 }
S = A
C), (B, C), (E, D)

22
G = { (A,B)=-1, (A,C)=4, (B,C)=3, (D,C)=5, (B,D)=2,
(D,B)=1, (B,E)=2, (E,D)=-3 }
S = A
C), (B, C), (E, D)

Bellman-Ford Algorithm (Question)
23
Q = What happens if (B,D)=-2 and (D,B)=-1 ?

24
Q = What happens if (B,D)=-2 and (D,B)=-1 ?
A = The algorithm gets stuck in a loop and updates the
weights until it reaches the end of the algorithm
(Algorithm won't work in this situation)
C), (B, C), (E, D)

25
Q = When does the worst case scenario happens? What
is the worst case scenario for this algorithm?

26
Q = When does the worst case scenario happens? What
is the worst case scenario for this algorithm?
A = When we a complete graph like K5 we will have
V(V-1)/2 edges which have to processed V times, which
has O(V3) time complexity

Deterministic Algorithms
All Pairs Shortest Path

Floyd-Warshall Algorithm
● Given a graph, finds the shortest paths from all vertices to all other vertices
● Uses Dynamic Programming to solve the problem
● Edge weights can be negative (but no negative cycles) and graph can be directed
● Time complexity: O(V3)
28

Floyd-Warshall Algorithm (pseudocode)
29

Floyd-Warshall Algorithm (example)
30

31

32

33

34

Floyd-Warshall Algorithm (another example)
35

36

37

38

39

Randomized Algorithm
● A Las Vegas algorithm is a randomized algorithm that always gives the correct result but
gambles with resources.
● Monte Carlo simulations are a broad class of algorithms that use repeated random
sampling to obtain numerical results.
○ Monte Carlo simulations are typically used to simulate the behaviour of other systems.
○ Monte Carlo algorithms, on the other hand, are randomized algorithms whose output may be incorrect with
a certain, typically small, probability.
41

How to solve APSP problem using Randomized
algorithms?
● We will show that the problem of computing all-pairs shortest path is reducible, via a
randomized reduction, to the problem of multiplying two integer matrices
● First we solve the easier version of problem for unweighted graph and then get to solve the
weighted graph
42

All Pair Distance Problem

All Pair Distance problem( APD problem)
● Given an unweighted graph G and its adjacency matrix A, compute the distance
matrix D
● Let G’(V,E’) be a graph obtained from G(V,E) by placing an edge between every pair of
vertices i≠j ∊V that are at distance 1 or 2 in G
● The graph G is a subgraph of G’, and we could view G’ as the square of the graph G
● Lemma 1: If we compute Z=A2, then there is path of length 2 in G between pair of
vertices i and j if and only if Zij>0. Further, the value of Zij indicates the number of distinct
length 2 paths between i and j
● If we compute Z=A3, we can obtain if there is a path of length 3 between i and j in G if and
only if Zij>0
44

45
G = {(1,2), (2,3), (2,4), (3,4)}

46
G = {(1,2), (2,3), (2,4), (3,4)}
A = [[ 0, 1, 0, 0],
[ 1, 0, 1, 1],
[0, 1, 0, 1],
[0, 1, 1, 0]]

47
G = {(1,2), (2,3), (2,4), (3,4)}
A = [[ 0, 1, 0, 0],
[ 1, 0, 1, 1],
[0, 1, 0, 1],
[0, 1, 1, 0]]
A2= [[1, 0, 1, 1],
[0, 3, 1, 1],
[1, 1, 2, 1],
[1, 1, 1, 2]]

● If given graph G with adjacency matrix A and distance matrix D and we compute Z=G2
with adjacency matrix A’ and distance matrix D’
● To ensure A’ has a zero diagonal, we compute it by setting A’
ij=1 if and only if i≠j and at
least one of A’
ij or Aij is non-zero
● We can observe G’ is complete if and only if G has diameter at most 2, where diameter of a
graph is the maximum shortest path length over all pairs of vertices
● is there any way we could compute D’ from D?
48

● Observation: if G has a diameter at most 2, then G’ is complete and in D=2A’-A
● This can be obtained from A and A’ in time O(n2)
● Lemma 2: consider any pair of vertices i,j ∊V
○ If Dij is even then Dij=2D’
ij
○ If Dij is odd then Dij=2D’
ij - 1
● By using this lemma we can recursively compute distance matrix of graph G from distance
matrix of graph G’
● But how can we compute the parities of the shortest path lengths?
49

● Lemma 3: consider any pair of distinct vertices i and j in G
○ For any neighbor k of i, Dij- 1 ≤ Dkj ≤ Dij+ 1
○ There exists a neighbor k of i such that Dkj = Dij - 1
● Now using this lemma we can have a structural property to compute the parities of the
shortest path lengths
● Lemma 4: consider any pair of distinct vertices i and j in G:
○ If Dij is even, then D’
kj ≥ D’
ij for every neighbor k of i in G
○ If Dij is odd, then D’
kj ≤ D’
ij for every neighbor k of i in G. moreover, there exists a neighbor k of i in G such
that D’
kj < D’
ij
50

● Let Γ(i) denote the set of neighbors of i in G and d(i) be the degree of i. Note that A’
ii=d(i)
● By summing the inequalities in lemma 4 over the neighbors of vertex i we can obtain the
following result:
● Lemma 5: consider any pair of distinct vertices i and j in G:
○ Dij is even if and only if ∑k∊Γ(i) D’
kj ≥ D’
ijd(i)
○ Dij is odd if and only if ∑k∊Γ(i) D’
kj < D’
ijd(i)
● In this lemma matrix multiplication is used to compute:
○ ∑k∊Γ(i) D’
kj= ∑n
k=1 Aik D’
kj = Sij
51

52

53
● The APD algorithm computes the distance matrix for an n-vertex graph G in time
O(MM(n) log n) using integer matrix multiplication
● MM(n) indicates matrix multiplication of square matrices with length n
● The ordinary matrix multiplication algorithm has time complexity of O(n3) and currently
the best time complexity has time complexity O(n2.373)

Boolean Product Witness Matrix(BPWM)

55
● Suppose A and B are n*n boolean(0,1) matrices and P=AB is their product under boolean
matrix multiplication
● A witness for Pij is an index k∊{1, ..., n} such that Aik = Bkj = 1
● Observe that Pij=1 if and only if it has some witness k
● A Boolean Product Witness Matrix(BPWM) for P is an integer matrix W such that each
entry Wij contains a witness k for Pij if any, and is 0 if there is no such witness
● There could be as many as n witnesses for each entry in p
● The integer matrix multiplication of A and B, treating their entries as the integer 0 and 1,
yields a matrix C whose entry Cij corresponds exactly to the number of witnesses for
boolean matrix entry Pij

56
G = {(1,2), (1,6), (2,3), (2,4), (2,5), (2,6), (3,4), (4,5),
(5,6)}
A =[[0, 1, 0, 0, 0, 1],
[1, 0, 1, 1, 1, 1],
[0, 1, 0, 1, 0, 0],
[0, 1, 1, 0, 1, 0],
[0, 1, 0, 1, 0, 1],
[1, 1, 0, 0, 1, 0]]
A2=[[2, 1, 1, 1, 2, 1],
[1, 5, 1, 2, 2, 2],
[1, 1, 2, 1, 2, 1],
[1, 2, 1, 3, 1, 2],
[2, 2, 2, 1, 3, 1],
[1, 2, 1, 2, 1, 3]]

57
● If there is a unique witness for each vertex there is no problem with BPWM but if there are
many witnesses we can use some randomness
● Lemma 6: suppose an urn contains n balls of which w are white, and n-w are black.
Consider choosing r balls at random(without replacement), where n/2 ≤ wr ≤ n then:
○ PR[exactly one white ball is chosen] ≥ 1/2e

58
Consider we have n=100 balls
W = 4 balls are white
n/2 <= 4r <=n
50 <= 4r <= 100
13 <=r <= 25

60
● So what is the usage of this usage?
● Assume we have set R which contains unique witness for Pij
● R is represented as incidence vector that has Rk=1 for k∈R and Rk=0 for k∉R
● Let AR be the matrix obtained from A by setting AR
ik=kRkAik
● Let BR be the matrix obtained from B by setting BR
kj=RkBkj
● So if the entry Pij has a unique witness in the set R, corresponding entry in the integer
matrix multiplication of AR and BR is the index of this unique witness

61
● A key point is that the product of AR and BR yields witnesses for all entries in P that have a
unique witness in R
● By lemma 6 there is a constant probability that a random set R of size r has a unique
witness for an entry in P with w witness where n/2r ≤ w ≤ n/r
● Repeating this for O(log n) independent choices of R makes it extremely unlikely that
witnesses are not identified for such entries in P
● Combining the thoughts above results the following algorithm

62

63
● The BPWM algorithm is Las Vegas algorithm for BPWM problem with expected
running time O(MM(n) log2 n)
● Now we use APD and BPWM algorithm to solve APSP problem

All Pair Shortest Path

All Pair Shortest Path(randomized)
65
● We define a successor matrix S for an n-vertex graph G is and n*n matrix such that Sij is the
index k of a neighbor of vertex i that lies on a shortest path from i to j
● Fact: The successor entry for Sij=k iff
○ Dij=d
○ Dik=1
○ Dkj=d-1
○ Aik=1
● Let Bd denote the n*n boolean matrix in which Bd
kj=1 iff Dkj=d-1
● We can compute Bd from D in O(n2) time
● The problem is that this process must be repeated for n different values of d, leading to
super-cubic algorithm which is not good!

66

67
● The APSP computes the successor matrix for and n-vertex graph G in expected time
O(MM(n) log2n)

Comparison
Deterministic algorithms:
Dijkstra+Johnson: O(EV + V2 log V)
Floyd–Warshall algorithm: O(V3)
Randomized Algorithm:
APSP: O(n2.373 log2 n)
69

References
1. Prof. Eric Price, CS 388R Randomized Algorithms, Fall 2019, University of Texas ( available at :
https://www.cs.utexas.edu/~ecprice/courses/randomized/ )
2. David Karger. 6.856J Randomized Algorithms. Fall 2002. Massachusetts Institute of Technology: MIT OpenCourseWare (
available at : https://ocw.mit.edu/courses/electrical-engineering-and-computer-science/6-856j-randomized-algorithms-fall-
2002/index.htm )
3. Motwani, R., & Raghavan, P. (1995). Randomized Algorithms. Cambridge: Cambridge University Press.
doi:10.1017/CBO9780511814075
4. https://en.wikipedia.org/wiki/Shortest_path_problem#Single-source_shortest_paths
5. https://www.geeksforgeeks.org/dijkstras-shortest-path-algorithm-greedy-algo-7/
6. https://en.wikipedia.org/wiki/Dijkstra%27s_algorithm
7. https://www.youtube.com/watch?v=FtN3BYH2Zes
8. https://www.youtube.com/watch?v=oNI0rf2P9gE
9. https://www.youtube.com/watch?v=XB4MIexjvY0
10. https://www.geeksforgeeks.org/bellman-ford-algorithm-dp-23/
11. https://stackoverflow.com/questions/49460439/can-dijkstras-algorithm-work-on-a-graph-with-weights-of-0
12. https://www.programiz.com/dsa/bellman-ford-algorithm
70

References
12. Algorithms course notes, University of Illinois,(available at: https://jeffe.cs.illinois.edu/teaching/algorithms/book/09-
apsp.pdf )
13. https://www.gatevidyalay.com/floyd-warshall-algorithm-shortest-path-algorithm/
14. https://www.programiz.com/dsa/floyd-warshall-algorithm
15. https://yourbasic.org/algorithms/las-vegas/
16. (44) Lec 26: All pair shortest path-I - YouTube
17. (44) Lec 27: All pair shortest path-II - YouTube
71

exercises
1. Prover lemma 4 and 6
2. Explain and prove time complexity of APD and BPWM algorithm
3. (Bonus) Implement this algorithm and compare its performance with deterministic
algorithms on multiple graphs with different sizes of V and E
72

Randomized algorithms all pairs shortest path

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Randomized algorithms all pairs shortest path

Similar to Randomized algorithms all pairs shortest path (20)

Recently uploaded

Recently uploaded (20)

Randomized algorithms all pairs shortest path
