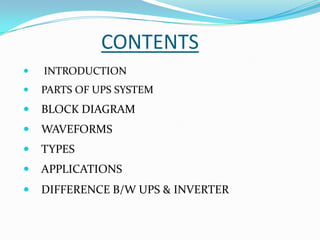

4. CONTENTS
 INTRODUCTION
 PARTS OF UPS SYSTEM
 BLOCK DIAGRAM
 WAVEFORMS
 TYPES
 APPLICATIONS
 DIFFERENCE B/W UPS & INVERTER

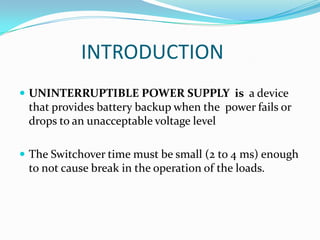

5. INTRODUCTION
 UNINTERRUPTIBLE POWER SUPPLY is a device
that provides battery backup when the power fails or
drops to an unacceptable voltage level
 The Switchover time must be small (2 to 4 ms) enough
to not cause break in the operation of the loads.

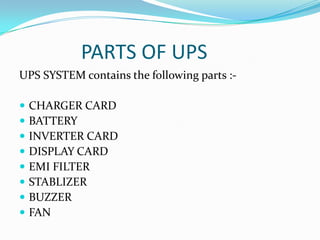

6. PARTS OF UPS
UPS SYSTEM contains the following parts :-
 CHARGER CARD
 BATTERY
 INVERTER CARD
 DISPLAY CARD
 EMI FILTER
 STABLIZER
 BUZZER
 FAN

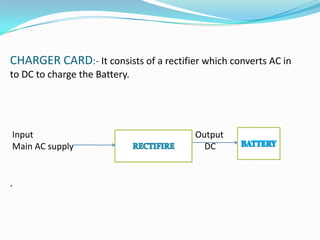

7. CHARGER CARD:- It consists of a rectifier which converts AC in
to DC to charge the Battery.
Input Output
Main AC supply DC
.

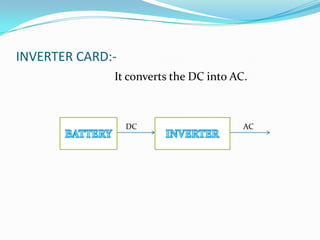

8. INVERTER CARD:-
It converts the DC into AC.
DC AC

9. EMI Filter:-
An EMI (Electromagnetic Interference) filter helps
to reduce spikes and electrical noise.
AC
Pure
with
INVERTER Noise EMI Filter AC
&
spikes
STABLIZER:-
Regulates the voltage to the constant range that
is safe for the loads.

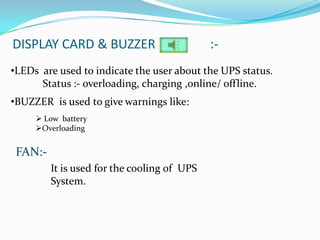

10. DISPLAY CARD & BUZZER :-
•LEDs are used to indicate the user about the UPS status.
Status :- overloading, charging ,online/ offline.
•BUZZER is used to give warnings like:
 Low battery
Overloading
FAN:-
It is used for the cooling of UPS
System.

11. BLOCK DIAGRAM
Bypass AC
STATIC
LOAD
SWITCHS S1
EMI PURE STATIC
DC AC
RECTIFIER INVERTER Filter SWITCH S2
AC
S2 : ON
Main AC BUZZER
When mains fails
BATTERY
UPS SYSTEM

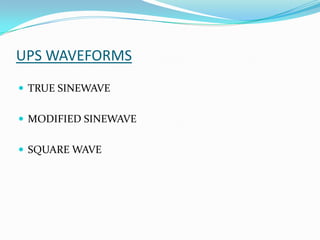

12. UPS WAVEFORMS
 TRUE SINEWAVE
 MODIFIED SINEWAVE
 SQUARE WAVE

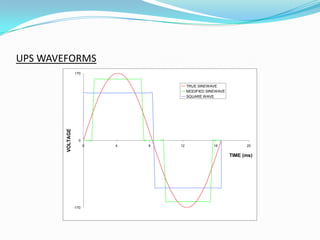

13. UPS WAVEFORMS
170
TRUE SINEWAVE
MODIFIED SINEWAVE
SQUARE WAVE
VOLTAGE
0
0 4 8 12 16 20
TIME (ms)
-170

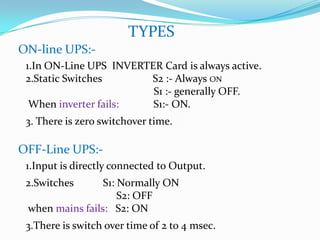

14. TYPES
ON-line UPS:-
1.In ON-Line UPS INVERTER Card is always active.
2.Static Switches S2 :- Always ON
S1 :- generally OFF.
When inverter fails: S1:- ON.
3. There is zero switchover time.
OFF-Line UPS:-
1.Input is directly connected to Output.
2.Switches S1: Normally ON
S2: OFF
when mains fails: S2: ON
3.There is switch over time of 2 to 4 msec.

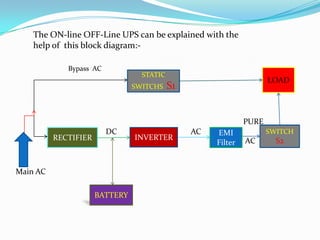

15. The ON-line OFF-Line UPS can be explained with the
help of this block diagram:-
Bypass AC
STATIC
LOAD
SWITCHS S1
PURE
DC AC EMI SWITCH
RECTIFIER INVERTER AC S2
Filter
Main AC
BATTERY

16. APPLICATIONS:-
UPS generally used , where data loss causes a serious
problem like in:-
 Computers
 Operation Theaters
 Banks
 Control Room applications

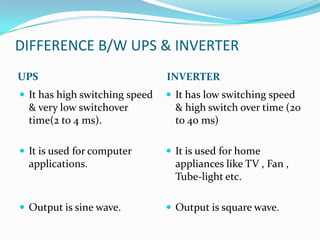

17. DIFFERENCE B/W UPS & INVERTER
UPS INVERTER
 It has high switching speed  It has low switching speed
& very low switchover & high switch over time (20
time(2 to 4 ms). to 40 ms)
 It is used for computer  It is used for home
applications. appliances like TV , Fan ,
Tube-light etc.
 Output is sine wave.  Output is square wave.
