Dc power plants for telecom and data
- 1. DC Power Plantsfor Telecommunications and Data Presented to INFOBATT 2005 Thomas G. Croda Principal Engineer CSI Telecommunication 1 Engineers

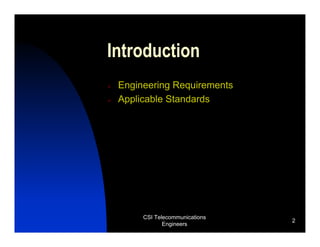

- 2. Introduction Engineering Requirements Applicable Standards CSI Telecommunications 2 Engineers

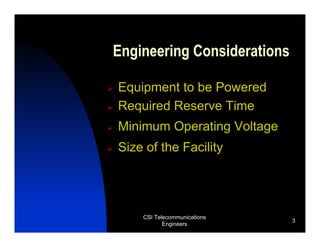

- 3. Engineering Considerations Equipment tobe Powered Required Reserve Time Minimum Operating Voltage Size of the Facility CSI Telecommunications 3 Engineers

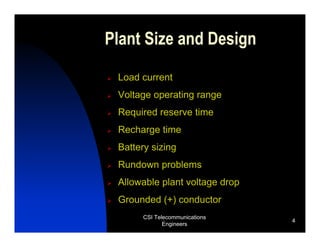

- 4. Plant Size andDesign Load current Voltage operating range Required reserve time Recharge time Battery sizing Rundown problems Allowable plant voltage drop Grounded (+) conductor CSI Telecommunications 4 Engineers

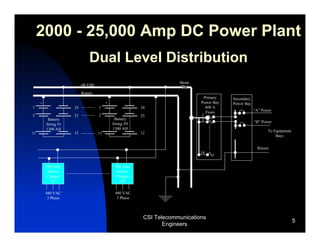

- 5. 2000 - 25,000Amp DC Power Plant Dual Level Distribution Shunt -48 VDC Return Primary Secondary + + Power Bay Power Bay 1 24 1 24 600 A Fuses “A” Power 2 23 2 23 1 Battery Battery 2 String #N “B” Power String #1 1300 AH 1300 AH To Equipment 11 12 11 12 Bays Return 14 800 Amp 800 Amp Battery Battery Charger Charger #1 #N 480 VAC 480 VAC 3 Phase 3 Phase CSI Telecommunications 5 Engineers

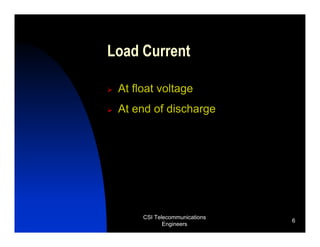

- 6. Load Current Atfloat voltage At end of discharge CSI Telecommunications 6 Engineers
- 7. Voltage Operating Range See T1.315 for new equipment (40-57 VDC) Check specific equipment for its operating range Float voltage End of discharge voltage Equalize voltage CSI Telecommunications 7 Engineers

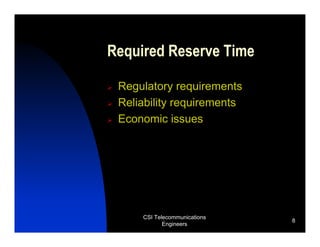

- 8. Required Reserve Time Regulatory requirements Reliability requirements Economic issues CSI Telecommunications 8 Engineers
- 9. Recharge Time ReliabilityRequirements Rundown Problem Charger sizing CSI Telecommunications 9 Engineers
- 10. Rundown Problem Theproblem of more load than the chargers will support What happens with a 1000 Amp load at 54 VDC? Since the entire load is "constant power" the load at 40 VDC is: 54 * 1000 / 40 = 1350 Amps The MINIMUM amount of chargers must exceed 1350A. CSI Telecommunications 10 Engineers

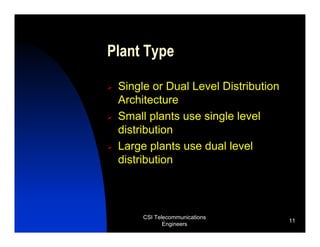

- 11. Plant Type Singleor Dual Level Distribution Architecture Small plants use single level distribution Large plants use dual level distribution CSI Telecommunications 11 Engineers
- 12. DC Power –Single Point Ground Minimal current in framework Balanced distribution to cancel fields CSI Telecommunications 12 Engineers

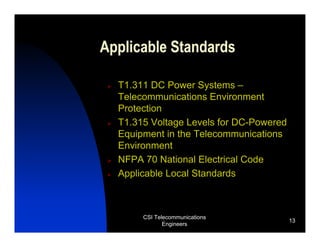

- 13. Applicable Standards T1.311 DC Power Systems – Telecommunications Environment Protection T1.315 Voltage Levels for DC-Powered Equipment in the Telecommunications Environment NFPA 70 National Electrical Code Applicable Local Standards CSI Telecommunications 13 Engineers
- 14. Allowable Plant VoltageDrop 2 volts - battery to load 0.25 volts - between battery and primary distribution 1.0 volt - between primary and secondary distribution 0.5 volts - between secondary distribution and load bay 0.25 volts - allocated for fuse, circuit breaker, and shunt loss Other allocations are possible CSI Telecommunications 14 Engineers

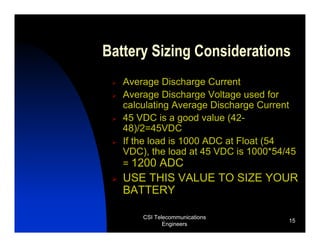

- 15. Battery Sizing Considerations Average Discharge Current Average Discharge Voltage used for calculating Average Discharge Current 45 VDC is a good value (42- 48)/2=45VDC If the load is 1000 ADC at Float (54 VDC), the load at 45 VDC is 1000*54/45 = 1200 ADC USE THIS VALUE TO SIZE YOUR BATTERY CSI Telecommunications 15 Engineers

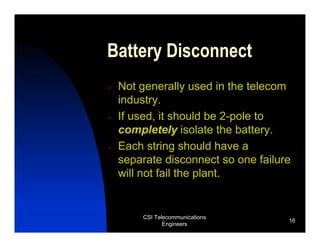

- 16. Battery Disconnect Notgenerally used in the telecom industry. If used, it should be 2-pole to completely isolate the battery. Each string should have a separate disconnect so one failure will not fail the plant. CSI Telecommunications 16 Engineers
- 17. CSI Telecommunications 17 Engineers

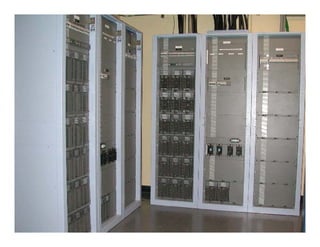

- 18. CSI Telecommunications 18 Engineers

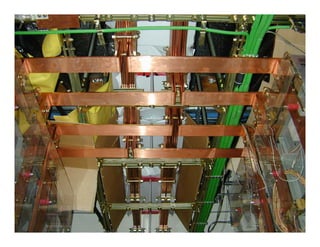

- 19. CSI Telecommunications 19 Engineers
- 20. CSI Telecommunications 20 Engineers

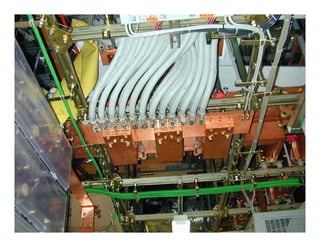

- 21. CSI Telecommunications 21 Engineers

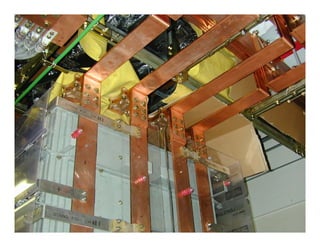

- 22. CSI Telecommunications 22 Engineers

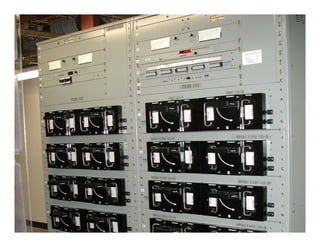

- 23. CSI Telecommunications 23 Engineers

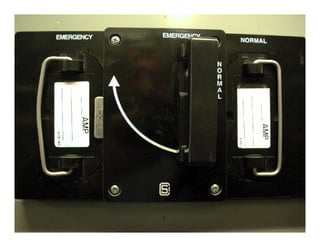

- 24. CSI Telecommunications 24 Engineers
- 25. Questions? CSI Telecommunications 25 Engineers
