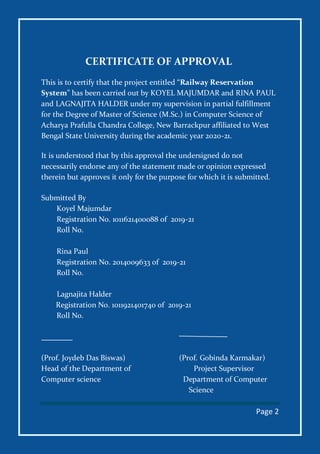

This is to certify that the project entitled “Railway Reservation
System” has been carried out by KOYEL MAJUMDAR and RINA PAUL
and LAGNAJITA HALDER under my supervision in partial fulfillment
for the Degree of Master of Science (M.Sc.) in Computer Science of
Acharya Prafulla Chandra College, New Barrackpur affiliated to West
Bengal State University during the academic year 2020-21.
It is understood that by this approval the undersigned do not
necessarily endorse any of the statement made or opinion expressed
therein but approves it only for the purpose for which it is submitted.
Submitted By
Koyel Majumdar
Registration No. 1011621400088 of 2019-21
Roll No.
Rina Paul
Roll No.
Lagnajita Halder
Roll No.
(Prof. Joydeb Das Biswas) (Prof. Gobinda Karmakar)
Head of the Department of Project Supervisor
Computer science Department of Computer
Science

ASSIGNMENT 01

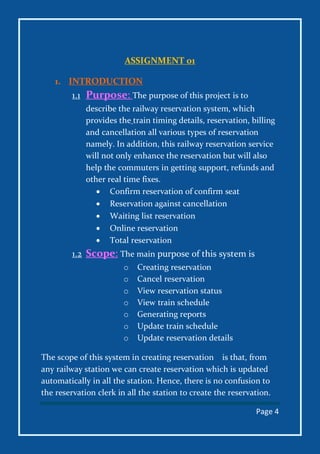

1. INTRODUCTION
1.1 Purpose: The purpose of this project is to
describe the railway reservation system, which
provides the train timing details, reservation, billing
and cancellation all various types of reservation
namely. In addition, this railway reservation service
will not only enhance the reservation but will also
help the commuters in getting support, refunds and
other real time fixes.
 Confirm reservation of confirm seat
 Reservation against cancellation
 Waiting list reservation
 Online reservation
 Total reservation
1.2 Scope: The main purpose of this system is
o Creating reservation
o Cancel reservation
o View reservation status
o View train schedule
o Generating reports
o Update train schedule
o Update reservation details
The scope of this system in creating reservation is that, from
any railway station we can create reservation which is updated
automatically in all the station. Hence, there is no confusion to
the reservation clerk in all the station to create the reservation.

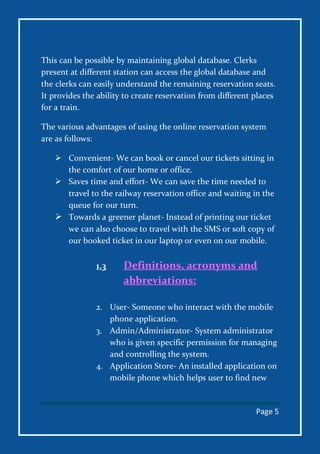

This can be possible by maintaining global database. Clerks
present at different station can access the global database and
the clerks can easily understand the remaining reservation seats.
It provides the ability to create reservation from different places
for a train.
The various advantages of using the online reservation system
are as follows:
 Convenient- We can book or cancel our tickets sitting in
the comfort of our home or office.
 Saves time and effort- We can save the time needed to
travel to the railway reservation office and waiting in the
queue for our turn.
 Towards a greener planet- Instead of printing our ticket
we can also choose to travel with the SMS or soft copy of
our booked ticket in our laptop or even on our mobile.
1.3 Definitions, acronyms and
abbreviations:
2. User- Someone who interact with the mobile
phone application.
3. Admin/Administrator- System administrator
who is given specific permission for managing
and controlling the system.
4. Application Store- An installed application on
mobile phone which helps user to find new

compatible applications with mobile phone
platform and download them from Internet.
5. Stakeholder- Any person who has interaction
with the system who is not a developer.

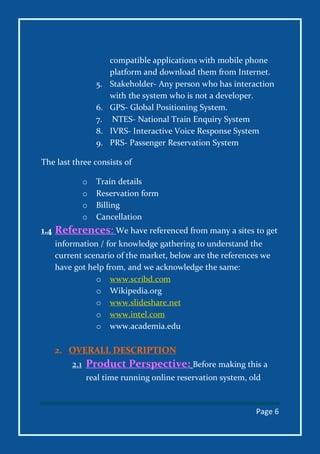

6. GPS- Global Positioning System.
7. NTES- National Train Enquiry System
8. IVRS- Interactive Voice Response System
9. PRS- Passenger Reservation System
The last three consists of
o Train details
o Reservation form
o Billing
o Cancellation
1.4 References: We have referenced from many a sites to get
information / for knowledge gathering to understand the
current scenario of the market, below are the references we
have got help from, and we acknowledge the same:
o www.scribd.com
o Wikipedia.org
o www.slideshare.net
o www.intel.com
o www.academia.edu
2. OVERALL DESCRIPTION
2.1 Product Perspective: Before making this a
real time running online reservation system, old

system suffered from many of the DRAWBACKS,
such as:
 The existing system is highly manual
involving a lot of paper work and calculation
and therefore may be erroneous. This has led
to inconsistency and inaccuracy in the
maintenance of data.
 Due to manual working, it is difficult to add,
delete, update or view the data.
 The data, which is stored on the paper only,
may be lost, stolen or destroyed due to any
natural calamity of fire or water.
 Since number of passengers has increased to
an uncertain multiple, it is very difficult to
maintain or retrieve detailed record of
passengers.
 Existing system is sluggish and consumes a lot
of time causing inconvenience to customers
and staff.
 A railway has many offices around the world
an absence of link between them all causes to
a lack of miscommunication and disco-
ordination.
Hence, this railway reservation system is
proposed, with following benefits:
 Reservation, cancellation
or updatation lists of
ticket’s can easily be

maintained and retrieved
and any required additions,
deletion or updatation can
easily be performed.
 Computerization of
reservation system will
reduce a lot of daily paper
work and hence load on
the staff of admin
department.
 This system provide User
name-Password validation,
hence unauthorized access
is prevented.

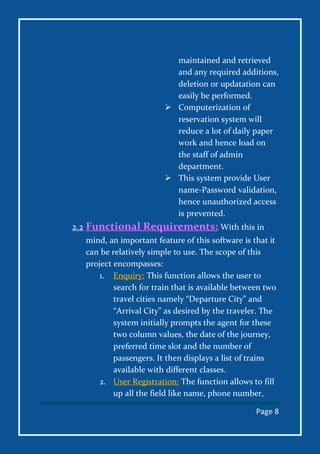

2.2 Functional Requirements: With this in
mind, an important feature of this software is that it
can be relatively simple to use. The scope of this
project encompasses:
1. Enquiry: This function allows the user to
search for train that is available between two
travel cities namely “Departure City” and
“Arrival City” as desired by the traveler. The
system initially prompts the agent for these
two column values, the date of the journey,
preferred time slot and the number of
passengers. It then displays a list of trains
available with different classes.
2. User Registration: The function allows to fill
up all the field like name, phone number,

address. Then generate user id and password
for further login.
3. Login: This function allows log in to the
system after entering user id and password.
4. Ticket Booking:
 Passenger Information: This system
asks for details of all the passenger
before the booking confirmation.
Hence, lesser cases of seat issues.
 Payment: It requires details of
credit/debit card of the person to make
payment and reserve the required seat,
details such as:
o Card Number
o Card Type
o CVV Number
o Expiry Date
o Name on the Card
5. Cancellation: System also allow cancellation
of existing reservation done, making seats
unreserved for others to book and refunding
the money back to the accounts of users
cancelling the tickets.
6. PNR Status: System allow to find out train
travel details, we need to check PNR status
first. Every train has limited number of seats,
sometime one may not get a confirmed

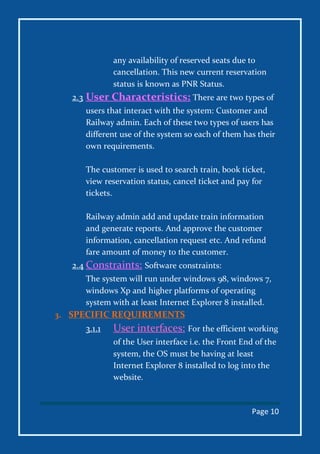

reserved ticket. The current status of such a
waitlist(W/L) ticket changes when there is

any availability of reserved seats due to
cancellation. This new current reservation
status is known as PNR Status.
2.3 User Characteristics: There are two types of
users that interact with the system: Customer and
Railway admin. Each of these two types of users has
different use of the system so each of them has their
own requirements.
The customer is used to search train, book ticket,
view reservation status, cancel ticket and pay for
tickets.
Railway admin add and update train information
and generate reports. And approve the customer
information, cancellation request etc. And refund
fare amount of money to the customer.
2.4 Constraints: Software constraints:
The system will run under windows 98, windows 7,
windows Xp and higher platforms of operating
system with at least Internet Explorer 8 installed.
3. SPECIFIC REQUIREMENTS
3.1.1 User interfaces: For the efficient working
of the User interface i.e. the Front End of the
system, the OS must be having at least
Internet Explorer 8 installed to log into the
website.

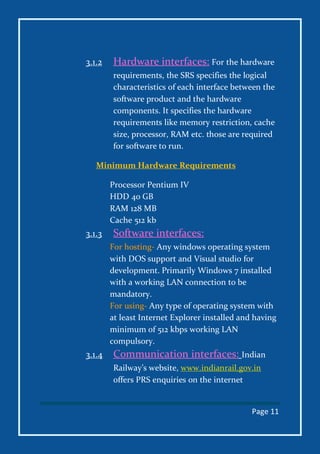

3.1.2 Hardware interfaces: For the hardware
requirements, the SRS specifies the logical
characteristics of each interface between the
software product and the hardware
components. It specifies the hardware
requirements like memory restriction, cache
size, processor, RAM etc. those are required
for software to run.
Minimum Hardware Requirements
Processor Pentium IV
HDD 40 GB
RAM 128 MB
Cache 512 kb
3.1.3 Software interfaces:
For hosting- Any windows operating system
with DOS support and Visual studio for
development. Primarily Windows 7 installed
with a working LAN connection to be
mandatory.
For using- Any type of operating system with
at least Internet Explorer installed and having
minimum of 512 kbps working LAN
compulsory.
3.1.4 Communication interfaces: Indian
Railway’s website, www.indianrail.gov.in
offers PRS enquiries on the internet

berth/seat availability, Passenger Status,
Fare, Train Schedule etc.
National Train Enquiry System(NTES)
website, www.trainenquiry.com gives
dynamic information about the running
status of any train and its expected
arrival/departure at any given station.
Mobile telephone based SMS enquiry service.
A new mobile phone based facility for rail
users’ which is Country wide extension of
Universal Rail Enquiry number “139” through
setting up of Interactive Voice Response
System(IVRS).

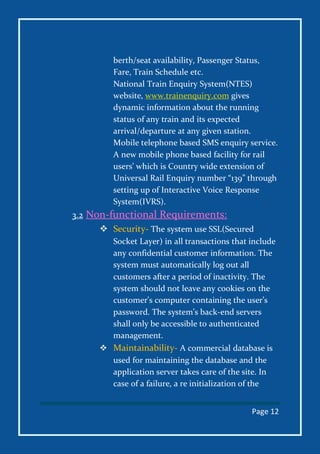

3.2 Non-functional Requirements:
 Security- The system use SSL(Secured
Socket Layer) in all transactions that include
any confidential customer information. The
system must automatically log out all
customers after a period of inactivity. The
system should not leave any cookies on the
customer’s computer containing the user’s
password. The system’s back-end servers
shall only be accessible to authenticated
management.
 Maintainability- A commercial database is
used for maintaining the database and the
application server takes care of the site. In
case of a failure, a re initialization of the

project will be done. Also the software design
is being done with modularity in mind so
that maintainability can be done efficiently.
 Availability- The system should be available
at all times, meaning the user can access it
using a web browser, only restricted by the
down time of the server on which the system
runs. A customer friendly system which is in
access of people around the world should
work 24 hours. In case of a hardware failure
or database corruption, a replacement page
will be shown. Also, in case of a hardware
failure or database corruption, backups of
the database should be retrieved from the
server and saved by the organizer. Then the
service will be restarted. It means 24*7
availability.
 Reliability- The reliability of the overall
project depends on the reliability of the
separate components. The main pillar of
reliability of the system is the backup of the
database which is continuously maintained
and updated to reflect the most recent
changes. Also the system will be functioning
inside a container. Thus the overall stability
of the system depends on the stability of
container and its underling operating system.
 Supportability- The code and supporting
modules of the system will be well

documented and easy to understand. Online
user documentation and help system
requirements.

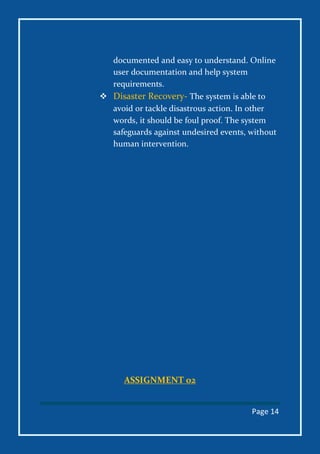

 Disaster Recovery- The system is able to
avoid or tackle disastrous action. In other
words, it should be foul proof. The system
safeguards against undesired events, without
human intervention.
ASSIGNMENT 02

Gantt Chart
 A Gantt chart used in project management, is one of the
most popular and useful ways of showing activities(tasks
or events) displayed against time.
 On the left of the chart is a list of activities and along the
top is a suitable time scale.
 Each activity is represented by a bar; the position and
length of the bar reflects the start date, duration and end
date of the activity.

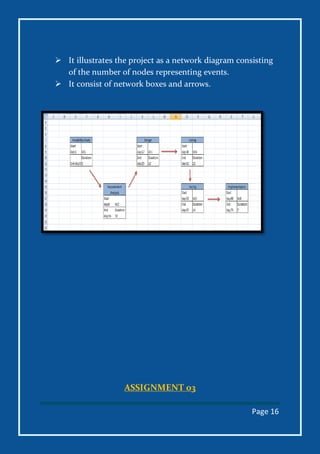

PERT Chart
 A PERT abbreviated as Project Evaluation and Review
Technique.

 It illustrates the project as a network diagram consisting
of the number of nodes representing events.
 It consist of network boxes and arrows.
ASSIGNMENT 03

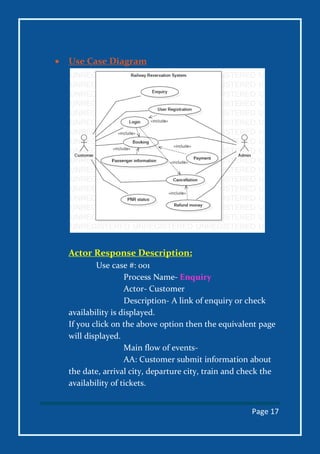

 Use Case Diagram
Actor Response Description:
Use case #: 001
Process Name- Enquiry
Actor- Customer
Description- A link of enquiry or check
availability is displayed.
If you click on the above option then the equivalent page
will displayed.
Main flow of events-
AA: Customer submit information about
the date, arrival city, departure city, train and check the
availability of tickets.

SR: Generate a message box and show the
result of search.

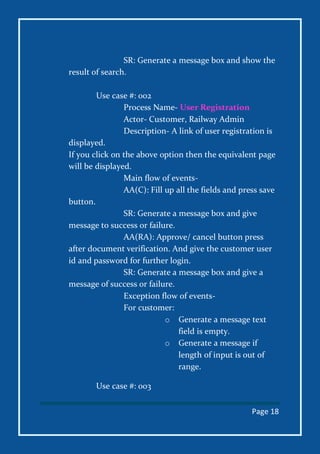

Use case #: 002
Process Name- User Registration
Actor- Customer, Railway Admin
Description- A link of user registration is
displayed.
will be displayed.
AA(C): Fill up all the fields and press save
button.
SR: Generate a message box and give
message to success or failure.
AA(RA): Approve/ cancel button press
after document verification. And give the customer user
id and password for further login.
SR: Generate a message box and give a
message of success or failure.
Exception flow of events-
For customer:
o Generate a message text
field is empty.
o Generate a message if
length of input is out of
range.

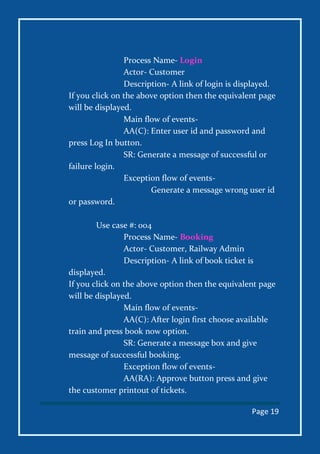

Use case #: 003

Process Name- Login
Actor- Customer
Description- A link of login is displayed.
will be displayed.
AA(C): Enter user id and password and
press Log In button.
SR: Generate a message of successful or
failure login.
Generate a message wrong user id
or password.
Use case #: 004
Process Name- Booking
Description- A link of book ticket is
displayed.
will be displayed.
AA(C): After login first choose available
train and press book now option.
message of successful booking.
AA(RA): Approve button press and give
the customer printout of tickets.

message of success.

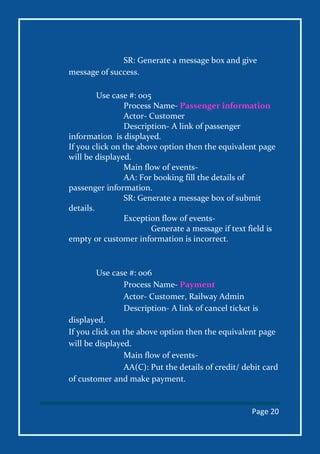

Use case #: 005
Process Name- Passenger information
Actor- Customer
Description- A link of passenger
information is displayed.
will be displayed.
AA: For booking fill the details of
passenger information.
SR: Generate a message box of submit
details.
Generate a message if text field is
empty or customer information is incorrect.
Use case #: 006
Process Name- Payment
Description- A link of cancel ticket is
displayed.
will be displayed.
AA(C): Put the details of credit/ debit card
of customer and make payment.

SR: Generate a message of successful
payment.
AA(RA): Generate a OTP for customer and
after payment press success button and give payment
receipt to the customer.
message of success /failure.
Generate a message for incorrect
card details.

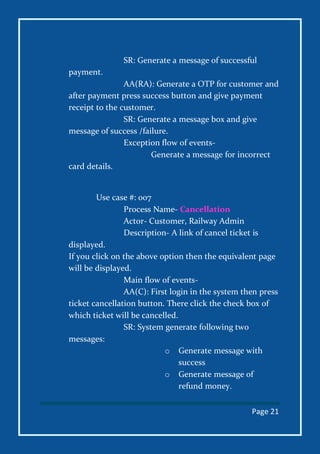

Use case #: 007
Process Name- Cancellation
Description- A link of cancel ticket is
displayed.
will be displayed.
AA(C): First login in the system then press
ticket cancellation button. There click the check box of
which ticket will be cancelled.
SR: System generate following two
messages:
o Generate message with
success
o Generate message of
refund money.

AA(RA): Approve button press and give
the printout of ticket cancellation to the customer.
SR: Generate a message box and give a
message of success.
Use case #: 008

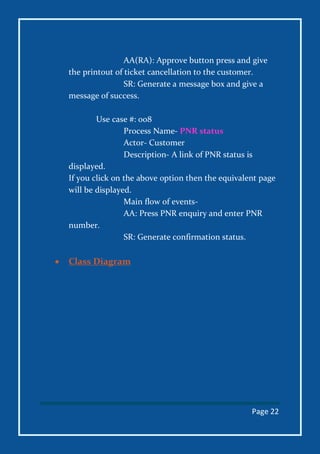

Process Name- PNR status
Actor- Customer
Description- A link of PNR status is
displayed.
will be displayed.
AA: Press PNR enquiry and enter PNR
number.
SR: Generate confirmation status.

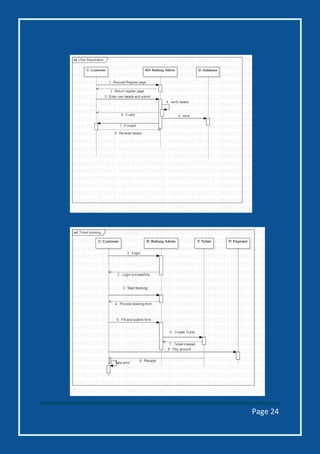

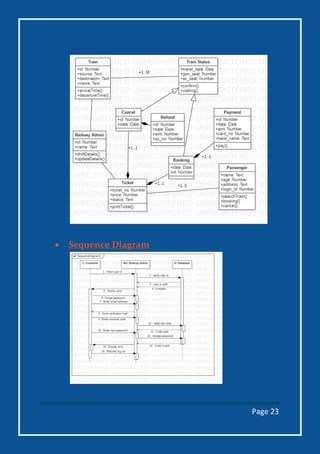

 Class Diagram

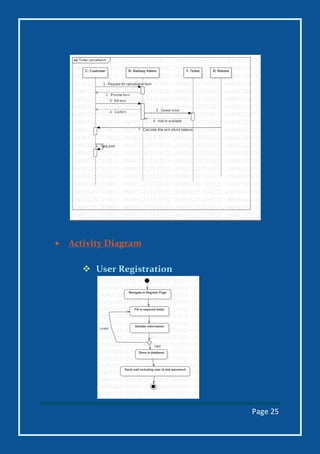

 Activity Diagram
 User Registration

 Login
 Ticket Booking

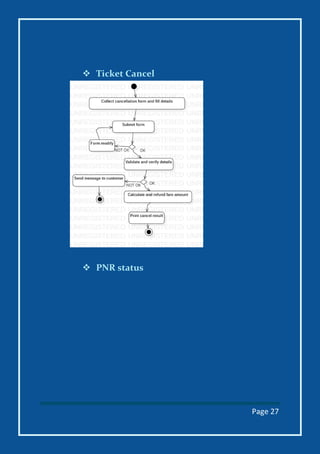

 Ticket Cancel

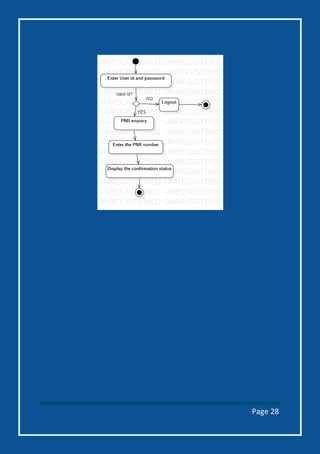

 PNR status

ASSIGNMENT 04
Estimate Project Cost
Decomposition for FP-based estimation focuses on information
domain values rather than software functions. Here we estimate
external inputs, external outputs, external inquires, internal
logical files and external interface files for the software. For the
purposes of this estimate, the complexity weighting factor is
assumed to be average.

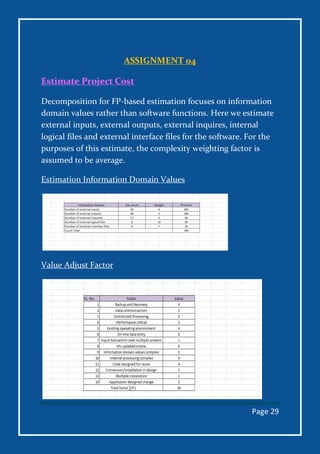

Estimation Information Domain Values
Value Adjust Factor

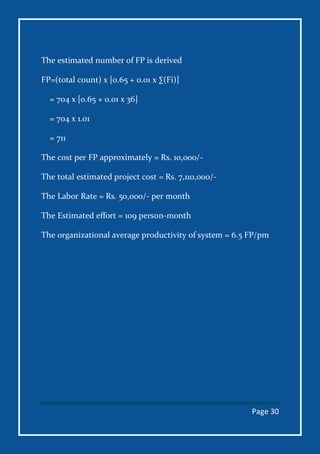

The estimated number of FP is derived
FP=(total count) x [o.65 + 0.01 x ∑(Fi)]
= 704 x [0.65 + 0.01 x 36]
= 704 x 1.01
= 711
The cost per FP approximately = Rs. 10,000/-
The total estimated project cost = Rs. 7,110,000/-
The Labor Rate = Rs. 50,000/- per month
The Estimated effort = 109 person-month
The organizational average productivity of system = 6.5 FP/pm

ASSIGNMENT 05

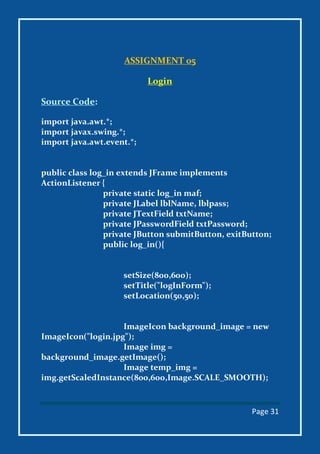

Login
Source Code:
import java.awt.*;
import javax.swing.*;
import java.awt.event.*;
public class log_in extends JFrame implements
ActionListener {
private static log_in maf;
private JLabel lblName, lblpass;
private JTextField txtName;
private JPasswordField txtPassword;
private JButton submitButton, exitButton;
public log_in(){
setSize(800,600);
setTitle("logInForm");
setLocation(50,50);
ImageIcon background_image = new
ImageIcon("login.jpg");
Image img =
background_image.getImage();
Image temp_img =
img.getScaledInstance(800,600,Image.SCALE_SMOOTH);

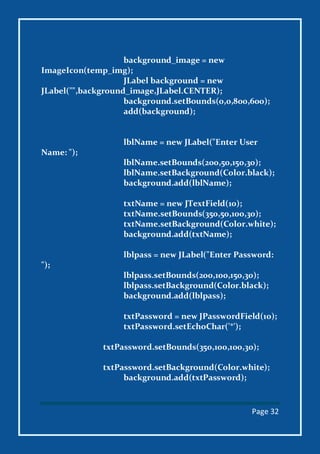

background_image = new
ImageIcon(temp_img);
JLabel background = new
JLabel("",background_image,JLabel.CENTER);
background.setBounds(0,0,800,600);
add(background);
lblName = new JLabel("Enter User
Name: ");
lblName.setBounds(200,50,150,30);
lblName.setBackground(Color.black);
background.add(lblName);
txtName = new JTextField(10);
txtName.setBounds(350,50,100,30);
txtName.setBackground(Color.white);
background.add(txtName);
lblpass = new JLabel("Enter Password:
");
lblpass.setBounds(200,100,150,30);
lblpass.setBackground(Color.black);
background.add(lblpass);
txtPassword = new JPasswordField(10);
txtPassword.setEchoChar('*');
txtPassword.setBounds(350,100,100,30);
txtPassword.setBackground(Color.white);
background.add(txtPassword);

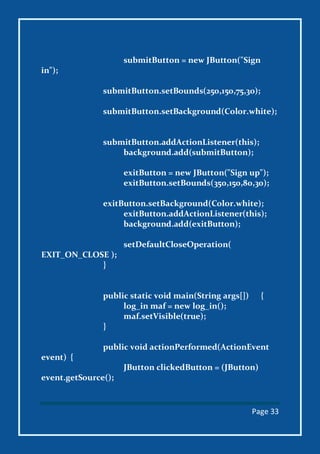

submitButton = new JButton("Sign
in");
submitButton.setBounds(250,150,75,30);
submitButton.setBackground(Color.white);
submitButton.addActionListener(this);
background.add(submitButton);
exitButton = new JButton("Sign up");
exitButton.setBounds(350,150,80,30);
exitButton.setBackground(Color.white);
exitButton.addActionListener(this);
background.add(exitButton);
setDefaultCloseOperation(
EXIT_ON_CLOSE );
}
public static void main(String args[]) {
log_in maf = new log_in();
maf.setVisible(true);
}
public void actionPerformed(ActionEvent
event) {
JButton clickedButton = (JButton)
event.getSource();

String buttonText =
clickedButton.getText();
if(buttonText.equals("Sign in")){
//JOptionPane.showMessageDialog(null,"Su
ccessfully Login");
if(txtName.getText().equals("Project") &&
txtPassword.getText().equals("1234")){
JOptionPane.showMessageDialog(null,"Cor
rect user ");
Home ob = new Home();
ob.setVisible(true);
maf.setVisible(false);
}
else{
JOptionPane.showMessageDialog(null,"Wr
ong user ... Try again");
}
}
if(buttonText.equals("Sign up")){
Registration ob = new
Registration();
}

}
}
Output:
Home Page
Source Code:

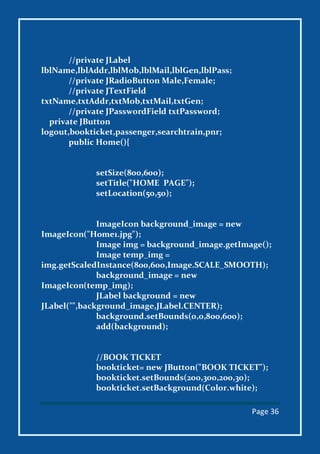

import java.awt.*;
public class Home extends JFrame implements
ActionListener {
private static Home maf;

//private JLabel
lblName,lblAddr,lblMob,lblMail,lblGen,lblPass;
//private JRadioButton Male,Female;
//private JTextField
txtName,txtAddr,txtMob,txtMail,txtGen;
//private JPasswordField txtPassword;
private JButton
logout,bookticket,passenger,searchtrain,pnr;
public Home(){
setSize(800,600);
setTitle("HOME PAGE");
setLocation(50,50);
ImageIcon("Home1.jpg");
Image img = background_image.getImage();
Image temp_img =
add(background);

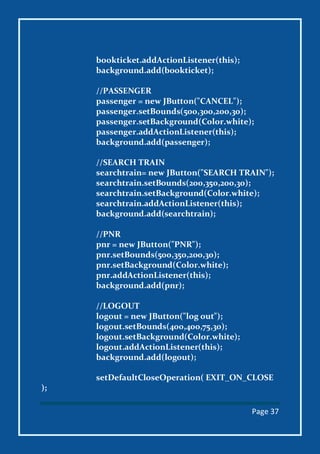

//BOOK TICKET
bookticket= new JButton("BOOK TICKET");
bookticket.setBounds(200,300,200,30);
bookticket.setBackground(Color.white);

bookticket.addActionListener(this);
background.add(bookticket);
//PASSENGER
passenger = new JButton("CANCEL");
passenger.setBounds(500,300,200,30);
passenger.setBackground(Color.white);
passenger.addActionListener(this);
background.add(passenger);
//SEARCH TRAIN
searchtrain= new JButton("SEARCH TRAIN");
searchtrain.setBounds(200,350,200,30);
searchtrain.setBackground(Color.white);
searchtrain.addActionListener(this);
background.add(searchtrain);
//PNR
pnr = new JButton("PNR");
pnr.setBounds(500,350,200,30);
pnr.setBackground(Color.white);
pnr.addActionListener(this);
background.add(pnr);
//LOGOUT
logout = new JButton("log out");
logout.setBounds(400,400,75,30);
logout.setBackground(Color.white);
logout.addActionListener(this);
background.add(logout);
setDefaultCloseOperation( EXIT_ON_CLOSE
);

}

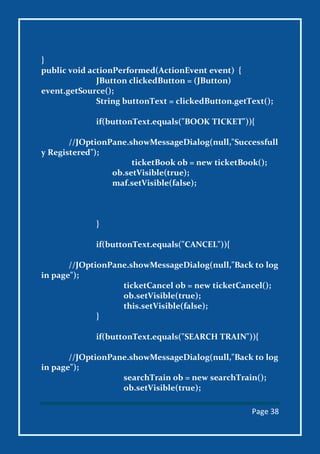

public void actionPerformed(ActionEvent event) {
event.getSource();
String buttonText = clickedButton.getText();
if(buttonText.equals("BOOK TICKET")){
//JOptionPane.showMessageDialog(null,"Successfull
y Registered");
ticketBook ob = new ticketBook();
}
if(buttonText.equals("CANCEL")){
//JOptionPane.showMessageDialog(null,"Back to log
in page");
ticketCancel ob = new ticketCancel();
this.setVisible(false);
}
if(buttonText.equals("SEARCH TRAIN")){
in page");
searchTrain ob = new searchTrain();

}

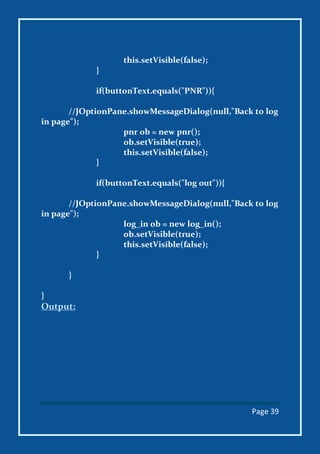

if(buttonText.equals("PNR")){
in page");
pnr ob = new pnr();
}
if(buttonText.equals("log out")){
in page");
log_in ob = new log_in();
}
}
}

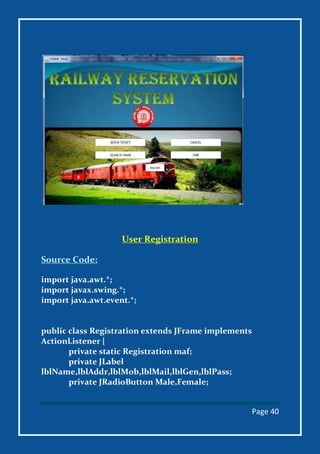

Output:

User Registration
Source Code:

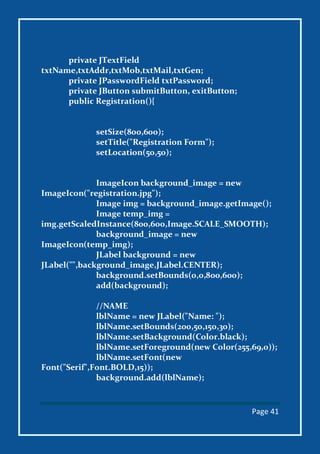

import java.awt.*;
public class Registration extends JFrame implements
ActionListener {
private static Registration maf;
private JLabel
lblName,lblAddr,lblMob,lblMail,lblGen,lblPass;
private JRadioButton Male,Female;

private JTextField
txtName,txtAddr,txtMob,txtMail,txtGen;
private JPasswordField txtPassword;
private JButton submitButton, exitButton;
public Registration(){
setSize(800,600);
setTitle("Registration Form");
setLocation(50,50);
ImageIcon("registration.jpg");
Image temp_img =
add(background);
//NAME

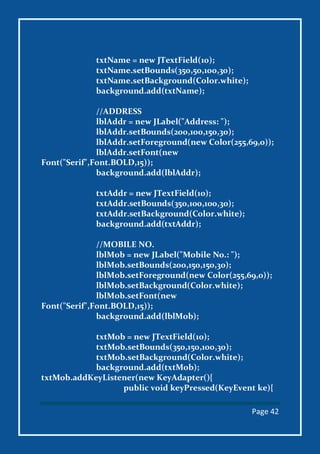

lblName = new JLabel("Name: ");
lblName.setBackground(Color.black);
lblName.setForeground(new Color(255,69,0));
lblName.setFont(new
Font("Serif",Font.BOLD,15));

//ADDRESS
lblAddr = new JLabel("Address: ");
lblAddr.setBounds(200,100,150,30);
lblAddr.setForeground(new Color(255,69,0));
lblAddr.setFont(new
background.add(lblAddr);
txtAddr = new JTextField(10);
txtAddr.setBounds(350,100,100,30);
txtAddr.setBackground(Color.white);
background.add(txtAddr);
//MOBILE NO.
lblMob = new JLabel("Mobile No.: ");
lblMob.setBounds(200,150,150,30);
lblMob.setForeground(new Color(255,69,0));
lblMob.setBackground(Color.white);
lblMob.setFont(new
background.add(lblMob);
txtMob = new JTextField(10);
txtMob.setBounds(350,150,100,30);
txtMob.setBackground(Color.white);
background.add(txtMob);

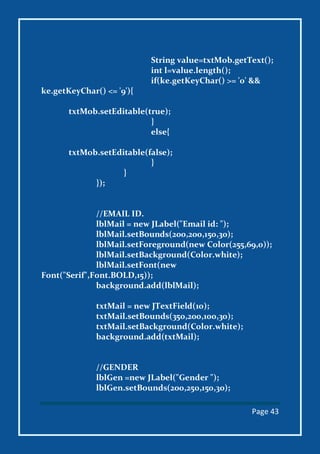

txtMob.addKeyListener(new KeyAdapter(){
public void keyPressed(KeyEvent ke){

String value=txtMob.getText();
int l=value.length();
if(ke.getKeyChar() >= '0' &&
ke.getKeyChar() <= '9'){
txtMob.setEditable(true);
}
else{
txtMob.setEditable(false);
}
}
});
//EMAIL ID.
lblMail = new JLabel("Email id: ");
lblMail.setBounds(200,200,150,30);
lblMail.setForeground(new Color(255,69,0));
lblMail.setBackground(Color.white);
lblMail.setFont(new
background.add(lblMail);
txtMail = new JTextField(10);
txtMail.setBounds(350,200,100,30);
txtMail.setBackground(Color.white);
background.add(txtMail);
//GENDER

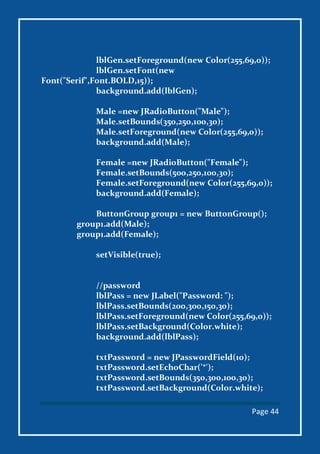

lblGen =new JLabel("Gender ");
lblGen.setBounds(200,250,150,30);

lblGen.setForeground(new Color(255,69,0));
lblGen.setFont(new
background.add(lblGen);
Male =new JRadioButton("Male");
Male.setBounds(350,250,100,30);
Male.setForeground(new Color(255,69,0));
background.add(Male);
Female =new JRadioButton("Female");
Female.setBounds(500,250,100,30);
Female.setForeground(new Color(255,69,0));
background.add(Female);
ButtonGroup group1 = new ButtonGroup();
group1.add(Male);
group1.add(Female);
setVisible(true);
//password
lblPass = new JLabel("Password: ");
lblPass.setBounds(200,300,150,30);
lblPass.setForeground(new Color(255,69,0));
lblPass.setBackground(Color.white);
background.add(lblPass);
txtPassword = new JPasswordField(10);
txtPassword.setEchoChar('*');
txtPassword.setBounds(350,300,100,30);
txtPassword.setBackground(Color.white);

background.add(txtPassword);

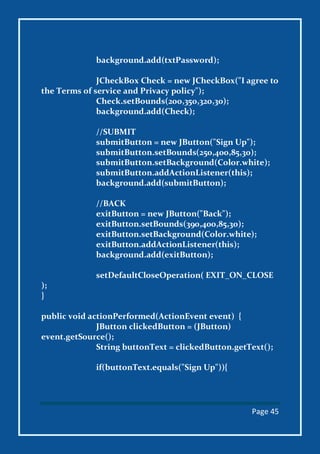

JCheckBox Check = new JCheckBox("I agree to
the Terms of service and Privacy policy");
Check.setBounds(200,350,320,30);
background.add(Check);
//SUBMIT
submitButton = new JButton("Sign Up");
//BACK
exitButton = new JButton("Back");
exitButton.setBounds(390,400,85,30);
exitButton.setBackground(Color.white);
exitButton.addActionListener(this);
background.add(exitButton);
);
}
event.getSource();
if(buttonText.equals("Sign Up")){

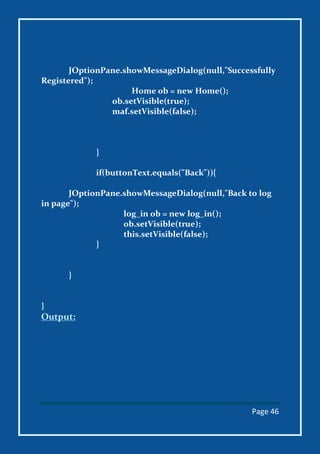

JOptionPane.showMessageDialog(null,"Successfully
Registered");
Home ob = new Home();
}
if(buttonText.equals("Back")){
JOptionPane.showMessageDialog(null,"Back to log
in page");
}
}
}
Output:

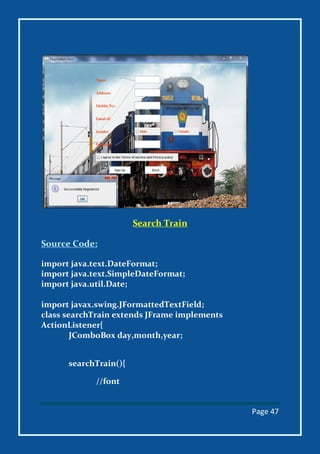

Search Train
Source Code:
import java.text.DateFormat;
import java.text.SimpleDateFormat;
import java.util.Date;
import javax.swing.JFormattedTextField;
class searchTrain extends JFrame implements
ActionListener{
JComboBox day,month,year;
searchTrain(){
//font

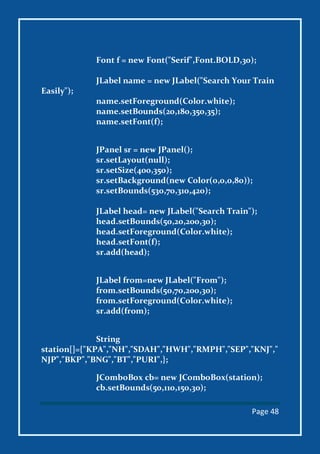

Font f = new Font("Serif",Font.BOLD,30);
JLabel name = new JLabel("Search Your Train
Easily");
name.setForeground(Color.white);
name.setBounds(20,180,350,35);
name.setFont(f);
JPanel sr = new JPanel();
sr.setLayout(null);
sr.setSize(400,350);
sr.setBackground(new Color(0,0,0,80));
sr.setBounds(530,70,310,420);
JLabel head= new JLabel("Search Train");
head.setBounds(50,20,200,30);
head.setForeground(Color.white);
head.setFont(f);
sr.add(head);
JLabel from=new JLabel("From");
from.setBounds(50,70,200,30);
from.setForeground(Color.white);
sr.add(from);

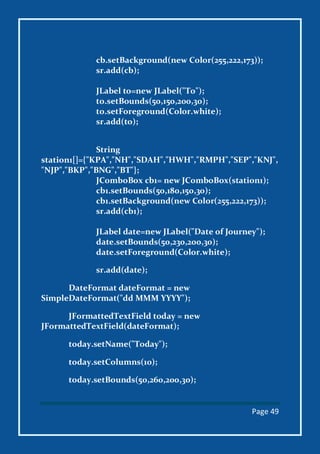

String
station[]={"KPA","NH","SDAH","HWH","RMPH","SEP","KNJ","
NJP","BKP","BNG","BT","PURI",};
JComboBox cb= new JComboBox(station);
cb.setBounds(50,110,150,30);

cb.setBackground(new Color(255,222,173));
sr.add(cb);
JLabel to=new JLabel("To");
to.setBounds(50,150,200,30);
to.setForeground(Color.white);
sr.add(to);
String
station1[]={"KPA","NH","SDAH","HWH","RMPH","SEP","KNJ",
"NJP","BKP","BNG","BT"};
JComboBox cb1= new JComboBox(station1);
cb1.setBounds(50,180,150,30);
cb1.setBackground(new Color(255,222,173));
sr.add(cb1);
JLabel date=new JLabel("Date of Journey");
date.setBounds(50,230,200,30);
date.setForeground(Color.white);
sr.add(date);
DateFormat dateFormat = new
SimpleDateFormat("dd MMM YYYY");
JFormattedTextField today = new
JFormattedTextField(dateFormat);
today.setName("Today");
today.setColumns(10);
today.setBounds(50,260,200,30);

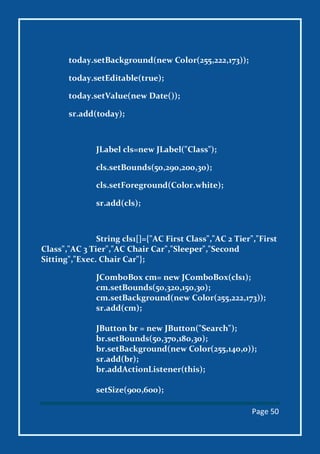

today.setBackground(new Color(255,222,173));
today.setEditable(true);
today.setValue(new Date());
sr.add(today);
JLabel cls=new JLabel("Class");
cls.setBounds(50,290,200,30);
cls.setForeground(Color.white);
sr.add(cls);
String cls1[]={"AC First Class","AC 2 Tier","First
Class","AC 3 Tier","AC Chair Car","Sleeper","Second
Sitting","Exec. Chair Car"};
JComboBox cm= new JComboBox(cls1);
cm.setBounds(50,320,150,30);
cm.setBackground(new Color(255,222,173));
sr.add(cm);
JButton br = new JButton("Search");
br.setBounds(50,370,180,30);
br.setBackground(new Color(255,140,0));
sr.add(br);
br.addActionListener(this);
setSize(900,600);

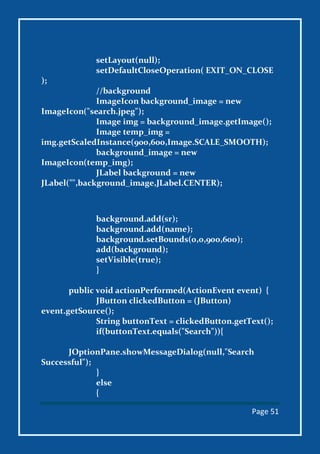

setLayout(null);
);
//background
ImageIcon("search.jpeg");
Image temp_img =
background.add(sr);
background.add(name);
add(background);
setVisible(true);
}
event.getSource();
if(buttonText.equals("Search")){
JOptionPane.showMessageDialog(null,"Search
Successful");
}
else
{

JOptionPane.showMessageDialog(null,"Not
Successful");
}
}
}

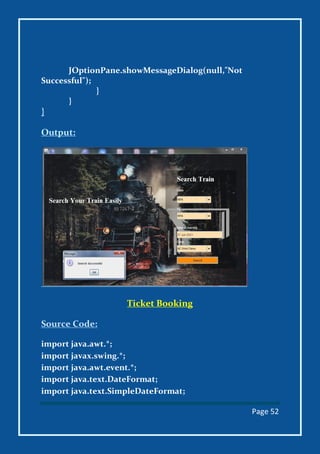

Output:
Ticket Booking

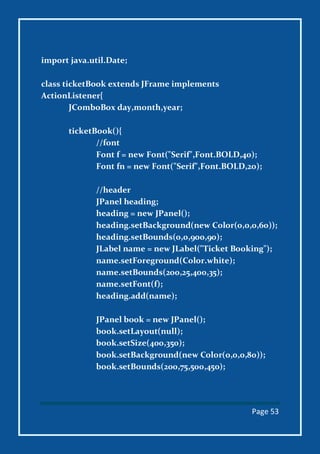

Source Code:
import java.awt.*;

class ticketBook extends JFrame implements
ActionListener{
ticketBook(){
//font
Font fn = new Font("Serif",Font.BOLD,20);
//header
JPanel heading;
heading = new JPanel();
heading.setBackground(new Color(0,0,0,60));
heading.setBounds(0,0,900,90);
JLabel name = new JLabel("Ticket Booking");
name.setFont(f);
heading.add(name);

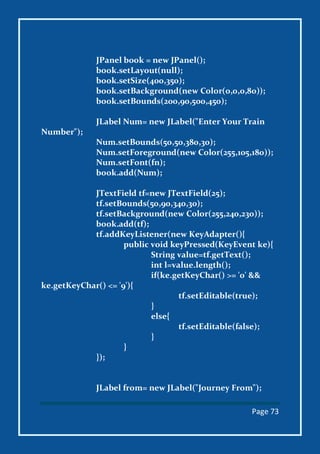

JPanel book = new JPanel();
book.setLayout(null);
book.setSize(400,350);
book.setBackground(new Color(0,0,0,80));
book.setBounds(200,75,500,450);

JLabel Num= new JLabel("Enter Your Train
Number");
Num.setBounds(50,50,380,30);
Num.setForeground(new Color(240,128,128));
Num.setFont(fn);
book.add(Num);
JTextField tf=new JTextField(25);
tf.setBounds(50,90,340,30);
tf.setBackground(new Color(255,240,230));
book.add(tf);
tf.addKeyListener(new KeyAdapter(){
String value=tf.getText();
tf.setEditable(true);
}
else{
tf.setEditable(false);
}
}
});

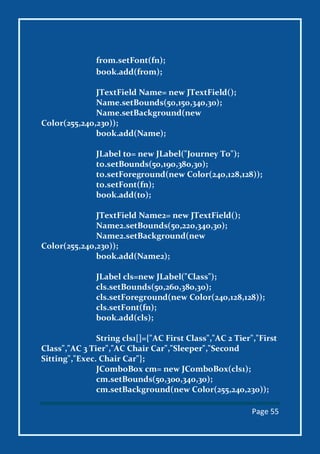

JLabel from= new JLabel("Journey From");
from.setForeground(new Color(240,128,128));

from.setFont(fn);
book.add(from);
JTextField Name= new JTextField();
Name.setBounds(50,150,340,30);
Name.setBackground(new
Color(255,240,230));
book.add(Name);
JLabel to= new JLabel("Journey To");
to.setBounds(50,190,380,30);
to.setForeground(new Color(240,128,128));
to.setFont(fn);
book.add(to);
JTextField Name2= new JTextField();
Name2.setBounds(50,220,340,30);
Name2.setBackground(new
Color(255,240,230));
book.add(Name2);
cls.setForeground(new Color(240,128,128));
cls.setFont(fn);
book.add(cls);
cm.setBounds(50,300,340,30);

book.add(cm);

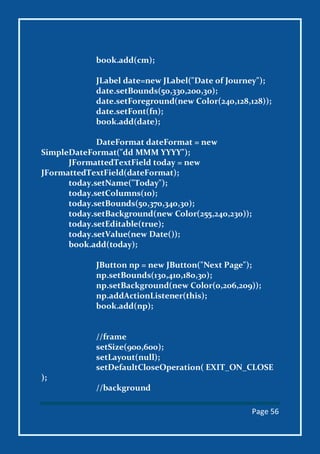

date.setForeground(new Color(240,128,128));
date.setFont(fn);
book.add(date);
book.add(today);
JButton np = new JButton("Next Page");
np.setBounds(130,410,180,30);
np.setBackground(new Color(0,206,209));
np.addActionListener(this);
book.add(np);
//frame
setSize(900,600);
setLayout(null);
);
//background

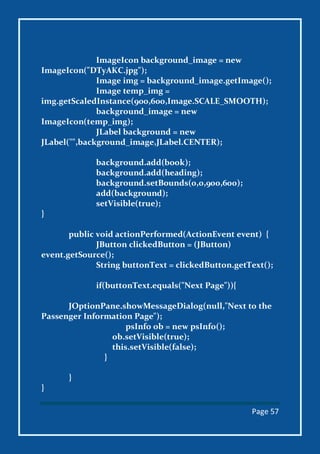

ImageIcon("DTyAKC.jpg");
Image temp_img =
background.add(book);
background.add(heading);
add(background);
setVisible(true);
}
event.getSource();
if(buttonText.equals("Next Page")){
JOptionPane.showMessageDialog(null,"Next to the
Passenger Information Page");
psInfo ob = new psInfo();
}
}
}

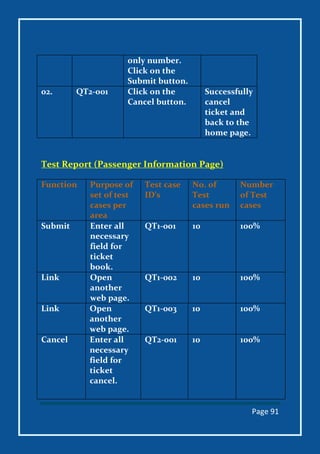

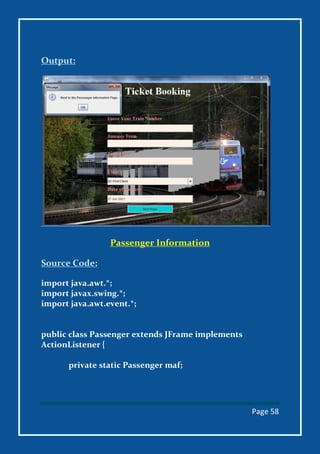

Output:
Passenger Information
Source Code:

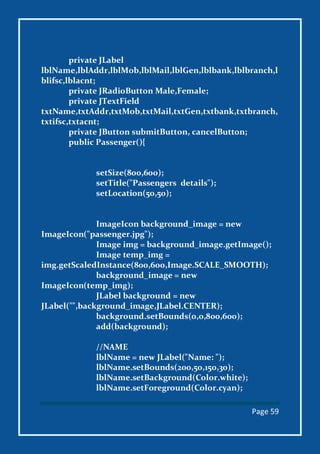

import java.awt.*;
public class Passenger extends JFrame implements
ActionListener {
private static Passenger maf;

private JLabel
lblName,lblAddr,lblMob,lblMail,lblGen,lblbank,lblbranch,l
blifsc,lblacnt;
private JRadioButton Male,Female;
private JTextField
txtName,txtAddr,txtMob,txtMail,txtGen,txtbank,txtbranch,
txtifsc,txtacnt;
private JButton submitButton, cancelButton;
public Passenger(){
setSize(800,600);
setTitle("Passengers details");
setLocation(50,50);
ImageIcon("passenger.jpg");
Image temp_img =
add(background);
//NAME
lblName = new JLabel("Name: ");
lblName.setBackground(Color.white);
lblName.setForeground(Color.cyan);

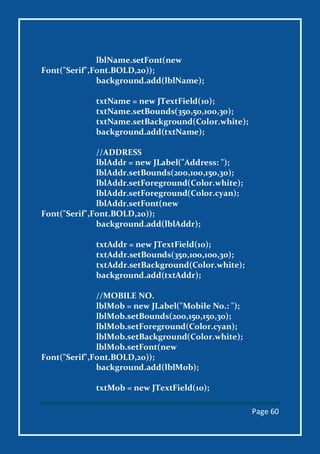

lblName.setFont(new
//ADDRESS
lblAddr = new JLabel("Address: ");
lblAddr.setBounds(200,100,150,30);
lblAddr.setForeground(Color.white);
lblAddr.setForeground(Color.cyan);
lblAddr.setFont(new
background.add(lblAddr);
txtAddr = new JTextField(10);
txtAddr.setBounds(350,100,100,30);
txtAddr.setBackground(Color.white);
background.add(txtAddr);
//MOBILE NO.
lblMob = new JLabel("Mobile No.: ");
lblMob.setBounds(200,150,150,30);
lblMob.setForeground(Color.cyan);
lblMob.setBackground(Color.white);
lblMob.setFont(new
background.add(lblMob);
txtMob = new JTextField(10);

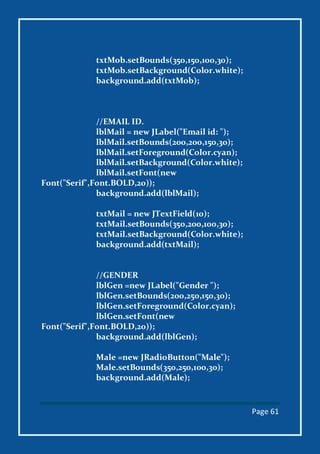

txtMob.setBounds(350,150,100,30);
txtMob.setBackground(Color.white);
background.add(txtMob);
//EMAIL ID.
lblMail = new JLabel("Email id: ");
lblMail.setBounds(200,200,150,30);
lblMail.setForeground(Color.cyan);
lblMail.setBackground(Color.white);
lblMail.setFont(new
background.add(lblMail);
txtMail = new JTextField(10);
txtMail.setBounds(350,200,100,30);
txtMail.setBackground(Color.white);
background.add(txtMail);
//GENDER
lblGen =new JLabel("Gender ");
lblGen.setBounds(200,250,150,30);
lblGen.setForeground(Color.cyan);
lblGen.setFont(new
background.add(lblGen);
Male =new JRadioButton("Male");
Male.setBounds(350,250,100,30);
background.add(Male);

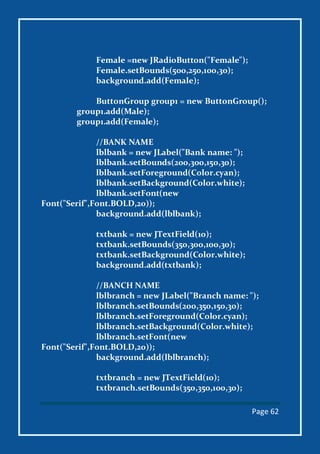

Female =new JRadioButton("Female");
Female.setBounds(500,250,100,30);
background.add(Female);
ButtonGroup group1 = new ButtonGroup();
group1.add(Male);
group1.add(Female);
//BANK NAME
lblbank = new JLabel("Bank name: ");
lblbank.setBounds(200,300,150,30);
lblbank.setForeground(Color.cyan);
lblbank.setBackground(Color.white);
lblbank.setFont(new
background.add(lblbank);
txtbank = new JTextField(10);
txtbank.setBounds(350,300,100,30);
txtbank.setBackground(Color.white);
background.add(txtbank);
//BANCH NAME
lblbranch = new JLabel("Branch name: ");
lblbranch.setBounds(200,350,150,30);
lblbranch.setForeground(Color.cyan);
lblbranch.setBackground(Color.white);
lblbranch.setFont(new
background.add(lblbranch);
txtbranch = new JTextField(10);
txtbranch.setBounds(350,350,100,30);

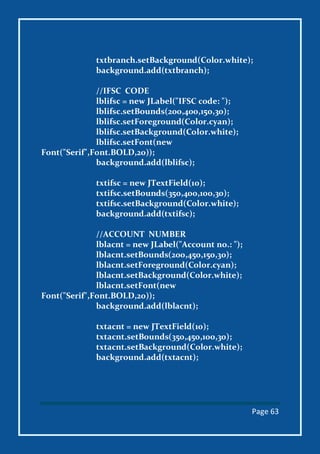

txtbranch.setBackground(Color.white);
background.add(txtbranch);
//IFSC CODE
lblifsc = new JLabel("IFSC code: ");
lblifsc.setBounds(200,400,150,30);
lblifsc.setForeground(Color.cyan);
lblifsc.setBackground(Color.white);
lblifsc.setFont(new
background.add(lblifsc);
txtifsc = new JTextField(10);
txtifsc.setBounds(350,400,100,30);
txtifsc.setBackground(Color.white);
background.add(txtifsc);
//ACCOUNT NUMBER
lblacnt = new JLabel("Account no.: ");
lblacnt.setBounds(200,450,150,30);
lblacnt.setForeground(Color.cyan);
lblacnt.setBackground(Color.white);
lblacnt.setFont(new
background.add(lblacnt);
txtacnt = new JTextField(10);
txtacnt.setBounds(350,450,100,30);
txtacnt.setBackground(Color.white);
background.add(txtacnt);

setVisible(true);
//SUBMIT
submitButton = new JButton("Submit");
//BACK
cancelButton = new JButton("Cancel");
cancelButton.setBounds(350,500,80,30);
cancelButton.setBackground(Color.white);
cancelButton.addActionListener(this);
background.add(cancelButton);
);
}
event.getSource();

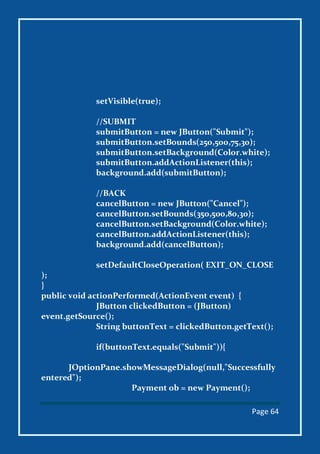

if(buttonText.equals("Submit")){
entered");
Payment ob = new Payment();

}
if(buttonText.equals("Cancel")){
JOptionPane.showMessageDialog(null,"Cancelled
the booking");
//Home ob = new Home();
//ob.setVisible(true);
//maf.setVisible(false);
}
}
}
Output:

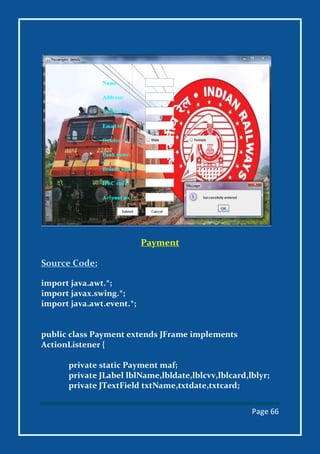

Payment
Source Code:
import java.awt.*;
public class Payment extends JFrame implements
ActionListener {
private static Payment maf;
private JLabel lblName,lbldate,lblcvv,lblcard,lblyr;
private JTextField txtName,txtdate,txtcard;

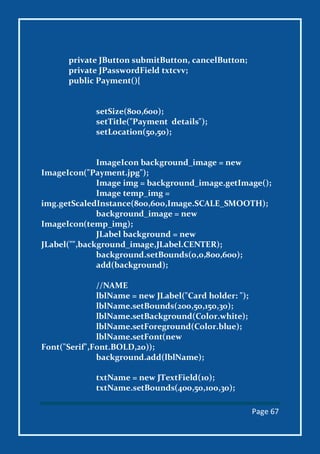

private JButton submitButton, cancelButton;
private JPasswordField txtcvv;
public Payment(){
setSize(800,600);
setTitle("Payment details");
setLocation(50,50);
ImageIcon("Payment.jpg");
Image temp_img =
add(background);
//NAME

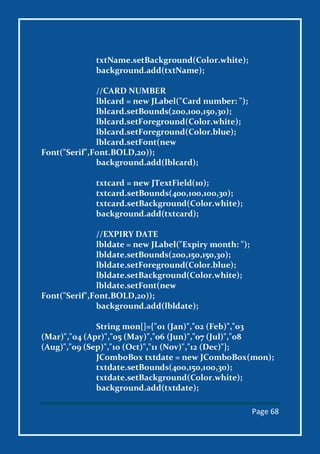

lblName = new JLabel("Card holder: ");
lblName.setBackground(Color.white);
lblName.setForeground(Color.blue);
lblName.setFont(new

//CARD NUMBER
lblcard = new JLabel("Card number: ");
lblcard.setBounds(200,100,150,30);
lblcard.setForeground(Color.white);
lblcard.setForeground(Color.blue);
lblcard.setFont(new
background.add(lblcard);
txtcard = new JTextField(10);
txtcard.setBounds(400,100,100,30);
txtcard.setBackground(Color.white);
background.add(txtcard);
//EXPIRY DATE
lbldate = new JLabel("Expiry month: ");
lbldate.setBounds(200,150,150,30);
lbldate.setForeground(Color.blue);
lbldate.setBackground(Color.white);
lbldate.setFont(new
background.add(lbldate);
String mon[]={"01 (Jan)","02 (Feb)","03
(Mar)","04 (Apr)","05 (May)","06 (Jun)","07 (Jul)","08
(Aug)","09 (Sep)","10 (Oct)","11 (Nov)","12 (Dec)"};
JComboBox txtdate = new JComboBox(mon);
txtdate.setBounds(400,150,100,30);
txtdate.setBackground(Color.white);
background.add(txtdate);

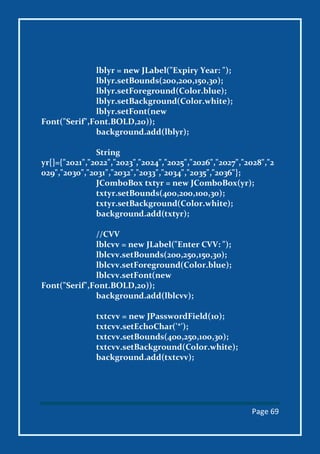

lblyr = new JLabel("Expiry Year: ");
lblyr.setBounds(200,200,150,30);
lblyr.setForeground(Color.blue);
lblyr.setBackground(Color.white);
lblyr.setFont(new
background.add(lblyr);
String
yr[]={"2021","2022","2023","2024","2025","2026","2027","2028","2
029","2030","2031","2032","2033","2034","2035","2036"};
JComboBox txtyr = new JComboBox(yr);
txtyr.setBounds(400,200,100,30);
txtyr.setBackground(Color.white);
background.add(txtyr);
//CVV
lblcvv = new JLabel("Enter CVV: ");
lblcvv.setBounds(200,250,150,30);
lblcvv.setForeground(Color.blue);
lblcvv.setFont(new
background.add(lblcvv);
txtcvv = new JPasswordField(10);
txtcvv.setEchoChar('*');
txtcvv.setBounds(400,250,100,30);
txtcvv.setBackground(Color.white);
background.add(txtcvv);

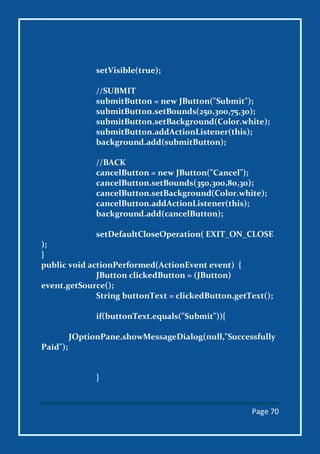

setVisible(true);
//SUBMIT
submitButton = new JButton("Submit");
//BACK
cancelButton = new JButton("Cancel");
cancelButton.setBounds(350,300,80,30);
cancelButton.setBackground(Color.white);
cancelButton.addActionListener(this);
background.add(cancelButton);
);
}
event.getSource();
if(buttonText.equals("Submit")){
Paid");
}

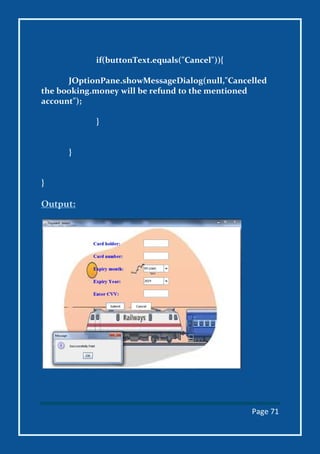

if(buttonText.equals("Cancel")){
JOptionPane.showMessageDialog(null,"Cancelled
the booking.money will be refund to the mentioned
account");
}
}
}
Output:

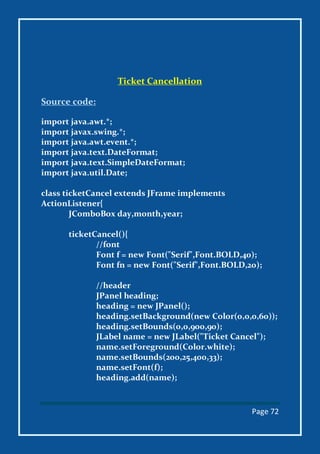

Ticket Cancellation
Source code:
import java.awt.*;
class ticketCancel extends JFrame implements
ActionListener{
ticketCancel(){
//font
//header
JPanel heading;
JLabel name = new JLabel("Ticket Cancel");
name.setFont(f);
heading.add(name);

JPanel book = new JPanel();
book.setLayout(null);
book.setSize(400,350);
book.setBackground(new Color(0,0,0,80));
book.setBounds(200,90,500,450);

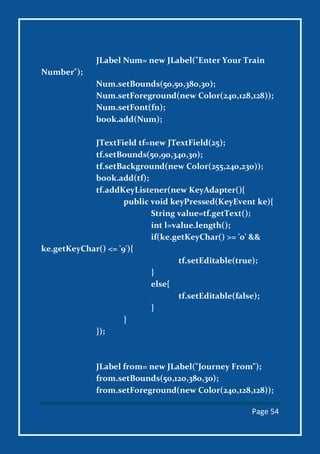

JLabel Num= new JLabel("Enter Your Train
Number");
Num.setFont(fn);
book.add(Num);
book.add(tf);
}
else{
}
}
});
JLabel from= new JLabel("Journey From");

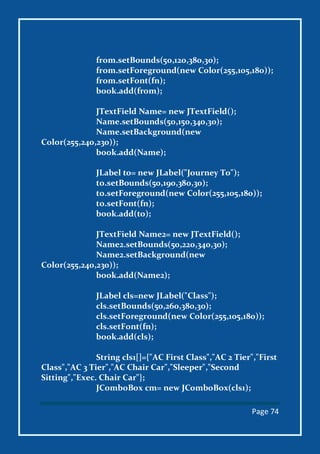

from.setForeground(new Color(255,105,180));
from.setFont(fn);
book.add(from);
JTextField Name= new JTextField();
Name.setBounds(50,150,340,30);
Name.setBackground(new
Color(255,240,230));
book.add(Name);
JLabel to= new JLabel("Journey To");
to.setBounds(50,190,380,30);
to.setForeground(new Color(255,105,180));
to.setFont(fn);
book.add(to);
JTextField Name2= new JTextField();
Name2.setBounds(50,220,340,30);
Name2.setBackground(new
Color(255,240,230));
book.add(Name2);
cls.setForeground(new Color(255,105,180));
cls.setFont(fn);
book.add(cls);

cm.setBounds(50,300,340,30);
book.add(cm);

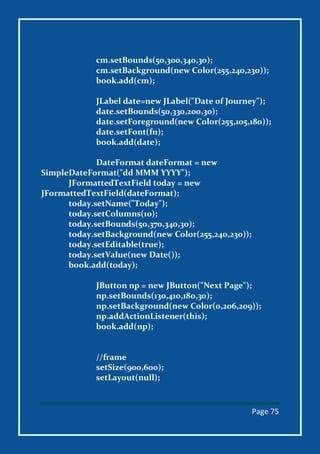

date.setForeground(new Color(255,105,180));
date.setFont(fn);
book.add(date);
book.add(today);
JButton np = new JButton("Next Page");
np.setBounds(130,410,180,30);
np.setBackground(new Color(0,206,209));
np.addActionListener(this);
book.add(np);
//frame
setSize(900,600);
setLayout(null);

);

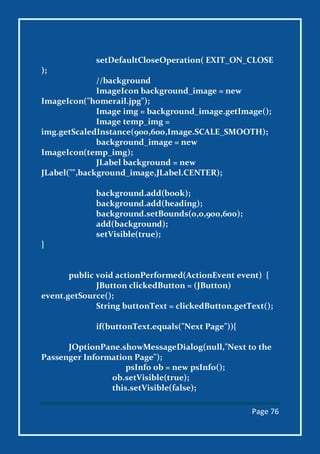

//background
ImageIcon("homerail.jpg");
Image temp_img =
background.add(book);
add(background);
setVisible(true);
}
event.getSource();
if(buttonText.equals("Next Page")){
JOptionPane.showMessageDialog(null,"Next to the
Passenger Information Page");
psInfo ob = new psInfo();

}
}
}
Output:

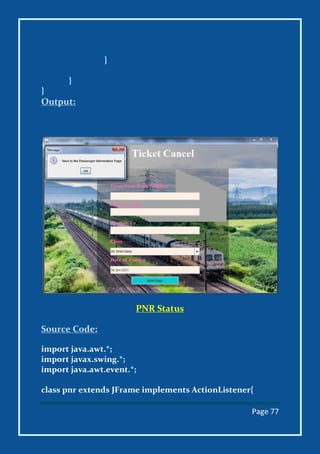

PNR Status
Source Code:
import java.awt.*;

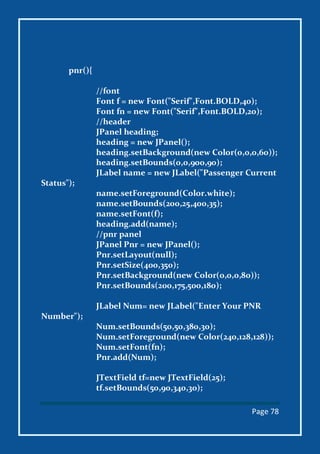

class pnr extends JFrame implements ActionListener{

pnr(){
//font
//header
JPanel heading;
JLabel name = new JLabel("Passenger Current
Status");
name.setFont(f);
heading.add(name);
//pnr panel
JPanel Pnr = new JPanel();
Pnr.setLayout(null);
Pnr.setSize(400,350);
Pnr.setBackground(new Color(0,0,0,80));
Pnr.setBounds(200,175,500,180);
JLabel Num= new JLabel("Enter Your PNR
Number");
Num.setFont(fn);
Pnr.add(Num);

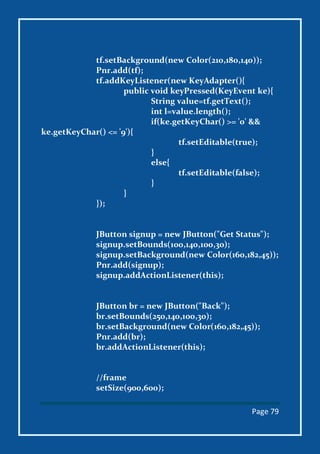

Pnr.add(tf);
}
else{
}
}
});
JButton signup = new JButton("Get Status");
signup.setBounds(100,140,100,30);
signup.setBackground(new Color(160,182,45));
Pnr.add(signup);
signup.addActionListener(this);
JButton br = new JButton("Back");
br.setBounds(250,140,100,30);
br.setBackground(new Color(160,182,45));
Pnr.add(br);
br.addActionListener(this);

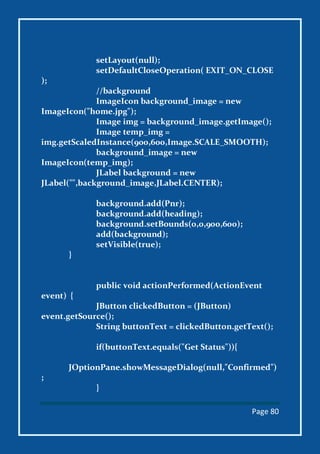

//frame
setSize(900,600);

setLayout(null);
);
//background
ImageIcon("home.jpg");
Image temp_img =
background.add(Pnr);
add(background);
setVisible(true);
}
public void actionPerformed(ActionEvent
event) {
event.getSource();
if(buttonText.equals("Get Status")){
JOptionPane.showMessageDialog(null,"Confirmed")
;
}

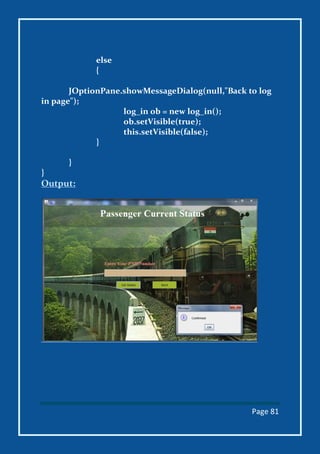

else
{
JOptionPane.showMessageDialog(null,"Back to log
in page");
}
}
}
Output:

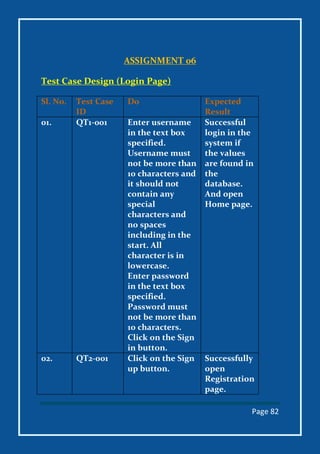

ASSIGNMENT 06
Test Case Design (Login Page)
Sl. No. Test Case
ID
Do Expected
Result
01. QT1-001 Enter username
in the text box
specified.
Username must
not be more than
10 characters and
it should not
contain any
special
characters and
no spaces
including in the
start. All
character is in
lowercase.
Enter password
in the text box
specified.
Password must
not be more than
10 characters.
Click on the Sign
in button.
Successful
login in the
system if
the values
are found in
the
database.
And open
Home page.
02. QT2-001 Click on the Sign
up button.
Successfully
open
Registration
page.

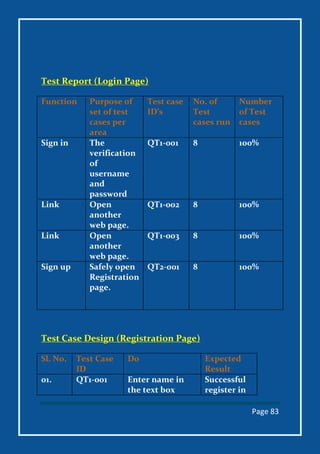

Test Report (Login Page)
Function Purpose of
set of test
cases per
area
Test case
ID’s
No. of
Test
cases run
Number
of Test
cases
Sign in The
verification
of
username
and
password
QT1-001 8 100%
Link Open
another
web page.
QT1-002 8 100%
Link Open
another
web page.
QT1-003 8 100%
Sign up Safely open
Registration
page.
QT2-001 8 100%
Test Case Design (Registration Page)
Sl. No. Test Case
ID
Do Expected
Result

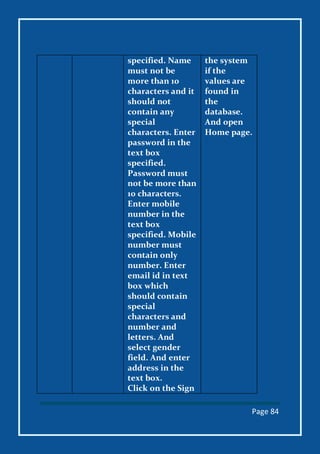

01. QT1-001 Enter name in
the text box
Successful
register in

specified. Name
must not be
more than 10
characters and it
should not
contain any
special
characters. Enter
password in the
text box
specified.
Password must
not be more than
10 characters.
Enter mobile
number in the
text box
specified. Mobile
number must
contain only
number. Enter
email id in text
box which
should contain
special
characters and
number and
letters. And
select gender
field. And enter
address in the
text box.
Click on the Sign
the system
if the
values are
found in
the
database.
And open
Home page.

Up button.
02. QT2-001 Click on the back
button.
Successfully
back to the
Login page.

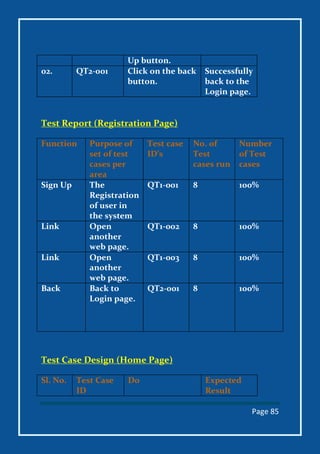

Test Report (Registration Page)
Function Purpose of
set of test
cases per
area
Test case
ID’s
No. of
Test
cases run
Number
of Test
cases
Sign Up The
Registration
of user in
the system
QT1-001 8 100%
Link Open
another
web page.
QT1-002 8 100%
Link Open
another
web page.
QT1-003 8 100%
Back Back to
Login page.
QT2-001 8 100%

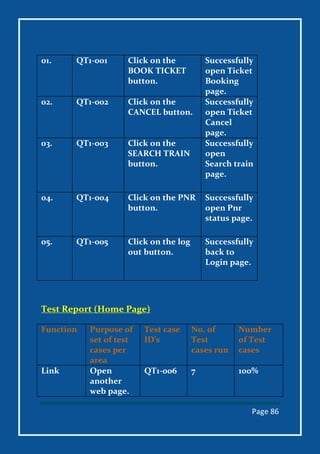

Test Case Design (Home Page)
Sl. No. Test Case
ID
Do Expected
Result

01. QT1-001 Click on the
BOOK TICKET
button.
Successfully
open Ticket
Booking
page.
CANCEL button.
Successfully
open Ticket
Cancel
page.
SEARCH TRAIN
button.
Successfully
open
Search train
page.
04. QT1-004 Click on the PNR
button.
Successfully
open Pnr
status page.
05. QT1-005 Click on the log
out button.
Successfully
back to
Login page.
Test Report (Home Page)
Function Purpose of
set of test
cases per
area
Test case
ID’s
No. of
Test
cases run
Number
of Test
cases

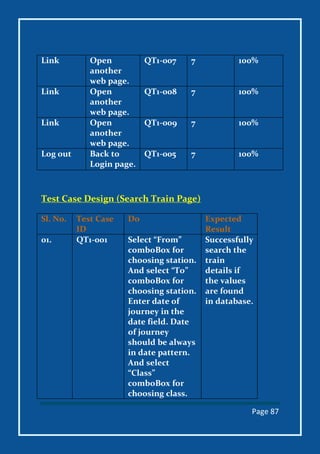

Link Open
another
web page.
QT1-006 7 100%

Link Open
another
web page.
QT1-007 7 100%
Link Open
another
web page.
QT1-008 7 100%
Link Open
another
web page.
QT1-009 7 100%
Log out Back to
Login page.
QT1-005 7 100%
Test Case Design (Search Train Page)
Sl. No. Test Case
ID
Do Expected
Result
01. QT1-001 Select “From”
comboBox for
choosing station.
And select “To”
comboBox for
choosing station.
Enter date of
journey in the
date field. Date
of journey
should be always
in date pattern.
And select
“Class”
comboBox for
choosing class.
Successfully
search the
train
details if
the values
are found
in database.

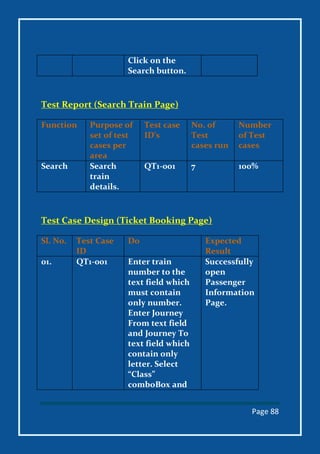

Click on the
Search button.
Test Report (Search Train Page)
Function Purpose of
set of test
cases per
area
Test case
ID’s
No. of
Test
cases run
Number
of Test
cases
Search Search
train
details.
QT1-001 7 100%
Test Case Design (Ticket Booking Page)
Sl. No. Test Case
ID
Do Expected
Result
01. QT1-001 Enter train
number to the
text field which
must contain
only number.
Enter Journey
From text field
and Journey To
text field which
contain only
letter. Select
“Class”
comboBox and
Successfully
open
Passenger
Information
Page.

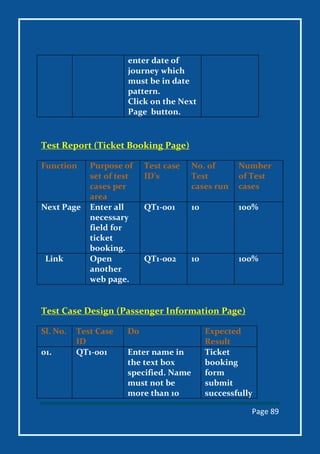

enter date of
journey which
must be in date
pattern.
Click on the Next
Page button.
Test Report (Ticket Booking Page)
Function Purpose of
set of test
cases per
area
Test case
ID’s
No. of
Test
cases run
Number
of Test
cases
Next Page Enter all
necessary
field for
ticket
booking.
QT1-001 10 100%
Link Open
another
web page.
QT1-002 10 100%
Test Case Design (Passenger Information Page)
Sl. No. Test Case
ID
Do Expected
Result
01. QT1-001 Enter name in
the text box
specified. Name
must not be
more than 10
Ticket
booking
form
submit
successfully

characters and it
should not
contain any
special
characters. Enter
password in the
text box
specified. Enter
mobile number
in the text box
specified. Mobile
number must
contain only
number. Enter
email id in text
box which
should contain
special
characters and
number and
letters. And
select gender
field. And enter
address in the
text box. Enter
bank name and
branch name.
And enter IFSC
code which must
contain number
and letter. And
enter account no
which contain
and open
Payment
page.

only number.
Click on the
Submit button.
Cancel button.
Successfully
cancel
ticket and
back to the
home page.
Test Report (Passenger Information Page)
Function Purpose of
set of test
cases per
area
Test case
ID’s
No. of
Test
cases run
Number
of Test
cases
Submit Enter all
necessary
field for
ticket
book.
QT1-001 10 100%
Link Open
another
web page.
QT1-002 10 100%
Link Open
another
web page.
QT1-003 10 100%
Cancel Enter all
necessary
field for
ticket
cancel.
QT2-001 10 100%

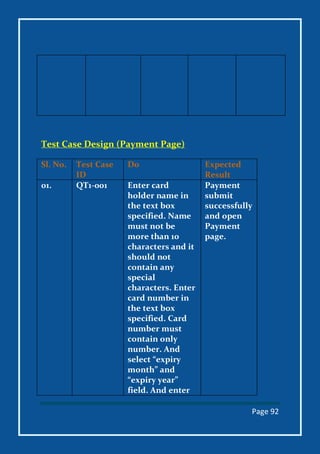

Test Case Design (Payment Page)
Sl. No. Test Case
ID
Do Expected
Result
01. QT1-001 Enter card
holder name in
the text box
specified. Name
must not be
more than 10
characters and it
should not
contain any
special
characters. Enter
card number in
the text box
specified. Card
number must
contain only
number. And
select “expiry
month” and
“expiry year”
field. And enter
Payment
submit
successfully
and open
Payment
page.

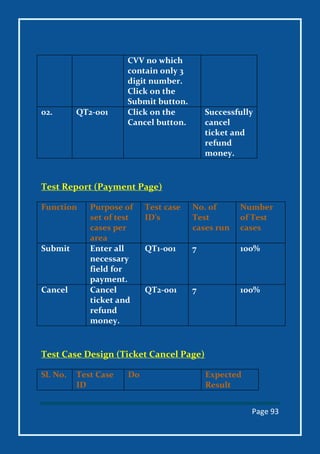

CVV no which
contain only 3
digit number.
Click on the
Submit button.
Cancel button.
Successfully
cancel
ticket and
refund
money.
Test Report (Payment Page)
Function Purpose of
set of test
cases per
area
Test case
ID’s
No. of
Test
cases run
Number
of Test
cases
Submit Enter all
necessary
field for
payment.
QT1-001 7 100%
Cancel Cancel
ticket and
refund
money.
QT2-001 7 100%
Test Case Design (Ticket Cancel Page)
Sl. No. Test Case
ID
Do Expected
Result

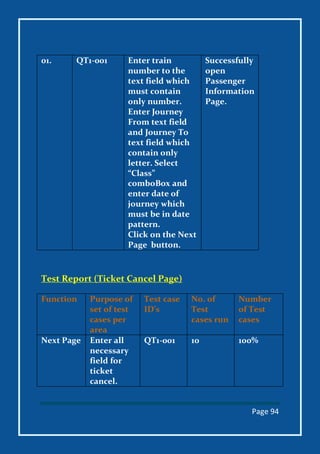

01. QT1-001 Enter train
number to the
text field which
must contain
only number.
Enter Journey
From text field
and Journey To
text field which
contain only
letter. Select
“Class”
comboBox and
enter date of
journey which
must be in date
pattern.
Click on the Next
Page button.
Successfully
open
Passenger
Information
Page.
Test Report (Ticket Cancel Page)
Function Purpose of
set of test
cases per
area
Test case
ID’s
No. of
Test
cases run
Number
of Test
cases
Next Page Enter all
necessary
field for
ticket
cancel.
QT1-001 10 100%

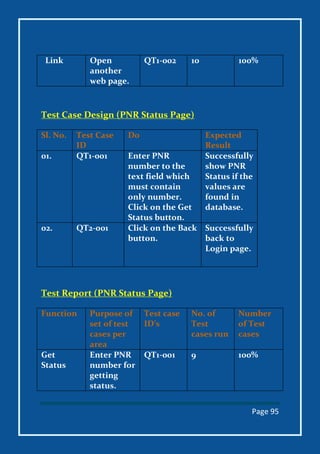

Link Open
another
web page.
QT1-002 10 100%
Test Case Design (PNR Status Page)
Sl. No. Test Case
ID
Do Expected
Result
01. QT1-001 Enter PNR
number to the
text field which
must contain
only number.
Click on the Get
Status button.
Successfully
show PNR
Status if the
values are
found in
database.
02. QT2-001 Click on the Back
button.
Successfully
back to
Login page.
Test Report (PNR Status Page)
Function Purpose of
set of test
cases per
area
Test case
ID’s
No. of
Test
cases run
Number
of Test
cases
Get
Status
Enter PNR
number for
getting
status.
QT1-001 9 100%

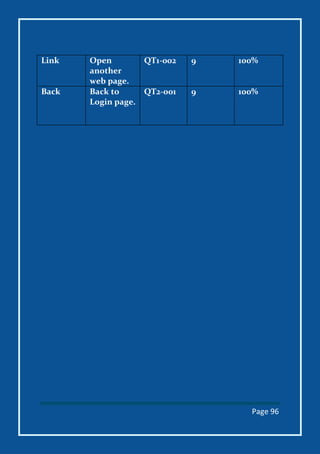

Link Open
another
web page.
QT1-002 9 100%
Back Back to
Login page.
QT2-001 9 100%

Railway reservation system

More Related Content

What's hot

Similar to Railway reservation system

Recently uploaded

Railway reservation system
