1. PyCon.DE 2013 1 / 52
Table partitioning
with Django
Max Tepkeev
17 October 2013
Cologne, Germany

2. PyCon.DE 2013 2 / 52
Partitioning
Theory
Django
Packages
Realization

3. PyCon.DE 2013 3 / 52
Partitioning Theory

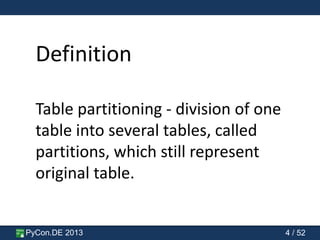

4. PyCon.DE 2013 4 / 52
Definition
Table partitioning - division of one
table into several tables, called
partitions, which still represent
original table.

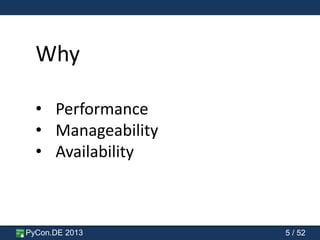

5. PyCon.DE 2013 5 / 52
Why
• Performance
• Manageability
• Availability

6. PyCon.DE 2013 6 / 52

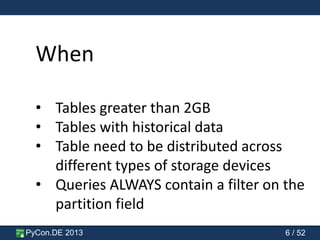

When
• Tables greater than 2GB
• Tables with historical data
• Table need to be distributed across
different types of storage devices
• Queries ALWAYS contain a filter on the
partition field

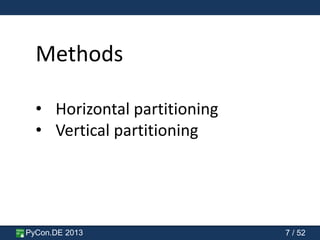

7. PyCon.DE 2013 7 / 52
Methods
• Horizontal partitioning
• Vertical partitioning

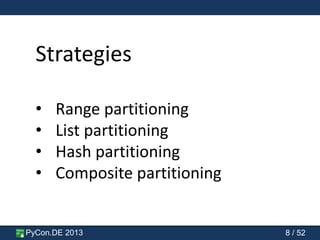

8. PyCon.DE 2013 8 / 52
Strategies
• Range partitioning
• List partitioning
• Hash partitioning
• Composite partitioning

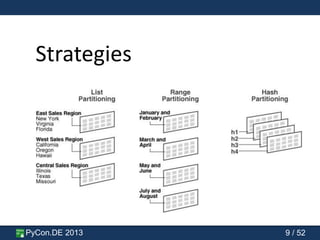

9. PyCon.DE 2013 9 / 52
Strategies

10. PyCon.DE 2013 10 / 52
Strategies

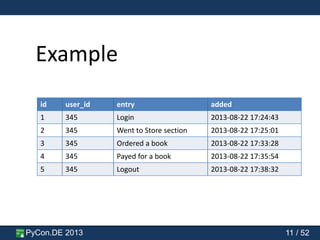

11. PyCon.DE 2013 11 / 52
Example
id user_id entry added
1 345 Login 2013-08-22 17:24:43
2 345 Went to Store section 2013-08-22 17:25:01
3 345 Ordered a book 2013-08-22 17:33:28
4 345 Payed for a book 2013-08-22 17:35:54
5 345 Logout 2013-08-22 17:38:32

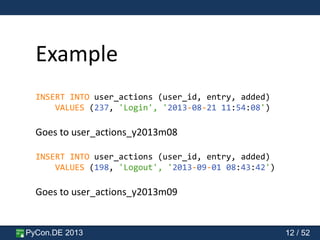

12. PyCon.DE 2013 12 / 52
Example
INSERT INTO user_actions (user_id, entry, added)
VALUES (237, 'Login', '2013-08-21 11:54:08')
Goes to user_actions_y2013m08
INSERT INTO user_actions (user_id, entry, added)
VALUES (198, 'Logout', '2013-09-01 08:43:42')
Goes to user_actions_y2013m09

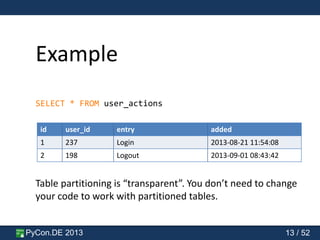

13. PyCon.DE 2013 13 / 52
Example
SELECT * FROM user_actions
id user_id entry added
1 237 Login 2013-08-21 11:54:08
2 198 Logout 2013-09-01 08:43:42
Table partitioning is “transparent”. You don’t need to change
your code to work with partitioned tables.

14. PyCon.DE 2013 14 / 52
Realization

15. PyCon.DE 2013 15 / 52
RDBMS
• PostgreSQL
• MySQL

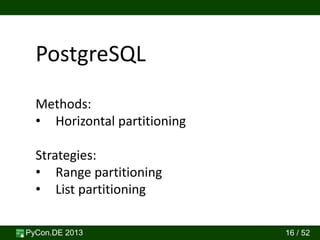

16. PyCon.DE 2013 16 / 52
PostgreSQL
Methods:
• Horizontal partitioning
Strategies:
• Range partitioning
• List partitioning

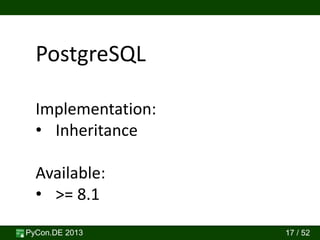

17. PyCon.DE 2013 17 / 52
PostgreSQL
Implementation:
• Inheritance
Available:
• >= 8.1

18. PyCon.DE 2013 18 / 52

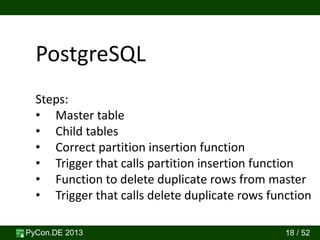

PostgreSQL
Steps:
• Master table
• Child tables
• Correct partition insertion function
• Trigger that calls partition insertion function
• Function to delete duplicate rows from master
• Trigger that calls delete duplicate rows function

19. PyCon.DE 2013 19 / 52

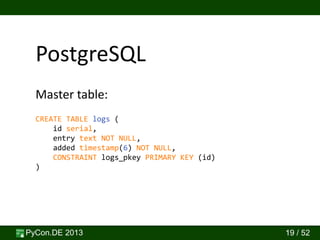

PostgreSQL
CREATE TABLE logs (
id serial,
entry text NOT NULL,
added timestamp(6) NOT NULL,
CONSTRAINT logs_pkey PRIMARY KEY (id)
)
Master table:

20. PyCon.DE 2013 20 / 52
PostgreSQL
CREATE TABLE logs_y2013m08 (
CHECK (
added >= '2013-08-01 00:00:00'::timestamp AND
added <= '2013-08-31 23:59:59'::timestamp
)
) INHERITS (logs);
Child table:

21. PyCon.DE 2013 21 / 52

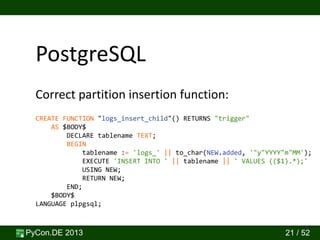

PostgreSQL
CREATE FUNCTION "logs_insert_child"() RETURNS "trigger"
AS $BODY$
DECLARE tablename TEXT;
BEGIN
tablename := 'logs_' || to_char(NEW.added, '"y"YYYY"m"MM');
EXECUTE 'INSERT INTO ' || tablename || ' VALUES (($1).*);'
USING NEW;
RETURN NEW;
END;
$BODY$
LANGUAGE plpgsql;
Correct partition insertion function:

22. PyCon.DE 2013 22 / 52
PostgreSQL
CREATE TRIGGER "before_insert_logs_trigger"
BEFORE INSERT ON "logs"
FOR EACH ROW EXECUTE PROCEDURE "logs_insert_child"();
Trigger that calls partition insertion function:

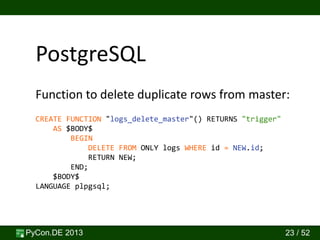

23. PyCon.DE 2013 23 / 52
PostgreSQL
CREATE FUNCTION "logs_delete_master"() RETURNS "trigger"
AS $BODY$
BEGIN
DELETE FROM ONLY logs WHERE id = NEW.id;
RETURN NEW;
END;
$BODY$
LANGUAGE plpgsql;
Function to delete duplicate rows from master:

24. PyCon.DE 2013 24 / 52
PostgreSQL
CREATE TRIGGER "after_insert_logs_trigger"
AFTER INSERT ON "logs"
FOR EACH ROW EXECUTE PROCEDURE "logs_delete_master"();
Trigger that calls delete duplicate rows function:

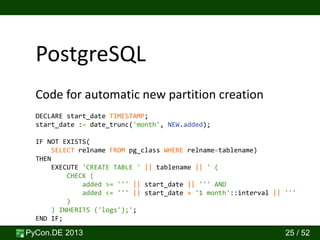

25. PyCon.DE 2013 25 / 52
Code for automatic new partition creation
PostgreSQL
DECLARE start_date TIMESTAMP;
start_date := date_trunc('month', NEW.added);
IF NOT EXISTS(
SELECT relname FROM pg_class WHERE relname=tablename)
THEN
EXECUTE 'CREATE TABLE ' || tablename || ' (
CHECK (
added >= ''' || start_date || ''' AND
added <= ''' || start_date + '1 month'::interval || '''
)
) INHERITS ('logs');';
END IF;

26. PyCon.DE 2013 26 / 52

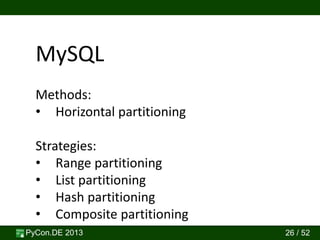

MySQL
Methods:
• Horizontal partitioning
Strategies:
• Range partitioning
• List partitioning
• Hash partitioning
• Composite partitioning

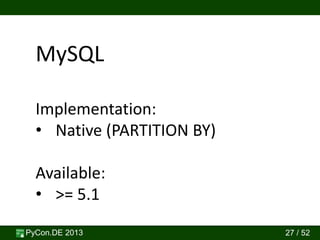

27. PyCon.DE 2013 27 / 52
MySQL
Implementation:
• Native (PARTITION BY)
Available:
• >= 5.1

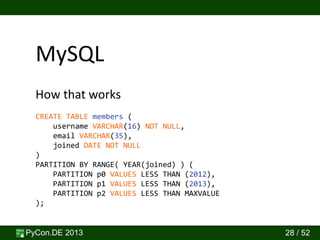

28. PyCon.DE 2013 28 / 52
How that works
MySQL
CREATE TABLE members (
username VARCHAR(16) NOT NULL,
email VARCHAR(35),
joined DATE NOT NULL
)
PARTITION BY RANGE( YEAR(joined) ) (
PARTITION p0 VALUES LESS THAN (2012),
PARTITION p1 VALUES LESS THAN (2013),
PARTITION p2 VALUES LESS THAN MAXVALUE
);

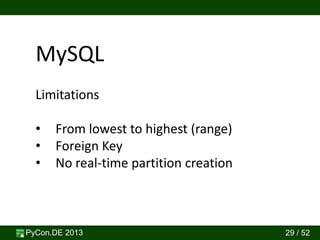

29. PyCon.DE 2013 29 / 52
MySQL
Limitations
• From lowest to highest (range)
• Foreign Key
• No real-time partition creation

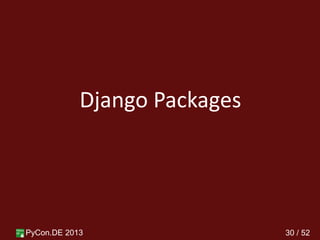

30. PyCon.DE 2013 30 / 52
Django Packages

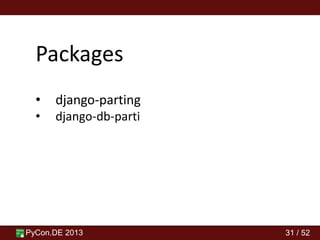

31. PyCon.DE 2013 31 / 52
Packages
• django-parting
• django-db-parti

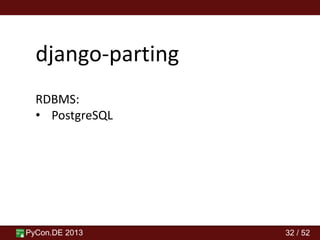

32. PyCon.DE 2013 32 / 52
django-parting
RDBMS:
• PostgreSQL

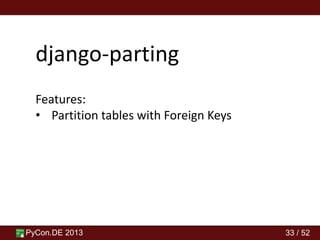

33. PyCon.DE 2013 33 / 52
django-parting
Features:
• Partition tables with Foreign Keys

34. PyCon.DE 2013 34 / 52
django-parting
From pypi:
$ pip install django-parting
or clone from github:
$ git clone git://github.com/danfairs/django-parting.git

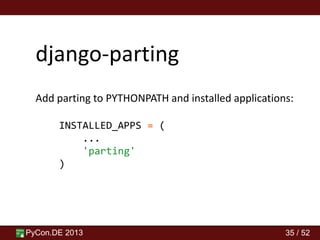

35. PyCon.DE 2013 35 / 52
django-parting
Add parting to PYTHONPATH and installed applications:
INSTALLED_APPS = (
...
'parting'
)

36. PyCon.DE 2013 36 / 52
django-parting
from django.db import models
from django.utils import timezone
class Tweet(models.Model):
json = models.TextField()
user = models.TextField()
created_at = models.DateTimeField(default=timezone.now())
class Star(models.Model):
tweet = models.ForeignKey(Tweet)
user = models.TextField()

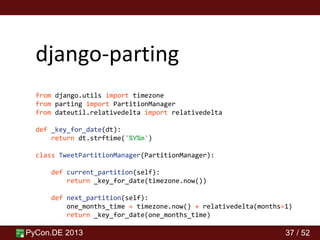

37. PyCon.DE 2013 37 / 52
django-parting
from django.utils import timezone
from parting import PartitionManager
from dateutil.relativedelta import relativedelta
def _key_for_date(dt):
return dt.strftime('%Y%m')
class TweetPartitionManager(PartitionManager):
def current_partition(self):
return _key_for_date(timezone.now())
def next_partition(self):
one_months_time = timezone.now() + relativedelta(months=1)
return _key_for_date(one_months_time)

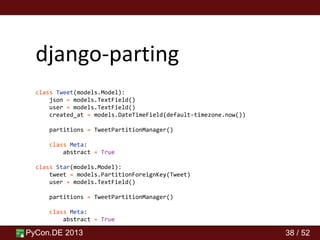

38. PyCon.DE 2013 38 / 52
django-parting
class Tweet(models.Model):
json = models.TextField()
user = models.TextField()
created_at = models.DateTimeField(default=timezone.now())
partitions = TweetPartitionManager()
class Meta:
abstract = True
class Star(models.Model):
tweet = models.PartitionForeignKey(Tweet)
user = models.TextField()
partitions = TweetPartitionManager()
class Meta:
abstract = True

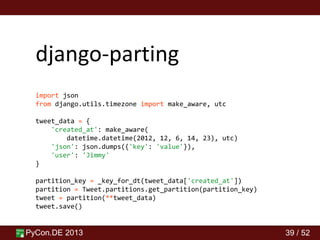

39. PyCon.DE 2013 39 / 52
django-parting
import json
from django.utils.timezone import make_aware, utc
tweet_data = {
'created_at': make_aware(
datetime.datetime(2012, 12, 6, 14, 23), utc)
'json': json.dumps({'key': 'value'}),
'user': 'Jimmy'
}
partition_key = _key_for_dt(tweet_data['created_at'])
partition = Tweet.partitions.get_partition(partition_key)
tweet = partition(**tweet_data)
tweet.save()

40. PyCon.DE 2013 40 / 52
django-parting
CREATE TABLE "testapp_tweet_2013_03" (
"id" integer NOT NULL PRIMARY KEY,
"json" text NOT NULL,
"created" datetime NOT NULL
);
CREATE TABLE "testapp_star_2013_03" (
"id" integer NOT NULL PRIMARY KEY,
"tweet_id" integer NOT NULL REFERENCES
"testapp_tweet_2013_03" ("id"),
"user" text NOT NULL
);

41. PyCon.DE 2013 41 / 52

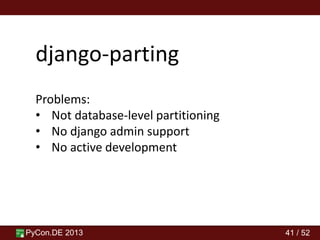

django-parting
Problems:
• Not database-level partitioning
• No django admin support
• No active development

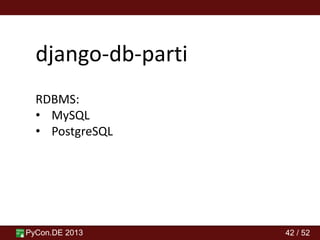

42. PyCon.DE 2013 42 / 52
django-db-parti
RDBMS:
• MySQL
• PostgreSQL

43. PyCon.DE 2013 43 / 52

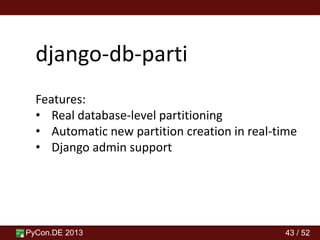

django-db-parti
Features:
• Real database-level partitioning
• Automatic new partition creation in real-time
• Django admin support

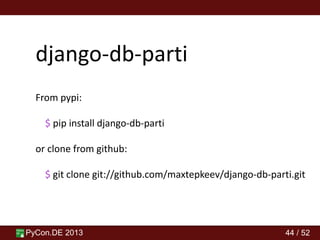

44. PyCon.DE 2013 44 / 52
django-db-parti
From pypi:
$ pip install django-db-parti
or clone from github:
$ git clone git://github.com/maxtepkeev/django-db-parti.git

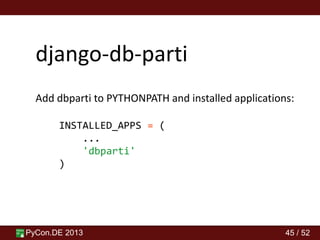

45. PyCon.DE 2013 45 / 52
django-db-parti
Add dbparti to PYTHONPATH and installed applications:
INSTALLED_APPS = (
...
'dbparti'
)

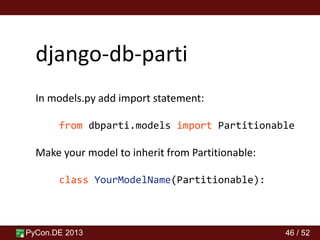

46. PyCon.DE 2013 46 / 52
django-db-parti
In models.py add import statement:
from dbparti.models import Partitionable
Make your model to inherit from Partitionable:
class YourModelName(Partitionable):

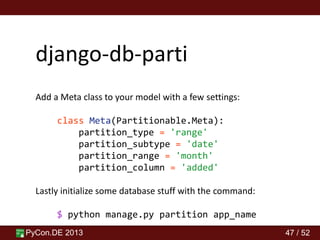

47. PyCon.DE 2013 47 / 52
django-db-parti
Add a Meta class to your model with a few settings:
class Meta(Partitionable.Meta):
partition_type = 'range'
partition_subtype = 'date'
partition_range = 'month'
partition_column = 'added'
Lastly initialize some database stuff with the command:
$ python manage.py partition app_name

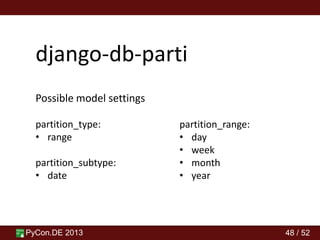

48. PyCon.DE 2013 48 / 52
django-db-parti
Possible model settings
partition_type:
• range
partition_subtype:
• date
partition_range:
• day
• week
• month
• year

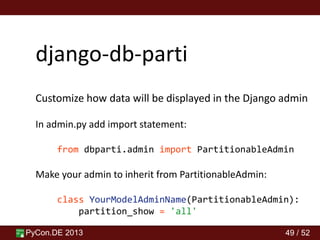

49. PyCon.DE 2013 49 / 52
django-db-parti
Customize how data will be displayed in the Django admin
In admin.py add import statement:
from dbparti.admin import PartitionableAdmin
Make your admin to inherit from PartitionableAdmin:
class YourModelAdminName(PartitionableAdmin):
partition_show = 'all'

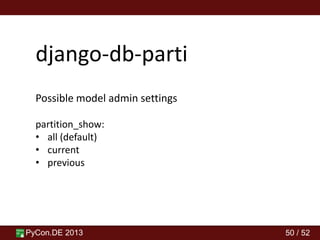

50. PyCon.DE 2013 50 / 52
django-db-parti
Possible model admin settings
partition_show:
• all (default)
• current
• previous

51. PyCon.DE 2013 51 / 52

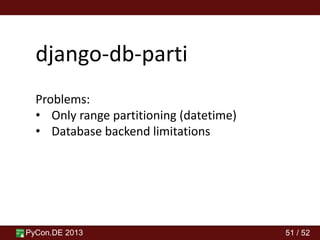

django-db-parti
Problems:
• Only range partitioning (datetime)
• Database backend limitations

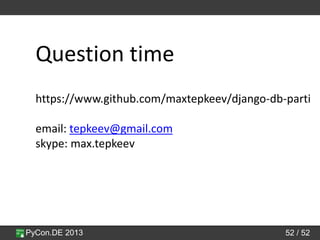

52. PyCon.DE 2013 52 / 52
Question time
https://www.github.com/maxtepkeev/django-db-parti
email: tepkeev@gmail.com
skype: max.tepkeev
