Tgood offers innovative photovoltaic (PV) solar power solutions, specializing in modular prefabricated substations that are eco-friendly, low-cost, and designed for rapid deployment. Their offerings include various integrated and grid-connected substation types suitable for diverse environments, ensuring efficient power generation and distribution while minimizing installation challenges. The company has a strong track record, with a rich portfolio of projects across multiple countries, showcasing its leadership in the renewable energy sector.

1. PV SOLAR POWER
SOLUTIONS

2. CONTENTS
TGOOD Company info
EPC Solutions
Product
Introduction
Advantages
Specifications
Solution Options
E-House Specifications
TGOOD - ZN Shine Corporate tie-up
References

3. Project Development and EPC

4. Project Development and EPC

5. China GEM stock code 300001 (the first company to list on the GEM)
China's largest R&D and manufacturer for electrical distribution substations Specializing in
outdoor 220kV and below equipment manufacturing
Integrated solutions for Clean Energy, Railway, Mining, Oil & Gas and other industries
About TGOOD

6. 5PV power plant solutions
Growing Pollution issues
TGOOD Eco friendly solutions for compact prefabricated substations.
Past expertise in complete EPC projects in renewable power generation and distribution
Photovoltaic projects successfully executed upto 320MW

7. Growing
Pollution
Cost
reductions
Clean
Energy
Policies
Large Clean
Energy
Developments
Large scale PV development

8. PRODUCT OVERVIEW

9. Growing demand for solar power, need from integrators and EPC’s is quick and simple solutions, that
enable easy integration with minimal issues. TGOOD Global has a wide range of PV prefabricated
substations that are:
Movable
 Sealed
 Damp-proof
 Rust-proof
 Double-layered heat insulated
 Modular
Pre-assembled and tested at our facilities reduce:
 Site workload
 Construction costs
 Footprint
Transported to site to enable
 Grid connection control
 Remote data collection
 Remote transmission of PV power generating system
Introduction

10.  Compared to traditional civil work substations, the solar energy prefabricated
substation is
• Lower cost
• Smaller footprint
• Plug and play integration
• Little to no assembly on site reducing the number
of potential issues
• Customised external appearance to match site environment
• Critical components are integrated to ensure high quality after service for customer
 Multiple corrosion-resistance technologies are applied to the substation providing 30-
years of rust-free protection.
 Perfect for large-scale PV grid connection system in extreme conditions from deserts to
tropical regions and high-altitude to tidal plains.
 Critical components are integrated to ensure high quality post installation service for
customer
Advantages

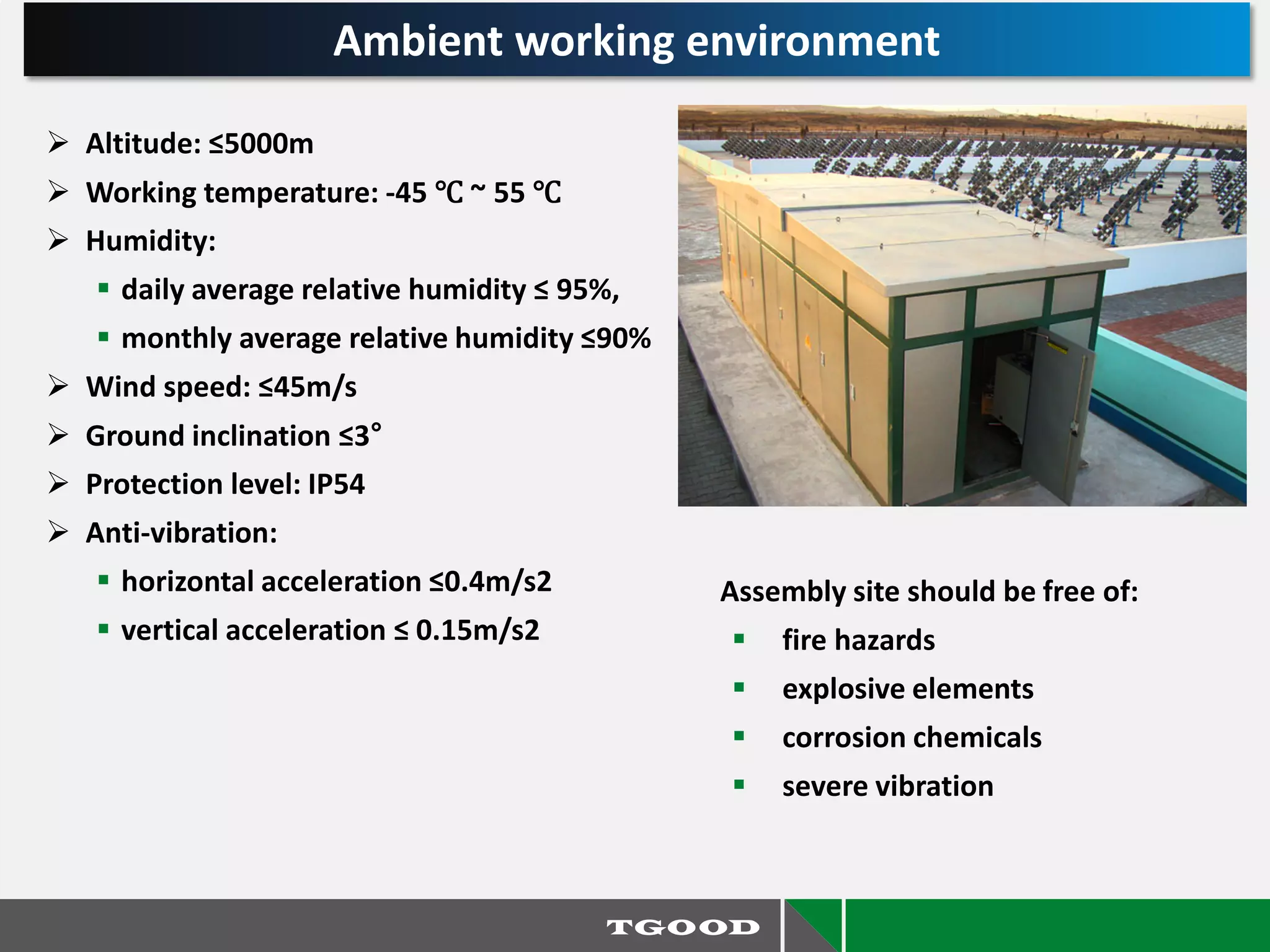

11.  Altitude: ≤5000m
 Working temperature: -45 ℃ ~ 55 ℃
 Humidity:
 daily average relative humidity ≤ 95%,
 monthly average relative humidity ≤90%
 Wind speed: ≤45m/s
 Ground inclination ≤3°
 Protection level: IP54
 Anti-vibration:
 horizontal acceleration ≤0.4m/s2
 vertical acceleration ≤ 0.15m/s2
Assembly site should be free of:
 fire hazards
 explosive elements
 corrosion chemicals
 severe vibration
Ambient working environment

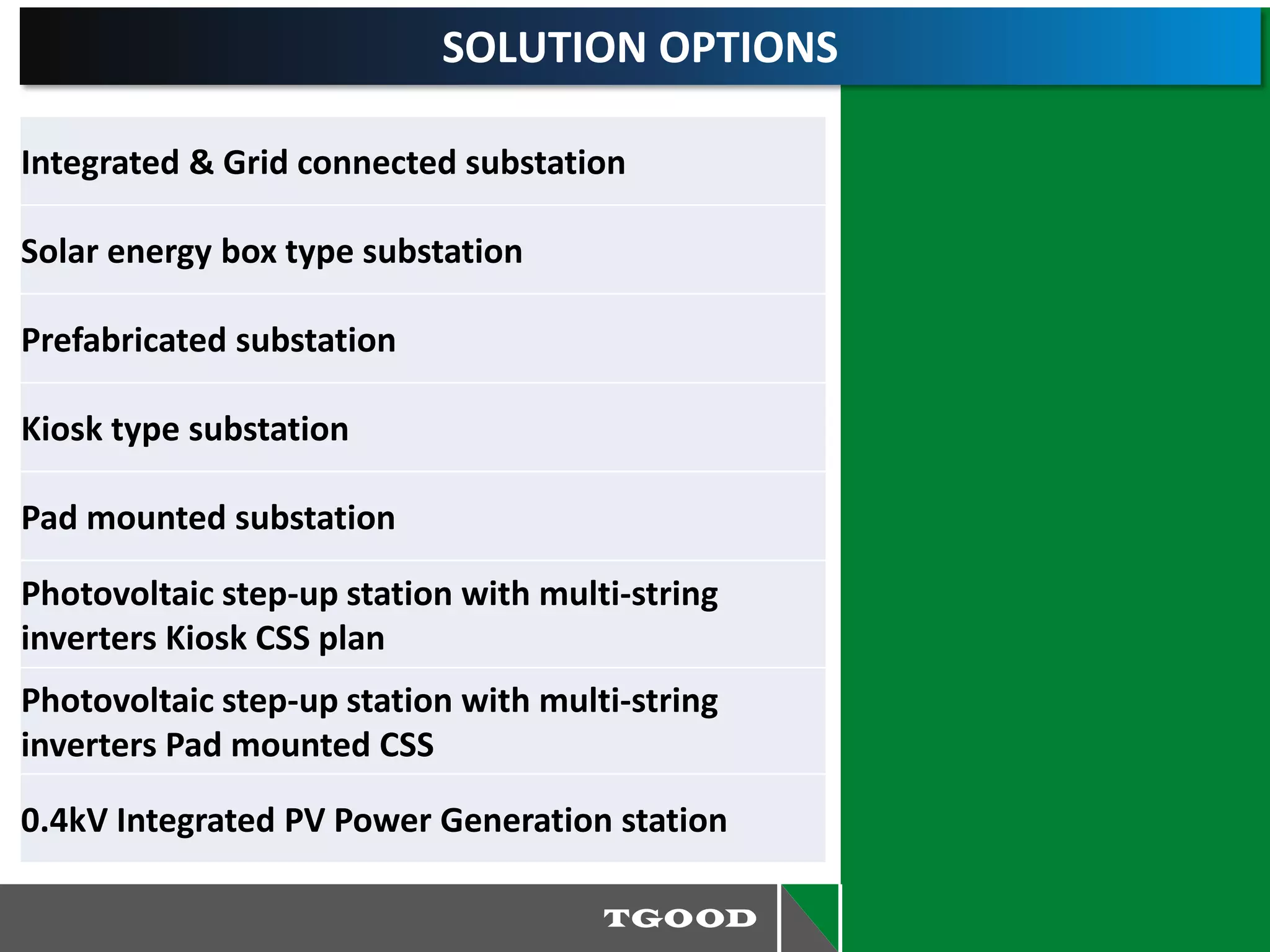

12. SOLUTION OPTIONS
Integrated & Grid connected substation
Solar energy box type substation
Prefabricated substation
Kiosk type substation
Pad mounted substation
Photovoltaic step-up station with multi-string
inverters Kiosk CSS plan
Photovoltaic step-up station with multi-string
inverters Pad mounted CSS
0.4kV Integrated PV Power Generation station

13. Integrated and Grid connected substation view

14. Solar energy grid connected
modular substation includes
HGIS, MV Unit, Transformer
35kV Grid connected modular prefabricated substation
Arrangement drawing for Grid
connected modular substation

15. Solar energy box-type collection station
 Pressurization - 20 Pa Max.
(Optional)
 Fire Rating - 2 hr. (Optional)
 GIS, Metal-Clad and Metal-
Enclosed Switchgear up to
145 kV, 4000A
 Dry Type Transformers up to
4 MVA Enclosed within E-
House
 Oil Filled Transformers up to
32 MVA Enclosed within E-
House
 Oil Filled Transformers up to
70 MVA
 External to E-House
 Motor Control Centres (MCCs) and Variable
Frequency Drives (VFDs)
 UPS & Battery Backup Systems
 SCADA, PLC, RTU, DCS
 Customer Supplied Equipment Integration
and Installation
 40 dB Min. (Optional)
Technical Specifications

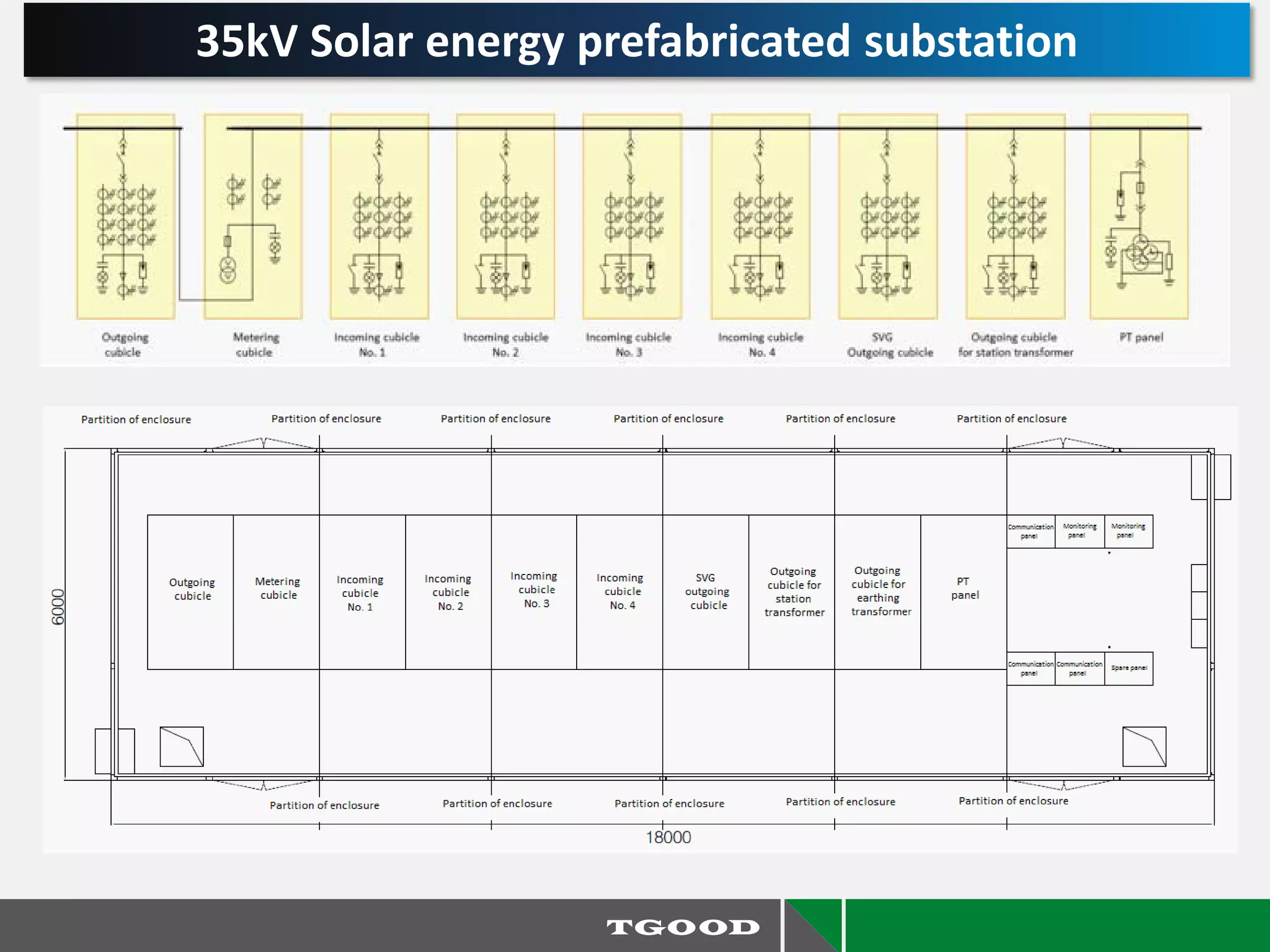

16. 35kV Solar energy prefabricated substation

17. 10kV Solar energy prefabricated substation

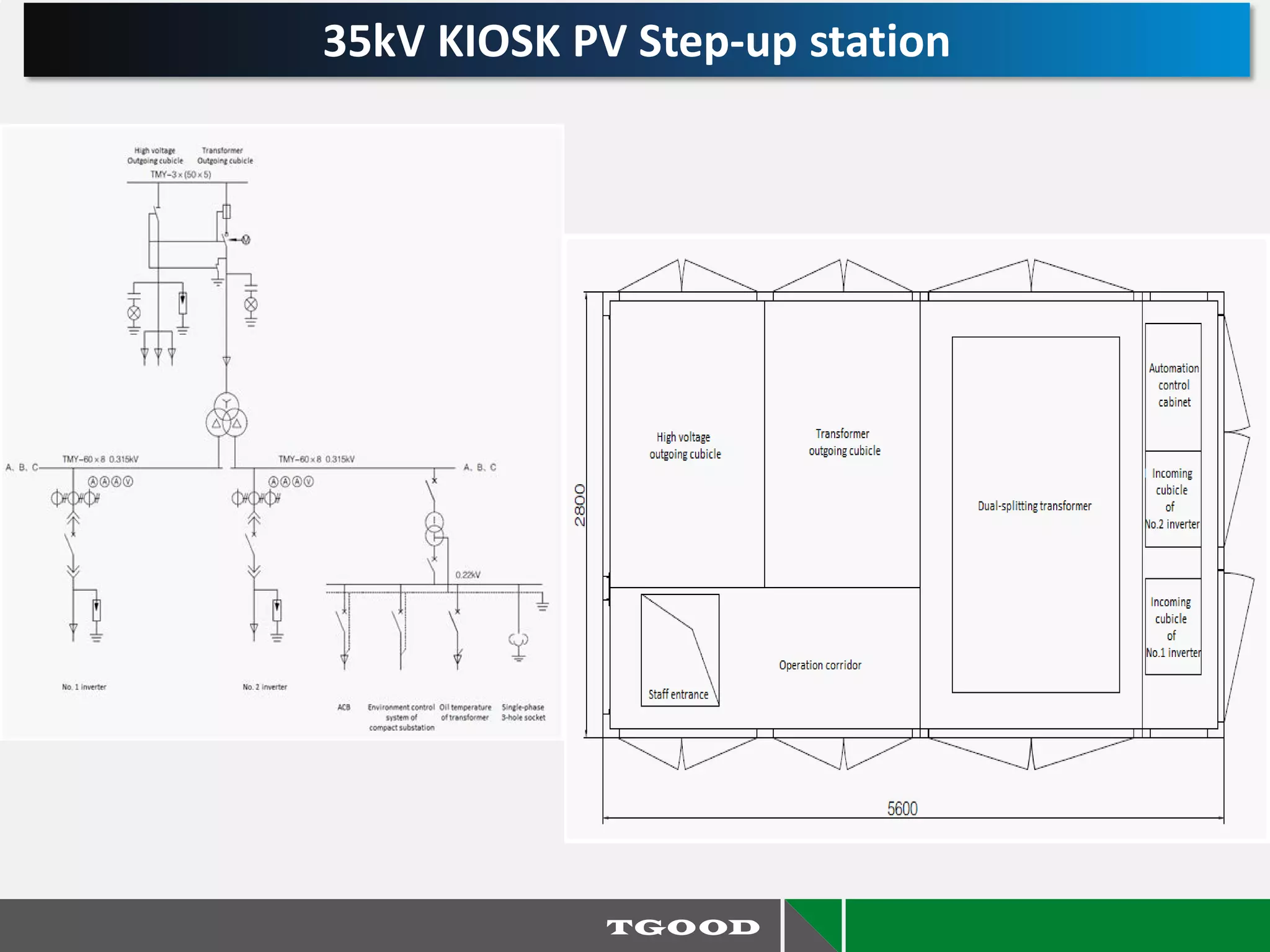

18. 35kV KIOSK PV Step-up station

19. 35kV PAD-Mounted PV Step-up station

20. 35kV KIOSK Integrated PV Power Generation station

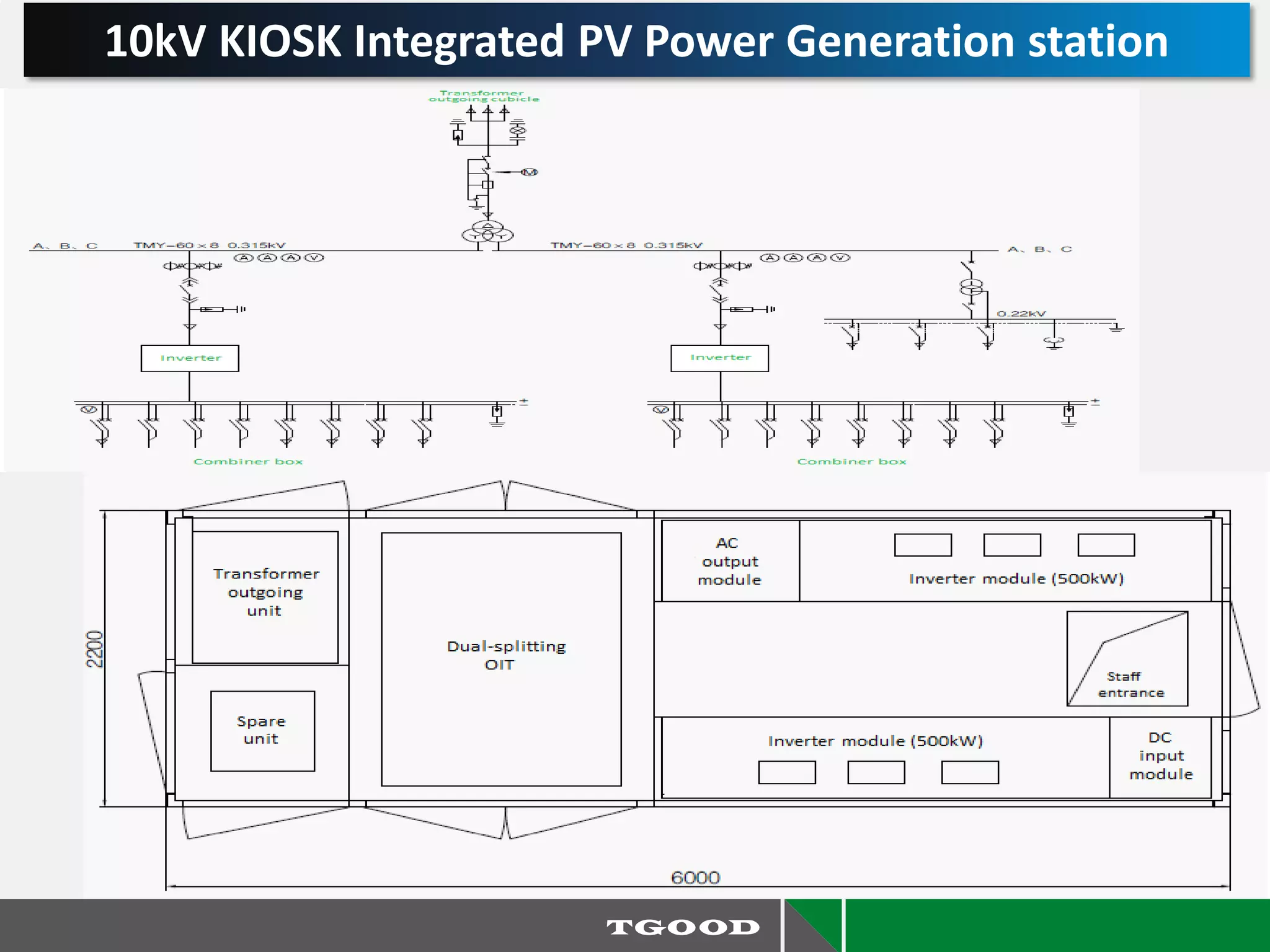

21. 10kV KIOSK Integrated PV Power Generation station

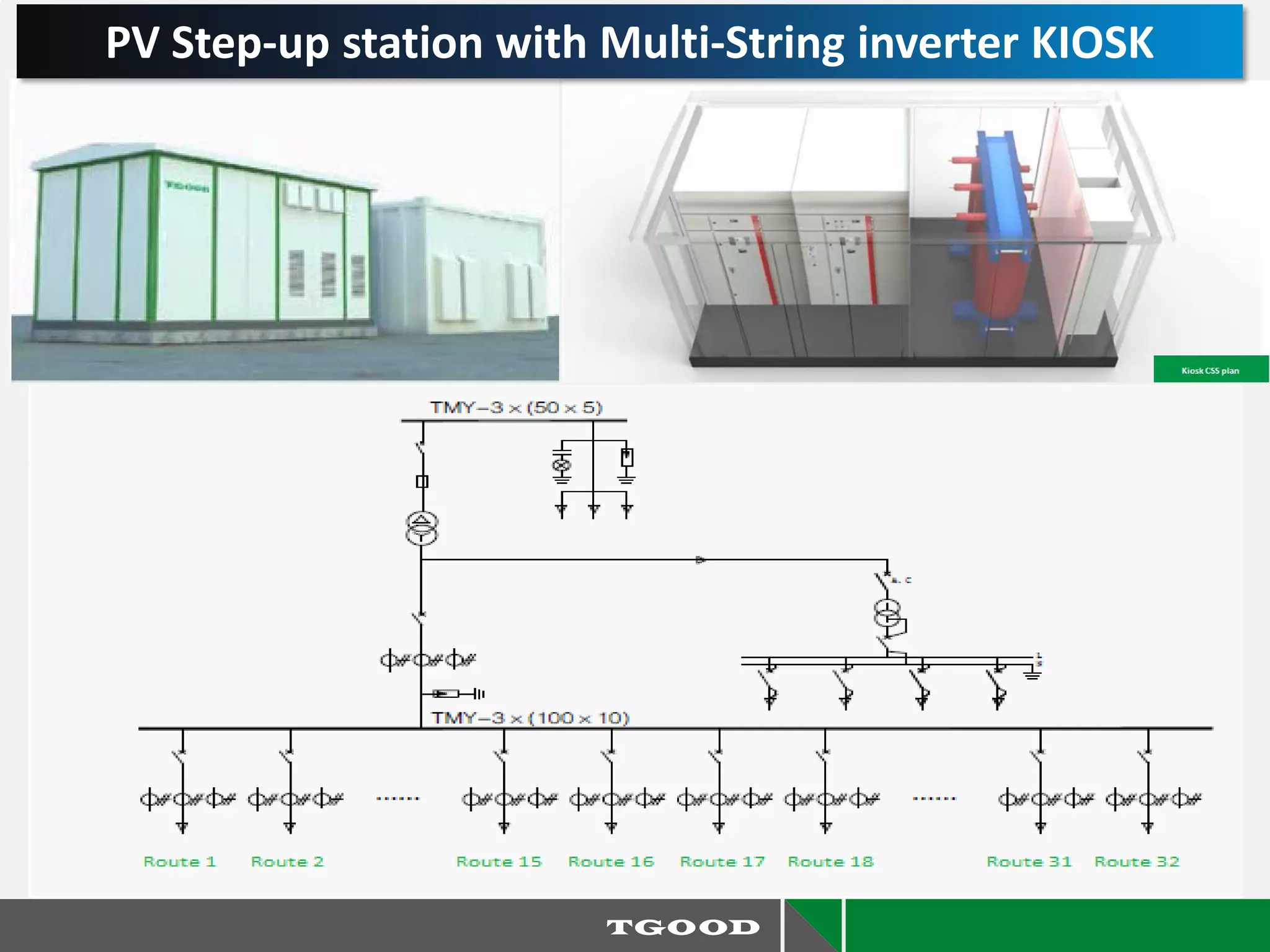

22. PV Step-up station with Multi-String inverter KIOSK

23. Manhole
Cover
PV Step-up station with Multi-String inverter KIOSK

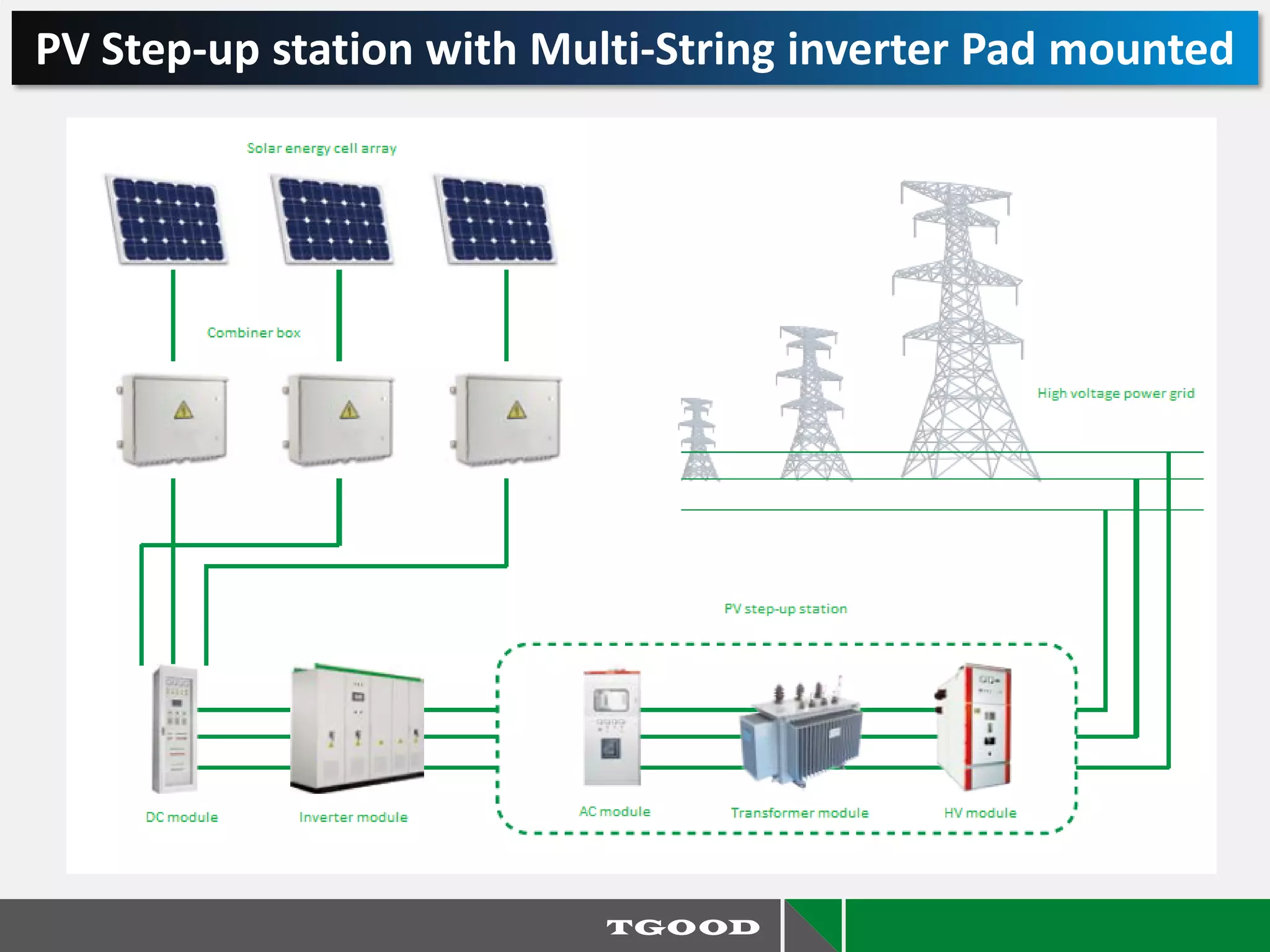

24. PV Step-up station with Multi-String inverter Pad mounted

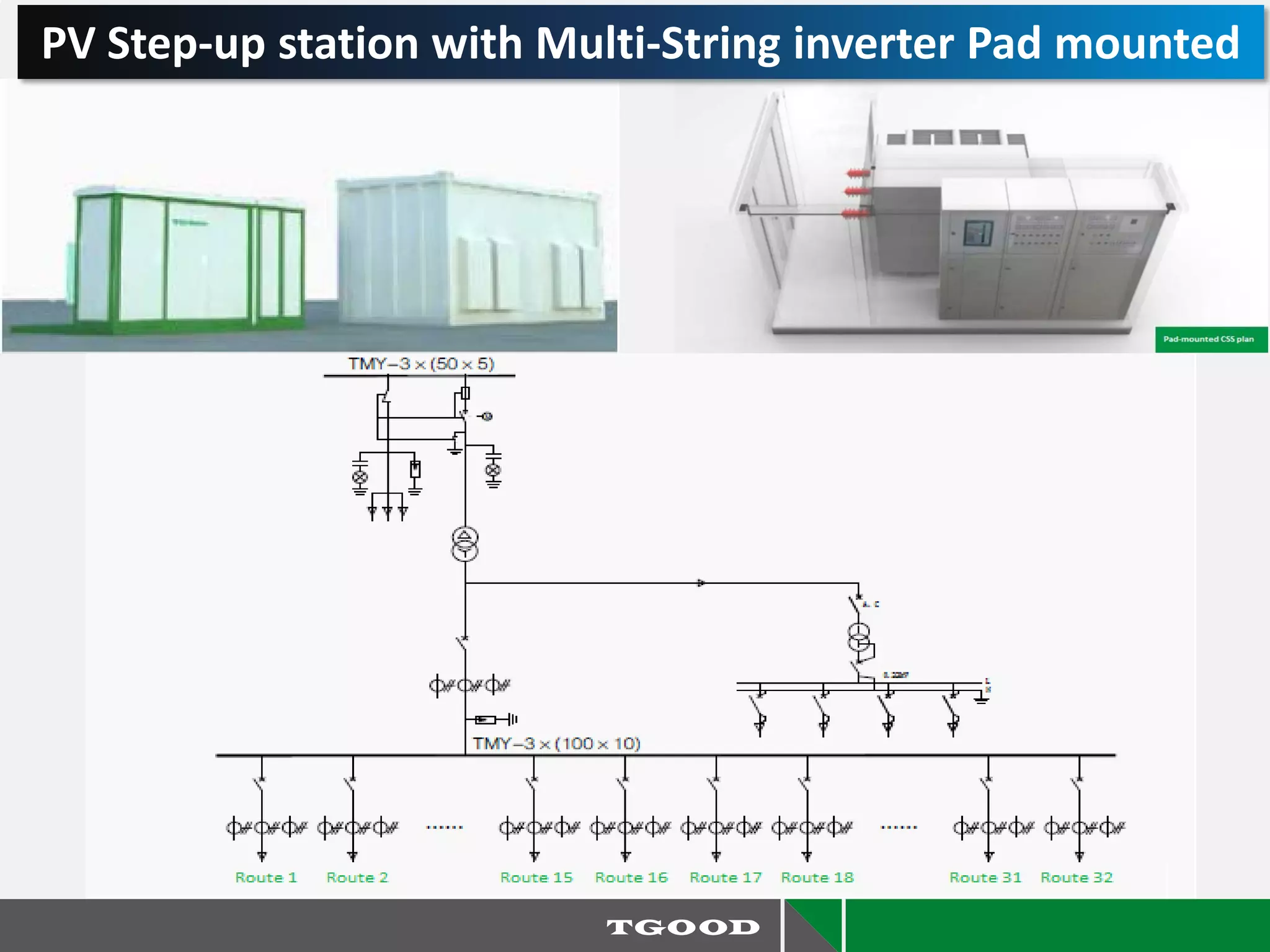

25. PV Step-up station with Multi-String inverter Pad mounted

26. PV Step-up station with Multi-String inverter Pad mounted

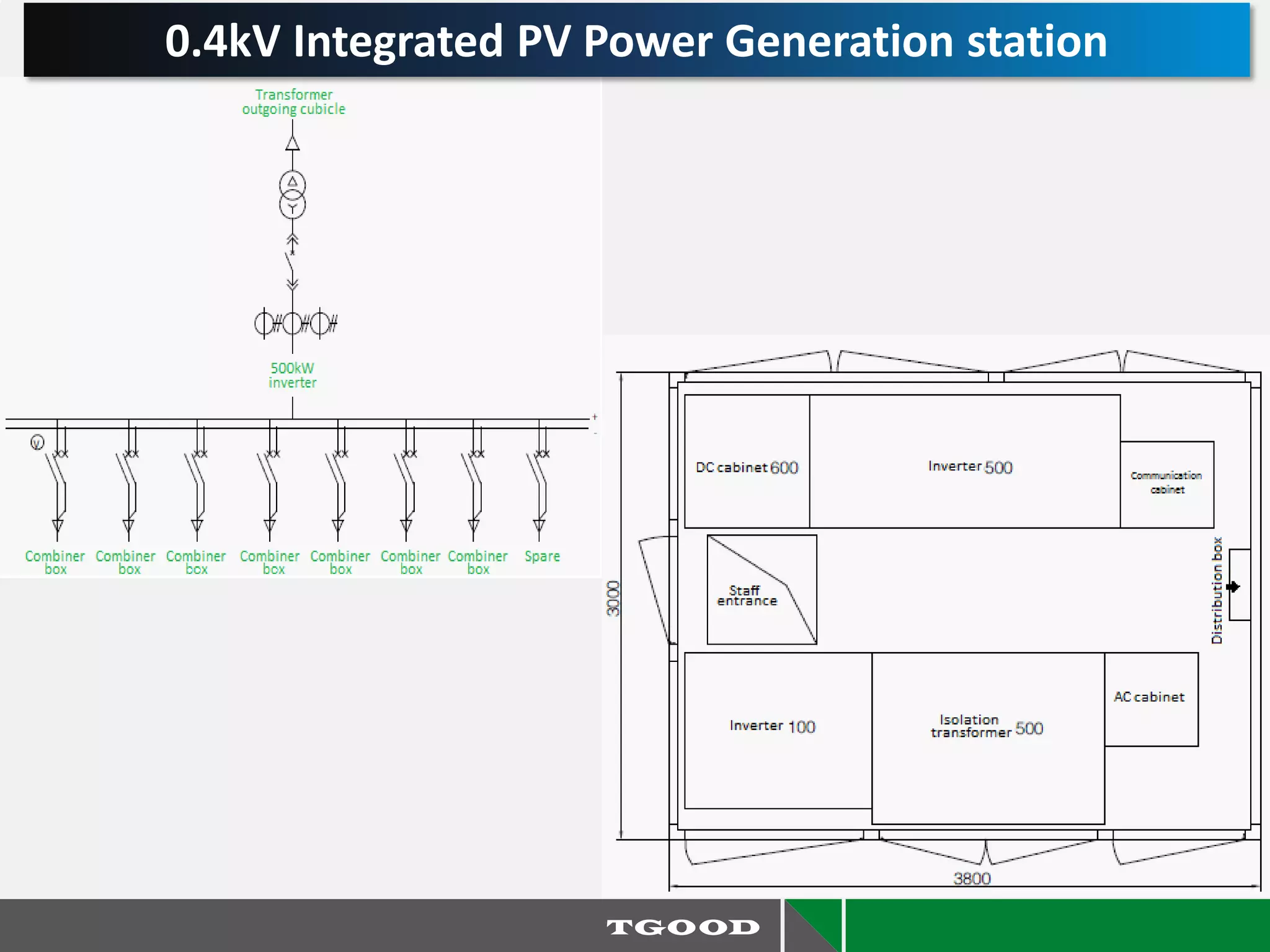

27. 0.4kV Integrated PV Power Generation station

28. E-HOUSE SPECIFICATONS

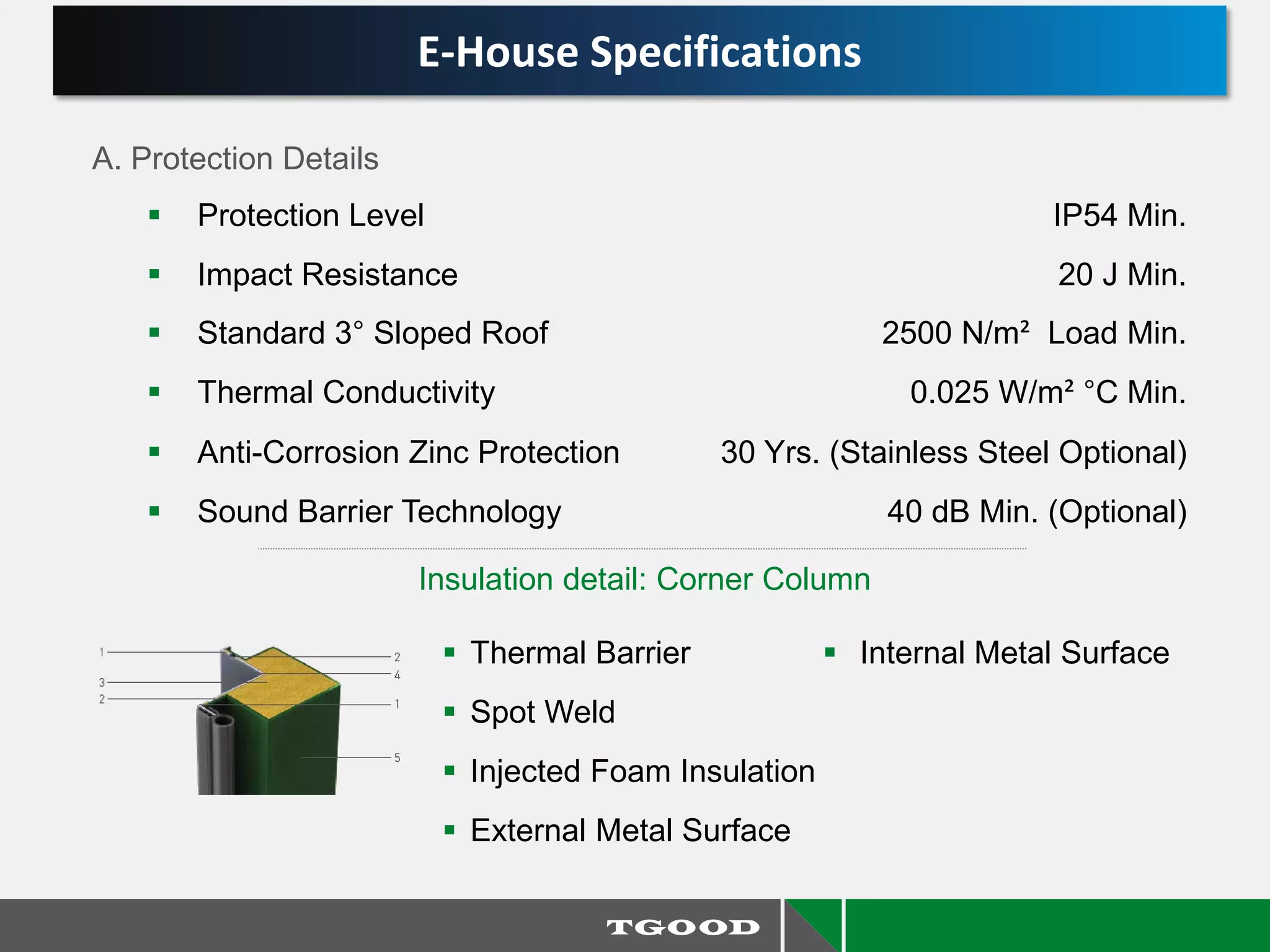

29.  Protection Level IP54 Min.
 Impact Resistance 20 J Min.
 Standard 3° Sloped Roof 2500 N/m² Load Min.
 Thermal Conductivity 0.025 W/m² °C Min.
 Anti-Corrosion Zinc Protection 30 Yrs. (Stainless Steel Optional)
 Sound Barrier Technology 40 dB Min. (Optional)
 Thermal Barrier
 Spot Weld
 Injected Foam Insulation
 External Metal Surface
 Internal Metal Surface
A. Protection Details
Insulation detail: Corner Column
E-House Specifications

30. Insulation detail:
Panel
 Internal Metal Skin
 Thermal Barrier
 Injected Foam
Insulation
 Spot Weld
 External Metal Skin
Layered anti-corrosion
technology
 Sandblasted Steel
Frame
 Thermal Zinc Layer
 Zinc + Paint Pulp
Layer
 Epoxy Coating
 Hammertone Finish
Water-shedding roof
 Water Shedding, 3º
Slanted Roof
 Injected Foam
Insulation
 Lifting Rings
 Steel Frame
A. Protection Details (cont.)
E-House Specifications

31. 1. Foam-Insulated Panels (with Bridge-
Cutoff Insulation Technology)
2. Make-up air from outside
3. Heat pump exhaust, shown cooling
building
B. Airflow
Air Conditioning Unit
Environmental Control System
Positive Pressure Environmental Control System
4. Return air (inside air combined with
make-up air to maintain positive
pressure environment)
5. Inside air
E-House Specifications

32. C. Ancillary equipment
• Heating, Ventilation and Air Conditioning (HVAC)
• Environmental Temperature and Moisture Control
• Fire Alarm
• Fire Suppression
• Inside Overhead Lighting
• Emergency Lighting
• Outside Lighting
Condensation and Temperature Sensors
Ceiling Lighting and Sound Deadening
Panels
E-House Specifications

33. Arc Flash Vents Lifting Hooks Windproof Door
Mechanism
Patented Cable
Quick Connects
• Arc Flash Venting
• Windproof Door Mechanisms
• Interconnecting Cabling and
Cable Trays
• Straight-Through Cable Entry or
Cable Coupling Systems
C. Ancillary equipment (cont.)
• Fixed Mount, Heavy Duty Mobile Skid
Base
• Custom Paint and Graphics
• Stairs, Landings and Walkways
• Rear Entry Equipment Doors
• First Aid Equipment
Photovoltaic step-up station with multi-string inverters
Pad mounted CSS
E-House Specifications

34. PARTNERSHIP & ASSOCIATION
Strong Corporate level partnership & association
with a reputed solar module manufacturer
between
&

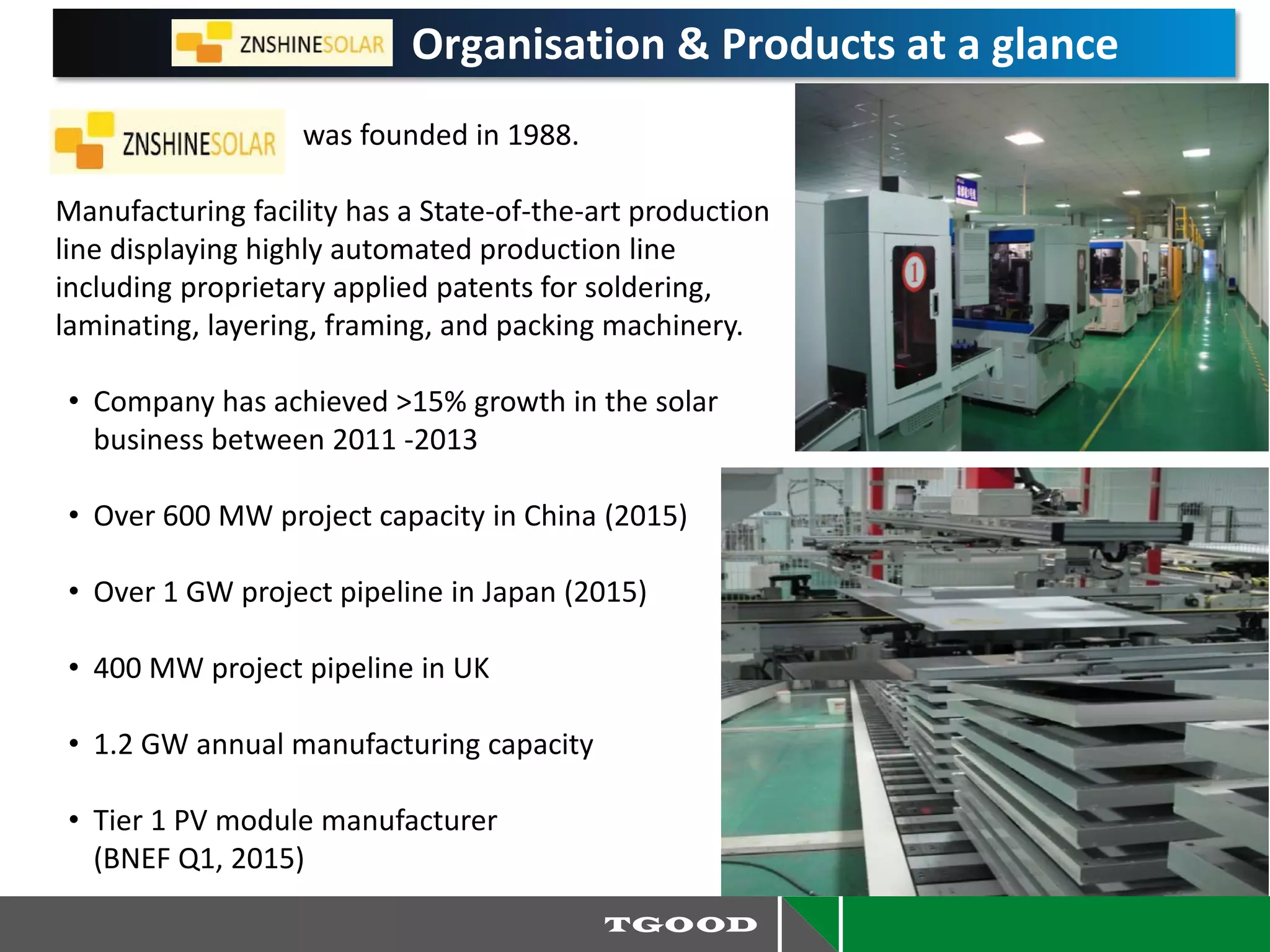

35. Organisation & Products at a glance
was founded in 1988.
Manufacturing facility has a State-of-the-art production
line displaying highly automated production line
including proprietary applied patents for soldering,
laminating, layering, framing, and packing machinery.
• Company has achieved >15% growth in the solar
business between 2011 -2013
• Over 600 MW project capacity in China (2015)
• Over 1 GW project pipeline in Japan (2015)
• 400 MW project pipeline in UK
• 1.2 GW annual manufacturing capacity
• Tier 1 PV module manufacturer
(BNEF Q1, 2015)

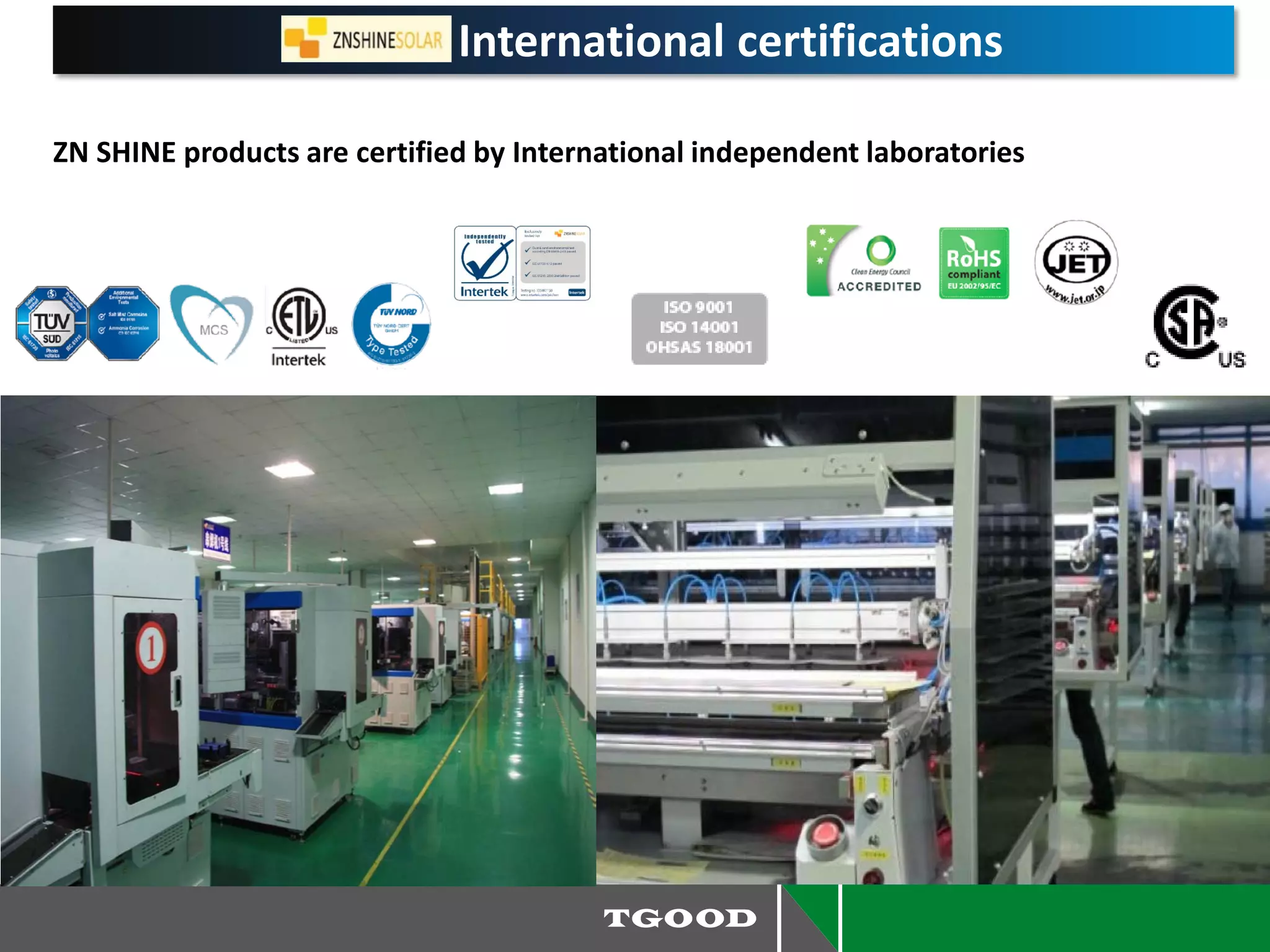

36. International certifications
ZN SHINE products are certified by International independent laboratories

37. Time line

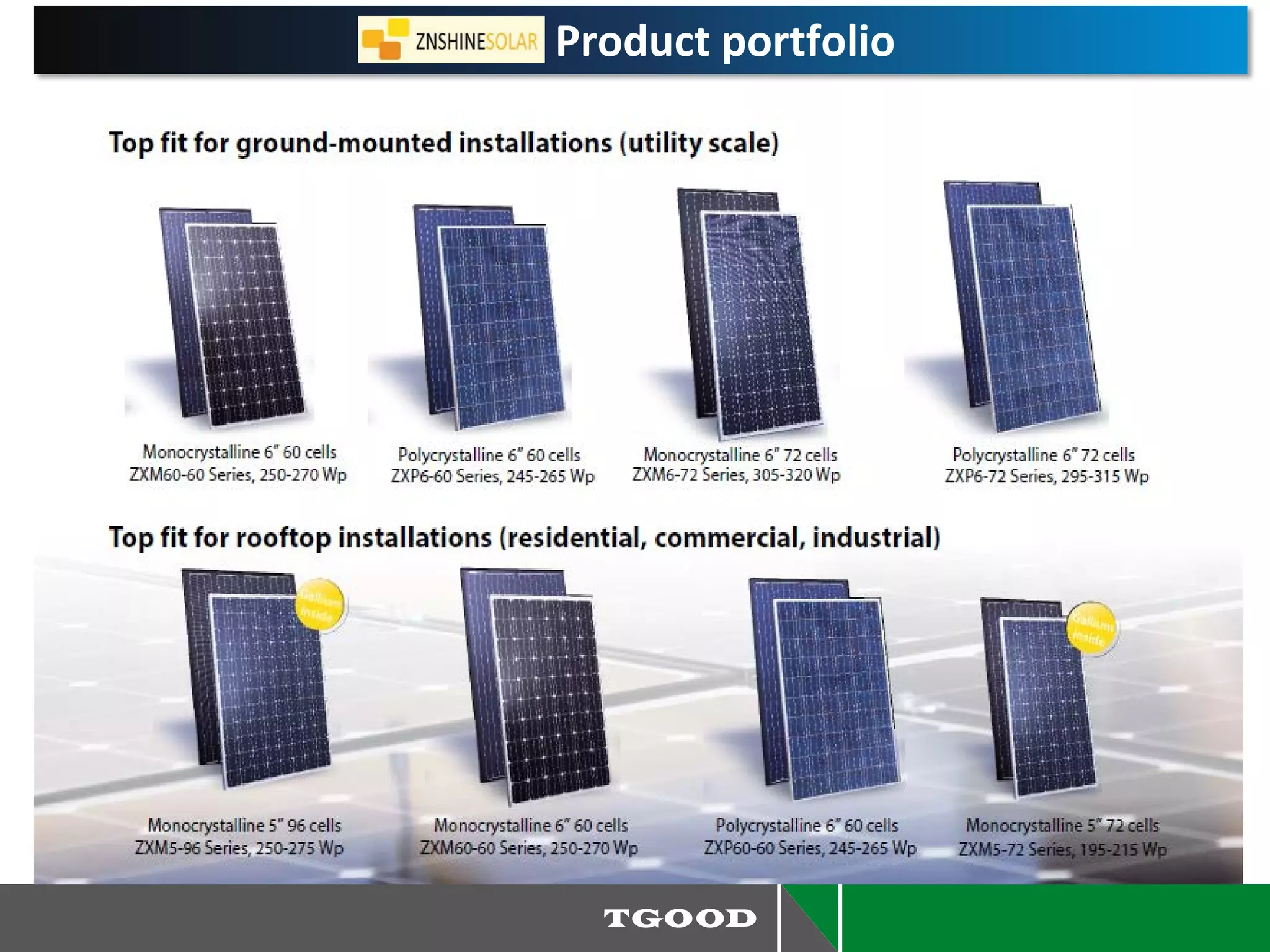

38. Product portfolio

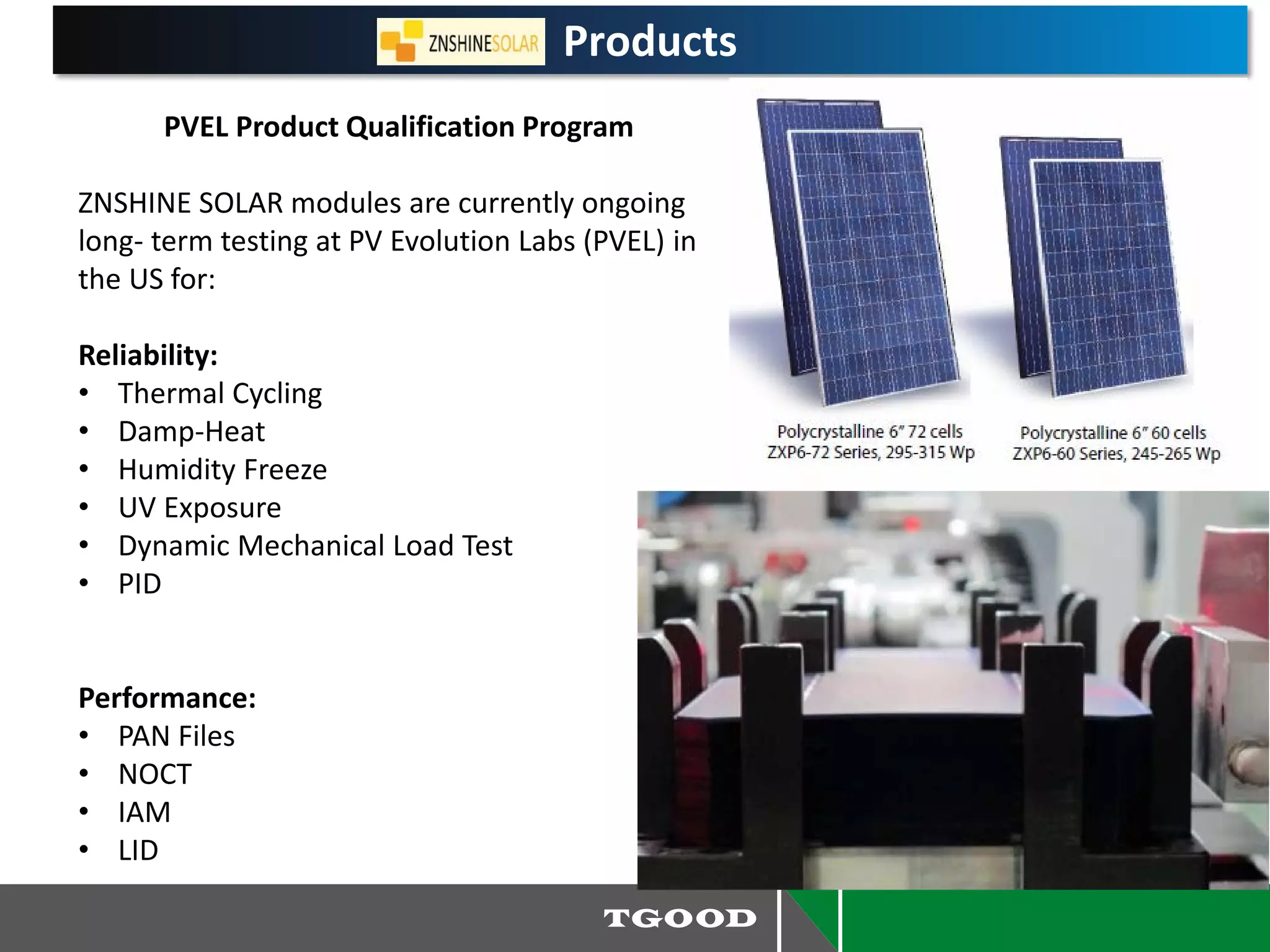

39. Products
PVEL Product Qualification Program
ZNSHINE SOLAR modules are currently ongoing
long- term testing at PV Evolution Labs (PVEL) in
the US for:
Reliability:
• Thermal Cycling
• Damp-Heat
• Humidity Freeze
• UV Exposure
• Dynamic Mechanical Load Test
• PID
Performance:
• PAN Files
• NOCT
• IAM
• LID

40. Products

41. Products

42. Products

43. Products

44. Products

45. Bloomberg Tier 1 Status

46. Bankability References

47. Success

48. REFERENCES

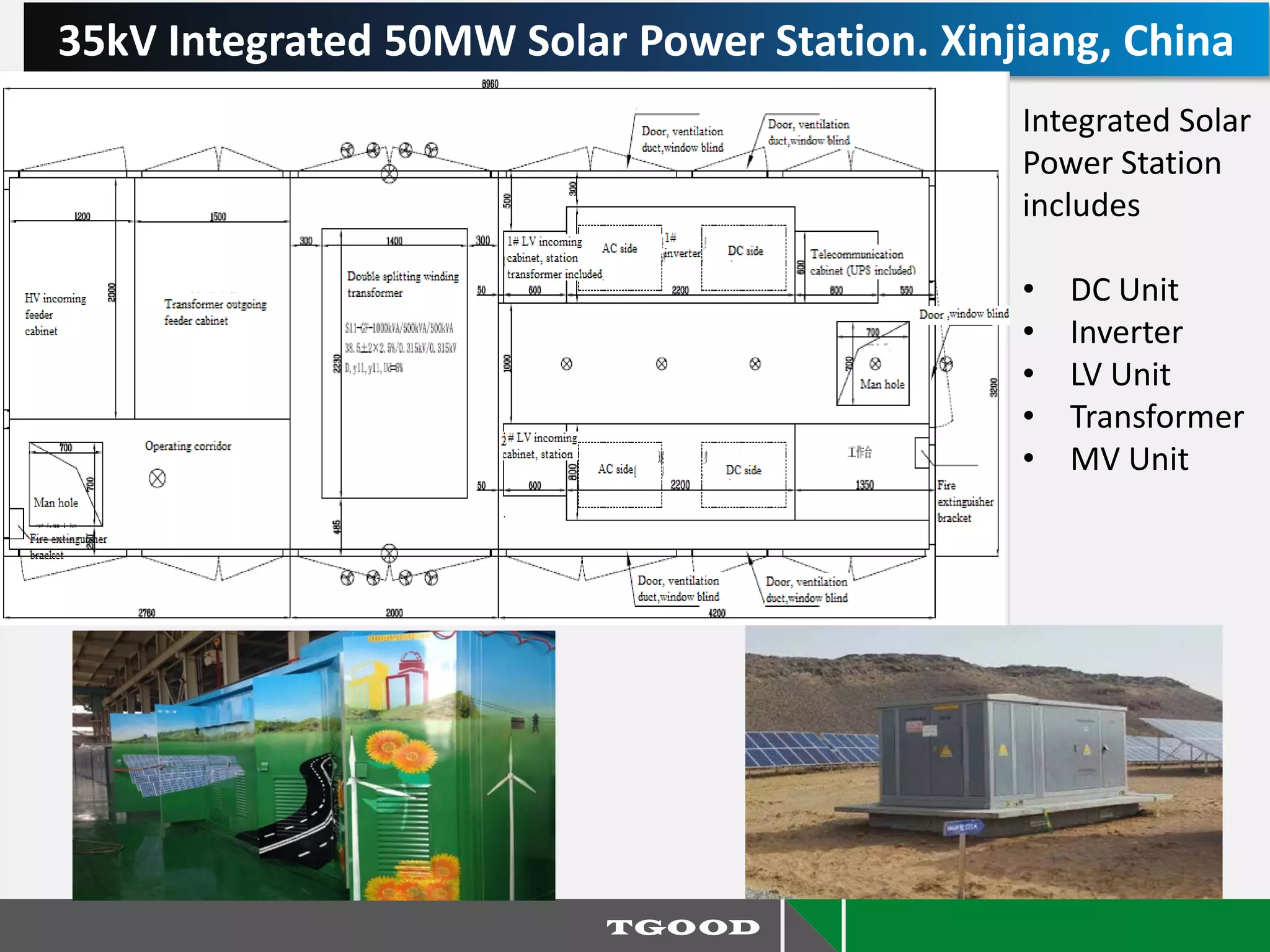

49. Integrated Solar
Power Station
includes
• DC Unit
• Inverter
• LV Unit
• Transformer
• MV Unit
35kV Integrated 50MW Solar Power Station. Xinjiang, China

50. 2100kW rooftop solar photovoltaic project at
TGOOD factory in Qingdao, China

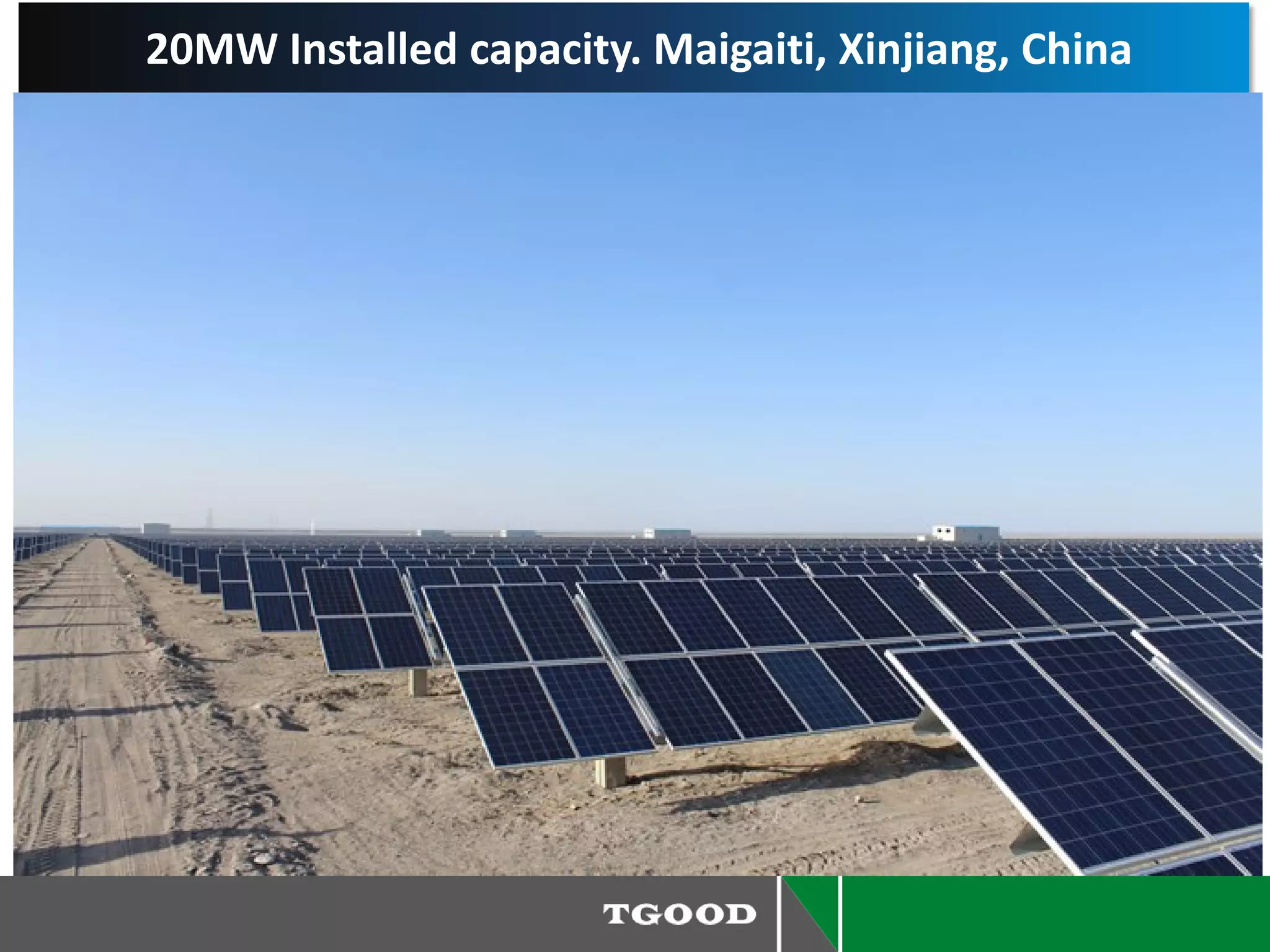

51. 20MW Installed capacity. Maigaiti, Xinjiang, China

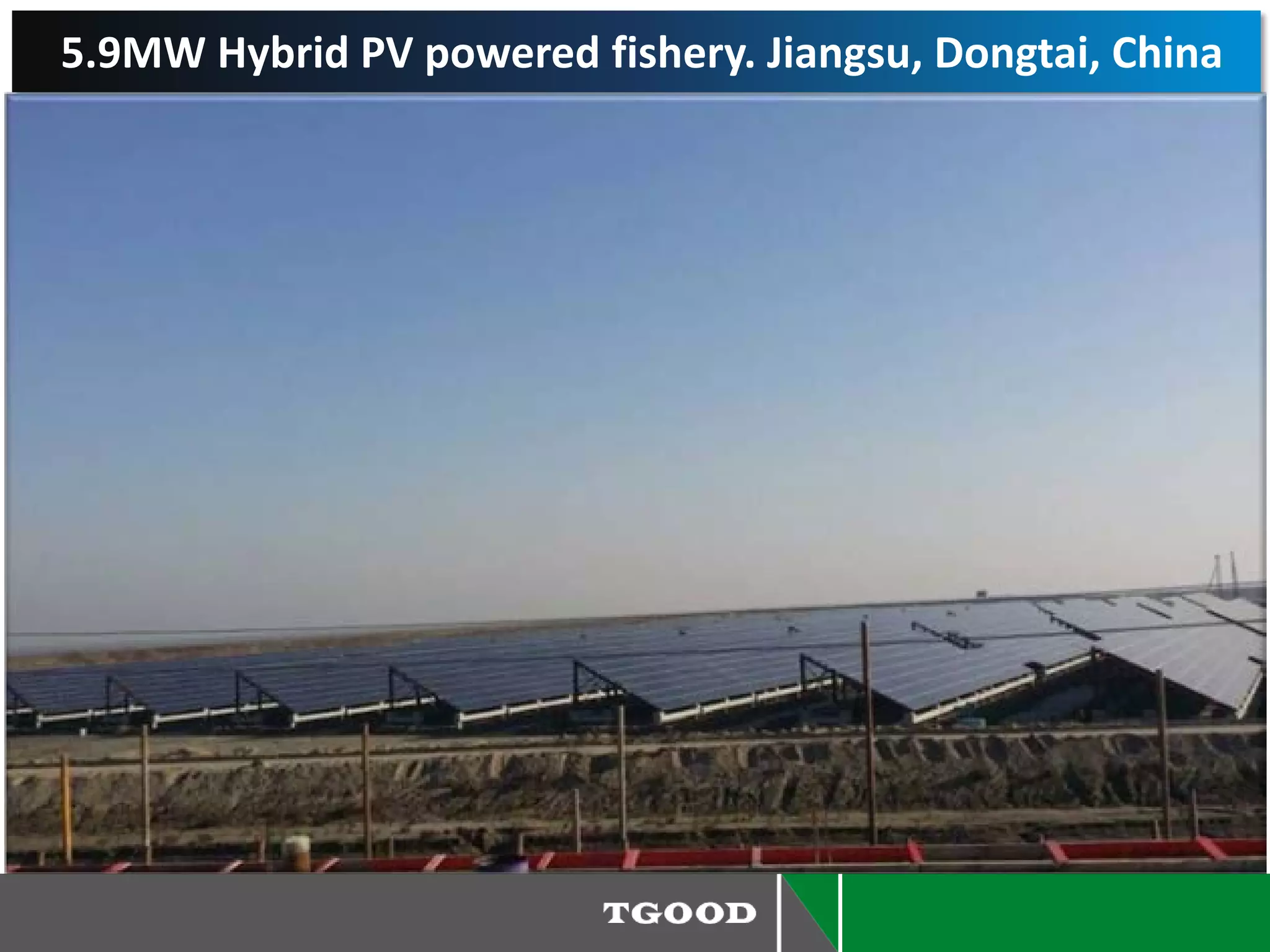

52. 5.9MW Hybrid PV powered fishery. Jiangsu, Dongtai, China

53. Inner Mongolia, Solar power plant Capacity: 50 MW
Module type: ZXP6-60 polycrystalline

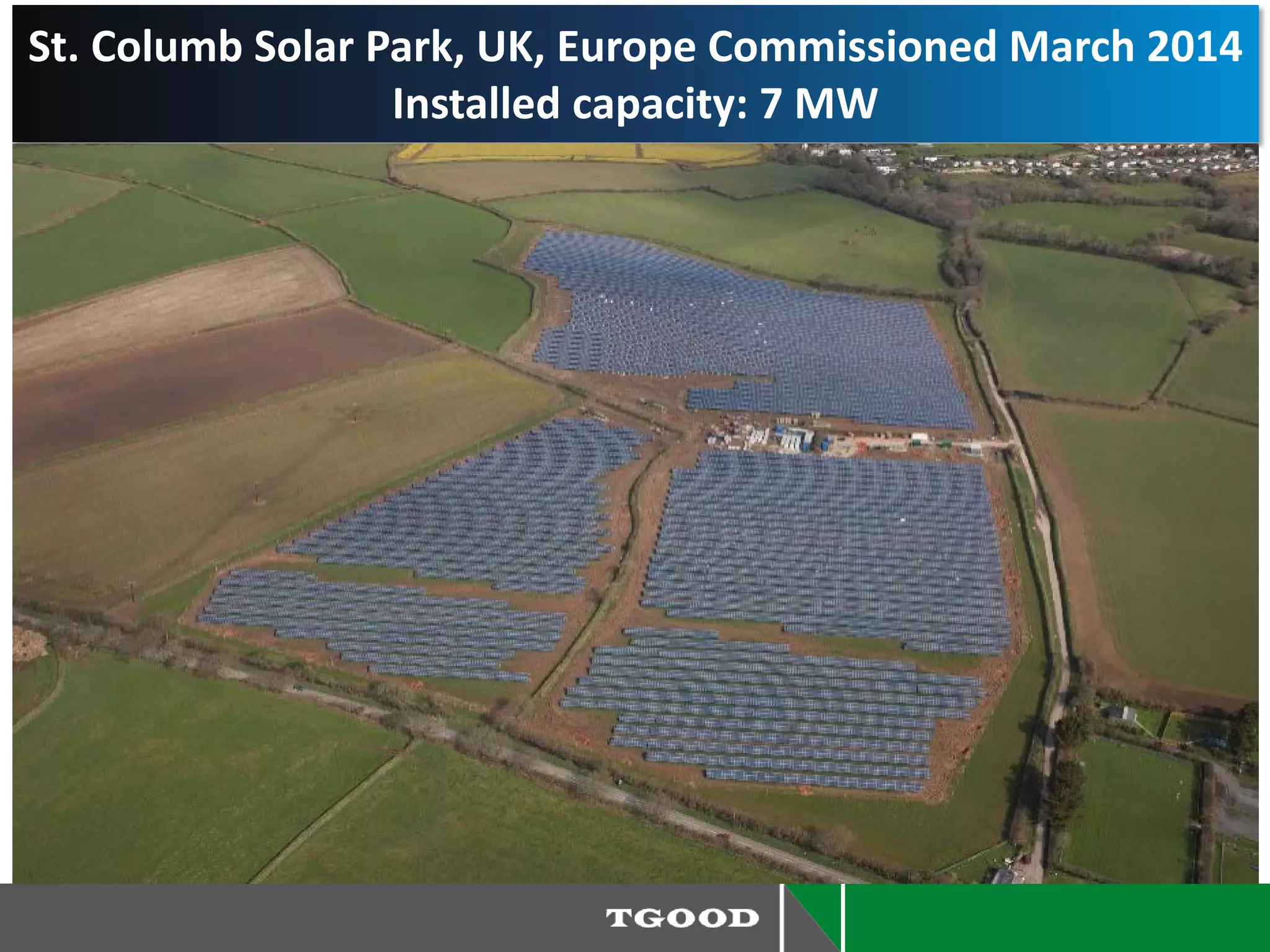

54. St. Columb Solar Park, UK, Europe Commissioned March 2014
Installed capacity: 7 MW

55. Four Burrows Solar Park, UK, Europe Commissioned
February 2014 Installed capacity: 8 MW

56. Hamada Solar Park, Hamada, Japan, Asia. Capacity 31MW
July 2014 (part Commissioned March 2015) (three phases)

57. No. Client Name Project Name Product Name Unit Qty. Order Time
1 Rayspower Energy Group Co.,Ltd.
Rayspower Energy Group
Co.,Ltd. Project
35kV Compact substation set 20 2015/8/17
2
Shandong Guoxin Enviromental
Systems Co.,Ltd
Shandong Guoxin Haixing 50MW
photovoltaic power generation
project
35kV Pad-mounted
substation
set 102 2015/8/14
3
Shandong Guoxin Enviromental
Systems Co.,Ltd
Shandong Guoxin Haixing 50MW
photovoltaic power generation
project
35kV Transformer tank set 1 2015/8/14
4 Share Power Co.,Ltd Anhui Lingbi photovoltaic project
35kV Pad-mounted
substation
set 18 2015/7/15
5
China Huarong Financial Leasing
Co.,Ltd
Shandong Linuo Yinan photovoltaic
project
110/10kV prefabricated
substation
set 1 2015/7/9
6
China Huarong Financial Leasing
Co.,Ltd
Shandong Linuo Yinan photovoltaic
project
Cabinet set 2 2015/7/9
7
China Huarong Financial Leasing
Co.,Ltd
Shandong Linuo Yinan photovoltaic
project
35/0.4kV Compact
substation
set 30 2015/7/9
8 Guangdong East Power Co.,Ltd
East Shenmu 20MW photovoltaic
project
35kV Pad-mounted
substation
set 14 2015/7/7
9
Zhongli Talesun Solar Technology
Co., Ltd
Zhongli Talesun Guixi 50MW
project
35kV Prefabricated
substation
set 1 2015/6/30
10
Institute of Electrical Engineering,
Chinese Academy of Sciences
Institute of Electrical Engineering,
Chinese Academy of Sciences
project
10/0.4kV Compact
substation
set 1 2015/6/27
Solar project reference list

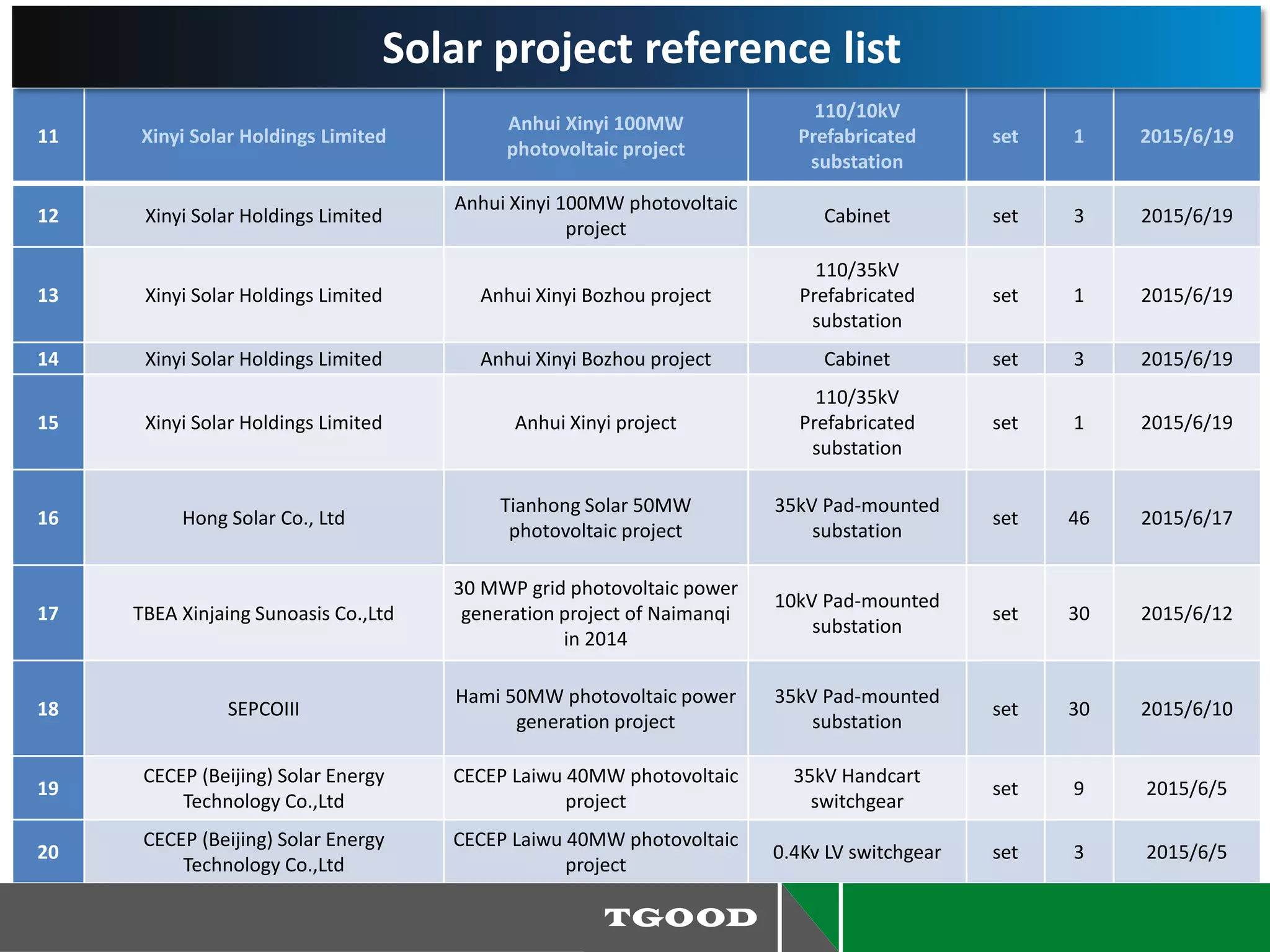

58. 11 Xinyi Solar Holdings Limited
Anhui Xinyi 100MW
photovoltaic project
110/10kV
Prefabricated
substation
set 1 2015/6/19
12 Xinyi Solar Holdings Limited
Anhui Xinyi 100MW photovoltaic
project
Cabinet set 3 2015/6/19
13 Xinyi Solar Holdings Limited Anhui Xinyi Bozhou project
110/35kV
Prefabricated
substation
set 1 2015/6/19
14 Xinyi Solar Holdings Limited Anhui Xinyi Bozhou project Cabinet set 3 2015/6/19
15 Xinyi Solar Holdings Limited Anhui Xinyi project
110/35kV
Prefabricated
substation
set 1 2015/6/19
16 Hong Solar Co., Ltd
Tianhong Solar 50MW
photovoltaic project
35kV Pad-mounted
substation
set 46 2015/6/17
17 TBEA Xinjaing Sunoasis Co.,Ltd
30 MWP grid photovoltaic power
generation project of Naimanqi
in 2014
10kV Pad-mounted
substation
set 30 2015/6/12
18 SEPCOIII
Hami 50MW photovoltaic power
generation project
35kV Pad-mounted
substation
set 30 2015/6/10
19
CECEP (Beijing) Solar Energy
Technology Co.,Ltd
CECEP Laiwu 40MW photovoltaic
project
35kV Handcart
switchgear
set 9 2015/6/5
20
CECEP (Beijing) Solar Energy
Technology Co.,Ltd
CECEP Laiwu 40MW photovoltaic
project
0.4Kv LV switchgear set 3 2015/6/5
Solar project reference list

59. 21
Zhongli Talesun Solar Technology Co.,
Ltd
Ningxia Shizuishan photovoltaic
power station project
35kV Pad-mounted
substation
set 31 2015/5/27
22
Zhongli Talesun Solar Technology Co.,
Ltd
Ningxia Shizuishan photovoltaic
power station project
35kV Transformer tank set 1 2015/5/27
23
Qingdao Bulutaike Solar Energy
Technology Co.,Ltd
Xinshunfeng Yishui New World
project
10kV Pad-mounted
substation
set 10 2015/4/19
24 TBEA Xinjiang Sunoasis Co.,Ltd
Hami photovoltaic project in
Xinjiang
35kV Pad-mounted
substation
set 2 2015/1/21
25
China Power Xibei Engineering
Corporation Limited
Hami photovoltaic park project
35kV Pad-mounted
substation
set 23 2014/11/27
26
Qingdao Changsheng Solar Power
Science and Technology Co.,Ltd
Yinchuan photovoltaic
greenhouse power generating
project
35kV Compact
Substation
set 1 2014/11/24
27 Zonergy Co.,Ltd Zonergy Co.,Ltd project
35kV Pad-mounted
substation
set 60 2014/11/12
28
Qinghai Beixiang New Energy
Development Co.,Ltd
Qinghai Beixiang photovoltaic
project
35kV Pad-mounted
substation
set 8 2014/10/30
29 Kenlihengtai New Energy Co.,Ltd
Kenlidongji 30MWp grid-
connected photovoltaic power
generation project
35kV Pad-mounted
substation
set 27 2014/10/30
30 Zonergy Co.,Ltd
Zonergy Co.,Ltd Zibo photovoltaic
project
10/0.4kV Compact
Substation
set 6 2014/10/30
Solar project reference list

60. 31
Qingdao Changsheng Solar Power
Science and Technology Co.,Ltd
Changsheng Solar Power project
10/0.4kV Compact
Substation
set 18 2014/10/23
32
The IT Electronics Eleventh Design ＆
Research Institute Scientific
Technological Engineering Corporation
Limited
The second phase of Bayin
project in Inner Mongolia
35kV Pad-mounted
substation
set 35 2014/10/15
33
The IT Electronics Eleventh Design ＆
Research Institute Scientific
Technological Engineering Corporation
Limited
The second phase of Bayin
project in Inner Mongolia
35kV Pad-mounted
substation
set 20 2014/10/15
34
Qingyuan Yijie New Energy Engineering
Co.,Ltd
Qingyuan Yijie New Energy
Engineering Co.,Ltd grid-
connected photovoltaic power
generation project
35kV Pad-mounted
substation
set 28 2014/10/13
35 TBEA Xinjiang Sunoasis Co.,Ltd
TBEA Xinjiang Sunoasis Co.,Ltd
project
35kV Pad-mounted
substation
set 37 2014/9/26
36 ZH-PV Co.,Ltd
Enfei Zhongning Solar Power
Station project
35kV Pad-mounted
substation
set 30 2014/9/20
37
Wuxi Industrial Equipment Installation
Co.,Ltd
Ningxia Wuzhong addiction
treatment centre project
35kV Pad-mounted
substation
set 9 2014/9/10
38 Zhongli Talesun Solar Co.,Ltd
Zhongli Talesun Solar Co.,Ltd
project
35kV Pad-mounted
substation
set 16 2014/8/18
39
The IT Electronics Eleventh Design ＆
Research Institute Scientific
Technological Engineering Corporation
Limited
Sishui photovoltaic power
generation project
35kV Pad-mounted
substation
set 18 2014/8/18
40
Qinghai Huanghe Hydroelectric
Development Co.,Ltd.
Qinghai Huanghe Golmud project
35kV Pad-mounted
substation
set 39 2014/6/10
Solar project reference list

61. 41 Zonergy Co.,Ltd
Zonergy Co.,Ltd Zibo Solar
Power project
10/0.4kV Compact
Substation
set 7 2014/6/6
42 CECEP Solar Energy Technology Co.,Ltd Jilin Nantao project of CECEP
10kV Pad-mounted
substation
set 10 2014/6/3
43
Zhongli Tenghui Photovoltaic
Technology Co.,Ltd
Hami project in Xinjiang
35kV Pad-mounted
substation
set 22 2014/5/26
44
Qingdao Changsheng Solar Power
Science and Technology Co.,Ltd
Qingdao photovoltaic project
35/0.4kV Compact
Substation
set 19 2014/5/8
45
Qingdao Changsheng Solar Power
Science and Technology Co.,Ltd
30MWa photovoltaic generation
project in Shouyang
35/0.4kV Compact
Substation
set 29 2014/4/22
46
Qinghai Huanghe Hydroelectric
Development Co.,Ltd.
Qinghai Huanghe Hydroelectric
Development Co.,Ltd. project
35kV Pad-mounted
substation
set 5 2013/12/2
47 SEPCOⅢ
New Energy Fukang 20MWp
photovoltaic generation project
in Xinjiang
35kV Pad-mounted
substation
set 20 2013/10/20
48
Zhongwei Hengji Exploit Photovoltaic
Power Co.,Ltd
Zhongwei Hengji Exploit
photovoltaic project
35kV Pad-mounted
substation
set 10 2013/9/26
49 SEPCOⅢ
100MW photovoltaic generation
project
35kV Pad-mounted
substation
set 21 2013/9/25
50 SEPCOⅢ
100MW photovoltaic generation
project
10kV Pad-mounted
substation
set 1 2013/9/25
Solar project reference list

62. 51
Qinghai Huanghe Hydroelectric
Development Co.,Ltd.
8MWP grid-connected
photovoltaic power generation
project in Golmud
35kV Pad-mounted
substation
set 8 2013/9/18
52
Shenhua Fuzhou Luoyuan Bay Electriciry
Co.,Ltd
Shenhua Fujian Luoyuan Bay
photovoltaic power generation
project
10/0.4kV Compact
Substation
set 4 2013/9/11
53
Huaneng New Energy Guangxi Wind
Power Project Preparatory Office
Fuchuan Jinziling wind power
plant project
10/0.4kV Compact
Substation
set 1 2013/8/19
54
Fuchuan New Energy Wind Power
Generation Co.,Ltd
Fuchuan changfeng wind power
project in Guangxi
10/0.4kV Compact
Substation
set 1 2013/7/12
55
China Power Investment Group Goods
and Materials Equipment Branch
Company
200MWP grid-connected
photovoltaic power generation
project
35kV Pad-mounted
substation
set 50 2013/5/29
56
China Power Investment Group Goods
and Materials Equipment Branch
Company
Longyangxia 320MWp
photovoltaic power generation
project
35kV Pad-mounted
substation
set 64 2013/4/16
57 China Water ＆ Electricity Group Dunhuang 20kwp station project
35kV Pad-mounted
substation
set 20 2012/12/28
58 China Water ＆ Electricity Group Dunhuang 20kwp station project
10kV Pad-mounted
substation
set 2 2012/12/28
Solar project reference list

63. Reference List

64. www.tgood.com
Thank You
1205, Emirates Concorde - Office Tower
Al Maktoom Street, Riggat Al Buteen,
Deira, Dubai - UAE
P.O. BOX: 413884
T: +971 43454596
F: +971 43454504
mena@tgood.com
