This document describes Honeywell's solar product series, which includes 6 items: 1) household solar water heaters, 2) DIY solar and combustion solar water heaters, 3) remote control solar hot water centers, 4) roof PV on-grid power stations, 5) PV guard house total solutions, and 6) solar street lighting systems. Each item provides technical specifications and features of Honeywell's solar energy solutions for residential, commercial, and industrial applications.
More Related Content
Similar to 120816 solar products overview presentation full range
120816 solar products overview presentation full range
- 1.
- 2. 2 Solar Products Series 2 DIY Solar& Combustion Solar Water Heater 4 Roof PV On-grid Power Station 3 Remote Control Solar Hot Water Center 5 PV Guard House Total Solutions 1 Household Solar Water Heater 6 Solar Street Lighting System

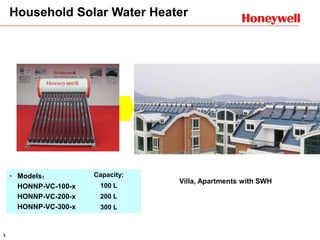

- 3. 3 • Models： HONNP-VC-100-x HONNP-VC-200-x HONNP-VC-300-x Capacity: 100 L 200L 300 L Villa, Apartments with SWH Household Solar Water Heater

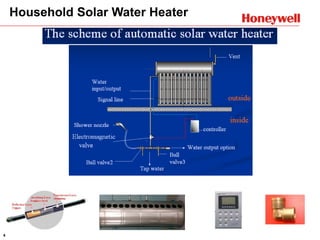

- 4. 4 Household Solar WaterHeater
- 5. 5 Main features: • PUFoam with Honeywell’s green blowing agent: 245fa ; • K factor with 245fa≤0.019w/(m.K)(N ormal:0.024w/(m.K)） • Resist pressure :250kPa, higher than normal PU Foam 66% • Reliability and stability; • High quality sensors ensure long lifespan. • Anti-corrosion; • Magnesium Replacement for good health; Household Solar Water Heater

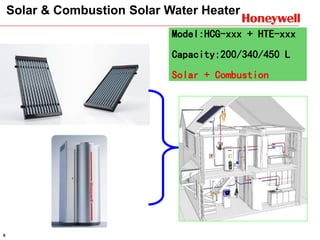

- 6. 6 Model:HCG-xxx + HTE-xxx Capacity:200/340/450L Solar + Combustion Solar & Combustion Solar Water Heater

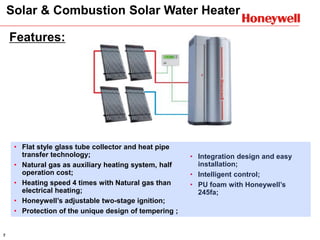

- 7. 7 Features: • Integration designand easy installation; • Intelligent control; • PU foam with Honeywell’s 245fa; • Flat style glass tube collector and heat pipe transfer technology; • Natural gas as auxiliary heating system, half operation cost; • Heating speed 4 times with Natural gas than electrical heating; • Honeywell’s adjustable two-stage ignition; • Protection of the unique design of tempering ; Solar & Combustion Solar Water Heater
- 8. 8 Remote Control SolarHot Water Center • Global wide remote monitoring • Integrate with building control& energy management system Hotel School Typical Application Commercial/Industrial (Central Heat Water Supply) Features: • Cost effective maintenance • Improved system reliability • Strengthened after market service Benefits to Customers: WEBs Based Controller
- 9. 9 T2T T T6 T T1 T T3 储水箱B储水箱A DCF1 T T5 T4 T M J MDCF2 J P1 P2 P3 控制柜 WALMART Solar Hot WaterCase With RC Principle Project On-site Remote Control Solar Hot Water Center
- 10. 10 Feature 1: Systeminterface of WALMART Solar Hot Water Project with WEBs Remote Control Solar Hot Water Center

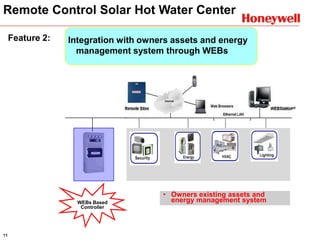

- 11. 11 Feature 2: Integrationwith owners assets and energy management system through WEBs WEBs Based Controller • Owners existing assets and energy management system Remote Control Solar Hot Water Center
- 12. 12 • All theengineering projects provide 3 yr’s guarantee period, in which engineering companies provide free after services • Within the guarantee period, two business trips for after services are necessary, and each costs $1500. Webs based SHW controller’s application will decrease 70%-100% business trip (invalid business trip) • Beyond the guarantee period, four business trips for after services are essential, and each costs $1500. Webs based SHW controller’s application will decrease 50%-100% business trip (invalid business trip) 3150 1050 1050 1050 Total 1 2 3 Value Equation 18000 1500 1500 1500 1500 1500 1500 1500 4 5 6 7 13 14 15 Total Value Value USD USD Year Year Beyond Guarantee periodWithin Guarantee period Key Assumptions Pay $4500 for controller to get at least savings $22000 for EU
- 13. 13 Roof PV On-gridPower Station Gn inverter

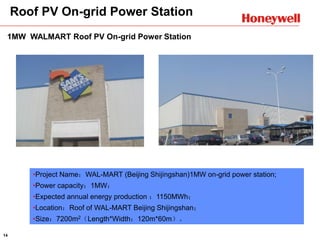

- 14. 14 1MW WALMART RoofPV On-grid Power Station •Project Name：WAL-MART (Beijing Shijingshan)1MW on-grid power station; •Power capacity：1MW； •Expected annual energy production ：1150MWh； •Location：Roof of WAL-MART Beijing Shijingshan； •Size：7200m2（Length*Width：120m*60m）。 Roof PV On-grid Power Station
- 15. 15 Main Systems (Include4 sub-systems) No. Part name Type Quantity Unit 1 Solar Panels CNPV-210 4800 piece 2 Inverter SG250K3 4 set 3 Collection box PVS-16M 16 set 4 Lightning-proof box PMD-D250K 4 set 5 Others Software/supports/cables Sub-system No. Part name Type Quantity Unit 1 Solar Panels CNPV-210 1200 piece 2 Inverter SG250K3 1 set 3 Collection box PVS-16M 4 set 4 Lightning-proof box PMD-D250K 1 set 5 Others Software/supports/cables 1MW WALMART Roof On-grid Station Configuration 1MW System constructure
- 16. 16 1MW WALMART PVStation System Lightning Protection System Monitoring interface Inverter and Communication
- 17. 17 Analysis of economicand social benefits Economic Benefits Power Capacity 1.008MW (1008kw) System Lifespan 25 years Annual Energy Production 1150M wh Total energy production （25 years） 26330M wh Total energy production （25 years): 26330M Wh Saving Standard Carbon（Ton） 10526 CO2 emission reductions (Ton) 26240 SO2 emission reductions (Ton) 790 NOX emission reductions (Ton) 394 Pure Water（Ton） 105274 Social Benefits
- 18. 18 Feature: Solar panelsadopts Honeywell’s back sheet
- 19. 19 5 PV GuardHouse Overall Proposal Diagram of PV Guard House PV Guard House On-site of Honeywell’s R&D Center in Shanghai Zhangjiang Hi-Tec.
- 20.
- 21. 21 Solution 1: System supports1.14kwh per day (based on Shanghai’s solar radiation), can be used to meet 114w fluorescent lamp on 10 hours per day and keep 5 continuous rainy days。
- 22. 22 Solution 2: System supports1.76kwh per day (based on Shanghai’s solar radiation), can be used to meet 56w fluorescent lamp on 10 hours per day and keep 5 continuous rainy days; and meet 50w security system for 24 hours per day 。
- 23. 23 Features： PV Guard housesystem integrates Honeywell’s Security and lighting systems, to provide total solutions Especially suitable for: island, desert, plateau, border, forest, railway and highway along the security and lighting systems, are also suitable for flow control and lighting in some places.
- 24. 24 6 Solar StreetLighting System The Operating Principle The Sketch Map PV Solar Panels Controller Storage Battery DC lighting DischargingCharging

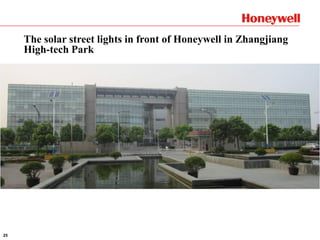

- 25. 25 The solar streetlights in front of Honeywell in Zhangjiang High-tech Park
- 26. 26 • System Advantages: •The solar street lighting system integrates the advanced controlling technology and LED lighting of Honeywell, realizing the optimization and high-reliability of the system. • The lifespan of the LED lighting equipments can reach 50,000 hours and the lighting products are energy-saving, highly bright, low-heat, high- efficiency and of low maintenance cost. • The system panel modules adopt the exclusive backplane technology and organo-silicon cross linking technology of Honeywell, ensuring the lifespan can reach 25 years. • Visualization controllers and pure colloid batteries ensure humanity and the lifespan.
