The document discusses geocell solutions as a soil confinement system that improves load distribution and road performance while reducing costs and maintenance. It outlines the importance of selecting the right geocell type based on factors like elasticity, creep resistance, and tensile strength, with options for both short-term and long-term uses. Additionally, the document highlights different categories of neoloy geocells to optimize project costs and performance.

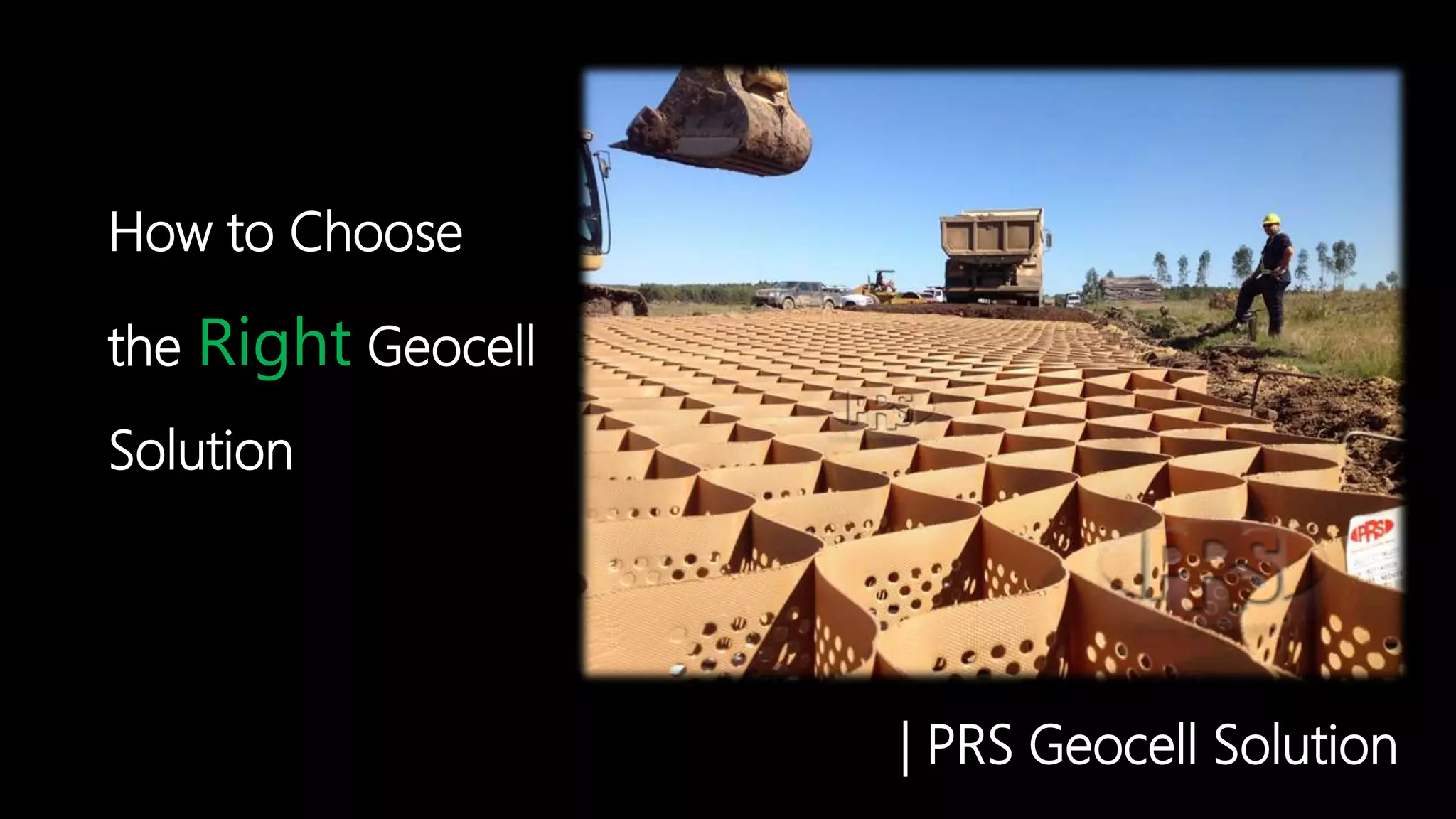

1. | PRS Geocell Solution
How to Choose
the Right Geocell
Solution

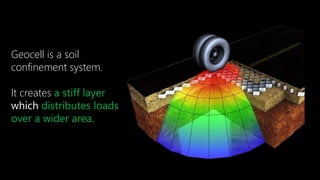

2. Geocell is a soil
confinement system.
It creates a stiff layer
which distributes loads
over a wider area.

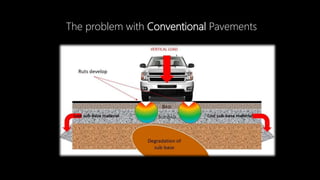

3. The problem with Conventional Pavements

4. Geocell Pavement Design – 50% wider load distribution

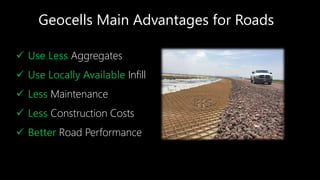

5. Geocells Main Advantages for Roads
 Use Less Aggregates
 Use Locally Available Infill
 Less Maintenance
 Less Construction Costs
 Better Road Performance

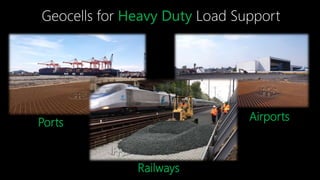

6. Geocells for Heavy Duty Load Support
AirportsPorts
Railways

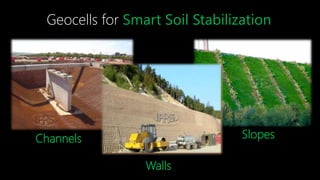

7. Geocells for Smart Soil Stabilization
AirportsPorts
Walls
SlopesChannels

8. | 4 Key Factors for
| Choosing the Right Geocell

9. Soil Confinement Must Be Retained for the Entire Design Life
If the geocell elongates by more
then 3%,
the cell loses its geometry, which
causes the soil confinement and
the structure to fail.
ONE

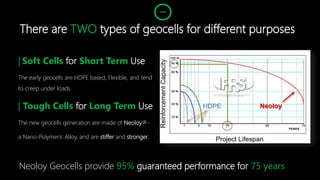

10. There are TWO types of geocells for different purposes
| Soft Cells for Short Term Use
The early geocells are HDPE based, Flexible, and tend
to creep under loads.
| Tough Cells for Long Term Use
The new geocells generation are made of Neoloy®-
a Nano-Polymeric Alloy, and are stiffer and stronger.
Neoloy Geocells provide 95% guaranteed performance for 75 years
TWO

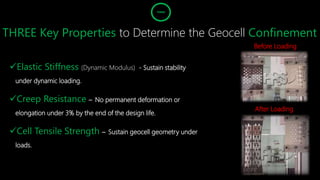

11. THREE Key Properties to Determine the Geocell Confinement
Elastic Stiffness (Dynamic Modulus) - Sustain stability
under dynamic loading.
Creep Resistance – No permanent deformation or
elongation under 3% by the end of the design life.
Cell Tensile Strength – Sustain geocell geometry under
loads.
Before Loading
After Loading
THREE

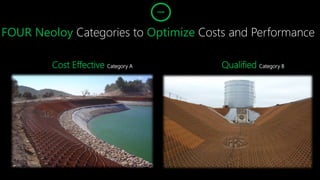

12. FOUR Neoloy Categories to Optimize Costs and Performance
Cost Effective Category A Qualified Category B
FOUR

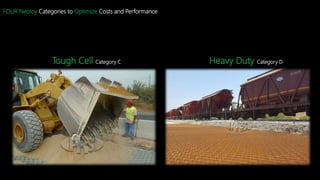

13. FOUR Neoloy Categories to Optimize Costs and Performance
Tough Cell Category C Heavy Duty Category D

14. Optimize your Project Costs &
Performance
Contact Our Geo-Engineering Team
To Start your New Design
www.prs-med.com

15. Neoloy® Geocells
Engineered for Success
