Proxmox Talk - Linux Fest Northwest 2018
1. ProxmoxVE
Open Source LXC and
KVM Managment
Sometimes you just want a nice UI
Linux Fest Northwest 2018
Richard Clark – Crafty Penguins
2. Who am I ?
● Richard Clark
● SRE Consultant with Crafty Penguins, a division of
KerkhoffTechnologies in Chilliwack, BC Canada
● Software Developer (C, Java, Python, etc.)
● System Administrator
● rick@seerickcode.com, richard@craftypenguins.net
● @seerickcode

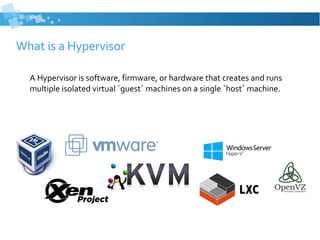

4. What is a Hypervisor
A Hypervisor is software, firmware, or hardware that creates and runs
multiple isolated virtual `guest` machines on a single `host` machine.

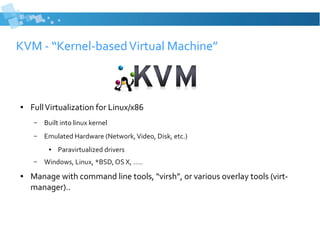

5. KVM - “Kernel-basedVirtual Machine”
● FullVirtualization for Linux/x86
– Built into linux kernel
– Emulated Hardware (Network,Video, Disk, etc.)
● Paravirtualized drivers
– Windows, Linux, *BSD, OS X, …..
● Manage with command line tools, “virsh”, or various overlay tools (virt-
manager)..
6. LXC – Linux Containers
● Operating-system-level virtualization
● Low level system that uses cgroups and isolated namespaces
● Linux based guests only
● Guests share the same kernel
● Manage with `lxc` command line
virtsh, or various 3rd
party overlays
● Make it better with :
– Docker! Docker! Docker!
– LXD
7. KVM or LXC - Different use case
● KVM
– Need to run a non-linux OS
– Need to use different or custom Linux kernel
– Need a virtual video card (Desktop GUI OS)
– Slower, but paravirtualized drivers help (network/storage)
● LXC
– Fast
– Isolation - Other than the kernel, all the underlying setup works almost like a separate
system. Separate repos, upgrades, network config, lower attack surface (install only
what you need)
– Only Linux, and only the same kernel
– No video card emulation *

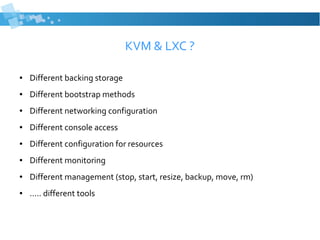

9. KVM & LXC ?
● Different backing storage
● Different bootstrap methods
● Different networking configuration
● Different console access
● Different configuration for resources
● Different monitoring
● Different management (stop, start, resize, backup, move, rm)
● ..... different tools

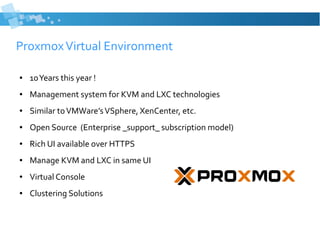

13. ProxmoxVirtual Environment
● 10Years this year !
● Management system for KVM and LXC technologies
● Similar toVMWare’sVSphere, XenCenter, etc.
● Open Source (Enterprise _support_ subscription model)
● Rich UI available over HTTPS
● Manage KVM and LXC in same UI
● Virtual Console
● Clustering Solutions
14. Proxmox Feature Set #1
● Rich HTML based UI for KVM and LXC management
● No proprietary
management tools
needed
● Use LXC when
possible for fastest
isolation
● Use KVM with full
virtual emulation is
needed or non-Linux

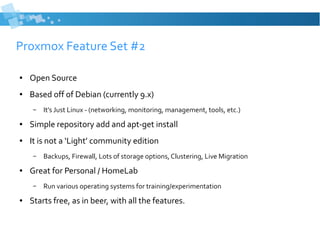

15. Proxmox Feature Set #2
● Open Source
● Based off of Debian (currently 9.x)
– It’s Just Linux - (networking, monitoring, management, tools, etc.)
● Simple repository add and apt-get install
● It is not a ‘Light’ community edition
– Backups, Firewall, Lots of storage options, Clustering, Live Migration
● Great for Personal / HomeLab
– Run various operating systems for training/experimentation
● Starts free, as in beer, with all the features.

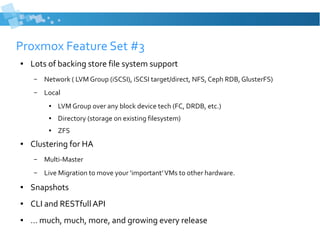

16. Proxmox Feature Set #3
● Lots of backing store file system support
– Network ( LVM Group (iSCSI), iSCSI target/direct, NFS, Ceph RDB, GlusterFS)
– Local
● LVM Group over any block device tech (FC, DRDB, etc.)
● Directory (storage on existing filesystem)
● ZFS
● Clustering for HA
– Multi-Master
– Live Migration to move your ‘important’VMs to other hardware.
● Snapshots
● CLI and RESTfull API
● … much, much, more, and growing every release

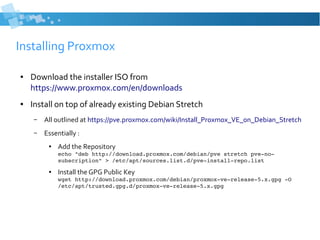

17. Installing Proxmox
● Download the installer ISO from
https://www.proxmox.com/en/downloads
● Install on top of already existing Debian Stretch
– All outlined at https://pve.proxmox.com/wiki/Install_Proxmox_VE_on_Debian_Stretch
– Essentially :
● Add the Repository
echo "deb http://download.proxmox.com/debian/pve stretch pveno
subscription" > /etc/apt/sources.list.d/pveinstallrepo.list
● Install the GPG Public Key
wget http://download.proxmox.com/debian/proxmoxverelease5.x.gpg O
/etc/apt/trusted.gpg.d/proxmoxverelease5.x.gpg
18. Installing Proxmox.. part 2
● Setup the a bridged network
– aptget install bridgeutils
– Set a fixed static IP on a bridge (/etc/network/interfaces)
auto vmbr0
iface vmbr0 inet static
address 10.1.1.101/24
bridge_ports none
bridge_stp off
bridge_fd 0
– Add the IP and hostname to /etc/hosts
10.1.1.101 proxmox1.example.com proxmox1 pvelocalhost
– Reboot to take effect
● Update repository and install
– aptget update && aptget distupgrade
aptget install proxmoxve postfix openiscsi
Turn off Slack
Turn off Skype
Turn off Stuff
Switching laptops mid OK ?
Seating
Richard Clark
SRE Consultant Crafty Penguins
SRE -> Jack of all trades
Software Developer Various Languages
Systems Administrator
Contact details there
Dick nickname for Richard
Dick and Jane Childrens books
I am hear to talk about Proxmox
Who has heard of proxmox ?
Who has used proxmox ?
Amazing Laundry Detergent
Glad you took the time to attend my seminar
Exciting Business Opportunity
Own your own business
Selling Proxmox Door to Door
Coupons for the Free Knife set will be handed out at the end of the presentation
All in one management system for all your VM needs
SOME BACKGROUND
Some Examples
Virtualbox, VMWare
Xen/KVM
HyperV
- Maximize the use of your hardware
- Isolation for different needs
Containerization Systems
Under LInux
Let you do kind of the same thing
Less Isolated
Light
Talk about the components we care about for Proxmox
The Hypervisor Proxmox uses
Full Hardware virtualization
Most OS systems you can throw at it
Paravirtualized - Light Weight Emulation
API instead of Device Driver on Pretend
Next part of the background
Containers - Light Weight Guest OS on to host
Past the Kernel / Userspace / Sandbox
On Linux, the “built in” container system is LXC
Kernel must be the same - Linux Guests only
Tools to manage - LXC, VirtSH, etc.
Low Level - Docker LXD
Non Linux OS - Why?
Should we use KVM or LXC ?
Why Not Both
Speed up at the end
Chaos, Building
Earthquakes
Volcanos
The dead rising from the grave
Human Sacrifice
Dogs andCat’s living together
Mass Hysteria
For years of darknesss is upon us
7 Years, 1.9
Not affiliated with Proxmox
Use at work
..Home lab
bare metal
Install right after debian
Saltstack
7 Years, 1.9
Not affiliated with Proxmox
Use at work
..Home lab
bare metal
Install right after debian
Saltstack
KVM and LXC in one management pane
Probably main benefit
NO Proprietary binary to install that is not supported on your workstation, just to manage your guests
LXC for light weight and fast LInux
KVM when full hardware emulation or a different OS is needed.
Based off Debian:
- Favorite version of Vim, to edit config files
- Favorite version of Emacs - why bother - Probably have equivalent to Proxmox baked in somehow.
Repo Add, Apt Get install
Not a ‘lite’ community edition
- Backups, Firewall, storage management, Clustering
- Live Migrations - others do it, not for free
Homelab:
- Solaris, FreeBSD, Ubuntu 18.04, Windows Game server, the list goes on
Starts at Free as in Beer, with all the features
KVM and LXC machines need somewhere to be
Network Based
Local
ZFS Couple TB of Ram
Clustering
Multi master
Snapshot Handling baked in
Filesytem support to Turn off, Image, Turn on.
Backup System
Talked about the main features
Lets see this thing get installed
