This document discusses clustering, high availability (HA), and software-defined networking (SDN) using Proxmox. It provides steps for breaking a Proxmox cluster and removing nodes. It also covers configuring HA using ZFS and Ceph storage pools, monitoring Ceph, and using Open vSwitch for SDN. The document proposes an SDN architecture with Proxmox involving core, inside, and EVPN zones connected via VXLAN and VLAN networks.

1. PROXMOX: CLUSTERING,
HA, SDN,
Fahad Ibrar

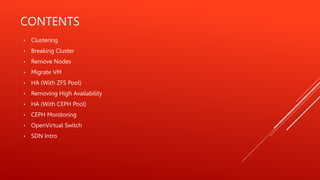

2. CONTENTS
• Clustering
• Breaking Cluster
• Remove Nodes
• Migrate VM
• HA (With ZFS Pool)
• Removing High Availability
• HA (With CEPH Pool)
• CEPH Monitoring
• OpenVirtual Switch
• SDN Intro

3. BREAKING OF CLUSTER

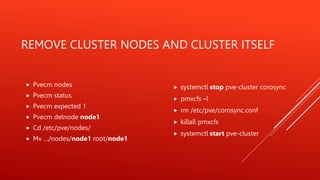

4. REMOVE CLUSTER NODES AND CLUSTER ITSELF
 systemctl stop pve-cluster corosync
 pmxcfs –l
 rm /etc/pve/corosync.conf
 killall pmxcfs
 systemctl start pve-cluster
 Pvecm nodes
 Pvecm status
 Pvecm expected 1
 Pvecm delnode node1
 Cd /etc/pve/nodes/
 Mv …/nodes/node1 root/node1

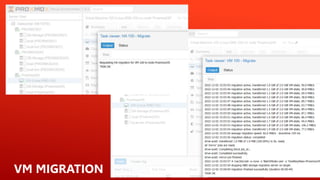

5. ARCHITECTURE
VM MIGRATION

6. HIGH AVAILABILITY
(USING ZFS POOL)

7. HIGH AVAILABILITY TESTING

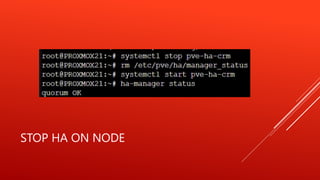

8. STOP HA ON NODE

9. HIGH AVAILABILITY
(USING CEPH POOL)

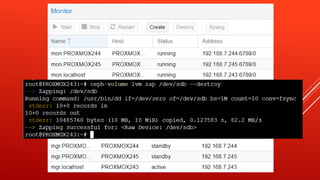

CEPH INSTALLATION

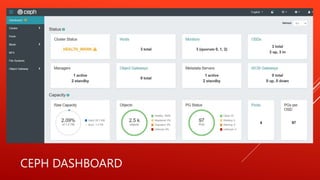

11. CEPH DASHBOARD

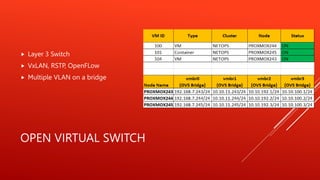

12. OPEN VIRTUAL SWITCH
 Layer 3 Switch
 VxLAN, RSTP, OpenFLow
 Multiple VLAN on a bridge

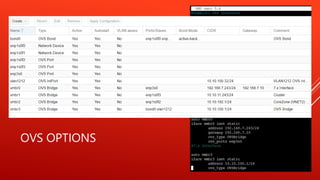

13. OVS OPTIONS

14. SOFTWARE DEFINED NETWORKING
• Control Plane and Data Plane
• Manageability for Eliminating Complexity
• Scalability

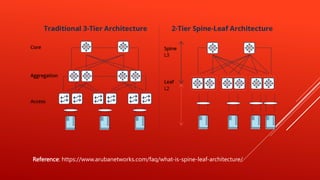

15. Reference: https://www.arubanetworks.com/faq/what-is-spine-leaf-architecture/

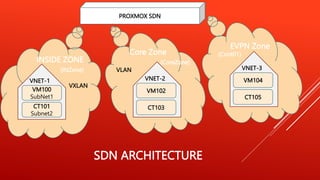

16. Core Zone
(CoreZone)
VNET-2
SDN ARCHITECTURE
PROXMOX SDN
VM100
SubNet1
VM102
CT101
Subnet2
CT103
INSIDE ZONE
(INZone)
VNET-1
EVPN Zone
(Cont01)
VNET-3
VM104
CT105
VXLAN
VLAN

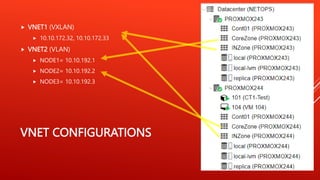

17. VNET CONFIGURATIONS
 VNET1 (VXLAN)
 10.10.172.32, 10.10.172.33
 VNET2 (VLAN)
 NODE1= 10.10.192.1
 NODE2= 10.10.192.2
 NODE3= 10.10.192.3
