1. Surgical & Prosthetic Components of IS System
Impression Technique
IS Abutments & Prosthetic Procedure
PROSTHETIC PROCEDURE
Prosthetic procedure 2012 Ver.1

2. Chapter 1. Surgical & Prosthetic Components of IS System- 5
I. IS Fixture
II. IS Cover Screw
III. IS Healing Abutment
IV. IS Impression Coping
V. Lab Analog

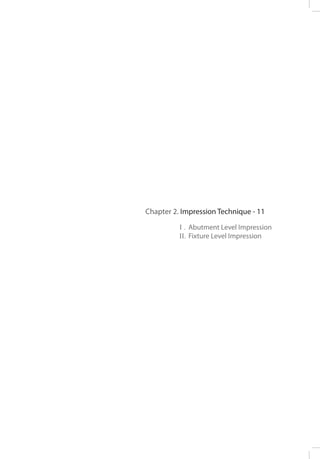

Chapter 2. Impression Technique - 11
I. Abutment Level Impression
II. Fixture Level Impression
Chapter 3. IS Abutments & Prosthetic Procedure - 18
I. IS Solid Abutment
II. IS Cemented Abutment
III. IS SCRPR
Multi Abutment
IV. IS UCLA Abutment
V. IS Ball Abutment
Contents

3. Chapter 1. Surgical & Prosthetic Components of IS System- 5
I IS Fixture
II. IS Cover Screw
III. IS Healing Abutment
IV. IS Impression Coping
V. Lab Analog

4. Chapter 1
Surgical & Prosthetic Components of IS System
Surgical & Prosthetic Components of IS System - Neobiotech6
I. IS Fixture

5. Dental Solutions
Surgical & Prosthetic Components of IS System - Neobiotech
Dental Solutions - Neobiotech 7
II. IS Cover Screw

6. Chapter 1
Surgical & Prosthetic Components of IS System
Surgical & Prosthetic Components of IS System - Neobiotech8

7. Dental Solutions
Surgical & Prosthetic Components of IS System - Neobiotech
Dental Solutions - Neobiotech 9
1.2 hex
screw
R Long
screw
R

8. Chapter 1
Surgical & Prosthetic Components of IS System
Surgical & Prosthetic Components of IS System - Neobiotech10
V. Lab Analog

10. Chapter 2
Impression Technique
Impression Technique - Neobiotech12

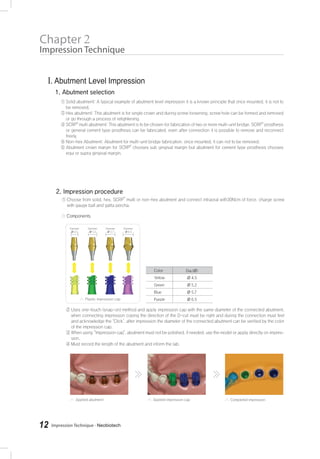

I. Abutment Level Impression
Components
R
R R
R

11. Dental Solutions
Impression Technique - Neobiotech
Dental Solutions - Neobiotech 13
After impression setting, to protect the intraoral abutment and the gingiva, use a snap-on type protective cap.
4. Production of models
Components
Components

12. Chapter 2
Impression Technique
Impression Technique - Neobiotech14
Components & Tools
R
R

13. Dental Solutions
Impression Technique - Neobiotech
Dental Solutions - Neobiotech 15
① Choose a transfer type impression coping with the same diameter of the healing abutment.
② Hand tighten with the use of Impression coping postioner. (Impression coping positioner is a tool designed to
reposition coping’s hex with ease, with one hand.)
③ Remove impression coping and connect lab analog with 10 Ncm.
④ According to the D-cut direction, reposition coping on impression material.
⑤ Duplicate gingiva then with plaster finalize modeling.
Transfer type
impression coping

16. IS Abutments & Prosthetic Procedure- Neobiotech18
Chapter 3
IS Abutments & Prosthetic Procedure

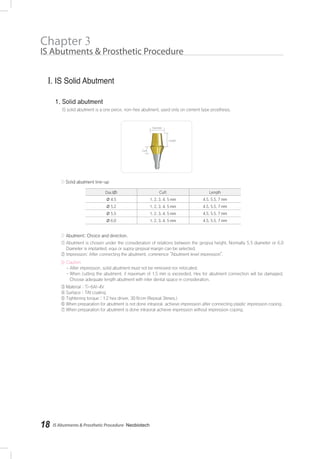

I. IS Solid Abutment

17. Dental Solutions - Neobiotech 19
Dental Solutions
IS Abutments & Prosthetic Procedure - Neobiotech

18. IS Abutments & Prosthetic Procedure- Neobiotech20
Chapter 3
IS Abutments & Prosthetic Procedure
Components

19. Dental Solutions - Neobiotech 21
Dental Solutions
IS Abutments & Prosthetic Procedure - Neobiotech
With abutment cutting
With abutment cutting
R

20. IS Abutments & Prosthetic Procedure- Neobiotech22
Chapter 3
IS Abutments & Prosthetic Procedure
R
R

21. Dental Solutions - Neobiotech 23
Dental Solutions
IS Abutments & Prosthetic Procedure - Neobiotech
Flow chart for IS cement abutment

22. IS Abutments & Prosthetic Procedure- Neobiotech24
Chapter 3
IS Abutments & Prosthetic Procedure
Prosthetic procedure
Components & Tools

23. Dental Solutions - Neobiotech 25
Dental Solutions
IS Abutments & Prosthetic Procedure - Neobiotech
Components
Case in need of abutment cutting
Plastic coping

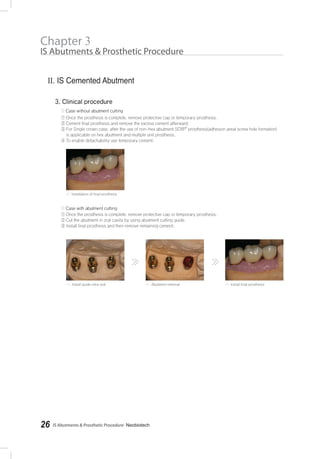

24. IS Abutments & Prosthetic Procedure- Neobiotech26
Chapter 3
IS Abutments & Prosthetic Procedure
R

25. Dental Solutions - Neobiotech 27
Dental Solutions
IS Abutments & Prosthetic Procedure - Neobiotech

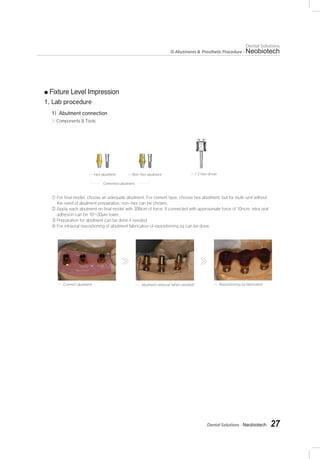

Fixture Level Impression

26. IS Abutment Prosthetic Procedure - Neobiotech28
Chapter 3
IS Abutment & Prosthetic Procedure
Bridge crown : Non-hex abutment
R

28. IS Abutments & Prosthetic Procedure- Neobiotech30
Chapter 3
IS Abutments & Prosthetic Procedure
R
R
R
R
R
R
R
R

29. Dental Solutions - Neobiotech 31
Dental Solutions
IS Abutments & Prosthetic Procedure - Neobiotech
R
R
R

30. IS Abutments & Prosthetic Procedure- Neobiotech32
Chapter 3
IS Abutments & Prosthetic Procedure
R
R
R

31. Dental Solutions - Neobiotech 33
Dental Solutions
IS Abutments & Prosthetic Procedure - Neobiotech

32. IS Abutments & Prosthetic Procedure- Neobiotech34
Chapter 3
IS Abutments & Prosthetic Procedure
R
R
R
R

33. Dental Solutions - Neobiotech 35
Dental Solutions
IS Abutments & Prosthetic Procedure - Neobiotech
RR

34. IS Abutments & Prosthetic Procedure- Neobiotech36
Chapter 3
IS Abutments & Prosthetic Procedure
Components
R
R R

35. Dental Solutions - Neobiotech 37
Dental Solutions
IS Abutments & Prosthetic Procedure - Neobiotech

36. IS Abutments & Prosthetic Procedure- Neobiotech38
Chapter 3
IS Abutments & Prosthetic Procedure

37. Dental Solutions - Neobiotech 39
Dental Solutions
IS Abutments & Prosthetic Procedure - Neobiotech

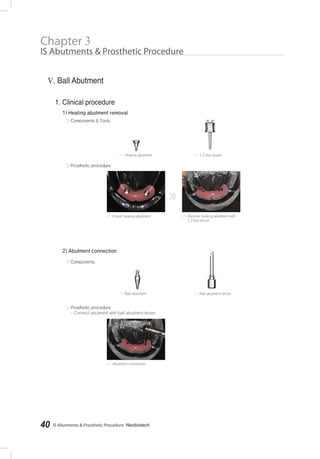

38. IS Abutments & Prosthetic Procedure- Neobiotech40
Chapter 3
IS Abutments & Prosthetic Procedure

39. Dental Solutions - Neobiotech 41
Dental Solutions
IS Abutments & Prosthetic Procedure - Neobiotech

40. IS Abutments & Prosthetic Procedure- Neobiotech42
Chapter 3
IS Abutments & Prosthetic Procedure
