1. 22 Neobiotech CAD/CAM System
Clas-
sifica-
tion
AXIS
Spindle ATC
(Auto
Tool
Chang-
er)
Servo
Motor
Weight
(kg)
Size
W x H x D
(mm)
Milling Type Milling Time
Power RPM
Zirco-
nia
Tita-
nium
abut-
ment
Zirco-
nia
PMMA
Tita-
nium
abut-
ment
CM3i
3
AXIS
275w,
500w
(Choosable)
50,000 ,
100,000
(Choosable)
9ea
Ab-
solute
type
240
840 x 900 x
760
Dry
X
10min 15min
X
CM4i
4
AXIS
3,000W 60,000 9ea 250
Wet 35min
CM5i
5
AXIS
3,000W 60,000 12ea 270
Cameleon Milling Machine
Efficient manufacturing of esthetic works with a wide range of materials by 3~5 Axis milling
Cameleon milling machine is an economically automated open milling system that maximizes the task ef-
ficiency by quickly identifying accurate margin and precise occlusion of all restorations using various re-
storative materials.
The products above could undergo some changes without notice for system improvement

2. Neobiotech CAD/CAM System 23
4 Axis 5 Axis
Parts Module Upgrade System
Cameleon milling machine is the first to adopt the Module Upgrade System that allows axis upgrade from 3
to 5 axis at user’s convenience for economical and work efficiency.
3 Axis
Add 1 Module
Add 1 Module
Add 2 Modules
Z
Y
X
Z
Y
X
Z
Y
X
R
0
180
-30
C
-360
~
360
C
-360
~
360
30
B
3 to 5 axis milling that speeds manufacturing and increases the accuracy of margin
and occlusion. (With module addition 3 -> 5 Axis upgrade)
Excellent milling results with harmonious sending and rotational speed
Generating optimal data suitable for the CAM Software milling
Accurate milling with 3~5 axis

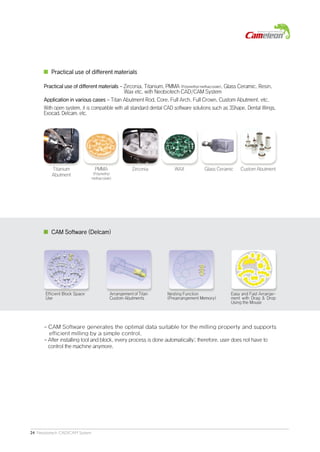

3. 24 Neobiotech CAD/CAM System
CAM Software (Delcam)
Practical use of different materials - Zirconia, Titanium, PMMA (Polymethyl methacrylate), Glass Ceramic, Resin,
Wax etc. with Neobiotech CAD/CAM System
Application in various cases - Titan Abutment Rod, Core, Full Arch, Full Crown, Custom Abutment, etc.
With open system, it is compatible with all standard dental CAD software solutions such as 3Shape, Dental Wings,
Exocad, Delcam, etc.
Practical use of different materials
- CAM Software generates the optimal data suitable for the milling property and supports
efficient milling by a simple control.
- After installing tool and block, every process is done automatically; therefore, user does not have to
control the machine anymore.
Efficient Block Space
Use
Arrangement of Titan
Custom Abutments
Nesting Function
(Prearrangement Memory)
Easy and Fast Arrange-
ment with Drag & Drop
Using the Mouse
PMMA
(Polymethyl
methacrylate)
Zirconia WAXTitanium
Abutment
Custom AbutmentGlass Ceramic

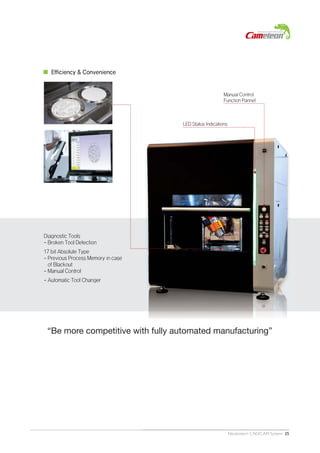

4. Neobiotech CAD/CAM System 25
Efficiency & Convenience
Diagnostic Tools
- Broken Tool Detection
17 bit Absolute Type
- Previous Process Memory in case
of Blackout
- Manual Control
- Automatic Tool Changer
LED Status Indications
Manual Control
Function Pannel
“Be more competitive with fully automated manufacturing”

5. 28 Neobiotech CAD/CAM System
Stable temperature control sintering furnace system
Cameleon Sintering Furnace is the optimal sintering furnace that maintains temperature distribution and
temperature stability control.
● Eco-therm ET spec
Max temp Up to 1,800℃
Sintering Space
(W x H x T)
100 x 90 x 100
Sintering could be
done at one time
20EA
Heating Element 2EA
Temperature
Control
Pid Controller
Program 2Types(1,500℃ / 1,600℃)
Power Supply 220V
*Machine cooling fan attached
Sintering Furnace
● Zirconia Coping & Crown Bridge
● Titan & Hybrid Custom Abutment

6. Neobiotech CAD/CAM System 29
Equipment that can process the surface treatment of oxide coating on a titanium abutment with
electrochemical method application.
Cameleon Anodizer
● Characteristics
Model name Cameleon Anodizer
Body size 380 X 520 X 350 (mm)
Weight 25kg
Voltage 220V
- Data memory (10ea)
- Single jig and multi jig
- Work on 4 abutments simultaneously
- Auto masking function of the connection
- Automatic termination after 10 seconds of
optimal working time
- Automatic off system when door is opened
- Application to various implants
● Jig fabrication
● Application
1) Choose a proper jig that fits to the product, connect abutment to the jig and fix with a screw.
2) Connect a red cable to the connector of a multi-jig. Connect every jigs to the multi-jig.
3) Connect the multi-jig to the cover of water tank.→Abutment is sank under water of the water tank.

7. 30 Neobiotech CAD/CAM System
Cameleon Zirconia Disk is manufactured with 100% Zirconia Powder, pro-
ducted by TOSOH Co,. Ltd., Japan that is recognized around the world.
This disk block offers high quality that has quality certification approved by
GMP, FDA and CE.
Zirconia Disk
Certified quality and esthetic shades
from selected material
Manufactured and qualified under QMS
throughout the entire manufacturing process.
Cameleon Zirconia Disk is highly translucent
but, at the same time, maintains a high flex-
ural rigidity and durability.Cameleon Zirconia
Disk is available in different shades.
USA Europe
ISO International KGMP Korea

8. Neobiotech CAD/CAM System 31
* Customized order could be done in accordance with the customers’ needs.
Type Size(mm) Product Code
S Block
100 x 10 DISK10T(S)
100 x 12 DISK12T(S)
100 x 14 DISK14T(S)
100 x 16 DISK16T(S)
100 x 18 DISK18T(S)
100 x 20 DISK20T(S)
100 x 22 DISK22T(S)
100 x 25 DISK25T(S)
B Block
100 x 10 DISK10T(B)
100 x 12 DISK12T(B)
100 x 14 DISK14T(B)
100 x 16 DISK16T(B)
100 x 18 DISK18T(B)
100 x 20 DISK20T(B)
100 x 22 DISK22T(B)
100 x 25 DISK25T(B)
ET Block
100 x 10 DISK10T(ET)
100 x 12 DISK12T(ET)
100 x 14 DISK14T(ET)
100 x 16 DISK16T(ET)
100 x 18 DISK18T(ET)
100 x 20 DISK20T(ET)
100 x 22 DISK22T(ET)
100 x 25 DISK25T(ET)
● Physical Properties and
Ingredients
B Type S Type ET Type
Physical Property
Strength
Translucency
Bending Strength 1,000Mpa ~ 1,250Mpa
VickersHardness 1,250 Hv10
Fracture
Toughness
5MPam0.5
Ingredients (wt%)
ZrO2
+ HfO2
+ Y2
O3
+ Al2
O3
>99.9
Y2
O3
5±0.2
Al2
O3
≤0.25
Best
● Types of Cameleon Block
B Type High S trength Long Bridge or Opaque Core
S Type Transparent Full Crown (1,500℃)
ET Type
Transparency and for Full Crown manu-
facturing (1600℃)

9. 32 Neobiotech CAD/CAM System
Titanium Grade 5 (Ti-6Al-4V)
Cameleon Titanium Block is a safe and guaranteed block ap-
proved by the Korean Food and Drugs Administration. Its library
is also constructed for various applications of implant systems.
Type Classification Titanium Block Product name Link Product name
Scan Body
Product name
InternalSub.
(IS)
Neo
Hex
10.0 ISBKH10NB 4.0 ISLKH4035NB
ISSBH50NB
14.0 ISBKH14NB 4.5 ISLKH4535NB
5.0 ISLKH5035NB
Non-Hex
10.0 ISBKN10NB 4.0 ISLKN4035NB
14.0 ISBKN14NB 4.5 ISLKN4535NB
5.0 ISLKN5035NB
SCRP
10.0 ISBKS10NB 4.0 ISLKS4035NB
14.0 ISBKS14NB 4.5 ISLKS4535NB
5.0 ISLKN5035NB
Osstem
Hex
10.0 ISBKH10OS 4.0 ISLKH4035OS
ISSBH50OS14.0 ISBKH14OS 4.5 ISLKH4535OS
5.0 ISLKH5035OS
10.0 ISBKH10OSM ISLKH4035OSM ISSBH50OSM
Non-Hex
10.0 ISBKN10OS
ISSBH50OS
14.0 ISBKN14OS
Dentium
Hex
10.0 ISBKH10DM 4.0 ISLKH4035DM
ISSBH50DM
14.0 ISBKH14DM 4.5 ISLKH4535DM
5.0 ISLKH5035DM
Non-Hex
10.0 ISBKN10DM
14.0 ISBKN14DM
* Status up to 2013.10.06
Titanium Block / Link / Scan body

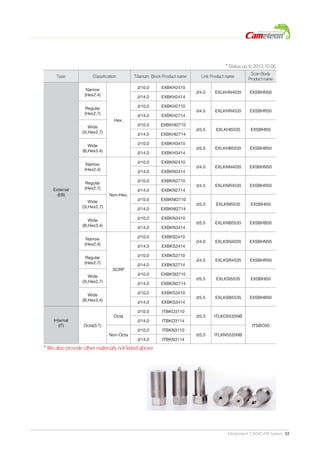

10. Neobiotech CAD/CAM System 33
Type Classification Titanium Block Product name Link Product name
Scan Body
Product name
External
(EB)
Narrow
(Hex2.4)
Hex.
10.0 EXBKH2410
4.0 EXLKHN4035 EXSBHN50
14.0 EXBKH2414
Regular
(Hex2.7)
10.0 EXBKH2710
4.5 EXLKHR4535 EXSBHR50
14.0 EXBKH2714
Wide
(3i,Hex2.7)
10.0 EXBKHI2710
5.5 EXLKHI5535 EXSBHI50
14.0 EXBKHI2714
Wide
(B,Hex3.4)
10.0 EXBKH3410
5.5 EXLKHB5535 EXSBHB50
14.0 EXBKH3414
Narrow
(Hex2.4)
Non-Hex.
10.0 EXBKN2410
4.0 EXLKNN4035 EXSBHN50
14.0 EXBKN2414
Regular
(Hex2.7)
10.0 EXBKN2710
4.5 EXLKNR4535 EXSBHR50
14.0 EXBKN2714
Wide
(3i,Hex2.7)
10.0 EXBKNI2710
5.5 EXLKNI5535 EXSBHI50
14.0 EXBKNI2714
Wide
(B,Hex3.4)
10.0 EXBKN3410
5.5 EXLKNB5535 EXSBHB50
14.0 EXBKN3414
Narrow
(Hex2.4)
SCRP
10.0 EXBKS2410
4.0 EXLKSN4035 EXSBHN50
14.0 EXBKS2414
Regular
(Hex2.7)
10.0 EXBKS2710
4.5 EXLKSR4535 EXSBHR50
14.0 EXBKS2714
Wide
(3i,Hex2.7)
10.0 EXBKSI2710
5.5 EXLKSI5535 EXSBHI50
14.0 EXBKSI2714
Wide
(B,Hex3.4)
10.0 EXBKS3410
5.5 EXLKSB5535 EXSBHB50
14.0 EXBKS3414
Internal
(IT) Octa(3.1)
Octa
10.0 ITBKO3110
5.5 ITLKO5535NB
ITSBO50
14.0 ITBKO3114
Non-Octa
10.0 ITBKN3110
5.5 ITLKN5535NB
14.0 ITBKN3114
* We also provide other materials not listed above.
* Status up to 2013.10.06

11. 34 Neobiotech CAD/CAM System
3M Lava Ultimate
- Material Type : Resin Nano Ceramic
- Shades : 8 Shades &
2 Translucencies
- Size : 12 / 14
- Quantity : 5 Blocks / Pack
- Characteristics :
Long-lasting shade due to wear resistance
Excellent strength and wear resistance
Convenient and fast milling
Resin Ceramic
LOW TRANSLUCENCY HIGH TRANSLUCENCY
SHADE SIZE 12 SIZE 14L SIZE 12 SIZE 14L
Item # Item # Item # Item #
A1 2912A1-LT 2914A1-LT 2912A1-HT 2914A1-HT
A2 2912A2-LT 2914A2-LT 2912A2-HT 2914A2-HT
A3 2912A3-LT 2914A3-LT 2912A3-HT 2914A3-HT
A3.5 2912A3.5-LT 2914A3.5-LT
B1 2912B1-LT 2914B1-LT 2912B1-HT 2914B1-HT
C2 2912C2-LT 2914C2-LT
D2 2912D2-LT 2914D2-LT
Bleach 2912BL-LT 2914BL-LT

12. Neobiotech CAD/CAM System 35
size(mm)
Product
name
Ø4 NT4(4)
Ø3 NT5(3)
Ø2 NT6(2)
size(mm)
Product
name
Ø3 GCNT1(3)
Ø2 GCNT2(2)
Ø1 GCNT3(1)
Shades
Product
name
A1
PMMA(18T)A2
A3
Shades Product name
A1 B1
Coloring
Liquid HL
A2 B2
A3 B3
A4 B4
A1 B1
Coloring
Liquid TL
A2 B2
A3 B3
A4 B4
Brown / Gray Special
Color LiquidOrange / Violet
size(mm)
Product
name
Ø2 NT1(2)
Ø1 NT2(1)
Ø0.5 NT3(0.5)
size(mm)
Product
name
Ø2 RNT1(2)
Ø1 RNT2(1)
Tools & Etc.
Tools are specialized for each material with diamond coating
Functionally structured for better cutting, stability, durability and capability of machining free form
surface with diamond coating
Titan
Product name
WAX(10T)
WAX(14T)
WaxPMMA Coloring Liquid
Glass Ceramic Zirconia Resin
