2015. 02 Ver.4 IS Implant System EB Implant System IT Implant System S-Mini Implant System Surgical Kits Neobiotech IMPLANT SYSTEM SIMPLANTSYSTEM
2 IS Implant System / EB Implant System / IT Implant System / S-Mini / Surgical Kit Neobiotech IMPLANT SYSTEM

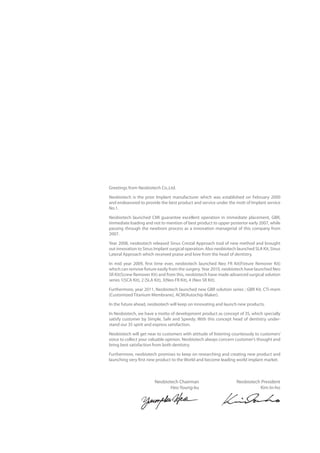

Greetings from Neobiotech Co.,Ltd. Neobiotech is the prior Implant manufacturer which was established on February 2000 and endeavored to provide the best product and service under the mott of Implant service No.1. Neobiotech launched CMI guarantee excellent operation in immediate placement, GBR, immediate loading and not to mention of best product to upper posterior early 2007, while passing through the newborn process as a innovation managerial of this company from 2007. Year 2008, neobiotech released Sinus Crestal Approach tool of new method and brought out innovation to Sinus Implant surgical operation. Also neobiotech launched SLA Kit, Sinus Lateral Approach which received praise and love from the head of dentistry. In mid year 2009, first time ever, neobiotech launched Neo FR Kit(Fixture Remover Kit) which can remove fixture easily from the surgery.Year 2010, neobiotech have launched Neo SR Kit(Screw Remover Kit) and from this, neobiotech have made advanced surgical solution series 1(SCA Kit), 2 (SLA Kit), 3(Neo FR Kit), 4 (Neo SR Kit). Furthermore, year 2011, Neobiotech launched new GBR solution series ; GBR Kit, CTi-mem (Customized Titanium Membrane), ACM(Autochip Maker). In the future ahead, neobiotech will keep on innovating and launch new products. In Neobiotech, we have a motto of development product as concept of 3S, which specially satisfy customer by Simple, Safe and Speedy. With this concept head of dentistry under- stand our 3S spirit and express satisfaction. Neobiotech will get near to customers with attitude of listening courteously to customers’ voice to collect your valuable opinion. Neobiotech always concern customer’s thought and bring best satisfaction from both dentistry. Furthermore, neobiotech promises to keep on researching and creating new product and launching very first new product to the World and become leading world implant market. Neobiotech Chairman Heo Young-ku Neobiotech President Kim In-ho

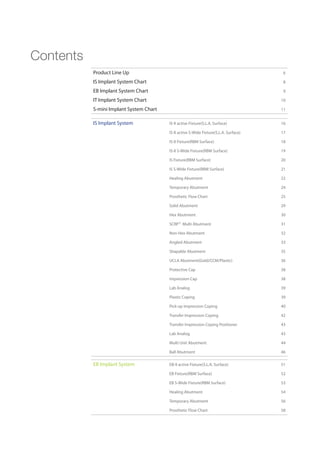

Contents Product Line Up 6 IS Implant System Chart 8 EB Implant System Chart 9 IT Implant System Chart 10 S-mini Implant System Chart 11 IS Implant System IS-II active Fixture(S.L.A. Surface) 16 IS-II active S-Wide Fixture(S.L.A. Surface) 17 IS-II Fixture(RBM Surface) 18 IS-II S-Wide Fixture(RBM Surface) 19 IS Fixture(RBM Surface) 20 IS S-Wide Fixture(RBM Surface) 21 Healing Abutment 22 Temporary Abutment 24 Prosthetic Flow Chart 25 Solid Abutment 29 Hex Abutment 30 SCRP Multi Abutment 31 Non-Hex Abutment 32 Angled Abutment 33 Shapable Abutment 35 UCLA Abutment(Gold/CCM/Plastic) 36 Protective Cap 38 Impression Cap 38 Lab Analog 39 Plastic Coping 39 Pick-up Impression Coping 40 Transfer Impression Coping 42 Transfer Impression Coping Positioner 43 Lab Analog 43 Multi Unit Abutment 44 Ball Abutment 46 EB Implant System EB-II active Fixture(S.L.A. Surface) 51 EB Fixture(RBM Surface) 52 EB S-Wide Fixture(RBM Surface) 53 Healing Abutment 54 Temporary Abutment 56 Prosthetic Flow Chart 58

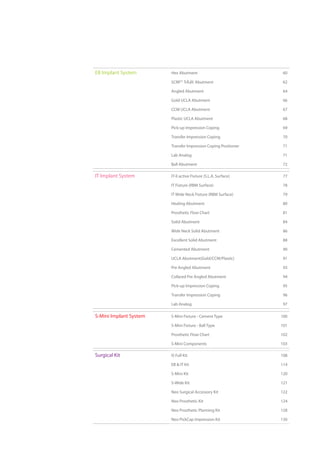

EB Implant System Hex Abutment 60 SCRP Abutment 62 Angled Abutment 64 Gold UCLA Abutment 66 CCM UCLA Abutment 67 Plastic UCLA Abutment 68 Pick-up Impression Coping 69 Transfer Impression Coping 70 Transfer Impression Coping Positioner 71 Lab Analog 71 Ball Abutment 72 IT Implant System IT-II active Fixture (S.L.A. Surface) 77 IT Fixture (RBM Surface) 78 IT Wide Neck Fixture (RBM Surface) 79 Healing Abutment 80 Prosthetic Flow Chart 81 Solid Abutment 84 Wide Neck Solid Abutment 86 Excellent Solid Abutment 88 Cemented Abutment 90 UCLA Abutment(Gold/CCM/Plastic) 91 Pre Angled Abutment 93 Collared Pre Angled Abutment 94 Pick-up Impression Coping 95 Transfer Impression Coping 96 Lab Analog 97 S-Mini Implant System S-Mini Fixture - Cement Type 100 S-Mini Fixture - Ball Type 101 Prosthetic Flow Chart 102 S-Mini Components 103 Surgical Kit IS Full Kit 108 EB & IT Kit 114 S-Mini Kit 120 S-Wide Kit 121 Neo Surgical Accessory Kit 122 Neo Prosthetic Kit 124 Neo Prosthetic Planning Kit 128 Neo PickCap Impression Kit 130
Neobiotech Products6 Product Line Up Implant System Sinus Lift Solution SinusAll Kit IS System EB System IT System S-Mini System IS Full Kit EB / IT Kit S-Mini Kit S-Wide Kit Prosthetic Kit Neo Prosthetic Planning Kit Accessory Kit Neo PickCap Impression Kit Congratulations! You have made an excellent choice. Welcome to the Neobiotech family This catalog contains information of Neobiotech implant system only. To get information of other solution system, Please refer to Neo Solution catalogs. SCA Kit (Sinus Crestal Approach Kit) SLA Kit (Sinus Lateral Approach Kit)
Neobiotech Products 7 GBR Solution CTi-mem (Customized Ti Membrane) ACM (Auto Chip Maker) GBR Kit Peri-implantitis Solution i Brush (Implant Brush) Gingi Brush Dr.Plant R - Brush Digital Solution Cameleon CAD/CAM System Block Neo Guide System Repair Solution FR Kit (Fixture Remover Kit) SR Kit (Screw Remover Kit)
CMI Implant System8 IS Implant System Chart Fixture Healing & Cover Screw Abutment Impression Coping Lab Analog SolidCementUCLATemporaryBall IS-II IS IS-II active IS-II active S-Wide IS-II S-Wide IS S-Wide IS-II active short Abutment Positioner Fixture Level Impression Cap Transfer Pick-up Hex Hex Hex Hex Hex Hex Hex Hex Hex SCRP multi SCRP multi SCRP SCRP multi SCRP multi SCRP multi Non-Hex Non-Hex Non-Hex Non-Hex Non-Hex Clinical Lab Retainer Retainer Housing Housing Non-Hex Non-Hex Non-Hex Non-Hex Solid Angled Straight Shapable Cover Screw Healing Abutment Gold CCM Plastic Impression coping positioner Abutment Level Ball Lab Analog

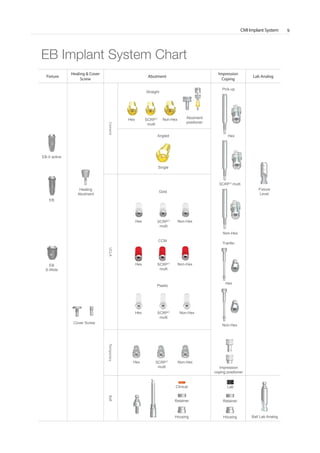

CMI Implant System 9 EB Implant System Chart Fixture Healing & Cover Screw Abutment Impression Coping Lab Analog CementUCLATemporaryBall EB EB-II active EB S-Wide Fixture Level Pick-up Tranfer Hex Hex Hex SCRP multi SCRP multi SCRP multi Non-Hex Non-Hex Non-Hex Single Clinical Lab Retainer Retainer Housing Housing Straight Angled Cover Screw Healing Abutment Impression coping positioner Ball Lab Analog II act Abutment positioner Gold CCM Plastic Hex Hex SCRP multi SCRP multi Non-Hex Non-Hex Hex Hex SCRP multi Non-Hex Non-Hex

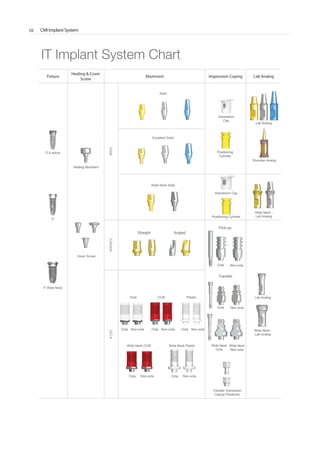

CMI Implant System10 Fixture Healing & Cover Screw Abutment Impression Coping Lab Analog SolidCementUCLA IT Implant System Chart IT-II active IT IT Wide Neck Cover Screw Healing Abutment Solid Excellent Solid Wide Neck Solid Gold CCM Wide Neck CCM Plastic Positioning Cylinder Positioning Cylinder Impression Cap Lab Analog Wide Neck - Lab Analog Lab Analog Wide Neck - Lab Analog Transfer Impression Coping Positioner Shoulder Analog Impression Cap Wide Neck Plastic Pick-up Transfer Octa Octa Octa Octa Octa Octa Octa Wide Neck Octa Non-octa Non-octa Non-octa Non-octa Non-octa Non-octa Non-octa Wide Neck Non-octa IT Straight Angled

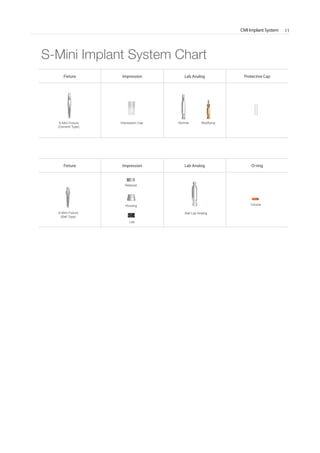

CMI Implant System 11 S-Mini Implant System Chart Fixture Impression Lab Analog Protective Cap Fixture Impression Lab Analog O-ring S-Mini Fixture (Cement Type) S-Mini Fixture (Ball Type) Clinical Lab Retainer Housing Impression Cap Normal Modifying Ball Lab Analog
IS-II active / IS-II active S-Wide / IS-II / IS-II S-wide / IS / IS - Wide Neobiotech IS IMPLANT SYSTEM

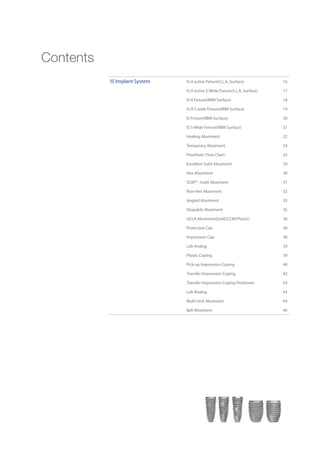

Contents IS Implant System IS-II active Fixture(S.L.A. Surface) 16 IS-II active S-Wide Fixture(S.L.A. Surface) 17 IS-II Fixture(RBM Surface) 18 IS-II S-wide Fixture(RBM Surface) 19 IS Fixture(RBM Surface) 20 IS S-Wide Fixture(RBM Surface) 21 Healing Abutment 22 Temporary Abutment 24 Prosthetic Flow Chart 25 Excellent Solid Abutment 29 Hex Abutment 30 SCRP multi Abutment 31 Non-Hex Abutment 32 Angled Abutment 33 Shapable Abutment 35 UCLA Abutment(Gold/CCM/Plastic) 36 Protective Cap 38 Impression Cap 38 Lab Analog 39 Plastic Coping 39 Pick-up Impression Coping 40 Transfer Impression Coping 42 Transfer Impression Coping Positioner 43 Lab Analog 43 Multi Unit Abutment 44 Ball Abutment 46

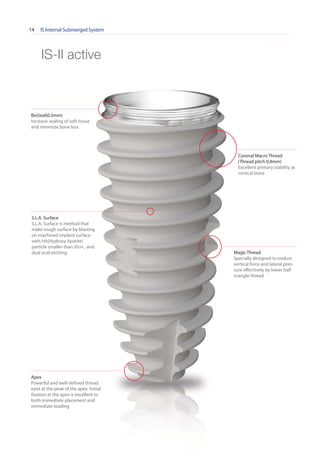

IS Internal Submerged System14 * Scale 1 : 1.1 BioSeal(0.5mm) Increase sealing of soft tissue and minimize bone loss S.L.A. Surface S.L.A. Surface is method that make rough surface by blasting on machined implant surface with HA(Hydroxy Apatite) particle smaller than 50 and dual acid-etching. Magic Thread Specially designed to endure vertical force and lateral pres- sure effectively by lower half triangle thread Coronal Macro Thread (Thread pitch 0.8mm) Excellent primary stability at cortical bone Apex Powerful and well-defined thread exist at the peak of the apex. Initial fixation at the apex is excellent to both immediate placement and immediate loading IS-II active

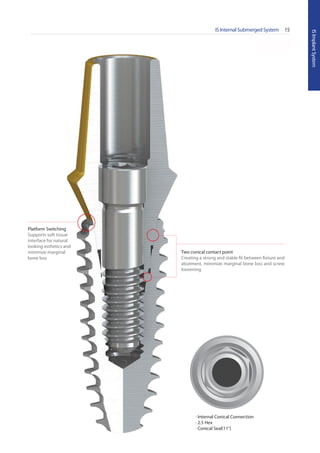

IS Internal Submerged System 15 ISImplantSystem * Scale 1 : 1.1 Platform Switching Supports soft tissue interface for natural looking esthetics and minimize marginal bone loss Two conical contact point Creating a strong and stable fit between fixture and abutment, minimize marginal bone loss and screw loosening ∙ Internal Conical Connection ∙ 2.5 Hex ∙ Conical Seal(11°)

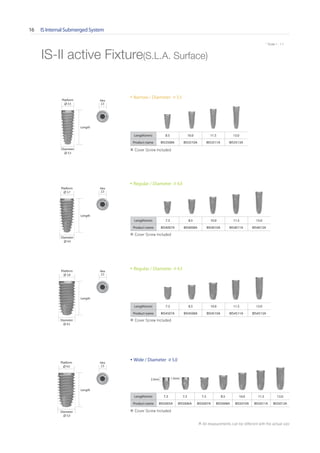

IS Internal Submerged System16 * Scale 1 : 1.1 Platform 3.7 Platform 3.5 ※ Cover Screw Included Platform 3.8 Platform 4.0 IS-II active Fixture(S.L.A. Surface) Length Length Length Length 2.3mm 1.3mm Diameter 3.5 Diameter 4.0 Diameter 4.5 Diameter 5.0 Narrow / Diameter 3.5 Length(mm) 8.5 10.0 11.5 13.0 Product name BIS3508A BIS3510A BIS3511A BIS3513A Regular / Diameter 4.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS4007A BIS4008A BIS4010A BIS4011A BIS4013A Regular / Diameter 4.5 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS4507A BIS4508A BIS4510A BIS4511A BIS4513A Wide / Diameter 5.0 Length(mm) 7.3 7.3 7.3 8.5 10.0 11.5 13.0 Product name BIS5005A BIS5006A BIS5007A BIS5008A BIS5010A BIS5011A BIS5013A Hex 2.5 Hex 2.5 Hex 2.5 Hex 2.5 ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ All measurements can be different with the actual size

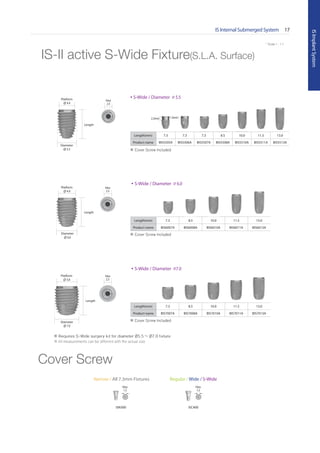

IS Internal Submerged System 17 ISImplantSystem * Scale 1 : 1.1 Platform 4.4 IS-II active S-Wide Fixture(S.L.A. Surface) Length(mm) 7.3 7.3 7.3 8.5 10.0 11.5 13.0 Product name BIS5505A BIS5506A BIS5507A BIS5508A BIS5510A BIS5511A BIS5513A Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS6007A BIS6008A BIS6010A BIS6011A BIS6013A Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS7007A BIS7008A BIS7010A BIS7011A BIS7013A Length Length Length Platform 4.9 Platform 5.8 Diameter 5.5 Diameter 6.0 Diameter 7.0 S-Wide / Diameter 5.5 S-Wide / Diameter 6.0 S-Wide / Diameter 7.0 Hex 2.5 Hex 2.5 Hex 2.5 2.3mm 1.3mm ※ Requires S-Wide surgery kit for diameter Ø5.5 ~ Ø7.0 fixture ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included Cover Screw Narrow / All 7.3mm Fixtures Regular / Wide / S-Wide ISN300 ISC400 Hex 1.2 Hex 1.2 ※ All measurements can be different with the actual size

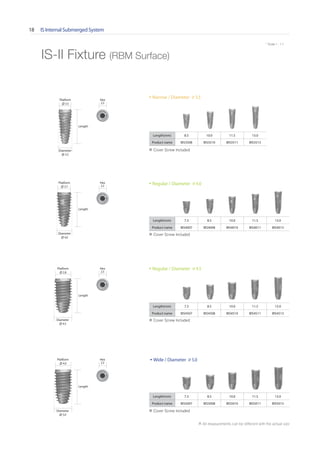

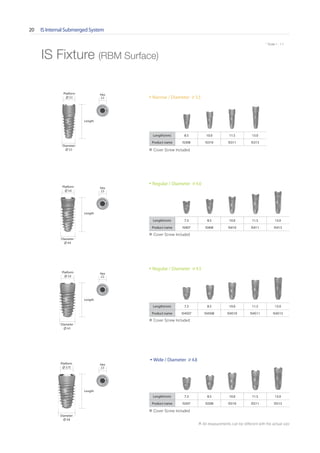

IS Internal Submerged System18 * Scale 1 : 1.1 IS-II Fixture (RBM Surface) Length Length Length Length Platform 3.5 Platform 3.7 Platform 3.8 Platform 4.0 Diameter 3.5 Diameter 4.0 Diameter 4.5 Diameter 5.0 Narrow / Diameter 3.5 Length(mm) 8.5 10.0 11.5 13.0 Product name BIS3508 BIS3510 BIS3511 BIS3513 Regular / Diameter 4.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS4007 BIS4008 BIS4010 BIS4011 BIS4013 Regular / Diameter 4.5 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS4507 BIS4508 BIS4510 BIS4511 BIS4513 Wide / Diameter 5.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS5007 BIS5008 BIS5010 BIS5011 BIS5013 Hex 2.5 Hex 2.5 Hex 2.5 Hex 2.5 ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ All measurements can be different with the actual size

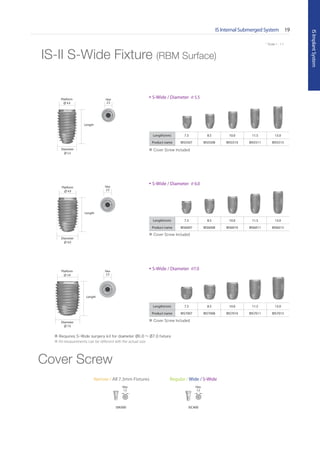

IS Internal Submerged System 19 ISImplantSystem * Scale 1 : 1.1 IS-II S-Wide Fixture (RBM Surface) Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS6007 BIS6008 BIS6010 BIS6011 BIS6013 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS5507 BIS5508 BIS5510 BIS5511 BIS5513 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS7007 BIS7008 BIS7010 BIS7011 BIS7013 Length Platform 4.4 Diameter 5.5 Length Platform 4.9 Diameter 6.0 Length Platform 5.8 Diameter 7.0 S-Wide / Diameter 5.5 S-Wide / Diameter 6.0 S-Wide / Diameter 7.0 ※ Requires S-Wide surgery kit for diameter Ø6.0 ~ Ø7.0 fixture Hex 2.5 Hex 2.5 Hex 2.5 Cover Screw Narrow / All 7.3mm Fixtures Regular / Wide / S-Wide ISN300 ISC400 Hex 1.2 Hex 1.2 ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ All measurements can be different with the actual size
IS Internal Submerged System20 * Scale 1 : 1.1 Platform 3.5 Platform 3.6 Platform 3.6 Platform 3.75 IS Fixture (RBM Surface) Length Length Length Length Diameter 3.5 Diameter 4.0 Diameter 4.5 Diameter 4.8 Narrow / Diameter 3.5 Length(mm) 8.5 10.0 11.5 13.0 Product name IS308 IS310 IS311 IS313 Regular / Diameter 4.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name IS407 IS408 IS410 IS411 IS413 Regular / Diameter 4.5 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name IS4507 IS4508 IS4510 IS4511 IS4513 Wide / Diameter 4.8 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name IS507 IS508 IS510 IS511 IS513 Hex 2.5 Hex 2.5 Hex 2.5 Hex 2.5 ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ All measurements can be different with the actual size

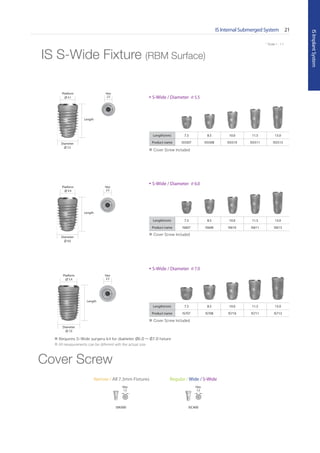

IS Internal Submerged System 21 ISImplantSystem * Scale 1 : 1.1 Platform 5.4 IS S-Wide Fixture (RBM Surface) Length Length Platform 4.4 Length Platform 4.1 Diameter 5.5 Diameter 6.0 Diameter 7.0 S-Wide / Diameter 5.5 S-Wide / Diameter 6.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name IS607 IS608 IS610 IS611 IS613 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name IS5507 IS5508 IS5510 IS5511 IS5513 S-Wide / Diameter 7.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name IS707 IS708 IS710 IS711 IS713 ※ Requires S-Wide surgery kit for diameter Ø6.0 ~ Ø7.0 fixture Hex 2.5 Hex 2.5 Hex 2.5 Cover Screw Narrow / All 7.3mm Fixtures Regular / Wide / S-Wide ISN300 ISC400 Hex 1.2 Hex 1.2 ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ All measurements can be different with the actual size

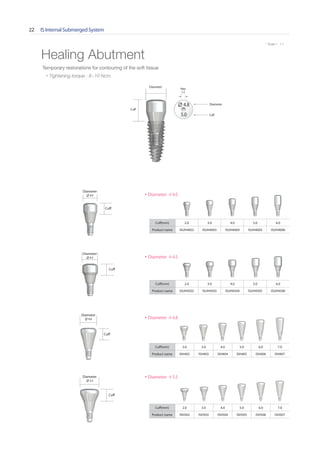

IS Internal Submerged System22 * Scale 1 : 1.1 Healing Abutment Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 Product name ISH402 ISH403 ISH404 ISH405 ISH406 ISH407 Cuff Diameter 4.8 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 Product name ISH502 ISH503 ISH504 ISH505 ISH506 ISH507 Cuff Diameter 5.5 Cuff Diameter Diameter4.8 5.0 Cuff Cuff(mm) 2.0 3.0 4.0 5.0 6.0 Product name ISUH4002 ISUH4003 ISUH4004 ISUH4005 ISUH4006 Cuff Diameter 4.0 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 Product name ISUH4502 ISUH4503 ISUH4504 ISUH4505 ISUH4506 Cuff Diameter 4.5 Temporary restorations for contouring of the soft tissue • Tightening torque : 8~10 Ncm Hex 1.2 Diameter 4.0 Diameter 4.5 Diameter 4.8 Diameter 5.5

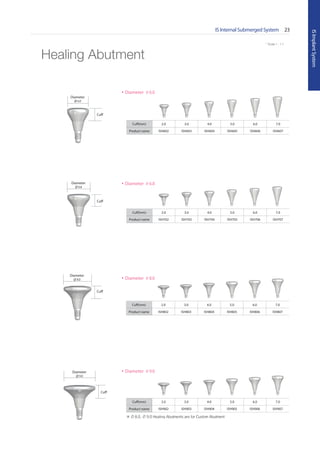

IS Internal Submerged System 23 ISImplantSystem * Scale 1 : 1.1 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 Product name ISH602 ISH603 ISH604 ISH605 ISH606 ISH607 Diameter 6.0 Cuff Diameter 6.0 Healing Abutment Diameter 8.0 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 Product name ISH802 ISH803 ISH804 ISH805 ISH806 ISH807 Cuff Diameter 8.0 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 Product name ISH702 ISH703 ISH704 ISH705 ISH706 ISH707 Diameter 6.8 Cuff Diameter 6.8 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 Product name ISH902 ISH903 ISH904 ISH905 ISH906 ISH907 Diameter 9.0 Cuff Diameter 9.0 ※ 8.0, 9.0 Healing Abutments are for Custom Abutment

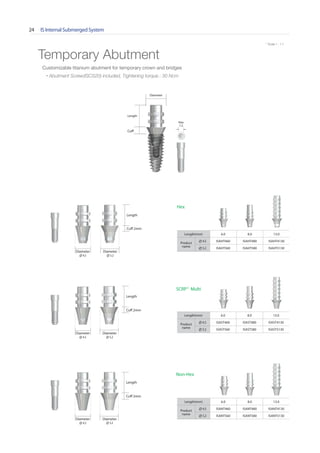

IS Internal Submerged System24 * Scale 1 : 1.1 Length(mm) 6.0 8.0 13.0 Product name 4.5 ISAHT460 ISAHT480 ISAHT4130 5.2 ISAHT560 ISAHT580 ISAHT5130 Length(mm) 6.0 8.0 13.0 Product name 4.5 ISANT460 ISANT480 ISANT4130 5.2 ISANT560 ISANT580 ISANT5130 Length(mm) 6.0 8.0 13.0 Product name 4.5 ISAST460 ISAST480 ISAST4130 5.2 ISAST560 ISAST580 ISAST5130 Temporary Abutment Hex Non-Hex SCRP® Multi Length Cuff 2mm Diameter 5.2 Diameter 4.5 Diameter 4.5 Diameter 4.5 Cuff 2mm Cuff 2mm Diameter 5.2 Diameter 5.2 Length Length Length Cuff Diameter Hex 1.2 Customizable titanium abutment for temporary crown and bridges • Abutment Screw(ISCS20) included, Tightening torque : 30 Ncm

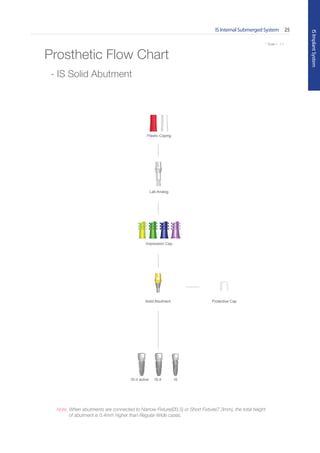

IS Internal Submerged System 25 ISImplantSystem * Scale 1 : 1.1 Protective CapSolid Abutment Impression Cap Lab Analog Plastic Coping ISIS-IIIS-II active Prosthetic Flow Chart - IS Solid Abutment Note. When abutments are connected to Narrow Fixture(Ø3.5) or Short Fixture(7.3mm), the total height of abutment is 0.4mm higher than Regular-Wide cases.

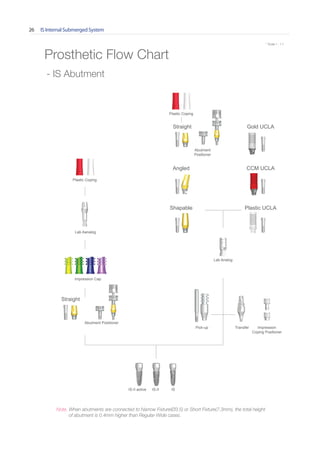

IS Internal Submerged System26 * Scale 1 : 1.1 Prosthetic Flow Chart Impression Coping Positioner Impression Cap Pick-up Transfer Abutment Positioner Abutment Positioner Lab Analog Lab Aanalog Plastic Coping Straight Straight Shapable Angled Plastic Coping Gold UCLA Plastic UCLA CCM UCLA ISIS-IIIS-II active - IS Abutment Note. When abutments are connected to Narrow Fixture(Ø3.5) or Short Fixture(7.3mm), the total height of abutment is 0.4mm higher than Regular-Wide cases. sitioner
IS Internal Submerged System 27 ISImplantSystem * Scale 1 : 1.1 Prosthetic Flow Chart Multi Unit Abutment Multi Unit Angled Abutment Multi Unit Driver Healing Cap Pick-up Transfer ISIS-IIIS-II active - IS Multi Unit Abutment CCM Cylinder Lab Analog Note. When abutments are connected to Narrow Fixture(Ø3.5) or Short Fixture(7.3mm), the total height of abutment is 0.4mm higher than Regular-Wide cases.

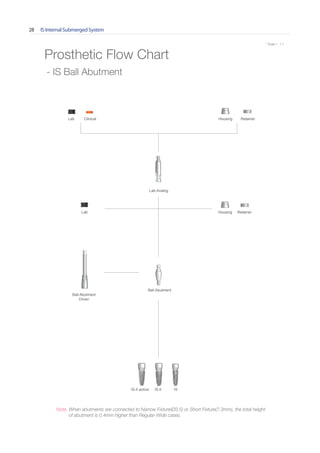

IS Internal Submerged System28 * Scale 1 : 1.1 Prosthetic Flow Chart Ball Abutment Driver Ball Abutment Lab Lab Clinical Lab Analog Housing Housing Retainer Retainer ISIS-IIIS-II active - IS Ball Abutment Note. When abutments are connected to Narrow Fixture(Ø3.5) or Short Fixture(7.3mm), the total height of abutment is 0.4mm higher than Regular-Wide cases.

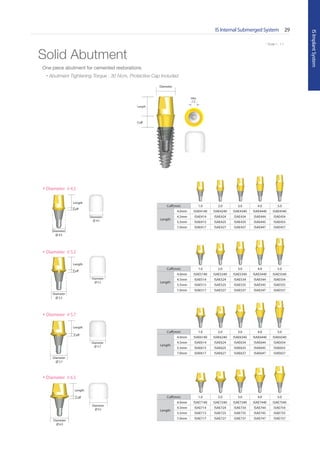

IS Internal Submerged System 29 ISImplantSystem * Scale 1 : 1.1 Solid Abutment Cuff Length Diameter Hex 1.2 One piece abutment for cemented restorations • Abutment Tightening Torque : 30 Ncm, Protective Cap Included Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAE4140 ISAE4240 ISAE4340 ISAE4440 ISAE4540 4.5mm ISAE414 ISAE424 ISAE434 ISAE444 ISAE454 5.5mm ISAE415 ISAE425 ISAE435 ISAE445 ISAE455 7.0mm ISAE417 ISAE427 ISAE437 ISAE447 ISAE457 Diameter 4.5 Cuff Length Diameter 4.5 Diameter 4.5 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAE5140 ISAE5240 ISAE5340 ISAE5440 ISAE5540 4.5mm ISAE514 ISAE524 ISAE534 ISAE544 ISAE554 5.5mm ISAE515 ISAE525 ISAE535 ISAE545 ISAE555 7.0mm ISAE517 ISAE527 ISAE537 ISAE547 ISAE557 Diameter 5.2 Cuff Length Diameter 5.2 Diameter 5.2 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAE6140 ISAE6240 ISAE6340 ISAE6440 ISAE6540 4.5mm ISAE614 ISAE624 ISAE634 ISAE644 ISAE654 5.5mm ISAE615 ISAE625 ISAE635 ISAE645 ISAE655 7.0mm ISAE617 ISAE627 ISAE637 ISAE647 ISAE657 Diameter 5.7 Cuff Length Diameter 5.7 Diameter 5.7 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAE7140 ISAE7240 ISAE7340 ISAE7440 ISAE7540 4.5mm ISAE714 ISAE724 ISAE734 ISAE744 ISAE754 5.5mm ISAE715 ISAE725 ISAE735 ISAE745 ISAE755 7.0mm ISAE717 ISAE727 ISAE737 ISAE747 ISAE757 Diameter 6.5 Cuff Length Diameter 6.5 Diameter 6.5
IS Internal Submerged System30 * Scale 1 : 1.1 Hex Abutment Cuff Length Diameter Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAH4140 ISAH4240 ISAH4340 ISAH4440 ISAH4540 4.5mm ISAH414 ISAH424 ISAH434 ISAH444 5.5mm ISAH415 ISAH425 ISAH435 ISAH445 ISAH455 7.0mm ISAH417 ISAH427 ISAH437 ISAH447 ISAH457Diameter 4.5 Cuff Length Diameter 5.2 Cuff Length Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAH5140 ISAH5240 ISAH5340 ISAH5440 ISAH5540 4.5mm ISAH514 ISAH524 ISAH534 ISAH544 5.5mm ISAH515 ISAH525 ISAH535 ISAH545 ISAH555 7.0mm ISAH517 ISAH527 ISAH537 ISAH547 ISAH557 Diameter 5.7 Cuff Length Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAH6140 ISAH6240 ISAH6340 ISAH6440 ISAH6540 4.5mm ISAH614 ISAH624 ISAH634 ISAH644 5.5mm ISAH615 ISAH625 ISAH635 ISAH645 ISAH655 7.0mm ISAH617 ISAH627 ISAH637 ISAH647 ISAH657 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAH7140 ISAH7240 ISAH7340 ISAH7440 ISAH7540 4.5mm ISAH714 ISAH724 ISAH734 ISAH744 5.5mm ISAH715 ISAH725 ISAH735 ISAH745 ISAH755 7.0mm ISAH717 ISAH727 ISAH737 ISAH747 ISAH757 Diameter 6.5 Cuff Length Diameter 4.5 Diameter 5.2 Diameter 5.7 Diameter 6.5 Hex 1.2 Cementable or Screw-retained abutment for single tooth and bridges • Customizable by grinding (need to remain at least 3mm of abutment length above fixture platform) • Abutment Screw(ISCS20) included, Tightening Torque : 30 Ncm

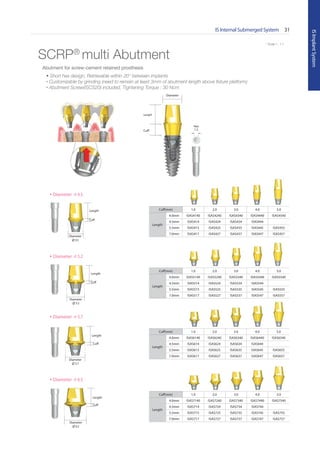

IS Internal Submerged System 31 ISImplantSystem * Scale 1 : 1.1 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAS4140 ISAS4240 ISAS4340 ISAS4440 ISAS4540 4.5mm ISAS414 ISAS424 ISAS434 ISAS444 5.5mm ISAS415 ISAS425 ISAS435 ISAS445 ISAS455 7.0mm ISAS417 ISAS427 ISAS437 ISAS447 ISAS457 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAS5140 ISAS5240 ISAS5340 ISAS5440 ISAS5540 4.5mm ISAS514 ISAS524 ISAS534 ISAS544 5.5mm ISAS515 ISAS525 ISAS535 ISAS545 ISAS555 7.0mm ISAS517 ISAS527 ISAS537 ISAS547 ISAS557 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAS6140 ISAS6240 ISAS6340 ISAS6440 ISAS6540 4.5mm ISAS614 ISAS624 ISAS634 ISAS644 5.5mm ISAS615 ISAS625 ISAS635 ISAS645 ISAS655 7.0mm ISAS617 ISAS627 ISAS637 ISAS647 ISAS657 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAS7140 ISAS7240 ISAS7340 ISAS7440 ISAS7540 4.5mm ISAS714 ISAS724 ISAS734 ISAS744 5.5mm ISAS715 ISAS725 ISAS735 ISAS745 ISAS755 7.0mm ISAS717 ISAS727 ISAS737 ISAS747 ISAS757 SCRP® multi Abutment Diameter Cuff Length Diameter 4.5 Cuff Length Diameter 5.2 Cuff Length Diameter 5.7 Cuff Length Diameter 6.5 Cuff Length Diameter 4.5 Diameter 5.2 Diameter 5.7 Diameter 6.5 Hex 1.2 Abutment for screw-cement retained prosthesis • Short hex design, Retrievable within 20° between implants • Customizable by grinding (need to remain at least 3mm of abutment length above fixture platform) • Abutment Screw(ISCS20) included, Tightening Torque : 30 Ncm

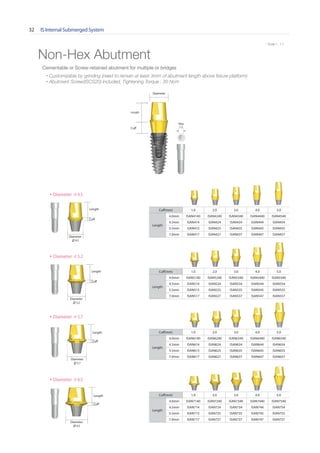

IS Internal Submerged System32 * Scale 1 : 1.1 Diameter 4.5 Cuff Length Non-Hex Abutment Diameter 5.2 Cuff Length Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAN4140 ISAN4240 ISAN4340 ISAN4440 ISAN4540 4.5mm ISAN414 ISAN424 ISAN434 ISAN444 ISAN454 5.5mm ISAN415 ISAN425 ISAN435 ISAN445 ISAN455 7.0mm ISAN417 ISAN427 ISAN437 ISAN447 ISAN457 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAN5140 ISAN5240 ISAN5340 ISAN5440 ISAN5540 4.5mm ISAN514 ISAN524 ISAN534 ISAN544 ISAN554 5.5mm ISAN515 ISAN525 ISAN535 ISAN545 ISAN555 7.0mm ISAN517 ISAN527 ISAN537 ISAN547 ISAN557 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAN6140 ISAN6240 ISAN6340 ISAN6440 ISAN6540 4.5mm ISAN614 ISAN624 ISAN634 ISAN644 ISAN654 5.5mm ISAN615 ISAN625 ISAN635 ISAN645 ISAN655 7.0mm ISAN617 ISAN627 ISAN637 ISAN647 ISAN657 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAN7140 ISAN7240 ISAN7340 ISAN7440 ISAN7540 4.5mm ISAN714 ISAN724 ISAN734 ISAN744 ISAN754 5.5mm ISAN715 ISAN725 ISAN735 ISAN745 ISAN755 7.0mm ISAN717 ISAN727 ISAN737 ISAN747 ISAN757 Diameter 5.7 Cuff Length Diameter 6.5 Cuff Length Cuff Length Diameter Diameter 4.5 Diameter 5.2 Diameter 5.7 Diameter 6.5 Hex 1.2 Cementable or Screw-retained abutment for multiple or bridges • Customizable by grinding (need to remain at least 3mm of abutment length above fixture platform) • Abutment Screw(ISCS20) included, Tightening Torque : 30 Ncm

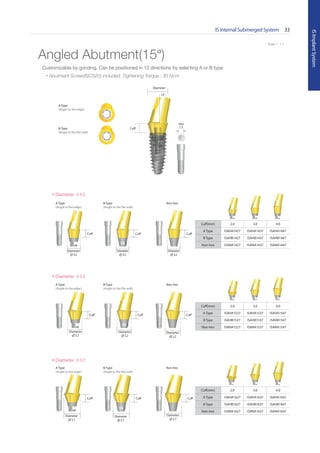

IS Internal Submerged System 33 ISImplantSystem * Scale 1 : 1.1 Angled Abutment(15°) Diameter 5.7 A-Type (Angle to the edge) Non-hexB-Type (Angle to the flat wall) Diameter 4.5 Cuff(mm) 2.0 3.0 4.0 A Type ISAHA1427 ISAHA1437 ISAHA1447 B Type ISAHB1427 ISAHB1437 ISAHB1447 Non-hex ISANA1427 ISANA1437 ISANA1447 A-Type (Angle to the edge) Non-hexB-Type (Angle to the flat wall) Cuff Diameter 15° Diameter 5.2 Cuff(mm) 2.0 3.0 4.0 A Type ISAHA1527 ISAHA1537 ISAHA1547 B Type ISAHB1527 ISAHB1537 ISAHB1547 Non-hex ISANA1527 ISANA1537 ISANA1547 A-Type (Angle to the edge) Non-hexB-Type (Angle to the flat wall) Cuff(mm) 2.0 3.0 4.0 A Type ISAHA1627 ISAHA1637 ISAHA1647 B Type ISAHB1627 ISAHB1637 ISAHB1647 Non-hex ISANA1627 ISANA1637 ISANA1647 Diameter 4.5 Cuff Cuff Cuff Diameter 4.5 Diameter 4.5 Diameter 5.2 Cuff Cuff Cuff Diameter 5.2 Diameter 5.2 Diameter 5.7 Cuff Cuff Cuff Diameter 5.7 Diameter 5.7 Hex 1.2 Customizable by grinding. Can be positioned in 12 directions by selecting A or B type • Abutment Screw(ISCS20) included, Tightening Torque : 30 Ncm A-Type (Angle to the edge) B-Type (Angle to the flat wall)

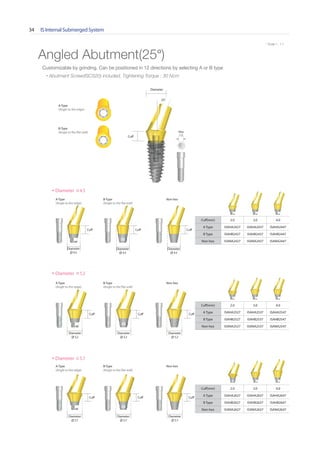

IS Internal Submerged System34 * Scale 1 : 1.1 Angled Abutment(25°) Cuff Diameter 25° A-Type (Angle to the edge) Non-hex Diameter 4.5 Cuff(mm) 2.0 3.0 4.0 A Type ISAHA2427 ISAHA2437 ISAHA2447 B Type ISAHB2427 ISAHB2437 ISAHB2447 Non-hex ISANA2427 ISANA2437 ISANA2447 B-Type (Angle to the flat wall) Diameter 4.5 Cuff Cuff Diameter 4.5 A-Type (Angle to the edge) Non-hex Diameter 5.2 Cuff(mm) 2.0 3.0 4.0 A Type ISAHA2527 ISAHA2537 ISAHA2547 B Type ISAHB2527 ISAHB2537 ISAHB2547 Non-hex ISANA2527 ISANA2537 ISANA2547 B-Type (Angle to the flat wall) Diameter 5.2 Cuff Diameter 5.7 A-Type (Angle to the edge) Non-hex Cuff(mm) 2.0 3.0 4.0 A Type ISAHA2627 ISAHA2637 ISAHA2647 B Type ISAHB2627 ISAHB2637 ISAHB2647 Non-hex ISANA2627 ISANA2637 ISANA2647 B-Type (Angle to the flat wall) Diameter 5.7 Cuff Hex 1.2 Customizable by grinding. Can be positioned in 12 directions by selecting A or B type • Abutment Screw(ISCS20) included, Tightening Torque : 30 Ncm A-Type (Angle to the edge) B-Type (Angle to the flat wall) Cuff Diameter 4.5 Diameter 5.2 Cuff Diameter 5.2 Cuff Diameter 5.7 Cuff Diameter 5.7 Cuff

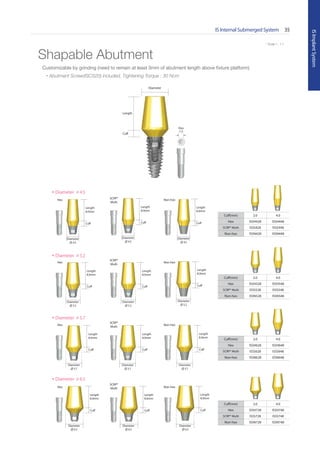

IS Internal Submerged System 35 ISImplantSystem * Scale 1 : 1.1 Shapable Abutment Cuff Length Diameter Hex Non-hex Diameter 4.5 Cuff(mm) 2.0 4.0 Hex ISSH428 ISSH448 SCRP® Multi ISSS428 ISSS448 Non-hex ISSN428 ISSN448 Diameter 4.5 Cuff Length 8.0mm Diameter 4.5 Cuff Length 8.0mm Diameter 4.5 Cuff Length 8.0mm Hex Non-hex Diameter 5.2 Cuff(mm) 2.0 4.0 Hex ISSH528 ISSH548 SCRP® Multi ISSS528 ISSS548 Non-hex ISSN528 ISSN548 Diameter 5.2 Cuff Length 8.0mm Diameter 5.2 Cuff Length 8.0mm Diameter 5.2 Cuff Length 8.0mm Hex Non-hex Diameter 5.7 Cuff(mm) 2.0 4.0 Hex ISSH628 ISSH648 SCRP® Multi ISSS628 ISSS648 Non-hex ISSN628 ISSN648 Diameter 5.7 Cuff Length 8.0mm Diameter 5.7 Cuff Length 8.0mm Diameter 5.7 Cuff Length 8.0mm Hex Non-hex Diameter 6.5 Cuff(mm) 2.0 4.0 Hex ISSH728 ISSH748 SCRP® Multi ISSS728 ISSS748 Non-hex ISSN728 ISSN748 Diameter 6.5 Cuff Length 8.0mm Diameter 6.5 Cuff Length 8.0mm Diameter 6.5 Cuff Length 8.0mm Hex 1.2 Customizable by grinding (need to remain at least 3mm of abutment length above fixture platform) • Abutment Screw(ISCS20) included, Tightening Torque : 30 Ncm SCRP® Multi SCRP® Multi SCRP® Multi SCRP® Multi

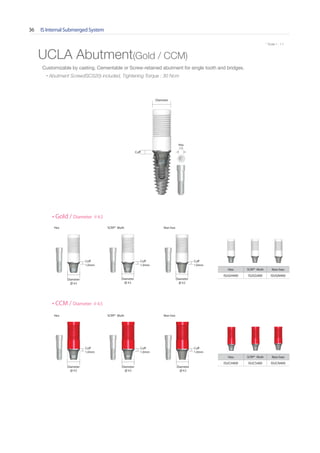

IS Internal Submerged System36 * Scale 1 : 1.1 UCLA Abutment(Gold / CCM) Cuff Diameter Diameter 4.5 Hex SCRP® Multi Non-hex ISUGH400 ISUGS400 ISUGN400 Hex Non-hex Diameter 4.5 Cuff 1.0mm Cuff 1.0mm Diameter 4.5 Cuff 1.0mm Diameter 4.5 Diameter 4.5 Hex SCRP® Multi Non-hex ISUCH400 ISUCS400 ISUCN400 Hex Non-hex Diameter 4.5 Cuff 1.0mm Cuff 1.0mm Diameter 4.5 Cuff 1.0mm Diameter 4.5 Hex 1.2 Customizable by casting. Cementable or Screw-retained abutment for single tooth and bridges. • Abutment Screw(ISCS20) included, Tightening Torque : 30 Ncm SCRP® Multi SCRP® Multi

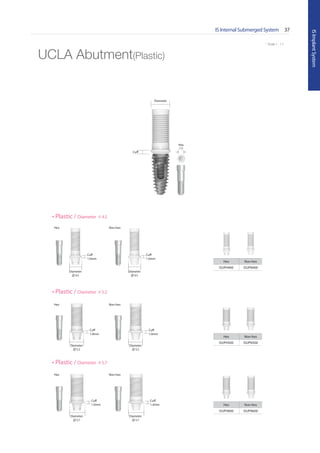

IS Internal Submerged System 37 ISImplantSystem * Scale 1 : 1.1 UCLA Abutment(Plastic) Diameter 4.5 Diameter 4.5 Diameter 5.2 Diameter 5.2 Diameter 5.7 Diameter 5.7 Cuff 1.0mm Cuff 1.0mm Cuff 1.0mm Cuff 1.0mm Cuff 1.0mm Cuff 1.0mm Cuff Diameter Diameter 4.5 Diameter 5.2 Diameter 5.7 Hex Non-hex ISUPH400 ISUPN400 Hex Non-hex ISUPH500 ISUPN500 Hex Non-hex ISUPH600 ISUPN600 Hex Hex Hex Non-hex Non-hex Non-hex Hex 1.2
IS Internal Submerged System38 * Scale 1 : 1.1 Protective Cap Impression Cap Components for Abutment Level Diameter 4.5 Length(mm) 4.5 5.5 7.0 Product name ISPTC445 ISPTC455 ISPTC470 Diameter 5.2 Length(mm) 4.5 5.5 7.0 Product name ISPTC545 ISPTC555 ISPTC570 Diameter 5.7 Length(mm) 4.5 5.5 7.0 Product name ISPTC645 ISPTC655 ISPTC670 Diameter 6.5 Length(mm) 4.5 5.5 7.0 Product name ISPTC745 ISPTC755 ISPTC770 Diameter 4.5 Diameter 5.2 Diameter 5.7 Diameter 6.5 Diameter 4.5 Diameter 5.2 Diameter 5.7 Product name ISPIC411 Diameter 4.5 Length 11.5m Product name ISPIC511 Length 11.5m Diameter 5.2 Product name ISPIC611 Length 11.5m Diameter 5.7 Diameter 6.5 Length 11.5m Diameter 6.5 Product name ISPIC711 Length Length Length Length
IS Internal Submerged System 39 ISImplantSystem * Scale 1 : 1.1 Diameter 4.5 Diameter 5.2 Diameter 5.7 Diameter 6.5 Length 11.7mm Length 11.7mm Diameter(ø) 4.5 5.2 5.7 6.5 Product name ISPCH410 ISPCH510 ISPCH610 ISPCH710 Hex Diameter(ø) 4.5 5.2 5.7 6.5 Product name ISPCN410 ISPCN510 ISPCN610 ISPCN710 Non-Hex Diameter 4.5 Length Cuff 3.0mm Length(mm) 4.0 4.5 5.5 7.0 Product name ISLA440 ISLA445 ISLA455 ISLA470 Diameter 5.2 Length Cuff 3.0mm Length(mm) 4.0 4.5 5.5 7.0 Product name ISLA540 ISLA545 ISLA555 ISLA570 Length(mm) 4.0 4.5 5.5 7.0 Product name ISLA640 ISLA645 ISLA655 ISLA670 Length(mm) 4.0 4.5 5.5 7.0 Product name ISLA740 ISLA745 ISLA755 ISLA770 Diameter 5.7 Length Cuff 3.0mm Diameter 6.5 Diameter Diameter Length Cuff 3.0mm Lab Analog Plastic Coping Components for Abutment Level

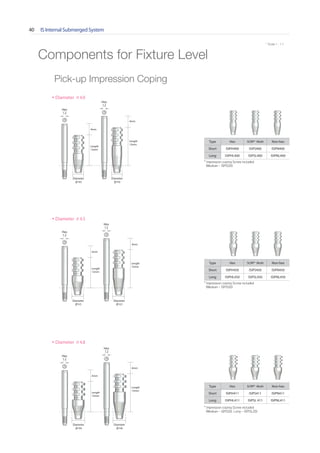

IS Internal Submerged System40 * Scale 1 : 1.1 Length 12mm Diameter 4.8 Hex 1.2 4mm Length 15mm Diameter 4.8 Hex 1.2 4mm Length 12mm 4mm Diameter 4.5 Hex 1.2 4mm Length 15mm Diameter 4.5 Hex 1.2 Components for Fixture Level Pick-up Impression Coping Type Hex SCRP® Multi Non-hex Short ISIPH400 ISIPS400 ISIPN400 Long ISIPHL400 ISIPSL400 ISIPNL400 * Impression coping Screw included (Medium - ISPIS20) Diameter 4.0 Type Hex SCRP® Multi Non-hex Short ISIPH450 ISIPS450 ISIPN450 Long ISIPHL450 ISIPSL450 ISIPNL450 * Impression coping Screw included (Medium - ISPIS20) Diameter 4.5 Type Hex SCRP® Multi Non-hex Short ISIPH411 ISIPS411 ISIPN411 Long ISIPHL411 ISIPSL 411 ISIPNL411 * Impression coping Screw included (Medium - ISPIS20, Long - ISPISL20) Diameter 4.8 Diameter 4.0 Length 12mm 4mm Hex 1.2 Diameter 4.0 4mm Length 15mm Hex 1.2

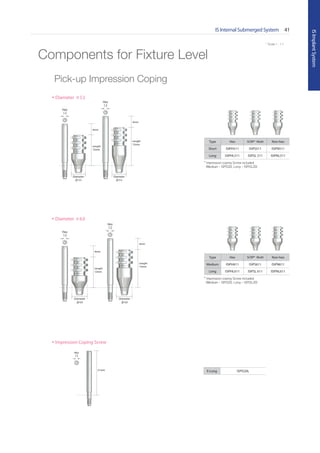

IS Internal Submerged System 41 ISImplantSystem * Scale 1 : 1.1 Hex 1.2 Diameter 5.5 Length 12mm 4mm Hex 1.2 Diameter 5.5 Length 15mm 4mm Components for Fixture Level Pick-up Impression Coping Type Hex SCRP® Multi Non-hex Short ISIPH511 ISIPS511 ISIPN511 Long ISIPHL511 ISIPSL 511 ISIPNL511 * Impression coping Screw included (Medium - ISPIS20, Long - ISPISL20) Diameter 5.5 Hex 1.2 X-Long ISPIS20L21mm Impression Coping Screw Type Hex SCRP® Multi Non-hex Medium ISIPH611 ISIPS611 ISIPN611 Long ISIPHL611 ISIPSL 611 ISIPNL611 * Impression coping Screw included (Medium - ISPIS20, Long - ISPISL20) Diameter 6.0 Diameter 6.0 Length 12mm 4mm Hex 1.2 Diameter 6.0 4mm Length 15mm Hex 1.2

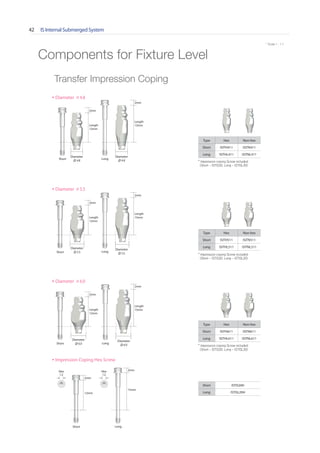

IS Internal Submerged System42 * Scale 1 : 1.1 LongShort Components for Fixture Level Transfer Impression Coping Diameter 4.8 Diameter 5.5 Diameter 6.0 Impression Coping Hex Screw Type Hex Non-hex Short ISITH411 ISITN411 Long ISITHL411 ISITNL411 * Impression coping Screw included (Short - ISTIS20, Long - ISTISL20) Type Hex Non-hex Short ISITH511 ISITN511 Long ISITHL511 ISITNL511 * Impression coping Screw included (Short - ISTIS20, Long - ISTISL20) Type Hex Non-hex Short ISITH611 ISITN611 Long ISITHL611 ISITNL611 Short ISTIS20H Long ISTISL20H * Impression coping Screw included (Short - ISTIS20, Long - ISTISL20) 12mm 2mm 15mm 2mmHex 1.2 Hex 1.2 Short Long Diameter 4.8 Diameter 4.8 Length 12mm 2mm Length 15mm 2mm LongShort Diameter 5.5 Diameter 5.5 Length 12mm 2mm Length 15mm 2mm LongShort Diameter 6.0 Diameter 6.0 Length 12mm 2mm Length 15mm 2mm

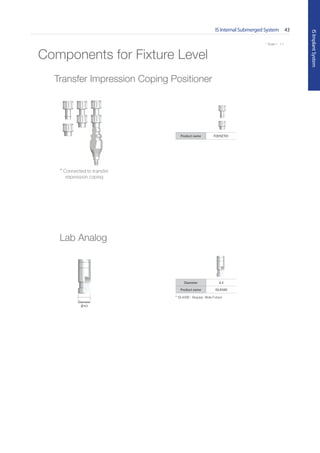

IS Internal Submerged System 43 ISImplantSystem * Scale 1 : 1.1 * ISLA500 : Regular, Wide Fixture Components for Fixture Level * Connected to transfer impression coping Product name FDHSET01 Diameter 4.3 Product name ISLA500 Transfer Impression Coping Positioner Lab Analog Diameter 4.3

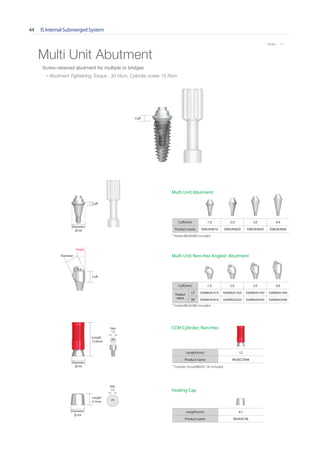

IS Internal Submerged System44 * Scale 1 : 1.1 Multi Unit Abutment Diameter 4.8 Cuff Cuff(mm) 1.0 2.0 3.0 4.0 Product name ISMUA4810 ISMUA4820 ISMUA4830 ISMUA4840 Multi Unit Abutment Diameter Cuff Angle Cuff(mm) 1.0 2.0 3.0 4.0 Product name 15˚ ISANMUA1410 ISANMUA1420 ISANMUA1430 ISANMUA1440 30˚ ISANMUA3410 ISANMUA3420 ISANMUA3430 ISANMUA3440 Multi Unit Non-Hex Angled Abutment Cuff * Holder(MUAH48) Included * Holder(MUAH48) Included Length(mm) 12 Product name MUACCN48 * Cylinder Screw(MUAS 14) Included CCM Cylinder, Non-Hex Diameter 4.8 Length 12.0mm Hex 1.2 Length(mm) 4.1 Product name MUAHC48 Healing Cap Diameter 4.8 Length 4.1mm Hex 1.2 Screw-retained abutment for multiple or bridges • Abutment Tightening Torque : 30 Ncm, Cylinder screw 15 Ncm

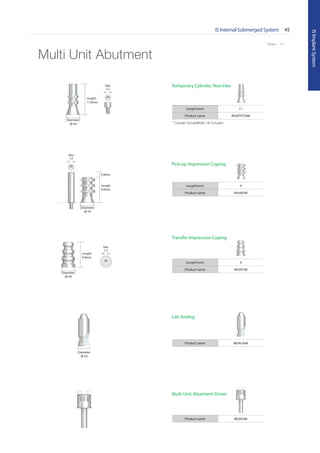

IS Internal Submerged System 45 ISImplantSystem * Scale 1 : 1.1 Multi Unit Abutment Length(mm) 9 Product name MUAIP48 Pick-up Impression Coping Diameter 4.8 Length 9.0mm 4.9mm D Hex 1.2 Product name MUALA48 Lab Analog Diameter 4.8 Length(mm) 9 Product name MUAIT48 Transfer Impression Coping Diameter 4.8 Length 9.0mm Hex 1.2 Product name MUAD48 Multi Unit Abutment Driver * Cylinder Screw(MUAS 14) Included Length(mm) 11 Product name MUATPCN48 Temporary Cylinder, Non-Hex Diameter 4.8 Length 11.0mm Hex 1.2

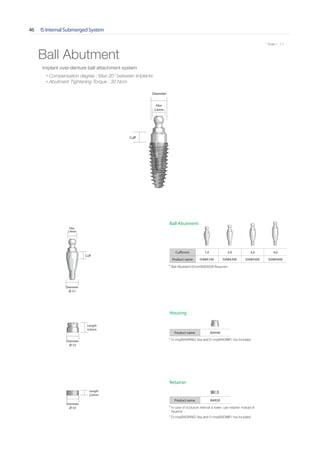

IS Internal Submerged System46 * Scale 1 : 1.1 Ball Abutment Retainer Cuff Diameter 3.5 Hex 2.4mm Cuff(mm) 1.0 2.0 3.0 4.0 Product name ISABA100 ISABA200 ISABA300 ISABA400 Cuff Diameter Hex 2.4mm Product name BAR20 Diameter 5.0 Length 2.0mm Housing Product name BAH40 Diameter 5.0 Length 4.0mm Ball Abutment Implant over-denture ball attachment system • Compensation degree : Max 20° between implants • Abutment Tightening Torque : 30 Ncm * Ball Abutment Driver(BADH24) Required * O-ring(BAORING) 5ea and O-ring(BAOIMP) 1ea Included * O-ring(BAORING) 5ea and O-ring(BAOIMP) 1ea Included * In case of occlusion interval is lower, use retainer instead of housing

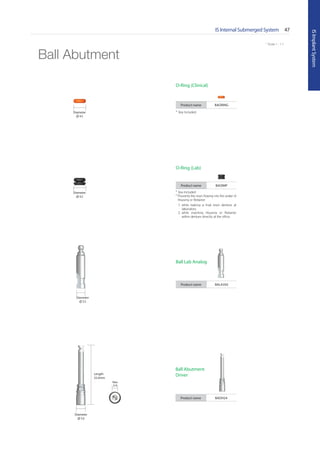

IS Internal Submerged System 47 ISImplantSystem * Scale 1 : 1.1 Product name BAORING Product name BAOIMP Diameter 4.5 Diameter 4.5 Product name BALA350 Diameter 3.5 Ball Lab Analog Ball Abutment Driver Product name BADH24 Diameter 5.0 Hex 2.4 Length 25.0mm Ball Abutment O-Ring (Clinical) O-Ring (Lab) * 3ea Included * Prevents the resin flowing into the under of Housing or Retainer 1. while making a final resin denture at laboratory. 2. while inserting Housing or Retainer within denture directly at the office. * 3ea Included
EB-II active / EB / EB S-Wide Neobiotech EB IMPLANT SYSTEM

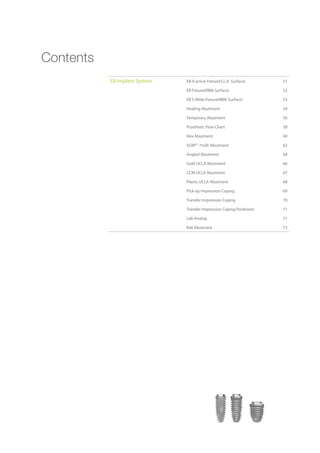

EB Implant System EB-II active Fixture(S.L.A. Surface) 51 EB Fixture(RBM Surface) 52 EB S-Wide Fixture(RBM Surface) 53 Healing Abutment 54 Temporary Abutment 56 Prosthetic Flow Chart 58 Hex Abutment 60 SCRP Abutment 62 Angled Abutment 64 Gold UCLA Abutment 66 CCM UCLA Abutment 67 Plastic UCLA Abutment 68 Pick-up Impression Coping 69 Transfer Impression Coping 70 Transfer Impression Coping Positioner 71 Lab Analog 71 Ball Abutment 72 Contents

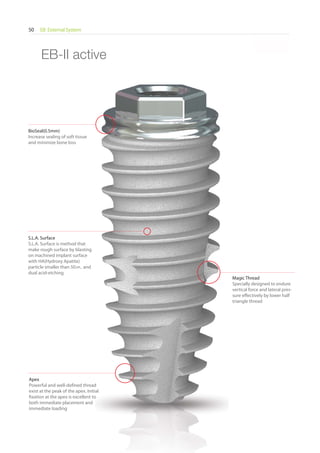

EB External System50 * Scale 1 : 1.1 BioSeal(0.5mm) Increase sealing of soft tissue and minimize bone loss Apex Powerful and well-defined thread exist at the peak of the apex. Initial fixation at the apex is excellent to both immediate placement and immediate loading Magic Thread Specially designed to endure vertical force and lateral pres- sure effectively by lower half triangle thread EB-II active S.L.A. Surface S.L.A. Surface is method that make rough surface by blasting on machined implant surface with HA(Hydroxy Apatite) particle smaller than 50 and dual acid-etching.

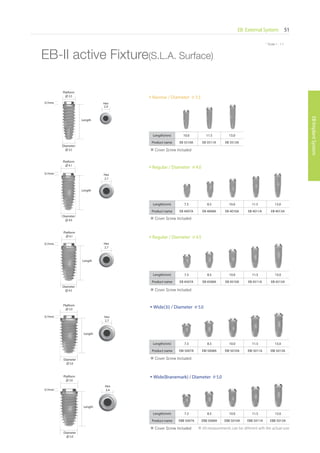

EB External System 51 EBImplantSystem * Scale 1 : 1.1 EB-II active Fixture(S.L.A. Surface) Length Diameter 5.0 Length Diameter 4.5 Length Diameter 4.0 0.7mm 0.7mm 0.7mm 0.7mm 0.7mm Length Diameter 3.5 Platform 3.5 Platform 4.1 Platform 4.1 Platform 5.0 Platform 5.0 Length Diameter 5.0 Hex 2.4 Hex 2.7 Hex 2.7 Hex 2.7 Hex 3.4 Narrow / Diameter 3.5 Length(mm) 10.0 11.5 13.0 Product name EB 3510A EB 3511A EB 3513A Regular / Diameter 4.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EB 4007A EB 4008A EB 4010A EB 4011A EB 4013A Regular / Diameter 4.5 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EB 4507A EB 4508A EB 4510A EB 4511A EB 4513A Wide(3i) / Diameter 5.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EBI 5007A EBI 5008A EBI 5010A EBI 5011A EBI 5013A Wide(Branemark) / Diameter 5.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EBB 5007A EBB 5008A EBB 5010A EBB 5011A EBB 5013A ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included 10 0 ※ All measurements can be different with the actual size

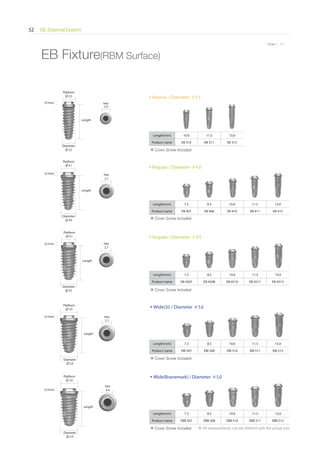

EB External System52 * Scale 1 : 1.1 Length Diameter 5.0 Length Diameter 4.5 Length Diameter 4.0 EB Fixture(RBM Surface) 0.7mm 0.7mm 0.7mm 0.7mm 0.7mm Length Diameter 3.5 Platform 3.5 Platform 4.1 Platform 4.1 Platform 5.0 Platform 5.0 Length Diameter 5.0 Hex 2.4 Hex 2.7 Hex 2.7 Hex 2.7 Hex 3.4 Narrow / Diameter 3.5 Length(mm) 10.0 11.5 13.0 Product name EB 310 EB 311 EB 313 Regular / Diameter 4.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EB 407 EB 408 EB 410 EB 411 EB 413 Regular / Diameter 4.5 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EB 4507 EB 4508 EB 4510 EB 4511 EB 4513 Wide(3i) / Diameter 5.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EBI 507 EBI 508 EBI 510 EBI 511 EBI 513 Wide(Branemark) / Diameter 5.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EBB 507 EBB 508 EBB 510 EBB 511 EBB 513 ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ All measurements can be different with the actual size
EB External System 53 EBImplantSystem * Scale 1 : 1.1 Hex 3.4 Hex 3.4 EB S-Wide Fixture(RBM Surface) Length Length Diameter 5.5 Diameter 6.0 S-Wide(Branemark) / Diameter 5.5 S-Wide(Branemark) / Diameter 6.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EBB 5507 EBB 5508 EBB 5510 EBB 5511 EBB 5513 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EBB 607 EBB 608 EBB 610 EBB 611 EBB 613 (optional) Cover Screw ECR 400Diameter 3.7 Narrow ECHN 300 Hex 0.9 Diameter 4.3 Regular ECHR 400 Hex 0.9 Diameter 5.2 Wide(3i) ECHI 500 Hex 0.9 Diameter 5.2 Wide(B) / S-Wide(B) ECHB 500 Hex 0.9 Hex 0.9 Regular / wide(3i) ※ Cover Screw Included ※ Cover Screw Included 0.7mm 0.7mm ※ Requires S-Wide surgery kit for diameter Ø5.5 ~ Ø6.0 fixture Platform 5.0 Platform 5.0 ※ All measurements can be different with the actual size

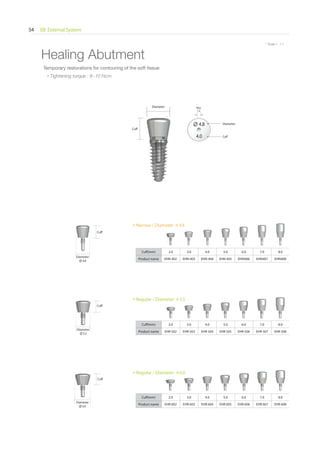

EB External System54 * Scale 1 : 1.1 Healing Abutment Diameter 5.5 Cuff Regular / Diameter 5.5 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 8.0 Product name EHR 502 EHR 503 EHR 504 EHR 505 EHR 506 EHR 507 EHR 508 Diameter 6.0 Cuff Regular / Diameter 6.0 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 8.0 Product name EHR 602 EHR 603 EHR 604 EHR 605 EHR 606 EHR 607 EHR 608 Diameter 4.8 Cuff Narrow / Diameter 4.8 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 8.0 Product name EHN 402 EHN 403 EHN 404 EHN 405 EHN406 EHN407 EHN408 Diameter Cuff Hex 1.2 Temporary restorations for contouring of the soft tissue • Tightening torque : 8~10 Ncm Diameter4.8 4.0 Cuff

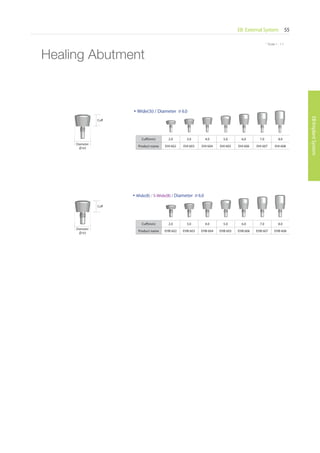

EB External System 55 EBImplantSystem * Scale 1 : 1.1 Diameter 6.0 Cuff Wide(3i) / Diameter 6.0 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 8.0 Product name EHI 602 EHI 603 EHI 604 EHI 605 EHI 606 EHI 607 EHI 608 Diameter 6.0 Cuff Wide(B) / S-Wide(B) / Diameter 6.0 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 8.0 Product name EHB 602 EHB 603 EHB 604 EHB 605 EHB 606 EHB 607 EHB 608 Healing Abutment

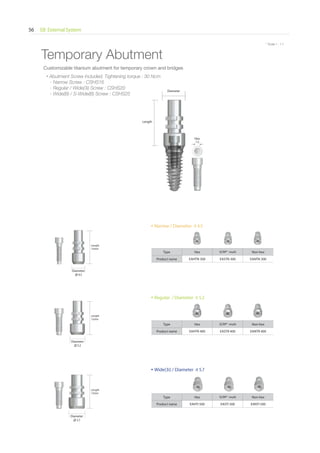

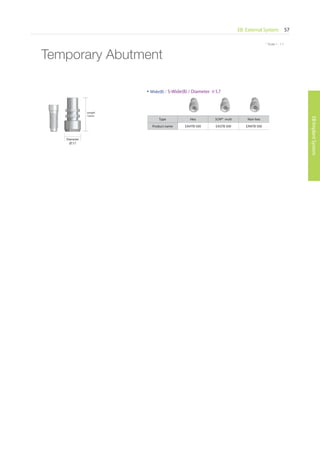

EB External System56 * Scale 1 : 1.1 Temporary Abutment Diameter Length Hex 1.2 Customizable titanium abutment for temporary crown and bridges • Abutment Screw included, Tightening torque : 30 Ncm - Narrow Screw : CSHS16 - Regular / Wide(3i) Screw : CSHS20 - Wide(B) / S-Wide(B) Screw : CSHS25 Narrow / Diameter 4.5 Type Hex SCRP® multi Non-hex Product name EAHTN 300 EASTN 300 EANTN 300 Diameter 4.5 Length 12mm Type Hex SCRP® multi Non-hex Product name EAHTR 400 EASTR 400 EANTR 400 Regular / Diameter 5.2 Diameter 5.2 Length 12mm Type Hex SCRP® multi Non-hex Product name EAHTI 500 EASTI 500 EANTI 500 Wide(3i) / Diameter 5.7 Diameter 5.7 Length 12mm
EB External System 57 EBImplantSystem * Scale 1 : 1.1 Temporary Abutment Type Hex SCRP® multi Non-hex Product name EAHTB 500 EASTB 500 EANTB 500 Wide(B) / S-Wide(B) / Diameter 5.7 Diameter 5.7 Length 12mm
EB External System58 * Scale 1 : 1.1 Prosthetic Flow Chart Impression coping positioner Pick-up Transfer Abutment positioner Lab analog Straight Angled CCM UCLA Plastic UCLA Gold UCLA EB FixtureEB-II active Fixture - External Abutment g ed
EB External System 59 EBImplantSystem * Scale 1 : 1.1 Prosthetic Flow Chart Ball Abutment Driver Ball Abutment Lab Lab Clinical Lab analog Housing Housing Retainer Retainer - External Ball Abutment EB FixtureEB-II active Fixture

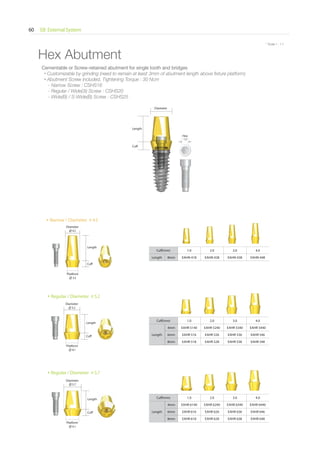

EB External System60 * Scale 1 : 1.1 Hex Abutment Cuff(mm) 1.0 2.0 3.0 4.0 Length 8mm EAHN 418 EAHN 428 EAHN 438 EAHN 448 Cuff(mm) 1.0 2.0 3.0 4.0 Length 4mm EAHR 5140 EAHR 5240 EAHR 5340 EAHR 5440 6mm EAHR 516 EAHR 526 EAHR 536 EAHR 546 8mm EAHR 518 EAHR 528 EAHR 538 EAHR 548 Cuff(mm) 1.0 2.0 3.0 4.0 Length 4mm EAHR 6140 EAHR 6240 EAHR 6340 EAHR 6440 6mm EAHR 616 EAHR 626 EAHR 636 EAHR 646 8mm EAHR 618 EAHR 628 EAHR 638 EAHR 648 Cuff Length Cuff Length Cuff Length Diameter Hex 1.2 Cuff Length Narrow / Diameter 4.5 Regular / Diameter 5.2 Regular / Diameter 5.7 Cementable or Screw-retained abutment for single tooth and bridges • Customizable by grinding (need to remain at least 3mm of abutment length above fixture platform) • Abutment Screw included, Tightening Torque : 30 Ncm - Narrow Screw : CSHS16 - Regular / Wide(3i) Screw : CSHS20 - Wide(B) / S-Wide(B) Screw : CSHS25 Diameter 4.5 Platform 3.5 Diameter 5.2 Diameter 5.7 Platform 4.1 Platform 4.1

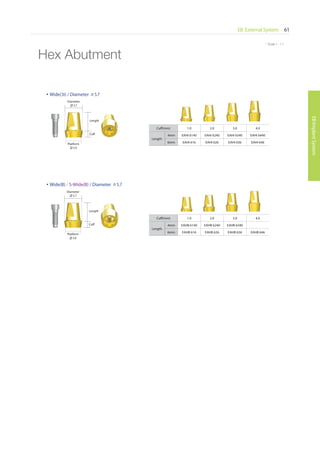

EB External System 61 EBImplantSystem * Scale 1 : 1.1 Cuff(mm) 1.0 2.0 3.0 4.0 Length 4mm EAHB 6140 EAHB 6240 EAHB 6340 6mm EAHB 616 EAHB 626 EAHB 636 EAHB 646 Cuff(mm) 1.0 2.0 3.0 4.0 Length 4mm EAHI 6140 EAHI 6240 EAHI 6340 EAHI 6440 6mm EAHI 616 EAHI 626 EAHI 636 EAHI 646 Hex Abutment Diameter 5.7 Cuff Length Wide(B) / S-Wide(B) / Diameter 5.7 Diameter 5.7 Cuff Length Wide(3i) / Diameter 5.7 Platform 5.0 Platform 5.0

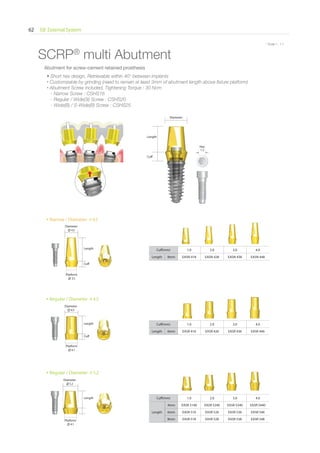

EB External System62 * Scale 1 : 1.1 Regular / Diameter 4.5 Regular / Diameter 5.2 SCRP® multi Abutment Cuff Cuff Length Length Length Cuff(mm) 1.0 2.0 3.0 4.0 Length 8mm EASN 418 EASN 428 EASN 438 EASN 448 Cuff(mm) 1.0 2.0 3.0 4.0 Length 6mm EASR 416 EASR 426 EASR 436 EASR 446 Cuff(mm) 1.0 2.0 3.0 4.0 Length 4mm EASR 5140 EASR 5240 EASR 5340 EASR 5440 6mm EASR 516 EASR 526 EASR 536 EASR 546 8mm EASR 518 EASR 528 EASR 538 EASR 548 Cuff Length Diameter Hex 1.2 Narrow / Diameter 4.5 Abutment for screw-cement retained prosthesis • Short hex design, Retrievable within 40° between implants • Customizable by grinding (need to remain at least 3mm of abutment length above fixture platform) • Abutment Screw included, Tightening Torque : 30 Ncm - Narrow Screw : CSHS16 - Regular / Wide(3i) Screw : CSHS20 - Wide(B) / S-Wide(B) Screw : CSHS25 Diameter 4.5 Platform 3.5 Diameter 4.5 Diameter 5.2 Platform 4.1 Platform 4.1
EB External System 63 EBImplantSystem * Scale 1 : 1.1 SCRP® multi Abutment Wide(3i) / Diameter 5.7 Cuff(mm) 1.0 2.0 3.0 4.0 Length 4mm EASI 6140 EASI 6240 EASI 6340 EASI 6440 6mm EASI 616 EASI 626 EASI 636 EASI 646 8mm EASI 618 EASI 628 EASI 638 EASI 648 Cuff Length Cuff Length Cuff(mm) 1.0 2.0 3.0 4.0 Length 4mm EASR 6140 EASR 6240 EASR 6340 EASR 6440 6mm EASR 616 EASR 626 EASR 636 EASR 646 8mm EASR 618 EASR 628 EASR 638 EASR 648 Regular / Diameter 5.7 Cuff(mm) 1.0 2.0 3.0 4.0 Length 6mm EASB 616 EASB 626 EASB 636 EASB 646 8mm EASB 618 EASB 628 EASB 638 EASB 648Cuff Length Wide(B) / S-Wide(B) / Diameter 5.7 Diameter 5.7 Diameter 5.7 Diameter 5.7 Platform 5.0 Platform 5.0 Platform 5.0

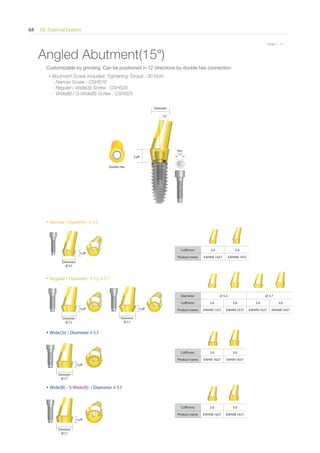

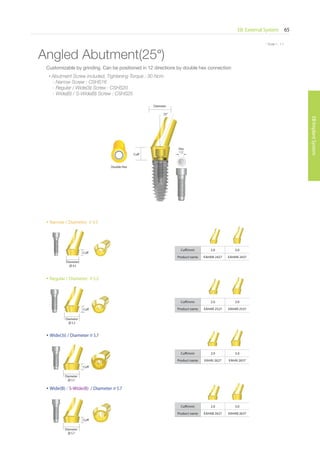

EB External System64 * Scale 1 : 1.1 Angled Abutment(15°) Cuff(mm) 2.0 3.0 Product name EAHAN 1427 EAHAN 1437 Diameter 4.5 Diameter 5.2 5.7 Cuff(mm) 2.0 3.0 2.0 3.0 Product name EAHAR 1527 EAHAR 1537 EAHAR 1627 EAHAR 1637 Cuff(mm) 2.0 3.0 Product name EAHAI 1627 EAHAI 1637 Cuff(mm) 2.0 3.0 Product name EAHAB 1627 EAHAB 1637 Diameter 5.2 Cuff Cuff Cuff Cuff Cuff Diameter 5.7 Diameter 5.7 Diameter 5.7 Cuff Diameter 15° Hex 1.2 Narrow / Diameter 4.5 Regular / Diameter 5.2, 5.7 Wide(3i) / Diameter 5.7 Wide(B) / S-Wide(B) / Diameter 5.7 Customizable by grinding. Can be positioned in 12 directions by double hex connection • Abutment Screw included, Tightening Torque : 30 Ncm - Narrow Screw : CSHS16 - Regular / Wide(3i) Screw : CSHS20 - Wide(B) / S-Wide(B) Screw : CSHS25 Double Hex
EB External System 65 EBImplantSystem * Scale 1 : 1.1 Cuff(mm) 2.0 3.0 Product name EAHAN 2427 EAHAN 2437 Cuff(mm) 2.0 3.0 Product name EAHAI 2627 EAHAI 2637 Cuff(mm) 2.0 3.0 Product name EAHAB 2627 EAHAB 2637 Cuff Cuff Cuff Angled Abutment(25°) Cu Diameter 4.5 Narrow / Diameter 4.5 Regular / Diameter 5.2 Wide(3i) / Diameter 5.7 Wide(B) / S-Wide(B) / Diameter 5.7 Hex 1.2 Cuff Diameter 25° Cuff(mm) 2.0 3.0 Product name EAHAR 2527 EAHAR 2537Cuff Diameter 5.2 C Diameter 5.7 Diameter 5.7 Customizable by grinding. Can be positioned in 12 directions by double hex connection • Abutment Screw included, Tightening Torque : 30 Ncm - Narrow Screw : CSHS16 - Regular / Wide(3i) Screw : CSHS20 - Wide(B) / S-Wide(B) Screw : CSHS25 Double Hex

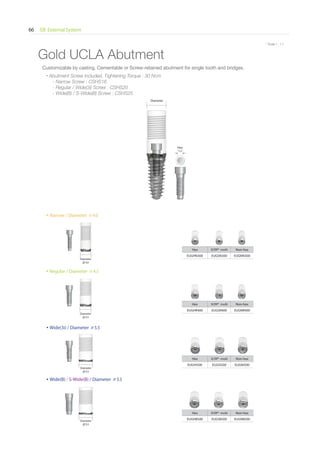

EB External System66 * Scale 1 : 1.1 Gold UCLA Abutment Diameter Diameter 4.0 Hex SCRP® multi Non-hex EUGHN300 EUGSN300 EUGNN300 Narrow / Diameter 4.0 Diameter 4.5 Hex SCRP® multi Non-hex EUGHR400 EUGSR400 EUGNR400 Regular / Diameter 4.5 Wide(3i) / Diameter 5.5 Diameter 5.5 Hex SCRP® multi Non-hex EUGHI500 EUGSI500 EUGNI500 Wide(B) / S-Wide(B) / Diameter 5.5 Diameter 5.5 Hex SCRP® multi Non-hex EUGHB500 EUGSB500 EUGNB500 Hex 1.2 Customizable by casting. Cementable or Screw-retained abutment for single tooth and bridges. • Abutment Screw included, Tightening Torque : 30 Ncm - Narrow Screw : CSHS16 - Regular / Wide(3i) Screw : CSHS20 - Wide(B) / S-Wide(B) Screw : CSHS25

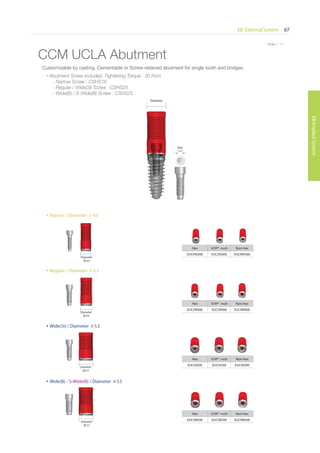

EB External System 67 EBImplantSystem * Scale 1 : 1.1 CCM UCLA Abutment Diameter Narrow / Diameter 4.0 Diameter 4.0 Hex SCRP® multi Non-hex EUCHN300 EUCSN300 EUCNN300 Regular / Diameter 4.5 Diameter 4.5 Hex SCRP® multi Non-hex EUCHR400 EUCSR400 EUCNR400 Wide(3i) / Diameter 5.5 Diameter 5.5 Hex SCRP® multi Non-hex EUCHI500 EUCSI500 EUCNI500 Wide(B) / S-Wide(B) / Diameter 5.5 Diameter 5.5 Hex SCRP® multi Non-hex EUCHB500 EUCSB500 EUCNB500 Customizable by casting. Cementable or Screw-retained abutment for single tooth and bridges. • Abutment Screw included, Tightening Torque : 30 Ncm - Narrow Screw : CSHS16 - Regular / Wide(3i) Screw : CSHS20 - Wide(B) / S-Wide(B) Screw : CSHS25 Hex 1.2

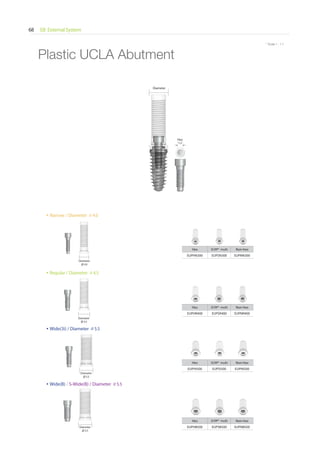

EB External System68 * Scale 1 : 1.1 Narrow / Diameter 4.0 Regular / Diameter 4.5 Wide(3i) / Diameter 5.5 Wide(B) / S-Wide(B) / Diameter 5.5 Plastic UCLA Abutment Diameter Diameter 4.0 Hex SCRP® multi Non-hex EUPHN300 EUPSN300 EUPNN300 Diameter 4.5 Hex SCRP® multi Non-hex EUPHR400 EUPSR400 EUPNR400 Diameter 5.5 Hex SCRP® multi Non-hex EUPHI500 EUPSI500 EUPNI500 Diameter 5.5 Hex SCRP® multi Non-hex EUPHB500 EUPSB500 EUPNB500 Hex 1.2

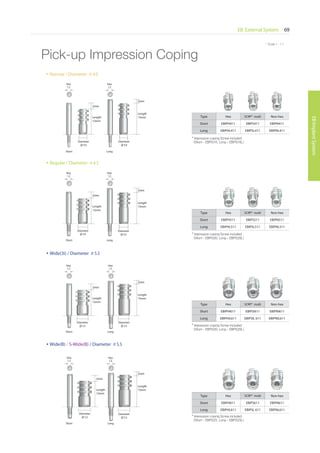

EB External System 69 EBImplantSystem * Scale 1 : 1.1 Pick-up Impression Coping Diameter 4.0 Diameter 4.0 Short Long Hex 1.2 Hex 1.2 Narrow / Diameter 4.0 Type Hex SCRP® multi Non-hex Short EBIPH411 EBIPS411 EBIPN411 Long EBIPHL411 EBIPSL411 EBIPNL411 Diameter 4.5 Diameter 4.5 LongShort Hex 1.2 Hex 1.2 Regular / Diameter 4.5 Type Hex SCRP® multi Non-hex Short EBIPH511 EBIPS511 EBIPN511 Long EBIPHL511 EBIPSL511 EBIPNL511 Diameter 5.5 Diameter 5.5 LongShort Hex 1.2 Hex 1.2 Wide(3i) / Diameter 5.5 Type Hex SCRP® multi Non-hex Short EBIPHI611 EBIPSI611 EBIPNI611 Long EBIPHIL611 EBIPSIL 611 EBIPNIL611 Diameter 5.5 Diameter 5.5 LongShort Hex 1.2 Hex 1.2 Wide(B) / S-Wide(B) / Diameter 5.5 Type Hex SCRP® multi Non-hex Short EBIPH611 EBIPS611 EBIPN611 Long EBIPHL611 EBIPSL 611 EBIPNL611 * Impression coping Screw included (Short - EBPIS16, Long - EBPIS16L) * Impression coping Screw included (Short - EBPIS20, Long - EBPIS20L) * Impression coping Screw included (Short - EBPIS20, Long - EBPIS20L) * Impression coping Screw included (Short - EBPIS25, Long - EBPIS25L) Length 12mm Length 12mm Length 12mm Length 12mm 2mm 2mm 2mm 2mm Length 15mm Length 15mm Length 15mm Length 15mm 2mm 2mm 2mm 2mm

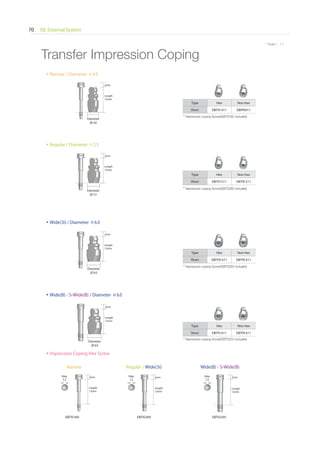

EB External System70 * Scale 1 : 1.1 Narrow / Diameter 4.0 Hex 1.2 Hex 1.2 Hex 1.2 Transfer Impression Coping Type Hex Non-hex Short EBITH 411 EBIPN411 Diameter 4.8 Regular / Diameter 5.5 Type Hex Non-hex Short EBITH 511 EBITN 511 Diameter 5.5 Wide(3i) / Diameter 6.0 Type Hex Non-hex Short EBITHI 611 EBITN 611 Diameter 6.0 Wide(B) / S-Wide(B) / Diameter 6.0 Type Hex Non-hex Short EBITH 611 EBITN 611 Diameter 6.0 Impression Coping Hex Screw * Impression coping Screw(EBTIS16) included * Impression coping Screw(EBTIS20) included * Impression coping Screw(EBTIS20) included * Impression coping Screw(EBTIS25) included Length 12mm Length 12mm Length 12mm Length 12mm 2mm 2mm 2mm 2mm Length 12mm 2mm Length 12mm 2mm Length 12mm 2mm Narrow EBTIS16H Regular / Wide(3i) EBTIS20H EBTIS25H Wide(B) / S-Wide(B)

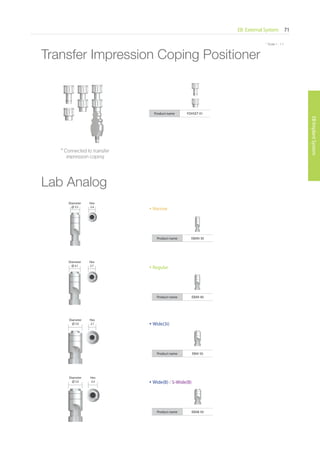

EB External System 71 EBImplantSystem * Scale 1 : 1.1 Product name FDHSET 01 Transfer Impression Coping Positioner * Connected to transfer impression coping Diameter 3.5 Hex 2.4 Hex 2.7 Hex 2.7 Hex 3.4 Diameter 4.1 Diameter 5.0 Diameter 5.0 Lab Analog Narrow Product name EBAN 30 Regular Product name EBAR 40 Wide(3i) Product name EBAI 50 Wide(B) / S-Wide(B) Product name EBAB 50 o transf

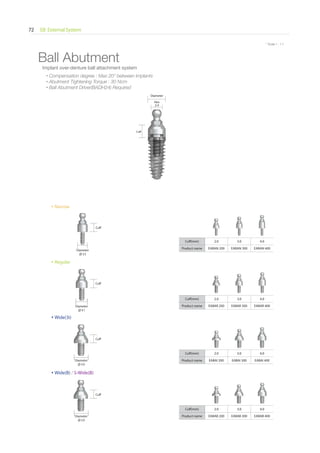

EB External System72 * Scale 1 : 1.1 Ball Abutment Cuff Diameter 3.5 Cuff(mm) 2.0 3.0 4.0 Product name EABAN 200 EABAN 300 EABAN 400 Cuff Diameter 4.1 Cuff(mm) 2.0 3.0 4.0 Product name EABAR 200 EABAR 300 EABAR 400 Cuff Diameter 5.0 Cuff(mm) 2.0 3.0 4.0 Product name EABAI 200 EABAI 300 EABAI 400 Cuff Diameter 5.0 Cuff(mm) 2.0 3.0 4.0 Product name EABAB 200 EABAB 300 EABAB 400 Cuff Diameter Hex 2.4 Narrow Regular Wide(3i) Wide(B) / S-Wide(B) Implant over-denture ball attachment system • Compensation degree : Max 20° between implants • Abutment Tightening Torque : 30 Ncm • Ball Abutment Driver(BADH24) Required

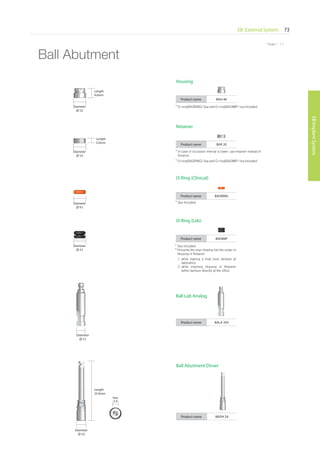

EB External System 73 EBImplantSystem * Scale 1 : 1.1 Product name BAH 40 Product name BAR 20 Diameter 5.0 Diameter 5.0 Length 4.0mm Length 2.0mm Housing Retainer Product name BAORING Product name BAOIMP Diameter 4.5 Diameter 4.5 Ball Abutment * O-ring(BAORING) 5ea and O-ring(BAOIMP) 1ea Included * O-ring(BAORING) 5ea and O-ring(BAOIMP) 1ea Included * In case of occlusion interval is lower, use retainer instead of housing O-Ring (Clinical) O-Ring (Lab) * 3ea Included * Prevents the resin flowing into the under of Housing or Retainer 1. while making a final resin denture at laboratory. 2. while inserting Housing or Retainer within denture directly at the office. * 3ea Included Ball Lab Analog Product name BALA 350 Diameter 3.5 Ball Abutment Dirver Product name BADH 24 Diameter 5.0 Hex 2.4 Length 25.0mm
IT-II active / IT / IT wide Neck Neobiotech IT IMPLANT SYSTEM

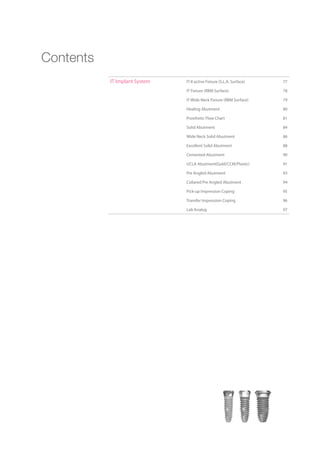

IT Implant System IT-II active Fixture (S.L.A. Surface) 77 IT Fixture (RBM Surface) 78 IT Wide Neck Fixture (RBM Surface) 79 Healing Abutment 80 Prosthetic Flow Chart 81 Solid Abutment 84 Wide Neck Solid Abutment 86 Excellent Solid Abutment 88 Cemented Abutment 90 UCLA Abutment(Gold/CCM/Plastic) 91 Pre Angled Abutment 93 Collared Pre Angled Abutment 94 Pick-up Impression Coping 95 Transfer Impression Coping 96 Lab Analog 97 Contents

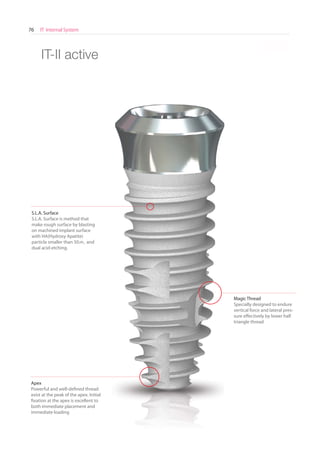

IT Internal System76 * Scale 1 : 1.1 S.L.A. Surface S.L.A. Surface is method that make rough surface by blasting on machined implant surface with HA(Hydroxy Apatite) particle smaller than 50 and dual acid-etching. Magic Thread Specially designed to endure vertical force and lateral pres- sure effectively by lower half triangle thread Apex Powerful and well-defined thread exist at the peak of the apex. Initial fixation at the apex is excellent to both immediate placement and immediate loading IT-II active

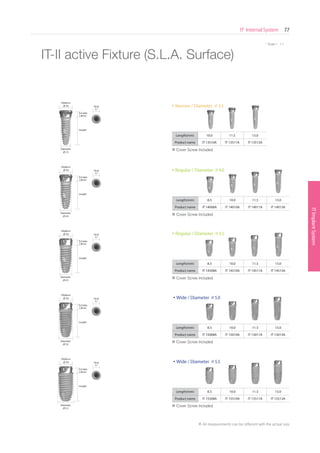

ITImplantSystem IT Internal System 77 SurgicalKit * Scale 1 : 1.1 Platform 4.8 Diameter 5.5 Octa 3.1 IT-II active Fixture (S.L.A. Surface) Narrow / Diameter 3.5 Length(mm) 10.0 11.5 13.0 Product name IT 13510A IT 13511A IT 13513A Length G.Collar 1.8mm Platform 4.8 Diameter 3.5 Octa 3.1 ※ Cover Screw Included Regular / Diameter 4.0 Length(mm) 8.5 10.0 11.5 13.0 Product name IT 14008A IT 14010A IT 14011A IT 14013A Platform 4.8 Diameter 4.0 Octa 3.1 ※ Cover Screw Included Regular / Diameter 4.5 Length(mm) 8.5 10.0 11.5 13.0 Product name IT 14508A IT 14510A IT 14511A IT 14513A ※ Cover Screw Included Platform 4.8 Diameter 4.5 Octa 3.1 Wide / Diameter 5.5 Length(mm) 8.5 10.0 11.5 13.0 Product name IT 15508A IT 15510A IT 15511A IT 15513A ※ Cover Screw Included Wide / Diameter 5.0 Length(mm) 8.5 10.0 11.5 13.0 Product name IT 15008A IT 15010A IT 15011A IT 15013A ※ Cover Screw Included Platform 4.8 Diameter 5.0 Octa 3.1 ※ All measurements can be different with the actual size Length G.Collar 1.8mm Length G.Collar 1.8mm Length G.Collar 1.8mm Length G.Collar 1.8mm

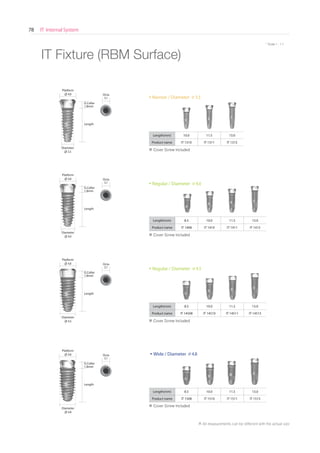

IT Internal System78 * Scale 1 : 1.1 IT Fixture (RBM Surface) Length G.Collar 1.8mm Length G.Collar 1.8mm Length G.Collar 1.8mm Length G.Collar 1.8mm Platform 4.8 Platform 4.8 Platform 4.8 Diameter 3.5 Diameter 4.0 Diameter 4.5 Platform 4.8 Diameter 4.8 Narrow / Diameter 3.5 Length(mm) 10.0 11.5 13.0 Product name IT 1310 IT 1311 IT 1313 Regular / Diameter 4.0 Length(mm) 8.5 10.0 11.5 13.0 Product name IT 1408 IT 1410 IT 1411 IT 1413 Regular / Diameter 4.5 Wide / Diameter 4.8 Length(mm) 8.5 10.0 11.5 13.0 Product name IT 14508 IT 14510 IT 14511 IT 14513 Length(mm) 8.5 10.0 11.5 13.0 Product name IT 1508 IT 1510 IT 1511 IT 1513 Octa 3.1 Octa 3.1 Octa 3.1 Octa 3.1 ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ All measurements can be different with the actual size

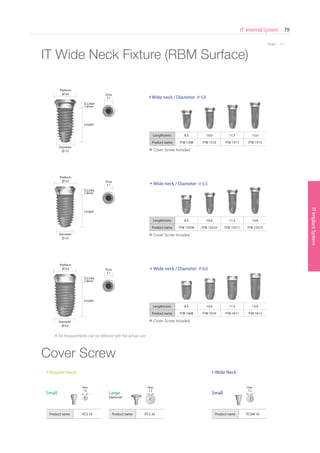

ITImplantSystem IT Internal System 79 SurgicalKit * Scale 1 : 1.1 IT Wide Neck Fixture (RBM Surface) Cover Screw Wide neck / Diameter 5.0 Wide neck / Diameter 5.5 Wide neck / Diameter 6.0 Length(mm) 8.5 10.0 11.5 13.0 Product name ITW 1608 ITW 1610 ITW 1611 ITW 1613 Length(mm) 8.5 10.0 11.5 13.0 Product name ITW 1508 ITW 1510 ITW 1511 ITW 1513 Length(mm) 8.5 10.0 11.5 13.0 Product name ITW 15508 ITW 15510 ITW 15511 ITW 15513 Length G.Collar 1.8mm Platform 6.5 Platform 6.5 Length G.Collar 1.8mm Platform 6.5 Diameter 5.0 Diameter 5.5 Diameter 6.0 Product name ITCS 10 Product name ITCS 20 Product name ITCSW 10 Small Small Regular Neck Large (Optional) Wide Neck Octa 3.1 Octa 3.1 Octa 3.1 Hex 1.2 Hex 1.2 Hex 1.2 ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ All measurements can be different with the actual size Length G.Collar 1.8mm

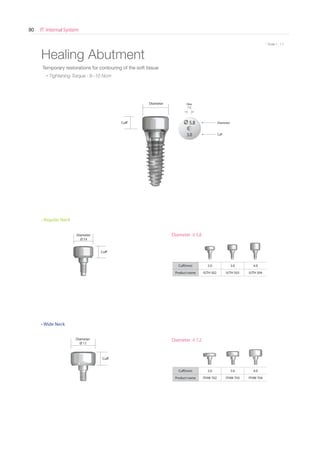

IT Internal System80 * Scale 1 : 1.1 Diameter 5.8 Cuff(mm) 2.0 3.0 4.0 Product name IUTH 502 IUTH 503 IUTH 504 Cuff Diameter 5.8 Diameter 7.2 Cuff(mm) 2.0 3.0 4.0 Product name ITHW 702 ITHW 703 ITHW 704 Cuff Diameter 7.2 Cuff Diameter Healing Abutment Temporary restorations for contouring of the soft tissue • Tightening Torque : 8~10 Ncm 5.8 3.0 Hex 1.2 Diameter Cuff
ITImplantSystem IT Internal System 81 SurgicalKit * Scale 1 : 1.1 Protective CapSolid AbutmentAbutment Driver Impression Cap Impression CapPositioning Cylinder Lab Analog Shoulder Analog Plastic Coping (Single) Plastic Coping (Single) Plastic Coping (Bridge) Plastic Coping (Bridge) IT FixtureIT-II active Fixture Prosthetic Flow Chart - IT Solid Abutment

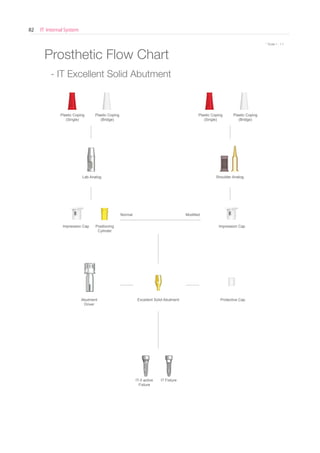

IT Internal System82 * Scale 1 : 1.1 Protective CapExcellent Solid AbutmentAbutment Driver Impression Cap Normal Modified Impression CapPositioning Cylinder Lab Analog Shoulder Analog Plastic Coping (Single) Plastic Coping (Single) Plastic Coping (Bridge) Plastic Coping (Bridge) Prosthetic Flow Chart - IT Excellent Solid Abutment IT FixtureIT-II active Fixture

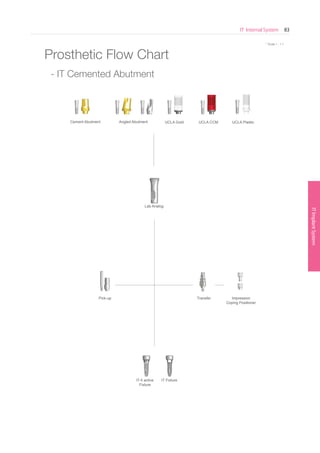

ITImplantSystem IT Internal System 83 SurgicalKit * Scale 1 : 1.1 Impression Coping Positioner Pick-up Transfer Lab Analog Angled AbutmentCement Abutment UCLA Gold UCLA CCM UCLA Plastic Prosthetic Flow Chart - IT Cemented Abutment IT FixtureIT-II active Fixture

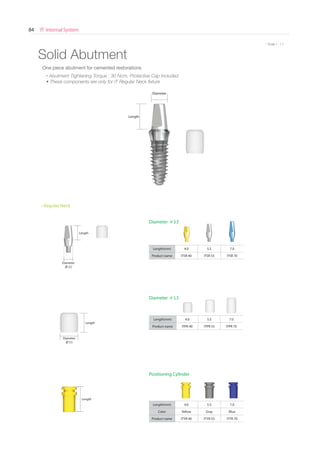

IT Internal System84 * Scale 1 : 1.1 Solid Abutment Length(mm) 4.0 5.5 7.0 Product name ITPR 40 ITPR 55 ITPR 70 Diameter 5.5 Diameter 5.5 Diameter 3.5 Length Length Length Length(mm) 4.0 5.5 7.0 Product name ITSR 40 ITSR 55 ITSR 70 Diameter 3.5 Positioning Cylinder Length(mm) 4.0 5.5 7.0 Color Yellow Gray Blue Product name ITYR 40 ITYR 55 ITYR 70 Length Diameter One piece abutment for cemented restorations • Abutment Tightening Torque : 30 Ncm, Protective Cap Included • These components are only for IT Regular Neck fixture
ITImplantSystem IT Internal System 85 SurgicalKit * Scale 1 : 1.1 Solid Abutment Lab Analog Length Length(mm) 4.0 5.5 7.0 Color Yellow Metal Blue Product name ITAR 40 ITAR 55 ITAR 70 Impression Cap Product name ITIR 00 Shoulder Analog Product name ITAS 00 Plastic Coping Type Single Bridge Product name ITPRCR ITPRBRBridge Single
IT Internal System86 * Scale 1 : 1.1 Diameter 4.3 Diameter 5.5 Protective Cap Length Length(mm) 4.0 5.5 Product name ITSW 40 ITSW 55 Wide Neck Solid Abutment Wide Neck Solid Abutment Length(mm) 4.0 5.5 Product name ITPW 40 ITPW 55 Length Diameter Hex 1.2 One piece abutment for cemented restorations • Abutment Tightening Torque : 30 Ncm, Protective Cap Included • These components are only for IT Wide Neck fixture Length
ITImplantSystem IT Internal System 87 SurgicalKit * Scale 1 : 1.1 Length(mm) 4.0 5.5 Color Yellow Gray Product name ITYW 40 ITYW 55 Positioning Cylinder Wide Neck Solid Abutment Length Length(mm) 4.0 5.5 Color Yellow Metal Product name ITAW 40 ITAW 55 Lab Analog Product name ITIW 00 Impression Cap Type Single Bridge Product name ITPWCR ITPWBR Plastic Coping Bridge Single

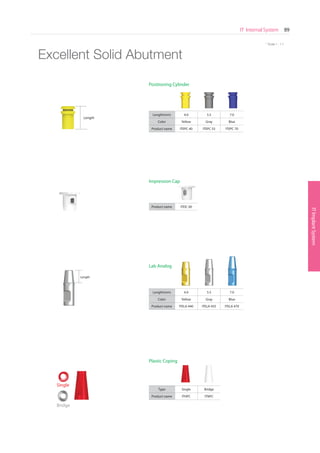

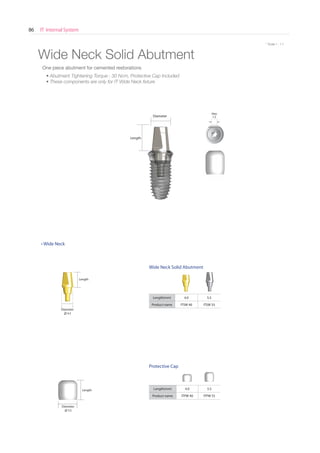

IT Internal System88 * Scale 1 : 1.1 Excellent Solid Abutment Diameter 5.5 Protective Cap 호환 Solid Abutment Length(mm) 4.0 5.5 7.0 Product name ITPTC 40 ITPTC 55 ITPTC 70 Diameter 4.3 Length Length(mm) 4.0 5.5 7.0 Product name ITSE 404 ITSE 405 ITSE 407 Excellent Solid Abutment Length Diameter One piece abutment for cemented restorations • Abutment Tightening Torque : 30 Ncm, Protective Cap Included • These components are only for IT Regular Neck Fixture Length Hex 1.2
ITImplantSystem IT Internal System 89 SurgicalKit * Scale 1 : 1.1 Excellent Solid Abutment Length Length(mm) 4.0 5.5 7.0 Color Yellow Gray Blue Product name ITELA 440 ITELA 455 ITELA 470 Lab Analog Product name ITEIC 00 Impression Cap Length(mm) 4.0 5.5 7.0 Color Yellow Gray Blue Product name ITEPC 40 ITEPC 55 ITEPC 70 Positioning Cylinder Type Single Bridge Product name ITHPC ITNPC Plastic Coping Bridge Single Length

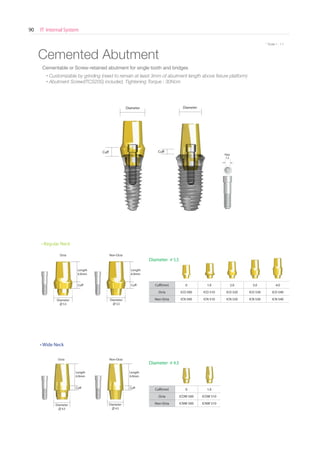

IT Internal System90 * Scale 1 : 1.1 Cemented Abutment Cuff Cuff CuffCuff Diameter 5.5 Diameter 5.5 Diameter 4.3 Diameter 4.3 Cuff(mm) 0 1.0 2.0 3.0 4.0 Octa ICO 500 ICO 510 ICO 520 ICO 530 ICO 540 Non-Octa ICN 500 ICN 510 ICN 520 ICN 530 ICN 540 Cuff(mm) 0 1.0 Octa ICOW 500 ICOW 510 Non-Octa ICNW 500 ICNW 510 Diameter 5.5 Diameter 4.3 Cuff Cuff Diameter Diameter Cementable or Screw-retained abutment for single tooth and bridges • Customizable by grinding (need to remain at least 3mm of abutment length above fixture platform) • Abutment Screw(ITCS20S) included, Tightening Torque : 30Ncm Octa Octa Non-Octa Non-Octa Hex 1.2 Length 6.0mm Length 6.0mm Length 6.0mm Length 6.0mm

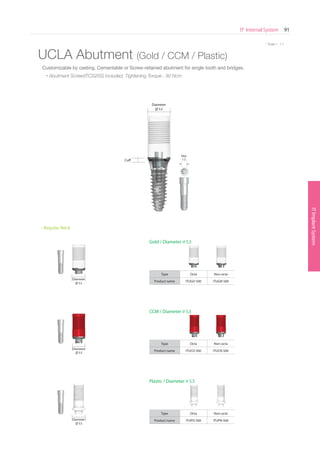

ITImplantSystem IT Internal System 91 SurgicalKit * Scale 1 : 1.1 Gold / Diameter 5.5 Plastic / Diameter 5.5 UCLA Abutment (Gold / CCM / Plastic) Type Octa Non-octa Product name ITUPO 500 ITUPN 500 Cuff Diameter 5.5 Diameter 5.5 Type Octa Non-octa Product name ITUGO 500 ITUGN 500 CCM / Diameter 5.5 Type Octa Non-octa Product name ITUCO 500 ITUCN 500 Diameter 5.5 Diameter 5.5 Customizable by casting. Cementable or Screw-retained abutment for single tooth and bridges. • Abutment Screw(ITCS20S) included, Tightening Torque : 30 Ncm Hex 1.2

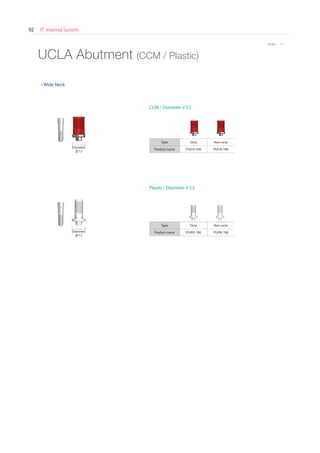

IT Internal System92 * Scale 1 : 1.1 Plastic / Diameter 5.5 UCLA Abutment (CCM / Plastic) Type Octa Non-octa Product name ITUPO 700 ITUPN 700 CCM / Diameter 5.5 Type Octa Non-octa Product name ITUCO 700 ITUCN 700 Diameter 7.2 Diameter 7.2
ITImplantSystem IT Internal System 93 SurgicalKit * Scale 1 : 1.1 Pre Angled Abutment (15° / 25°) Type A B Product name IAO 310A IAO 310B 15° A - Type Angle to the edge A - Type Angle to the edge A - Type Angle to the edge B - Type Angle to the flat wall B - Type Angle to the flat wall B - Type Angle to the flat wall Non-octa Type A B Product name IAO 320A IAO 320B 25° 15° 15° 25°25° Type A B Non-octa Product name IAOW 500A IAOW 500B IANW 500 15° 15°15° 15° 15° 25° A-Type (Angle to the edge) B-Type (Angle to the flat wall) • Abutment Screw(ITAS20S) included, Tightening Torque : 30 Ncm Hex 1.2

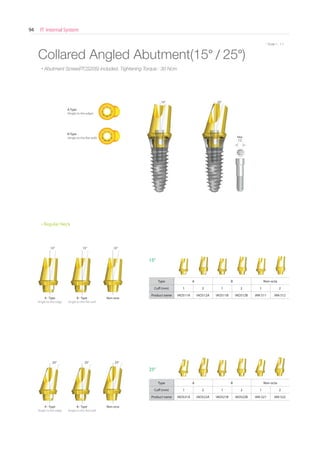

IT Internal System94 * Scale 1 : 1.1 A - Type Angle to the edge A - Type Angle to the edge B - Type Angle to the flat wall B - Type Angle to the flat wall Non-octa Non-octa Collared Angled Abutment(15° / 25°) Type A B Non-octa Cuff (mm) 1 2 1 2 1 2 Product name IAO511A IAO512A IAO511B IAO512B IAN 511 IAN 512 Type A B Non-octa Cuff (mm) 1 2 1 2 1 2 Product name IAO521A IAO522A IAO521B IAO522B IAN 521 IAN 522 15° 25° 15° 15° 15° 25° 25° 15° 25° 25° A-Type (Angle to the edge) B-Type (Angle to the flat wall) • Abutment Screw(ITCS20S) included, Tightening Torque : 30 Ncm Hex 1.2

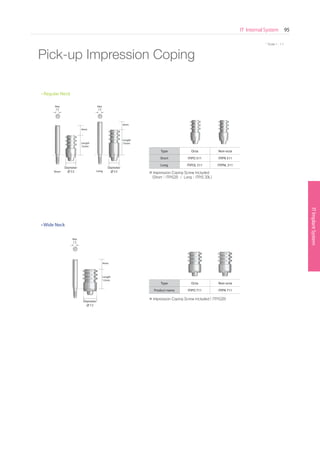

ITImplantSystem IT Internal System 95 SurgicalKit * Scale 1 : 1.1 Pick-up Impression Coping ※ Impression Coping Screw Included (Short : ITPIS20 / Long : ITPIS 20L) ※ Impression Coping Screw Included ( ITPIS20) Type Octa Non-octa Short ITIPO 511 ITIPN 511 Long ITIPOL 511 ITIPNL 511 Type Octa Non-octa Product name ITIPO 711 ITIPN 711 Diameter 5.5 Diameter 5.5 Diameter 7.2 Hex 1.2 Hex 1.2 Hex 1.2 Length 12mm Length 12mm 4mm 4mm Length 15mm 4mm Short Long

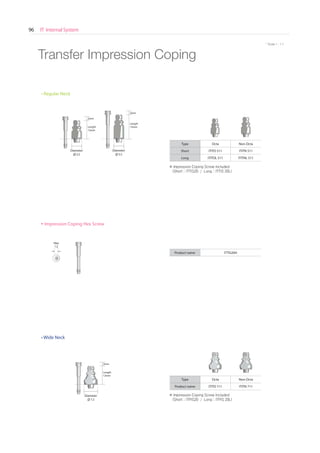

IT Internal System96 * Scale 1 : 1.1 Transfer Impression Coping ※ Impression Coping Screw Included (Short : ITTIS20 / Long : ITTIS 20L) Type Octa Non-Octa Short ITITO 511 ITITN 511 Long ITITOL 511 ITITNL 511 Diameter 5.5 Diameter 5.5 Product name ITTIS20H Impression Coping Hex Screw ※ Impression Coping Screw Included (Short : ITPIS20 / Long : ITPIS 20L) Type Octa Non-Octa Product name ITITO 711 ITITN 711 Diameter 7.2 Hex 1.2 Length 12mm Length 15mm Length 12mm 2mm 2mm 2mm

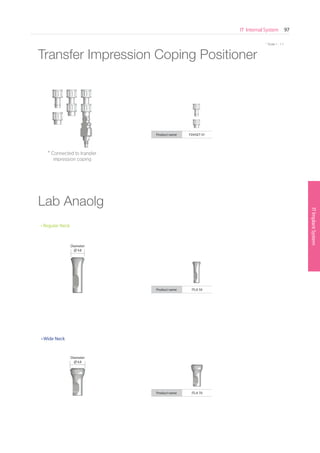

ITImplantSystem IT Internal System 97 SurgicalKit * Scale 1 : 1.1 Transfer Impression Coping Positioner Product name FDHSET 01 * Connected to transfer impression coping Lab Anaolg Product name ITLA 50 Product name ITLA 70 Diameter 4.8 Diameter 6.8
S-Mini Implant System S-Mini Cemented type / S-Mini Ball type Neobiotech S-Mini IMPLANT SYSTEM

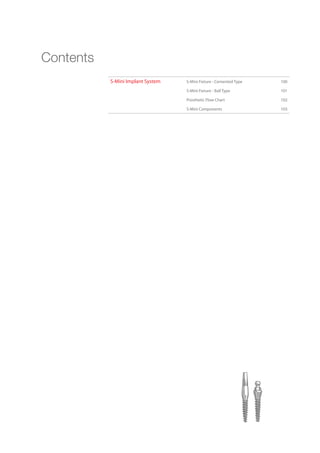

S-Mini Implant System S-Mini Fixture - Cemented Type 100 S-Mini Fixture - Ball Type 101 Prosthetic Flow Chart 102 S-Mini Components 103 Contents
S-Mini Implant System100 * Scale 1 : 1.1 S-Mini Fixture - Cement Type (RBM Surface) Length Length Cuff 2.0mm Cuff 2.0mm Post 10mm Post 10mm Diameter 2.0 Diameter 2.5 Diameter 2.0 Diameter 2.5 Diameter 3.0 Diameter 3.5 Length(mm) 8.5 10.0 11.5 13.0 15.0 Product name MI 2008L MI 2010L MI 2011L MI 2013L MI 2015L Length(mm) 8.5 10.0 11.5 13.0 15.0 Product name MI 2508L MI 2510L MI 2511L MI 2513L MI 2515L Length(mm) 8.5 10.0 11.5 13.0 15.0 Product name MI 3008L MI 3010L MI 3011L MI 3013L MI 3015L Length(mm) 8.5 10.0 11.5 13.0 15.0 Product name MI 3508L MI 3510L MI 3511L MI 3513L MI 3515L Length Cuff 2.0mm Post 10mm Diameter 3.0 Length Cuff 2.0mm Post 10mm Diameter 3.5 ※ Protective Cap Included ※ Protective Cap Included ※ Protective Cap Included ※ Protective Cap Included ※ All measurements can be different with the actual size

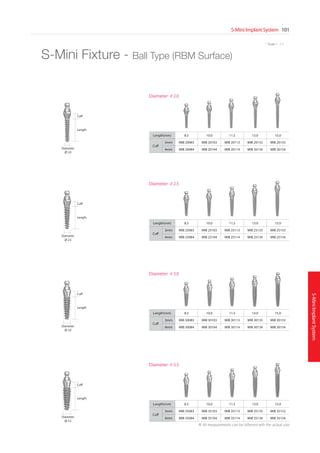

S-Mini Implant System 101 S-MiniImplantSystem * Scale 1 : 1.1 Length Cuff Diameter 2.0 Diameter 2.0 Length(mm) 8.5 10.0 11.5 13.0 15.0 Cuff 3mm MIB 20083 MIB 20103 MIB 20113 MIB 20133 MIB 20153 4mm MIB 20084 MIB 20104 MIB 20114 MIB 20134 MIB 20154 Diameter 2.5 Length(mm) 8.5 10.0 11.5 13.0 15.0 Cuff 3mm MIB 25083 MIB 25103 MIB 25113 MIB 25133 MIB 25153 4mm MIB 25084 MIB 25104 MIB 25114 MIB 25134 MIB 25154 Diameter 3.0 Length(mm) 8.5 10.0 11.5 13.0 15.0 Cuff 3mm MIB 30083 MIB 30103 MIB 30113 MIB 30133 MIB 30153 4mm MIB 30084 MIB 30104 MIB 30114 MIB 30134 MIB 30154 Diameter 3.5 Length(mm) 8.5 10.0 11.5 13.0 15.0 Cuff 3mm MIB 35083 MIB 35103 MIB 35113 MIB 35133 MIB 35153 4mm MIB 35084 MIB 35104 MIB 35114 MIB 35134 MIB 35154 S-Mini Fixture - Ball Type (RBM Surface) Length Cuff Diameter 2.5 Length Cuff Diameter 3.0 Length Cuff Diameter 3.5 ※ All measurements can be different with the actual size
S-Mini Implant System102 * Scale 1 : 1.1 Impression Cap Lab side Lab sideChair side Chair side Normal Post Modified Impression Cap Lab analog (Normal Type) Lab analog (Modifying Type) Protective Cap Protective Cap S-Mini Fixture (Cement Type) S-Mini Fixture (Ball Type) Prosthetic Flow Chart - Cement Type Prosthetic Flow Chart - Ball Type Lab analog HousingLab Housing RetainerClinical RetainerClinical

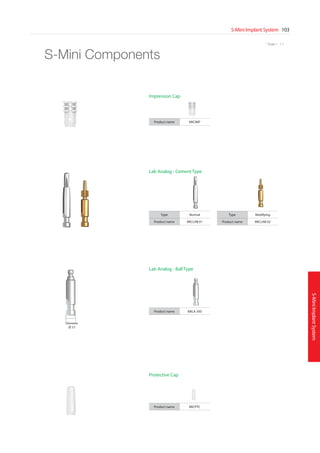

S-Mini Implant System 103 S-MiniImplantSystem * Scale 1 : 1.1 S-Mini Components Type Normal Product name MICLAB 01 Type Modifying Product name MICLAB 02 Lab Analog - Cement Type Product name MICIMP Impression Cap Product name MICPTC Protective Cap Lab Analog - Ball Type Product name BALA 350 Diameter 3.5

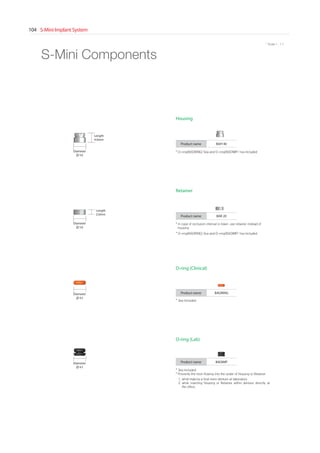

S-Mini Implant System104 * Scale 1 : 1.1 Product name BAR 20 Diameter 5.0 Length 2.0mm Retainer Product name BAH 40 Diameter 5.0 Length 4.0mm Housing S-Mini Components Product name BAORINGDiameter 4.5 O-ring (Clinical) Product name BAOIMPDiameter 4.5 O-ring (Lab) * 3ea Included * Prevents the resin flowing into the under of Housing or Retainer 1. while making a final resin denture at laboratory. 2. while inserting Housing or Retainer within denture directly at the office. * O-ring(BAORING) 5ea and O-ring(BAOIMP) 1ea Included * 3ea Included * O-ring(BAORING) 5ea and O-ring(BAOIMP) 1ea Included * In case of occlusion interval is lower, use retainer instead of housing
* Scale 1 : 1.1
S-Mini Implant System IS Full Kit / EB & IT Kit / S-Mini Kit / S-Wide Kit / Neo Surgical Accessory Kit / Neo Prosthetic Kit Neobiotech SURGICAL KIT
Surgical Kit IS Full Kit 108 EB & IT Kit 114 S-Mini Kit 120 S-Wide Kit 121 Neo Surgical Accessory Kit 122 Neo Prosthetic Kit 124 Neo Prosthetic Planning Kit 128 Neo PickCap Impression Kit 130 Contents
Surgical Kit108 * Scale 1 : 1 IS Full Kit Surgical Drill Drill Extension Stopper Connector Point Lindemann Countersink Parallel PinDirection Pin Fixture DriverHex Driver Profile Tap This kit can be used to perform implant surgery for IS-II active, IS-II, IS (Ø3.5~Ø5.5). For S-Wide(diameter Ø6.0~Ø7.0) implant surgery, S-Wide Kit additionally required Drill Length Guide 33.5mm 21.5mm 38.5mm ▲ Twist Drill ▲ Twist Drill + Contra Angle ▲ Twist Drill + Extention +Contra Angle Product name ISFKIT 13mm 11.5mm 10mm 8.5mm 7mm 1.3mm ※ The marking of drill is 1.3mm longer than that of fixture length (Point Lindemann / Ø2.2 Initial Drill) mm

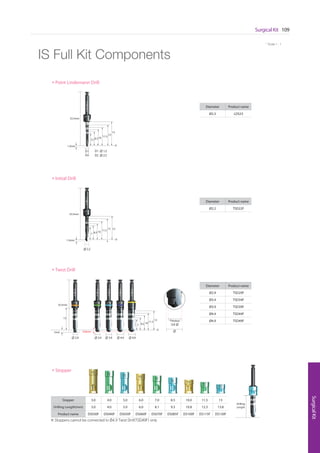

Surgical Kit 109 SurgicalKit * Scale 1 : 1 ※ Stoppers cannot be connected to Ø4.9 Twist Drill(TSD49F) only IS Full Kit Components Stopper Stopper 3.0 4.0 5.0 6.0 7.0 8.5 10.0 11.5 13 Drilling Length(mm) 3.0 4.0 5.0 6.0 8.1 9.3 10.8 12.3 13.8 Product name DS030F DS040F DS050F DS060F DS070F DS085F DS100F DS115F DS130F Drilling Length 13.0 11.5 10 8.5 7.0 6.0 5.0 4.0 3.0 Diameter Product name Ø2.3 LDS23 1.3mm 1mm 0.8mm Point Lindemann Drill 15 Initial Drill Diameter Product name Ø2.2 TSD22F 7 8.5 10 11.5 13 0 FØ2.2 2.2 33.5mm 7 8.5 10 11.5 13 Twist Drill Diameter Product name Ø2.9 TSD29F Ø3.4 TSD34F Ø3.9 TSD39F Ø4.4 TSD44F Ø4.9 TSD49F FØ2.9 FØ3.4 FØ3.9 FØ4.4 FØ4.9 2.9 3.4 3.9 4.4 4.9 Previous Drill 15 0 33.5mm 33.5mm 0 D2 : 2.3 D1 : 1.2D1 D2 7.3 8.510 11.5 13 LDSØ2.5 1.3mm 15

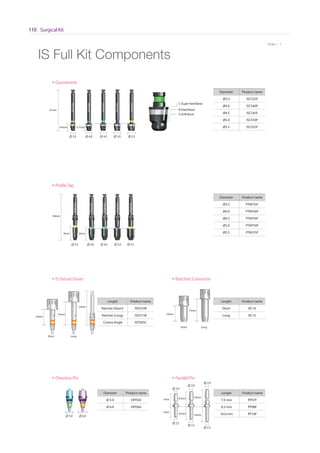

Surgical Kit110 * Scale 1 : 1 Ratchet Connector Short Long IS Fixture Driver Length Product name Ratchet (Short) ISFD10R Ratchet (Long) ISFD15R Contra Angle ISFD05C IS Full Kit Components Countersink Short Long Diameter Product name Ø3.5 ISCS35F Ø4.0 ISCS40F Ø4.5 ISCS45F Ø5.0 ISCS50F Ø5.5 ISCS55F B (Hard Bone) C (Super Hard Bone) A (Soft Bone) ProfileTap 30mm 9mm 10mm 10mm15mm 15mm 23mm 8mm 3.5 4.0 4.5 5.0 5.5 Diameter Product name Ø3.5 PTAP35F Ø4.0 PTAP40F Ø4.5 PTAP45F Ø5.0 PTAP50F Ø5.5 PTAP55F Length Product name Short RC10 Long RC15 5.0 6.0 Direction Pin Diameter Product name Ø 5.0 DPIS50 Ø 6.0 DPIS60 Parallel Pin Length Product name 7.0 mm PP07F 8.5 mm PP08F 10.0 mm PP10F 15 PTAP35F PTAP40F PTAP45F PTAP50F PTAP55F 4.9mm 4.7mm ISCS35F ISCS40F ISCS45F ISCS50F ISCS55F 3.5 4.0 4.5 5.0 5.5 27mm 7mm 7mm 8.5mm 8.5mm 10mm 10mm 2.2 2.2 2.2 2.9 2.9 2.9 2
Surgical Kit 111 SurgicalKit * Scale 1 : 1 IS Full Kit Components Hex Driver Drill Extension Product name HD1215 Product name DE01 Torque Ratchet Product name TW60 Driver Holder Product name DH01 15mm Spare Hex Driver Swivel Hole Hex 1.2 er

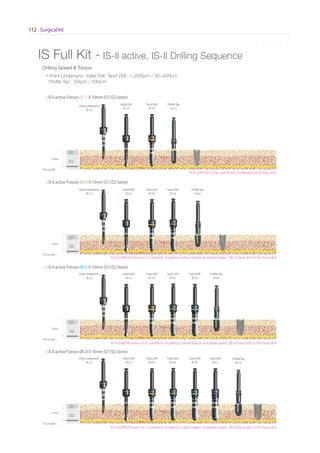

Surgical Kit112 * Scale 1 : 1 IS Full Kit - IS-II active, IS-II Drilling Sequence Drilling Speed & Torque Twist Drill Ø 2.9 Point Lindemann Ø 2.3 Initial Drill Ø 2.2 Twist Drill Ø 3.4 Twist Drill Ø 3.9 D1 D2 10mm ProfileTap Ø 4.5 IS-II active Fixture Ø4.5 X 10mm (D1/D2 bone) D1 D2 10mm ProfileTap Ø 5.0 IS-II active Fixture Ø5.0 X 10mm (D1/D2 bone) Twist Drill Ø 2.9 Point Lindemann Ø 2.3 Initial Drill Ø 2.2 Twist Drill Ø 3.4 Twist Drill Ø 3.9 Twist Drill Ø 4.4 Twist Drill Ø 2.9 Point Lindemann Ø 2.3 Initial Drill Ø 2.2 Twist Drill Ø 3.4 D1 D2 10mm ProfileTap Ø 4.0 IS-II active Fixture Ø4.0 X 10mm (D1/D2 bone) Point Lindemann Ø 2.3 Initial Drill Ø 2.2 Twist Drill Ø 2.9 ※ In soft(D4) bone, use Point Lindemann Drill fully only D1 D2 10mm Tip Length Tip Length Tip Length Tip Length ProfileTap Ø 3.5 IS-II active Fixture Ø3.5 X 10mm (D1/D2 bone) • Point Lindemann, Initial Drill, Twist Drill : 1,200rpm / 30~45Ncm Profile Tap : 50rpm / 50Ncm ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø3.4 twist drill is the final drill ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø3.9 twist drill is the final drill ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø2.9 twist drill is the final drill n n n n

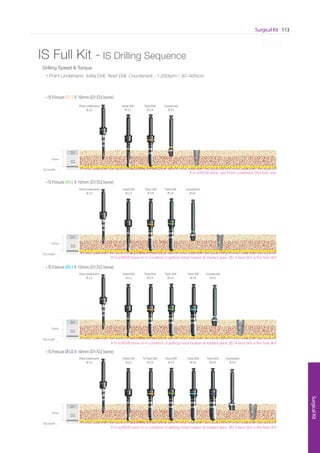

Surgical Kit 113 SurgicalKit * Scale 1 : 1 IS Full Kit - IS Drilling Sequence Drilling Speed & Torque Twist Drill Ø 2.9 Point Lindemann Ø 2.3 Initial Drill Ø 2.2 Twist Drill Ø 3.4 D1 D2 10mm Twist Drill Ø 3.9 Countersink Ø 4.5 IS Fixture Ø4.5 X 10mm (D1/D2 bone) TaTwist Drill Ø 2.9 Point Lindemann Ø 2.3 Initial Drill Ø 2.2 Twist Drill Ø 3.4 Twist Drill Ø 3.9 D1 D2 10mm Twist Drill Ø 4.4 Countersink Ø 5.0 IS Fixture Ø5.0 X 10mm (D1/D2 bone) Twist Drill Ø 2.9 D1 D2 10mm Point Lindemann Ø 2.3 Initial Drill Ø 2.2 Twist Drill Ø 3.4 Countersink Ø 4.0 IS Fixture Ø4.0 X 10mm (D1/D2 bone) ※ In soft(D4) bone, use Point Lindemann Drill fully only D1 D2 10mm Point Lindemann Ø 2.3 Initial Drill Ø 2.2 Twist Drill Ø 2.9 Countersink Ø 3.5 IS Fixture Ø3.5 X 10mm (D1/D2 bone) • Point Lindemann, Initial Drill, Twist Drill, Countersink : 1,200rpm / 30~45Ncm ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø3.4 twist drill is the final drill ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø3.9 twist drill is the final drill ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø2.9 twist drill is the final drill Tip Length Tip Length Tip Length Tip Length n n n n

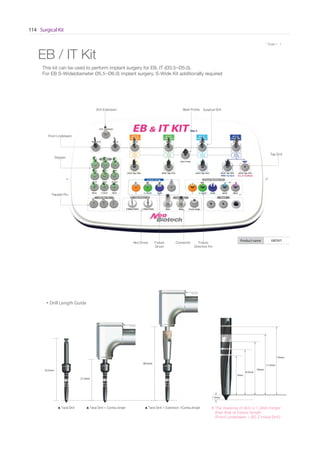

Surgical Kit114 * Scale 1 : 1 EB / IT Kit Surgical DrillMulti ProfileDrill Extension Parallel Pin Point Lindemann Fixture Direction Pin Fixture Driver Tap Drill Hex Driver Connector Stopper This kit can be used to perform implant surgery for EB, IT (Ø3.5~Ø5.0). For EB S-Wide(diameter Ø5.5~Ø6.0) implant surgery, S-Wide Kit additionally required Drill Length Guide 33.5mm 21.5mm 38.5mm ▲ Twist Drill ▲ Twist Drill + Contra Angle ▲ Twist Drill + Extention +Contra Angle Product name EBITKIT 13mm 11.5mm 10mm 8.5mm 7mm 1.3mm ※ The marking of drill is 1.3mm longer than that of fixture length (Point Lindemann / Ø2.2 Initial Drill) mm
Surgical Kit 115 SurgicalKit * Scale 1 : 1 EB / IT Kit Components Stopper Stopper 3.0 4.0 5.0 6.0 7.0 8.5 10.0 11.5 13 Drilling Length(mm) 3.0 4.0 5.0 6.0 8.1 9.3 10.8 12.3 13.8 Product name DS030F DS040F DS050F DS060F DS070F DS085F DS100F DS115F DS130F Drilling Length 13.0 13.0 11.5 10 8.5 7.0 6.0 5.0 4.0 3.0 Diameter Product name Ø2.3 LDS23 Point Lindemann Drill Initial Drill Diameter Product name Ø2.2 TSD22F 7 8.5 10 11.5 13 0 FØ2.2 2.2 33.5mm Twist Drill Diameter Product name Ø2.9 TSD29F Ø3.4 TSD34F Ø3.9 TSD39F Ø4.4 TSD44F 1.3mm 15 33.5mm 0 D2 : 2.3 D1 : 1.2D1 D2 7.3 8.510 11.5 13 LDSØ2.3 1.3mm 15 1mm 0.8mm 7 8.5 10 11.5 13 FØ2.9 FØ3.4 FØ3.9 FØ4.4 FØ4.9 2.9 3.4 3.9 4.4 Previous Drill 15 0 33.5mm

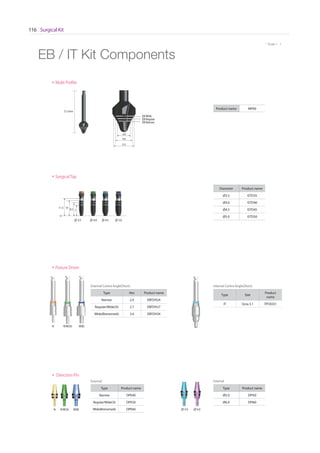

Surgical Kit116 * Scale 1 : 1 Fixture Driver Direction Pin EB / IT Kit Components Multi Profile Product name MP00 SurgicalTap 3.5 4.0 4.5 5.0N R/W(3i) W(B) 5.0 6.0 Diameter Product name Ø3.5 ISTD35 Ø4.0 ISTD40 Ø4.5 ISTD45 Ø5.0 ISTD50 27.5mm External Internal Internal Contra Angle(Short) Type Size Product name IT Octa 3.1 ITFDO31 N R/W(3i) W(B) External Contra Angle(Short) Type Hex Product name Narrow 2.4 EBFDH24 Regular/Wide(3i) 2.7 EBFDH27 Wide(Brenemark) 3.4 EBFDH34 Type Product name Narrow DPE40 Regular/Wide(3i) DPE50 Wide(Brenemark) DPE60 Type Product name Ø5.0 DPI50 Ø6.0 DPI60 0 78.5 1011.5 EB Regular EBWide EB Narrow 3.8 4.6 5.5
Surgical Kit 117 SurgicalKit * Scale 1 : 1 EB / IT Kit Components Parallel Pin Length Product name 7.0 mm PP07F 8.5 mm PP08F 10.0 mm PP10F Connector 10mm 15mm Length Product name Ratchet (Short) RC10 Ratchet (Long) RC15 Contra Angle CAA00 1 Drill Extension Product name DE01Type Product name 1.2Hex HD1215 0.9Hex HD0915 Hex Driver Hex 0.9 15mm Hex 1.2 Torque Ratchet Product name TW60 7mm 7mm 8.5mm 8.5mm 10mm 10mm 2.2 2.2 2.2 2.9 2.9 2.9

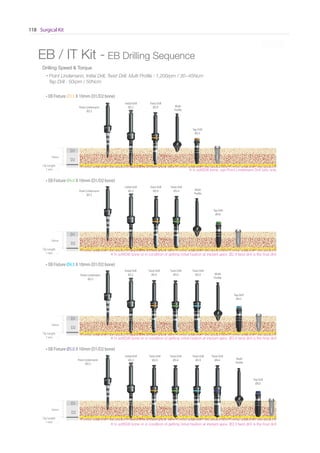

Surgical Kit118 * Scale 1 : 1 EB / IT Kit - EB Drilling Sequence Drilling Speed & Torque ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø3.4 twist drill is the final drill ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø3.9 twist drill is the final drill ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø2.9 twist drill is the final drill ※ In soft(D4) bone, use Point Lindemann Drill fully only • Point Lindemann, Initial Drill, Twist Drill, Multi Profile : 1,200rpm / 30~45Ncm Tap Drill : 50rpm / 50Ncm D1 D2 10mm Tip Length 1 mm Point Lindemann Ø2.3 Multi Profile Tap Drill Ø3.5 EB Fixture Ø3.5 X 10mm (D1/D2 bone) Multi Profile Tap Drill Ø4.0 D1 D2 10mm Tip Length 1 mm Point Lindemann Ø2.3 EB Fixture Ø4.0 X 10mm (D1/D2 bone) Multi Profile Tap Drill Ø4.5 D1 D2 10mm Tip Length 1 mm Point Lindemann Ø2.3 EB Fixture Ø4.5 X 10mm (D1/D2 bone) Multi Profile Tap Drill Ø5.0 D1 D2 10mm Tip Length 1 mm Point Lindemann Ø2.3 EB Fixture Ø5.0 X 10mm (D1/D2 bone) Initial Drill Ø2.2 Twist Drill Ø2.9 Initial Drill Ø2.2 Twist Drill Ø2.9 Twist Drill Ø3.4 Initial Drill Ø2.2 Twist Drill Ø2.9 Twist Drill Ø3.4 Twist Drill Ø3.9 Initial Drill Ø2.2 Twist Drill Ø2.9 Twist Drill Ø3.4 Twist Drill Ø3.9 Twist Drill Ø4.4

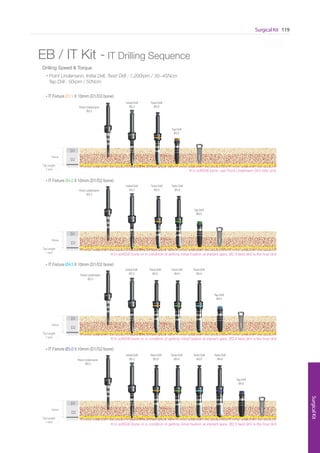

Surgical Kit 119 SurgicalKit * Scale 1 : 1 EB / IT Kit - IT Drilling Sequence Drilling Speed & Torque ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø3.4 twist drill is the final drill ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø3.9 twist drill is the final drill ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø2.9 twist drill is the final drill ※ In soft(D4) bone, use Point Lindemann Drill fully only • Point Lindemann, Initial Drill, Twist Drill : 1,200rpm / 30~45Ncm Tap Drill : 50rpm / 50Ncm D1 D2 10mm Tip Length 1 mm Point Lindemann Ø2.3 Tap Drill Ø3.5 IT Fixture Ø3.5 X 10mm (D1/D2 bone) Tap Drill Ø4.0 D1 D2 10mm Tip Length 1 mm Point Lindemann Ø2.3 IT Fixture Ø4.0 X 10mm (D1/D2 bone) Tap Drill Ø4.5 D1 D2 10mm Tip Length 1 mm Point Lindemann Ø2.3 IT Fixture Ø4.5 X 10mm (D1/D2 bone) Tap Drill Ø5.0 D1 D2 10mm Tip Length 1 mm Point Lindemann Ø2.3 IT Fixture Ø5.0 X 10mm (D1/D2 bone) Initial Drill Ø2.2 Twist Drill Ø2.9 Initial Drill Ø2.2 Twist Drill Ø2.9 Twist Drill Ø3.4 Initial Drill Ø2.2 Twist Drill Ø2.9 Twist Drill Ø3.4 Twist Drill Ø3.9 Initial Drill Ø2.2 Twist Drill Ø2.9 Twist Drill Ø3.4 Twist Drill Ø3.9 Twist Drill Ø4.4

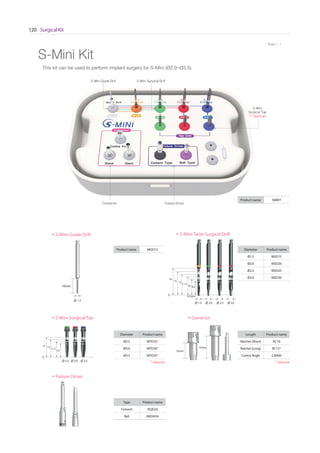

Surgical Kit120 * Scale 1 : 1 S-Mini Kit This kit can be used to perform implant surgery for S-Mini (Ø2.0~Ø3.5). Type Product name Cement ISQD20 Ball BADH24 Diameter Product name Ø1.5 MSD15 Ø2.0 MSD20 Ø2.5 MSD25 Ø3.0 MSD30 Product name MGD12 S-Mini Guide Drill S-Mini Twist Surgical Drill Fixture Driver Length Product name Ratchet (Short) RC10 Ratchet (Long) RC15* Contra Angle CAA00 Connector S-Mini Surgical DrillS-Mini Guide Drill Fixture Driver S-Mini Surgical Tap Connector Product name SMKIT (* Optional) * Optional 1.5 Diameter Product name Ø2.5 MTD25* Ø3.0 MTD30* Ø3.5 MTD35* S-Mini Surgical Tap * Optional2.5 3.0 3.5 -0.5mm 8.510 11.5 1315 18 0 0 10mm 1.2 2.0 2.5 3.0 10 11.5 1315 10mm 15mm1
Surgical Kit 121 SurgicalKit * Scale 1 : 1 S-Wide Kit S-Wide Twist Surgical Drill Hex Driver Multi ProfileTrephine Drill S-Wide Surgical Tap S-Wide Stopper Connector S-Wide Twist Surgical Drill This kit can be used to perform implant surgery for IS S-Wide(Ø5.5~Ø7.0), EB S-Wide(Ø5.5~Ø6.0). S-Wide Drill Stopper Length(mm) 6.0 7.0 8.5 10.0 11.5 Product name DSL060 DSL070 DSL085 DSL100 DSL115 Product name SWKIT Hex Driver Type Product name 1.2Hex HD1212 15mm Hex 1.2 Diameter Product name Ø5.5 TD55 Ø6.0 TD60 Ø7.0 TD70 S-Wide Surgical Tap 5.5 6.0 7.0 S-Wide Multi Profile Diameter Product name Ø5.5 MP55 Ø6.0 MP60 Ø7.0 MP70 5.5 6.0 7.0 Diameter Product name Ø4.8 TSD48 Ø5.0 TSD50 Ø5.5 TSD55 Ø6.0 TSD60 Ø6.5 TSD65 -0.5mm 7 3.75 7.0 8.5 5.0 8.5 10 10 11.513 0 0 0 Trephine Drill Diameter Product name Ø4.0 / Ø5.0 TB40 Ø5.0 / Ø6.0 TB50 Connector Type Product name Ratchet RC10 Contra Angle CAA00 10mm 78.51011.5 13 0

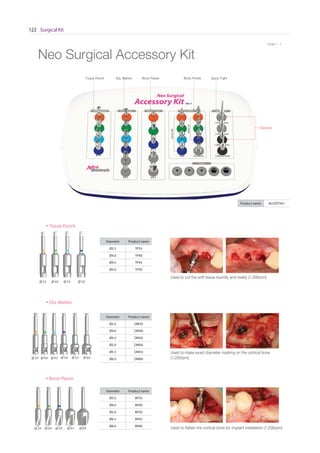

Surgical Kit122 * Scale 1 : 1 Neo Surgical Accessory Kit Tissue Punch Dia. Marker Bone Planer Bone Profile Quick Tight Product name ACCKITV01 Optional Tissue Punch Dia. Marker Bone Planer Diameter Product name Ø3.5 TP35 Ø4.0 TP40 Ø4.5 TP45 Ø5.0 TP50 Diameter Product name Ø3.5 DM35 Ø4.0 DM40 Ø4.5 DM45 Ø5.0 DM50 Ø5.5 DM55 Ø6.0 DM60 Diameter Product name Ø3.5 BP35 Ø4.0 BP40 Ø5.0 BP50 Ø6.5 BP65 Ø8.0 BP80 3.5 3.5 4.0 4.0 4.5 4.5 5.0 5.0 5.5 6.0 3.5 4.0 6.5 8.05.0 Used to cut the soft tissue roundly and neatly (1,000rpm) Used to make exact diameter marking on the cortical bone (1,200rpm) Used to flatten the cortical bone for implant installation (1,200rpm)

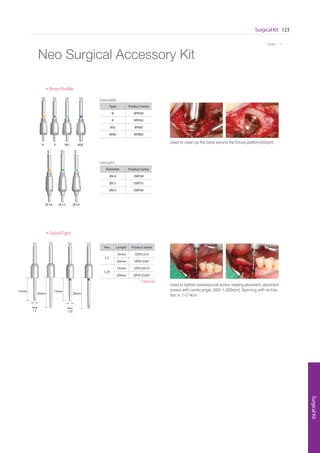

Surgical Kit 123 SurgicalKit * Scale 1 : 1 Neo Surgical Accessory Kit QuickTight 15mm 15mm 20mm 20mm20 Hex 1.2 Hex 1.25 Bone Profile Type Product name N BPN40 R BPR50 W(i) BPI60 W(B) BPB60 Diameter Product name Ø4.8 ISBP48 Ø5.5 ISBP55 Ø6.0 ISBP60 N 4.8 R 5.5 W(i) 6.0 W(B) External(EB) Internal(IS) Used to clean up the bone around the fixture platform(50rpm) Used to tighten screws(cover screw, healing abutment, abutment screw) with contra angle. (500~1,000rpm). Spinning with no trac- tion in 1~2 Ncm Hex Length Product name 1.2 15mm QTH1215 20mm QTH1220* 1.25 15mm QTH12515 20mm QTH12520* * Optional

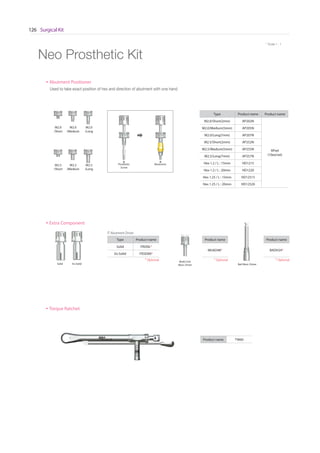

Surgical Kit124 * Scale 1 : 1 Neo Prosthetic Kit 1.2 Hex Driver 1.25 Hex Driver Angled Driver Abutment Positioner Extra ComponentHand Driver Product name PRTKIT Contra Angle 10mm 15mm Hex 1.2 Hex 1.2 1.2 Hex Driver 10mm 15mm 20mm 20mm 25mm Hex 1.2 Hex 1.2 Ratchet Rescue Length(mm) Product name 10 HD1210 15 HD1215 20 HD1220 25 HD1225 Length(mm) Product name 20 HD1220RC Length(mm) Product name 10 HDC1210 15 HDC1215

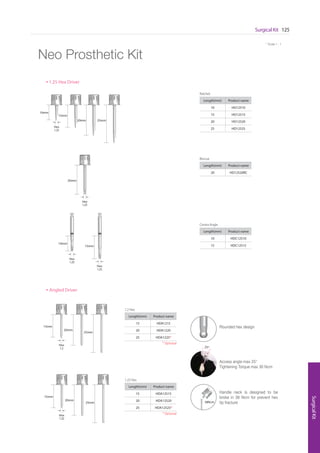

Surgical Kit 125 SurgicalKit * Scale 1 : 1 Neo Prosthetic Kit Ratchet Rescue 1.25 Hex Driver 10mm 15mm 20mm 20mm 25mm Hex 1.25 Hex 1.25 Length(mm) Product name 10 HD12510 15 HD12515 20 HD12520 25 HD12525 Length(mm) Product name 20 HD12520RC 10mm 15mm Hex 1.25 Hex 1.25 Contra Angle Length(mm) Product name 10 HDC12510 15 HDC12515 Angled Driver 15mm 15mm 20mm 20mm 25mm 25mm Hex 1.2 Hex 1.25 Length(mm) Product name 15 HDA1215 20 HDA1220 25 HDA1225* Length(mm) Product name 15 HDA12515 20 HDA12520 25 HDA12525* 1.2 Hex 1.25 Hex * Optional * Optional 25º 38Ncm Rounded hex design Access angle max 25° Tightening Torque max 30 Ncm Handle neck is designed to be broke in 38 Ncm for prevent hex tip fracture
Surgical Kit126 * Scale 1 : 1 Neo Prosthetic Kit Extra Component Type Product name Solid ITAD0L* Ex-Solid ITESD00* Product name MUAD48* Product name BADH24* IT Abutment Driver * Optional * Optional * Optional Solid Multi Unit Abut. Driver Ball Abut. DriverEx-Solid Torque Ratchet Product name TW60 Type Product name Product name M2.0/Short(2mm) AP202N APset (10ea/set) M2.0/Medium(5mm) AP205N M2.0/Long(7mm) AP207N M2.5/Short(2mm) AP252N M2.5/Medium(5mm) AP255N M2.5/Long(7mm) AP257N Hex 1.2 / L : 15mm HD1215 Hex 1.2 / L : 20mm HD1220 Hex 1.25 / L : 15mm HD12515 Hex 1.25 / L : 20mm HD12520 Abutment Positioner M2.0 /Short M2.5 /Short M2.0 /Long M2.5 /Long M2.0 /Medium M2.5 /Medium Used to take exact position of hex and direction of abutment with one hand. Prosthetic Screw Abutment
* Scale 1 : 1 d

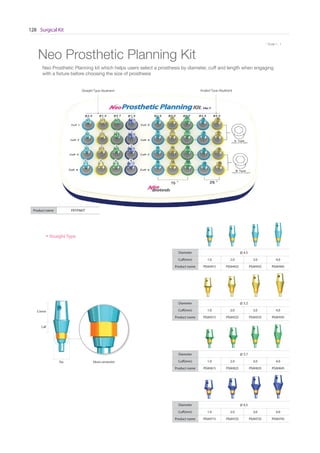

Surgical Kit128 * Scale 1 : 1 Neo Prosthetic Planning Kit Straight Type Abutment Angled Type Abutment Product name PRTPNKIT 5.5mm Cuff Silicon connectionDia. Diameter 4.5 Cuff(mm) 1.0 2.0 3.0 4.0 Product name PISAH415 PISAH425 PISAH435 PISAH445 Diameter 5.7 Cuff(mm) 1.0 2.0 3.0 4.0 Product name PISAH615 PISAH625 PISAH635 PISAH645 Diameter 5.2 Cuff(mm) 1.0 2.0 3.0 4.0 Product name PISAH515 PISAH525 PISAH535 PISAH545 Diameter 6.5 Cuff(mm) 1.0 2.0 3.0 4.0 Product name PISAH715 PISAH725 PISAH735 PISAH745 Straight Type Neo Prosthetic Planning kit which helps users select a prosthesis by diameter, cuff and length when engaging with a fixture before choosing the size of prosthesis

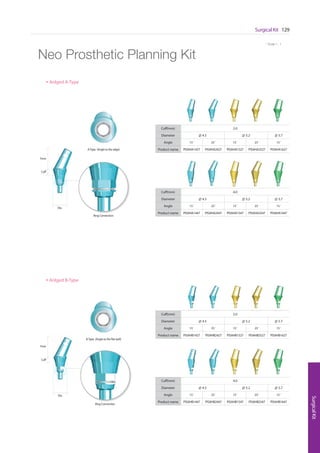

Surgical Kit 129 SurgicalKit * Scale 1 : 1 Neo Prosthetic Planning Kit Cuff(mm) 2.0 Diameter 4.5 5.2 5.7 Angle 15 25 15 25 15 Product name PISAHA1427 PISAHA2427 PISAHA1527 PISAHA2527 PISAHA1627 Cuff(mm) 2.0 Diameter 4.5 5.2 5.7 Angle 15 25 15 25 15 Product name PISAHB1427 PISAHB2427 PISAHB1527 PISAHB2527 PISAHB1627 Ring Connection A-Type (Angle to the edge) 7mm Cuff Dia. Ring Connection B-Type (Angle to the flat wall) 7mm Cuff Dia. Anlged A-Type Anlged B-Type Cuff(mm) 4.0 Diameter 4.5 5.2 5.7 Angle 15 25 15 25 15 Product name PISAHA1447 PISAHA2447 PISAHA1547 PISAHA2547 PISAHA1647 Cuff(mm) 4.0 Diameter 4.5 5.2 5.7 Angle 15 25 15 25 15 Product name PISAHB1447 PISAHB2447 PISAHB1547 PISAHB2547 PISAHB1647
Surgical Kit130 * Scale 1 : 1 Neo PickCap Impression Kit PickCap Impression coping PickCap Impression Cap Screw Hex Driver Neo PickCap Impression Kit is redesigned with a cap for a better accuracy to make up for Transfer type impression coping. (The accuracy of re-positioning the impression material body increases when making a impression coping because the Pick cap inside impression material is detached stuck in it.) Product name PCIKIT Products ea Kit Tray 1 Kit Cover 1 Abutment Positioner 1 Pincette 1 Hex Driver 15mm 1 Hex Driver 20mm 1 Hex Driver 25mm 1 Small Cap 50 Large Cap 50 Screw 93 Products ea Coping Ø8.0 X 3.0mm 3 Coping Ø8.0 X 4.0mm 3 Coping Ø9.0 X 3.0mm 3 Coping Ø9.0 X 4.0mm 3 Products ea Coping Ø5.2 X 2.0mm 3 Coping Ø5.2 X 3.0mm 3 Coping Ø5.2 X 4.0mm 3 Coping Ø5.2 X 5.0mm 3 Coping Ø5.2 X 6.0mm 3 Coping Ø5.7 X 2.0mm 3 Coping Ø5.7 X 3.0mm 3 Coping Ø5.7 X 4.0mm 3 Coping Ø5.7 X 5.0mm 3 Coping Ø5.7 X 6.0mm 3 Coping Ø6.5 X 2.0mm 3 Coping Ø6.5 X 3.0mm 3 Coping Ø6.5 X 4.0mm 3 Coping Ø6.5 X 5.0mm 3 Coping Ø6.5 X 6.0mm 3 Products ea Coping Ø3.5 X 3.0mm 3 Coping Ø3.5 X 5.0mm 3 Coping Ø3.5 X 8.0mm 3 Coping Ø3.5 X 10.0mm 3 Coping Ø4.0 X 3.0mm 3 Coping Ø4.0 X 5.0mm 3 Coping Ø4.0 X 8.0mm 3 Coping Ø4.0 X 10.0mm 3 Coping Ø4.5 X 3.0mm 3 Coping Ø4.5 X 5.0mm 3 Coping Ø4.5 X 8.0mm 3 Coping Ø4.5 X 10.0mm 3 Neo PickCap Impression Kit(PCIKIT) Components d
Surgical Kit 131 SurgicalKit * Scale 1 : 1 Neo PickCap Impression Kit Diameter 5.2 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 Product name ISPCIB502 ISPCIB503 ISPCIB504 ISPCIB505 ISPCIB506 Diameter 6.5 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 Product name ISPCIB702 ISPCIB703 ISPCIB704 ISPCIB705 ISPCIB706 Diameter 8.0 Cuff(mm) 3.0 4.0 Product name ISPCIB803 ISPCIB804 Diameter 5.7 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 Product name ISPCIB602 ISPCIB603 ISPCIB604 ISPCIB605 ISPCIB606 Diameter 4.0 Cuff(mm) 3.0 5.0 8.0 10.0 Product name ISPCIB4003 ISPCIB4005 ISPCIB4008 ISPCIB4010 Diameter 4.5 Cuff(mm) 3.0 5.0 8.0 10.0 Product name ISPCIB403 ISPCIB405 ISPCIB408 ISPCIB410 Diameter 3.5 Cuff(mm) 3.0 5.0 8.0 10.0 Product name ISPCIB3503 ISPCIB3505 ISPCIB3508 ISPCIB3510 Diameter 9.0 Cuff(mm) 3.0 4.0 Product name ISPCIB903 ISPCIB904 Cuff Dia. 2.5Hex Hex 1.2 Neo PickCap Impression Coping * Only coping body included. Please order coping screw & impression cap seperately. * Only coping body included. Please order coping screw & impression cap seperately. * Only coping body included. Please order coping screw & impression cap seperately. * Only coping body included. Please order coping screw & impression cap seperately. * Only coping body included. Please order coping screw & impression cap seperately. * Only coping body included. Please order coping screw & impression cap seperately. * Only coping body included. Please order coping screw & impression cap seperately. * Only coping body included. Please order coping screw & impression cap seperately.

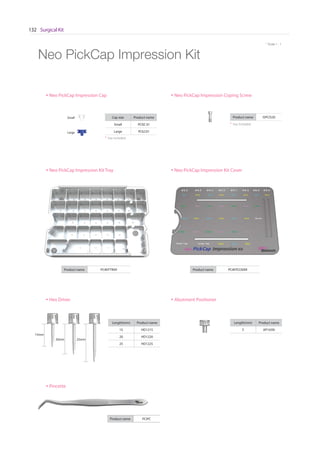

Surgical Kit132 * Scale 1 : 1 15mm 20mm 25mm Length(mm) Product name 15 HD1215 20 HD1220 25 HD1225 Length(mm) Product name 5 AP165N Product name PCIKITCOVERProduct name PCIKITTRAY Neo PickCap Impression Kit Product name PCIPC Neo PickCap Impression Kit Tray Hex Driver Pincette Neo PickCap Impression Kit Cover Abutment Positioner Small Large Cap size Product name Small PCISC 01 Large PCILC01 Neo PickCap Impression Cap Product name ISPCIS20 Neo PickCap Impression Coping Screw * 1ea included * 1ea included
* Scale 1 : 1 IS Implant System / EB Implant System / IT Implant System / S-Mini / Surgical Kit Neobiotech IMPLANT SYSTEM

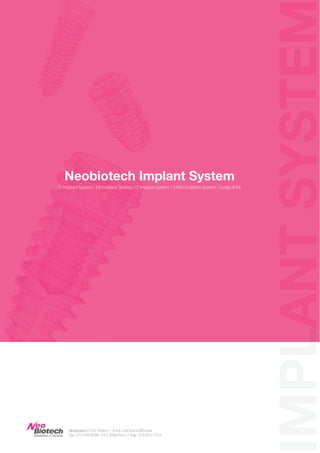

IS Implant System / EB Implant System / IT Implant System / S-Mini Implant System / Surgical Kit Neobiotech Implant System MPLLANTSYSTE Neobiotech USA Orders | www.1stChoiceAID.com Tel. 415.496.9636 (415.49MyNeo) | Fax. 916.915.1212

More Related Content

PDF
Ld implant esthetics
byPriya Gupta

PPT
CS3600 Implant Case Presentation
by360 Visualise

PPTX
IMPLANT COMPONENTS & SYSTEMS_DR SHUCHI JAIN.pptx
byShuchi Jain

PPTX
Dental implant instruments
bySaravanan Aji

PPT
Various implant systems in india final
byAnish Amin

PPTX
Armamentarium in implantology
byDr. vasavi reddy

PPTX
prosthetic concepts in implant dentistry
byDipanjanaSinha

PPTX
Introduction to Dental Implant for undergraduate student
byShamsuddin Mahmud

Ld implant esthetics
byPriya Gupta

CS3600 Implant Case Presentation
by360 Visualise

IMPLANT COMPONENTS & SYSTEMS_DR SHUCHI JAIN.pptx
byShuchi Jain

Dental implant instruments
bySaravanan Aji

Various implant systems in india final
byAnish Amin

Armamentarium in implantology
byDr. vasavi reddy

prosthetic concepts in implant dentistry
byDipanjanaSinha

Introduction to Dental Implant for undergraduate student
byShamsuddin Mahmud


What's hot

PPTX
dental implant impression technique
bySara Zaky

PPT
Relining and rebasing of complete dentures
byRamesh Maharjan

PPTX
RPI & RPA system
byJehan Dordi

PDF
2015 CMI IS implant catalog
byKei Lim

PDF
Complete dentures 3.history and exam
bywww.ffofr.org - Foundation for Oral Facial Rehabilitiation

PDF
Neobiotech implant system (2015.02)
byKei Lim

PPT
Diagnosis&Treatment Planningin Fpd
byshabeel pn

PPT
Complete Denture insertion
byIAU Dent

PPTX
Mandibular movement
bymanish dev

PPTX
Obturator ppt
byPriyanka Makkar

PPT
Classification of malocclusion
byMaher Fouda

PPTX
kennedy class IV
bymohammed algraisi

PPTX
Orientation jaw relation and facebow
byRajvi Nahar

PPTX
Failures in FPD
byDr.Sachin Sunny Otta

PPT
BASAL IMPLANTS TYPES AND ADVANTAGES
byBest Laser Dental Clinic

PPTX
Implant prosthetic dentistry
byRuhi Kashmiri

PDF
Gingival finish lines in fixed partial denture(FPD) with references
byNAMITHA ANAND

PPTX
Designing of rpd
byDR PAAVANA

PDF
TMD's and occlusal splint therapy
byMarwan Mouakeh

PPTX
Copy denture
byfahdkbangash

dental implant impression technique
bySara Zaky

Relining and rebasing of complete dentures
byRamesh Maharjan

RPI & RPA system
byJehan Dordi

2015 CMI IS implant catalog
byKei Lim

Complete dentures 3.history and exam
bywww.ffofr.org - Foundation for Oral Facial Rehabilitiation

Neobiotech implant system (2015.02)
byKei Lim

Diagnosis&Treatment Planningin Fpd
byshabeel pn

Complete Denture insertion
byIAU Dent

Mandibular movement
bymanish dev

Obturator ppt
byPriyanka Makkar

Classification of malocclusion
byMaher Fouda

kennedy class IV
bymohammed algraisi

Orientation jaw relation and facebow
byRajvi Nahar

Failures in FPD
byDr.Sachin Sunny Otta

BASAL IMPLANTS TYPES AND ADVANTAGES
byBest Laser Dental Clinic

Implant prosthetic dentistry
byRuhi Kashmiri

Gingival finish lines in fixed partial denture(FPD) with references
byNAMITHA ANAND

Designing of rpd
byDR PAAVANA

TMD's and occlusal splint therapy
byMarwan Mouakeh

Copy denture
byfahdkbangash


Viewers also liked

PDF
Neo Biotech IS-II Active Implant - Catalog
by1st Choice Advanced & Innovative Dentistry

DOC
Holiday destinations
byAlicia Garcia

PPTX
Masajes a-bebes
bykrysthye

PDF
Katalog Luftfilter-Vorabscheider
byRené Jörg

DOCX
Planificacion deibis carpintero
byDEIBISCARP

PPTX
Ecoverde ingles-1
byFRANCISCO CANTERO

PPT
Đầu tư với Enchant World Inc Việt Nam
byKhiem Ly

PPTX
China
byKaren Castañeda

PPT
Medios de transportes 22
byyoani22

PDF
Futurebiz Workshop Facebook Commerce
byFuturebiz

DOCX
Rae saul final
bymaritzamorcote

PDF
moving communication forward: internet voice and video in libraries
bychar booth

PDF
Vmes yacht engineering services
byAndrew Nguyen

PDF
Tramites observados sura
byDiego Gebil

DOCX
2 preprocesado
byAlejandro Aguirre

PPTX
POF ITET "G.T. Lampedusa" 2016-2017
byMIUR

PDF
Nhgcat2011 12 updateopt
bylenloffler

PDF
Ss Model Ans Booklet2
byvikhist

PDF
[E book.sport] como rejuvenecer el cuerpo estirandose(bob anderson) ed integral
byOscar Rodriguez Gomez

PPT
Premio de Poesía Aguascalientes
byCIELA

Neo Biotech IS-II Active Implant - Catalog
by1st Choice Advanced & Innovative Dentistry

Holiday destinations
byAlicia Garcia

Masajes a-bebes
bykrysthye

Katalog Luftfilter-Vorabscheider
byRené Jörg

Planificacion deibis carpintero
byDEIBISCARP

Ecoverde ingles-1
byFRANCISCO CANTERO

Đầu tư với Enchant World Inc Việt Nam
byKhiem Ly

China
byKaren Castañeda

Medios de transportes 22
byyoani22

Futurebiz Workshop Facebook Commerce
byFuturebiz

Rae saul final
bymaritzamorcote

moving communication forward: internet voice and video in libraries
bychar booth

Vmes yacht engineering services
byAndrew Nguyen

Tramites observados sura
byDiego Gebil

2 preprocesado
byAlejandro Aguirre

POF ITET "G.T. Lampedusa" 2016-2017
byMIUR

Nhgcat2011 12 updateopt
bylenloffler

Ss Model Ans Booklet2
byvikhist

[E book.sport] como rejuvenecer el cuerpo estirandose(bob anderson) ed integral
byOscar Rodriguez Gomez

Premio de Poesía Aguascalientes
byCIELA


Similar to Neo Biotech Implant System Catalog

PDF
Implant catalog copia
bySD DA

PDF
Neo guide system_201505_ver04
byKei Lim

PDF
Prosthetic guide leaflet
byKei Lim

PPT
What are you preparing for dental implant treatments
bykyaw tint

PDF
Prosthetic guide - 151210 update
byKei Lim

PDF
2015 Company & Product Introduction
byKei Lim

PPT
Long Island Periodontist presents "Dental Implant Abutment Impression and Del...
byEdward Brant DDS, MS

PPTX
3 implant systems
byLama K Banna

PPT
Implant classification
byabbasi

PPT
Implant classification
byAbbasi Begum

PPT
Ben-Q Dental Implant System
bykyaw tint

PPT
Osstem Dental Implant Seminar
bykyaw tint

PPT
Dentium Dental Implant Seminar july 28.29, 2018
bykyaw tint

PPTX
Basic concept of dental implantology.pptx
bySHOVITA MONDAL

PPTX
Implant Dentistry ,types of implant,methods of placement and prosthesis
byDr Tharani Kumar

PDF
2015 CMI IT implant catalog
byKei Lim

PPTX
Implant structure, components, and surface modification
byZainab Mahmood

PPTX
dentalimplant-160204161826.pptx
byPalashMondal62

PPTX
Dental implant
byGhadah Sidqi Qumsan

PPT
2013 implant restorative overview
byWestern Dental

Implant catalog copia
bySD DA

Neo guide system_201505_ver04
byKei Lim

Prosthetic guide leaflet
byKei Lim

What are you preparing for dental implant treatments
bykyaw tint

Prosthetic guide - 151210 update
byKei Lim

2015 Company & Product Introduction
byKei Lim

Long Island Periodontist presents "Dental Implant Abutment Impression and Del...
byEdward Brant DDS, MS

3 implant systems
byLama K Banna

Implant classification
byabbasi

Implant classification
byAbbasi Begum

Ben-Q Dental Implant System
bykyaw tint

Osstem Dental Implant Seminar
bykyaw tint

Dentium Dental Implant Seminar july 28.29, 2018
bykyaw tint

Basic concept of dental implantology.pptx
bySHOVITA MONDAL

Implant Dentistry ,types of implant,methods of placement and prosthesis
byDr Tharani Kumar

2015 CMI IT implant catalog
byKei Lim

Implant structure, components, and surface modification
byZainab Mahmood

dentalimplant-160204161826.pptx
byPalashMondal62

Dental implant
byGhadah Sidqi Qumsan

2013 implant restorative overview
byWestern Dental


Recently uploaded

PDF
Key Pharmaceutical Advisory Firms for Early-Stage Biotech Businesses
byk kumar

PDF
appendix mucinous tumores.pdf jkljkljkljlkjkljlkjlk
byssuser947a1f

PPTX
Favus its etiology risk factor transmission and complication and treatment
bymugheeskhan4174

PPTX
CASE_PRESENTATION_ON_subdural_hematoma(SDH)[1 FINAL PPT]-1.pptx
byAshokKumar365986

PPTX
NEONATOLOGY HISTORY FROM BEGINNING UP TO NOW
byJaneRucogoza

PPT
PNEUMONIA presentations, and treatment lll
byenyiramunezero

PDF
Enhancing the Patient Journey in CIDP: Strategies for Improved Detection and ...
byi3 Health

PPTX
Streptococcus pathogenic species....pptx
byRaju Yadav

PPTX
nderstanding Male Sexual Health: Challenges and Solutions
bySujoy Dasgupta

PPT
Meiosis and mitosis. this is the description of anatomy and physiology
byEricRRoss1

PPTX
x-ray circuit x-ray circuit x-ray circuit x-ray circuit
bydivyashree1714

PPTX
OXYGEN DELIVERY DEVICES and their uses.pptx
byramavtar32

PPTX
ACC+HBP+Clinical+Highlights+Slide+Deck_Final.pptx
byFarooque3453 Magsi

PPTX
HIV OPPORTUNISTIC INFECTIONS BMS PP-1.pptx
bypintorennyariony

PPTX
Recent_Advances_in_Heart_Failure_PG.pptx
bysetujhaa000

PPT
Anatomy of oesophagus physiology of the esophagus first attempt.ppt
byheadent

PPTX
Glasgow coma scale .pptx GCS by EYES response VERBAL response MOTOR response
byMAHEK KHAN

PDF
Catalysts for Enhanced Patient CARE In Neuroendocrine Neoplasms: Clinical Ado...
byPVI, PeerView Institute for Medical Education

PPTX
Management of diarrhea (medical & Nursing).pptx
bySuria kumar

PDF
Ultrasound NT Scan: First Trimester Nuchal Translucency Screening Guide
byFelixRendon3

Key Pharmaceutical Advisory Firms for Early-Stage Biotech Businesses
byk kumar

appendix mucinous tumores.pdf jkljkljkljlkjkljlkjlk
byssuser947a1f

Favus its etiology risk factor transmission and complication and treatment
bymugheeskhan4174

CASE_PRESENTATION_ON_subdural_hematoma(SDH)[1 FINAL PPT]-1.pptx
byAshokKumar365986

NEONATOLOGY HISTORY FROM BEGINNING UP TO NOW
byJaneRucogoza

PNEUMONIA presentations, and treatment lll
byenyiramunezero

Enhancing the Patient Journey in CIDP: Strategies for Improved Detection and ...
byi3 Health

Streptococcus pathogenic species....pptx
byRaju Yadav

nderstanding Male Sexual Health: Challenges and Solutions
bySujoy Dasgupta

Meiosis and mitosis. this is the description of anatomy and physiology
byEricRRoss1

x-ray circuit x-ray circuit x-ray circuit x-ray circuit
bydivyashree1714

OXYGEN DELIVERY DEVICES and their uses.pptx
byramavtar32

ACC+HBP+Clinical+Highlights+Slide+Deck_Final.pptx
byFarooque3453 Magsi

HIV OPPORTUNISTIC INFECTIONS BMS PP-1.pptx
bypintorennyariony

Recent_Advances_in_Heart_Failure_PG.pptx
bysetujhaa000

Anatomy of oesophagus physiology of the esophagus first attempt.ppt
byheadent

Glasgow coma scale .pptx GCS by EYES response VERBAL response MOTOR response
byMAHEK KHAN

Catalysts for Enhanced Patient CARE In Neuroendocrine Neoplasms: Clinical Ado...
byPVI, PeerView Institute for Medical Education

Management of diarrhea (medical & Nursing).pptx
bySuria kumar

Ultrasound NT Scan: First Trimester Nuchal Translucency Screening Guide
byFelixRendon3


Neo Biotech Implant System Catalog

  • 1.
    2015. 02 Ver.4 ISImplant System EB Implant System IT Implant System S-Mini Implant System Surgical Kits Neobiotech IMPLANT SYSTEM SIMPLANTSYSTEM
  • 2.
    2 IS Implant System/ EB Implant System / IT Implant System / S-Mini / Surgical Kit Neobiotech IMPLANT SYSTEM
  • 3.
    Greetings from NeobiotechCo.,Ltd. Neobiotech is the prior Implant manufacturer which was established on February 2000 and endeavored to provide the best product and service under the mott of Implant service No.1. Neobiotech launched CMI guarantee excellent operation in immediate placement, GBR, immediate loading and not to mention of best product to upper posterior early 2007, while passing through the newborn process as a innovation managerial of this company from 2007. Year 2008, neobiotech released Sinus Crestal Approach tool of new method and brought out innovation to Sinus Implant surgical operation. Also neobiotech launched SLA Kit, Sinus Lateral Approach which received praise and love from the head of dentistry. In mid year 2009, first time ever, neobiotech launched Neo FR Kit(Fixture Remover Kit) which can remove fixture easily from the surgery.Year 2010, neobiotech have launched Neo SR Kit(Screw Remover Kit) and from this, neobiotech have made advanced surgical solution series 1(SCA Kit), 2 (SLA Kit), 3(Neo FR Kit), 4 (Neo SR Kit). Furthermore, year 2011, Neobiotech launched new GBR solution series ; GBR Kit, CTi-mem (Customized Titanium Membrane), ACM(Autochip Maker). In the future ahead, neobiotech will keep on innovating and launch new products. In Neobiotech, we have a motto of development product as concept of 3S, which specially satisfy customer by Simple, Safe and Speedy. With this concept head of dentistry under- stand our 3S spirit and express satisfaction. Neobiotech will get near to customers with attitude of listening courteously to customers’ voice to collect your valuable opinion. Neobiotech always concern customer’s thought and bring best satisfaction from both dentistry. Furthermore, neobiotech promises to keep on researching and creating new product and launching very first new product to the World and become leading world implant market. Neobiotech Chairman Heo Young-ku Neobiotech President Kim In-ho
  • 4.
    Contents Product Line Up6 IS Implant System Chart 8 EB Implant System Chart 9 IT Implant System Chart 10 S-mini Implant System Chart 11 IS Implant System IS-II active Fixture(S.L.A. Surface) 16 IS-II active S-Wide Fixture(S.L.A. Surface) 17 IS-II Fixture(RBM Surface) 18 IS-II S-Wide Fixture(RBM Surface) 19 IS Fixture(RBM Surface) 20 IS S-Wide Fixture(RBM Surface) 21 Healing Abutment 22 Temporary Abutment 24 Prosthetic Flow Chart 25 Solid Abutment 29 Hex Abutment 30 SCRP Multi Abutment 31 Non-Hex Abutment 32 Angled Abutment 33 Shapable Abutment 35 UCLA Abutment(Gold/CCM/Plastic) 36 Protective Cap 38 Impression Cap 38 Lab Analog 39 Plastic Coping 39 Pick-up Impression Coping 40 Transfer Impression Coping 42 Transfer Impression Coping Positioner 43 Lab Analog 43 Multi Unit Abutment 44 Ball Abutment 46 EB Implant System EB-II active Fixture(S.L.A. Surface) 51 EB Fixture(RBM Surface) 52 EB S-Wide Fixture(RBM Surface) 53 Healing Abutment 54 Temporary Abutment 56 Prosthetic Flow Chart 58
  • 5.
    EB Implant SystemHex Abutment 60 SCRP Abutment 62 Angled Abutment 64 Gold UCLA Abutment 66 CCM UCLA Abutment 67 Plastic UCLA Abutment 68 Pick-up Impression Coping 69 Transfer Impression Coping 70 Transfer Impression Coping Positioner 71 Lab Analog 71 Ball Abutment 72 IT Implant System IT-II active Fixture (S.L.A. Surface) 77 IT Fixture (RBM Surface) 78 IT Wide Neck Fixture (RBM Surface) 79 Healing Abutment 80 Prosthetic Flow Chart 81 Solid Abutment 84 Wide Neck Solid Abutment 86 Excellent Solid Abutment 88 Cemented Abutment 90 UCLA Abutment(Gold/CCM/Plastic) 91 Pre Angled Abutment 93 Collared Pre Angled Abutment 94 Pick-up Impression Coping 95 Transfer Impression Coping 96 Lab Analog 97 S-Mini Implant System S-Mini Fixture - Cement Type 100 S-Mini Fixture - Ball Type 101 Prosthetic Flow Chart 102 S-Mini Components 103 Surgical Kit IS Full Kit 108 EB & IT Kit 114 S-Mini Kit 120 S-Wide Kit 121 Neo Surgical Accessory Kit 122 Neo Prosthetic Kit 124 Neo Prosthetic Planning Kit 128 Neo PickCap Impression Kit 130
  • 6.
    Neobiotech Products6 Product LineUp Implant System Sinus Lift Solution SinusAll Kit IS System EB System IT System S-Mini System IS Full Kit EB / IT Kit S-Mini Kit S-Wide Kit Prosthetic Kit Neo Prosthetic Planning Kit Accessory Kit Neo PickCap Impression Kit Congratulations! You have made an excellent choice. Welcome to the Neobiotech family This catalog contains information of Neobiotech implant system only. To get information of other solution system, Please refer to Neo Solution catalogs. SCA Kit (Sinus Crestal Approach Kit) SLA Kit (Sinus Lateral Approach Kit)
  • 7.
    Neobiotech Products 7 GBRSolution CTi-mem (Customized Ti Membrane) ACM (Auto Chip Maker) GBR Kit Peri-implantitis Solution i Brush (Implant Brush) Gingi Brush Dr.Plant R - Brush Digital Solution Cameleon CAD/CAM System Block Neo Guide System Repair Solution FR Kit (Fixture Remover Kit) SR Kit (Screw Remover Kit)
  • 8.
    CMI Implant System8 ISImplant System Chart Fixture Healing & Cover Screw Abutment Impression Coping Lab Analog SolidCementUCLATemporaryBall IS-II IS IS-II active IS-II active S-Wide IS-II S-Wide IS S-Wide IS-II active short Abutment Positioner Fixture Level Impression Cap Transfer Pick-up Hex Hex Hex Hex Hex Hex Hex Hex Hex SCRP multi SCRP multi SCRP SCRP multi SCRP multi SCRP multi Non-Hex Non-Hex Non-Hex Non-Hex Non-Hex Clinical Lab Retainer Retainer Housing Housing Non-Hex Non-Hex Non-Hex Non-Hex Solid Angled Straight Shapable Cover Screw Healing Abutment Gold CCM Plastic Impression coping positioner Abutment Level Ball Lab Analog
  • 9.
    CMI Implant System9 EB Implant System Chart Fixture Healing & Cover Screw Abutment Impression Coping Lab Analog CementUCLATemporaryBall EB EB-II active EB S-Wide Fixture Level Pick-up Tranfer Hex Hex Hex SCRP multi SCRP multi SCRP multi Non-Hex Non-Hex Non-Hex Single Clinical Lab Retainer Retainer Housing Housing Straight Angled Cover Screw Healing Abutment Impression coping positioner Ball Lab Analog II act Abutment positioner Gold CCM Plastic Hex Hex SCRP multi SCRP multi Non-Hex Non-Hex Hex Hex SCRP multi Non-Hex Non-Hex
  • 10.
    CMI Implant System10 Fixture Healing& Cover Screw Abutment Impression Coping Lab Analog SolidCementUCLA IT Implant System Chart IT-II active IT IT Wide Neck Cover Screw Healing Abutment Solid Excellent Solid Wide Neck Solid Gold CCM Wide Neck CCM Plastic Positioning Cylinder Positioning Cylinder Impression Cap Lab Analog Wide Neck - Lab Analog Lab Analog Wide Neck - Lab Analog Transfer Impression Coping Positioner Shoulder Analog Impression Cap Wide Neck Plastic Pick-up Transfer Octa Octa Octa Octa Octa Octa Octa Wide Neck Octa Non-octa Non-octa Non-octa Non-octa Non-octa Non-octa Non-octa Wide Neck Non-octa IT Straight Angled
  • 11.
    CMI Implant System11 S-Mini Implant System Chart Fixture Impression Lab Analog Protective Cap Fixture Impression Lab Analog O-ring S-Mini Fixture (Cement Type) S-Mini Fixture (Ball Type) Clinical Lab Retainer Housing Impression Cap Normal Modifying Ball Lab Analog
  • 12.
    IS-II active /IS-II active S-Wide / IS-II / IS-II S-wide / IS / IS - Wide Neobiotech IS IMPLANT SYSTEM
  • 13.
    Contents IS Implant SystemIS-II active Fixture(S.L.A. Surface) 16 IS-II active S-Wide Fixture(S.L.A. Surface) 17 IS-II Fixture(RBM Surface) 18 IS-II S-wide Fixture(RBM Surface) 19 IS Fixture(RBM Surface) 20 IS S-Wide Fixture(RBM Surface) 21 Healing Abutment 22 Temporary Abutment 24 Prosthetic Flow Chart 25 Excellent Solid Abutment 29 Hex Abutment 30 SCRP multi Abutment 31 Non-Hex Abutment 32 Angled Abutment 33 Shapable Abutment 35 UCLA Abutment(Gold/CCM/Plastic) 36 Protective Cap 38 Impression Cap 38 Lab Analog 39 Plastic Coping 39 Pick-up Impression Coping 40 Transfer Impression Coping 42 Transfer Impression Coping Positioner 43 Lab Analog 43 Multi Unit Abutment 44 Ball Abutment 46
  • 14.
    IS Internal SubmergedSystem14 * Scale 1 : 1.1 BioSeal(0.5mm) Increase sealing of soft tissue and minimize bone loss S.L.A. Surface S.L.A. Surface is method that make rough surface by blasting on machined implant surface with HA(Hydroxy Apatite) particle smaller than 50 and dual acid-etching. Magic Thread Specially designed to endure vertical force and lateral pres- sure effectively by lower half triangle thread Coronal Macro Thread (Thread pitch 0.8mm) Excellent primary stability at cortical bone Apex Powerful and well-defined thread exist at the peak of the apex. Initial fixation at the apex is excellent to both immediate placement and immediate loading IS-II active
  • 15.
    IS Internal SubmergedSystem 15 ISImplantSystem * Scale 1 : 1.1 Platform Switching Supports soft tissue interface for natural looking esthetics and minimize marginal bone loss Two conical contact point Creating a strong and stable fit between fixture and abutment, minimize marginal bone loss and screw loosening ∙ Internal Conical Connection ∙ 2.5 Hex ∙ Conical Seal(11°)
  • 16.
    IS Internal SubmergedSystem16 * Scale 1 : 1.1 Platform 3.7 Platform 3.5 ※ Cover Screw Included Platform 3.8 Platform 4.0 IS-II active Fixture(S.L.A. Surface) Length Length Length Length 2.3mm 1.3mm Diameter 3.5 Diameter 4.0 Diameter 4.5 Diameter 5.0 Narrow / Diameter 3.5 Length(mm) 8.5 10.0 11.5 13.0 Product name BIS3508A BIS3510A BIS3511A BIS3513A Regular / Diameter 4.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS4007A BIS4008A BIS4010A BIS4011A BIS4013A Regular / Diameter 4.5 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS4507A BIS4508A BIS4510A BIS4511A BIS4513A Wide / Diameter 5.0 Length(mm) 7.3 7.3 7.3 8.5 10.0 11.5 13.0 Product name BIS5005A BIS5006A BIS5007A BIS5008A BIS5010A BIS5011A BIS5013A Hex 2.5 Hex 2.5 Hex 2.5 Hex 2.5 ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ All measurements can be different with the actual size
  • 17.
    IS Internal SubmergedSystem 17 ISImplantSystem * Scale 1 : 1.1 Platform 4.4 IS-II active S-Wide Fixture(S.L.A. Surface) Length(mm) 7.3 7.3 7.3 8.5 10.0 11.5 13.0 Product name BIS5505A BIS5506A BIS5507A BIS5508A BIS5510A BIS5511A BIS5513A Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS6007A BIS6008A BIS6010A BIS6011A BIS6013A Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS7007A BIS7008A BIS7010A BIS7011A BIS7013A Length Length Length Platform 4.9 Platform 5.8 Diameter 5.5 Diameter 6.0 Diameter 7.0 S-Wide / Diameter 5.5 S-Wide / Diameter 6.0 S-Wide / Diameter 7.0 Hex 2.5 Hex 2.5 Hex 2.5 2.3mm 1.3mm ※ Requires S-Wide surgery kit for diameter Ø5.5 ~ Ø7.0 fixture ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included Cover Screw Narrow / All 7.3mm Fixtures Regular / Wide / S-Wide ISN300 ISC400 Hex 1.2 Hex 1.2 ※ All measurements can be different with the actual size
  • 18.
    IS Internal SubmergedSystem18 * Scale 1 : 1.1 IS-II Fixture (RBM Surface) Length Length Length Length Platform 3.5 Platform 3.7 Platform 3.8 Platform 4.0 Diameter 3.5 Diameter 4.0 Diameter 4.5 Diameter 5.0 Narrow / Diameter 3.5 Length(mm) 8.5 10.0 11.5 13.0 Product name BIS3508 BIS3510 BIS3511 BIS3513 Regular / Diameter 4.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS4007 BIS4008 BIS4010 BIS4011 BIS4013 Regular / Diameter 4.5 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS4507 BIS4508 BIS4510 BIS4511 BIS4513 Wide / Diameter 5.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS5007 BIS5008 BIS5010 BIS5011 BIS5013 Hex 2.5 Hex 2.5 Hex 2.5 Hex 2.5 ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ All measurements can be different with the actual size
  • 19.
    IS Internal SubmergedSystem 19 ISImplantSystem * Scale 1 : 1.1 IS-II S-Wide Fixture (RBM Surface) Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS6007 BIS6008 BIS6010 BIS6011 BIS6013 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS5507 BIS5508 BIS5510 BIS5511 BIS5513 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name BIS7007 BIS7008 BIS7010 BIS7011 BIS7013 Length Platform 4.4 Diameter 5.5 Length Platform 4.9 Diameter 6.0 Length Platform 5.8 Diameter 7.0 S-Wide / Diameter 5.5 S-Wide / Diameter 6.0 S-Wide / Diameter 7.0 ※ Requires S-Wide surgery kit for diameter Ø6.0 ~ Ø7.0 fixture Hex 2.5 Hex 2.5 Hex 2.5 Cover Screw Narrow / All 7.3mm Fixtures Regular / Wide / S-Wide ISN300 ISC400 Hex 1.2 Hex 1.2 ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ All measurements can be different with the actual size
  • 20.
    IS Internal SubmergedSystem20 * Scale 1 : 1.1 Platform 3.5 Platform 3.6 Platform 3.6 Platform 3.75 IS Fixture (RBM Surface) Length Length Length Length Diameter 3.5 Diameter 4.0 Diameter 4.5 Diameter 4.8 Narrow / Diameter 3.5 Length(mm) 8.5 10.0 11.5 13.0 Product name IS308 IS310 IS311 IS313 Regular / Diameter 4.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name IS407 IS408 IS410 IS411 IS413 Regular / Diameter 4.5 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name IS4507 IS4508 IS4510 IS4511 IS4513 Wide / Diameter 4.8 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name IS507 IS508 IS510 IS511 IS513 Hex 2.5 Hex 2.5 Hex 2.5 Hex 2.5 ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ All measurements can be different with the actual size
  • 21.
    IS Internal SubmergedSystem 21 ISImplantSystem * Scale 1 : 1.1 Platform 5.4 IS S-Wide Fixture (RBM Surface) Length Length Platform 4.4 Length Platform 4.1 Diameter 5.5 Diameter 6.0 Diameter 7.0 S-Wide / Diameter 5.5 S-Wide / Diameter 6.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name IS607 IS608 IS610 IS611 IS613 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name IS5507 IS5508 IS5510 IS5511 IS5513 S-Wide / Diameter 7.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name IS707 IS708 IS710 IS711 IS713 ※ Requires S-Wide surgery kit for diameter Ø6.0 ~ Ø7.0 fixture Hex 2.5 Hex 2.5 Hex 2.5 Cover Screw Narrow / All 7.3mm Fixtures Regular / Wide / S-Wide ISN300 ISC400 Hex 1.2 Hex 1.2 ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ All measurements can be different with the actual size
  • 22.
    IS Internal SubmergedSystem22 * Scale 1 : 1.1 Healing Abutment Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 Product name ISH402 ISH403 ISH404 ISH405 ISH406 ISH407 Cuff Diameter 4.8 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 Product name ISH502 ISH503 ISH504 ISH505 ISH506 ISH507 Cuff Diameter 5.5 Cuff Diameter Diameter4.8 5.0 Cuff Cuff(mm) 2.0 3.0 4.0 5.0 6.0 Product name ISUH4002 ISUH4003 ISUH4004 ISUH4005 ISUH4006 Cuff Diameter 4.0 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 Product name ISUH4502 ISUH4503 ISUH4504 ISUH4505 ISUH4506 Cuff Diameter 4.5 Temporary restorations for contouring of the soft tissue • Tightening torque : 8~10 Ncm Hex 1.2 Diameter 4.0 Diameter 4.5 Diameter 4.8 Diameter 5.5
  • 23.
    IS Internal SubmergedSystem 23 ISImplantSystem * Scale 1 : 1.1 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 Product name ISH602 ISH603 ISH604 ISH605 ISH606 ISH607 Diameter 6.0 Cuff Diameter 6.0 Healing Abutment Diameter 8.0 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 Product name ISH802 ISH803 ISH804 ISH805 ISH806 ISH807 Cuff Diameter 8.0 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 Product name ISH702 ISH703 ISH704 ISH705 ISH706 ISH707 Diameter 6.8 Cuff Diameter 6.8 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 Product name ISH902 ISH903 ISH904 ISH905 ISH906 ISH907 Diameter 9.0 Cuff Diameter 9.0 ※ 8.0, 9.0 Healing Abutments are for Custom Abutment
  • 24.
    IS Internal SubmergedSystem24 * Scale 1 : 1.1 Length(mm) 6.0 8.0 13.0 Product name 4.5 ISAHT460 ISAHT480 ISAHT4130 5.2 ISAHT560 ISAHT580 ISAHT5130 Length(mm) 6.0 8.0 13.0 Product name 4.5 ISANT460 ISANT480 ISANT4130 5.2 ISANT560 ISANT580 ISANT5130 Length(mm) 6.0 8.0 13.0 Product name 4.5 ISAST460 ISAST480 ISAST4130 5.2 ISAST560 ISAST580 ISAST5130 Temporary Abutment Hex Non-Hex SCRP® Multi Length Cuff 2mm Diameter 5.2 Diameter 4.5 Diameter 4.5 Diameter 4.5 Cuff 2mm Cuff 2mm Diameter 5.2 Diameter 5.2 Length Length Length Cuff Diameter Hex 1.2 Customizable titanium abutment for temporary crown and bridges • Abutment Screw(ISCS20) included, Tightening torque : 30 Ncm
  • 25.
    IS Internal SubmergedSystem 25 ISImplantSystem * Scale 1 : 1.1 Protective CapSolid Abutment Impression Cap Lab Analog Plastic Coping ISIS-IIIS-II active Prosthetic Flow Chart - IS Solid Abutment Note. When abutments are connected to Narrow Fixture(Ø3.5) or Short Fixture(7.3mm), the total height of abutment is 0.4mm higher than Regular-Wide cases.
  • 26.
    IS Internal SubmergedSystem26 * Scale 1 : 1.1 Prosthetic Flow Chart Impression Coping Positioner Impression Cap Pick-up Transfer Abutment Positioner Abutment Positioner Lab Analog Lab Aanalog Plastic Coping Straight Straight Shapable Angled Plastic Coping Gold UCLA Plastic UCLA CCM UCLA ISIS-IIIS-II active - IS Abutment Note. When abutments are connected to Narrow Fixture(Ø3.5) or Short Fixture(7.3mm), the total height of abutment is 0.4mm higher than Regular-Wide cases. sitioner
  • 27.
    IS Internal SubmergedSystem 27 ISImplantSystem * Scale 1 : 1.1 Prosthetic Flow Chart Multi Unit Abutment Multi Unit Angled Abutment Multi Unit Driver Healing Cap Pick-up Transfer ISIS-IIIS-II active - IS Multi Unit Abutment CCM Cylinder Lab Analog Note. When abutments are connected to Narrow Fixture(Ø3.5) or Short Fixture(7.3mm), the total height of abutment is 0.4mm higher than Regular-Wide cases.
  • 28.
    IS Internal SubmergedSystem28 * Scale 1 : 1.1 Prosthetic Flow Chart Ball Abutment Driver Ball Abutment Lab Lab Clinical Lab Analog Housing Housing Retainer Retainer ISIS-IIIS-II active - IS Ball Abutment Note. When abutments are connected to Narrow Fixture(Ø3.5) or Short Fixture(7.3mm), the total height of abutment is 0.4mm higher than Regular-Wide cases.
  • 29.
    IS Internal SubmergedSystem 29 ISImplantSystem * Scale 1 : 1.1 Solid Abutment Cuff Length Diameter Hex 1.2 One piece abutment for cemented restorations • Abutment Tightening Torque : 30 Ncm, Protective Cap Included Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAE4140 ISAE4240 ISAE4340 ISAE4440 ISAE4540 4.5mm ISAE414 ISAE424 ISAE434 ISAE444 ISAE454 5.5mm ISAE415 ISAE425 ISAE435 ISAE445 ISAE455 7.0mm ISAE417 ISAE427 ISAE437 ISAE447 ISAE457 Diameter 4.5 Cuff Length Diameter 4.5 Diameter 4.5 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAE5140 ISAE5240 ISAE5340 ISAE5440 ISAE5540 4.5mm ISAE514 ISAE524 ISAE534 ISAE544 ISAE554 5.5mm ISAE515 ISAE525 ISAE535 ISAE545 ISAE555 7.0mm ISAE517 ISAE527 ISAE537 ISAE547 ISAE557 Diameter 5.2 Cuff Length Diameter 5.2 Diameter 5.2 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAE6140 ISAE6240 ISAE6340 ISAE6440 ISAE6540 4.5mm ISAE614 ISAE624 ISAE634 ISAE644 ISAE654 5.5mm ISAE615 ISAE625 ISAE635 ISAE645 ISAE655 7.0mm ISAE617 ISAE627 ISAE637 ISAE647 ISAE657 Diameter 5.7 Cuff Length Diameter 5.7 Diameter 5.7 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAE7140 ISAE7240 ISAE7340 ISAE7440 ISAE7540 4.5mm ISAE714 ISAE724 ISAE734 ISAE744 ISAE754 5.5mm ISAE715 ISAE725 ISAE735 ISAE745 ISAE755 7.0mm ISAE717 ISAE727 ISAE737 ISAE747 ISAE757 Diameter 6.5 Cuff Length Diameter 6.5 Diameter 6.5
  • 30.
    IS Internal SubmergedSystem30 * Scale 1 : 1.1 Hex Abutment Cuff Length Diameter Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAH4140 ISAH4240 ISAH4340 ISAH4440 ISAH4540 4.5mm ISAH414 ISAH424 ISAH434 ISAH444 5.5mm ISAH415 ISAH425 ISAH435 ISAH445 ISAH455 7.0mm ISAH417 ISAH427 ISAH437 ISAH447 ISAH457Diameter 4.5 Cuff Length Diameter 5.2 Cuff Length Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAH5140 ISAH5240 ISAH5340 ISAH5440 ISAH5540 4.5mm ISAH514 ISAH524 ISAH534 ISAH544 5.5mm ISAH515 ISAH525 ISAH535 ISAH545 ISAH555 7.0mm ISAH517 ISAH527 ISAH537 ISAH547 ISAH557 Diameter 5.7 Cuff Length Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAH6140 ISAH6240 ISAH6340 ISAH6440 ISAH6540 4.5mm ISAH614 ISAH624 ISAH634 ISAH644 5.5mm ISAH615 ISAH625 ISAH635 ISAH645 ISAH655 7.0mm ISAH617 ISAH627 ISAH637 ISAH647 ISAH657 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAH7140 ISAH7240 ISAH7340 ISAH7440 ISAH7540 4.5mm ISAH714 ISAH724 ISAH734 ISAH744 5.5mm ISAH715 ISAH725 ISAH735 ISAH745 ISAH755 7.0mm ISAH717 ISAH727 ISAH737 ISAH747 ISAH757 Diameter 6.5 Cuff Length Diameter 4.5 Diameter 5.2 Diameter 5.7 Diameter 6.5 Hex 1.2 Cementable or Screw-retained abutment for single tooth and bridges • Customizable by grinding (need to remain at least 3mm of abutment length above fixture platform) • Abutment Screw(ISCS20) included, Tightening Torque : 30 Ncm
  • 31.
    IS Internal SubmergedSystem 31 ISImplantSystem * Scale 1 : 1.1 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAS4140 ISAS4240 ISAS4340 ISAS4440 ISAS4540 4.5mm ISAS414 ISAS424 ISAS434 ISAS444 5.5mm ISAS415 ISAS425 ISAS435 ISAS445 ISAS455 7.0mm ISAS417 ISAS427 ISAS437 ISAS447 ISAS457 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAS5140 ISAS5240 ISAS5340 ISAS5440 ISAS5540 4.5mm ISAS514 ISAS524 ISAS534 ISAS544 5.5mm ISAS515 ISAS525 ISAS535 ISAS545 ISAS555 7.0mm ISAS517 ISAS527 ISAS537 ISAS547 ISAS557 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAS6140 ISAS6240 ISAS6340 ISAS6440 ISAS6540 4.5mm ISAS614 ISAS624 ISAS634 ISAS644 5.5mm ISAS615 ISAS625 ISAS635 ISAS645 ISAS655 7.0mm ISAS617 ISAS627 ISAS637 ISAS647 ISAS657 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAS7140 ISAS7240 ISAS7340 ISAS7440 ISAS7540 4.5mm ISAS714 ISAS724 ISAS734 ISAS744 5.5mm ISAS715 ISAS725 ISAS735 ISAS745 ISAS755 7.0mm ISAS717 ISAS727 ISAS737 ISAS747 ISAS757 SCRP® multi Abutment Diameter Cuff Length Diameter 4.5 Cuff Length Diameter 5.2 Cuff Length Diameter 5.7 Cuff Length Diameter 6.5 Cuff Length Diameter 4.5 Diameter 5.2 Diameter 5.7 Diameter 6.5 Hex 1.2 Abutment for screw-cement retained prosthesis • Short hex design, Retrievable within 20° between implants • Customizable by grinding (need to remain at least 3mm of abutment length above fixture platform) • Abutment Screw(ISCS20) included, Tightening Torque : 30 Ncm
  • 32.
    IS Internal SubmergedSystem32 * Scale 1 : 1.1 Diameter 4.5 Cuff Length Non-Hex Abutment Diameter 5.2 Cuff Length Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAN4140 ISAN4240 ISAN4340 ISAN4440 ISAN4540 4.5mm ISAN414 ISAN424 ISAN434 ISAN444 ISAN454 5.5mm ISAN415 ISAN425 ISAN435 ISAN445 ISAN455 7.0mm ISAN417 ISAN427 ISAN437 ISAN447 ISAN457 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAN5140 ISAN5240 ISAN5340 ISAN5440 ISAN5540 4.5mm ISAN514 ISAN524 ISAN534 ISAN544 ISAN554 5.5mm ISAN515 ISAN525 ISAN535 ISAN545 ISAN555 7.0mm ISAN517 ISAN527 ISAN537 ISAN547 ISAN557 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAN6140 ISAN6240 ISAN6340 ISAN6440 ISAN6540 4.5mm ISAN614 ISAN624 ISAN634 ISAN644 ISAN654 5.5mm ISAN615 ISAN625 ISAN635 ISAN645 ISAN655 7.0mm ISAN617 ISAN627 ISAN637 ISAN647 ISAN657 Cuff(mm) 1.0 2.0 3.0 4.0 5.0 Length 4.0mm ISAN7140 ISAN7240 ISAN7340 ISAN7440 ISAN7540 4.5mm ISAN714 ISAN724 ISAN734 ISAN744 ISAN754 5.5mm ISAN715 ISAN725 ISAN735 ISAN745 ISAN755 7.0mm ISAN717 ISAN727 ISAN737 ISAN747 ISAN757 Diameter 5.7 Cuff Length Diameter 6.5 Cuff Length Cuff Length Diameter Diameter 4.5 Diameter 5.2 Diameter 5.7 Diameter 6.5 Hex 1.2 Cementable or Screw-retained abutment for multiple or bridges • Customizable by grinding (need to remain at least 3mm of abutment length above fixture platform) • Abutment Screw(ISCS20) included, Tightening Torque : 30 Ncm
  • 33.
    IS Internal SubmergedSystem 33 ISImplantSystem * Scale 1 : 1.1 Angled Abutment(15°) Diameter 5.7 A-Type (Angle to the edge) Non-hexB-Type (Angle to the flat wall) Diameter 4.5 Cuff(mm) 2.0 3.0 4.0 A Type ISAHA1427 ISAHA1437 ISAHA1447 B Type ISAHB1427 ISAHB1437 ISAHB1447 Non-hex ISANA1427 ISANA1437 ISANA1447 A-Type (Angle to the edge) Non-hexB-Type (Angle to the flat wall) Cuff Diameter 15° Diameter 5.2 Cuff(mm) 2.0 3.0 4.0 A Type ISAHA1527 ISAHA1537 ISAHA1547 B Type ISAHB1527 ISAHB1537 ISAHB1547 Non-hex ISANA1527 ISANA1537 ISANA1547 A-Type (Angle to the edge) Non-hexB-Type (Angle to the flat wall) Cuff(mm) 2.0 3.0 4.0 A Type ISAHA1627 ISAHA1637 ISAHA1647 B Type ISAHB1627 ISAHB1637 ISAHB1647 Non-hex ISANA1627 ISANA1637 ISANA1647 Diameter 4.5 Cuff Cuff Cuff Diameter 4.5 Diameter 4.5 Diameter 5.2 Cuff Cuff Cuff Diameter 5.2 Diameter 5.2 Diameter 5.7 Cuff Cuff Cuff Diameter 5.7 Diameter 5.7 Hex 1.2 Customizable by grinding. Can be positioned in 12 directions by selecting A or B type • Abutment Screw(ISCS20) included, Tightening Torque : 30 Ncm A-Type (Angle to the edge) B-Type (Angle to the flat wall)
  • 34.
    IS Internal SubmergedSystem34 * Scale 1 : 1.1 Angled Abutment(25°) Cuff Diameter 25° A-Type (Angle to the edge) Non-hex Diameter 4.5 Cuff(mm) 2.0 3.0 4.0 A Type ISAHA2427 ISAHA2437 ISAHA2447 B Type ISAHB2427 ISAHB2437 ISAHB2447 Non-hex ISANA2427 ISANA2437 ISANA2447 B-Type (Angle to the flat wall) Diameter 4.5 Cuff Cuff Diameter 4.5 A-Type (Angle to the edge) Non-hex Diameter 5.2 Cuff(mm) 2.0 3.0 4.0 A Type ISAHA2527 ISAHA2537 ISAHA2547 B Type ISAHB2527 ISAHB2537 ISAHB2547 Non-hex ISANA2527 ISANA2537 ISANA2547 B-Type (Angle to the flat wall) Diameter 5.2 Cuff Diameter 5.7 A-Type (Angle to the edge) Non-hex Cuff(mm) 2.0 3.0 4.0 A Type ISAHA2627 ISAHA2637 ISAHA2647 B Type ISAHB2627 ISAHB2637 ISAHB2647 Non-hex ISANA2627 ISANA2637 ISANA2647 B-Type (Angle to the flat wall) Diameter 5.7 Cuff Hex 1.2 Customizable by grinding. Can be positioned in 12 directions by selecting A or B type • Abutment Screw(ISCS20) included, Tightening Torque : 30 Ncm A-Type (Angle to the edge) B-Type (Angle to the flat wall) Cuff Diameter 4.5 Diameter 5.2 Cuff Diameter 5.2 Cuff Diameter 5.7 Cuff Diameter 5.7 Cuff
  • 35.
    IS Internal SubmergedSystem 35 ISImplantSystem * Scale 1 : 1.1 Shapable Abutment Cuff Length Diameter Hex Non-hex Diameter 4.5 Cuff(mm) 2.0 4.0 Hex ISSH428 ISSH448 SCRP® Multi ISSS428 ISSS448 Non-hex ISSN428 ISSN448 Diameter 4.5 Cuff Length 8.0mm Diameter 4.5 Cuff Length 8.0mm Diameter 4.5 Cuff Length 8.0mm Hex Non-hex Diameter 5.2 Cuff(mm) 2.0 4.0 Hex ISSH528 ISSH548 SCRP® Multi ISSS528 ISSS548 Non-hex ISSN528 ISSN548 Diameter 5.2 Cuff Length 8.0mm Diameter 5.2 Cuff Length 8.0mm Diameter 5.2 Cuff Length 8.0mm Hex Non-hex Diameter 5.7 Cuff(mm) 2.0 4.0 Hex ISSH628 ISSH648 SCRP® Multi ISSS628 ISSS648 Non-hex ISSN628 ISSN648 Diameter 5.7 Cuff Length 8.0mm Diameter 5.7 Cuff Length 8.0mm Diameter 5.7 Cuff Length 8.0mm Hex Non-hex Diameter 6.5 Cuff(mm) 2.0 4.0 Hex ISSH728 ISSH748 SCRP® Multi ISSS728 ISSS748 Non-hex ISSN728 ISSN748 Diameter 6.5 Cuff Length 8.0mm Diameter 6.5 Cuff Length 8.0mm Diameter 6.5 Cuff Length 8.0mm Hex 1.2 Customizable by grinding (need to remain at least 3mm of abutment length above fixture platform) • Abutment Screw(ISCS20) included, Tightening Torque : 30 Ncm SCRP® Multi SCRP® Multi SCRP® Multi SCRP® Multi
  • 36.
    IS Internal SubmergedSystem36 * Scale 1 : 1.1 UCLA Abutment(Gold / CCM) Cuff Diameter Diameter 4.5 Hex SCRP® Multi Non-hex ISUGH400 ISUGS400 ISUGN400 Hex Non-hex Diameter 4.5 Cuff 1.0mm Cuff 1.0mm Diameter 4.5 Cuff 1.0mm Diameter 4.5 Diameter 4.5 Hex SCRP® Multi Non-hex ISUCH400 ISUCS400 ISUCN400 Hex Non-hex Diameter 4.5 Cuff 1.0mm Cuff 1.0mm Diameter 4.5 Cuff 1.0mm Diameter 4.5 Hex 1.2 Customizable by casting. Cementable or Screw-retained abutment for single tooth and bridges. • Abutment Screw(ISCS20) included, Tightening Torque : 30 Ncm SCRP® Multi SCRP® Multi
  • 37.
    IS Internal SubmergedSystem 37 ISImplantSystem * Scale 1 : 1.1 UCLA Abutment(Plastic) Diameter 4.5 Diameter 4.5 Diameter 5.2 Diameter 5.2 Diameter 5.7 Diameter 5.7 Cuff 1.0mm Cuff 1.0mm Cuff 1.0mm Cuff 1.0mm Cuff 1.0mm Cuff 1.0mm Cuff Diameter Diameter 4.5 Diameter 5.2 Diameter 5.7 Hex Non-hex ISUPH400 ISUPN400 Hex Non-hex ISUPH500 ISUPN500 Hex Non-hex ISUPH600 ISUPN600 Hex Hex Hex Non-hex Non-hex Non-hex Hex 1.2
  • 38.
    IS Internal SubmergedSystem38 * Scale 1 : 1.1 Protective Cap Impression Cap Components for Abutment Level Diameter 4.5 Length(mm) 4.5 5.5 7.0 Product name ISPTC445 ISPTC455 ISPTC470 Diameter 5.2 Length(mm) 4.5 5.5 7.0 Product name ISPTC545 ISPTC555 ISPTC570 Diameter 5.7 Length(mm) 4.5 5.5 7.0 Product name ISPTC645 ISPTC655 ISPTC670 Diameter 6.5 Length(mm) 4.5 5.5 7.0 Product name ISPTC745 ISPTC755 ISPTC770 Diameter 4.5 Diameter 5.2 Diameter 5.7 Diameter 6.5 Diameter 4.5 Diameter 5.2 Diameter 5.7 Product name ISPIC411 Diameter 4.5 Length 11.5m Product name ISPIC511 Length 11.5m Diameter 5.2 Product name ISPIC611 Length 11.5m Diameter 5.7 Diameter 6.5 Length 11.5m Diameter 6.5 Product name ISPIC711 Length Length Length Length
  • 39.
    IS Internal SubmergedSystem 39 ISImplantSystem * Scale 1 : 1.1 Diameter 4.5 Diameter 5.2 Diameter 5.7 Diameter 6.5 Length 11.7mm Length 11.7mm Diameter(ø) 4.5 5.2 5.7 6.5 Product name ISPCH410 ISPCH510 ISPCH610 ISPCH710 Hex Diameter(ø) 4.5 5.2 5.7 6.5 Product name ISPCN410 ISPCN510 ISPCN610 ISPCN710 Non-Hex Diameter 4.5 Length Cuff 3.0mm Length(mm) 4.0 4.5 5.5 7.0 Product name ISLA440 ISLA445 ISLA455 ISLA470 Diameter 5.2 Length Cuff 3.0mm Length(mm) 4.0 4.5 5.5 7.0 Product name ISLA540 ISLA545 ISLA555 ISLA570 Length(mm) 4.0 4.5 5.5 7.0 Product name ISLA640 ISLA645 ISLA655 ISLA670 Length(mm) 4.0 4.5 5.5 7.0 Product name ISLA740 ISLA745 ISLA755 ISLA770 Diameter 5.7 Length Cuff 3.0mm Diameter 6.5 Diameter Diameter Length Cuff 3.0mm Lab Analog Plastic Coping Components for Abutment Level
  • 40.
    IS Internal SubmergedSystem40 * Scale 1 : 1.1 Length 12mm Diameter 4.8 Hex 1.2 4mm Length 15mm Diameter 4.8 Hex 1.2 4mm Length 12mm 4mm Diameter 4.5 Hex 1.2 4mm Length 15mm Diameter 4.5 Hex 1.2 Components for Fixture Level Pick-up Impression Coping Type Hex SCRP® Multi Non-hex Short ISIPH400 ISIPS400 ISIPN400 Long ISIPHL400 ISIPSL400 ISIPNL400 * Impression coping Screw included (Medium - ISPIS20) Diameter 4.0 Type Hex SCRP® Multi Non-hex Short ISIPH450 ISIPS450 ISIPN450 Long ISIPHL450 ISIPSL450 ISIPNL450 * Impression coping Screw included (Medium - ISPIS20) Diameter 4.5 Type Hex SCRP® Multi Non-hex Short ISIPH411 ISIPS411 ISIPN411 Long ISIPHL411 ISIPSL 411 ISIPNL411 * Impression coping Screw included (Medium - ISPIS20, Long - ISPISL20) Diameter 4.8 Diameter 4.0 Length 12mm 4mm Hex 1.2 Diameter 4.0 4mm Length 15mm Hex 1.2
  • 41.
    IS Internal SubmergedSystem 41 ISImplantSystem * Scale 1 : 1.1 Hex 1.2 Diameter 5.5 Length 12mm 4mm Hex 1.2 Diameter 5.5 Length 15mm 4mm Components for Fixture Level Pick-up Impression Coping Type Hex SCRP® Multi Non-hex Short ISIPH511 ISIPS511 ISIPN511 Long ISIPHL511 ISIPSL 511 ISIPNL511 * Impression coping Screw included (Medium - ISPIS20, Long - ISPISL20) Diameter 5.5 Hex 1.2 X-Long ISPIS20L21mm Impression Coping Screw Type Hex SCRP® Multi Non-hex Medium ISIPH611 ISIPS611 ISIPN611 Long ISIPHL611 ISIPSL 611 ISIPNL611 * Impression coping Screw included (Medium - ISPIS20, Long - ISPISL20) Diameter 6.0 Diameter 6.0 Length 12mm 4mm Hex 1.2 Diameter 6.0 4mm Length 15mm Hex 1.2
  • 42.
    IS Internal SubmergedSystem42 * Scale 1 : 1.1 LongShort Components for Fixture Level Transfer Impression Coping Diameter 4.8 Diameter 5.5 Diameter 6.0 Impression Coping Hex Screw Type Hex Non-hex Short ISITH411 ISITN411 Long ISITHL411 ISITNL411 * Impression coping Screw included (Short - ISTIS20, Long - ISTISL20) Type Hex Non-hex Short ISITH511 ISITN511 Long ISITHL511 ISITNL511 * Impression coping Screw included (Short - ISTIS20, Long - ISTISL20) Type Hex Non-hex Short ISITH611 ISITN611 Long ISITHL611 ISITNL611 Short ISTIS20H Long ISTISL20H * Impression coping Screw included (Short - ISTIS20, Long - ISTISL20) 12mm 2mm 15mm 2mmHex 1.2 Hex 1.2 Short Long Diameter 4.8 Diameter 4.8 Length 12mm 2mm Length 15mm 2mm LongShort Diameter 5.5 Diameter 5.5 Length 12mm 2mm Length 15mm 2mm LongShort Diameter 6.0 Diameter 6.0 Length 12mm 2mm Length 15mm 2mm
  • 43.
    IS Internal SubmergedSystem 43 ISImplantSystem * Scale 1 : 1.1 * ISLA500 : Regular, Wide Fixture Components for Fixture Level * Connected to transfer impression coping Product name FDHSET01 Diameter 4.3 Product name ISLA500 Transfer Impression Coping Positioner Lab Analog Diameter 4.3
  • 44.
    IS Internal SubmergedSystem44 * Scale 1 : 1.1 Multi Unit Abutment Diameter 4.8 Cuff Cuff(mm) 1.0 2.0 3.0 4.0 Product name ISMUA4810 ISMUA4820 ISMUA4830 ISMUA4840 Multi Unit Abutment Diameter Cuff Angle Cuff(mm) 1.0 2.0 3.0 4.0 Product name 15˚ ISANMUA1410 ISANMUA1420 ISANMUA1430 ISANMUA1440 30˚ ISANMUA3410 ISANMUA3420 ISANMUA3430 ISANMUA3440 Multi Unit Non-Hex Angled Abutment Cuff * Holder(MUAH48) Included * Holder(MUAH48) Included Length(mm) 12 Product name MUACCN48 * Cylinder Screw(MUAS 14) Included CCM Cylinder, Non-Hex Diameter 4.8 Length 12.0mm Hex 1.2 Length(mm) 4.1 Product name MUAHC48 Healing Cap Diameter 4.8 Length 4.1mm Hex 1.2 Screw-retained abutment for multiple or bridges • Abutment Tightening Torque : 30 Ncm, Cylinder screw 15 Ncm
  • 45.
    IS Internal SubmergedSystem 45 ISImplantSystem * Scale 1 : 1.1 Multi Unit Abutment Length(mm) 9 Product name MUAIP48 Pick-up Impression Coping Diameter 4.8 Length 9.0mm 4.9mm D Hex 1.2 Product name MUALA48 Lab Analog Diameter 4.8 Length(mm) 9 Product name MUAIT48 Transfer Impression Coping Diameter 4.8 Length 9.0mm Hex 1.2 Product name MUAD48 Multi Unit Abutment Driver * Cylinder Screw(MUAS 14) Included Length(mm) 11 Product name MUATPCN48 Temporary Cylinder, Non-Hex Diameter 4.8 Length 11.0mm Hex 1.2
  • 46.
    IS Internal SubmergedSystem46 * Scale 1 : 1.1 Ball Abutment Retainer Cuff Diameter 3.5 Hex 2.4mm Cuff(mm) 1.0 2.0 3.0 4.0 Product name ISABA100 ISABA200 ISABA300 ISABA400 Cuff Diameter Hex 2.4mm Product name BAR20 Diameter 5.0 Length 2.0mm Housing Product name BAH40 Diameter 5.0 Length 4.0mm Ball Abutment Implant over-denture ball attachment system • Compensation degree : Max 20° between implants • Abutment Tightening Torque : 30 Ncm * Ball Abutment Driver(BADH24) Required * O-ring(BAORING) 5ea and O-ring(BAOIMP) 1ea Included * O-ring(BAORING) 5ea and O-ring(BAOIMP) 1ea Included * In case of occlusion interval is lower, use retainer instead of housing
  • 47.
    IS Internal SubmergedSystem 47 ISImplantSystem * Scale 1 : 1.1 Product name BAORING Product name BAOIMP Diameter 4.5 Diameter 4.5 Product name BALA350 Diameter 3.5 Ball Lab Analog Ball Abutment Driver Product name BADH24 Diameter 5.0 Hex 2.4 Length 25.0mm Ball Abutment O-Ring (Clinical) O-Ring (Lab) * 3ea Included * Prevents the resin flowing into the under of Housing or Retainer 1. while making a final resin denture at laboratory. 2. while inserting Housing or Retainer within denture directly at the office. * 3ea Included
  • 48.
    EB-II active /EB / EB S-Wide Neobiotech EB IMPLANT SYSTEM
  • 49.
    EB Implant SystemEB-II active Fixture(S.L.A. Surface) 51 EB Fixture(RBM Surface) 52 EB S-Wide Fixture(RBM Surface) 53 Healing Abutment 54 Temporary Abutment 56 Prosthetic Flow Chart 58 Hex Abutment 60 SCRP Abutment 62 Angled Abutment 64 Gold UCLA Abutment 66 CCM UCLA Abutment 67 Plastic UCLA Abutment 68 Pick-up Impression Coping 69 Transfer Impression Coping 70 Transfer Impression Coping Positioner 71 Lab Analog 71 Ball Abutment 72 Contents
  • 50.
    EB External System50 *Scale 1 : 1.1 BioSeal(0.5mm) Increase sealing of soft tissue and minimize bone loss Apex Powerful and well-defined thread exist at the peak of the apex. Initial fixation at the apex is excellent to both immediate placement and immediate loading Magic Thread Specially designed to endure vertical force and lateral pres- sure effectively by lower half triangle thread EB-II active S.L.A. Surface S.L.A. Surface is method that make rough surface by blasting on machined implant surface with HA(Hydroxy Apatite) particle smaller than 50 and dual acid-etching.
  • 51.
    EB External System51 EBImplantSystem * Scale 1 : 1.1 EB-II active Fixture(S.L.A. Surface) Length Diameter 5.0 Length Diameter 4.5 Length Diameter 4.0 0.7mm 0.7mm 0.7mm 0.7mm 0.7mm Length Diameter 3.5 Platform 3.5 Platform 4.1 Platform 4.1 Platform 5.0 Platform 5.0 Length Diameter 5.0 Hex 2.4 Hex 2.7 Hex 2.7 Hex 2.7 Hex 3.4 Narrow / Diameter 3.5 Length(mm) 10.0 11.5 13.0 Product name EB 3510A EB 3511A EB 3513A Regular / Diameter 4.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EB 4007A EB 4008A EB 4010A EB 4011A EB 4013A Regular / Diameter 4.5 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EB 4507A EB 4508A EB 4510A EB 4511A EB 4513A Wide(3i) / Diameter 5.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EBI 5007A EBI 5008A EBI 5010A EBI 5011A EBI 5013A Wide(Branemark) / Diameter 5.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EBB 5007A EBB 5008A EBB 5010A EBB 5011A EBB 5013A ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included 10 0 ※ All measurements can be different with the actual size
  • 52.
    EB External System52 *Scale 1 : 1.1 Length Diameter 5.0 Length Diameter 4.5 Length Diameter 4.0 EB Fixture(RBM Surface) 0.7mm 0.7mm 0.7mm 0.7mm 0.7mm Length Diameter 3.5 Platform 3.5 Platform 4.1 Platform 4.1 Platform 5.0 Platform 5.0 Length Diameter 5.0 Hex 2.4 Hex 2.7 Hex 2.7 Hex 2.7 Hex 3.4 Narrow / Diameter 3.5 Length(mm) 10.0 11.5 13.0 Product name EB 310 EB 311 EB 313 Regular / Diameter 4.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EB 407 EB 408 EB 410 EB 411 EB 413 Regular / Diameter 4.5 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EB 4507 EB 4508 EB 4510 EB 4511 EB 4513 Wide(3i) / Diameter 5.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EBI 507 EBI 508 EBI 510 EBI 511 EBI 513 Wide(Branemark) / Diameter 5.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EBB 507 EBB 508 EBB 510 EBB 511 EBB 513 ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ All measurements can be different with the actual size
  • 53.
    EB External System53 EBImplantSystem * Scale 1 : 1.1 Hex 3.4 Hex 3.4 EB S-Wide Fixture(RBM Surface) Length Length Diameter 5.5 Diameter 6.0 S-Wide(Branemark) / Diameter 5.5 S-Wide(Branemark) / Diameter 6.0 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EBB 5507 EBB 5508 EBB 5510 EBB 5511 EBB 5513 Length(mm) 7.3 8.5 10.0 11.5 13.0 Product name EBB 607 EBB 608 EBB 610 EBB 611 EBB 613 (optional) Cover Screw ECR 400Diameter 3.7 Narrow ECHN 300 Hex 0.9 Diameter 4.3 Regular ECHR 400 Hex 0.9 Diameter 5.2 Wide(3i) ECHI 500 Hex 0.9 Diameter 5.2 Wide(B) / S-Wide(B) ECHB 500 Hex 0.9 Hex 0.9 Regular / wide(3i) ※ Cover Screw Included ※ Cover Screw Included 0.7mm 0.7mm ※ Requires S-Wide surgery kit for diameter Ø5.5 ~ Ø6.0 fixture Platform 5.0 Platform 5.0 ※ All measurements can be different with the actual size
  • 54.
    EB External System54 *Scale 1 : 1.1 Healing Abutment Diameter 5.5 Cuff Regular / Diameter 5.5 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 8.0 Product name EHR 502 EHR 503 EHR 504 EHR 505 EHR 506 EHR 507 EHR 508 Diameter 6.0 Cuff Regular / Diameter 6.0 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 8.0 Product name EHR 602 EHR 603 EHR 604 EHR 605 EHR 606 EHR 607 EHR 608 Diameter 4.8 Cuff Narrow / Diameter 4.8 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 8.0 Product name EHN 402 EHN 403 EHN 404 EHN 405 EHN406 EHN407 EHN408 Diameter Cuff Hex 1.2 Temporary restorations for contouring of the soft tissue • Tightening torque : 8~10 Ncm Diameter4.8 4.0 Cuff
  • 55.
    EB External System55 EBImplantSystem * Scale 1 : 1.1 Diameter 6.0 Cuff Wide(3i) / Diameter 6.0 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 8.0 Product name EHI 602 EHI 603 EHI 604 EHI 605 EHI 606 EHI 607 EHI 608 Diameter 6.0 Cuff Wide(B) / S-Wide(B) / Diameter 6.0 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 7.0 8.0 Product name EHB 602 EHB 603 EHB 604 EHB 605 EHB 606 EHB 607 EHB 608 Healing Abutment
  • 56.
    EB External System56 *Scale 1 : 1.1 Temporary Abutment Diameter Length Hex 1.2 Customizable titanium abutment for temporary crown and bridges • Abutment Screw included, Tightening torque : 30 Ncm - Narrow Screw : CSHS16 - Regular / Wide(3i) Screw : CSHS20 - Wide(B) / S-Wide(B) Screw : CSHS25 Narrow / Diameter 4.5 Type Hex SCRP® multi Non-hex Product name EAHTN 300 EASTN 300 EANTN 300 Diameter 4.5 Length 12mm Type Hex SCRP® multi Non-hex Product name EAHTR 400 EASTR 400 EANTR 400 Regular / Diameter 5.2 Diameter 5.2 Length 12mm Type Hex SCRP® multi Non-hex Product name EAHTI 500 EASTI 500 EANTI 500 Wide(3i) / Diameter 5.7 Diameter 5.7 Length 12mm
  • 57.
    EB External System57 EBImplantSystem * Scale 1 : 1.1 Temporary Abutment Type Hex SCRP® multi Non-hex Product name EAHTB 500 EASTB 500 EANTB 500 Wide(B) / S-Wide(B) / Diameter 5.7 Diameter 5.7 Length 12mm
  • 58.
    EB External System58 *Scale 1 : 1.1 Prosthetic Flow Chart Impression coping positioner Pick-up Transfer Abutment positioner Lab analog Straight Angled CCM UCLA Plastic UCLA Gold UCLA EB FixtureEB-II active Fixture - External Abutment g ed
  • 59.
    EB External System59 EBImplantSystem * Scale 1 : 1.1 Prosthetic Flow Chart Ball Abutment Driver Ball Abutment Lab Lab Clinical Lab analog Housing Housing Retainer Retainer - External Ball Abutment EB FixtureEB-II active Fixture
  • 60.
    EB External System60 *Scale 1 : 1.1 Hex Abutment Cuff(mm) 1.0 2.0 3.0 4.0 Length 8mm EAHN 418 EAHN 428 EAHN 438 EAHN 448 Cuff(mm) 1.0 2.0 3.0 4.0 Length 4mm EAHR 5140 EAHR 5240 EAHR 5340 EAHR 5440 6mm EAHR 516 EAHR 526 EAHR 536 EAHR 546 8mm EAHR 518 EAHR 528 EAHR 538 EAHR 548 Cuff(mm) 1.0 2.0 3.0 4.0 Length 4mm EAHR 6140 EAHR 6240 EAHR 6340 EAHR 6440 6mm EAHR 616 EAHR 626 EAHR 636 EAHR 646 8mm EAHR 618 EAHR 628 EAHR 638 EAHR 648 Cuff Length Cuff Length Cuff Length Diameter Hex 1.2 Cuff Length Narrow / Diameter 4.5 Regular / Diameter 5.2 Regular / Diameter 5.7 Cementable or Screw-retained abutment for single tooth and bridges • Customizable by grinding (need to remain at least 3mm of abutment length above fixture platform) • Abutment Screw included, Tightening Torque : 30 Ncm - Narrow Screw : CSHS16 - Regular / Wide(3i) Screw : CSHS20 - Wide(B) / S-Wide(B) Screw : CSHS25 Diameter 4.5 Platform 3.5 Diameter 5.2 Diameter 5.7 Platform 4.1 Platform 4.1
  • 61.
    EB External System61 EBImplantSystem * Scale 1 : 1.1 Cuff(mm) 1.0 2.0 3.0 4.0 Length 4mm EAHB 6140 EAHB 6240 EAHB 6340 6mm EAHB 616 EAHB 626 EAHB 636 EAHB 646 Cuff(mm) 1.0 2.0 3.0 4.0 Length 4mm EAHI 6140 EAHI 6240 EAHI 6340 EAHI 6440 6mm EAHI 616 EAHI 626 EAHI 636 EAHI 646 Hex Abutment Diameter 5.7 Cuff Length Wide(B) / S-Wide(B) / Diameter 5.7 Diameter 5.7 Cuff Length Wide(3i) / Diameter 5.7 Platform 5.0 Platform 5.0
  • 62.
    EB External System62 *Scale 1 : 1.1 Regular / Diameter 4.5 Regular / Diameter 5.2 SCRP® multi Abutment Cuff Cuff Length Length Length Cuff(mm) 1.0 2.0 3.0 4.0 Length 8mm EASN 418 EASN 428 EASN 438 EASN 448 Cuff(mm) 1.0 2.0 3.0 4.0 Length 6mm EASR 416 EASR 426 EASR 436 EASR 446 Cuff(mm) 1.0 2.0 3.0 4.0 Length 4mm EASR 5140 EASR 5240 EASR 5340 EASR 5440 6mm EASR 516 EASR 526 EASR 536 EASR 546 8mm EASR 518 EASR 528 EASR 538 EASR 548 Cuff Length Diameter Hex 1.2 Narrow / Diameter 4.5 Abutment for screw-cement retained prosthesis • Short hex design, Retrievable within 40° between implants • Customizable by grinding (need to remain at least 3mm of abutment length above fixture platform) • Abutment Screw included, Tightening Torque : 30 Ncm - Narrow Screw : CSHS16 - Regular / Wide(3i) Screw : CSHS20 - Wide(B) / S-Wide(B) Screw : CSHS25 Diameter 4.5 Platform 3.5 Diameter 4.5 Diameter 5.2 Platform 4.1 Platform 4.1
  • 63.
    EB External System63 EBImplantSystem * Scale 1 : 1.1 SCRP® multi Abutment Wide(3i) / Diameter 5.7 Cuff(mm) 1.0 2.0 3.0 4.0 Length 4mm EASI 6140 EASI 6240 EASI 6340 EASI 6440 6mm EASI 616 EASI 626 EASI 636 EASI 646 8mm EASI 618 EASI 628 EASI 638 EASI 648 Cuff Length Cuff Length Cuff(mm) 1.0 2.0 3.0 4.0 Length 4mm EASR 6140 EASR 6240 EASR 6340 EASR 6440 6mm EASR 616 EASR 626 EASR 636 EASR 646 8mm EASR 618 EASR 628 EASR 638 EASR 648 Regular / Diameter 5.7 Cuff(mm) 1.0 2.0 3.0 4.0 Length 6mm EASB 616 EASB 626 EASB 636 EASB 646 8mm EASB 618 EASB 628 EASB 638 EASB 648Cuff Length Wide(B) / S-Wide(B) / Diameter 5.7 Diameter 5.7 Diameter 5.7 Diameter 5.7 Platform 5.0 Platform 5.0 Platform 5.0
  • 64.
    EB External System64 *Scale 1 : 1.1 Angled Abutment(15°) Cuff(mm) 2.0 3.0 Product name EAHAN 1427 EAHAN 1437 Diameter 4.5 Diameter 5.2 5.7 Cuff(mm) 2.0 3.0 2.0 3.0 Product name EAHAR 1527 EAHAR 1537 EAHAR 1627 EAHAR 1637 Cuff(mm) 2.0 3.0 Product name EAHAI 1627 EAHAI 1637 Cuff(mm) 2.0 3.0 Product name EAHAB 1627 EAHAB 1637 Diameter 5.2 Cuff Cuff Cuff Cuff Cuff Diameter 5.7 Diameter 5.7 Diameter 5.7 Cuff Diameter 15° Hex 1.2 Narrow / Diameter 4.5 Regular / Diameter 5.2, 5.7 Wide(3i) / Diameter 5.7 Wide(B) / S-Wide(B) / Diameter 5.7 Customizable by grinding. Can be positioned in 12 directions by double hex connection • Abutment Screw included, Tightening Torque : 30 Ncm - Narrow Screw : CSHS16 - Regular / Wide(3i) Screw : CSHS20 - Wide(B) / S-Wide(B) Screw : CSHS25 Double Hex
  • 65.
    EB External System65 EBImplantSystem * Scale 1 : 1.1 Cuff(mm) 2.0 3.0 Product name EAHAN 2427 EAHAN 2437 Cuff(mm) 2.0 3.0 Product name EAHAI 2627 EAHAI 2637 Cuff(mm) 2.0 3.0 Product name EAHAB 2627 EAHAB 2637 Cuff Cuff Cuff Angled Abutment(25°) Cu Diameter 4.5 Narrow / Diameter 4.5 Regular / Diameter 5.2 Wide(3i) / Diameter 5.7 Wide(B) / S-Wide(B) / Diameter 5.7 Hex 1.2 Cuff Diameter 25° Cuff(mm) 2.0 3.0 Product name EAHAR 2527 EAHAR 2537Cuff Diameter 5.2 C Diameter 5.7 Diameter 5.7 Customizable by grinding. Can be positioned in 12 directions by double hex connection • Abutment Screw included, Tightening Torque : 30 Ncm - Narrow Screw : CSHS16 - Regular / Wide(3i) Screw : CSHS20 - Wide(B) / S-Wide(B) Screw : CSHS25 Double Hex
  • 66.
    EB External System66 *Scale 1 : 1.1 Gold UCLA Abutment Diameter Diameter 4.0 Hex SCRP® multi Non-hex EUGHN300 EUGSN300 EUGNN300 Narrow / Diameter 4.0 Diameter 4.5 Hex SCRP® multi Non-hex EUGHR400 EUGSR400 EUGNR400 Regular / Diameter 4.5 Wide(3i) / Diameter 5.5 Diameter 5.5 Hex SCRP® multi Non-hex EUGHI500 EUGSI500 EUGNI500 Wide(B) / S-Wide(B) / Diameter 5.5 Diameter 5.5 Hex SCRP® multi Non-hex EUGHB500 EUGSB500 EUGNB500 Hex 1.2 Customizable by casting. Cementable or Screw-retained abutment for single tooth and bridges. • Abutment Screw included, Tightening Torque : 30 Ncm - Narrow Screw : CSHS16 - Regular / Wide(3i) Screw : CSHS20 - Wide(B) / S-Wide(B) Screw : CSHS25
  • 67.
    EB External System67 EBImplantSystem * Scale 1 : 1.1 CCM UCLA Abutment Diameter Narrow / Diameter 4.0 Diameter 4.0 Hex SCRP® multi Non-hex EUCHN300 EUCSN300 EUCNN300 Regular / Diameter 4.5 Diameter 4.5 Hex SCRP® multi Non-hex EUCHR400 EUCSR400 EUCNR400 Wide(3i) / Diameter 5.5 Diameter 5.5 Hex SCRP® multi Non-hex EUCHI500 EUCSI500 EUCNI500 Wide(B) / S-Wide(B) / Diameter 5.5 Diameter 5.5 Hex SCRP® multi Non-hex EUCHB500 EUCSB500 EUCNB500 Customizable by casting. Cementable or Screw-retained abutment for single tooth and bridges. • Abutment Screw included, Tightening Torque : 30 Ncm - Narrow Screw : CSHS16 - Regular / Wide(3i) Screw : CSHS20 - Wide(B) / S-Wide(B) Screw : CSHS25 Hex 1.2
  • 68.
    EB External System68 *Scale 1 : 1.1 Narrow / Diameter 4.0 Regular / Diameter 4.5 Wide(3i) / Diameter 5.5 Wide(B) / S-Wide(B) / Diameter 5.5 Plastic UCLA Abutment Diameter Diameter 4.0 Hex SCRP® multi Non-hex EUPHN300 EUPSN300 EUPNN300 Diameter 4.5 Hex SCRP® multi Non-hex EUPHR400 EUPSR400 EUPNR400 Diameter 5.5 Hex SCRP® multi Non-hex EUPHI500 EUPSI500 EUPNI500 Diameter 5.5 Hex SCRP® multi Non-hex EUPHB500 EUPSB500 EUPNB500 Hex 1.2
  • 69.
    EB External System69 EBImplantSystem * Scale 1 : 1.1 Pick-up Impression Coping Diameter 4.0 Diameter 4.0 Short Long Hex 1.2 Hex 1.2 Narrow / Diameter 4.0 Type Hex SCRP® multi Non-hex Short EBIPH411 EBIPS411 EBIPN411 Long EBIPHL411 EBIPSL411 EBIPNL411 Diameter 4.5 Diameter 4.5 LongShort Hex 1.2 Hex 1.2 Regular / Diameter 4.5 Type Hex SCRP® multi Non-hex Short EBIPH511 EBIPS511 EBIPN511 Long EBIPHL511 EBIPSL511 EBIPNL511 Diameter 5.5 Diameter 5.5 LongShort Hex 1.2 Hex 1.2 Wide(3i) / Diameter 5.5 Type Hex SCRP® multi Non-hex Short EBIPHI611 EBIPSI611 EBIPNI611 Long EBIPHIL611 EBIPSIL 611 EBIPNIL611 Diameter 5.5 Diameter 5.5 LongShort Hex 1.2 Hex 1.2 Wide(B) / S-Wide(B) / Diameter 5.5 Type Hex SCRP® multi Non-hex Short EBIPH611 EBIPS611 EBIPN611 Long EBIPHL611 EBIPSL 611 EBIPNL611 * Impression coping Screw included (Short - EBPIS16, Long - EBPIS16L) * Impression coping Screw included (Short - EBPIS20, Long - EBPIS20L) * Impression coping Screw included (Short - EBPIS20, Long - EBPIS20L) * Impression coping Screw included (Short - EBPIS25, Long - EBPIS25L) Length 12mm Length 12mm Length 12mm Length 12mm 2mm 2mm 2mm 2mm Length 15mm Length 15mm Length 15mm Length 15mm 2mm 2mm 2mm 2mm
  • 70.
    EB External System70 *Scale 1 : 1.1 Narrow / Diameter 4.0 Hex 1.2 Hex 1.2 Hex 1.2 Transfer Impression Coping Type Hex Non-hex Short EBITH 411 EBIPN411 Diameter 4.8 Regular / Diameter 5.5 Type Hex Non-hex Short EBITH 511 EBITN 511 Diameter 5.5 Wide(3i) / Diameter 6.0 Type Hex Non-hex Short EBITHI 611 EBITN 611 Diameter 6.0 Wide(B) / S-Wide(B) / Diameter 6.0 Type Hex Non-hex Short EBITH 611 EBITN 611 Diameter 6.0 Impression Coping Hex Screw * Impression coping Screw(EBTIS16) included * Impression coping Screw(EBTIS20) included * Impression coping Screw(EBTIS20) included * Impression coping Screw(EBTIS25) included Length 12mm Length 12mm Length 12mm Length 12mm 2mm 2mm 2mm 2mm Length 12mm 2mm Length 12mm 2mm Length 12mm 2mm Narrow EBTIS16H Regular / Wide(3i) EBTIS20H EBTIS25H Wide(B) / S-Wide(B)
  • 71.
    EB External System71 EBImplantSystem * Scale 1 : 1.1 Product name FDHSET 01 Transfer Impression Coping Positioner * Connected to transfer impression coping Diameter 3.5 Hex 2.4 Hex 2.7 Hex 2.7 Hex 3.4 Diameter 4.1 Diameter 5.0 Diameter 5.0 Lab Analog Narrow Product name EBAN 30 Regular Product name EBAR 40 Wide(3i) Product name EBAI 50 Wide(B) / S-Wide(B) Product name EBAB 50 o transf
  • 72.
    EB External System72 *Scale 1 : 1.1 Ball Abutment Cuff Diameter 3.5 Cuff(mm) 2.0 3.0 4.0 Product name EABAN 200 EABAN 300 EABAN 400 Cuff Diameter 4.1 Cuff(mm) 2.0 3.0 4.0 Product name EABAR 200 EABAR 300 EABAR 400 Cuff Diameter 5.0 Cuff(mm) 2.0 3.0 4.0 Product name EABAI 200 EABAI 300 EABAI 400 Cuff Diameter 5.0 Cuff(mm) 2.0 3.0 4.0 Product name EABAB 200 EABAB 300 EABAB 400 Cuff Diameter Hex 2.4 Narrow Regular Wide(3i) Wide(B) / S-Wide(B) Implant over-denture ball attachment system • Compensation degree : Max 20° between implants • Abutment Tightening Torque : 30 Ncm • Ball Abutment Driver(BADH24) Required
  • 73.
    EB External System73 EBImplantSystem * Scale 1 : 1.1 Product name BAH 40 Product name BAR 20 Diameter 5.0 Diameter 5.0 Length 4.0mm Length 2.0mm Housing Retainer Product name BAORING Product name BAOIMP Diameter 4.5 Diameter 4.5 Ball Abutment * O-ring(BAORING) 5ea and O-ring(BAOIMP) 1ea Included * O-ring(BAORING) 5ea and O-ring(BAOIMP) 1ea Included * In case of occlusion interval is lower, use retainer instead of housing O-Ring (Clinical) O-Ring (Lab) * 3ea Included * Prevents the resin flowing into the under of Housing or Retainer 1. while making a final resin denture at laboratory. 2. while inserting Housing or Retainer within denture directly at the office. * 3ea Included Ball Lab Analog Product name BALA 350 Diameter 3.5 Ball Abutment Dirver Product name BADH 24 Diameter 5.0 Hex 2.4 Length 25.0mm
  • 74.
    IT-II active /IT / IT wide Neck Neobiotech IT IMPLANT SYSTEM
  • 75.
    IT Implant SystemIT-II active Fixture (S.L.A. Surface) 77 IT Fixture (RBM Surface) 78 IT Wide Neck Fixture (RBM Surface) 79 Healing Abutment 80 Prosthetic Flow Chart 81 Solid Abutment 84 Wide Neck Solid Abutment 86 Excellent Solid Abutment 88 Cemented Abutment 90 UCLA Abutment(Gold/CCM/Plastic) 91 Pre Angled Abutment 93 Collared Pre Angled Abutment 94 Pick-up Impression Coping 95 Transfer Impression Coping 96 Lab Analog 97 Contents
  • 76.
    IT Internal System76 *Scale 1 : 1.1 S.L.A. Surface S.L.A. Surface is method that make rough surface by blasting on machined implant surface with HA(Hydroxy Apatite) particle smaller than 50 and dual acid-etching. Magic Thread Specially designed to endure vertical force and lateral pres- sure effectively by lower half triangle thread Apex Powerful and well-defined thread exist at the peak of the apex. Initial fixation at the apex is excellent to both immediate placement and immediate loading IT-II active
  • 77.
    ITImplantSystem IT Internal System77 SurgicalKit * Scale 1 : 1.1 Platform 4.8 Diameter 5.5 Octa 3.1 IT-II active Fixture (S.L.A. Surface) Narrow / Diameter 3.5 Length(mm) 10.0 11.5 13.0 Product name IT 13510A IT 13511A IT 13513A Length G.Collar 1.8mm Platform 4.8 Diameter 3.5 Octa 3.1 ※ Cover Screw Included Regular / Diameter 4.0 Length(mm) 8.5 10.0 11.5 13.0 Product name IT 14008A IT 14010A IT 14011A IT 14013A Platform 4.8 Diameter 4.0 Octa 3.1 ※ Cover Screw Included Regular / Diameter 4.5 Length(mm) 8.5 10.0 11.5 13.0 Product name IT 14508A IT 14510A IT 14511A IT 14513A ※ Cover Screw Included Platform 4.8 Diameter 4.5 Octa 3.1 Wide / Diameter 5.5 Length(mm) 8.5 10.0 11.5 13.0 Product name IT 15508A IT 15510A IT 15511A IT 15513A ※ Cover Screw Included Wide / Diameter 5.0 Length(mm) 8.5 10.0 11.5 13.0 Product name IT 15008A IT 15010A IT 15011A IT 15013A ※ Cover Screw Included Platform 4.8 Diameter 5.0 Octa 3.1 ※ All measurements can be different with the actual size Length G.Collar 1.8mm Length G.Collar 1.8mm Length G.Collar 1.8mm Length G.Collar 1.8mm
  • 78.
    IT Internal System78 *Scale 1 : 1.1 IT Fixture (RBM Surface) Length G.Collar 1.8mm Length G.Collar 1.8mm Length G.Collar 1.8mm Length G.Collar 1.8mm Platform 4.8 Platform 4.8 Platform 4.8 Diameter 3.5 Diameter 4.0 Diameter 4.5 Platform 4.8 Diameter 4.8 Narrow / Diameter 3.5 Length(mm) 10.0 11.5 13.0 Product name IT 1310 IT 1311 IT 1313 Regular / Diameter 4.0 Length(mm) 8.5 10.0 11.5 13.0 Product name IT 1408 IT 1410 IT 1411 IT 1413 Regular / Diameter 4.5 Wide / Diameter 4.8 Length(mm) 8.5 10.0 11.5 13.0 Product name IT 14508 IT 14510 IT 14511 IT 14513 Length(mm) 8.5 10.0 11.5 13.0 Product name IT 1508 IT 1510 IT 1511 IT 1513 Octa 3.1 Octa 3.1 Octa 3.1 Octa 3.1 ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ All measurements can be different with the actual size
  • 79.
    ITImplantSystem IT Internal System79 SurgicalKit * Scale 1 : 1.1 IT Wide Neck Fixture (RBM Surface) Cover Screw Wide neck / Diameter 5.0 Wide neck / Diameter 5.5 Wide neck / Diameter 6.0 Length(mm) 8.5 10.0 11.5 13.0 Product name ITW 1608 ITW 1610 ITW 1611 ITW 1613 Length(mm) 8.5 10.0 11.5 13.0 Product name ITW 1508 ITW 1510 ITW 1511 ITW 1513 Length(mm) 8.5 10.0 11.5 13.0 Product name ITW 15508 ITW 15510 ITW 15511 ITW 15513 Length G.Collar 1.8mm Platform 6.5 Platform 6.5 Length G.Collar 1.8mm Platform 6.5 Diameter 5.0 Diameter 5.5 Diameter 6.0 Product name ITCS 10 Product name ITCS 20 Product name ITCSW 10 Small Small Regular Neck Large (Optional) Wide Neck Octa 3.1 Octa 3.1 Octa 3.1 Hex 1.2 Hex 1.2 Hex 1.2 ※ Cover Screw Included ※ Cover Screw Included ※ Cover Screw Included ※ All measurements can be different with the actual size Length G.Collar 1.8mm
  • 80.
    IT Internal System80 *Scale 1 : 1.1 Diameter 5.8 Cuff(mm) 2.0 3.0 4.0 Product name IUTH 502 IUTH 503 IUTH 504 Cuff Diameter 5.8 Diameter 7.2 Cuff(mm) 2.0 3.0 4.0 Product name ITHW 702 ITHW 703 ITHW 704 Cuff Diameter 7.2 Cuff Diameter Healing Abutment Temporary restorations for contouring of the soft tissue • Tightening Torque : 8~10 Ncm 5.8 3.0 Hex 1.2 Diameter Cuff
  • 81.
    ITImplantSystem IT Internal System81 SurgicalKit * Scale 1 : 1.1 Protective CapSolid AbutmentAbutment Driver Impression Cap Impression CapPositioning Cylinder Lab Analog Shoulder Analog Plastic Coping (Single) Plastic Coping (Single) Plastic Coping (Bridge) Plastic Coping (Bridge) IT FixtureIT-II active Fixture Prosthetic Flow Chart - IT Solid Abutment
  • 82.
    IT Internal System82 *Scale 1 : 1.1 Protective CapExcellent Solid AbutmentAbutment Driver Impression Cap Normal Modified Impression CapPositioning Cylinder Lab Analog Shoulder Analog Plastic Coping (Single) Plastic Coping (Single) Plastic Coping (Bridge) Plastic Coping (Bridge) Prosthetic Flow Chart - IT Excellent Solid Abutment IT FixtureIT-II active Fixture
  • 83.
    ITImplantSystem IT Internal System83 SurgicalKit * Scale 1 : 1.1 Impression Coping Positioner Pick-up Transfer Lab Analog Angled AbutmentCement Abutment UCLA Gold UCLA CCM UCLA Plastic Prosthetic Flow Chart - IT Cemented Abutment IT FixtureIT-II active Fixture
  • 84.
    IT Internal System84 *Scale 1 : 1.1 Solid Abutment Length(mm) 4.0 5.5 7.0 Product name ITPR 40 ITPR 55 ITPR 70 Diameter 5.5 Diameter 5.5 Diameter 3.5 Length Length Length Length(mm) 4.0 5.5 7.0 Product name ITSR 40 ITSR 55 ITSR 70 Diameter 3.5 Positioning Cylinder Length(mm) 4.0 5.5 7.0 Color Yellow Gray Blue Product name ITYR 40 ITYR 55 ITYR 70 Length Diameter One piece abutment for cemented restorations • Abutment Tightening Torque : 30 Ncm, Protective Cap Included • These components are only for IT Regular Neck fixture
  • 85.
    ITImplantSystem IT Internal System85 SurgicalKit * Scale 1 : 1.1 Solid Abutment Lab Analog Length Length(mm) 4.0 5.5 7.0 Color Yellow Metal Blue Product name ITAR 40 ITAR 55 ITAR 70 Impression Cap Product name ITIR 00 Shoulder Analog Product name ITAS 00 Plastic Coping Type Single Bridge Product name ITPRCR ITPRBRBridge Single
  • 86.
    IT Internal System86 *Scale 1 : 1.1 Diameter 4.3 Diameter 5.5 Protective Cap Length Length(mm) 4.0 5.5 Product name ITSW 40 ITSW 55 Wide Neck Solid Abutment Wide Neck Solid Abutment Length(mm) 4.0 5.5 Product name ITPW 40 ITPW 55 Length Diameter Hex 1.2 One piece abutment for cemented restorations • Abutment Tightening Torque : 30 Ncm, Protective Cap Included • These components are only for IT Wide Neck fixture Length
  • 87.
    ITImplantSystem IT Internal System87 SurgicalKit * Scale 1 : 1.1 Length(mm) 4.0 5.5 Color Yellow Gray Product name ITYW 40 ITYW 55 Positioning Cylinder Wide Neck Solid Abutment Length Length(mm) 4.0 5.5 Color Yellow Metal Product name ITAW 40 ITAW 55 Lab Analog Product name ITIW 00 Impression Cap Type Single Bridge Product name ITPWCR ITPWBR Plastic Coping Bridge Single
  • 88.
    IT Internal System88 *Scale 1 : 1.1 Excellent Solid Abutment Diameter 5.5 Protective Cap 호환 Solid Abutment Length(mm) 4.0 5.5 7.0 Product name ITPTC 40 ITPTC 55 ITPTC 70 Diameter 4.3 Length Length(mm) 4.0 5.5 7.0 Product name ITSE 404 ITSE 405 ITSE 407 Excellent Solid Abutment Length Diameter One piece abutment for cemented restorations • Abutment Tightening Torque : 30 Ncm, Protective Cap Included • These components are only for IT Regular Neck Fixture Length Hex 1.2
  • 89.
    ITImplantSystem IT Internal System89 SurgicalKit * Scale 1 : 1.1 Excellent Solid Abutment Length Length(mm) 4.0 5.5 7.0 Color Yellow Gray Blue Product name ITELA 440 ITELA 455 ITELA 470 Lab Analog Product name ITEIC 00 Impression Cap Length(mm) 4.0 5.5 7.0 Color Yellow Gray Blue Product name ITEPC 40 ITEPC 55 ITEPC 70 Positioning Cylinder Type Single Bridge Product name ITHPC ITNPC Plastic Coping Bridge Single Length
  • 90.
    IT Internal System90 *Scale 1 : 1.1 Cemented Abutment Cuff Cuff CuffCuff Diameter 5.5 Diameter 5.5 Diameter 4.3 Diameter 4.3 Cuff(mm) 0 1.0 2.0 3.0 4.0 Octa ICO 500 ICO 510 ICO 520 ICO 530 ICO 540 Non-Octa ICN 500 ICN 510 ICN 520 ICN 530 ICN 540 Cuff(mm) 0 1.0 Octa ICOW 500 ICOW 510 Non-Octa ICNW 500 ICNW 510 Diameter 5.5 Diameter 4.3 Cuff Cuff Diameter Diameter Cementable or Screw-retained abutment for single tooth and bridges • Customizable by grinding (need to remain at least 3mm of abutment length above fixture platform) • Abutment Screw(ITCS20S) included, Tightening Torque : 30Ncm Octa Octa Non-Octa Non-Octa Hex 1.2 Length 6.0mm Length 6.0mm Length 6.0mm Length 6.0mm
  • 91.
    ITImplantSystem IT Internal System91 SurgicalKit * Scale 1 : 1.1 Gold / Diameter 5.5 Plastic / Diameter 5.5 UCLA Abutment (Gold / CCM / Plastic) Type Octa Non-octa Product name ITUPO 500 ITUPN 500 Cuff Diameter 5.5 Diameter 5.5 Type Octa Non-octa Product name ITUGO 500 ITUGN 500 CCM / Diameter 5.5 Type Octa Non-octa Product name ITUCO 500 ITUCN 500 Diameter 5.5 Diameter 5.5 Customizable by casting. Cementable or Screw-retained abutment for single tooth and bridges. • Abutment Screw(ITCS20S) included, Tightening Torque : 30 Ncm Hex 1.2
  • 92.
    IT Internal System92 *Scale 1 : 1.1 Plastic / Diameter 5.5 UCLA Abutment (CCM / Plastic) Type Octa Non-octa Product name ITUPO 700 ITUPN 700 CCM / Diameter 5.5 Type Octa Non-octa Product name ITUCO 700 ITUCN 700 Diameter 7.2 Diameter 7.2
  • 93.
    ITImplantSystem IT Internal System93 SurgicalKit * Scale 1 : 1.1 Pre Angled Abutment (15° / 25°) Type A B Product name IAO 310A IAO 310B 15° A - Type Angle to the edge A - Type Angle to the edge A - Type Angle to the edge B - Type Angle to the flat wall B - Type Angle to the flat wall B - Type Angle to the flat wall Non-octa Type A B Product name IAO 320A IAO 320B 25° 15° 15° 25°25° Type A B Non-octa Product name IAOW 500A IAOW 500B IANW 500 15° 15°15° 15° 15° 25° A-Type (Angle to the edge) B-Type (Angle to the flat wall) • Abutment Screw(ITAS20S) included, Tightening Torque : 30 Ncm Hex 1.2
  • 94.
    IT Internal System94 *Scale 1 : 1.1 A - Type Angle to the edge A - Type Angle to the edge B - Type Angle to the flat wall B - Type Angle to the flat wall Non-octa Non-octa Collared Angled Abutment(15° / 25°) Type A B Non-octa Cuff (mm) 1 2 1 2 1 2 Product name IAO511A IAO512A IAO511B IAO512B IAN 511 IAN 512 Type A B Non-octa Cuff (mm) 1 2 1 2 1 2 Product name IAO521A IAO522A IAO521B IAO522B IAN 521 IAN 522 15° 25° 15° 15° 15° 25° 25° 15° 25° 25° A-Type (Angle to the edge) B-Type (Angle to the flat wall) • Abutment Screw(ITCS20S) included, Tightening Torque : 30 Ncm Hex 1.2
  • 95.
    ITImplantSystem IT Internal System95 SurgicalKit * Scale 1 : 1.1 Pick-up Impression Coping ※ Impression Coping Screw Included (Short : ITPIS20 / Long : ITPIS 20L) ※ Impression Coping Screw Included ( ITPIS20) Type Octa Non-octa Short ITIPO 511 ITIPN 511 Long ITIPOL 511 ITIPNL 511 Type Octa Non-octa Product name ITIPO 711 ITIPN 711 Diameter 5.5 Diameter 5.5 Diameter 7.2 Hex 1.2 Hex 1.2 Hex 1.2 Length 12mm Length 12mm 4mm 4mm Length 15mm 4mm Short Long
  • 96.
    IT Internal System96 *Scale 1 : 1.1 Transfer Impression Coping ※ Impression Coping Screw Included (Short : ITTIS20 / Long : ITTIS 20L) Type Octa Non-Octa Short ITITO 511 ITITN 511 Long ITITOL 511 ITITNL 511 Diameter 5.5 Diameter 5.5 Product name ITTIS20H Impression Coping Hex Screw ※ Impression Coping Screw Included (Short : ITPIS20 / Long : ITPIS 20L) Type Octa Non-Octa Product name ITITO 711 ITITN 711 Diameter 7.2 Hex 1.2 Length 12mm Length 15mm Length 12mm 2mm 2mm 2mm
  • 97.
    ITImplantSystem IT Internal System97 SurgicalKit * Scale 1 : 1.1 Transfer Impression Coping Positioner Product name FDHSET 01 * Connected to transfer impression coping Lab Anaolg Product name ITLA 50 Product name ITLA 70 Diameter 4.8 Diameter 6.8
  • 98.
    S-Mini Implant System S-Mini Cementedtype / S-Mini Ball type Neobiotech S-Mini IMPLANT SYSTEM
  • 99.
    S-Mini Implant SystemS-Mini Fixture - Cemented Type 100 S-Mini Fixture - Ball Type 101 Prosthetic Flow Chart 102 S-Mini Components 103 Contents
  • 100.
    S-Mini Implant System100 *Scale 1 : 1.1 S-Mini Fixture - Cement Type (RBM Surface) Length Length Cuff 2.0mm Cuff 2.0mm Post 10mm Post 10mm Diameter 2.0 Diameter 2.5 Diameter 2.0 Diameter 2.5 Diameter 3.0 Diameter 3.5 Length(mm) 8.5 10.0 11.5 13.0 15.0 Product name MI 2008L MI 2010L MI 2011L MI 2013L MI 2015L Length(mm) 8.5 10.0 11.5 13.0 15.0 Product name MI 2508L MI 2510L MI 2511L MI 2513L MI 2515L Length(mm) 8.5 10.0 11.5 13.0 15.0 Product name MI 3008L MI 3010L MI 3011L MI 3013L MI 3015L Length(mm) 8.5 10.0 11.5 13.0 15.0 Product name MI 3508L MI 3510L MI 3511L MI 3513L MI 3515L Length Cuff 2.0mm Post 10mm Diameter 3.0 Length Cuff 2.0mm Post 10mm Diameter 3.5 ※ Protective Cap Included ※ Protective Cap Included ※ Protective Cap Included ※ Protective Cap Included ※ All measurements can be different with the actual size
  • 101.
    S-Mini Implant System101 S-MiniImplantSystem * Scale 1 : 1.1 Length Cuff Diameter 2.0 Diameter 2.0 Length(mm) 8.5 10.0 11.5 13.0 15.0 Cuff 3mm MIB 20083 MIB 20103 MIB 20113 MIB 20133 MIB 20153 4mm MIB 20084 MIB 20104 MIB 20114 MIB 20134 MIB 20154 Diameter 2.5 Length(mm) 8.5 10.0 11.5 13.0 15.0 Cuff 3mm MIB 25083 MIB 25103 MIB 25113 MIB 25133 MIB 25153 4mm MIB 25084 MIB 25104 MIB 25114 MIB 25134 MIB 25154 Diameter 3.0 Length(mm) 8.5 10.0 11.5 13.0 15.0 Cuff 3mm MIB 30083 MIB 30103 MIB 30113 MIB 30133 MIB 30153 4mm MIB 30084 MIB 30104 MIB 30114 MIB 30134 MIB 30154 Diameter 3.5 Length(mm) 8.5 10.0 11.5 13.0 15.0 Cuff 3mm MIB 35083 MIB 35103 MIB 35113 MIB 35133 MIB 35153 4mm MIB 35084 MIB 35104 MIB 35114 MIB 35134 MIB 35154 S-Mini Fixture - Ball Type (RBM Surface) Length Cuff Diameter 2.5 Length Cuff Diameter 3.0 Length Cuff Diameter 3.5 ※ All measurements can be different with the actual size
  • 102.
    S-Mini Implant System102 *Scale 1 : 1.1 Impression Cap Lab side Lab sideChair side Chair side Normal Post Modified Impression Cap Lab analog (Normal Type) Lab analog (Modifying Type) Protective Cap Protective Cap S-Mini Fixture (Cement Type) S-Mini Fixture (Ball Type) Prosthetic Flow Chart - Cement Type Prosthetic Flow Chart - Ball Type Lab analog HousingLab Housing RetainerClinical RetainerClinical
  • 103.
    S-Mini Implant System103 S-MiniImplantSystem * Scale 1 : 1.1 S-Mini Components Type Normal Product name MICLAB 01 Type Modifying Product name MICLAB 02 Lab Analog - Cement Type Product name MICIMP Impression Cap Product name MICPTC Protective Cap Lab Analog - Ball Type Product name BALA 350 Diameter 3.5
  • 104.
    S-Mini Implant System104 *Scale 1 : 1.1 Product name BAR 20 Diameter 5.0 Length 2.0mm Retainer Product name BAH 40 Diameter 5.0 Length 4.0mm Housing S-Mini Components Product name BAORINGDiameter 4.5 O-ring (Clinical) Product name BAOIMPDiameter 4.5 O-ring (Lab) * 3ea Included * Prevents the resin flowing into the under of Housing or Retainer 1. while making a final resin denture at laboratory. 2. while inserting Housing or Retainer within denture directly at the office. * O-ring(BAORING) 5ea and O-ring(BAOIMP) 1ea Included * 3ea Included * O-ring(BAORING) 5ea and O-ring(BAOIMP) 1ea Included * In case of occlusion interval is lower, use retainer instead of housing
  • 105.
    * Scale 1: 1.1
  • 106.
    S-Mini Implant System IS FullKit / EB & IT Kit / S-Mini Kit / S-Wide Kit / Neo Surgical Accessory Kit / Neo Prosthetic Kit Neobiotech SURGICAL KIT
  • 107.
    Surgical Kit ISFull Kit 108 EB & IT Kit 114 S-Mini Kit 120 S-Wide Kit 121 Neo Surgical Accessory Kit 122 Neo Prosthetic Kit 124 Neo Prosthetic Planning Kit 128 Neo PickCap Impression Kit 130 Contents
  • 108.
    Surgical Kit108 * Scale1 : 1 IS Full Kit Surgical Drill Drill Extension Stopper Connector Point Lindemann Countersink Parallel PinDirection Pin Fixture DriverHex Driver Profile Tap This kit can be used to perform implant surgery for IS-II active, IS-II, IS (Ø3.5~Ø5.5). For S-Wide(diameter Ø6.0~Ø7.0) implant surgery, S-Wide Kit additionally required Drill Length Guide 33.5mm 21.5mm 38.5mm ▲ Twist Drill ▲ Twist Drill + Contra Angle ▲ Twist Drill + Extention +Contra Angle Product name ISFKIT 13mm 11.5mm 10mm 8.5mm 7mm 1.3mm ※ The marking of drill is 1.3mm longer than that of fixture length (Point Lindemann / Ø2.2 Initial Drill) mm
  • 109.
    Surgical Kit 109 SurgicalKit *Scale 1 : 1 ※ Stoppers cannot be connected to Ø4.9 Twist Drill(TSD49F) only IS Full Kit Components Stopper Stopper 3.0 4.0 5.0 6.0 7.0 8.5 10.0 11.5 13 Drilling Length(mm) 3.0 4.0 5.0 6.0 8.1 9.3 10.8 12.3 13.8 Product name DS030F DS040F DS050F DS060F DS070F DS085F DS100F DS115F DS130F Drilling Length 13.0 11.5 10 8.5 7.0 6.0 5.0 4.0 3.0 Diameter Product name Ø2.3 LDS23 1.3mm 1mm 0.8mm Point Lindemann Drill 15 Initial Drill Diameter Product name Ø2.2 TSD22F 7 8.5 10 11.5 13 0 FØ2.2 2.2 33.5mm 7 8.5 10 11.5 13 Twist Drill Diameter Product name Ø2.9 TSD29F Ø3.4 TSD34F Ø3.9 TSD39F Ø4.4 TSD44F Ø4.9 TSD49F FØ2.9 FØ3.4 FØ3.9 FØ4.4 FØ4.9 2.9 3.4 3.9 4.4 4.9 Previous Drill 15 0 33.5mm 33.5mm 0 D2 : 2.3 D1 : 1.2D1 D2 7.3 8.510 11.5 13 LDSØ2.5 1.3mm 15
  • 110.
    Surgical Kit110 * Scale1 : 1 Ratchet Connector Short Long IS Fixture Driver Length Product name Ratchet (Short) ISFD10R Ratchet (Long) ISFD15R Contra Angle ISFD05C IS Full Kit Components Countersink Short Long Diameter Product name Ø3.5 ISCS35F Ø4.0 ISCS40F Ø4.5 ISCS45F Ø5.0 ISCS50F Ø5.5 ISCS55F B (Hard Bone) C (Super Hard Bone) A (Soft Bone) ProfileTap 30mm 9mm 10mm 10mm15mm 15mm 23mm 8mm 3.5 4.0 4.5 5.0 5.5 Diameter Product name Ø3.5 PTAP35F Ø4.0 PTAP40F Ø4.5 PTAP45F Ø5.0 PTAP50F Ø5.5 PTAP55F Length Product name Short RC10 Long RC15 5.0 6.0 Direction Pin Diameter Product name Ø 5.0 DPIS50 Ø 6.0 DPIS60 Parallel Pin Length Product name 7.0 mm PP07F 8.5 mm PP08F 10.0 mm PP10F 15 PTAP35F PTAP40F PTAP45F PTAP50F PTAP55F 4.9mm 4.7mm ISCS35F ISCS40F ISCS45F ISCS50F ISCS55F 3.5 4.0 4.5 5.0 5.5 27mm 7mm 7mm 8.5mm 8.5mm 10mm 10mm 2.2 2.2 2.2 2.9 2.9 2.9 2
  • 111.
    Surgical Kit 111 SurgicalKit *Scale 1 : 1 IS Full Kit Components Hex Driver Drill Extension Product name HD1215 Product name DE01 Torque Ratchet Product name TW60 Driver Holder Product name DH01 15mm Spare Hex Driver Swivel Hole Hex 1.2 er
  • 112.
    Surgical Kit112 * Scale1 : 1 IS Full Kit - IS-II active, IS-II Drilling Sequence Drilling Speed & Torque Twist Drill Ø 2.9 Point Lindemann Ø 2.3 Initial Drill Ø 2.2 Twist Drill Ø 3.4 Twist Drill Ø 3.9 D1 D2 10mm ProfileTap Ø 4.5 IS-II active Fixture Ø4.5 X 10mm (D1/D2 bone) D1 D2 10mm ProfileTap Ø 5.0 IS-II active Fixture Ø5.0 X 10mm (D1/D2 bone) Twist Drill Ø 2.9 Point Lindemann Ø 2.3 Initial Drill Ø 2.2 Twist Drill Ø 3.4 Twist Drill Ø 3.9 Twist Drill Ø 4.4 Twist Drill Ø 2.9 Point Lindemann Ø 2.3 Initial Drill Ø 2.2 Twist Drill Ø 3.4 D1 D2 10mm ProfileTap Ø 4.0 IS-II active Fixture Ø4.0 X 10mm (D1/D2 bone) Point Lindemann Ø 2.3 Initial Drill Ø 2.2 Twist Drill Ø 2.9 ※ In soft(D4) bone, use Point Lindemann Drill fully only D1 D2 10mm Tip Length Tip Length Tip Length Tip Length ProfileTap Ø 3.5 IS-II active Fixture Ø3.5 X 10mm (D1/D2 bone) • Point Lindemann, Initial Drill, Twist Drill : 1,200rpm / 30~45Ncm Profile Tap : 50rpm / 50Ncm ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø3.4 twist drill is the final drill ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø3.9 twist drill is the final drill ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø2.9 twist drill is the final drill n n n n
  • 113.
    Surgical Kit 113 SurgicalKit *Scale 1 : 1 IS Full Kit - IS Drilling Sequence Drilling Speed & Torque Twist Drill Ø 2.9 Point Lindemann Ø 2.3 Initial Drill Ø 2.2 Twist Drill Ø 3.4 D1 D2 10mm Twist Drill Ø 3.9 Countersink Ø 4.5 IS Fixture Ø4.5 X 10mm (D1/D2 bone) TaTwist Drill Ø 2.9 Point Lindemann Ø 2.3 Initial Drill Ø 2.2 Twist Drill Ø 3.4 Twist Drill Ø 3.9 D1 D2 10mm Twist Drill Ø 4.4 Countersink Ø 5.0 IS Fixture Ø5.0 X 10mm (D1/D2 bone) Twist Drill Ø 2.9 D1 D2 10mm Point Lindemann Ø 2.3 Initial Drill Ø 2.2 Twist Drill Ø 3.4 Countersink Ø 4.0 IS Fixture Ø4.0 X 10mm (D1/D2 bone) ※ In soft(D4) bone, use Point Lindemann Drill fully only D1 D2 10mm Point Lindemann Ø 2.3 Initial Drill Ø 2.2 Twist Drill Ø 2.9 Countersink Ø 3.5 IS Fixture Ø3.5 X 10mm (D1/D2 bone) • Point Lindemann, Initial Drill, Twist Drill, Countersink : 1,200rpm / 30~45Ncm ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø3.4 twist drill is the final drill ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø3.9 twist drill is the final drill ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø2.9 twist drill is the final drill Tip Length Tip Length Tip Length Tip Length n n n n
  • 114.
    Surgical Kit114 * Scale1 : 1 EB / IT Kit Surgical DrillMulti ProfileDrill Extension Parallel Pin Point Lindemann Fixture Direction Pin Fixture Driver Tap Drill Hex Driver Connector Stopper This kit can be used to perform implant surgery for EB, IT (Ø3.5~Ø5.0). For EB S-Wide(diameter Ø5.5~Ø6.0) implant surgery, S-Wide Kit additionally required Drill Length Guide 33.5mm 21.5mm 38.5mm ▲ Twist Drill ▲ Twist Drill + Contra Angle ▲ Twist Drill + Extention +Contra Angle Product name EBITKIT 13mm 11.5mm 10mm 8.5mm 7mm 1.3mm ※ The marking of drill is 1.3mm longer than that of fixture length (Point Lindemann / Ø2.2 Initial Drill) mm
  • 115.
    Surgical Kit 115 SurgicalKit *Scale 1 : 1 EB / IT Kit Components Stopper Stopper 3.0 4.0 5.0 6.0 7.0 8.5 10.0 11.5 13 Drilling Length(mm) 3.0 4.0 5.0 6.0 8.1 9.3 10.8 12.3 13.8 Product name DS030F DS040F DS050F DS060F DS070F DS085F DS100F DS115F DS130F Drilling Length 13.0 13.0 11.5 10 8.5 7.0 6.0 5.0 4.0 3.0 Diameter Product name Ø2.3 LDS23 Point Lindemann Drill Initial Drill Diameter Product name Ø2.2 TSD22F 7 8.5 10 11.5 13 0 FØ2.2 2.2 33.5mm Twist Drill Diameter Product name Ø2.9 TSD29F Ø3.4 TSD34F Ø3.9 TSD39F Ø4.4 TSD44F 1.3mm 15 33.5mm 0 D2 : 2.3 D1 : 1.2D1 D2 7.3 8.510 11.5 13 LDSØ2.3 1.3mm 15 1mm 0.8mm 7 8.5 10 11.5 13 FØ2.9 FØ3.4 FØ3.9 FØ4.4 FØ4.9 2.9 3.4 3.9 4.4 Previous Drill 15 0 33.5mm
  • 116.
    Surgical Kit116 * Scale1 : 1 Fixture Driver Direction Pin EB / IT Kit Components Multi Profile Product name MP00 SurgicalTap 3.5 4.0 4.5 5.0N R/W(3i) W(B) 5.0 6.0 Diameter Product name Ø3.5 ISTD35 Ø4.0 ISTD40 Ø4.5 ISTD45 Ø5.0 ISTD50 27.5mm External Internal Internal Contra Angle(Short) Type Size Product name IT Octa 3.1 ITFDO31 N R/W(3i) W(B) External Contra Angle(Short) Type Hex Product name Narrow 2.4 EBFDH24 Regular/Wide(3i) 2.7 EBFDH27 Wide(Brenemark) 3.4 EBFDH34 Type Product name Narrow DPE40 Regular/Wide(3i) DPE50 Wide(Brenemark) DPE60 Type Product name Ø5.0 DPI50 Ø6.0 DPI60 0 78.5 1011.5 EB Regular EBWide EB Narrow 3.8 4.6 5.5
  • 117.
    Surgical Kit 117 SurgicalKit *Scale 1 : 1 EB / IT Kit Components Parallel Pin Length Product name 7.0 mm PP07F 8.5 mm PP08F 10.0 mm PP10F Connector 10mm 15mm Length Product name Ratchet (Short) RC10 Ratchet (Long) RC15 Contra Angle CAA00 1 Drill Extension Product name DE01Type Product name 1.2Hex HD1215 0.9Hex HD0915 Hex Driver Hex 0.9 15mm Hex 1.2 Torque Ratchet Product name TW60 7mm 7mm 8.5mm 8.5mm 10mm 10mm 2.2 2.2 2.2 2.9 2.9 2.9
  • 118.
    Surgical Kit118 * Scale1 : 1 EB / IT Kit - EB Drilling Sequence Drilling Speed & Torque ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø3.4 twist drill is the final drill ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø3.9 twist drill is the final drill ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø2.9 twist drill is the final drill ※ In soft(D4) bone, use Point Lindemann Drill fully only • Point Lindemann, Initial Drill, Twist Drill, Multi Profile : 1,200rpm / 30~45Ncm Tap Drill : 50rpm / 50Ncm D1 D2 10mm Tip Length 1 mm Point Lindemann Ø2.3 Multi Profile Tap Drill Ø3.5 EB Fixture Ø3.5 X 10mm (D1/D2 bone) Multi Profile Tap Drill Ø4.0 D1 D2 10mm Tip Length 1 mm Point Lindemann Ø2.3 EB Fixture Ø4.0 X 10mm (D1/D2 bone) Multi Profile Tap Drill Ø4.5 D1 D2 10mm Tip Length 1 mm Point Lindemann Ø2.3 EB Fixture Ø4.5 X 10mm (D1/D2 bone) Multi Profile Tap Drill Ø5.0 D1 D2 10mm Tip Length 1 mm Point Lindemann Ø2.3 EB Fixture Ø5.0 X 10mm (D1/D2 bone) Initial Drill Ø2.2 Twist Drill Ø2.9 Initial Drill Ø2.2 Twist Drill Ø2.9 Twist Drill Ø3.4 Initial Drill Ø2.2 Twist Drill Ø2.9 Twist Drill Ø3.4 Twist Drill Ø3.9 Initial Drill Ø2.2 Twist Drill Ø2.9 Twist Drill Ø3.4 Twist Drill Ø3.9 Twist Drill Ø4.4
  • 119.
    Surgical Kit 119 SurgicalKit *Scale 1 : 1 EB / IT Kit - IT Drilling Sequence Drilling Speed & Torque ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø3.4 twist drill is the final drill ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø3.9 twist drill is the final drill ※ In soft(D4) bone or in condition of getting initial fixation at implant apex, Ø2.9 twist drill is the final drill ※ In soft(D4) bone, use Point Lindemann Drill fully only • Point Lindemann, Initial Drill, Twist Drill : 1,200rpm / 30~45Ncm Tap Drill : 50rpm / 50Ncm D1 D2 10mm Tip Length 1 mm Point Lindemann Ø2.3 Tap Drill Ø3.5 IT Fixture Ø3.5 X 10mm (D1/D2 bone) Tap Drill Ø4.0 D1 D2 10mm Tip Length 1 mm Point Lindemann Ø2.3 IT Fixture Ø4.0 X 10mm (D1/D2 bone) Tap Drill Ø4.5 D1 D2 10mm Tip Length 1 mm Point Lindemann Ø2.3 IT Fixture Ø4.5 X 10mm (D1/D2 bone) Tap Drill Ø5.0 D1 D2 10mm Tip Length 1 mm Point Lindemann Ø2.3 IT Fixture Ø5.0 X 10mm (D1/D2 bone) Initial Drill Ø2.2 Twist Drill Ø2.9 Initial Drill Ø2.2 Twist Drill Ø2.9 Twist Drill Ø3.4 Initial Drill Ø2.2 Twist Drill Ø2.9 Twist Drill Ø3.4 Twist Drill Ø3.9 Initial Drill Ø2.2 Twist Drill Ø2.9 Twist Drill Ø3.4 Twist Drill Ø3.9 Twist Drill Ø4.4
  • 120.
    Surgical Kit120 * Scale1 : 1 S-Mini Kit This kit can be used to perform implant surgery for S-Mini (Ø2.0~Ø3.5). Type Product name Cement ISQD20 Ball BADH24 Diameter Product name Ø1.5 MSD15 Ø2.0 MSD20 Ø2.5 MSD25 Ø3.0 MSD30 Product name MGD12 S-Mini Guide Drill S-Mini Twist Surgical Drill Fixture Driver Length Product name Ratchet (Short) RC10 Ratchet (Long) RC15* Contra Angle CAA00 Connector S-Mini Surgical DrillS-Mini Guide Drill Fixture Driver S-Mini Surgical Tap Connector Product name SMKIT (* Optional) * Optional 1.5 Diameter Product name Ø2.5 MTD25* Ø3.0 MTD30* Ø3.5 MTD35* S-Mini Surgical Tap * Optional2.5 3.0 3.5 -0.5mm 8.510 11.5 1315 18 0 0 10mm 1.2 2.0 2.5 3.0 10 11.5 1315 10mm 15mm1
  • 121.
    Surgical Kit 121 SurgicalKit *Scale 1 : 1 S-Wide Kit S-Wide Twist Surgical Drill Hex Driver Multi ProfileTrephine Drill S-Wide Surgical Tap S-Wide Stopper Connector S-Wide Twist Surgical Drill This kit can be used to perform implant surgery for IS S-Wide(Ø5.5~Ø7.0), EB S-Wide(Ø5.5~Ø6.0). S-Wide Drill Stopper Length(mm) 6.0 7.0 8.5 10.0 11.5 Product name DSL060 DSL070 DSL085 DSL100 DSL115 Product name SWKIT Hex Driver Type Product name 1.2Hex HD1212 15mm Hex 1.2 Diameter Product name Ø5.5 TD55 Ø6.0 TD60 Ø7.0 TD70 S-Wide Surgical Tap 5.5 6.0 7.0 S-Wide Multi Profile Diameter Product name Ø5.5 MP55 Ø6.0 MP60 Ø7.0 MP70 5.5 6.0 7.0 Diameter Product name Ø4.8 TSD48 Ø5.0 TSD50 Ø5.5 TSD55 Ø6.0 TSD60 Ø6.5 TSD65 -0.5mm 7 3.75 7.0 8.5 5.0 8.5 10 10 11.513 0 0 0 Trephine Drill Diameter Product name Ø4.0 / Ø5.0 TB40 Ø5.0 / Ø6.0 TB50 Connector Type Product name Ratchet RC10 Contra Angle CAA00 10mm 78.51011.5 13 0
  • 122.
    Surgical Kit122 * Scale1 : 1 Neo Surgical Accessory Kit Tissue Punch Dia. Marker Bone Planer Bone Profile Quick Tight Product name ACCKITV01 Optional Tissue Punch Dia. Marker Bone Planer Diameter Product name Ø3.5 TP35 Ø4.0 TP40 Ø4.5 TP45 Ø5.0 TP50 Diameter Product name Ø3.5 DM35 Ø4.0 DM40 Ø4.5 DM45 Ø5.0 DM50 Ø5.5 DM55 Ø6.0 DM60 Diameter Product name Ø3.5 BP35 Ø4.0 BP40 Ø5.0 BP50 Ø6.5 BP65 Ø8.0 BP80 3.5 3.5 4.0 4.0 4.5 4.5 5.0 5.0 5.5 6.0 3.5 4.0 6.5 8.05.0 Used to cut the soft tissue roundly and neatly (1,000rpm) Used to make exact diameter marking on the cortical bone (1,200rpm) Used to flatten the cortical bone for implant installation (1,200rpm)
  • 123.
    Surgical Kit 123 SurgicalKit *Scale 1 : 1 Neo Surgical Accessory Kit QuickTight 15mm 15mm 20mm 20mm20 Hex 1.2 Hex 1.25 Bone Profile Type Product name N BPN40 R BPR50 W(i) BPI60 W(B) BPB60 Diameter Product name Ø4.8 ISBP48 Ø5.5 ISBP55 Ø6.0 ISBP60 N 4.8 R 5.5 W(i) 6.0 W(B) External(EB) Internal(IS) Used to clean up the bone around the fixture platform(50rpm) Used to tighten screws(cover screw, healing abutment, abutment screw) with contra angle. (500~1,000rpm). Spinning with no trac- tion in 1~2 Ncm Hex Length Product name 1.2 15mm QTH1215 20mm QTH1220* 1.25 15mm QTH12515 20mm QTH12520* * Optional
  • 124.
    Surgical Kit124 * Scale1 : 1 Neo Prosthetic Kit 1.2 Hex Driver 1.25 Hex Driver Angled Driver Abutment Positioner Extra ComponentHand Driver Product name PRTKIT Contra Angle 10mm 15mm Hex 1.2 Hex 1.2 1.2 Hex Driver 10mm 15mm 20mm 20mm 25mm Hex 1.2 Hex 1.2 Ratchet Rescue Length(mm) Product name 10 HD1210 15 HD1215 20 HD1220 25 HD1225 Length(mm) Product name 20 HD1220RC Length(mm) Product name 10 HDC1210 15 HDC1215
  • 125.
    Surgical Kit 125 SurgicalKit *Scale 1 : 1 Neo Prosthetic Kit Ratchet Rescue 1.25 Hex Driver 10mm 15mm 20mm 20mm 25mm Hex 1.25 Hex 1.25 Length(mm) Product name 10 HD12510 15 HD12515 20 HD12520 25 HD12525 Length(mm) Product name 20 HD12520RC 10mm 15mm Hex 1.25 Hex 1.25 Contra Angle Length(mm) Product name 10 HDC12510 15 HDC12515 Angled Driver 15mm 15mm 20mm 20mm 25mm 25mm Hex 1.2 Hex 1.25 Length(mm) Product name 15 HDA1215 20 HDA1220 25 HDA1225* Length(mm) Product name 15 HDA12515 20 HDA12520 25 HDA12525* 1.2 Hex 1.25 Hex * Optional * Optional 25º 38Ncm Rounded hex design Access angle max 25° Tightening Torque max 30 Ncm Handle neck is designed to be broke in 38 Ncm for prevent hex tip fracture
  • 126.
    Surgical Kit126 * Scale1 : 1 Neo Prosthetic Kit Extra Component Type Product name Solid ITAD0L* Ex-Solid ITESD00* Product name MUAD48* Product name BADH24* IT Abutment Driver * Optional * Optional * Optional Solid Multi Unit Abut. Driver Ball Abut. DriverEx-Solid Torque Ratchet Product name TW60 Type Product name Product name M2.0/Short(2mm) AP202N APset (10ea/set) M2.0/Medium(5mm) AP205N M2.0/Long(7mm) AP207N M2.5/Short(2mm) AP252N M2.5/Medium(5mm) AP255N M2.5/Long(7mm) AP257N Hex 1.2 / L : 15mm HD1215 Hex 1.2 / L : 20mm HD1220 Hex 1.25 / L : 15mm HD12515 Hex 1.25 / L : 20mm HD12520 Abutment Positioner M2.0 /Short M2.5 /Short M2.0 /Long M2.5 /Long M2.0 /Medium M2.5 /Medium Used to take exact position of hex and direction of abutment with one hand. Prosthetic Screw Abutment
  • 127.
    * Scale 1: 1 d
  • 128.
    Surgical Kit128 * Scale1 : 1 Neo Prosthetic Planning Kit Straight Type Abutment Angled Type Abutment Product name PRTPNKIT 5.5mm Cuff Silicon connectionDia. Diameter 4.5 Cuff(mm) 1.0 2.0 3.0 4.0 Product name PISAH415 PISAH425 PISAH435 PISAH445 Diameter 5.7 Cuff(mm) 1.0 2.0 3.0 4.0 Product name PISAH615 PISAH625 PISAH635 PISAH645 Diameter 5.2 Cuff(mm) 1.0 2.0 3.0 4.0 Product name PISAH515 PISAH525 PISAH535 PISAH545 Diameter 6.5 Cuff(mm) 1.0 2.0 3.0 4.0 Product name PISAH715 PISAH725 PISAH735 PISAH745 Straight Type Neo Prosthetic Planning kit which helps users select a prosthesis by diameter, cuff and length when engaging with a fixture before choosing the size of prosthesis
  • 129.
    Surgical Kit 129 SurgicalKit *Scale 1 : 1 Neo Prosthetic Planning Kit Cuff(mm) 2.0 Diameter 4.5 5.2 5.7 Angle 15 25 15 25 15 Product name PISAHA1427 PISAHA2427 PISAHA1527 PISAHA2527 PISAHA1627 Cuff(mm) 2.0 Diameter 4.5 5.2 5.7 Angle 15 25 15 25 15 Product name PISAHB1427 PISAHB2427 PISAHB1527 PISAHB2527 PISAHB1627 Ring Connection A-Type (Angle to the edge) 7mm Cuff Dia. Ring Connection B-Type (Angle to the flat wall) 7mm Cuff Dia. Anlged A-Type Anlged B-Type Cuff(mm) 4.0 Diameter 4.5 5.2 5.7 Angle 15 25 15 25 15 Product name PISAHA1447 PISAHA2447 PISAHA1547 PISAHA2547 PISAHA1647 Cuff(mm) 4.0 Diameter 4.5 5.2 5.7 Angle 15 25 15 25 15 Product name PISAHB1447 PISAHB2447 PISAHB1547 PISAHB2547 PISAHB1647
  • 130.
    Surgical Kit130 * Scale1 : 1 Neo PickCap Impression Kit PickCap Impression coping PickCap Impression Cap Screw Hex Driver Neo PickCap Impression Kit is redesigned with a cap for a better accuracy to make up for Transfer type impression coping. (The accuracy of re-positioning the impression material body increases when making a impression coping because the Pick cap inside impression material is detached stuck in it.) Product name PCIKIT Products ea Kit Tray 1 Kit Cover 1 Abutment Positioner 1 Pincette 1 Hex Driver 15mm 1 Hex Driver 20mm 1 Hex Driver 25mm 1 Small Cap 50 Large Cap 50 Screw 93 Products ea Coping Ø8.0 X 3.0mm 3 Coping Ø8.0 X 4.0mm 3 Coping Ø9.0 X 3.0mm 3 Coping Ø9.0 X 4.0mm 3 Products ea Coping Ø5.2 X 2.0mm 3 Coping Ø5.2 X 3.0mm 3 Coping Ø5.2 X 4.0mm 3 Coping Ø5.2 X 5.0mm 3 Coping Ø5.2 X 6.0mm 3 Coping Ø5.7 X 2.0mm 3 Coping Ø5.7 X 3.0mm 3 Coping Ø5.7 X 4.0mm 3 Coping Ø5.7 X 5.0mm 3 Coping Ø5.7 X 6.0mm 3 Coping Ø6.5 X 2.0mm 3 Coping Ø6.5 X 3.0mm 3 Coping Ø6.5 X 4.0mm 3 Coping Ø6.5 X 5.0mm 3 Coping Ø6.5 X 6.0mm 3 Products ea Coping Ø3.5 X 3.0mm 3 Coping Ø3.5 X 5.0mm 3 Coping Ø3.5 X 8.0mm 3 Coping Ø3.5 X 10.0mm 3 Coping Ø4.0 X 3.0mm 3 Coping Ø4.0 X 5.0mm 3 Coping Ø4.0 X 8.0mm 3 Coping Ø4.0 X 10.0mm 3 Coping Ø4.5 X 3.0mm 3 Coping Ø4.5 X 5.0mm 3 Coping Ø4.5 X 8.0mm 3 Coping Ø4.5 X 10.0mm 3 Neo PickCap Impression Kit(PCIKIT) Components d
  • 131.
    Surgical Kit 131 SurgicalKit *Scale 1 : 1 Neo PickCap Impression Kit Diameter 5.2 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 Product name ISPCIB502 ISPCIB503 ISPCIB504 ISPCIB505 ISPCIB506 Diameter 6.5 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 Product name ISPCIB702 ISPCIB703 ISPCIB704 ISPCIB705 ISPCIB706 Diameter 8.0 Cuff(mm) 3.0 4.0 Product name ISPCIB803 ISPCIB804 Diameter 5.7 Cuff(mm) 2.0 3.0 4.0 5.0 6.0 Product name ISPCIB602 ISPCIB603 ISPCIB604 ISPCIB605 ISPCIB606 Diameter 4.0 Cuff(mm) 3.0 5.0 8.0 10.0 Product name ISPCIB4003 ISPCIB4005 ISPCIB4008 ISPCIB4010 Diameter 4.5 Cuff(mm) 3.0 5.0 8.0 10.0 Product name ISPCIB403 ISPCIB405 ISPCIB408 ISPCIB410 Diameter 3.5 Cuff(mm) 3.0 5.0 8.0 10.0 Product name ISPCIB3503 ISPCIB3505 ISPCIB3508 ISPCIB3510 Diameter 9.0 Cuff(mm) 3.0 4.0 Product name ISPCIB903 ISPCIB904 Cuff Dia. 2.5Hex Hex 1.2 Neo PickCap Impression Coping * Only coping body included. Please order coping screw & impression cap seperately. * Only coping body included. Please order coping screw & impression cap seperately. * Only coping body included. Please order coping screw & impression cap seperately. * Only coping body included. Please order coping screw & impression cap seperately. * Only coping body included. Please order coping screw & impression cap seperately. * Only coping body included. Please order coping screw & impression cap seperately. * Only coping body included. Please order coping screw & impression cap seperately. * Only coping body included. Please order coping screw & impression cap seperately.
  • 132.
    Surgical Kit132 * Scale1 : 1 15mm 20mm 25mm Length(mm) Product name 15 HD1215 20 HD1220 25 HD1225 Length(mm) Product name 5 AP165N Product name PCIKITCOVERProduct name PCIKITTRAY Neo PickCap Impression Kit Product name PCIPC Neo PickCap Impression Kit Tray Hex Driver Pincette Neo PickCap Impression Kit Cover Abutment Positioner Small Large Cap size Product name Small PCISC 01 Large PCILC01 Neo PickCap Impression Cap Product name ISPCIS20 Neo PickCap Impression Coping Screw * 1ea included * 1ea included
  • 133.
    * Scale 1: 1 IS Implant System / EB Implant System / IT Implant System / S-Mini / Surgical Kit Neobiotech IMPLANT SYSTEM
  • 134.
    IS Implant System/ EB Implant System / IT Implant System / S-Mini Implant System / Surgical Kit Neobiotech Implant System MPLLANTSYSTE Neobiotech USA Orders | www.1stChoiceAID.com Tel. 415.496.9636 (415.49MyNeo) | Fax. 916.915.1212
