1. Propel your performance:
AgensGraph,
the multi-model database
AgensGraph from the perspective of the developer
Junseok Yang
Senior Research Engineer, Bitnine Global
jsyang@bitnine.net
https://github.com/bitnine-oss/agensgraph

2. What We Want

3. What We Want
Graph * Relational * Document

4. What We Want
Graph * Relational * Document
Graph Query Language * SQL

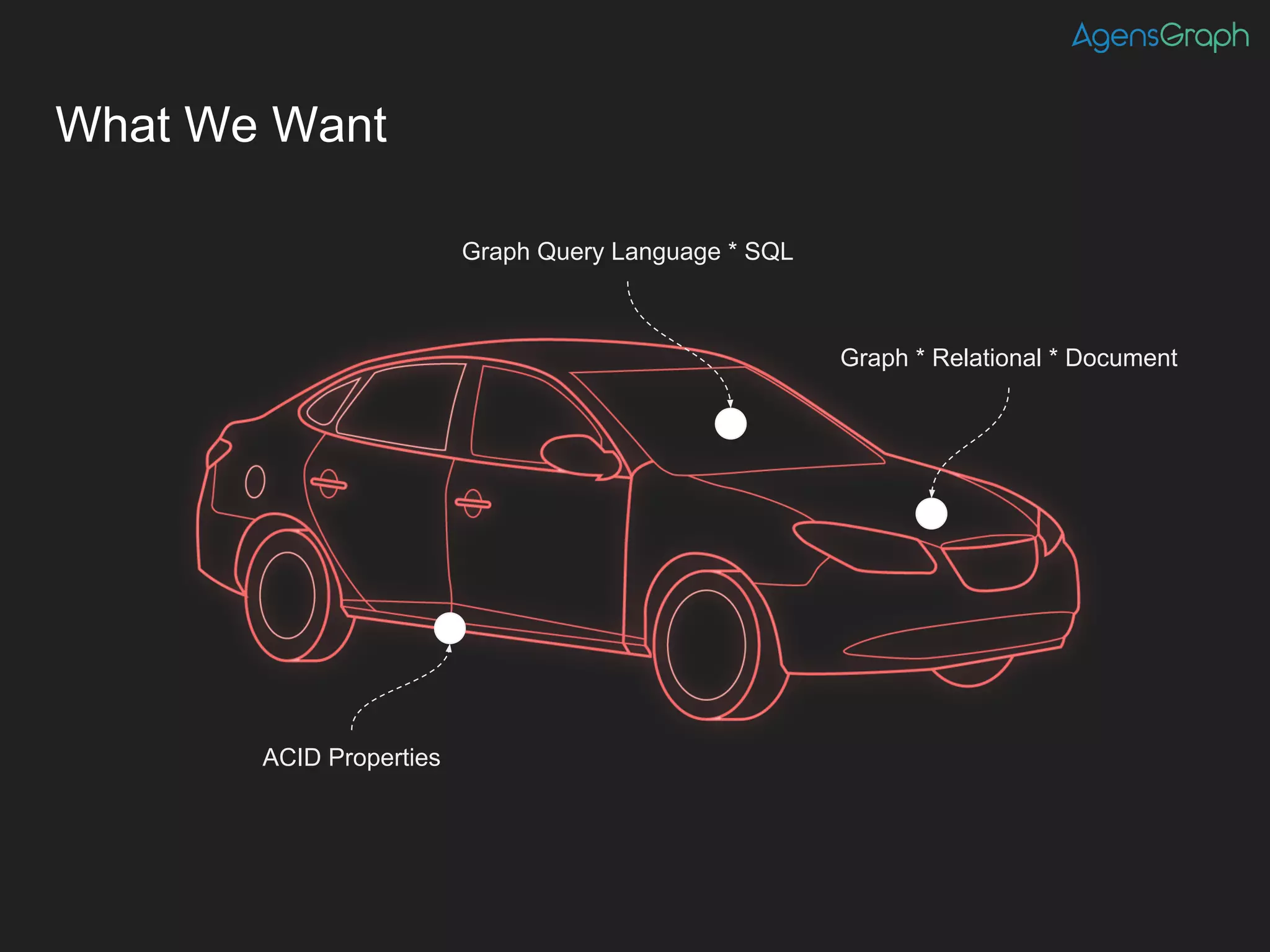

5. What We Want
Graph * Relational * Document
Graph Query Language * SQL
ACID Properties

6. Don't Reinvent the Wheel
ACID Properties
JSON
SQL
Relational Data Model

7. Development Goal
Graph Engine
Graph Query Language
Performance

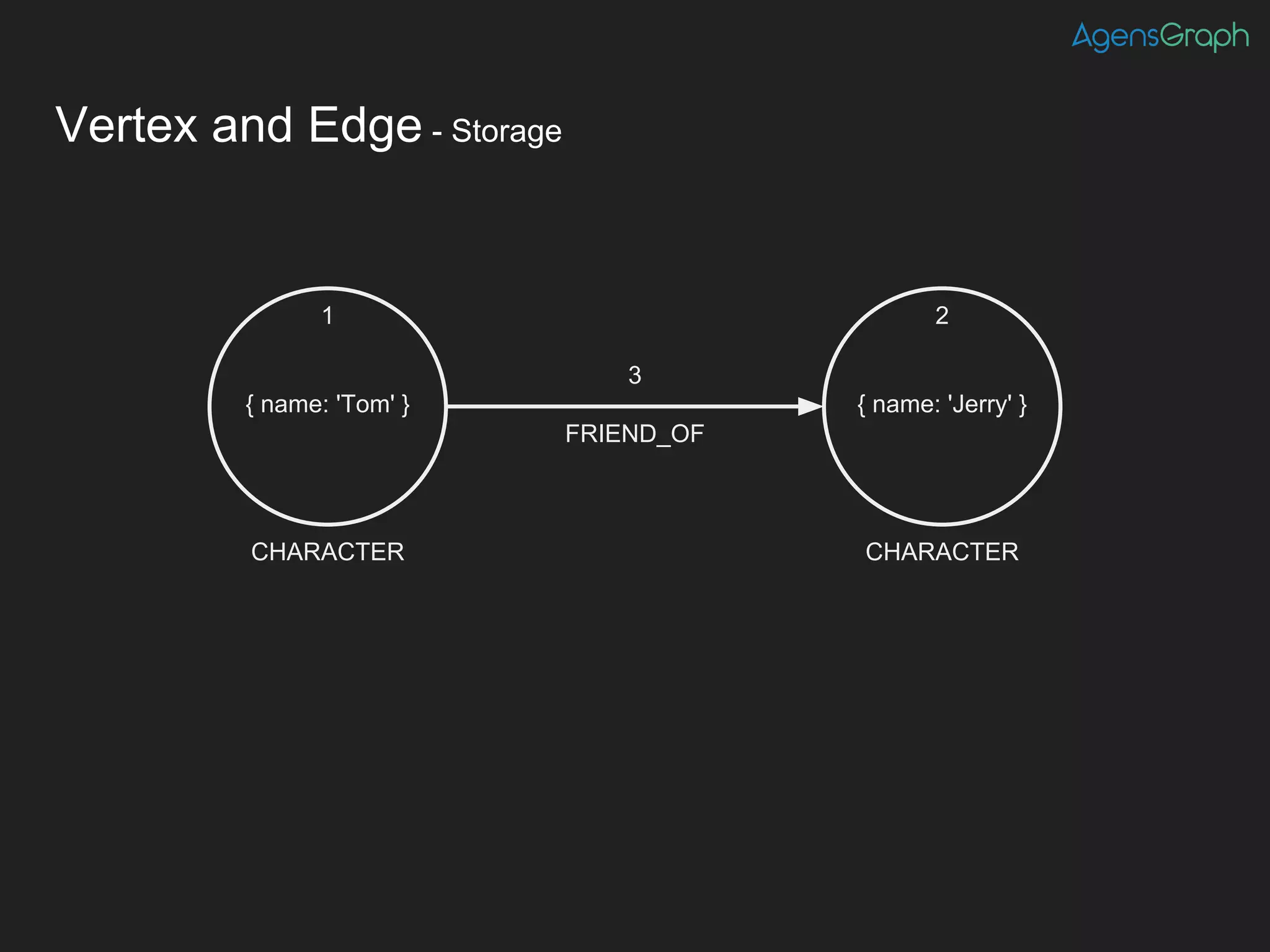

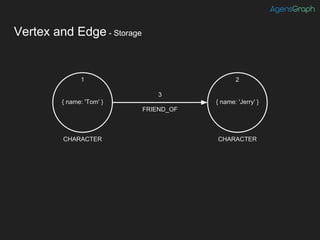

8. Vertex and Edge - Storage
1
{ name: 'Tom' } { name: 'Jerry' }
2
3
FRIEND_OF
CHARACTER CHARACTER

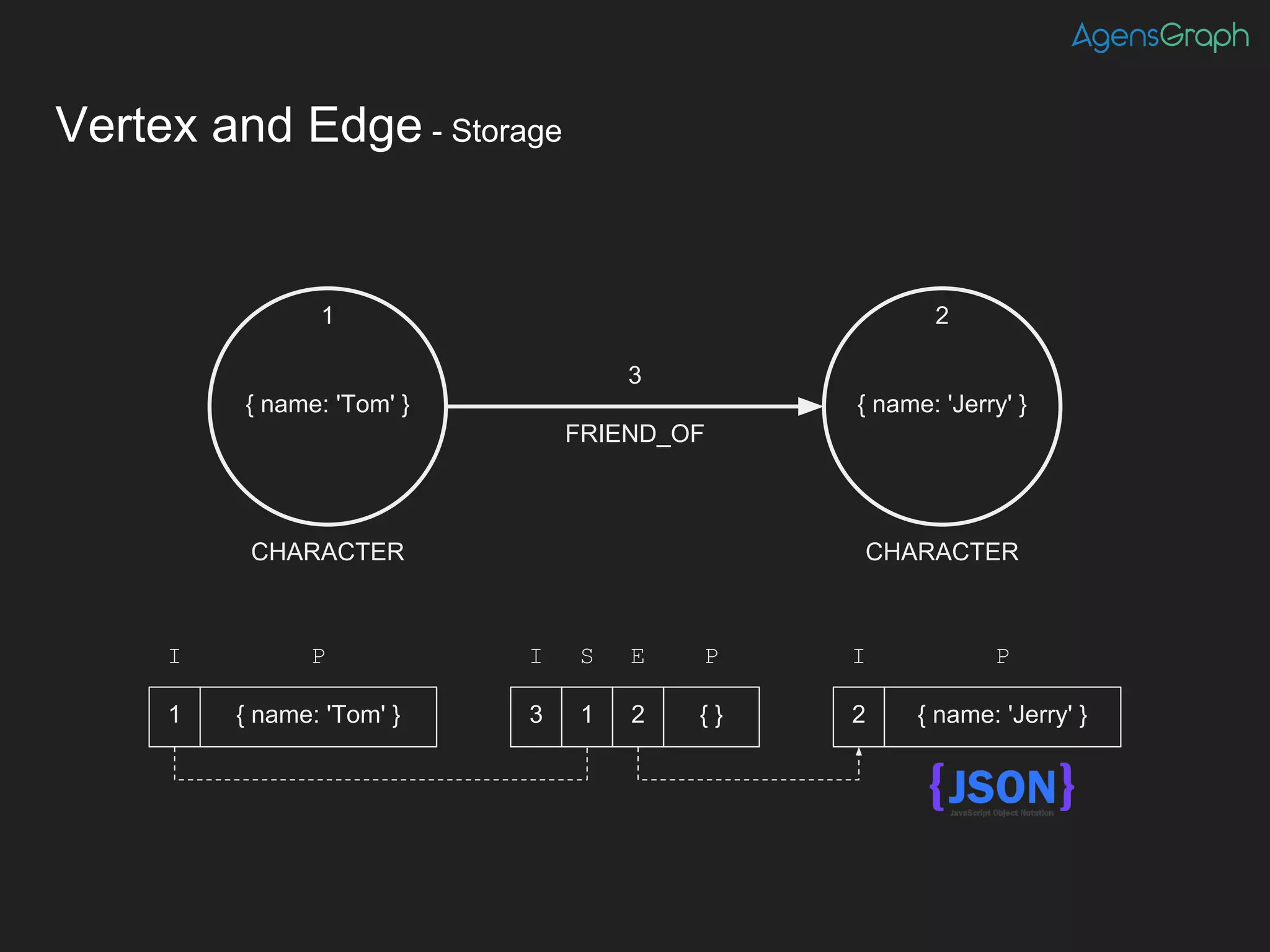

9. Vertex and Edge - Storage
{ name: 'Tom' }1 2 { name: 'Jerry' }3 1 2 { }
I P I S E P I P
1
{ name: 'Tom' } { name: 'Jerry' }
2
3
FRIEND_OF
CHARACTER CHARACTER

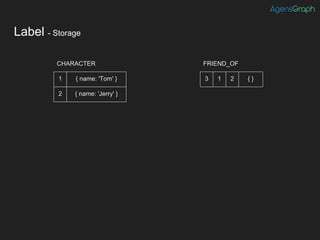

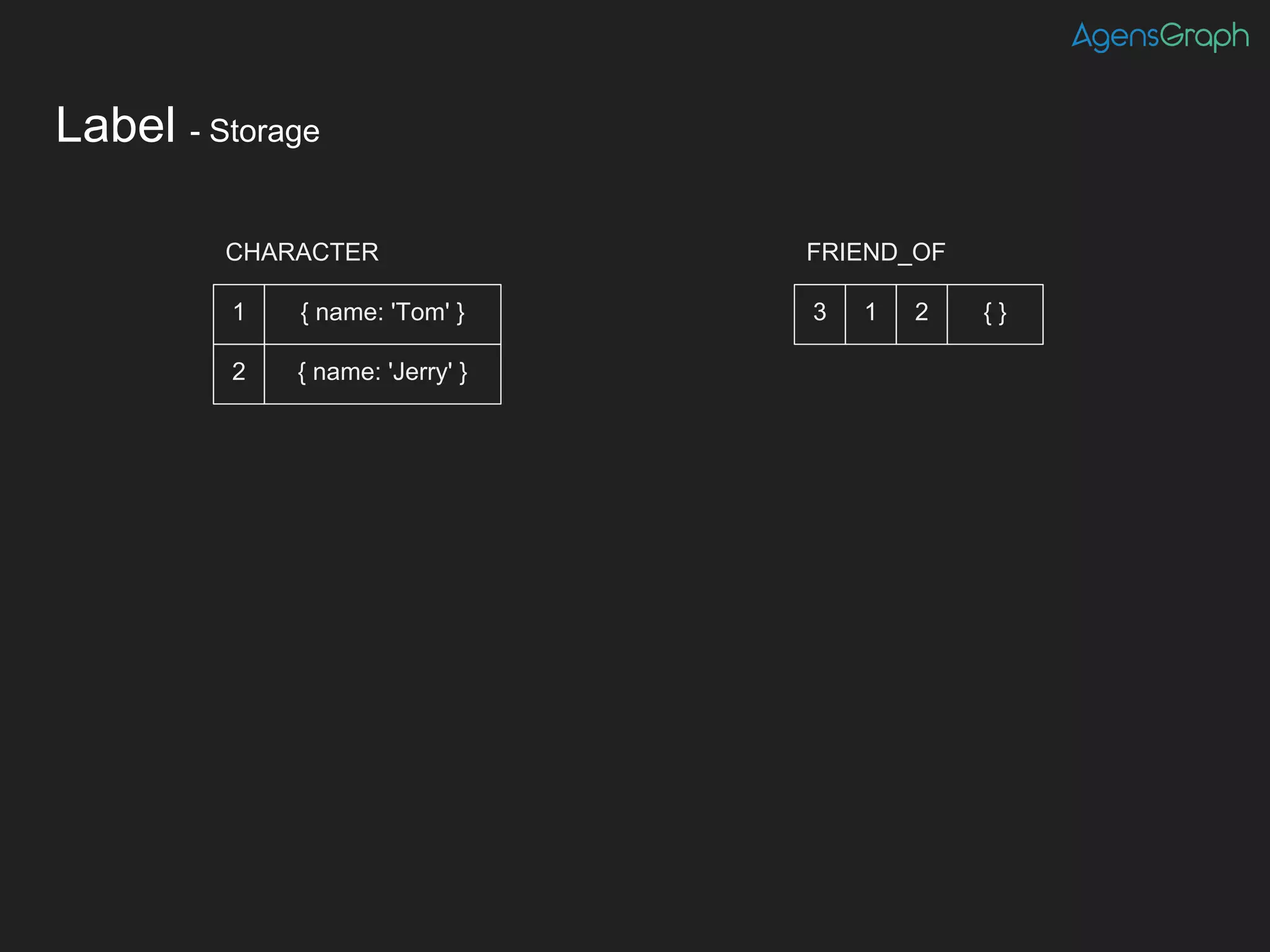

10. Label - Storage
{ name: 'Tom' }1
2 { name: 'Jerry' }
CHARACTER
3 1 2 { }
FRIEND_OF

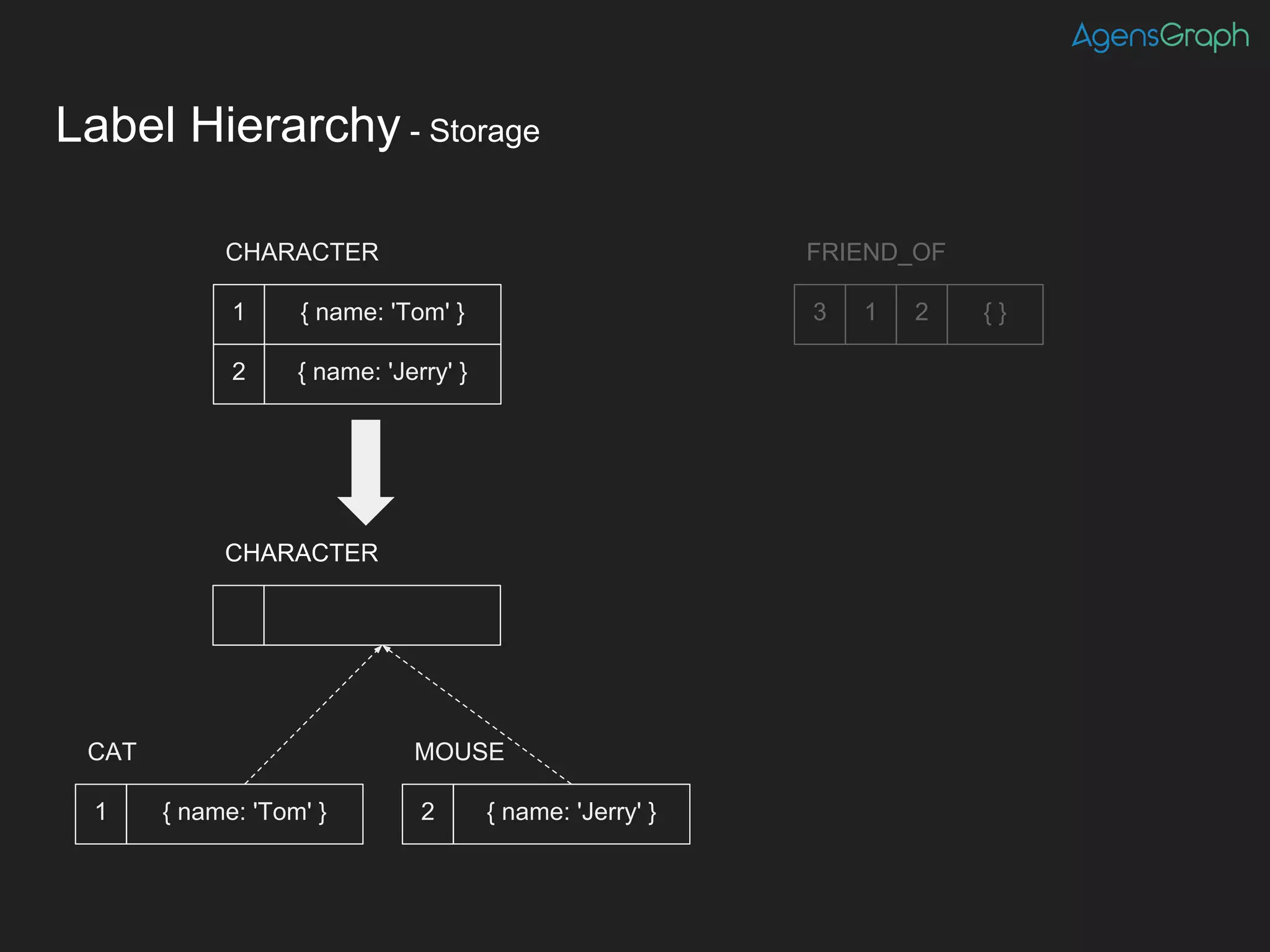

11. Label Hierarchy - Storage
{ name: 'Tom' }1
2 { name: 'Jerry' }
CHARACTER
3 1 2 { }
FRIEND_OF
{ name: 'Tom' }1 2 { name: 'Jerry' }
CAT MOUSE
CHARACTER

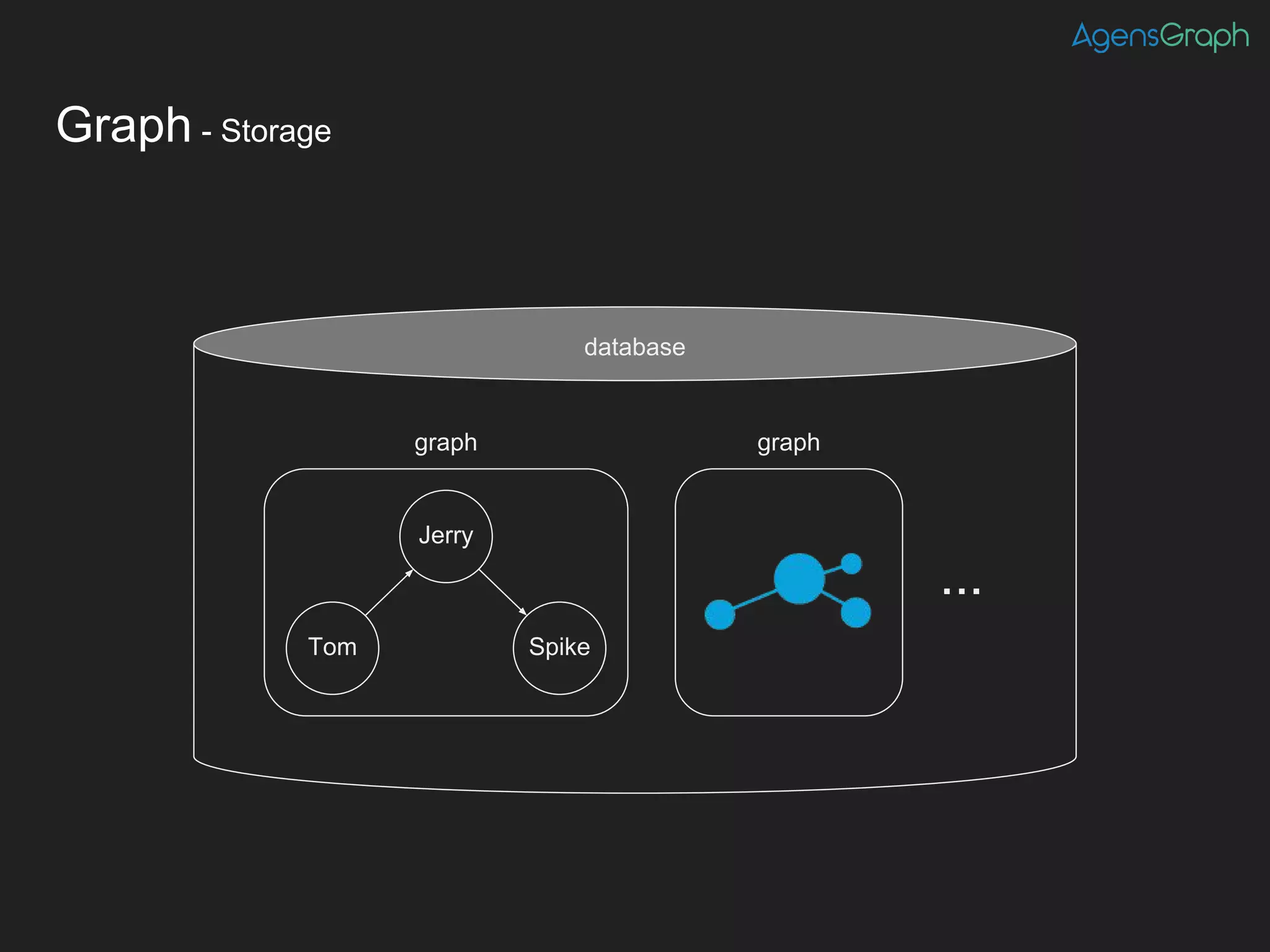

12. Graph - Storage
Tom
Jerry
Spike
...
graphgraph
database

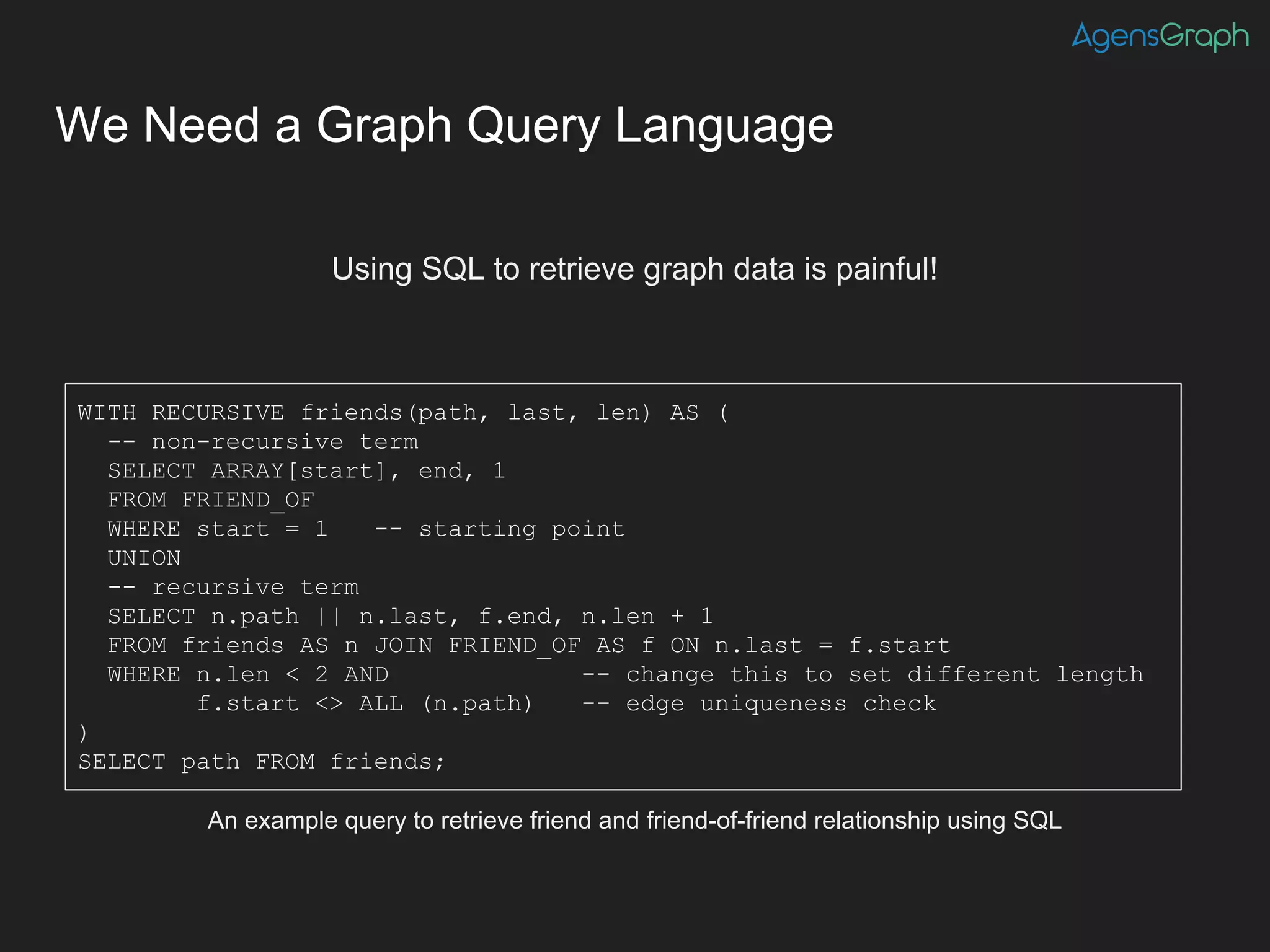

13. We Need a Graph Query Language
WITH RECURSIVE friends(path, last, len) AS (
-- non-recursive term
SELECT ARRAY[start], end, 1
FROM FRIEND_OF
WHERE start = 1 -- starting point
UNION
-- recursive term
SELECT n.path || n.last, f.end, n.len + 1
FROM friends AS n JOIN FRIEND_OF AS f ON n.last = f.start
WHERE n.len < 2 AND -- change this to set different length
f.start <> ALL (n.path) -- edge uniqueness check
)
SELECT path FROM friends;
An example query to retrieve friend and friend-of-friend relationship using SQL
Using SQL to retrieve graph data is painful!

14. Candidate Languages
Cypher
Alternative

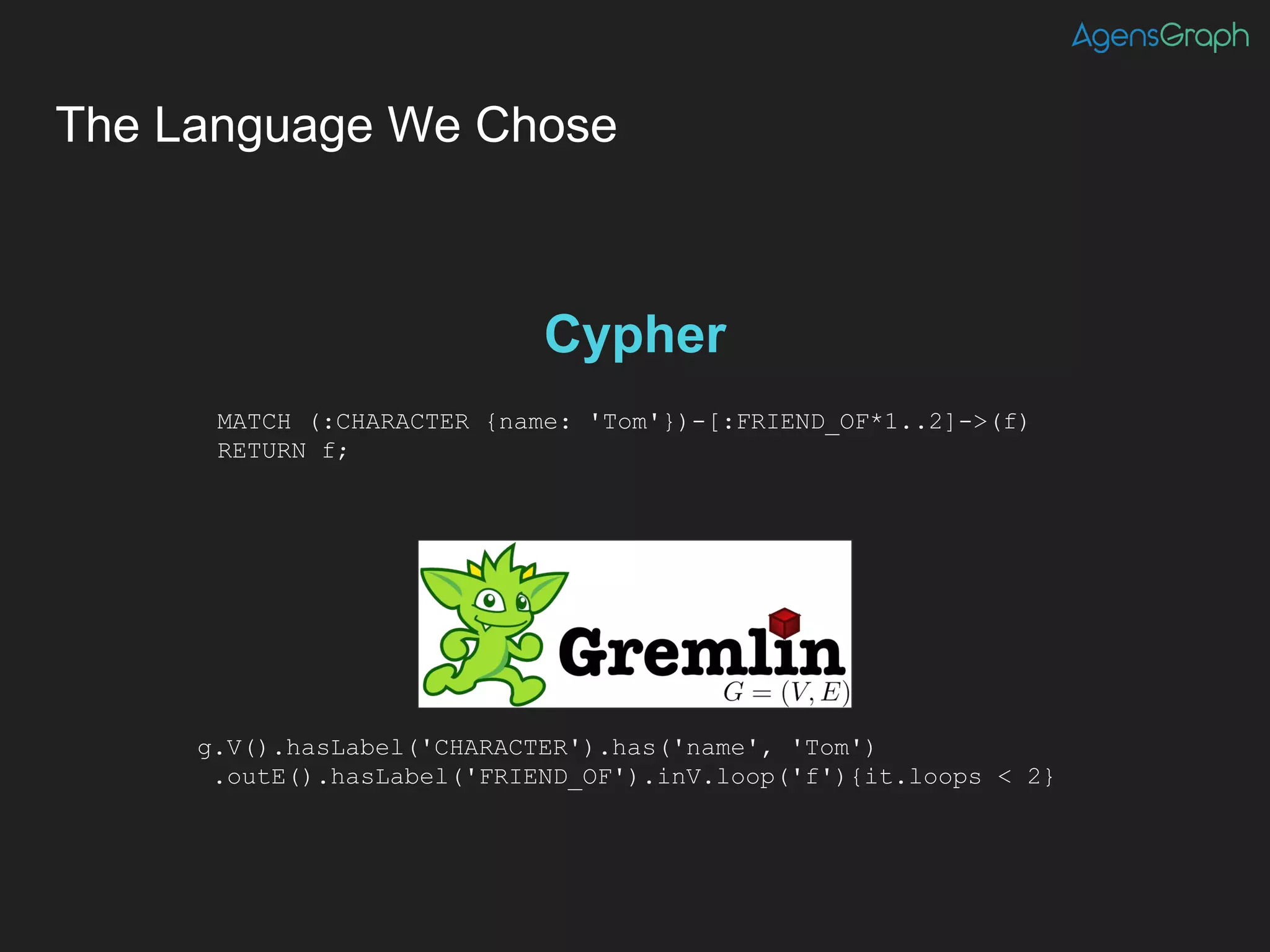

15. The Language We Chose
MATCH (:CHARACTER {name: 'Tom'})-[:FRIEND_OF*1..2]->(f)
RETURN f;
g.V().hasLabel('CHARACTER').has('name', 'Tom')
.outE().hasLabel('FRIEND_OF').inV.loop('f'){it.loops < 2}
Cypher
Alternative

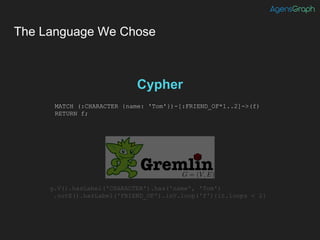

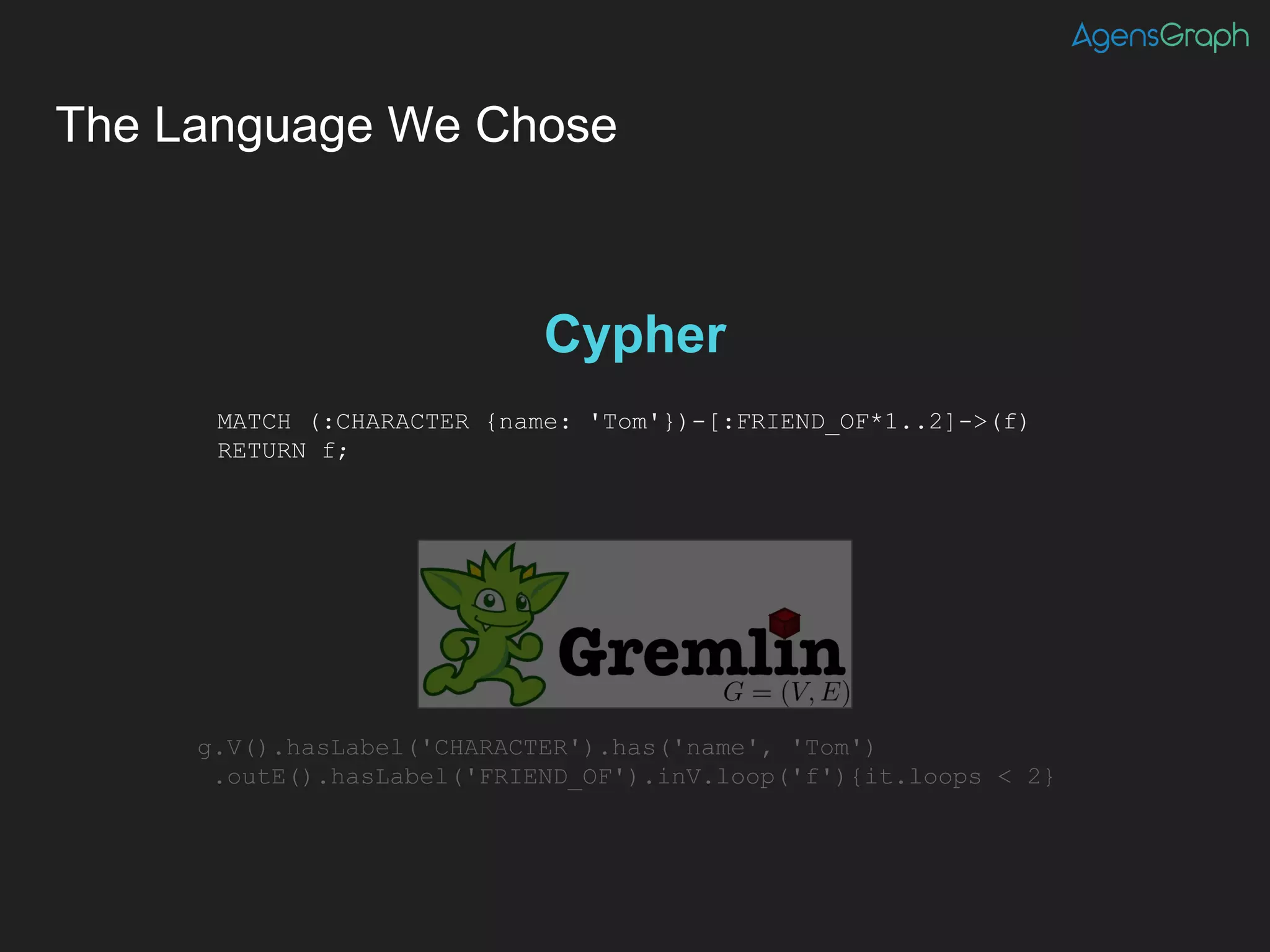

16. The Language We Chose
MATCH (:CHARACTER {name: 'Tom'})-[:FRIEND_OF*1..2]->(f)
RETURN f;
g.V().hasLabel('CHARACTER').has('name', 'Tom')
.outE().hasLabel('FRIEND_OF').inV.loop('f'){it.loops < 2}
Cypher
Alternative

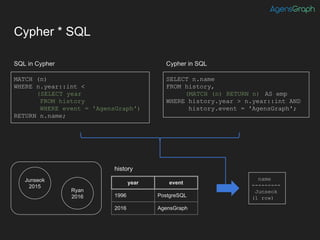

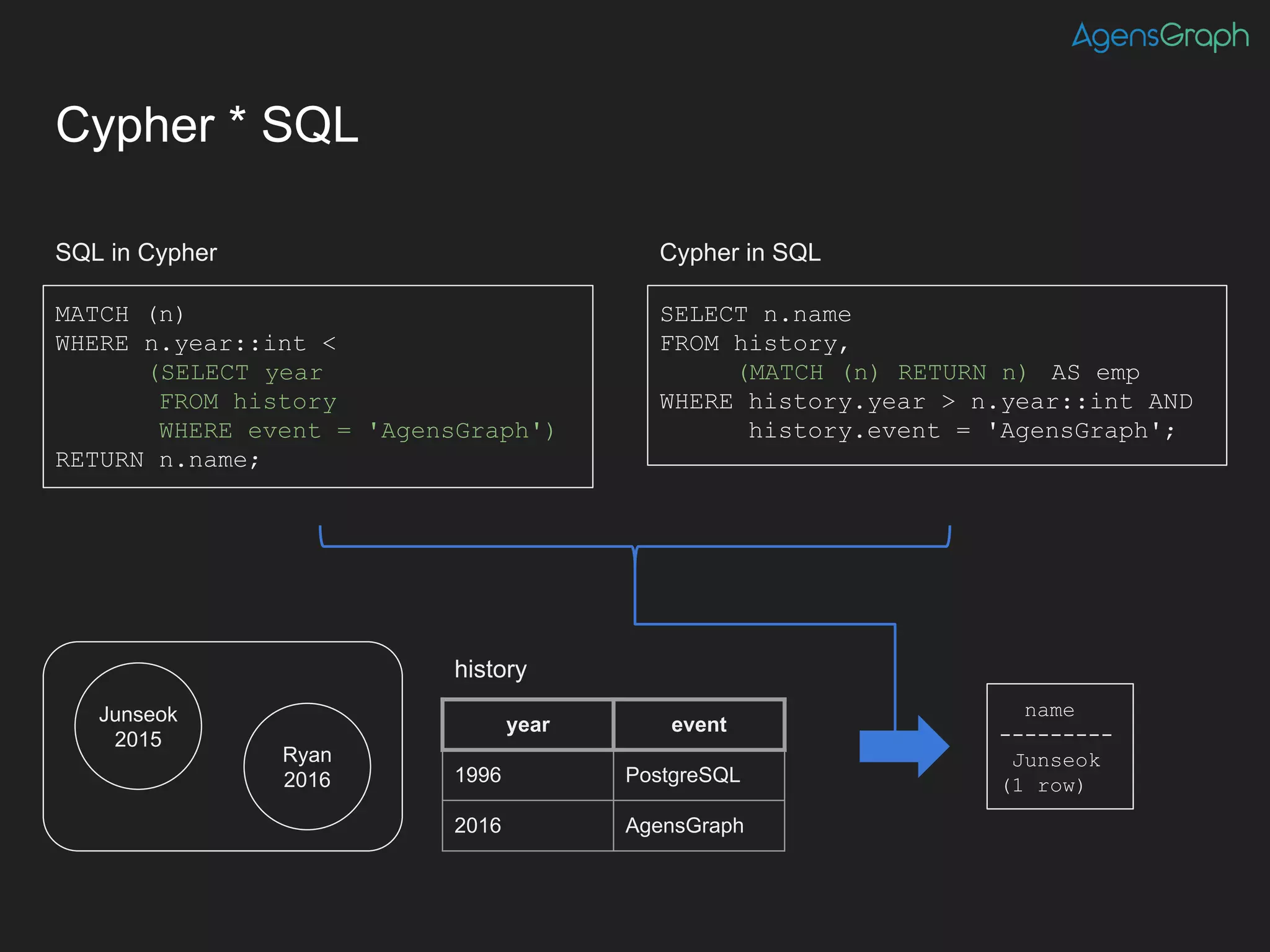

17. Cypher * SQL
SELECT n.name
FROM history,
(MATCH (n) RETURN n) AS emp
WHERE history.year > n.year::int AND
history.event = 'AgensGraph';
Cypher in SQL
MATCH (n)
WHERE n.year::int <
(SELECT year
FROM history
WHERE event = 'AgensGraph')
RETURN n.name;
SQL in Cypher
name
---------
Junseok
(1 row)
year event
1996 PostgreSQL
2016 AgensGraph
history
Junseok
2015
Ryan
2016

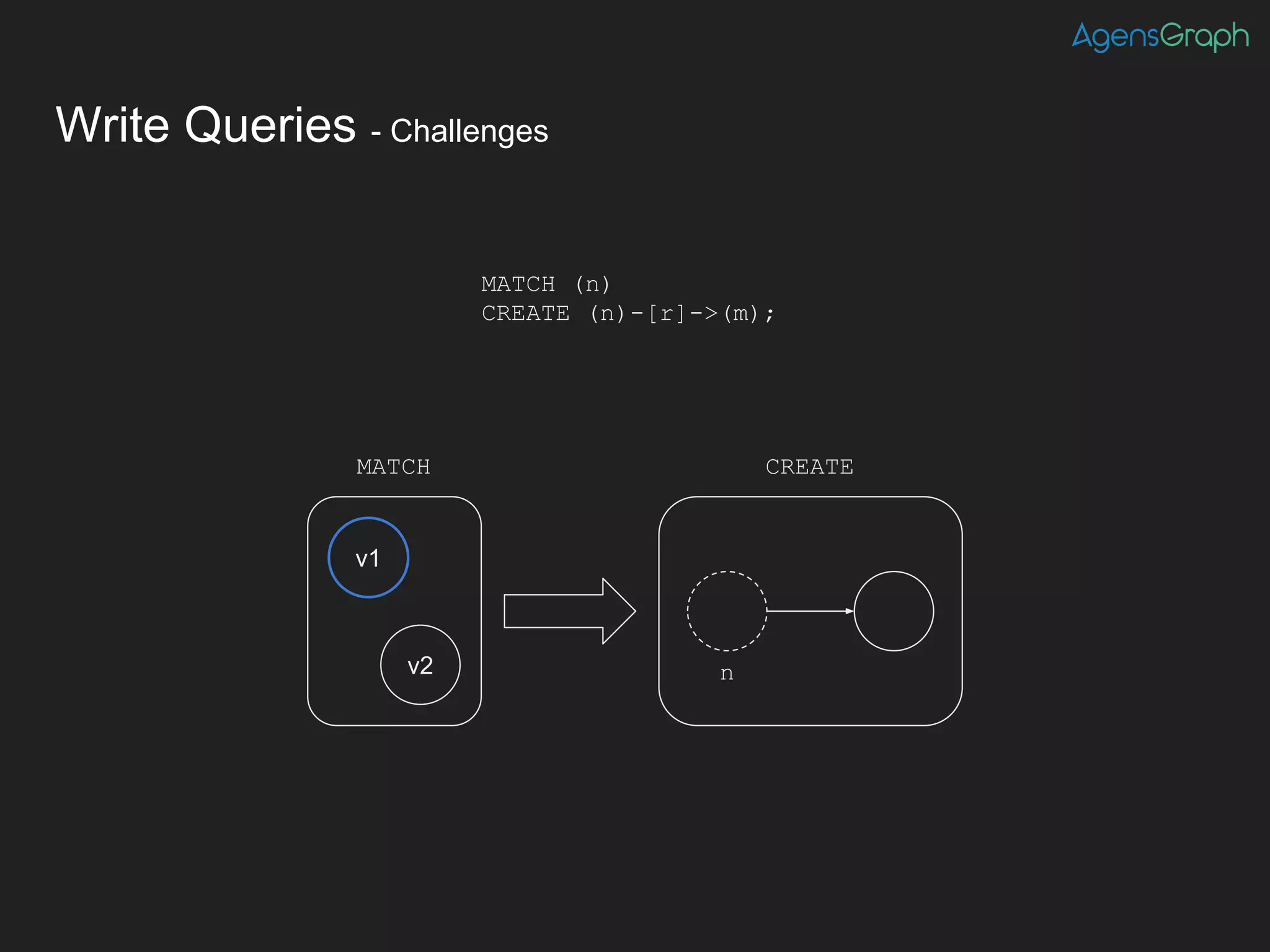

18. Write Queries - Challenges
MATCH (n)
CREATE (n)-[r]->(m);
v1
v2
MATCH CREATE
n

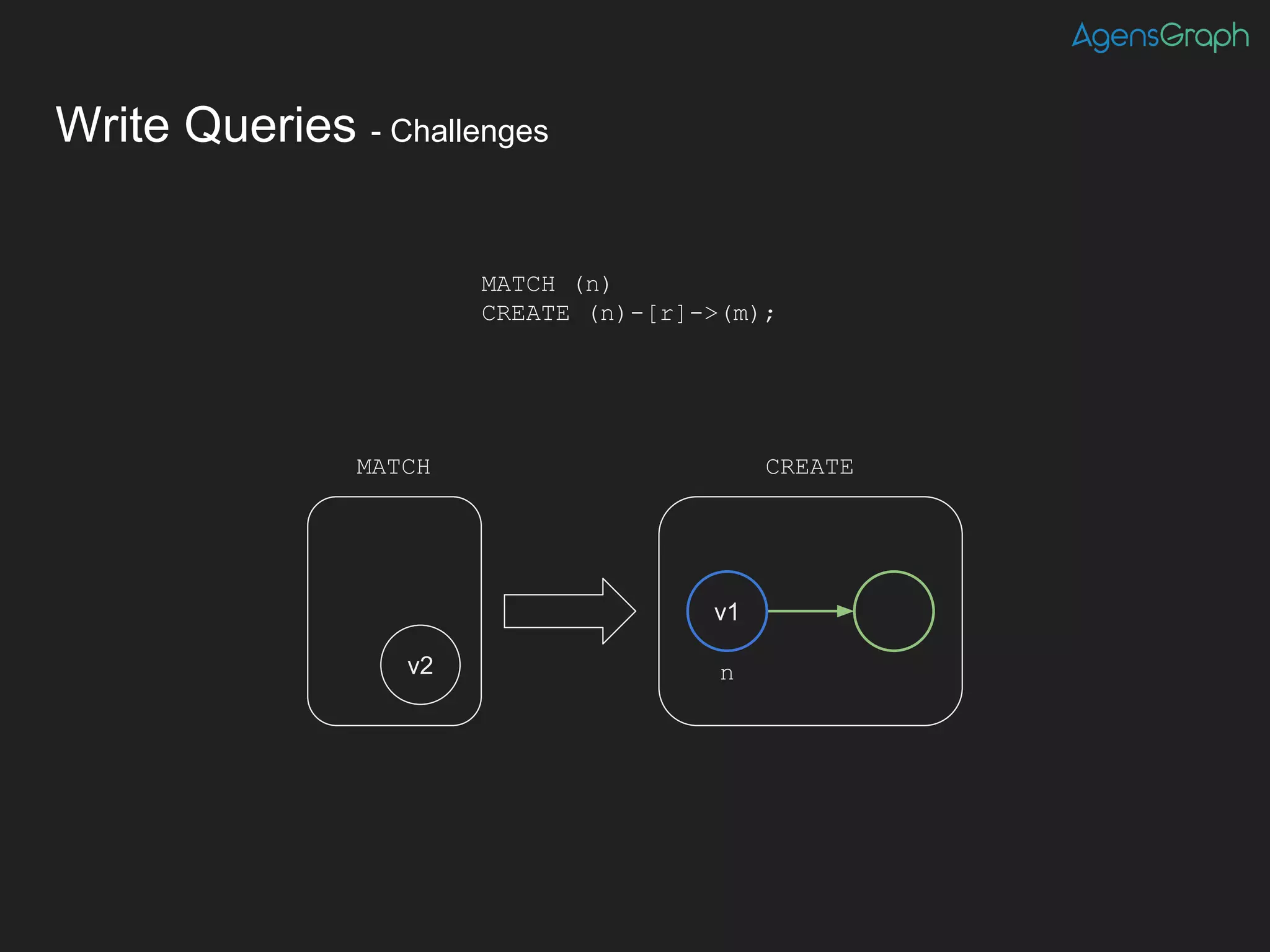

19. Write Queries - Challenges
MATCH (n)
CREATE (n)-[r]->(m);
v2
MATCH CREATE
n
v1

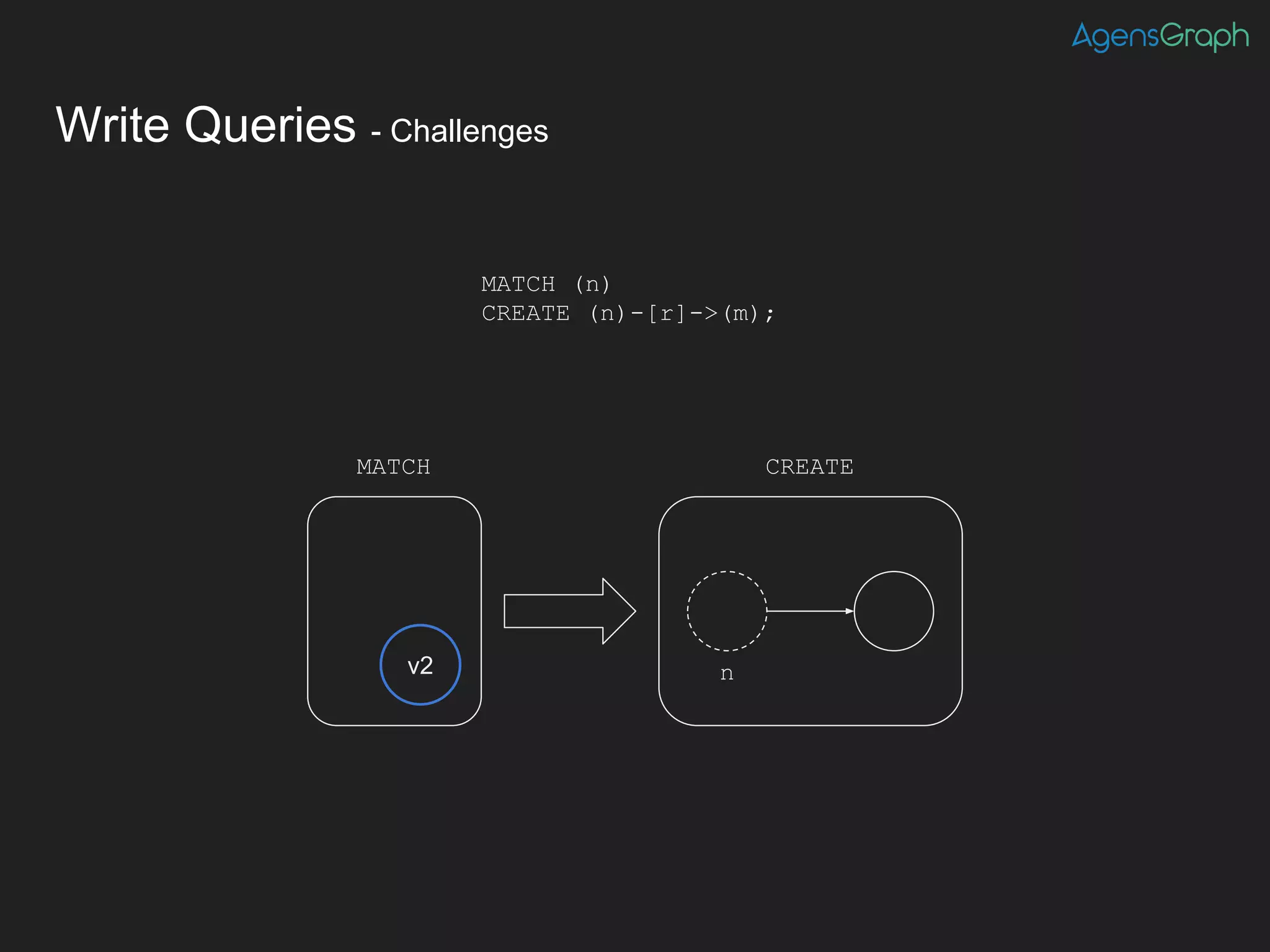

20. Write Queries - Challenges
MATCH (n)
CREATE (n)-[r]->(m);
v2
MATCH CREATE
n

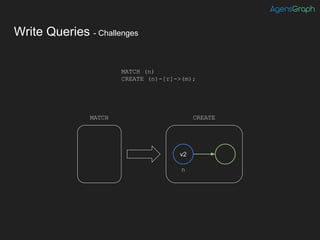

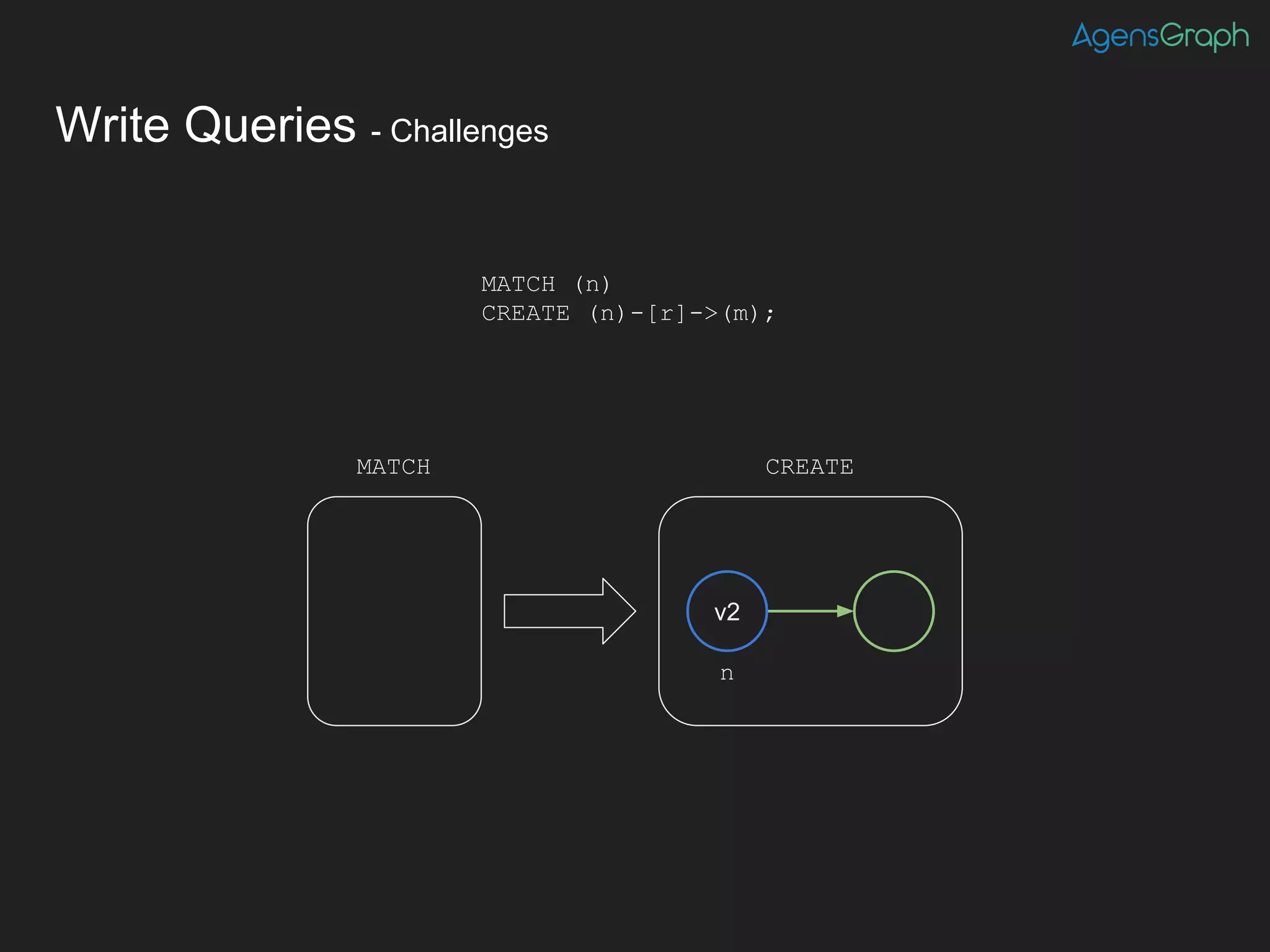

21. Write Queries - Challenges
MATCH (n)
CREATE (n)-[r]->(m);
MATCH CREATE
n
v2

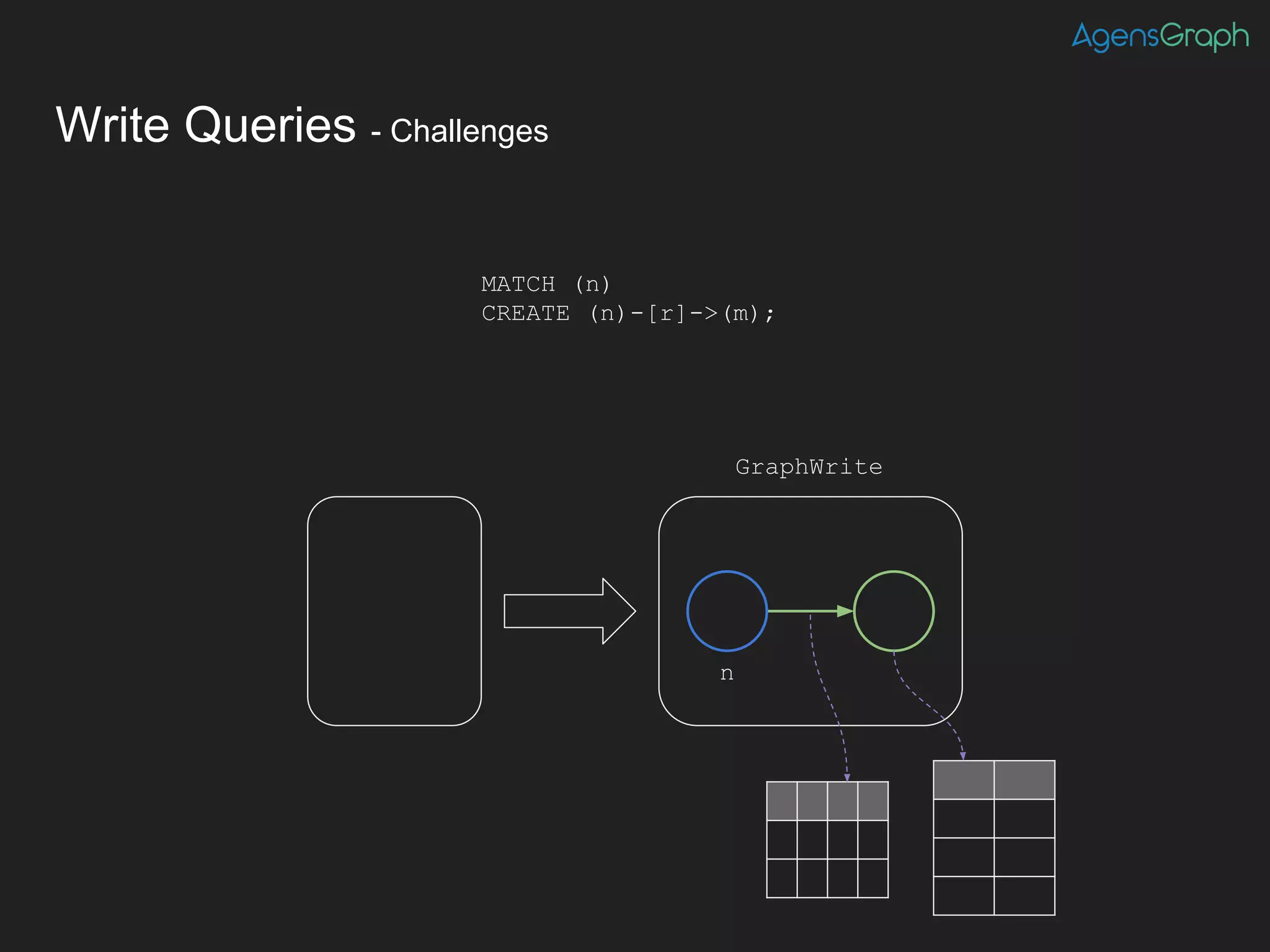

22. Write Queries - Challenges
MATCH (n)
CREATE (n)-[r]->(m);
GraphWrite
n

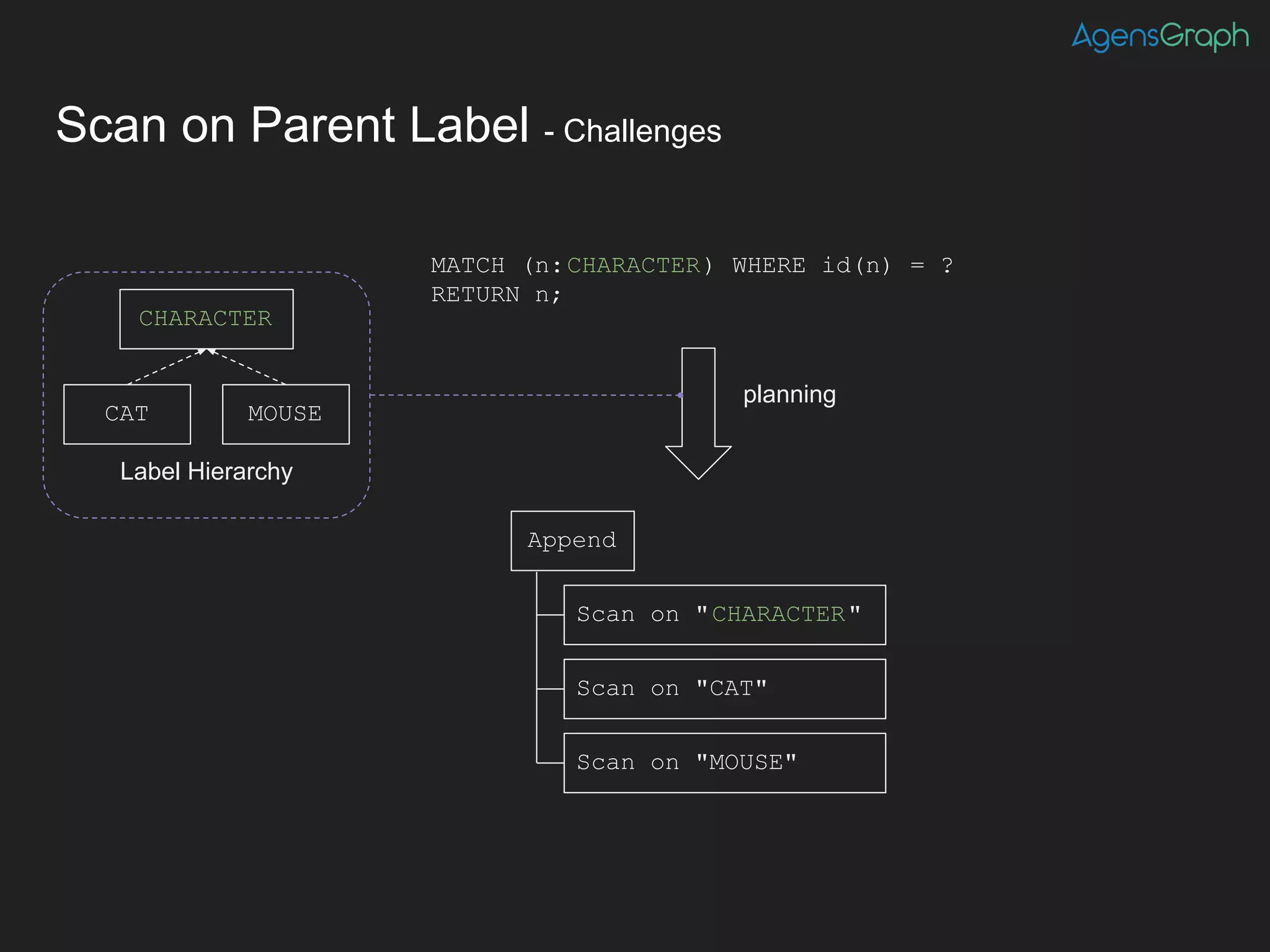

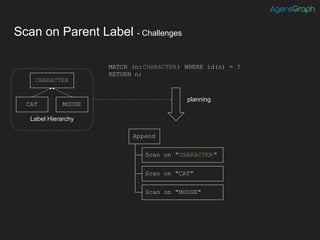

23. Scan on Parent Label - Challenges
Scan on "CHARACTER"
Scan on "CAT"
Scan on "MOUSE"
Append
MATCH (n:CHARACTER) WHERE id(n) = ?
RETURN n;
CHARACTER
CAT MOUSE
Label Hierarchy
planning

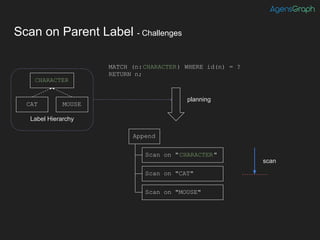

24. Scan on Parent Label - Challenges
Scan on "CHARACTER"
Scan on "CAT"
Scan on "MOUSE"
Append
MATCH (n:CHARACTER) WHERE id(n) = ?
RETURN n;
CHARACTER
CAT MOUSE
Label Hierarchy
planning
scan

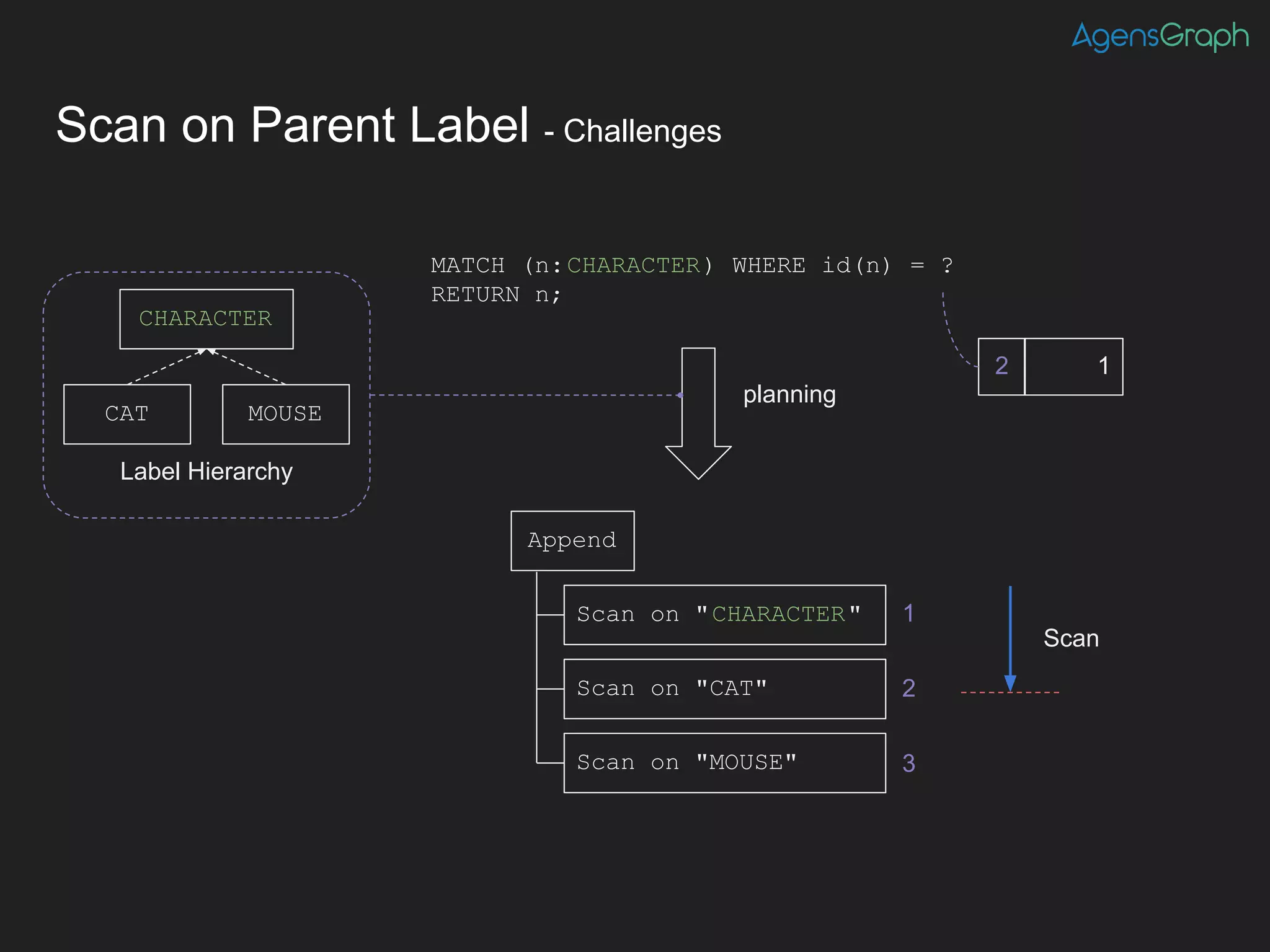

25. Scan on Parent Label - Challenges
Scan on "CHARACTER"
Scan on "CAT"
Scan on "MOUSE"
Append
MATCH (n:CHARACTER) WHERE id(n) = ?
RETURN n;
CHARACTER
CAT MOUSE
Label Hierarchy
planning
2 1
2
Scan
1
3

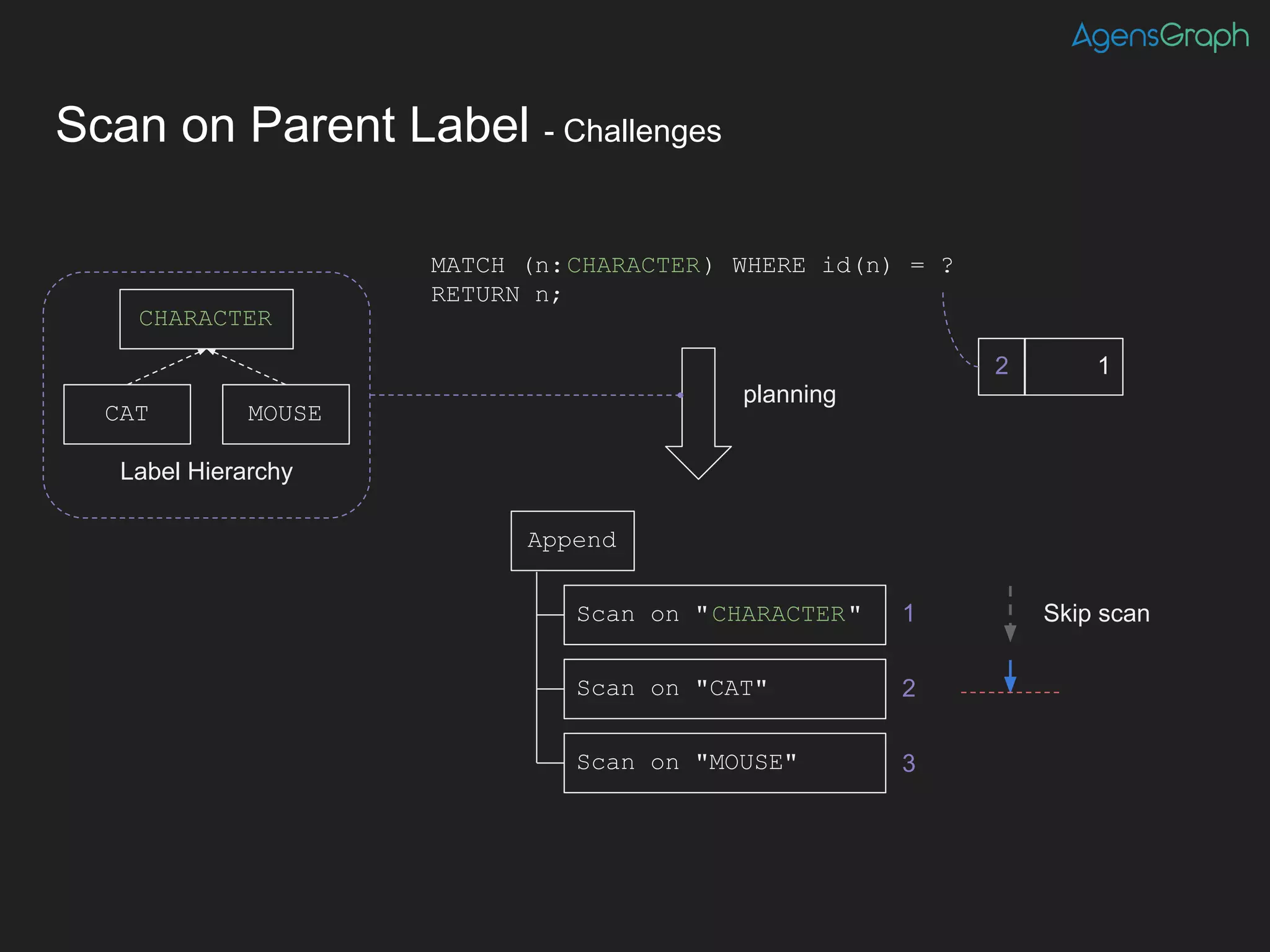

26. Scan on Parent Label - Challenges
Scan on "CHARACTER"
Scan on "CAT"
Scan on "MOUSE"
Append
MATCH (n:CHARACTER) WHERE id(n) = ?
RETURN n;
CHARACTER
CAT MOUSE
Label Hierarchy
planning
2 1
2
1
3
Skip scan

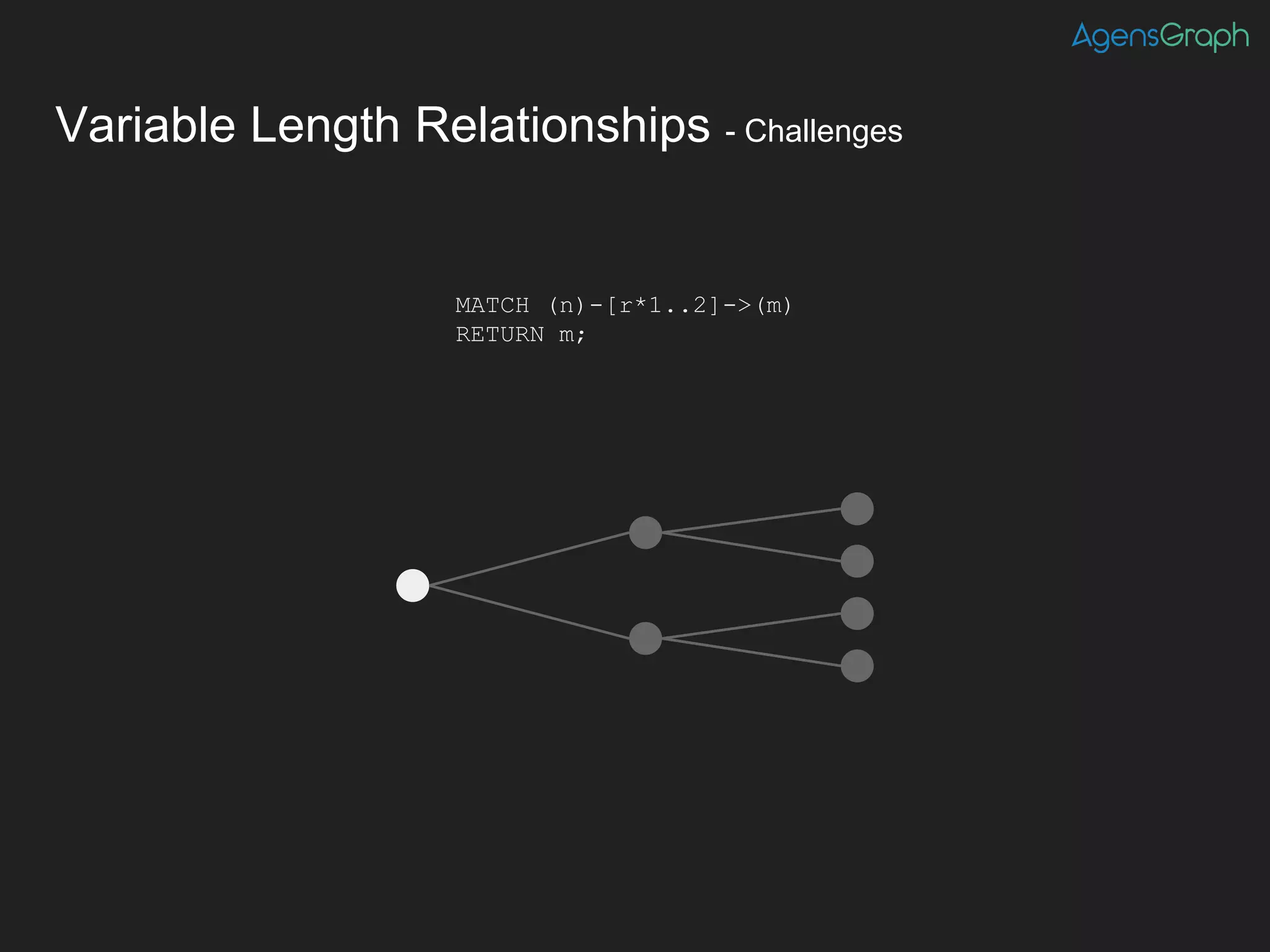

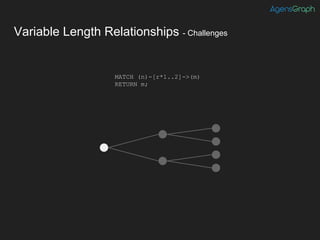

27. Variable Length Relationships - Challenges
MATCH (n)-[r*1..2]->(m)
RETURN m;

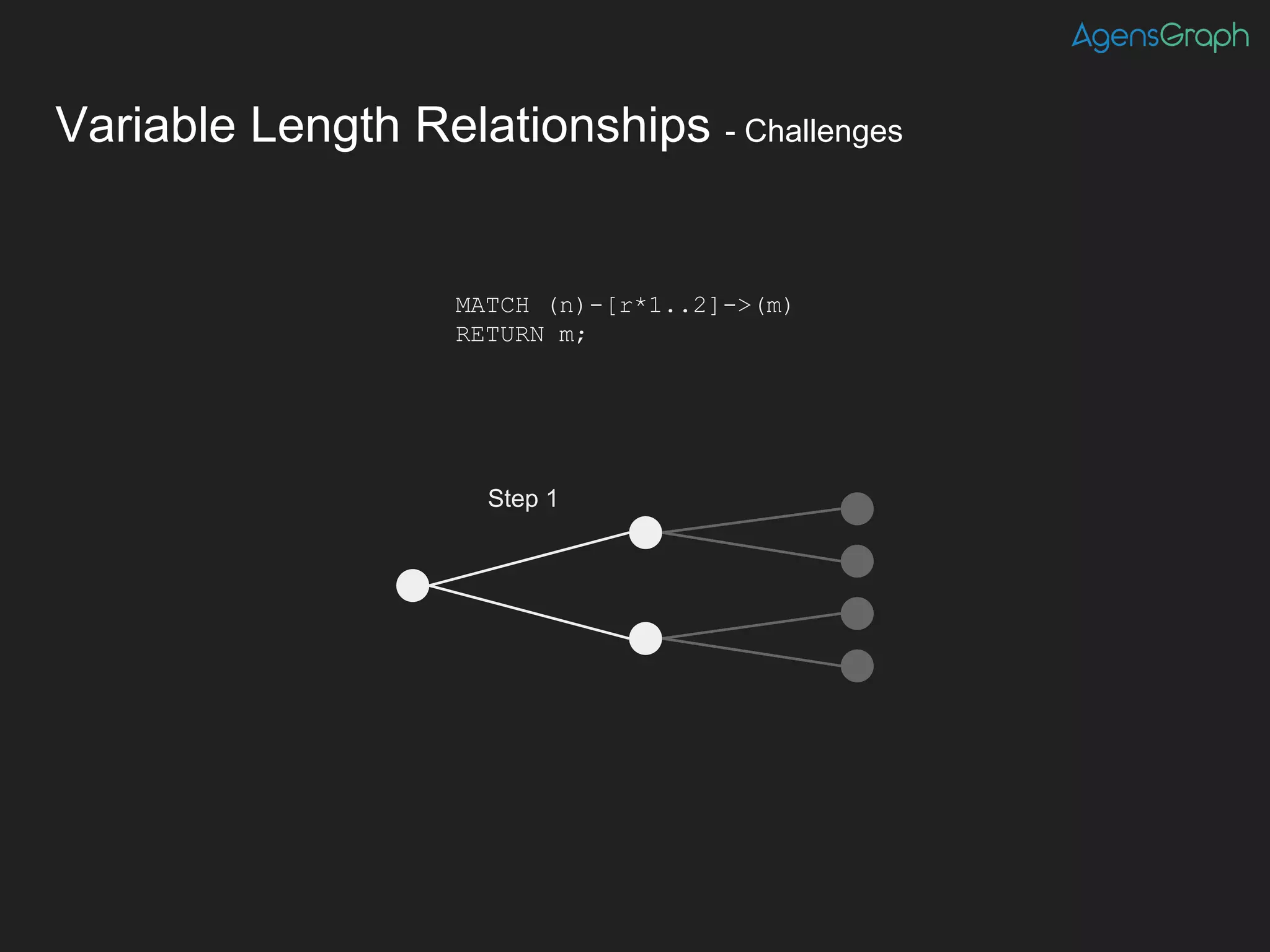

28. Variable Length Relationships - Challenges
MATCH (n)-[r*1..2]->(m)
RETURN m;
Step 1

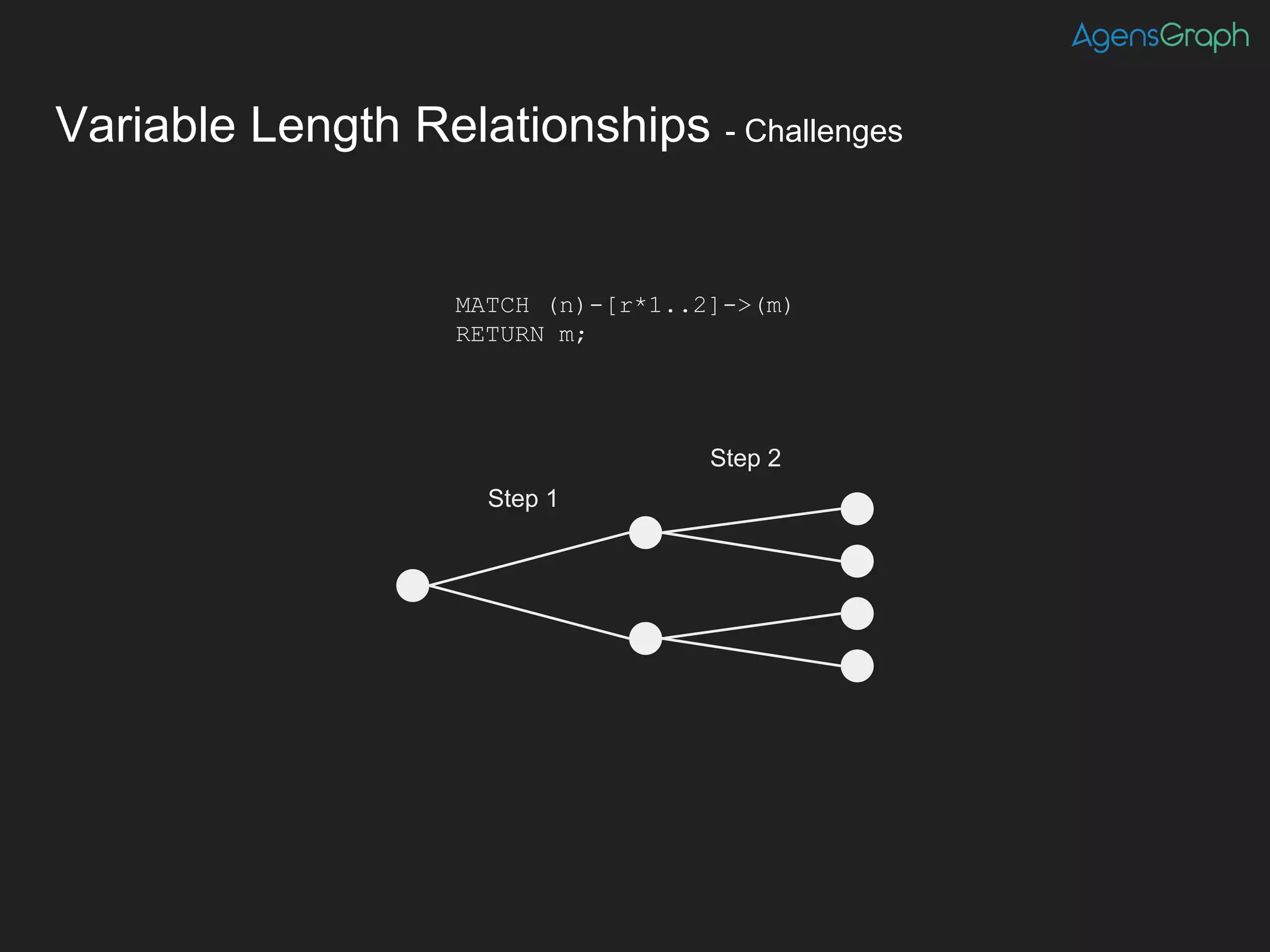

29. Variable Length Relationships - Challenges
MATCH (n)-[r*1..2]->(m)
RETURN m;
Step 1
Step 2

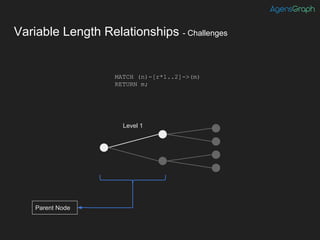

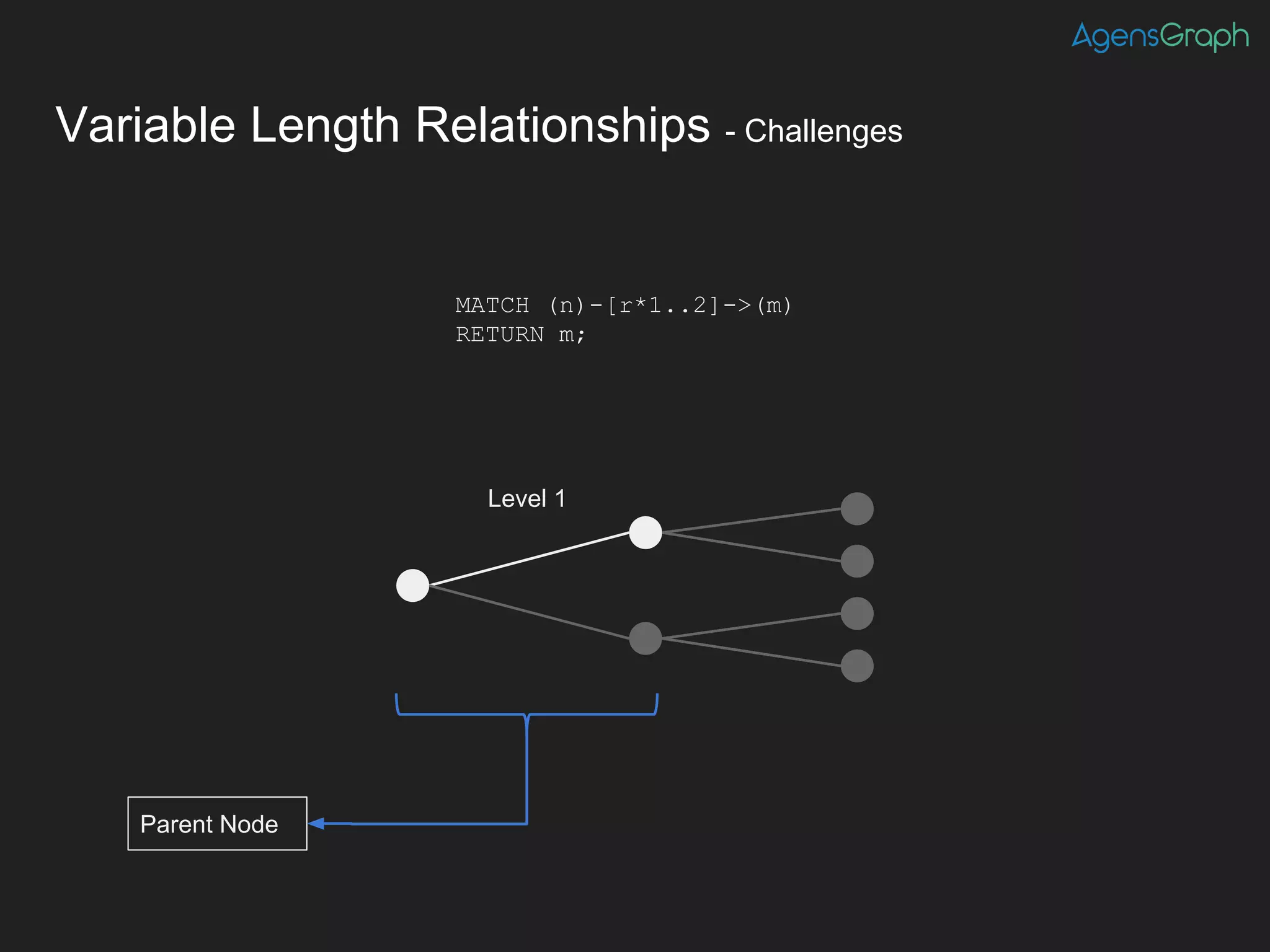

30. Variable Length Relationships - Challenges
MATCH (n)-[r*1..2]->(m)
RETURN m;
Level 1
Parent Node

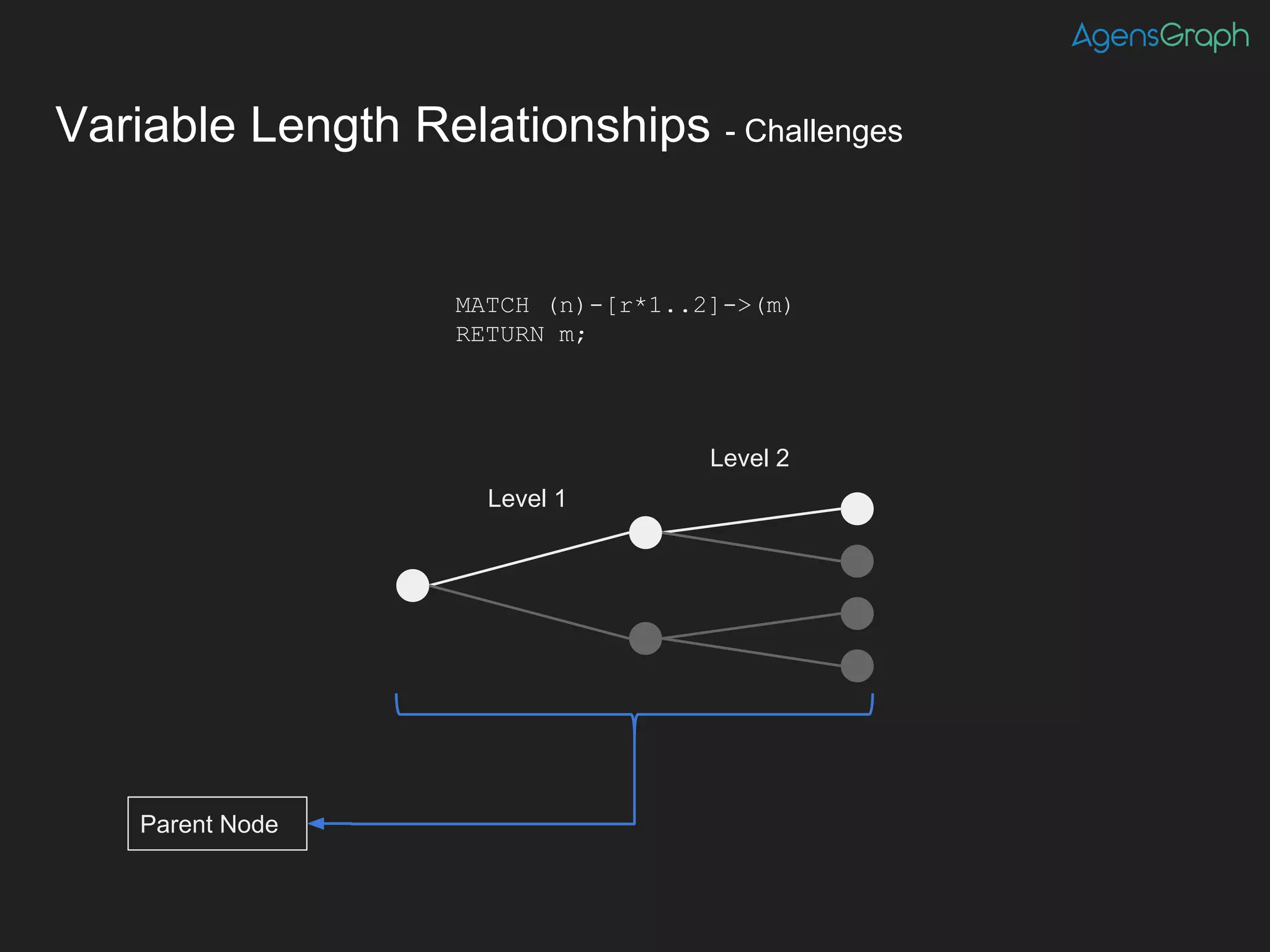

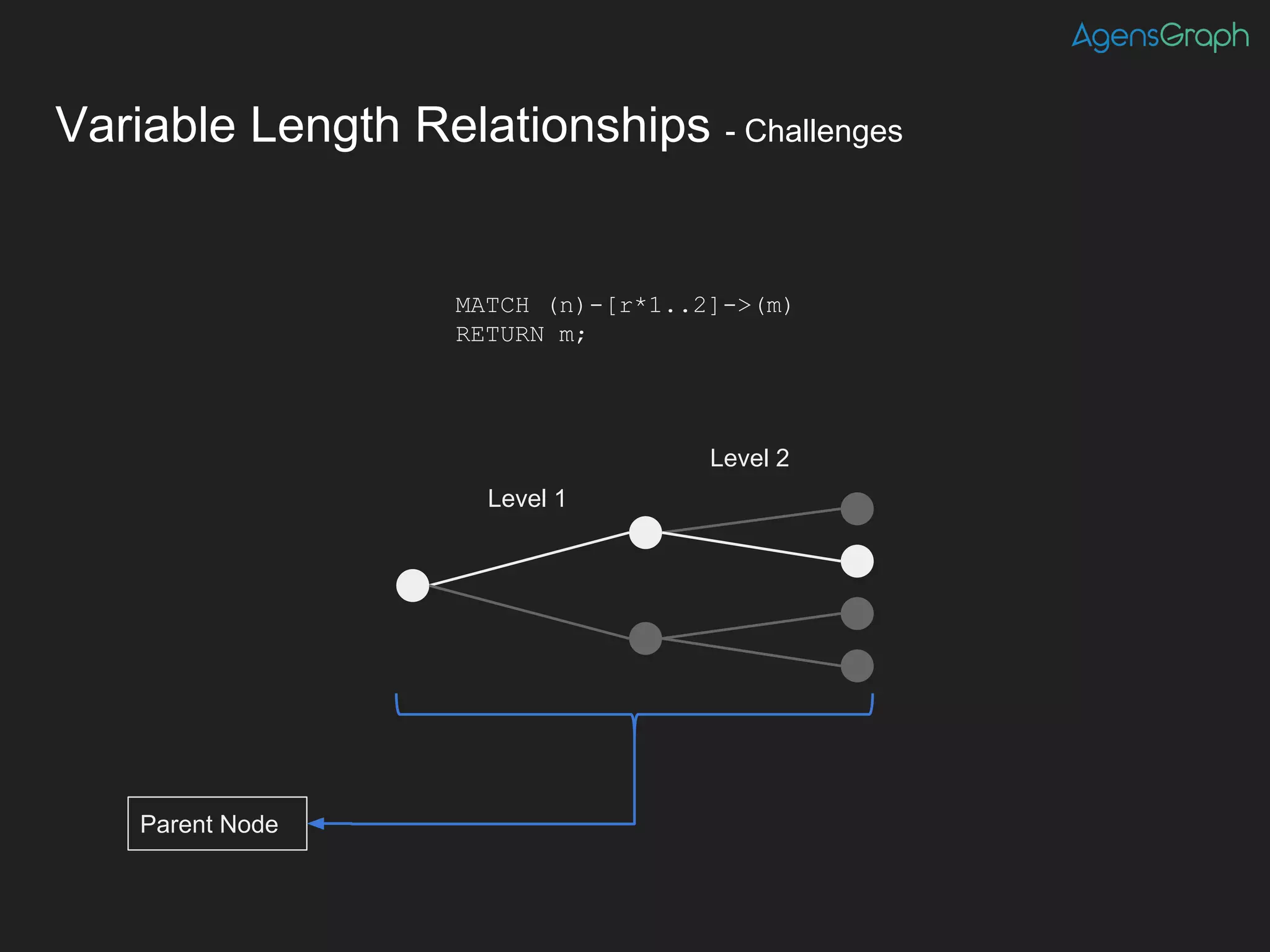

31. Variable Length Relationships - Challenges
MATCH (n)-[r*1..2]->(m)
RETURN m;
Level 2
Level 1
Parent Node

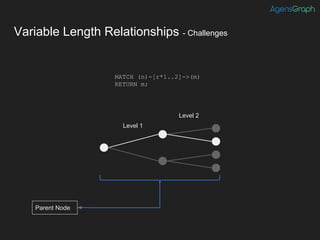

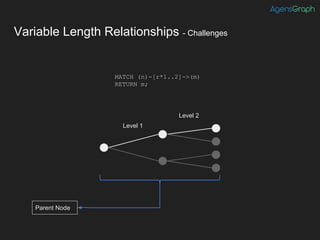

32. Variable Length Relationships - Challenges
MATCH (n)-[r*1..2]->(m)
RETURN m;
Level 2
Level 1
Parent Node

33. LDBC Benchmark
http://www.ldbcouncil.org/
Members
Oracle Labs, IBM, Huawei, SAP, Sparsity, OpenLink Software, Ontotext, Neo Technology
Graphalytics Benchmark
Semantic Publishing Benchmark
Social Network Benchmark

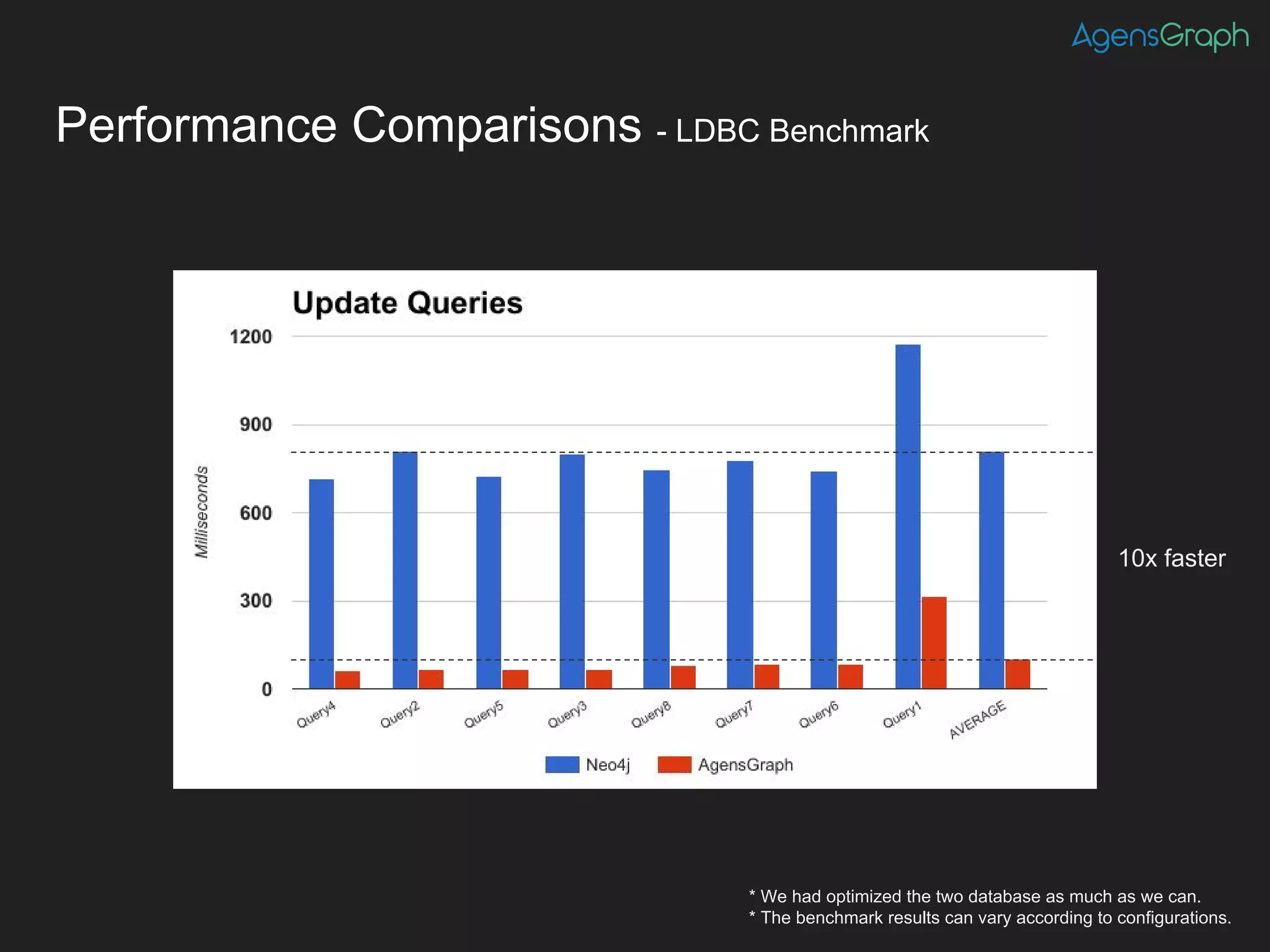

34. Performance Comparisons - LDBC Benchmark
* We had optimized the two database as much as we can.
* The benchmark results can vary according to configurations.
10x faster
(appx.)
Compet
itor
(x)

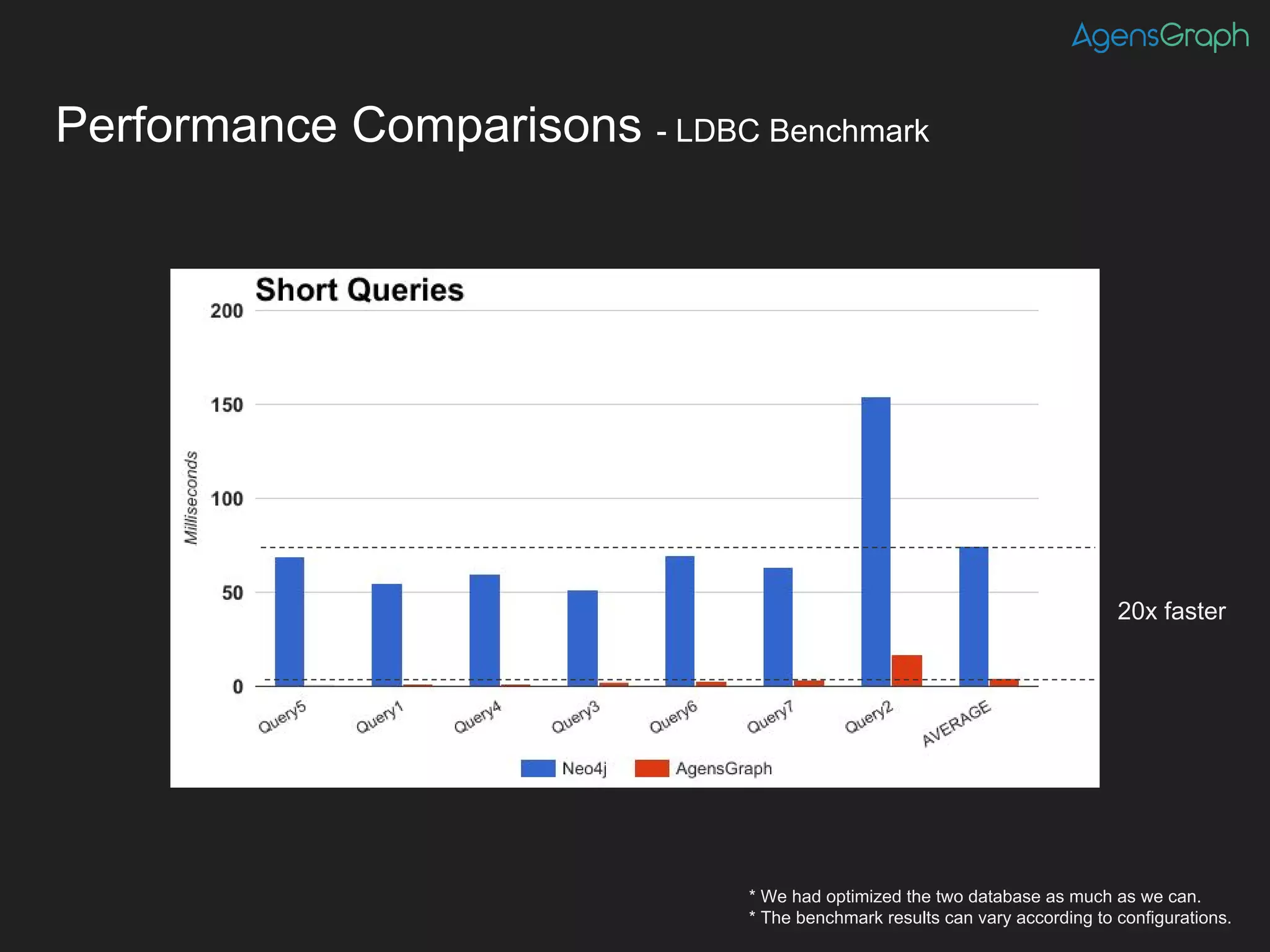

35. Performance Comparisons - LDBC Benchmark
* We had optimized the two database as much as we can.
* The benchmark results can vary according to configurations.
20x faster
(appx.)
Compet
itor
(x)

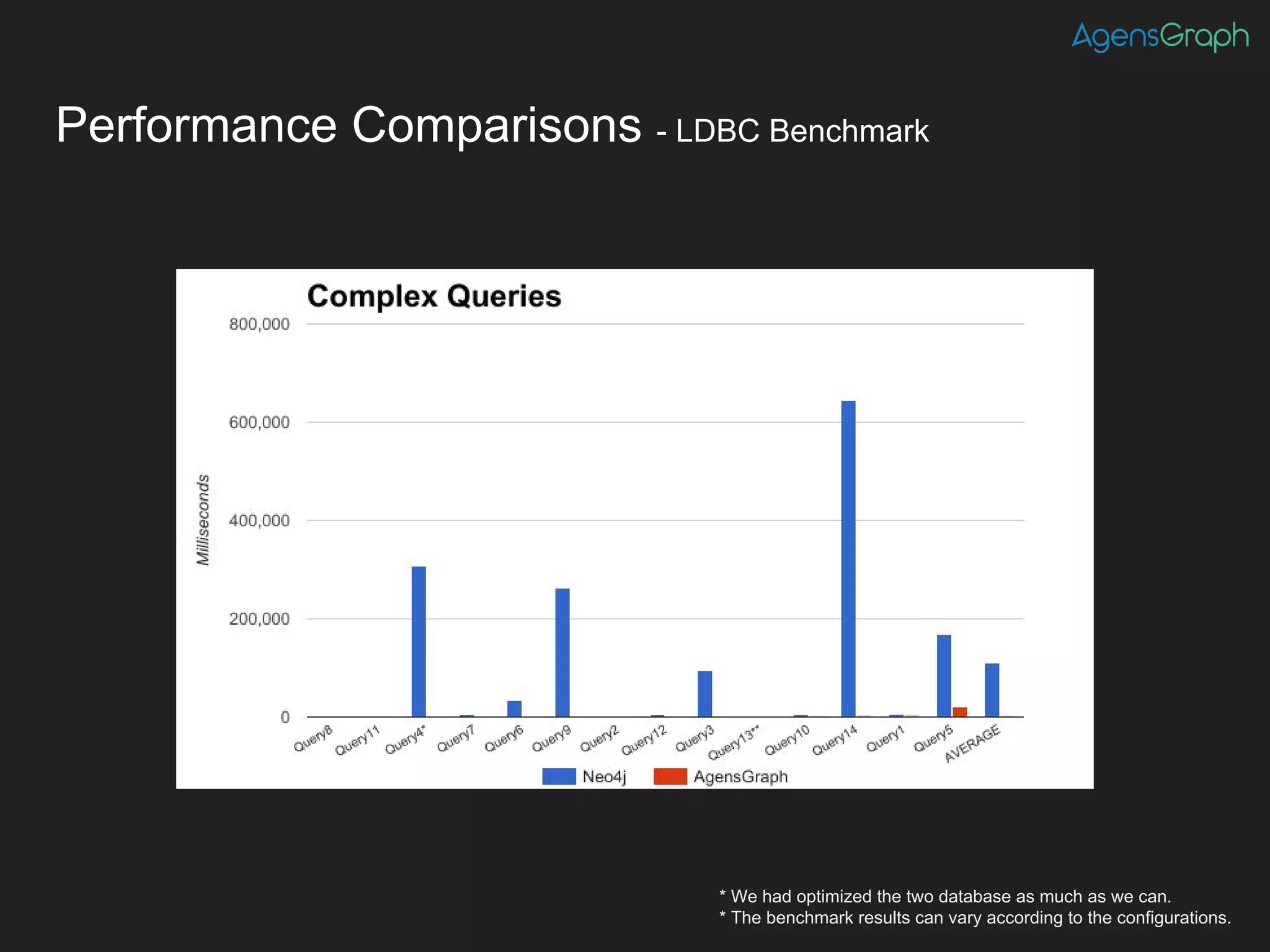

36. Performance Comparisons - LDBC Benchmark
* We had optimized the two database as much as we can.
* The benchmark results can vary according to the configurations.
Compet
itor
(x)

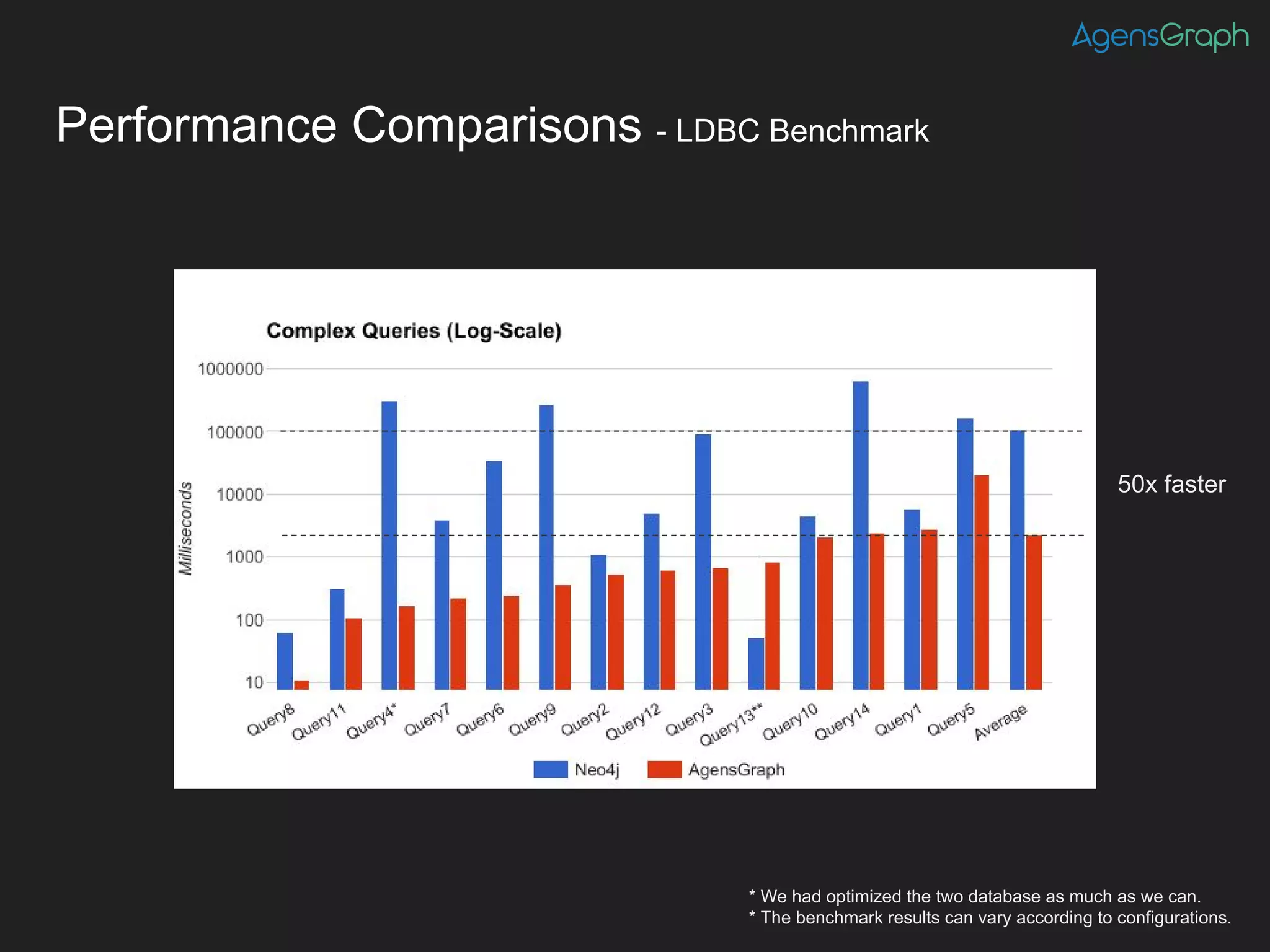

37. Performance Comparisons - LDBC Benchmark
50x faster
(appx.)
* We had optimized the two database as much as we can.
* The benchmark results can vary according to configurations.
Compet
itor
(x)

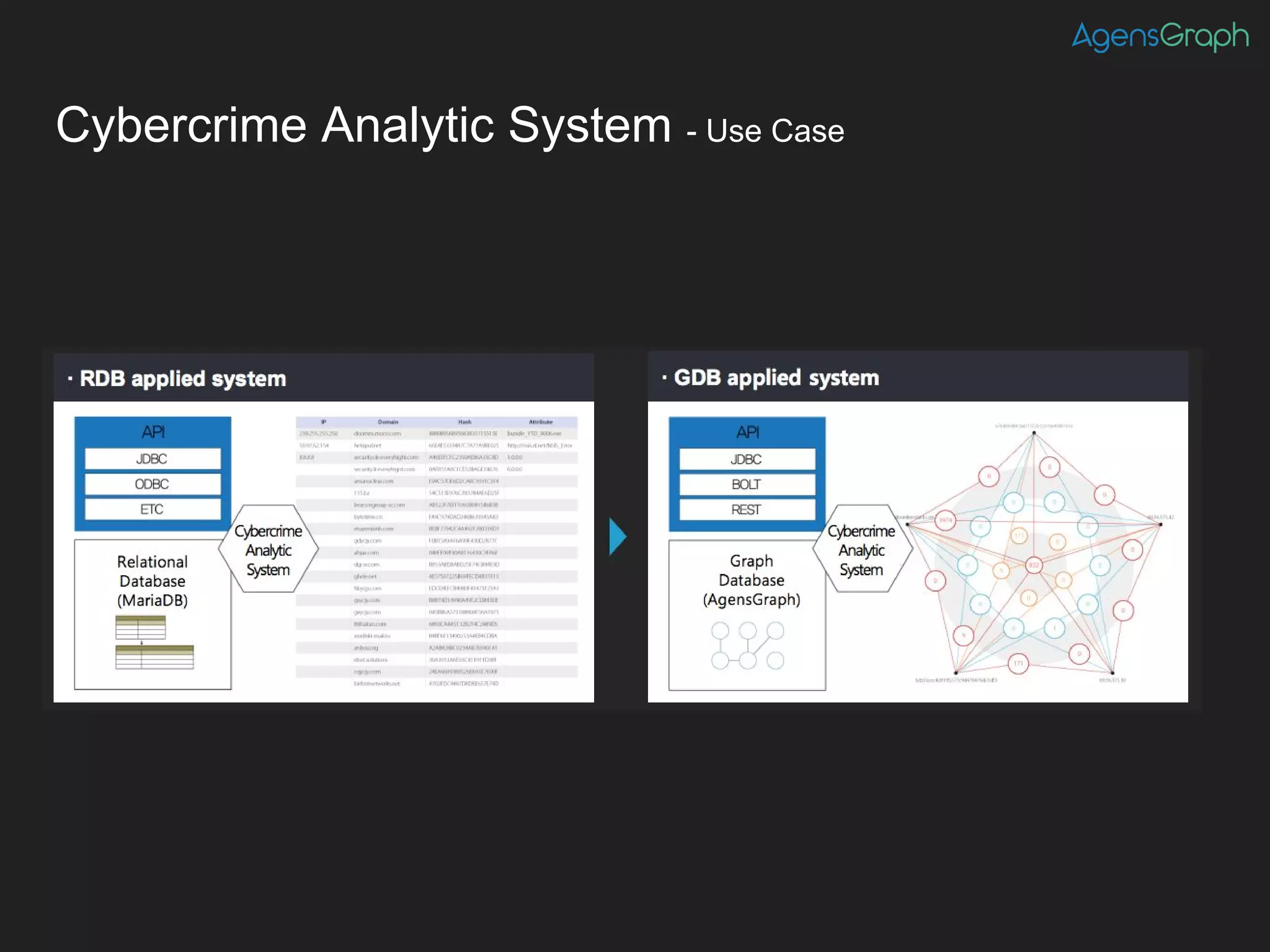

38. Cybercrime Analytic System - Use Case

39. Faster than the Fastest
● We are working on
○ Improving the performance of shortestpath() function
○ Providing more catalog tables

40. agensgraph.com
https://github.com/bitnine-oss/agensgraph
Apache License, Version 2.0
Thank you!
