1. Elasticsearch, Nginx monitoring
with Prometheus and Grafana
2016/08/18
Wataru Yukawa(@wyukawa)
Prometheus London meetup

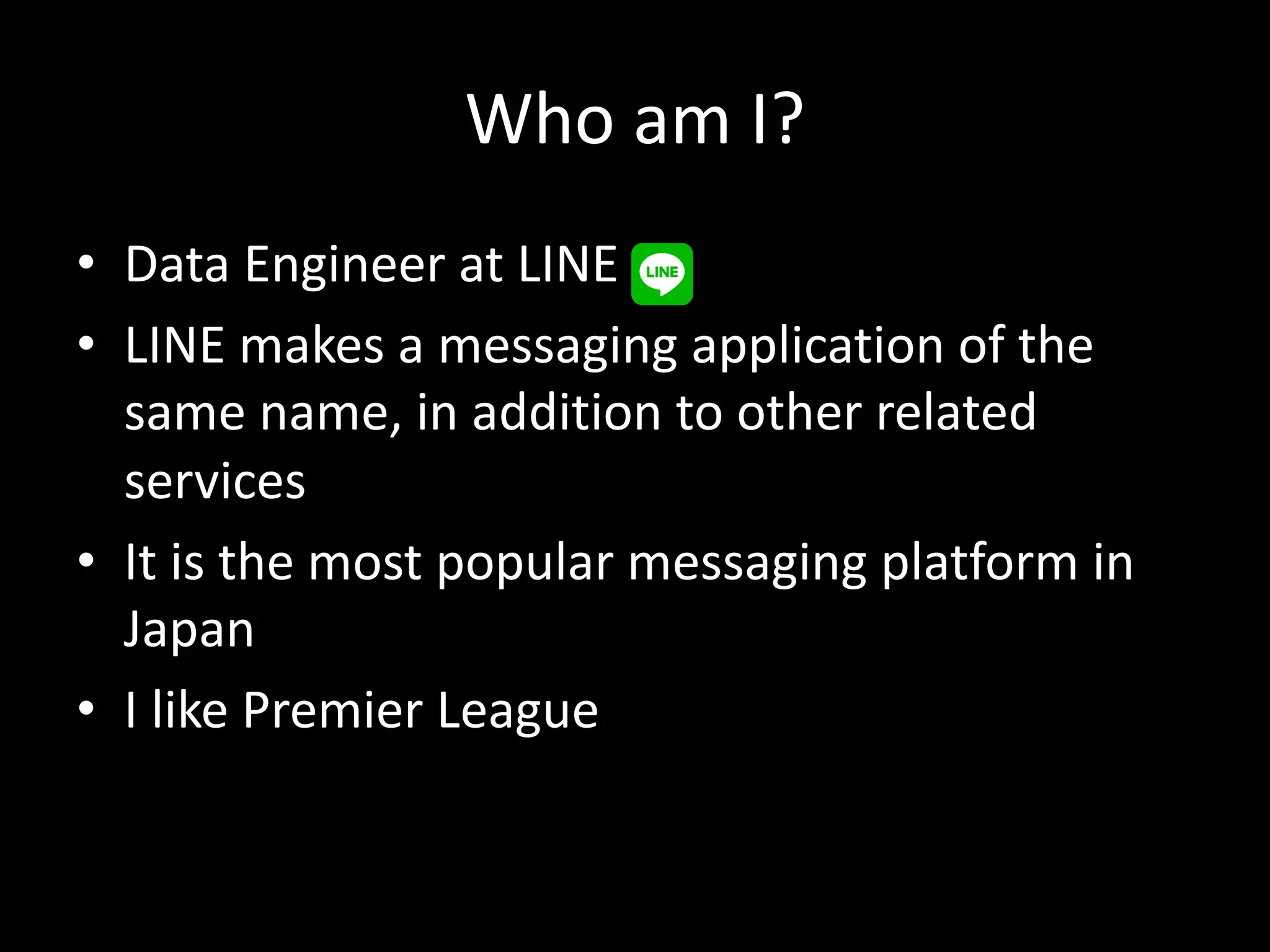

2. Who am I?
• Data Engineer at LINE
• LINE makes a messaging application of the
same name, in addition to other related
services
• It is the most popular messaging platform in
Japan
• I like Premier League

3. Agenda
• browser log collection system
• monitor Elasticsearch/Nginx

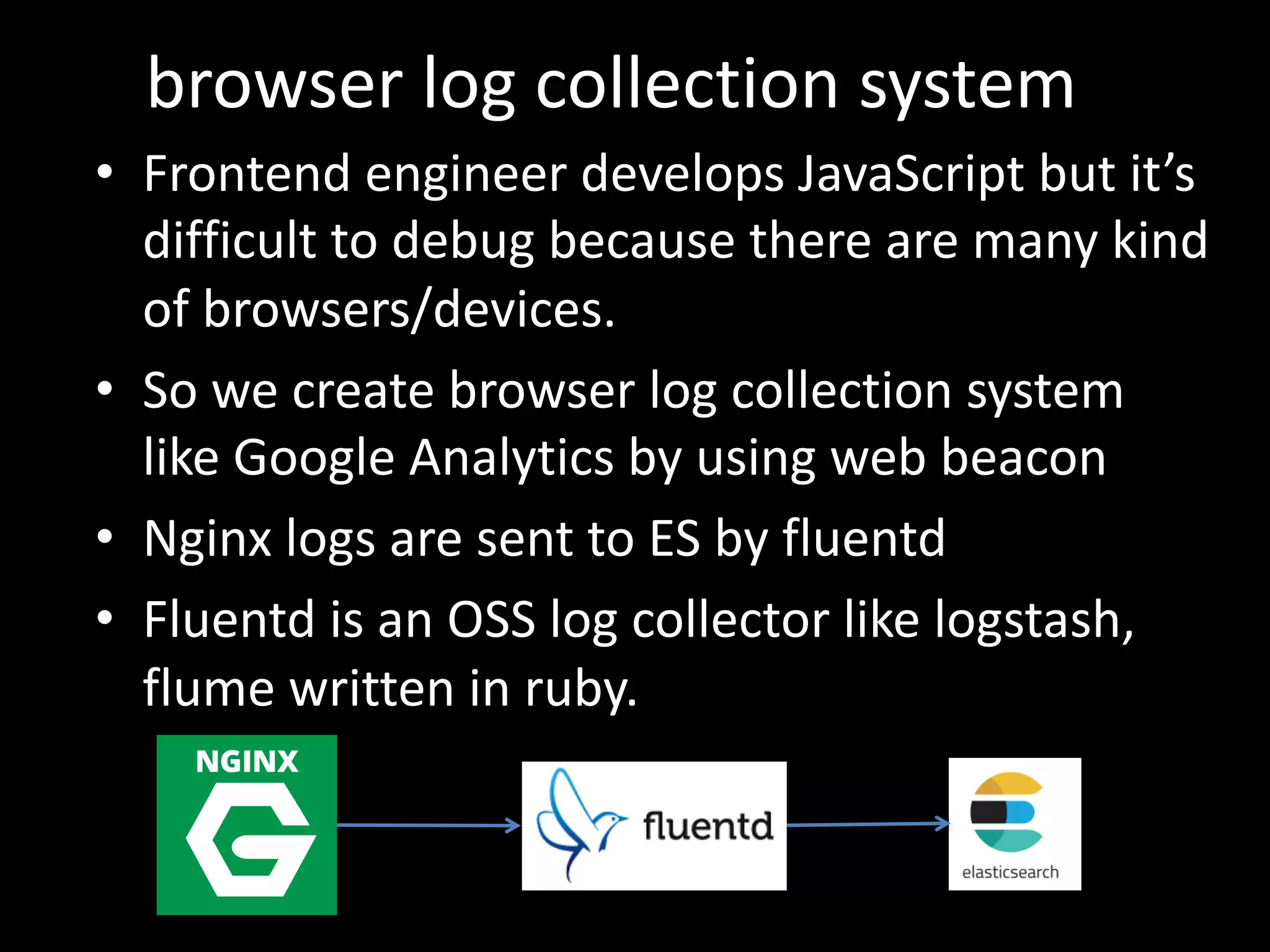

4. browser log collection system
• Frontend engineer develops JavaScript but it’s
difficult to debug because there are many kind
of browsers/devices.
• So we create browser log collection system
like Google Analytics by using web beacon
• Nginx logs are sent to ES by fluentd
• Fluentd is an OSS log collector like logstash,
flume written in ruby.

5. What middleware should be
monitored?
• Nginx
• Elasticsearch
• Fluentd
– I will talk in PromCon 2016

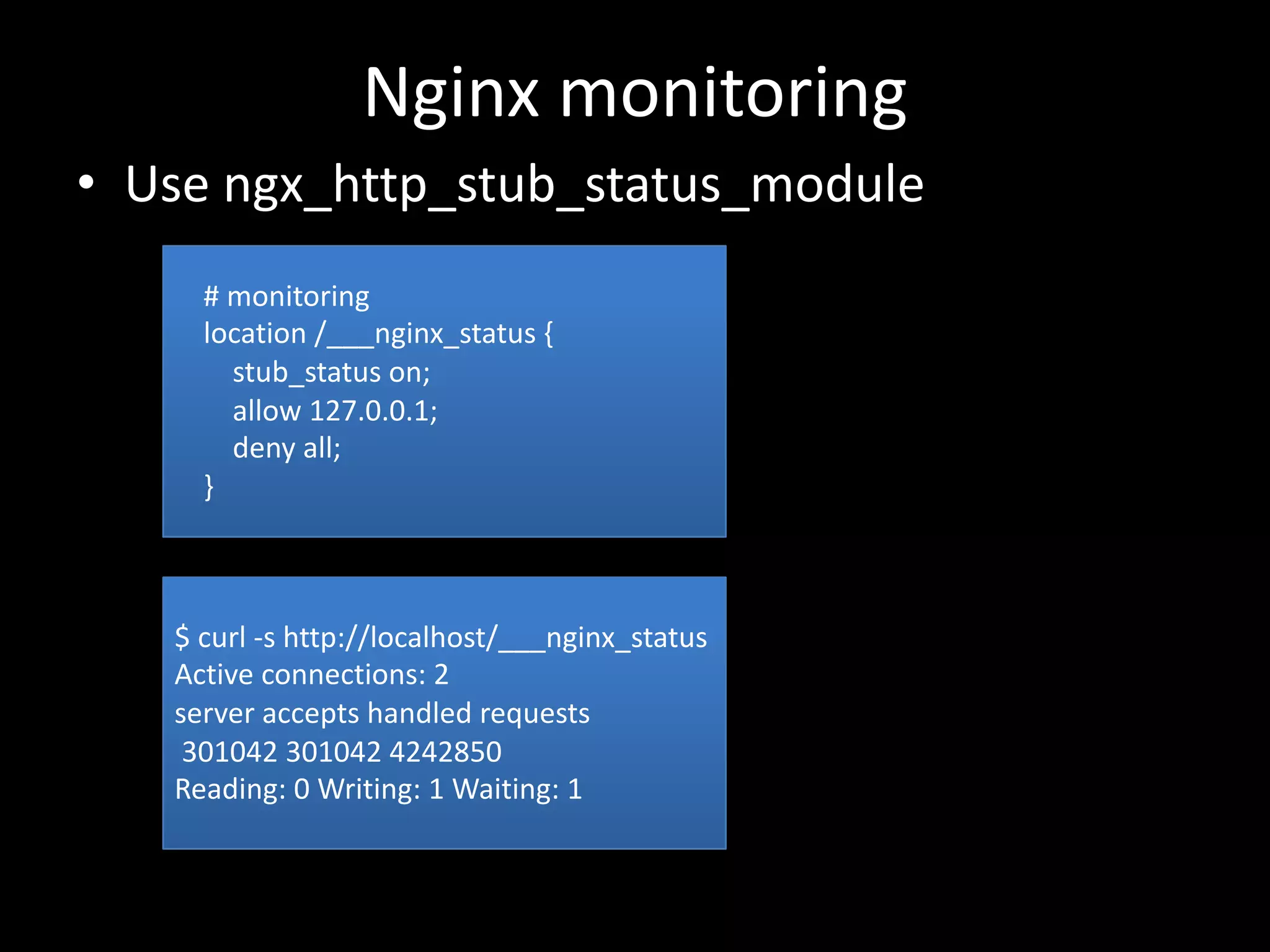

6. Nginx monitoring
• Use ngx_http_stub_status_module
# monitoring
location /___nginx_status {
stub_status on;
allow 127.0.0.1;
deny all;
}
$ curl -s http://localhost/___nginx_status
Active connections: 2
server accepts handled requests
301042 301042 4242850
Reading: 0 Writing: 1 Waiting: 1

7. lifecycle of connection
https://www.datadoghq.com/blog/how-to-monitor-nginx/

8. Nginx monitoring
• Use nginx_exporter
– nginx_exporter uses
ngx_http_stub_status_module result
# HELP nginx_connections_current Number of connections currently processed by nginx
# TYPE nginx_connections_current gauge
nginx_connections_current{state="active"} 2
nginx_connections_current{state="reading"} 0
nginx_connections_current{state="waiting"} 1
nginx_connections_current{state="writing"} 1
# HELP nginx_connections_processed_total Number of connections processed by nginx
# TYPE nginx_connections_processed_total counter
nginx_connections_processed_total{stage="accepted"} 300966
nginx_connections_processed_total{stage="any"} 4.241939e+06
nginx_connections_processed_total{stage="handled"} 300966

9. nginx dashboard

10. request connection
irate(nginx_connections_processed_total{...,stage="any"}[1m])

11. Elasticsearch monitoring
• Use elasticsearch_exporter
• Use Marvel

12. Elasticsearch dashboard

13. java heap
https://github.com/elastic/elasticsearch/issues/18635

14. My feeling
• Prometheus’s query is really powerful
especially when metric type is counter
• We can use rate/irate function.
• nginx_exporter and elasticsearch_exporter are
convienient
– easy to setup
• Prometheus and Grafana are a perfect
combination

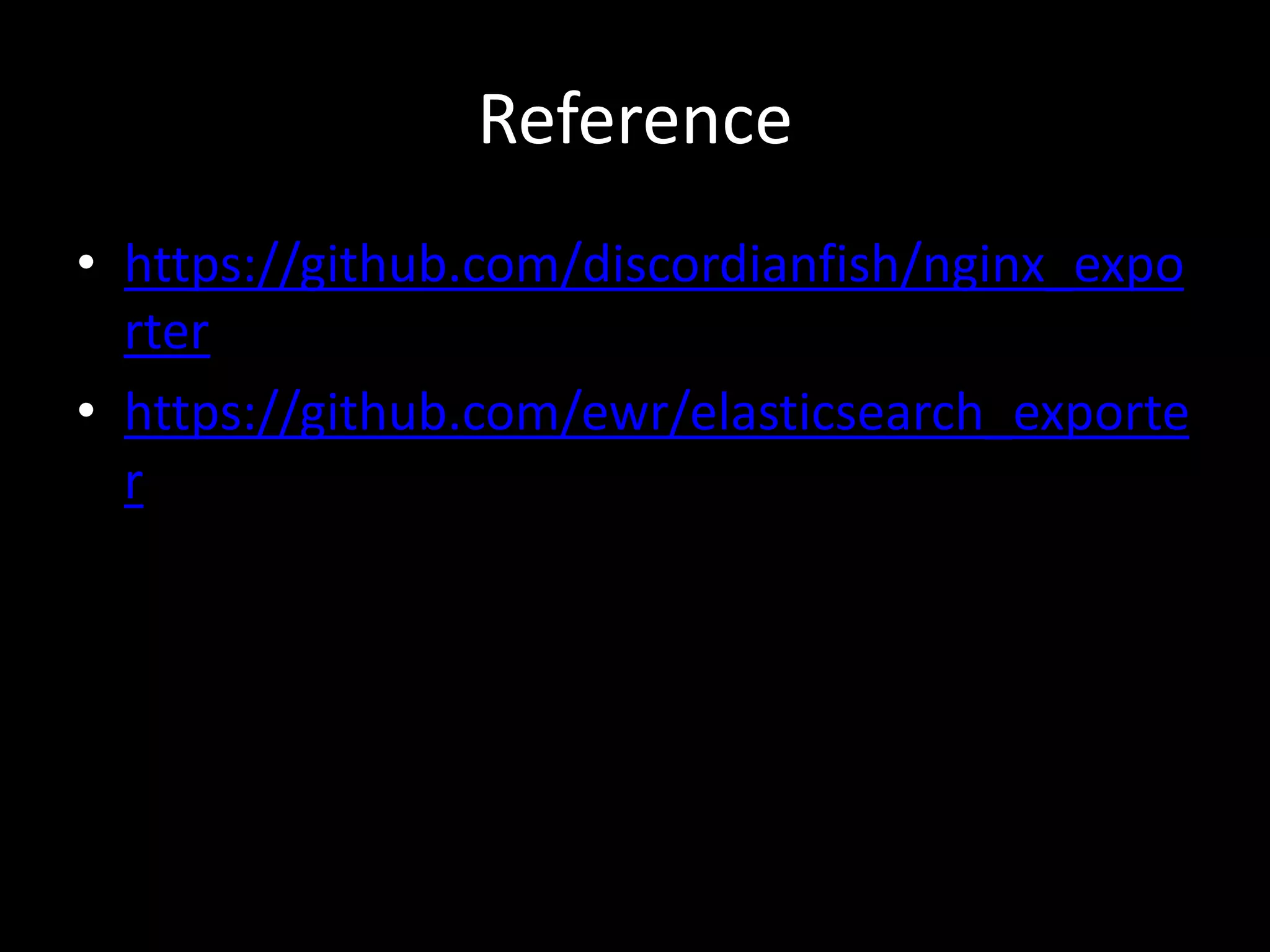

15. References
• https://github.com/discordianfish/nginx_expo
rter
• https://github.com/ewr/elasticsearch_exporte
r
