This document summarizes Wataru Yukawa's presentation about LINE's log analysis platform over the past 3 years. It discusses the platform in 2014 when it was first created using Hadoop, Hive, Presto, Azkaban, and Cognos. It describes the addition of Prestogres to allow Cognos to connect to Presto and the development of the yanagishima UI. It outlines the upgrade of the Hadoop cluster in 2016 to a new version with more resources and the process for migrating the data and applications. Finally, it provides an overview of the current platform in 2017.
Report
Share
Strata2017 sg

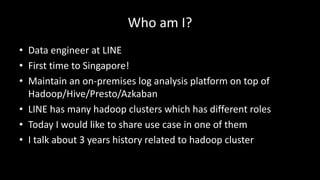

- 2. Who am I? • Data engineer at LINE • First time to Singapore! • Maintain an on-premises log analysis platform on top of Hadoop/Hive/Presto/Azkaban • LINE has many hadoop clusters which has different roles • Today I would like to share use case in one of them • I talk about 3 years history related to hadoop cluster

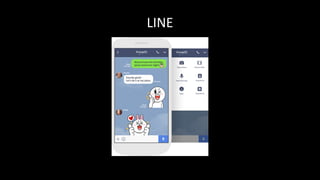

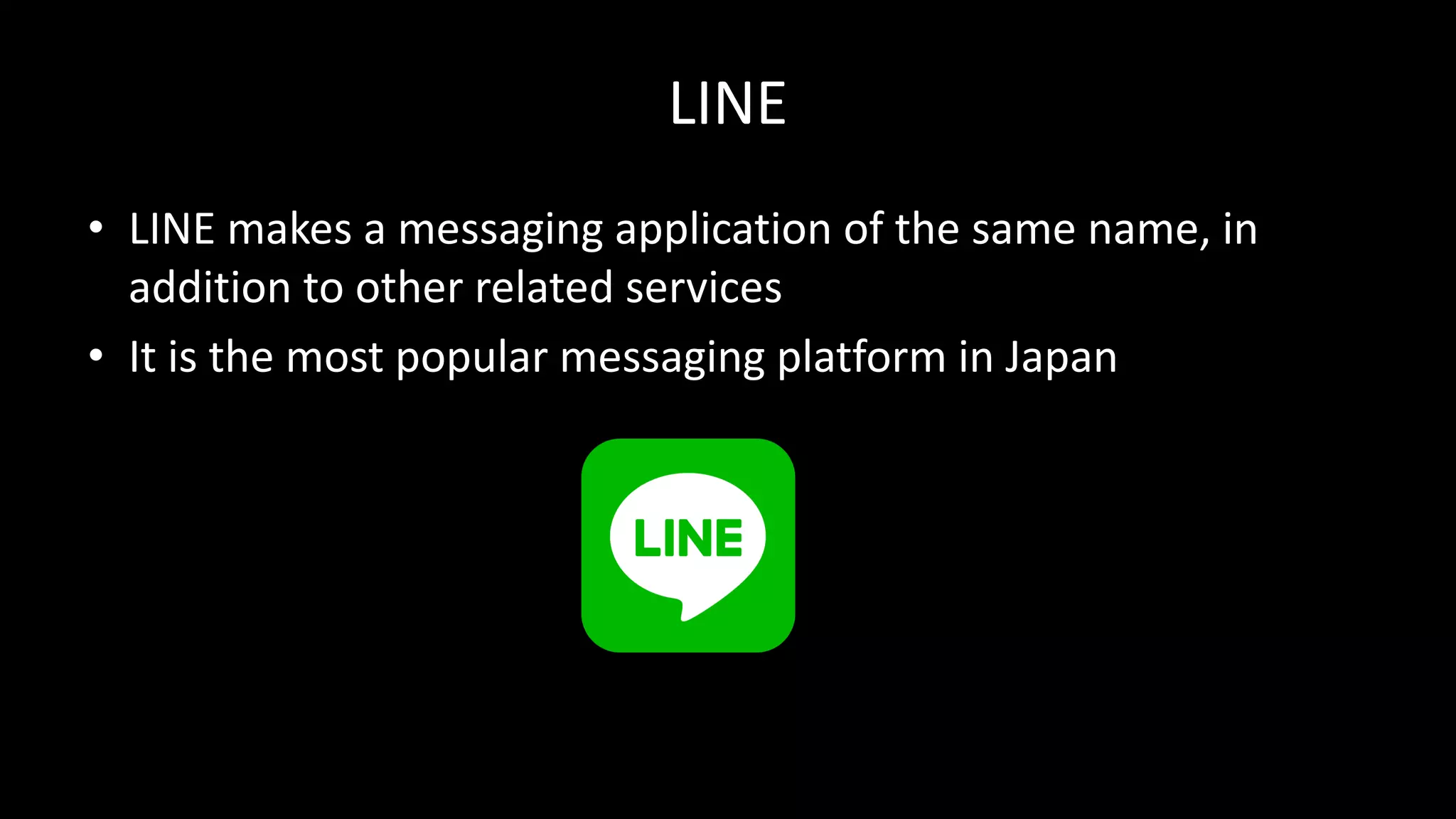

- 4. LINE

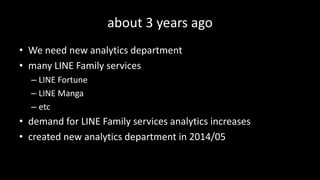

- 5. about 3 years ago • We need new analytics department • many LINE Family services – LINE Fortune – LINE Manga – etc • demand for LINE Family services analytics increases • created new analytics department in 2014/05

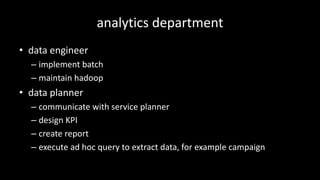

- 6. analytics department • data engineer – implement batch – maintain hadoop • data planner – communicate with service planner – design KPI – create report – execute ad hoc query to extract data, for example campaign

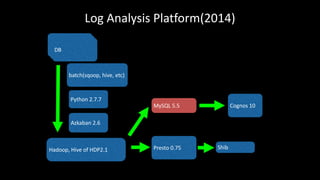

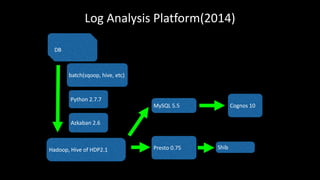

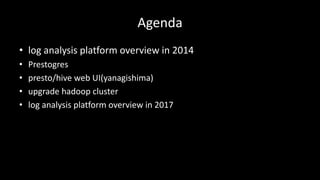

- 7. Agenda • log analysis platform overview in 2014 • Prestogres • presto/hive web UI(yanagishima) • upgrade hadoop cluster • log analysis platform overview in 2017

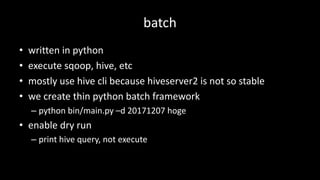

- 9. batch • written in python • execute sqoop, hive, etc • mostly use hive cli because hiveserver2 is not so stable • we create thin python batch framework – python bin/main.py –d 20171207 hoge • enable dry run – print hive query, not execute

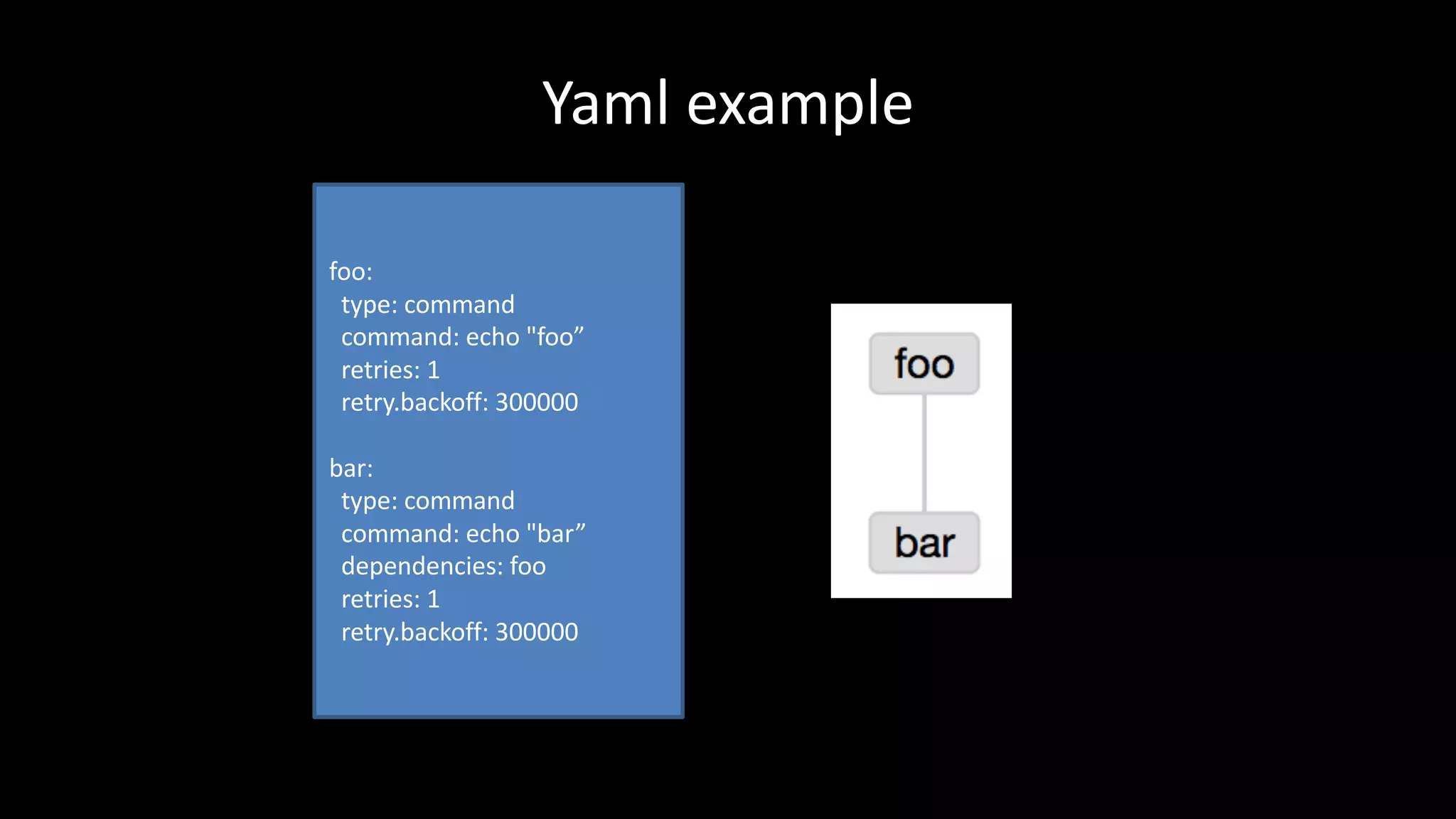

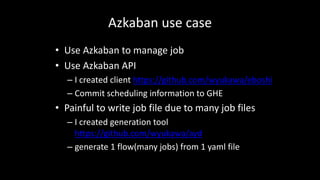

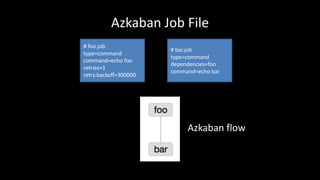

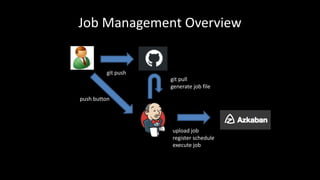

- 10. Azkaban use case • Use Azkaban to manage job • Use Azkaban API – I created client https://github.com/wyukawa/eboshi – Commit scheduling information to GHE • Painful to write job file due to many job files – I created generation tool https://github.com/wyukawa/ayd – generate 1 flow(many jobs) from 1 yaml file

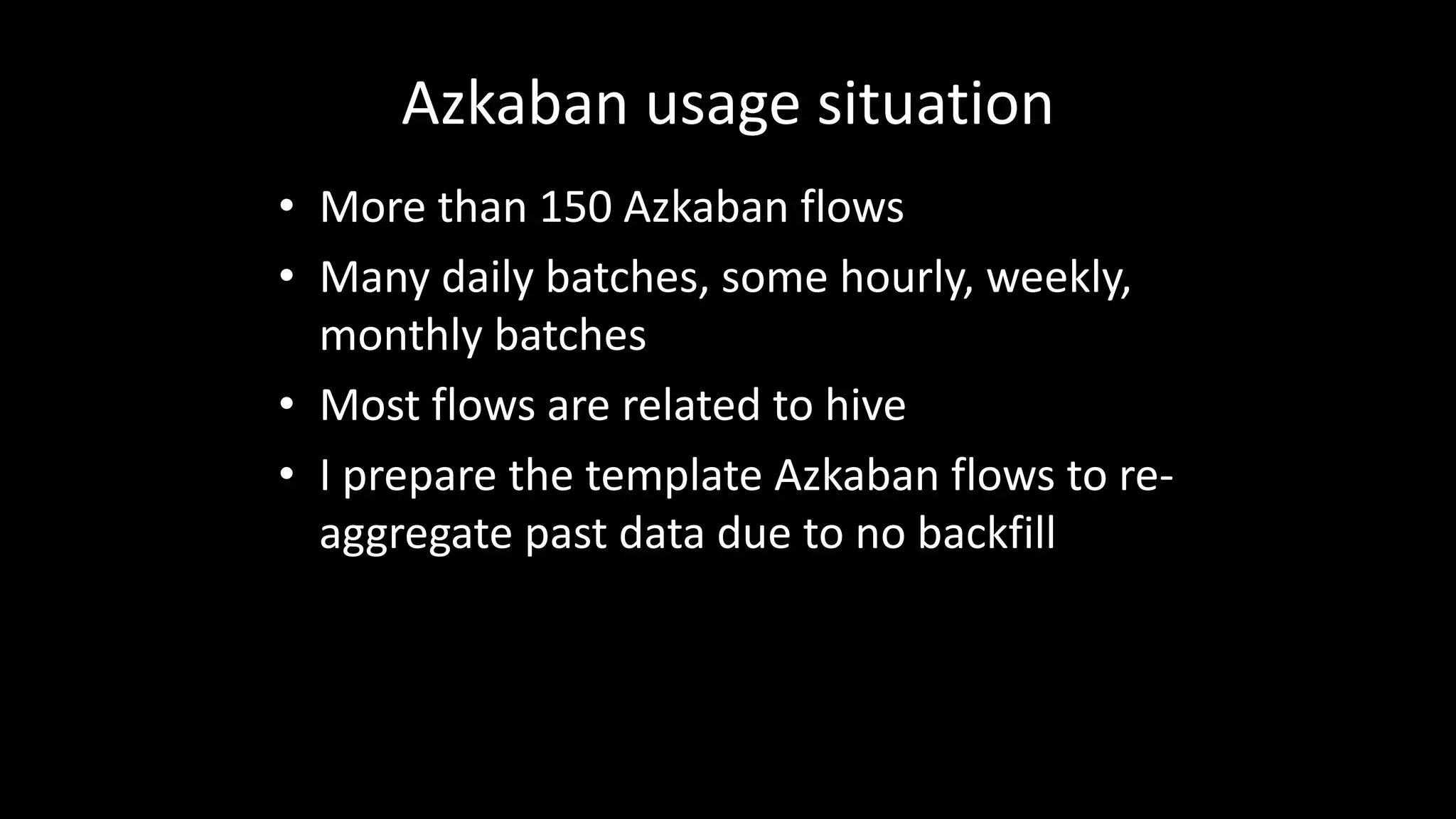

- 14. Azkaban usage situation • More than 150 Azkaban flows • Many daily batches, some hourly, weekly, monthly batches • Most flows are related to hive • I prepare the template Azkaban flows to re- aggregate past data due to no backfill

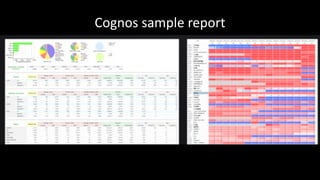

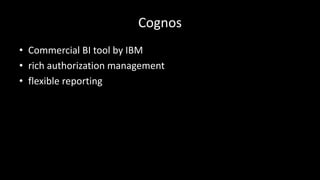

- 15. Cognos • Commercial BI tool by IBM • rich authorization management • flexible reporting

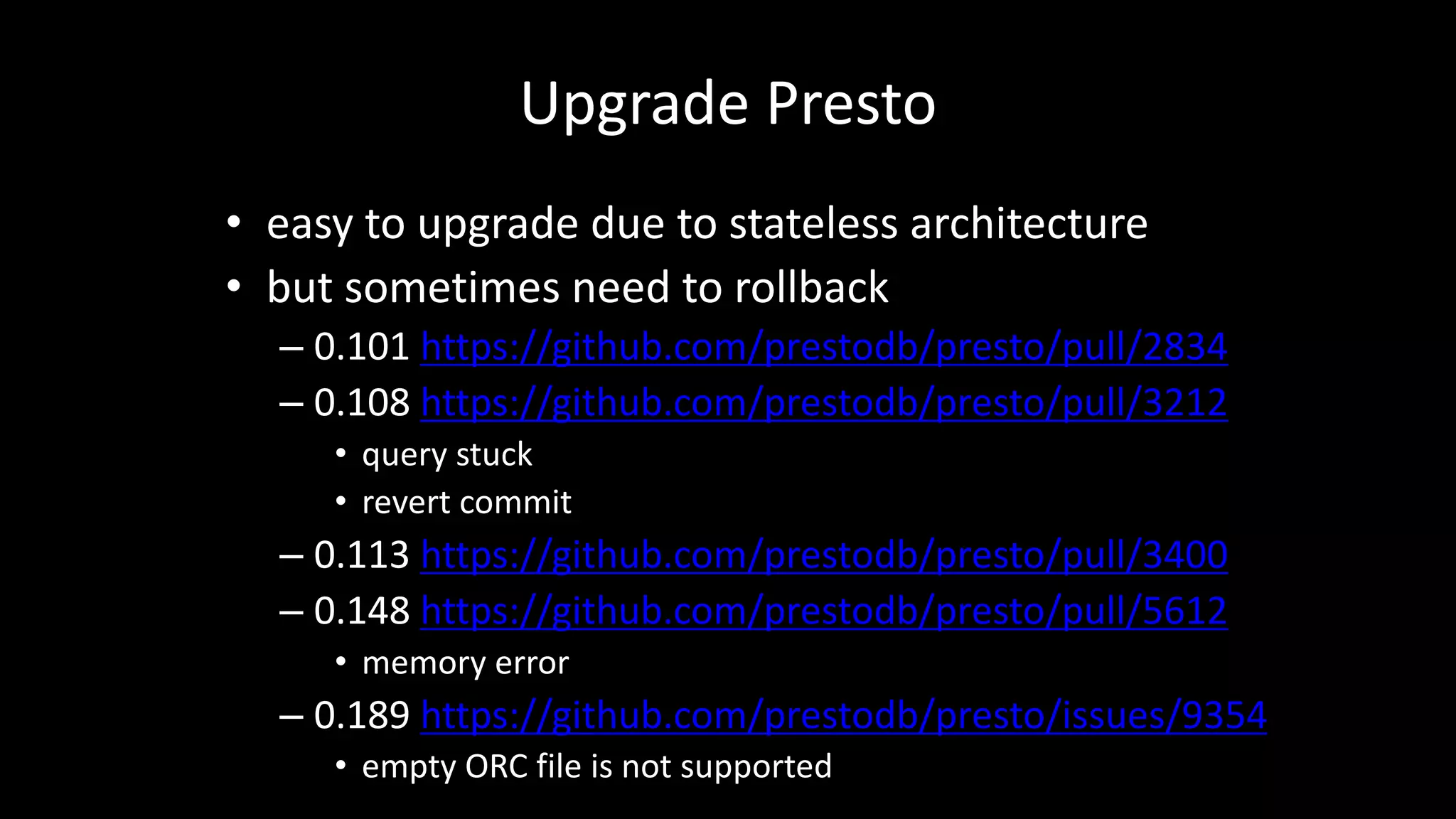

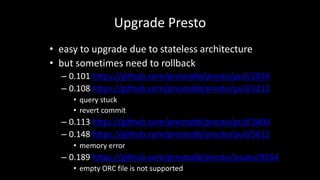

- 18. Upgrade Presto • easy to upgrade due to stateless architecture • but sometimes need to rollback – 0.101 https://github.com/prestodb/presto/pull/2834 – 0.108 https://github.com/prestodb/presto/pull/3212 • query stuck • revert commit – 0.113 https://github.com/prestodb/presto/pull/3400 – 0.148 https://github.com/prestodb/presto/pull/5612 • memory error – 0.189 https://github.com/prestodb/presto/issues/9354 • empty ORC file is not supported

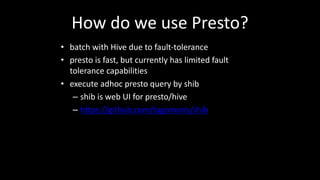

- 19. How do we use Presto? • batch with Hive due to fault-tolerance • presto is fast, but currently has limited fault tolerance capabilities • execute adhoc presto query by shib – shib is web UI for presto/hive – https://github.com/tagomoris/shib

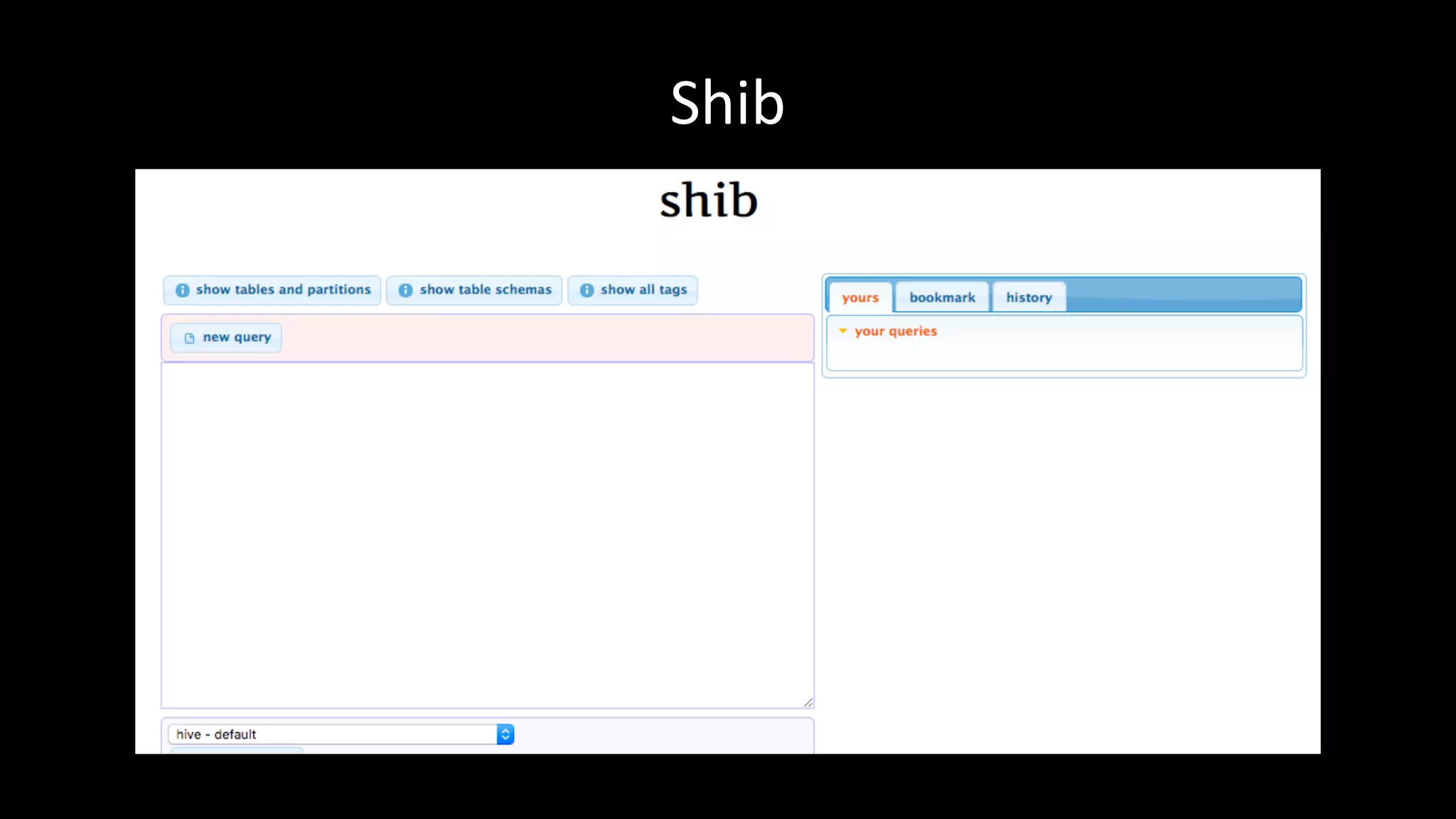

- 20. Shib

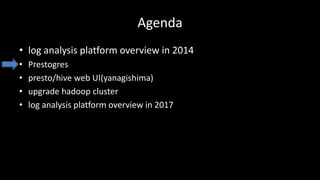

- 21. Agenda • log analysis platform overview in 2014 • Prestogres • presto/hive web UI(yanagishima) • upgrade hadoop cluster • log analysis platform overview in 2017

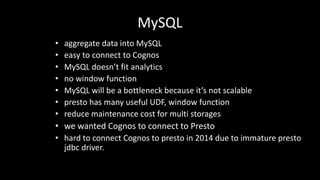

- 23. MySQL • aggregate data into MySQL • easy to connect to Cognos • MySQL doesn’t fit analytics • no window function • MySQL will be a bottleneck because it’s not scalable • presto has many useful UDF, window function • reduce maintenance cost for multi storages • we wanted Cognos to connect to Presto • hard to connect Cognos to presto in 2014 due to immature presto jdbc driver.

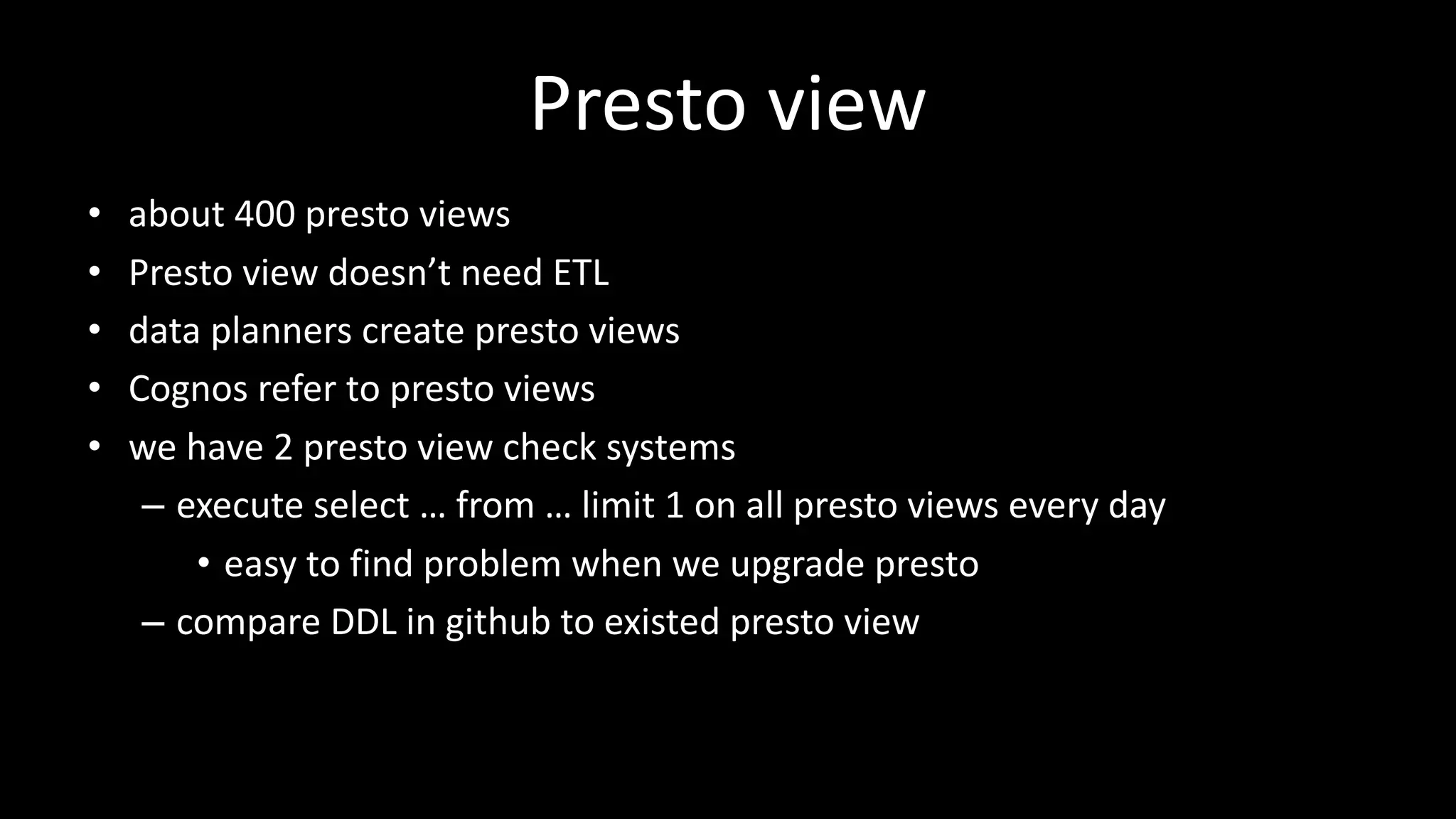

- 27. Presto view • about 400 presto views • Presto view doesn’t need ETL • data planners create presto views • Cognos refer to presto views • we have 2 presto view check systems – execute select … from … limit 1 on all presto views every day • easy to find problem when we upgrade presto – compare DDL in github to existed presto view

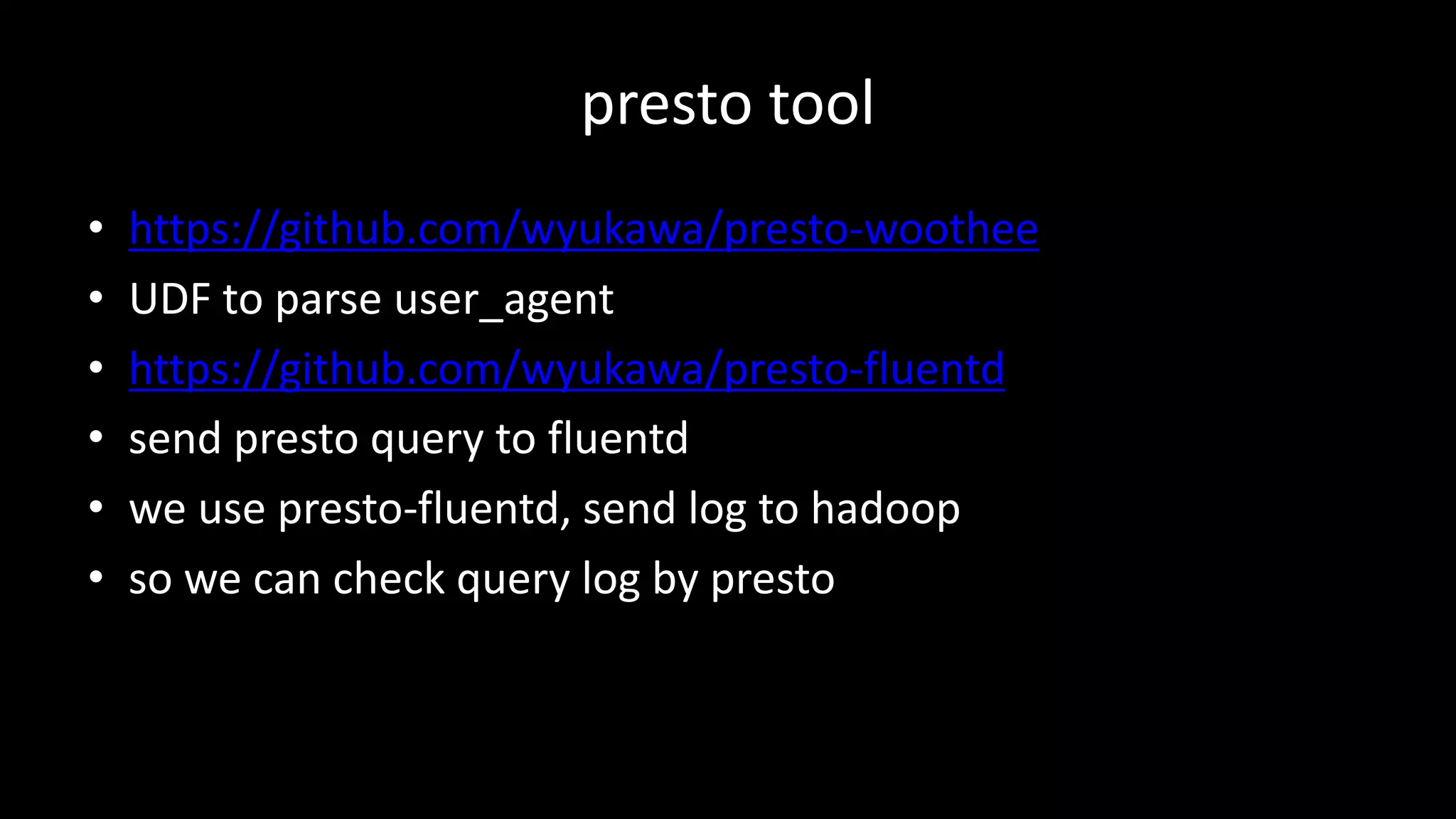

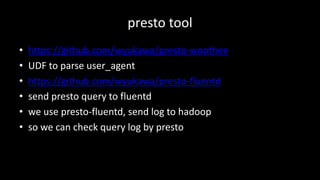

- 28. presto tool • https://github.com/wyukawa/presto-woothee • UDF to parse user_agent • https://github.com/wyukawa/presto-fluentd • send presto query to fluentd • we use presto-fluentd, send log to hadoop • so we can check query log by presto

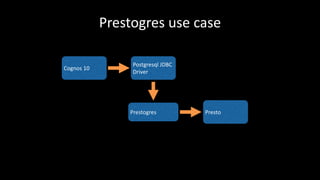

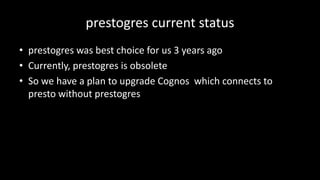

- 29. prestogres current status • prestogres was best choice for us 3 years ago • Currently, prestogres is obsolete • So we have a plan to upgrade Cognos which connects to presto without prestogres

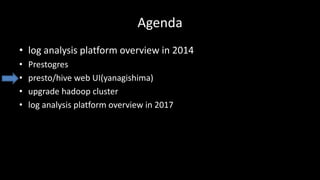

- 30. Agenda • log analysis platform overview in 2014 • Prestogres • presto/hive web UI(yanagishima) • upgrade hadoop cluster • log analysis platform overview in 2017

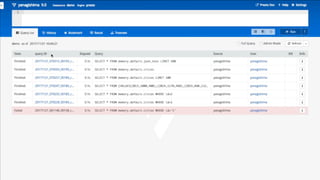

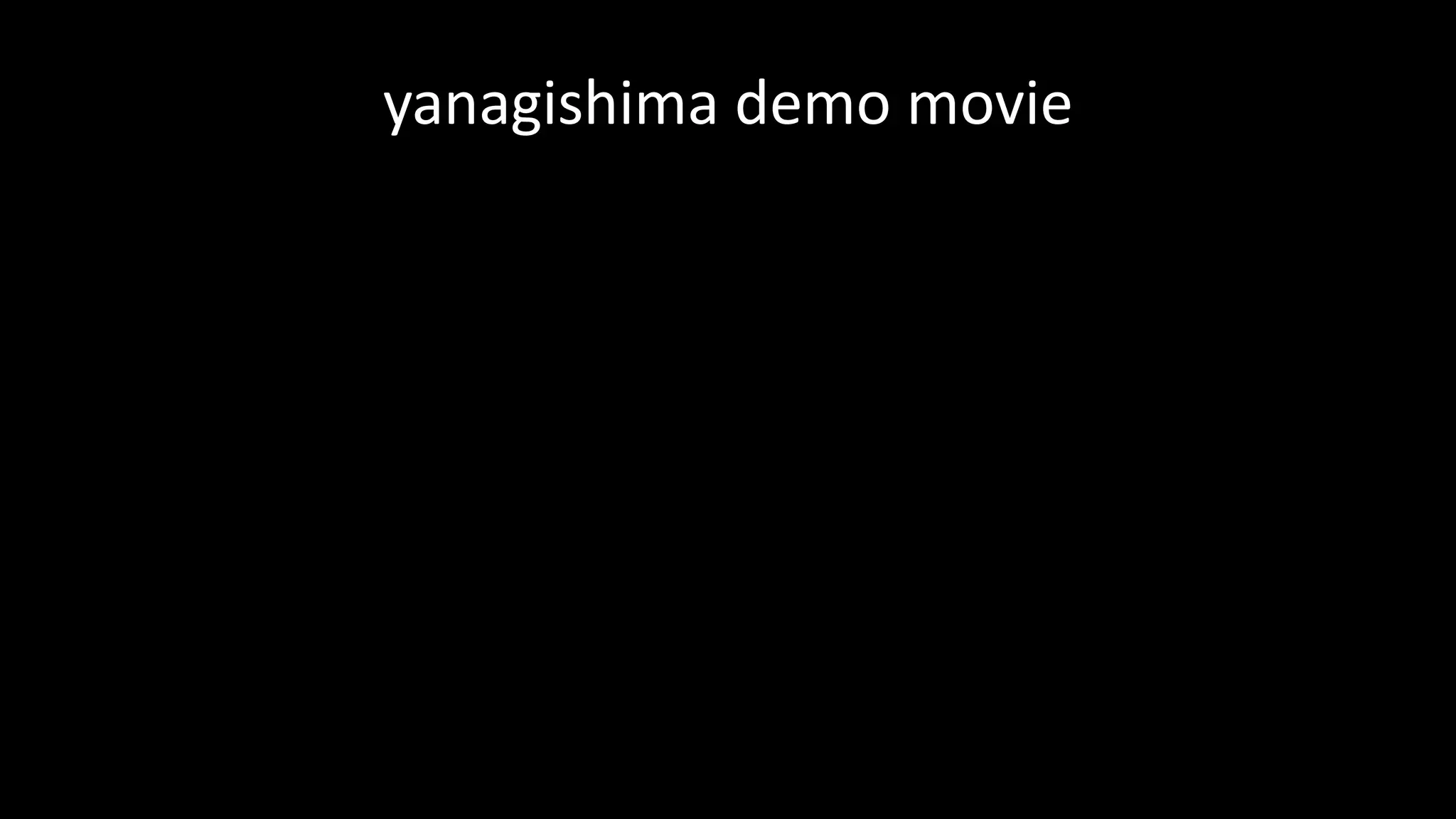

- 31. yanagishima • Presto/Hive web UI • started in 2015 because data planners execute ad hoc query more easily • UI export joined in 2017 • easy to use/install • share query with permanent link • chart • handle multiple clusters • https://github.com/yanagishima/yanagishima

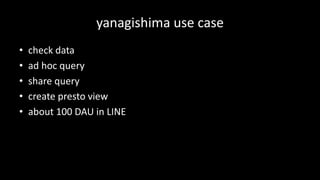

- 34. yanagishima use case • check data • ad hoc query • share query • create presto view • about 100 DAU in LINE

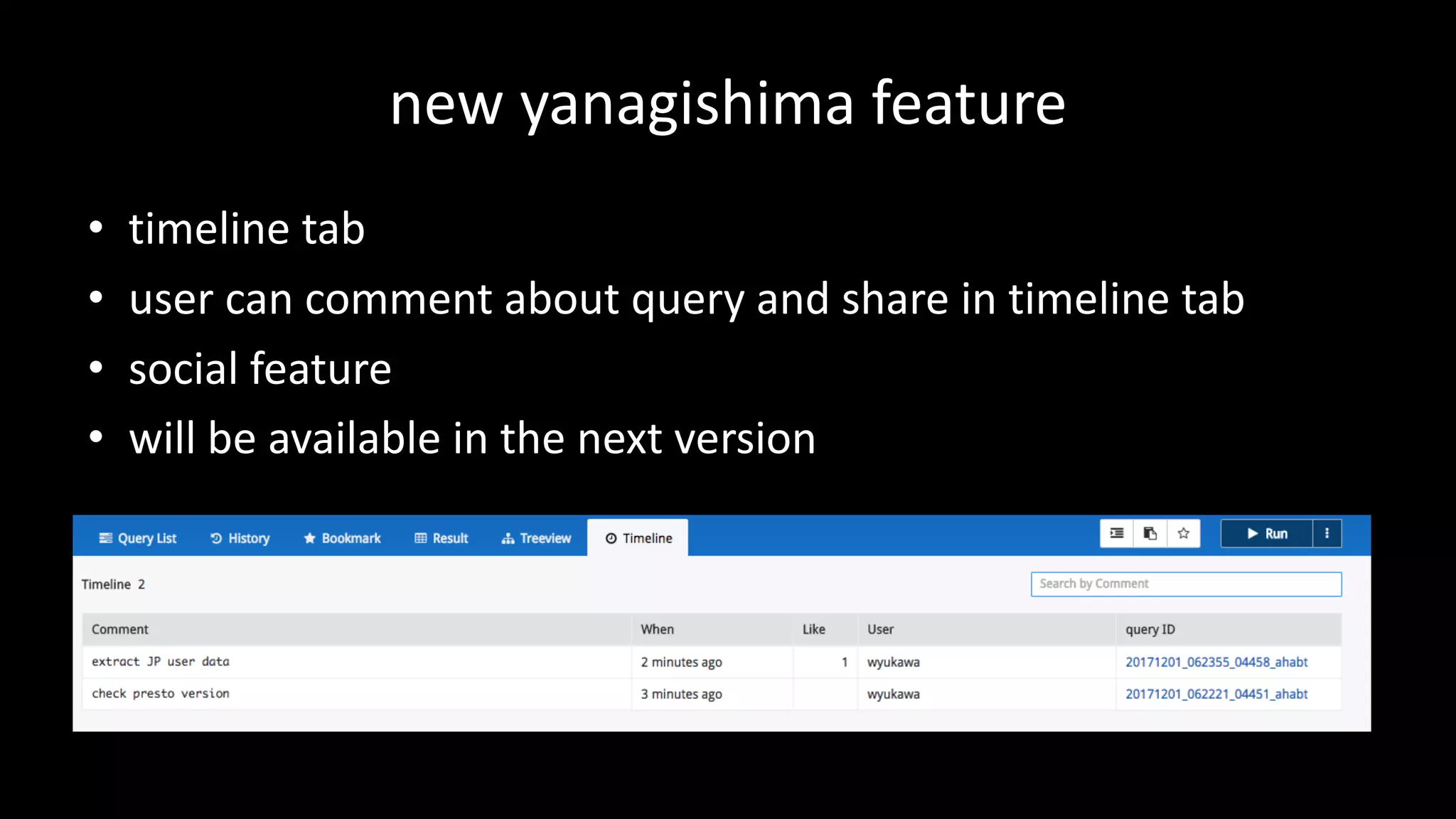

- 35. new yanagishima feature • timeline tab • user can comment about query and share in timeline tab • social feature • will be available in the next version

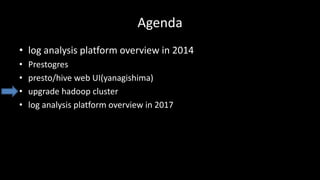

- 36. Agenda • log analysis platform overview in 2014 • Prestogres • presto/hive web UI(yanagishima) • upgrade hadoop cluster • log analysis platform overview in 2017

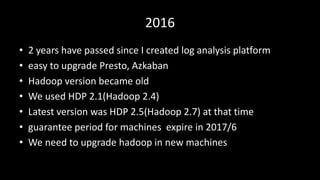

- 38. 2016 • 2 years have passed since I created log analysis platform • easy to upgrade Presto, Azkaban • Hadoop version became old • We used HDP 2.1(Hadoop 2.4) • Latest version was HDP 2.5(Hadoop 2.7) at that time • guarantee period for machines expire in 2017/6 • We need to upgrade hadoop in new machines

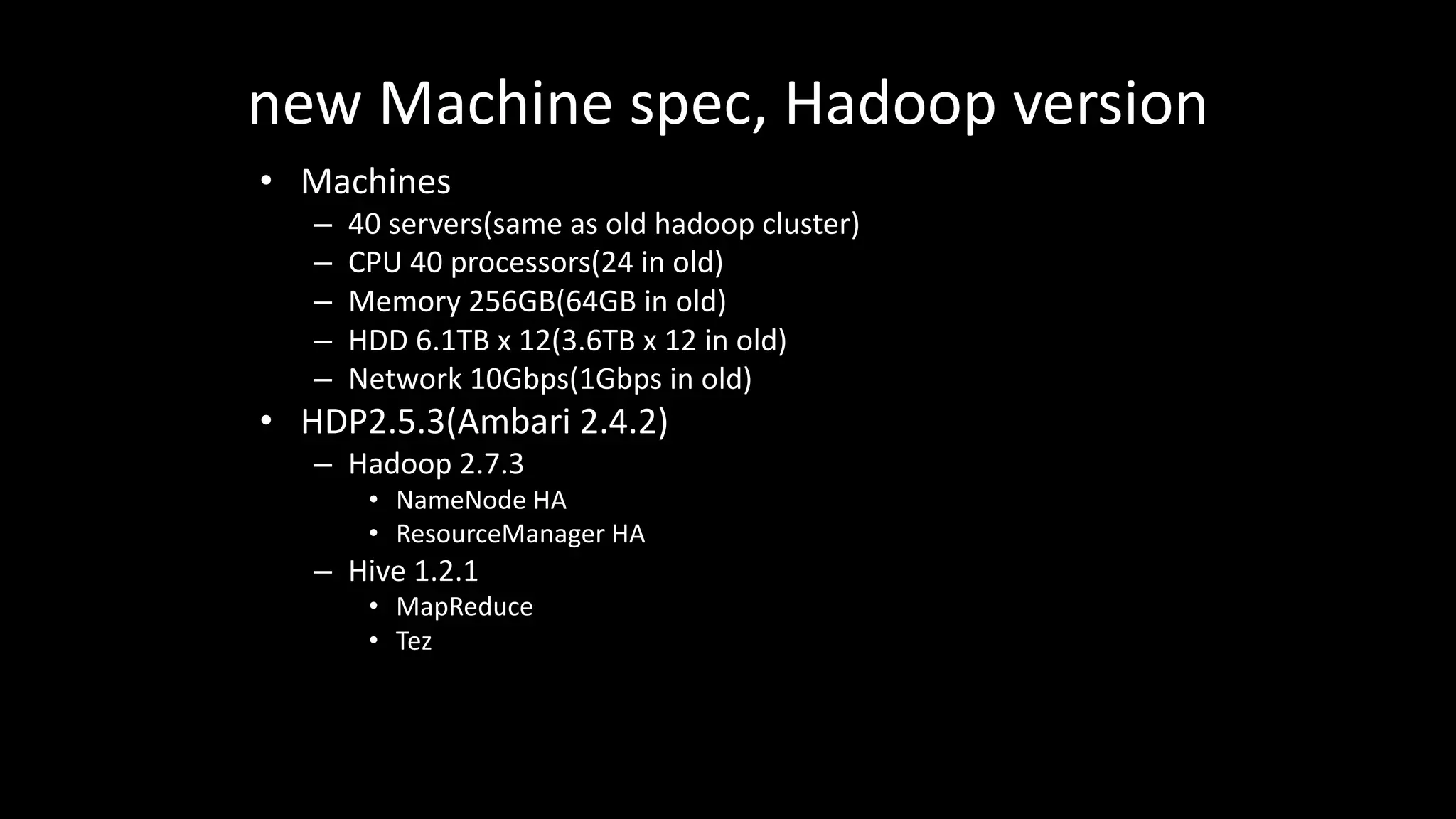

- 39. new Machine spec, Hadoop version • Machines – 40 servers(same as old hadoop cluster) – CPU 40 processors(24 in old) – Memory 256GB(64GB in old) – HDD 6.1TB x 12(3.6TB x 12 in old) – Network 10Gbps(1Gbps in old) • HDP2.5.3(Ambari 2.4.2) – Hadoop 2.7.3 • NameNode HA • ResourceManager HA – Hive 1.2.1 • MapReduce • Tez

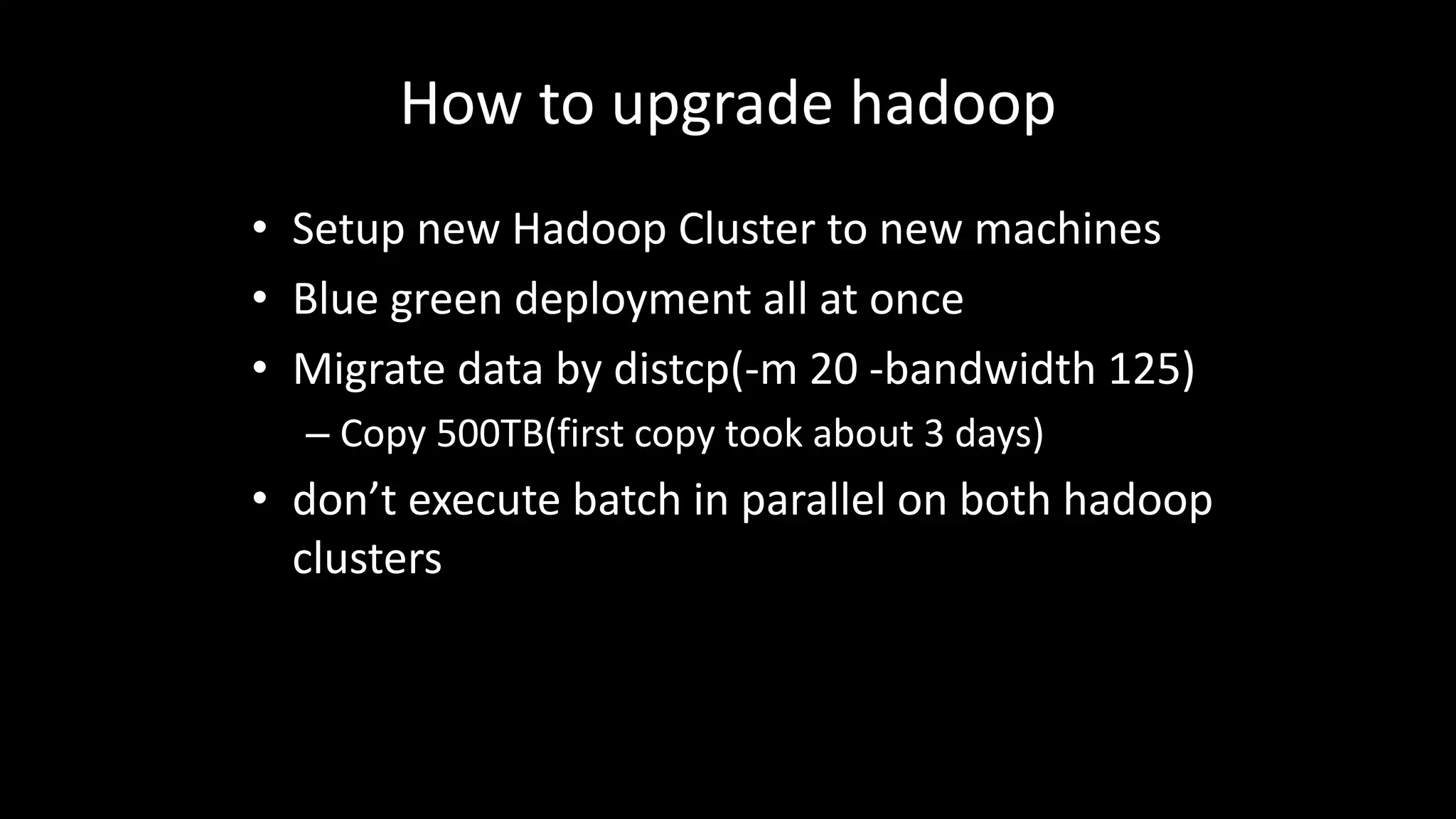

- 40. How to upgrade hadoop • Setup new Hadoop Cluster to new machines • Blue green deployment all at once • Migrate data by distcp(-m 20 -bandwidth 125) – Copy 500TB(first copy took about 3 days) • don’t execute batch in parallel on both hadoop clusters

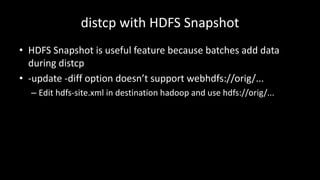

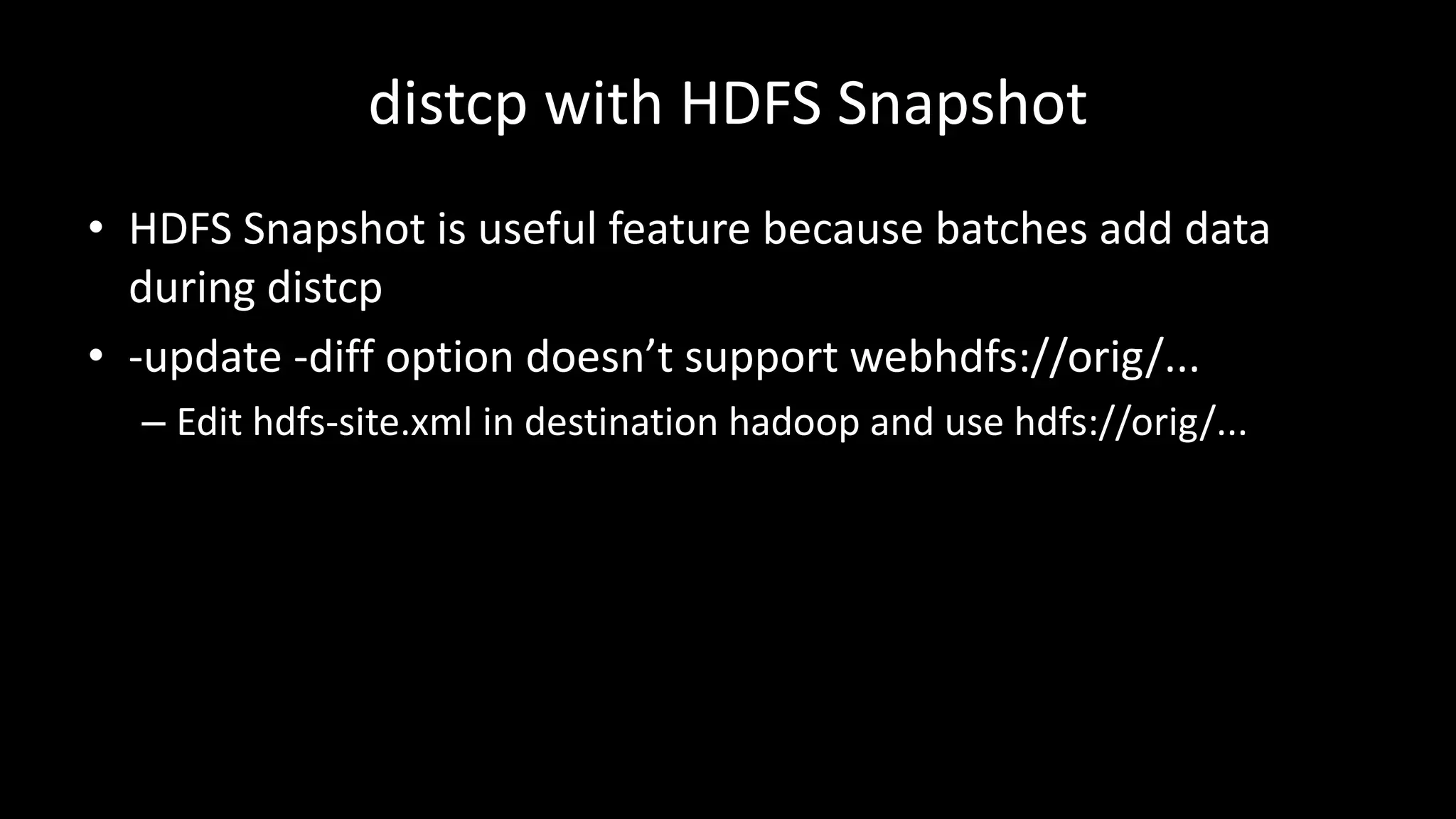

- 41. distcp with HDFS Snapshot • HDFS Snapshot is useful feature because batches add data during distcp • -update -diff option doesn’t support webhdfs://orig/... – Edit hdfs-site.xml in destination hadoop and use hdfs://orig/...
- 42. Migrate Hive schema • Use show create table command • Use msck repair command to add partition – But it didn’t work in too many(for example, 4000) partition tables • Use webhdfs://... in external table – can’t use hdfs://… – but empty returns when you select by presto – need to add jersey-bundle-1.19.3.jar due to NoClassDefFoundError – https://groups.google.com/forum/#!topic/presto- users/HXMW4XtmYf8

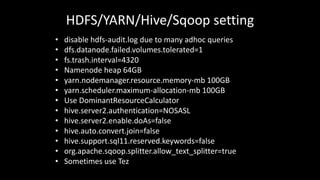

- 43. HDFS/YARN/Hive/Sqoop setting • disable hdfs-audit.log due to many adhoc queries • dfs.datanode.failed.volumes.tolerated=1 • fs.trash.interval=4320 • Namenode heap 64GB • yarn.nodemanager.resource.memory-mb 100GB • yarn.scheduler.maximum-allocation-mb 100GB • Use DominantResourceCalculator • hive.server2.authentication=NOSASL • hive.server2.enable.doAs=false • hive.auto.convert.join=false • hive.support.sql11.reserved.keywords=false • org.apache.sqoop.splitter.allow_text_splitter=true • Sometimes use Tez

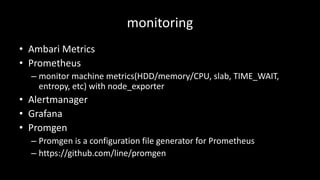

- 44. monitoring • Ambari Metrics • Prometheus – monitor machine metrics(HDD/memory/CPU, slab, TIME_WAIT, entropy, etc) with node_exporter • Alertmanager • Grafana • Promgen – Promgen is a configuration file generator for Prometheus – https://github.com/line/promgen
- 45. My feeling about upgrading hadoop • If you upgrade hadoop with many batches(for example, more than 100 azkaban flows), many errors will occur the next day • We can’t confirm result of new hadoop immediately because batches are scheduled – highly recommend to upgrade on first half of the week. We upgraded on Tuesday. – If you upgrade on Friday, you will work on Saturday. – share jobs with your colleagues to address batch error • If you do such kind jobs alone, you will be overwhelmed

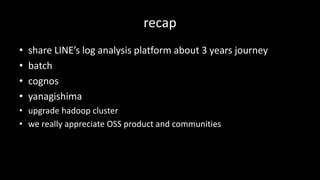

- 47. recap • share LINE’s log analysis platform about 3 years journey • batch • cognos • yanagishima • upgrade hadoop cluster • we really appreciate OSS product and communities
- 48. Any questions?
