The document contains descriptions of two lines with given dimensions and positions in space. It asks to draw the projections of the lines onto the horizontal and vertical planes and find the true inclinations of the lines relative to these planes. For the first line, it is 80 mm long with one end 10 mm above and 15 mm in front of the reference planes. The second line is 85 mm long with one end 25 mm above and 20 mm in front of the planes, and its projections onto the planes have given lengths.

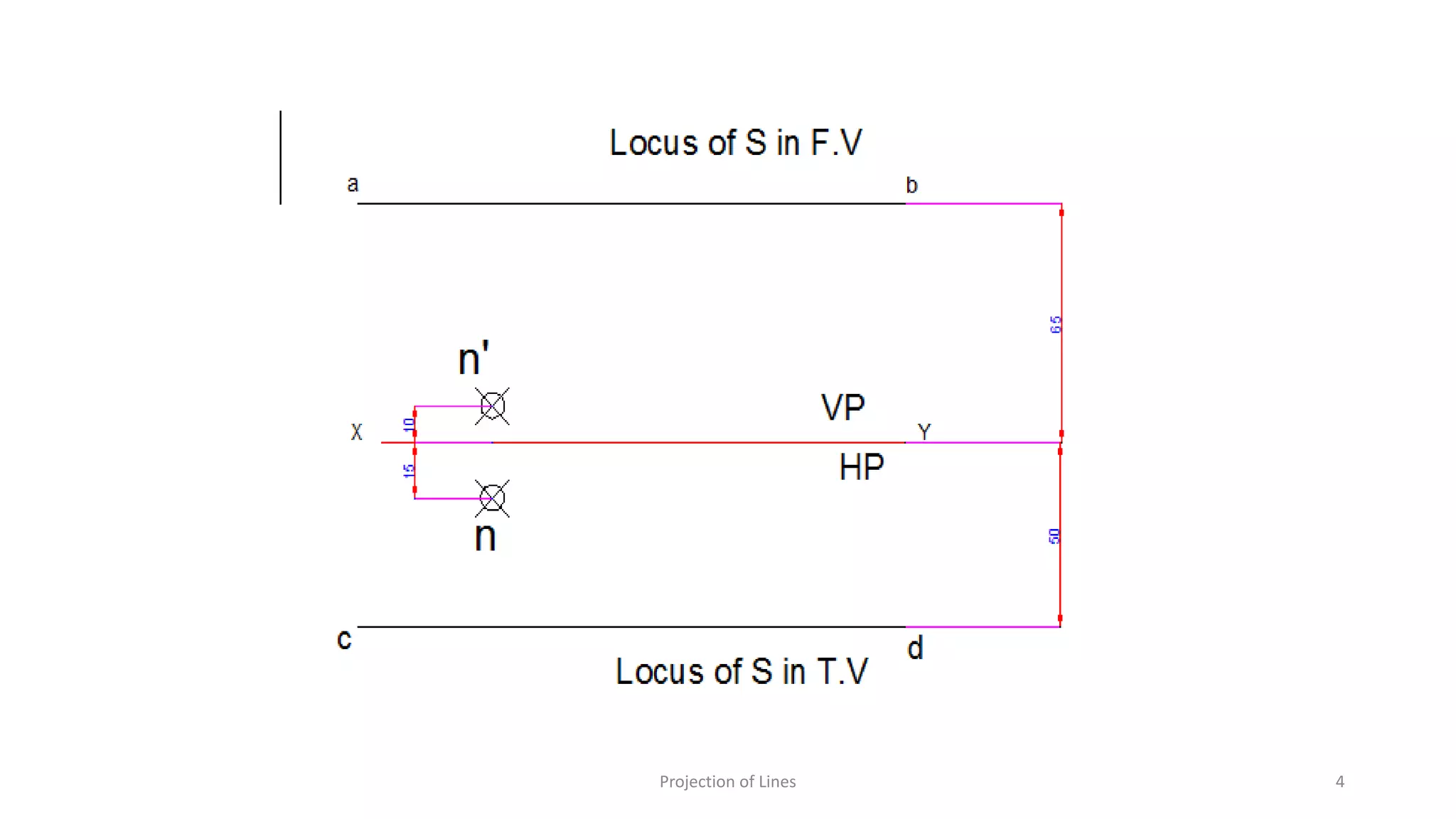

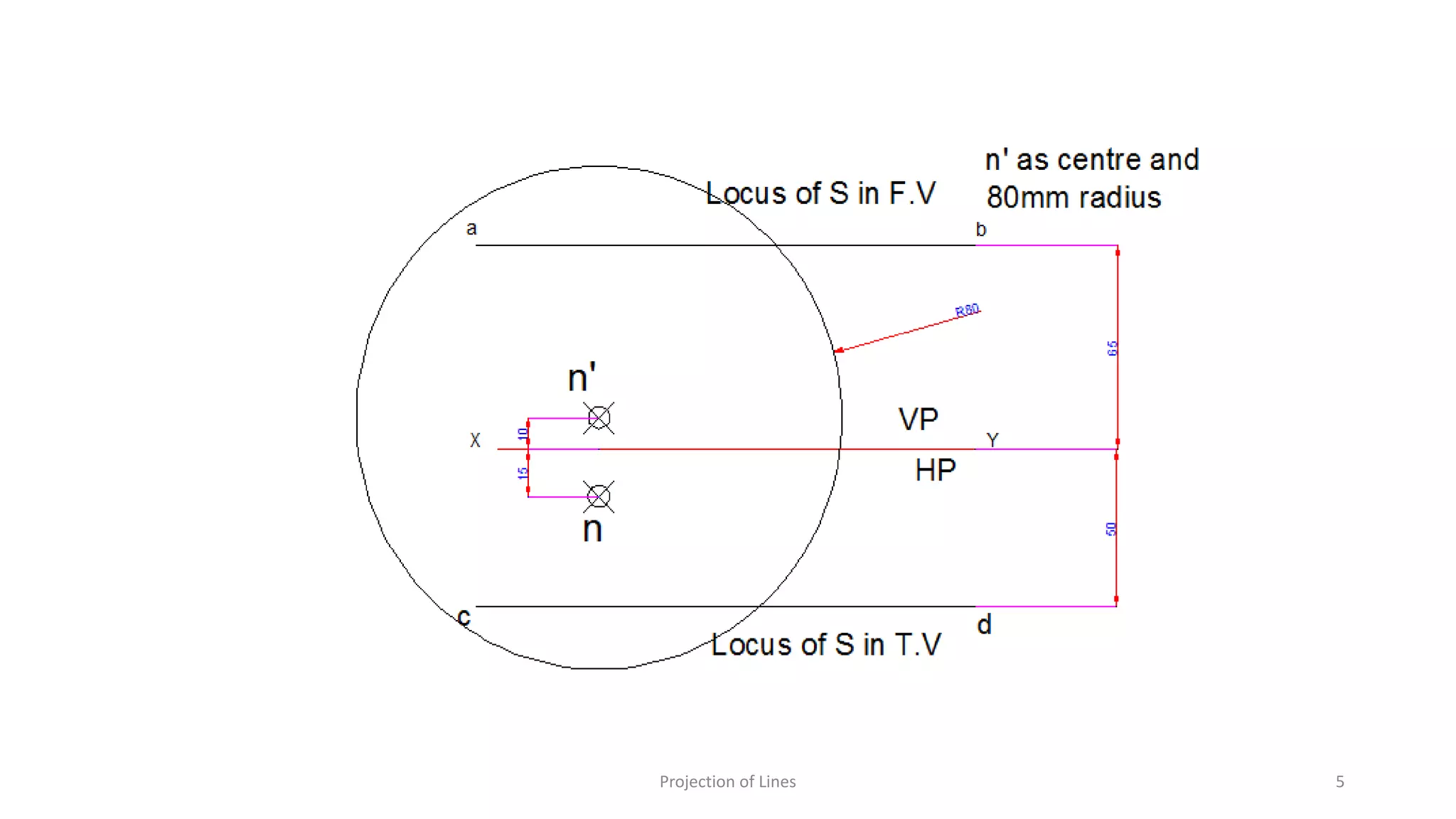

1. 1.A line NS, 80 mm long has its end N, 10 mm above
the HP and 15 mm in front of the VP. The other end S
is 65 mm above the HP and 50 mm in front of the VP.
Draw the projections of the line and find its true
inclinations with the HP and VP
Projection of Lines 1

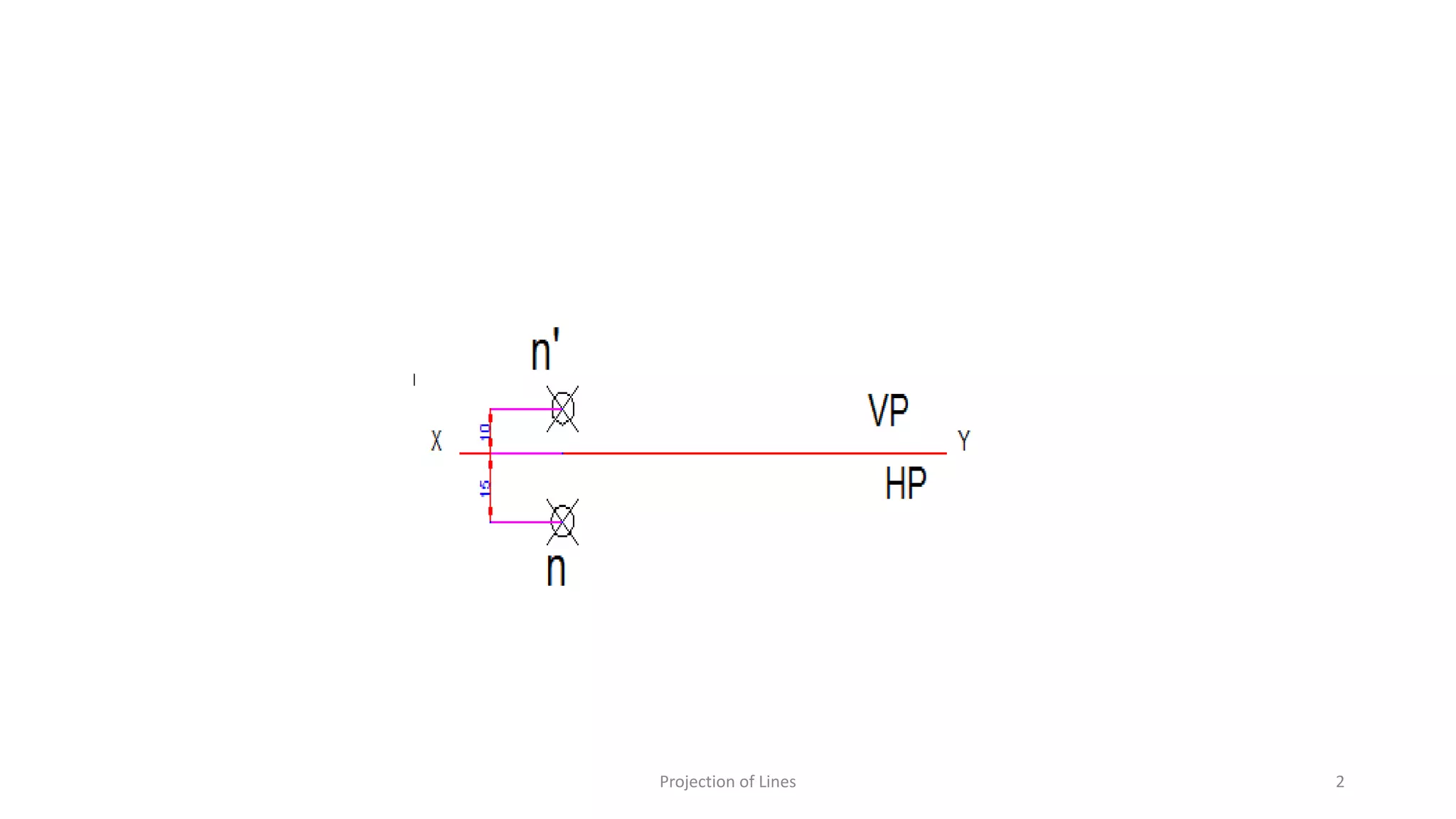

2. Projection of Lines 2

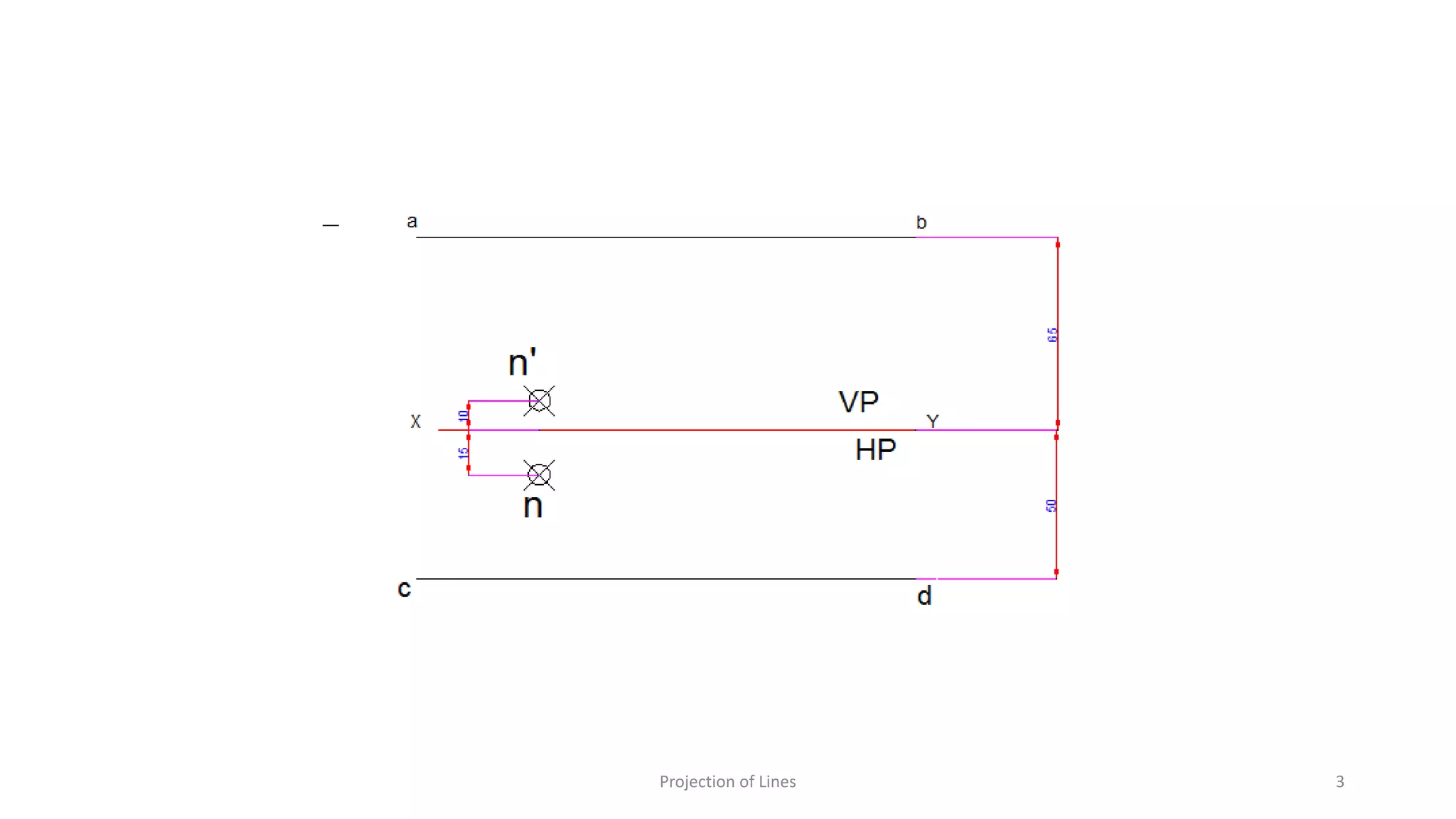

3. Projection of Lines 3

4. Projection of Lines 4

5. Projection of Lines 5

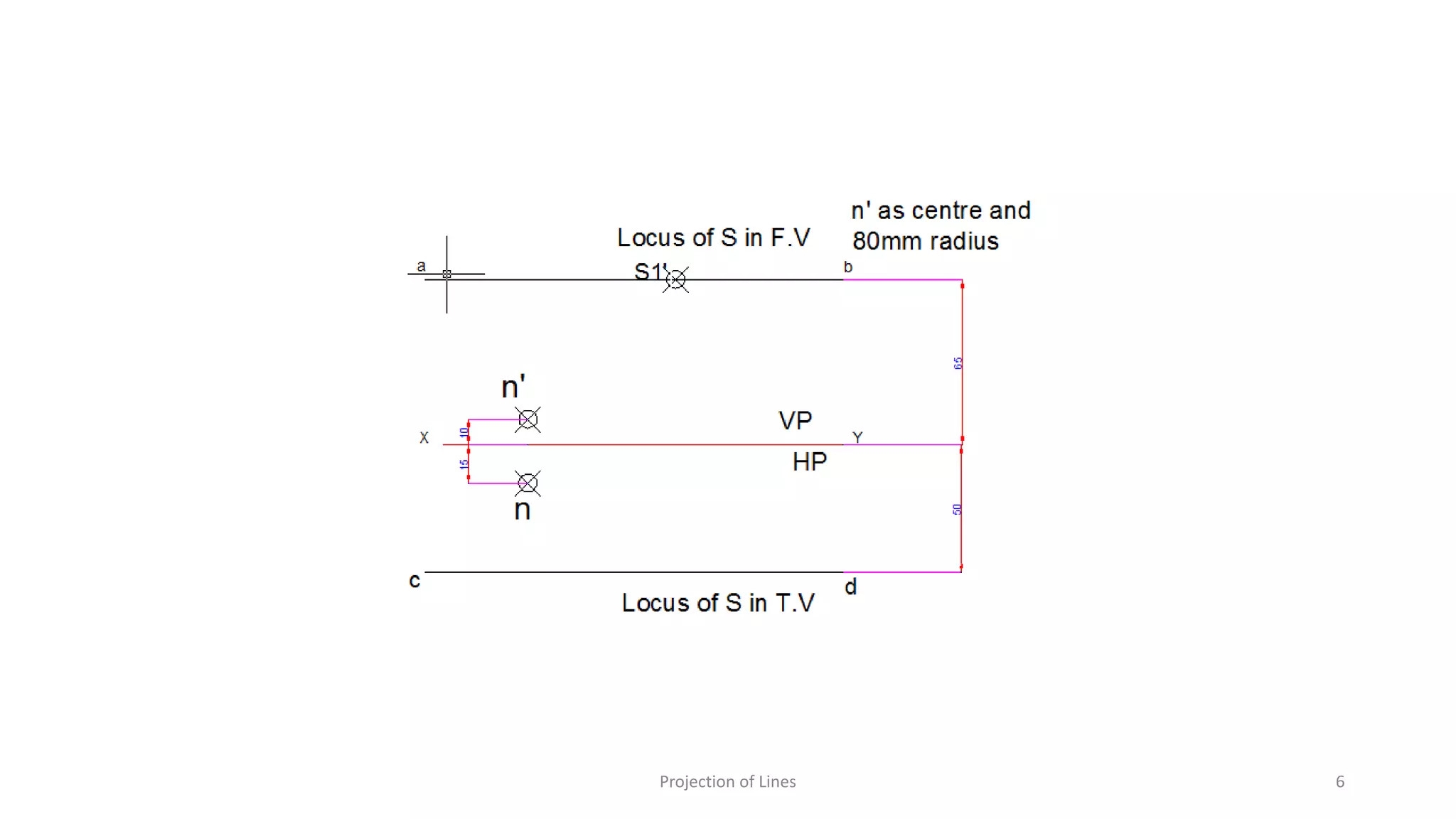

6. Projection of Lines 6

7. Projection of Lines 7

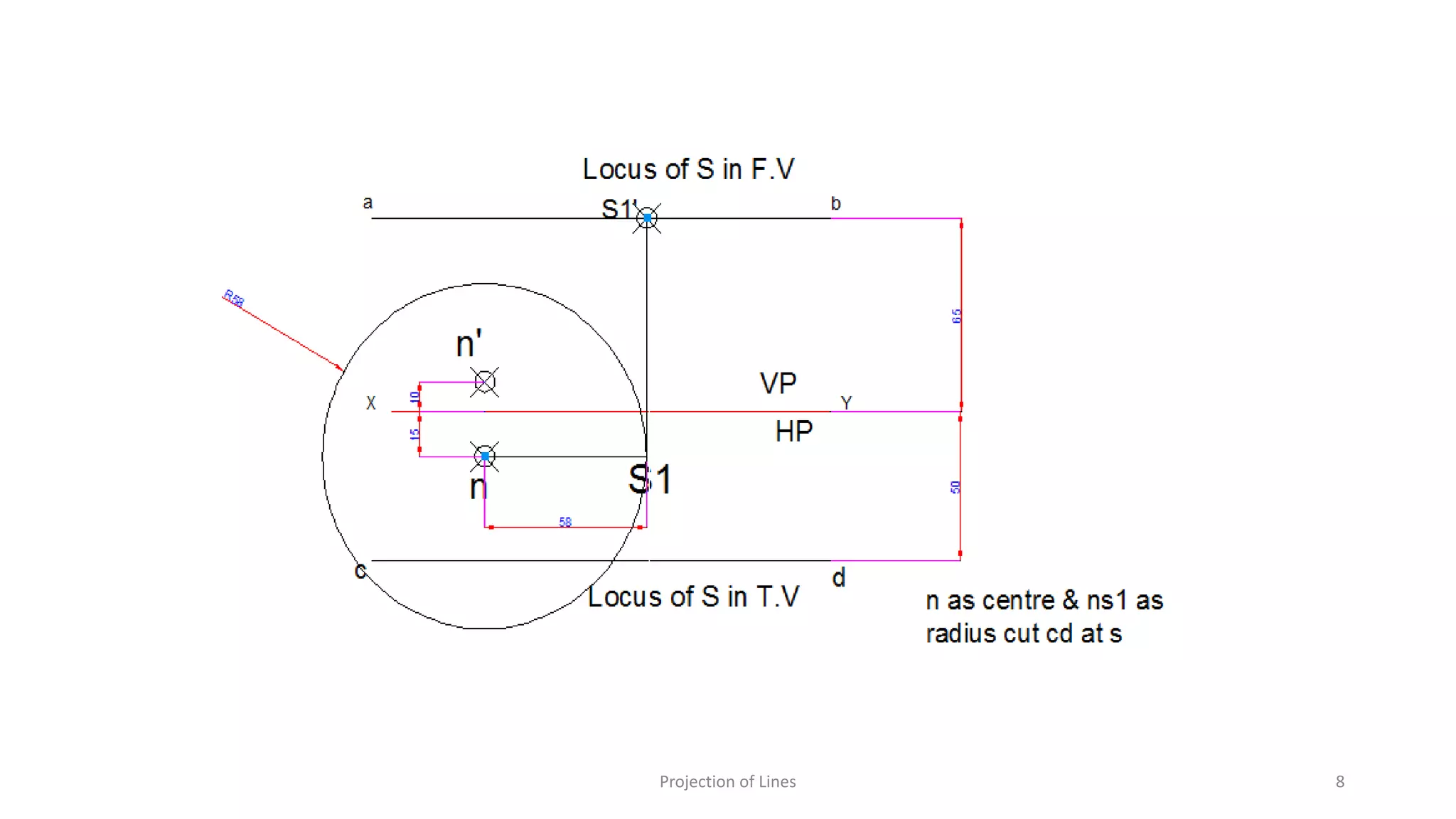

8. Projection of Lines 8

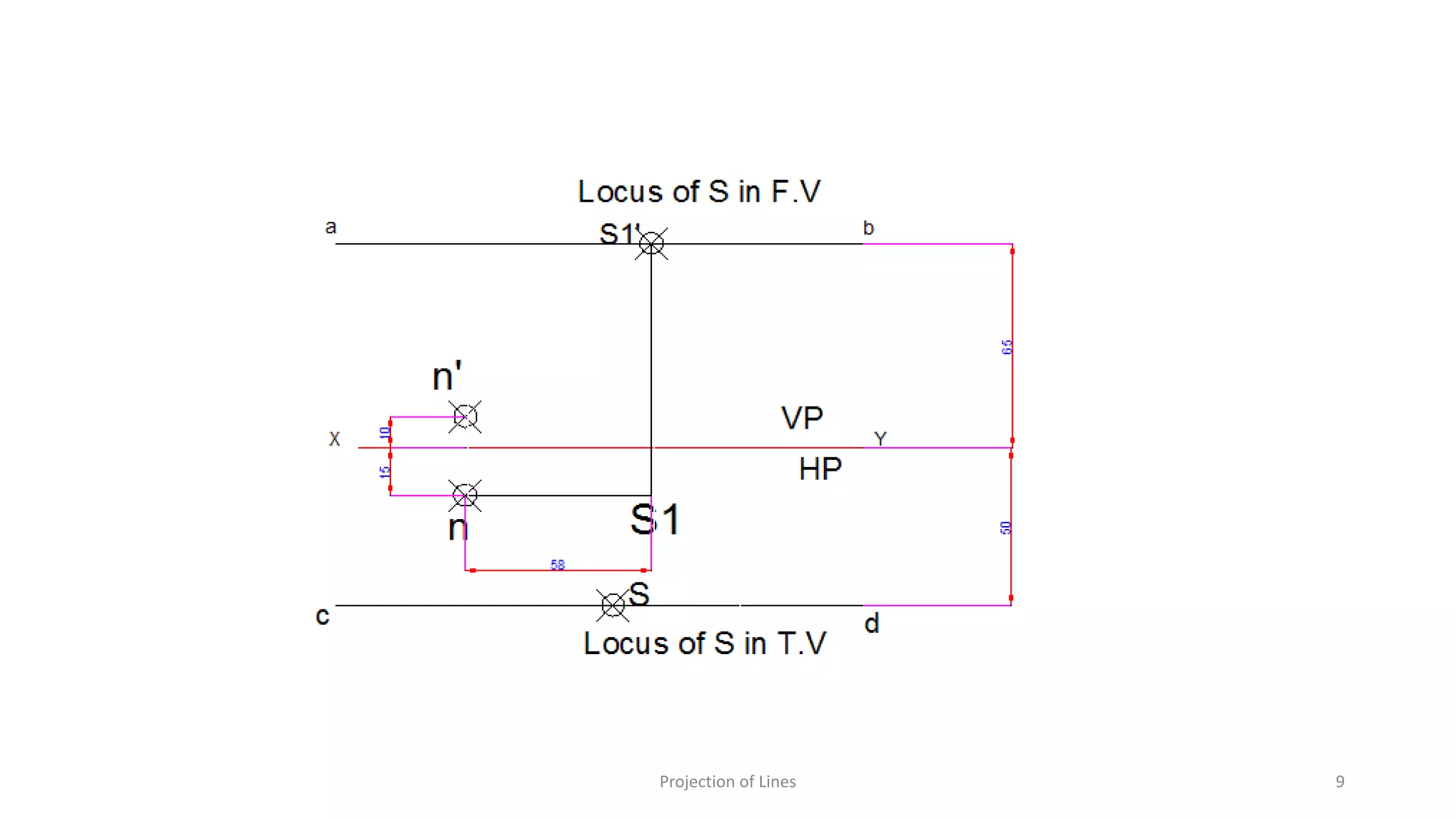

9. Projection of Lines 9

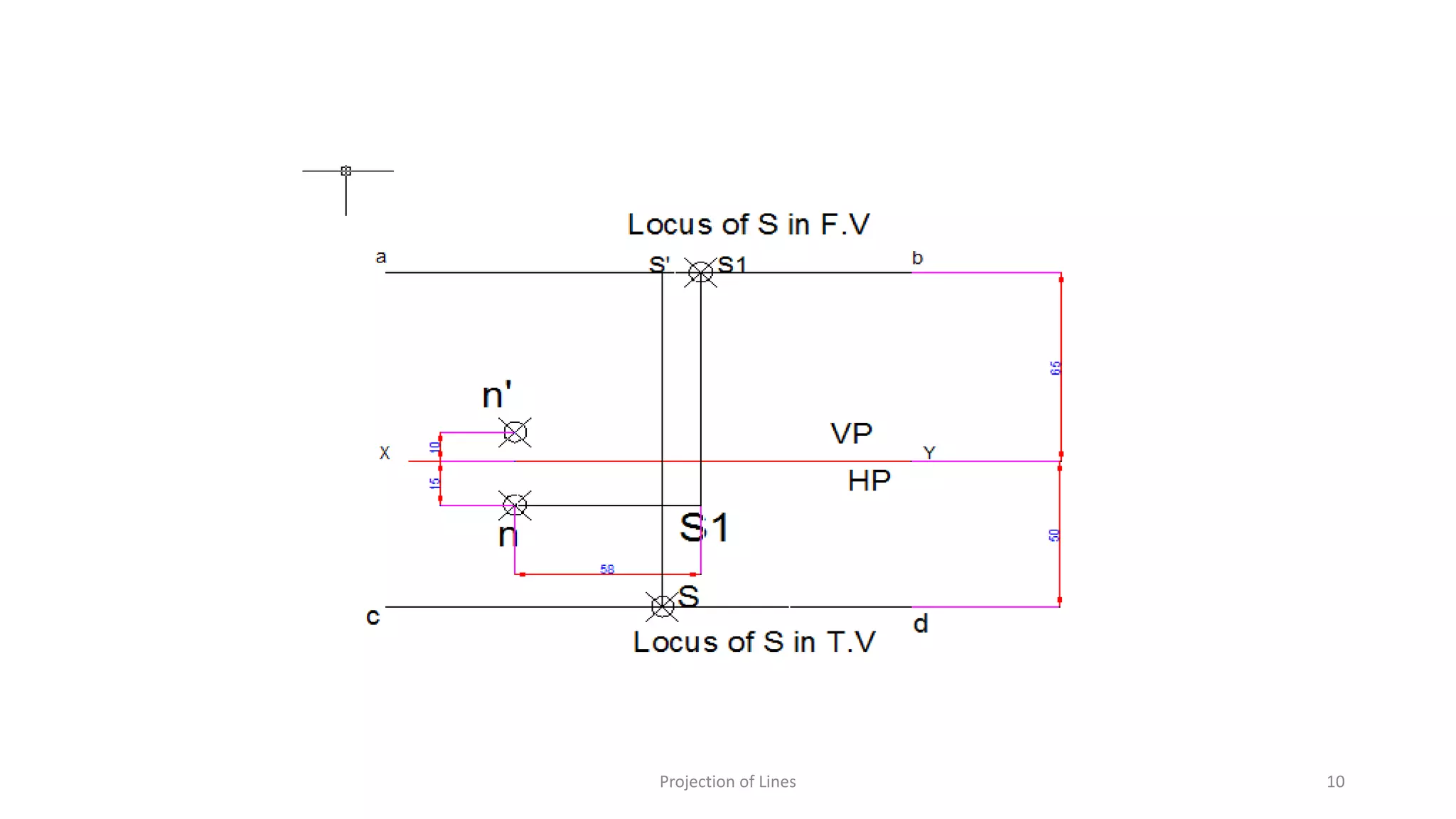

10. Projection of Lines 10

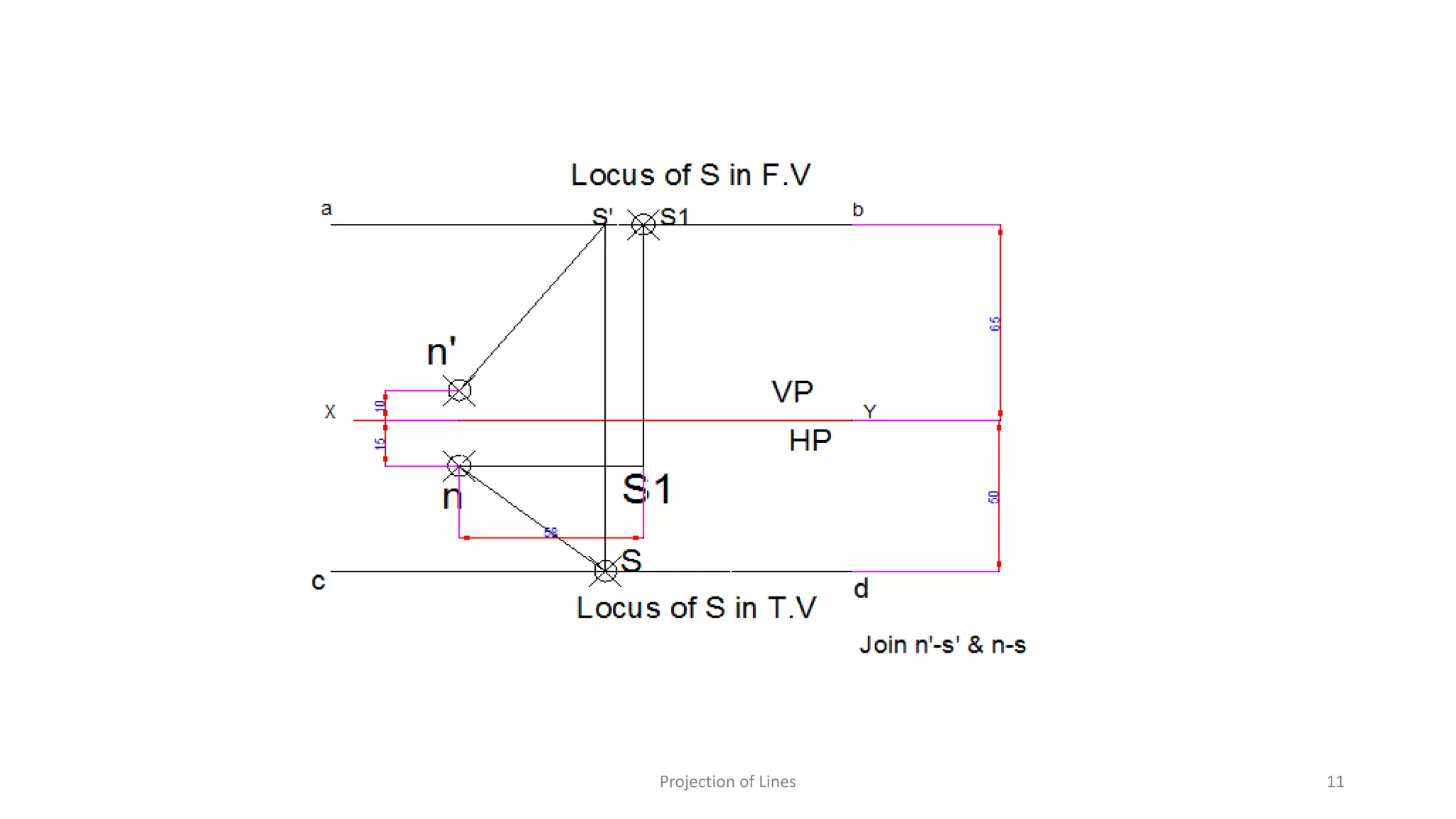

11. Projection of Lines 11

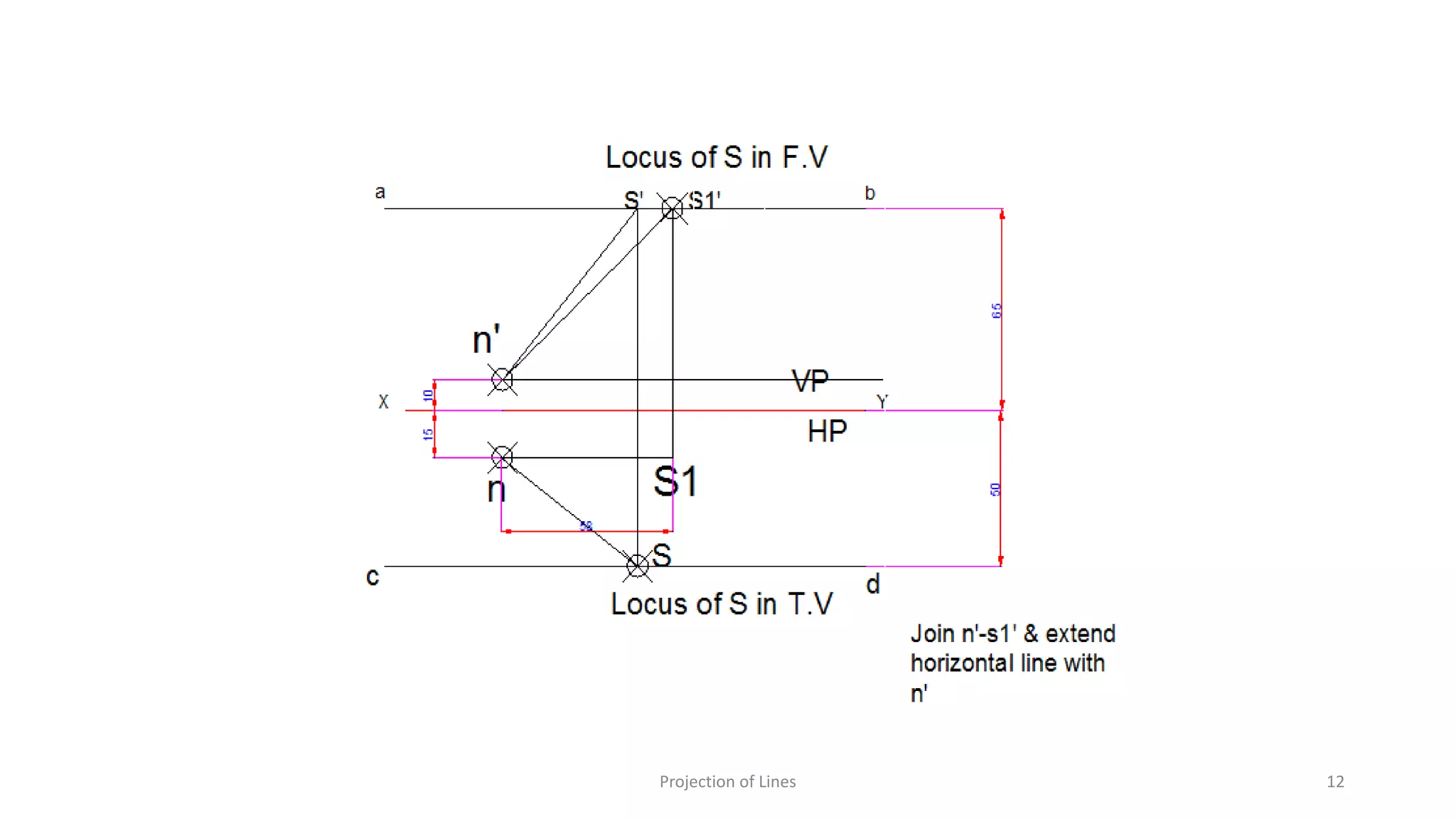

12. Projection of Lines 12

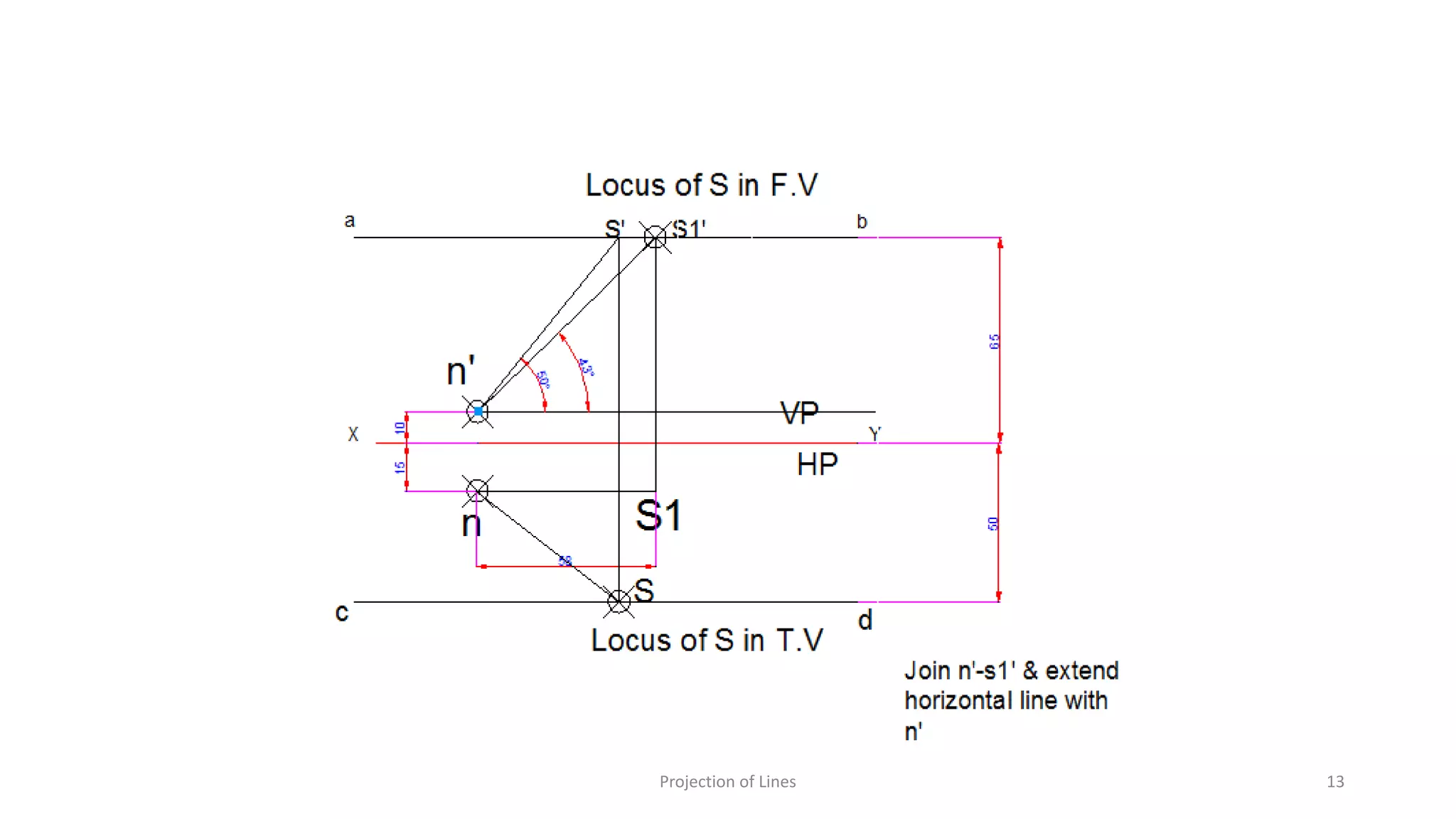

13. Projection of Lines 13

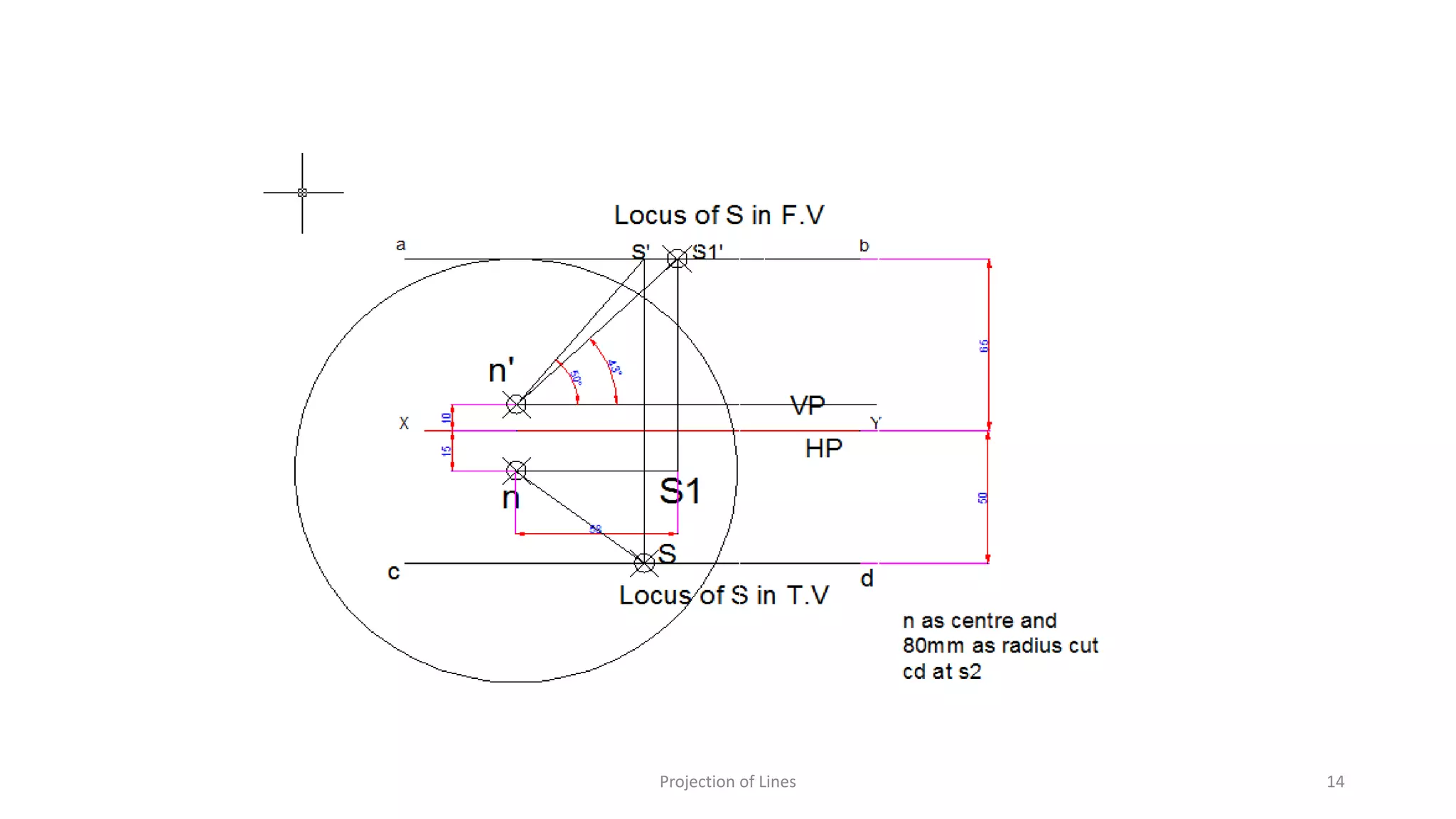

14. Projection of Lines 14

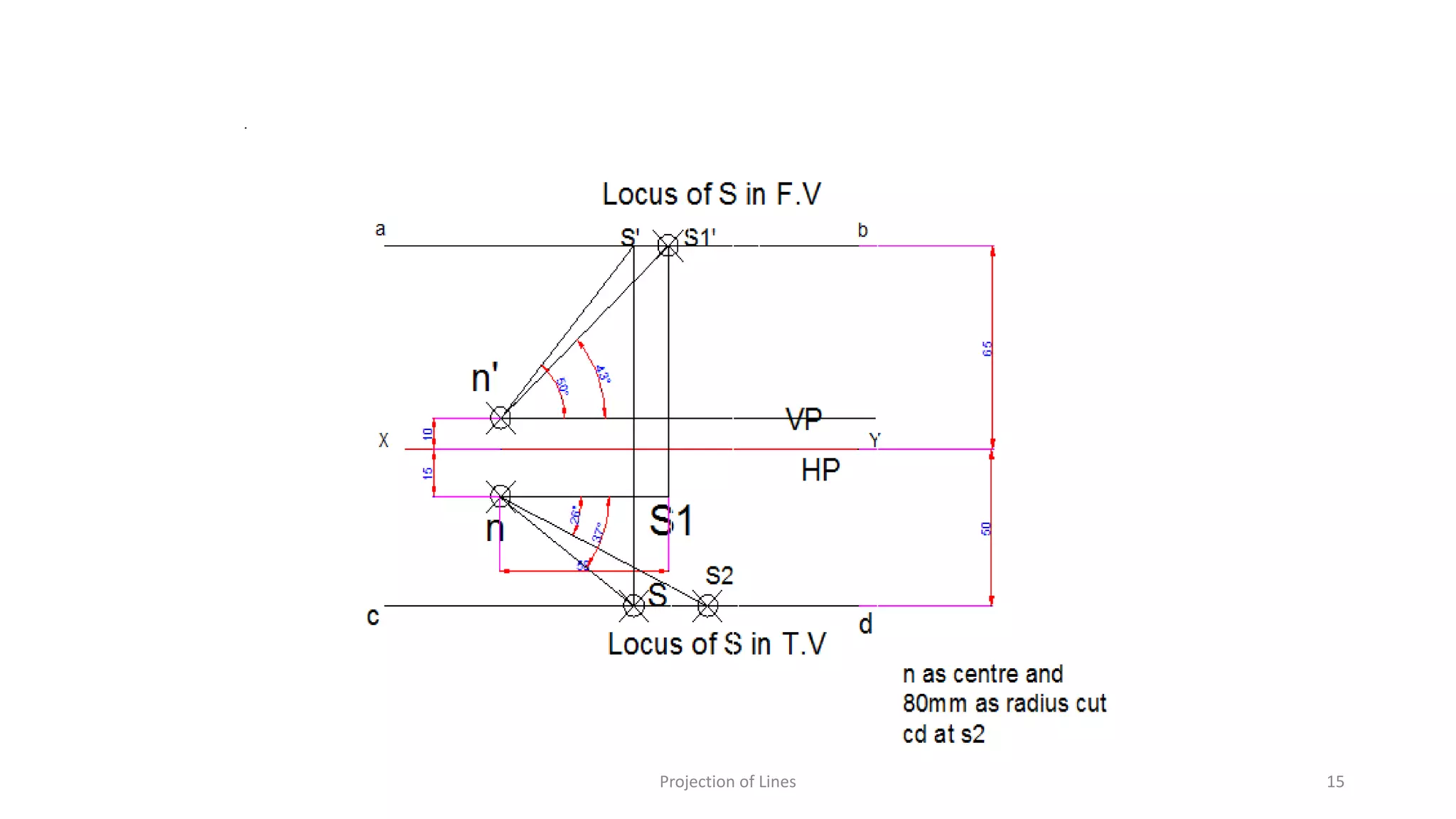

15. Projection of Lines 15

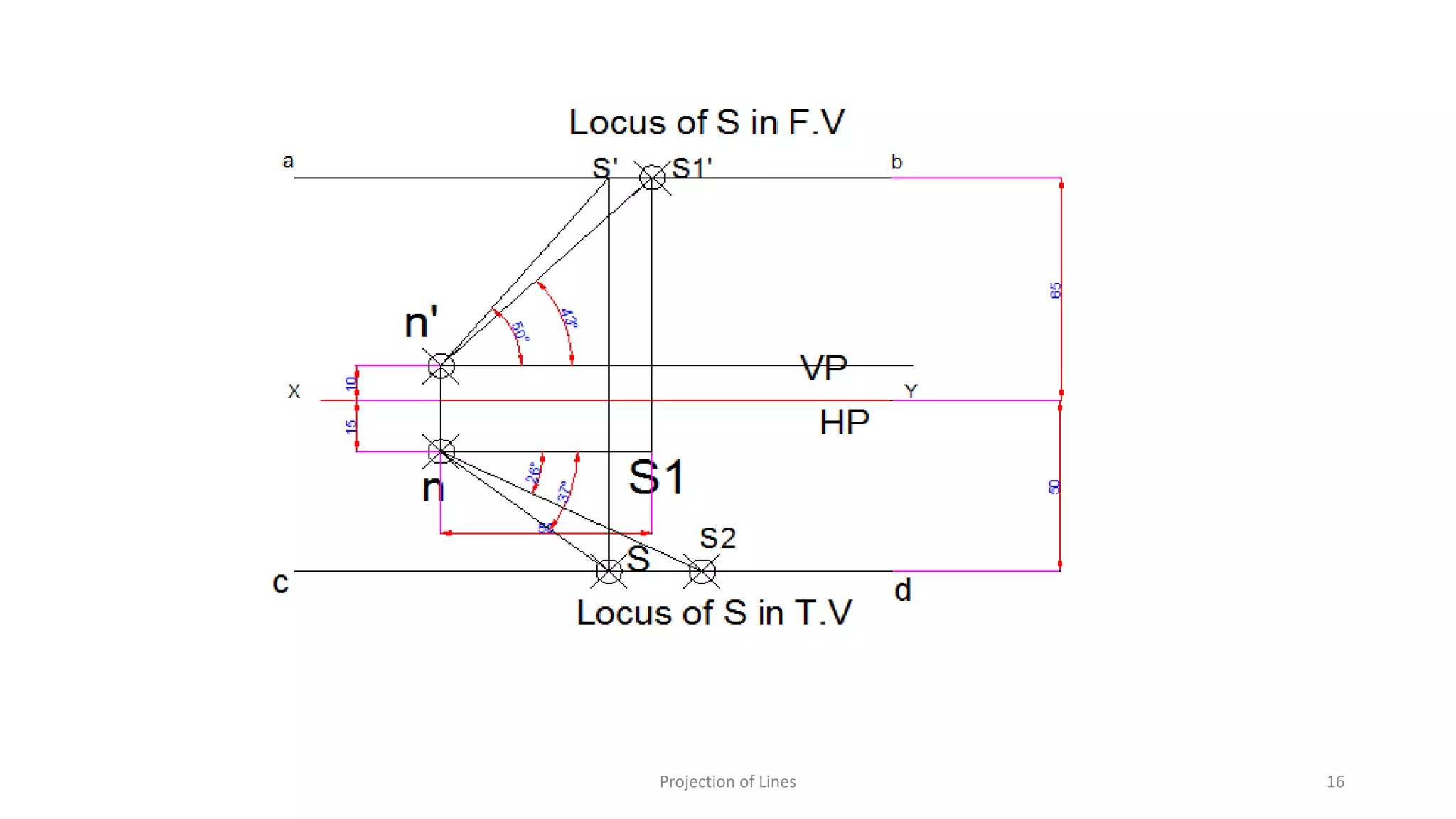

16. Projection of Lines 16

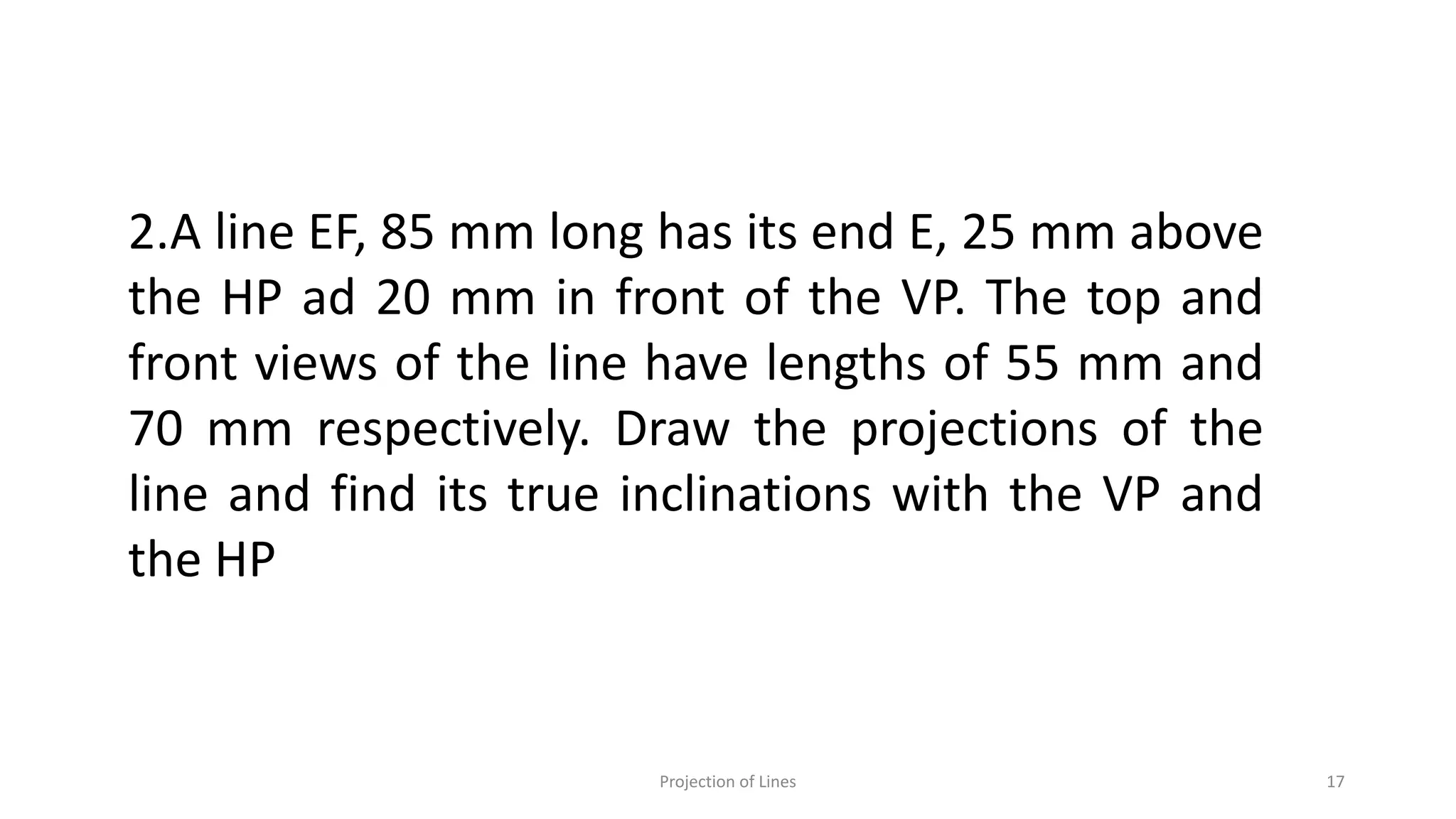

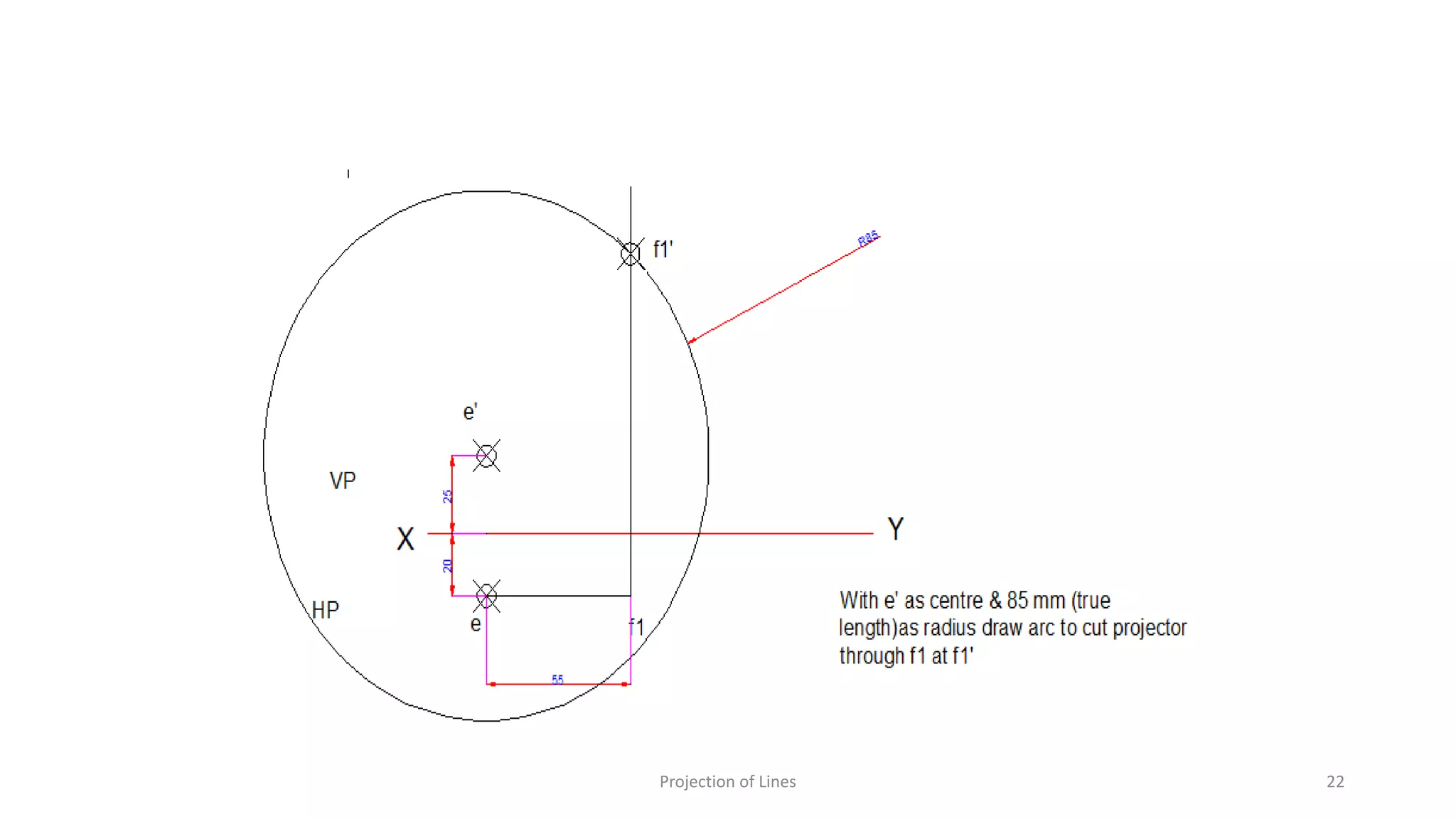

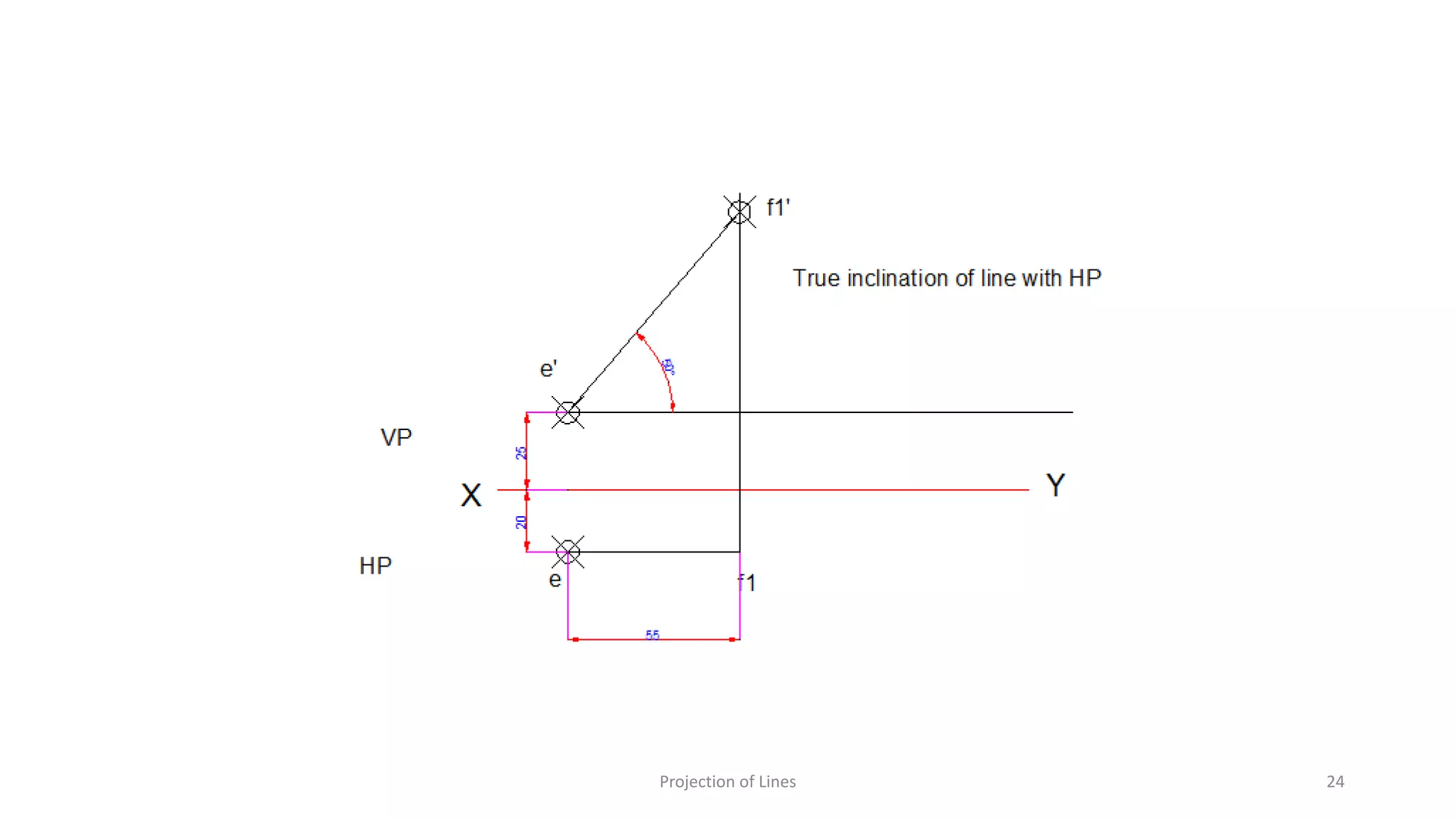

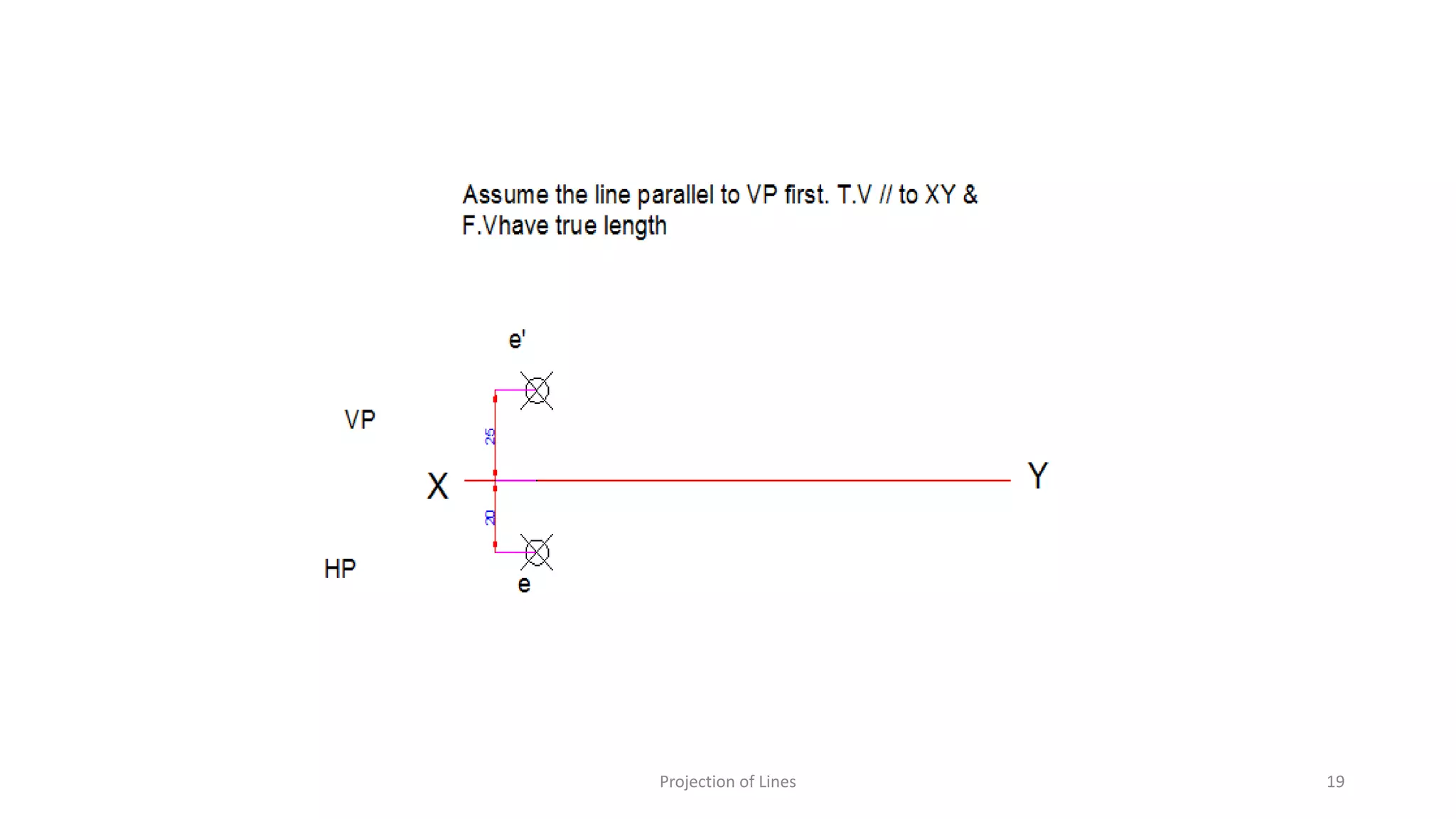

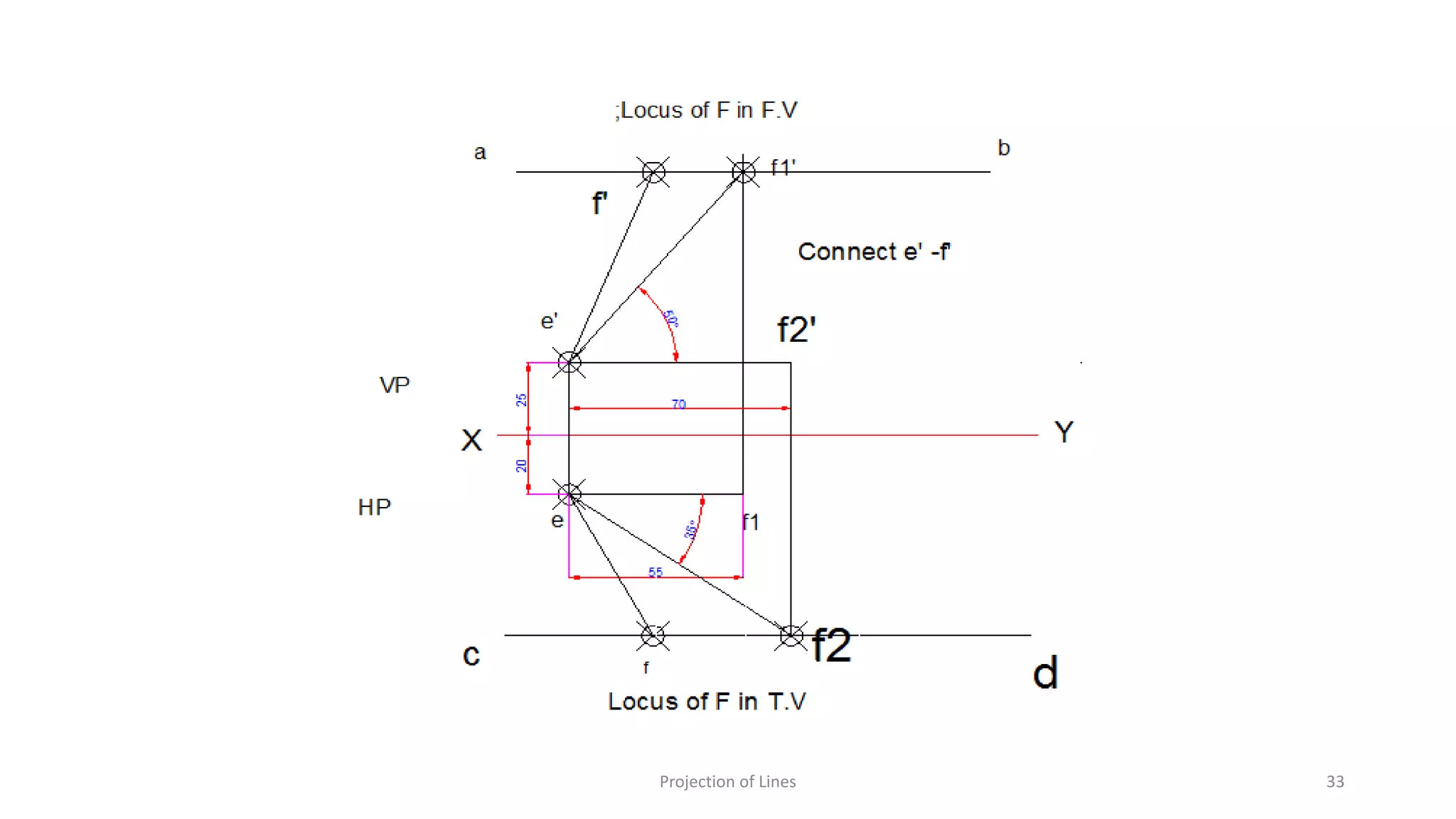

17. 2.A line EF, 85 mm long has its end E, 25 mm above
the HP ad 20 mm in front of the VP. The top and
front views of the line have lengths of 55 mm and
70 mm respectively. Draw the projections of the
line and find its true inclinations with the VP and
the HP
Projection of Lines 17

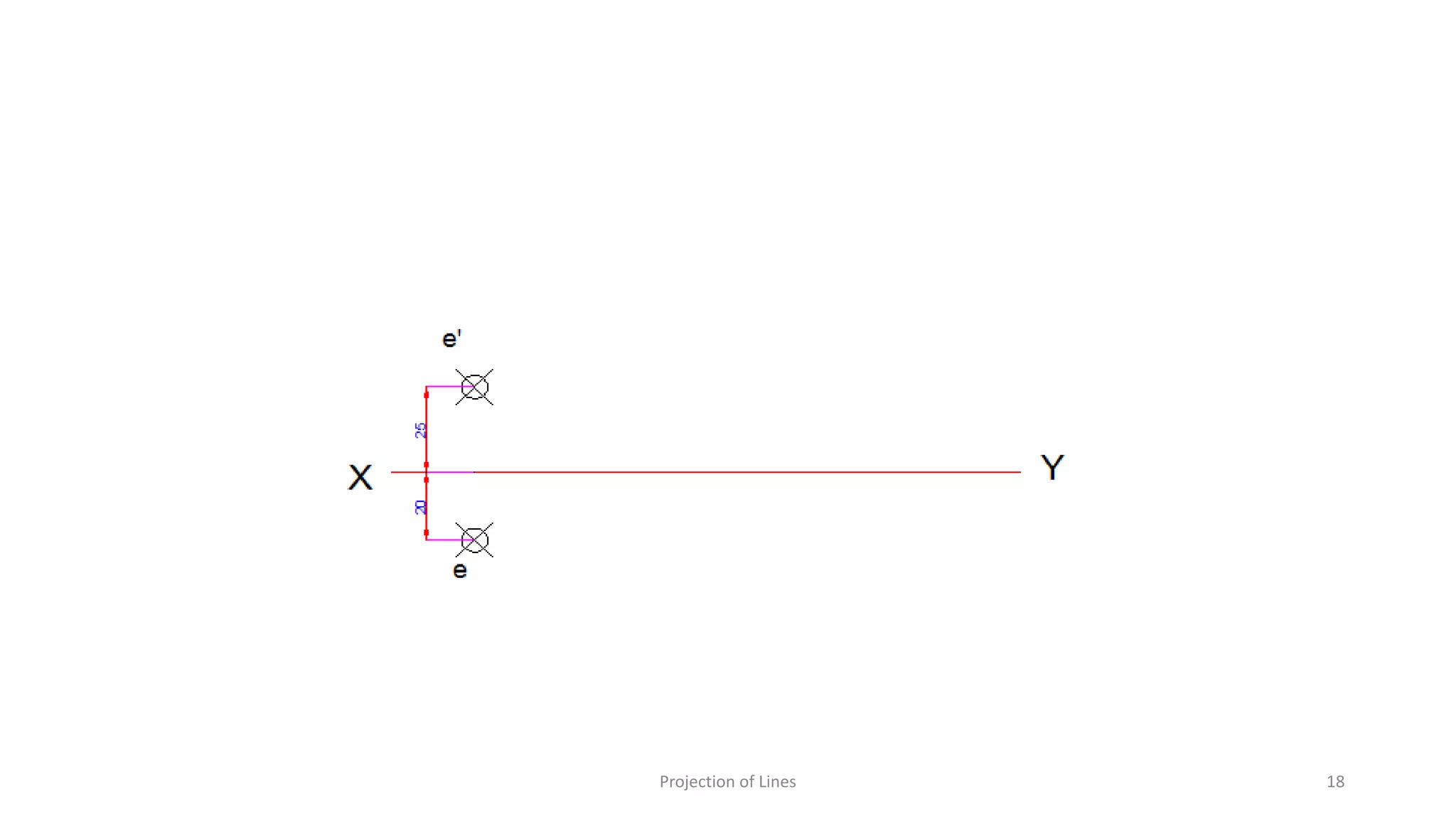

18. Projection of Lines 18

19. Projection of Lines 19

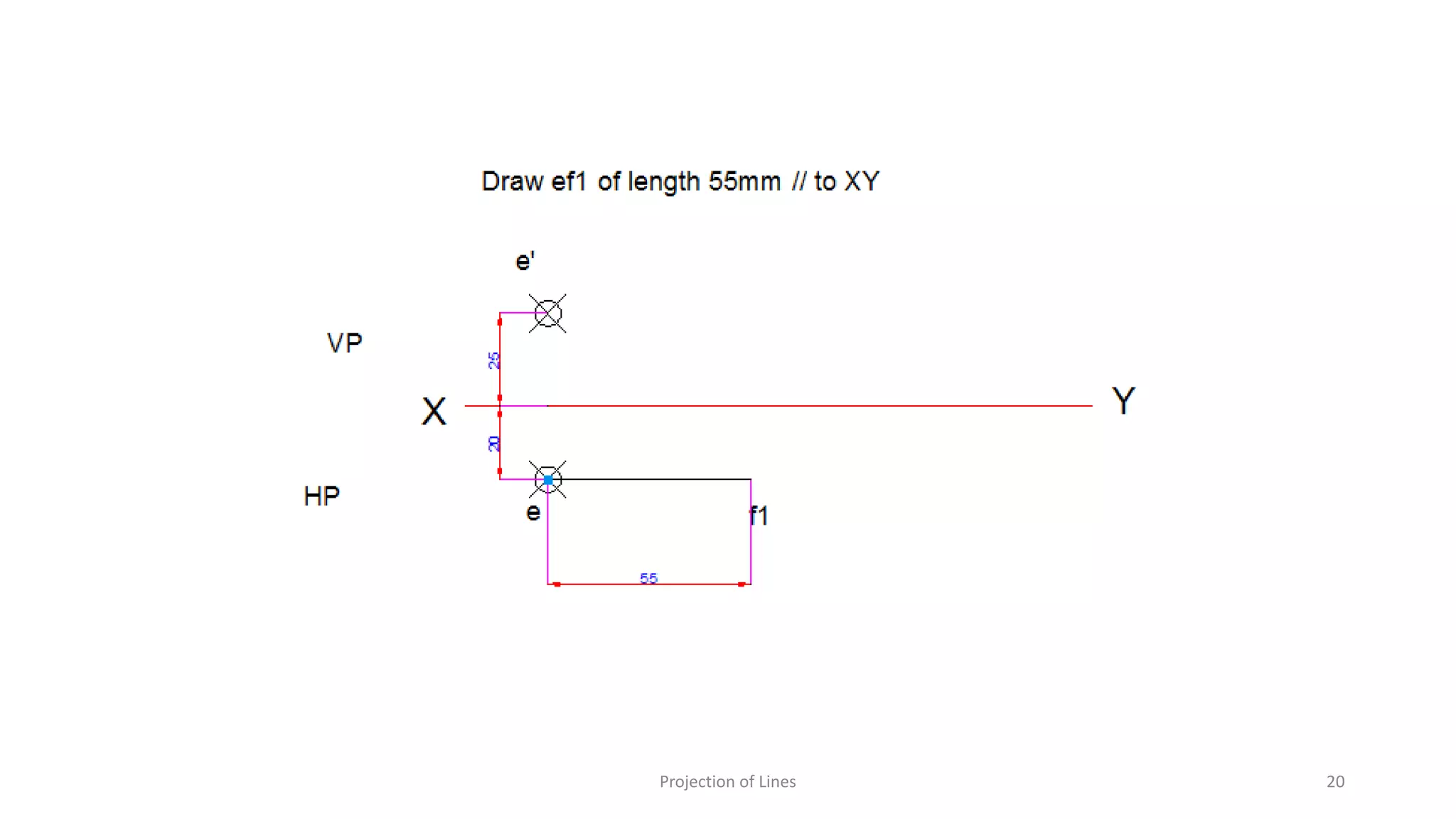

20. Projection of Lines 20

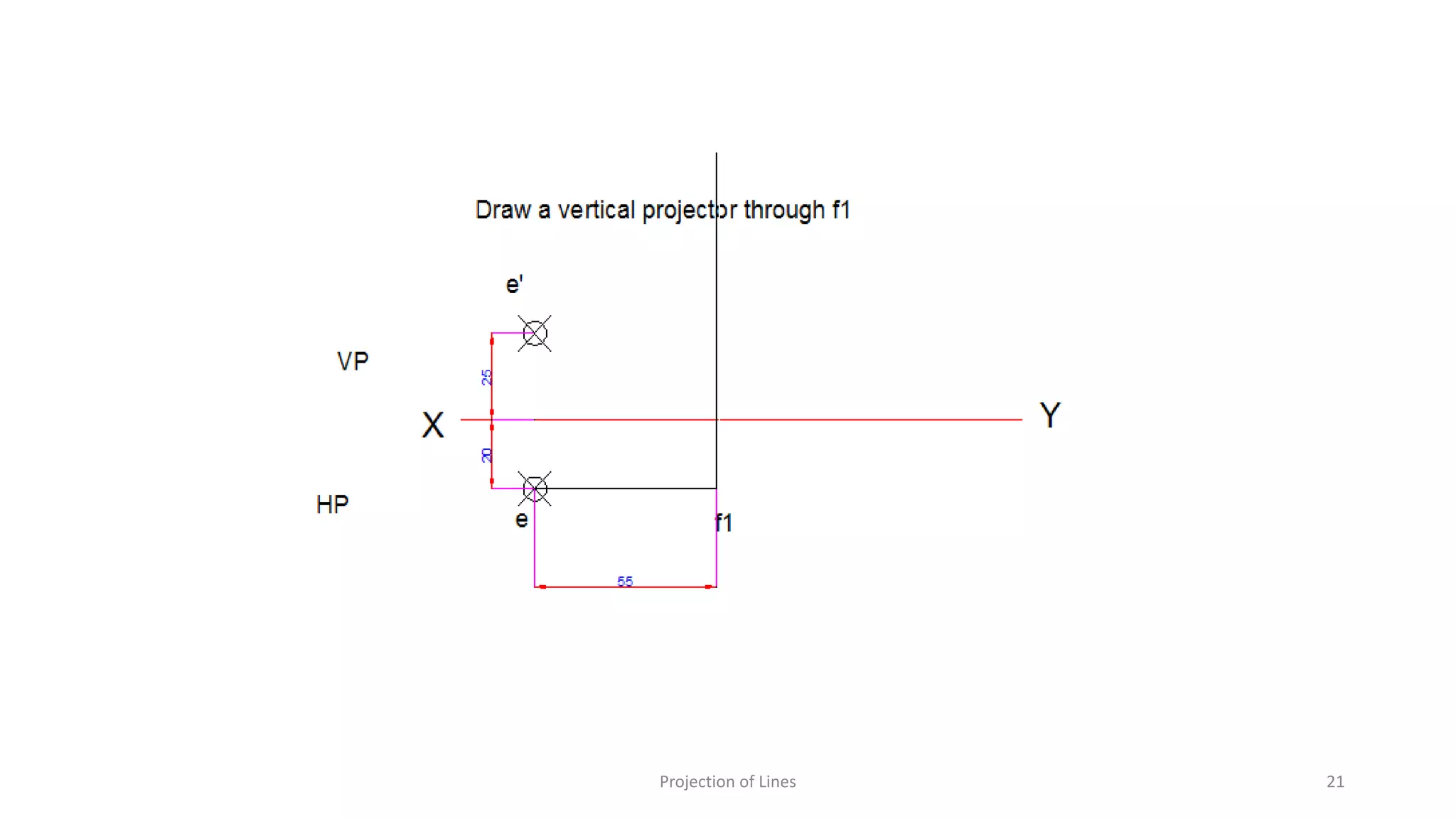

21. Projection of Lines 21

22. Projection of Lines 22

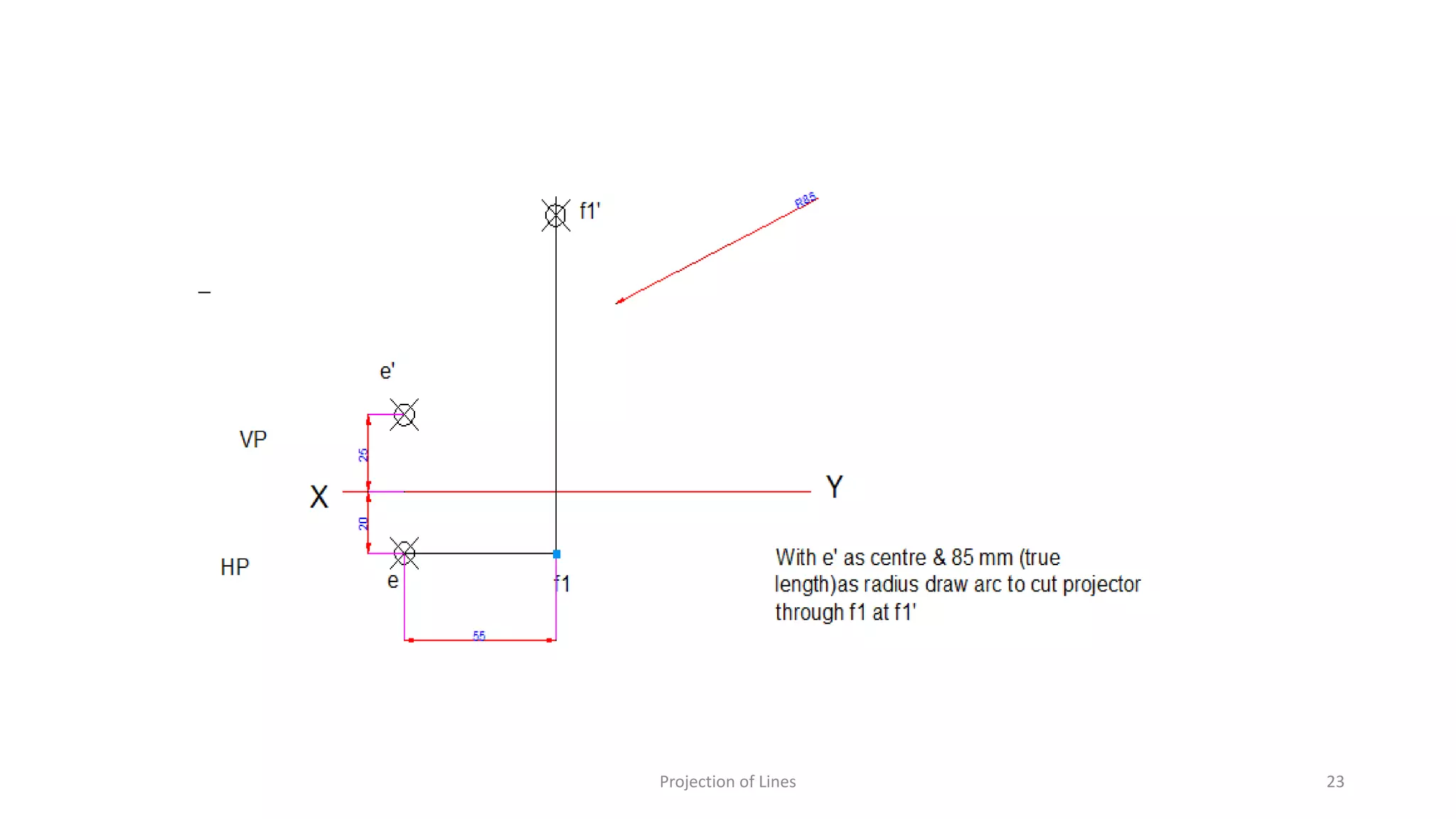

23. Projection of Lines 23

24. Projection of Lines 24

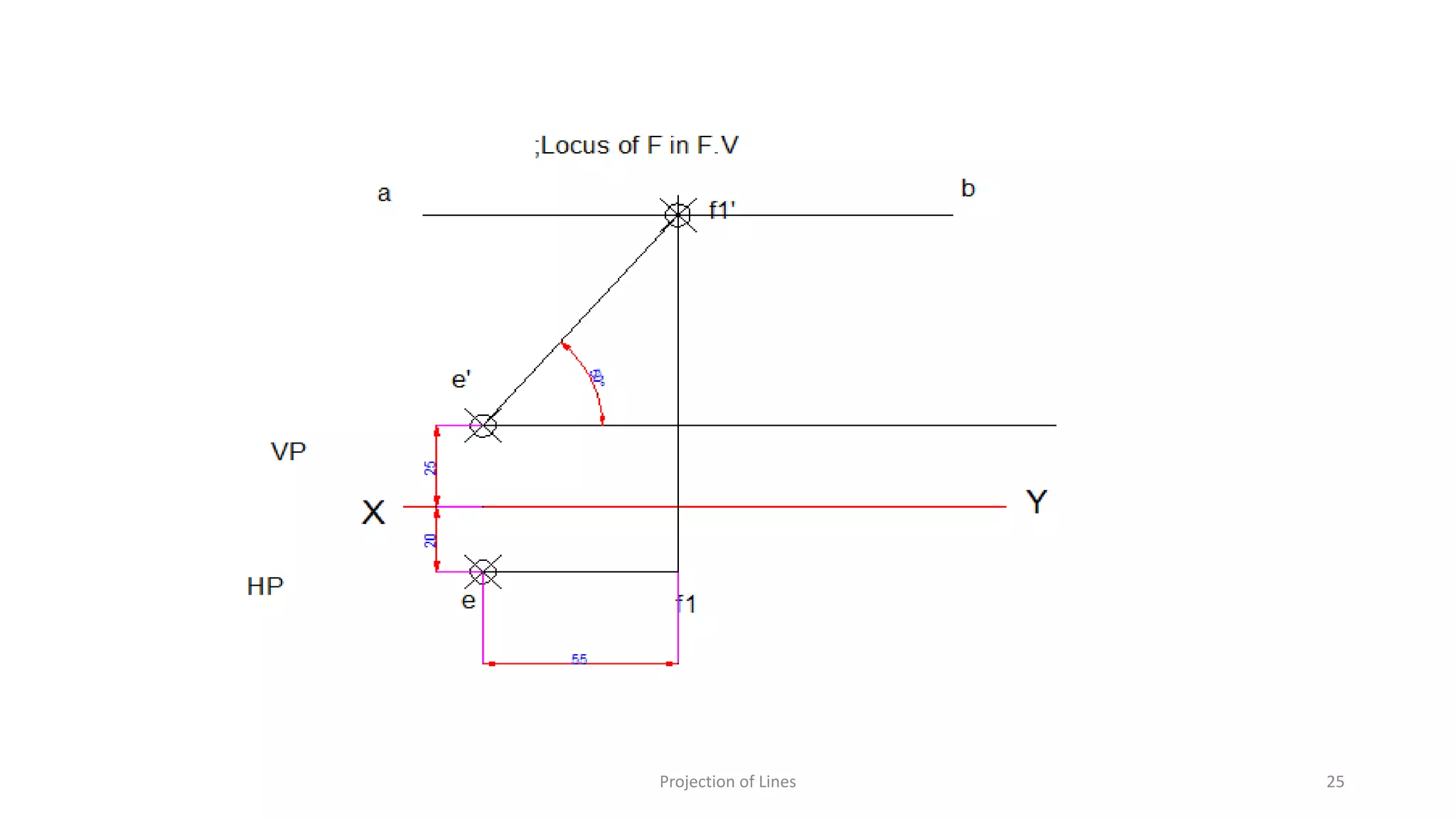

25. Projection of Lines 25

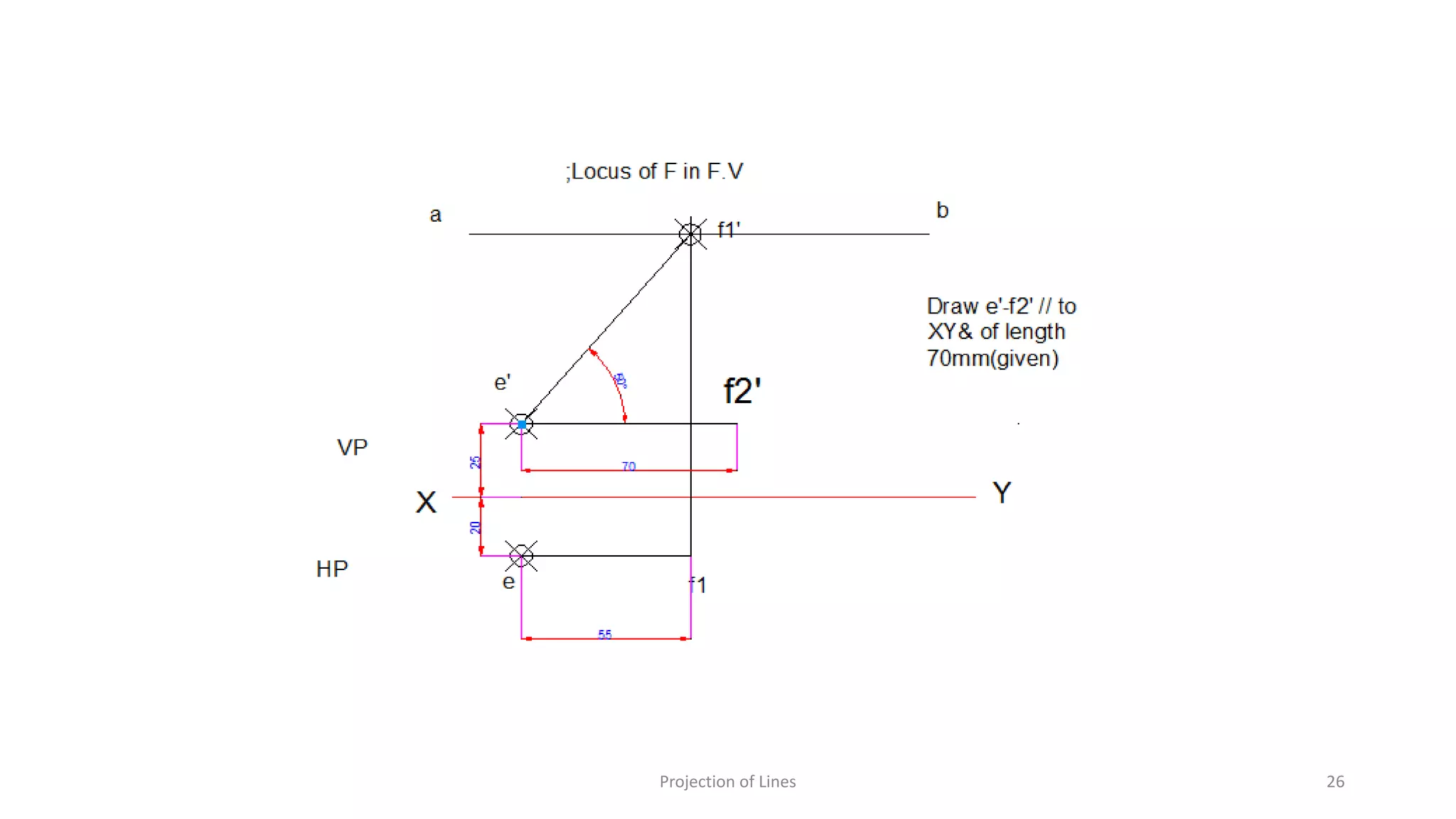

26. Projection of Lines 26

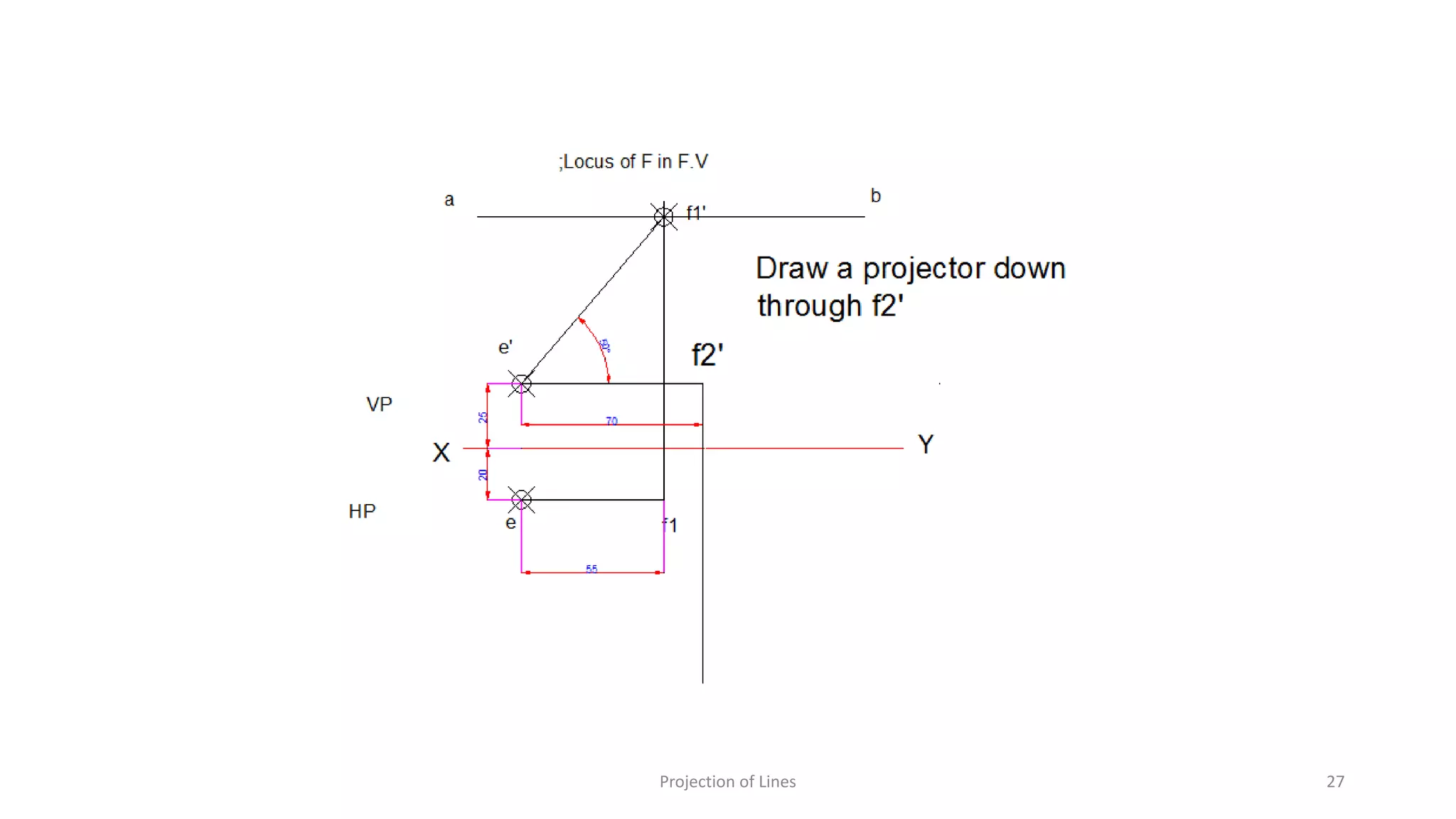

27. Projection of Lines 27

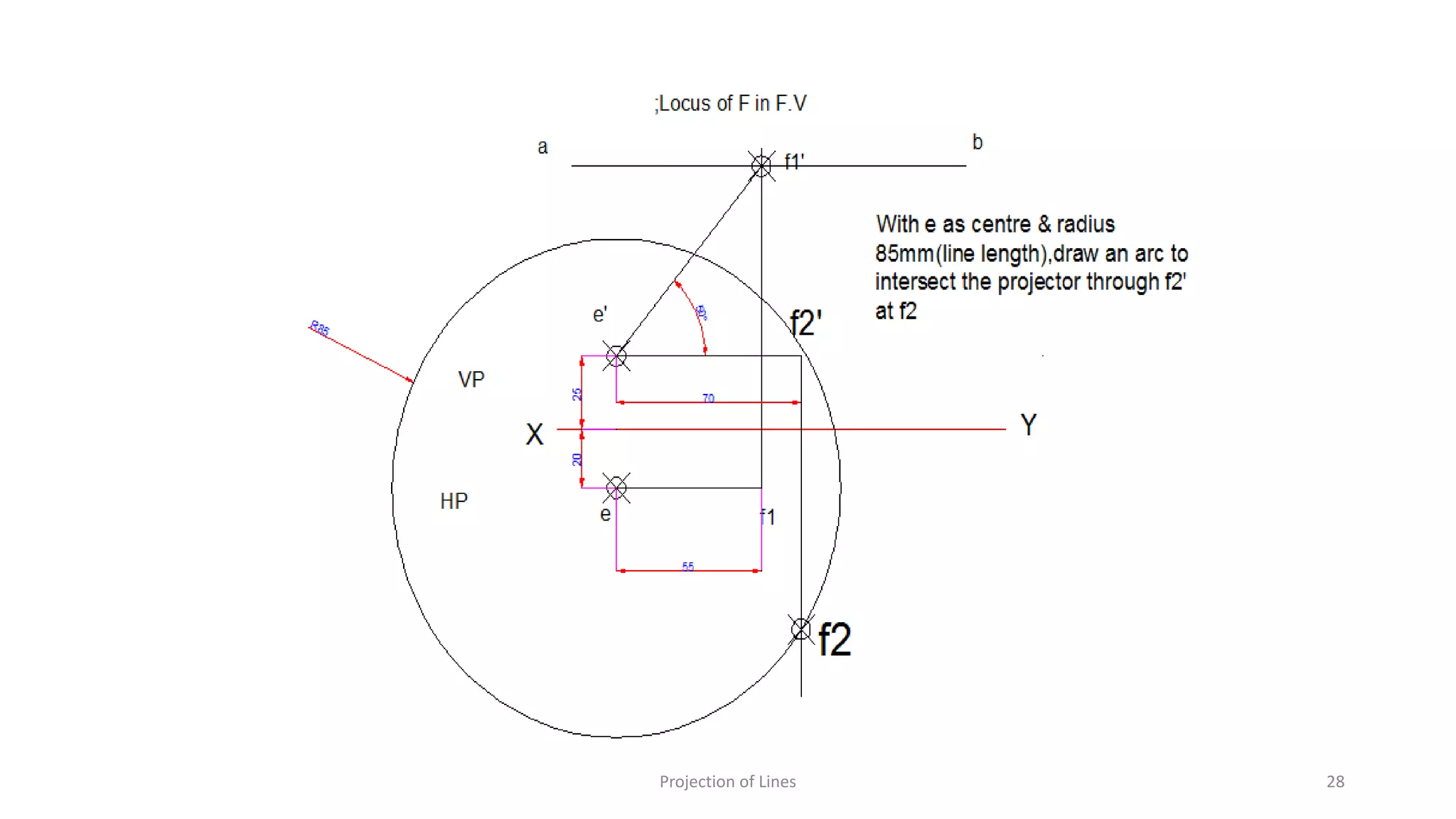

28. Projection of Lines 28

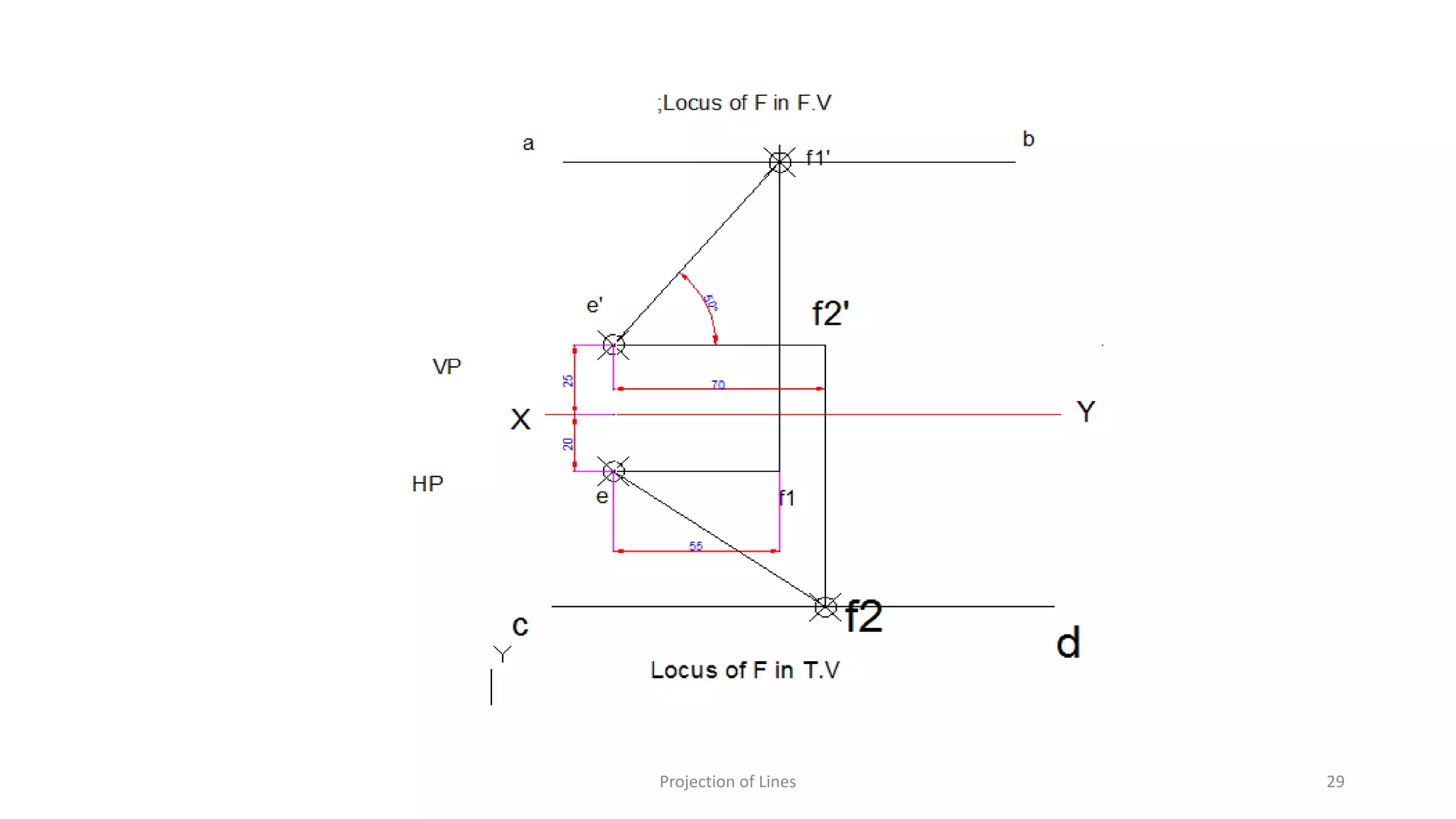

29. Projection of Lines 29

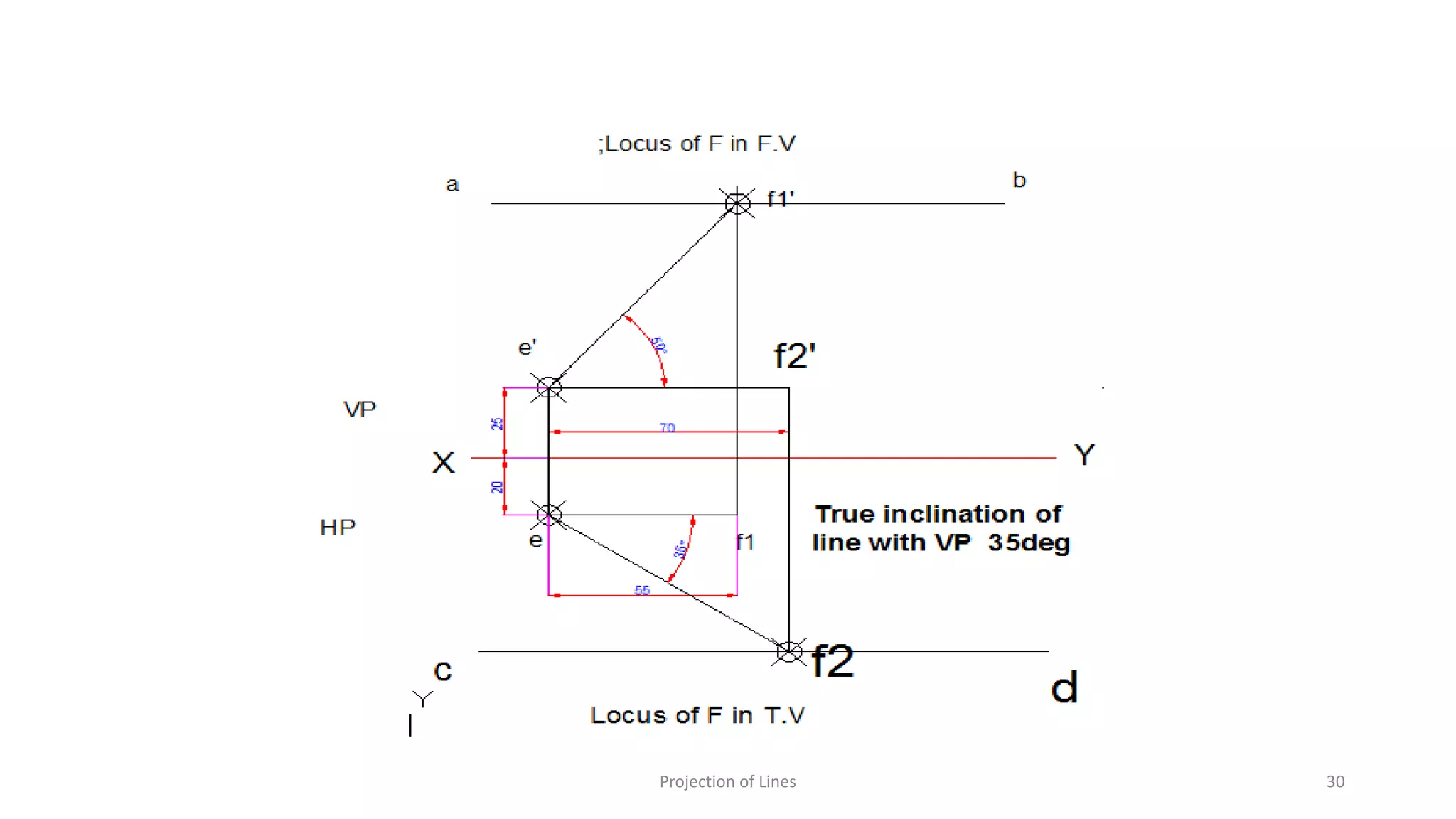

30. Projection of Lines 30

31. Projection of Lines 31

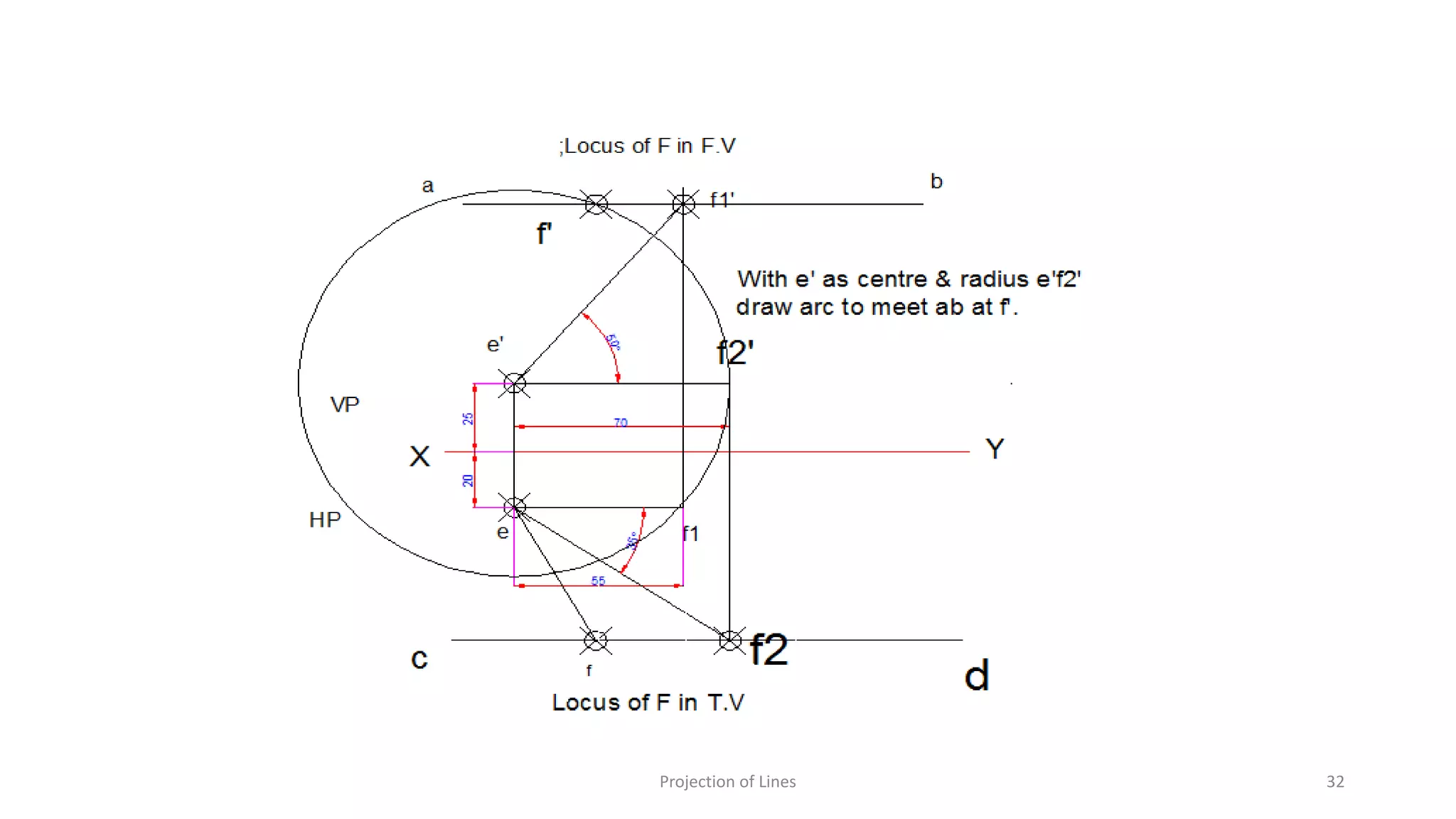

32. Projection of Lines 32

33. Projection of Lines 33
