Nd YAG laser
•Download as PPTX, PDF•
10 likes•6,946 views
The document summarizes the key aspects of an Nd:YAG laser. It discusses that the Nd:YAG laser uses neodymium-doped yttrium aluminum garnet as the lasing medium, which emits light at a wavelength of 1.064 micrometers when optically pumped by a flashlamp. It provides details on the laser's construction, which includes an Nd:YAG rod and krypton flashlamp enclosed in an ellipsoidal reflector to focus the pumping light. The document also outlines several common applications of Nd:YAG lasers, such as cutting, welding, medicine, and communications.
Report
Share
Report
Share
Recommended
Nd-YAG Laser | working and construction
Nd:YAG lasers emit light at a wavelength of 1.064 μm. They use neodymium-doped yttrium aluminum garnet (Nd:YAG) as the active medium and are optically pumped by a xenon flash lamp. Nd:YAG lasers can operate in pulsed mode and produce up to 20 kW of power output. They use an optical resonator formed between partially and fully reflective mirrors to produce stimulated emission along the length of the Nd:YAG rod. Lasers have applications in fields like medicine, communications, industry, science and technology, and the military.
ND YAG laser
The document summarizes the Nd:YAG laser, whose lasing medium is a YAG crystal doped with neodymium ions. When pumped, the neodymium ions in the YAG crystal emit light at 1.06 microns. Nd:YAG lasers can operate continuously using lamps or pulsed using flashlamps, and are used for applications like materials processing, medicine, and military targeting. Glass can also be used as the host material for neodymium, allowing lasers to be made from Nd-doped glass.
Laser and gas laser
The document discusses different types of gas lasers, including helium-neon (He-Ne) lasers, carbon dioxide lasers, nitrogen lasers, and argon lasers. It provides details on the construction, working principle, and applications of each laser. The He-Ne laser was the first continuous laser invented in 1961. It operates at 632.8 nm in the red spectrum and is often used for demonstrations and reading barcodes. Carbon dioxide lasers produce a high-power infrared beam and are commonly used for industrial cutting and welding. Nitrogen lasers emit ultraviolet light in short pulses. Argon lasers can output multiple wavelengths ranging from ultraviolet to green.
presentation on nd yag laser
The document summarizes an academic presentation about an Nd:YAG laser.
1) Nd:YAG lasers were developed in 1964 by Bell Labs. They use neodymium-doped yttrium aluminium garnet as the lasing medium and are optically pumped, allowing them to produce high power outputs.
2) The active medium is yttrium aluminium garnet doped with 1% neodymium ions, which act as the active centers for lasing. The Nd:YAG rod is mounted inside an optical cavity formed by mirrors and is pumped using a xenon flash lamp.
CARBON-DI-OXIDE(CO2) LASER.pptx
Carbon dioxide lasers produce a beam of infrared light with wavelengths of 9.6 and 10.6 micrometers. They work by using an electric discharge to excite carbon dioxide molecules and create a population inversion between vibrational energy levels. This leads to stimulated emission and laser action. Carbon dioxide lasers are efficient and can produce high powers, making them useful for applications like material processing, welding, communication, remote sensing, and surgery.
Dye laser
Dye lasers use an organic dye dissolved in a liquid as the active lasing medium and can produce a wide range of wavelengths. They work on the principle of population inversion using a pumping source like a flash lamp or other laser to excite the dye molecules. The major components are the active dye medium, pumping source, and resonator mirrors, with one mirror sometimes replaced by a diffraction grating to allow tuning of the output wavelength. Dye lasers offer tunability but have limitations in lifetime and output power.
Lasers
Lasers produce a very narrow, intense beam of coherent light through the process of stimulated emission of radiation. Key characteristics of laser light include high monochromaticity, directionality, intensity, and coherence. Einstein's theory of stimulated emission explains how excited atoms or molecules can emit photons when stimulated by an incoming photon, leading to amplification of the light beam. Population inversion, where more atoms are in an excited state than a lower state, must be achieved for lasing to occur. Common laser types include solid-state, gas, liquid/dye, and semiconductor lasers, which use different active media and pumping mechanisms to produce stimulated emission. A notable example is the Nd:YAG laser, which uses a neody
Laser presentation 11
The laser was invented in 1960 by Theodore Maiman. It works by stimulating the emission of light through a process called optical amplification. The key components of a laser are an active medium to generate the light, an excitation mechanism like electricity to energize the medium, and an optical resonator with mirrors to reflect the light waves and produce coherent, monochromatic light. Lasers have many applications, including use in medicine for procedures like removing gallstones, in manufacturing for precision tasks like drilling, and in everyday devices like barcode scanners, CD players, and communication networks.
Recommended
Nd-YAG Laser | working and construction
Nd:YAG lasers emit light at a wavelength of 1.064 μm. They use neodymium-doped yttrium aluminum garnet (Nd:YAG) as the active medium and are optically pumped by a xenon flash lamp. Nd:YAG lasers can operate in pulsed mode and produce up to 20 kW of power output. They use an optical resonator formed between partially and fully reflective mirrors to produce stimulated emission along the length of the Nd:YAG rod. Lasers have applications in fields like medicine, communications, industry, science and technology, and the military.
ND YAG laser
The document summarizes the Nd:YAG laser, whose lasing medium is a YAG crystal doped with neodymium ions. When pumped, the neodymium ions in the YAG crystal emit light at 1.06 microns. Nd:YAG lasers can operate continuously using lamps or pulsed using flashlamps, and are used for applications like materials processing, medicine, and military targeting. Glass can also be used as the host material for neodymium, allowing lasers to be made from Nd-doped glass.
Laser and gas laser
The document discusses different types of gas lasers, including helium-neon (He-Ne) lasers, carbon dioxide lasers, nitrogen lasers, and argon lasers. It provides details on the construction, working principle, and applications of each laser. The He-Ne laser was the first continuous laser invented in 1961. It operates at 632.8 nm in the red spectrum and is often used for demonstrations and reading barcodes. Carbon dioxide lasers produce a high-power infrared beam and are commonly used for industrial cutting and welding. Nitrogen lasers emit ultraviolet light in short pulses. Argon lasers can output multiple wavelengths ranging from ultraviolet to green.
presentation on nd yag laser
The document summarizes an academic presentation about an Nd:YAG laser.
1) Nd:YAG lasers were developed in 1964 by Bell Labs. They use neodymium-doped yttrium aluminium garnet as the lasing medium and are optically pumped, allowing them to produce high power outputs.
2) The active medium is yttrium aluminium garnet doped with 1% neodymium ions, which act as the active centers for lasing. The Nd:YAG rod is mounted inside an optical cavity formed by mirrors and is pumped using a xenon flash lamp.
CARBON-DI-OXIDE(CO2) LASER.pptx
Carbon dioxide lasers produce a beam of infrared light with wavelengths of 9.6 and 10.6 micrometers. They work by using an electric discharge to excite carbon dioxide molecules and create a population inversion between vibrational energy levels. This leads to stimulated emission and laser action. Carbon dioxide lasers are efficient and can produce high powers, making them useful for applications like material processing, welding, communication, remote sensing, and surgery.
Dye laser
Dye lasers use an organic dye dissolved in a liquid as the active lasing medium and can produce a wide range of wavelengths. They work on the principle of population inversion using a pumping source like a flash lamp or other laser to excite the dye molecules. The major components are the active dye medium, pumping source, and resonator mirrors, with one mirror sometimes replaced by a diffraction grating to allow tuning of the output wavelength. Dye lasers offer tunability but have limitations in lifetime and output power.
Lasers
Lasers produce a very narrow, intense beam of coherent light through the process of stimulated emission of radiation. Key characteristics of laser light include high monochromaticity, directionality, intensity, and coherence. Einstein's theory of stimulated emission explains how excited atoms or molecules can emit photons when stimulated by an incoming photon, leading to amplification of the light beam. Population inversion, where more atoms are in an excited state than a lower state, must be achieved for lasing to occur. Common laser types include solid-state, gas, liquid/dye, and semiconductor lasers, which use different active media and pumping mechanisms to produce stimulated emission. A notable example is the Nd:YAG laser, which uses a neody
Laser presentation 11
The laser was invented in 1960 by Theodore Maiman. It works by stimulating the emission of light through a process called optical amplification. The key components of a laser are an active medium to generate the light, an excitation mechanism like electricity to energize the medium, and an optical resonator with mirrors to reflect the light waves and produce coherent, monochromatic light. Lasers have many applications, including use in medicine for procedures like removing gallstones, in manufacturing for precision tasks like drilling, and in everyday devices like barcode scanners, CD players, and communication networks.
He ne lasers 1
A He-Ne laser produces coherent red light through stimulated emission. It works by electrically exciting a gas mixture of helium and neon atoms. Energy from excited helium atoms is transferred to neon atoms, producing population inversion between neon energy levels. When excited neon atoms drop to a lower energy level, they emit photons of 632.8 nm wavelength that stimulate additional photon emissions, producing a coherent laser beam. He-Ne lasers operate continuously and are commonly used for applications like barcode scanning and holography due to their low cost and narrow visible beam.
LASERS BASICS
The document discusses lasers, including:
- LASER is an acronym for Light Amplification by Stimulated Emission of Radiation.
- Lasers were invented in 1958 and are based on Einstein's idea of particle-wave duality of light.
- The key principles of lasers are stimulated emission within an amplifying medium and population inversion within an optical resonator.
- Common laser types discussed include ruby, He-Ne, argon ion, CO2, excimer, and solid-state lasers like Nd:YAG.
Argon and He-Cd Laser
The document discusses different types of ion lasers, focusing on argon lasers. It describes the construction of argon lasers, which consists of mirrors at each end, Brewster windows to reduce reflection loss, a high current power supply, and an argon gas laser tube cooled by water. Argon lasers produce multiple visible wavelengths when argon atoms are excited by an electric current. They require high voltages but can output high power. Applications include scientific research, medicine, and laser light shows.
Laser
The document discusses lasers, including their history, characteristics, components, classifications, and uses. It provides details on:
- The invention of the laser by Maiman in 1960 and its influence as a technological achievement.
- The key characteristics of laser light that make it coherent, directional, and monochromatic.
- The basic components and functioning of a laser, including the active medium, excitation mechanism, and optical resonator.
- The various classes of lasers according to output levels and safety standards.
- Applications of lasers in medicine, industry, everyday life, research, and holography.
Laser
The document provides information on the basics of lasers and laser light. It defines LASER as an acronym for Light Amplification by Stimulated Emission of Radiation. It describes the key properties of laser beams including high coherence, intensity, directionality, and monochromaticity. It also discusses atomic transitions, population inversion, components of lasers including the active medium and optical resonator, and provides examples of specific lasers such as Nd:YAG lasers.
Lasers introduction and explanation
This document provides an overview of laser systems and their applications. It begins with an introduction to lasers, describing their key properties such as coherence and directionality. The basic components of a laser, including the active medium, pump source, and optical resonator, are then explained. Different laser operation modes like continuous wave, pulsed, Q-switched, and mode-locked are also covered. The document concludes by discussing various laser types and their applications in scientific, commercial, and medical fields.
Lasers
a quick overview on lasers and the working of semiconductor lasers, their advantages, disadvantages, and applications.
application of laser
This document discusses lasers and their applications. It defines lasers as optical devices that generate intense beams of coherent light through stimulated emission. Lasers are then described as having special properties like traveling long distances without spreading out. The document proceeds to list several applications of lasers, including in manufacturing, medicine, metrology, data storage, communications, displays, spectroscopy, microscopy, energy technology, and the military. Specific examples are provided for some of the applications.
Presentation laser
A laser is a device that emits light through a process of optical amplification based on the stimulated emission of electromagnetic radiation. The term "laser" originated as an acronym for "light amplification by stimulated emission of radiation
Laser lecture 04
This document summarizes key concepts about laser beams and optical resonators:
1) Laser beam propagation can be described by the Helmholtz equation, with one solution being a Gaussian beam profile. The beam waist radius varies along the beam axis according to the Rayleigh range.
2) Optical resonators provide feedback to turn an amplifier into an oscillator. They contain mirrors between which light bounces and is amplified on each pass through the gain medium.
3) Resonator stability depends on the curvature and separation of the mirrors. Different resonator types support distinct transverse mode patterns within the beam.
lasers SOLID STATE LASERS .
This document discusses solid state lasers. It begins by explaining what a laser is and how it produces light through stimulated emission. It then describes the common components of all lasers including the active medium, excitation mechanism, and high reflectance mirrors. Solid state lasers use a crystalline or glass host material doped with ions like neodymium or ytterbium as the active medium. Examples given are ruby and Nd:YAG lasers. Solid state lasers have advantages like simple construction and lower cost compared to gas lasers, though their output power is not as high. Applications include drilling metals, endoscopy, and military targeting systems.
Types of laser
(A) By active media
Solid state laser - crystal, or glass, doped with impurities, e.g. ruby laser, Ti:sapphire laser, semiconductor laser.
Gas laser - e.g. He-Ne laser, Ar+ laser, CO2 laser, N2 laser, HCN laser.
Dye laser - active medium: dye molecules in liquid solvent (sometimes in solids also).
(B) By mode of operation
CW
Pulsed
(C) By pumping and laser levels
3-level laser
4-level laser
Laser ppt.
This belongs to Physical Chemistry portion and it contains most of
things about laser working and principles.
By Aaryan Tyagi's Group
M.Sc. Applied Chemistry (1 Sem)
Amity University, Noida
Laser
This document summarizes the ruby laser. It begins by explaining that a ruby laser uses a synthetic ruby crystal as its laser medium, which was the first successful laser developed in 1960. It emits deep red light at a wavelength of 694.3 nm. The ruby crystal is doped with small amounts of chromium ions, which provide the necessary population inversion to achieve lasing. When optically pumped by a flash lamp, chromium ions are excited to higher energy states and decay to a metastable state, building up population inversion between that state and the ground state. Stimulated emission then produces coherent red light that is amplified as it reflects within the ruby crystal's resonance cavity and emerges through the partially reflective end.
Ruby laser
A ruby laser is a solid-state laser that uses the synthetic ruby crystal as its laser medium. Ruby laser is the first successful laser developed by Maiman in 1960.
Laser optics
This document provides information about lasers, including their history, principles, applications, characteristics, types, and components. It discusses how lasers were invented in 1958 and work using stimulated emission. Key applications mentioned include uses in CDs/DVDs, barcodes, welding, medicine, and more. The principles of how lasers achieve population inversion and stimulated emission are described. Different types of lasers like gas, solid, liquid, and semiconductor lasers are outlined. The basic elements that make up any laser system including the active medium, pumping energy, optical amplifier, and mirrors are also summarized.
Laser
This document provides information about lasers and their use in ophthalmology. It begins with definitions of laser and its acronym. It then discusses the history and development of lasers from 1917 to present. The key properties and mechanisms of laser light production are described. Common types of ophthalmic lasers and their applications are outlined, including Nd:YAG, excimer, and diode lasers used for conditions like glaucoma, refractive error correction, and retinal diseases. The laser-tissue interaction mechanisms of thermal, photochemical and ionizing effects are summarized. The document concludes with sections on laser instrumentation and delivery systems and specific laser procedures in ophthalmology.
Basics of Lasers
Laser science is principally concerned with quantum electronics, laser construction, optical cavity design, the physics of producing a population inversion in laser media, and the temporal evolution of the light field in the laser. It is also concerned with the physics of laser beam propagation, particularly the physics of Gaussian beams, with laser applications, and with associated fields such as non-linear optics and quantum optics.
Laser
Laser is a device that emits light through a process of optical amplification based on the stimulated emission of electromagnetic radiation. It differs from other sources of light in that it emits light coherently, which allows for a high intensity beam with low divergence. The key components are an amplifying medium that can be pumped to invert a population of atoms or molecules to higher energy levels, and an optical resonator formed by two or more mirrors to provide feedback of the light emitted from the amplifying medium. When the population inversion condition is achieved, stimulated emission produces a cascade of photons with the same phase and wavelength.
Laser, its working & hazards
This document provides an overview of lasers, including:
1. A definition of a laser as a device that generates light through stimulated emission.
2. Descriptions of the key components and processes that enable laser operation, including population inversion and optical feedback.
3. Examples of common laser applications like CD players, fiber optics, and medical devices.
4. Safety considerations regarding laser hazards and the importance of controls and personal protective equipment when working with lasers.
Laser Presentation
The document discusses the key components and working of lasers. It defines LASER as Light Amplification by Stimulated Emission of Radiation. The major components include the active medium, population inversion achieved through pumping, and an optical resonator. Specific laser types like Nd:YAG, CO2, and semiconductor lasers are then summarized in terms of their active medium, pumping mechanism, construction, and applications.
More Related Content
What's hot
He ne lasers 1
A He-Ne laser produces coherent red light through stimulated emission. It works by electrically exciting a gas mixture of helium and neon atoms. Energy from excited helium atoms is transferred to neon atoms, producing population inversion between neon energy levels. When excited neon atoms drop to a lower energy level, they emit photons of 632.8 nm wavelength that stimulate additional photon emissions, producing a coherent laser beam. He-Ne lasers operate continuously and are commonly used for applications like barcode scanning and holography due to their low cost and narrow visible beam.
LASERS BASICS
The document discusses lasers, including:
- LASER is an acronym for Light Amplification by Stimulated Emission of Radiation.
- Lasers were invented in 1958 and are based on Einstein's idea of particle-wave duality of light.
- The key principles of lasers are stimulated emission within an amplifying medium and population inversion within an optical resonator.
- Common laser types discussed include ruby, He-Ne, argon ion, CO2, excimer, and solid-state lasers like Nd:YAG.
Argon and He-Cd Laser
The document discusses different types of ion lasers, focusing on argon lasers. It describes the construction of argon lasers, which consists of mirrors at each end, Brewster windows to reduce reflection loss, a high current power supply, and an argon gas laser tube cooled by water. Argon lasers produce multiple visible wavelengths when argon atoms are excited by an electric current. They require high voltages but can output high power. Applications include scientific research, medicine, and laser light shows.
Laser
The document discusses lasers, including their history, characteristics, components, classifications, and uses. It provides details on:
- The invention of the laser by Maiman in 1960 and its influence as a technological achievement.
- The key characteristics of laser light that make it coherent, directional, and monochromatic.
- The basic components and functioning of a laser, including the active medium, excitation mechanism, and optical resonator.
- The various classes of lasers according to output levels and safety standards.
- Applications of lasers in medicine, industry, everyday life, research, and holography.
Laser
The document provides information on the basics of lasers and laser light. It defines LASER as an acronym for Light Amplification by Stimulated Emission of Radiation. It describes the key properties of laser beams including high coherence, intensity, directionality, and monochromaticity. It also discusses atomic transitions, population inversion, components of lasers including the active medium and optical resonator, and provides examples of specific lasers such as Nd:YAG lasers.
Lasers introduction and explanation
This document provides an overview of laser systems and their applications. It begins with an introduction to lasers, describing their key properties such as coherence and directionality. The basic components of a laser, including the active medium, pump source, and optical resonator, are then explained. Different laser operation modes like continuous wave, pulsed, Q-switched, and mode-locked are also covered. The document concludes by discussing various laser types and their applications in scientific, commercial, and medical fields.
Lasers
a quick overview on lasers and the working of semiconductor lasers, their advantages, disadvantages, and applications.
application of laser
This document discusses lasers and their applications. It defines lasers as optical devices that generate intense beams of coherent light through stimulated emission. Lasers are then described as having special properties like traveling long distances without spreading out. The document proceeds to list several applications of lasers, including in manufacturing, medicine, metrology, data storage, communications, displays, spectroscopy, microscopy, energy technology, and the military. Specific examples are provided for some of the applications.
Presentation laser
A laser is a device that emits light through a process of optical amplification based on the stimulated emission of electromagnetic radiation. The term "laser" originated as an acronym for "light amplification by stimulated emission of radiation
Laser lecture 04
This document summarizes key concepts about laser beams and optical resonators:
1) Laser beam propagation can be described by the Helmholtz equation, with one solution being a Gaussian beam profile. The beam waist radius varies along the beam axis according to the Rayleigh range.
2) Optical resonators provide feedback to turn an amplifier into an oscillator. They contain mirrors between which light bounces and is amplified on each pass through the gain medium.
3) Resonator stability depends on the curvature and separation of the mirrors. Different resonator types support distinct transverse mode patterns within the beam.
lasers SOLID STATE LASERS .
This document discusses solid state lasers. It begins by explaining what a laser is and how it produces light through stimulated emission. It then describes the common components of all lasers including the active medium, excitation mechanism, and high reflectance mirrors. Solid state lasers use a crystalline or glass host material doped with ions like neodymium or ytterbium as the active medium. Examples given are ruby and Nd:YAG lasers. Solid state lasers have advantages like simple construction and lower cost compared to gas lasers, though their output power is not as high. Applications include drilling metals, endoscopy, and military targeting systems.
Types of laser
(A) By active media
Solid state laser - crystal, or glass, doped with impurities, e.g. ruby laser, Ti:sapphire laser, semiconductor laser.
Gas laser - e.g. He-Ne laser, Ar+ laser, CO2 laser, N2 laser, HCN laser.
Dye laser - active medium: dye molecules in liquid solvent (sometimes in solids also).
(B) By mode of operation
CW
Pulsed
(C) By pumping and laser levels
3-level laser
4-level laser
Laser ppt.
This belongs to Physical Chemistry portion and it contains most of
things about laser working and principles.
By Aaryan Tyagi's Group
M.Sc. Applied Chemistry (1 Sem)
Amity University, Noida
Laser
This document summarizes the ruby laser. It begins by explaining that a ruby laser uses a synthetic ruby crystal as its laser medium, which was the first successful laser developed in 1960. It emits deep red light at a wavelength of 694.3 nm. The ruby crystal is doped with small amounts of chromium ions, which provide the necessary population inversion to achieve lasing. When optically pumped by a flash lamp, chromium ions are excited to higher energy states and decay to a metastable state, building up population inversion between that state and the ground state. Stimulated emission then produces coherent red light that is amplified as it reflects within the ruby crystal's resonance cavity and emerges through the partially reflective end.
Ruby laser
A ruby laser is a solid-state laser that uses the synthetic ruby crystal as its laser medium. Ruby laser is the first successful laser developed by Maiman in 1960.
Laser optics
This document provides information about lasers, including their history, principles, applications, characteristics, types, and components. It discusses how lasers were invented in 1958 and work using stimulated emission. Key applications mentioned include uses in CDs/DVDs, barcodes, welding, medicine, and more. The principles of how lasers achieve population inversion and stimulated emission are described. Different types of lasers like gas, solid, liquid, and semiconductor lasers are outlined. The basic elements that make up any laser system including the active medium, pumping energy, optical amplifier, and mirrors are also summarized.
Laser
This document provides information about lasers and their use in ophthalmology. It begins with definitions of laser and its acronym. It then discusses the history and development of lasers from 1917 to present. The key properties and mechanisms of laser light production are described. Common types of ophthalmic lasers and their applications are outlined, including Nd:YAG, excimer, and diode lasers used for conditions like glaucoma, refractive error correction, and retinal diseases. The laser-tissue interaction mechanisms of thermal, photochemical and ionizing effects are summarized. The document concludes with sections on laser instrumentation and delivery systems and specific laser procedures in ophthalmology.
Basics of Lasers
Laser science is principally concerned with quantum electronics, laser construction, optical cavity design, the physics of producing a population inversion in laser media, and the temporal evolution of the light field in the laser. It is also concerned with the physics of laser beam propagation, particularly the physics of Gaussian beams, with laser applications, and with associated fields such as non-linear optics and quantum optics.
Laser
Laser is a device that emits light through a process of optical amplification based on the stimulated emission of electromagnetic radiation. It differs from other sources of light in that it emits light coherently, which allows for a high intensity beam with low divergence. The key components are an amplifying medium that can be pumped to invert a population of atoms or molecules to higher energy levels, and an optical resonator formed by two or more mirrors to provide feedback of the light emitted from the amplifying medium. When the population inversion condition is achieved, stimulated emission produces a cascade of photons with the same phase and wavelength.
Laser, its working & hazards
This document provides an overview of lasers, including:
1. A definition of a laser as a device that generates light through stimulated emission.
2. Descriptions of the key components and processes that enable laser operation, including population inversion and optical feedback.
3. Examples of common laser applications like CD players, fiber optics, and medical devices.
4. Safety considerations regarding laser hazards and the importance of controls and personal protective equipment when working with lasers.
What's hot (20)
Similar to Nd YAG laser
Laser Presentation
The document discusses the key components and working of lasers. It defines LASER as Light Amplification by Stimulated Emission of Radiation. The major components include the active medium, population inversion achieved through pumping, and an optical resonator. Specific laser types like Nd:YAG, CO2, and semiconductor lasers are then summarized in terms of their active medium, pumping mechanism, construction, and applications.
Aashish's laser
The Nd:YAG laser emits infrared light with a wavelength of 1064 nm. It consists of a YAG crystal doped with neodymium ions that are pumped by a flashlamp or diode laser to produce population inversion. Mirrors at each end form an optical cavity to produce stimulated emission. Nd:YAG lasers can operate continuously or pulsed and are used for applications like cutting, welding, medicine, and LIDAR due to their high power output and ability to be transmitted through optical fibers.
LASER,FIBER OPTICS & ULTRASONIC……
The document summarizes key characteristics and applications of lasers. It describes the properties of coherence, high intensity, high directionality, and monochromaticity that distinguish lasers from other light sources. It also discusses the processes of induced absorption, spontaneous emission, and stimulated emission that enable laser action. Common laser systems like Nd:YAG are described along with their components and working. Finally, the document outlines several industrial, medical, military, scientific, and engineering applications of lasers such as welding, cutting, surgery, communication, and chemical reactions.
Lecture ii solid state laser nd yag laser
This document summarizes a lecture on the Nd:YAG solid state laser. It discusses that the Nd:YAG laser was developed in 1964 and uses a neodymium-doped yttrium aluminum garnet crystal as the active medium. The crystal is optically pumped using a flashlamp and the ends of the rod form an optical resonator. The Nd:YAG laser operates as a four-level laser system with advantages of high energy output and repetition rate. Applications include range finding, welding, medicine, and nonlinear optics.
Optical Instrumentation 8. Laser - Types
This article briefs on the commonly used different types of lasers, their working principle, applications, advantages and disadvantages. The types of lasers discussed in this section are
Nd-YAG Laser, Ruby Laser, Carbon Dioxide Laser, Semiconductor Laser, He-Ne Laser.
Lasers
This document provides a summary of different laser types, including He-Ne lasers, injection lasers, Nd-YAG lasers, and dye lasers. It discusses the construction, working principles, and energy diagrams of each laser. The He-Ne laser was the first continuous laser and uses a mixture of helium and neon gases as its active medium. Injection lasers use a semiconductor PN junction as the active medium and achieve population inversion through carrier injection. Nd-YAG lasers use a neodymium-doped yttrium aluminum garnet crystal as the active medium and operate as a four-level laser system. Dye lasers can be widely tuned by changing the organic dye solution
Lasers ppt by Dr. P D Shirbhate, .
The document provides an overview of lasers, including:
1) It defines what a laser is and describes the three main processes that occur in lasers: absorption, spontaneous emission, and stimulated emission.
2) It explains the key components of lasers - the active medium, pumping mechanism, and optical resonator.
3) It provides examples of different types of lasers, including ruby, He-Ne, and semiconductor lasers, and describes their workings.
4) It discusses applications of lasers in various fields such as industry, medicine, communications, defense, and more.
Phy lasers
This document provides an overview of different types of lasers and their applications. It discusses solid state lasers like ruby lasers, gaseous lasers like He-Ne lasers, and semiconductor lasers like Ga-As lasers. For each laser, it describes the active medium, construction, pumping mechanism, working principle, and some applications. Ruby lasers were historically used for applications like holography and tattoo removal. He-Ne lasers emit red light at 632nm and are used in applications like bar code scanners and holography. Semiconductor lasers like Ga-As lasers are compact, efficient sources used in devices like DVD players, fiber optic networks, and laser printers.
Laser
The document discusses lasers, providing details on:
1. How lasers work through the process of stimulated emission of radiation, using a pumping mechanism to create population inversion in the active medium.
2. The key characteristics of laser light being monochromatic, coherent, and highly directional.
3. Examples of common laser types like Ruby and Nd:YAG lasers, describing their construction and working.
4. Applications of lasers in various fields like industry, medicine, communication, and more.
LASER CO2 and Nd:YAG
This presentation only shows the description of carbon dioxide
and neodymium : yttrium aluinium garnet.
Lasers.pptx
This document provides information about lasers and optical fibers. It begins with definitions of lasers and describes the characteristics of laser light such as monochromaticity, directionality, coherence and brightness. It then discusses population inversion and the basic requirements for a laser system including the pumping system, active medium and optical resonator. Specific laser types are described like ruby lasers, He-Ne lasers and semiconductor lasers. Optical fibers are also summarized, including their construction, principles of total internal reflection, acceptance angle, numerical aperture and types such as step-index and graded-index fibers.
xray diffraction instrumentation
This document describes the key components and functioning of instrumentation used in x-ray diffraction. The main components are a radiation source like an x-ray tube, a collimator to narrow the beam, a monochromator to remove unwanted radiation, detectors like photographic film or counters, and associated electronics. X-ray tubes generate x-rays via the impact of electrons on a metal target. Collimators and monochromators shape and refine the x-ray beam before it interacts with the sample. Detectors then measure the diffraction pattern, with options including film, Geiger-Muller tubes, proportional counters, scintillators, and semiconductors.
presentation on Nd-YAG laser Applied Physics
The Nd:YAG laser uses a neodymium-doped yttrium aluminum garnet crystal as its gain medium, which produces light at a wavelength of 1064 nm when optically pumped. It was the first laser used for urological procedures due to its reduced absorption by water and tissue, allowing for penetration depths of 5-10 mm. It works as a four-level solid state laser system, where neodymium ions in the yttrium aluminum garnet host material act as the active centers. When pumped by a flashlamp, electrons in the neodymium ions are excited to a higher energy level and undergo stimulated emission to produce coherent laser light, which can be used for applications such as
Laser And It's Application
Full Presentation On Laser.
types of laser
levels of laser
optical pumping
direct and indirect pumping
Lasers
This document summarizes the history and uses of lasers in dentistry. It discusses how lasers work through processes like stimulated emission and outlines the active mediums and components of different laser types. It describes common dental lasers like CO2, diode, Nd:YAG and Er:YAG lasers and their applications. These include soft tissue procedures, caries detection and removal, periodontal therapy, implant treatment, bleaching and more. Precautions, advantages and disadvantages of each laser are also summarized.
Laser
Introduction Laser
And Gas laser :
He NE laser
Carbon dioxide gas laser
Nitrogen gas Laser
Argon gas laser
B.tech sem i engineering physics u ii chapter 2-laser
The document provides information about LASER (Light Amplification by Stimulated Emission of Radiation). It discusses the principle of LASER including absorption, spontaneous emission, stimulated emission and population inversion. It describes the key characteristics of laser light such as coherence, high intensity, high directionality and monochromaticity. It also discusses different types of lasers including solid (ruby), liquid and gas (He-Ne, CO2) lasers. Specific details provided include the construction and working of ruby and He-Ne lasers.
Lasers
Lasers operate by stimulating emission of radiation from their active medium. They produce coherent, monochromatic, collimated light beams. The first laser was created in 1960 using a ruby crystal as the active medium. Lasers have revolutionized science, technology and medicine with applications such as optical fiber communications, laser eye surgery, barcode scanners, laser pointers, Blu-ray players and more. Some key laser components include an energy source to pump the active medium, the active medium itself, and an optical resonator formed by mirrors to provide optical feedback.
Laser and fiber optics
The document discusses lasers, including their characteristics and operation. It describes how lasers work via stimulated emission and population inversion. Nd:YAG lasers are discussed as a common solid-state laser type. Applications of lasers mentioned include medicine, manufacturing, communications, and more.
Similar to Nd YAG laser (20)
N-D YAG LASER.pptx Anand Kumar gupta N-D yag laser
N-D YAG LASER.pptx Anand Kumar gupta N-D yag laser
B.tech sem i engineering physics u ii chapter 2-laser
B.tech sem i engineering physics u ii chapter 2-laser
Recently uploaded
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Simplify your search for a reliable Python development partner! This list presents the top 10 trusted US providers offering comprehensive Python development services, ensuring your project's success from conception to completion.
Best 20 SEO Techniques To Improve Website Visibility In SERP
Boost your website's visibility with proven SEO techniques! Our latest blog dives into essential strategies to enhance your online presence, increase traffic, and rank higher on search engines. From keyword optimization to quality content creation, learn how to make your site stand out in the crowded digital landscape. Discover actionable tips and expert insights to elevate your SEO game.
National Security Agency - NSA mobile device best practices
Threats to mobile devices are more prevalent and increasing in scope and complexity. Users of mobile devices desire to take full advantage of the features
available on those devices, but many of the features provide convenience and capability but sacrifice security. This best practices guide outlines steps the users can take to better protect personal devices and information.
Fueling AI with Great Data with Airbyte Webinar
This talk will focus on how to collect data from a variety of sources, leveraging this data for RAG and other GenAI use cases, and finally charting your course to productionalization.
Programming Foundation Models with DSPy - Meetup Slides
Prompting language models is hard, while programming language models is easy. In this talk, I will discuss the state-of-the-art framework DSPy for programming foundation models with its powerful optimizers and runtime constraint system.
20240609 QFM020 Irresponsible AI Reading List May 2024
Everything I found interesting about the irresponsible use of machine intelligence in May 2024
June Patch Tuesday
Ivanti’s Patch Tuesday breakdown goes beyond patching your applications and brings you the intelligence and guidance needed to prioritize where to focus your attention first. Catch early analysis on our Ivanti blog, then join industry expert Chris Goettl for the Patch Tuesday Webinar Event. There we’ll do a deep dive into each of the bulletins and give guidance on the risks associated with the newly-identified vulnerabilities.
GraphRAG for Life Science to increase LLM accuracy
GraphRAG for life science domain, where you retriever information from biomedical knowledge graphs using LLMs to increase the accuracy and performance of generated answers
Mind map of terminologies used in context of Generative AI
Mind map of common terms used in context of Generative AI.
Driving Business Innovation: Latest Generative AI Advancements & Success Story
Are you ready to revolutionize how you handle data? Join us for a webinar where we’ll bring you up to speed with the latest advancements in Generative AI technology and discover how leveraging FME with tools from giants like Google Gemini, Amazon, and Microsoft OpenAI can supercharge your workflow efficiency.
During the hour, we’ll take you through:
Guest Speaker Segment with Hannah Barrington: Dive into the world of dynamic real estate marketing with Hannah, the Marketing Manager at Workspace Group. Hear firsthand how their team generates engaging descriptions for thousands of office units by integrating diverse data sources—from PDF floorplans to web pages—using FME transformers, like OpenAIVisionConnector and AnthropicVisionConnector. This use case will show you how GenAI can streamline content creation for marketing across the board.
Ollama Use Case: Learn how Scenario Specialist Dmitri Bagh has utilized Ollama within FME to input data, create custom models, and enhance security protocols. This segment will include demos to illustrate the full capabilities of FME in AI-driven processes.
Custom AI Models: Discover how to leverage FME to build personalized AI models using your data. Whether it’s populating a model with local data for added security or integrating public AI tools, find out how FME facilitates a versatile and secure approach to AI.
We’ll wrap up with a live Q&A session where you can engage with our experts on your specific use cases, and learn more about optimizing your data workflows with AI.
This webinar is ideal for professionals seeking to harness the power of AI within their data management systems while ensuring high levels of customization and security. Whether you're a novice or an expert, gain actionable insights and strategies to elevate your data processes. Join us to see how FME and AI can revolutionize how you work with data!
HCL Notes and Domino License Cost Reduction in the World of DLAU
Webinar Recording: https://www.panagenda.com/webinars/hcl-notes-and-domino-license-cost-reduction-in-the-world-of-dlau/
The introduction of DLAU and the CCB & CCX licensing model caused quite a stir in the HCL community. As a Notes and Domino customer, you may have faced challenges with unexpected user counts and license costs. You probably have questions on how this new licensing approach works and how to benefit from it. Most importantly, you likely have budget constraints and want to save money where possible. Don’t worry, we can help with all of this!
We’ll show you how to fix common misconfigurations that cause higher-than-expected user counts, and how to identify accounts which you can deactivate to save money. There are also frequent patterns that can cause unnecessary cost, like using a person document instead of a mail-in for shared mailboxes. We’ll provide examples and solutions for those as well. And naturally we’ll explain the new licensing model.
Join HCL Ambassador Marc Thomas in this webinar with a special guest appearance from Franz Walder. It will give you the tools and know-how to stay on top of what is going on with Domino licensing. You will be able lower your cost through an optimized configuration and keep it low going forward.
These topics will be covered
- Reducing license cost by finding and fixing misconfigurations and superfluous accounts
- How do CCB and CCX licenses really work?
- Understanding the DLAU tool and how to best utilize it
- Tips for common problem areas, like team mailboxes, functional/test users, etc
- Practical examples and best practices to implement right away
Essentials of Automations: The Art of Triggers and Actions in FME
In this second installment of our Essentials of Automations webinar series, we’ll explore the landscape of triggers and actions, guiding you through the nuances of authoring and adapting workspaces for seamless automations. Gain an understanding of the full spectrum of triggers and actions available in FME, empowering you to enhance your workspaces for efficient automation.
We’ll kick things off by showcasing the most commonly used event-based triggers, introducing you to various automation workflows like manual triggers, schedules, directory watchers, and more. Plus, see how these elements play out in real scenarios.
Whether you’re tweaking your current setup or building from the ground up, this session will arm you with the tools and insights needed to transform your FME usage into a powerhouse of productivity. Join us to discover effective strategies that simplify complex processes, enhancing your productivity and transforming your data management practices with FME. Let’s turn complexity into clarity and make your workspaces work wonders!
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...Edge AI and Vision Alliance
For the full video of this presentation, please visit: https://www.edge-ai-vision.com/2024/06/building-and-scaling-ai-applications-with-the-nx-ai-manager-a-presentation-from-network-optix/
Robin van Emden, Senior Director of Data Science at Network Optix, presents the “Building and Scaling AI Applications with the Nx AI Manager,” tutorial at the May 2024 Embedded Vision Summit.
In this presentation, van Emden covers the basics of scaling edge AI solutions using the Nx tool kit. He emphasizes the process of developing AI models and deploying them globally. He also showcases the conversion of AI models and the creation of effective edge AI pipelines, with a focus on pre-processing, model conversion, selecting the appropriate inference engine for the target hardware and post-processing.
van Emden shows how Nx can simplify the developer’s life and facilitate a rapid transition from concept to production-ready applications.He provides valuable insights into developing scalable and efficient edge AI solutions, with a strong focus on practical implementation.20240605 QFM017 Machine Intelligence Reading List May 2024
Everything I found interesting about machines behaving intelligently during May 2024
Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays, June 2024 with Maria Copot 20
AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
Imagine a world where machines not only perform tasks but also learn, adapt, and make decisions. This is the promise of Artificial Intelligence (AI), a technology that's not just enhancing our lives but revolutionizing entire industries.
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Discover how MongoDB Atlas and vector search technology can revolutionize your application's search capabilities. This comprehensive presentation covers:
* What is Vector Search?
* Importance and benefits of vector search
* Practical use cases across various industries
* Step-by-step implementation guide
* Live demos with code snippets
* Enhancing LLM capabilities with vector search
* Best practices and optimization strategies
Perfect for developers, AI enthusiasts, and tech leaders. Learn how to leverage MongoDB Atlas to deliver highly relevant, context-aware search results, transforming your data retrieval process. Stay ahead in tech innovation and maximize the potential of your applications.
#MongoDB #VectorSearch #AI #SemanticSearch #TechInnovation #DataScience #LLM #MachineLearning #SearchTechnology
Uni Systems Copilot event_05062024_C.Vlachos.pdf
Unlocking Productivity: Leveraging the Potential of Copilot in Microsoft 365, a presentation by Christoforos Vlachos, Senior Solutions Manager – Modern Workplace, Uni Systems
Recently uploaded (20)
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Best 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERP
National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices
Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides
20240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 2024
GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy
Mind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AI
Driving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success Story
HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU
Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024
AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Nd YAG laser
- 1. Gandhinagar Institute of Technology(012) Active Learning Assignment Subject : Physics(2110011) Topic : ND:YAG laser Branch : Computer Engineering Division : Batch: Enrollment no. : Prepared by : Guided by :

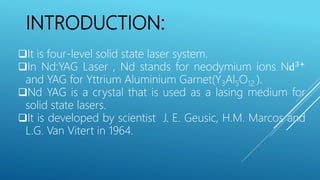

- 2. INTRODUCTION: It is four-level solid state laser system. In Nd:YAG Laser , Nd stands for neodymium ions Nd3+ and YAG for Yttrium Aluminium Garnet(Y3Al5O12 ). Nd YAG is a crystal that is used as a lasing medium for solid state lasers. It is developed by scientist J. E. Geusic, H.M. Marcos and L.G. Van Vitert in 1964.

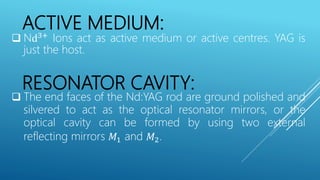

- 3. ACTIVE MEDIUM: Nd3+ Ions act as active medium or active centres. YAG is just the host. RESONATOR CAVITY: The end faces of the Nd:YAG rod are ground polished and silvered to act as the optical resonator mirrors, or the optical cavity can be formed by using two external reflecting mirrors 𝑀1 and 𝑀2.

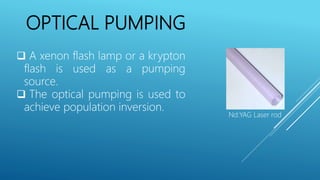

- 4. OPTICAL PUMPING A xenon flash lamp or a krypton flash is used as a pumping source. The optical pumping is used to achieve population inversion. Nd:YAG Laser rod

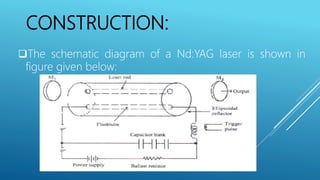

- 5. CONSTRUCTION: The schematic diagram of a Nd:YAG laser is shown in figure given below:

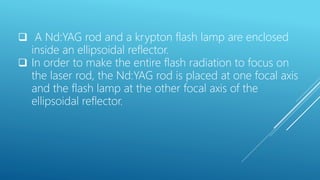

- 6. A Nd:YAG rod and a krypton flash lamp are enclosed inside an ellipsoidal reflector. In order to make the entire flash radiation to focus on the laser rod, the Nd:YAG rod is placed at one focal axis and the flash lamp at the other focal axis of the ellipsoidal reflector.

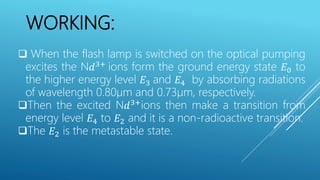

- 7. WORKING: When the flash lamp is switched on the optical pumping excites the N𝑑3+ ions form the ground energy state 𝐸0 to the higher energy level 𝐸3 and 𝐸4 by absorbing radiations of wavelength 0.80µm and 0.73µm, respectively. Then the excited N𝑑3+ ions then make a transition from energy level 𝐸4 to 𝐸2 and it is a non-radioactive transition. The 𝐸2 is the metastable state.
- 8. Upon continues excitation, population inversion of N𝑑3+ ions is achieved at the metastable state 𝐸2. Any of the spontaneously emitted photon will make the excited N 𝑑3+ ions to undergo a transition between 𝐸2 𝑡𝑜 𝐸1 state and during this the stimulated photon is generated. The photons travelling parallel to the resonator axis experience multiple reflections at the mirrors. As a result, the transition 𝐸2 to 𝐸1 yields an intense and coherent laser beam of wavelength 1.064μm.

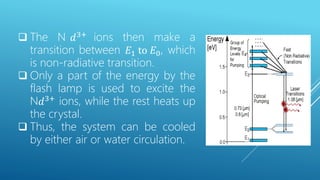

- 9. The N 𝑑3+ ions then make a transition between 𝐸1 to 𝐸0, which is non-radiative transition. Only a part of the energy by the flash lamp is used to excite the N𝑑3+ ions, while the rest heats up the crystal. Thus, the system can be cooled by either air or water circulation.

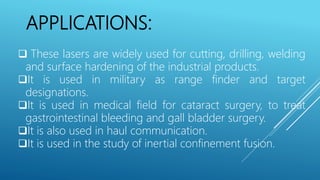

- 10. APPLICATIONS: These lasers are widely used for cutting, drilling, welding and surface hardening of the industrial products. It is used in military as range finder and target designations. It is used in medical field for cataract surgery, to treat gastrointestinal bleeding and gall bladder surgery. It is also used in haul communication. It is used in the study of inertial confinement fusion.
